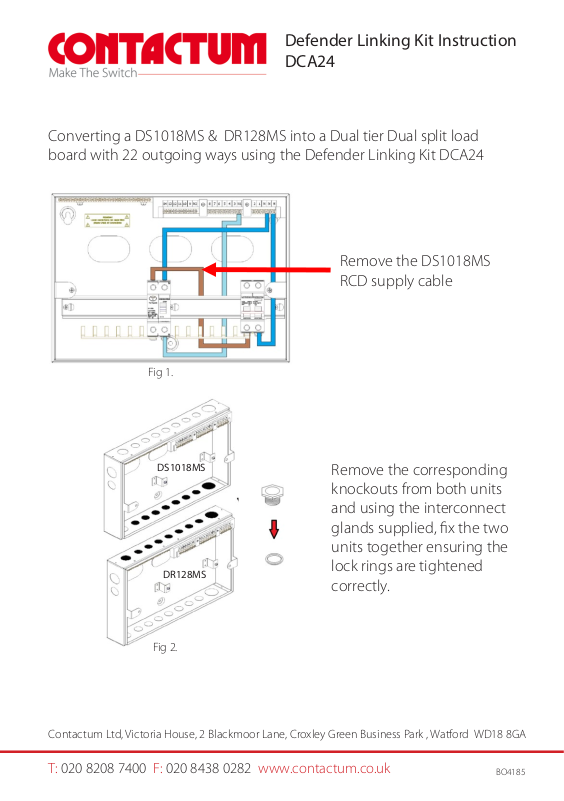

Defender Linking Kit Instruction
DCA24
Converting a DS1018MS & DR128MS into a Dual tier Dual split load
board with 22 outgoing ways using the Defender Linking Kit DCA24
Remove the DS1018MS
RCD supply cable

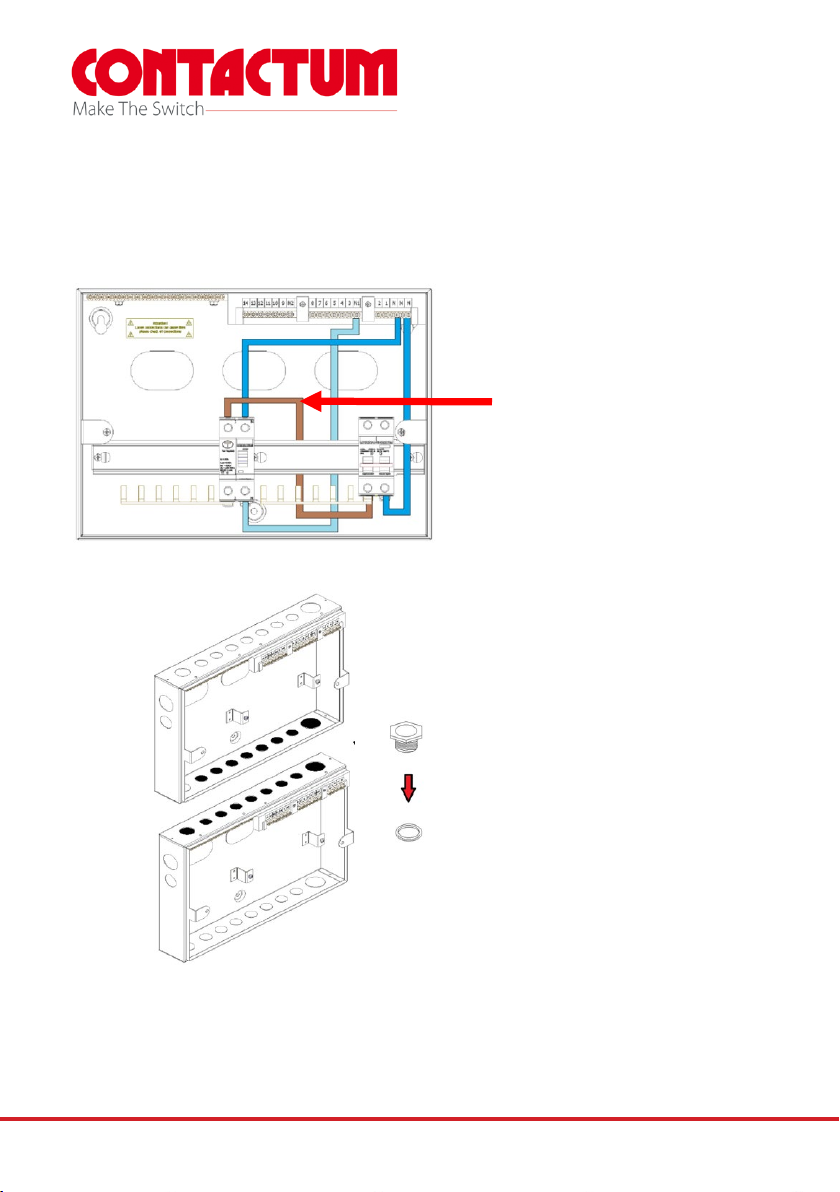

Fig 1.
DS1018MS
Remove the corresponding
knockouts from both units
and using the interconnect
glands supplied, fix the two
units together ensuring the
DR128MS
lock rings are tightened
correctly.
Fig 2.
Contactum Ltd, Victoria House, 2 Blackmoor Lane, Croxley Green Business Park , Watford WD18 8GA
T: 020 8208 7400 F: 020 8438 0282 www.contactum.co.uk
BO4185
Page 2
Defender Linking Kit Instruction
DCA24
Converting a DS1018MS & DR128MS into a Dual tier Dual split load
board with 22 outgoing ways using the Defender Linking Kit DCA24
Once the units are fitted
together, using the cable
set supplied, install the wire

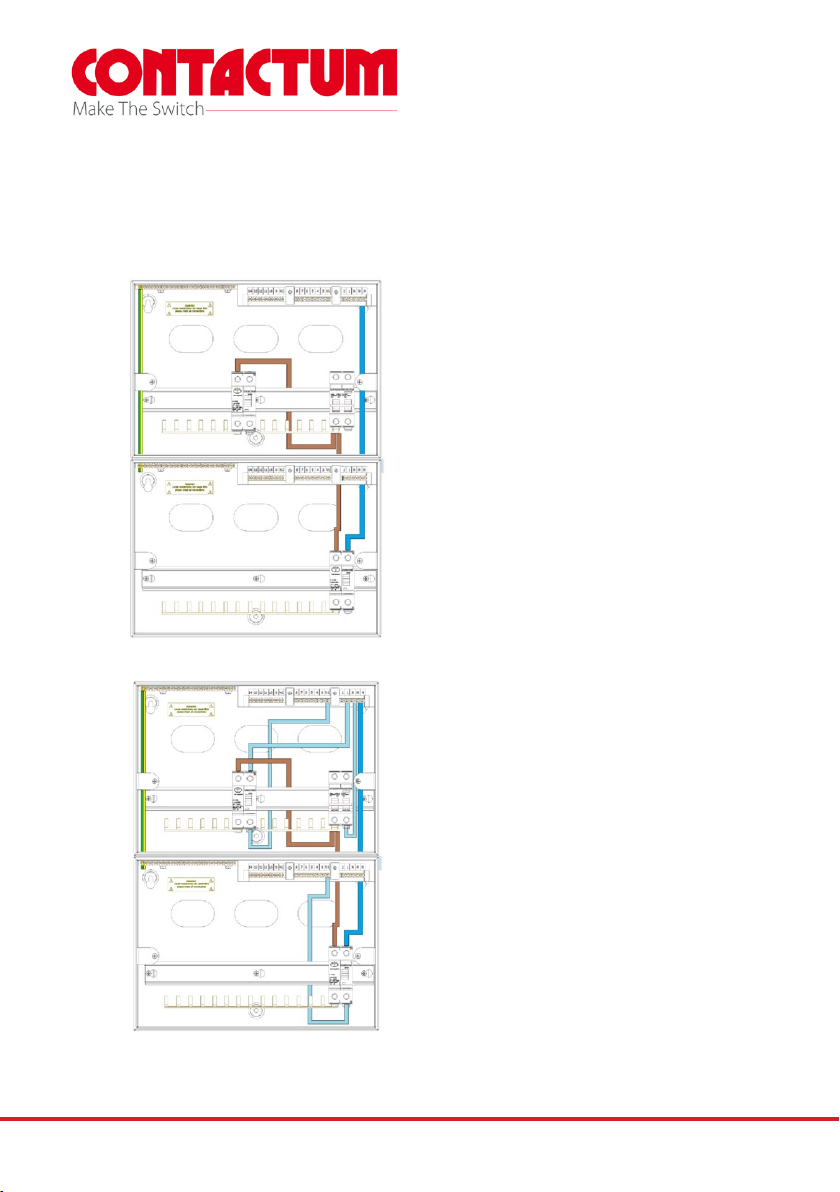

interlinks as per Fig 3.
Fig 3.
Check and confirm the two
units complete wiring is
correct as per Fig 4.
Ensuring all connections
are tightened to the correct
torque
Fig 4.
