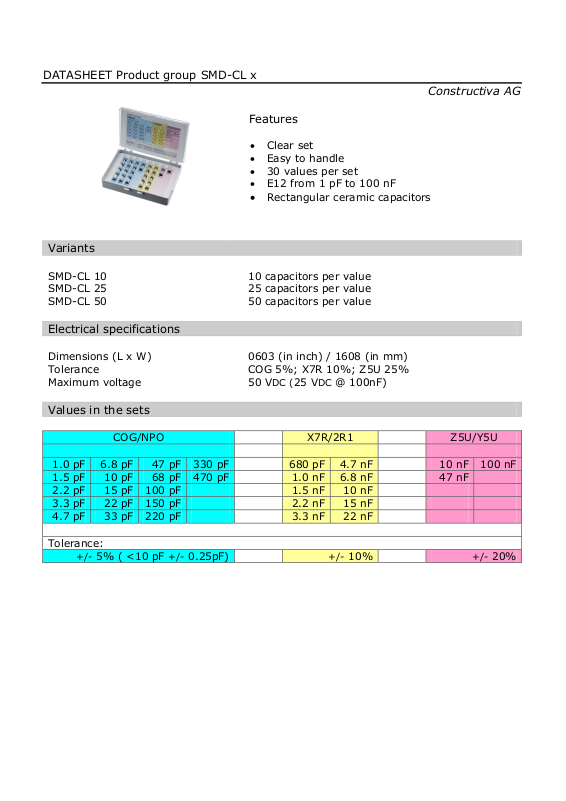

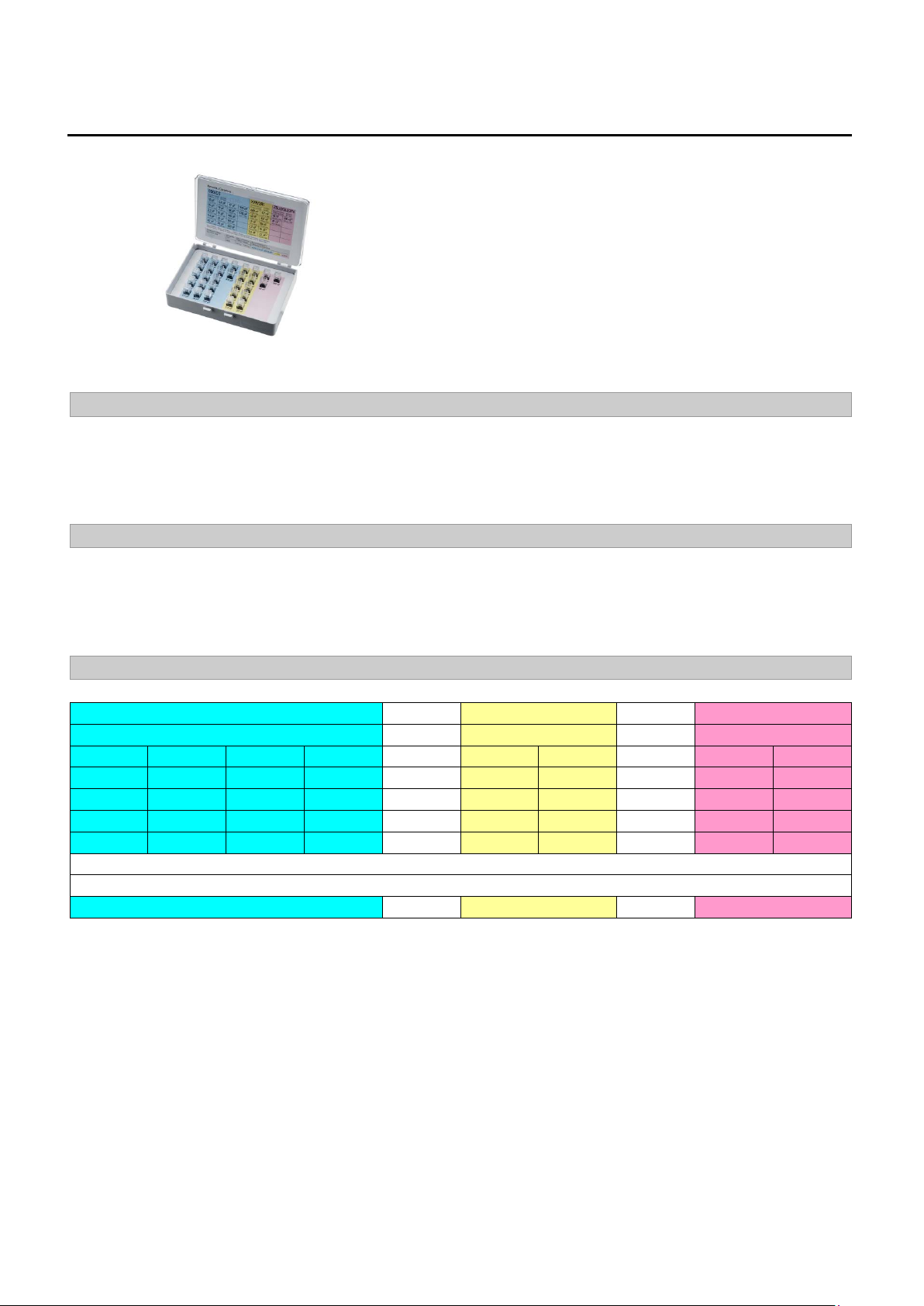

DATASHEET Product group SMD-CL x
Features
Clear set
Easy to handle
30 values per set
E12 from 1 pF to 100 nF
Rectangular ceramic capacitors
Variants
SMD-CL 10
10 capacitors per value
SMD-CL 25
25 capacitors per value
SMD-CL 50
50 capacitors per value
Electrical specifications
Dimensions (L x W)
Tolerance
Maximum voltage
0603 (in inch) / 1608 (in mm)
COG 5%; X7R 10%; Z5U 25%
50 VDC (25 VDC @ 100nF)
Values in the sets
COG/NPO
X7R/2R1
Z5U/Y5U
1.0 pF
6.8 pF
47 pF
330 pF
680 pF
4.7 nF
10 nF
100 nF
1.5 pF
10 pF
68 pF
470 pF
1.0 nF
6.8 nF
47 nF
2.2 pF
15 pF
100 pF
1.5 nF
10 nF
3.3 pF
22 pF
150 pF
2.2 nF
15 nF
4.7 pF
33 pF
220 pF
3.3 nF
22 nF
Tolerance:
+/- 5% ( <10 pF +/- 0.25pF)
+/- 10%
+/- 20%
Constructiva AG
Page 2

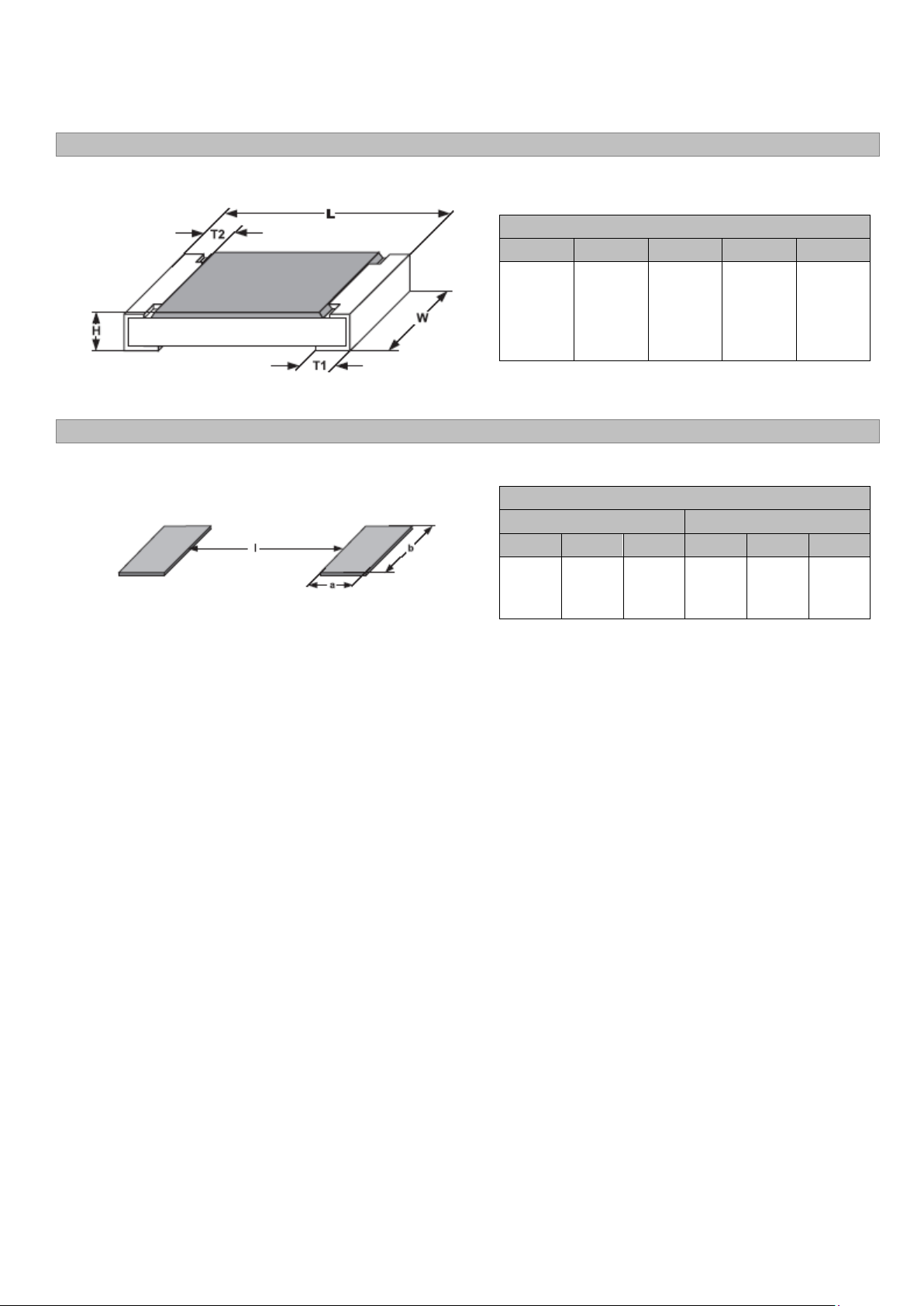

Dimensions of the capacitor
Dimensions [ in mm ]
L W H
T1
T2
1.55
+ 0.10
- 0.05
0.85
+ 0.1
- 0.1
0.45
+ 0.05
- 0.05
0.3
+ 0.2
- 0.2
0.3
+ 0.2
- 0.2
Dimensions of the pads
Dimensions [ in mm ]
Reflow
Wave
a b l a b
l
0.5
0.9
1.0
0.9
0.9
1.0
