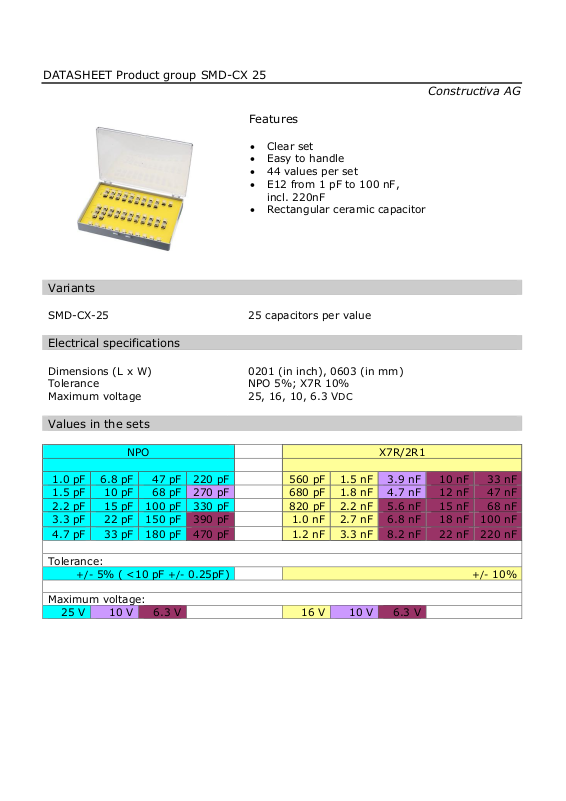

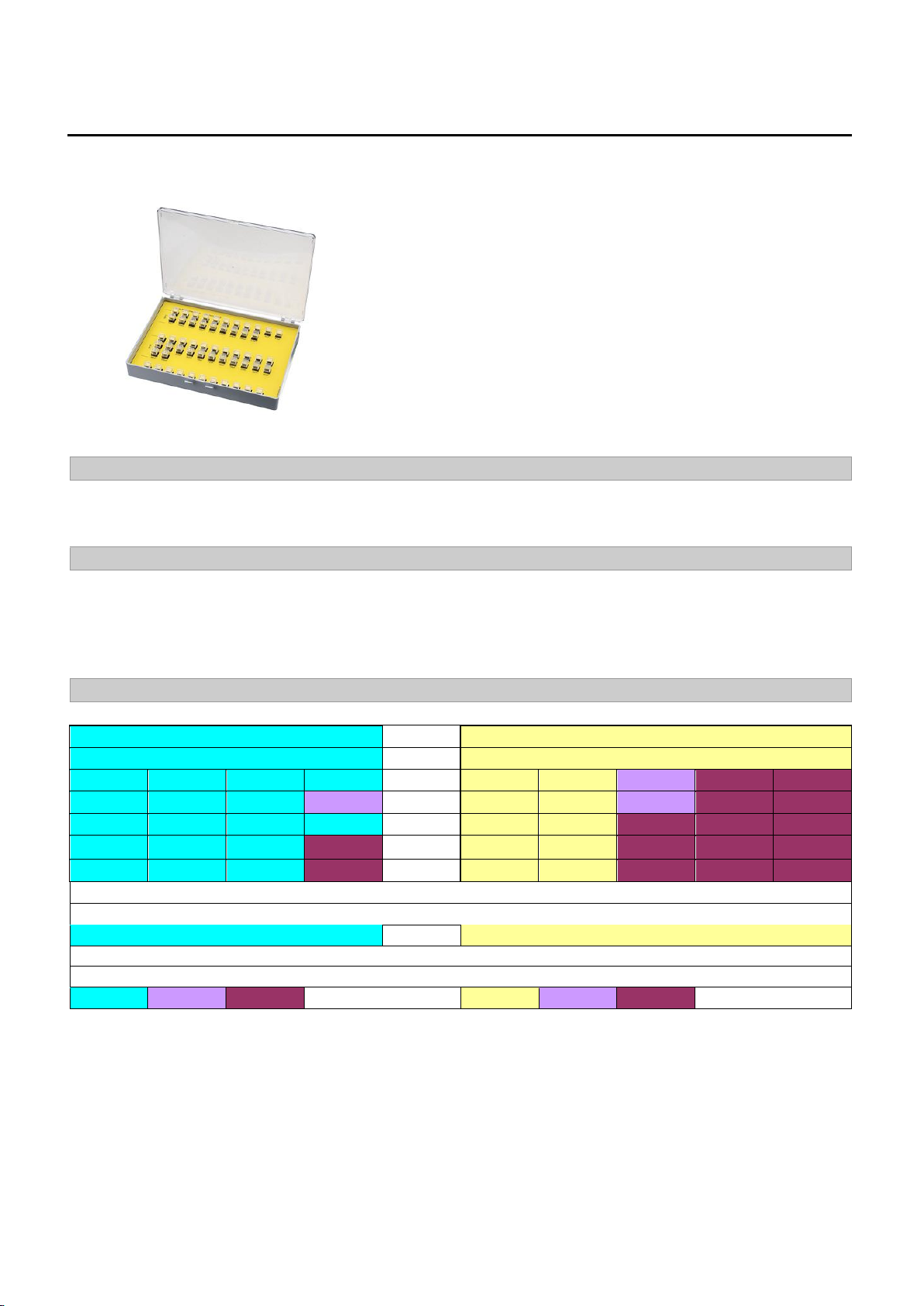

DATASHEET Product group SMD-CX 25
Constructiva AG
Features
Clear set
Easy to handle
44 values per set
E12 from 1 pF to 100 nF,
incl. 220nF
Rectangular ceramic capacitor
Variants
SMD-CX-25
25 capacitors per value
Electrical specifications
Dimensions (L x W)
Tolerance
Maximum voltage
0201 (in inch), 0603 (in mm)
NPO 5%; X7R 10%
25, 16, 10, 6.3 VDC
Values in the sets
NPO X7R/2R1
1.0 pF
6.8 pF
47 pF
220 pF
560 pF
1.5 nF
3.9 nF
10 nF
33 nF
1.5 pF
10 pF
68 pF
270 pF
680 pF
1.8 nF
4.7 nF
12 nF
47 nF
2.2 pF
15 pF
100 pF
330 pF
820 pF
2.2 nF
5.6 nF
15 nF
68 nF
3.3 pF
22 pF
150 pF
390 pF
1.0 nF
2.7 nF
6.8 nF
18 nF
100 nF
4.7 pF
33 pF
180 pF
470 pF
1.2 nF
3.3 nF
8.2 nF
22 nF
220 nF
Tolerance:
+/- 5% ( <10 pF +/- 0.25pF) +/- 10%
Maximum voltage:
25 V
10 V
6.3 V
16 V
10 V
6.3 V
Page 2

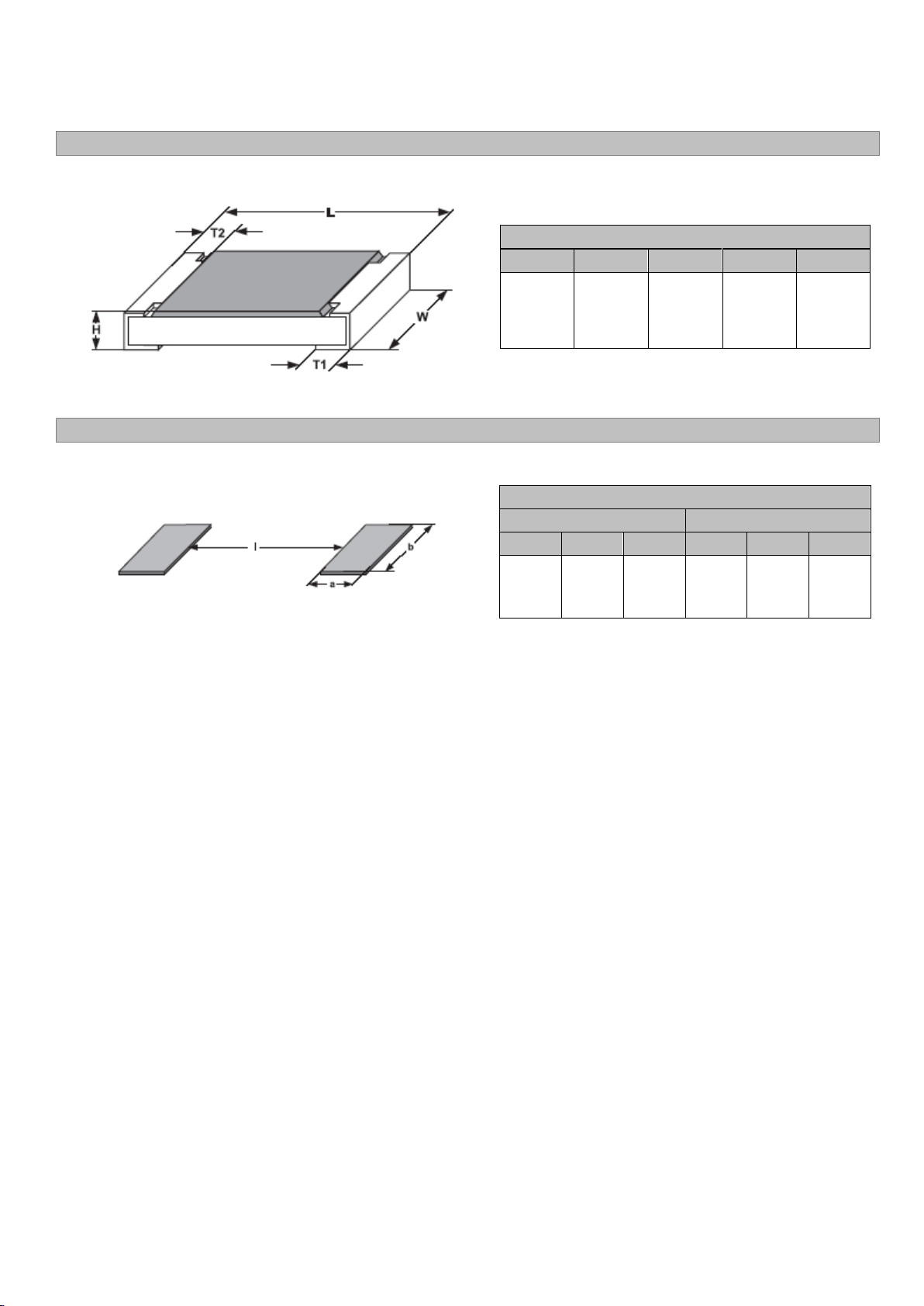

Dimensions of the capacitor
Dimensions [ in mm ]
L W H
T1
T2 0.6
0.3
0.2
0.15
0.15
+ 0.1
- 0.05
+ 0.1
- 0.1
+ 0.05
- 0.05
+ 0.05
- 0.05
+ 0.05
- 0.05
Dimensions of the pads
Dimensions [ in mm ]
Reflow
Wave
a b l a b
l
0.28
0.43
0.23
0.28
0.43
0.23
