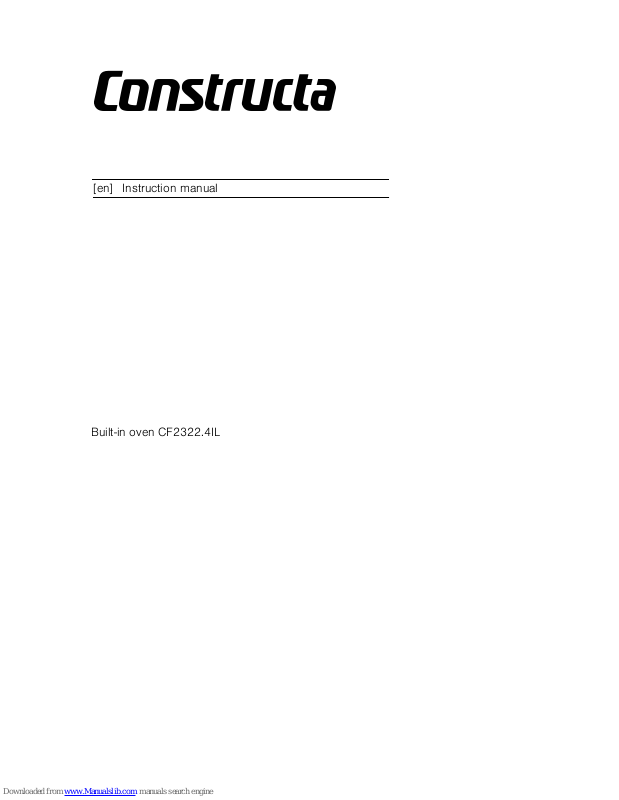

[en] Instruction manual
Built-in oven CF2322.4IL
2
Ú Table of contents
[en]Instruction manual
Important safety information .................................................... 2
Environmentally-friendly disposal ........................................... 3
Your new appliance ................................................................... 4
Your accessories ....................................................................... 5
Before using the appliance for the first time........................... 5
Operating the appliance ............................................................ 6
Electronic clock ......................................................................... 6
Baking......................................................................................... 8
Roasting.................................................................................... 11
Grilling ...................................................................................... 13
Defrost ...................................................................................... 14
Yoghurt ..................................................................................... 14
Cleaning and care.................................................................... 15
Faults and repairs.................................................................... 17
Test dishes ............................................................................... 18
: Important safety information
Read these instructions carefully. Only then
will you be able to operate your appliance
safely and correctly. Retain the instruction
manual and installation instructions for
future use or for subsequent owners.
This appliance is only intended to be fully
fitted in a kitchen. Observe the special
installation instructions.
Check the appliance for damage after
unpacking it. Do not connect the appliance
if it has been damaged in transport.
Only a licensed professional may connect
appliances without plugs. Damage caused
by incorrect connection is not covered
under warranty.
This appliance is intended for domestic use
only. The appliance must only be used for
the preparation of food and drink. The
appliance must be supervised during
operation. Only use this appliance indoors.
This appliance is intended for use up to a
maximum height of 2000 metres above sea
level.
This appliance may be used by children
over the age of 8 years old and by persons
with reduced physical, sensory or mental
capabilities or by persons with a lack of
experience or knowledge if they are
supervised or are instructed by a person
responsible for their safety how to use the
appliance safely and have understood the
associated hazards.
Children must not play with, on, or around
the appliance. Children must not clean the
appliance or carry out general maintenance
unless they are at least 8 years old and are
being supervised.
Keep children below the age of 8 years old
at a safe distance from the appliance and
power cable.
Always slide accessories into the cooking
compartment correctly. See "Description of
accessories in the instruction manual.
Risk of fire!
■
Combustible items stored in the cooking
compartment may catch fire. Never store
combustible items in the cooking
compartment. Never open the appliance
door if there is smoke inside. Switch off
the appliance and unplug it from the
mains or switch off the circuit breaker in
the fuse box.
Risk of fire!
■
A draught is created when the appliance
door is opened. Greaseproof paper may
come into contact with the heating
element and catch fire. Do not place
greaseproof paper loosely over
accessories during preheating. Always
weight down the greaseproof paper with a
dish or a baking tin. Only cover the
surface required with greaseproof paper.
Greaseproof paper must not protrude over
the accessories.
Risk of burns!
■
The appliance becomes very hot. Never
touch the interior surfaces of the cooking
compartment or the heating elements.
Always allow the appliance to cool down.
Keep children at a safe distance.
Risk of serious burns!
■
Accessories and ovenware become very
hot. Always use oven gloves to remove
accessories or ovenware from the cooking
compartment.
Risk of burns!
■
Alcoholic vapours may catch fire in the hot
cooking compartment. Never prepare food
containing large quantities of drinks with a
high alcohol content. Only use small
quantities of drinks with a high alcohol
content. Open the appliance door with
care.
3
Risk of scalding!
■
The accessible parts become hot during
operation. Never touch the hot parts. Keep
children at a safe distance.
Risk of scalding!
■
When you open the appliance door, hot
steam may escape. Open the appliance
door with care. Keep children at a safe
distance.
Risk of scalding!
■
Water in a hot cooking compartment may
create hot steam. Never pour water into
the hot cooking compartment.
Risk of injury!
Scratched glass in the appliance door may
develop into a crack. Do not use a glass
scraper, sharp or abrasive cleaning aids or
detergents.
Risk of electric shock!
■
Incorrect repairs are dangerous. Repairs
may only be carried out by one of our
trained after-sales engineers. If the
appliance is faulty, unplug the mains plug
or switch off the fuse in the fuse box.
Contact the after-sales service.
Risk of electric shock and serious injury!
■
The cable insulation on electrical
appliances may melt when touching hot
parts of the appliance. Never bring
electrical appliance cables into contact
with hot parts of the appliance.
Risk of electric shock!
■
Do not use any high-pressure cleaners or
steam cleaners, which can result in an
electric shock.
Risk of electric shock!
■
When replacing the cooking compartment
bulb, the bulb socket contacts are live.
Before replacing the bulb, unplug the
appliance from the mains or switch off the
circuit breaker in the fuse box.
Risk of electric shock!
■
A defective appliance may cause electric
shock. Never switch on a defective
appliance. Unplug the appliance from the
mains or switch off the circuit breaker in
the fuse box. Contact the after-sales
service.
Causes of damage
Caution!
■ Accessories, foil, greaseproof paper or ovenware on the
cooking compartment floor: do not place accessories on the
cooking compartment floor. Do not cover the cooking
compartment floor with any sort of foil or greaseproof paper.
Do not place ovenware on the cooking compartment floor if a
temperature of over 50 ºC has been set. This will cause heat
to accumulate. The baking and roasting times will no longer
be correct and the enamel will be damaged.
■ Water in a hot cooking compartment: do not pour water into
the cooking compartment when it is hot. This will cause
steam. The temperature change can cause damage to the
enamel.
■ Moist food: do not store moist food in the cooking
compartment when it is closed for prolonged periods This will
damage the enamel.
■ Fruit juice: when baking particularly juicy fruit pies, do not
pack the baking tray too generously. Fruit juice dripping from
the baking tray leaves stains that cannot be removed. If
possible, use the deeper universal pan.
■ Cooling with the appliance door open: only allow the cooking
compartment to cool when it is closed. Even if the appliance
door is only open a little, front panels of adjacent units could
be damaged over time.
■ Very dirty door seal: If the door seal is very dirty, the
appliance door will no longer close properly when the
appliance is in use. The fronts of adjacent units could be
damaged.Always keep the door seal clean.
■ Appliance door as a seat, shelf or worktop: Do not sit on the
appliance door, or place or hang anything on it. Do not place
any cookware or accessories on the appliance door.
■ Inserting accessories: depending on the appliance model,
accessories can scratch the door panel when closing the
appliance door. Always insert the accessories into the
cooking compartment as far as they will go.
■ Carrying the appliance: do not carry or hold the appliance by
the door handle. The door handle cannot support the weight
of the appliance and could break.
Environmentally-friendly disposal
Dispose of packaging in an environmentally-friendly manner.
The directive gives a framework for the collection and recycling
of old appliances, which is valid across the EU.
This appliance is labelled in accordance with European
Directive 2002/96/EC on Waste Electrical and Electronic
Equipment WEEE.
4
Your new appliance
In this section, you will find information about the appliance.
Control panel
Press the retractable control knob to pop it in or out.
Operating modes
Control element Use
Oven
1 Operating mode selector Selects operating mode (see section: Operating the appliance)
5 r Temperature selector indicator
light
The indicator light lights up when the appliance is heating up and during any subsequent heating
6 Temperature selector Selects a temperature
Electronic clock
2 Clock display The time of day or clock function is displayed
3 KJ Clock function button Selects the clock function (see section: Electronic clock)
4 Rotary selector Makes settings within a clock function
Operating mode Use
3
Hot air For baking and roasting on one or two levels
%
Top/bottom heat For baking and roasting on one level. Ideal for cakes with moist toppings
(e.g. cheesecake)
0
Circotherm intensive For frozen convenience products and for dishes that require a lot of heat from under-
neath (see section: Baking)
4
All-round grilling For poultry and larger pieces of meat
+
Full-surface grill For flat, small items for grilling (e.g. steaks, sausages)
(
Centre-area grill For small amounts of flat, small items for grilling (e.g. steaks, bread)
$
Bottom heat For food and baked goods which should form a crust or which require more browning on
the underside. Switch on "Bottom heat" at the end of the baking time for a brief period
only
A
Defrost For gentle defrosting of pieces of meat, bread and delicate desserts (e.g. cream gateau)
\
Light Helps with the care and cleaning of the cooking compartment
5
Your accessories
In this section, you will find information on
■ Your accessories
■ the correct way to insert the accessories into the cooking
compartment
■ the shelf positions
■ the optional accessories
Accessories
The following accessories are included with your appliance:
Note: The baking tray and universal pan may become distorted
when the appliance is in operation. This is caused by the
considerable temperature differences acting on the
accessories. These differences may occur if only a part of the
accessory is covered with food, or if frozen items such as pizza
are placed on the accessory.
Inserting accessories
The accessories are equipped with a locking function. The
locking function prevents the accessories from tilting when they
are pulled out. The accessories must be inserted into the
cooking compartment correctly for the tilt protection to work
properly.
When inserting the wire rack, check
■ that the lug (a) is pointing downwards
■ that the lug (a) is in the rear part of the wire rack
When inserting the baking tray or the universal pan, check
■ that the lug (a) is in the rear part of the of the accessory
■ that the sloping edge of the accessory faces towards the
appliance door when it is inserted
Shelf heights
The cooking compartment has four shelf heights. The shelf
heights are counted from the bottom up.
Do not use shelf height 2 when baking and roasting with 3 Hot
air. This will adversely affect air circulation and your baking and
roasting results will not be as good.
Optional accessories
You can purchase optional accessories from the after-sales
service or specialist retailers.
Before using the appliance for the first time
Set the clock and clean your appliance before first use.
Setting the clock
Note: When you press the KJ clock function button, you have
3 seconds to set the clock using the rotary selector. Should this
have been insufficient for you, you can amend the clock time
later.
‹:‹‹ flashes in the clock display.
1. Briefly press the KJ clock function button to go to the
setting mode.
The KJ and 3 symbols light up. ‚ƒ:‹‹ appears in the clock
display.
2. Set the current time using the rotary selector.
Your setting is accepted after 3 seconds.
Baking tray, enamelled
for baking tray bakes and small
items
Wire rack
for baking in baking tins, roasting in
roasting dishes and grilling
Universal pan, enamelled
for baking moist cakes, roasting,
grilling and collecting drops of
liquid during cooking
D
D
Accessories Order no.
Baking tray, aluminium CZ 1332 X0
Baking tray, enamelled CZ 1342 X0
Universal pan with wire insert CZ 1242 X1
Wire insert for roasting and grilling, to be
used in the universal pan
740766
Baking and roasting wire rack CZ 1432 X1
Pizza tray CZ 1352 X0
System steamer CZ 1282 X3
Telescopic shelf x2 CZ 1702 X2
Telescopic shelf x3 CZ 1742 X2
Telescopic shelf with full extension x4 CZ 1755 X2
D
D
6
Changing the clock
To subsequently change the time, press the KJclock function
button repeatedly until the KJ and 3 symbols light up again.
Change the time with the rotary selector.
Cleaning the appliance
Clean your appliance before using it for the first time.
1. Remove accessories and any remaining packaging from the
cooking compartment.
2. Clean the accessories and cooking compartment with hot
soapy water (see section: Cleaning and care).
3. Heat with % Top/bottom heat at 240°C for 60 minutes.
4. Afterwards, wipe the cooled cooking compartment with hot,
soapy water.
5. Clean the outside of the appliance with a soft, damp cloth
and soapy water.
Operating the appliance
In this section, you will find out how to switch your appliance on
and off, and how to select an operating mode and temperature.
Switching on the appliance
1. Turn the operating mode selector until the desired operating
mode is selected.
2. Turn the temperature selector until the desired temperature is
selected.
The r indicator lamp lights up while the appliance is heating
up and during any subsequent heating.
Switching off the appliance
1. Turn the operating mode selector back to the Û position.
2. Turn the temperature selector back to the Ú position.
After the appliance is switched off, the cooling fan may
continue to run.
Electronic clock
In this section, you can read about
■ how to set the timer
■ how to switch your appliance off automatically (cooking time
and end of operation)
■ how to switch your appliance on and off automatically (preset
operation)
■ how to set the time
Clock display
Notes
■ Between the times ƒƒ:‹‹ and †:†Š the clock display is
dimmed if you do not make any settings in that period or no
clock function is activated.
■ When you set a clock function, the time interval increases
when you set higher values (e.g. cooking time up to‚:‹‹œ to
the minute, using ‚:‹‹œ
to the nearest 5 minutes).
■ For the Q minute minder, x cooking time, y end of
operation and preselection mode clock functions, a signal
sounds when the settings have elapsed and the Q or y
&ORFNIXQFWLRQEXWWRQ 5RWDU\VHOHFWRU
Clock function Use
Q Minute minder You can use the minute minder as an egg timer or a kitchen timer. The appliance does
not switch on or off automatically
x Cooking time The appliances switches off automatically after a cooking time setting has elapsed
(e.g. ‚:„‹ hours)
y End of operation The appliance switches off automatically at a set time (e.g. ‚ƒ:„‹ o'clock)
Preset operation The appliance switches on and off automatically. Cooking time and end of operation
have been combined.
3 Clock Setting the clock
7
symbol flashes. To cancel the audible signal before it ends,
press the KJ clock function button.
■ Briefly press the KJ clock function button to select a clock
function. You then have 3 seconds to set the selected clock
function. After this time, the setting mode is exited
automatically.
Switching the clock display on and off
1. Press and hold the KJclock function button for 6 seconds.
The clock display switches off. If a clock function is active,
the associated symbol remains lit.
2. Press the KJclock function button briefly.
The clock display switches on.
Timer
1. Press the KJclock function button repeatedly until the KJ
and Q symbols light up.
2. Set the duration using the rotary selector (e.g. †:‹‹ minutes).
The setting is applied automatically. Then the clock is
displayed again and the minute minder starts counting down.
Cooking time
Automatic switch-off after a cooking time setting has elapsed.
1. Set the operating mode and temperature.
The appliance heats up.
2. Press the KJclock function button repeatedly until
the KJand x symbols light up.
3. Set the cooking time with the rotary selector
(e.g. ‚:„‹ hours).
The setting is applied automatically. The time is then
displayed again and the set cooking time counts down.
Once the cooking time has elapsed, the appliance switches off
automatically.
1. Turn the operating mode and temperature selector back to
the Û position.
2. Press the KJ clock function button to exit the clock function.
End of operation
Automatic switch-off at a set time.
1. Set the operating mode and temperature.
The appliance heats up.
2. Press the KJclock function button repeatedly until the KJ
and y symbols light up.
3. Set the end of operation using the rotary selector
(e.g. ‚ƒ:„‹ o'clock).
The setting is applied automatically. The clock is then
displayed again.
The appliance switches off automatically at the time set for the
end of operation.
1. Turn the operating mode and temperature selector back to
the Û position.
2. Press the KJ clock function button to exit the clock function.
Preset operation
The appliance switches on automatically, then switches off
automatically at the time preselected for the end of operation.
To set this function, combine the cooking time and end of
operation clock functions.
Bear in mind that food which spoils easily should not be left in
the cooking compartment for too long.
1. Set the operating mode and temperature.
The appliance heats up.
2. Press the KJclock function button repeatedly until
the KJand x symbols light up.
3. Set the cooking time with the rotary selector
(e.g. ‚:„‹ hours).
The setting is applied automatically.
4. Press the KJclock function button repeatedly until
the KJand y symbols light up.
5. Set the end of operation using the rotary selector
(e.g. ‚ƒ:„‹ o'clock).
The appliance switches off and waits until the appropriate
time to switch on (‚‚:‹‹ in the example). The appliance
switches off automatically at the time set for the end of
operation (‚ƒ:„‹ ).
6. Turn the operating mode and temperature selector back to
the Û position.
7. Press the KJ clock function button to exit the clock function.
Setting the clock
You can only change the clock when no other clock function is
active.
1. Press the KJ clock function button repeatedly until
the KJand 3 symbols light up.
2. Set the clock using the rotary selector.
The setting is applied automatically.
8
Checking, correcting or deleting settings
1. To check your settings, press the KJ clock function button
repeatedly until the corresponding symbol lights up.
2. If necessary, you can correct your setting using the rotary
selector.
3. If you wish to cancel your setting, turn the rotary selector anti-
clockwise to the original value.
Baking
Do not use shelf height 2 when baking with the 3 Hot air
operating mode. The air circulation would be impaired and this
will have a negative effect on your baking.
Baking accessories
Baking tins
Use dark-coloured metal baking tins. Tinplate and glass dishes
increase the baking time required and the cake will not brown
evenly. If you wish to bake using tinplate tins and % Top/
bottom heat, you should use shelf height 1.
Always place a loaf tin diagonally and a round baking tin in the
centre of the wire rack.
Baking trays
We recommend that you only use original baking trays, as
these have been optimally designed for the cooking
compartment and the operating modes.
Always carefully push the baking trays in as far as they will go.
Make sure that the sloping edge of the baking tray is facing the
appliance door.
Baking on two or more levels
If you are baking on several levels, you should preferably use
baking trays and insert these at the same time.
Bear in mind that your items may brown at different rates on
each level. The items on the top level will brown more quickly
and can be taken out earlier.
If you wish to bake on two levels using a baking tray and a
universal pan, you should insert the baking tray at shelf
height 3 and the universal pan at shelf height 1.
Baking table for basic doughs/cake mixtures
The values in the table are guidelines and apply to enamelled
baking trays and dark baking tins. The values may vary
depending on the type and amount of dough/mixture and on
the baking tin.
The values for bread dough apply to both dough placed on a
tray and dough placed in a loaf tin.
We recommend that you set the lower of the specified
temperatures the first time. Lower temperatures will generally
allow more even browning.
If you are baking according to your own recipe, use similar
recipes in the table as a guide.
Observe the notes in the table about preheating.
Hot air 3 Top/bottom heat %
Basic dough Shelf posi-
tion
Tempera-
ture in °C
Baking time in
minutes
Shelf posi-
tion
Tempera-
ture in °C
Sponge
Tray bake with topping 1 160 - 170 30 - 45 3 170 - 180
1 + 3 150 - 160 40 - 50 - -
Springform cake tin/loaf tin 1 150 - 160 60 - 80 2 160 - 170
Flan-base cake tin 1 160 - 170 20 - 35 1 170 - 180*
Shortcrust pastry
Tray bake with dry topping, e.g. crumble 1 160 - 170 45 - 70 3 180 - 190
1 + 3 160 - 170 60 - 80 - -
Tray bake with moist topping, e.g. egg custard 1 150 - 170 60 - 80 - -
Springform cake tin, e.g. cheesecake 1 150 - 160 50 - 90 1 160 - 180
Flan-base cake tin 1 150 - 160* 20 - 35 2 170 - 180*
Sponge mixture
Swiss roll 1 180 - 190* 10 - 15 3 190 - 200*
Flan-base cake tin 1 160 - 170 20 - 30 2 160 - 170
Sponge (6 eggs) 1 150 - 160 30 - 45 1 160 - 170
* Preheat oven
9
Sponge (3 eggs) 1 150 - 160* 30 - 40 2 160 - 170*
Yeast dough
Tray bake with dry topping, e.g. crumble 1 160 - 170 40 - 60 3 170 - 180
1 + 3 160 - 170 45 - 65 - -
Savarin/plaited loaf (500 g) 1 160 - 170 30 - 40 3 170 - 180
Springform cake tin 1 160 - 170 30 - 40 2 160 - 170
Ring cake tin 1 160 - 170 35 - 45 2 170 - 180
Hot air 3 Top/bottom heat %
Small baked products Shelf posi-
tion
Tempera-
ture in °C
Baking time in
minutes
Shelf posi-
tion
Tempera-
ture in °C
Yeast dough 1 160 - 170 20 - 25 3 170 - 180
1 + 3 160 - 170 20 - 30 - -
Meringue mixture 1 80 100 - 130 3 80
1 + 3 80 150 - 170 - -
Puff pastry 1 190 - 200* 20 - 30 3 200 - 210*
1 + 3 190 - 200* 25 - 35 - -
Choux pastry 1 190 - 200* 25 - 35 3 200 - 210*
1 + 3 190 - 200* 30 - 40 - -
Sponge mixture, e.g. muffins 1 150 - 160* 25 - 35 3 160 - 170*
1 + 3 150 - 160* 25 - 35 - -
Shortcrust pastry, e.g. butter biscuits 1 140 - 150* 15 - 20 3 140 - 150*
1 + 3 130 - 140* 20 - 30 - -
1 + 3 + 4 130 - 140* 20 - 35 - -
* Preheat oven
Hot air 3 Top/bottom heat %
Bread/bread rolls Shelf posi-
tion
Tempera-
ture in °C
Baking time in
minutes
Shelf posi-
tion
Tempera-
ture in °C
Bread rolls 1 220* 10 - 20 2 240*
Flatbread 1 220* 15 - 20 2 240*
Empanada 1 180* 30 - 40 3 200*
Bread dough 750-1000 g
Final baking 1 220* 35 - 40 2 220*
Bread dough 1000-1250 g
Initial baking 1 220* 10 - 15 2 240*
Final baking 1 180 40 - 45 2 200
Bread dough 1250-1500 g
Initial baking 1 220* 10 - 15 2 240*
Final baking 1 180 40 - 50 2 200
* Preheat oven
Hot air 3 Top/bottom heat %
Basic dough Shelf posi-
tion
Tempera-
ture in °C
Baking time in
minutes
Shelf posi-
tion
Tempera-
ture in °C
* Preheat oven
10
Baking table for fresh meals and frozen
convenience products
Circotherm intensive 0 is particularly suitable for freshly
prepared dishes that require a lot of heat from underneath and
for frozen convenience products.
Notes
■ Use the universal pan for frozen products
■ Line the universal pan with greaseproof paper or with special
grease absorbing paper if you are baking frozen potato
products
■ Only use greaseproof paper that is suitable for the selected
temperature
■ Spread chips out in a single layer
■ Turn frozen potato products half way through the baking time
■ Only season frozen potato products after they have finished
baking
■ Leave a little space between bread rolls when crisping them
up. Do not place too many on a baking tray
■ Do not use frozen products with freezer burn
■ Do not use frozen products that are heavily frosted
■ Follow the manufacturer's instructions.
■ You cannot bake on more than one level with CircoTherm
intensive
The values in the table are guidelines and apply to enamelled
baking trays. The values may vary depending on the type and
amount of dough/mixture and on the baking tin.
We recommend that you set the lower of the specified
temperatures the first time. Lower temperatures will generally
allow more even browning.
If you are baking according to your own recipe, use similar
recipes in the table as a guide.
Observe the notes in the table about preheating.
Hot air 3 Circotherm intensive 0
Dishes Shelf posi-
tion
Tempera-
ture in °C
Baking time in
minutes
Shelf posi-
tion
Tempera-
ture in °C
Pizza, fresh 1 180 - 200* 20 - 30 1 180 - 200
1 + 3 170 - 190 35 - 45 - -
Savoury flan 1 180 - 200* 15 - 25 1 200 - 220
Quiche 1 180 - 200 50 - 60 1 170 - 190
Tart 1 180 - 200* 30 - 45 1 190 - 210
Swiss flan 1 170 - 190* 45 - 55 1 170 - 190
Potato gratin made from raw potatoes 1 180 - 200 50 - 60 1 170 - 190
Strudel, frozen 1 180 - 200 35 - 45 1 180 - 200
Pizza, frozen
Pizza with thin base 1 180 - 200 10 - 20 1 200 - 220
1 + 3 170 - 190 20 - 30 - -
Pizza with thick base 1 180 - 200 20 - 30 1 180 - 200
1 + 3 170 - 190 25 - 35 - -
Potato products, frozen
Chips 1 180 - 200 15 - 25 1 210 - 230
1 + 3 170 - 190 25 - 35 - -
Croquettes 1 180 - 200 15 - 25 1 200 - 220
Rösti (stuffed potato pockets) 1 180 - 200 15 - 25 1 200 - 220
Baked goods
Part-baked bread rolls/baguette 1 180 - 200 5 - 15 1 180 - 200
Bread rolls/baguette, frozen 1 180 - 200 5 - 15 1 200 - 220
Bread rolls/baguette, part baked, frozen 1 180 - 200 10 - 20 1 180 - 200
Pretzel dough, frozen 1 170 - 190 15 - 20 1 170 - 190
Vegetarian meatballs, frozen
Fish fingers 1 180 - 200 15 - 20 1 190 - 210
Veggie burgers 1 180 - 200 20- 30 1 200 - 220
* Preheat oven
11
Tips and tricks
Roasting
: There is a risk of injury if you use roasting dishes that
are not heat-resistant!
Only use roasting dishes that are marked as being suitable for
use in the oven.
Do not use shelf height 2 when roasting with 3 Hot air. This will
adversely affect air circulation and your roasting results will not
be as good.
Open roasting
For open roasting, a roasting dish without a lid is used.
Add liquid to the roasting dish if required. During roasting, the
liquid in the roasting dish will evaporate. If necessary, carefully
add more hot liquid.
When you are roasting using % Top/bottom heat, turn the roast
approximately half to two thirds of the way through the roasting
time.
Roasting in the universal pan
Juices escape from the roasting meat and are collected in the
universal pan. You can use these juices as the basis for a tasty
gravy.
You can also cook side dishes (e.g. vegetables) at the same
time as roasting meat in the universal pan.
For smaller joints, you can use a smaller roasting dish instead
of the universal pan. Place this directly on the wire rack.
Roasting with a lid
Roasting dishes with lids are used for this kind of roasting. This
method is particularly suitable for pot roasts.
Roasting table
The roasting time and temperature depend on the size, height,
type and quality of the item.
As a general rule: the larger the item, the lower the temperature
and the longer the roasting time.
The information in the table is a guideline, and relates to items
cooked without a lid. The values may vary depending on the
type and quantity of the meat/fish and on the roasting dish.
You should set the lower of the specified temperatures the first
time. This will generally allow more even browning.
At the end of the roasting time, switch the oven off and leave
the roast to rest for approximately 10 minutes in the cooking
compartment with the door closed. The recommended rest time
is not included in the given roasting times.
The information in the table is for food placed in a cold oven
and for meat/fish taken directly from the refrigerator.
The cake is too light in colour Check the shelf height and the recommended bakeware. Place the baking tin on the wire
rack and not on the baking tray. Increase the baking time or the temperature.
The cake is too dark Check the shelf height. Shorten the baking time or reduce the temperature.
The cake is unevenly browned in the
baking tin
Check the shelf height and the temperature. Do not place the baking tin directly in front
of the air outlets in the back wall of the cooking compartment. Check for the correct position of the baking tin on the wire rack.
The cake is unevenly browned on the
baking tray
Check the shelf height and the temperature. When baking small items, make sure that
they are the same size and thickness.
The cake is too dry Shorten the baking time and increase the temperature slightly.
The cake is too moist in the centre Reduce the temperature. Note: Higher temperatures do not mean shorter baking times
(cooked on the outside, but not on the inside). Increase the baking time and allow the
cake dough to prove longer. Add less liquid to the mixture.
The cake collapses when you take it out
of the oven
Add less liquid to the mixture. Increase the baking time or reduce the temperature.
The specified baking time is not correct For small items, check the amount on the baking tray. The items must not be touching
each other.
Frozen products are not browned evenly
after baking
If frozen products are unevenly browned when prebaked, then uneven browning is to be
expected after baking.
Frozen products are not browned, not
crispy or the specified time is not correct
Remove ice from frozen products before baking them. Do not use heavily frosted frozen
products.
3 CircoTherm® Hot air Top/bottom heat %
Items for roasting Shelf posi-
tion
Tempera-
ture in °C
Roasting time in
minutes
Shelf posi-
tion
Tempera-
ture in °C
Meat loaf made with 500 g meat 1 170 - 180 60 - 70 2 200 - 210
Pork
Smoke-cured pork 1 160 - 170 70 - 80 2 190 - 210
* Preheat oven
** Roast pot roasts in ovenware with a lid
*** Use shelf height 1 for tall items
12
Tips and tricks
Fillet, medium (400 g) 1 170 - 180 30 - 45 3 200 - 230
Joint with rind (1.5 kg) 1 160 - 170 120 - 150 2 200 - 220
Joint with rind (2.5 kg) 1 160 - 170 150 - 180 2 190 - 210
Joint, marbled, without rind, e.g. neck (1.5 kg) 1 160 - 170 100 - 130 2 190 - 210
Roast, streaky, without rind, e.g. neck (2.5 kg) 1 160 - 170 120 - 150 2 180 - 200
Joint, lean (1 kg) 1 170 - 180 70 - 90 2 180 - 200
Joint, lean (2 kg) 1 170 - 180 80 - 100 2 180 - 200
Beef
Fillet, medium (1 kg) 1 180 - 190 45 - 65 2 200 - 220
Sirloin, medium rare (1.5 kg) 1 180 - 190 30 - 45 2 200 - 220
Pot roast (1.5 kg)** 1 170 - 180 120 - 150 2 200 - 220
Pot roast (2.5 kg)** 1 170 - 180 150 - 180 2 190 - 210
Veal
Joint/breast of veal (1.5 kg) 1 160 - 170 90 - 120 2 180 - 200
Joint/breast of veal (2.5 kg) 1 160 - 170 120 - 150 2 170 - 190
Knuckle 1 160 - 170 100 - 130 2 190 - 210
Lamb
Leg, boned 1 180 - 190 70 - 110 2 200 - 220
Saddle on the bone 1 180 - 190* 40 - 50 2 200 - 220*
Saddle, boned 1 180 - 190* 30 - 40 2 200 - 220*
Poultry
Chicken, whole (1 kg) 1 170 - 180 60 - 70 2 200 - 220
Duck, whole (23 kg) 1 150 - 160 90 - 120 2 190 - 210
Goose, whole (34 kg) 1 150 - 160 130 - 180 2*** 180 - 200
Game
Joint/leg of roe venison, boned (1.5 kg) 1 160 - 170 90 - 120 2 190 - 210
Wild boar joint (1.5 kg) 1 160 - 170 120 - 140 2 190 - 210
Joint of venison (1.5 kg) 1 160 - 170 100 - 120 2 190 - 210
Rabbit 1 160 - 170 70 - 80 2 180 - 200
Fish
Fish, whole (300 g) 1 160 - 170 30 - 40 2 180 - 200
Fish, whole (700 g) 1 160 - 170 40 - 50 2 180 - 200
Crust too thick and/or roast too dry Check the shelf height. Reduce temperature or roasting time.
Crust too thin Increase the temperature or switch on the grill briefly at the end of the roasting time.
The meat is not cooked right through Remove any accessories that are not required from the cooking compartment. Increase
the roasting time. Check the core temperature of the roast using a meat thermometer.
Steam in the cooking compartment is
condensing on the appliance door
The steam dries during the course of the cooking. If there is an excessive volume of
steam, you can carefully open the door briefly to dissipate the steam more quickly.
3 CircoTherm® Hot air Top/bottom heat %
Items for roasting Shelf posi-
tion
Tempera-
ture in °C
Roasting time in
minutes
Shelf posi-
tion
Tempera-
ture in °C
* Preheat oven
** Roast pot roasts in ovenware with a lid
*** Use shelf height 1 for tall items
13
Grilling
Caution!
Material damage due to effect of heat: The temperature
generated in the cooking compartment is very high. Keep the
appliance door closed when using the grill. Never grill with the
appliance door open.
For grilling, always use the wire rack and universal pan. Insert
the wire rack at the shelf position indicated in the grilling table.
To prevent the oven from becoming dirty, insert the universal
pan one level lower. Always place the food to be grilled in the
centre of the wire rack
Note: Always use the universal pan in the standard position
(not the other way up).
If you are grilling more than one piece of meat, make sure that
they are the same sort of meat and that they are of similar
thickness and weight.
All-round grilling
4 All-round grilling is particularly suitable for grilling poultry and
meat so that it is crispy all round (e.g. roast pork with
crackling).
Turn the items after half to two-thirds of the grilling time.
Pierce duck and goose skin under the wings and legs to allow
the fat to escape.
Depending on the food you are cooking, the cooking
compartment may become more than usually dirty when you
cook food on the wire rack using all-round grilling. You should
therefore clean the cooking compartment after every use so
that the dirt does not burn on.
The information in the table is a guideline, and applies to the
enamelled universal pan with wire rack. The values may vary
depending on the type and amount of food to be grilled.
You should set the lower of the specified temperatures the first
time. This will generally allow more even browning.
At the end of the cooking time, switch the grill off and leave the
food to stand for approximately 10 minutes in the cooking
compartment with the door closed. The recommended rest time
is not included in the grilling times specified.
The values are for food placed in a cold oven and for meat
taken directly from the refrigerator.
Radiant grilling
For grilling large quantities of flat items, use the + full-surface
grill.
For grilling small quantities of flat items, use the ( centre-area
grill. Place the food to be grilled in the centre of the wire rack.
You will save energy by using the centre-area grill.
Brush the items to be grilled with a little oil according to taste.
Turn the grilling items half to two-thirds of the way through the
grilling time.
The details given in the table are guidelines. The values may
vary depending on the type and amount of items to be grilled.
They apply to meat placed into a cold oven straight from the
refrigerator.
Grilled food Shelf position Temperature in°C Grilling time in minutes
Sirloin, medium 2 220 - 240 40 - 50
Leg of lamb, boned, medium 2 170 - 190 120 - 150
Pork
Joint of pork with rind 2 170 - 190 140 - 160
Pork knuckle 2 180 - 200 120 - 150
Poultry (not stuffed)
Chicken halves, 1 - 2 halves 2 210 - 230 40 - 50
Chicken, whole, 1 - 2 chickens 2 200 - 220 60 - 80
Duck, whole, 2 - 3 kg 2 180 - 200 90 - 120
Goose, whole, 3 - 4 kg 2 150 - 170 130 - 160
Grilled food Shelf posi-
tion
Tempera-
ture in °C
Grilling time
in minutes
Notes
Sausages 4 250 10 - 14 Lightly score skins
Vegetables 4 270 15 - 20
Toast with topping 3 220 10 - 15 The shelf position should be adapted to the height of
the topping
Pork
Fillet steaks, medium-sized
(3 cm thick)
4 270 12 - 15
Steak, well-done (2 cm thick) 4 270 15 - 20
Beef
Fillet steaks (3 - 4 cm thick) 4 270 15 - 20 Grilling times can be increased or reduced, depend-
ing on how well cooked the food should be
Tournedos 4 270 12 - 15
14
Defrost
In this section, you can find out how to defrost with 3 Hot air or
A Defrost.
Defrosting with hot air
Use the 3 Hot air operating mode to defrost and cook frozen
products.
Please note the following points here:
■ Frozen products that have been defrosted (meat in particular)
require shorter cooking times than fresh products
■ The cooking time for frozen meat increases by the defrosting
time
■ Always defrost frozen poultry before cooking so that you can
remove the giblets
■ Cook frozen fish at the same temperatures as fresh fish
■ You can place large quantities of ready made frozen
vegetables in aluminium dishes in the cooking compartment
at the same time
■ Use shelf height 1 when defrosting on one level, and shelf
heights 1 + 3 when using two levels
■ Observe the instructions on the packaging when using frozen
foods.
Defrost
Using defrost setting A you can defrost delicate pastries
particularly well (e.g. cream cakes).
1. Switch on the A Defrost operating mode.
2. Defrost the frozen food for 25-45 minutes, depending on type
and size.
3. Remove the frozen food from the cooking compartment and
let it thaw for 30 - 45 minutes.
With small quantities (pieces), the defrosting time is shortened
to 1520 minutes and the extended defrosting time is shortened
to 1015 minutes.
Yoghurt
You can also make home-made yoghurt with your appliance.
The heat from the \ light is used for this.
1. Remove accessories and hook-in racks, telescopic shelves
or separate fitting systems.
2. Heat 1 litre of long-life milk (3.5 % fat) or fresh pasteurised
milk to 40 °C
or
Bring 1 litre fresh milk to the boil once and allow to cool
down to 40 °C.
3. Add 150 g of set yoghurt to the warm milk, stir in and fill the
jars or bowls evenly. Do not pour more than 200 ml into any
single container.
4. Cover the filled containers with a suitable lid or cling film.
5. Preheat the oven with the + Full-surface grill for 15 minutes
at 100 ºC.
6. Then move the operating mode selector to \ Light.
7. Evenly space the containers over the cooking compartment
floor, then close the appliance door.
8. Switch off the light after 8 hours and place the containers in
the refrigerator for at least 12 hours.
Lamb
Fillets 4 270 8 - 12 Grilling times can be increased or reduced, depend-
ing on how well cooked the food should be
Chops 4 270 10 - 15
Poultry
Chicken legs 3 250 25 - 30 Pricking the skin can prevent blistering during grilling
Small chicken portions 3 250 25 - 30
Fish
Steaks 4 220 15 - 20 The pieces should be of equal thickness
Chops 4 220 15 - 20
Whole fish 3 220 20 - 25
Grilled food Shelf posi-
tion
Tempera-
ture in °C
Grilling time
in minutes
Notes
Frozen meals Tempera-
ture in °C
Defrosting
time in min-
utes
Raw frozen products/ foods 50 30 - 90
Bread/Bread rolls (750 - 1,500 g) 50 30 - 60
Dry, frozen tray bakes 60 45 - 60
Moist, frozen tray bakes 50 50 - 70
15
Cleaning and care
: Risk of short circuit!
Do not use high-pressure cleaners or steam jet cleaners to
clean your appliance.
Caution!
Surface damage due to incorrect cleaning: Do not use any
■ harsh or abrasive cleaning agents
■ cleaning agents that contain alcohol
■ abrasive cleaning aids such as steel wool or scourers.
Observe the specifications in the tables.
Note: Highly recommended cleaning and care products can be
purchased through our after-sales service. Observe the
manufacturer's instructions.
Cleaning the appliance exterior
To ensure that the different surfaces are not damaged by using
the wrong cleaning agent, pay attention to the information in the
table.
Wash new sponge cloths thoroughly before use.
Cleaning the cooking compartment
Caution!
Risk of damaging the surface. Do not clean the appliance while
still warm, even if using oven cleaners specially intended for
this purpose.
Notes
■ Due to its technical properties, the enamel may exhibit colour
variations. However, this has no effect on the function.
■ The edges of thin trays may be rough. Anti-corrosion
protection is still guaranteed, however.
Keeping the appliance clean
Clean the cooking compartment after each use, as dirt will
bake on the next time it is heated up, and this can only be
removed with difficulty. Always remove flecks of limescale,
grease, starch and albumin (e.g. egg white) immediately.
Where possible use the 3 Hot air operating mode. This
operating mode creates less dirt.
Removing and fitting the appliance door
You can remove the appliance door to clean it more
thoroughly.
: Risk of injury!
The hinges of the appliance door may snap shut with great
force. Always open the hinge locking lever fully when removing
the appliance door and close it fully after refitting. Do not reach
into the hinge.
: Risk of injury!
If the appliance door has only been unhinged on one side, do
not reach into the hinge. The hinge can snap back with great
force. Call the aftersales service.
Removing the appliance door
1. Open the appliance door fully.
2. Open the locking levers on the left and right-hand side fully.
The hinges are secured and cannot snap closed.
3. Close the appliance door until resistance becomes
noticeable (figure A).
4. With both hands, grip the door on the left and right-hand side,
close the door a little more and pull it out (figure B).
Appliance part/surface
Cleaning agent/aid
Stainless steel surfaces
Apply washing-up liquid with a soft,
damp cloth or chamois; dry with a soft
cloth. Use cleaners for brushed stainless
steel finishes if very dirty.
Control panel Hot soapy water:
Clean with a dish cloth and dry with a
soft cloth. Do not use glass cleaners or
glass scrapers.
Door panels Apply glass cleaner or detergent with a
soft, damp cloth or chamois leather; dry
with a soft cloth.
The inner door panel of the appliance
door has a coating which can have the
effect of a light-coloured film.
Appliance part Cleaning agent/aid
Enamel surfaces Apply washing-up liquid or vinegar solution
with a soft, damp cloth or chamois; dry with
a soft cloth. Soften baked-on food residues
with a damp cloth and detergent. Leave the
cooking compartment open to dry after
cleaning.
We recommend using oven cleaner if the
oven is very dirty. Observe the manufacturer's instructions when cleaning with an
oven cleaner.
Door seal Hot soapy water
Hook-in racks Hot soapy water:
Soak and clean with a dish cloth or brush.
Telescopic
shelves
Hot soapy water:
Clean with a dish cloth or a brush.
Do not remove the lubricant while the pullout rails are pulled out – it is best to clean
them when they are pushed in.
Do not soak or clean in the dishwasher.
Accessories Soak in hot soapy water. Clean with a brush
and sponge or wash in the dishwasher.
Appliance part Cleaning agent/aid
$ %
16
Fitting the appliance door
1. Insert the hinges in the left and right-hand holders (figure C).
The notch on both hinges must engage.
2. Open the appliance door fully.
3. Close the locking levers on the left and right-hand side fully
(figure D).
The appliance door is secured and can no longer be
removed.
4. Close the appliance door.
Cleaning the door panels
To facilitate cleaning, you can remove the inner door panels
from the appliance door.
: Risk of injury!
The components inside the appliance door may have sharp
edges. Take care not to cut yourself. Wear protective gloves.
: Risk of injury!
The appliance must not be used again until the door panels
and appliance door have been correctly fitted.
Removing the door panel
Note: Before removing, make a note of which way round the
door panel is fitted, so that it is not refitted the wrong way
round.
1. Unhook the appliance door and lay it on a soft, clean surface
with the front side facing downwards (see section: Removing
and installing the appliance door).
2. Pull off the cover at the top of the appliance door. Press in
the tabs on the left and right using your fingers (fig.A).
3. Lift the door panel slightly and pull it out (Fig. B).
Removing the intermediate panel
Lift the intermediate panel slightly and pull it out towards you.
Cleaning
Clean the door panel with glass cleaner and a soft cloth.
: Risk of injury!
Scratched glass in the appliance door may develop into a
crack. Do not use a glass scraper, sharp or abrasive cleaning
aids or detergents.
Fitting the intermediate panel
Note: During installation, make sure that the lettering "top right"
is upside down at the bottom left.
Insert the intermediate panel towards the back as far as it will
go.
Fitting the door panel
1. Insert the door panel at an angle towards the back into both
brackets as far as it will go. The smooth surface must face
outwards.
2. Put the cover back in place and press on it until it clicks in
place.
3. Refit the appliance door.
Cleaning the hook-in racks
You can remove the hook-in racks for easier cleaning.
: Risk of burning due to hot components in the cooking
compartment!
Wait until the cooking compartment has cooled down.
1. Push the hook-in rack upwards at the front and unhook to the
side (figure A).
2. Pull the hook-in rack forwards at the rear and unhook to the
side (figure B).
3. Clean the hook-in rack with washing-up liquid and a sponge
or brush.
4. Align the hook-in rack with the indentation (a) facing
downwards, so that the shelf heights match.
& '
%$
$ %
17
5. Insert the hook-in rack at the rear as far as it will go and push
to the rear (figure C).
6. Insert the hook-in rack at the front as far as it will go and push
downwards (figure D).
Faults and repairs
In the event of a fault, check the tips in the following table
before calling the after-sales service.
: Risk of electric shock!
■ Work on the appliance electronics may only be performed by
a specialist.
■ Always disconnect the appliance from the power supply
when work is carried out on the electronics. Switch off the
circuit breaker or remove the fuse from your household fuse
box.
Replacing the oven light bulb
Replace faulty oven light bulbs.
You can obtain replacement light bulbs from customer service
or specialist retailers: E14, 220 - 240 V, 40 W, heat resistant to
300 °C. Only use these oven light bulbs.
: Risk of electric shock !
Disconnect the appliance from the power supply. Switch off the
circuit breaker or remove the fuse from the household fuse box.
1. Place a tea towel in the cold cooking compartment to prevent
damage.
2. Turn the glass cover anticlockwise and remove it.
3. Replace the oven light bulb with a bulb of the same type.
4. Screw on the glass cover again.
5. Remove the tea towel and switch on the circuit breaker.
Note: If the glass cover cannot be unscrewed: use rubber
gloves to turn it. You can order a special removal tool through
the after-sales service (order no. 613634)
Changing the door seal
If the door seal is defective, it must be replaced. Replacement
seals for your appliance can be obtained from the after-sales
service.
The door seal is attached in four places (figure A). When
replacing it, disconnect and attach the hooks at all four points
(figure B).
D
D
& '
Problem Possible cause Remedial action
Electrical operation is faulty (e.g. indicator
lamps no longer light up)
Fuse defective Check fuses in the fuse box and replace if
necessary
Liquid or runny dough runs to one side Appliance not installed level Check the appliance installation (see the
Installation instructions)
‹:‹‹ flashes in the clock display There was a power cut Reset the time of day (see
section: Electronic clock)
Electronically controlled functions are malfunctioning
Energy surges (e.g. lightning strike) Reset the function concerned
Smoke is generated during roasting or
grilling
Fat is burning on the grill element Continue grilling or roasting until the fat on
the grill element is burnt away
Wire rack or universal pan inserted incorrectly
Check the shelf heights (see section:
Roasting or grilling)
High levels of condensation are generated
in the cooking compartment
Normal occurrence (e.g. when baking
cakes with very moist toppings or roasting
a large joint)
Open the appliance door briefly from time
to time during operation
Enamelled accessories have matt, lightcoloured marks
Normal occurrence caused by dripping
meat or fruit juices
Not possible
Door panels are misted up Normal occurrence caused by tempera-
ture differences
Heat the appliance up to 100 °C and then
switch off again after 5 minutes
$ %
18
Check again to ensure that the seal is seated correctly in the
corners in particular.
After-sales service
In the event of faults and repairs that you cannot rectify yourself,
please use our after-sales service.
You can find the addresses in the after-sales service directory.
Note: You will be charged for calling the after-sales service
regarding an operating error.
When contacting the after-sales service, please specify the Enumber and FD number.
You can find these on the rating plate behind the appliance
door on the left-hand bottom edge.
Produktinfo
Additional information on products, accessories, replacement
parts and services can be found at www.constructa.de and in
the online shop www.constructa-eshop.com
Test dishes
Test dishes tested to standard EN 50304/EN 60350 (2009)
and IEC 60350. Please note the information in the tables about
preheating.
Notes
■ For baking, use the lower of the indicated temperatures first.
■ Food on baking trays that are placed into the oven at the
same time will not necessarily be ready at the same time.
E no. FD no.
Baking Shelf posi-
tion
Operating
mode
Temperature
in °C
Baking time in
minutes
Piped cookies 3 % 140 - 150* 20 - 30
1 3 140 - 150* 25 - 30
1 + 3 3 140 - 150* 25 - 35
1 + 3 + 4 3 130 - 140* 35 - 50
Small cakes (x 20 per tray) 3 % 160 - 170** 25 - 30
1 3 150 - 160** 20 - 30
1 + 3 3 140 - 150** 30 - 40
1 + 3 + 4 3 140 - 150** 35 - 45
Hot water sponge cake 2 % 160 - 170* 25 - 35
1 3 160 - 170* 25 - 35
Double crust apple pie (black tins placed next to one
another, fig. A)
1 0 170 - 180* 60 - 70
Double crust apple pie (black tins placed diagonally across
from each other, fig. B)
1 + 3 3 170 - 180* 65 - 75
* Preheat oven
** Preheat for 10 minutes
$ %
Grilling Shelf position Operating
mode
Temperature in °CGrilling time in
minutes
Toast (universal pan + wire rack) 3 + 4 + 275* 1 - 2
Beef steaks x 12 (universal pan + wire rack) 3 + 4 + 275 20 - 25**
* Preheat for 10 minutes
** Turn over after Z of the cooking time
Constructa-Neff Vertriebs-GmbH
Carl-Wery-Straße 34
81739 München
GERMANY
(950507)
*9001119691* 9001119691
Loading...
