en Intended use
8Intended use
Intended use
Read these instructions carefully. Please keep
the instruction and installation manual, as well
as the appliance certificate, in a safe place for
later use or for subsequent owners.
Check the appliance after removing it from the
packaging. If it has suffered any damage in
transport, do not connect the appliance,
contact the Technical Assistance Service and
provide written notification of the damage
caused, otherwise you will lose your right to
any type of compensation.
This appliance must be installed according to
the installation instructions included.
This appliance is intended for private domestic
use and the household environment only. The
appliance must only be used for the
preparation of food and beverages. The
cooking process must be supervised. A short
cooking process must be supervised without
interruption. Only use the appliance in
enclosed spaces.
We advise that you exercise caution using or
standing near an induction hob while it is in
operation, if you wear a pacemaker or a
similar medical device. Consult your doctor or
the device manufacturer concenring its
conformity or any possible incompatibilities,
This appliance is intended for use up to a
maximum height of 4000 metres above sea
level.
Do not use covers. These can cause
accidents, due to overheating, catching fire or
materials shattering, for example.
Do not use inappropriate child safety shields
or hob guards. These can cause accidents.
This appliance is not intended for operation
with an external clock timer or a remote
control.
This appliance may be used by children over
the age of 8 years old and by persons with
reduced physical, sensory or mental
capabilities or by persons with a lack of
experience or knowledge if they are
supervised or are instructed by a person
responsible for their safety how to use the
appliance safely and have understood the
associated hazards.
Children must not play with, on, or around the
appliance. Children must not clean the
appliance or carry out general maintenance
unless they are at least 8 years old and are
being supervised.
Keep children below the age of 8 years old at
a safe distance from the appliance and power
cable.
4
Important safety information en
(Important safety
information
Important safety information
:Warning – Risk of fire!
■ Hot oil and fat can ignite very quickly. Never
leave hot fat or oil unattended. Never use
water to put out burning oil or fat. Switch off
the hotplate. Extinguish flames carefully
using a lid, fire blanket or something similar.
Risk of fire!
■ The hotplates become very hot. Never
place combustible items on the hob. Never
place objects on the hob.
Risk of fire!
■ The appliance gets hot. Do not keep
combustible objects or aerosol cans in
drawers directly underneath the hob.
Risk of fire!
■ The hob switches off automatically and can
no longer be operated. It may switch on
unintentionally at a later point. Switch off the
circuit breaker in the fuse box. Contact the
after-sales service.
:Warning – Risk of burns!
■ The hotplates and surrounding area
(particularly the hob surround, if fitted)
become very hot. Never touch the hot
surfaces. Keep children at a safe distance.
Risk of burns!
■ The hotplate heats up but the display does
not work. Switch off the circuit breaker in
the fuse box. Contact the after-sales
service.
Risk of burns!
■ Metal objects on the hob quickly become
very hot. Never place metal objects (such
as knives, forks, spoons and lids) on the
hob.
Risk of fire!!
■ After each use, always turn off the hob at
the main switch. Do not wait until the hob
turns off automatically after the pan is
removed.
■ A defective appliance may cause electric
shock. Never switch on a defective
appliance. Unplug the appliance from the
mains or switch off the circuit breaker in the
fuse box. Contact the after-sales service.
Risk of electric shock!
■ Cracks or fractures in the glass ceramic
may cause electric shocks. Switch off the
circuit breaker in the fuse box. Contact the
after-sales service.
:Warning – Malfunction risk!
The hob is equipped with a fan in the lower
section. If there is a drawer under the hob it
should not be used to store small objects or
paper, since they could damage the fan or
interfere with the cooling if they are sucked
into it.
There should be a minimum of 2 cm between
the contents of the drawer and fan intake.
:Warning – Risk of injury!
■ When cooking in a bain marie, the hob and
cooking container could shatter due to
overheating. The cooking container in the
bain marie must not directly touch the
bottom of the water-filled pot. Only use heatresistant cookware.
Risk of injury!
■ Saucepans may suddenly jump due to
liquid between the pan base and the
hotplate. Always keep the hotplate and
saucepan bases dry.
:Warning – Risk of electric shock!
■ Incorrect repairs are dangerous. Repairs
may only be carried out and damaged
power cables replaced by one of our
trained after-sales technicians. If the
appliance is defective, unplug the appliance
from the mains or switch off the circuit
breaker in the fuse box. Contact the aftersales service.
Risk of electric shock!
■ Do not use any high-pressure cleaners or
steam cleaners, which can result in an
electric shock.
Risk of electric shock!
5
en Causes of damage
]Causes of damage
Causes of damage
Caution!
■ Rough pan bases may scratch the hob.
■ Avoid leaving empty pots and pans on the hotplate.
Doing so may cause damage.
■ Do not place hot pans on the control panel, the
indicator area, or the hob frame. Doing so may
cause damage.
■ Hard or pointed objects dropped on the hob may
damage it.
■ Aluminium foil and plastic containers will melt if
placed on the hotplate while it is hot. The use of
laminated sheeting is not recommended on the hob.
Overview
You will find the most frequently caused damage in the
following table:
Damage Cause Measure
Stains Boiled over food. Remove boiled over food immediately with a glass scraper.
Unsuitable cleaning agent. Only use cleaning agents that are suitable for this type of hob.
Scratches Salt, sugar and sand. Do not use the hob as a work surface or storage space.
Cookware with rough bases scratch the hob. Check the cookware.
Discolouration Unsuitable cleaning agent. Only use cleaning agents that are suitable for this type of hob.
Pan abrasion. Lift pots and pans when moving them.
Chips Sugar, food with a high sugar content. Remove boiled over food immediately with a glass scraper.
6
Environmental protection en
7Environmental protection
Environmental protection
In this section, you can find information about saving
energy and disposing of the appliance.
Energy-saving advice
■ Always use the correct lid for each pan. Cooking
without a lid uses a lot more energy. Use a glass lid
to provide visibility and avoid having to lift the lid.
■ Use pans with flat bases. Bases that are not flat use
a lot more energy.
■ The diameter of the pan base must match the size of
the hotplate. Please note: pan manufacturers usually
provide the diameter for the top of the pan, which is
usually larger than the diameter of the pan base.
■ Use a small pan for small amounts of food. A large
pan which is not full uses a lot of energy.
■ Use little water when cooking. This saves energy and
preserves all the vitamins and minerals in
vegetables.
■ Select the lowest power level to maintain cooking. If
the power level is too high, energy is wasted.
Environmentally-friendly disposal
Dispose of packaging in an environmentally-friendly
manner.
This appliance is labelled in accordance with
European Directive 2012/19/EU concerning
used electrical and electronic appliances
(waste electrical and electronic equipment WEEE). The guideline determines the
framework for the return and recycling of used
appliances as applicable throughout the EU.
fInduction cooking
Induction cooking
Advantages of induction cooking
Induction cooking is very different from traditional
cooking methods, as heat builds up directly in the item
of cookware. This offers numerous advantages:
■ Saves time when boiling and frying.
■ Saves energy.
■ Easier to care for and clean. Spilled food does not
burn on as quickly.
■ Heat control and safety – the hob increases or
decreases the heat supply as soon as the user
changes the setting. The induction hotplate stops the
heat supply as soon as the cookware is removed
from the hotplate, without having to switch it off first.
Cookware
Only use ferromagnetic cookware for induction cooking,
such as:
■ Cookware made from enamelled steel
■ Cookware made from cast iron
■ Special induction-compatible cookware made from
stainless steel.
To check whether your cookware is suitable for
induction cooking, refer to the section on
~ "Cookware check".
To achieve a good cooking result, the ferromagnetic
area on the base of the pan should match the size of
the hotplate. If a hotplate does not detect an item of
cookware, try placing it on another hotplate with a
smaller diameter.
FP
FP
FP
Some induction cookware does not have a fully
ferromagnetic base:
■ If the base of the cookware is only partially
ferromagnetic, only the area that is ferromagnetic will
heat up. This may mean that heat will not be
distributed evenly. The non-ferromagnetic area may
not heat up to a sufficient temperature for cooking.
7
en Induction cooking
■ The ferromagnetic area will also be reduced if the
material from which the base of the cookware is
made contains aluminium, for example. This may
mean that the cookware will not become sufficiently
hot or even that it will not be detected.
Unsuitable pans
Never use diffuser hobs or pans made from:
■ common thin steel
■ glass
■ earthenware
■ copper
■ aluminium
Properties of the base of the cookware
The material(s) from which the base of the cookware is
made can affect the cooking result. Using pots and
pans made from materials that distribute heat evenly
through them, such as stainless-steel pans with a threelayer base, saves time and energy.
Use cookware with a flat base; if the base of the
cookware is uneven, this may impair the heat supply.
Pan detection
Each hotplate has a lower limit for pan detection. This
depends on the diameter of the ferromagnetic area of
the cookware and the material from which its base is
made. For this reason, you should always use the
hotplate that best matches the diameter of the base of
the pan.
Absence of pan or unsuitable size
If no pan is placed on the selected hotplate, or if it is
made of unsuitable material or is not the correct size,
the power level displayed on the hotplate indicator will
flash. Place a suitable pan on the hotplate to stop the
flashing. If this takes more than 90 seconds, the
hotplate will switch off automatically.
Empty pans or those with a thin base
Do not heat empty pans, nor use pans with a thin base.
The hob is equipped with an internal safety system.
However, an empty pan may heat up so quickly that the
"automatic switch off" function may not have time to
react and the pan may reach very high temperatures.
The base of the pan could melt and damage the glass
on the hob. In this case, do not touch the pan and
switch the hotplate off. If it fails to work after it has
cooled down, please contact the Technical Assistance
Service.
8
*Getting to know your
appliance
Getting to know your appliance
You can find information on the dimensions and power
of the hotplates in~ Page 2

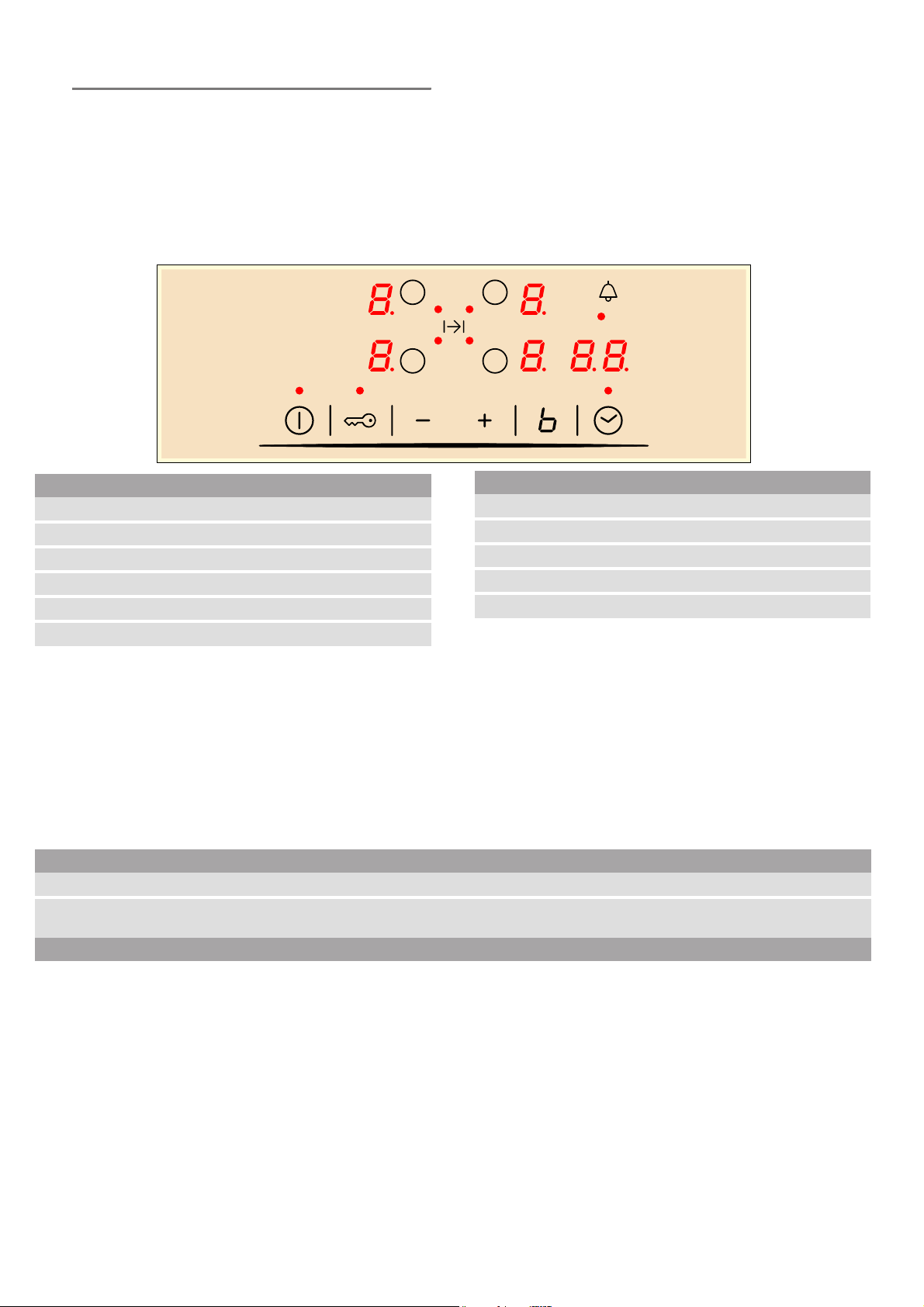

The control panel
Getting to know your appliance en
Controls
#
$
A/@
'
›
3
Controls
Touching a symbol activates the respective function.
Note:
Always keep the control panel clean and dry. Moisture
can prevent it from working properly.
Main switch
Selecting a hotplate
Adjustment fields
Childproof lock
PowerBoost function
Timer function
Indicators
‹
‚-Š
•/œ
›
‹‹
The hotplates
Hotplates
$
î
Only use cookware that is suitable for induction cooking; see section ~ "Induction cooking"
Simple hotplate Use cookware that is a suitable size.
Extended cooking zone The hotplate switches on automatically when you use cookware with a base that covers the
outer edge of the zone.
Operating status
Heat settings
Residual heat
PowerBoost function
Timer
Residual heat indicator
The hob has a residual heat indicator for each hotplate.
This indicates that a hotplate is still hot. Do not touch a
hotplate while the residual heat indicator is lit up.
The following are shown depending on the amount of
residual heat:
■ Display •: High temperature
■ Display œ: Low temperature
If you remove the cookware from the hotplate during
cooking, the residual heat indicator and the selected
heat setting will flash alternately.
When the hotplate is switched off, the residual heat
indicator will light up. Even after the hob has been
switched off, the residual heat indicator will stay lit for as
long as the hotplate is still warm.
9
en Operating the appliance
1Operating the appliance
Operating the appliance
This chapter explains how to set a hotplate. The table
shows heat settings and cooking times for various
meals.
Switching the hob on and off
The main switch is used to switch the hob on and off.
To switch on: Touch the # symbol. An audible signal
sounds. The indicator next to the main switch and the
hotplate indicators ‹ light up. The hob is ready to use.
To switch off: Touch the # symbol until the indicator
goes out. All hotplates are switched off. The residual
heat indicator remains lit until the hotplates have cooled
down sufficiently.
Notes
■ The hob switches off automatically if all hotplates
have been switched off for more than 20 seconds.
■ The selected settings are stored for four seconds
after the hob has been switched off. If you switch it
on again during this time, the hob will operate using
the previously stored settings.
Setting a hotplate
Use the @ and A symbols to select the required heat
setting.
Heat setting ‚ = lowest setting.
Heat setting Š = highest setting.
Every heat setting has an intermediate setting. This is
marked with a dot.
Selecting a hotplate and heat setting
The hob must be switched on.
1. Select the hotplate using the $ symbol for the
relevant hotplate.
2. Touch the @ or A symbol within 10 seconds. The
following basic setting appears:
@ symbol: Š heat setting
A symbol: … heat setting
Changing the heat setting
Select the hotplate and touch the @ or A symbol until
the required heat setting appears.
Switching off the hotplate
Select the hotplate and then touch the @ or A symbol
until ‹ appears.
The hotplate switches itself off and the residual heat
indicator appears.
Notes
■ If no pan has been placed on the hotplate, the
selected power level flashes. After a certain time has
elapsed, the hotplate switches off.
■ If a pan has been placed on the hotplate before
switching on the hob, it will be detected within
20 seconds of pressing the main switch and the
hotplate will be selected automatically. Once
detected, select the power level within the next
20 seconds or the hotplate will switch off.
If more than one pan is placed on the hob, only one
will be detected when switching it on.
Chef's recommendations
Recommendations
■ When heating up puree, cream soups and thick
sauces, stir occasionally.
■ Set heat setting 8 to 9 for preheating.
■ When cooking with the lid on, turn the heat setting
down as soon as steam escapes between the lid
and the cookware. Steam does not need to escape
for a good cooking result.
■ After cooking, keep the lid on the cookware until you
serve the food.
■ To cook with the pressure cooker, observe the
manufacturer's instructions.
■ Do not cook food for too long, otherwise the
nutrients will be lost. The kitchen clock can be used
to set the optimum cooking time.
■ For a more healthy cooking result, smoking oil
should be avoided.
■ To brown food, fry small portions in succession.
■ Cookware may reach high temperatures while the
food is cooking. We recommend that you use oven
gloves.
■ You can find recommendations for energy-efficient
cooking in section ~ "Environmental protection"
The heat setting is set.
10
Operating the appliance en
Cooking table
The table shows which heat setting is suitable for each
type of food. The cooking time may vary depending on
the type, weight, thickness and quality of the food.
Heat setting Cooking time
(mins)
Melting
Chocolate coating 1 - 1. -
Butter, honey, gelatine 1 - 2 -
Heating and keeping warm
Stew, e.g. lentil stew 1. - 2 -
Milk* 1. - 2. -
Heating sausages in water* 3 - 4 -
Defrosting and heating
Spinach, frozen 3 - 4 15 - 25
Goulash, frozen 3 - 4 35 - 55
Poaching, simmering
Potato dumplings* 4. - 5. 20 - 30
Fish* 4 - 5 10 - 15
White sauces, e.g. Béchamel sauce 1 - 2 3 - 6
Whisked sauces, e.g. sauce béarnaise, hollandaise 3 - 4 8 - 12
Boiling, steaming, braising
Rice (with double the volume of water) 2. - 3. 15 - 30
Rice pudding*** 2 - 3 30 - 40
Unpeeled boiled potatoes 4. - 5. 25 - 35
Boiled potatoes 4. - 5. 15 - 30
Pasta, noodles* 6 - 7 6 - 10
Stew 3. - 4. 120 - 180
Soups 3. - 4. 15 - 60
Vegetables 2. - 3. 10 - 20
Vegetables, frozen 3. - 4. 7 - 20
Cooking in a pressure cooker 4. - 5. -
Braising
Roulades 4 - 5 50 - 65
Pot roast 4 - 5 60 - 100
Goulash*** 3 - 4 50 - 60
* Without lid
** Turn several times
*** Preheat to heat setting 8 - 8.
11
en Operating the appliance
Heat setting Cooking time
(mins)
Roasting/frying with little oil*
Escalope, plain or breaded 6 - 7 6 - 10
Escalope, frozen 6 - 7 8 - 12
Chop, plain or breaded** 6 - 7 8 - 12
Steak (3 cm thick) 7 - 8 8 - 12
Poultry breast (2 cm thick)** 5 - 6 10 - 20
Poultry breast, frozen** 5 - 6 10 - 30
Rissoles (3 cm thick)** 4. - 5. 20 - 30
Hamburgers (2 cm thick)** 6 - 7 10 - 20
Fish and fish fillet, plain 5 - 6 8 - 20
Fish and fish fillet, breaded 6 - 7 8 - 20
Fish, breaded and frozen, e.g. fish fingers 6 - 7 8 - 15
Scampi, prawns 7 - 8 4 - 10
Sautéeing fresh vegetables and mushrooms 7 - 8 10 - 20
Stir-fry, vegetables, meat cut in Asian-style strips 7 - 8 15 - 20
Frozen dishes, e.g. roasted dishes 6 - 7 6 - 10
Pancakes (baked in succession) 6. - 7. -
Omelette (cooked in succession) 3. - 4. 3 - 6
Fried eggs 5 - 6 3 - 6
Deep-fat frying* (150-200 g per portion in 1-2 l oil, deep-fat fried in portions)
Frozen products, e.g. chips, chicken nuggets 8 - 9 -
Croquettes, frozen 7 - 8 -
Meat, e.g. chicken portions 6 - 7 -
Fish, breaded or in beer batter 6 - 7 -
Vegetables, mushrooms, breaded or battered, tempura 6 - 7 -
Small baked items, e.g. doughnuts, fruit in batter 4 - 5 -
* Without lid
** Turn several times
*** Preheat to heat setting 8 - 8.
12
Time-setting options en
OTime-setting options
Time-setting options
Your hob has two timer functions:
■ Programming the cooking time
■ Kitchen timer
Programming the cooking time
The hotplate automatically switches off after the time
that is set has elapsed.
Setting procedure:
1. Select the hotplate and the required heat setting.
2. Touch the 3 symbol. Ú lights up on the display for
the hotplate.‹‹ appears on the timer display.
3. Touch the @ or A symbol. The basic setting
appears:
@ symbol: 30 minutes.
A symbol: 10 minutes.
The kitchen timer
You can use the kitchen timer to set a time of up to 99
minutes.
This functions independently from the hotplates and
from other settings. This function does not automatically
switch off a hotplate.
Setting
1. The timer can be set in two different ways
– If a hotplate has been selected: Touch the
3 symbol twice.
– If no hotplate has been selected: Touch the
3 symbol.
The Ú display beside the W symbol lights up. ‹‹
appears in the timer display.
2. Touch the @ or A symbol. The basic setting appears.
@ symbol: 10 minutes.
A symbol: 05 minutes.
3. Set the required time using the @ or A symbols.
After a few seconds, the time begins to count down.
Changing or deleting the time
Touch the symbol 3 repeatedly until the Ú indicator
lights up beside the W symbol. Change the time or or
set it to ‹‹ using the @ or A symbol.
4. Use the @ or A symbol to select the required
cooking time.
After a few seconds, the time begins to elapse.
Note: The same cooking time can be set automatically
for all hotplates. The set time for each of the hotplates
counts down independently.
You can find information on automatically programming
the cooking time in section ~ "Basic settings"
Changing or cancelling the cooking time
Select a hotplate. Touch the 3 symbol and use the
@ or A symbols to change the cooking time, or set the
time to ‹‹.
Once the time has elapsed, the hotplate switches itself off.
An audible signal sounds and the ‹‹ symbol appears
on the timer display for 10 seconds. Ú lights up on the
display for the hotplate.Touch the 3 symbol. The
indicators go out and the audible signal ceases.
After the time has elapsed,
An audible signal sounds. ‹‹ appears in the timer
display. The displays go out after 10 seconds.
When the 3 symbol is touched, the displays go out
and the acoustic signal ceases.
Notes
■ If a cooking time was programmed for several
hotplates, the time information for the selected
hotplate is shown in the timer display.
■ You can set a cooking time of up to 99 minutes.
13
en PowerBoost function
vPowerBoost function
PowerBoost function
The PowerBoost function enables you to heat up large
quantities of water faster than when using heat setting
Š.
This function can always be activated for a hotplate,
provided the other hotplate in the same group is not in
use (see illustration). Otherwise,
the display for the selected hotplate; the
will then be set automatically without activating the
function.
To activate
1. Select a hotplate.
2. Press the › symbol.
The › indicator lights up.
The function should be activated.
› and Š will flash in
Š heat setting
AChildproof lock
Childproof lock
You can use the childproof lock to prevent children
from switching on the hob.
Activating and deactivating the childproof lock
The hob must be switched off.
To activate: Touch the ‚ symbol for approx. 4
seconds. The indicator next to the ‚ symbol lights up
for 10 seconds. The hob is locked.
To deactivate: Touch the ‚ symbol for approx. 4
seconds. The lock is released.
Childproof lock
With this function, the childproof lock automatically
activates when a hob is switched off.
Switching on and off
You can find out how to switch the automatic childproof
lock on in the ~ "Basic settings" section
Deactivating
1. Select a hotplate.
2. Touch the › symbol.
The › display goes out and the hotplate switches
back to the Š heat setting.
The function was deactivated.
Note: In certain circumstances, the PowerBoost
function can switch itself off automatically in order to
protect the electronic elements inside the hob.
bAutomatic safety cut-out
Automatic safety cut-out
If a hotplate operates for an extended period and no
settings are changed, the automatic safety shut-off is
activated.
The hotplate stops heating. ”, ‰ and the residual heat
indicator œ or • flash alternately in the hotplate display.
When you touch any symbol, the display switches off.
The hotplate can now be set again.
The point at which the safety shut-off becomes active
depends on which heat setting has been set (after 1 to
10 hours). .
14
QBasic settings
Basic settings
The appliance has various basic settings. You can
adapt these to suit your cooking habits.
Display Function
Basic settings en
™‚
™ƒ
™†
™‡
™ˆ
Automatic childproof lock
‹ Manual*.
‚ Automatic.
ƒ Function deactivated.
Audible signals
‹ Confirmation and fault signals are switched off.
‚ Only the fault signal is switched on.
ƒ Only the confirmation signal is switched on.
„ All signal tones are switched on.*
Automatically programming the cooking time
‹‹ Switched off.*
‹‚-ŠŠ Time until automatic switch-off.
Duration of the timer-end signal tone
‚ 10 seconds.*
ƒ 30 seconds.
„ 1 minute.
Power management function. Limiting the total power of the hob
‹ Switched off.*
‚ 1000 W minimum power.
‚. 1500 W.
ƒ 2000 W.
...
Š or Š. Maximum power of the hob.
™Š
Time for selecting the hotplate
‹ Unlimited: The hotplate that was set last remains selected.*
‚ Limited: The hotplate only remains selected for a few seconds.
™‚ƒ
Checking cookware and cooking results
‹ Not suitable
‚ Not perfect
ƒ Suitable
™‹
Restoring the factory settings
‹ Individual settings.*
‚ Restore factory settings.
* Factory settings
15
en Cookware check
To access the basic settings:
The hob must be off.
1. Switch on the hob.
2. Within ten seconds, touch and hold the 1 symbol
for approximately four seconds.
The first four displays provide product information.
Touch the @ or A symbol to view the individual
displays.
Product information Display screen
After-sales service index (ASSI)
Production number
Production number 1
Production number 2
3. Touch the 1 symbol again to access the basic
settings.
™ and ‚ flash alternately on the displays and ‹
appears as a presetting.
‹‚
”š
Š†.
‹.†
tCookware check
Cookware check
This function can be used to check the speed and
quality of the cooking process depending on the
cookware.
The result is a reference value and depends on the
properties of the cookware and the hotplate being used.
1. Place the cold cookware containing 200 ml of water
on the centre of the hotplate the diameter of which
best matches that of the base of the cookware.
2. Go to the basic settings and select the setting ™‚ƒ.
3. Touch the @ or A symbol. A flashes in the hotplate
display.
The function is activated.
After 10 seconds, the result for the quality and speed of
the cooking process appears in the hotplate display.
4. Touch the 1 symbol repeatedly until the required
function is displayed.
5. Then use the @ and A symbols to select the
required setting.
6. Touch the 1 symbol for at least four seconds.
The settings have been saved.
Leaving the basic settings
Turn off the hob with the main switch.
Check the result using the following table:
Result
The cookware is not suitable for the hotplate and will therefore
‹
not heat up.*
The cookware is taking longer to heat up than expected and the
‚
cooking process is not going as well as it should.*
The cookware is heating up correctly and the cooking process
ƒ
is going well.
* If there is a smaller hotplate available, test the cookware again on the
smaller hotplate.
To activate the function again, select the @ or A symbol.
Notes
■ If the diameter of the hotplate used is much smaller
than the diameter of the cookware, only the middle
of the cookware can be expected to heat up. This
may result in the cooking results not being as good
as expected or being less than satisfactory.
■ You can find information on this function in the
section on ~ "Basic settings".
■ You can find information on the type, size and
positioning of the cookware in the section on
~ "Induction cooking".
16
DCleaning
Cleaning
Suitable maintenance and cleaning products can be
purchased from the after-sales service or in our e-Shop.
Hob
Cleaning
Always clean the hob after cooking. This will prevent
food deposits from becoming burned on. Only clean the
hob after the residual heat indicator has gone out.
Clean the hob with a damp dish cloth and dry it with a
cloth or towel to prevent limescale build-up.
Only use cleaning agents that are suitable for this type
of hob. Observe the manufacturer's instructions on the
product packaging.
Never use:
■ Undiluted washing-up liquid
■ Cleaning agents designed for dishwashers
■ Abrasive cleaners
■ Harsh cleaning agents, such as oven spray and
limescale remover
■ Scouring pads
■ High-pressure cleaners or steam jet cleaners
Cleaning en
Stubborn dirt is best removed with a glass scraper,
available from retailers. Observe the manufacturer's
instructions.
You can obtain a suitable glass scraper from customer
services or through our online shop.
Using a special sponge for cleaning glass-ceramic
hobs achieves a great cleaning result.
Potential marks
Limescale and water
marks
Clean the hob as soon as it has cooled down.
You can use a cleaning agent suitable for
glass-ceramic hobs.*
Sugar, rice starch or
plastic
Clean immediately. Use a glass scraper. Caution: Risk of burns.*
* Then clean with a damp dish cloth and dry with a cloth or towel.
Note: Do not use any cleaning agents while the hob is
still hot. This may mark the surface. Make sure that any
residue left by cleaning agents is removed.
Hob surround
To prevent damage to the hob surround, observe the
following instructions:
■ Only use warm soapy water
■ Wash new dish cloths thoroughly before use.
■ Do not use harsh or abrasive cleaning agents.
■ Do not use a glass scraper or sharp objects.
17
en Frequently Asked Questions (FAQ)
{Frequently Asked
Questions (FAQ)
Frequently Asked Questions (FAQ)
Using the appliance
Why can't I switch on the hob and why is the childproof lock symbol lit?
The childproof lock is activated.
You can find information on this function in the section on ~ "Childproof lock"
Why are the displays flashing and why can I hear an audible signal?
Remove any liquid or food remains from the control panel. Remove any objects from the control panel.
You can find instructions on how to deactivate the audible signal in the section on ~ "Basic settings"
Noises
Why I can hear noises while I'm cooking?
Noises may be generated while using the hob depending on the base material of the cookware. These noises are a normal part of induction technology. They do not indicate a defect.
Possible noises:
A low humming noise like the one a transformer makes:
Occurs when cooking at a high heat setting. The noise disappears or becomes quieter when the heat setting is reduced.
Low whistling noise:
Occurs when the cookware is empty. This noise disappears when water or food is added to the cookware.
Crackling:
Occurs when using cookware made from different layers of material or when using cookware of different sizes and different materials at
the same time. The loudness of the noise can vary depending on the quantity of food being cooked or the cooking method.
High-pitched whistling noises:
Can occur when two hotplates are used at the highest heat setting at the same time. The whistling noises disappear or become quieter
when the heat setting is reduced.
Fan noise:
The hob is equipped with a fan that switches on automatically at high temperatures. The fan may continue to run even after you have
switched off the hob if the temperature detected is still too high.
Cookware
Which types of cookware can be used with an induction hob?
You can find information on which types of cookware can be used with an induction hob in the section on ~ "Induction cooking"
Why is the hotplate not heating up and why is the heat setting flashing?
The hotplate on which the cookware is standing is not switched on.
Check that you have switched on the correct hotplate.
The cookware is too small for the hotplate that is switched on or it is not suitable for induction cooking.
You can find information on the type, size and positioning of the cookware in the section on ~ "Induction cooking"
Why is it taking so long for the cookware to heat up or why is it not heating up sufficiently despite being on a high heat setting?
The cookware is too small for the hotplate that is switched on or it is not suitable for induction cooking.
You can find information on the type, size and positioning of the cookware in the section on ~ "Induction cooking"
18
Trouble shooting en
Cleaning
How do I clean the hob?
Using a special glass-ceramic cleaning agent produces the best results. We advise against using harsh or abrasive cleaning agents, dishwater detergent (concentrated) or scouring pads.
You can find more information on cleaning and caring for your hob in the section on ~ "Cleaning"
3Trouble shooting
Trouble shooting
Usually, faults are small matters that are easy to
eliminate. Please read the information in the table
before calling the after-sales service.
Display Possible cause Solution
None The power supply has been disconnected. Use other electrical devices to check whether a short-circuit has
occurred in the power supply.
The device has not been connected in accordance with the circuit diagram.
Electronics fault. If the fault cannot be eliminated, inform the technical after-sales
The displays flash The control panel is damp or an object is cover-
ing it.
The Ù indicator flashes in the
hotplate displays
”ƒ
”…
Ӡ + heat setting and acous-
tic signal
Ӡ and acoustic signal
”‚/”‡
”‰
“Š‹‹‹
“Š‹‚‹
—…‹‹
Do not place hot pans on the control panel.
A fault has occurred in the electronics. To acknowledge the fault, cover the control panel with your hand.
The electronics have overheated and have
switched off the corresponding hotplate.
The electronics have overheated and have
switched off all hotplates.
There is a hot pan in the area of the control
panel. There is a risk that the electronics will
overheat.
There is a hot pan in the area of the control
panel. To protect the electronics, the hotplate
has been switched off.
The hotplate has overheated and switched itself
off to protect the work surface.
The hotplate was operating for an extended
period without interruption.
The supply voltage is faulty; outside of the normal operating range.
The hob is not connected properly Disconnect the hob from the power supply. Ensure that it has
Ensure that the device has been connected in accordance with
the circuit diagram.
service.
Dry the control panel or remove the object.
Wait until the electronics have cooled down sufficiently. Then
touch any symbol on the hob.
Remove the pan. The fault display goes out shortly afterwards.
You can continue to cook.
Remove the pan. Wait for a few seconds. Touch any control. If the
fault display goes out, you can continue to cook.
Wait until the electronics have cooled down sufficiently and
switch the hotplate on again.
The automatic safety switch-off function has been activated. See
section
Contact your electricity provider.
been connected in accordance with the circuit diagram.
Notes
■ If “ appears in the display, the sensor for the
relevant hotplate must be pressed and held in order
to read the fault code.
■ If the fault code is not listed in the table, disconnect
the hob from the power supply, wait 30 seconds and
connect it again. If the display appears again,
contact technical after-sales and tell them the
precise fault code.
19
en Customer service
4Customer service
Customer service
Our after-sales service is there for you if your appliance
needs to be repaired. We will always find an
appropriate solution, also in order to avoid after-sales
personnel having to make unnecessary visits.
E number and FD number
Please quote the E number (product number) and the
FD number (production number) of your appliance
when contacting the after-sales service.
The rating plate bearing these numbers can be found:
■ On the appliance certificate.
■ On the lower section of the hob.
The E-number can also be found on the glass surface
of the hob. You can check the customer index (KI) and
FD number by going to the basic settings. Look up
section~ "Basic settings" for this.
Please note that a visit from an after-sales service
engineer is not free of charge in the event of misuse of
the appliance, even during the warranty period.
Please find the contact data of all countries in the
enclosed customer service list.
Rely on the professionalism of the manufacturer. You
can therefore be sure that the repair is carried out by
trained service technicians who carry original spare
parts for your appliances.
20
ETest dishes
Test dishes
This table has been produced for test institutes to
facilitate the testing of our appliances.
The table data refers to our Schulte-Ufer cookware
accessories (4-piece cookware set for the CZ9442X0
induction hob) with the following dimensions:
■ Saucepan: 16 cm Ø, 1.2 l, for 14.5 cm Ø hotplates
■ Pot: 16 cm Ø, 1.7 l, for 14.5 cm Ø hotplates
■ Pot: 22 cm Ø, 4.2 l, for 18 cm Ø hotplates
■ Pan: 24 cm Ø, for 18 cm Ø hotplates
Test dishes Cookware
Melting chocolate
Chocolate coating (e.g. Dr. Oetker brand, dark chocolate 55% cocoa,
150 g)
Heating and keeping lentil stew warm
Lentil stew*
Initial temperature 20 °C
Amount: 450 g
Amount: 800 g
Lentil stew from a tin
E.g lentils with Erasco sausages.
Initial temperature 20 °C
Amount: 500 g
Amount: 1 kg
Saucepan,
16 cm
diameter
Cooking
pot, 16 cm
diameter
Saucepan,
22 cm
diameter
Cooking
pot, 16 cm
diameter
Saucepan,
22 cm
diameter
Test dishes en
Preheating Cooking
Heat setting
Cooking time
(min:sec)
Lid Heat setting Lid
- - - 1. No
1:30
9
(without stir-
Yes 1. Yes
ring)
2:30
9
(without stir-
Yes 1. Yes
ring)
Approx. 1:30
9
(stir after
approx.
Yes 1. Yes
1 minute)
Approx. 2:30
9
(stir after
approx.
Yes 1. Yes
1 minute)
Preparing Béchamel sauce
Temperature of the milk: 7 ºC
Ingredients: 40 g butter, 40 g flour, 0.5 l milk (3.5% fat content) and a
pinch of salt
1. Melt the butter, stir in the flour and salt, and heat up the mixture. Saucepan,
2 Add the milk to the roux and bring to the boil, stirring continuously.
3. Once the Béchamel sauce comes to the boil, leave it on the hotplate for a further two minutes, stirring continuously.
*Recipe in accordance with DIN 44550
**Recipe in accordance with DIN EN 60350-2
16 cm
diameter
2 Approx. 6:00 No - -
7 Approx. 6:30 No - -
- - - 2 No
21
en Test dishes
Test dishes Cookware
Cooking rice pudding
Rice pudding, cooked with the lid on
Temperature of the milk: 7 ºC
Heat the milk until it starts to rise up. Set the recommended heat setting
and add rice, sugar and salt to the milk.
The cooking time, including preheating, is approx. 45 minutes.
Ingredients: 190 g short-grain rice, 90 g sugar, 750 ml milk (3.5%
fat content) and 1 g salt
Ingredients: 250 g short-grain rice, 120 g sugar, 1 l milk (3.5% fat
content) and 1.5 g salt
Rice pudding, cooked without lid
Temperature of the milk: 7 ºC
Add the ingredients to the milk and heat the mixture up while stirring con-
tinuously. Once the milk has reached approx. 90 ºC, select the recommended heat setting and leave it to simmer on a low heat for approx.
50 minutes.
Ingredients: 190 g short-grain rice, 90 g sugar, 750 ml milk (3.5%
fat content) and 1 g salt
Ingredients: 250 g short-grain rice, 120 g sugar, 1 l milk (3.5% fat
content) and 1.5 g salt
Cooking
pot, 16 cm
diameter
Saucepan,
22 cm
diameter
Cooking
pot, 16 cm
diameter
Saucepan,
22 cm
diameter
Preheating Cooking
Heat setting
8. Approx. 5:30 No
8. Approx. 5:30 No
8. Approx. 5:30 No 3 No
8. Approx. 5:30 No 2. No
Cooking time
(min:sec)
Lid Heat setting Lid
3
(stir after
10 minutes)
3
(stir after
10 minutes)
Yes
Yes
Cooking rice*
Water temperature: 20 °C
Ingredients: 125 g long grain rice, 300 g water and a pinch of salt Cooking
Ingredients: 250 g long grain rice, 600 g water and a pinch of salt Saucepan,
Roasting a pork loin
Initial temperature of the loin: 7 °C
Amount: 3 pork loins (total weight approx. 300 g, 1 cm thick) and
15 ml sunflower oil
Preparing pancakes**
Amount: 55 ml batter for each pancake Frying pan,
Deep-fat frying chips
Amount: 1.8 l sunflower oil, per portion: 200 g frozen chips (e.g.
McCain 123 Original fries)
*Recipe in accordance with DIN 44550
**Recipe in accordance with DIN EN 60350-2
pot, 16 cm
diameter
22 cm
diameter
Frying pan,
24 cm
diameter
24 cm
diameter
Saucepan,
22 cm
diameter
9 Approx. 2:30 Yes 2 Yes
9 Approx. 2:30 Yes 2. Yes
9 Approx. 1:30 No 7 No
9 Approx. 1:30 No 7 No
Until the oil
9
temperature
reaches
180 °C
No 9 No
22
&RQVWUXFWD1HII9HUWULHEV*PE+
&DUO:HU\6WUDH
0QFKHQ
*(50$1<
*9001063730*
9001063730
960215(03)
Loading...
