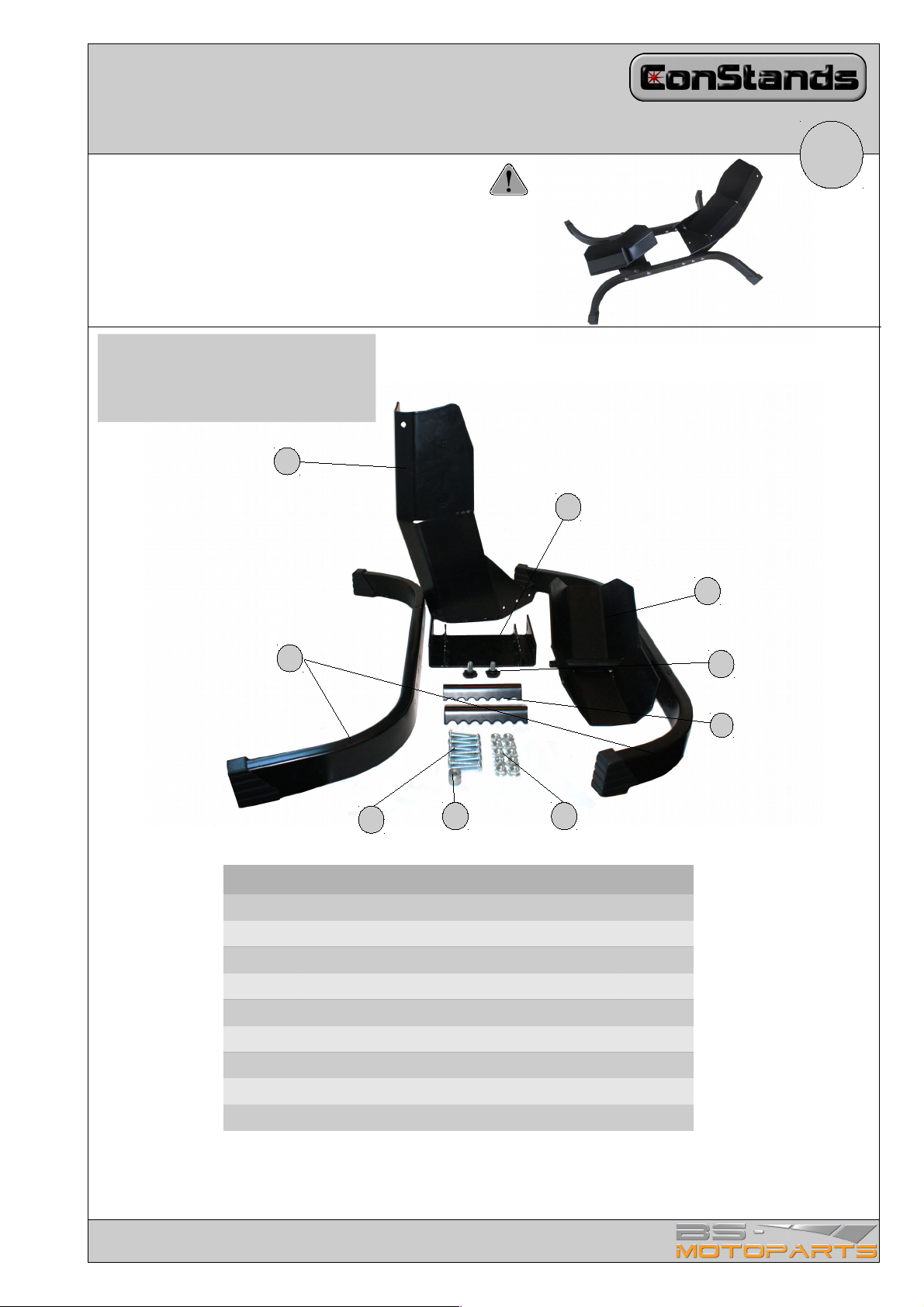

A Side part (left & right)
Je 1
B Wheel mount
1
C Wheel rocker 1
D Carrier 1
1 Screw M8x35 (hexagon socket) 10
2 Nut M8 10
3 Shim 10
4 Locking plates 2
5 Stud screw 2

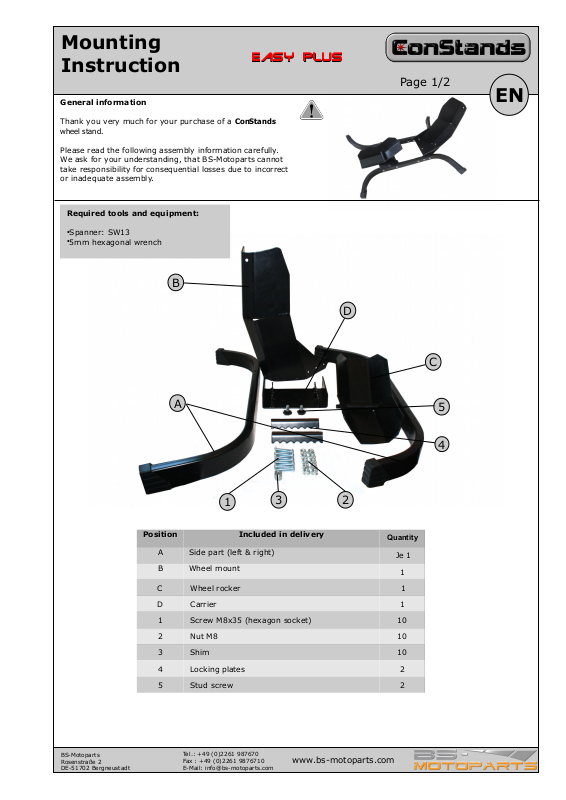

Mounting
Instruction
General information
Thank you very much for your purchase of a ConStands
wheel stand.
Please read the following assembly information carefully.
We ask for your understanding, that BS-Motoparts cannot
take responsibility for consequential losses due to incorrect
or inadequate assembly.
Page 1/2
EN
Required tools and equipment:
●
Spanner: SW13
●
5mm hexagonal wrench
A
B
C
D
1
23
4
5
Page 2
Easy Plus
Easy Plus
BS-Motoparts
Rosenstraße 2
DE-51702 Bergneustadt
Tel.: +49 (0)2261 987670
Fax : +49 (0)2261 9876710
E-Mail: [email protected]
www.bs-motoparts.com

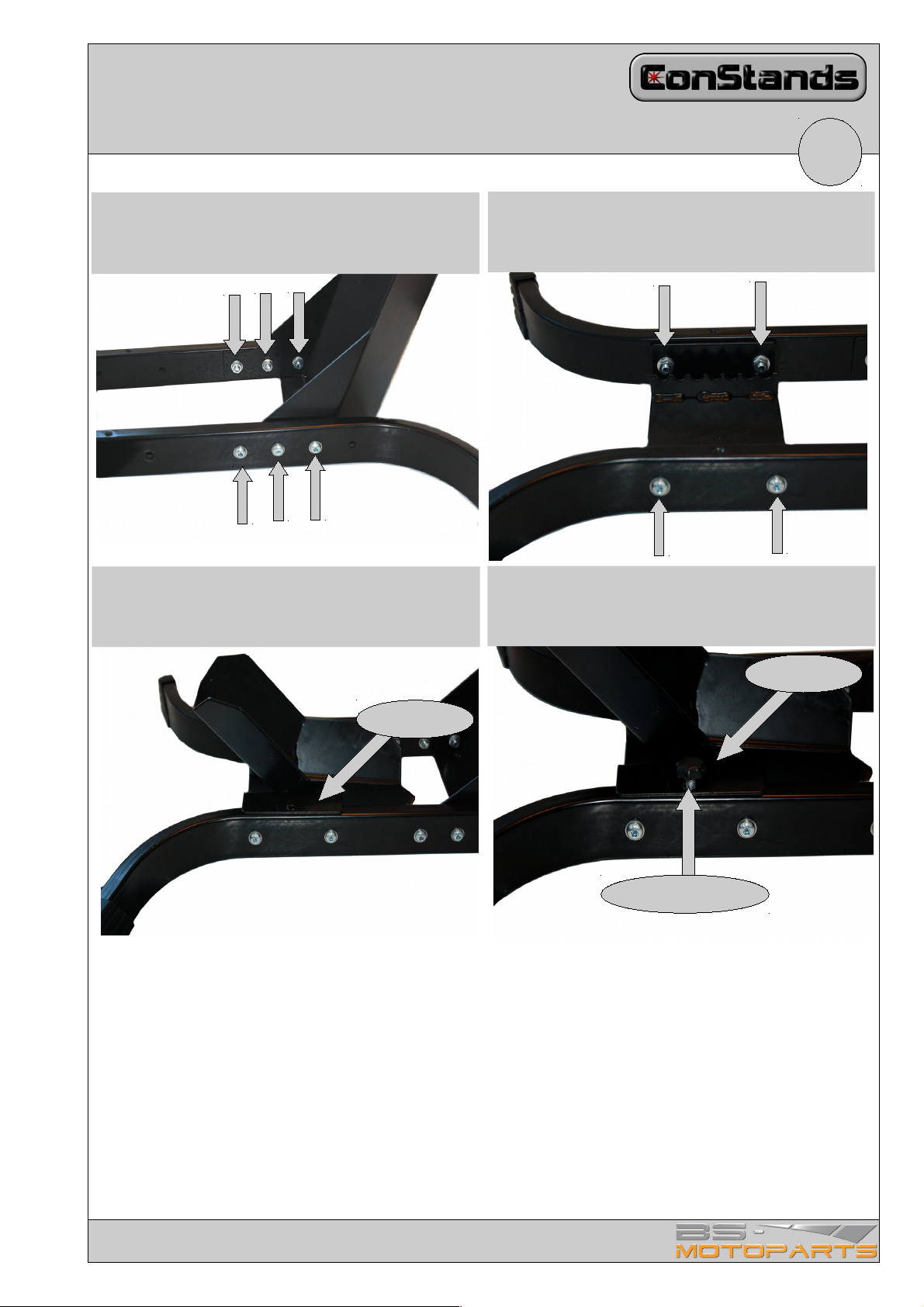

Step 1: Fit the two side parts A to the wheel mount B,
for this use the screws 1 M8x35 , the shims 3 and the
nuts 2 M8.
Mounting
Instruction
EN
Page 2/2
Step 2: Install the carriers D, for this use the screws 1
M8x35, the shims 3 and the nuts 2 M8.
Step 3: Place the wheel rocker C and the locking plates 4
in the carriers D.
Step 4: Attach the locking plates 4 using the stud screws
5.
Stud screw
Locking plate
Locking plate
