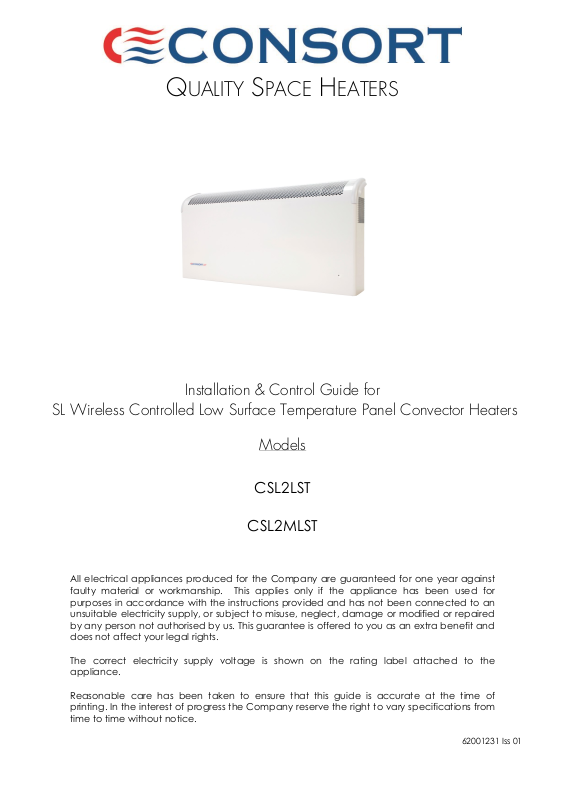

QUALITY SPACE HEATERS
Installation & Control Guide for
SL Wireless Controlled Low Surface Temperature Panel Convector Heaters
Models
CSL2LST
CSL2MLST
All electrical appliances produced for the Company are guaranteed for one year against
faulty material or workmanship. This applies only if the appliance has been used for
purposes in accordance with the instructions provided and has not been connected to an
unsuitable electricity supply, or subject to misuse, neglect, damage or modified or repaired
by any person not authorised by us. This guarantee is offered to you as an extra benefit and
does not affect your legal rights.
The correct electricity supply voltage is shown on the rating label attached to the
appliance.
Reasonable care has been taken to ensure that this guide is accurate at the time of
printing. In the interest of progress the Company reserve the right to vary specifications from
time to time without notice.
62001231 Iss 01
Page 2
2
Overview
Please read this guide carefully and retain for future
use and maintenance.
This appliance has been designed and
manufactured to the highest international
standards, however, care must be taken for optimal
results and safety. This appliance also meets the
requirements of EU Directive 2004/106/EC for EMC
and 2009/125/EC Directive.
Safety & Care
Our Low Surface Temperature heaters have been
designed and built to the NHS requirement for safe
surface temperatures which is that no surface which
can be touched by the user will be more than 43
degrees C (at a room temperature of 21 degrees C.)
This means that our Low Surface Temperature heaters
out-perform the European Standard by a significant
margin. The appliance is not intended for use by
persons (including children) with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Children should be supervised to ensure that they
do not play with the appliance.
Warning
Do NOT site the appliance into a corner.
Do NOT handle the appliance with wet hands.
Do NOT use the appliance in workshops or rooms
where excessive dust is generated or present.
Ensure that nothing is pushed into any aperture
of this appliance.
Do NOT touch outlet grille when the appliance is
in use.
Do NOT cover or restrict any aperture of the
appliance when in use.
Do NOT use the appliance if damaged.
Do NOT leave the appliance unattended where
young children are present.
Thermally Operated Cut-Out
The appliance is fitted with a thermally operated cut
-out (TOC). This is a safety device, which switches
the heater off if, for any reason, the appliance
overheats. The TOC can only be re-set after the
appliance has cooled down. In order to re-set the
TOC, proceed as follows:
Switch off appliance and leave for
approximately 5 minutes.
Switch appliance back on and TOC will re-set.
Ensure that the appliance is functioning
correctly. If the TOC control operates again, the
appliance should be checked by a competent
electrician.
The heater carries a ‘Do Not Cover’ label to warn the user
that if the appliance is covered, there is a risk of
overheating.
Cleaning
Always disconnect the heater from the mains before
cleaning. The heater should not require any maintenance,
but it is strongly advised that it is kept clean. An
occasional wipe over with a soft cloth is all that should be
necessary.
Do NOT use metal or furniture polish on any part of the
heater.
Do NOT touch the heater with wet hands or in any way
bring water into contact with it.
If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified
person in order to avoid a hazard.
If Your Heater Does Not Work
Check that power is available to the heater. The LED
light should be illuminated
Check that the thermal cut-out has not operated.
Follow the reset instructions given under the section
headed ‘Thermal Operated Cut-out’.
Check that the fuse in the spur unit has not blown. This
can be done by replacing the fuse with another
suitable fuse.
Should neither of the above remedies work, then
telephone the helpline number shown in these instructions
(UK ONLY). Do not attempt to repair the heater.
Connection to the Main Supply
Electrical installation should be carried out by a
competent installer, preferably registered with NICEIC
(National Inspection Council for Electrical Installation
Contracting) in accordance with the 17 edition of the IEE
Wiring Regulations, (BS.7671), and any relevant Local
Authority Bye-Laws. This heater is fitted with a 3-core mains
supply cable and should be permanently connected to
the electricity supply via a double pole switch having 3mm
gap on each pole. A switched Fused Connection unit to
BS.1363. Part 4 is a recommended mains supply
connection accessory to ensure compliance with safety
requirements applicable to fixed-wiring installation.
Note: When switched on for the first time the appliance
may emit a slight smell. This is purely the evaporation of a
fluid used in the manufacturing process.
WARNING: This appliance must be earthed.
62001231 Iss 01
Page 3
Operation
When the appliance is connected to the mains supply, the LED indicator will light up green, showing
that the power is available to the unit.
When the heat output has been enabled by a controller, the LED indicator light will turn red.

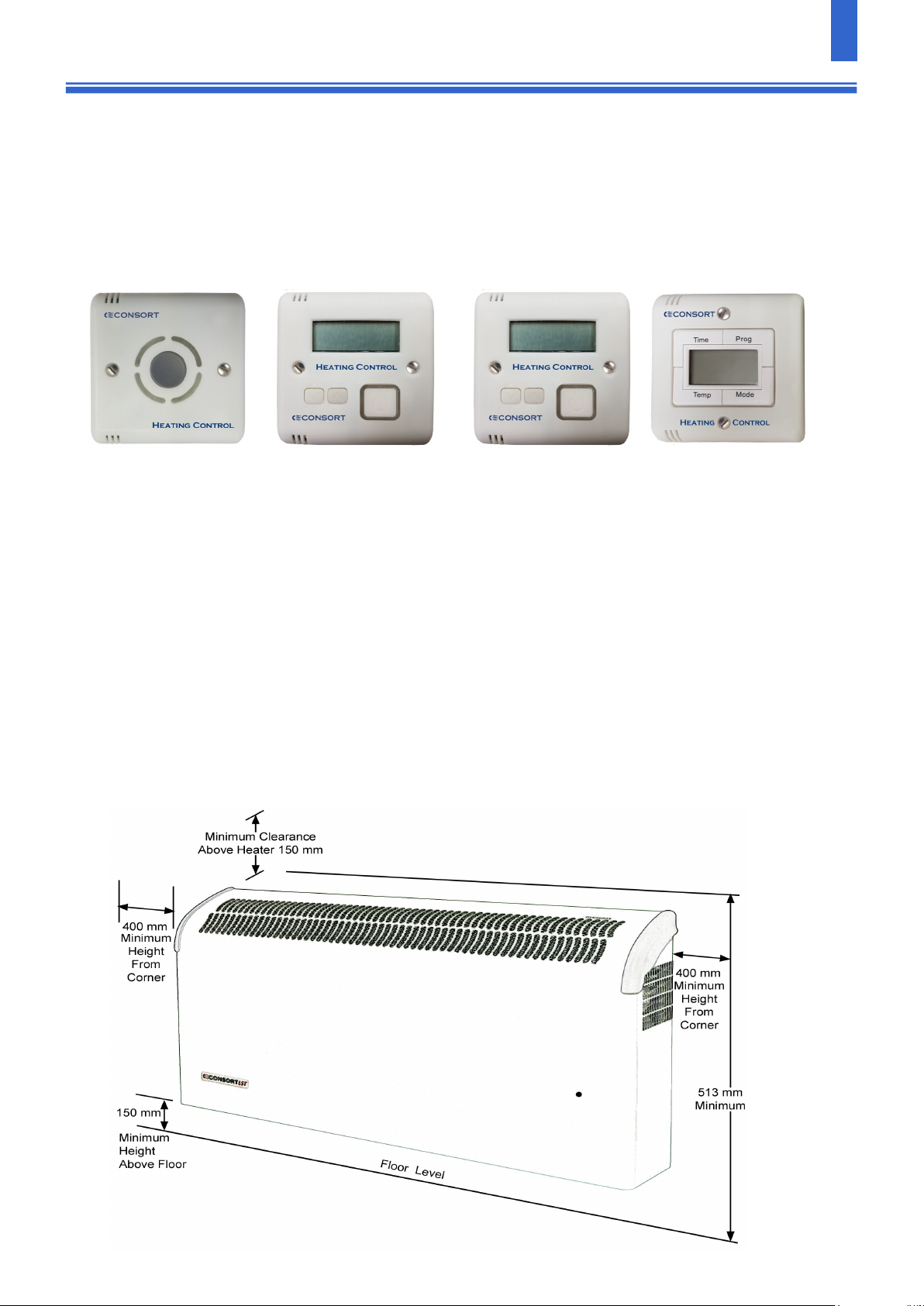

This heater can only be used when connected to any SL wireless controller. Each SL controller can
control any number of heaters providing they are in the RF range.
3
SLPB
SLVT
SLVTB
SLTI
SL wireless controllers
Please refer to the SL user and operating
instructions for full operational details.
Wall mounting
CSL2(M)LST

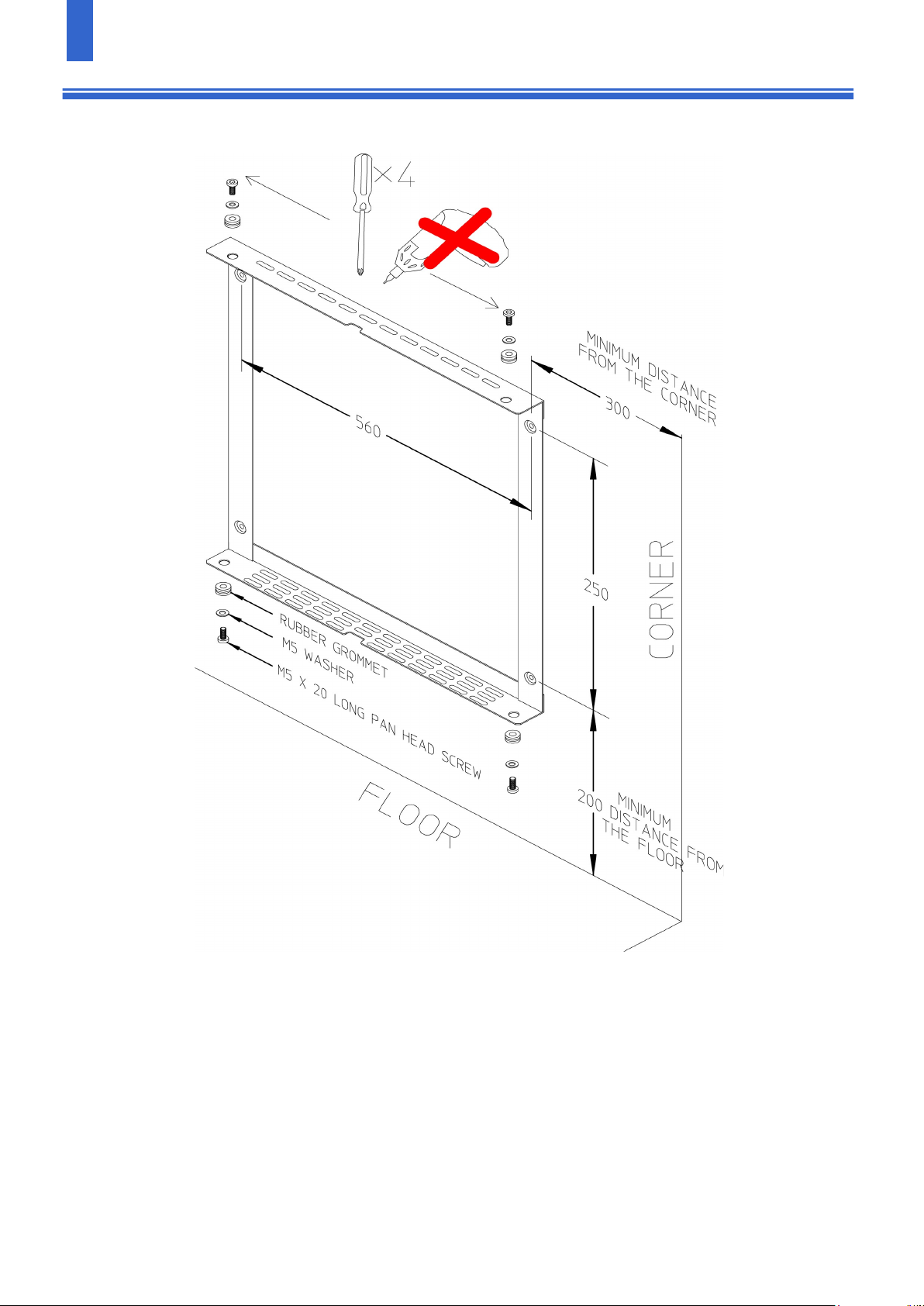

The heater must not be located immediately below a fixed socket outlet. The wall
mounting bracket is packed separately in the carton. Fit the mounting bracket to the
wall at the height and centers shown in the diagram.
Rest your appliance on the bottom of the mounting bracket and secure with the two
top locking screws including the plain washers. Do not over tighten. Now secure the
appliance with two bottom locking screws including plain washers. Do not over
tighten.
62001231 Iss 01
Page 4
4
Wall mounting
CUSTOMER HELPLINE
Should you need any advice on the use of your new Consort product please contact our
Helpline:
Consort Equipment Products Limited
Thornton Industrial Estate, Milford Haven, Pembrokeshire, SA73 2RT
Tel: 01646 692172 Fax: 01646 695195 Email: [email protected] Web:
www.consortepl.com
Operation hours: Mon to Thu 8.30am to 4.30pm | Fri 8.30am to 3.30pm
BS EN ISO 9001 Registered Company No FM12671
