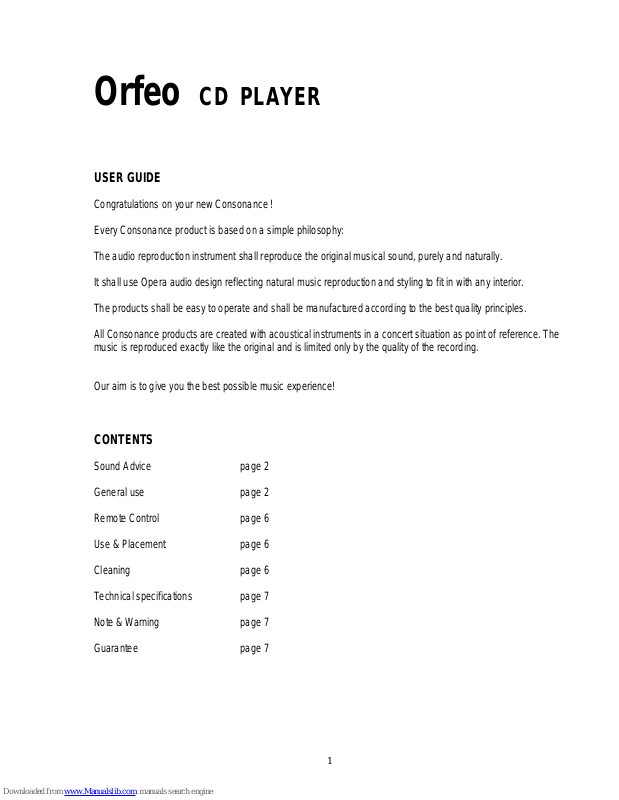

Consonance ORFEO User Manual

1

Orfeo CD PLAYER

USER GUIDE

Congratulations on your new Consonance !
Every Consonance product is based on a simple philosophy:
The audio reproduction instrument shall reproduce the original musical sound, purely and naturally.
It shall use Opera audio design reflecting natural music reproduction and styling to fit in with any interior.
The products shall be easy to operate and shall be manufactured according to the best quality principles.
All Consonance products are created with acoustical instruments in a concert situation as point of reference. The

music is reproduced exactly like the original and is limited only by the quality of the recording.

Our aim is to give you the best possible music experience!

CONTENTS

Sound Advice page 2
General use page 2
Remote Control page 6
Use & Placement page 6
Cleaning page 6
Technical specifications page 7
Note & Warning page 7
Guarantee page 7

2

SOUND ADVICE

The Consonance ORFEO High End CD-player is easy to connect and operate and requires no prior technical
knowledge. However, to get the most out of the player's superior sound and music quality, we have provided a
brief description of the connections and use of the player in order to provide a total music experience.

We recommend keeping this user guide for future reference.

GENERAL USE

The CD player has only six buttons. The buttons on the front panel have 6 functions.

NO.1 Power on / off

The CD-player is switched on by pushing the power button on the left hand side of the front panel. A flashing " --

-- --" blue light in the display indicates that power has been switched on.
By pushing the same button one more time the power is switched off.

NO.4 Open / close

Pushing the open/close button on the right hand side of the front panel will open the CD tray loader, and the CD
can be placed in the tray.
To close the CD tray loader push the same button one more time.
The CD tray loader can also be closed by pushing the tray loader gently inwards.

NO.2 Play
Pushing the play button on the right hand side of the front panel makes the player start playing.
Pause

If the play button is pushed when a track is playing the player will go into pause mode. One more push at the
button and the player will start playing again from the same position on the CD. The pause function is indicated by
the display flashing the track and time when the pause was selected.

3

NO.3 Stop
Pushing the stop button on the right hand side of the front panel makes the player stop playing the CD.
NO.6 Next track

Pushing the next track button on the left hand side of the front panel makes the player jump to the next track on
the CD. For every time this button is pushed the player will move one track forward.
The player will automatically start playing from the beginning of the selected track each time this button is pushed.

NO.5 Previous track

Pushing the prev. track button on the left hand side of the front panel makes the player jump to the beginning of
the track that is playing. For every time this button is pushed the track playing will move one track backwards. The
player will automatically start playing from the beginning of the selected track each time this button is pushed.

CONSONANCE REMOTE CONTROL

The Consonance ORFEO can be controlled by remote control. Like other Hi-End products, the number of buttons
on the remote is kept to a minimum.

The remote control uses two 1.5-volt LR03 AAA batteries.

Additional functions available on the remote control
By using the Consonance Remote control the functions search (rewind, wind) and repeat can be selected.

4

Wind

Searching fast forward is selected by holding down the wind button on the remote control.
The search speed will start slow and will increase to high after some seconds.

Rewind

Searching fast backwards is selected by holding down the rewind button on the remote control.
The search speed will start slow and will increase to high after some seconds.

Repeat CD
To repeat the complete CD, press the repeat button once. “r ALL” will be displayed on the screen.
Repeat track

To repeat the track playing, press the repeat button twice. “r ONE” will be displayed for
two seconds on the screen.
.

Cancel repeat
To cancel repeat, press the repeat button third.
Dim display
To dim the display on the screen, press the A button. The display will change from bright to dead on the screen.

Switch sampling
While the player in standby, press the B button to switch the sampling 44.1/ 88.2kHz.

Track information

While the player in playing, press the B button to show the track time, time left of the
playing track and time left of whole disc.

Back panel of CD-player

5

From left to right the connectors are :
AC Power connection 240V / 230V / 220V / 115V / 100V AC dependent on country.

Digital output Phono/RCA ,No.10
Unbalanced outputs Phono/RCA right/left

We recommend to connect signal cables to the CD-player when the CD-player and all the other units of the audio
system is switched off.

The CD-player has two types of analog audio outputs: unbalanced audio signal with RCA plugs (phono plugs)
The CD-player has got one RCA standard SPDIF digital audio output. Digital signal level is 0.5Vpp when

terminated in 75 ohm load. This is the standard load impedance of external DAC's and other recording equipment.

USE & PLACEMENT

The Consonance ORFEO should be placed on a flat, hard surface for proper isolation against vibrations. The CD­player performs best after being switched on for about 30 minutes for heating upage A certain space is required
for air circulation above and below the CD-player. The CD-player must never be placed on a carpet or similar
surface that obstructs air circulation through the component. Nor must it be covered while in use or placed on a
narrow shelf or in another confined space.

CLEANING

The top cover are made of cherry wood, while the front panel and side panels are made of brushed / blasted and
anodized aluminum. Fingerprints or stains on the front panel, knobs or top cover can be removed with a cloth
moistened with warm water.

We wish you good luck in setting up and connecting your new CD-player and hope that it will give you many years
of joyful natural sounding music experiences!

TECHNICAL SPECIFICATIONS

6

Consonance ORFEO High End CD-player

DAC resolution 16bit TDA1543
0dBFS signal output 2.35V RMS
Output Terminals Gold plated Tube RCA unbalanced
Frequency response Less than +/- 0.5 dB deviation 20Hz-20kHz
Phase response Less than 5 degrees deviation 20Hz-20kHz
Signal-to-noise ratio More than 100dB
Crosstalk Less than -100dB
Distortion (RCA) Less than 0.12 %
Remote Control Philips RC-5 compatible IR system 36kHz modulation frequency
Dimensions / Weight 11cm x 45cm x 33cm (HxWxD) / 18kg

NOTE & WARNING

Consonance products should only be opened and / or serviced by certified Consonance technicians. The device
contains electronic components that can cause severe electric shock. Work performed on Consonance products
by unqualified personnel can cause serious damage and personal injury.
Opening of the product by non-authorized personnel will void the guarantee.
The products must not be exposed to rain or moisture.

GUARANTEE

All Consonance products come with a 1-year guarantee against defective materials and workmanship.
In case you should need assistance with your Consonance product please find your nearest dealer or distributor

by looking at our webpages: http://www.operaudio.com, http:\\www.operaudio.com.cn
In case you have problems locating your dealer or distributor please e-mail to [e-mail]
