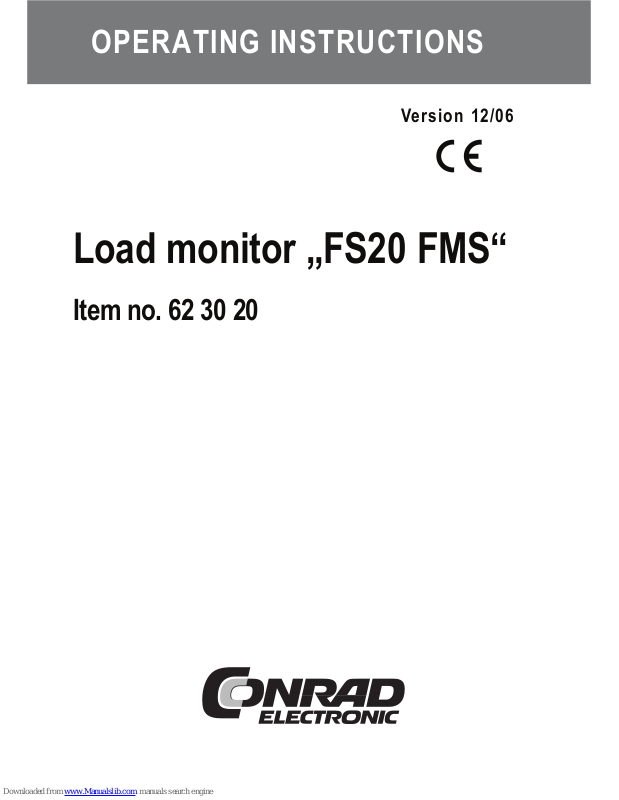

Version 12/06
OPERATING INSTRUCTIONS
Load monitor „FS20 FMS“
Item no. 62 30 20
50 seconds /5
Preselection "Positive" flank mode
Preselection threshold value mode
Preselection adress code mode
Preselection house code mode
Preselection "negative" flank mode
Operating mode
Set-up mode
"Positive" flank mode
"Negative" flank mode
Power-on command, timer function,
then power-off
Timer funct., then power-on command,
but only if the master is still active
Hours entry
Timer-Mode
Tens of minutes entry
Minutes entry
Timer funct., then power-on command
Power-off command
Power-on command
no command
House code mode
Factory setting
Digit 1 Value 1 /1
Value 2 /2
1 hour /1
Value 4 /4
Value 3 /3
Value 3 /3
Value 4 /4
Value 2 /2
Value 1 /1Digit 2
Digit 8
Value 1 /1
Value 2 /2
Value 4 /4
Value 3 /3
Adress code mode
Digit 1 Value 1 /1
Value 2 /2
Value 4 /4
Value 3 /3
Value 3 /3
Value 4 /4
Value 2 /2
Value 1 /1Digit 2
Digit 4 Value 1 /1
Value 2 /2
Value 4 /4
Value 3 /3
2 hours /2
3 hours /3
4 hours /4
10 minutes /1
1 minutes /1
Tens of seconds entry
Seconds entry
Threshold value mode
Press the button for at least 5 seconds
Briefly press button
Press the button for at least 2 seconds
Press the button for at least 12 seconds
Continue automatically
Saving the setting
/5
/6
/4
/3
/2
/1
0 hours /-
2 minutes /2
9 minutes /9
0 minutes /-
20 minutes /2
50 minutes /5
0 minutes /-
10 seconds /1
20 seconds /2
0 seconds /-
1 second /1
2 seconds /2
9 seconds /9
0 seconds /-
Automatic measurement
Level 1 /1
Level 7 /7 No level
/1
/2
/3
/4
/5
/ * periodic blinking of LED (* = number of blinks)
>2
>2
>2
>2
>2
>2
>2
>5
>5
>5
>5
>5
>5
>5
>5
>5
>5
>2
>2
>2
>2
>2
>2
>2
>2
>2
>5
>5
>5
>5
>5
>5
>2
>2
>2
>2
>2
>2
>2
>2
>2
>2
>5
>5
>5
>5
>5
>5
>5
>5
>5
>5
>5
>5
>5
>5
>5
>5
>5
>2
>2
>2
>2
>2
>2
>2
>2
>2
>2
>2
>2
>5
>2
>2
>2
>2
>2
>5
>5
>5
>5
>5
>5
>5
>2
>2
>2
>2
>2
>2
>2
>2
>2
>5
>5
>5
>5
>5
>5
>5
>5
>5
>5
>5
>5
>5
>5
>2
>2
>2
>2
>2
>2
>2
>2
>2
>2
>2
>2
>2
>2
>2
>2
>2
>5
>5
>5
>5
>5
>5
>5
>5
>5
>5
>5
>12
>12
>2
>2
>2
>2
>5
>12
Item no. 62 30 20
Item no. 62 30 23
2
Introduction
Dear customer,
Thank you for purchasing this product.
This product meets the requirements of both current national and
European guidelines.
Please read the user manual completely and observe the safety and
operation instructions before using the product!
This user manual belongs to this product. It contains important
information specific to its operation and handling. Please bear
this in mind when passing on the product to a third party.
Therefore keep this user manual for future reference!
All company and product names contained herein are trademarks of
their respective owners. All rights reserved.
For more inquiries, contact or consult our technical service:
Germany: Tel. no.: +49 9604 / 40 88 80
Fax. no.: +49 9604 / 40 88 48
e-mail: tkb@conrad.de
Mon. to Thur. 8.00am to 4.30pm
Fri. 8.00am to 2.00pm
3
Table of contents
Page
1. Prescribed use ................................................................................. 4
2. Scope of delivery ............................................................................. 4
3. Explanation of icons ......................................................................... 5
4. Safety instructions ........................................................................... 6
5. Description of functions ................................................................... 8
6. Control panel .................................................................................... 9
7. Initial operation ............................................................................... 10
8. Operation/basic function ................................................................ 11
a) Addressing the receiver .......................................................... 12
b) Manual switching ..................................................................... 12
c) Switching via the master device ............................................. 12
9. Programming .................................................................................. 13
a) Example ‘turning on the slave when the master is turned off’ .. 14
b) Setting the commands ............................................................. 16
1. Setting the ‘positive flank mode’ ........................................ 16
2. Setting the ‘negative flank mode’ ...................................... 16
3. Setting the ‘command mode’ ............................................. 17
4. Setting the timer duration (‘timer mode’) .......................... 20
c) Setting the threshold value ..................................................... 22
10. Restoring the factory settings ....................................................... 24
11. FS20 address system basics ........................................................ 25
12. Example of an address assignment ............................................. 27
13. Handling ......................................................................................... 29
14. Maintenance and cleaning ............................................................ 30
15. Disposal .......................................................................................... 31
16. Information on the range ............................................................... 31
17. Declaration of conformity (DOC) .................................................. 32
18. Technical specifications ................................................................ 33
4
1. Prescribed use
The ‘FS20 FMS’ load monitor functions exclusively in conjunction with the
FS20 wireless control system.
The ‘FS20 FMS’ registers when a connected electric consumer load
(master, 230V~/50Hz, load current max. 16A) is turned on or off and, with
this information, controls any number of switching receivers in the FS20
system.
Additional functions are described in detail in section 5.
Any use other than the one described above may damage the
product and cause other dangers.
Read these operating instructions thoroughly and carefully, as
they contain a great deal of important information for the
operation and handling.
2. Scope of delivery
• Load monitor ‘FS20 FMS’
• User manual
• Flowchart for programming
5
3. Explanation of icons
The icon with a lightning flash in a triangle is used to alert you
to potential personal injury hazards such as electric shock.
The icon with an exclamation mark in a triangle points to
important instructions in this user manual that must be observed.
The ‘hand’ symbol indicates special tips and information on
operation.
6
4. Safety instructions
The product’s guarantee becomes invalid if the product is
damaged as a result of failure to observe these operating
instructions. We do not assume any liability for any resulting damages!
Nor do we assume liability for damage to property or
personal injury caused by improper use or failure to observe the safety instructions. In such cases the product’s
guarantee becomes invalid!
• For safety and licensing (CE) reasons any unauthorised alterations to
and/or modification of the product are not permitted.
• Do not use this product in hospitals or medical institutions. Although the
product emits only relatively weak radio signals, these may cause lifesupport systems to malfunction. This may also be the case in other
areas.
• The product is designed in accordance with protection class I. The only
voltage source that may be used is that of the correct power socketoutlet (230V~/50Hz) with the protective earth conductor of the public
power supply system.
• The product is not a toy and should be kept out of the reach of children.
Therefore take particular care when children are around!
• Make sure the product does not become damp or wet; it is only suitable
for use in dry indoor locations (not bathrooms or similar). Otherwise
there is the risk of a life-threatening electric shock!
• Protect the product against heat, cold, and direct sunlight while in
storage or operation.
• Never dismantle the product! There is danger of a fatal electric shock!
7
• Do not leave packaging material lying around. This may become a
dangerous plaything in the hands of children.
• The accident-prevention regulations, established by the Employer’s
Liability Insurance Association for electrical equipment and facilities,
must be adhered to in commercial facilities.
• Consult a skilled technician if you have doubts about the mode of
operation, safety or connection of the device.
• Handle the product with care; knocks, blows or even a fall from a low
height can damage it.
8
5. Description of functions
The ‘FS20 FMS’ load monitor registers when a connected electric consumer
load (master) is turned on or off and, with this information, remotely controls
any number of switching receivers in the FS20 system, for example, an
‘FS20 ST’ wireless switch socket.
The switching direction can be selected. With the factory settings the ‘FS20
FMS’ transmits a power-on command when the connected consumer is
switched on and a power-off command when it is switched off.
The opposite function can be programmed (power-on command
when the consumer is turned off and power-off command
when it is turned on).
The triggering threshold can be adjusted in 7 steps, allowing consumer
loads to be monitored that consume power while in standby mode.
Due to the integration in the FS20 address and coding system, the data
transfer within the FS20 wireless control system is very secure and several
neighbouring systems can be operated simultaneously (for instance, if your
neighbour uses the same system).
The ‘FS20 FMS’ can be operated using any conventional earthed socket
(230V~/50Hz). A consumer load with or without contact protection can be
plugged into the socket of the ‘FS20 FMS’. The consumer load can have a
maximum power consumption of up to (depending on the earthed socket!)
3680VA (230V~/16A).
The ‘FS20 FMS’ is operated and programmed using the button on its front
side, the status and program messages are displayed with an LED.
9
6. Control panel
Button with integrated LED
Socket for consumer loads
(230V~/50Hz, max. 16A)
On the back side there is an earthed plug that must be plugged into a socket
of the public power supply system (230V~/50Hz).
10
7. Initial operation
• Plug the ‘FS20 FMS’ into a power socket with an earthing conductor
(public power supply 230V~/50Hz).
• Plug the device to be monitored (hereafter ‘master’ or ‘master device’)
into the socket on the front side of the ‘FS20 FMS’.
• Do not turn the master device on yet!
• Install the desired radio receiver of the FS20 switching system according to its installation and user manual.
Plug, for example, an ‘FS20ST’ switch socket into an earthed
socket and connect a consumer to it, for instance, a lamp.
Hereafter the receiver will be referred to as ‘slave’ or ‘slave device’.
11
8. Operation/basic function
Please note:
In the delivery state the receiver components of the FS20
wireless control system do not respond to remote control
commands. They must first be addressed according to the
instructions provided in the respective device’s user manual.
Afterwards, the factory settings of the ‘FS20 FMS’ are active. In this case
turning the master on or off causes a power-on or power-off command,
respectively, to be transmitted.
The ‘FS20 FMS’ has a factory set, random house code and a random
address code that are transmitted when a receiver is registered.
You only have to changes these if you plan to expand your system with
additional FS20 components, or if you wish to integrate the ‘FS20 FMS’ in
an existing FS20 wireless control system.
The master device must consume at least 20mA in order for it
to be recognised as a load by the ‘FS20 FMS’.
This means that the minimum power consumption of the
master device is around 4.6W.
For devices that consume less power, proper functioning
cannot be ensured.
Loading...
