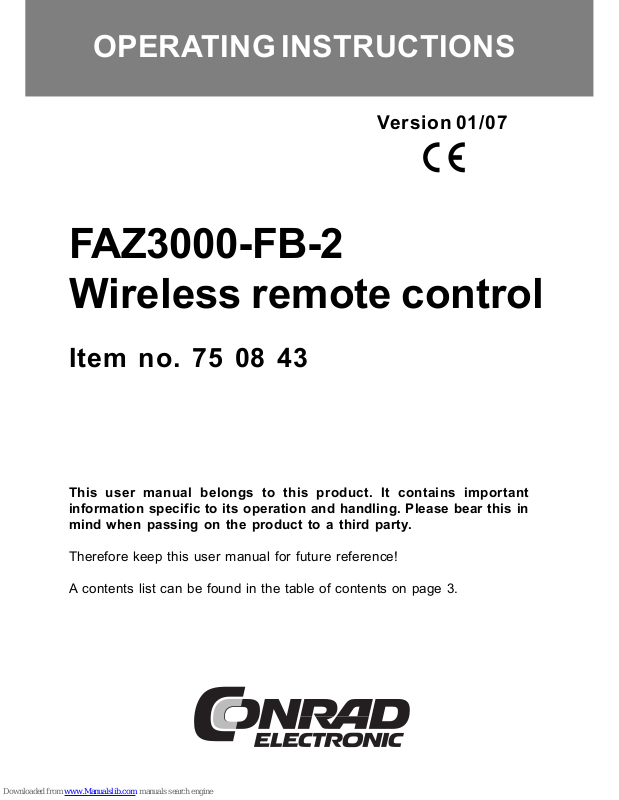

Version 01/07
FAZ3000-FB-2
Wireless remote control
Item no. 75 08 43
This user manual belongs to this product. It contains important
information specific to its operation and handling. Please bear this in
mind when passing on the product to a third party.
Therefore keep this user manual for future reference!
A contents list can be found in the table of contents on page 3.
OPERATING INSTRUCTIONS
2
Introduction
Dear customer,
Thank you for purchasing this product.
This product meets the requirements of both current national and
European guidelines.
In order to ensure continued fulfilment of legal requirements and safe operation
of this product, we kindly ask you to carefully follow the instructions in this
user manual!
Please read the user manual completely and observe the safety and operation
instructions before using the product!
All company and product names contained herein are trademarks of their
respective owners. All rights reserved.
Should you have any further questions, please contact our technical
service:
Germany: Tel. no.: +49 9604 / 40 88 80
Fax. no.: +49 9604 / 40 88 48
Email: tkb@conrad.de
Mon. to Thur. 8.00am to 4.30pm
Fri. 8.00am to 2.00pm
3
Table of contents
Page
1. Prescribed use ...................................................................................... 4
2. Scope of delivery ................................................................................. 4
3. Explanation of icons ............................................................................. 4
4. Safety instructions ............................................................................... 5
a) General information ........................................................................ 5
b) Handling the batteries ..................................................................... 6
5. General information .............................................................................. 7
6. Controls ................................................................................................ 8
a) Normal button functions ................................................................ 8
b) Special function ‘attack alarm’ ...................................................... 9
7. Inserting the batteries, entering the security code ........................... 10
8. Registering the remote control to the ‘FAZ-Z’ alarm base station ... 12
9. Deleting a remote control from the ‘FAZ-Z’ alarm bas station ........ 14
10. Information on the range ................................................................... 16
11. Handling .............................................................................................. 17
12. Maintenance and cleaning .................................................................. 18
13. Disposal .............................................................................................. 19
a) General information ...................................................................... 19
b) Battery/rechargeable battery disposal ........................................ 19
14. Technical specifications..................................................................... 20
15. Brief instructions ................................................................................ 21
a) Registering the remote control in the alarm base station ........... 21
b) Replacing the batteries of the remote control ............................ 21
c) Deleting a remote control from the alarm base station .............. 21
16. Declaration of conformity (DOC)...................................................... 22
4
1. Prescribed use
The ‘FAZ3000-FB-2’ wireless remote control is a part of the ‘FAZ3000’ wireless
alarm system.
The ‘FAZ3000-FB-2’ wireless remote control is used to activate/deactivate the
‘FAZ-Z’ alarm base station (toggle between ‘disarmed’, ‘internally armed’ and
‘externally armed’).
It also has a panic function that can trigger an alarm using the ‘FAZ-Z’ alarm
base station.
Any use other than the one described above may damage the ‘FAZ3000-FB2’ wireless remote control.
No part of the product may be modified or adapted.
Take note of all the safety instructions in this user manual.
2. Scope of delivery
• Wireless remote control
• User manual
3. Explanation of icons
An exclamation mark in a triangle in this user manual points to
important instructions that must be observed without fail.
The ‘hand’ symbol indicates special tips and information on
operation.
5
4. Safety instructions
The product’s guarantee becomes invalid, if the product is
damaged as a result of the failure to observe these operating
instructions! We do not assume any liability for any resulting
damages!
We do not assume liability for damage to property or
personal injury caused by improper use or failure to observe
the safety instructions. In such cases the product’s guarantee
becomes invalid.
Dear customer, the following safety instructions are intended to protect
you as well as the device. Please take time to read through the following
points:
a) General information
• For safety and licensing (CE) reasons any unauthorised alterations to and/
or modification of the product are not permitted.
• This product is not a toy and should be kept out of the reach of children.
• The remote control must not get damp or wet, otherwise it may be damaged.
• Do not leave packaging material lying around. This may become a
dangerous plaything in the hands of children.
• All maintenance work, programming or repairs should only be carried out by
a skilled technician or professional workshop.
• Handle the remote control with care; even a fall from a low height can
damage it.
6
b) Handling the batteries
• Keep batteries out of the reach of children.
• Make sure that the polarity is correct when inserting the batteries.
• Do not leave batteries lying around as they could be swallowed by children
or pets. In such case seek immediate medical care.
• Leaking or damaged batteries may cause acid burns, if they come into
contact with skin. Therefore, please make sure you use suitable protective
gloves.
• Make sure that batteries are not short-circuited or thrown into a fire. They
might explode!
• Never take batteries apart!
• Conventional batteries must not be recharged. They might explode!
• If the device is not used for a longer period of time (for example, when
stored), remove the inserted battery to prevent it from leaking and causing
damage.
7
5. General information
The ‘FAZ3000-FB-2’ wireless remote control is part of the ‘FAZ3000’ wireless
alarm system, and is used to activate/deactivate the ‘FAZ-Z’ alarm base
station.
The ‘FAZ3000-FB-2’ wireless remote control can be used to toggle
the ‘FAZ-Z’ alarm base station between three modes, namely
‘disarmed’, ‘internally armed’ and ‘externally armed’.
The remote control also has a built-in panic function. The alarm base station
can trigger an alarm when a specific button combination is entered on the remote
control.
The remote control can be used as an emergency call transmitter
for persons at risk (for instance, cashiers, petrol pump attendants, etc.) in order to trigger an alarm irrespective of the location
in case of an attack.
The remote control has a security code to protect the alarm base station from
unauthorised use; this code must be entered after inserting the batteries before
the initial operation.
The security code comprises a 9-digit button sequence that must be entered
using 3 buttons.
Thanks to the 3
9
= 19683 different codes, an extensive protection against
unauthorised use is guaranteed, since only the remote control registered to
the alarm base station can initiate functions using a specific code. All other
codes are ignored.
Four remote controls with different security codes can be registered in the
alarm base station. However, any number of remote controls can be then
operated using one of these four codes.
Owing to its compact dimensions, the remote control can be also used as a
key chain.
Note that buttons may be pressed accidentally near the alarm
base station if the remote control is kept in one’s pockets. The
alarm base station may be activated or deactivated accidentally
and unintentionally!
8

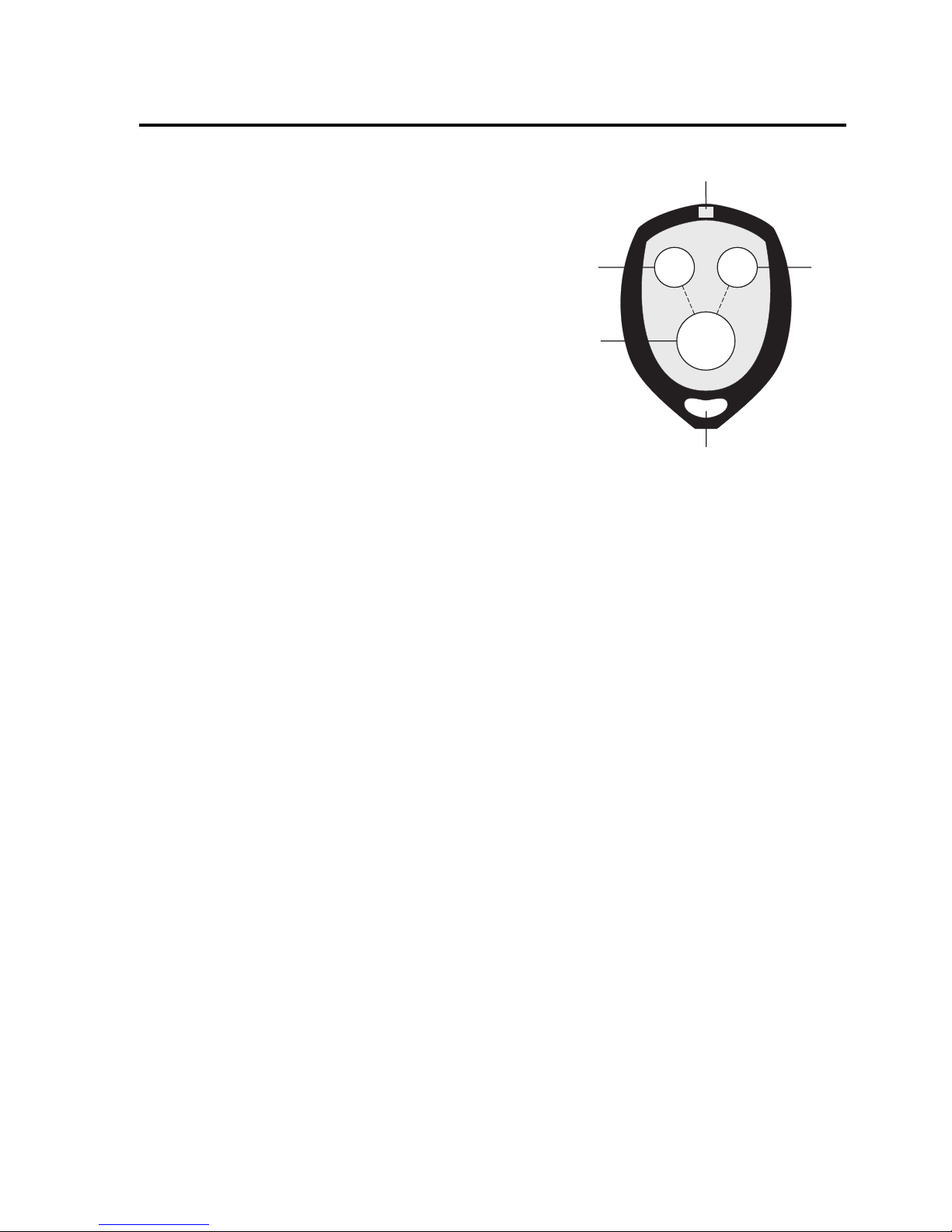

6. Controls
1 ‘ext.’ button (= ‘externally armed’)
2 ‘int.’ button (= ‘internally armed‘)
3 LED
4 ‘unscharf’ button (= ‘disarmed’)
5 Opening to attach to a key ring
The cover of the battery compartment is
located at the rear side of the remote
control.
a) Normal button functions
‘unscharf’ (disarm) button (
4
)
• This button is used to ‘disarm’ the alarm base station.
All sensors except the smoke detectors are deactivated. You can move
around your house freely without setting off the alarm.
An alarm is always triggered when a smoke detector or a glass
break sensor (terminal KL1, NO contact required) connected to
the ‘FAZ-TF’ door/window sensor is triggered.
• A triggered alarm can be stopped by pressing the ‘unscharf’ (disarm) button
(
4
). The alarm memory is deleted when this button is pressed again.
‘int.’ button (
2
)
• The ‘internally armed’ mode of the alarm base station is set. This is used
to protect the outer shell, for instance, for protection inside a house at night.
One can move inside the house freely. Ensure that the sensors are
configured accordingly (internal/external sensor).
• The activation is rejected when the button is pressed for the first time if
there is a fault or a magnetic contact is not closed (for instance, a window
is open). The ‘internally armed’ mode is forced to be set when the button
is pressed again.
1
2
3
4
int.
ext.
unscharf
5
