Operating Instructions Manual
44 pgs831.83 Kb0

Conrad dd-306 Service Manual

Download
Page 1
S
S
e
e
r
r
v
v
i
i
c
c
e
e
M
M
a
a
n
n
u
u
a
a
l
l
DD-306
DIGITAL DRUM
2004 Medeli Electronics Co., Ltd.
All Rights Reserved.
Page 2
: 7 PCS
: 7 PCS
: 2 PCS
: MIDI in, MIDI out, Phone, Pedal
: 100
:76
:20
: DC 12 V 1500mA or 6 Batteries (sum-2 R14P size:C )
:10Wx2
: Lesson Rec
: 600 x 385 x 124.5 (mm)
: 3.6 kg (excluding batteries)
1. Drums
2. Drum LED
3. Pedal
4. I/O
5. Song
6. Drum Voice
7. Drum KIT
8. Power
9. Speaker
10. Others
11. Dimension
12. Weight
Page 3

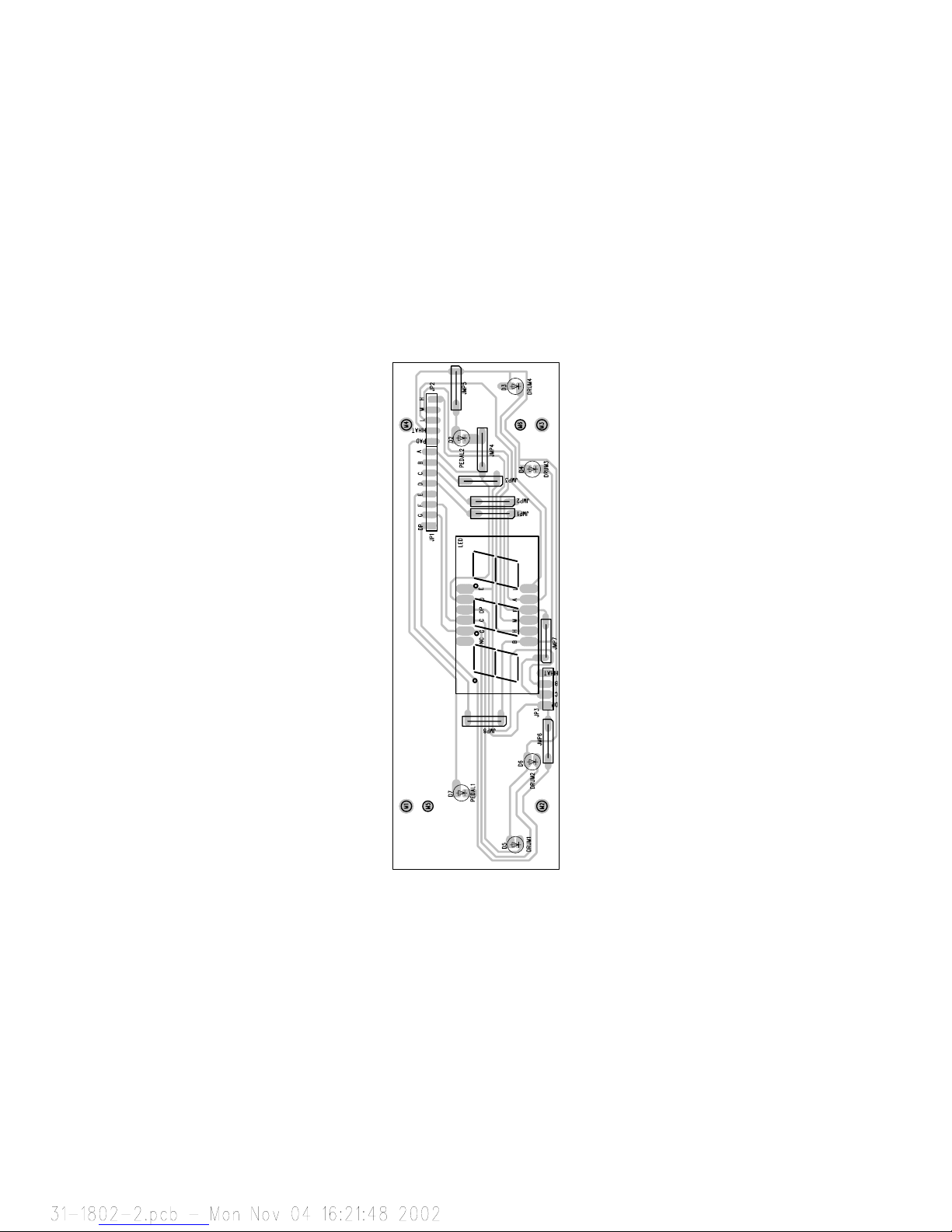

ld80m.sch-1 - Mon Nov 04 11:40:51 2002
Page 4

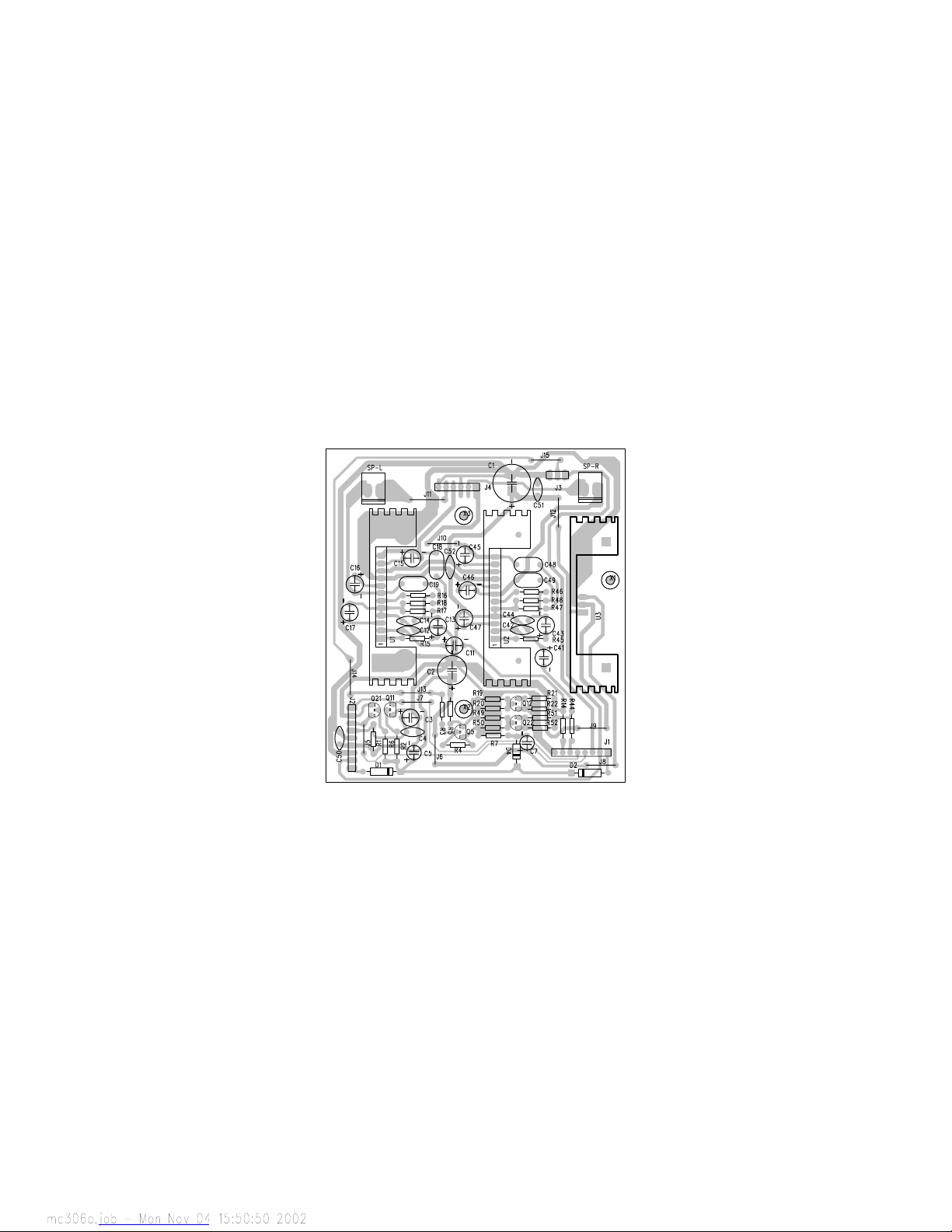

ld80a.sch-1 - Mon Nov 04 11:33:53 2002
Page 5

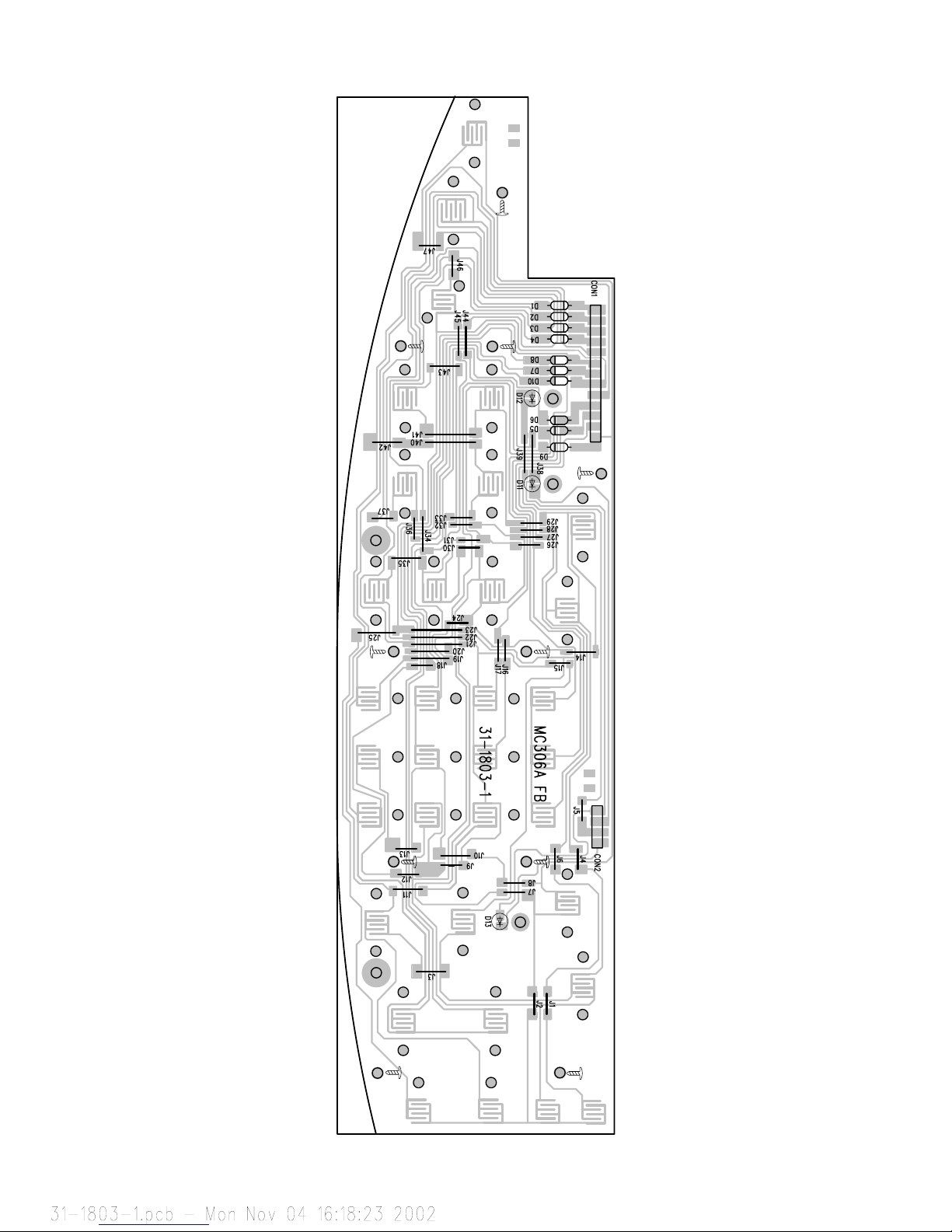

Mc306f.sch-1 - Mon Nov 04 11:37:37 2002
Page 6

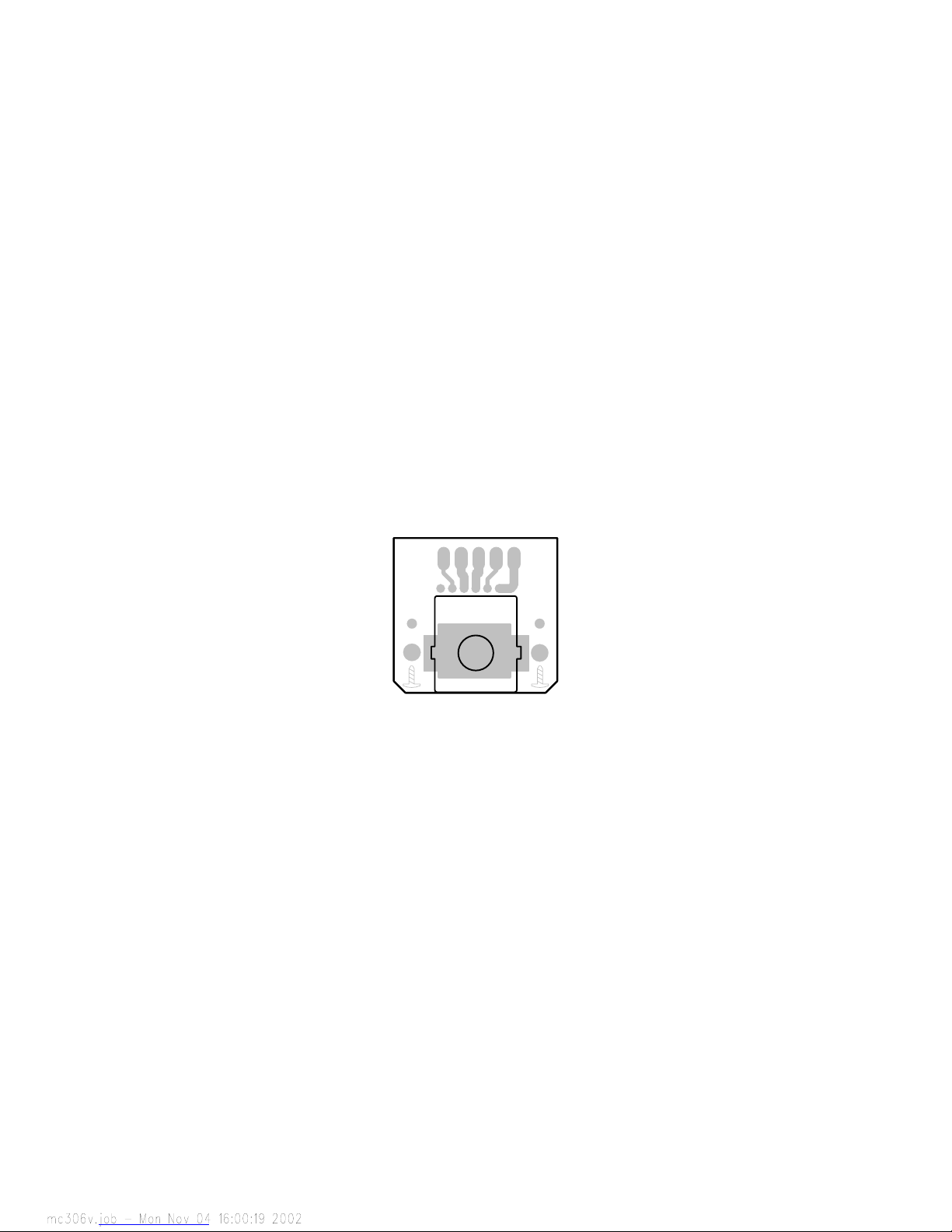

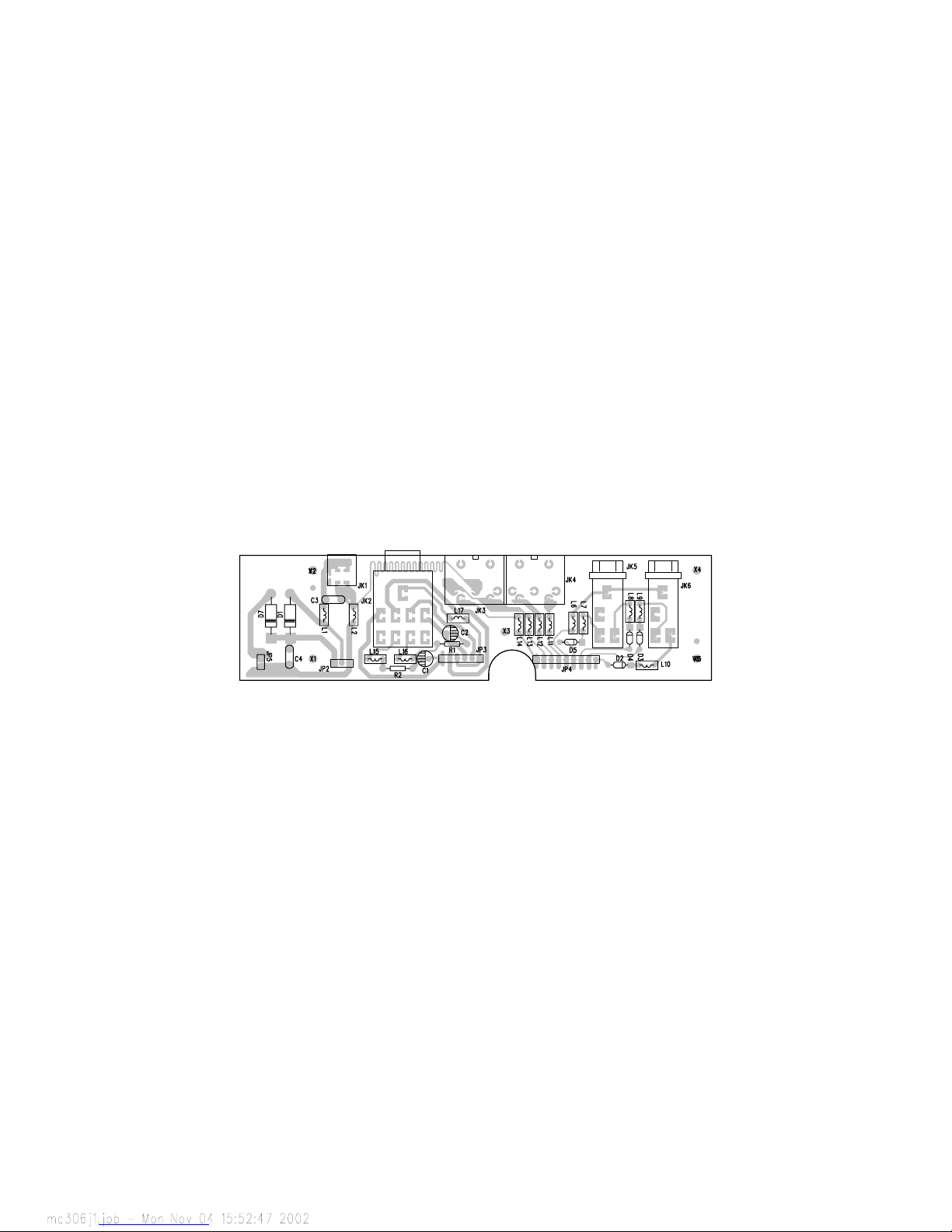

Mc306d.sch-1 - Mon Nov 04 11:39:23 2002
Page 7

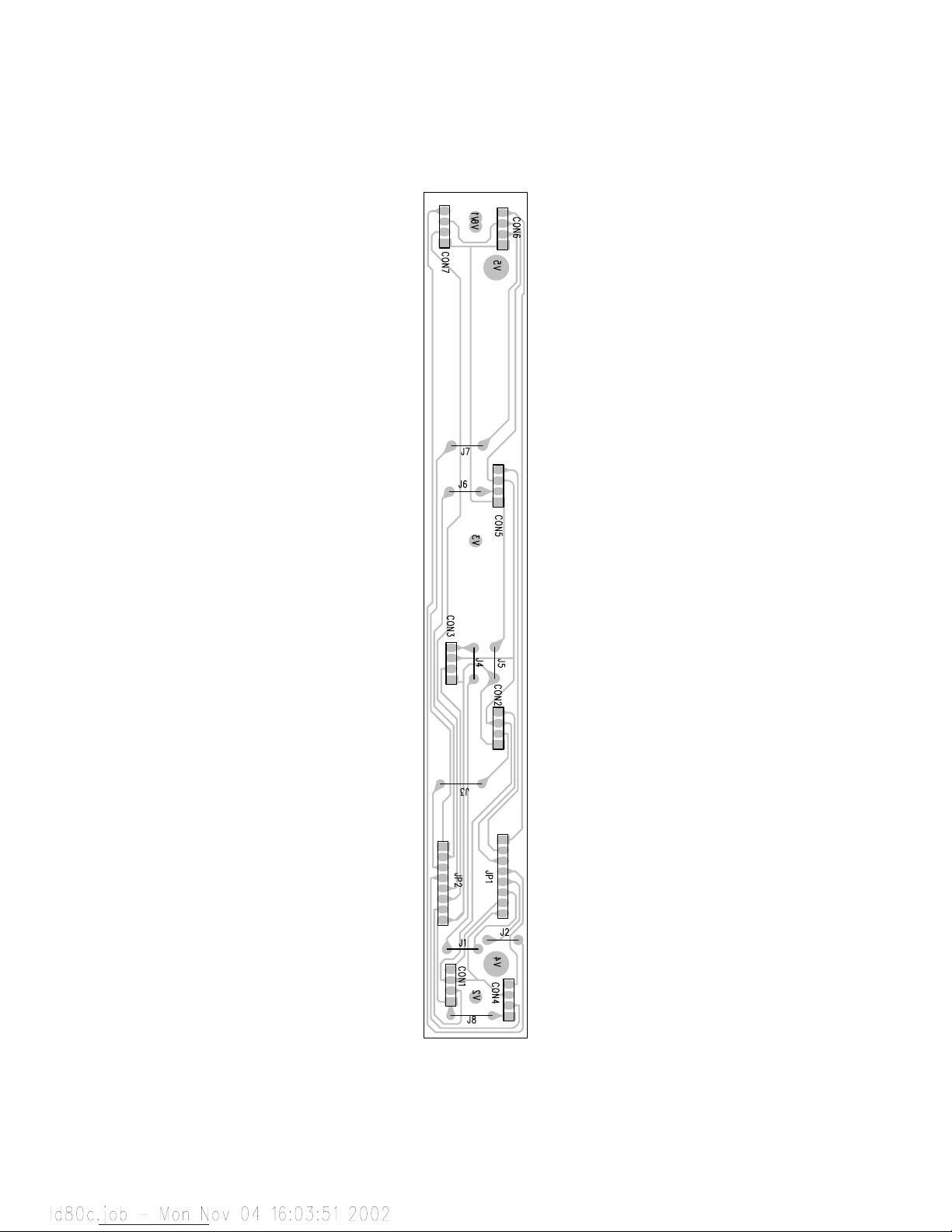

LD80C.SCH-1 - Mon Nov 04 16:07:50 2002
Page 8
Page 9
Page 10
Page 11
Page 12
Page 13
Page 14
Page 15
Page 16
Page 17
Level Code#
Usage U/M
Unit Source
1------- 5WLD080ID0Y0000 2 PCS P
1------- 6LD0306A2L0EN00 1 PCS P
1------- 6MD0306MEN00000 1 PCS P
1------- 8BB303000130000 2 PCS P
1------- 8BB304500040000 2 PCS P
1------- 8BG300460082200 1 PCS P
1------- 8CA06652F45F000 .33 PCS P
1------- 8GD03060ENG0000 1 PCS P
1------- 8PD0306M0000010 1 SET P
1------- B10D0306000 1 SET M
-2------ 11D0306EB10 1 SET M
--3----- 31D0306EB011A10 1 PCS P
--3----- 3GLR0WEJ3148D00 6 PCS P
--3----- 3PEK02495361BH0 1 PCS P
--3----- 4CJQ01000800000 7 PCS P
--3----- 4H00F5F13090260 1 GEN P
--3----- 5PD0306HE0L00S0 6 PCS P
-2------ 11D0306FB10 1 SET M
WOODEN DRUM STICK,YELLOW
DD-306 LABEL,BLACK,ENGLISH CE ART 12V 2200MA ,
DD-306 MANUAL ENGLISH,
LD-80 PLOYBAG,PE 300*130*0.03mm
LD-80 PLOYBAG,PE 450*40*0.03mm
DD-306 POLYBAG,PO 820*460*0.03mm
DD-306 CARTON,A=B Size:66*52.5*45.5cm ,
DD-306 GIFT BOX,ENGLISH ,
DD-306 POLYFOAM,
Digital Drum,DD-306 Unpacked part,
DD-306 LED DISPLAY PART ,
DD-306 LED DISPLAY PCB 1802­1,1.6mm,V:-1,
31-1802-1
WEJ3148D LED 3mm RED , D1-D6
LED 0.561NCH 3DIGIT DISPLAY,5361BH E30561-IFOR , FOOTS BLACK FACE
CON2
Copper Wire Jumper,L:8mm , JMP1-JMP7
13PIN 26# L:90mm WITH 13Pin/2.54 , FLAT CABLE
CON1
LED HOLDER,HIPS BLACK
DD-306 FUNCTION BOARD PART ,
Bills of Material Component Listing ( Location)
PN：00D0306HKS0 Version： Description：Digital Drum ,DD306 Global Standard Configuration Unit：SET
Description / Remarks Location
Page 1 of 12
Page 18
Level Code#
Usage U/M
Unit Source
Bills of Material Component Listing ( Location)
PN：00D0306HKS0 Version： Description：Digital Drum ,DD306 Global Standard Configuration Unit：SET
Description / Remarks Location
--3----- 31D0306FB011A10 1 PCS P
--3----- 3DDK000IN414800 10 PCS P
--3----- 3GLR0WEJ3148D00 3 PCS P
--3----- 4CJQ01000500000 27 PCS P
--3----- 4CJQ01000700000 10 PCS P
--3----- 4CJQ01000900000 5 PCS P
--3----- 4CJQ01000C12000 5 PCS P
--3----- 4H00F5F13120260 1 GEN P
--3----- 4WF04260040A000 1 GEN P
-2------ 11D0306IB10 1 SET M
--3----- 31D0306IB061A10 1 PCS P
--3----- 3CDC104M50DDDD0 1 PCS P
--3----- 3CDE336M1605110 2 PCS P
--3----- 3DDK000IN414800 4 PCS P
--3----- 3DDR000IN540100 2 PCS P
--3----- 3JDD0300DS21000 1 PCS P
--3----- 3JDE0400ST01500 2 PCS P
--3----- 3JDE0700MJ63100 1 PCS P
DD-306 FUNCTION BOARD PCB 1803­1,1.6mm,V:-1,
31-1803-1
Switching diode,IN4148 DIP TYPE D1-D10
WEJ3148D LED 3mm RED , D11-D13
Copper Wire Jumper,L:5mm ,
J1,J2,J4-9,J12,J13,J15­J18,J24,J26-33,J36,J37,J46,J47
Copper Wire Jumper,L:7mm , J3,J10,J11,J14,J34,J35,J42-J45
Copper Wire Jumper,L:9mm , J19,J20,J25,J38,J39
Copper Wire Jumper,L:12mm , J21,J22,J23,J40,J41
13PIN 26# L:120mm WITH 13Pin/2.54, FLAT CABLE
FLAT CABLE,26# 4PIN L:40mm, FUN.B TO LCD
DD-306 INTERFACE BOARD ,
DD-306 INTERFACE BOARD PCB 1808­6,1.6mm,V:-6,
31-1808-6
CEREMIC CAP 0.1uf/50V+20%-20% , C4
ELECT CAP 33uf/16V +20% -20% 5*11mm ,
C1,C2
Switching diode,IN4148 DIP TYPE D2-D5
Diode,IN5401 DIP , D1,D7
STEREO JACK ST-015 4PIN DIP , JK5,JK6
DC Jack DS-210 3PIN DIP , JK1
STEREO JACK MJ-631 7PIN DIP , JK2
Page 2 of 12
Page 19
Level Code#
Usage U/M
Unit Source
Bills of Material Component Listing ( Location)
PN：00D0306HKS0 Version： Description：Digital Drum ,DD306 Global Standard Configuration Unit：SET
Description / Remarks Location
--3----- 3JDM07DIN01RM00 2 PCS P
--3----- 3LDCTC62330UH00 5 PCS P
--3----- 3LDQ53020UH0301 4 PCS P
--3----- 3RDC101JB2D0020 2 PCS P
--3----- 4CPD102000254V0 1 PCS P
--3----- 4H00F5F03170240 1 GEN P
--3----- 4H00F5F06170240 1 GEN P
--3----- 4H00F5F09150260 1 GEN P
-2------ 11D0306JB10 1 SET M
--3----- 31D0306JB051A10 1 PCS P
--3----- 4CJQ01000C20000 8 PCS P
--3----- 4H00F5F08140260 2 GEN P
-2------ 11D0306LB10 1 SET M
--3----- 31D0306LB021A10 7 PCS P
--3----- 3GLR0WEJ5138C00 7 PCS P
-2------ 11D0306SB10 1 SET M
--3----- 31D0306SB011A10 1 PCS P
--3----- 3SDPS22F31M7000 1 PCS P
MIDI JACK DIN-01R-M10 7PIN DIP , JK3,JK4
choke Coil,TC623-30UH*2-F-03 DIP
L1 L2,L6 L7,L8 L9,L11 L12,L13 L14
Core Coil,TC-451530-20uH­03 DIP ,
L10,L15-L17
DIP resistance,100 ohm(1/4w)+5%­5% ,
R1,R2
PIN(Male) Header Connector,DIP 2Pins/2.54mm,
JP5
3PIN 2468#24 WHITE L:170mm WITH 3Pin/2.54, Flat Cable
6PIN 2468#24 WHITE L:170mm WITH 6Pin/2.54, Flat Cable
9PIN 26# L：150mm WITH 9Pin/2.54, Flat Cable
DD-306 TRANSLATION BOARD ,
DD-306 TRANSLATION　BOARD　PCB 1809-5,1.6mm,V：-5， Size:200x25x1.6mm
31-1809-5
Copper Wire Jumper,L：20mm , J1-J8
8PIN 26# L：140mm WITH 8Pin/2.54, Flat Cable
DD-306 LED　LAMP BOARD PART ,
DD-306 LED LAMP BOARD PCB 1810­2,1.6mm,V:-2,Size:10*25x1.6mm
31-1810-2
WEJ-5138C LED 5mm RED DIP ,
DD-306 SWITCH BOARD PART ,

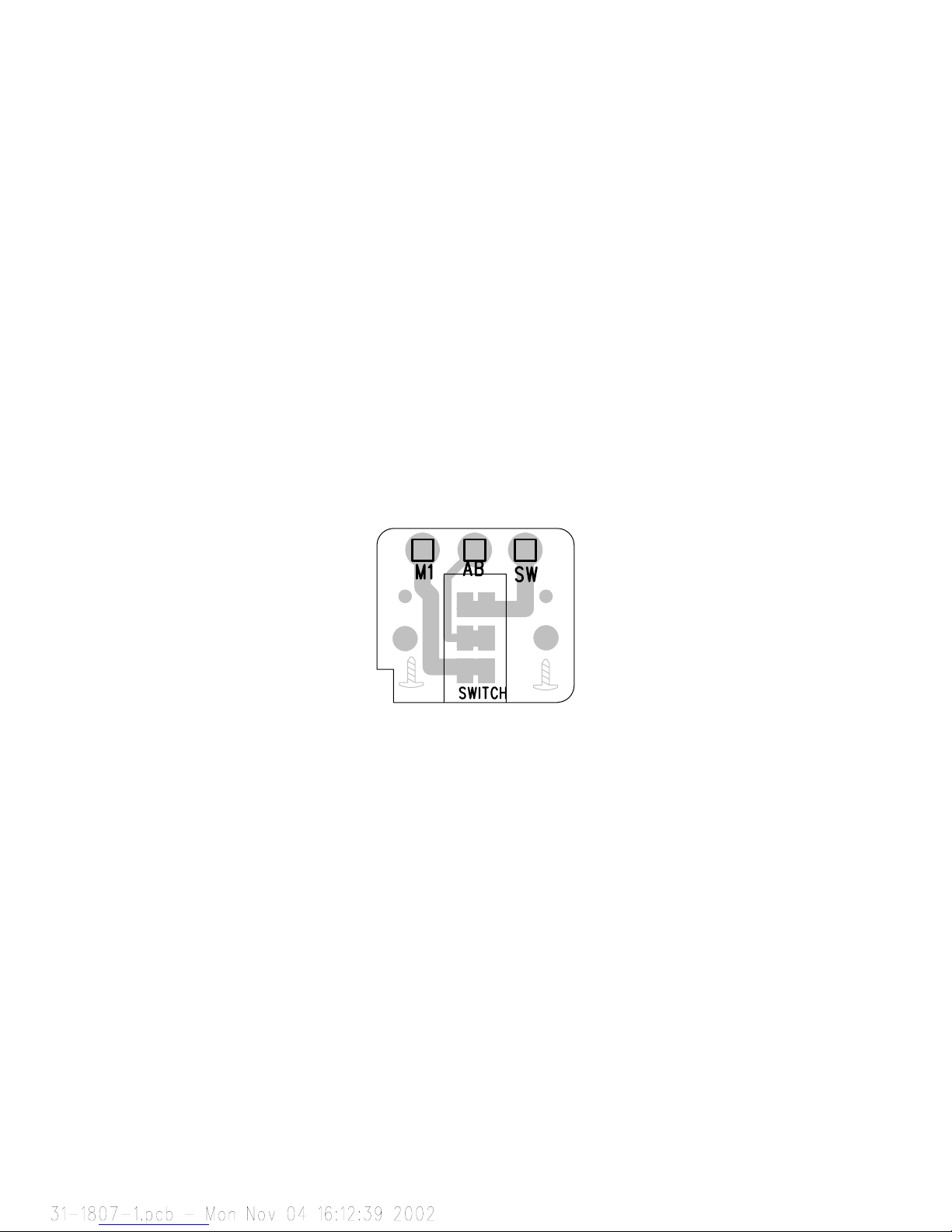

DD-306 SWITCH BOARD PCB 1807-1,
