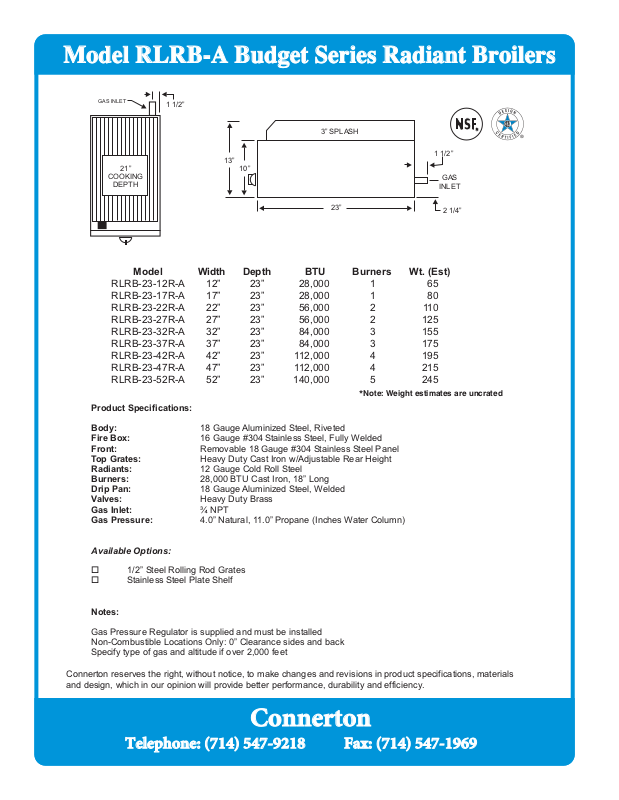

Connerton RLRB-23-12R-A Specifications

Model RLRB-A Budget Series Radiant Broilers

GAS INLET

21”

COOKING

DEPTH

1 1/2”

3” SPLASH

13”

10”

23”

Model Width Depth BTU Burners Wt. (Est)

RLRB-23-12R-A 12” 23” 28,000 1 65
RLRB-23-17R-A 17” 23” 28,000 1 80
RLRB-23-22R-A 22” 23” 56,000 2 110
RLRB-23-27R-A 27” 23” 56,000 2 125
RLRB-23-32R-A 32” 23” 84,000 3 155
RLRB-23-37R-A 37” 23” 84,000 3 175
RLRB-23-42R-A 42” 23” 112,000 4 195
RLRB-23-47R-A 47” 23” 112,000 4 215
RLRB-23-52R-A 52” 23” 140,000 5 245

*Note: Weight estimates are uncrated

Product Specifications:

1 1/2”

GAS

INLET

2 1/4”

Body:
Fire Box:
Front:
Top Grates:
Radiants:
Burners:
Drip Pan:
Valves:
Gas Inlet:
Gas Pressure: 4.0” Natural, 11.0” Propane (Inches Water Column)

Available Options:

o
o

Notes:

Gas Pressure Regulator is supplied and must be installed
Non-Combustible Locations Only: 0” Clearance sides and back
Specify type of gas and altitude if over 2,000 feet

Connerton
and design, which in our opinion will provide better performance, durability and efficiency.

1/2” Steel Rolling Rod Grates
Stainless Steel Plate Shelf

reserves the right, without notice, to make changes and revisions in product specifications, materials

18 Gauge Aluminized Steel, Riveted
16 Gauge #304 Stainless Steel, Fully Welded
Removable 18 Gauge #304 Stainless Steel Panel
Heavy Duty Cast Iron w/Adjustable Rear Height
12 Gauge Cold Roll Steel
28,000 BTU Cast Iron, 18” Long
18 Gauge Aluminized Steel, Welded
Heavy Duty Brass
¾ NPT

Connerton

Telephone: [phone] Fax: [phone]

Model RLRB-A

Budget Series

Radiant Broiler

American Made Since 1936American Made Since 1936

Date: Project: Quantity:

Stainless Steel Front Panel

Aluminized steel body

Removable Fire Box

For easy cleaning and maintenance

Extended Burners - 18” length

For improved heat distribution
