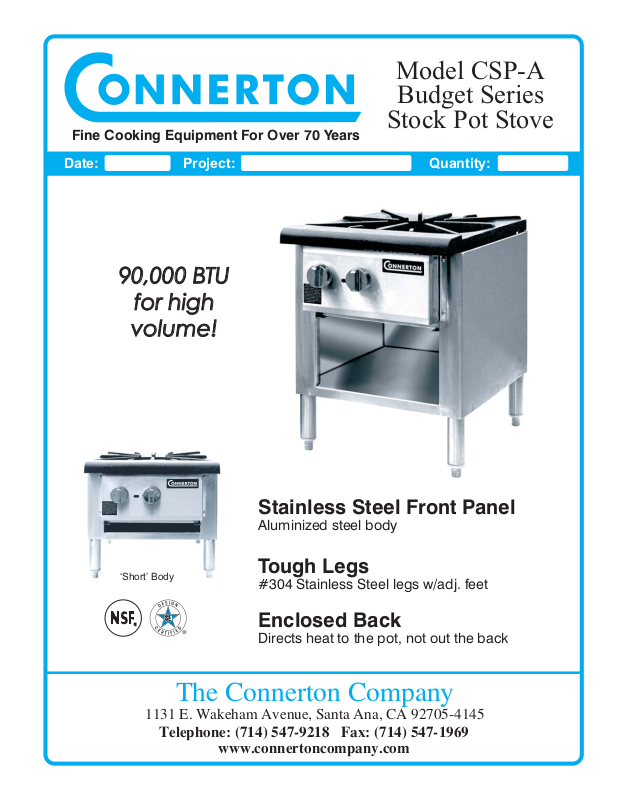

Connerton CSP-18-3-A User Manual
Model CSP-A
Budget Series
Stock Pot Stove
Fine Cooking Equipment For Over 70 Years
Date: Project: Quantity:
90,000 BTU
90,000 BTU
for high
for
volume!
volume!
high
Stainless Steel Front Panel
Aluminized steel body
‘Short’ Body
Tough Legs
#304 Stainless Steel legs w/adj. feet
Enclosed Back
Directs heat to the pot, not out the back
The Connerton Company
1131 E. Wakeham Avenue, Santa Ana, CA 92705-4145
Telephone: (714) 547-9218 Fax: (714) 547-1969
www.connertoncompany.com
Model CSP-A Budget Series Stock Pot Stove
GAS INLET
3”
18”
Model Width Depth Height BTU Burner Wt. (Est.)*
CSP-18-3-A 18” 20-1/2” 24” 90,000 3-ring 105
CSP-18-3S-A 18” 20-1/2” 18” 90,000 3-ring 100
Product Specifications:
Body:
Front:
Grate:
Burners:
Drip Pan:
Valves:
Gas Inlet:
Legs:
3-1/4”
21”
18 Gauge Aluminized Steel, Riveted
Removable 18 Gauge #304 Stainless Steel Panel
Heavy Duty Painted Cast Iron w/ “Center-Slope” hole
3-ring 90,000 BTU (total) Cast Iron
18 Gauge Aluminized Steel, Welded
Heavy Duty Brass
¾ NPT
1-5/8” rd. X 16 Gauge #304 Stainless Steel tubing welded to
frame with adjustable feet
24” / 18”
6”
*Note: Weight estimates are uncrated
21”
1 1/2”
GAS
INLET
16-1/2”/
10-1/2”
18”
Available Options:
o Stainless Steel Wok Adapter Ring
Notes:
Gas Pressure Regulator is supplied and must be installed
Non-Combustible Locations Only: 0” Clearance sides and back
Specify type of gas and altitude if over 2,000 feet
Connerton Company reserves the right, without notice, to make changes and revisions in product
specifications, materials and design, which in our opinion will provide better performance, durability and
efficiency.
The Connerton Company
Telephone: (714) 547-9218 Fax: (714) 547-1969
