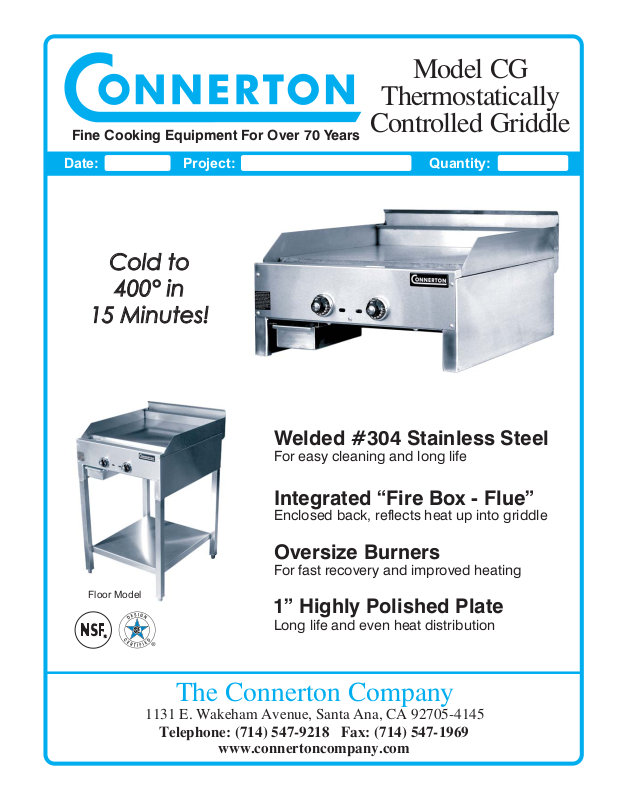

Connerton CG-12-T User Manual
Model CG
Thermostatically
Fine Cooking Equipment For Over 70 Years
Controlled Griddle
Date: Project: Quantity:
Cold to
Cold to
400° in
400°
15 Minutes!
15
Minutes!
in
Floor Model
Welded #304 Stainless Steel
For easy cleaning and long life
Integrated “Fire Box - Flue”
Enclosed back, reflects heat up into griddle
Oversize Burners
For fast recovery and improved heating
1” Highly Polished Plate
Long life and even heat distribution
The Connerton Company
1131 E. Wakeham Avenue, Santa Ana, CA 92705-4145
Telephone: (714) 547-9218 Fax: (714) 547-1969
www.connertoncompany.com
Model CG Thermostatically Controlled Griddle
GAS INLET
FLUE
22” DEEP
PLATE
3” TROUGH
Model Width Depth BTU Burners Wt. (Est)* Wt. (Est)*
CG-12-T 12” 27” 22,000 1 115 135
CG-18-T 18” 27” 22,000 1 155 175
CG-24-T 24” 27” 44,000 2 205 230
CG-30-T 30” 27” 44,000 2 245 270
CG-36-T 36” 27” 66,000 3 295 325
CG-42-T 42” 27” 66,000 3 335 365
CG-48-T 48” 27” 88,000 4 385 420
CG-60-T 60” 27” 110,000 5 475 515
CG-72-T 72” 27” 132,000 6 565 610
Product Specifications:
Body:
Fire Box:
Front:
Plate:
Gutter:
Splash:
Burners:
Drip Pan:
Thermostats:
Gas Inlet:
Legs (Floor Model):
Available Options:
1 1/2”
14 3/4”
10”
*Note: Weight estimates are uncrated
29”
3” SPLASH
27”
16 Gauge #304 Stainless Steel, Fully Welded
16 Gauge #304 Stainless Steel, Welded to Body
Removable 18 Gauge #304 Stainless Steel Panel
1” Highly Polished Steel Plate
14 Gauge #304 Stainless Steel
14 Gauge #304 Stainless Steel, 3” High
22,000 BTU Tubular Aluminized Steel, U-Shaped
18 Gauge #304 Stainless Steel
Robertshaw type BJWA
¾ NPT
1-1/2” sq. X 16 Gauge #304 Stainless Steel tubing welded to
body with Stainless Steel undershelf and adjustable feet
Floor Model
1 1/2”
3 1/4”
GAS
INLET
o
o
o
Grooved Griddle
Stainless Steel Plate Shelf
4” Legs (welded to body)
Notes:
Gas Pressure Regulator is supplied and must be installed
Combustible Locations: 8” Clearance sides and back
Non-Combustible Locations Only: 0” Clearance sides and back
Specify counter or floor model
Specify type of gas and altitude if over 2,000 feet
