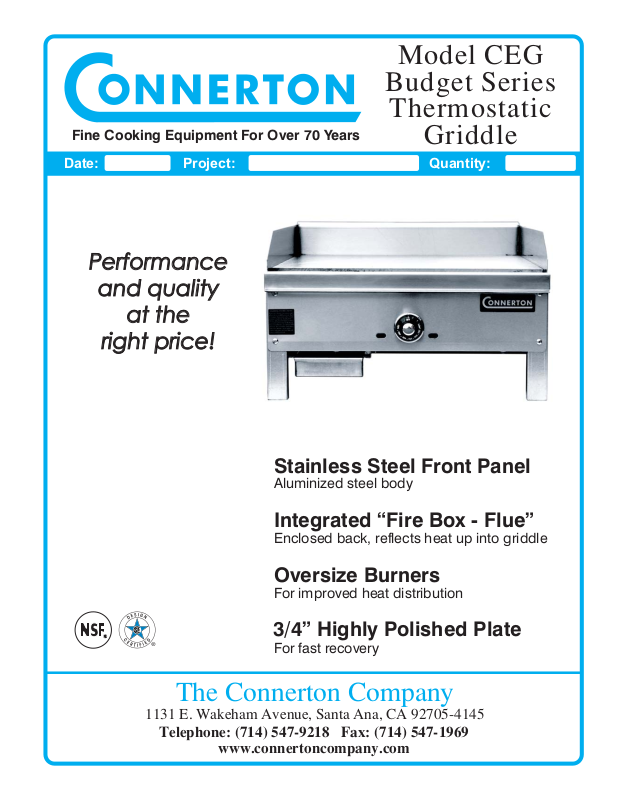

Connerton CEG User Manual
Model CEG
Budget Series
Thermostatic
Fine Cooking Equipment For Over 70 Years
Date: Project: Quantity:
Performance
Performance
and quality
and
right price!
right
quality
at the
at
the
price!
Griddle
Stainless Steel Front Panel
Aluminized steel body
Integrated “Fire Box - Flue”
Enclosed back, reflects heat up into griddle
Oversize Burners
For improved heat distribution
3/4” Highly Polished Plate
For fast recovery
The Connerton Company
1131 E. Wakeham Avenue, Santa Ana, CA 92705-4145
Telephone: (714) 547-9218 Fax: (714) 547-1969
www.connertoncompany.com
Model CEG Budget Series Thermostatic Griddle
GAS INLET
19” COOKING
DEPTH
Model Width Depth BTU Burners Wt. (Est)*
CEG-12-T 12” 23” 22,000 1 75
CEG-17-T 17” 23” 22,000 1 100
CEG-22-T 22” 23” 44,000 2 125
CEG-27-T 27” 23” 44,000 2 150
CEG-32-T 32” 23” 66,000 3 175
CEG-37-T 37” 23” 66,000 3 200
CEG-42-T 42” 23” 88,000 4 225
CEG-47-T 47” 23” 88,000 4 250
CEG-52-T 52” 23” 110,000 5 275
Product Specifications:
1-1/2”
10”
1-1/2”
13-1/8”
4-5/8”
4-1/4”
23”
*Note: Weight estimates are uncrated
Body:
Fire Box:
Front:
Plate:
Gutter:
Splash:
Burners:
Drip Pan:
Valves:
Gas Inlet:
Available Options:
o
o
Notes:
Gas Pressure Regulator is supplied and must be installed
Non-Combustible Locations Only: 4” Clearance sides and 6” clearance back
Specify type of gas and altitude if over 2,000 feet
Connerton Company reserves the right, without notice, to make changes and revisions in product specifications,
materials and design, which in our opinion will provide better performance, durability and efficiency.
Grooved Griddle
Stainless Steel Plate Shelf
18 Gauge Aluminized Steel, Riveted
16 Gauge Aluminized Steel
Removable 18 Gauge #304 Stainless Steel Panel
3/4” Highly Polished Steel Plate (1” available)
16 Gauge #304 Stainless Steel
16 Gauge #304 Stainless Steel, 3” High
22,000 BTU Tubular Steel
18 Gauge Aluminized Steel, Welded
Heavy Duty Brass
¾ NPT
The Connerton Company
Telephone: (714) 547-9218 Fax: (714) 547-1969
