Xtreme/PSU-UC
Users Guide
Connect Tech Inc. Tel:519-836-1291
42 Arrow Road Toll: 800-426-8979 (North America only)
Guelph, Ontario Fax:519-836-4878
N1K 1S6 Email:sales@connecttech.com
www.connecttech.com support@connecttech.com
CTIM-00428 Revision 0.00 – Sept. 16, 2014
Connect Tech Xtreme/PSU-UC User Manual
2
Copyright Notice
The information contained in this document is subject to change without notice. Connect Tech
Inc. shall not be liable for errors contained herein or for incidental consequential damages in
connection with the furnishing, performance, or use of this material. This document contains
proprietary information that is protected by copyright. All rights are reserved. No part of this
document may be photocopied, reproduced, or translated to another language without the prior
written consent of Connect Tech Inc.
Copyright 2013 by Connect Tech Inc.
Trademark Acknowledgment
Connect Tech Inc. acknowledges all trademarks, registered trademarks and/or copyrights
referred to in this document as the property of their respective owners.
Not listing all possible trademarks or copyright acknowledgments does not constitute a lack of
acknowledgment to the rightful owners of the trademarks and copyrights mentioned in this
document.
Revision 0.00
Connect Tech Xtreme Xtreme/PSU-UC User Manual
3
Revision
Date
Author(s)
Change(s)
0.00
2014-09-16
RC
Initial Manual Revision Created
Table of Contents
Xtreme/PSU-UC ............................................................................................................................................................... 1
Copyright Notice............................................................................................................................................................... 2
Trademark Acknowledgment ............................................................................................................................................ 2
Table of Contents .............................................................................................................................................................. 3
Revision History ............................................................................................................................................................... 3
Customer Support Overview ............................................................................................................................................. 4
Contact Information .......................................................................................................................................................... 4
Introduction....................................................................................................................................................................... 6
Detailed Technical Specifications ..................................................................................................................................... 7
Board Diagram .................................................................................................................................................................. 8
.......................................................................................................................................................................................... 8
Functional Block Diagram ................................................................................................................................ ................ 8
Part Number Information .................................................................................................................................................. 8
Hardware Installation .......................................................................................................................................................10
Input Power ......................................................................................................................................................................11
Input Power Circuit Diagram .............................................................................................................. 11
Technical Specifications...................................................................................................................... 11
Input Power Connector Pinout ............................................................................................................ 11
Output Power ...................................................................................................................................................................12
Technical Specifications...................................................................................................................... 12
Output Power Connector Pinout .......................................................................................................... 12
Configuration Jumpers .....................................................................................................................................................13
J1: Charge Voltage Control Jumper ..................................................................................................... 13
RS-232 Connector Pinout (P4) .......................................................................................................................................13
External Module Charging ...............................................................................................................................................14

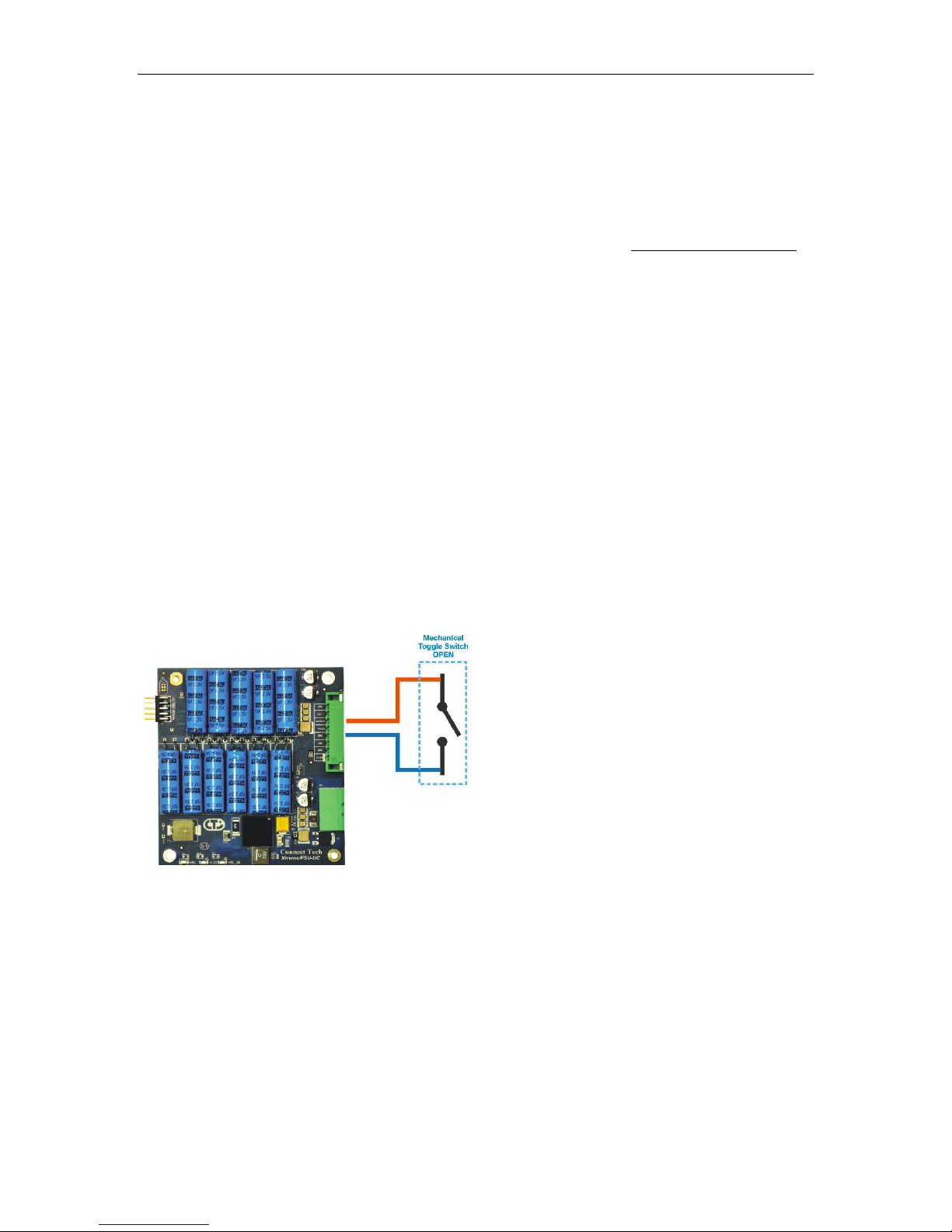

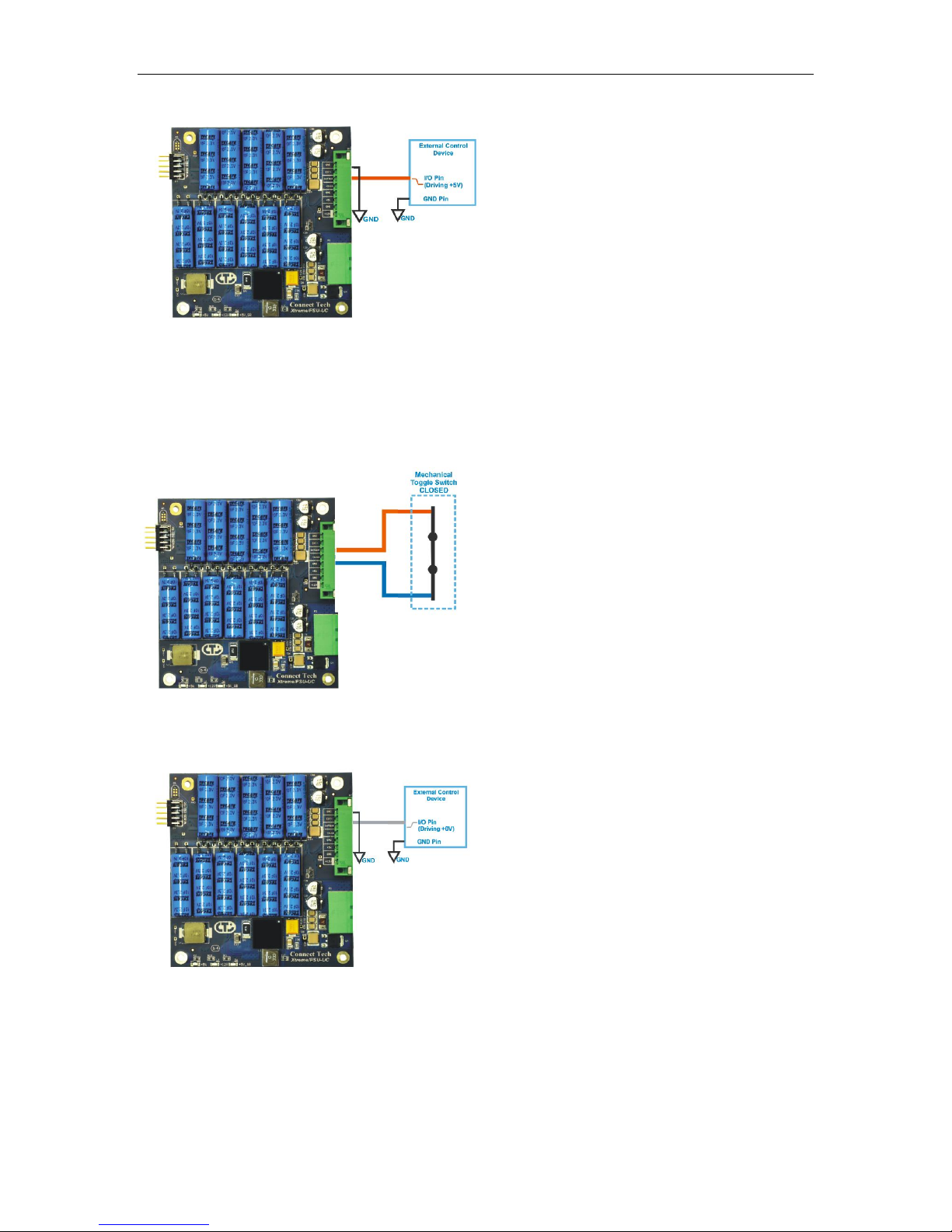

Remote ON/OFF Functionality ........................................................................................................................................14
Turn Supply ON ................................................................................................................................. 14
Turn Supply OFF ............................................................................................................................... 15
Software Interface ............................................................................................................................................................16
RS-232 .............................................................................................................................................. 16
USB .................................................................................................................................................. 16

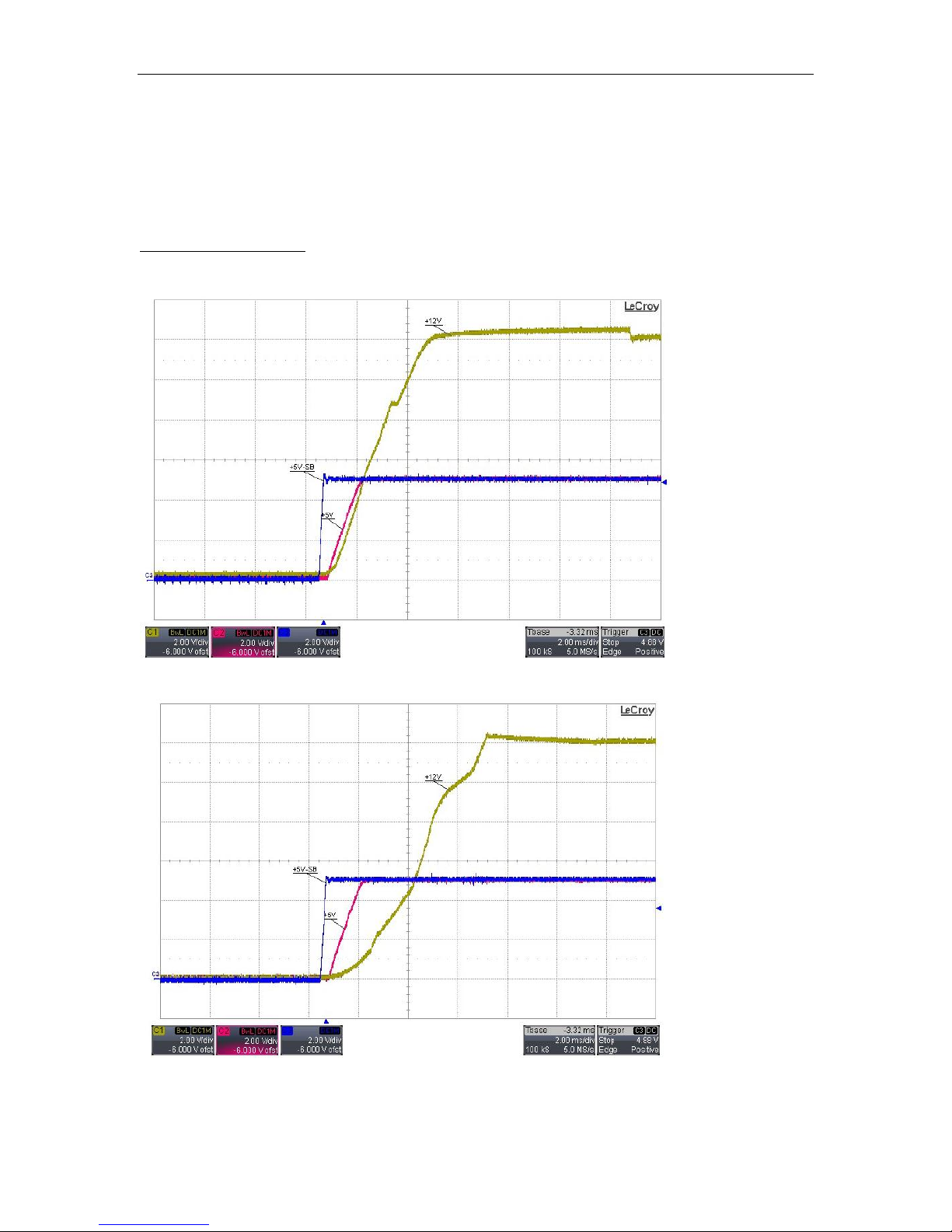

Power Sequencing Details ...............................................................................................................................................17
Detailed Specifications and Derating Graphs ..................................................................................................................18
Revision History
Revision 0.00
Connect Tech Xtreme/PSU-UC User Manual
4
Customer Support Overview
If you experience difficulties after reading the manual and/or using the product, contact the
Connect Tech Inc. reseller from which you purchased the product. In most cases the reseller can
help you with product installation and difficulties.
In the event that the reseller is unable to resolve your problem, our highly qualified support staff
can assist you. Our support section is available 24 hours a day, 7 days a week on our website at:
www.connecttech.com/sub/support/support.asp. See the contact information section below for
more information on how to contact us directly. Our technical support is always free.
Limited Warranty
Connect Tech Inc. provides a 90 Day Warranty for this product. Should this product, in Connect Tech
Inc.'s opinion, fail to be in good working order during the warranty period, Connect Tech Inc. will, at its
option, repair or replace this product at no charge, provided that the product has not been subjected to
abuse, misuse, accident, disaster or non-Connect Tech Inc. authorized modification or repair.
You may obtain warranty service by delivering this product to an authorized Connect Tech Inc. business
partner or to Connect Tech Inc. along with proof of purchase. Product returned to Connect Tech Inc. must
be pre-authorized by Connect Tech Inc. with an RMA (Return Material Authorization) number marked on
the outside of the package and sent prepaid, insured and packaged for safe shipment. Connect Tech Inc.
will return this product by prepaid ground shipment service.
The Connect Tech Inc. Warranty is only valid over the serviceable life of the product. This is defined as the
period during which all components are available. Should the product prove to be irreparable, Connect
Tech Inc. reserves the right to substitute an equivalent product if available or to retract the Warranty if no
replacement is available.
The above warranty is the only warranty authorized by Connect Tech Inc. Under no circumstances will
Connect Tech Inc. be liable in any way for any damages, including any lost profits, lost savings or other
incidental or consequential damages arising out of the use of, or inability to use, such product.
Revision 0.00
5
Contact Information
We offer three ways for you to contact us:
Mail/Courier
You may contact us by letter at: Connect Tech Inc.
Email/Internet
You may contact us through the Internet. Our email and URL addresses on the Internet are:
sales@connecttech.com
support@connecttech.com
www.connecttech.com
Note:
Please go to the Download Zone or the Knowledge Database in the Support Center on the
Connect Tech Inc. website for product manuals, installation guides, device driver software and
technical tips. Submit your technical support questions to our customer support engineers via
the Support Center on the Connect Tech Inc. website.
Telephone/Facsimile
Technical Support representatives are ready to answer your call Monday through Friday, from
8:30 a.m. to 5:00 p.m. Eastern Standard Time. Our numbers for calls are:
Telephone: 800-426-8979 (North America only)
Telephone: 519-836-1291 (Live assistance available 8:30 a.m. to 5:00 p.m. EST, Monday to
Friday)
Facsimile: 519-836-4878 (online 24 hours)
Connect Tech Xtreme Xtreme/PSU-UC User Manual
Technical Support
42 Arrow Road, Guelph, ON
Canada N1K 1S6
Revision 0.00
Connect Tech Xtreme/PSU-UC User Manual
6
ESD Warning
Electronic components and circuits are sensitive to
ElectroStatic Discharge (ESD). When handling any circuit
board assemblies including Connect Tech COM Express
carrier assemblies, it is recommended that ESD safety
precautions be observed. ESD safe best practices include,
but are not limited to:
Leaving circuit boards in their antistatic packaging
until they are ready to be installed.
Using a grounded wrist strap when handling circuit
boards, at a minimum you should touch a grounded
metal object to dissipate any static charge that may
be present on you.
Only handling circuit boards in ESD safe areas,
which may include ESD floor and table mats, wrist
strap stations and ESD safe lab coats.
Avoiding handling circuit boards in carpeted areas.
Try to handle the board by the edges, avoiding
contact with components.
Introduction
Connect Tech’s Xtreme/PSU-UC is a high efficiency, high powered PC/104 form factor power supply with extended
temperature capabilities. Xtreme/PSU-UC is a highly reliable power supply which provides 154W of total output power
with +5V, +3.3V, +12V, -12V and +5V-Standby output voltages. It can be used as a stand-alone power supply to
power any other embedded system, or used directly to power any PCI-104 stack or single board computer (SBC). The
Xtreme/PSU-UC has a wide input voltage range that accepts +9V to +36V DC and is specifically designed for use in a
broad range of rugged applications including military, industrial, and air and ground vehicles. Xtreme/PSU-UC can be
used in combination with Connect Tech’s stackable CPU and expansion boards for a total design solution.
In addition to the power supply capabilities, the Xtreme/PSU-UC also has the ability to charge, monitor and switch
from main supply to a backup SMART battery, providing transparent backup power to all voltage outputs. The
Xtreme/PSU-UC is a Level 2 SMART battery charger and works with all SMART batteries, supporting charge voltages
up to +16V and charging current up to 4A.
Revision 0.00
Connect Tech Xtreme Xtreme/PSU-UC User Manual
7
Specification
Details
Dimensions
3.550” x 3.775” (90mm x 96) PC/104 Compliant
Fully meets the PC/104 component height requirements
Download 3D Model Files (Click Here) - .step model files
Input Voltage Range
+9V to +36V DC
Input Suppression Diode and Series Fuse and Reverse Polarity Input Protection
15A fused maximum power draw protection
+5V Output
10A (50W) maximum
1% Output regulation accuracy
<50mV p-p ripple at full load.
Output Current Limiting Protection
Output Overvoltage Protection
Remote ON/OFF control via SHUTDOWN# switch, USB UART and RS-232.
+12V Output
5A (60W) maximum
1% Output regulation
<40mV p-p ripple at full load.
Output Current Limiting Protection
Output Overvoltage Protection
Remote ON/OFF control via SHUTDOWN# switch, USB UART and RS-232.
+5V Standby Output
1A (5W) maximum
1% Output regulation accuracy
<15mV p-p ripple at full load.
Current limiting protected
Ultra Capacitors
11x 10F Ultracapacitors in series – 0.909 farads
Energy Capacity - 262 joules
Expansion capabilities for the addition of external modules
Operating
Temperature
-40 to +85 Degrees Celsius
See derating section for full details on current consumption vs. input voltage.
Warranty and
Support
90 Day Product Warranty
Free Technical Support
Detailed Technical Specifications
Revision 0.00
Connect Tech Xtreme/PSU-UC User Manual
8
Board Diagram
Functional Block Diagram
Revision 0.00
Connect Tech Xtreme Xtreme/PSU-UC User Manual
9
Part Number
Features
Board Image
PSG013
- +5V @ 10A, +12V @ 5A, +5VSB @ 1A
Part Number Information
Other available ordering options:
5V or 12V output only build option available
Aluminum caps removed/replaced for vacuum application
To order any of these part numbers or to inquire about the other available ordering options please contact
sales@connecttech.com for further information.
Revision 0.00
Connect Tech Xtreme/PSU-UC User Manual
10
Hardware Installation
The Xtreme/PSU-UC can be installed into a PC/104 stack to provide power to the stack through its external
power connector. The Xtreme/PSU-UC can also be used as a stand-alone embedded power supply to
provide power to any other piece of equipment or embedded SBC.
To install the Xtreme/PSU-UC in your system please follow these steps:
1. Ensure your DC input power is OFF (+9V to +36V)
2. Install standoffs into system
3. Insert Xtreme/PSU-UC onto stack (bottom, middle or top).
4. Ensure board is bolted/screwed into stack
5. Connect any external power connections to the Xtreme/PSU-UC’s External Power Connector
6. Connect input power connection to the Xtreme/PSU-UC’ Input Power Connector
*** WARNING: NEVER PLUG IN A LIVE CONNECTION TO THE INPUT POWER ***
7. Power on input power to power up the system.
Revision 0.00
Connect Tech Xtreme Xtreme/PSU-UC User Manual
11
Input Power
The Xtreme/PSU-UC is meant to use any DC input power source in the range of +9V to +36V DC, which
is ideal for many vehicle or mobile application, but also many industrial power solutions as well.

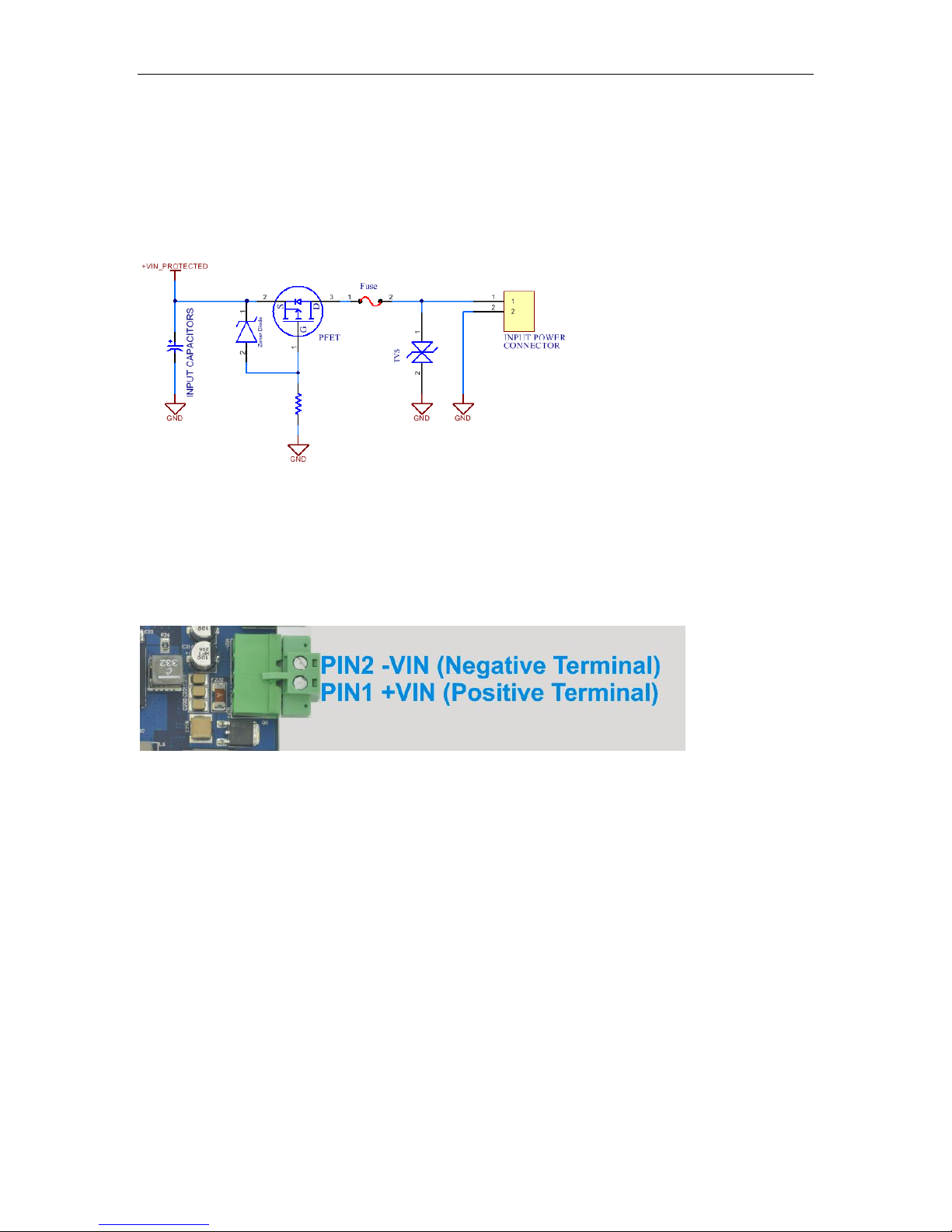

Input Power Circuit Diagram
Technical Specifications
Input Voltage Range: +9V to +36V DC
Input Fuse Rating: 65V Max, 15A Max
Input Capacitor Max Voltage: 50V Max
Input Power Connector Pinout
The input power connector on the Xtreme/PSU-UC is a standard 2-pin 5mm pitch terminal block w/screw
flange connector that mates to a 5mm screw terminal plug (with or without flange). With your purchase of
the Xtreme/PSU-UC you will have received a mating plug connector, below is a list of plug part numbers
that are compatible with the PSG.
Input Power Connector Plug Compatible Part Numbers
Part Number: 20020002-G031B01LF Manufacturer: FCI
Part Number: 796858-2 Manufacturer: TE Connectivity
Part Number: 1835478 Manufacturer: Phoenix Contact
Part Number: OSTVM027552 Manufacturer: On Shore Technology Inc
Revision 0.00
Connect Tech Xtreme/PSU-UC User Manual
12
Output Power
Technical Specifications
The Xtreme/PSU-UC outputs 3 main voltage rails:
+5V @ up to 10A
+12V @ up to 5A
+5V-SB @ up to 1A
All outputs provide:
Current Limiting Protection
Overvoltage Protection
Remote ON/OFF control via SHUTDOWN# switch, USB or remote RS-232 connection(+5V
standby power is always on and not controlled by SHUTDOWN#)
Output Power Connector Pinout
Output Power Connector Plug Compatible Part Numbers
With Screw Flange
Part Number: 284510-8 Manufacturer: TE Connectivity
Part Number: 1606700000 Manufacturer: Weidmuller
Part Number: OSTTJ0811520 Manufacturer: On Shore Technology Inc
Part Number: 39504-0008 Manufacturer: Molex
Part Number: 1863369 Manufacturer: Phoenix
Revision 0.00
13
Description
Installed
Uninstalled
J1
Capacitor Voltage
Charge Voltage AND Ext.
Connector voltage set to +24V
Charge Voltage AND Ext. Connector
voltage set to +16V
Pin No.
Description
Direction
1
NC
N/A
2
NC
N/A
3
RX – RS-232 Receive
Input
4
RTS – RS-232 RTS
Output
5
TX – RS-232 Transmit
Output
6
CTS – RS-232 CTS
Input
7
NC
N/A 8 NC
N/A 9 GND – Signal Ground
N/A
10
GND – Signal Ground
N/A
Configuration Jumpers
J1: Charge Voltage Control Jumper
Connect Tech Xtreme Xtreme/PSU-UC User Manual
*** WARNING: DO NOT INSTALL OR UNINSTALL THIS JUMPER WHILE MAIN INPUT
POWER IS CONNECTED / POWERED ON. ***
For applications using the on-board ultracapacitors, installing the jumper (setting the Charge Voltage to
+24V) will maximize the hold-up time.
RS-232 Connector Pinout (P4)
Revision 0.00
Connect Tech Xtreme/PSU-UC User Manual
14
External Module Charging
The Xtreme/PSU-UC includes an external connector that can be used to charge additional Ultracap
modules. In order to conform with many +16V rated modules, the removal of jumper J1 will set this
external Charge voltage to +15.5V. Depending on the properties of the module that you wish to use there
may be requirements for custom firmware to optimize charging for your target module. If you wish to
increase holdup with the use of an external ultracapacitor module please email support@connecttech.com
and a custom board and/or custom firmware can be designed to exactly fit your needs.
Remote ON/OFF Functionality
The Xtreme/PSU-UC incorporates remote ON/OFF functionality, in order to necessitate remotely turning
the Xtreme PSU ON or OFF from a mechanical switch or digital I/O. It also supports supply shutoff and
start up in software via the USB or RS-232 serial interfaces.
+5V-Standby Functionality
The +5V-Standby power will continue to remain turned ON at all times whenever the input power is
present, this will be independent of the SHUTDOWN# pin
Turn Supply ON
When the SHUTDOWN# pin is left floating, unconnected or is driven externally to a voltage above +1.5V
(min) and +5V (max), the Xtreme/PSU-UC’ +5V, +3.3V, -12V and +12V rails will turn ON.
Connection Example A - Mechanical Switch Method
Connection Example B - External I/O Control Method
Revision 0.00
Connect Tech Xtreme Xtreme/PSU-UC User Manual
15
Turn Supply OFF
Connecting the SHUTDOWN# pin to ground the Xtreme/PSU-UC’ +5V and +12V will turn OFF.
Alternatively the Xtreme/PSU-UC can be turned OFF by driving the SHUTDOWN# pin to a voltage below
+1.3V.
Connection Example A - Mechanical Switch Method
Connection Example B - External I/O Control Method
Revision 0.00
Connect Tech Xtreme/PSU-UC User Manual
16
Serial Command
Description
VER?
Display firmware version
HELP?
Display a list of available functions (from this table)
STARTUP=X
Startup power supply in specified number of seconds [X] (+12V, +5V)
SHUTDOWN=X
Shutdown power supply in specified number of seconds [X] (+12V, +5V)
TEMP0?
Display the temperature of Temp. Sensor 0 (°C)
TEMP1?
Display the temperature of Temp. Sensor 1 (°C)
Software Interface
The Xtreme/PSU-UC includes multiple interfaces for monitoring and control of the power outputs and
board temperature.
RS-232
The Xtreme/PSU-UC includes an on-board RS-232 port for monitoring and control of the power outputs.
The port runs at 57600 baud and a summary of the available commands are below.
USB
The Xtreme/PSU-UC includes an on-board USB port for monitoring and control of the power outputs and
board temperature. The USB port is an UART device, running at 57600 baud. Once connected, the RS-232
commands listed above also apply to this serial port connection. Drivers for the port can be found from our
website: www.connecttech.com/
Revision 0.00
Connect Tech Xtreme Xtreme/PSU-UC User Manual
17
Power Sequencing Details
Below are some oscilloscope captures of the Xtreme/PSU-UC’ power sequencing during initial power up.
The default sequencing is of the following order: +5V-SB → +5V → +12V. If your system requires a
different sequence, adjusted parameters, or default startup/shutdown delay please contact
support@connecttech.com and a custom board can be ordered to exactly fit your needs.
VIN = +24V
VIN = +10V
Revision 0.00
Connect Tech Xtreme/PSU-UC User Manual
18
Input
Voltage
Input
Voltage
Detailed Specifications and Derating Graphs
*All temperature deratings based on test results in a 125CFM test chamber.
Revision 0.00
Loading...
