Connect Tech OrbittyBox Customer Assembly Instructions

OrbittyBox Customer Assembly Instructions

SHEET 1 OF 12 CTIX-00482(0.02) 07/12/2018

Revision History

REVISION

DATE

AUTHOR(S)

CHANGE(S)

0.00

02/09/2018

D.P.

INITIAL RELEASE

0.01

05/02/2018

D.P.

DOCUMENT ALTERED TO SUIT MODIFIED PARTS

0.02

07/12/2018

D.P.

ADDED TORQUE AND THREADLOCKER RECOMMENDATIONS

Electronic components and circuits are sensitive to
ElectroStatic Discharge (ESD). When handling any circuit
board assemblies, it is recommended that ESD safety
precautions be observed. ESD safe best practices
include, but are not limited to:

· Leaving circuit boards in their antistatic packaging until
they are ready to be installed.

· Using a grounded wrist strap when handling circuit
boards, at a minimum you should touch a grounded
metal object to dissipate any static charge that may be
present on you.

· Only handling circuit boards in ESD safe areas, which
may include ESD floor and table mats, wrist strap stations
and ESD safe lab coats.

· Avoiding handling circuit boards in carpeted areas.

· Try to handle the board by the edges, avoiding contact
with components.

ESD WARNING NOTICE

SHEET 2 OF 12 CTIX-00482(0.02) 07/12/2018

PARTS LIST:

BASE ASSEMBLY; QTY. 1
COVER ASSEMBLY; QTY. 1
SCREW, M3.0, 5.0 mm, PFHMS; QTY. 4
SCREW, M3.0, 10.0 mm, PFHMS; QTY. 4
STANDOFF, M/F, M3.0, 8.0 mm; QTY. 4

SHEET 3 OF 12 CTIX-00482(0.01) 05/02/2018

THESE THREE ITEMS COME PRE-ASSEMBLED

TOOLS REQUIRED:

#1 PHILLIPS SCREWDRIVER

2.0 mm WIDE SLOT SCREWDRIVER

4.5 mm NUT DRIVER

8.0 mm NUT DRIVER

MAY NOT BE EXACTLY AS SHOWN

THESE TWO ITEMS COME IN A POLYBAG INSIDE THE CHASSIS

NEEDLE NOSE PLIER

RECOMMEND TORQUE DRIVER AND LIGHT DUTY THREADLOCKER

REMOVE CONTENTS FROM OUTER SHIPPING PACKAGING

1.
(FIGURE 1).
REMOVE 4 SCREWS HOLDING ENCLOSURE TOGETHER,

2.
AND SET ASIDE COVER AND 4 SCREWS (FIGURE 2).
INSIDE THERE IS A BAG CONTAINING OTHER FASTENERS -

3.
LOCATE AND SET ASIDE.

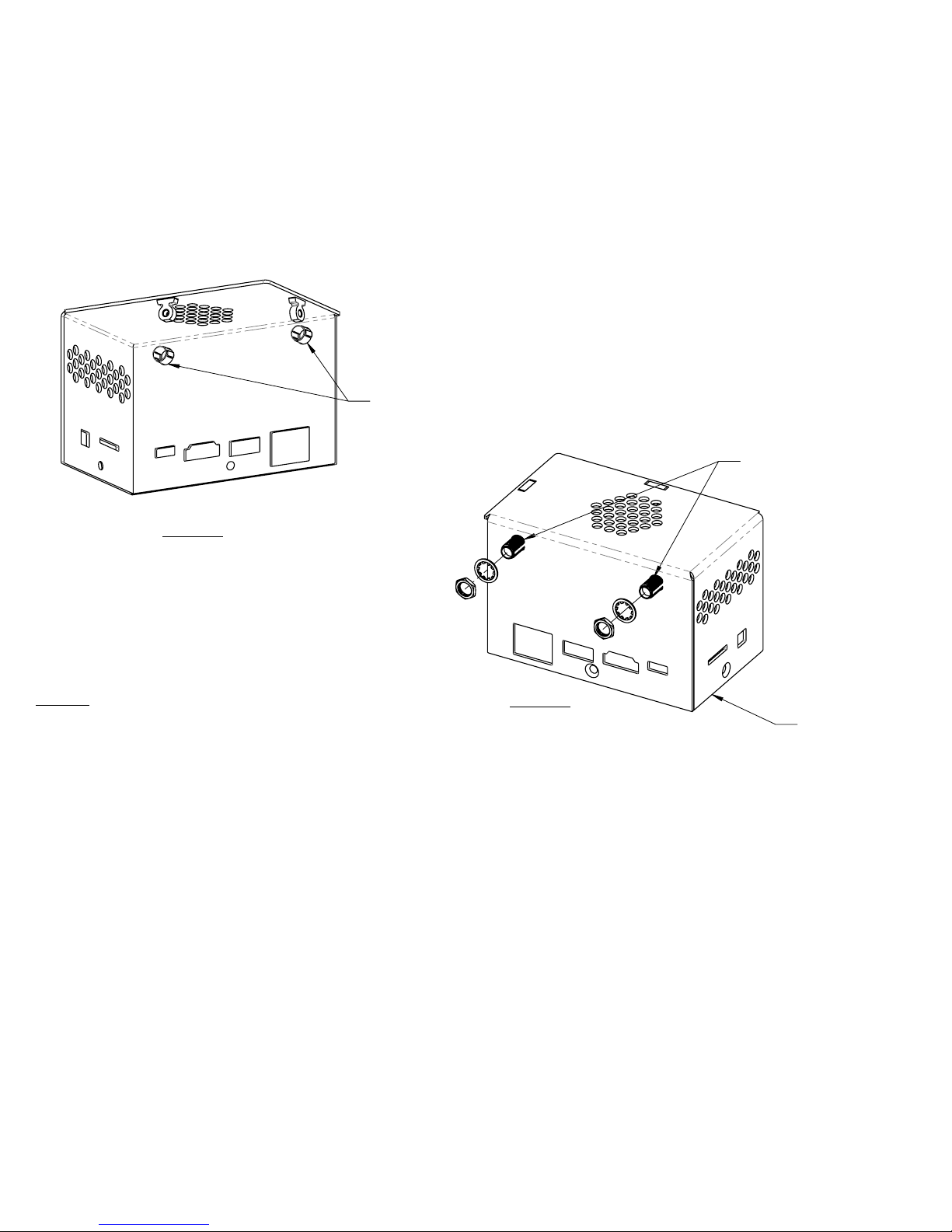

FIGURE 1

FIGURE 2

COVER
ASSEMBLY

SCREW, M3.0, 5.0
mm, PFHMS; QTY. 4

BASE
ASSEMBLY

BAG CONTAINING
OTHER FASTENERS

SHEET 4 OF 12 CTIX-00482(0.02) 07/12/2018

STEP 1:

UNPACK & DISASSEMBLY

TOOL: PHILLIPS SCREWDRIVER
