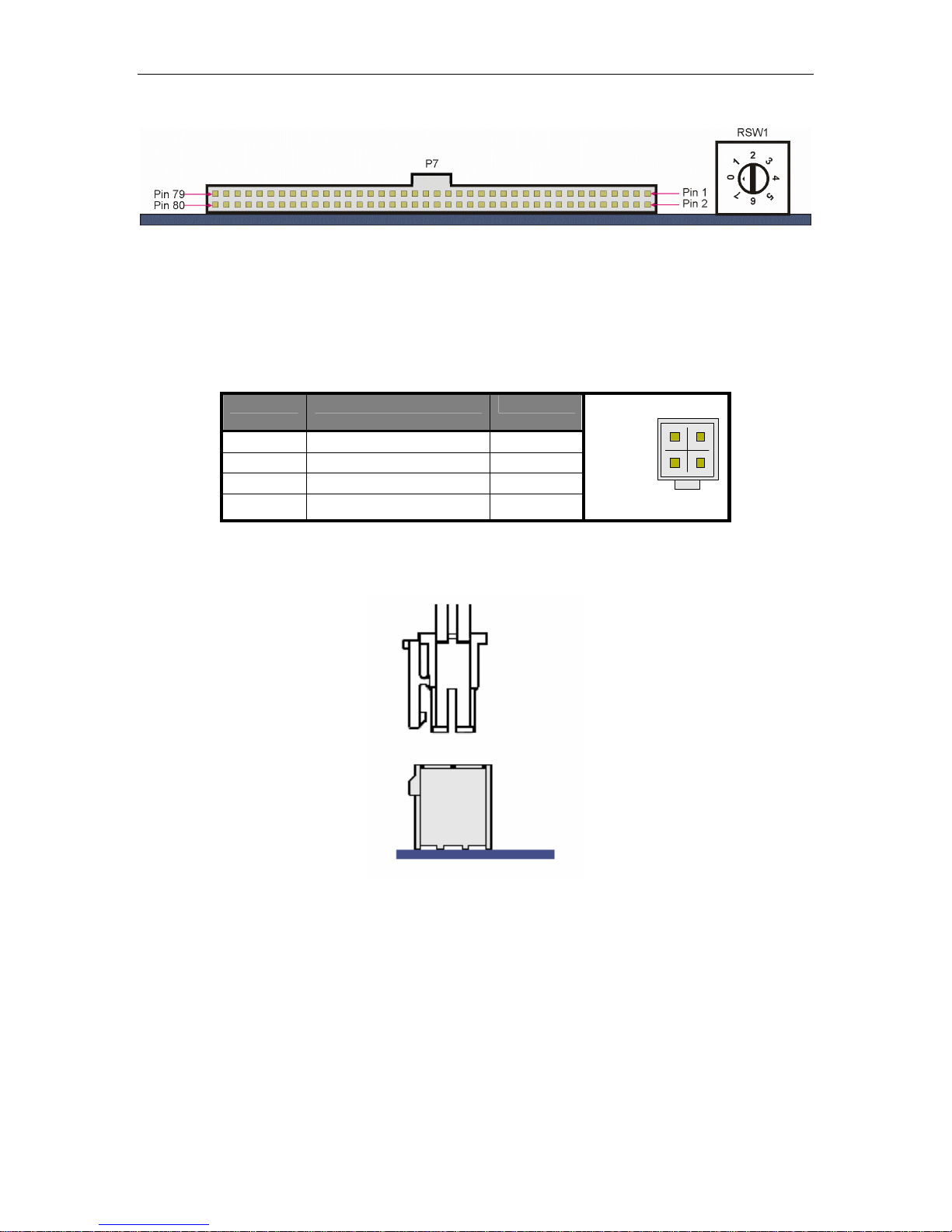

Figure 3: External Power Connection....................................................................................... 15
Revision 0.02 5
Connect Tech FreeForm/PCI-104 User Manual
Introduction
Connect Tech’s FreeForm/PCI-104 features Xilinx’s Virtex-5 multi-platform FPGA offering users a
flexible, reconfigurable computing platform that also takes advantage of the high bandwidth capabilities
of the PCI bus while communicating with various I/O interfaces.
Product Features
o PCI-104 form factor – 32-Bit/33MHz
o Xilinx multi-platform Virtex-5 FPGA with 3 million logic gates
o 2MB Flash for FPGA configuration storage
o 8MB Flash for embedded code storage
o Designed for embedded processing using MicroBlaze™
o 100MHz input clock
o 128MB DDR2-400 memory
o 2 x 10/100 Ethernet with modular jacks
o 2 x RS-485 serial interface
o High-speed serial connector 4 x Rocket I/O (GTP) channels
o 64 single ended or 32 LVDS general purpose I/O
o External 5V power connection for programming and development
o JTAG test and programming chain
o Industrial temperature range of -40°C to 85°C
o Ships preconfigured with a reference design
About this manual
This manual will provide the user with the following information:
o System overview
o Introduction to the reference design
o Description of jumpers, switches, and connector pinouts
o Hardware installation instructions
o Software installation instructions
o FPGA configuration details
o Specifications
Revision 0.02 6
Connect Tech FreeForm/PCI-104 User Manual
System Overview
The following conceptual block diagram provides a high level overview of the FreeForm/PCI-104 and
illustrates the general interconnection between components and connectors.
For the actual orientation and description of components refer to Figure 2 and Table 1 respectively.
PCI-104 Bus
EEPROM
(Config
1x6
Header
Registers)
SPI Flash
(FPGA
Config.)
PCI Bus Interface
[PLX 9056]s
100 Mhz
Osc.
Local Bus
RJ-45
RJ-45
2x5
Header
2x5
Header
Core Circuitry
Peripheral Circuitry
Connector
EEPROM
(Parameters)
Dual Ethernet PHY
RS-485 Transceiver
RS-485 Transceiver
Figure 1: FreeForm/PCI-104 Block Diagram
JTAG Connector
1x7 Header
FPGA
[Xilinx Virtex-5]
64 I/O, 32 LVDS Pairs
High Speed Serial
SPI Flash
(Embedded
Code)
2x40
Header
DDR2 RAM
DDR2 RAM
Ext Power Connector
Revision 0.02 7
Connect Tech FreeForm/PCI-104 User Manual
Figure 2: FreeForm/PCI-104 Layout
Table 1: FreeForm/PCI-104 Components
Connectors Description
P1 PCI-104 connector
P2 JTAG programming header
P3 SPI flash programming header
P4 High-speed serial connector
P5, P6 RS-485 header
P7 GPIO header
P8 External power header
P9 RJ-45 A
P10 RJ-45 B
Jumpers /Switches Description
RSW1 Slot selection
J1 FPGA configuration settings
Components
Description (not all on top side)
D1-D4 User LEDs
D5 FPGA load complete LED
U4 PLX PCI-local bus bridge
U5 Virtex-5 FPGA
U10 FPGA configuration flash
U11 Embedded code flash
U12, U13 DDR2 memory
U14 Parameter EEPROM
U15, U16 RS-485 transceiver
U17 Dual 10/100 PHY
O1,O2, O3 Oscillators
Revision 0.02 8
Connect Tech FreeForm/PCI-104 User Manual
Reference Design
The FreeForm/PCI-104 ships with a pre-installed reference design that is loaded into the FPGA’s
configuration flash. This reference design demonstrates how to interface the FreeForm/PCI-104
(Virtex-5 FPGA) with the PLX PCI 9056 PCI to Local Bus Bridge, as well as the various peripherals.
The PLX 9056 provides a generic local bus that is capable of operating at up to 66MHz (this design
forwards a 50MHz clock to the PLX). The PLX bridge has been set in the C-Mode of operation. The
reference logic operates as a local bus slave, as well as a local bus master.
The reference design contains examples demonstrating:
o Loading of PLX 9056’s registers via the local bus
o Local bus slave transfers
o Local bus master transfers
o GPIO control
o Programming the SPI Flash
o Interfacing to the built-in Virtex-5 TEMACs
o RS-485 serial data transfers
o Reading/writing to the serial EEPROM
o Reading/writing to DDR2 memory
o Interfacing to the Virtex-5 Rocket I/O transceivers
Most of the example VHDL modules demonstrate how to interface with the various peripherals through
a register set, which is accessible by the host system over the PCI bus. A set of software applications
has been created to show how the host system can communicate with each FPGA sub-module. In most
applications, the host system will not directly control these peripherals. In a custom application, these
modules can be easily modified to interconnect with each other through the FPGA fabric.
To obtain the source code, refer to Software Installation. For further details on the reference design,
refer to FreeForm/PCI-104 Reference Design Guide (CTIM-00042)
Revision 0.02 9
Connect Tech FreeForm/PCI-104 User Manual
Hardware Description
The following sections describe the function of all switches/jumpers and provide details on connector
pinouts.
Jumpers and Switches
Slot Selection (RSW1)
This rotary switch selects a slot position in the PCI-104 stack. When mounting on a PCI adapter
card, ensure slot one is selected.
Table 2: Slot Selection (RSW1)
Position Slot
0,4 0
1,5 1
2,6 2
3,7 3
FPGA Configuration Settings (J1)
Jumper J1 is used to control FPGA configuration.
Table 3: FPGA Configuration Settings (J1)
Location Function
FPGA waits for configuration over JTAG (using P2)
FPGA reads configuration from SPI flash
FPGA is tri-stated, flash is isolated from FPGA and
can be programmed directly
Revision 0.02 10
Connect Tech FreeForm/PCI-104 User Manual
Connector Pinouts
PCI-104 Header (P1)
Refer to PCI-104 specifications.
Note: P1 must be connected to a PCI-104 stack supplying both 3.3V and 5V.
JTAG Programming Header (P2)
Use P2 to configure the FPGA via JTAG. Refer to FPGA Configuration for more information.
Power pins are for voltage reference only; they do not provide power to the configuration
circuitry.
Note that the FPGA can always be programmed via JTAG, regardless of the J1 configuration
setting.
Table 4: JTAG Programming Header Pinout (P2)
Pin Signal Direction
1 TRST Input
2 TMS Input
3 TDI Input
4 TDO Output
5 TCK Input
6 GND Reference
7 3.3V Reference
1
JTAG
Header
P2
Top View
SPI Flash Programming Header (P3)
P3 may be used to directly program the SPI flash, providing that J1 is set correctly to the tri-state
FPGA position. The power pins are for voltage reference only. They do not provide power to the
configuration circuitry.
Table 5: SPI Flash Programming Header Pinout (P3)
Pin Signal Direction
1 SPI_CSN Input
2 SPI_MOSI Input
3 SPI_MISO Output
4 SPI_CLK Input
5 GND Reference
6 3.3V Reference
SPI Flash
Header
P3
Top View
1
Revision 0.02 11
Connect Tech FreeForm/PCI-104 User Manual
High-speed Serial (P4)
The high-speed serial connector carries four Rocket (GTP) I/O channels, each with a dedicated
transmit and receive differential pair. These channels are capable of operating up 3.125 Gbps,
depending on configuration. For more information on Rocket I/O capabilities, visit the Xilinx
website: http://www.xilinx.com/products/silicon_solutions/fpgas/virtex/virtex5/
Table 6: High-Speed serial Connector Pinout (P4)
Pin Signal Direction Notes
1 MTGRXN0_112 Input (b)
3 MTGRXP0_112 Input (b)
2 MTGTXN0_112 Output (b)
4 MTGTXP0_112 Output (b)
5 HSS_USER_IO(0) Input/Output (a), (d)
7 HSS_USER_IO(1) Input/Output (a), (d)
6 HSS_USER_IO(2) Input/Output (a), (d)
8 HSS_USER_IO(3) Input/Output (a), (d)
9 MTGRXN1_112 Input (b)
11 MTGRXP1_112 Input (b)
10 MTGTXN1_112 Output (b)
12 MTGTXP1_112 Output (b)
13 3.3V Power (a)
15 3.3V Power (a)
14 3.3V Power (a)
16 3.3V Power (a)
17 MTGRXN0_114 Input (c)
19 MTGRXP0_114 Input (c)
18 MTGTXN0_114 Output (c)
20 MTGTXP0_114 Output (c)
21 3.3V Power (a)
23 3.3V Power (a)
22 3.3V Power (a)
24 3.3V Power (a)
25 MTGRXN1_114 Input (c)
27 MTGRXP1_114 Input (c)
26 MTGTXN1_114 Output (c)
28 MTGTXP1_114 Output (c)
Notes:
a) Pins have a different function from Revision B.
b) The Rocket I/O (GTP) are organized into tiles, where each tile has two transceivers and
shares a common PLL. In this design, tiles 112 and 114 are used.
c) Tile 112 has AC coupling capacitors on the TX pairs, validated at PCI Express data rates
(2.5 Gbps).
d) Tile 114 has AC coupling capacitors on both the RX and TX pairs, validated at SATA
data rates (1.5 Gbps).
e) HSS_USER_IO are flexible LVCMOS side-band signals.
WARNING If connecting two FreeForm/PCI-104’s together using the Rocket I/O
interface in a cross-over fashion; care must be taken. Ensure that only
cables provided by Connect Tech are used. Cables ordered directly
from Samtec or a third party could result in damage to the cable and/or
the FreeForm/PCI-104 board itself.
Revision 0.02 12
Connect Tech FreeForm/PCI-104 User Manual
42
High Speed
Serial
P4
Top View
2826
31
2725
RS-485 Headers (P5, P6)
Table 7: RS-485 Port 1 Pinout (P5)
Pin Signal Direction
1 RXD+1 Input
2
1
3 RXD-1 Input
4
5 TXD+1 Output
6
7 TXD-1 Output
8
P5
485 Port 0
Top View
10
9 GND Power
10
Table 8: RS-485 Port 2 Pinout (P6)
Pin Signal Direction
1 RXD+2 Input
2
3 RXD-2 Input
10
P6
485 Port 1
4
5 TXD+2 Output
6
7 TXD-2 Output
8
Top View
1
9 GND Power
10
Revision 0.02 13
Connect Tech FreeForm/PCI-104 User Manual
GPIO Header (P7)
When in differential mode, the GPIO header positive (P) and negative (N) signals are adjacent on
a standard ribbon cable. Note that the GPIO voltage level is set via hardware.
o FCG001: L12 populated, enabling 2.5V I/O, including LVDS
o FCG002: L13 populated, enabling 3.3V I/O
Table 9: GPIO Header Pinout
Pin Signal Direction Pin Signal Direction
1 GPION(0) Input/Output 41 GPION(16) Input/Output
2 GPIOP(0) Input/Output 42 GPIOP(16) Input/Output
3 GPION(1) Input/Output 43 GPION(17) Input/Output
4 GPIOP(1) Input/Output 44 GPIOP(17) Input/Output
5 GPION(2) Input/Output 45 GPION(18) Input/Output
6 GPIOP(2) Input/Output 46 GPIOP(18) Input/Output
7 GPION(3) Input/Output 47 GPION(19) Input/Output
8 GPIOP(3) Input/Output 48 GPIOP(19) Input/Output
9 GND Power 49 GND Power
10 GND Power 50 GND Power
11 GPION(4) Input/Output 51 GPION(20) Input/Output
12 GPIOP(4) Input/Output 52 GPIOP(20) Input/Output
13 GPION(5) Input/Output 53 GPION(21) Input/Output
14 GPIOP(5) Input/Output 54 GPIOP(21) Input/Output
15 GPION(6) Input/Output 55 GPION(22) Input/Output
16 GPIOP(6) Input/Output 56 GPIOP(22) Input/Output
17 GPION(7) Input/Output 57 GPION(23) Input/Output
18 GPIOP(7) Input/Output 58 GPIOP(23) Input/Output
19 GND Power 59 GND Power
20 GND Power 60 GND Power
21 GPION(8) Input/Output 61 GPION(24) Input/Output
22 GPIOP(8) Input/Output 62 GPIOP(24) Input/Output
23 GPION(9) Input/Output 63 GPION(25) Input/Output
24 GPIOP(9) Input/Output 64 GPIOP(25) Input/Output
25 GPION(10) Input/Output 65 GPION(26) Input/Output
26 GPIOP(10) Input/Output 66 GPIOP(26) Input/Output
27 GPION(11) Input/Output 67 GPION(27) Input/Output
28 GPIOP(11) Input/Output 68 GPIOP(27) Input/Output
29 GND Power 69 GND Power
30 GND Power 70 GND Power
31 GPION(12) Input/Output 71 GPION(28) Input/Output
32 GPIOP(12) Input/Output 72 GPIOP(28) Input/Output
33 GPION(13) Input/Output 73 GPION(29) Input/Output
34 GPIOP(13) Input/Output 74 GPIOP(29) Input/Output
35 GPION(14) Input/Output 75 GPION(30) Input/Output
36 GPIOP(14) Input/Output 76 GPIOP(30) Input/Output
37 GPION(15) Input/Output 77 GPION(31) Input/Output
38 GPIOP(15) Input/Output 78 GPIOP(31) Input/Output
39 GND Power 79 GND Power
40 GND Power 80 GND Power
Revision 0.02 14
Connect Tech FreeForm/PCI-104 User Manual
Side View
External Power Connector (P8)
The external connector provides 5V to the power regulation circuitry.
The external power connector should only be used when the FreeForm/PCI-104 is being
programmed outside of a PCI/PCI-104 system.
Table 10: External Power Connector Pinout (P8)
Pin Signal Direction
1 5V Power
2
Standalone
Power Input
1 2
P8
3 GND Power
4 VIO (connect to 5V) Power
3 4
It is recommended that a Connect Tech Inc. FreeForm/PCI-104 power supply is used for providing
external power. Orientation of the power supply connector is important. Ensure that the clip on
the cable aligns with the catch on P8, as shown below.
Revision 0.02 15
Figure 3: External Power Connection
Connect Tech FreeForm/PCI-104 User Manual
Connector’s Mating Components and Cables
The following table lists the manufacturer and part number for connectors on the FreeForm/PCI-104, as
well as potential mating components.
Table 11: Connector Mate Listing
Connector Component on
FreeForm/PCI-104
P2 Samtec
TSW-107-07-L-S
(0.100” pitch, 1x7)
P3 Samtec
TSW-106-07-L-S
(0.100” pitch, 1x6)
P4 Samtec
QSE-014-01-L-D-DP-A
(0.8mm pitch, 2x14,
arranged as 14 differentials
pairs)
P5/P6 Samtec
TSW-105-07-L-D
(0.100” pitch, 2x5)
P7 Tyco
5-104069-3
(0.050”x0.100” pitch, 2x40)
P8 Samtec
IPL1-102-01-S-D
(0.100” pitch, 2x2)
Note: CBG027 and MSG037 are available as part of development kit DEV002
For more details on mating components, visit:
o Samtec (http://www.samtec.com/)
o Tyco Electronics (http://www.tycoelectronics.com/)
Mating components Mating cable assembly
Samtec
SSW-107-xx-G-S
(Socket, other options available)
Samtec
SSW-106-xx-G-S
(Socket, other options available)
Samtec
QTE-014-01-L-D-DP-A
(5mm mated height, other
heights available)
Samtec
SSW-105-xx-G-D
(Socket, other options available)
Tyco
3-111196-3
(ribbon cable mate)
or
Tyco
8-487937-0
(discrete wire housing)
Tyco
1-487547-1
(crimps for housing)
Samtec
IPD1-02-D
(discrete wire housing)
Samtec
CC79L-2024-01-S
(crimps for housing)
or
Samtec
MMSD-02-22-S-03-25-S
(pre-assembled housing and
wiring)
Connect Tech Inc.
CBG027
(JTAG programming cable)
Connect Tech Inc.
CBG027
(JTAG programming cable)
Connect Tech.
Please contact sales for more
information.
Connect Tech Inc.
CAG104
(Header to DB9)
-
Connect Tech Inc.
MSG037
(5V power supply, for
development purposes)
Revision 0.02 16
Connect Tech FreeForm/PCI-104 User Manual
Hardware Installation
Before installing the FreeForm/PCI-104 into a PCI-104 stack, ensure the following:
o Slot selection is properly set using the rotary switch RSW1.
o FPGA configuration jumper J1 is set to read from flash.
Once installed in the system and power is applied, the LED D1 will illuminate to indicate that
FreeForm/PCI-104 is functioning.
Heat Sink Installation
Each FreeForm/PCI-104 ships with a FPGA heat sink (27 mm x 27 mm); to be installed by the user.
Simply peel of the sticker backing and press firmly onto the FPGA, using proper ESD precautions.
If the heat sink size is not suitable for your application, please contact Connect Tech Inc.
WARNING In many applications, including high speed memory operations, the
FPGA dissipates a significant amount of power. Failure to use any heat
sinking will result in the product warranty being voided.
Stand-alone Operation
Operating the FreeForm/PCI-104 outside of a PCI-104 stack or a PCI system for extended periods of
time is not recommended. The PCI to local bus bridge (PCI PLX 9056) requires the pull-up/pull-down
resistors provided on a system’s main board.
Configuring or programming the FreeForm/PCI-104 in stand-alone mode is acceptable, providing that it
is not left powered on in stand-alone state for an extended period of time.
WARNING The power supply MSG037 included with the development kit
DEV002 is intended for desktop programming only. It is not intended
or warranted to be used in any other situation.
Revision 0.02 17
Connect Tech FreeForm/PCI-104 User Manual
Software Installation
FPGA Development Environment
FreeForm/PCI-104 has been developed with Xilinx WebPACK 9.2, available free of charge at:
http://www.xilinx.com/ise/logic_design_prod/webpack.htm
PLX Software Development Kit (SDK)
PLX provides a software development kit (SDK) to aid in the creation of applications using the PLX
9056 bridge. The SDK provides a generic driver for Windows 2000/XP and Linux. A common API is
also included; which encapsulates functions like:
o Configuration register read / write
o Block read / block write to local address space (i.e. memory / registers in the FPGA)
o Physical memory allocation, for bus mastering or DMA purposes
o Interrupt handling
o EEPROM read/write by address
The SDK is available for download from:
http://www.plxtech.com/products/sdk/
In order to download the SDK, you will need to register with PLX.
Reference Design & Application Examples
The FreeForm/PCI-104 ships with a CD containing:
o Documentation and manuals
o FPGA VHDL reference design
o Software program examples
The reference design and example programs help users quickly develop custom hardware and software
applications. Refer to the CD for installation instructions.
The latest reference design is always available from:
http://devel.connecttech.com/
If a username and password have not already been provided, please contact Connect Tech Support via
email support@connecttech.com.
Revision 0.02 18
Connect Tech FreeForm/PCI-104 User Manual
FPGA Configuration
The Virtex-5 FPGA can be configured via two methods:
o JTAG programming chain, using P2
o SPI Flash, read on, power-up by FPGA
The configuration flash can be programmed (loaded) through three methods:
o JTAG programming chain (through FPGA), using P2
o Direct with cable, using P3
o Indirect programming through FPGA, only possible after configuration is complete (refer
to reference design for more details)
To configure the FPGA via the JTAG / boundary scan programming chain, three items are required:
o FPGA bitstream (*.bit), generated at end FPGA implementation using ISE
o PLX 9056 boundary scan definition file (*.bdsl)
o Ethernet PHY boundary scan definition file
To program the SPI flash, a hex file must be generated (*.mcs) then written to the flash. To generate
the hex file, the following is required:
o FPGA Bitstream
o Setting PROM file format to MCS (important since bits are swapped)
o Setting SPI PROM density to 16M
o Setting SPI Flash type to M25P16
For a complete procedure, refer to Appendix A.
Revision 0.02 19
Connect Tech FreeForm/PCI-104 User Manual
Power and Thermal Considerations
The FreeForm/PCI-104’s Virtex-5 FPGA is a versatile, flexible device, with many built-in features like
termination, PLLs, and high speed gigabit transceivers. The drawback of these on-chip features is that they
consume a lot of power and hence dissipate a lot of heat.
As a result Connect Tech, is recommending the installation of a heatsink, included with the product (see
section Heat Sink Installation). As well, the FPGA designer must perform power analysis on their design to
determine that they are not stressing the Virtex-5 component (i.e. exceeding the junction temperature).
Power analysis can be performed using the Xpower Analyzer (part of the ISE design suite) and the XPE
spreadsheets (Xilinx Power Estimator Spreadsheets).
http://www.xilinx.com/products/design_resources/power_central/
Reference Design FPGA power analysis
Power analysis was performed on the FCG001 when configured with the reference design. The Virtex5 XPE spreadsheet was used to determine an effective junction to ambient thermal resistance
(θ
JA_effective
(θ
SA
θ
SA
Three scenarios were developed and the XPE parameters Airflow and Custom ΘSA were varied. The
θ
JA_effective
maximum ambient temperature. The following table summarizes the scenarios and the results. For
complete details of the scenarios, see Appendix B.
Calculation details:
Note T
). The following parameters are entered into the spreadsheet to determine θ
Device
JA_effective.
Part XC5VLX30T
Package FF665
Grade Industrial
Process Typical
Speed Grade -1
Stepping Stepping - 1
Thermal Information
Ambient Temp (°C) 50
Airflow (LFM) 250
Heat Sink Custom
Custom ΘSA (°C/W) 8 (*)
Board Selection Small (4"x4")
# of Board Layers 12 to 15
is the surface to ambient temperature for a heatsink with dimensions 27 mm x 27 mm x 6.4 mm and 250 LFM airflow. The
improves (decreases) with a taller heatsink. )
was entered into the Xpower Analyzer yielding a Juction Temperature @ 50 °C and a
Scenario θ
JA_effective
(°C/W) T
ambient_max
T
junction
at 50 °C
Heatsink attached, 250 LFM 4.9 82.7 67.3
No Heatsink, 250 LFM 6.4 72.7 72.7
No heatsink, 0 LFM 9.7 65.1 84.9
T
= T
junction
T
ambient_max
junction_absolute_max
ambient
= T
+ (P
junction_max
FPGA
* θ
- (P
JA_effective)
* θ
FPGA
= 50°C + (3.53W * 4.9 °C /W) = 67.297°C
JA_effective
) = 100°C - (3.53W * 4.9 °C /W) = 82.7°C
= 125°C is not used, since this is the absolute point of failure.
Revision 0.02 20
Connect Tech FreeForm/PCI-104 User Manual
Specifications
Programmable FPGA
Virtex-5 FPGA LX30T
Input Clock
Memory / Flash
General Purpose User I/O
Serial
Ethernet
High-speed serial
Operating Environment
Power Requirements
Dimensions
100MHz
128MB DDR2-400
2MB Flash – FPGA configuration
8MB Flash – Embedded code
4K serial EEPROM – parameter storage
64 single ended I/O
32 LVDS I/O
2 x RS-485
2 x 10Base-T, 100Base-TX
4 x Rocket I/O transceivers (GTP)
Storage Temperature:
-65°C to 150°C
Operating Temperature:
0°C to 70°C (commercial)
-40°C to 85°C (industrial)
+5V DC, in PCI-104 stack
+5V DC standalone
Current requirements are configuration dependant
PC/104-Plus 2.2 compliant
PCI-104 1.0 compliant
Connectors
Two RJ-45 modular jacks (Ethernet)
Two 2x5 0.100” headers (serial)
One 2x40 0.050 x 0.100” header (general I/O)
One 1x6 0.100” header (flash programming)
One 2x14 0.8 mm differential pair terminal (high speed serial)
Revision 0.02 21
Connect Tech FreeForm/PCI-104 User Manual
Appendix A: iMPACT Instructions for FPGA Configuration
To configure the FPGA via JTAG, connect the JTAG programming cable to P2 ensuring that all JTAG
signals align correctly. It is important to note that P2 also has the TRST signal on pin 1, which is not part
of Xilinx’s Parallel or USB programming cables.
Launch Impact
1) Open iMPACT, and select create a new project
2) Select configure devices using boundary scan. iMPACT will scan the JTAG chain, and identify
three devices. The first device will be the FPGA.
Revision 0.02 22
Connect Tech FreeForm/PCI-104 User Manual
3) A prompt will ask for a new configuration file. Select the bitstream from the project directory.
4) A prompt will ask for a BSDL file for device number 2 (PLX PCI9056). Click Yes.
5) Browse to the bsdl folder and select PCI9056BA.bsd
Revision 0.02 23
Connect Tech FreeForm/PCI-104 User Manual
6) iMPACT will add the device to the JTAG chain.
7) Again, a prompt will ask for device number three (National PHY). Browse to the bsdl folder and
select DP83849IVS.bsd. The device will be added to the JTAG chain.
8) To test stream integrity, right click on the FPGA and select Get Device ID. The console will
report IDCODE = 82a6e093
Revision 0.02 24
Connect Tech FreeForm/PCI-104 User Manual
Programming the FPGA
1) Right click on device number one (Virtex-5 FPGA), and select program. The following diagram
will appear. Note that verification will only work if an msk file has been created.
2) Select OK to begin programming. After programming is complete, the status window will report:
Revision 0.02 25
Connect Tech FreeForm/PCI-104 User Manual
Generating a PROM (MCS) File
1) Double click Prom File Formatter in the Flows window.
2) The “Prepare PROM Files” dialog will appear. Ensure that the following settings are selected:
3rd Party SPI PROM
MSC PROM File Format
3) Give the file a name, and click Next.
Revision 0.02 26
Connect Tech FreeForm/PCI-104 User Manual
4) Select the PROM density (16M) → click Next → click Finish.
5) A prompt will ask to add device to data stream 0. Click OK. Select the bitstream from the project
directory.
Revision 0.02 27
Connect Tech FreeForm/PCI-104 User Manual
6) Click “No” when asked if another device is to be added. Click “OK” to accept the setup.
7) Double Click “Generate File” from the “iMPACT” processes menu. The status will be reported in
the console.
// *** BATCH CMD : setMode -pff
// *** BATCH CMD : setSubmode -pffparallel
// *** BATCH CMD : setAttribute -configdevice -attr fillValue -value "FF"
// *** BATCH CMD : setAttribute -configdevice -attr swapBit -value "true"
// *** BATCH CMD : setAttribute -configdevice -attr fileFormat -value "mcs"
// *** BATCH CMD : setAttribute -configdevice -attr dir -value "UP"
// *** BATCH CMD : setAttribute -configdevice -attr path -value
"C:\Data\Projects\FreeFormPCI104\hardware\logic\init_plx_GPIO25\/"
// *** BATCH CMD : setAttribute -configdevice -attr name -value "init_plx_GPIO25.cs"
Total configuration bit size = 9371136 bits.
Total configuration byte size = 1171392 bytes.
// *** BATCH CMD : setCurrentDesign -version 0
// *** BATCH CMD : generate -spi
Swap bit can only be disabled in Hex file format only.
0x11dfc0 (1171392) bytes loaded up from 0x0
Using user-specified prom size of 2048K
Writing file
"C:\Data\Projects\FreeFormPCI104\hardware\logic\init_plx_GPIO25\//init_plx_GPIO25.mcs"
.
Writing file
"C:\Data\Projects\FreeFormPCI104\hardware\logic\init_plx_GPIO25\//init_plx_GPIO25.prm"
.
Revision 0.02 28
Connect Tech FreeForm/PCI-104 User Manual
Configuring the FPGA with the SPI Flash
In previous Xilinx FPGA configurations, the SPI flash required programming via 3rd party JTAG test
software or through in-system methods. The following features are new to ISE 9.1/9.2, and are only
available on select FPGAs, including the Virtex-5. Your FreeForm/PCI-104 card featuring the Xilinx
Virtex-5 FPGA includes a standard core to enable programming of BPI and SPI flashes over JTAG.
Configuring the FPGA / SPI flash Association
1) Select “Boundary Scan” from the “Flows” tab.
2) Right click on the FPGA and select “Add SPI Flash…”
Revision 0.02 29
Connect Tech FreeForm/PCI-104 User Manual
3) Browse to the directory containing the previously generated MCS file. Select and click “Open”.
4) The “FPGA SPI Flash Association” window will appear; select “M25P16” (this is the flash device
connected to the FPGA).
5) The flash will be added to the FPGA. Note that this flash is not part of the JTAG chain.
Revision 0.02 30
Connect Tech FreeForm/PCI-104 User Manual
Programming the Flash
1) Right click the previously associated flash device, and select program.
2) The programming dialog will appear. Select “Verify” and “Erase Before Programming”, then
click “OK.”
Revision 0.02 31
Connect Tech FreeForm/PCI-104 User Manual
3) Observe the results in the transcript window.
a. The SPI core is first download to the FPGA device
b. The IDCODE is checked and verified
c. Flash is erased
d. Flash is programmed
After completion of the flash programming, the FPGA will attempt to configure itself from the
flash. If the SPI flash setting is not selected with J1; this step will fail. This does not mean the
flash is not programmed, but rather the verification of the programmed contents has failed.
'1': SPI access core not detected. SPI access core will be downloaded to the
device to enable operations.
PROGRESS_START - Starting Operation.
'1': Downloading core...
done.
'1': Reading status register contents...
INFO:iMPACT:2219 - Status register values:
INFO:iMPACT - 0011 1111 1001 1110 0000 1010 1000 0000
INFO:iMPACT:2492 - '1': Completed downloading core to device.
INFO:iMPACT - '1': Checking done pin....done.
'1': Core downloaded successfully.
'1': IDCODE is '202015' (in hex).
'1': ID Check passed.
'1': IDCODE is '202015' (in hex).
'1': ID Check passed.
'1': Erasing Device.
'1': Programming Device.
'1': Reading device contents...
done.
'1': Verification completed.
INFO:iMPACT - '1': Checking done pin....done.
'1': Programmed successfully.
INFO:iMPACT - '1': Checking done pin....done.
'1': Programmed successfully.
PROGRESS_END - End Operation.
Elapsed time = 179 sec.
Revision 0.02 32
Connect Tech FreeForm/PCI-104 User Manual
Appendix B: Power calculations
Scenario 1: Heatsink attached, 250 LFM
Revision 0.02 33
Connect Tech FreeForm/PCI-104 User Manual
Scenario 2: No Heatsink, 250 LFM
Revision 0.02 34
Connect Tech FreeForm/PCI-104 User Manual
Scenario 3: No heatsink, 0 LFM
Revision 0.02 35
Connect Tech FreeForm/PCI-104 User Manual
Appendix C: Hardware Changes from Revision B
This appendix lists the changes between hardware revision B and hardware revision C.
The following is a summary of changes:
PCB requires only 5V over PCI-104; it previously required 3.3V and 5V
A dedicated local bus oscillator was added to generate 50Mhz. A clock is no longer forwarded
from FPGA to the PLX PCI 9056.
The DDR2 FPGA pinout has been changed to increase timing margins
The pinout of connector P4 (high-speed serial) has changed. The sideband signals have been
relocated and 3.3V has been added.
The orientation of connector P5 (RS-485 port 0) has rotated 180 degrees
The Location of P8 (external power connector) has changed. The 3.3V enable signal has also
been removed
Revision 0.02 36
Connect Tech FreeForm/PCI-104 User Manual
Reference Design
The top level reference design contains a generic parameter which will correctly configure the FPGA
for Revision B or Revision C. A separate constraint file UCF is created for Revision B and Revision C,
which need to be added to the ISE project manually.
Revision B Revision C
Local Clock Generation
Pin Signal Name
Y21 lb_lclkfb
A20 lb_lclko_loop
B21 lb_lclko_plx
DDR2 Pinout
Pin Signal Name Pin Signal Name
AA9 ddr2_a<0> AD21 ddr2_dq<0>
Y8 ddr2_a<1> AD15 ddr2_dq<1>
AD8 ddr2_a<2> AC21 ddr2_dq<2>
Y7 ddr2_a<3> AD14 ddr2_dq<3>
AB9 ddr2_a<4> AE13 ddr2_dq<4>
W9 ddr2_a<5> AE22 ddr2_dq<5>
AC8 ddr2_a<6> AD16 ddr2_dq<6>
AD6 ddr2_a<7> AE17 ddr2_dq<7>
AA8 ddr2_a<8> AF10 ddr2_dq<8>
V8 ddr2_a<9> AE5 ddr2_dq<9>
AC7 ddr2_a<10> AE12 ddr2_dq<10>
AB7 ddr2_a<11> AF3 ddr2_dq<11>
AB6 ddr2_a<12> AF4 ddr2_dq<12>
AC9 ddr2_a<13> AF12 ddr2_dq<13>
AE7 ddr2_ba<0> AF5 ddr2_dq<14>
AA5 ddr2_ba<1> AF9 ddr2_dq<15>
V9 ddr2_ba<2> AD24 ddr2_dq<16>
AE8 ddr2_cas_n AE25 ddr2_dq<17>
AE11 ddr2_ck<0> AC26 ddr2_dq<18>
AD11 ddr2_ck_n<0> AC23 ddr2_dq<19>
AD18 ddr2_cke<0> AB22 ddr2_dq<20>
AC22 ddr2_cs_n<0> AC24 ddr2_dq<21>
AE16 ddr2_dm<0> AE26 ddr2_dq<22>
AE6 ddr2_dm<1> AD26 ddr2_dq<23>
AD25 ddr2_dm<2> AD23 ddr2_dq<24>
AE18 ddr2_dm<3> AE15 ddr2_dq<25>
AD19 ddr2_dqs<0> AF24 ddr2_dq<26>
AF7 ddr2_dqs<1> AF13 ddr2_dq<27>
AF20 ddr2_dqs<2> AF14 ddr2_dq<28>
AF22 ddr2_dqs<3> AF25 ddr2_dq<29>
AD20 ddr2_dqs_n<0> AF15 ddr2_dq<30>
AF8 ddr2_dqs_n<1> AF23 ddr2_dq<31>
AE20 ddr2_dqs_n<2> AD13 ddr2_odt<0>
AE21 ddr2_dqs_n<3> AA7 ddr2_ras_n
AB5 ddr2_we_n
Local clock generated in
FPGA and forwarded to PLX
bridge. Clock feedback to
FPGA via pin Y21.
Pin Signal Name
Y21 lb_lclkfb
A20
B21
Pin Signal Name Pin Signal Name
AA9 ddr2_a<0> AC21 ddr2_dq<0>
Y8 ddr2_a<1> AD15 ddr2_dq<1>
AD8 ddr2_a<2> AC23 ddr2_dq<2>
Y7 ddr2_a<3> AE13 ddr2_dq<3>
AB9 ddr2_a<4> AD14 ddr2_dq<4>
W9 ddr2_a<5> AE22 ddr2_dq<5>
AE8 ddr2_a<6> AD16 ddr2_dq<6>
AD6 ddr2_a<7> AD21 ddr2_dq<7>
AA8 ddr2_a<8> AF10 ddr2_dq<8>
V8 ddr2_a<9> AE5 ddr2_dq<9>
AC7 ddr2_a<10> AE12 ddr2_dq<10>
AB7 ddr2_a<11> AF3 ddr2_dq<11>
AB6 ddr2_a<12> AF4 ddr2_dq<12>
AD10 ddr2_a<13> AF12 ddr2_dq<13>
AE7 ddr2_ba<0> AF5 ddr2_dq<14>
AA5 ddr2_ba<1> AF9 ddr2_dq<15>
V9 ddr2_ba<2> AC26 ddr2_dq<16>
AC9 ddr2_cas_n AE26 ddr2_dq<17>
AE11 ddr2_ck<0> AC24 ddr2_dq<18>
AD11 ddr2_ck_n<0> AD24 ddr2_dq<19>
AC8 ddr2_cke<0> AE25 ddr2_dq<20>
W8 ddr2_cs_n<0> AB22 ddr2_dq<21>
AE16 ddr2_dm<0> AD26 ddr2_dq<22>
AE6 ddr2_dm<1> AD25 ddr2_dq<23>
AE17 ddr2_dm<2> AD23 Ddr2_dq<24>
AE18 ddr2_dm<3> AE15 Ddr2_dq<25>
AD19 ddr2_dqs<0> AF25 ddr2_dq<26>
AF7 ddr2_dqs<1> AF13 ddr2_dq<27>
AF20 ddr2_dqs<2> AF14 ddr2_dq<28>
AF22 ddr2_dqs<3> AF24 ddr2_dq<29>
AD20 ddr2_dqs_n<0> AF15 ddr2_dq<30>
AF8 ddr2_dqs_n<1> AF23 ddr2_dq<31>
AE20 ddr2_dqs_n<2> AD9 ddr2_odt<0>
AE21 ddr2_dqs_n<3> AA7 ddr2_ras_n
AB5 ddr2_we_n
Dedicated oscillator
generates local bus clock.
Clock is driven to FPGA on
pin Y21, which drives an
internal global clock net.
Revision 0.02 37
Connect Tech FreeForm/PCI-104 User Manual
Hardware Description
Connector Pinouts
High-speed Serial (P4)
The sideband LVCMOS signals (HSS) have been rearranged so that when two FreeForm units are
connected:
HSS_USER_IO(0) maps to HSS_USER_IO(2)
HSS_USER_IO(1) maps to HSS_USER_IO(3)
Also, 3.3V pins replace the GND pins; this is because the connector has embedded GND blades.
Revision B Revision C
Pin Signal
1 MTGRXN0_112
3 MTGRXP0_112
2 MTGTXN0_112
4 MTGTXP0_112
5 GND
7 GND
6 HSS_USER_IO(0)
8 HSS_USER_IO(1)
9 MTGRXN1_112
11 MTGRXP1_112
10 MTGTXN1_112
12 MTGTXP1_112
13 GND
15 GND
14 GND
16 GND
17 MTGRXN0_114
19 MTGRXP0_114
18 MTGTXN0_114
20 MTGTXP0_114
21 GND
23 GND
22 HSS_USER_IO(2)
24 HSS_USER_IO(3)
25 MTGRXN1_114
27 MTGRXP1_114
26 MTGTXN1_114
28 MTGTXP1_114
RS-485 Headers (P5)
The orientation of the connector has changed. The pinout remains the same.
Revision B Revision C
10
Pin Signal
1 MTGRXN0_112
3 MTGRXP0_112
2 MTGTXN0_112
4 MTGTXP0_112
5 HSS_USER_IO(0)
7 HSS_USER_IO(1)
6 HSS_USER_IO(2)
8 HSS_USER_IO(3)
9 MTGRXN1_112
11 MTGRXP1_112
10 MTGTXN1_112
12 MTGTXP1_112
13 3.3V
15 3.3V
14 3.3V
16 3.3V
17 MTGRXN0_114
19 MTGRXP0_114
18 MTGTXN0_114
20 MTGTXP0_114
21 3.3V
23 3.3V
22 3.3V
24 3.3V
25 MTGRXN1_114
27 MTGRXP1_114
26 MTGTXN1_114
28 MTGTXP1_114
1
Revision 0.02 38
P5
485 Port 0
1
P5
485 Port 0
10
Connect Tech FreeForm/PCI-104 User Manual
External Power Connector (P8)
The connector no longer enables 3.3V regulation – it is always enabled.
Revision B Revision C
Pin Signal
Pin Signal
Specifications
Power Requirements
1 5V
2 3.3 enable (connect to 5V)
3 GND
4 VIO (connect to 5V)
1 5V
2
3 GND
4 VIO (connect to 5V)
Revision B Revision C
+3.3V DC and +5V DC, in PCI-104 stack
+5V DC stand-alone
Current requirements are configuration
dependant.
+5V DC, in PCI-104 stack
+5V DC stand-alone
Revision 0.02 39
Loading...
