Connect Tech Inc.
“Industrial Strength Communications”
Echo/ISA
Multi-port Serial Communications
Adapters
User Manual
Connect Tech Inc
42 Arrow Road
Guelph, Ontario
N1K 1S6
Tel: 519 836-1291
800-426-8979
Fax: 519 836-4878
Email: sales@connecttech.com
URL: http://www.connecttech.com
CTIM-00023 Rev. 0.00 Nov. 5, 2003
Part Number: MN005
Echo User's Manual, ver. 0.00
Warranty i
Limited Lifetime Warranty
Connect Tech Inc. provides a Lifetime Warranty for all Connect
Tech Inc. products. Should this product, in Connect Tech Inc.'s
opinion, fail to be in good working order during the warranty
period, Connect Tech Inc. will, at its option, repair or replace this
product at no charge, provided that the product has not been
subjected to abuse, misuse, accident, disaster or non Connect
Tech Inc. authorized modification or repair.
You may obtain warranty service by delivering this product to an
authorized Connect Tech Inc. business partner or to Connect Tech
Inc. along with proof of purchase. Product returned to Connect
Tech Inc. must be pre-authorized by Connect Tech Inc. With an
RMA (Return Material Authorization) number marked on the
outside of the package and sent prepaid, insured and packaged for
safe shipment. Connect Tech Inc. will return this product by
prepaid ground shipment service.
The Connect Tech Inc. Lifetime Warranty is defined as the
serviceable life of the product. This is defined as the period during
which all components are available. Should the product prove to
be irreparable, Connect Tech Inc. reserves the right to substitute
an equivalent product if available or to retract Lifetime Warranty
if no replacement is available.
The above warranty is the only warranty authorized by Connect
Tech Inc. Under no circumstances will Connect Tech Inc. be
liable in any way for any damages, including any lost profits, lost
savings or other incidental or consequential damages arising out
of the use of, or inability to use, such product.
Echo User's Manual, ver. 0.00
ii Copyright/Trademarks
Copyright Notice
The information contained in this document is subject to change
without notice. Connect Tech shall not be liable for errors
contained herein or for incidental consequential damages in
connection with the furnishing, performance, or use of this
material. This document contains proprietary information which
is protected by copyright. All rights are reserved. No part of this
document may be photocopied, reproduced, or translated to
another language without the prior written consent of Connect
Tech, Inc.
Copyright 2003 by Connect Tech, Inc.
Trademark Acknowledgment
Connect Tech, Inc. acknowledges all trademarks, registered
trademarks and/or copyrights referred to in this document as the
property of their respective owners.
Not listing all possible trademarks or copyright acknowledgments
does not constitute a lack of acknowledgment to the rightful
owners of the trademarks and copyrights mentioned in this
document.
Echo User's Manual, ver. 0.00
iii
Table of Contents
Chapter 1: Introduction
Conventions & Symbols ............................................................. 1-1
Product Overview ...................................................................... 1-2
Echo Adapter..................................................................... 1-2
Echo Software ................................................................... 1-3
Customer Service Overview ...................................................... 1-3
RMA Overview.......................................................................... 1-6
Chapter 2: Hardware Installation
Introduction................................................................................ 2-1
Configuration............................................................................. 2-1
Port Addresses................................................................... 2-2
Custom Port Addresses............................................. 2-3
Status Port Address ........................................................... 2-4
Custom Status Port Addresses .................................. 2-4
Interrupt Selection............................................................. 2-5
Installing the Echo Adapter in your System...................... 2-7
Chapter 3: Software Installation
Introduction................................................................................ 3-1
Configuration............................................................................. 3-1
DOS 3.XX - 6.XX............................................................. 3-2
COMSET.EXE ......................................................... 3-2
DFLEX.SYS............................................................. 3-3
CTIMODE ................................................................ 3-3
Accessing Ports ................................................................. 3-3
Character Device Access .......................................... 3-4
INT 14h Access ........................................................ 3-4
Linux ................................................................................. 3-7
Multiuser DOS 7 GOLD ................................................... 3-8
Configuration............................................................ 3-8
QNX 2.XX ...................................................................... 3-11
Configuration.......................................................... 3-11
QNX 4.XX ...................................................................... 3-14
Configuration.......................................................... 3-14
QNX 6.XX ...................................................................... 3-19
SCO Unix........................................................................ 3-20
Configuration.......................................................... 3-20
Other Configurations .............................................. 3-27
Solaris.............................................................................. 3-28
Echo User's Manual, ver. 0.00
iv Contents
Windows 95 .................................................................... 3-29
Echo Enhanced Driver............................................ 3-30
Installation...................................................... 3-31
UART/FIFO Configuration............................ 3-32
Configuration.......................................................... 3-33
Windows NT ................................................................... 3-37
Configuration.......................................................... 3-37
Chapter 4: Appendices
Appendix A: Specifications ....................................................... 4-1
Operating Environment..................................................... 4-1
Power Requirements ......................................................... 4-1
PC Bus Interface................................................................ 4-1
Communications................................................................ 4-1
Control Signals.................................................................. 4-1
Dimensions........................................................................ 4-1
Connectors/Interface ......................................................... 4-1
Appendix B: Connectors/Pinouts............................................... 4-2
Cable Connector Pinouts................................................... 4-2
Connector Box/Pinouts...................................................... 4-5
Appendix C: Factory Settings………………………………….4-7
Echo................................................................................... 4-7
I/O Port Address Setting........................................... 4-7
IRQ Setting ............................................................... 4-7
Appendix D: RS-422/485 Options............................................. 4-8
RS-422/485 Cable Wiring................................................. 4-8
RS-422/485 wiring diagram (4 wire) ................................4-8
RS-422/485 wiring diagram (2 wire) ................................4-9
Echo User's Manual, ver. 0.00
Contents v
List of Tables
Table 1: Typical port address usage........................................... 2-2
Table 2: Switch settings(Echo) .................................................. 2-1
Table 3: Typical IRQ assignments............................................. 2-2
Table 4: Multiuser DOS: port details......................................... 3-9
Table 5: DB-9 pinouts - Echo .................................................... 4-2
Table 6: Echo DB-78 pinouts..................................................... 4-3
Table 6(continued): Echo DB-78 pinouts .................................. 4-4
Table 7: DB-9 pinouts - Echo I/O Box ......................................4-6
List of Figures
Figure 1: Problem summary sheet .............................................1-4

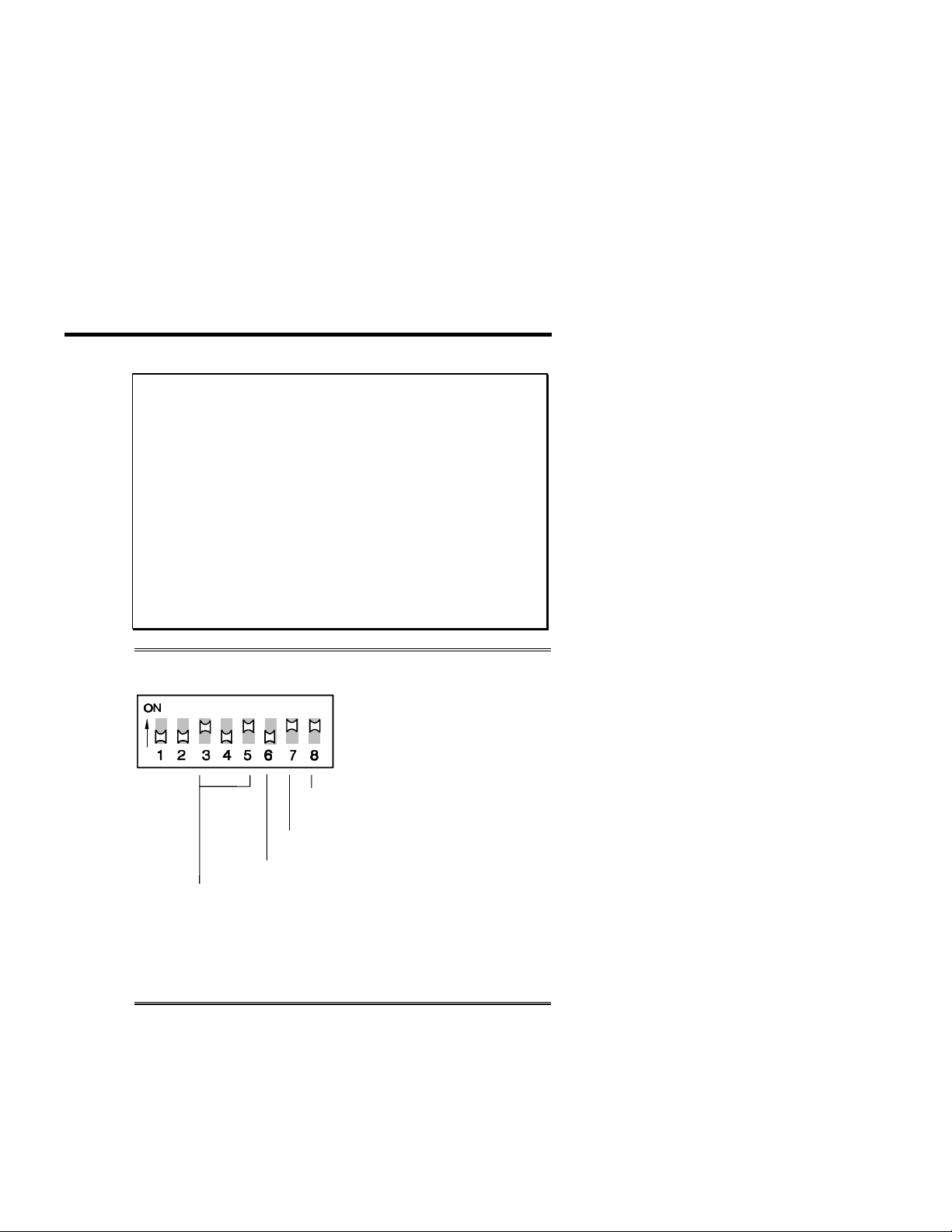

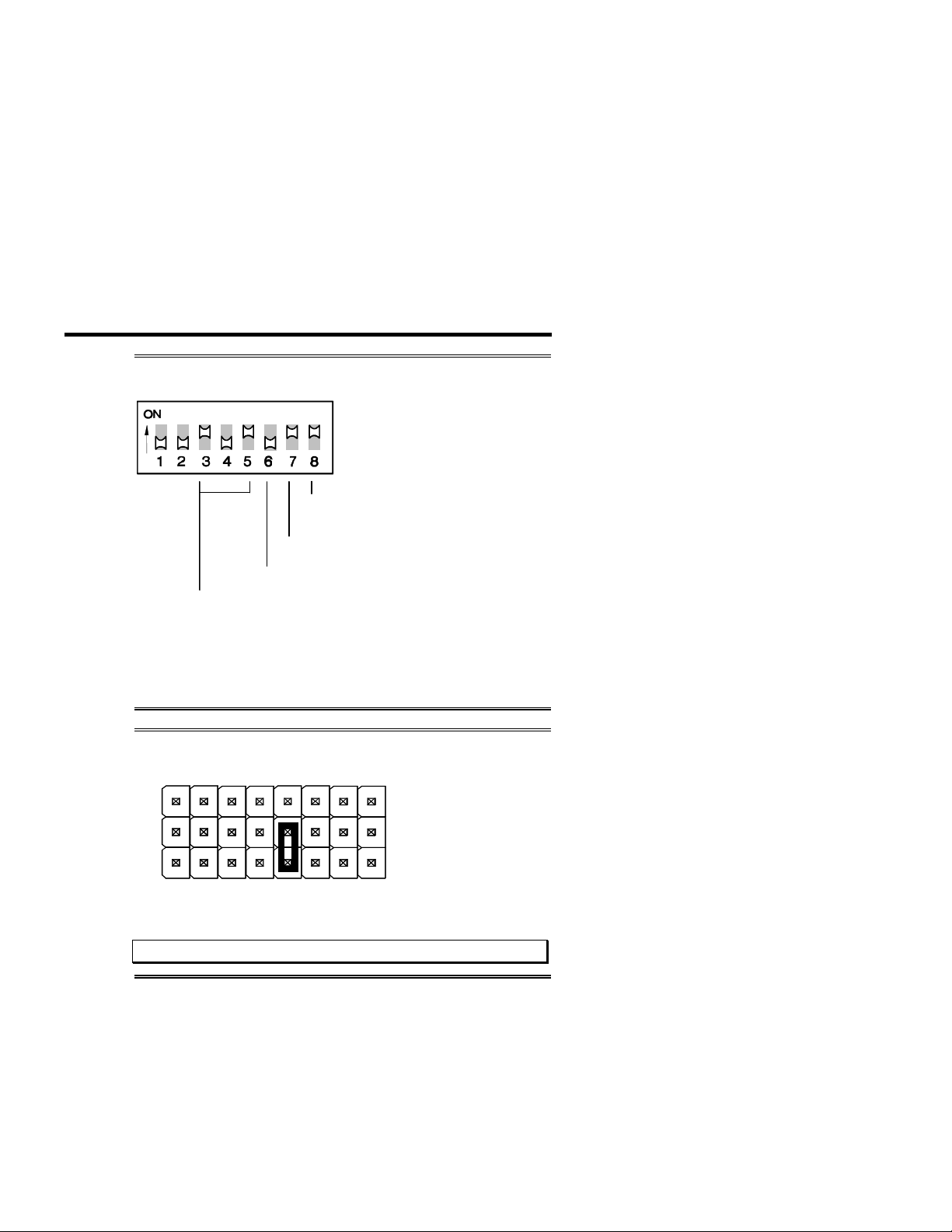

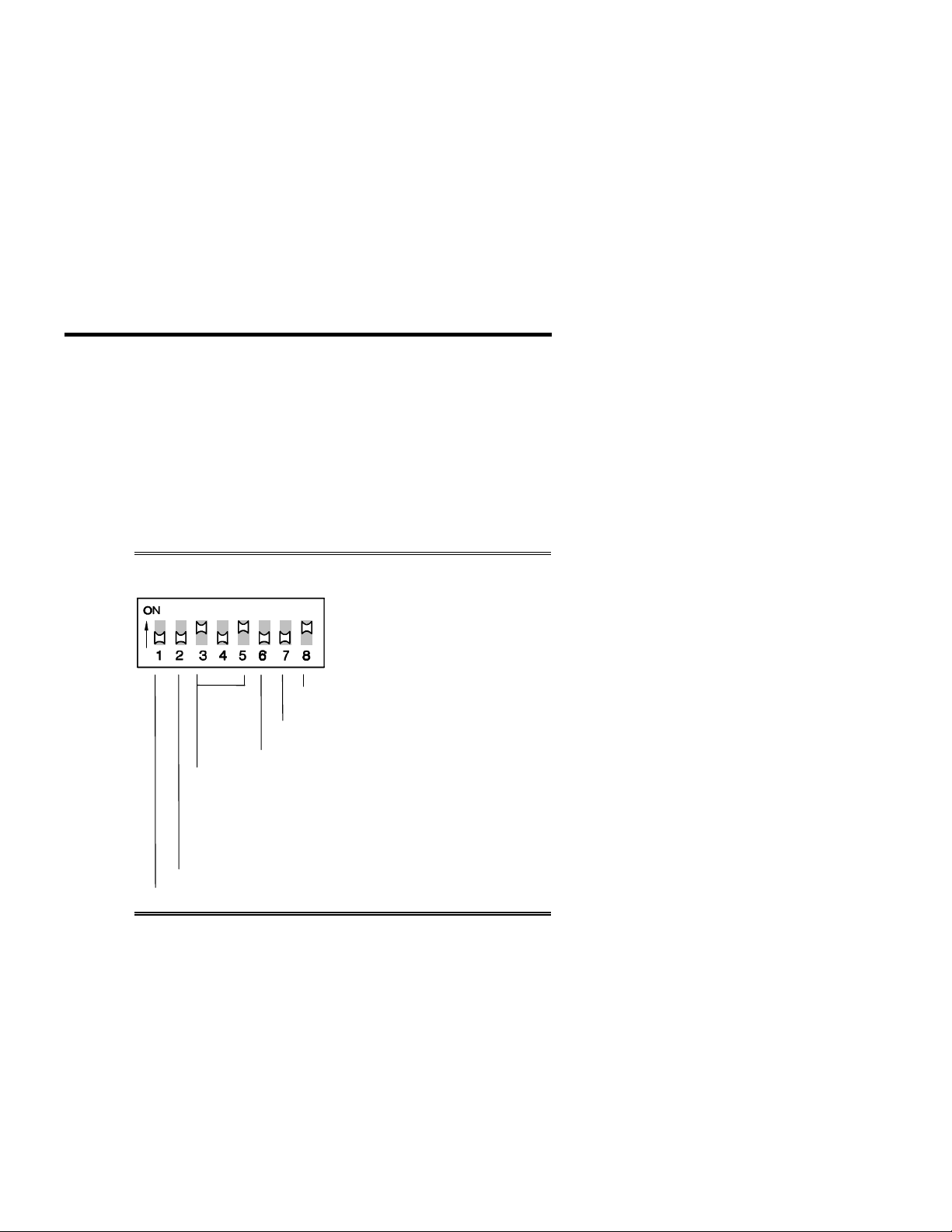

Figure 2: DIP switch block SW1 ............................................... 2-1

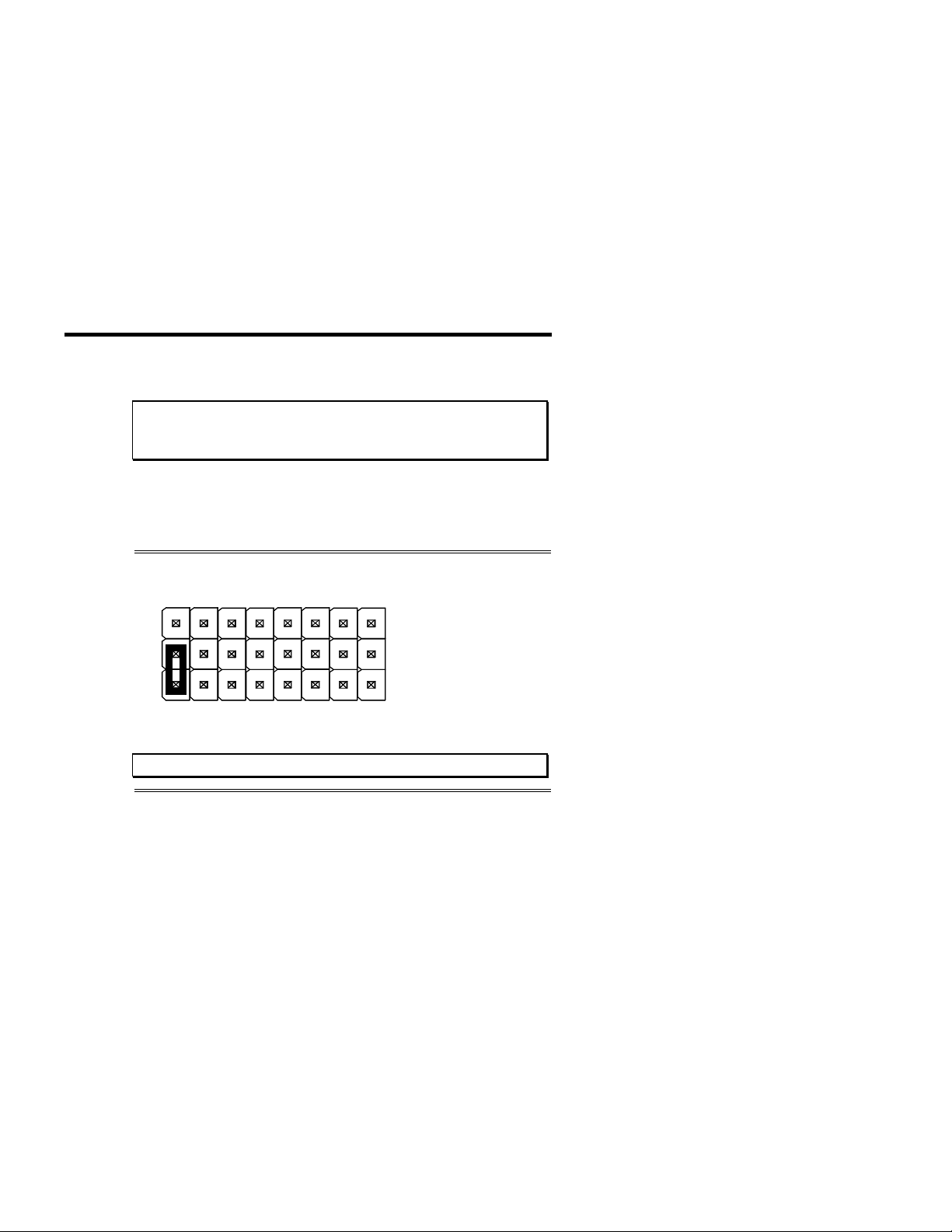

Figure 3: IRQ jumper block J1 .................................................. 2-1

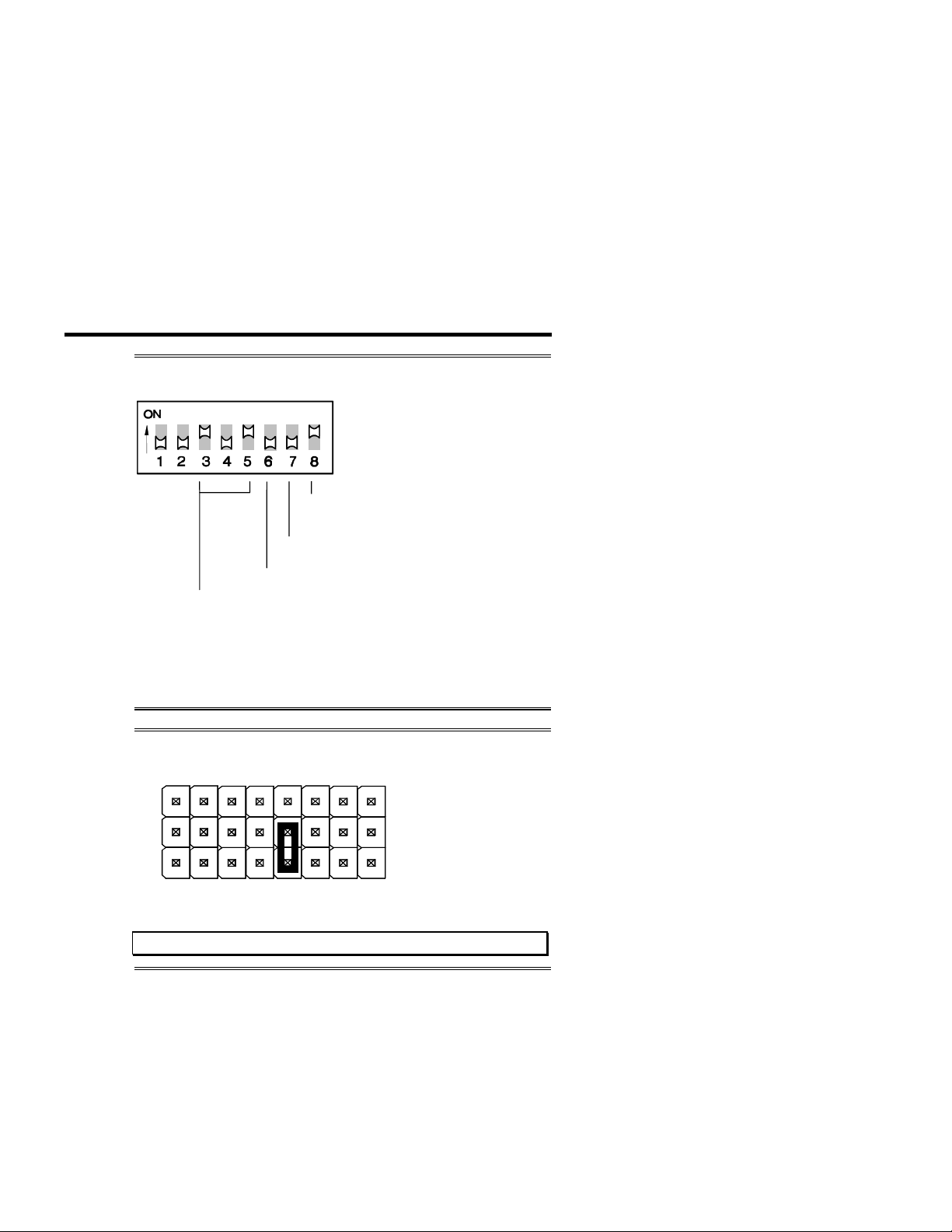

Figure 4: Multiuser DOS: switch settings................................ 3-10
Figure 5: Multiuser DOS: IRQ settings ................................... 3-10
Figure 6: QNX 2.XX: switch settings...................................... 3-12
Figure 7: QNX 2.XX: IRQ settings ......................................... 3-13
Figure 8: QNX 4.XX: switch settings...................................... 3-16
Figure 9: QNX 4.XX: IRQ settings ......................................... 3-16
Figure 10: QNX 4.XX: switch settings.................................... 3-17
Figure 11: QNX 4.XX: IRQ settings ....................................... 3-18
Figure 12: SCO Unix: switch settings...................................... 3-21
Figure 13: SCO Unix: IRQ settings ......................................... 3-22
Figure 14: Windows 95: switch settings .................................. 3-33
Figure 15: Windows 95: IRQ settings...................................... 3-34
Figure 16: Windows NT: switch settings................................. 3-38
Figure 17: Windows NT: IRQ settings .................................... 3-39
Figure 18: Echo I/O Box............................................................ 4-5
Figure 19: RS-422/485 wiring diagram (4 wire)........................ 4-8
Figure 20: RS-422/485 wiring diagram (2 wire)........................ 4-9
Echo User's Manual, ver. 0.00
Chapter 1: Introduction
Conventions & Symbols ............................................................. 1-1
Product Overview ...................................................................... 1-2
Echo Adapter..................................................................... 1-2
Echo Software ................................................................... 1-3
Customer Service Overview ...................................................... 1-3
RMA Overview.......................................................................... 1-6
Echo User's Manual, ver. 0.00
Chapter 1: Introduction 1-1
Conventions & Symbols
This manual uses the following conventions:
In most cases the font for file names and command
statements is Arial Narrow Bold 9pt. An example is:
DEVICE=DFLEX.SYS p=280 P=288
Note: the "Note" convention informs you of important
messages, exceptions, or special cases.
Example: the "Example" convention outlines hardware
and software installation examples.
Technical Tip: the "Technical Tip" convention offers
technical tips to assist you in hardware and software
installation or problems
WARNING
The "Warning" convention advises you to take certain
precautions in order to avoid possible damage to your
Connect Tech product.
This message warns you that your Connect Tech product is
very sensitive to static electricity. Make sure that before
handling the product you practice proper ESD procedures.
Echo User's Manual, ver. 0.00
1-2 Chapter 1: Introduction
Product Overview
The Echo adapters are high performance multi-port serial
adapters that allow you to connect up to 8 serial devices through
one expansion slot.
Your Echo product consists of the following components:
Echo adapter
Cable harness or external connector box
DFlex DOS device drivers (the Echo is backwards
compatible with our discontinued ISA product, the DFlex.
While the drivers will contain reference to the DFlex
product, they are fully compatible with the Echo/ISA.)
Echo Adapters
Echo adapters provide the high speed interfaces between a host
computer and multiple external serial devices. Echo adapters
include features such as:
8 asynchronous serial ports out of one slot.
RS-232, RS-422/485 interfaces.
Different models of Echo adapters may reside in a host
computer offering up to 32 ports per system.
ST16C554 UARTs control each port.
An addressable status control register to improve
performance.
Each port on an Echo has independent baud rate selection
offering baud rates from 50 – 115.2 Kpbs with 5, 6, 7 or 8
data bits and 1, 1.5, 2 stop bits, odd or even parity.
On board DIP switch allows the selection of ports 1 & 2 as
COM1 and COM2. It provides 8 predefined I/O address sets
and 8 predefined status port addresses.
Jumpers on the board give the user a choice of 8 IRQ lines to
run the board at. The on board DIP switch also provides the
choice of running the Echo on 1 or 2 or no hardware
interrupts.
System requirements are one ISA bus compatible slot; one
available IRQ line.
Echo User's Manual, ver. 0.00
Chapter 1: Introduction 1-3
The Echo adapters can accommodate both small and large multi-
channel applications. You can combine different Echo adapters
in a single computer, up to a maximum of 32 ports per system.
Echo Software
To install your Echo adapter under different operating systems
see Chapter 3: Software Installation.
Customer Service Overview
If you experience difficulties after reading the manual and using
the product, contact the Connect Tech reseller from which you
purchased the product. In most cases the reseller can help you
with product installation and difficulties.
In the event that the reseller is unable to resolve your problem,
our highly qualified support staff can assist you. Please refer to
and complete the problem summary sheet found in Figure 1
before contacting us.
Echo User's Manual, ver. 0.00
1-4 Chapter 1: Introduction
Figure 1: Problem summary sheet
Problem Description
Connect Tech Product Description
Product: Revision no.:
Product serial no.: No. of serial ports:
IRQ selected: Base address selected:
I/O port address selected:
Device driver: Revision no.:
System Description
Operating system: Revision no.:
System type & manufacturer:
Amount of RAM: CPU type/speed:
Video adapter: 8 bit 16 bit Settings:
Network adapter: 8 bit 16 bit Settings:
Hard disk adapter: Settings:
Tape adapter: Settings:
Other serial adapters Settings:
Other adapters: Settings:
Devices connected to ports:
Echo User's Manual, ver. 0.00
Chapter 1: Introduction 1-5
We offer three ways for you to contact us:
Mail/Courier
You may contact us by letter and our mailing address for
correspondence is:
Connect Tech Inc.
c/o Customer Service
42 Arrow Road
Guelph, Ontario
Canada N1K 1S6
Email/Internet
You may contact us through the Internet. Our email and URL
addresses on the Internet are:
sales@connecttech.com
support@connecttech.com
www.connecttech.com
Note:
1. You can submit your technical support questions to our
customer support engineers via our Internet email address
OR
2. You can refer to our knowledge database found in the
Customer Support section of our World Wide Web site.
OR
3. You can fill out the problem summary form, found in the
Customer Support section of our World Wide Web site and
submit it to our customer support engineers via the Web.
OR
4. You can obtain the latest versions of software drivers and
manuals from the Customer Support section of our World
Wide Web site.
Telephone/Facsimile
Customer Support representatives are ready to answer your call
Monday through Friday, from 9:00 a.m. to noon and 1:00 p.m. to
5:00 p.m. Eastern Standard Time. Our numbers for calls are:
Telephone: 519-836-1291
800-426-8979
Facsimile 519-836-4878 (on-line 24 hours)
Echo User's Manual, ver. 0.00
1-6 Chapter 1: Introduction
RMA Overview
Connect Tech products requiring warranty or non warranty
repairs need an RMA number. To obtain a Return Merchandise
Authorization (RMA) Number please contact us in the following
manner:
Go to the RMA Request Form found in the Support Center on our
website:
www.connecttech.com
Telephone, fax, email or mail us at:
Connect Tech Inc.
Technical Support
42 Arrow Road
Guelph, Ontario
Canada N1K 1S6
Phone: 519-836-1291
800-426-8979
Facsimile: 519-836-4878
Email: support@connecttech.com
Echo User's Manual, ver. 0.00
Chapter 1: Introduction 1-7
Include with the product, proof of purchase (including date of
purchase), a description of the problem and the RMA number.
Clearly display the RMA number on the external packaging.
Please refer to the Limited Warranty for further restrictions or
requirements.
Your Echo adapter is very sensitive to static electricity. Make
sure you wear an anti-static wrist-band before you remove the
adapter from your computer. When you remove the board from
your computer, handle it only by the edges and place it on the
anti-static bag or an anti-static mat.
Note:
1. Please pack the item for repair securely and ship it prepaid
and insured. Connect Tech is not liable for damage or loss
to the product due to shipping.
2. Connect Tech will not accept items for repair without an
RMA number.
3. Connect Tech will not accept items for repair shipped
freight collect.
Echo User's Manual, ver. 0.00
Chapter 2: Hardware Installation
Introduction................................................................................ 2-1
Configuration............................................................................. 2-1
Port Addresses................................................................... 2-2
Custom Port Addresses............................................. 2-3
Status Port Address ........................................................... 2-4
Custom Status Port Addresses .................................. 2-4
Interrupt Selection............................................................. 2-5
Installing the Echo Adapter in your System...................... 2-7
Echo User's Manual, ver. 0.00
Chapter 2: Hardware Installation 2-1
Introduction
Hardware installation involves configuration of the Echo adapter.
Note: Please refer to Chapter 3: Software Installation for
installation of your Echo board under certain operating systems.
The following sections detail how to change the field
configurable parameters. The setting of these will depend on the
number of boards installed and the existing configuration of your
PC.
Configuration
You must configure various settings and options before installing
your Echo adapter in your computer. In order to insure a
successful installation, please follow the steps in the order
specified below.
1.
Selection of I/O port addresses.
2. Selection of the status port address.
3. Selection of IRQs.
4. Installing the Echo adapter in your computer.
Your Echo adapter is very sensitive to static electricity. Make
sure you wear an anti-static wrist-band before you remove the
card from the anti-static shipping bag. When you remove the
board from the anti-static bag, handle it only by the edges and
place it on the anti-static bag or an anti-static mat.
Echo User's Manual, ver. 0.00
2-2 Chapter 2: Hardware Installation
Port Addresses
You configure port addresses with DIP switches 1 to 5 on SW1.
Switches 3 to 5 select a set of port addresses for the ports, while
you can override the setting for port 1 and 2 with switch 1 and 2
respectively. When DIP switch 1 is on, then port 1 is COM1 at
3F8 hex. If DIP switch 2 is on then port 2 is COM2 at 2F8 hex.
These settings will override the addresses specified by DIP
switches 3, 4 and 5. Please refer to Figure 2 for a description of
switch block SW1, while Tables 1and 2 provide the switch
settings for the various port address sets
However many other devices may require port addresses in your
computer's I/O address space. In most cases the factory setting is
sufficient, but when there is a conflict, SW1 may require a
different setting. Table 1 summarizes typical I/O port address
usage.
WARNING
Do not use a pencil to set the DIP switches as the lead graphite
may short-circuit the switch.
Table 1: Typical port address usage
Port Address (Hex) Usage
000 - 0FF Reserved
170 - 177 Fixed disk controller (primary)
1F0 - 1F7 Fixed disk controller (secondary)
200 - 207 Game port
278 -27F Parallel port (LPT2)
2C0 - 2CF EGA video adapter (#2)
2F8 - 2FF Asynchronous serial port (COM2)
360 - 36F Parallel port (LPT1)
370 - 377 Floppy disk controller (secondary)
378 - 37F Parallel port (LPT1)
380 - 38F SDLC adapter (#2)
3A0 - 3AF SDLC adapter (#1)
3B0 - 3BF Video adapters
3F0 - 3F7 Floppy disk controller (primary)
3F8 - 3FF Asynchronous serial port (COM1)
Echo User's Manual, ver. 0.00
Chapter 2: Hardware Installation 2-3
, p
Custom Port Addresses
You can generate other port addresses by making changes to the
programmable logic found on the Echo adapters. If you require
specific port addresses not listed please contact the Connect Tech
sales department for further information.
Figure 2: DIP switch block SW1
IRQ channel(s)
Status port address (see Tables 2 & 3)
Reserved - must be off
Port addresses (see Tables 2 & 3)
When on, port 2 is COM2 (2F8 hex)
When on
ort 1 is COM1 (3F8 hex)
Table 2: Switch settings(Echo 8)
Switch
3 4 5
on on on 200 208 210 218 220 228 230 238 240
on on off 240 248 250 258 260 268 270 278 280
on off on 280 288 290 298 2A0 2A8 2B0 2B8 2C0
on off off 2C0 2C8 2D0 2D8 2E0 2E8 2F0 2F8 300
off on on 300 308 310 318 320 328 330 338 340
off on off 2B0 2B8 2C0 2C8 2D0 2D8 2F0 2F8 288
off off on 290 298 2A0 2A8 2B0 2B8 2C0 2C8 2D0
off off off 190 198 1A0 1A8 1B0 1B8 1C0 1C8 1D0
Port Status
1 2 3 4 5 6 7 8 Port
Note: You enable the status port when switch 7 is in the on position.
You disable the status port when switch 7 is in the off position.
Echo User's Manual, ver. 0.00
2-4 Chapter 2: Hardware Installation
Status Port Address
The Echo board provides a status port that indicates which ports,
if any, are causing the interrupts. When read, the port will
indicate a one (1) if the corresponding port has an interrupt
request pending and a zero (0) if not. The least significant data
bit (D0) represents the status of port 1.
In multi-card installations the address for the status port on each
card must be unique. DIP switch 7, combined with the selection
of the port addresses on DIP switches 3, 4 and 5, determines the
status port address. Tables 1 and 2 indicate the relationship.
Custom Status Port Addresses
Custom status port addresses are available with the Echo/ISA.
Please contact Connect Tech Customer Support for more details.
Echo User's Manual, ver. 0.00
Chapter 2: Hardware Installation 2.5
A
Interrupt Selection
You can configure Echo boards to use one, two or no interrupt
request lines. To select the appropriate configuration, you must
program DIP switch 8 on SW1 and the IRQ jumper block J1.
When DIP switch 8 is on, all Echo communication ports will
interrupt on the A channel. When switch 8 is off, the odd
numbered Echo ports will interrupt on the A channel, while the
even numbered Echo ports will interrupt on the B channel.
IRQ jumper block J1 allows the assignment of IRQ lines to both
the A and B channels. If your application requires no interrupts
then you can remove both jumpers from jumper block J1. To
assign interrupts to either channel, go to the posts under the
selected IRQ line number and install the jumper(s) between the
centre post and the A post (A channel), and/or between the centre
post and the B post (B channel).
COM1 and COM2 normally use IRQ 4 and IRQ 3 respectively.
If you use the first two ports as COM1 and COM2, set switch 8
on SW1 to the off position and install a jumper between the
centre post and the A post on J1 under IRQ 4 (COM1). You
should install the other jumper between the centre post and the B
post on J1 under IRQ 3 (COM2). If you configure only one of
the two ports as a standard COM1 or COM2, then you can
relocate or remove the other jumper according to the
requirements of the controlling software. Please refer to Figure 3
for an explanation of IRQ jumper block J1.
Figure 3: IRQ jumper block J1
3 4 5 7 10 11 12 15
B
Note: this example of shows J1 selected for IRQ 3 and 4 on
channels B and A respectively.
Echo User's Manual, ver. 0.00
2-6 Chapter 2: Hardware Installation
Many other devices such as the keyboard and disk drives also
require an IRQ. Table 3 shows some typical IRQ assignments.
Table 3: Typical IRQ assignments
IRQ Device
0 Timer output
1 Keyboard
2 Reserved
3 COM2, COM4, SDLC
4 COM1, COM3, SDLC
5 Unassigned (typically)
6 Floppy disk controller
7 LPT1
8 Real-time clock
9 Reserved
10 Unassigned (typically)
11 Unassigned (typically)
12 Unassigned (typically)
13 Co-processor
14 Primary fixed disk controller
15 Secondary fixed disk controller
In most cases the default IRQ setting for your Echo adapter is
satisfactory. If an IRQ conflict exists between the Echo adapter
and another expansion device, you must choose another IRQ. To
select an IRQ simply install the jumper across the corresponding
pins for that IRQ on J1.
Echo User's Manual, ver. 0.00
Chapter 2: Hardware Installation 2-7
Installing the Echo Adapter in your System
To install your Echo adapter in your computer follow these steps:
Computer components are very sensitive to static electricity.
Make sure that you wear an anti-static wrist-band when
installing adapters in your computer. Handle the adapter by its
edges and place it on the anti-static bag or an anti-static mat.
1. Turn the power off to your computer.
2. Open your computer to expose the expansion slots (consult
the system documentation for information on this procedure.)
3. Choose an available 8 or 16-bit expansion slot.
4. Remove the screw and the expansion slot cover from the slot
you select and save both.
5. Place the Echo adapter in the expansion slot and push down
gently until the card seats fully in the slot.
Note: Do not force the card into the expansion slot. If you meet
a great deal of resistance, remove the board and try again.
6. Align the mounting bracket and secure the board with the
screw that you saved.
7. Close your computer.
Echo User's Manual, ver. 0.00
Chapter 3: Software Installation
Introduction................................................................................ 3-1
Configuration............................................................................. 3-1
DOS 3.XX - 6.XX............................................................. 3-2
COMSET.EXE ......................................................... 3-2
DFLEX.SYS............................................................. 3-3
CTIMODE ................................................................ 3-3
Accessing Ports ................................................................. 3-3
Character Device Access .......................................... 3-4
INT 14h Access ........................................................ 3-4
Linux ................................................................................. 3-7
Multiuser DOS 7 GOLD ................................................... 3-8
Configuration............................................................ 3-8
QNX 2.XX ...................................................................... 3-11
Configuration.......................................................... 3-11
QNX 4.XX ...................................................................... 3-14
Configuration.......................................................... 3-14
QNX 6.XX ...................................................................... 3-19
SCO Unix........................................................................ 3-20
Configuration.......................................................... 3-20
Other Configurations .............................................. 3-27
Solaris.............................................................................. 3-28
Windows 95 .................................................................... 3-29
Echo Enhanced Driver............................................ 3-30
Installation...................................................... 3-31
UART/FIFO Configuration............................ 3-32
Configuration.......................................................... 3-33
Windows NT ................................................................... 3-37
Configuration.......................................................... 3-37
Echo User's Manual, ver. 0.00
Chapter 3: Software Installation 3-1
Introduction
Echo boards are standard multi-port serial adapters that utilize
ST16C554 UARTS. In many cases, users have software that will
interface directly to the Echo boards. This section covers
configurations for the following operating systems:
DOS 3.XX - 6.XX
Linux
Multiuser DOS
QNX 2.XX
QNX 4.XX
QNX 6.XX
SCO Unix
Solaris
Windows 95
Windows NT
Technical Tips:
1. Your Echo adapter may ship with diskettes that include
README files. Please examine these files for technical tips
or release notes concerning installation and configuration of
various device drivers and software utilities. These files may
refer to the DFlex, the Echo’s predecessor. The files and
software found within are fully compatible with your Echo
adapter.
2. If you did not receive a driver diskette for your operating
system or you require additional information, please go to
the Download Zone of the Support Center on the Connect Tech
website for product manuals, installation guides and device
driver software.
Configuration
The following sections detail some recommended configurations
for Echo boards running under various operating systems. These
settings will depend on the number of boards installed and the
existing configuration of your PC.
The configuration steps you must consider are:
port addresses
status port address
interrupt request lines
Echo User's Manual, ver. 0.00
3-2 Chapter 3: Software Installation - DOS
DOS 3.XX - 6.XX
Many DOS applications are designed to directly control the
hardware of an 8250 style UART. For some applications, the
DOS device driver provided with the Echo will help to integrate
the extra communication ports quickly and easily into the system.
Technical Tip
1. You can run under DOS the DOS programs porttest.exe and
portfind.exe to verify your settings and assure you have no
hardware conflicts. You will find these programs on the
DFlex DOS Driver diskette (p/n: DISK306).
2. If you did not receive a DOS driver diskette or you require
additional information, please go to the Download Zone or the
Knowledge Database in the Support Center on the Connect Tech
website for product manuals, installation guides, device
driver software and technical tips. If these sources do not
provide you with the help you need please contact a
Connect Tech Technical Support Representative via email,
telephone or fax for further information (numbers and
addresses are found inside the front cover of the manual).
The Connect Tech DOS device driver will support up to a
maximum of 32 serial ports. The standard COM driver and BIOS
will only support up to four ports. If your total number of
installed ports is four or less, use
COMSET to set the port address
to allow standard software access. To access more ports, you will
need to mount the
DFLEX.SYS device driver.
COMSET.EXE
As mentioned earlier,
COMSET allows you to set the port addresses
for standard software access (up to four ports). The syntax for
COMSET
is:
COMSET [[COM]n HHHH]
COMSET
COMSET COM2 2f8
COMSET COM3 0
will display up to four non-zero com
address settings
will set COM2 to 2f8 (hex)
will set COM3 off
Echo User's Manual, ver. 0.00
Chapter 3: Software Installation - DOS 3-3
DFLEX.SYS
DLEX.SYS is a device driver that allows you to set port
addresses for software access of up to 32 ports . To install the
device driver, add the following command to your
file:
DEVICE = DFLEX.SYS [options]
Where
[options] are:
specifies the I/O address of the ST16C554
P=hhh
N=d
D=name
hhh
UART.
this parameter specifies an offset for the
communication port numbers to start at.
this parameter changes the name of the ports to
something other than COM.
CONFIG.SYS
Note: You must specify at least one option
Example 1:
( com1 .. com8 )
DEVICE=DFLEX.SYS P=3f8 P=2f8 P=210 P=218 P=220 P=228 P=230 P=238
Example 2:
( com3 .. com10 )
DEVICE= DFLEX.SYS P=200 P=208 P=210 P=218 P=220 P=228 P=230
P=238 N=3
Example 3:
( serial1 .. serial8 )
DEVICE= DFLEX.SYS P=330 P=338 P=340 P=348 P=350 P=358 P=360
P=368 D=SERIAL
CTIMODE
The
CTIMODE command allows you to configure the extra serial
ports. It is used with the
CTIMODE COMn:baud,parity,databits,stopbits
COM name:
Accessing Ports
You can access the ST16C554 UARTS from DOS through the
driver
DLFEX.SYS. We provide two methods of access; character
device access and software interrupt 14h access.
Echo User's Manual, ver. 0.00
3-4 Chapter 3: Software Installation - DOS
Character Device Access
Character device access provides a "high level" interface which
is appropriate for simple applications and tests. Each port is
given a device name which you can access similar to a file. The
device name is formed by concatenating the port number to the
name (
COM if not specified by the D= command ). For example, if
two ports are installed with the parameter
names will be COM2 and COM3.
Some programming languages will assume that access to COMn is
limited to the number of communication ports supported by the
computers BIOS. To avoid this problem, the name can be
changed. If two ports are installed with the parameters
the names will be
SERIAL1 and SERIAL2. In this case, the N=
parameter is not added to the number of the name.
INT 14h Access
The DFlex DOS driver provides the standard four INT 14h
functions for the additional ports supported. To interface to these
functions, DX is set to the port number minus 1. If the
parameter has been specified, this value must be added into the
DX to skip the standard ports.
N=2, then the device
D=SERIAL
N=
Echo User's Manual, ver. 0.00
Chapter 3: Software Installation - DOS 3-5
Function 0 - Initialize the port
Input: ah = 0
al = baud, parity, length
dx = channel ( 0 = com1, 1 = com2, ... )
Bit designations for al are:
7
6543210
data length
1 0 - 7 bits
1 1 - 8 bits
stop bits
0 - 1 bit
1 - 2 bits
parity
0 0 - none
0 1 - odd
1 1 - even
baud rate
0 0 0 - 110 bps
0 0 1 - 150 bps
0 1 0 - 300 bps
0 1 1 - 600 bps
1 0 0 - 1200 bps
1 0 1 - 2400 bps
1 1 0 - 4800 bps
1 1 1 - 9600 bps
Return: ax as per Function 3
Function 1 - Output a character
Input: ah = 1
al = character
dx = port number
Return: timeout if bit 7 of ah is set
Echo User's Manual, ver. 0.00
3-6 Chapter 3: Software Installation - DOS
Function 2 - Receive character
Input: ah = 2
dx = port number
Return: ah = port status ( timeout if bit 7 is set )
al = character received
Function 3 - Return port status
Input: ah = 3
dx = port number
Return: ah = port status
bit 7 = timeout
bit 6 = trans shift reg empty
bit 5 = trans hold reg empty
bit 4 = break detected
bit 3 = framing error
bit 2 = parity error
bit 1 = over run error
bit 0 = data ready
al = modem status
bit 7 = data carrier detect
bit 6 = ring indicator
bit 5 = data set ready
bit 4 = clear to send
bit 3 = delta dcd
bit 2 = delta ri
bit 1 = delta dsr
bit 0 = delta cts
Echo User's Manual, ver. 0.00
Chapter 3: Software Installation - Linux 3-7
Linux
Linux is a leading multi-user, multi-tasking operating system for
Intel based personal computers. The Linux serial device driver
provides an interface between the Linux kernel v.2.2.X or v.2.4.X
and an Echo adapter.
Technical Tip
1. You can run under DOS the DOS programs porttest.exe and
portfind.exe to verify your settings and assure you have no
hardware conflicts. You will find these programs on the
DFlex DOS Driver diskette (p/n: DISK306).
2. If you did not receive a Linux driver diskette or you require
additional information, please go to the Download Zone or the
Knowledge Database in the Support Center on the Connect Tech
website for product manuals, installation guides, device
driver software and technical tips. If these sources do not
provide you with the help you need please contact a
Connect Tech Technical Support Representative via email,
telephone or fax for further information (numbers and
addresses are found inside the front cover of the manual).
Echo User's Manual, ver. 0.00
3-8 Chapter 3: Software Installation - Multiuser DOS
Multiuser DOS 7 GOLD
This section describes how to install an Echo adapter into a
Multiuser DOS 7 GOLD system. For further information please
refer to Boards and Ports under the Installation and
Configuration section of the Multiuser DOS 7 GOLD Users
Guide.
Technical Tip
1. You can run under DOS the DOS programs porttest.exe and
portfind.exe to verify your settings and assure you have no
hardware conflicts. You will find these programs on the
DFlex DOS Driver diskette (p/n: DISK306).
2. Please go to the Download Zone or the Knowledge Database in
the Support Center on the Connect Tech website for product
manuals, installation guides, device driver software and
technical tips. If these sources do not provide you with the
help you need please contact a Connect Tech Technical
Support Representative via email, telephone or fax for
further information (numbers and addresses are found
inside the front cover of the manual).
Configuration
Multiuser DOS 7 GOLD configures standard serial devices via
the
CONFIG.EXE utility. To install an Echo adapter please follow
these procedures:
1. Type
2. Select
3. Hit the
4. Select
CONFIG at the C:\ prompt.
Boards and Ports.
INSERT key to add another board.
Standard Board.
5. Edit board details as follows:
Board Name you can change it to read Echo
Board Model Standard Driver
Number of Ports 8
IRQ Number the IRQ selected for the Echo
adapter
I/O Port or Poll Reg. 0000
6. Hit the
ALT key and then select Assign/Edit Ports. Here you can
choose one of the predefined stations, modems or printers and
assign it to this port.
Echo User's Manual, ver. 0.00
Chapter 3: Software Installation - Multiuser DOS 3-9
7. Provide all of the Port Details after assigning the port. Set the
Port and Port XOR Mask as per the chart below:
Table 4: Multiuser DOS: port details
PORT AND MASK XOR MASK STATUS PORT
P1 01 00 ***
P2 02 00 ***
P3 04 00 ***
P4 08 00 ***
P5 10 00 ***
P6 20 00 ***
P7 40 00 ***
P8 80 00 ***
Note:
*** The status port depends on the base port addresses
selected on DIP switch block SW1 of the Echo adapter
Many computers include both COM1 and COM2 directly on the
motherboard. The example shown below assumes that both of
these ports are standard equipment in your computer.
Example:
Figures 4 and 5 describe the DIP switch and jumper settings for
your Echo adapter in a system configured for:
1. A standard serial port at COM1, 3F8 hex, IRQ 4 and a
second standard serial port at COM2, 2F8, IRQ 3
2. An Echo adapter with its serial ports set at port addresses
280, 288, 290, 298, 2A0, 2A8, 2B0, 2B8 hex respectively and
its status port at 2C0 hex
3. All the Echo ports interrupt on channel A, IRQ 10
Please refer to Figures 1, 2, and 3 in Chapter 1: Introduction
for the location of switch block SW1 and jumper block J1.
Echo User's Manual, ver. 0.00
3-10 Chapter 3: Software Installation - Multiuser DOS
Figure 4: Multiuser DOS: switch settings
SW1
Status port address
Reserved - must be OFF
Base address sets:
Port 1 = address 280 hex
Port 2 = address 288 hex
Port 3 = address 290 hex
Port 4 = address 298 hex
Port 5 = address 2A0 hex
Port 6 = address 2A8 hex
Port 7 = address 2B0 hex
Port 8 = address 2B8 hex
IRQ channel(s)
IRQ line for all ports is on channel A
Status port is enabled (2C0 hex)
Figure 5: Multiuser DOS: IRQ settings
B
34
5
10 11 12
7
15
A
Note: All Echo ports are interrupting on channel A, IRQ 10.
Echo User's Manual, ver. 0.00
IRQ
J1
Chapter 3: Software Installation - QNX 2.XX 3-11
QNX 2.XX
When installing Echo boards under the QNX 2.XX operating
system, it is important to note the following:
Note:
1. After booting, QNX looks for serial ports at the following
addresses: 3F8, 2F8, 280, 288, 290, 2A0, 2A8, 2B0, 2B8,
3E8, 2E8 hex.
2. If QNX finds ports at these addresses, QNX assigns the
names $tty3 ($mdm), $tty4 ($term1), etc.
Technical Tip: You can use
osconfig to alter or add to these
addresses.
Configuration
Many computers include both COM1 and COM2 directly on the
motherboard. With this in mind, check your computer to see if it
has either or both of these ports as standard equipment or as
options. To avoid possible conficts with COM1 and COM2,
Figure 6 describes a recommended DIP switch setting for port
addresses. See Figures 1, 2, and 3 in Chapter 1: Introduction
for the location of switch block SW1.
Technical Tip
1. You can run under DOS the DOS programs porttest.exe and
portfind.exe to verify your settings and assure you have no
hardware conflicts. You will find these programs on the
DFlex DOS Driver diskette (p/n: DISK306)
2. If you require additional information, please go to the
Download Zone or the Knowledge Database in the Support Center
on the Connect Tech website for product manuals,
installation guides, device driver software and technical
tips. If these sources do not provide you with the help you
need please contact a Connect Tech Technical Support
Representative via email, telephone or fax for further
information (numbers and addresses are found inside the
front cover of the manual).
Echo User's Manual, ver. 0.00
3-12 Chapter 3: Software Installation - QNX 2.XX
Figure 6: QNX 2.XX: switch settings
SW1
Status port address
Reserved - must be OFF
Base address sets:
Port 1 = address 280 hex
Port 2 = address 288 hex
Port 3 = address 290 hex
Port 4 = address 298 hex
Port 5 = address 2A0 hex
Port 6 = address 2A8 hex
Port 7 = address 2B0 hex
Port 8 = address 2B8 hex
IRQ channel(s)
IRQ line for all ports is on channel A
Status port is disabled
In choosing an interrupt request line, you should note that QNX
vectors interrupt 3 and 4 to the serial handler. However, QNX
enables interrupt 4 only. If you are using interrupt 3, you will
have to use the following command to enable interrupt 3:
Example
stty inton=3
If you use an interrupt other than 3 or 4 you will need to use the
following commands:
Example
stty intcp=4,nn
stty inton=nn
where nn is the interrupt number to be used
Note:
Due to limitations in QNX 2.XX, only interrupts less than or
equal to IRQ 7 will work with standard serial port boards.
Echo User's Manual, ver. 0.00
Chapter 3: Software Installation - QNX 2.XX 3-13
Use the stty intcp command to vector the selected interrupt to the
serial handler and the stty inton command to enable that interrupt.
Note: You can find more information on these commands by
referring to the stty command in your QNX Operating System
Manual.
Figure 7 shows the recommended IRQ jumper settings. See
Figures 1, 2, and 3 in Chapter 1: Introduction for the location
of jumper J1.
Figure 7: QNX 2.XX: IRQ settings
3 4 5 7 10 11 12 15
B
A
IRQ
J1
Note: All ports are interrupting on channel A, IRQ 3.
Echo User's Manual, ver. 0.00
3-14 Chapter 3: Software Installation - QNX 4.XX
QNX 4.XX
QNX 4.XX controls standard serial devices in a system with its
standard serial port driver
Dev.ser. When installing Echo boards
under the QNX 4.XX operating system, refer to Dev.ser in the
QNX 4 Utilities Reference Manual for more information.
Configuration
To install an Echo adapter under QNX 4.XX add the following
entry to your
Dev.ser [options] [port[,irq]] &
SYSINIT file:
Where:
[port] is a hex I/O address of a serial port
[irq] is a decimal interrupt used by the port
[options] are:
-b number
-C number
-d
-D
-e
-E
-f
-F
-h number
Define initial baud rate (default: 9600).
Size of canonical input buffer (default: 256).
Set DSR on initially. (default)
Set DSR off initially.
Set options to "edit" mode.
Set options to "raw" mode (default).
Enable hardware flow control. (default)
Disable hardware flow control.
Define high-water mark for input flow control
(default: 3/4 point of input buffer).
-I number
-l number
Size of raw input buffer (default: 2048).
Define low-water mark for input flow control
(default: 1/4 point of input buffer).
-m
-M
-N name
-O number
-p
-P
-r
-R
-s
Disable modem carrier processing (HUP).
Enable modem processing (HUP). (default)
Prefix to register (default: "ser").
Size of output buffer (default: 2048).
Enable packet mode
Disable packet mode (default)
Set RTS on initially. (default)
Set RTS off initially.
Enable ohflow split - CTS only required.
(default)
-S
-t number
Disable ohflow split (CTS and DSR required).
16550 FIFO threshold (1, 4, 8 or 14). )
disables. (default 0)
-x
Enable software flow control (XON/XOFF)
Echo User's Manual, ver. 0.00
Chapter 3: Software Installation - QNX 4.XX 3-15
-X
-w
-W
Disable software flow control (default)
Enable hardware shutdown on SIGPWR
Disable hardware shutdown on SIGPWR
(default)
Many computers include both COM1 and COM2 directly on the
motherboard. The command line example shown below assumes
that both of these ports are standard equipment in your computer.
Example:
Dev.ser 3f8,4 2f8,3 280,10 288,10 290,10 298,10 2a0,10 2a8,10 2b0,10 2b8,
10 &
The above example configures QNX 4.XX for a standard COM1
port at 3F8 hex, IRQ4; a standard COM2 port at 2F8 hex, IRQ 3
and an Echo adapter at port addresses 280, 288, 290, 298, 2A0,
2A8, 2B0, and 2B8 hex, IRQ 10 channel A. Please refer to
Figures 8 and 9 for the DIP switch and jumper settings for your
Echo adapter and Figures 1, 2, and 3 in Chapter 1:
Introduction for the location of switch block SW1 and jumper
block J1.
Technical Tip
1. You can run under DOS the DOS programs porttest.exe and
portfind.exe to verify your settings and assure you have no
hardware conflicts. You will find these programs on the
DFlex DOS Driver diskette (p/n: DISK306).
2. If you require additional information, please go to the
Download Zone or the Knowledge Database in the Support Center
on the Connect Tech website for product manuals,
installation guides, device driver software and technical
tips. If these sources do not provide you with the help you
need please contact a Connect Tech Technical Support
Representative via email, telephone or fax for further
information (numbers and addresses are found inside the
front cover of the manual).
Echo User's Manual, ver. 0.00
3-16 Chapter 3: Software Installation - QNX 4.XX
Figure 8: QNX 4.XX: switch settings
SW1
Status port address
Reserved - must be OFF
Base address sets:
Port 1 = address 280 hex
Port 2 = address 288 hex
Port 3 = address 290 hex
Port 4 = address 298 hex
Port 5 = address 2A0 hex
Port 6 = address 2A8 hex
Port 7 = address 2B0 hex
Port 8 = address 2B8 hex
IRQ channel(s)
IRQ line for all ports is on channel A
Status port is disabled
Figure 9: QNX 4.XX: IRQ settings
3 4 5 7 10 11 12 15
B
A
Note: All Echo ports are interrupting on channel A, IRQ 10.
Echo User's Manual, ver. 0.00
IRQ
J1
Chapter 3: Software Installation - QNX 4.XX 3-17
(
The command line example shown below assumes that COM1
and COM2 are port 1 and port 2 on the Echo adapter.
Example:
Dev.ser 3f8,4 2f8,3 310,4 318,3 320,4 328,3 330,4 338,3 &
The above example configures an Echo adapter port 1 for
COM1 at 3F8 hex, IRQ4; port 2 at COM2 at 2F8 hex, IRQ 3
and all other port addresses at 310, 318, 320, 328, 330, 338 hex
respectively. All odd ports will interrupt on IRQ 4, channel A
and all even ports on IRQ 3, channel B. Please refer to Figures
10 and 11 for the DIP switch and jumper settings for your Echo
adapter and Figures 1, 2, and 3 in Chapter 1: Introduction for
the location of switch block SW1 and jumper block J1.
Technical Tip
You can run under DOS the DOS programs porttest.exe and
portfind.exe to verify your settings and assure you have no
hardware conflicts. You will find these programs on the DFlex
DOS Driver diskette (p/n: DISK306).
Figure 10: QNX 4.XX: switch settings
SW1
IRQ channel(s)
IRQ line for odd ports is on channel A
IRQ line for even ports is on channel B
Status port address
Status port is disabled
Reserved - must be OFF
Base address sets:
Port 3 = address 310 hex
Port 4 = address 318 hex
Port 5 = address 320 hex
Port 6 = address 328 hex
Port 7 = address 330 hex
Port 8 = address 338 hex
Port 2 is COM2 (2F8 hex)
Port 1 is COM1
3F8 hex)
Echo User's Manual, ver. 0.00
3-18 Chapter 3: Software Installation - QNX 4.XX
Figure 11: QNX 4.XX: IRQ settings
3 4 5 7 10 11 12 15
B
A
IRQ
J1
Note: All Echo odd ports are interrupting on channel A, IRQ 4
and all Echo even ports are interrupting on channel B, IRQ 3.
Echo User's Manual, ver. 0.00
Chapter 3: Software Installation – QNX 6.XX 3-19
QNX 6.XX
For information about installing the Echo adapter for the QNX
6.XX operating system, please go to the
Knowledge Database in the Support Center on the Connect Tech
Download Zone or the
website for product manuals, installation guides, device driver
software and technical tips. If these sources do not provide you
with the help you need please contact a Connect Tech Technical
Support Representative via email, telephone or fax for further
information (numbers and addresses are found inside the front
cover of the manual).
Echo User's Manual, ver. 0.00
3-20 Chapter 3: Software Installation – SCO Unix
SCO Unix
This section describes how to setup an Echo adapter for operation
under SCO Unix.
Configuration
Step 1
You can setup your Echo adapter for many hardware
configurations. Set the DIP switches on switch block SW1 and
jumpers on jumper block J1 for your Echo adapter and install the
it in your computer. See Figures 1, 2, and 3 in Chapter 1:
Introduction for the location of switch block SW1 and jumper
block J1.
Figures 12 and 13 show the switch settings and jumper settings
of an Echo set for the following sample configuration:
starting I/O address: 280h
interrrupt request(IRQ) 10
status port enabled (at address 2C0h)
all interrupts are on A channel of the Echo
Echo User's Manual, ver. 0.00
Chapter 3: Software Installation – SCO Unix 3-21
Technical Tip
1. You can run under DOS the DOS programs porttest.exe and
portfind.exe to verify your settings and assure you have no
hardware conflicts. You will find these programs on the
DFlex DOS Driver diskette (p/n: DISK306).
2. If you require additional information, please go to the
Download Zone or the Knowledge Database in the Support Center
on the Connect Tech website for product manuals,
installation guides, device driver software and technical
tips. If these sources do not provide you with the help you
need please contact a Connect Tech Technical Support
Representative via email, telephone or fax for further
information (numbers and addresses are found inside the
front cover of the manual).
Figure 12: SCO Unix: switch settings
SW1
IRQ channel(s)
the IRQ line for all ports is on channel A
Status port address
Status port = 2C0
Reserved - must be OFF
Base address sets:
Port 1 = address 280
Port 2 = address 288
Port 3 = address 290
Port 4 = address 298
Port 5 = address 2A0
Port 6 = address 2A8
Port 7 = address 2B0
Port 8 = address 2B8
Echo User's Manual, ver. 0.00
3-22 Chapter 3: Software Installation – SCO Unix
Figure 13: SCO Unix: IRQ settings
3 4 5 7 10 11 12 15
B
A
IRQ
J1
Note: All ports are interrupting on channel A, IRQ 10
Step 2
You now must make an entry for the Echo adapter in the file
space.c. This entry tells the operating system about the Echo
adapter:
1. Change to
space.c.
2. Open the file
/etc/conf/pack.d/sio directory and backup the file
space.c with your editor. You will find listings
for many different serial adapters so search the list until you
find an entry for a Stargate adapter. The Stargate entries are
essentially compatible with the Echo adapter. This entry
should look like the following:
{2,STARGATE,8,4,8,(sd)0x280,0x280+STAR_POLL,8,
MCRBIT3},/*AT-Stargate*/
We can describe the parameters for this entry as follows:
{[COM #],[Board type],[# of ports],[IRQ],
[Minor #],[Port address],[Status port address],
[Bus width],[Modem control register]}
[Device description]
Echo User's Manual, ver. 0.00
Chapter 3: Software Installation – SCO Unix 3-23
Where:
[COM]
This parameter allows you to assign a
COM to the serial adapter. There are
four available COM assignments
under SCO Unix.:
0 = COM1 1 = COM2
2 = COM3 3 = COM4
Note:
COM refers to a serial board and
not a specific port. There is no
relation between COM1, COM2
under DOS and COM under SCO
Unix
[Board type]
The style of serial adapter. This tells
the SCO Unix serial driver what to
expect from the hardware.
[# of ports]
[IRQ]
[Minor #]
The number of ports found on the
serial adapter.
The IRQ setting for the adapter.
Each COM has a different minor
number.
Example:
COM1 0 is the minor number
COM2 8 is the minor number
COM3 16 is the minor number
COM4 24 is the minor number
Note:
These numbers vary according to the
values in your file
/usr/lib/mkdev/perms/SER
[Port address]
[Status port address]
[Bus width]
[Modem control register]
Is the starting I/O address (hex) for
the adapter
Is the I/O address (hex) for the status
port of the adapter
The location of the modem control
register bit on the UART
Echo User's Manual, ver. 0.00
3-24 Chapter 3: Software Installation – SCO Unix
[Device description]
A comment field used to describe the
device
3. Make a copy of this entry and modify it to reflect the settings
of your Echo adapter.
Example
{2,STARGATE,8,10,16,(sd)0x280,0x280+STAR_POLL,
8,MCRBIT3},/*AT-Echo-8*/
This example entry reflects a base address setting of 280h
and an IRQ setting of 10 for an Echo adapter.
4. Insert the modified entry among the other COM3 entries in the
space.c
file
5. Save the file and exit.
Echo User's Manual, ver. 0.00
Chapter 3: Software Installation – SCO Unix 3-25
Step 3
You now must modify the
SER file to insure the proper alignment
of the minor numbers.
1. Change the directory to the
backup the file SER.
2. Open the file
COM3 devices (
SER3. This is the first area to modify. You will need to remove
SER with your editor. Find the section for the
/dev/tty3a,b,c...), those lines should begin with
/usr/lib/mkdev/perms directory and
some of the comment lines (lines beginning with #) and align
the minor numbers to be in sequence with minor numbers from
SER1
and SER2. When complete the SER3 section should look
like the following:
#
SER3 c666 bin/bin 1 /dev/tty3a 5/16
SER3 c666 bin/bin 1 /dev/tty3b 5/17
SER3 c666 bin/bin 1 /dev/tty3c 5/18
SER3 c666 bin/bin 1 /dev/tty3d 5/19
SER3 c666 bin/bin 1 /dev/tty3e 5/20
SER3 c666 bin/bin 1 /dev/tty3f 5/21
SER3 c666 bin/bin 1 /dev/tty3g 5/22
SER3 c666 bin/bin 1 /dev/tty3h 5/23
#
You will find further down in the
SER file the modem device
names. You must modify this section in a similar fashion to the
above. When completed this section should look like:
#
SER3 c666 bin/bin 1 /dev/tty3A 5/144
SER3 c666 bin/bin 1 /dev/tty3B 5/145
SER3 c666 bin/bin 1 /dev/tty3C 5/146
SER3 c666 bin/bin 1 /dev/tty3D 5/147
SER3 c666 bin/bin 1 /dev/tty3E 5/148
SER3 c666 bin/bin 1 /dev/tty3F 5/149
SER3 c666 bin/bin 1 /dev/tty3G 5/150
SER3 c666 bin/bin 1 /dev/tty3H 5/151
#
Note:
If you were installing your Echo as COM1 or COM2 then the
default minor numbers are usually sufficient and don't
require changing
3. When you finish save the
SER file and exit.
Echo User's Manual, ver. 0.00
3-26 Chapter 3: Software Installation – SCO Unix
Step 4
You now must run
mkdev serial which creates special device files
to interface with the operating system’s serial driver. When
running
mkdev serial, select the appropriate number of ports being
installed (8 for the Echo adapter). You will find that
prompts you with some options:
i
Select this to install a new board
1
Select this to install standard tty driver
#
Enter the number of ports you want to install
#
Enter the number for the COM (enter the COM number
you wish to install - 3 for COM3 for the example above)
?
Option(s) for various boards will be displayed. Select the
Echo board corresponding to the changes you made in the
space.c
file and make the following choices:
- Enter the default baud rate, i.e. 9600
- Enter m for 9600,n,8,1.
The system will now prompt you with a number of yes or no
questions about rebuilding the kernel. Answer yes to all of these
to build the kernel with the new Echo settings. This will take
about two minutes to complete.
Step 5
With the Echo installed you can reboot the system by typing:
sync;sync;reboot
If you still need to install the hardware you can shutdown the
system by typing:
sync;sync;shutdown
or
sync;sync;haltsys
You should see the additional Echo ports in the list of
installed/found devices displayed at bootup. If you miss this
message, you can find it in the file
/usr/adm/messages by typing
(this will print out the last 50 messages):
tail -50 /usr/adm/mess*
mkdev serial
Echo User's Manual, ver. 0.00
Chapter 3: Software Installation – SCO Unix 3-27
Other Configurations
It is possible to run your Echo board using I/O addresses and
interrupts other than those listed above. In order to do this, it will
be necessary to modify certain system files. Consult the "Release
Notes" section of your operating system manuals or contact
Connect Tech's Customer Support for more information.
Technical Tips
If you experience difficulties installing your Echo adapter try the
following steps:
1. Check to see if you have followed the above procedures
closely.
2. Check for conflicting devices in your system. It is possible
that there is a conflict between the Echo adapter and
another board in the system. This could be an IRQ or I/O
port conflict. Try using the porttest.exe and portfind.exe
found on the DFlex DOS Driver diskette (p/n: DISK306) to
find the hardware conflicts.
3. If you use a system with a Plug and Play(PnP) BIOS or PCI
bus, you might have to configure the CMOS setup for nonPnP devices like the Echo adapter.
4. If you need to remove/un-install the Echo, you should use
the mkdev serial utility and follow the options for (r) remove
a board. If you decide that the Echo adapter is not working
due to a conflict, you should remove the board with mkdev
serial, reboot and then run mkdev serial to install the Echo at
some alternate settings.
Echo User's Manual, ver. 0.00
3-28 Chapter 3: Software Installation - Solaris
Solaris
For information about installing the Echo adapter for the Solaris
operating system, please go to the
Database in the Support Center on the Connect Tech website for
Download Zone or the Knowledge
product manuals, installation guides, device driver software and
technical tips. If these sources do not provide you with the help
you need please contact a Connect Tech Technical Support
Representative via email, telephone or fax for further information
(numbers and addresses are found inside the front cover of the
manual).
Echo User's Manual, ver. 0.00
Chapter 3: Software Installation - Windows 95 3-29
Windows 95
Windows 95 allows you to add up to 128 serial ports to your
computer system. The Windows 95 standard serial port driver
supports IRQ sharing (if the hardware supports it) and the FIFO
buffering capabilities of the 16550 UARTs.
Technical Tip
1. You can run under DOS the DOS programs porttest.exe and
portfind.exe to verify your settings and assure you have no
hardware conflicts. You will find these programs on the
DFlex DOS Driver diskette (p/n: DISK306).
2. If you did not receive a Windows driver diskette or you
require additional information, please go to the Download
Zone or the Knowledge Database in the Support Center on the
Connect Tech website for product manuals, installation
guides, device driver software and technical tips. If these
sources do not provide you with the help you need please
contact a Connect Tech Technical Support Representative
via email, telephone or fax for further information (numbers
and addresses are found inside the front cover of the
manual).
You can configure a single Echo serial adapter to share one IRQ
allowing that Echo’s serial ports to share one interrupt. You can
add as many Echo adapters as you have ISA slots for,
remembering that each board will need a unique range of I/O port
addresses and IRQs.
Echo User's Manual, ver. 0.00
3-30 Chapter 3: Software Installation - Windows 95
Echo Enhanced Driver
The Connect Tech enhanced serial port driver extends the
functionality of the standard Windows 95 Device driver to
include support for newer, high performance UARTs.
The Enhanced Driver supports both the older UARTs (16450,
16550) and the newer UARTs (16750) for Windows 95.
The Enhanced Driver supports Echo serial ports and standard
non-intelligent serial ports.
Echo User's Manual, ver. 0.00
Chapter 3: Software Installation - Windows 95 3-31
Installation
The following instructions outline how to install the Echo
Enhanced Driver on a previously uninstalled Connect Tech Echo
port.
1. If the driver is on disk, insert the disk into the desired drive.
If you have downloaded the driver in ZIP format, unzip the
files to a temporary directory.
2. From the
icon and hit
3. When the program asks
FOR NEW HARDWARE? select NO and hit NEXT.
CONTROL PANEL, select the ADD NEW HARDWARE
NEXT.
DO YOU WANT WINDOWS TO SEARCH
4. You will be presented with a list of devices that can be
installed. Pick
MULTI-FUNCTION ADAPTERS from the list and
hit NEXT.
5. A list of supported manufacturers and models will be listed.
Hit the
HAVE DISK button.
6. Select the directory or drive that the drivers are contained on
and hit
OK.
7. Select
CONNECT TECH INC. types from the manufacturer list
and the appropriate Echo board from the model type and hit
NEXT.
8. A range of IO port settings and an IRQ will display. In most
cases the settings displayed are the best settings to use.
Make sure these settings match the ones used by your
Echo adapter. You cannot change the settings at this point.
You will have to change them after the installation is
complete. So hit
9. Hit
FINISH and it will install the new serial driver. The
system will ask if you want to shut down the computer. Hit
NO
if the settings the computer chose for the board were
NEXT for now.
incorrect and go to the DEVICE MANAGER to change the
settings (IO base port of 280 and IRQ 10 are the defaults).
10. If the settings were correct hit
YES and your installation is
done. After the computer has restarted it will install each of
the Echo ports into the
MANAGER. Follow the directions listed under the
PORTS section of the DEVICE
UART/FIFO Configuration section in order to set the
Echo’s UART type and FIFO levels for Windows 95.
Echo User's Manual, ver. 0.00
3-32 Chapter 3: Software Installation - Windows 95
UART/FIFO Configuration
To configure the Echo Enhanced Driver for the appropriate
UART type please follow these steps:
1. From the
2. The
CONTROL PANEL double click on the SYSTEM icon.
SYSTEM PROPERTIES dialog box will pop up and click
on the DEVICE MANAGER tab.
3. Double click the
PORTS (COM & LPT) section.
4. Double click the COM port you want to change. This will
bring up a
5. Click on the
6. Click on the
SETTINGS dialog box will pop up.
7. Check the
PROPERTIES page.
ENHANCED PORT SETTINGS tab.
ADVANCED button. The ADVANCED PORT
USE FIFO BUFFERS box and select the 16554
UART choice. When you select USE FIFO BUFFERS you
enable the two sliders labeled RECEIVE BUFFER and
TRANSMIT BUFFER
. Moving a slider to the right, enables more
buffering resulting in higher speeds and lower load on the
system. However high buffer levels can cause connection
problems. Usually it is best to set the
RECEIVE BUFFER at one
notch below the highest setting and the TRANSMIT BUFFER at
the highest setting. Then click
OK.
Echo User's Manual, ver. 0.00
Chapter 3: Software Installation - Windows 95 3-33
Configuration
The following installation assumes that your computer system
comes with two standard serial ports, COM1 (at 3F8, IRQ 4); and
COM2 (at 2F8, IRQ 3).
1. You need to choose a range of I/O addresses for your Echo
adapter that will not conflict with any other addresses. A
good range to choose is the default settings, 280h, 288h, 290h
and 298h. Figure 14 shows the example switch settings.
Please refer to Figures 1, 2, or 3 in Chapter 1: Introduction
for the location of the DIP switch block SW1
Figure 14: Windows 95: switch settings
When ON, port 2 is COM2 (2F8 hex)
When ON, port 1 is COM1 (3F8 hex)
SW1
Status port address
Reserved - must be OFF
Base address sets:
Port 1 = address 280 hex
Port 2 = address 288 hex
Port 3 = address 290 hex
Port 4 = address 298 hex
Port 5 = address 2A0 hex
Port 6 = address 2A8 hex
Port 7 = address 2B0 hex
Port 8 = address 2B8 hex
IRQ channel(s)
All ports will interrupt on Channel A
When OFF, status port is disabled
Echo User's Manual, ver. 0.00
3-34 Chapter 3: Software Installation - Windows 95
2. Choose an IRQ for your Echo. It is possible to have the even
ports on one IRQ and the odd ports on a different IRQ, but
we recommend having all ports on one IRQ. Good choices of
IRQ's are 5, 10, 11, 12 and 15. The two serial ports that
come with your system usually use IRQ 4, 3 and LPT1 is
usually IRQ 7. Please refer to the Table showing typical IRQ
usage in Chapter 2: Hardware Installation. For our
example we will choose IRQ 10. Figure 15 shows the
example IRQ setting. Please refer to Figures 1, 2, or 3 in
Chapter 1: Introduction for the location of the jumper block
J1.
Figure 15: Windows 95: IRQ settings
3 4 5 7 10 11 12 15
B
A
IRQ
J1
Note
All Echo ports interrupt on Channel A, IRQ 10.
Technical Tip
You can run under DOS, the DOS programs porttest.exe and
portfind.exe, to verify your settings and assure you have no
hardware conflicts. You will find these programs on the DFlex
DOS Driver diskette (p/n: DISK306)
3. You can now install the Echo in your system and start up
Windows 95. Once Windows-95 has started, go to the
COMPUTER icon and double click.
4. Now click on
HARDWARE
NEXT. It will prompt you for AUTODETECTION, select NO
Click
CONTROL PANEL and then click on ADD NEW
. The ADD NEW HARDWARE WIZARD will appear.
and click NEXT. A list of hardware devices will appear,
select
PORTS(COM & LPT) and click NEXT. Now select
COMMUNICATIONS PORT and click NEXT.
MY
Echo User's Manual, ver. 0.00
Chapter 3: Software Installation - Windows 95 3-35
5. A window will now appear with the headings RESOURCE
TYPE and SETTING. The settings shown are probably wrong.
Do not worry we will change them later. Click NEXT.
Another window will appear. Click on
6. You will now see a
SYSTEMS SETTINGS CHANGE window
FINISH.
prompting you to reboot the machine and since the settings
are wrong click
NO. If you have more Echo serial ports to
add you should repeat steps 4 - 6 until you have enough
additional new COM ports installed.
7. You now go to the
SYSTEM PROPERTIES menu by clicking
on the SYSTEM icon in the CONTROL PANEL. Click on the
DEVICE MANAGER tab. A list of devices will appear. Click on
PORTS (COM & LPT)
and it will expand showing all the ports.
Choose the new COM port just created. Click on
PROPERTIES (double clicking the COM port will also bring up
PROPERTIES
). This is where we tell Windows 95 about the
settings for the Echo adapter.
8. You should now have a
PROPERTIES
window. Click on the RESOURCES tab and you
COMMUNICATIONS PORT (COM??)
should see the current settings for this port. These are the
settings we want to change. There are three steps to follow:
8.1. First select
BASED ON
8.2. We now need to change the
BASIC CONFIGURATION 8 in the SETTINGS
area.
INPUT/OUTPUT RANGE under
the RESOURCE TYPE heading, so double click there. A
new window will appear and this is where you can enter
the Echo I/O port address (Example 200-207) or use the
UP/DOWN arrows of the dialog box to find one to
select. Click
8.3. We now need to change the
the
RESOURCE TYPE heading, so double click there. A
OK.
INTERRUPT REQUEST under
new window will appear and you can now enter the IRQ
of you Echo card (example IRQ 10) or use the
UP/DOWN arrows of the dialog box to find one to
select. Click
COMMUNICATIONS PORT (COM??) PROPERTIES window, so
click OK.
OK. You should now be back at the
Echo User's Manual, ver. 0.00
3-36 Chapter 3: Software Installation - Windows 95
9. The SYSTEMS SETTINGS CHANGE window will appear. Click
NO and repeat Steps 7 through 9 until you have setup all your
Echo serial ports. Click YES when you have set up all your
Echo ports. Your system will now reboot with your Echo
serial ports installed.
Technical tips
1. A test program is available on the DFlex DOS Driver
diskette (p/n: DISK306). It is a Windows 95 and Windows
NT compatible test program. For more information please
check the file sertest.zip. This program requires a loopback
connector (see the file readme.pts on the DFlex DOS Driver
diskette for loopback wiring instructions)
2. There is no direct support for RS-485 half duplex
communications within the Windows 95 serial driver.
3. The RS-422 interface will work in point to point, full duplex
and multi-drop communications.
4. The standard Windows 95 serial driver supports standard
16450 and 16550 UARTs.
5. When installing the additional serial ports, Windows 95 will
sometimes skip to the label COM5.
6. Some Windows 95 and Windows NT applications can only
access up to COM9. These applications include:
Modem Setup Wizard
Printer Setup Wizard
Visual Basic
For developers a work around is available under Microsoft
C++. You can label serial ports as COM1, COM2..., etc., for
serial ports 1 to 9. An alternative method is to label them as
\\.\COM1, \\.\COM2..., etc. You can access all serial ports under
Windows 95 and Windows NT using this alternative method.
See your Microsoft C++ documentation for more
information.
Echo User's Manual, ver. 0.00
Chapter 3: Software Installation - Windows NT 3-37
Windows NT
Windows NT allows you to add up to 255 serial ports to your
computer system. The Windows NT serial port driver supports
IRQ sharing (if the hardware supports it) and the FIFO buffering
capabilities of the ST16C554.
Technical Tip
1. You can run under DOS the DOS programs porttest.exe and
portfind.exe to verify your settings and assure you have no
hardware conflicts. You will find these programs on the
DFlex DOS Driver diskette (p/n: DISK306).
2. If you did not receive a Windows driver diskette or you
require additional information, please go to the Download
Zone or the Knowledge Database in the Support Center on the
Connect Tech website for product manuals, installation
guides, device driver software and technical tips. If these
sources do not provide you with the help you need please
contact a Connect Tech Technical Support Representative
via email, telephone or fax for further information (numbers
and addresses are found inside the front cover of the
manual).
You can configure a single Echo serial adapter to share one IRQ
allowing that Echo’s serial ports to share one interrupt. You can
add as many Echo adapters as you have ISA slots for,
remembering that each board will need a unique range of I/O port
addresses and IRQ's.
Configuration
The following installation assumes that your computer system
comes with two standard serial ports, COM1 (at 3F8, IRQ 4);
COM2 (at 2F8, IRQ 3) and that you are installing an Echo
adapter.
1. You need to choose a range of I/O addresses for your Echo
adapter that will not conflict with any other addresses. A
good range to choose is the default settings, 280h, 288h,
290h, 298h, 2A0h, 2A8h, 2B0h, and 2B8h. Figure 16 shows
the example switch settings. Please refer to Figures 1, 2, or 3
in Chapter 1: Introduction for the location of the DIP
switch block SW1.
Echo User's Manual, ver. 0.00
3-38 Chapter 3: Software Installation - Windows NT
Figure 16: Windows NT: switch settings
When ON, port 2 is COM2 (2F8 hex)
When ON, port 1 is COM1 (3F8 hex)
SW1
Status port address
Reserved - must be OFF
Base address sets:
Port 1 = address 280 hex
Port 2 = address 288 hex
Port 3 = address 290 hex
Port 4 = address 298 hex
Port 5 = address 2A0 hex
Port 6 = address 2A8 hex
Port 7 = address 2B0 hex
Port 8 = address 2B8 hex
IRQ channel(s)
All ports will interrupt on Channel A
When OFF, status port is disabled
2. Choose an IRQ for your Echo. It is possible to have the even
ports on one IRQ and the odd ports on a different IRQ, but
we recommend having all ports on one IRQ. Good choices of
IRQ's are 5, 10, 11, 12 and 15. The two serial ports that
come with your system usually use IRQ 4, 3 and LPT1 is
usually IRQ 7. Please refer to the Table showing typical IRQ
usage in Chapter 2: Hardware Installation. For our
example we will choose IRQ 10. Figure 17 shows the
example IRQ setting. Please refer to Figures 2, or 3 in
Chapter 1: Introduction for the location of the jumper block
J1.
Echo User's Manual, ver. 0.00
Chapter 3: Software Installation - Windows NT 3-39
Figure 17: Windows NT: IRQ settings
3 4 5 7 10 11 12 15
B
A
IRQ
J1
Note
All Echo ports interrupt on Channel A, IRQ 10.
Technical Tip
You can run under DOS the DOS programs porttest.exe and
portfind.exe to verify your settings and assure you have no
hardware conflicts. You will find these programs on the DFlex
DOS Driver diskette (p/n: DISK306)
3. You can now install the Echo in your system and start up
Windows NT. Once Windows NT has started, logon as
administrator (installation specific account).
4. For Windows NT 3.51 open the
MAIN PROGRAM group. For
Windows NT 4.0 select the START menu and SETTINGS.
5. Click on the
6. Click on the
7. Click the
8. Set the desired
will default to next available
CONTROL PANEL group.
PORTS group.
ADD button.
COM PORT NUMBER if necessary. This number
COM PORT NUMBER, in this case 3
since the system has standard serial ports at COM1 and
COM2.
9. Set the
BASE I/O PORT ADDRESS by entering the port address
for the Echo’s first serial port, in this case 280.
10. Set the
INTERRUPT REQUEST LINE (IRQ) for your Echo adapter
by selecting a number from the list, in this case 10.
11. Select the
FIFO ENABLED option.
Echo User's Manual, ver. 0.00
3-40 Chapter 3: Software Installation - Windows NT
12. Click the DONE button but do not select the REBOOT option
yet.
13. Repeat steps 7 through 12 for the remaining Echo serial
ports, each time specifying the appropriate I/O port address
(i.e., 288, 290, 298, etc.) and the same IRQ (i.e., 10).
14. Now you must edit the registry database in order to inform
the serial driver that all the Echo serial ports will share the
same IRQ. There are two methods for doing this; a simple
Method A and a more complex, but more powerful Method
B.
Method A
This series of steps involves editing the registry database to
inform the WindowsNT serial driver that all the Echo ports
will share the same hardware Interrupt.
14.1. For Windows NT v.3.51 you click on the
DIAGNOSTIC icon in the ADMINISTRATIVE TOOLS group
and then select TOOLS, then REGISTRY.
14.2. For Windows NT 4.0 select
START, then RUN and then
enter REGEDT32 and hit the ENTER key. This will bring
up the Windows NT Registry Editor.
14.3. Make sure you are editing the
HKEY_LOCAL_MACHINE
registry.
14.4. Select the
14.5. Select the
14.6. Select the
14.7. Select the
SYSTEM folder.
CURRENT CONTROL SET folder.
SERVICES folder.
SERIAL folder.
14.8. On the right side you will see some information.
Double click the
PERMIT SHARE line and a dialogue
box opens. You need to alter this item as the default
is sharing
OFF and you must set sharing ON. You then
can change the setting to 1 (sets sharing
14.9. The system will save the changes when you exit the
registry editor.
WINDOWS NT
ON).
Echo User's Manual, ver. 0.00
Chapter 3: Software Installation - Windows NT 3-41
Method B
This method is more complex than Method A and involves
writing information regarding the Echo status port to the
Windows NT registry. Since this method will enable your
Echo adapter’s status port, you will attain better system
performance in the way of less CPU usage.
Note:
You will need to know the I/O address of the your Echo
adapter’s status port and make sure that DIP switch 7 on
the Echo’s switchblock SW1 is set to ON
14.10. For Windows NT v.3.51 you click on the
NT DIAGNOSTIC icon in the ADMINISTRATIVE TOOLS
WINDOWS
group and then select TOOLS, then REGISTRY.
14.11. For Windows NT 4.0 select
START, then RUN and
then enter REGEDT32 and hit the ENTER key. This
will bring up the Windows NT Registry Editor.
14.12. Make sure you are editing the
HKEY_LOCAL_MACHINE
registry.
14.13. Select the
14.14. Select the
14.15. Select the
14.16. Select the
14.17. Select the
SYSTEM folder.
CURRENT CONTROL SET folder.
SERVICES folder.
SERIAL folder.
PARAMETERS folder.
14.18. You will need to add two new values: an
InterruptStatus value and a PortIndex value for each
SERIAL key associated with your Echo ports
(
SERIAL110000, SERIAL110001, SERIAL110002, etc.).
Echo User's Manual, ver. 0.00
3-42 Chapter 3: Software Installation - Windows NT
14.19. Choose EDIT, then ADD VALUE, and enter in the
following values EXACTLY as below.
Value Name: InterruptStatus
Data Type: REG_DWORD
Value: 2C0
(Highlight Hex format Check Box)
Note:
1. For our example of Base I/O address 280, the
Echo status port is at I/O address 2C0.
2. The Value is the address of the status port
corresponding to I/O address range set on the
Echo adapter. All Echo ports on a single
board will have the same status port address,
so each key Serial10000, Serial10001 up to
Serial1000n will have the same value.
Once again choose EDIT, then ADD VALUE, and enter
in the following values EXACTLY as below.
Value name: PortIndex
Data Type: REG_DWORD
Value: 1
14.20. Exit the Registry Editor and the system
15. You can now reboot your system and your Windows NT
applications can access all the Echo serial ports.
Echo User's Manual, ver. 0.00
Note:
Each key Serial10000, Serial10001 up to Serial1000n
will get a unique entry for its Value. You will enter 1
for Echo port one, 2 for port two, etc.
automatically saves the new values.
Chapter 3: Software Installation - Windows NT 3-43
Technical tips
1. You can test the additional serial ports with a program like
Terminal or HyperTerminal.
2. A test program is available on the DFlex DOS Driver
diskette (p/n: DISK306). It is a Windows 95 and Windows
NT compatible test program. For more information please
check the file sertest.zip. This program requires a loopback
connector (see the file readme.pts on the DFlex DOS Driver
diskette for loopback wiring instructions)
3. There is no direct support for RS-485 half duplex
communications within the Windows NT serial driver.
4. The RS-422 interface will work in point to point, full duplex
and multi-drop communications.
5. Some Windows 95 and Windows NT applications can only
access up to COM9. These applications include:
Modem Setup Wizard
Printer Setup Wizard
Visual Basic
Terminal
For developers a work around is available under Microsoft
C++. You can label serial ports as COM1, COM2..., etc., for
serial ports 1 to 9. An alternative method is to label them as
\\.\COM1, \\.\COM2..., etc. You can access all serial ports under
Windows NT and Windows NT using this alternative method.
See your Microsoft C++ documentation for more
information.
Echo User's Manual, ver. 0.00
Chapter 4: Appendices
Appendix A: Specifications ....................................................... 4-1
Operating Environment..................................................... 4-1
Power Requirements ......................................................... 4-1
PC Bus Interface................................................................ 4-1
Communications................................................................ 4-1
Control Signals.................................................................. 4-1
Dimensions........................................................................ 4-1
Connectors/Interface ......................................................... 4-1
Appendix B: Connectors/Pinouts............................................... 4-2
Cable Connector Pinouts................................................... 4-2
Connector Box/Pinouts...................................................... 4-5
Appendix C: Factory Settings………………………………….4-7
Echo................................................................................... 4-7
I/O Port Address Setting........................................... 4-7
IRQ Setting ............................................................... 4-7
Appendix D: RS-422/485 Options............................................. 4-8
RS-422/485 Cable Wiring................................................. 4-8
RS-422/485 wiring diagram (4 wire) ................................4-8
RS-422/485 wiring diagram (2 wire) ................................4-9
Echo User's Manual, ver. 0.00
Chapter 4: Appendix A - Specifications 4-1
Appendix A: Specifications
Operating Environment
Storage temperature: -60 ° C to 100 ° C
Operating temperature: 5 ° C to 65 ° C
Relative humidity: 5 - 90% no condensing
Air movement: no requirement
Altitude: 15,000 feet (5000 metres)
Power Requirements
Typical @ 20°C; +20%, -5% on the current (DC) value
Echo 8 ports RS-485
+5 VDC +/- 5% @ 125mA (no driver loads)
@ 445mA (all drivers loaded)
Echo 8 ports RS-232
+5 VDC +/- 5% @ 100 mA
+12 VDC +/- 10% @ 5 mA (no driver loads)
@ 100 mA (all drivers loaded)
-12 VDC +/- 10% @ 4 mA (no driver loads)
@100 mA (all drivers loaded)
PC Bus Interface
PC interrupt is jumper selectable, (3, 4, 5, 7, 10, 11, 12, or
15)
Base address for I/O ports is DIP switch selectable
One half length ISA 8 bit or 16 bit slot
Communications
16C654 UARTs communication controllers
Programmable baud rate generator - up to 115K baud on all
ports
Control Signals
RS-232 RxD, TxD, RTS, CTS, DTR, DCD,
DSR, RI
RS-422/485 RX±, TX±, RTS±, CTS±
Dimensions
Length: 16.4 cm
Height: 10.6 cm
Connectors/Interface
DB-9 or DB-25 male cable or connector box
Echo User's Manual, ver. 0.00
4-2 Chapter 4: Appendix B Connectors/ Pinouts
Appendix B: Connectors/Pinouts
Appendix B outlines the pinouts for the following:
Echo cable connector pinouts
Echo external connector box pinouts
Cable Connector Pinouts

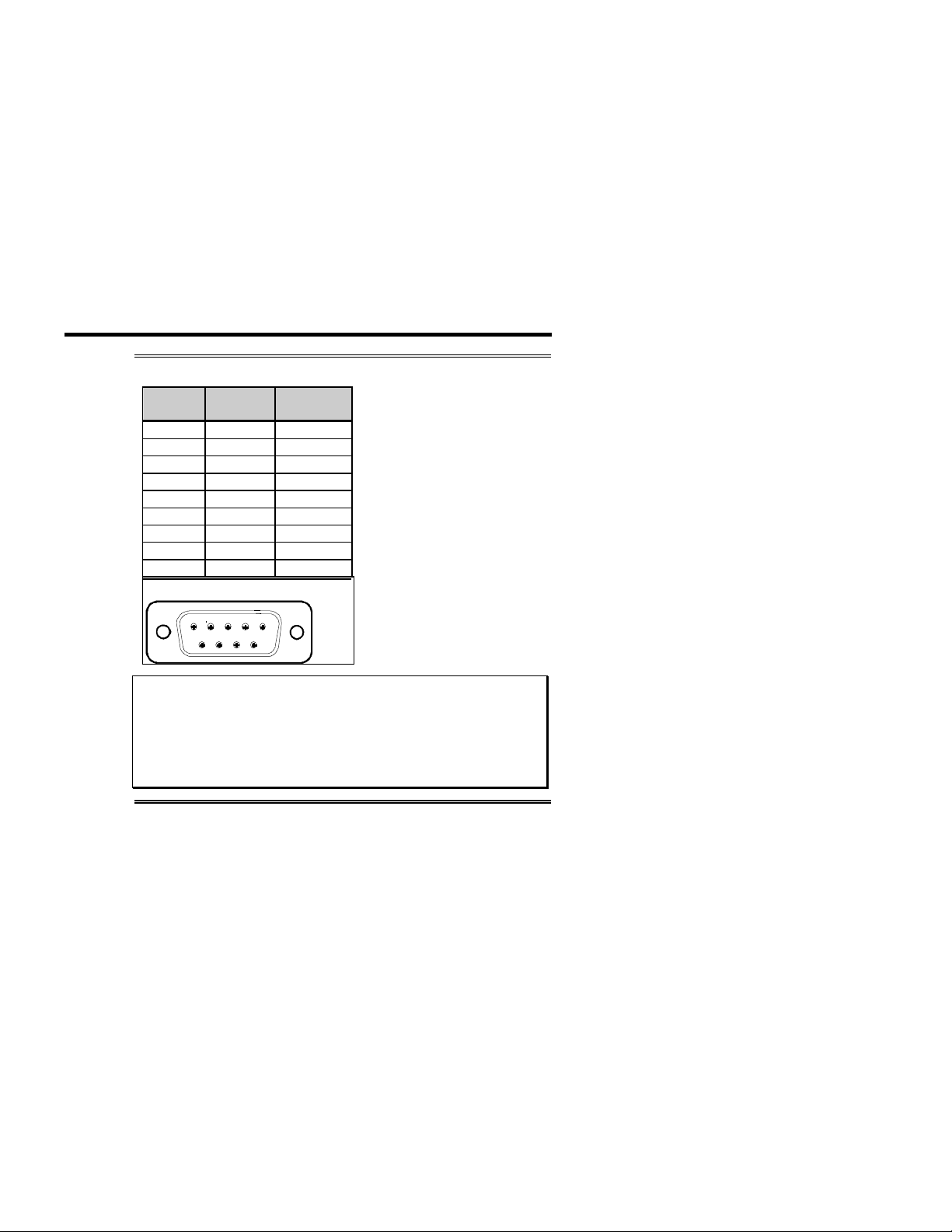

Table 5: DB-9 pinouts - Echo
Pin No.
1 DCD RxD B(+)
2 RxD TxD B(+)
3 TxD TxD A(-)
4 DTR RxD A(-)
5 SG SR
6 Reserved CTS A(-)
7 RTS RTS A(-)
8 CTS RTS B(+)
9 Reserved CTS B(+)
RS-232
Signal
Male DB-9 Connector
RS-485
Signal
1
6
Technical Tip:
Please ensure that you terminate the DCD or CTS signals if your
application does not use them. The common way to do this is to
connect DCD to DTR and/or to connect CTS to RTS. Failure to
do so may result in a loss of a performance on your Echo
adapter.
Echo User's Manual, ver. 0.00
5
9
Chapter 4: Appendix B – Connectors/Pinouts 4-3
Table 6: Echo DB-78 pinouts
Pin
Port
No.
No.
1 5 RTS RTS A(-)
2 5 CTS RTS B(+)
3 5 Reserved CTS A(-)
4 5 Reserved CTS B(+)
5 5 SG SR
6 6 RTS RTS A(-)
7 6 CTS RTS B(+)
8 6 Reserved CTS A(-)
9 6 CTS B(+)
10 7 RTS RTS A(-)
11 7 CTS RTS B(+)
12 7 Reserved CTS A(-)
13 7 Reserved CTS B(+)
14 7 SG SR
15 8 RTS RTS A(-)
16 8 CTS RTS B(+)
17 8 Reserved CTS A(-)
18 8 CTS B(+)
19
20
21 5 TxD TxD A(-)
22 5 RxD TxD B(+)
23 5 DTR RxD A(-)
24 5 DCD RxD B(+)
25 6 SG SR
26 6 TxD TxD A(-)
27 6 RxD TxD B(+)
28 6 DTR RxD A(-)
29 6 DCD RxD B(+)
30 7 TxD TxD A(-)
31 7 RxD TxD B(+)
32 7 DTR RxD A(-)
33 7 DCD RxD B(+)
34
35 8 TxD TxD A(-)
36 8 RxD TxD B(+)
37 8 DTR RxD A(-)
38 8 DCD RxD B(+)
39 8 SG SR
RS-232
Signal
RS-485
Signal
Echo User's Manual, ver. 0.00
4-4 Chapter 4: Appendix B Connectors/ Pinouts
Table 6(continued): Echo DB-78 pinouts
Pin
Port
No.
No.
40 1 RTS RTS A(-)
41 1 CTS RTS B(+)
42 1 Reserved CTS A(-)
43 1 Reserved CTS B(+)
44 1 SG SR
45 2 RTS RTS A(-)
46 2 CTS RTS B(+)
47 2 Reserved CTS A(-)
48 2 CTS B(+)
49 3 RTS RTS A(-)
50 3 CTS RTS B(+)
51 3 Reserved CTS A(-)
52 3 Reserved CTS B(+)
53 3 SG SR
54 4 RTS RTS A(-)
55 4 CTS RTS B(+)
56 4 Reserved CTS A(-)
57 4 CTS B(+)
58
59
60 1 TxD TxD A(-)
61 1 RxD TxD B(+)
62 1 DTR RxD A(-)
63 1 DCD RxD B(+)
64 2 SG SR
65 2 TxD TxD A(-)
66 2 RxD TxD B(+)
67 2 DTR RxD A(-)
68 2 DCD RxD B(+)
69 3 TxD TxD A(-)
70 3 RxD TxD B(+)
71 3 DTR RxD A(-)
72 3 DCD RxD B(+)
73 4 SG SR
74 4 TxD TxD A(-)
75 4 RxD TxD B(+)
76 4 DTR RxD A(-)
77 4 DCD RxD B(+)
78
RS-232
Signal
RS-485
Signal
Echo User's Manual, ver. 0.00
Chapter 4: Appendix B: Connectors/Pinouts 4-5
Connector Box /Pinouts
You may order the Echo with an external I/O Box option. The
I/O Box option comes with a metal bracket that can be mounted
on a wall or other surface. When you receive the I/O Box, this
bracket is clipped on to the back of the connector box. If you
wish to attach the I/O Box to a wall or other surface, just remove
the bracket, fasten it in place, and then re-attach the connector
box. If you wish to set the I/O Box on its rubber feet only, just
remove the bracket from the back. See Figure 18 for the
orientation of the I/O Box and Table 7 for the DB9 pinouts on
the connector box.
Figure 18: Echo I/O Box
Male DB-9 connectors
Mounting bracket
DB-78 connector
Echo User's Manual, ver. 0.00
4-6 Chapter 4: Appendix B: Connectors/Pinouts
Table 7: DB-9 pinouts - Echo I/O Box
Pin No.
1 DCD RxD B(+)
2 RxD TxD B(+)
3 TxD TxD A(-)
4 DTR RxD A(-)
5 SG SR
6 Reserved CTS A(-)
7 RTS RTS A(-)
8 CTS RTS B(+)
9 Reserved CTS B(+)
RS-232
Signal
Male DB-9 Connector
RS-485
Signal
1
6
5
9
Technical Tip:
Please ensure that you terminate the DCD or CTS signals if your
application does not use them. The common way to do this is to
connect DCD to DTR and/or to connect CTS to RTS. Failure to
do so may result in a loss of a performance on your Echo
adapter.
Echo User's Manual, ver. 0.00
Chapter 4: Appendix C - Factory Settings 4-7
Appendix C: Factory Settings
Appendix C summarizes the factory settings for the following
Echo hardware components:
Echo/ISA
Echo/ISA
The Echo ships with factory settings for the following:
I/O port address
IRQ (Interrupt Request line)
I/O Port Address Setting
The DIP switches on switch block SW1 sets the I/O port
addresses for the Echo adapter. Connect Tech ships the Echo
adapter with SW1 set for: I/O port addresses 280, 288, 290, 298,
2A0, 2A8, 2B0, 2B8 hex; status port disabled; and all ports
interrupting on channel A.
IRQ Setting
Jumper block J1 sets the IRQ line for the Echo adapter. Connect
Tech ships the Echo 8 with J1 set for IRQ 3, interrupting on
channel A.
Echo User's Manual, ver. 0.00
4-8 Chapter 4: Appendix D: RS-422/485 Wiring Diagram
Appendix D: RS-422/485 Options
RS-422/485 Cable Wiring
You can wire Echo adapters with the RS-422/485 option in
various ways to communicate with RS-422/485 peripherals. This
section will descibe a few examples of RS-422/485 cabling
schemes.
Figure 19 describes a 4 wire cabling scheme between a port on
the Echo adapter to a port on the RS-422/485 peripheral.
Figure 19: RS-422/485 wiring diagram (4 wire)
Echo adapter RS-485 peripheral
TxD +
2
TxD -
3
RxD +
1
RxD -
4
RTS +
8
CTS +
9
RTS -
7
CTS -
6
SR
5
RxD +
RxD -
TxD +
TxD -
RTS +
CTS +
RTS -
CTS -
SR
Technical Tip
The RS-422/485 electrical interface consists of a differential
signaling scheme. You should always connect the signals with
twisted pairs.
Echo User's Manual, ver. 0.00
Chapter 4: Appendix D - RS-422/485 Options 4-9
Figure 20 describes a 2 wire cabling scheme between a port on
the Echo adapter to a port on the RS-422/485 peripheral.
Figure 20: RS-422/485 wiring diagram (2 wire)
Echo adapter
RS-485 peripheral
RxD +
1
TxD +
2
TxD -
3
RxD -
4
RTS +
8
CTS +
9
RTS -
7
CTS -
6
SR
5
TxD +
RxD +
RxD -
TxD -
RTS +
CTS +
RTS -
CTS -
SR
Technical Tip
The RS-422/485 electrical interface consists of a differential
signaling scheme. You should always connect the signals with
twisted pairs.
Echo User's Manual, ver. 0.00
