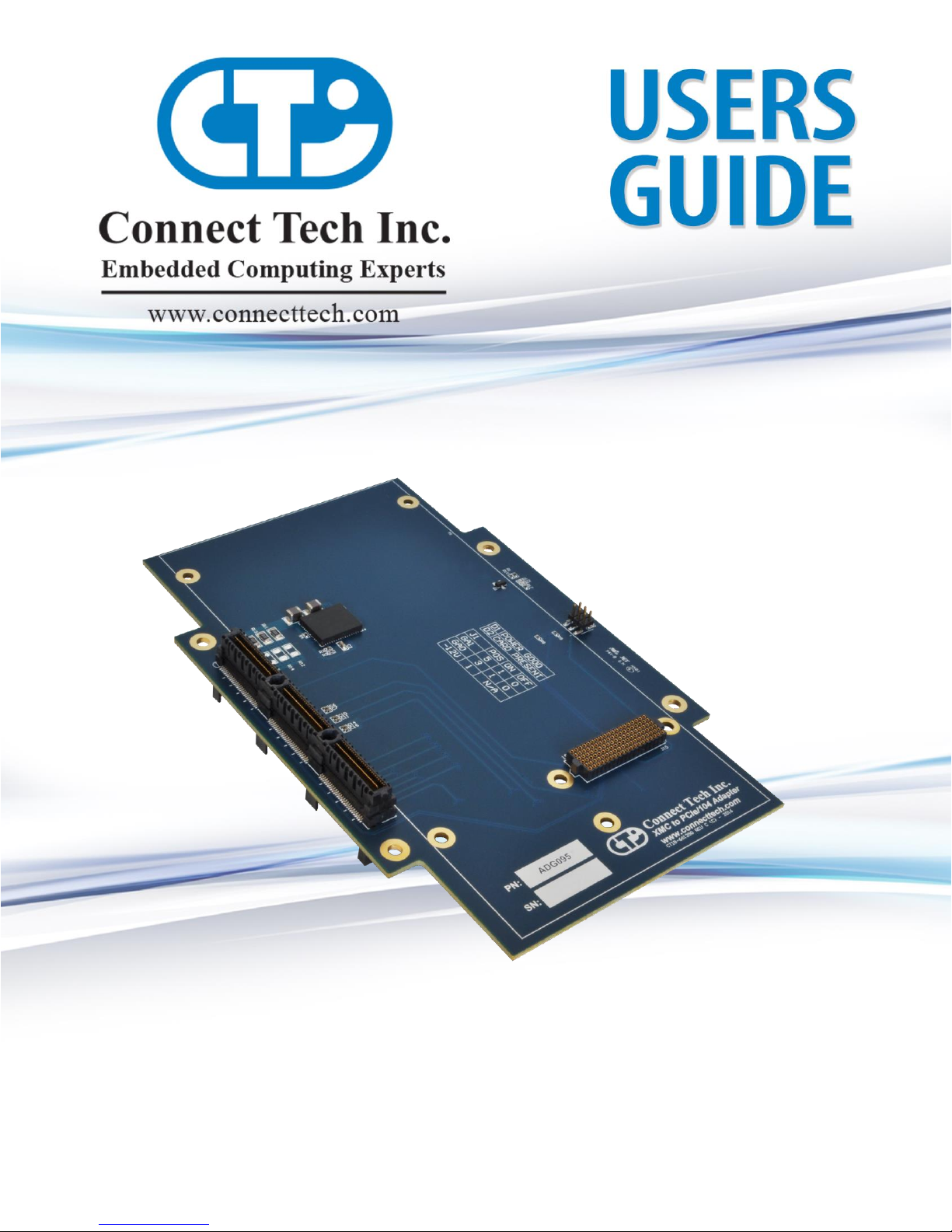

Connect Tech Inc. Tel: 519-836-1291
42 Arrow Road Toll: 800-426-8979 (North America only)
Guelph, Ontario Fax: 519-836-4878
N1K 1S6 Email: sales@connecttech.com
www.connecttech.com support@connecttech.com
CTIM-00467 Revision 0.00 2016-09-27
XMC to PCIe/104 Adapter
XMC to PCIe/104 Adapter
Users Guide
www.connecttech.com
Document: CTIM-00467
Revision: 0.00
Page 2 of 12
Connect Tech Inc. 800-426-8979 | 519-836-1291
Date: 2016-09-27
Table of Contents
Table of Contents ................................................................................................................................... 2
Preface ................................................................................................................................................... 3
Disclaimer ....................................................................................................................................................... 3
Customer Support Overview ........................................................................................................................... 3
Contact Information ........................................................................................................................................ 3
Limited Product Warranty ............................................................................................................................... 4
Copyright Notice ............................................................................................................................................. 4
Trademark Acknowledgment .......................................................................................................................... 4
ESD Warning .................................................................................................................................................. 5
Revision History .................................................................................................................................... 5
Introduction........................................................................................................................................... 6
Product Features and Specifications ................................................................................................................ 6
Product Overview .................................................................................................................................. 7
Connector Summary & Locations ................................................................................................................... 7
Jumper Summary & Locations ........................................................................................................................ 8
Detailed Feature Description .................................................................................................................. 9
PCIe/104 Connector ........................................................................................................................................ 9
Description ........................................................................................................................................... 9
Connectors & Jumpers .......................................................................................................................... 9
XMC Expansion Slot .................................................................................................................................... 10
Description ......................................................................................................................................... 10
Connectors & Jumpers ........................................................................................................................ 10
Indicator LEDs .............................................................................................................................................. 11
Description ......................................................................................................................................... 11
Connectors & Jumpers ........................................................................................................................ 11
Typical Installation .............................................................................................................................. 12
XMC to PCIe/104 Adapter
Users Guide
www.connecttech.com
Document: CTIM-00467
Revision: 0.00
Page 3 of 12
Connect Tech Inc. 800-426-8979 | 519-836-1291
Date: 2016-09-27
Preface
Disclaimer
The information contained within this user’s guide, including but not limited to any product specification, is
subject to change without notice.
Connect Tech assumes no liability for any damages incurred directly or indirectly from any technical or
typographical errors or omissions contained herein or for discrepancies between the product and the user’s
guide.
Customer Support Overview
If you experience difficulties after reading the manual and/or using the product, contact the Connect Tech
reseller from which you purchased the product. In most cases the reseller can help you with product installation
and difficulties.
In the event that the reseller is unable to resolve your problem, our highly qualified support staff can assist you.
Our support section is available 24 hours a day, 7 days a week on our website at:
www.connecttech.com/sub/support/support.asp. See the contact information section below for more
information on how to contact us directly. Our technical support is always free.
Contact Information
Mail/Courier
Connect Tech Inc.
Technical Support
42 Arrow Road
Guelph, Ontario
Canada N1K 1S6
Email/Internet
sales@connecttech.com
support@connecttech.com
www.connecttech.com
Note:
Please go to the Download Zone or the Knowledge Database in the Support Center on the Connect Tech
website for product manuals, installation guides, device driver software and technical tips.
Submit your technical support questions to our customer support engineers via the Support Center on the
Connect Tech website.
Telephone/Facsimile
Technical Support representatives are ready to answer your call Monday through Friday, from 8:30 a.m. to
5:00 p.m. Eastern Standard Time. Our numbers for calls are:
Toll Free: 800-426-8979 (North America only)
Telephone: 519-836-1291 (Live assistance available 8:30 a.m. to 5:00 p.m. EST,
Monday to Friday)
Facsimile: 519-836-4878 (on-line 24 hours)
XMC to PCIe/104 Adapter
Users Guide
www.connecttech.com
Document: CTIM-00467
Revision: 0.00
Page 4 of 12
Connect Tech Inc. 800-426-8979 | 519-836-1291
Date: 2016-09-27
Limited Product Warranty
Connect Tech Inc. provides a 2 year Warranty for the XMC to PCIe/104 Adapter. Should this product, in
Connect Tech Inc.'s opinion, fail to be in good working order during the warranty period, Connect Tech Inc.
will, at its option, repair or replace this product at no charge, provided that the product has not been subjected
to abuse, misuse, accident, disaster or non-Connect Tech Inc. authorized modification or repair.
You may obtain warranty service by delivering this product to an authorized Connect Tech Inc. business
partner or to Connect Tech Inc. along with proof of purchase. Product returned to Connect Tech Inc. must be
pre-authorized by Connect Tech Inc. with an RMA (Return Material Authorization) number marked on the
outside of the package and sent prepaid, insured and packaged for safe shipment. Connect Tech Inc. will
return this product by prepaid ground shipment service.
The Connect Tech Inc. Limited Warranty is only valid over the serviceable life of the product. This is defined
as the period during which all components are available. Should the product prove to be irreparable, Connect
Tech Inc. reserves the right to substitute an equivalent product if available or to retract the Warranty if no
replacement is available.
The above warranty is the only warranty authorized by Connect Tech Inc. Under no circumstances will
Connect Tech Inc. be liable in any way for any damages, including any lost profits, lost savings or other
incidental or consequential damages arising out of the use of, or inability to use, such product.
Copyright Notice
The information contained in this document is subject to change without notice. Connect Tech Inc. shall not
be liable for errors contained herein or for incidental consequential damages in connection with the furnishing,
performance, or use of this material. This document contains proprietary information that is protected by
copyright. All rights are reserved. No part of this document may be photocopied, reproduced, or translated to
another language without the prior written consent of Connect Tech, Inc.
Copyright 2016 by Connect Tech, Inc.
Trademark Acknowledgment
Connect Tech, Inc. acknowledges all trademarks, registered trademarks and/or copyrights referred to in this
document as the property of their respective owners. Not listing all possible trademarks or copyright
acknowledgments does not constitute a lack of acknowledgment to the rightful owners of the trademarks and
copyrights mentioned in this document.
XMC to PCIe/104 Adapter
Users Guide
www.connecttech.com
Document: CTIM-00467
Revision: 0.00
Page 5 of 12
Connect Tech Inc. 800-426-8979 | 519-836-1291
Date: 2016-09-27
Electronic components and circuits are sensitive to
ElectroStatic Discharge (ESD). When handling any circuit
board assemblies including Connect Tech COM Express
carrier assemblies, it is recommended that ESD safety
precautions be observed. ESD safe best practices include,
but are not limited to:
Leaving circuit boards in their antistatic packaging
until they are ready to be installed.
Using a grounded wrist strap when handling circuit
boards, at a minimum you should touch a grounded
metal object to dissipate any static charge that may be
present on you.
Only handling circuit boards in ESD safe areas, which
may include ESD floor and table mats, wrist strap
stations and ESD safe lab coats.
Avoiding handling circuit boards in carpeted areas.
Try to handle the board by the edges, avoiding contact
with components.
Revision
Date
Changes
0.00
2016-09-27
Initial Release
ESD Warning
Revision History
XMC to PCIe/104 Adapter
Users Guide
www.connecttech.com
Document: CTIM-00467
Revision: 0.00
Page 6 of 12
Connect Tech Inc. 800-426-8979 | 519-836-1291
Date: 2016-09-27
Specifications
Form Factor
PCIe/104 oversize, XMC
Dimensions
96.018 mm x 152.4 mm (3.780” x 6.000”), 1-up
Expansion Slots
XMC, PCIe x8 Gen 2.0
Connectors
PCIe/104 Type 1, XMC
Power input
+5V over PCIe/104
Power to XMC
+5V (default). May be modified to +12V if required, contact sales or support.
Operating Temperature
Industrial -40C to +85C
Compliance
ROHS
Introduction
Connect Tech’s XMC to PCIe/104 Adapter Board is an engineering tool for the purpose of enabling rapid
development of systems requiring the use of next generation form factor peripheral cards. This product
complies with the VITA 42 specification.
Product Features and Specifications
XMC to PCIe/104 Adapter
Users Guide
www.connecttech.com
Document: CTIM-00467
Revision: 0.00
Page 7 of 12
Connect Tech Inc. 800-426-8979 | 519-836-1291
Date: 2016-09-27
Product Overview
Connector Summary & Locations
ADG095 Top View
XMC to PCIe/104 Adapter
Users Guide
www.connecttech.com
Document: CTIM-00467
Revision: 0.00
Page 8 of 12
Connect Tech Inc. 800-426-8979 | 519-836-1291
Date: 2016-09-27
Designator
Description
P1
PCIe/104 Top Connector
P2
PCIe/104 Bottom Connector
J15
XMC Connector
D1
Power Good LED
D2
Card Present LED
Designator
Description
J1
Miscellaneous Header
ADG095 Bottom
View
Jumper Summary & Locations
XMC to PCIe/104 Adapter
Users Guide
www.connecttech.com
Document: CTIM-00467
Revision: 0.00
Page 9 of 12
Connect Tech Inc. 800-426-8979 | 519-836-1291
Date: 2016-09-27
Function
PCIe/104 Top Interface
Location
P1
Type
Samtec fine pitch stacking connector, part
number: ASP129637-03
Pinout
Refer to PCI/104-Express & PCIe/104
Specification, Rev 2.01
Function
PCIe/104 Bottom Interface
Location
P2
Type
Samtec fine pitch stacking connector
part number: ASP-129646-03
Pinout
Refer to PCI/104-Express & PCIe/104
Specification, Rev 2.01
Detailed Feature Description
PCIe/104 Connector
Description
PCIe/104 interface to CPU module
Connectors & Jumpers
XMC to PCIe/104 Adapter
Users Guide
www.connecttech.com
Document: CTIM-00467
Revision: 0.00
Page 10 of 12
Connect Tech Inc. 800-426-8979 | 519-836-1291
Date: 2016-09-27
Function
XMC Expansion Slot
Location
J15
Type
Connector for XMC peripheral cards
PN: ASP-103612-04
Pinout
See ANSI/VITA 42.3 Specification for full
details
Function
Miscellaneous Header
Location
J1
Type
PN: TMM-103-01-L-D-SM
Pinout
Pin
Description
1
-12V input
2
-12V input
3
GA1
4
GND
5
GA0
6
GND
XMC Expansion Slot
Description
M.2 interface slots for expansion cards. Can be ordered in either key E or key BM. Card type support is listed
below.
See Part Numbers/Ordering Information section for more ordering details.
Connectors & Jumpers
XMC to PCIe/104 Adapter
Users Guide
www.connecttech.com
Document: CTIM-00467
Revision: 0.00
Page 11 of 12
Connect Tech Inc. 800-426-8979 | 519-836-1291
Date: 2016-09-27
Function
Indicator LED’s
Location
D1, D2
D1
Power good
D2
Card Present
Indicator LEDs
Description
Indicator LED’s
Connectors & Jumpers
XMC to PCIe/104 Adapter
Users Guide
www.connecttech.com
Document: CTIM-00467
Revision: 0.00
Page 12 of 12
Connect Tech Inc. 800-426-8979 | 519-836-1291
Date: 2016-09-27
Typical Installation
Card may be installed in a stack-up or stack-down configuration. 10mm height, M2.5 standoffs required between
XMC adapter and XMC expansion card. Example stack-up on Connect Tech’s Com Express Type 6 104e Carrier
shown below:
