Introduction
Connect Tech's Xtreme/104-Express multi-port serial boards provide a fully compliant PCI/104Express communications solution for industrial and embedded needs.
Xtreme/104-Express features a built-in baud rate prescaler to allow almost any non-standard
baud rate to be matched with a high level of accuracy. The onboard fail-safe 1/8th load
transceivers allow up to 256 devices on a multi-drop RS-485 bus. Filtering on all ports help
improve immunity to EMI and noisy transmission lines for guaranteed dependability in
communications.
The Xtreme/104-Express is perfect for military, aerospace, medical, instrumentation and
industrial control applications, among others. Full industrial temperature range (-40°C to 85°C)
operation is standard.
Features
● Eight hardware switchable RS-232/422/485 ports
● Fully PCI/104-Express compliant
● 9-bit data support allows for command/data addressing in RS-485 networks
● Supports RS-485 full duplex (four wire) with RTS/CTS flow control, half duplex
(two wire) with auto TxD echo cancellation and multi-drop (four wire)
communication modes
● Data communication speeds up to 15.625 Mbps in RS-422/485
● Each port is individually hardware selectable for tri-state on power-up in RS-485
mode
● 1/8 load RS-485 transceivers allow up to 256 devices on a bus
● Industrial temperature range of -40ºC to 85ºC
● Filtering on all ports to improve immunity to EMI and noisy transmission lines
● Plug and play - no jumpers to set for memory or interrupt configuration
Revision 0.00
6
Xtreme/104-Express Board Diagram
Connect Tech Xtreme/104-Express User Manual
Figure 1: Xtreme/104-Express Hardware Components
Revision 0.00
7
Connect Tech Xtreme/104-Express User Manual
Xtreme/104-Express Installation Overview
Before you begin, take a moment to ensure your package includes the components that ship with
your product. These components should include:
One Xtreme/104-Express adapter
One CD containing software and documentation
DB-9 male fan-out cables (optional)
If any of these components are missing, contact Connect Tech or your reseller.
There are three stages to installing your Xtreme/104-Express:
1. Hardware Configuration
Interrupts and memory selection will be set by the host computer’s BIOS and operating
system. This section outlines jumper settings and configuration.
2. Hardware Installation
Installation involves the physical installation of the Xtreme/104-Express into your
computer. Please note that you should configure any jumper settings prior to installing
the board.

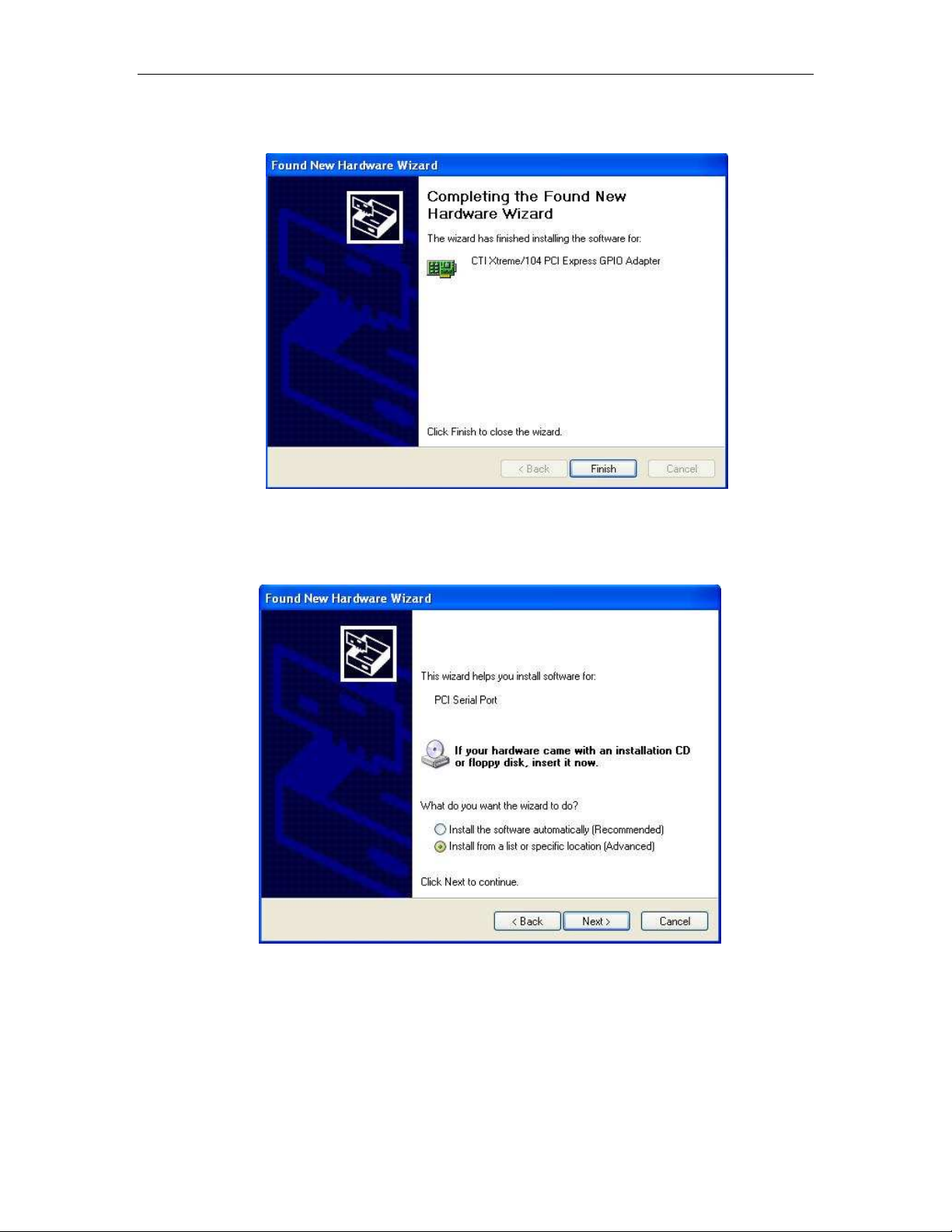

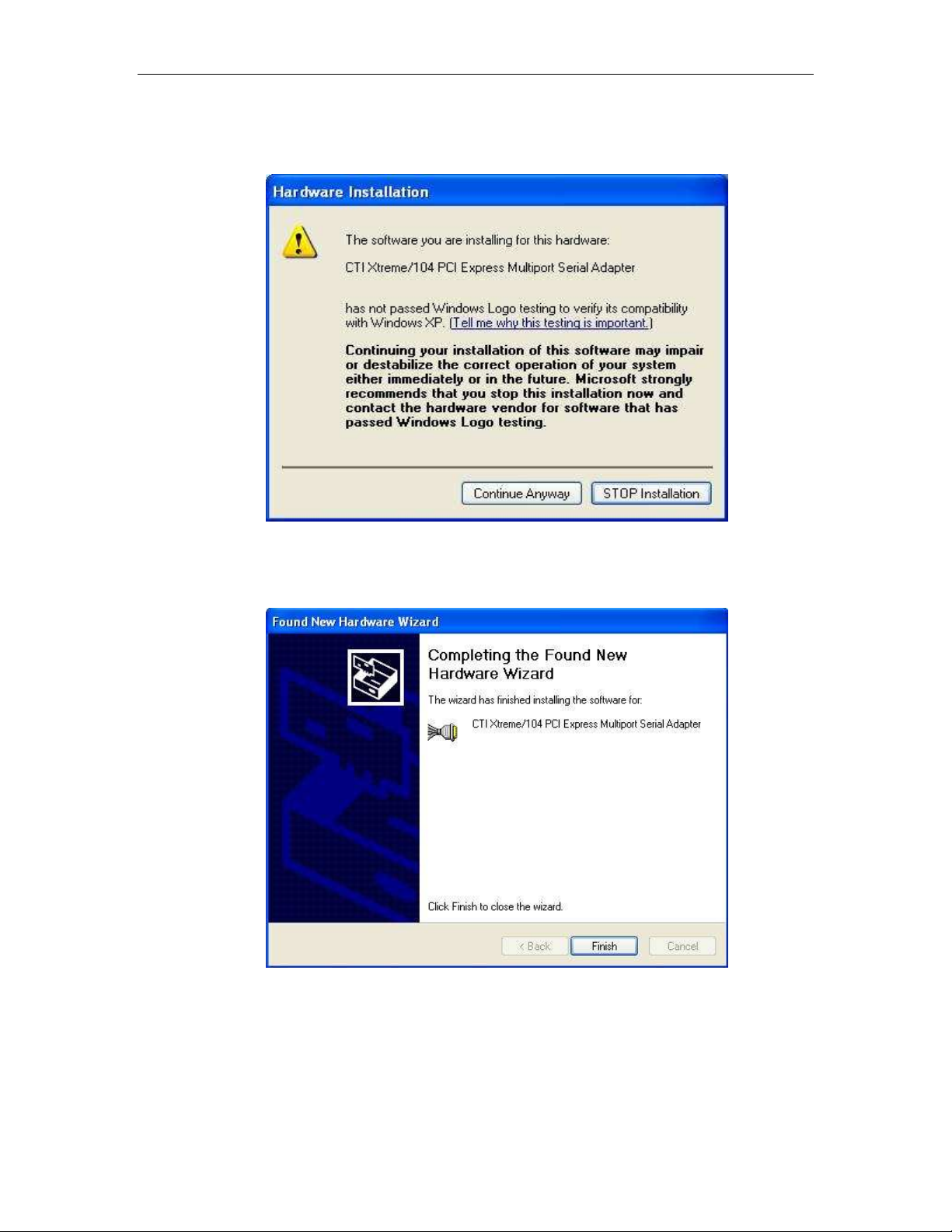

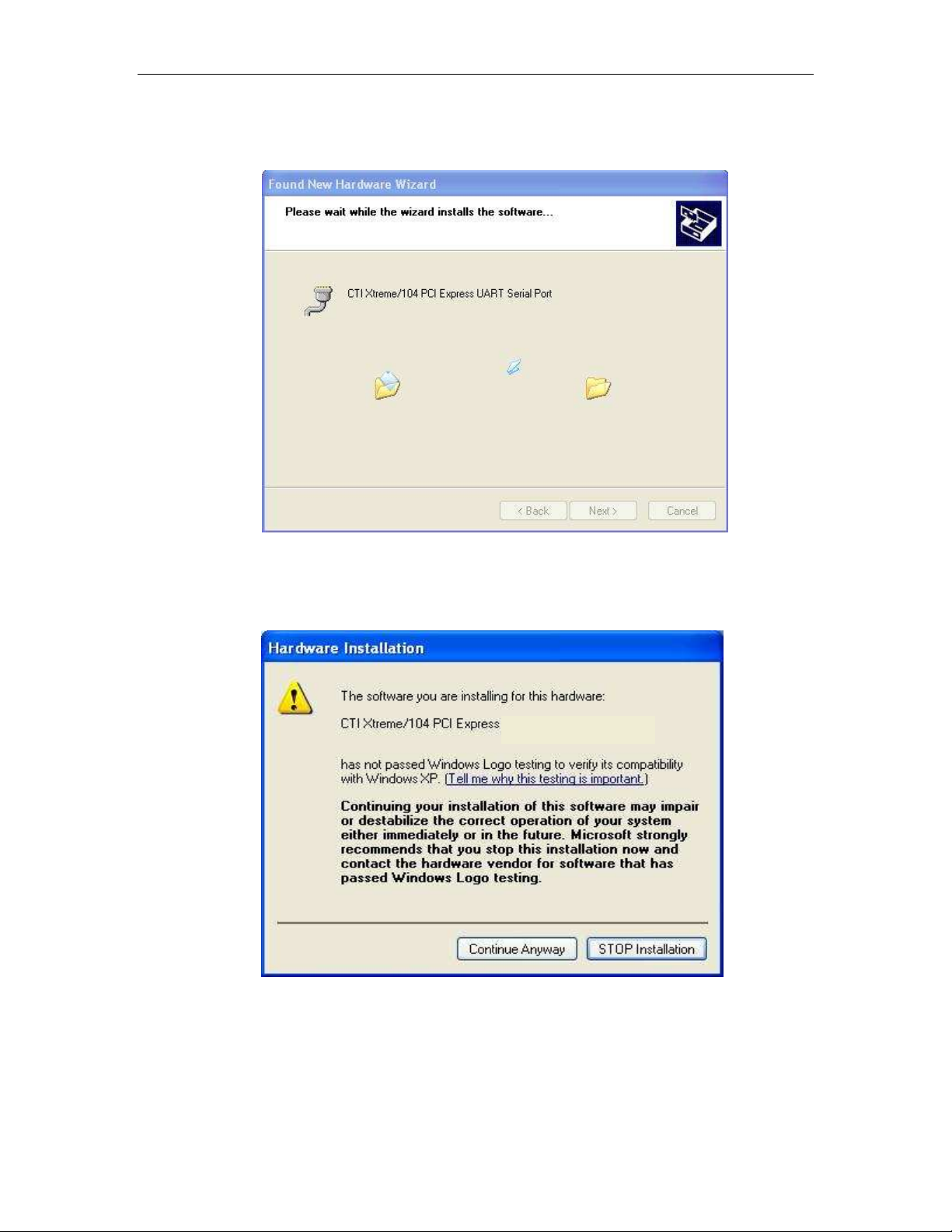

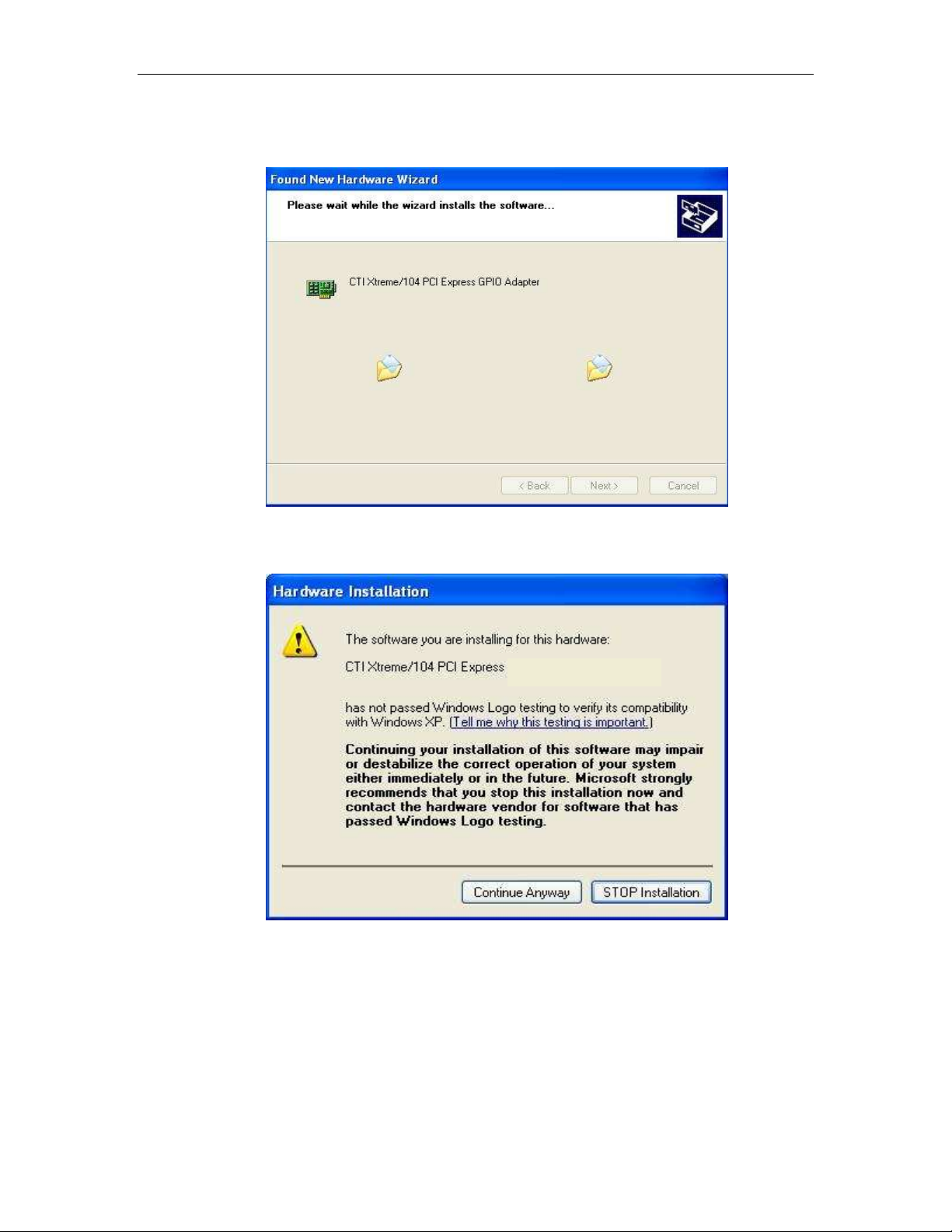

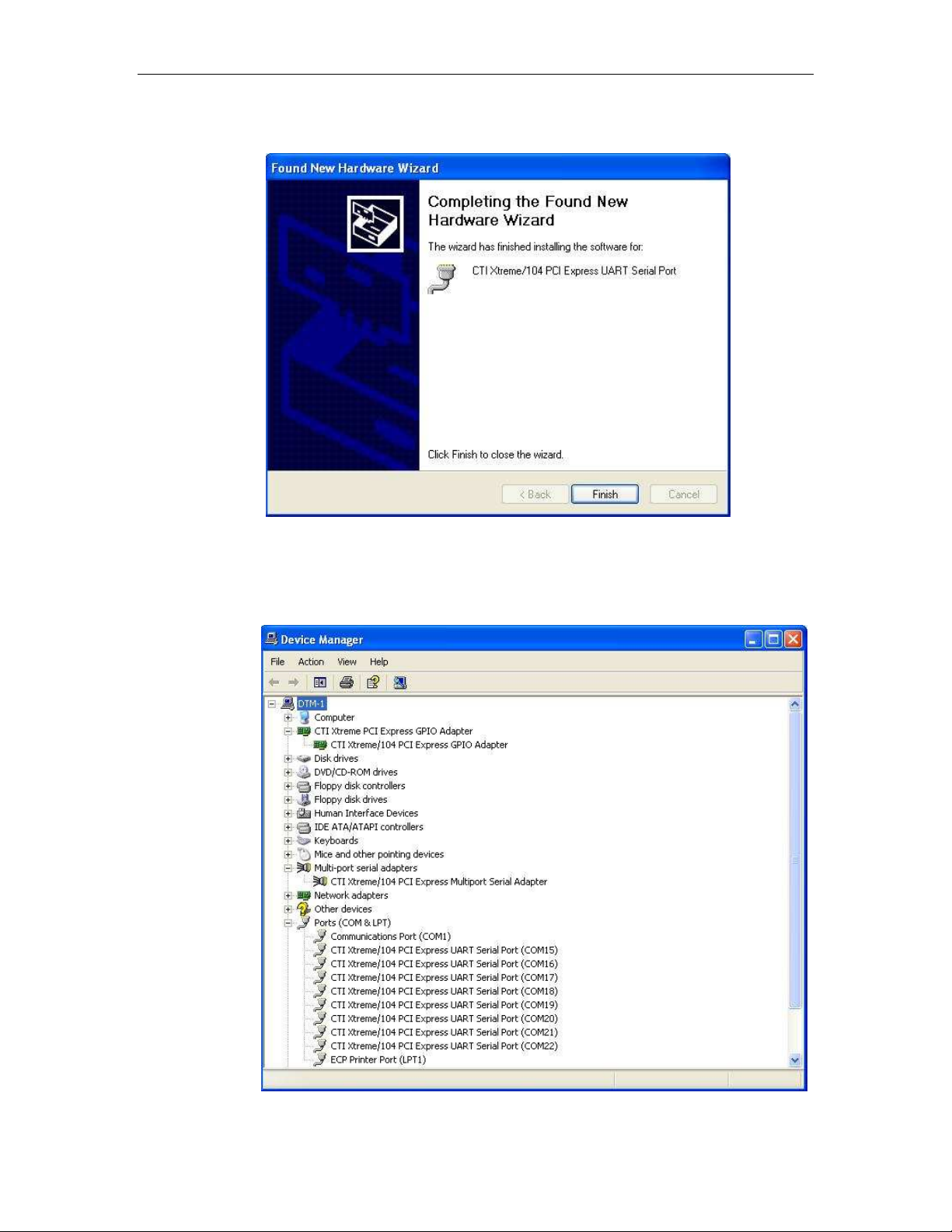

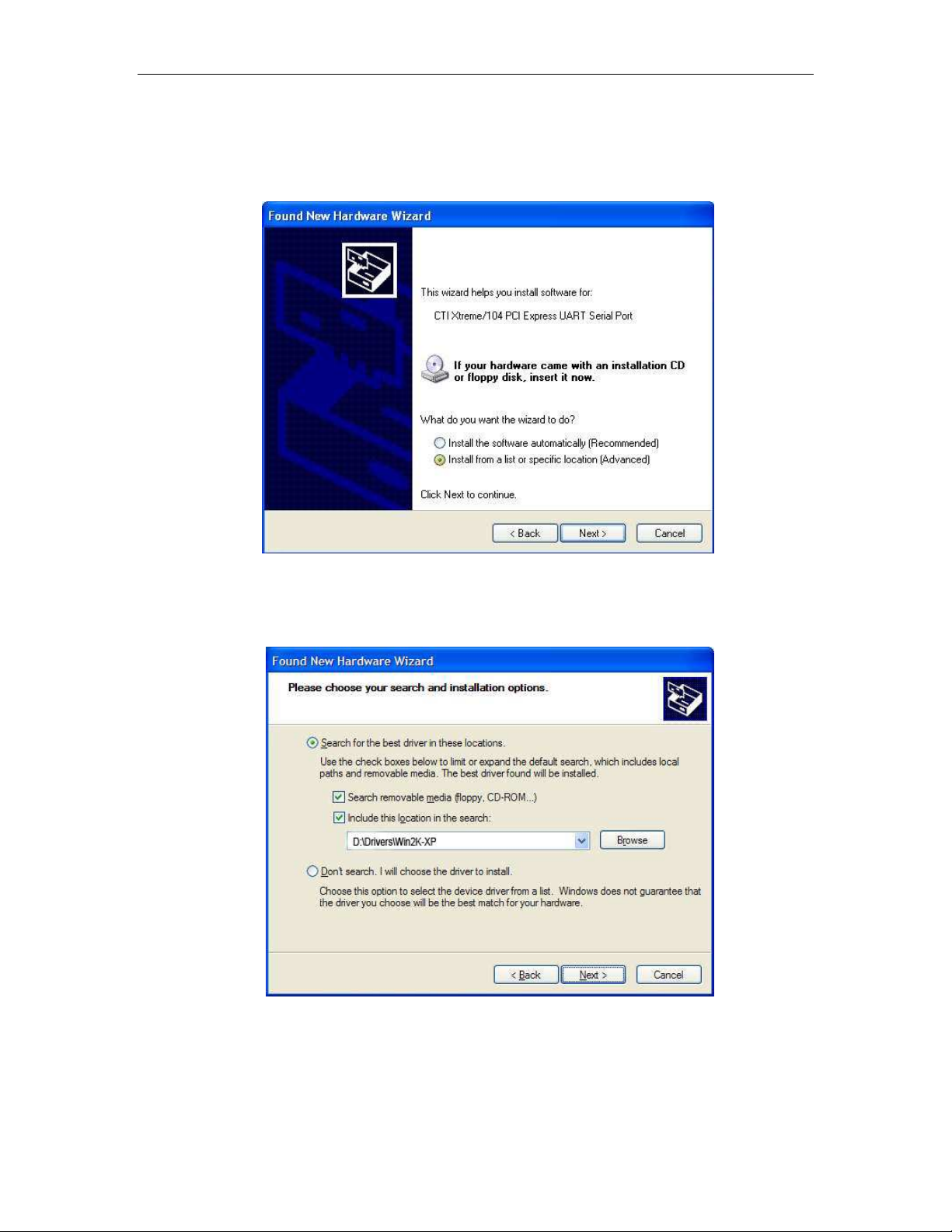

3. Software/Driver Installation
Load the appropriate driver for your operating system, as found on the accompanying
CD. Installation guides are also available on the CD to aid you in this process.
Hardware Configuration
Interrupts and Memory Address Selection
The Xtreme/104-Express board is a PCI/104-Express card, so the host computer’s BIOS will
automatically set interrupts and memory addresses when you power up the system. Depending
on the operating system you are using, the operating system may opt to re-configure the devices.

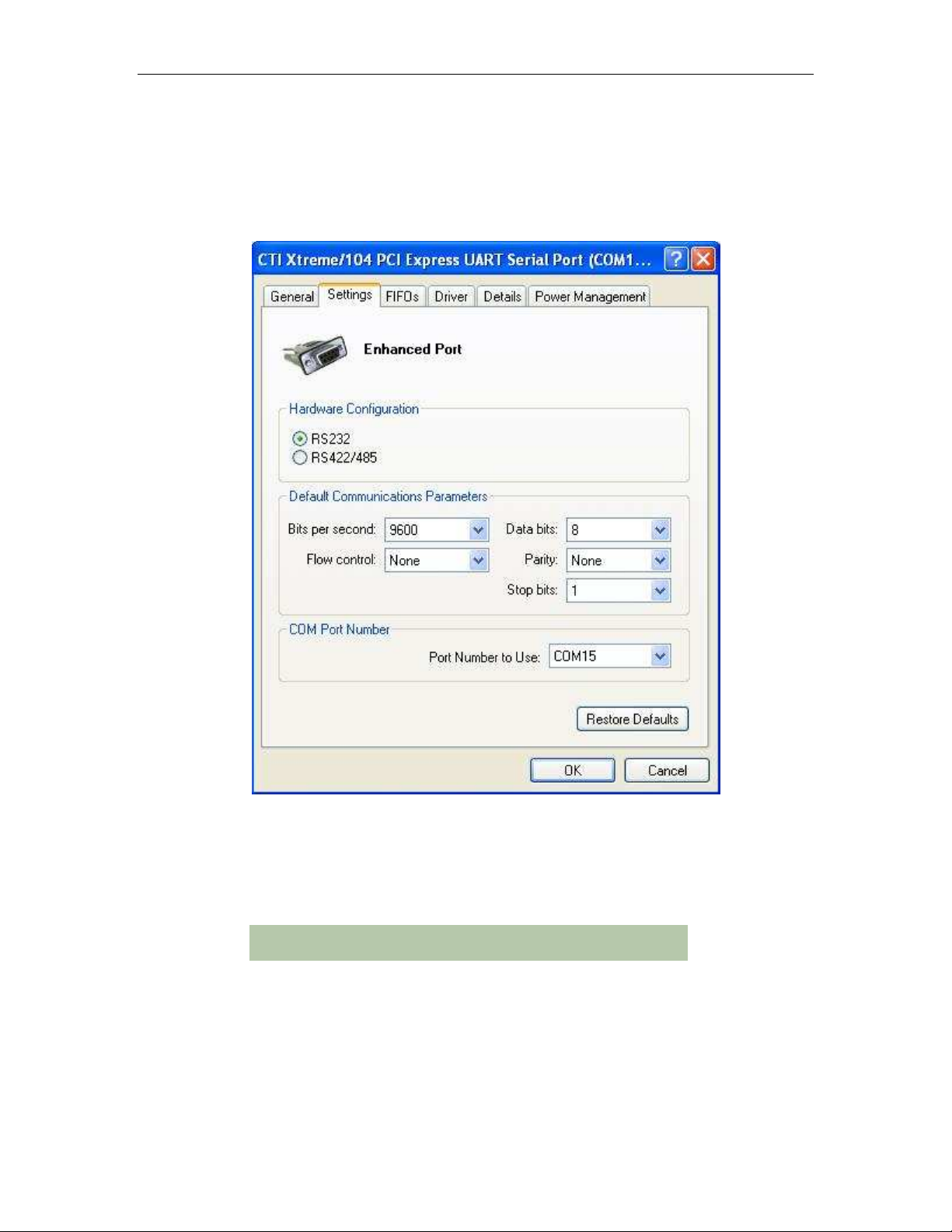

Electrical Interfaces
RS-232 Electrical Interface
This is the default setting for the selectable interface of the Xtreme/104-Express. To operate a
port in RS-232 mode, no jumpers are installed on the corresponding jumper block.
RS-422/485 Electrical Interface
Xtreme/104-Express models offer three modes of RS-422/485 communication, as outlined

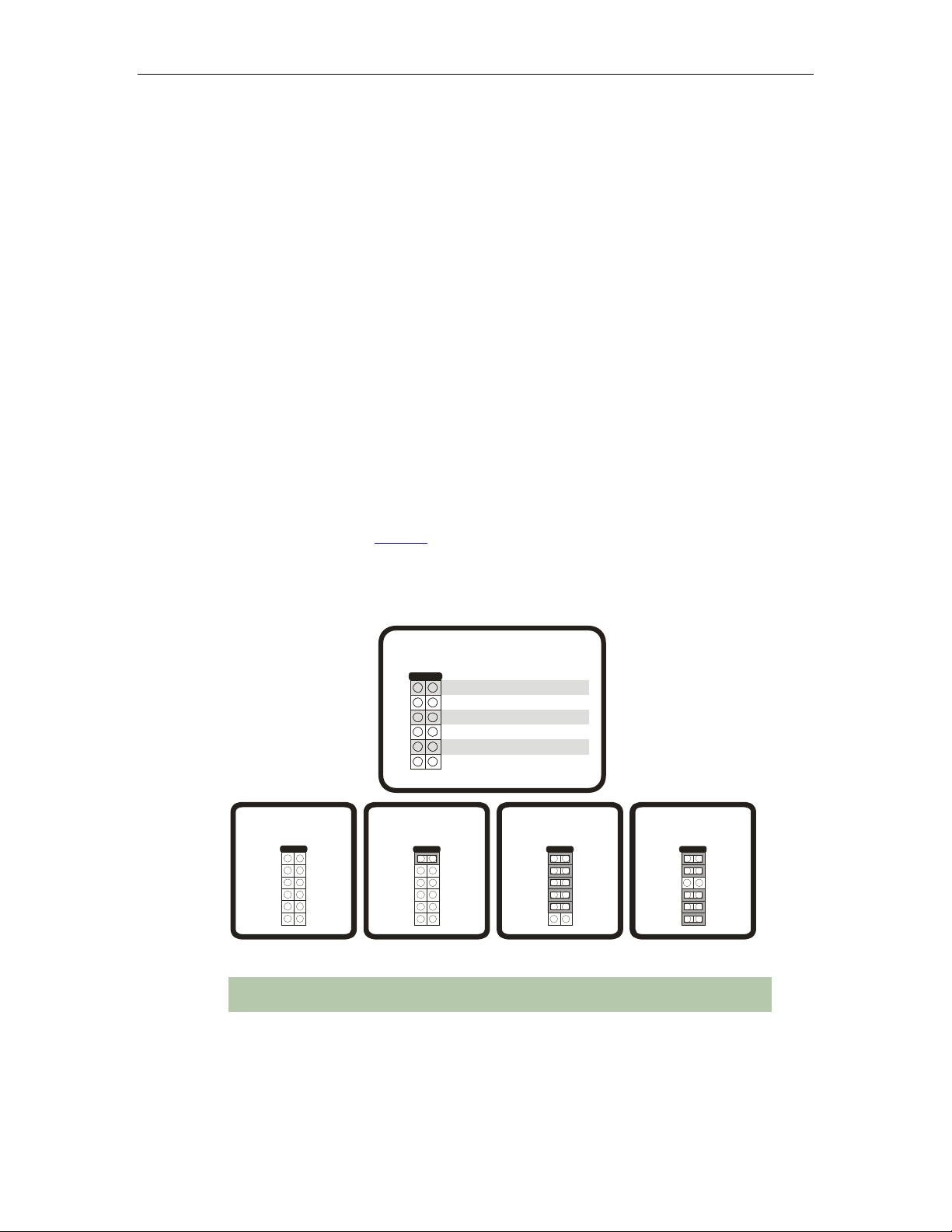

below. (See Figure 2 to see examples of jumper settings.)
Full Duplex Mode
In this mode, TxD+/- is being driven to a known level all the time. This mode is typically used in
point-to-point situations much like RS-232. It is the default setting for RS-422/485 mode.
