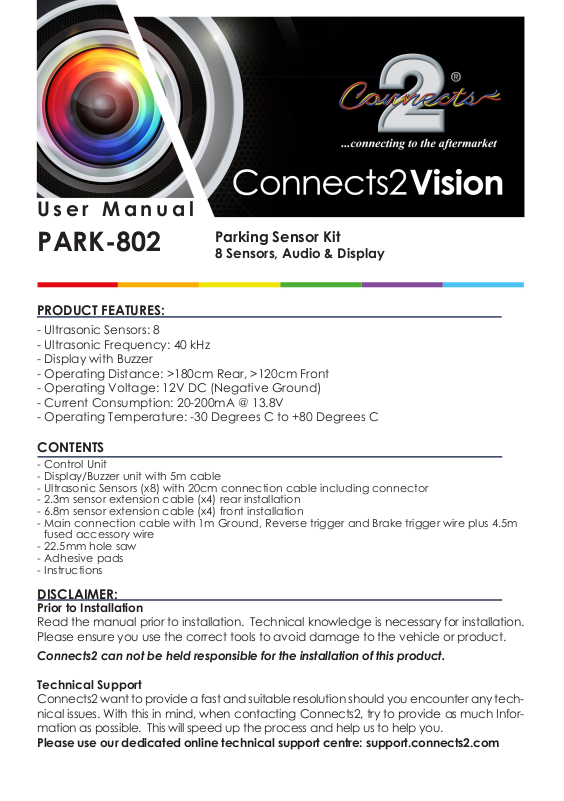

User Manual
PARK-802
Parking Sensor Kit
8 Sensors, Audio & Display
PRODUCT FEATURES:
- Ultrasonic Sensors: 8
- Ultrasonic Frequency: 40 kHz
- Display with Buzzer
- Operating Distance: >180cm Rear, >120cm Front
- Operating Voltage: 12V DC (Negative Ground)
- Current Consumption: 20-200mA @ 13.8V
- Operating Temperature: -30 Degrees C to +80 Degrees C
CONTENTS
- Control Unit
- Display/Buzzer unit with 5m cable
- Ultrasonic Sensors (x8) with 20cm connection cable including connector
- 2.3m sensor extension cable (x4) rear installation
- 6.8m sensor extension cable (x4) front installation
- Main connection cable with 1m Ground, Reverse trigger and Brake trigger wire plus 4.5m
fused accessory wire
- 22.5mm hole saw
- Adhesive pads
- Instructions
DISCLAIMER:
Prior to Installation
Read the manual prior to installation. Technical knowledge is necessary for installation.
Please ensure you use the correct tools to avoid damage to the vehicle or product.
Connects2 can not be held responsible for the installation of this product.
Technical Support
Connects2 want to provide a fast and suitable resolution should you encounter any technical issues. With this in mind, when contacting Connects2, try to provide as much Information as possible. This will speed up the process and help us to help you.
Please use our dedicated online technical support centre: support.connects2.com
INSTALLATION
Connects2Vision
NB: If the Sensors are painted before tment, please do not apply paint in many coats, only
sufcient paint to give good colour. Overloading paint onto sensors may affect their function
and performance
1. Connect the Black wire to a suitable ground, the Red wire to a switched +12V supply, the
Blue wire to the brake light circuit and the Yellow wire to the reversing light circuit or an interface which provides a reverse signal.
2. Attach a length of masking tape along the bumper where the sensors are to be located
and mark the position of the holes. It is advisable to choose a height of between 50-80cm and
a spacing of between 30-40cm.
3. Check for any metalwork, cables or fuel/oil storage before attempting to drill the bumper.
After checking the area, cut suitable holes using the cutting tool provided.
4. Rotate each sensor so the UP arrow is pointing upwards and insert the sensor into the bumper.
5. Connect the extension cables between the sensors and control unit (sensors 1-4 rear and
5-8 front)
6. Mount the display/buzzer unit in a suitable location so it can be easily seen and heard by
the driver and connect the cable to the control unit. NB: To disable the warning beeps, move
the position of the switch on the display/buzzer unit.
7. Engage reverse gear and ensure the system is working correctly and that the distance of
the object detected corresponds with the warning beeps and digital display (see Awareness/
Distance/Sound information) NB: When reverse gear is engaged, both front and rear sensors
are active and will stay active for up to 120 seconds after reverse gear is disengaged.
8. When the front brake pedal is pressed, the front sensors are active and will stay active for up
to 10 seconds after the pedal is released.
AWARENESS/DISTANCE/SOUND INFORMATION
REAR SENSORS FRONT SENSORS
Awareness: Safe Mode
Distance: 1.8-1.2m
Sound: BI..BI..BI..
Digital Display: 1.8-1.2
LED Indicator Colour: Green
Awareness: Alarm Mode
Distance: 1.2-0.6m
Sound: BI.BI.BI.
Digital Display: 1.2-0.6
LED Indicator Colour: Green, Yellow
Awareness: Danger Mode
Distance: 0.5-0.3m
Sound: BIBIBI
Digital Display: 0.5-0.3
LED Indicator Colour: Green, Yellow, Red
Awareness: Danger Mode
Distance: 0.3-0m
Sound: BIIIIII
Digital Display: 0.3-0.0
LED Indicator Colour: Green, Yellow, Red
Subscribe to our YouTube Channel for installation
guides and tips... www.youtube.com/connects2
2
www.connects2.com
Awareness: Safe Mode
Distance: 1.2-1.1m
Sound: BI..BI..BI
Digital Display: 1.2-1.1
LED Indicator Colour: Green
Awareness: Alarm Mode
Distance: 1.1-0.6m
Sound: BI.BI.BI.
Digital Display: 1.1-0.6
LED Indicator Colour: Green, Yellow
Awareness: Danger Mode
Distance: 0.5-0.3m
Sound: BIBIBI
Digital Display: 0.5-0.3
LED Indicator Colour: Green, Yellow, Red
Awareness: Danger Mode
Distance: 0.3-0m
Sound: BIIIIII
Digital Display: 0.3-0m
LED Indicator Colour: Green, Yellow, Red
