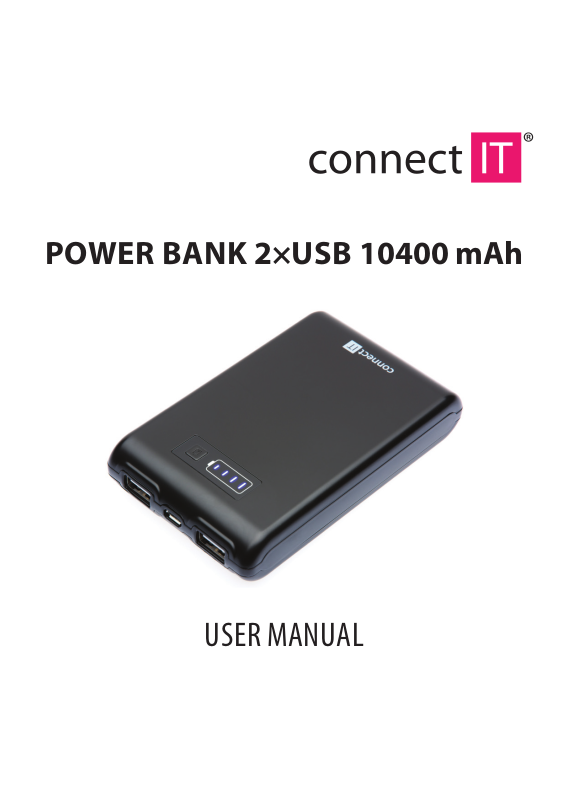

POWER BANK 2×USB 10400 mAh
USER MANUAL
Page 2
1 Features
Compatible with most mobile telephones
and digital devices
USB port
LED battery status indicator
Technical specications:
Battery type: Lithium-ion (Samsung battery)
2
3
1
5
4
Capacity: 10400 mAh
Included is a micro-USB cable (25 cm)
micro-USB port: DC 5.0V/1A
USB output: DC5.0V/2A DC5.0V/1A
Dimensions: 114×68×21.5 mm
Weight: 240 g
1. battery status
2. button
3. output 1
4. output 2
5. microUSB port
2 Anleitung
1. To display battery status briey press the button (2 in the Figure):
5–25 % one diode is illuminated
25–50 % two diodes are illuminated
50–75 % three diodes are illumi-
75–100 % four diodes are illumi-
2. Upon connecting a device to the power bank it will automatically begin to
charge.
3. Once charging has terminated, disconnect the device.
4. For charging of the power bank, use a microUSB cable (port 5 in the Figure). A 5V
AC/DC USB adaptor or USB computer port may be used for charging. The diodes
will continue ash until the device is charged. Once it is fully charged, the lights will
remain illuminated until the energy source is disconnected.
5. The power bank has two outputs to charge a mobile phone or other device.
Output 1: Supports most mobile devices (5V). Supports Apple devices (use original
cables for charging).
Output 2: Supports most 2.1A devices.
NOTE: The power bank surface warms up during charging. Therefore, do not cover it
when being used, do not subject it to excessive heat or cold and avoid dropping or
shocking the unit.
nated
nated
Page 3
Important Information about Power Banks
Capacity
Energy transfer from one accumulator to another cannot take place on a lossless basis. If
your phone has a battery with a capacity of 2500 mAh, this, unfortunately, does not mean
that a 5000 mAh power bank will charge the phone two times. The calculation is subject
to a number of factors.
Power bank batteries have an internal voltage of 3.7 V, while a standard USB output has
5V. In such a transfer, there is a loss of approximately 10 – 20%. The battery inside the
phone usually works with voltage ranging from 3.7 – 3.8 V. In this case, then, a conversion
takes place from 5 V to 3.7/3.8 V. After discounting the loss from the voltage transfer, the
device being charged can make use of approximately 65% of the energy stored in the
power bank.
For the reasons above, when selecting a power bank, the loss resulting from charging
must be taken into account and a power bank with a high battery capacity should be
chosen.
How to Make Best Use of a Power Bank?
To make maximum use of the energy stored, charge your device before it runs out of
power.
Use a power bank whose output current is at least 2 A.
Do not subject the power bank to direct sun and high temperatures. The ideal tempe-
rature ranges from 0 up to 25° C.
Charging can be negatively impacted by using a poor quality cable.
Before long-term storage, charge the power bank to approximately 50%; you will
extend its life.
Store it in a dark, dry location with a temperature ranging from 0 to 20° C.
If the device being charged is turned on during the charging process, energy is con-
currently consumed. That is why all energy demanding functions (Wi-Fi, video, games,
etc.) should be turned o for speedy charging.
