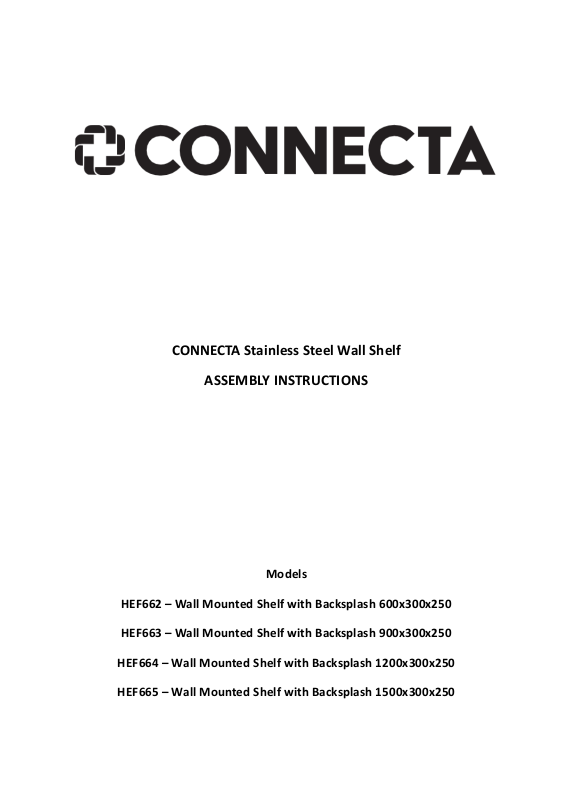

CONNECTA Stainless Steel Wall Shelf
ASSEMBLY INSTRUCTIONS
Models
HEF662 – Wall Mounted Shelf with Backsplash 600x300x250
HEF663 – Wall Mounted Shelf with Backsplash 900x300x250
HEF664 – Wall Mounted Shelf with Backsplash 1200x300x250
HEF665 – Wall Mounted Shelf with Backsplash 1500x300x250
Page 2
Stainless Steel Wall Mount Shelf Series
Installation Instruction
Safety Tips:
·Do not overload the shelf, this may cause it to bend.
·Care must be taken when cleaning or handling the shelf to avoid possible
injury from exposed edges.

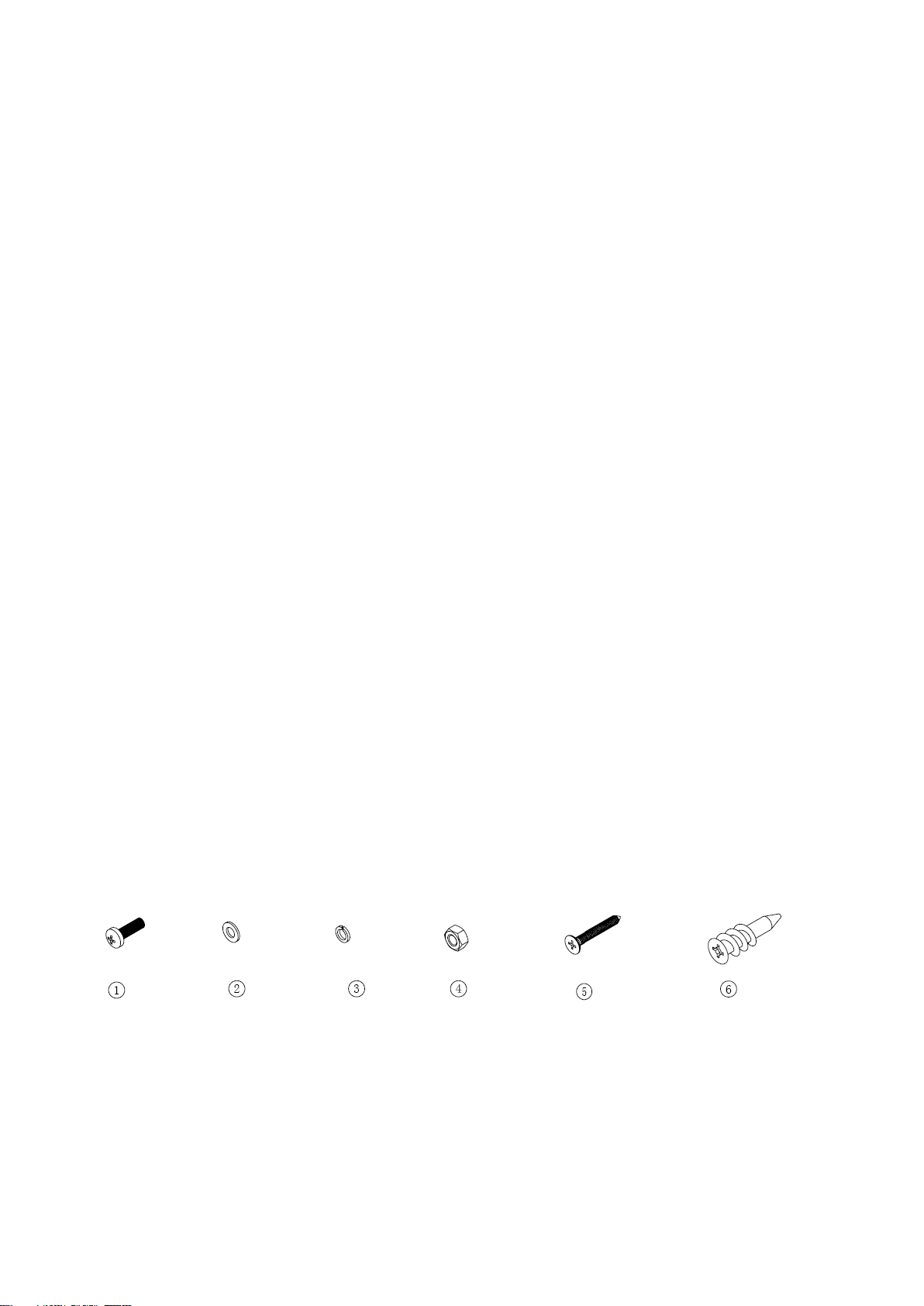

Pack contains:
·Stainless Steel Wall Shelf x 1
·Triangular Wall Shelf Brackets x 2 (3 pcs for length of 1200cm and up)
·Screw ① x 5
·Washer ② x 5
·Washer ③ x 5
·Hex Nut ④ x 5
·Screw ⑤ x 7 (10pcs for length of 1200cm and up)
·Self-Threaded Anchors ⑥ x7 (10pcs for length of 1200cm and up)
Note: Be sure to check all packaging materials for any small parts that may have come
loose during transportation
Tools you will need: Lever, Stud Sensor, Philips Screw Driver, Drill
Page 3
Assembly Instructions:
1. Remove all protective film from the parts, taking care to avoid scratching the surfaces
2. Determine the size (width and height) of the shelving area.
3. Use the stud sensor to find the first one and mark it using a pencil or chalk. Then, find
the other studs. You need at least 2 studs to hang shelves, but 3 would be better for
length of 1500mm & up.
4. Put the triangular bracket against the wall and mark the screw holes. Use the level to
mark screw holes at the correct location on the other stud(s).
5. Attach one triangular bracket to the wall. First make a hole of the same size as the
screw using the drill, then hold the bracket against the wall and attach with screws. Do
the same with the other triangular bracket(s). Make sure the screw holes are aligned
(they should be if step 3 is done correctly).
6. Put a thin layer of silicon on the top of all brackets and lay the shelf on the brackets,
then use provided Philips screws and nuts to secure the shelf through the pre-drilled
holes on both side of the shelf.
Page 4

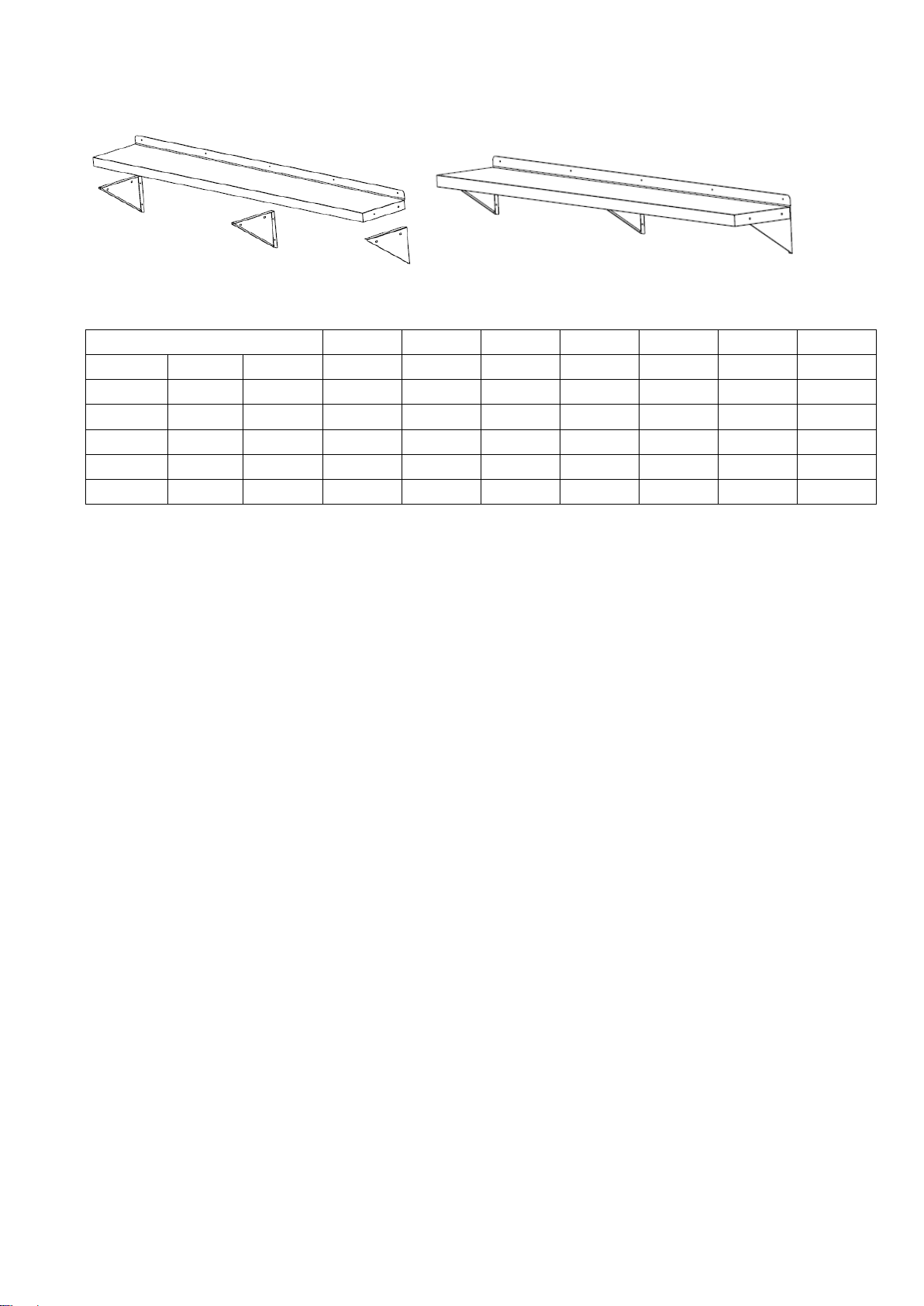

7.Parts List:
Product Size (mm)
Bracket
① ② ③ ④ ⑤
⑥
Length
Width
Height
quantity
pcs
pcs
pcs
pcs
pcs
pcs
600
300
250 2 5 5 5 5 7 7 900
300
250 2 5 5 5 5 7 7 1200
300
250 2 5 5 5 5 7 7 1500
300
250 3 5 5 5 5 10
10
1800
300
250 3 5 5 5 5 10
10
Note: The Central support does not attach to the shelf.
Ensure the mounting substrate can support the fully loaded weight of the shelf.
If necessary, seek professional help to ensure the shelf is safely mounted
Cleaning
⚫ Clean the shelf regularly using a cleaning agent suitable for use with stainless steel.
⚫ Always remove cleaning agent residue. This can discolour the surface of the shelf.
⚫ Never leave the shelf surface damp as this can cause discolouration.
