Dear customer,
this is a short description to give you some basic informations about the GSM modem you purchased.
Informations to the AT commands you will find on the CD
as a PDF file. As well informations can be downloaded
from our website www.coniugo.com. Those documents
can be read and printed with the Adobe Acrobat Reader.
GPRS GSM modem: modem module GL865
UMTS/HSPA- modem: modem module UL865
LTE modem: modem module HE910
Introduction / Declaration of Conformity
=
Thank you for buying the ConiuGo GSM/GPRS-modem. This product was produced
according to the latest technology. It is a device suited for data transmission in GSM
networks
The manufacturer is:
ConiuGo® GmbH
Berliner Strasse 4A
16540 Hohen Neuendorf
This product is labelled with the CE-mark according to following standards:
EU-guidelines 73/23/EWG of February 19th 1973, EU-guidelines 89/336/EWG of
May 3rd 1989 (EMV-guideline) changed by EU-guidelines 91/263/EWG,
92/31/EWG, 93/68/EWG, EU-guidelines 89/392/EWG of June 14th 1989 changed by
EU-guidelines 91/368/EWG, 93/44/EWG, 93/68/EWG
EN 61000-6-4/01 German basic standard for RF-emission for industrial application,
EN 61000-6–2/05 German basic standard for RF-immission for industrial application
This product is manufactured according to the quality standard DIN EN ISO 9001.
This product includes a GSM transceiver unit from a third-party manufacturer. It is
CE-certified by it’s own manufacturer.
=
To ensure a safe operation of the modem, please read this manual carefully before taking it into operation
=
Hohen Neuendorf, August 2015
2
Table of contents
=
1. Limited Warranty / Limitation of Liability ............................................... 4
2. Use as agreed ........................................................................................... 5
3. Safety notes .............................................................................................. 6
4. Description of the modem ....................................................................... 7
5. Installation of the modem ........................................................................ 7
6. Electrical installation ............................................................................ 7
7. Insert the SIM- card .................................................................................. 8
9. Setup of a modem- connection ............................................................. 16
10. Examples for basic AT- commands ................................................... 16
11. Troubleshooting ................................................................................... 17
=
3
1. Limited Warranty / Limitation of Liability
Damages resulting from neglect of this manual are not covered
ConiuGo is not liable for damages to property or personal inju
-
ConiuGo GmbH warrants its product to be free from defects in materials and workmanship under normal use and service for a period of two years from the date of delivery, if no other agreement was made. The warranty is limited to the repair or replacement, at ConiuGo`s sole option. The costs of parts and labour are covered in
case of a repair. Costs for mounting and de-mounting, as well as for return transport
to ConiuGo GmbH are not covered.
This limited warranty will apply only to ConiuGo GmbH products that exhibit normal
use and service and will not cover any damages resulting from any misuse, modification, disassembly or alteration. Proof of purchase must accompany the product returned for consideration under this warranty.
Any use of the modem is carried out at your own risk. In no event shall ConiuGo be
liable for incidental or consequential damages, including, without limitation, loss to
property other than the ConiuGo GmbH product, loss of the use of the ConiuGo
GmbH product or other property, or other economic loss.
by the warranty. ConiuGo GmbH is not liable for any consequential damage.
ries resulting from improper use or neglect of the safety warnings. Such events are not covered by the warranty.
4
2. Use as agreed
=
The modem is designed for use in Germany and the European Community. According to the rules of CE-conformity, it is not allowed to distribute this device without a
manual in the national language. The manual has to be authorised by the manufacturer. Any distributor has to make sure that the user of the device is capable to understand the manual as regards the content and the language.
The modem has to be installed and put into operation by competent technicians.
The modem is designed according to the valid GSM standards. At the use of this
modem all safety precautions necessary for GSM devices have to be taken into
account. It is not allowed to switch on the modem in airplanes or hospitals. Please
check carefully any possible influences the modem may have on other technical and
electronic devices.
The modem has to be installed and put into function by technical experts. All notes
and information of this manual have to be read carefully and followed strictly. In case
of doubt don’t put the device into function but consult the manufacturer or your authorised distribution agent.
GSM devices are able to ignite explodable or inflammable gases by electromagnetic
radiation. The use of the modem in an environment with a potential for these conditions must be definitely excluded.
Because of the RF-radiation of a GSM device the modem has to be used with a
suitable GSM antenna for the RF band of 900 MHz (or 1800 MHz depending of the
type of the chosen GSM network). The antenna cable has to be free from any damages.
Safety hints have to be regarded!
5
3. Safety notes
Before connecting the product, possible interference of the
The electromagnetic behaviour of the m
o
dem depends on the
Because of the RF
-
radiation of the GSM unit the modem has to
The modem corresponds to broadly valid GSM standards. At the use of a GSM
transceiver for the mobile communication, certain safety precautions have to be
made.
GSM products can ignite explosive or inflammable gases.
The use of the modem in an environment with a potential for these conditions must
be definitely excluded.
The system must be switched off in airplanes or hospitals.
The system must be switched off in cars or vehicles, because
an irritation of car electronics be RF radiation is possible.
modem on your existing technical equipment has to be inquired.
The manufacturer provides a product for integration in a technical assembly. The
product is tested carefully according to the CE-certification to meet the standards
mentioned in the Declaration of Conformity. Nevertheless, the electromagnetic behaviour of the modem is depending on the conditions of mounting and environment.
environmental not controlled by the manufacturer. Any liability
for eventual electronic misbehaviour is excluded.
be used with a suitable GSM antenna for the RF band, depending on the type of the chosen GSM network). The antenna cable has to be free from any damages.
6
4. Description of the modem=
The modem is a GSM modem for data-, fax- and SMS- transfer in GSM networks.
From the moment the modem is booked into the provider’s network the device behaves like a standard modem or a fax modem. The configuration of the system is
carried out via the V.24 serial port resp. the USB-connection. For programming the
standard AT-commands according to ETSI-standards (ETSI 07.07 or ETSI 07.05)
are used.
The modem is dedicated to applications several GSM networks and depends on the
core module that is indicated on the product label (Dualband: 900/1800 MHz, Quadband: 850/900/1800/1900 MHz, UMTS: with 2100 MHz).
=
5. Installation of the modem
=
The modem must be installed only in dry places. The allowed range of temperature
is –30 to +60 °C. The common regulations for electrical installations have to be regarded.
The modem is allowed to be run according to the following conditions:
• Ambient temperature: –30 to +60 °C
• Indoor use only, max. 70% RH
• SIM-card with appropriate service subscription (e.g. for data transmission:
subscription for data transmission).
• GSM/GPRS GL865, recommended and preset baudrate is: 8N1 / 38.400
• UMTS UL865, recommended and preset baudrate is 8N1 / 115.200
• LTE LE910, recommended and preset baudrate is 8N1 / 115.200
6. Electrical installation
Power supply
This information is given by the product label.
Connection
LAN / Ethernet- Port, 2 LED as indication for the communication with the
network.
7
=
=
Antenn
MMCX-, FME- or SMA- Coaxial connector (depending on modem version)
7. Insert the SIM- card
Make sure that you have a SIM-card activated for all required services (e.g. CSD
data call with a separate calling ID)
Place the Modem-unit as shown and insert the SIM-card into the SIM-card reader.
Note that the contacts of the SIM card have to be placed upside. Do not touch the
connectors of the SIM card with your fingers. It can lead to contact problems or
damage from static discharges.
Abb.1 Abb.2
=
8
8. Configuration of the LAN- Port
When delivered the LAN- modem is pre-configurated and the LAN- port is addressable with the following IP- setting:
IP-addresse: 192.168.1.100
Subnet- maske: 255.255.255.0
Port: 10001
All network- an functional- settings are accessible to be changed according to the
needs of a user-case:
Two ways for changes are possible:
=
1.) Configuration by using a webinterface

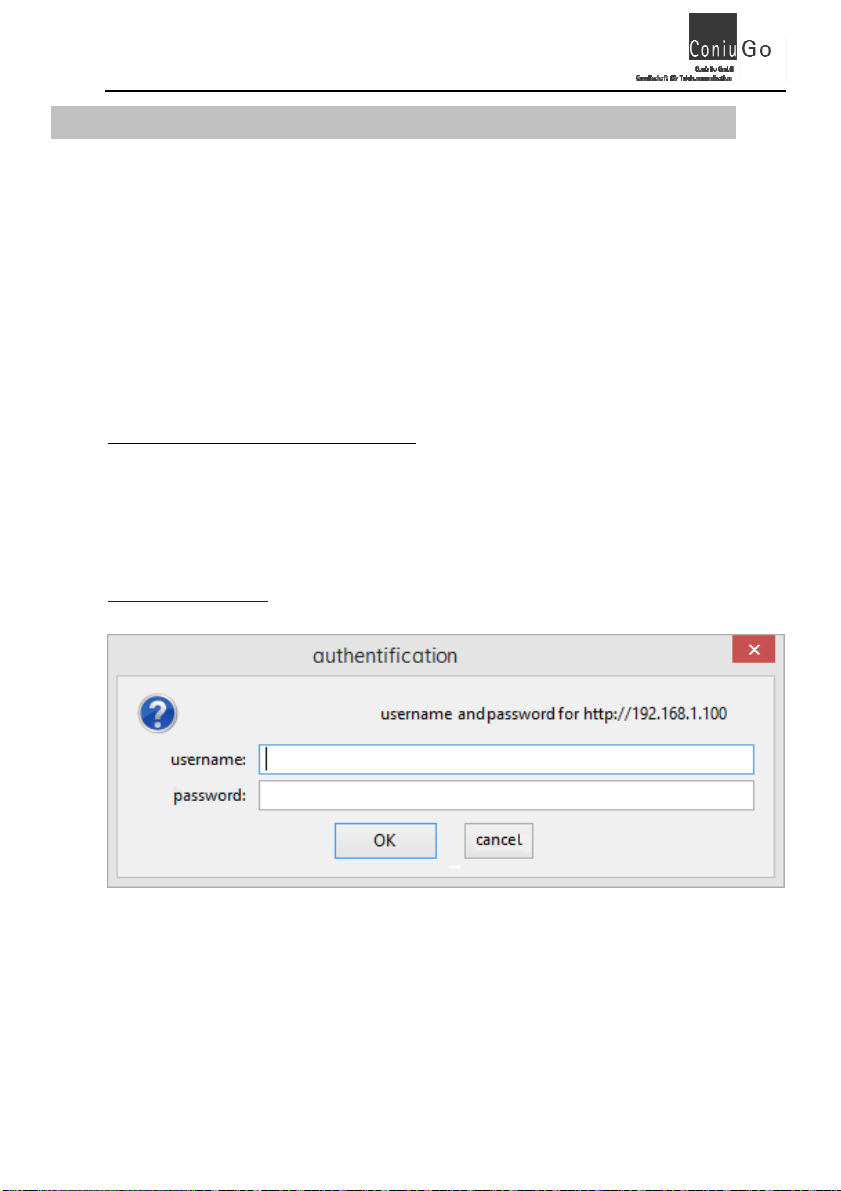

Please use the IP- address oft he device in your browser (e.g. the IP- address
192.168.1.100)
http://192.168.1.100
No user name and password are neccessary. Please directly press „OK“
When delivered the LAN- modem is pre-configured as follws:
9
10
11
set to 115200 with UMTS- module
12
13
14
15
2. Configuration by using Telnet
Connect by Telnet with port 9999. Telnet is a software- tool of your operation system. t Bestandteil Ihres Betriebssystems und kann (e.g. Windows XP, Windows 7
and Windows 8)
telnet 192.168.1.100 9999
Additional hints for the configuration of the LAN- port are described on the PDF:
Xport- User- Guide
9. Setup of a modem- connection
Start Telnet in ordert o access the modem by IP (IP-address and Port). E.g. the
default settings when the modem is delrvered (192.168.1.100 10001):#
telnet 192.168.1.100 10001
After a successful setup of the telnet- connection the use of the modem (GSM /
GPRS or UMTS, depending of the modem-version) with AT-commands is possible.
Which AT-commands are available and how those can be used is described in the
AT-command Manual (PDF on product- CD).
Following a few basic AT- commands are described (PIN-entering, Check network
status, signal quality, Sending of a SMS). The modem is able to perform several
additional functions (sending e-mail, FTP, encryption, etc.) that are described described in the AT-command Manual (PDF on product- CD).
10. Examples for basic AT- commands
PIN-number
Check by “AT+CPIN?” if a PIN-number has been already entered, or enter the PINnumber by using “AT+CPIN="xxxx“”. The PIN has to be typed in with quotation
marks!
16
=
Signal quality
Check the signal quality by “AT+CSQ”. With this command the physical signal quality is tested. It should be higher than 10, otherwise a data transmission can be unstable despite of a successfully booked in modem.
Status question
By “AT+CREG?” the registration status is shown by the device.
Name of provider network
By “AT+COPS?” the provider name is querried and shown by the device.
Check oft he dial-in- function=
Check the dial-in- function as follows: ATDT followed by a phone number. With the
command ATH or AT+CHUP you can close a call. =
=
Sending of an SMS=
Call of the SMS- service of the provider: AT+CSCA="+49xxxxxxxxxx" (Example for
Germany).
The SMS is to be transmittes by PDU- or Text- mode to the modem. Please use the
AT- commands that are described in the AT-command manual (PDF on productCD)
11. Troubleshooting
In case the modem still reacts you can load the standard settings of the manufacturer with the command “AT&F”. Then you have to re-start the program and adjust
all settings.
Please check if other tools and software of your computer causes an IP- addressconflict.
Connection cannot be established:
=
Common mistakes that may happen are:
17
• The SIM-card is not inserted into the modem.
In case of problems please consult our homepage or send
• The PIN-number is not entered.
• A not available GSM network is selected.
• The GSM Modem is not registered in the GSM network.
• The antenna is not connected, not suitable or is damaged.
• The wrong telephone number was entered.=
=
Possible system faults=
=
• Another connection is active.
• The call is not answered by the receiver.=
=
Possible reasons are:
=
• The receiver is not a modem.
• The receiver does not support the selected parameters (“no carrier”).
• The receiver is busy.
• The GSM Modem is registered in the GSM network.=
=
=
GSM Modem cannot receive a fax
The data-bits of transmitter and receiver are not equal: Adjust them by
AT+FOPT=1,0 or AT+FOPT=1,1.
an e-mail to: support@coniugo.com
Please give informations regarding the following issues:
• Where and when buyed?
• Which problem do you have?
• What was done before?
• Which application do you use the modem for?
