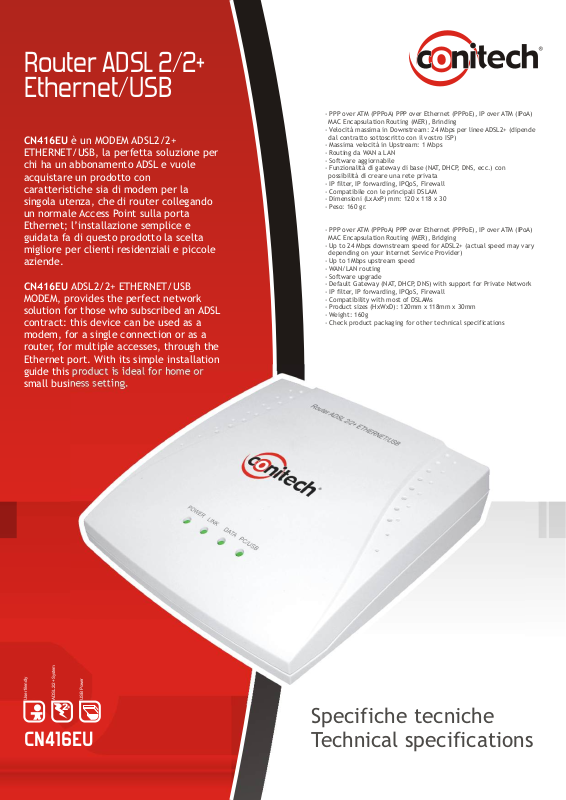

Conitech CN416EU Technical specifications
Router ADSL 2/2+
+
2
Ethernet/USB
CN416EU è un MODEM ADSL2/2+
ETHERNET/USB, la perfetta soluzione per
chi ha un abbonamento ADSL e vuole
acquistare un prodotto con
caratteristiche sia di modem per la
singola utenza, che di router collegando
un normale Access Point sulla porta
Ethernet; l’installazione semplice e
guidata fa di questo prodotto la scelta
migliore per clienti residenziali e piccole
aziende.
CN416EU ADSL2/2+ ETHERNET/USB
MODEM, provides the perfect network
solution for those who subscribed an ADSL
contract: this device can be used as a
modem, for a single connection or as a
router, for multiple accesses, through the
Ethernet port. With its simple installation
guide this product is ideal for home or
small business setting.
- PPP over ATM (PPPoA) PPP over Ethernet (PPPoE), IP over ATM (IPoA)
MAC Encapsulation Routing (MER), Brinding
- Velocità massima in Downstream: 24 Mbps per linee ADSL2+ (dipende
dal contratto sottoscritto con il vostro ISP)
- Massima velocità in Upstream: 1 Mbps
- Routing da WAN a LAN
- Software aggiornabile
- Funzionalità di gateway di base (NAT, DHCP, DNS, ecc.) con
possibilità di creare una rete privata
- IP filter, IP forwarding, IPQoS, Firewall
- Compatibile con le principali DSLAM
- Dimensioni (LxAxP) mm: 120 x 118 x 30
- Peso: 160 gr.
- PPP over ATM (PPPoA) PPP over Ethernet (PPPoE), IP over ATM (IPoA)
MAC Encapsulation Routing (MER), Bridging
- Up to 24 Mbps downstream speed for ADSL2+ (actual speed may vary
depending on your Internet Service Provider)
- Up to 1Mbps upstream speed
- WAN/LAN routing
- Software upgrade
- Default Gateway (NAT, DHCP, DNS) with support for Private Network
- IP filter, IP forwarding, IPQoS, Firewall
- Compatibility with most of DSLAMs
- Product sizes (HxWxD): 120mm x 118mm x 30mm
- Weight: 160g
- Check product packaging for other technical specifications
User friendly
CN416EU
USB Power
ADSL 2/2+ System
Specifiche tecniche
Technical specifications
Router ADSL 2/2+
Ethernet/USB
Specifications
Specifiche tecniche
Technical specifications
Pg.1/1
- Support ANSI T1.413 Issue 2; ITU G.992.1 (G.dmt) Annex A;
ITU G.992.2 (G.lite); ITU G.992.3 ADSL2 (G.dmt.bis); ITU
G.992.4 ADSL (G.lite.bis); ITU G.992.5 ADSL2+; Extended
Reach( READSL2), USB1.1
- Maximum Downstream rate of 24 Mbps for ADSL2+
- Maximum Upstream rate of 1 Mbps
- Routing from WAN to LAN
- Basic Gateway features such as NAT, DHCP, and DNS. etc, to
provide the capability to construct private network.
- IP filter, IP forwarding, IPQoS, Firewall
- Support 8 PVCs
- PPP over ATM (PPPoA) PPP over Ethernet (PPPoE), IP over
ATM (IPoA) MAC Encapsulation Routing (MER), Bringing
PPPoE
- Dynamic IP address
- Dial On Demand/Maximum Idle Time
- MRU (Max Transfer Unit) Value Configuration
LAN
- DHCP Server/ Client/ Relay
- Auto DNS
Minimum system requirements
- CPU: Pentium II (or higher)
- RJ-45 Network Interface Card with TCP/IP protocol installed
- One USB 2.0 (or USB 1.1) port free
- CD-ROM drive
- Ethernet mode: Windows, MAC or Linux Operating System
- USB mode: Windows Operating System
- Internet Browser (Internet Explorer, FireFox, Netscape, etc.)
- ADSL subscription with your ISP (Internet Service Provider)
Security
- NAT/NAPT Support
- Virtual Server 16 Server entry
- DMZ Plural DMZ support (1)
- Firewall, NAT IP filtering, Port filtering, MAC Address
filtering, Password protected configuration access, User
authentication (PAP/CHAP) with PPP, VPN Pass Through
Management
- Syslog
- Reboot/Restore Factory Default Setting,
- Telnet Server
- Firmware Upgrade, Support. Local Upgrade Available.
- Configuration Management, Web-based configuration in
English
- Operating System Windows95, 98, 98SE, Me, 2000,
NT4.0, Xp and Windows VISTA
- Support USB for Windows98SE, Me, 2000, Xp and
Windows VISTA
ETHERNET/USB Interface
- One port 10/100 Mbps Ethernet connection.
- Support full-duplex 802.3 flow control.
- Support up to 4096 MAC learning address
- USB 1.1 port
A
( p
D
S l
Fi
L
S
itte
r
e
t
l
)
r
USB or Ethernet
Connection
Modem Mode
h
c
it
w
s
Router Mode
CN416EU
Router ADSL 2/2+ Ethernet/USB
Conitech Srl
Via delle Margherite, 126 | 04011 - Aprilia (LT)
Tel. (+39) 06.92014471 | Fax (+39) 06.92012163
