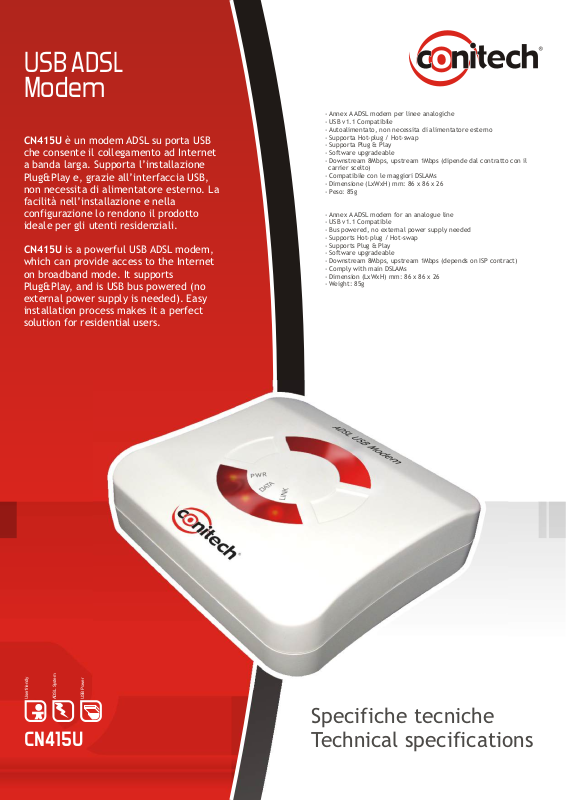

Conitech CN415U Technical specifications
USB ADSL
Modem
CN415U è un modem ADSL su porta USB
che consente il collegamento ad Internet
a banda larga. Supporta l’installazione
Plug&Play e, grazie all’interfaccia USB,
non necessita di alimentatore esterno. La
facilità nell’installazione e nella
configurazione lo rendono il prodotto
ideale per gli utenti residenziali.
CN415U is a powerful USB ADSL modem,
which can provide access to the Internet
on broadband mode. It supports
Plug&Play, and is USB bus powered (no
external power supply is needed). Easy
installation process makes it a perfect
solution for residential users.
- Annex A ADSL modem per linee analogiche
- USB v1.1 Compatibile
- Autoalimentato, non necessita di alimentatore esterno
- Supporta Hot-plug / Hot-swap
- Supporta Plug & Play
- Software upgradeable
- Downstream 8Mbps, upstream 1Mbps (dipende dal contratto con il
carrier scelto)
- Compatibile con le maggiori DSLAMs
- Dimensione (LxWxH) mm: 86 x 86 x 26
- Peso: 85g
- Annex A ADSL modem for an analogue line
- USB v1.1 Compatible
- Bus powered, no external power supply needed
- Supports Hot-plug / Hot-swap
- Supports Plug & Play
- Software upgradeable
- Downstream 8Mbps, upstream 1Mbps (depends on ISP contract)
- Comply with main DSLAMs
- Dimension (LxWxH) mm: 86 x 86 x 26
- Weight: 85g
ADSL System
User friendly
CN415U
USB Power
Specifiche tecniche
Technical specifications
USB ADSL
Modem
Minimum system requirements
CPU: 500MHz(or higher)
One USB port free
64 Mb of system memory
20 Mb of free HDD space
CD-ROM drive
Windows 98SE, ME, 2000, XP or VISTA operating systems
ADSL subscription with your ISP
Specifications
LINE SPECIFICATIONS:
- Supports ATM WAN Miniport, NDIS 5.0, and NDIS 4.0 Miniport
- Supports ANSI T1.413 ISSUE 2
- G.992.1 (G.DMT)
- G.992.2 (G.LITE)
Specifiche tecniche
Technical specifications
Pg.1/1
PROTOCOLS SUPPORT:
- PPP over ATM (PPPoA) VCMUX (RFC2364)
- PPP over ATM (PPPoA) LLC (RFC2364)
- PPP over Ethernet (PPPoE) LLCSNAP (RFC2516)
- PPP over Ethernet (PPPoE) VCMUX (RFC2516)
- Bridged IP over ATM LLCSNAP (RFC1483)
- Routed IP over ATM LLCSNAP (RFC1483)
- Bridged IP over ATM VCMUX (RFC1483)
- Routed IP over ATM VCMUX (RFC1483)
ADSL
(Splitter)
Filter
USB
Connection
CN415U
ADSL USB Modem
Conitech Srl
Via delle Margherite, 126 | 04011 - Aprilia (LT)
Tel. (+39) 06.92014471 | Fax (+39) 06.92012163
