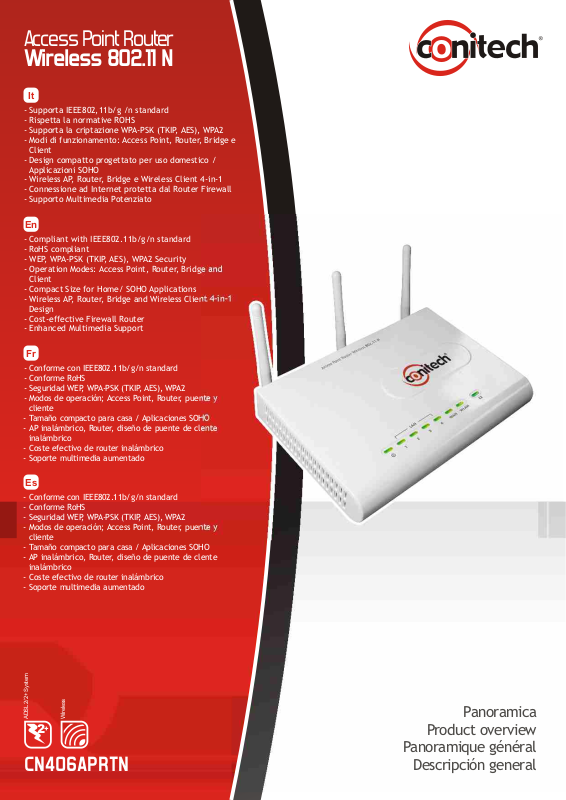

CONITECH CN406APRTN User Manual
Access Point Router
+
2
Wireless 802.11 N
It
- Supporta IEEE802,11b/g /n standard
- Rispetta la normative ROHS
- Supporta la criptazione WPA-PSK (TKIP, AES), WPA2
- Modi di funzionamento: Access Point, Router, Bridge e
Client
- Design compatto progettato per uso domestico /
Applicazioni SOHO
- Wireless AP, Router, Bridge e Wireless Client 4-in-1
- Connessione ad Internet protetta dal Router Firewall
- Supporto Multimedia Potenziato
En
- Compliant with IEEE802.11b/g/n standard
- RoHS compliant
- WEP, WPA-PSK (TKIP, AES), WPA2 Security
- Operation Modes: Access Point, Router, Bridge and
Client
- Compact Size for Home/ SOHO Applications
- Wireless AP, Router, Bridge and Wireless Client 4-in-1
Design
- Cost-effective Firewall Router
- Enhanced Multimedia Support
Fr
- Conforme con IEEE802.11b/g/n standard
- Conforme RoHS
- Seguridad WEP, WPA-PSK (TKIP, AES), WPA2
- Modos de operación; Access Point, Router, puente y
cliente
- Tamaño compacto para casa / Aplicaciones SOHO
- AP inalámbrico, Router, diseño de puente de clente
inalámbrico
- Coste efectivo de router inalámbrico
- Soporte multimedia aumentado
Es
- Conforme con IEEE802.11b/g/n standard
- Conforme RoHS
- Seguridad WEP, WPA-PSK (TKIP, AES), WPA2
- Modos de operación; Access Point, Router, puente y
cliente
- Tamaño compacto para casa / Aplicaciones SOHO
- AP inalámbrico, Router, diseño de puente de clente
inalámbrico
- Coste efectivo de router inalámbrico
- Soporte multimedia aumentado
ADSL 2/2+ System
Wireless
CN406APRTN
Panoramica
Product overview
Panoramique général
Descripción general
CN406APRTN
Panoramica
Product overview
Panoramique général
Descripción general
Specifications
Product Description IEEE 802.1x Security (EAP-TLS, EAP-TTLS, EAP-PEAP)
- Access Point Router Wireless 802.11 N IEEE 80211i Support
Lead-Free WPS Support
- RoHSCompliant - Networking & Internet Access: DHCP Server/Client
Radio NAT with Virtual Server & Port Forwarding
- Antenna: 3 Un-detachable External Dipole Antenna (Optional 2 Embedded) DNS relay
- Antenna Gain: 2dBi DDNS
- Output Power (Typical): IEEE 802.11g 54Mbps: 14dBm VPN Pass-through
- Sensitivity: IEEE 802.11g @ PER 10%54Mbps = -65dBm Physical Specification
- Modulation: IEEE 802.11g (OFDM)64QAM, 16QAM, QPSK, BPSK
- Operating Frequency: USA (FCC) 11 Channels: 2.412GHz~2.462GHz - Storage: Temperature (Ambient) -10~65°C, Humidity (Non-condensing)
Hardware Specification - HTML configuration is supported by any computer that supports TCP/IP and
- WAN: One 10/100Base-T Ethernet, Full-duplex with Auto MDI/MDIX Support Web Browser (4.01 specification or greater)
- LAN: Four 10/100Base-T Ethernet, Full-duplex with Auto MDI/MDIX Support - Wired, connect any device tht support 10/100Mbps Ethernet and RJ-45
- Memory Size: Flash 4MB; SDRAM 16MB connector
- Power Supply: 12V DC, 1A - Wireless, works with any 802.11b/g/n wireless device
- Reset Button: Reset to Factory Default
- EZ Configuration Button: WPS Support 2 Anni di Garanzia/2 Years Warranty
IEEE 802.11b @ PER 8%11Mbps = -80dBm - Dimension: 190mm(L)*135mm(W)*32mm(H)
IEEE 802.11n @ PER 8%54Mbps -65dBm - Weight: 500g (approx.)
IEEE 802.11b (DSSS)CCK, DQPSK, DBPSK, Draft EWC Environmental Specification Temperatures
IEEE 802.11n: BPSK, QPSK, 16-QAM, 64-QAM - Operative: Temperature (Ambient) 0~50°C, Humidity (Non-condensing) 90%
IEEE 802.11b 11Mbps: 16dBm Firewall
IEEE 802.11n: 11dBm @ 54Mbps
Europe (ETSI) 13 Channels: 2.412GHz~2.472GHz 5~95%
Japan (ARIB) 13 Channels: 2.412GHz~2.472GHz
Software Specification
- Wireless: WPA-PSK(TKIP, AES)
IEEE 802.11e standard Support (WMM)
MINIMUM SYSTEM REQUIREMENTS
2 Ans de Garantie/2 Años de Garantía
WPA2 Security
PPPoE & PPTP
Cabled LAN
switc
NOTA: Per la trasmissione dati via
Wireless, i PC e i notebook devono essere
dotati di tale tecnologia.
M
o
de
m
ADS
L
E h
h
t e
r
n
Wireless Mode
e
t
g
am s o
e
c n
s l
o
e
CN406APRTN
Access Point Router
Wireless 802.11 N
Conitech Srl
Via delle Margherite, 126 | 04011 - Aprilia (LT)
Tel. (+39) 06.92014471 | Fax (+39) 06.92012163
Per contattare l’Assistenza tecnica scrivete a: supporto@conitech.it
