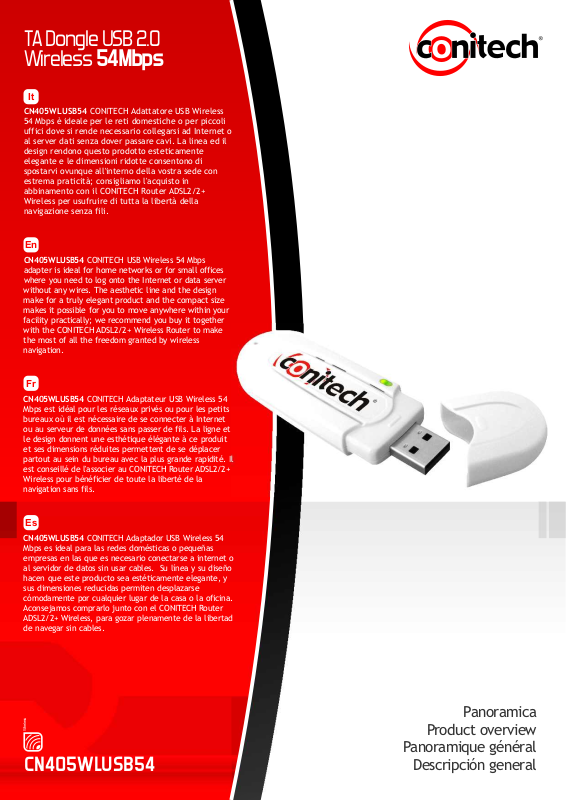

CONITECH CN405WLUSB54 User Manual

TA Dongle USB 2.0
Wireless 54Mbps

It

CN405WLUSB54 CONITECH Adattatore USB Wireless
54 Mbps è ideale per le reti domestiche o per piccoli
uffici dove si rende necessario collegarsi ad Internet o
al server dati senza dover passare cavi. La linea ed il
design rendono questo prodotto esteticamente
elegante e le dimensioni ridotte consentono di
spostarvi ovunque all'interno della vostra sede con
estrema praticità; consigliamo l'acquisto in
abbinamento con il CONITECH Router ADSL2/2+
Wireless per usufruire di tutta la libertà della
navigazione senza fili.

En

CN405WLUSB54 CONITECH USB Wireless 54 Mbps
adapter is ideal for home networks or for small offices
where you need to log onto the Internet or data server
without any wires. The aesthetic line and the design
make for a truly elegant product and the compact size
makes it possible for you to move anywhere within your
facility practically; we recommend you buy it together
with the CONITECH ADSL2/2+ Wireless Router to make
the most of all the freedom granted by wireless
navigation.

Fr

CN405WLUSB54 CONITECH Adaptateur USB Wireless 54
Mbps est idéal pour les réseaux privés ou pour les petits
bureaux où il est nécessaire de se connecter à Internet
ou au serveur de données sans passer de fils. La ligne et
le design donnent une esthétique élégante à ce produit
et ses dimensions réduites permettent de se déplacer
partout au sein du bureau avec la plus grande rapidité. Il
est conseillé de l'associer au CONITECH Router ADSL2/2+
Wireless pour bénéficier de toute la liberté de la
navigation sans fils.

Es

CN405WLUSB54 CONITECH Adaptador USB Wireless 54
Mbps es ideal para las redes domésticas o pequeñas
empresas en las que es necesario conectarse a internet o
al servidor de datos sin usar cables. Su línea y su diseño
hacen que este producto sea estéticamente elegante, y
sus dimensiones reducidas permiten desplazarse
cómodamente por cualquier lugar de la casa o la oficina.
Aconsejamos comprarlo junto con el CONITECH Router
ADSL2/2+ Wireless, para gozar plenamente de la libertad
de navegar sin cables.

Wireless

CN405WLUSB54

Panoramica

Product overview

Panoramique général

Descripción general

Panoramica

CN405WLUSB54

Product overview
Panoramique général
Descripción general

Specifications

STANDARDS POWER | INTERFACE

- Standard: IEEE 802.11g, IEEE 802.11b - Interface: USB 2.0

- Signal Type: DSSS (Direct Sequence Spread - Operating Voltage: DC 5V ±5%
Spectrum) - Power Consumption: Maximum < 380mA

- Modulation: - Plug&Play setup and installation
IEEE 802.11b (DSSS): CCK, DQPSK, DBPSK - Dimension 82.33mm(L) 13.21mm(W) 26.34mm(H)
IEEE 802.11g (OFDM/DSSS): QAM-64, QAM-16, QPSK,
BPSK DATA ENCRYPTION

- IEEE 802.11b/g ISM Band: - 64/128bit WEP
USA(FCC): 2.412GHz ~ 2.462 Ghz (CH1~CH13) - WPA/WPA2
Europe (ETSI): 2.412 GHz ~ 2.472 Ghz (CH1~CH13)
Japan (TELEC): 11b:/g: 2.412 Ghz ~ 2.472 Ghz OPERATING SYSTEMS COMPATIBILITY
(CH1~CH13) Win98SE/ME/2000/XP/XP/VISTA

- Antenna: PCB Antenna

- Data Rate up to 54 Mbps (with Automatic Scale
Back)

802.11g : 54Mbps (6/9/12/18/24/36/48/54)

802.11b: 11Mbps (1/2/5.5/11)

Point

s

s

e

c

c

A

CN405WLUSB54

802.11g Wireless 54 Mbps
USB 2.0 Adapter (on PC)

©2007 by www.StyleCom2000 / sc2.it

Conitech Srl

Via delle Margherite, 126 | 04011 - Aprilia (LT)
Tel. [phone] | Fax [phone]
Per contattare l’Assistenza tecnica scrivete a: [e-mail]
