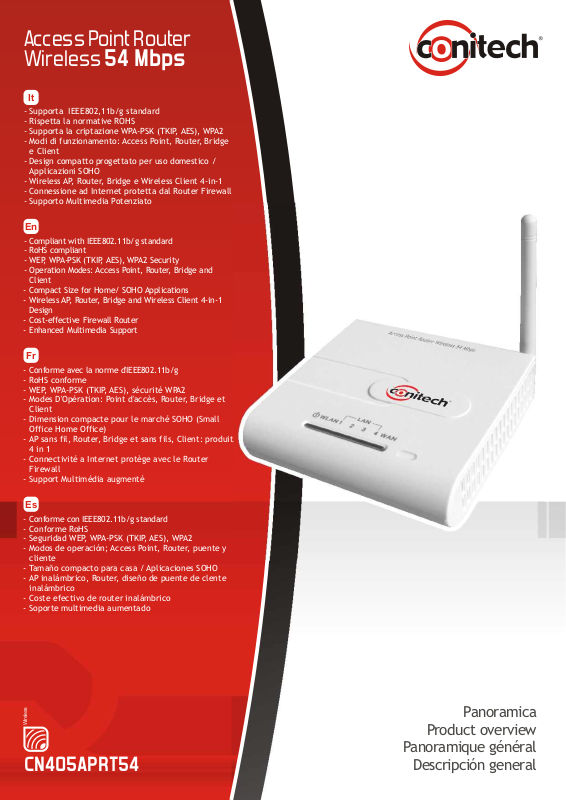

Conitech CN405APRT54 BROCHURE

Access Point Router
Wireless 54 Mbps

It

- Supporta IEEE802,11b/g standard

- Rispetta la normative ROHS

- Supporta la criptazione WPA-PSK (TKIP, AES), WPA2

- Modi di funzionamento: Access Point, Router, Bridge
e Client

- Design compatto progettato per uso domestico /
Applicazioni SOHO

- Wireless AP, Router, Bridge e Wireless Client 4-in-1

- Connessione ad Internet protetta dal Router Firewall

- Supporto Multimedia Potenziato

En

- Compliant with IEEE802.11b/g standard

- RoHS compliant

- WEP, WPA-PSK (TKIP, AES), WPA2 Security

- Operation Modes: Access Point, Router, Bridge and
Client

- Compact Size for Home/ SOHO Applications

- Wireless AP, Router, Bridge and Wireless Client 4-in-1
Design

- Cost-effective Firewall Router

- Enhanced Multimedia Support

Fr

- Conforme avec la norme d'IEEE802.11b/g

- RoHS conforme

- WEP, WPA-PSK (TKIP, AES), sécurité WPA2

- Modes D'Opération: Point d'accès, Router, Bridge et
Client

- Dimension compacte pour le marché SOHO (Small
Office Home Office)

- AP sans fil, Router, Bridge et sans fils, Client: produit
4 in 1

- Connectivité a Internet protège avec le Router
Firewall

- Support Multimédia augmenté

Es

- Conforme con IEEE802.11b/g standard

- Conforme RoHS

- Seguridad WEP, WPA-PSK (TKIP, AES), WPA2

- Modos de operación; Access Point, Router, puente y
cliente

- Tamaño compacto para casa / Aplicaciones SOHO

- AP inalámbrico, Router, diseño de puente de clente
inalámbrico

- Coste efectivo de router inalámbrico

- Soporte multimedia aumentado

Wireless

CN405APRT54

Panoramica

Product overview

Panoramique général

Descripción general

Panoramica

CN405APRT54

Product overview
Panoramique général
Descripción general

Specifications

Product Description Software Specification

- IEEE 802.11g Access Point Wireless Router - Wireless: 64/128-bits WEP, WPA-PSK (TKIP, AES), WPA2

Radio IEEE 802.1x Security (EAP-TLS, EAP-TTLS, EAP

- Antenna: Un-detachable External Dipole Antenna PEAP); IEEE 80211i Support

- Antenna Gain: 2dBi IEEE 802.11e standard Support (WMM)

- Output Power (Typical): IEEE 802.11g 54Mbps: 14dBm, 802.11b - Networking & Internet Access: DHCP Server/ Client,
11Mbps: 16dBm PPPoE & PPTP,

- Sensitivity: IEEE 802.11g @ PER 10%54Mbps ≤ -65dBm, IEEE NAT with Virtual Server &

802.11b @ PER 8%11Mbps ≤ -80dBm Port Forwarding

- Modulation: IEEE 802.11g (OFDM)64QAM, 16QAM, QPSK, BPSK, DNS relay, DDNS
IEEE 802.11b (DSSS)CCK, DQPSK, DBPSK VPN Pass-through

- Range Coverage: IEEE 802.11g 54Mbps ≥ 60 Meters 11Mbps ≥120 Firewall (Port Filtering, IP
Meters, IEEE 802.11b 11Mbps ≥80 Meters 1Mbps ≥200 Meters Filtering, Mac Filtering, URL

- Operating Frequency: USA (FCC) 11 Channels: Filtering, Denial-of Service, DMZ)

2.412GHz~2.462GHzEurope (ETSI) 13 Channels: Physical Specification

2.412GHz~2.472GHzJapan (ARIB) 13 Channels: - Dimension: 110mm(L)*125mm(W)*30mm(H)

2.412GHz~2.472GHz - Weight: 200g (approx.)

Hardware Specification Environmental Specification

- WAN: One 10/100Base-T Ethernet, Full-duplex with Auto - Operative: Temperature (Ambient) 0~50°C, Humidity (Non­MDI/MDIX Support condensing) 90%

- LAN: Four 10/100Base-T Ethernet, Full-duplex with Auto - Storage: Temperature (Ambient) -10~65°C, Humidity (Non­MDI/MDIX Support condensing) 5~95%

- Memory Size: Flash 2MB; SDRAM 8MB

- Power Supply: 12V DC, 1A

- Reset Button: Reset to Factory Default

Security

Cabled LAN

cs

t h

wi

M

odem

er

e

t

Wireless Mode

A

D

S t n

L E h

CN405APRT54

Access Point Router
Wireless 54Mbps

games con

sole

Conitech Srl

Via delle Margherite, 126 | 04011 - Aprilia (LT)
Tel. [phone] | Fax [phone]
Per contattare l’Assistenza tecnica scrivete a: [e-mail]
