Qseven® conga-QA6

Intel® Atom™ processor E6xx/E6xxT series with an Intel® Platform Controller Hub EG20T

User’s Guide

Revision 1.4

Page 2

Revision History

Revision Date (yyyy.mm.dd) Author Changes

0.1 2010.12.22 GDA • Preliminary release

0.2 2010.12.28 GDA

• Updated information about HDMI support in section 4.13 “HDMI* and table 15 “HDMI Signal Descriptions.”

0.3 2011.01.10 GDA

• Corrected the information in the pinout table and PCI Express Signal Descriptions table for pins 161-164 and 179-182.

0.4 2011.02.01 GDA

• Updated section 9 “BIOS Setup Description.”

0.5 2011.12.20 GDA

• Updated USB port conﬁguration to reﬂect hardware revisions A.0 and later. Added additional information to section 5 “Additional Features”.

• Updated section 9 “BIOS Setup Description.”

1.0 2012.06.14 GDA

• Ofﬁcial release.

• Added information about the use of conga-QA6 heatspreaders to sections 1.7 “Environment Speciﬁcations” and 3.0 “Heatspreader.”

• Added note to section 4.4 “Serial ATA (SATA)” about AHCI support only.

• Added section 6.5 “Important Information”.

• Updated section 9 “BIOS Setup Description.”

1.1 2012.07.13 GDA

• Updated section 9 “BIOS Setup Description.”

1.2 2012.11.06 GDA

• Changed maximum torque rating for heatspreader screws in section 3.1 “Heatspreader Dimensions” and added a caution statement. Added comment about LPC_CLK signal to “LPC Signal Descriptions” table.

• Updated the PU/PD column of the USB_ID signal in table 9 “USB Signal Description”.

1.3 2013.07.10 AEM

• Added section 1 “Introduction”. Moved COM Express™ Concept and Options Information to section 1 “Introduction”.

• Corrected the PCIE_WAKE# Pull-up (PU) value from 1k 3.3VSB to 10k 3.3VSB in table 5 “PCIE Signal Description”.

• Deleted the RTC alarm option and the option to use USB Mouse/Keyboard Event as Wake event in section 7.3 “ACPI Suspend Modes and Resume Events” because these options are not supported in the BIOS.

• Updated section 9 “BIOS Setup Description”.

1.4 2017.02.17 BEU

• Corrected WVGA resolution to 800x480.

• Updated template and variants.

Page 3

Preface

This user’s guide provides information about the components, features, connector and BIOS Setup menus available on the conga-QA6. It is one of three documents that should be referred to when designing a Qseven® application. The other reference documents that should be used include the following:

Qseven

Design Guide

Qseven

Speciﬁcation

The links to these documents can be found on the congatec AG website at www.congatec.com

Disclaimer

The information contained within this user’s guide, including but not limited to any product speciﬁcation, is subject to change without notice.

congatec AG provides no warranty with regard to this user’s guide or any other information contained herein and hereby expressly disclaims any implied warranties of merchantability or ﬁtness for any particular purpose with regard to any of the foregoing. congatec AG assumes no liability for any damages incurred directly or indirectly from any technical or typographical errors or omissions contained herein or for discrepancies between the product and the user’s guide. In no event shall congatec AG be liable for any incidental, consequential, special, or exemplary damages, whether based on tort, contract or otherwise, arising out of or in connection with this user’s guide or any other information contained herein or the use thereof.

Intended Audience

This user’s guide is intended for technically qualiﬁed personnel. It is not intended for general audiences.

Lead-Free Designs (RoHS)

All congatec AG designs are created from lead-free components and are completely RoHS compliant.

Electrostatic Sensitive Device

All congatec AG products are electrostatic sensitive devices and are packaged accordingly. Do not open or handle a congatec AG product except at an electrostatic-free workstation. Additionally, do not ship or store congatec AG products near strong electrostatic, electromagnetic, magnetic, or radioactive ﬁelds unless the device is contained within its original manufacturer’s packaging. Be aware that failure to comply with these guidelines will void the congatec AG Limited Warranty.

Page 4

Symbols

The following symbols are used in this user’s guide:

Warning

Warnings indicate conditions that, if not observed, can cause personal injury.

Caution

Cautions warn the user about how to prevent damage to hardware or loss of data.

Note

Notes call attention to important information that should be observed.

congatec AG has made every attempt to ensure that the information in this document is accurate yet the information contained within is supplied “as-is”.

Trademarks

Product names, logos, brands, and other trademarks featured or referred to within this user’s guide, or the congatec website, are the property of their respective trademark holders. These trademark holders are not afﬁliated with congatec AG, our products, or our website.

Page 5

Warranty

congatec AG makes no representation, warranty or guaranty, express or implied regarding the products except its standard form of limited warranty (“Limited Warranty”) per the terms and conditions of the congatec entity, which the product is delivered from. These terms and conditions can be downloaded from www.congatec.com. congatec AG may in its sole discretion modify its Limited Warranty at any time and from time to time.

The products may include software. Use of the software is subject to the terms and conditions set out in the respective owner’s license agreements, which are available at www.congatec.com and/or upon request.

Beginning on the date of shipment to its direct customer and continuing for the published warranty period, congatec AG represents that the products are new and warrants that each product failing to function properly under normal use, due to a defect in materials or workmanship or due to non conformance to the agreed upon speciﬁcations, will be repaired or exchanged, at congatec’s option and expense.

Customer will obtain a Return Material Authorization (“RMA”) number from congatec AG prior to returning the non conforming product freight prepaid. congatec AG will pay for transporting the repaired or exchanged product to the customer.

Repaired, replaced or exchanged product will be warranted for the repair warranty period in effect as of the date the repaired, exchanged or replaced product is shipped by congatec, or the remainder of the original warranty, whichever is longer. This Limited Warranty extends to congatec’s direct customer only and is not assignable or transferable.

Except as set forth in writing in the Limited Warranty, congatec makes no performance representations, warranties, or guarantees, either express or implied, oral or written, with respect to the products, including without limitation any implied warranty (a) of merchantability, (b) of ﬁtness for a particular purpose, or (c) arising from course of performance, course of dealing, or usage of trade.

congatec AG shall in no event be liable to the end user for collateral or consequential damages of any kind. congatec shall not otherwise be liable for loss, damage or expense directly or indirectly arising from the use of the product or from any other cause. The sole and exclusive remedy against congatec, whether a claim sound in contract, warranty, tort or any other legal theory, shall be repair or replacement of the product only.

Certiﬁcation

congatec AG is certiﬁed to DIN EN ISO 9001 standard.

Page 6

Technical Support

congatec AG technicians and engineers are committed to providing the best possible technical support for our customers so that our products can be easily used and implemented. We request that you ﬁrst visit our website at www.congatec.com for the latest documentation, utilities and drivers, which have been made available to assist you. If you still require assistance after visiting our website then contact our technical support department by email at [email protected].

Terminology

Term Description

GB Gigabyte (1,073,741,824 bytes) GHz Gigahertz (one billion hertz) kB Kilobyte (1024 bytes) MB Megabyte (1,048,576 bytes) Mbit Megabit (1,048,576 bits) kHz Kilohertz (one thousand hertz) MHz Megahertz (one million hertz) TDP Thermal Design Power PCIe PCI Express SATA Serial ATA DDC Display Data Channel SoC System On Chip LVDS Low-Voltage Differential Signaling Gbe Gigabit Ethernet eMMC Embedded Multi-media Controller MLC Multi-level Cell SLC Single-level Cell HDA High Deﬁnition Audio cBC congatec Board Controller I/F Interface N.C. Not connected N.A. Not available TBD To be determined

Page 7

Contents

1 Introduction .............................................................................10

2 Speciﬁcations ........................................................................... 13

2.1 Feature List ..............................................................................13

2.2 Supported Operating Systems ................................................ 14

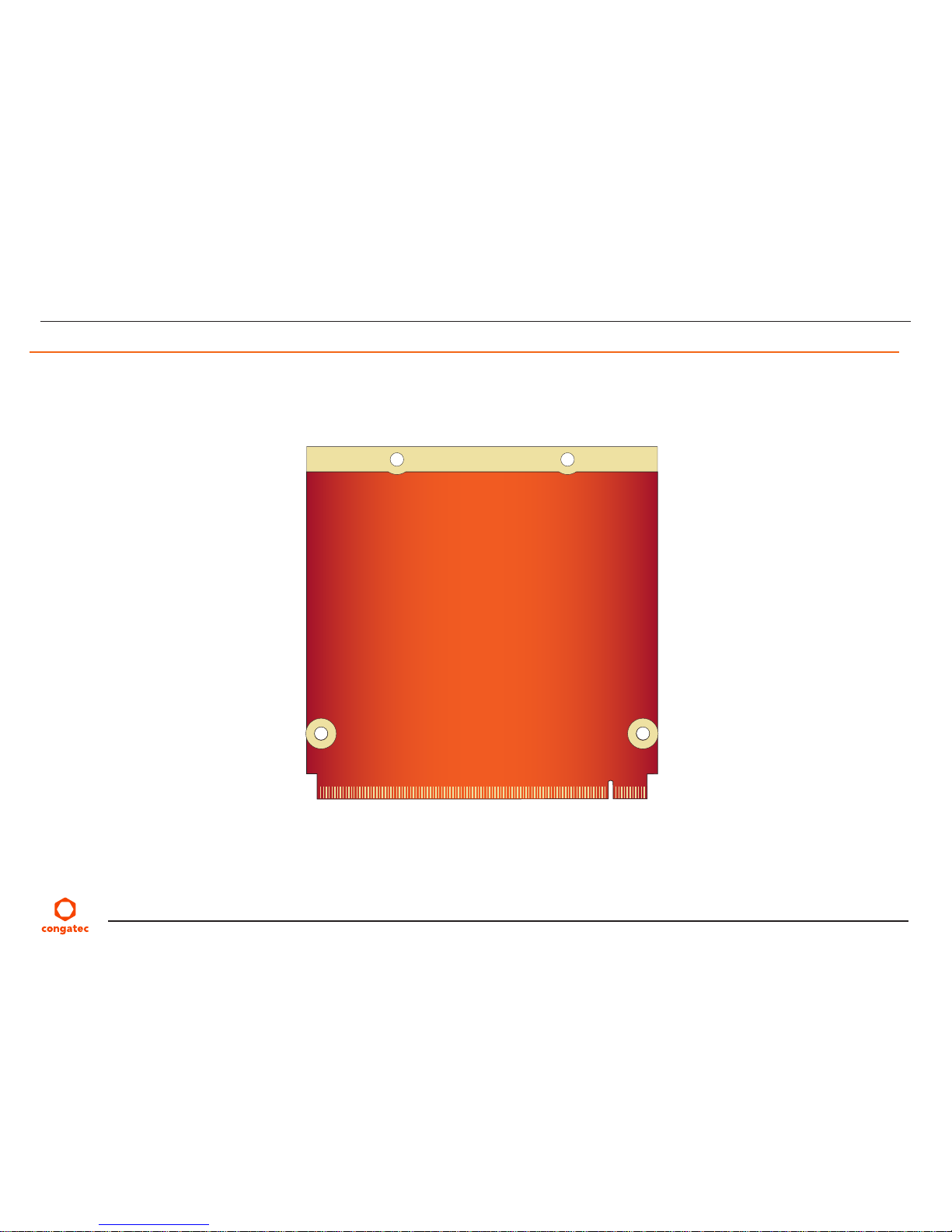

2.3 Mechanical Dimensions ........................................................... 14

2.4 Supply Voltage Standard Power ..............................................15

2.4.1 Electrical Characteristics .......................................................... 15

2.4.2 Rise Time ................................................................................. 15

2.5 Power Consumption ................................................................ 16

2.6 Supply Voltage Battery Power .................................................17

2.7 Environmental Speciﬁcations ................................................... 18

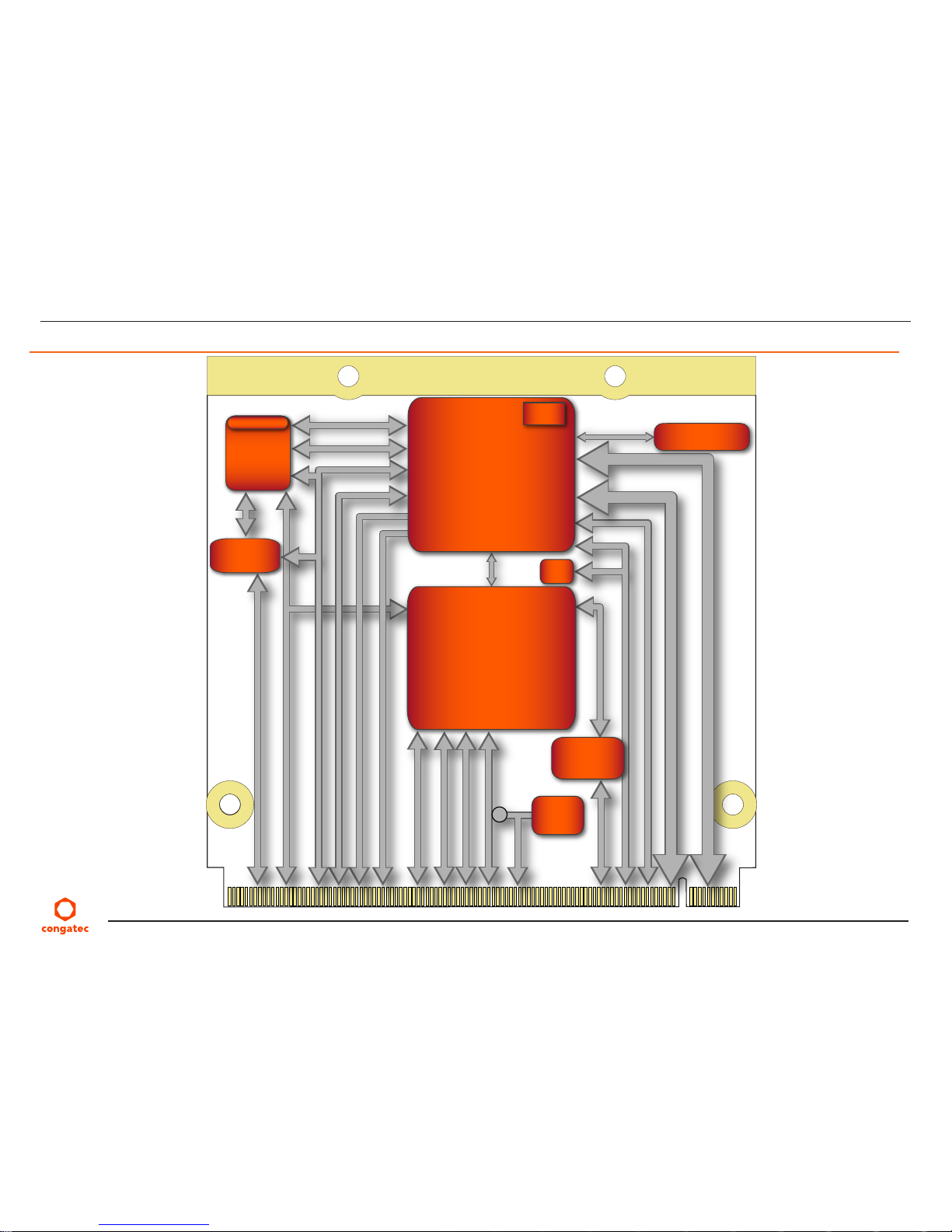

3 Block Diagram .......................................................................... 19

4 Cooling Solutions ..................................................................... 20

4.1 Heatspreader and Aluminum Standoff Dimensions ................. 21

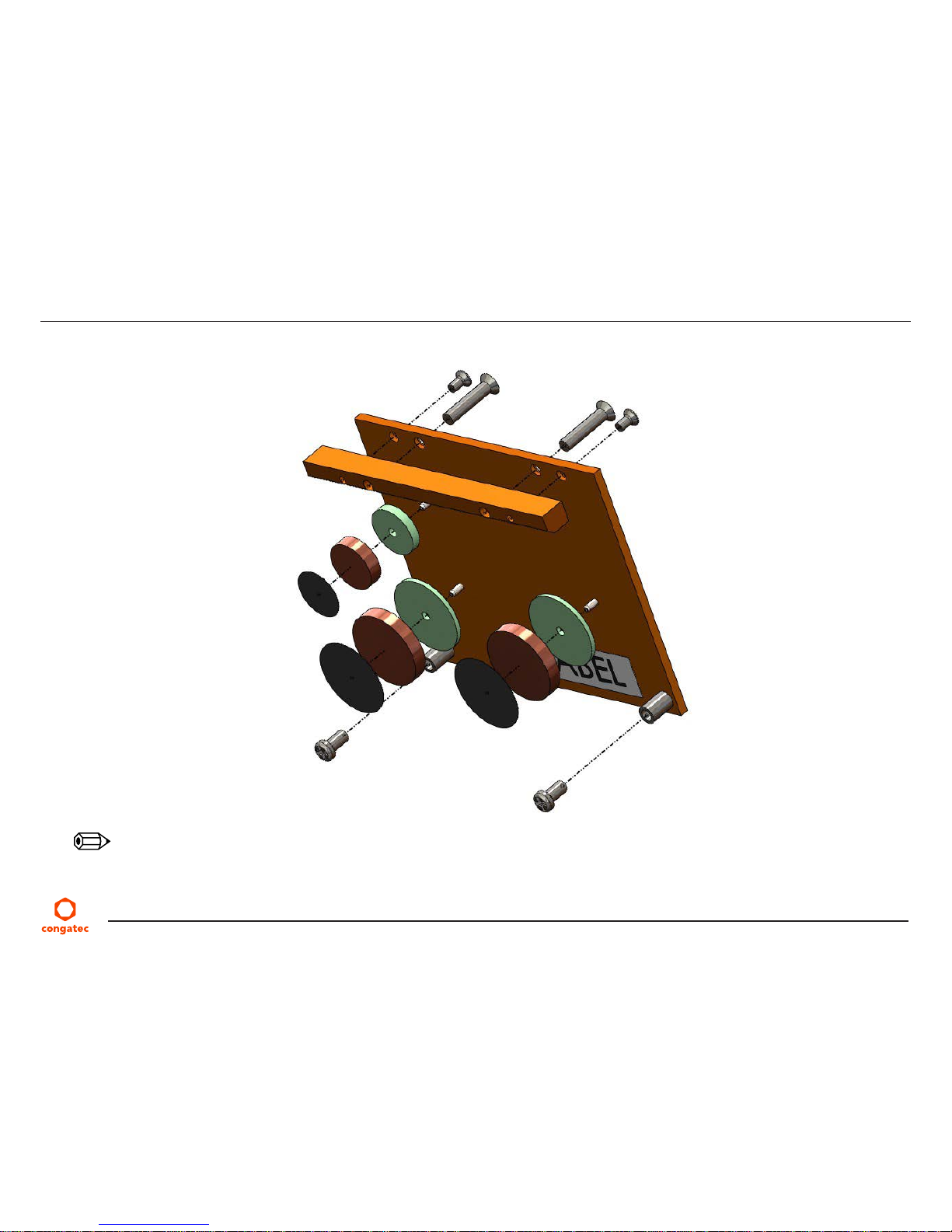

4.2 Heatspreader and Aluminum Standoff Exploded View ...........22

5 Connector Subsystems ............................................................ 23

5.1 PCI Express™ ...........................................................................24

5.2 ExpressCard™ .........................................................................24

5.3 Gigabit Ethernet ...................................................................... 24

5.4 Serial ATA™ (SATA) .................................................................. 24

5.5 USB 2.0 .................................................................................... 25

5.6 SDIO/MMC .............................................................................. 25

5.7 High Deﬁnition Audio (HDA) ................................................... 25

5.8 LCD .......................................................................................... 25

5.9 SDVO ....................................................................................... 26

5.10 DisplayPort ............................................................................... 27

5.11 HDMI ........................................................................................ 27

5.12 LPC ........................................................................................... 27

5.13 SPI ............................................................................................ 27

5.14 CAN Bus .................................................................................. 28

5.15 Power Control .......................................................................... 28

5.16 Power Management ................................................................. 29

5.17 I²C Bus ..................................................................................... 29

5.18 Watchdog ................................................................................30

5.19 Fan Control .............................................................................. 30

6 Additional Features ..................................................................31

6.1 congatec Board Controller (cGB) ............................................. 31

6.2 Board Information .................................................................... 31

6.3 Watchdog ................................................................................31

6.4 I2C Bus ...................................................................................... 31

6.5 Power Loss Control .................................................................. 31

6.6 Embedded BIOS ...................................................................... 32

6.6.1 CMOS Backup in Non Volatile Memory ................................... 32

6.6.2 OEM CMOS Default Settings and OEM BIOS Logo ............... 32

6.6.3 OEM BIOS Code ...................................................................... 32

6.6.4 congatec Battery Management Interface ................................ 32

6.6.5 API Support (CGOS/EAPI) ....................................................... 33

6.7 Suspend to Ram ....................................................................... 33

6.8 Onboard Solid State Disk ........................................................33

7 conga Tech Notes .................................................................... 35

7.1 Intel® Processor Features ......................................................... 35

7.1.1 Thermal Monitor and Catastrophic Thermal Protection .......... 35

7.1.2 Processor Performance Control ............................................... 36

7.1.3 Intel® Virtualization Technology ............................................... 36

7.2 Thermal Management ............................................................. 37

7.3 ACPI Suspend Modes and Resume Events .............................. 38

7.4 USB Port Connections .............................................................. 39

7.5 Important Information .............................................................. 40

8 Signal Descriptions and Pinout Tables ..................................... 41

8.1 Bootstrap Signals ..................................................................... 57

9 System Resources ....................................................................58

9.1 Interrupt Request (IRQ) Lines ................................................... 58

9.2 PCI Conﬁguration Space .......................................................... 60

9.3 PCI Interrupt Routing ............................................................... 61

Page 8

10 BIOS Setup Description ........................................................... 62

10.1 Entering the BIOS Setup Program. .......................................... 62

10.1.1 Boot Selection Popup .............................................................. 62

10.2 Setup Menu and Navigation .................................................... 62

10.3 Main Setup Screen ................................................................... 63

10.4 Platform Information submenu ................................................ 64

10.5 Advanced Setup ...................................................................... 64

10.5.1 Graphics Conﬁguration Submenu ........................................... 65

10.5.2 Watchdog Conﬁguration Submenu ......................................... 66

10.5.3 PCI Subsystem Settings Submenu ........................................... 67

10.5.4 PCI Express Ports 1-4 Conﬁguration Submenu ........................ 68

10.5.5 PIRQ Routing Submenu ........................................................... 68

10.5.6 PCI to PCI Bridge Submenu ..................................................... 69

10.5.7 ACPI Conﬁguration Submenu .................................................. 69

10.5.8 CPU Conﬁguration Submenu ................................................... 71

10.5.9 Chipset Conﬁguration Submenu ............................................. 72

10.5.9.1 Network Settings Submenu ..................................................... 72

10.5.10 AHCI SATA Conﬁguration ........................................................ 73

10.5.11 SDIO Conﬁguration Submenu ................................................. 73

10.5.12 USB Conﬁguration Submenu ................................................... 73

10.5.13 Super I/O Conﬁguration Submenu .......................................... 74

10.5.13.1 Serial Port 0/1 Conﬁguration Submenu ................................... 74

10.5.14 Serial Port Console Redirection ............................................... 75

10.5.14.1 Console Redirection Settings ................................................... 76

10.6 etup .......................................................................................... 76

10.6.1 Boot Settings Conﬁguration Submenu .................................... 77

10.7 Security Setup .......................................................................... 78

10.7.1 Security Settings ...................................................................... 78

10.8 Save & Exit ............................................................................... 78

10.8.1 Save & Exit Menu ..................................................................... 78

11 Additional BIOS Features ........................................................79

11.1 Updating the BIOS ................................................................... 79

11.2 BIOS Security Features ............................................................79

12 Industry Speciﬁcations ............................................................. 80

Page 9

List of Tables

Table 1 conga-QA6 Commercial Variants .............................................11

Table 2 conga-QA6 Industrial Variants .................................................11

Table 3 Feature Summary ..................................................................... 13

Table 4 Power Limits ............................................................................. 15

Table 5 Measurement Description ........................................................16

Table 6 Power Consumption Values ..................................................... 17

Table 7 CMOS Battery Power Consumption ........................................ 17

Table 8 Display Resolutions .................................................................. 26

Table 9 Wake Events resuming system from S3 ...................................38

Table 10 Signal Tables Terminology Descriptions .................................. 41

Table 11 Edge Finger Pinout .................................................................. 42

Table 12 PCI Express Signal Descriptions ..............................................45

Table 13 ExpressCard Signal Descriptions .............................................45

Table 14 Ethernet Signal Descriptions.................................................... 46

Table 15 SATA Signal Descriptions ......................................................... 47

Table 16 USB Signal Descriptions ........................................................... 47

Table 17 SDIO Signal Descriptions ......................................................... 48

Table 18 HDA/AC’97 Signal Descriptions .............................................. 49

Table 19 LVDS Signal Descriptions ......................................................... 49

Table 20 SDVO Signal Descriptions ....................................................... 50

Table 21 DisplayPort Signal Descriptions ............................................... 51

Table 22 HDMI Signal Descriptions ........................................................ 51

Table 23 LPC Signal Descriptions ........................................................... 52

Table 24 SPI Interface Signal Descriptions ............................................. 52

Table 25 CAN Bus Signal Descriptions ................................................... 52

Table 26 Power and GND Signal Descriptions ....................................... 53

Table 27 Power Control Signal Descriptions ..........................................53

Table 28 Power Management Signal Descriptions ................................. 53

Table 29 Miscellaneous Signal Descriptions ........................................... 54

Table 30 Manufacturing Signal Descriptions .......................................... 55

Table 31 Thermal Management Signal Descriptions .............................. 56

Table 32 Fan Control Signal Descriptions ..............................................56

Table 33 Bootstrap Signal Descriptions .................................................. 57

Table 34 IRQ Lines in PIC mode ............................................................. 58

Table 35 IRQ Lines in APIC mode .......................................................... 59

Table 36 PCI Conﬁguration Space Map ................................................. 60

Table 37 PCI Interrupt Routing Map ....................................................... 61

Table 38 Industry Speciﬁcations ............................................................. 80

Page 10

1 Introduction

Qseven® Concept

The Qseven® concept is an off-the-shelf, multi vendor, Single-Board-Computer that integrates all the core components of a common PC and is mounted onto an application speciﬁc carrier board. Qseven® modules have a standardized form factor of 70mm x 70mm and a speciﬁed pinout based on the high speed MXM system connector. The pinout remains the same regardless of the vendor. The Qseven® module provides the functional requirements for an embedded application. These functions include, but are not limited to, graphics, sound, mass storage, network interface and multiple USB ports.

A single ruggedized MXM connector provides the carrier board interface to carry all the I/O signals to and from the Qseven

module. This MXM connector is a well known and proven high speed signal interface connector that is commonly used for high speed PCI Express graphics cards in notebooks.

Carrier board designers can utilize as little or as many of the I/O interfaces as deemed necessary. The carrier board can therefore provide all the interface connectors required to attach the system to the application speciﬁc peripherals. This versatility allows the designer to create a dense and optimized package, which results in a more reliable product while simplifying system integration.

The Qseven

evaluation carrier board provides carrier board designers with a reference design platform and the opportunity to test all the Qseven® I/O interfaces available and then choose what are suitable for their application. Qseven® applications are scalable, which means once a carrier board has been created there is the ability to diversify the product range through the use of different performance class Qseven® modules. Simply unplug one module and replace it with another, no need to redesign the carrier board.

This document describes the features available on the Qseven

evaluation carrier board. Additionally, the schematics for the Qseven® evaluation

carrier board can be found on the congatec website.

Page 11

conga-QA6 Options Information

The conga-QA6 is currently available in several different variants. This user’s guide describes the available features these different variants offer. Below you will ﬁnd an order table showing the base conﬁguration modules that are currently offered by congatec AG. For more information about the additional conga-QA6 variants offered by congatec, contact your local congatec sales representative or visit the congatec website at www.congatec.com.

Table 1 conga-QA6 Commercial Variants

Part-No. 015033 015030 015031 015032

Processor Intel® Atom™ E680 1.6 GHz Intel® Atom™ E660 1.3 GHz Intel® Atom™ E640 1.0 GHz Intel® Atom™ E620 0.6 GHz L2 Cache 512kB 512kB 512kB 512kB Onboard Memory up to 2GB 1GB DDR2 (800 MT/s) 1GB DDR2 (800 MT/s) 1GB DDR2 (667 MT/s) 1GB DDR2 (667 MT/s) External PCI Express Lane(s) 3 3 3 3 Gigabit Ethernet Yes Yes Ye s Yes Onboard Solid-State Drive (SSD) No No No No CAN Bus Ye s Ye s Yes Ye s CPU TDP 3.9 W 3.6 W 3.6 W 2.7 W

Part-No. 015042 015046 015047

Processor Intel® Atom™ E680 1.6GHz Intel® Atom™ E680 1.6GHz Intel® Atom™ E640 1.0GHz L2 Cache 512kB 512kB 512kB Onboard Memory up to 2GB 2GB DDR2 (800 MT/s) 1GB DDR2 (533 MT/s) 1GB DDR2 (533 MT/s) External PCI Express Lane(s) 3 3 3 Gigabit Ethernet Yes Yes Ye s Onboard Solid-State Drive (SSD) No 8GB MLC 4GB MLC CAN Bus Ye s Ye s Yes CPU TDP 4.5 W 4.5 W 3.6 W

Table 2 conga-QA6 Industrial Variants

Part-No. 015038 015035 015036 015039

Processor Intel® Atom™ E680T 1.6 GHz Intel® Atom™ E660T 1.3 GHz Intel® Atom™ E640T 1.0 GHz Intel® Atom™ E640T 1.0GHz L2 Cache 512kB 512kB 512kB 512kB Onboard Memory 1GB DDR2 (800 MT/s) 1GB DDR2 (800 MT/s) 1GB DDR2 (667 MT/s) 1GB DDR2 (800 MT/s) External PCI Express Lane(s) 3 3 3 3 Gigabit Ethernet Yes Ye s Yes Ye s Onboard Solid-State Drive (SSD) No No No 2GB SLC CAN Bus Ye s Ye s Ye s Yes CPU TDP 3.9 W 3.6 W 3.6 W 3.6 W

Page 12

Part-No. 015041 015037

Processor Intel® Atom™ E680T 1.6GHz Intel® Atom™ E620T 600 MHz L2 Cache 512kB 512kB Onboard Memory 2GB DDR2 (800 MT/s) 1GB DDR2 (667 MT/s) External PCI Express Lane(s) 3 3 Gigabit Ethernet Yes Yes Onboard Solid-State Drive (SSD) No No CAN Bus Ye s Ye s CPU TDP 4.5 W 2.7 W

Page 13

2 Speciﬁcations

2.1 Feature List

Table 3 Feature Summary

Form Factor

Based on Qseven® form factor speciﬁcation revision 1.20

Processor

Intel® Atom™ E680 1.6 GHz with 512kB L2 cache Intel® Atom™ E660 1.3 GHz with 512kB L2 cache Intel® Atom™ E640 1.0 GHz with 512kB L2 cache Intel® Atom™ E620 600 MHz with 512kB L2 cache Intel® Atom™ E680T 1.6 GHz with 512kB L2 cache (industrial grade processor) Intel® Atom™ E660T 1.3 GHz with 512kB L2 cache (industrial grade processor) Intel® Atom™ E640T 1.0 GHz with 512kB L2 cache (industrial grade processor) Intel® Atom™ E620T 600 MHz with 512kB L2 cache (industrial grade processor)

Memory

Onboard DDR 2 up to 2GB

Chipset

Intel

Platform Controller Hub (PCH) EG20T

Audio

HDA (High Deﬁnition Audio)/digital audio interface with support for multiple codecs

Ethernet

Gigabit Ethernet, Micrel KSZ9021RN (commercial temp) or KSZ9021RNI (industrial temp) and Phy

Graphics Options

Integrated 3D graphics engine. Dual independent display support.

• Flat panel Interface (integrated) 80 MHz LVDS Transmitter Supports 1x18 and 1x24 bit TFT conﬁgurations. Automatic Panel Detection via EPI (Embedded Panel Interface based on VESA EDID™ 1.3) Resolutions 640x480 up to 1280x768.

• AUX Output 1 x Intel compliant SDVO port (serial DVO). Resolutions up to 1280x1024 @ 85 Hz. Supports external DVI, TV and LVDS transmitters

• Video Decode Acceleration: MPEG2 MPEG4 H.264 WMV9/VC1

Peripheral Interfaces

• 2x Serial ATA® Gen 2 (SATA port 1 not available if SSD option is used)

• 1x SDIO

• 3 PCI Express Lanes (revision 1.1 (2.5Gbps) compliant)

• 8x USB 2.0 host ports

• SPI Bus

• CAN Bus

• LPC Bus

• I²C Bus, Fast Mode (400 kHz) multimaster

Onboard Storage

Optionally equipped with a Solid State Drive (SSD) up to 32 GByte in capacity

BIOS

AMI Aptio

UEFI 2.x ﬁrmware, 4MByte serial SPI with congatec Embedded BIOS features

Power Mgmt.

ACPI 3.0 compliant with battery support. Also supports Suspend to RAM (S3).

Note

Some of the features mentioned in the above Feature Summary are optional and require customized articles. Check the part number of your module and compare it to the option information list on page 12 to determine what options are available on your particular module. For more information, contact congatec support.

Page 14

2.2 Supported Operating Systems

The conga-QA6 supports the following operating systems.

• Microsoft® Windows® 7

• Microsoft® Windows® Embedded Standard 7

• Microsoft® Windows® Embedded Compact 7

• Microsoft® Windows® CE 6.0

• Microsoft® Windows® XP

• Microsoft® Windows® XP Embedded

• Linux

Note

DOS is not ofﬁcially supported by the Intel® Queensbay platform (E6xx series processors and EG20T Platform Controller Hub (PCH)). As a result of this it’s possible that some legacy DOS based applications will not function properly when used in conjunction with the conga-QA6. This limitation is due to the EG20T PCH architecture, which is not designed for legacy applications.

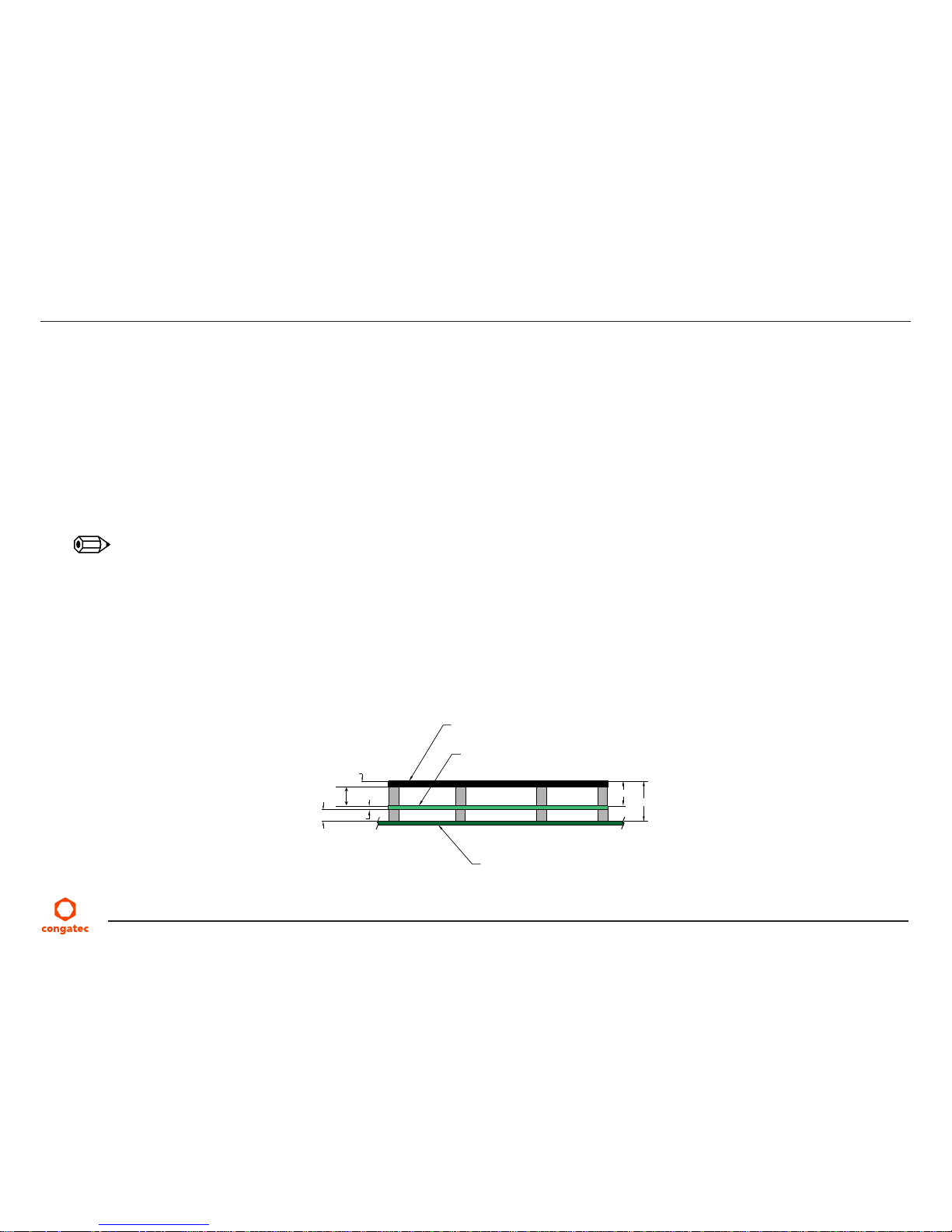

2.3 Mechanical Dimensions

• 70.0 mm x 70.0 mm @ (2 ¾” x 2 ¾”)

• The Qseven™ module, including the heatspreader plate, PCB thickness and bottom components, is up to approximately 12mm thick.

Heatspeader

Qseven Module PCB

Carrier Board PCB

Dimension is dependent on connector height used

All measurements are in millimeters All dimensions without tolerance ±0.2mm

Rear View of Qseven Module

2.00

1.20 ±0.1

6.00

8.00

Page 15

2.4 Supply Voltage Standard Power

• 5V DC ± 5%

The dynamic range shall not exceed the static range.

2.4.1 Electrical Characteristics

Table 4 Power Limits

Characteristics Min. Typ. Max. Units Comment 5V Voltage

± 5% 4.75 5.00 5.25 Vdc

Ripple

- - ± 50 mV

0-20MHz

Current

5V_SB Voltage

± 5% 4.75 5.00 5.25 Vdc

Ripple

± 50 mV

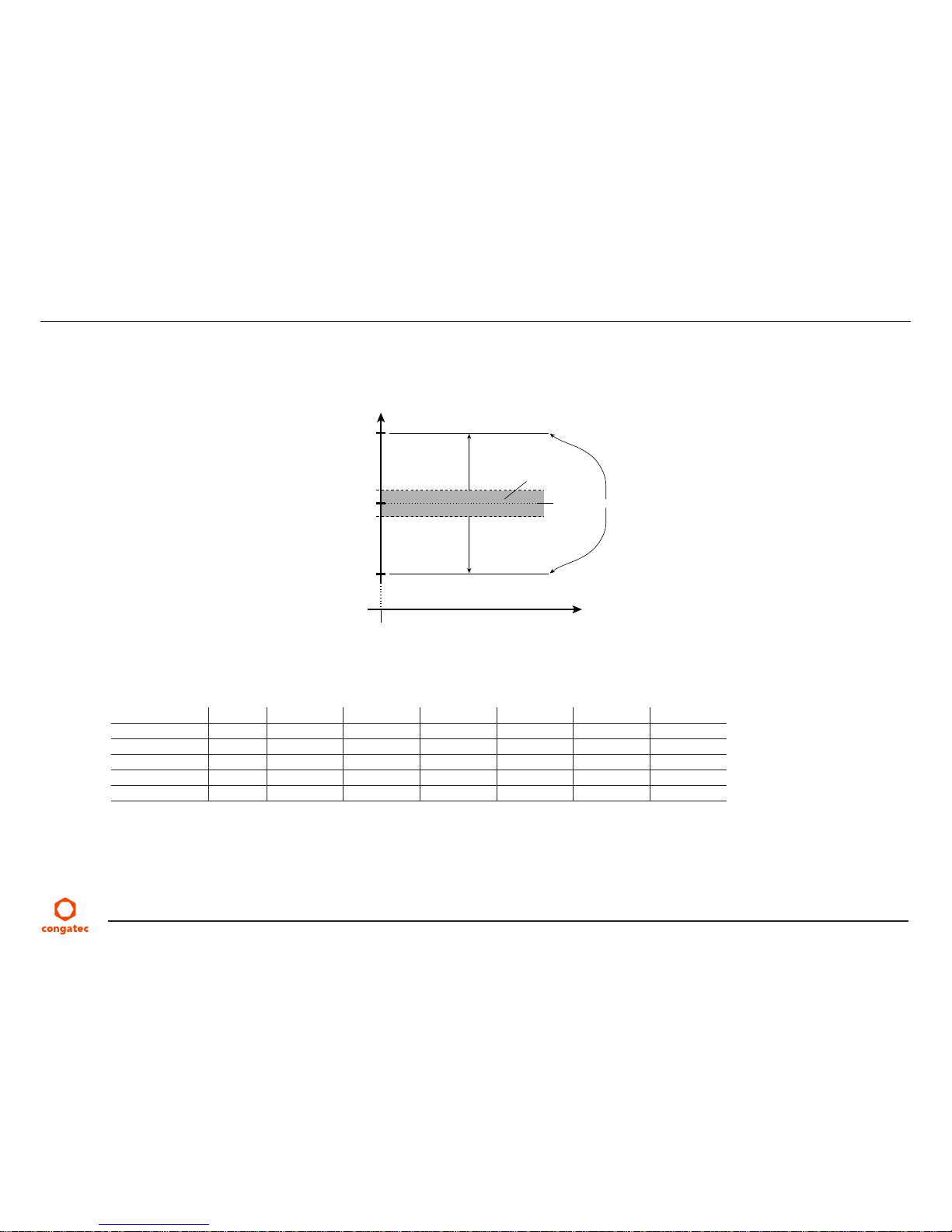

2.4.2 Rise Time

The input voltages shall rise from 10% of nominal to 90% of nominal at a minimum slope of 250V/s. The smooth turn-on requires that during the 10% to 90% portion of the rise time, the slope of the turn-on waveform must be positive.

Nominal Static Range

Dynamic Range

Absolute Minimum

Absolute Maximum5.25V

4.75V

5.05V

4.95V

Page 16

2.5 Power Consumption

The power consumption values were measured with the following setup:

• conga-QA6

• modiﬁed congatec carrier board

• conga-QA6 cooling solution

• Microsoft Windows 7 (32 bit)

Note

The CPU was stressed to its maximum workload with the Intel® Thermal Analysis Tool

Table 5 Measurement Description

The power consumption values were recorded during the following system states:

System State Description Comment

S0: Minimum value

Lowest frequency mode (LFM) with minimum core voltage during desktop idle.

The CPU was stressed to its maximum frequency.

S0: Maximum value

Highest frequency mode (HFM/Turbo Boost). The CPU was stressed to its maximum frequency.

S0: Peak value

Highest current spike during the measurement of “S0: Maximum value”. This state shows the peak value during runtime

Consider this value when designing the system’s power supply to

ensure that sufcient power is supplied during worst case scenarios.

COM is powered by VCC_5V_SBY.

Note

1. The fan and SATA drives were powered externally.

2. All other peripherals except the LCD monitor were disconnected before measurement.

Page 17

Table 6 Power Consumption Values

The tables below provide additional information about the power consumption data for each of the conga-QA6 variants offered. The values are recorded at various operating mode.

Part No.

Memory Size

BIOS Rev. OS

(32 bit)

CPU Current (Amp.)

Variant Cores Freq/Turbo

(GHz)

S0: Min

S0: Max

S0: Peak

015033 1GB QTOPR002 Windows 7 Intel® Atom™ E680 1 1.6 GHz 1.04 1.81 1.92 0.12 015030 1GB QTOPR002 Windows 7 Intel

Atom™ E660 1 1.3 GHz 1.06 1.54 1.76 0.14

015031 1GB QTOPR002 Windows 7 Intel

Atom™ E640 1 1.0 GHz 1.12 1.51 1.70 0.14

015032 1GB QTOPR002 Windows 7 Intel

Atom™ E620 1 0.6 GHz 0.96 1.09 1.24 0.12

Note

With fast input voltage rise time, the inrush current may exceed the measured peak current.

2.6 Supply Voltage Battery Power

Table 7 CMOS Battery Power Consumption

RTC @ Voltage Current

20oC 3V DC 2.26 µA

Note

There is a limitation with the Intel® Platform Controller Hub EG20T and the RTC. The RTC leakage current is extremely high. This means the RTC battery within a system featuring this chipset will be depleted after as little as 8 months.

congatec solves this RTC current leakage problem by using the onboard board controller found on the conga-QA6. When the conga-QA6 is powered off, the EG20T RTC is disconnected and the onboard board controller’s RTC is used. When the conga-QA6 is restarted, the BIOS overwrites the EG20T system clock with the correct one provided by the congatec board controller.

Page 18

Note

1. Do not use the CMOS battery power consumption values listed above to calculate CMOS battery lifetime.

2. Measure the CMOS battery power consumption in your customer speciﬁc application in worst case conditions (for example, during high temperature and high battery voltage).

3. Consider also the self-discharge of the battery when calculating the lifetime of the CMOS battery. For more information, refer to application note AN9_RTC_Battery_Lifetime.pdf on congatec AG website at www.congatec.com/support/application-notes.

4. We recommend to always have a CMOS battery present when operating the conga-MA5.

2.7 Environmental Speciﬁcations

The above operating temperatures must be strictly adhered to at all times. When using a congatec heatspreader, the maximum operating temperature refers to any measurable spot on the heatspreader’s surface. Humidity speciﬁcations are for non-condensing conditions.

Temperature (commercial variants) Operation: 0° to 60°C Storage: -20° to +80°C

Temperature (industrial variants) Operation: -40° to 85°C Storage: -45° to +85°C

Humidity Operation: 10% to 90% Storage: 5% to 95%

Caution

Humidity speciﬁcations are for non-condensing conditions.

Page 19

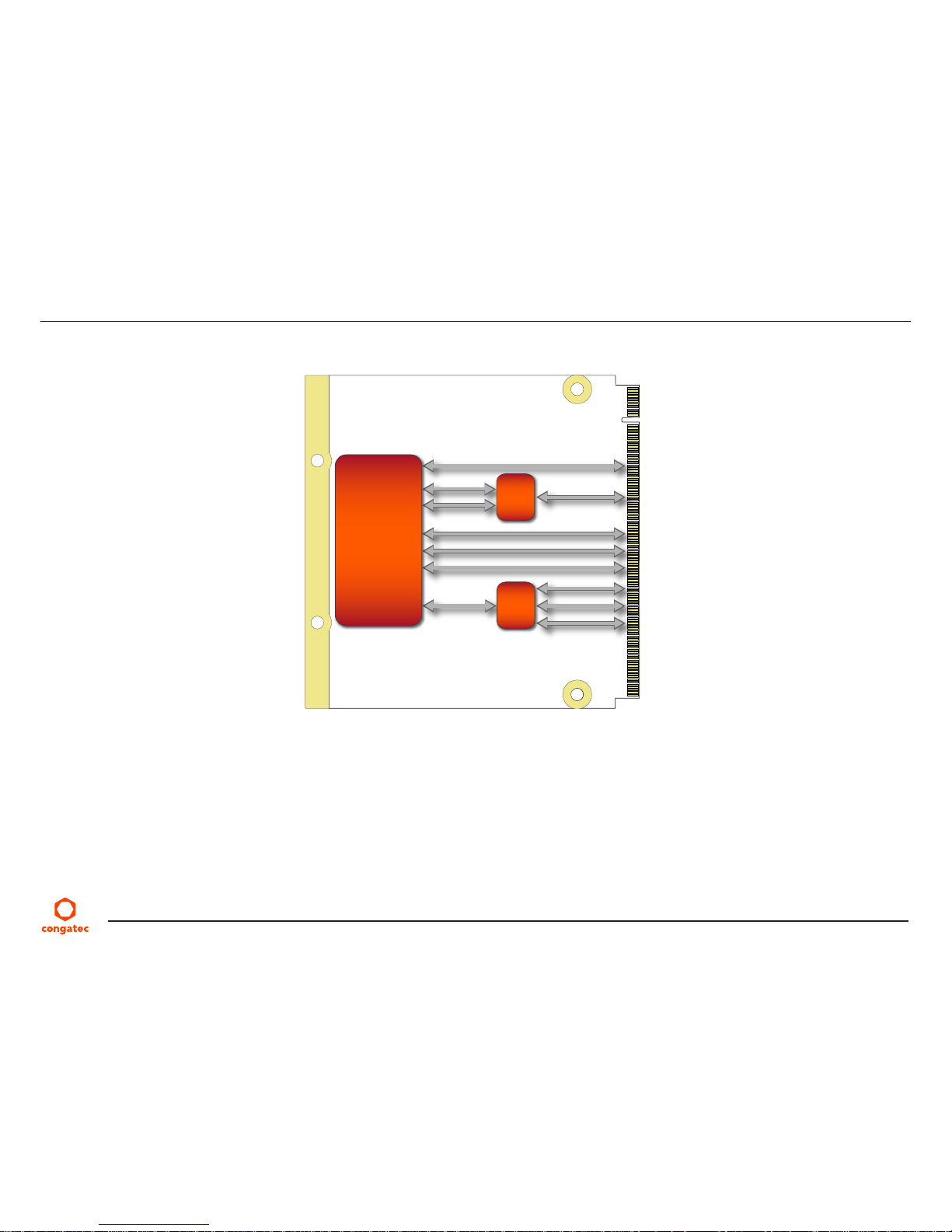

3 Block Diagram

Intel® Platform

Controller Hub

EG20T

Intel® Atom™

processor

E6xx/E6xxT Series

RTC

1x Channel LCD I/F

8x USB Host

HDA I/F

BC SPI GPIOs

LPC Bus

I2C

Fan

Control

Power Management and Control Signals

Gbit Ethernet

SM Bus

SPI

1x SDIO/MMC

CAN Bus

PCIe Port 0

3 PCIe Lanes (Ports 1,2,3)

Memory Bus

(533MHz or 800MHz)

Onboard DDR2

Maximum 2GB

Micrel®

Gbit Ethernet

Phy KSZ9021RN(I)

SSD NandDrive

(optional)

Uses SATA 1

Board Controller

STM32F100R8T6b

Watchdog

BIOS

(Flash)

1x SDVO I/F

Gbe MAC

2x SATA (Port 0, 1)

SATA1

Hardware Monitoring

and

Fan Control Circuitry

1x SATA0

Page 20

4 Cooling Solutions

An important factor for each system integration is the thermal design. The heatspreader acts as a thermal coupling device to the module and its aluminum plate is 2mm thick.

The heatspreader is thermally coupled to the CPU via a thermal gap ﬁller and on some modules it may also be thermally coupled to other heat generating components with the use of additional thermal gap ﬁllers.

Although the heatspreader is the thermal interface where most of the heat generated by the module is dissipated, it is not to be considered as a heatsink. It has been designed as a thermal interface between the module and the application speciﬁc thermal solution. The application speciﬁc thermal solution may use heatsinks with fans, and/or heat pipes, which can be attached to the heatspreader. Some thermal solutions may also require that the heatspreader is attached directly to the systems chassis thereby using the whole chassis as a heat dissipater.

Caution

congatec Qseven® heaspreaders have been speciﬁcally designed for use within commercial temperature ranges (0° to 60°C) only. When using industrial temperature variants of the conga-QA6 in industrial temperature ranges (-40° to 85°C), use of the conga-QA6 heatspreaders is not recommended by congatec and furthermore its use is at the risk of the end user. It is the responsibility of the end user to design an optimized thermal solution that meets the needs of their application within the industrial environmental conditions it is required to operate in.

Attention must be given to the mounting solution used to mount the heatspreader and module into the system chassis. Do not use a threaded heatspreader together with threaded carrier board standoffs. The combination of the two threads may be staggered, which could lead to stripping or cross-threading of the threads in either the standoffs of the heatspreader or carrier board.

Only heatspreaders that feature micro pins that secure the thermal stacks should be used for applications that require the heatspreader to be mounted vertically. It cannot be guaranteed that the thermal stacks will not move if a heatspreader that does not have the micro pin feature is used in vertically mounted applications.

Additionally, the gap pad material used on all heatspreaders contains silicon oil that can seep out over time depending on the environmental conditions it is subjected to. For more information about this subject, contact your local congatec sales representative and request the gap pad material manufacturer’s speciﬁcation.

Page 21

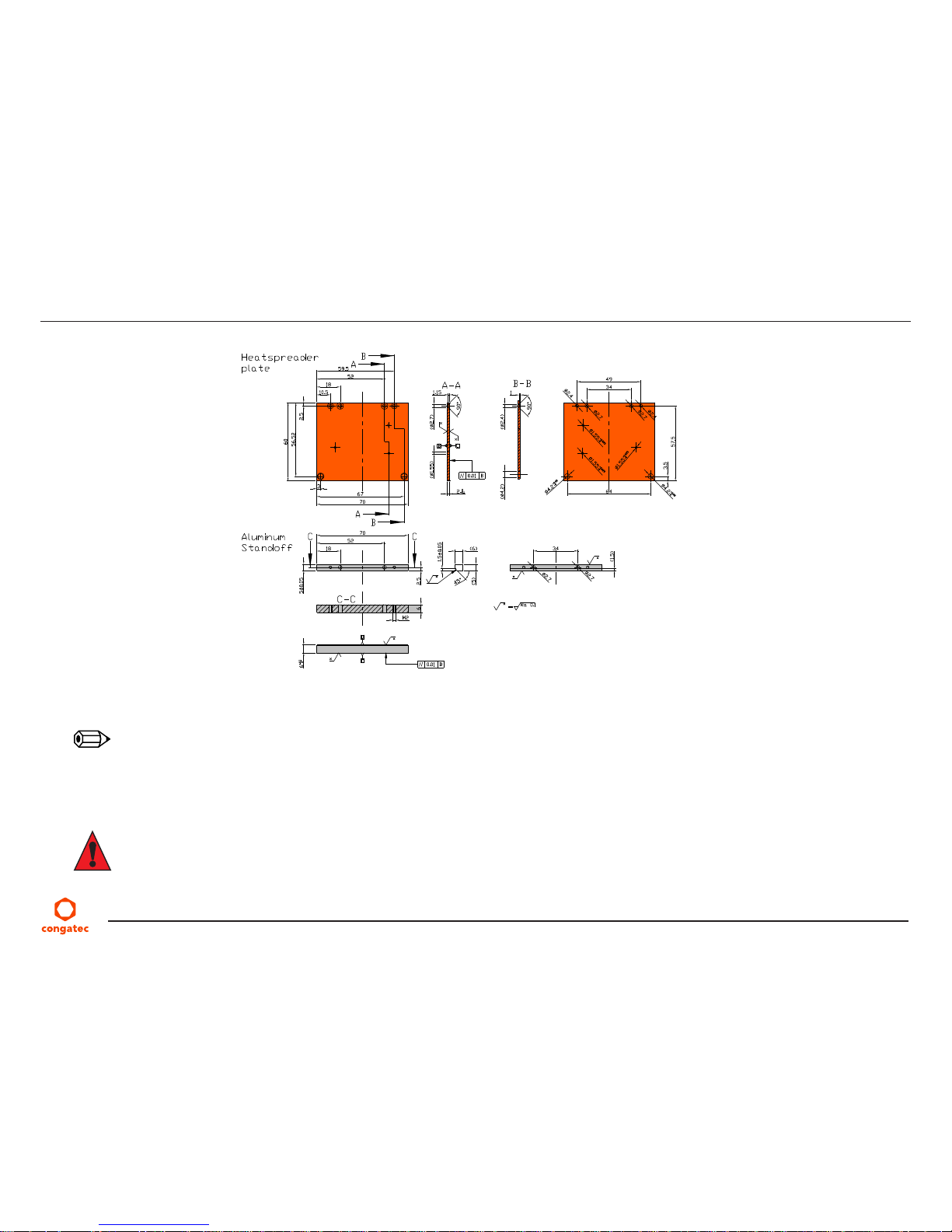

4.1 Heatspreader and Aluminum Standoff Dimensions

Note

All measurements are in millimeters. Torque speciﬁcation for heatspreader screws is 0.3 Nm. Mechanical system assembly mounting shall follow the valid DIN/IS0 speciﬁcations. The cooling strip found on the conga-QA is connected directly to the ground plane when mounted in the conga-QEVAL evaluation carrier board. For more information about connecting the conga-QA’s PCB cooling plate to the carrier board ground plane refer to the Qseven Design Guide.

Caution

When using the heatspreader in a high shock and/or vibration environment, congatec recommends the use of a thread-locking ﬂuid on the heatspreader screws to ensure the above mentioned torque speciﬁcation is maintained.

Page 22

4.2 Heatspreader and Aluminum Standoff Exploded View

Note

Torque speciﬁcation for heatspreader screws is 0.3 Nm. Heatspreader utilizes micro pins to ensure that the thermal stacks always remain in place.

Page 23

5 Connector Subsystems

The conga-QA6 is based on the Qseven® standard and therefore has 115 edge ﬁngers on the top and bottom side of the module that mate with the 230-pin card-edge MXM connector located on the carrier board. This connector provides the ability to interface the available signals of the conga-QA6 with the carrier board peripherals.

1x SDVO

I²C Bus 400 kHz

SPI Bus

LVDS

Watchdog

Power Control

Power Management

Fan Control

3 PCI Express Lanes

2x Serial AT A

8x USB 2.0

HDA/Digital Audio I/F

Gigabit Ethernet

CAN Bus

LPC Bus

Page 24

5.1 PCI Express™

The Intel® Atom. processor E6xx/E6xxT series supports 4 PCI Express Lanes. PCI Express lane 0 of the CPU connects the processor to the Intel® Platform Controller Hub EG20T on the conga-QA6. The remaining 3 PCI Express lanes are available externally on the MXM connector as PCIe channel 0, 1 and 2 on the carrier board and can be conﬁgured to support PCI Express edge cards or ExpressCards. The PCI Express interface supports PCI Express Speciﬁcation 1.0a. For more information about which channels are available on the MXM connector refer to the conga-QA6 pinout table in section 8 “Signal Descriptions and Pinout Tables.” Only x1 PCI Express link conﬁgurations possible.

5.2 ExpressCard™

The conga-QA6 supports the implementation of one ExpressCard. This requires the dedication of one USB port and one PCI Express lane. Refer to section 8, “Signal Descriptions and Pinout Tables” for information about which ExpressCard port is supported.

5.3 Gigabit Ethernet

The Intel® Platform Controller Hub EG20T provides the conga-QA6 with a Gigabit Ethernet Media Access Controller (GbE MAC) that is connected to a Micrel KSZ9021RN(I) Phy. The Ethernet interface consists of 4 pairs of low voltage differential pair signals designated from GBE0_MD0± to GBE0_MD3± plus control signals for link activity indicators. These signals can be used to connect to a 10/100/1000 BaseT RJ45 connector with integrated or external isolation magnetics on the carrier board.

Note

For conga-QA6 rev C.x and earlier, congatec AG reccommends not to connect the center-taps of the magnetics to either each other or to CTREF pin.

5.4 Serial ATA™ (SATA)

Two Serial ATA (SATA) connections are provided by a SATA controller integrated in the Intel® Platform Controller Hub EG20T found on the congaQA6. Supports SATA 1.5-Gbps Gerneration 1 and 3-Gbps Generation 2 speeds. Compliant with Serial ATA speciﬁcation 2.6 and Advanced Host Controller Interface (AHCI) speciﬁcation revision 1.1. The optional SSD feature utilizes SATA port 1 and therefore only SATA port 0 is available externally when the module is equipped with the onboard SSD feature.

Note

The conga-QA6 SATA interface supports AHCI mode only. Legacy parallel ATA emulation is not supported.

Page 25

5.5 USB 2.0

The conga-QA6 offers a USB 2.0 host controller provided by the Intel® Platform Controller Hub EG20T. This controller complies with USB standard 1.1 and 2.0 and provides a total of 8 USB ports via the card-edge MXM connector. All ports are capable of supporting USB 1.1 and

2.0 compliant devices.

5.6 SDIO/MMC

SDIO stands for Secure Digital Input Output. Devices that support SDIO can use small devices such as SD-Card or MMC-Card ﬂash memories. The Intel® Platform Controller Hub EG20T found on the conga-QA6 provides a SDIO/MMC expansion port used to communicate with a variety of SDIO and MMC devices. This port is available externally and supports SDIO Revision 1.1 and MMC Revision 4.1 and is backward compatible with previous interface speciﬁcations.

Note

Only DOS and Linux (Ubuntu, Xandros) boot support for SDIO/MMC devices is available.

5.7 High Deﬁnition Audio (HDA)

The conga-QA6 provides an interface that supports the connection of HDA audio codecs.

5.8 LCD

The Intel® Atom™ processor E6xx/E6xxT series, found on the conga-QA6, offers an integrated single channel 80MHz LVDS interface that is internally connected to Display Pipe A. It supports the connection of 1x18 or 1x24 bit data mapping up to a resolution of 1280x768@60Hz. For more information about the supported resolutions, see table 2 below.

Page 26

5.9 SDVO

conga-QA6 provides one SDVO port via Display Pipe B of the Intel® Atom™ processor E6xx/E6xxT series. The SDVO port can support a variety of display types (VGA, LVDS, DVI, TV-Out, etc.) by an external SDVO device. This single channel 160MHz SDVO interface supports resolutions up to 1920x1080@60Hz and 1280x1024@85Hz. For more information see the table below.

Table 8 Display Resolutions

Resolution Refresh Pixel Clock Freq SDVO Support LVDS Support

640x480 50 Hz 19.75 MHz Y Y 640x480 60 Hz 23.75 MHz Y Y 848x480 50 Hz 26 MHz Y Y 848x480RB 60 Hz 29.75 MHz Y Y 640x480 75 Hz 30.75 MHz Y Y 800x600 50 Hz 30.75 MHz Y Y 848x480 60 Hz 31.5 MHz Y Y 640x480 85 Hz 35 MHz Y Y 800x600RB 60 Hz 35.5 MHz Y Y 800x600 60 Hz 38.25 MHz Y Y 848x480 75 Hz 41 MHz Y Y 848x480 85 Hz 46.75 MHz Y Y 800x600 75 Hz 49 MHz Y Y 1024x768 50 Hz 52 MHz Y Y 1024x768RB 60 Hz 56 MHz Y Y 800x600 85 Hz 56.75 MHz Y Y 1024x768 60 Hz 63.5 MHz Y Y 1280x768 50 Hz 65.25 MHz Y Y 1280x768RB 60 Hz 68.25 MHz Y Y 1280x768 60 Hz 79.5 MHz Y Y Max LVDS interface support 1400x1050 60 Hz 121.75 MHz Y 1280x960 75 Hz 130 MHz Y 1600x1200RB 60 Hz 130.25 MHz Y 1600x1200 50 Hz 131.5 MHz Y 1920x1080RB 60 Hz 138.5 MHz Y 1280x1024 75 Hz 138.75 MHz Y 1920x1080 50 Hz 141.5 MHz Y 1280x960 85 Hz 148.25 MHz Y 1400x1050 75 Hz 156 MHz Y 1280x1024 85 Hz 159.5 MHz Y Max SDVO interface support

Page 27

5.10 DisplayPort

DisplayPort is an open, industry standard digital display interface, that has been developed within the Video Electronics Standards Association (VESA). The DisplayPort speciﬁcation deﬁnes a scalable digital display interface with optional audio and content protection capability. It deﬁnes a license-free, royalty-free, state-of-the-art digital audio/video interconnect, intended to be used primarily between a computer and its display monitor.

Note

The conga-QA6 does not offer a DisplayPort interface.

5.11 HDMI

High-Deﬁnition Multimedia Interface (HDMI) is a licensable compact audio/video connector interface for transmitting uncompressed digital streams. HDMI encodes the video data into TMDS for digital transmission and is backward-compatible with the single-link Digital Visual Interface (DVI) carrying digital video.

Note

The conga-QA6 does not offer a HDMI interface.

5.12 LPC

conga-QA6 offers the LPC (Low Pin Count) bus through the use of the Intel® Atom™ processor E6xx/E6xxT series. There are already many devices available for this Intel® deﬁned bus. The LPC bus corresponds approximately to a serialized ISA bus yet with a signiﬁcantly reduced number of signals and functionality. Due to the software compatibility to the ISA bus, I/O extensions such as additional serial ports can be easily implemented on an application speciﬁc carrier board using this bus. Only certain devices such as Super I/O or TPM 1.2 chips can be implemented on the carrier board.

5.13 SPI

A SPI interface that supports booting from an external SPI ﬂash is available on the conga-QA6. This interface is provided by the Intel® Atom™ processor E6xx/E6xxT series and only supports the connection of an external SPI ﬂash to enable external boot capabilities.

Page 28

5.14 CAN Bus

The conga-QA6 supports CAN bus. The CAN controller performs communication in accordance with the BOSCH CAN Protocol Version 2.0B Active1 (standard format and extended format). The bit rate can be programmed to a maximum of 1Mbit/s, based on the technology used. To connect the CAN controller module to the CAN bus, it is necessary to add transceiver hardware. A complete description of the CAN controller registers and functionality is beyond the scope of this user’s guide. Refer to chapter 13.0 of the Intel Platform Controller Hub E20GT datasheet for additional information about this interface.

5.15 Power Control

PWGIN

PWGIN (pin 26) can be connected to an external power good circuit or it may also be utilized as a manual reset input. In order to use PWGIN as a manual reset the pin must be grounded through the use of a momentary-contact push-button switch. When external circuitry asserts this signal, it’s necessary that an open-drain driver drives this signal causing it to be held low for a minimum of 15ms to initiate a reset. Using this input is optional. Through the use of an internal monitor on the +5V input voltage and/or the internal power supplies, the conga-QA6 module is capable of generating its own power-on good.

The conga-QA6 provides support for controlling ATX-style power supplies. In order to do this the power supply must provide a constant source of VCC_5V_SB power. When using an AT power supply (5V only) then the conga-QA6’s pins SUS_S3 and PWRBTN# should be left unconnected. VCC_5V_SB can also be left unconnected but it is recommended to connect it to the 5V input power rail.

SUS_S3#

The SUS_S3# (pin 18) signal is an active-low output that can be used to turn on the main 5V rail of the power supply. In order to accomplish this the signal must be inverted with an inverter/transistor that is supplied by standby voltage and is located on the carrier board.

PWRBTN#

When using ATX-style power supplies PWRBTN# (pin 20) is used to connect to a momentary-contact, active-low debounced push-button input while the other terminal on the push-button must be connected to ground. This signal is internally pulled up to 3V_SB using a 10k resistor. When PWRBTN# is asserted it indicates that an operator wants to turn the power on or off. The response to this signal from the system may vary as a result of modiﬁcations made in BIOS settings or by system software.

Page 29

Power Supply Implementation Guidelines

5 volt input power is the sole operational power source for the conga-QA6. The remaining necessary voltages are internally generated on the module using onboard voltage regulators. A carrier board designer should be aware of the following important information when designing a power supply for a conga-QA6 application:

• It has also been noticed that on some occasions problems occur when using a 5V power supply that produces non monotonic voltage when powered up. The problem is that some internal circuits on the module (e.g. clock-generator chips) will generate their own reset signals when the supply voltage exceeds a certain voltage threshold. A voltage dip after passing this threshold may lead to these circuits becoming confused resulting in a malfunction. It must be mentioned that this problem is quite rare but has been observed in some mobile power supply applications. The best way to ensure that this problem is not encountered is to observe the power supply rise waveform through the use of an oscilloscope to determine if the rise is indeed monotonic and does not have any dips. This should be done during the power supply qualiﬁcation phase therefore ensuring that the above mentioned problem doesn’t arise in the application. For more information about this issue visit www.formfactors.org and view page 25 ﬁgure 7 of the document “ATX12V Power Supply Design Guide V2.2”.

Inrush and Maximum Current Peaks on VCC_5V_SB and VCC

The inrush-current on the conga-QA6 VCC_5V_SB power rail can go up as high as 2.3A for a maximum of 100µS. Sufﬁcient decoupling capacitance must be implemented to ensure proper power-up sequencing.

The maximum peak-current on the conga-QA6 VCC (5V) power rail can be as high as 3.0A. This requires that the power supply be properly dimensioned.

Note

For more information about power control event signals refer to the Qseven® speciﬁcation.

5.16 Power Management

ACPI 3.0 compliant with battery support. Also supports Suspend to RAM (S3). No support for legacy APM.

5.17 I²C Bus

The I²C bus is implemented through the use of STMicroelectronics STM32F100R8 microcontroller. It provides a multi-master I²C Bus that has maximum I²C bandwidth.

Page 30

5.18 Watchdog

The conga-QA6 is equipped with a multi stage watchdog solution that can be triggered by software or external hardware. For more information about the Watchdog feature see the BIOS setup description of this document and application note AN3_Watchdog.pdf on the congatec AG website at www.congatec.com.

5.19 Fan Control

conga-QA6 has additional signals and functions to further improve system management. One of these signals is an output signal called FAN_PWMOUT that allows system fan control using a PWM (Pulse Width Modulation) Output. Additionally, there is an input signal called FAN_TACHOIN that provides the ability to monitor the system fan’s RPMs (revolutions per minute). This signal must receive two pulses per revolution in order to produce an accurate reading. For this reason a two pulse per revolution fan, or similar hardware solution, is recommended.

Note

A four wire fan must be used to generate the correct speed readout.

Page 31

6 Additional Features

6.1 congatec Board Controller (cGB)

The conga-QA6 is equipped with an STMicroelectronics STM32F100R8 microcontroller. This onboard microcontroller plays an important role for most of the congatec BIOS features. It fully isolates some of the embedded features such as system monitoring or the I²C bus from the x86 core architecture, which results in higher embedded feature performance and more reliability, even when the x86 processor is in a low power mode.

6.2 Board Information

The cBC provides a rich data-set of manufacturing and board information such as serial number, EAN number, hardware and ﬁrmware revisions, and so on. It also keeps track of dynamically changing data like runtime meter and boot counter.

6.3 Watchdog

The conga-QA6 is equipped with a multi stage watchdog solution that is triggered by software. The COM Express™ Speciﬁcation does not provide support for external hardware triggering of the Watchdog, which means the conga-QA6 does not support external hardware triggering. For more information about the Watchdog feature see the BIOS setup description section 10.5.2 of this document and application note AN3_Watchdog.pdf on the congatec AG website at www.congatec.com.

6.4 I2C Bus

The conga-QA6 offers support for the frequently used I2C bus. Thanks to the I2C host controller in the cBC the I2C bus is multimaster capable and runs at speeds up to 400kHz (fast mode).

6.5 Power Loss Control

The cBC has full control of the power-up of the module and therefore can be used to specify the behaviour of the system after a AC power loss condition. Supported modes are “Always On”, “Remain Off” and “Last State”.

Page 32

6.6 Embedded BIOS

The conga-QA6 is equipped with congatec Embedded BIOS, which is based on American Megatrends Inc. Aptio UEFI ﬁrmware. These are the most important embedded PC features:

6.6.1 CMOS Backup in Non Volatile Memory

A copy of the CMOS memory (SRAM) is stored in the BIOS ﬂash device. This prevents the system from not booting up with the correct system conﬁguration if the backup battery (RTC battery) has failed. Additionally, it provides the ability to create systems that do not require a CMOS backup battery.

6.6.2 OEM CMOS Default Settings and OEM BIOS Logo

This feature allows system designers to create and store their own CMOS default conﬁguration and BIOS logo (splash screen) within the BIOS ﬂash device. Customized BIOS development by congatec for these changes is no longer necessary because customers can easily do these changes by themselves using the congatec system utility CGUITL.

6.6.3 OEM BIOS Code

With the congatec embedded BIOS it is even possible for system designers to add their own code to the BIOS POST process. Except for custom speciﬁc code, this feature can also be used to support Win XP SLP installation, Window 7 SLIC table, verb tables for HDA codecs, rare graphic modes and Super I/O controllers.

For more information about customizing the congatec embedded BIOS refer to the congatec System Utility user’s guide, which is called CGUTLm1x.pdf and can be found on the congatec AG website at www.congatec.com or contact congatec technical support.

6.6.4 congatec Battery Management Interface

In order to facilitate the development of battery powered mobile systems based on embedded modules, congatec AG has deﬁned an interface for the exchange of data between a CPU module (using an ACPI operating system) and a Smart Battery system. A system developed according to the congatec Battery Management Interface Speciﬁcation can provide the battery management functions supported by an ACPI capable operating system (e.g. charge state of the battery, information about the battery, alarms/events for certain battery states, ...) without the need for any additional modiﬁcations to the system BIOS.

The conga-QA6 BIOS fully supports this interface. For more information about this subject visit the congatec website and view the following documents:

Page 33

• congatec Battery Management Interface Speciﬁcation

• Battery System Design Guide

• conga-SBM²C User’s Guide

6.6.5 API Support (CGOS/EAPI)

In order to beneﬁt from the above mentioned non-industry standard feature set, congatec provides an API that allows application software developers to easily integrate all these features into their code. The CGOS API (congatec Operating System Application Programming Interface) is the congatec proprietary API that is available for all commonly used Operating Systems such as Win32, Win64, Win CE, Linux and QNX. The architecture of the CGOS API driver provides the ability to write application software that runs unmodiﬁed on all congatec CPU modules. All the hardware related code is contained within the congatec embedded BIOS on the module. See section 1.1 of the CGOS API software developers guide, which is available on the congatec website .

Other COM (Computer on Modules) vendors offer similar driver solutions for these kind of embedded PC features, which are by nature proprietary. All the API solutions that can be found on the market are not compatible to each other. As a result, writing application software that can run on more than one vendor’s COM is not so easy. Customers have to change their application software when switching to another COM vendor. EAPI (Embedded Application Programming Interface) is a programming interface deﬁned by the PICMG that addresses this problem. With this uniﬁed API it is now possible to run the same application on all vendor’s COMs that offer EAPI driver support. Contact congatec technical support for more information about EAPI.

6.7 Suspend to Ram

The Suspend to RAM feature is available on the conga-QA6.

6.8 Onboard Solid State Disk

A solid-state drive (SSD) is a data storage device that uses solid-state memory to store persistent data. A SSD is a hard disk drive without the traditional moving parts, thus easily replacing traditional hard drives in most applications. The conga-QA6 can be optionally equipped with a SSD up to 32 GByte in capacity. Due to the nature of NAND Flash technology there is a limitation of maximum write cycles related to each storage cell.

According to the manufacturer datasheet, an endurance of 10 million (for commercial MLC technology) or 100 million (for industrial SLC technology) write cycles is speciﬁed. Unlimited write cycles IS NOT speciﬁed. Since an advanced NAND memory management technology ﬁrmware is implemented in the SSD drive, it will balance the wear on erased blocks with an advanced wear-leveling algorithm, which provides a maximum of 10 million (or 100 million depending of the type of SSD used) product write cycles.

Page 34

In most applications this will be an acceptable and secure solution but it must be mentioned that the device lifetime will be affected mainly by the following parameters:

1. Operation time and used OS: If a 24/7 application is running under a write-intensive OS (such as Windows XP etc.) without EWF (Enhanced

Write Filter), the amount of guaranteed write-cycles may be reached before the deﬁned MTBF of the complete system.

2. The ratio between used and unused SSD capacity will also affect the lifetime. Since the wear-leveling algorithm uses access statistics for

balancing the wears on the blocks, the SSD endurance will increase or decrease according to the amount of used and unused SSD space.

3. Given the information in parameters 1 and 2, if the SSD application is a 24/7 continuously running OS equipped SSD drive, with frequent

write accesses and there is not enough free capacity available for wear leveling, the SSD endurance will decrease accordingly. For this reason it’s necessary to avoid a conﬁguration that will result in not enough free capacity being available for wear leveling and therefore it is required that an EWF mechanism is used thereby limiting the write-cycles in order to maintain sufﬁcient free disk space. Failure to use a EWF mechanism will void the warranty of the SSD drive.

Note

For more information about the SSD drive’s capability refer to the manufacturers datasheet.

Page 35

7 conga Tech Notes

The conga-QA6 has some technological features that require additional explanation. The following section will give the reader a better understanding of some of these features. This information will also help to gain a better understanding of the information found in the System Resources section of this user’s guide as well as some of the setup nodes found in the BIOS Setup Program description section.

7.1 Intel® Processor Features

7.1.1 Thermal Monitor and Catastrophic Thermal Protection

Intel® Atom™ processor E6xx/E6xxT series have a thermal monitor feature that helps to control the processor temperature. The integrated TCC (Thermal Control Circuit) activates if the processor silicon reaches its maximum operating temperature. The activation temperature, that the Intel® Thermal Monitor uses to activate the TCC, cannot be conﬁgured by the user nor is it software visible.

The Thermal Monitor can control the processor temperature through the use of two different methods deﬁned as TM1 and TM2. TM1 method consists of the modulation (starting and stopping) of the processor clocks at a 50% duty cycle. The TM2 method initiates an Enhanced Intel

Speedstep transition to the lowest performance state once the processor silicon reaches the maximum operating temperature.

Note

The maximum operating temperature for Intel® Atom™ processor E6xx/E6xxT series is 100°C.

Two modes are supported by the Thermal Monitor to activate the TCC. They are called Automatic and On-Demand. No additional hardware, software, or handling routines are necessary when using Automatic Mode.

Note

To ensure that the TCC is active for only short periods of time thus reducing the impact on processor performance to a minimum, it is necessary to have a properly designed thermal solution. The Intel® Atom™ processor E6xx/E6xxT series respective datasheet can provide more information about this subject.

Page 36

7.1.2 Processor Performance Control

Intel® Atom™ processor E6xx/E6xxT series run at different voltage/frequency states (performance states), which is referred to as Enhanced Intel® SpeedStep® technology (EIST). Operating systems that support performance control take advantage of microprocessors that use several different performance states in order to efﬁciently operate the processor when it’s not being fully utilized. The operating system will determine the necessary performance state that the processor should run at so that the optimal balance between performance and power consumption can be achieved during runtime.

The Windows family of operating systems links its processor performance control policy to the power scheme setting. You must ensure that your power scheme setting you choose has the ability to support Enhanced Intel

SpeedStep® technology.

7.1.3 Intel® Virtualization Technology

Virtualization solutions enhanced by Intel® VT will allow Atom™ processor E6xx/E6xxT series to run multiple operating systems and applications in independent partitions. When using virtualization capabilities, one computer system can function as multiple “virtual” systems. With processor and I/O enhancements to Intel

’s various platforms, Intel® Virtualization Technology can improve the performance and robustness of

today’s software-only virtual machine solutions.

Intel

VT is a multi-generational series of extensions to Intel® processor and platform architecture that provides a new hardware foundation for virtualization, establishing a common infrastructure for all classes of Intel® based systems. The broad availability of Intel® VT makes it possible to create entirely new applications for virtualization in servers, clients as well as embedded systems thus providing new ways to improve system reliability, manageability, security, and real-time quality of service.

The success of any new hardware architecture is highly dependent on the system software that puts its new features to use. In the case of virtualization technology, that support comes from the virtual machine monitor (VMM), a layer of software that controls the underlying physical platform resources sharing them between multiple “guest” operating systems. Intel

VT is already incorporated into most commercial and

open-source VMMs including those from VMware, Microsoft, XenSource, Parallels, Virtual Iron, Jaluna and TenAsys.

You can ﬁnd more information about Intel Virtualization Technology at: http://developer.intel.com/technology/virtualization/index.htm

Note

congatec does not offer virtual machine monitor (VMM) software. All VMM software support questions and queries should be directed to the VMM software vendor and not congatec technical support.

Page 37

7.2 Thermal Management

ACPI is responsible for allowing the operating system to play an important part in the system’s thermal management. This results in the operating system having the ability to take control of the operating environment by implementing cooling decisions according to the demands put on the CPU by the application.

The conga-QA6 ACPI thermal solution offers three different cooling policies.

• Passive Cooling

When the temperature in the thermal zone must be reduced, the operating system can decrease the power consumption of the processor by throttling the processor clock. One of the advantages of this cooling policy is that passive cooling devices (in this case the processor) do not produce any noise. Use the “passive cooling trip point” setup node in the BIOS setup program to determine the temperature threshold that the operating system will use to start or stop the passive cooling procedure.

• Active Cooling

During this cooling policy the operating system is turning the fan on/off. Although active cooling devices consume power and produce noise, they also have the ability to cool the thermal zone without having to reduce the overall system performance. Use the “active cooling trip point” setup node in the BIOS setup program to determine the temperature threshold that the operating system will use to start the active cooling device. It is stopped again when the temperature goes below the threshold (5°C hysteresis).

• Critical Trip Point

If the temperature in the thermal zone reaches a critical point then the operating system will perform a system shut down in an orderly fashion in order to ensure that there is no damage done to the system as result of high temperatures. Use the “critical trip point” setup node in the BIOS setup program to determine the temperature threshold that the operating system will use to shut down the system.

Note

The end user must determine the cooling preferences for the system by using the setup nodes in the BIOS setup program to establish the appropriate trip points.

If passive cooling is activated and the processor temperature is above the trip point, the processor clock is throttled according to the formula below.

∆P[%] = TC1(T

n-Tn-1

) + TC2(Tn-Tt)

• ∆P is the performance delta

Page 38

• Tt is the target temperature = critical trip point

• The two coefﬁcients TC1 and TC2 and the sampling period TSP are hardware dependent constants. These constants are set to ﬁxed values

for the conga-QA6:

• TC1= 1

• TC2= 5

• TSP= 5 seconds

See section 12 of the ACPI Speciﬁcation 2.0 C for more information about passive cooling.

7.3 ACPI Suspend Modes and Resume Events

conga-QA6 supports the S3 (STR= Suspend to RAM) power state. For more information about S3 wake events see section 10.5.7 “ACPI Conﬁguration Submenu”. S4 (Suspend to Disk) is not supported by the BIOS (S4_BIOS) but it is supported by some operating systems (S4_OS= Hibernate). Check with the operating system vendor to determine if S4 (Suspend to Disk) is supported.

This table lists the “Wake Events” that resume the system from S3 unless otherwise stated in the “Conditions/Remarks” column:

Table 9 Wake Events resuming system from S3

Wake Event Conditions/Remarks

Power Button Wakes unconditionally from S3 and S5. Onboard LAN Event Device driver must be conﬁgured for Wake On LAN support. Featured must be enabled in BIOS setup. PCI Express WAKE# Wakes unconditionally from S3. Watchdog Power Button Event Wakes unconditionally from S3 and S5.

Note

The above list has been veriﬁed using a Windows XP SP3 ACPI enabled installation.

Page 39

7.4 USB Port Connections

The 6 USB ports are shared between 2 EHCI host controllers. Ports 0-5 are capable of supporting USB 1.1 and 2.0 compliant devices. congatec has implemented a USB 2.0 hub on the conga-QA6 that provides two additional ports for a total of 8. See conga-QA6 USB Routing Diagram on the following page.

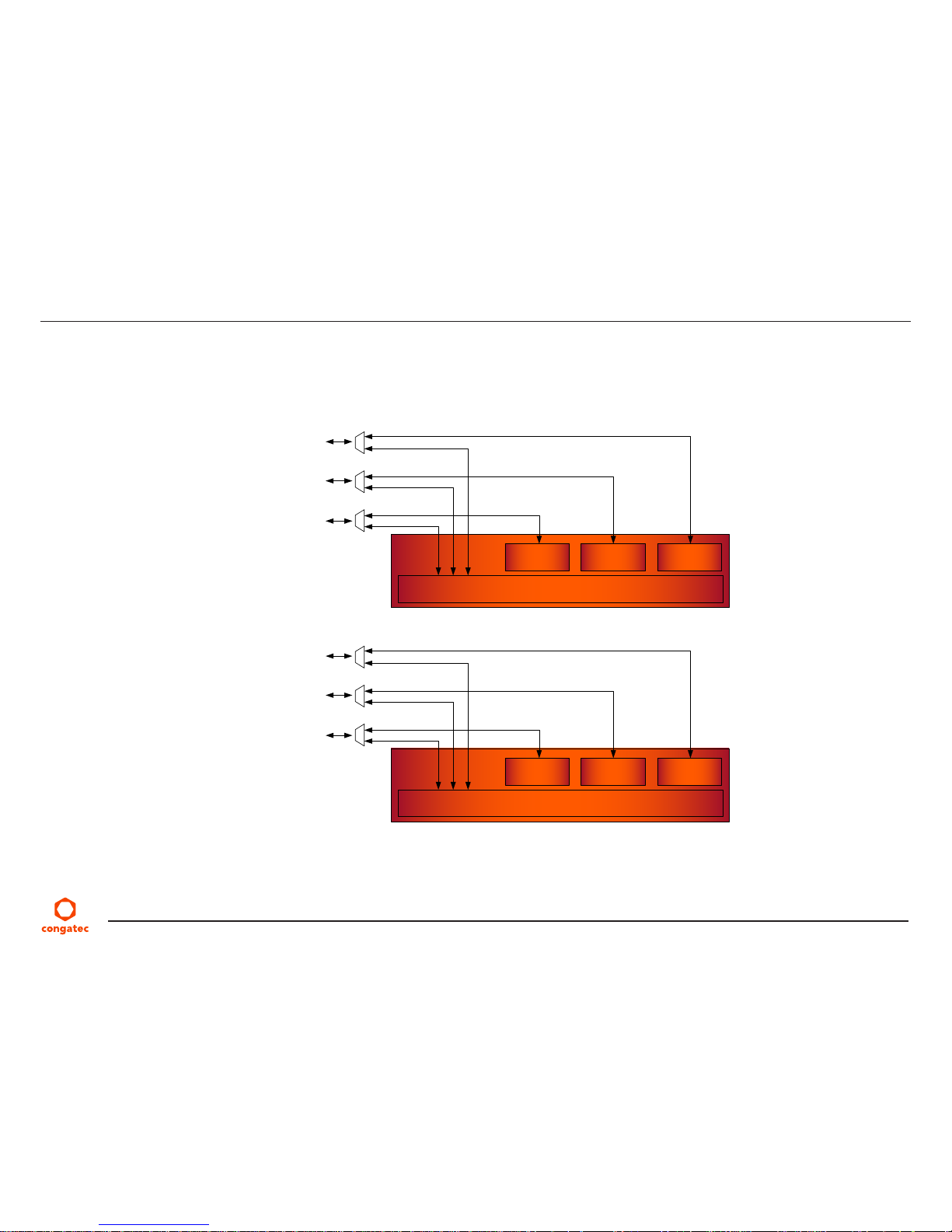

Routing Diagram

EHCI

D8:F3

USB Host Controller #0

usbhost0

usbhost2

usbhost4

OHCI

D8:F0

OHCI

D8:F1

OHCI

D8:F2

EHCI

D2:F3

USB Host Controller #1

usbhost1

usbhost3

usbhost5

OHCI

D2:F0

OHCI

D2:F1

OHCI

D2:F2

Page 40

conga-QA6 USB Routing Diagram

7.5 Important Information

There are certain limitations associated with the Intel platform featured on the conga-QA6 as well as the module itself. These limitation are documented in a conga-QA6 Fact Sheet. For information about the conga-QA6 Fact Sheet contact your local congatec representative.

Intel® Platform Controller Hub

EG20/EG20T

USB 2.0

Hub

USB

Switch

USB 0

USB 1

USB 2

USB 3

USB 4

USB 5

USB 6

USB 7

USB Device

USB 4

USB 2

USB 3

USB 5

USB 1

Page 41

8 Signal Descriptions and Pinout Tables

The following section describes the signals found on Qseven® module’s edge ﬁngers.

Table 3 describes the terminology used in this section for the Signal Description tables. The PU/PD column indicates if a Qseven

module pull-up or pull-down resistor has been used, if the ﬁeld entry area in this column for the signal is empty, then no pull-up or pull-down resistor has been implemented by congatec. The “#” symbol at the end of the signal name indicates that the active or asserted state occurs when the signal is at a low voltage level. When “#” is not present, the signal is asserted when at a high voltage level.

Note

The Signal Description tables do not list internal pull-ups or pull-downs implemented by the chip vendors, only pull-ups or pull-downs implemented by congatec are listed. For information about the internal pull-ups or pull-downs implemented by the chip vendors, refer to the respective chip’s datasheet.

Not all the signals described in this section are available on all conga-QA6 variants. Use the article number of the module and refer to the options table on page 8 to determine the options available on the module.

Table 10 Signal Tables Terminology Descriptions

Term Description

I Input Pin O Output Pin OC Open Collector OD Open Drain PP Push Pull I/O Bi-directional Input/Output Pin P Power Input NA Not applicable NC Not Connected PCIE PCI Express differential pair signals. In compliance with the PCI Express Base Speciﬁcation 1.0a. GB_LAN Gigabit Ethernet Media Dependent Interface differential pair signals. In compliance with IEEE 802.3ab 1000Base-T Gigabit Ethernet Speciﬁcation. USB Universal Serial Bus differential pair signals. In compliance with the Universal Serial Bus Speciﬁcation 2.0 SATA Serial Advanced Technology Attachment differential pair signals. In compliance with the Serial ATA High Speed Serialized AT Attachment Speciﬁcation 1.0a. SPI Serial Peripheral Interface bus is a synchronous serial data link that operates in full duplex mode. CAN Controller Area Network bus is a vehicle bus standard that allows microcontrollers and devices to communicate with each other within a vehicle without a host

computer. LVDS Low-Voltage Differential Signaling differential pair signals. In compliance with the LVDS Owner's Manual 4.0. TMDS Transition Minimized Differential Signaling differential pair signals. In compliance with the Digital Visual Interface (DVI) Speciﬁcation 1.0. CMOS Logic input or output.

Page 42

Table 11 Edge Finger Pinout

Pin Signal Description Pin Signal Description

1 GND Power Ground 2 GND Power Ground 3 GBE_MDI3- Gigabit Ethernet MDI3- 4 GBE_MDI2- Gigabit Ethernet MDI25 GBE_MDI3+ Gigabit Ethernet MDI3+ 6 GBE_MDI2+ Gigabit Ethernet MDI2+ 7 GBE_LINK100# 100 Mbps link speed 8 GBE_LINK1000# 1000 Mbps link speed 9 GBE_MDI1- Gigabit Ethernet MDI1- 10 GBE_MDI0- Gigabit Ethernet MDI011 GBE_MDI1+ Gigabit Ethernet MDI1+ 12 GBE_MDI0+ Gigabit Ethernet MDI0+ 13 GBE_LINK# Gigabit Ethernet Link indicator 14 GBE_ACT# Gigabit Ethernet Activity indicator 15 GBE_CTREF (*) Reference voltage for GBE 16 SUS_S5# S5 (Soft OFF) – shutdown state 17 WAKE# External system wake event 18 SUS_S3# S3 (Suspend to RAM) – SLP 19 SUS_STAT# Suspend status 20 PWRBTN# Power button 21 SLP_BTN# Sleep button 22 LID_BTN# LID button 23 GND Power Ground 24 GND Power Ground 25 GND Power Ground 26 PWGIN Power good input 27 BATLOW# Battery low input 28 RSTBTN# Reset button input 29 SATA0_TX+ Serial ATA Channel 0 TX+ 30 SATA1_TX+(*) Serial ATA Channel 1 TX+ 31 SATA0_TX- Serial ATA Channel 0 TX- 32 SATA1_TX- (*) Serial ATA Channel 1 TX33 SATA_ACT# Serial ATA Activity 34 GND Power Ground 35 SATA0_RX+ Serial ATA Channel 0 RX+ 36 SATA1_RX+ (*) Serial ATA Channel 1 RX+ 37 SATA0_RX- Serial ATA Channel 0 RX- 38 SATA1_RX- (*) Serial ATA Channel 1 RX39 GND Power Ground 40 GND Power Ground 41 BIOS_DISABLE#

/BOOT_ALT#

BIOS Module disable Boot Alternative Enable

42 SDIO_CLK SDIO Clock Output

43 SDIO_CD# SDIO Card Detect 44 SDIO_LED SDIO LED 45 SDIO_CMD SDIO Command/Response 46 SDIO_WP SDIO Write Protect 47 SDIO_PWR# SDIO Power Enable 48 SDIO_DAT1 SDIO Data Line 1 49 SDIO_DAT0 SDIO Data Line 0 50 SDIO_DAT3 SDIO Data Line 3 51 SDIO_DAT2 SDIO Data Line 2 52 SDIO_DAT5 SDIO Data Line 5 53 SDIO_DAT4 SDIO Data Line 4 54 SDIO_DAT7 SDIO Data Line 7 55 SDIO_DAT6 SDIO Data Line 6 56 RESERVED 57 GND Power Ground 58 GND Power Ground 59 HDA_SYNC HD Audio/AC’97 Synchronization 60 SMB_CLK SMBus Clock line 61 HDA_RST# HD Audio/AC’97 Codec Reset 62 SMB_DAT SMBus Data line 63 HDA_BITCLK HD Audio/AC’97 Serial Bit Clock 64 SMB_ALERT# SMBus Alert input 65 HDA_SDI HD Audio/AC’97 Serial Data In 66 I2C_CLK I2C Bus Clock 67 HDA_SDO HD Audio/AC’97 Serial Data Out 68 I2C_DAT I2C Bus Data 69 THRM# Thermal Alarm active low 70 WDTRIG# Watchdog trigger signal 71 THRMTRIP# Thermal Trip indicates an overheating condition 72 WDOUT Watchdog event indicator 73 GND Power Ground 74 GND Power Ground

Page 43

Pin Signal Description Pin Signal Description

75 USB_P7- USB Port 7 Differential Pair- 76 USB_P6- USB Port 6 Differential Pair77 USB_P7+ USB Port 7 Differential Pair+ 78 USB_P6+ USB Port 6 Differential Pair+ 79 USB_6_7_OC# Over current detect input 6/7 USB 80 USB_4_5_OC# Over current detect input 4/5 USB 81 USB_P5- USB Port 5 Differential Pair- 82 USB_P4- USB Port 4 Differential Pair83 USB_P5+ USB Port 5 Differential Pair+ 84 USB_P4+ USB Port 4 Differential Pair+ 85 USB_2_3_OC# Over current detect input 2/3 USB 86 USB_0_1_OC# Over current detect input 0/1 USB 87 USB_P3- USB Port 3 Differential Pair- 88 USB_P2- USB Port 2 Differential Pair89 USB_P3+ USB Port 3 Differential Pair+ 90 USB_P2+ USB Port 2 Differential Pair+ 91 USB_CC USB Client present detect pin 92 USB_ID USB ID pin 93 USB_P1- USB Port 1 Differential Pair- 94 USB_P0- USB Port 0 Differential Pair95 USB_P1+ USB Port 1 Differential Pair+ 96 USB_P0+ USB Port 0 Differential Pair+ 97 GND Power Ground 98 GND Power Ground 99 LVDS_A0+ LVDS Primary channel 0+ 100 LVDS_B0+ (*) LVDS Secondary channel 0+ 101 LVDS_A0- LVDS Primary channel 0- 102 LVDS_B0- (*) LVDS Secondary channel 0103 LVDS_A1+ LVDS Primary channel 1+ 104 LVDS_B1+ (*) LVDS Secondary channel 1+ 105 LVDS_A1- LVDS Primary channel 1- 106 LVDS_B1- (*) LVDS Secondary channel 1107 LVDS_A2+ LVDS Primary channel 2+ 108 LVDS_B2+ (*) LVDS Secondary channel 2+ 109 LVDS_A2- LVDS Primary channel 2- 110 LVDS_B2- (*) LVDS Secondary channel 2111 LVDS_PPEN LVDS Power enable 112 LVDS_BLEN LVDS Backlight enable 113 LVDS_A3+ LVDS Primary channel 3+ 114 LVDS_B3+ (*) LVDS Secondary channel 3+ 115 LVDS_A3- LVDS Primary channel 3- 116 LVDS_B3- (*) LVDS Secondary channel 3117 GND

Power Ground 118 GND Power Ground 119 LVDS_A_CLK+ LVDS Primary channel CLK+ 120 LVDS_B_CLK+ (*) LVDS Secondary channel CLK+ 121 LVDS_A_CLK- LVDS Primary channel CLK- 122 LVDS_B_CLK- (*) LVDS Secondary channel CLK123 LVDS_BLT_CTRL

/GP_PWM_OUT0

PWM Backlight brightness

General Purpose PWM Output

124 RESERVED

125 LVDS_DID_DAT

/GP_I2C_DAT

DDC Display ID Data line

General Purpose I2C Data line

126 LVDS_BLC_DAT (*) SSC clock chip data line

127 LVDS_DID_CLK

/GP_I2C_CLK

DDC Display ID Clock line

General Purpose I2C Clock line

128 LVDS_BLC_CLK (*) SSC clock chip clock line

129 CAN0_TX CAN TX Output for CAN Bus Channel 0 130 CAN0_RX CAN RX Input for CAN Bus Channel 0 131 SDVO_BCLK+ SDVO Clock line+ 132 SDVO_INT+ SDVO Interrupt line+ 133 SDVO_BCLK- SDVO Clock line- 134 SDVO_INT- SDVO Interrupt line135 GND Power Ground 136 GND Power Ground 137 SDVO_GREEN+ SDVO Green line+ 138 SDVO_FLDSTALL+ SDVO Field stall line+ 139 SDVO_GREEN- SDVO Green line- 140 SDVO_FLDSTALL- SDVO Field stall line141 GND Power Ground 142 GND Power Ground 143 SDVO_BLUE+ SDVO Blue line+ 144 SDVO_TVCLKIN+ SDVO TV-Out line+ 145 SDVO_BLUE- SDVO Blue line- 146 SDVO_TVCLKIN- SDVO TV-Out line147 GND Power Ground 148 GND Power Ground 149 SDVO_RED+ SDVO Red line+ 150 SDVO_CTRL_DAT I2C based control clock for SDVO

Page 44

Pin Signal Description Pin Signal Description

151 SDVO_RED- SDVO Red line- 152 SDVO_CTRL_CLK I2C based control data for SDVO 153 HDMI_HPD# (*) Hot plug detection for HDMI 154 DP_HPD# (*) Hot plug detection for Display port 155 PCIE_CLK_REF+ PCI Express Reference Clock+ 156 PCIE_WAKE# PCI Express Wake event 157 PCIE_CLK_REF- PCI Express Reference Clock- 158 PCIE_RST# Reset Signal for external devices 159 GND Power Ground 160 GND Power Ground 161 PCIE3_TX+ (*) PCI Express Channel 3 Output+ 162 PCIE3_RX+ (*) PCI Express Channel 3 Input+ 163 PCIE3_TX- (*) PCI Express Channel 3 Output- 164 PCIE3_RX- (*) PCI Express Channel 3 Input165 GND Power Ground 166 GND Power Ground 167 PCIE2_TX+ PCI Express Channel 2 Output+ 168 PCIE2_RX+ PCI Express Channel 2 Input+ 169 PCIE2_TX- PCI Express Channel 2 Output- 170 PCIE2_RX- PCI Express Channel 2 Input171 EXCD0_PERST# Express Card slot#0 reset 172 EXCD1_PERST# (*) Express Card slot#1 reset 173 PCIE1_TX+ PCI Express Channel 1 Output+ 174 PCIE1_RX+ PCI Express Channel 1 Input+ 175 PCIE1_TX- PCI Express Channel 1 Output- 176 PCIE1_RX- PCI Express Channel 1 Input177 EXCD0_CPPE# Express Card slot#0 Capable/Req 178 EXCD1_CPPE# (*) Express Card slot#0 Capable/Req 179 PCIE0_TX+ PCI Express Channel 0 Output+ 180 PCIE0_RX+ PCI Express Channel 0 Input+ 181 PCIE0_TX- PCI Express Channel 0 Output- 182 PCIE0_RX- PCI Express Channel 0 Input183 GND Power Ground 184 GND Power Ground 185 LPC_AD0 LPC Interface Address/Data 0 186 LPC_AD1 LPC Interface Address/Data 1 187 LPC_AD2 LPC Interface Address/Data 0 188 LPC_AD3 LPC Interface Address/Data 3 189 LPC_CLK LPC Interface Clock 190 LPC_FRAME# LPC frame indicator 191 SERIRQ Serialized interrupt 192 LPC_LDRQ# (*) LPC DMA request 193 VCC_RTC

3V backup cell input 194 SPKR

/GP_PWM_OUT2

Output for audio enunciator General Purpose PWM Output

195 FAN_TACHOIN

/GP_TIMER_IN

Fan tachometer input

General Purpose Timer In

196 FAN_PWMOUT

/GP_PWM_OUT1

Fan speed control (PWM)

General Purpose PWM Output 197 GND Power Ground 198 GND Power Ground 199 SPI_MOSI SPI Master serial output/Slave serial input 200 SPI_CS0# SPI Chip Select 0 Output 201 SPI_MISO SPI Master serial input/Slave serial output signal 202 SPI_CS1# (*) SPI Chip Select 1 Output 203 SPI_SCK SPI Clock Output 204 MFG_NC4 Do not connect on carrier board 205 VCC_5V_SB +5VDC,Standby ±5% 206 VCC_5V_SB +5VDC Standby ±5% 207 MFG_NC0 Do not connect on carrier board 208 MFG_NC2 Do not connect on carrier board 209 MFG_NC1 Do not connect on carrier board 210 MFG_NC3 Do not connect on carrier board 211 VCC Power supply +5VDC ±5% 212 VCC Power supply +5VDC ±5% 213 VCC Power supply +5VDC ±5% 214 VCC Power supply +5VDC ±5% 215 VCC Power supply +5VDC ±5% 216 VCC Power supply +5VDC ±5% 217 VCC Power supply +5VDC ±5% 218 VCC Power supply +5VDC ±5% 219 VCC Power supply +5VDC ±5% 220 VCC Power supply +5VDC ±5% 221 VCC Power supply +5VDC ±5% 222 VCC Power supply +5VDC ±5% 223 VCC Power supply +5VDC ±5% 224 VCC Power supply +5VDC ±5% 225 VCC Power supply +5VDC ±5% 226 VCC Power supply +5VDC ±5%

Page 45

Pin Signal Description Pin Signal Description

227 VCC Power supply +5VDC ±5% 228 VCC Power supply +5VDC ±5% 229 VCC Power supply +5VDC ±5% 230 VCC Power supply +5VDC ±5%

Note

The signals in the previous table marked with an asterisk symbol (*) are not supported on the conga-QA6.

Table 12 PCI Express Signal Descriptions

Signal Pin # Description I/O PU/PD Comment

PCIE0_RX+ PCIE0_RX-

180 182

PCI Express channel 0, Receive Input differential pair. I PCIE Supports PCI Express Base Speciﬁcation, Revision 1.0a.

PCIE0_TX+ PCIE0_TX-

179 181

PCI Express channel 0, Transmit Output differential pair. O PCIE Supports PCI Express Base Speciﬁcation, Revision 1.0a.

PCIE1_RX+ PCIE1_RX-

174 176

PCI Express channel 1, Receive Input differential pair. I PCIE Supports PCI Express Base Speciﬁcation, Revision 1.0a.

PCIE1_TX+ PCIE1_TX-

173 175

PCI Express channel 1, Transmit Output differential pair. O PCIE Supports PCI Express Base Speciﬁcation, Revision 1.0a.

PCIE2_RX+ PCIE2_RX-

168 170

PCI Express channel 2, Receive Input differential pair. I PCIE Supports PCI Express Base Speciﬁcation, Revision 1.0a.

PCIE2_TX+ PCIE2_TX-

167 169

PCI Express channel 2, Transmit Output differential pair. O PCIE Supports PCI Express Base Speciﬁcation, Revision 1.0a.

PCIE3_RX+ PCIE3_RX-

162 164

PCI Express channel 3, Receive Input differential pair. I PCIE Not available externally. Used to connect EG20T PCH

Supports PCI Express Base Speciﬁcation, Revision 1.0a.

PCIE3_TX+ PCIE3_TX-

161 163

PCI Express channel 3, Transmit Output differential pair. O PCIE Not available externally. Used to connect EG20T PCH

Supports PCI Express Base Speciﬁcation, Revision 1.0a.

PCIE_CLK_REF+ PCIE_CLK_REF-

155 157

PCI Express Reference Clock for Lanes 0 to 3. O PCIE

PCIE_WAKE# 156 PCI Express Wake Event: Sideband wake signal asserted

by components requesting wakeup.

I 3.3VSB PU 10k 3.3VSB

PCIE_RST# 158 Reset Signal for external devices. O 3.3V

Table 13 ExpressCard Signal Descriptions

Signal Pin # Description I/O PU/PD Comment

EXCD0_CPPE# 177 ExpressCard slot #0 capable card request. I 3.3V PU 10k 3.3V EXCD0_PERST# 171 ExpressCard slot #0 reset. O 3.3V PU 10k 3.3V EXCD1_CPPE# 178 ExpressCard slot #1 capable card request. I 3.3V Not supported EXCD1_PERST# 172 ExpressCard slot #1 reset. O 3.3V Not supported

Page 46

Table 14 Ethernet Signal Descriptions

Signal Pin # Description I/O PU/PD Comment

GBE_MDI0+ GBE_MDI0-

12 10

Media Dependent Interface (MDI) differential pair 0. The MDI can operate in 1000, 100, and 10Mbit/sec modes. This signal pair is used for all modes.

I/O Analog Twisted pair signals for external

transformer.

GBE_MDI1+ GBE_MDI1-

11 9

Media Dependent Interface (MDI) differential pair 1. The MDI can operate in 1000, 100, and 10Mbit/sec modes. This signal pair is used for all modes.

I/O Analog Twisted pair signals for external

transformer.

GBE_MDI2+ GBE_MDI2-

6 4

Media Dependent Interface (MDI) differential pair 2. The MDI can operate in 1000, 100, and 10Mbit/sec modes. This signal pair is only used for 1000Mbit/sec Gigabit Ethernet mode.

I/O Analog Twisted pair signals for external

transformer.

GBE_MDI3+ GBE_MDI3-

5 3

Media Dependent Interface (MDI) differential pair 3. The MDI can operate in 1000, 100, and 10Mbit/sec modes. This signal pair is only used for 1000Mbit/sec Gigabit Ethernet mode.

I/O Analog Twisted pair signals for external

transformer.

GBE_CTREF 15 Reference voltage for carrier board Ethernet channel 0 magnetics center

tap. The reference voltage is determined by the requirements of the module's PHY and may be as low as 0V and as high as 3.3V. The reference voltage output should be current limited on the module. In a case in which the reference is shorted to ground, the current must be limited to 250mA or less.

REF Not Supported

GBE_LINK# 13 Ethernet controller 0 link indicator, active low. O 2.5VSB PD 1k GBE0_LINK# is a bootstrap signal

(see note below)

GBE_LINK100# 7 Ethernet controller 0 100Mbit/sec link indicator, active low. O 2.5VSB PU 4k99

2,5VSB

Not Supported. Internally connected to GBE_ACT#. GBE0_LINK100# is a bootstrap signal (see note below)

GBE_LINK1000# 8 Ethernet controller 0 1000Mbit/sec link indicator, active low. O 2.5VSB PD 1k Not Supported. Internally

connected to GBE_LINK# GBE0_LINK1000# is a bootstrap signal (see note below)

GBE_ACT# 14 Ethernet controller 0 activity indicator, active low. O 2.5VSB PU 4k99

2,5VSB

GBE0_ACT# is a bootstrap signal (see note below)

Note

Some signals have special functionality during the reset process. They may bootstrap some basic important functions of the module.

For more information refer to section 8.1 of this user’s guide.

Page 47

Table 15 SATA Signal Descriptions

Signal Pin # Description I/O PU/PD Comment

SATA0_RX+ SATA0_RX-

35 37

Serial ATA channel 0, Receive Input differential pair. I S ATA Supports Serial ATA speciﬁcation,

Revision 2.6

SATA0_TX+ SATA0_TX-

29 31

Serial ATA channel 0, Transmit Output differential pair. O S ATA Supports Serial ATA speciﬁcation,

Revision 2.6

SATA1_RX+ SATA1_RX-

36 38

Serial ATA channel 1, Receive Input differential pair. I S ATA Supports Serial ATA speciﬁcation,

Revision 2.6

SATA1_TX+ SATA1_TX-

30 32

Serial ATA channel 1, Transmit Output differential pair. O S ATA Supports Serial ATA speciﬁcation,

Revision 2.6

SATA_ACT# 33 Serial ATA Led. Open collector output pin driven during SATA

command activity.

O 3.3V

Note

Serial ATA channel 1 is not available externally if the conga-QA6 is equipped with the onboard SSD option.

Table 16 USB Signal Descriptions

Signal Pin # Description I/O PU/PD Comment

USB_P0+ USB_P0-

9694Universal Serial Bus Port 0 differential pair. I/O USB 2.0 compliant. Backwards compatible to USB 1.1

USB_P1+ USB_P1-

9593Universal Serial Bus Port 1 differential pair.

If USB_ID is LOW (default) = USB Host If USB_ID is tied HIGH = USB device (Client)

I/O If USB_ID is LOW (default) = USB 2.0 compliant Host.

Backwards compatible to USB 1.1 If USB_ID is HIGH = USB 2.0 Client. Backwards compatible to USB 1.1

USB_P2+ USB_P2-

9088Universal Serial Bus Port 2 differential pair. I/O USB 2.0 compliant. Backwards compatible to USB 1.1

USB_P3+ USB_P3-

8987Universal Serial Bus Port 3 differential pair. I/O USB 2.0 compliant. Backwards compatible to USB 1.1

USB_P4+ USB_P4-

8482Universal Serial Bus Port 4 differential pair. I/O USB 2.0 compliant. Backwards compatible to USB 1.1

USB_P5+ USB_P5-

8381Universal Serial Bus Port 5 differential pair. I/O USB 2.0 compliant. Backwards compatible to USB 1.1

USB_P6+ USB_P6-

7876Universal Serial Bus Port 6 differential pair. I/O USB 2.0 compliant. Backwards compatible to USB 1.1

USB_P7+ USB_P7-

7775Universal Serial Bus Port 7 differential pair. I/O USB 2.0 compliant. Backwards compatible to USB 1.1

USB_0_1_OC# 86 Over current detect input 1. This pin is used to monitor the USB power

over current of the USB Ports 0 and 1.

I 3.3VSB PU 10k

3.3VSB

USB_2_3_OC# 85 Over current detect input 2. This pin is used to monitor the USB power

over current of the USB Ports 2 and 3.

I 3.3VSB PU 10k

3.3VSB

Page 48

USB_4_5_OC# 80 Over current detect input 3. This pin is used to monitor the USB power

over current of the USB Ports 4 and 5.

I 3.3VSB PU 10k

3.3VSB

USB_6_7_OC# 79 Over current detect input 4. This pin is used to monitor the USB power

over current of the USB Ports 6 and 7.

I 3.3VSB PU 10k

3.3VSB

USB_ID 92 USB ID pin.

Conﬁgures the mode of the USB Port 1. If the signal is detected as being 'high active' the BIOS will automatically conﬁgure USB Port 1 as USB Client and enable USB Client support. This signal should be driven as OC signal by external circuitry.

I 3.3VSB PD 1k

USB_CC# 91 USB Client Connect pin.

If USB Port 1 is conﬁgured for client mode then an externally connected USB host should set this signal to high-active in order to properly make the connection with the module’s internal USB client controller. If the external USB host is disconnected, this signal should be set to low-active in order to inform the USB client controller that the external host has been disconnected. A level shifter/protection circuitry should be implemented on the carrier board for this signal.

I 3.3V PU 10k

3.3V

Table 17 SDIO Signal Descriptions

Signal Pin # Description I/O PU/PD Comment

SDIO_CD# 43 SDIO Card Detect. This signal indicates when a SDIO/MMC card is present. I/O 3.3V PU 10k

3.3V

SDIO_CLK 42 SDIO Clock. With each cycle of this signal a one-bit transfer on the command and each

data line occurs. This signal has maximum frequency of 48 MHz.

O 3.3V

SDIO_CMD 45 SDIO Command/Response. This signal is used for card initialization and for command

transfers. During initialization mode this signal is open drain. During command transfer this signal is in push-pull mode.

I/O 3.3V OD/PP

PU 10k

3.3V

SDIO_LED 44 SDIO LED. Used to drive an external LED to indicate when transfers occur on the bus. O 3.3V SDIO_WP 46

SDIO Write Protect. This signal denotes the state of the write-protect tab on SD cards. I/O 3.3V PU 10k

3.3V

SDIO_PWR# 47 SDIO Power Enable. This signal is used to enable the power being supplied to a SD/

MMC card device.

O 3.3V PU 10k

3.3V

SDIO_DAT0 SDIO_DAT1 SDIO_DAT2 SDIO_DAT3 SDIO_DAT4 SDIO_DAT5 SDIO_DAT6 SDIO_DAT7

49 48 51 50 53 52 55 54

SDIO Data lines. These signals operate in push-pull mode. I/O 3.3V PPPU 10k

3.3V

Page 49

Table 18 HDA/AC’97 Signal Descriptions

Signal Pin # Description I/O PU/PD Comment

HDA_RST# 61 HD Audio/AC’97 Codec Reset. O 3.3V HDA_SYNC 59 Serial Bus Synchronization. O 3.3V HDA_BITCLK 63 HD Audio/AC’97 24 MHz Serial Bit Clock from Codec. O 3.3V HDA_SDO 67 HD Audio/AC’97 Serial Data Output to Codec. O 3.3V HDA_SDI 65 HD Audio/AC’97 Serial Data Input from Codec. I 3.3V

Note

The High Deﬁnition Audio interface found on the conga-QA6 complies with Intel® High Deﬁnition Audio Speciﬁcation 1.0.

Table 19 LVDS Signal Descriptions

Signal Pin # Description I/O PU/PD Comment

LVDS_PPEN 111 Controls panel power enable. O 3.3V LVDS_BLEN 112 Controls panel Backlight enable. O 3.3V LVDS_BLT_CTRL

/GP_PWM_OUT0

123 Primary functionality is to control the panel backlight brightness via pulse

width modulation (PWM). When not in use for this primary purpose it can be used as General Purpose PWM Output.

O 3.3V

LVDS_A0+ LVDS_A0-

99 101

LVDS primary channel differential pair 0. O LVDS

LVDS_A1+ LVDS_A1-

103 105

LVDS primary channel differential pair 1. O LVDS

LVDS_A2+ LVDS_A2-

107 109

LVDS primary channel differential pair 2. O LVDS

LVDS_A3+ LVDS_A3-

113 115

LVDS primary channel differential pair 3. O LVDS

LVDS_A_CLK+ LVDS_A_CLK-

119 121

LVDS primary channel differential pair clock lines. O LVDS

LVDS_B0+ LVDS_B0-

100 102

LVDS secondary channel differential pair 0. O LVDS Not supported

LVDS_B1+ LVDS_B1-

104 106

LVDS secondary channel differential pair 1. O LVDS Not supported

LVDS_B2+ LVDS_B2-

108 110

LVDS secondary channel differential pair 2. O LVDS Not supported

LVDS_B3+ LVDS_B3-

114 116

LVDS secondary channel differential pair 3. O LVDS Not supported

LVDS_B_CLK+ LVDS_B_CLK-

120 122

LVDS secondary channel differential pair clock lines. O LVDS Not supported

Page 50

LVDS_DID_CLK /GP_I2C_CLK

127 Primary functionality is DisplayID DDC clock line used for LVDS ﬂat panel

detection. If primary functionality is not used, it can be used as General Purpose I²C bus clock line.

I/O 3.3VODPU 10k

3.3V

LVDS_DID_DAT /GP_I2C_DAT

125 Primary functionality DisplayID DDC data line used for LVDS ﬂat panel

detection. If primary functionality is not used, it can be used as General Purpose I²C bus data line.

I/O 3.3VODPU 10k

3.3V

LVDS_BLC_CLK 128 Control clock signal for external SSC clock chip. I/O 3.3VODPU 4k7

3.3V

Not supported

LVDS_BLC_DAT 126 Control data signal for external SSC clock chip. I/O 3.3VODPU 10k

3.3V

Not supported

Table 20 SDVO Signal Descriptions

Signal Pin # Description I/O PU/PD Comment

SDVO_BCLK+ SDVO_BCLK-

131 133

SDVO differential pair clock lines. O PCIE

SDVO_INT+ SDVO_INT-

132 134

SDVO differential pair interrupt input lines. I PCIE

SDVO_GREEN+ SDVO_GREEN-

137 139

SDVO differential pair green data lines. O PCIE

SDVO_BLUE+ SDVO_BLUE-

143 145

SDVO differential pair blue data lines. O PCIE

SDVO_RED+ SDVO_RED-

149 151

SDVO differential pair red data lines. O PCIE

SDVO_FLDSTALL+ SDVO_FLDSTALL-

138 140

SDVO differential pair ﬁeld stall lines. I PCIE

SDVO_TVCLKIN+ SDVO_TVCLKIN-

144 146

SDVO differential pair TV-Out synchronization clock lines. I PCIE

SDVO_CTRL_CLK 152 I²C based control signal (clock) for SDVO device.

Note: If the control bus from the SDVO device has a different signaling voltage, then a level shifting device will be required on the carrier board to properly translate the voltage level for this signal.

I/O 3.3V OD PU 100k 3.3V

SDVO_CTRL_DAT 150 I²C based control signal (data) for SDVO device.

I/O 3.3V OD PU 100k 3.3V

Note

The SDVO interface signals are shared with the signals for the DisplayPort interface and/or the TMDS interface. The conga-QA6 does not support the DisplayPort/TMDS interface.

Page 51

Table 21 DisplayPort Signal Descriptions

Signal Pin # Description I/O PU/PD Comment

DP_LANE3+ DP_LANE3-

131 133

DisplayPort differential pair lines lane 3. O PCIE Shared with SDVO_BCLK+ and SDVO_BCLK-

DisplayPort interface not supported

DP_LANE2+ DP_LANE2-

143 145

DisplayPort differential pair lines lane 2. O PCIE Shared with SDVO_BLUE+ and SDVO_BLUE-

DisplayPort interface not supported

DP_LANE1+ DP_LANE1-

137 139

DisplayPort differential pair lines lane 1. O PCIE Shared with SDVO_GREEN+ and SDVO_GREEN-

DisplayPort interface not supported

DP_LANE0+ DP_LANE0-

149 151

DisplayPort differential pair lines lane 0. O PCIE Shared with SDVO_RED+ and SDVO_RED-

DisplayPort interface not supported

DP_AUX+ DP_AUX-

138 140

Auxiliary channel used for link management and device control. Differential pair lines.

I/O PCIE Shared with SDVO_FLDSTALL+ and SDVO_FLDSTALL-

DisplayPort interface not supported

DP_HPD# 154 Hot plug detection signal that serves as an interrupt request. NC DisplayPort interface not supported

Note

The DisplayPort interface signals are shared with the signals for the SDVO interface and/or the TMDS interface. DisplayPort interface is not supported on the conga-QA6.

Table 22 HDMI Signal Descriptions

Signal Pin # Description I/O PU/PD Comment

TMDS_CLK+ TMDS_CLK-

131 133

TMDS differential pair clock lines. O TMDS Shared with SDVO_BCLK+ and SDVO_BCLK-

HDMI interface not supported

TMDS_LANE0+ TMDS_LANE0-

143 145

TMDS differential pair lines lane 0. O TMDS Shared with SDVO_BLUE+ and SDVO_BLUE-

HDMI interface not supported

TMDS_LANE1+ TMDS_LANE1-

137 139

TMDS differential pair lines lane 1. O TMDS Shared with SDVO_GREEN+ and SDVO_GREEN-

HDMI interface not supported

TMDS_LANE2+ TMDS_LANE2-

149 151

TMDS differential pair lines lane 2. O TMDS Shared with SDVO_RED+ and SDVO_RED-

HDMI interface not supported

HDMI_CTRL_CLK 152 DDC based control signal (clock) for HDMI device. I/O 3.3V OD Shared with SDVO_CTRL_CLK

HDMI interface not supported

HDMI_CTRL_DAT 150 DDC based control signal (data) for HDMI device. I/O 3.3V OD Shared with SDVO_CTRL_DAT

HDMI interface not supported

HDMI_HPD# 153 Hot plug detection signal that serves as an interrupt request. I 3.3V HDMI interface not supported

Note

The TMDS interface signals are shared with the signals for the SDVO interface and/or the DisplayPort interface. HDMI interface is not supported on the conga-QA6.

Page 52

Table 23 LPC Signal Descriptions

Signal Pin # Description I/O PU/PD Comment

LPC_AD0 LPC_AD1 LPC_AD2 LPC_AD3

185 186 187 188

Multiplexed Command, Address and Data. I/O 3.3V

LPC_FRAME# 190 LPC frame indicates the start of a new cycle or the termination of a broken cycle. O 3.3V LPC_LDRQ# 192 LPC DMA request. I 3.3V Not Supported LPC_CLK 189 LPC clock. O 3.3V The LPC clock output operates at 1/4th of

FSB frequency. By default, the LPC clock is only active when LPC bus transfers occur. Because of this behavior, LPC clock must be routed directly to the bus device; they cannot go through a clock buffer or other circuit that could delay the signal going to the end device.

SERIRQ 191 Serialized Interrupt. I/O 3.3V PU 10k

3.3V

Table 24 SPI Interface Signal Descriptions

Signal Pin # Description I/O PU/PD Comment

SPI_MOSI 199 Master serial output/Slave serial input signal. SPI serial output data from Qseven®

module to the SPI device.

O 3.3V

SPI_MISO 201 Master serial input/Slave serial output signal. SPI serial input data from the SPI

device to Qseven

module.

I 3.3V

SPI_SCK 203 SPI clock output. O 3.3V SPI_CS0# 200 SPI chip select 0 output. O 3.3V SPI_CS1# 202 SPI Chip Select 1 signal is used as the second chip select when two devices are

used. Do not use when only one SPI device is used.

O 3.3V Not Supported

Table 25 CAN Bus Signal Descriptions

Signal Pin # Description I/O PU/PD Comment

CAN0_TX 129 CAN (Controller Area Network) TX output for CAN Bus channel 0. In order

to connect a CAN controller device to the Qseven® module’s CAN bus it is necessary to add transceiver hardware to the carrier board.

O 3.3V

CAN0_RX 130 RX input for CAN Bus channel 0. In order to connect a CAN controller device to

the Qseven

module’s CAN bus it is necessary to add transceiver hardware to the

carrier board.

I 3.3V PU 10k

3.3V

Page 53

Table 26 Power and GND Signal Descriptions

Signal Pin # Description I/O PU/PD Comment

VCC 211-230 Power Supply +5VDC ±5%. P VCC_5V_SB 205-206 Standby Power Supply +5VDC ±5%. P VCC_RTC 193 3 V backup cell input. VCC_RTC should be connected to a 3V backup cell for

RTC operation and storage register non-volatility in the absence of system power. (VCC_RTC = 2.4 - 3.3 V).

GND 1, 2, 23-25, 34, 39-

40, 57-58, 73-74, 97-98, 117-118, 135-136, 141-142, 147-148, 159-160, 165-166, 183-184, 197-198

Power Ground. P

Table 27 Power Control Signal Descriptions

Signal Pin # Description of Power Control signals I/O PU/PD Comment

PWGIN 26 High active input for the Qseven® module indicates that power from the power supply is

ready.

I 5V PU 10k 5V

PWRBTN# 20 Power Button: Low active power button input. This signal is triggered on the falling edge. I 3.3VSB ODPU 10k

3.3VSB

Table 28 Power Management Signal Descriptions

Signal Pin # Description of Power Management signals I/O PU/PD Comment

RSTBTN# 28 Reset button input. This input may be driven active low by an external circuitry to reset

the Qseven® module.

I 3.3V PU 10k

3.3V

BATLOW# 27 Battery low input. This signal may be driven active low by external circuitry to signal

that the system battery is low or may be used to signal some other external battery management event.

I 3.3VSB PU 10k

3.3VSB

WAKE# 17 External system wake event. This may be driven active low by external circuitry to signal

an external wake-up event.

I 3.3VSB PU 10k

3.3VSB SUS_STAT# 19 Suspend Status: indicates that the system will be entering a low power state soon. O 3.3VSB SUS_S3# 18 S3 State: This signal shuts off power to all runtime system components that are not

maintained during S3 (Suspend to Ram), S4 or S5 states. The signal SUS_S3# is necessary in order to support the optional S3 cold power state.

O 3.3VSB

SUS_S5# 16 S5 State: This signal indicates S4 or S5 (Soft Off) state. O 3.3VSB SLP_BTN# 21 Sleep button. Low active signal used by the ACPI operating system to transition the

system into sleep state or to wake it up again. This signal is triggered on falling edge.

I 3.3VSB PU 10k

3.3VSB LID_BTN# 22 LID button. Low active signal used by the ACPI operating system to detect a LID switch

and to bring system into sleep state or to wake it up again.

I 3.3VSB PU 10k

3.3VSB

Page 54

Table 29 Miscellaneous Signal Descriptions

Signal Pin # Description I/O PU/PD Comment

WDTRIG# 70 Watchdog trigger signal. This signal restarts the watchdog timer of the Qseven®

module on the falling edge of a low active pulse.

I 3.3V PU 10k 3.3V

WDOUT 72 Watchdog event indicator. High active output used for signaling a missing

watchdog trigger. Will be deasserted by software, system reset or a system power down.

O 3.3V

I2C_CLK 66 Clock line of I²C bus. I/O 3.3V OD PU 4k99 3.3V I2C_DAT 68 Data line of I²C bus. I/O 3.3V OD PU 4k99 3.3V SMB_CLK 60 Clock line of System Management Bus. I/O 3.3VSB ODPU 10k

3.3VSB

SMB_DAT 62 Data line of System Management Bus. I/O 3.3VSB ODPU 10k

3.3VSB

SMB_ALERT# 64 System Management Bus Alert input. This signal may be driven low by SMB devices

to signal an event on the SM Bus.

I/O 3.3VSB ODPU 10k 3.3V

SPKR /GP_PWM_OUT2

194 Primary functionality is output for audio enunciator, the “speaker” in PC AT systems.

When not in use for this primary purpose it can be used as General Purpose PWM Output.

O 3.3V

BIOS_DISABLE# /BOOT_ALT#

41 Module BIOS disable input signal. Pull low to disable module’s on-board BIOS.

Allows off-module BIOS implementations. This signal can also be used to disable standard boot ﬁrmware ﬂash device and enable an alternative boot ﬁrmware source, for example a bootloader.

I 3.3V PU 10k 3.3V

Page 55

Table 30 Manufacturing Signal Descriptions

Signal Pin # Description I/O PU/PD Comment

MFG_NC0 207 This pin is reserved for manufacturing and debugging purposes. May be used as JTAG_TCK signal for

boundary scan purposes during production or as a vendor speciﬁc control signal. When used as a vendor speciﬁc control signal the multiplexer must be controlled by the MFG_NC4 signal.

NA NA

MFG_NC1 209 This pin is reserved for manufacturing and debugging purposes. May be used as JTAG_TDO signal for

boundary scan purposes during production. May also be used, via a multiplexer, as a UART_TX signal to connect a simple UART for ﬁrmware and boot loader implementations. In this case the multiplexer must be controlled by the MFG_NC4 signal.

NA NA Optional UART TxD

MFG_NC2 208 This pin is reserved for manufacturing and debugging purposes. May be used as JTAG_TDI signal for boundary

scan purposes during production. May also be used, via a multiplexer, as a UART_RX signal to connect a simple UART for ﬁrmware and boot loader implementations. In this case the multiplexer must be controlled by the MFG_NC4 signal.

NA NA

MFG_NC3 210 This pin is reserved for manufacturing and debugging purposes. May be used as JTAG_TMS signal for

boundary scan purposes during production. May also be used, via a multiplexer, as vendor speciﬁc BOOT signal for ﬁrmware and boot loader implementations. In this case the multiplexer must be controlled by the MFG_NC4 signal.

NA NA Optional UART RxD

MFG_NC4 204 This pin is reserved for manufacturing and debugging purposes. May be used as JTAG_TRST# signal for

boundary scan purposes during production. May also be used as control signal for a multiplexer circuit on the module enabling secondary function for MFG_NC0..3 ( JTAG / UART ). When MFG_NC4 is high active it is being used for JTAG purposes. When MFG_NC4 is low active it is being used for UART purposes.

NA NA

RSVD 124 Do not connect. NA NA

Note

The MFG_NC0..4 pins are reserved for manufacturing and debugging purposes. It’s recommended to route the signals to a connector on the carrier board.

The carrier board must not drive the MFG_NC-pins or have pull-up or pull-down resistors implemented for these signals. MFG_NC0...4 are deﬁned to have a voltage level of 3.3V. It must be ensured that the carrier board has the correct voltage levels for JTAG/UART signals originating from the module. For this reason, a level shifting device may be required on the carrier board to guarantee that these voltage levels are correct in order to prevent damage to the module.

More information about implementing a carrier board multiplexer can be found in the Qseven

Design Guide.

Page 56

Table 31 Thermal Management Signal Descriptions

Signal Pin # Description I/O PU/PD Comment

THRM# 69 Thermal Alarm active low signal generated by the external hardware to indicate an

over temperature situation. This signal can be used to initiate thermal throttling.

I 3.3V PU 10k

3.3V

THRMTRIP# 71 Thermal Trip indicates an overheating condition of the processor. If 'THRMTRIP#'

goes active the system immediately transitions to the S5 State (Soft Off).

O 3.3VSB

Table 32 Fan Control Signal Descriptions

Signal Pin # Description I/O PU/PD Comment

FAN_PWMOUT /GP_PWM_OUT1

196 Primary functionality is fan speed control. Uses the Pulse Width Modulation (PWM) technique

to control the Fan’s RPM based on the CPU’s die temperature. When not in use for this primary purpose it can be used as General Purpose PWM Output.

O 3.3V OCPU 10k

3.3V

FAN_TACHOIN /GP_TIMER_IN

195 Primary functionality is fan tachometer input. When not in use for this primary purpose it can

be used as General Purpose Timer Input.

I 3.3V

Page 57

8.1 Bootstrap Signals

Table 33 Bootstrap Signal Descriptions

Signal Pin # Description of Bootstrap Signal I/O PU/PD Comment

GBE_LINK# 13 Ethernet controller 0 link indicator, active low. O 2.5VSB PD 1k GBE0_LINK# is a bootstrap signal (see note below) GBE_LINK100# 7 Ethernet controller 0 100Mbit/sec link indicator, active low. O 2.5VSB PU 4k99

2,5VSB

Not Supported. Internally connected to GBE_ACT#. GBE0_LINK100# is a bootstrap signal (see note below)

GBE_LINK1000# 8 Ethernet controller 0 1000Mbit/sec link indicator, active low. O 2.5VSB PD 1k Not Supported. Internally connected to GBE_LINK#

GBE0_LINK1000# is a bootstrap signal (see note below)

GBE_ACT# 14 Ethernet controller 0 activity indicator, active low. O 2.5VSB PU 4k99

2,5VSB

GBE0_ACT# is a bootstrap signal (see note below)

Caution

The signals listed in the table above are used as chipset conﬁguration straps during system reset. In this condition (during reset), they are inputs that are pulled to the correct state by either Qseven® internally implemented resistors or chipset internally implemented resistors that are located on the module. No external DC loads or external pull-up or pull-down resistors should change the conﬁguration of the signals listed in the above table. External resistors may override the internal strap states and cause the Qseven® module to malfunction and/or cause irreparable damage to the module.

Additionally, if it is necessary to have link and activity LEDs connected to GBE_LINK# and GBE_ACT# on the carrier board, then buffers must be used since without a buffer the strapping becomes active and the PHY will be programmed to a wrong address.

Page 58

9 System Resources

9.1 Interrupt Request (IRQ) Lines

Table 34 IRQ Lines in PIC mode

IRQ# Available Typical Interrupt Source Can be used for

0 No Counter 0 Not applicable 1 No Keyboard Not applicable 2 No Cascade Interrupt from Slave PIC Not applicable 3 Ye s LPC bus via SERIRQ or PCIe bus via MSI 4 Ye s LPC bus via SERIRQ or PCIe bus via MSI 5 Ye s LPC bus via SERIRQ or PCIe bus via MSI 6 Ye s LPC bus via SERIRQ or PCIe bus via MSI 7 Ye s LPC bus via SERIRQ or PCIe bus via MSI 8 No Real-time Clock Not applicable 9 Note SCI / Generic LPC bus via SERIRQ or PCIe bus via MSI 10 Ye s LPC bus via SERIRQ or PCIe bus via MSI 11 Ye s LPC bus via SERIRQ or PCIe bus via MSI 12 Ye s LPC bus via SERIRQ or PCIe bus via MSI 13 No Math coprocessor Not applicable 14 Ye s LPC bus via SERIRQ or PCIe bus via MSI 15 Ye s LPC bus via SERIRQ or PCIe bus via MSI

MSI = Message Signal Interrupt (used by PCIe)

In PIC mode, the PCI bus interrupt lines can be routed to any free IRQ.

Note

In ACPI mode, IRQ9 is used for the SCI (System Control Interrupt). The SCI can be shared with a PCIe interrupt line.

Page 59

Table 35 IRQ Lines in APIC mode

IRQ# Available Typical Interrupt Source Connected to Pin / Function

0 No Counter 0 Not applicable 1 No Keyboard Not applicable 2 No Cascade Interrupt from Slave PIC Not applicable 3 Ye s LPC bus via SERIRQ 4 Ye s LPC bus via SERIRQ 5 Ye s LPC bus via SERIRQ 6 Ye s LPC bus via SERIRQ 7 Ye s LPC bus via SERIRQ 8 No Real-time Clock Not applicable 9 Ye s Generic LPC bus via SERIRQ, option for SCI 10 Ye s LPC bus via SERIRQ 11 Ye s LPC bus via SERIRQ 12 No LPC bus via SERIRQ (Exclusively) 13 No Math processor Not applicable 14 Ye s LPC bus via SERIRQ 15 Ye s LPC bus via SERIRQ 16 Ye s Integrated graphics device, HDA controller, PCIe Bridge 0, PCIe Port 1 Slot, PCIe Port 2 Slot, PCIe Port 3 Slot, PCIe

Root Port 0, PCIe Root Port 1, PCIe Root Port 2, PCIe Root Port 3 17 Ye s PCIe Bridge 0, PCIe Port 1 Slot, PCIe Port 2 Slot, PCIe Port 3 Slot 18 Ye s PCIe Bridge 0, PCIe Port 1 Slot, PCIe Port 2 Slot, PCIe Port 3 Slot 19 Ye s PCIe Bridge 0, PCIe Port 1 Slot, PCIe Port 2 Slot, PCIe Port 3 Slot 20 No 21 No 22 No 23 No

Page 60

9.2 PCI Conﬁguration Space

Table 36 PCI Conﬁguration Space Map

Bus Number (hex)

Device Number (hex)

Function Number (hex)

PCI Interrupt Routing

Description

00h 00h 00h N.A. Host Bridge 00h 01h 00h Device ID4114h 00h 02h 00h Internal IGD (Integrated graphics device) 00h 03h 00h Internal SDVO Unit Display 00h 17h 00h Internal PCIe Port 0 00h 18h 00h Internal PCIe Port 1 00h 19h 00h Internal PCIe Port 2 00h 1Ah 00h Internal PCIe Port 3 00h 1Bh 00h Internal Intel High Deﬁnition Audio 00h 1Fh 00h Internal LPC Interface 01h 00h 00h Internal PCI Express Bridge 02h 00h 00h Internal Packet Hub Control 02h 00h 01h Internal Gigabit Ethernet MAC 02h 00h 02h Internal GPIO 02h 02h 00h Internal USB 2.0 OHCI Host 1 02h 02h 01h Internal USB 2.0 OHCI Host 1 02h 02h 02h Internal USB 2.0 OHCI Host 1 02h 02h 03h Internal USB 2.0 OHCI Host 1 02h 02h 04h Internal USB Device 02h 04h 00h Internal SDIO0 02h 04h 01h Internal SDIO1 02h 06h 00h Internal AHCI SATA Controller 02h 08h 00h Internal USB 2.0 OHCI Host 2 02h 08h 01h Internal USB 2.0 OHCI Host 2 02h 08h 02h Internal USB 2.0 OHCI Host 2 02h

08h 03h Internal USB 2.0 OHCI Host 2 02h 0Ah 00h Internal Shared DMA 02h 0Ah 01h Internal UART 0 02h 0Ah 02h Internal UART 1 02h 0Ah 03h Internal UART 2 02h 0Ah 04h Internal UART 3 02h 0Ch 00h Internal Shared DMA 02h 0Ch 01h Internal SPI 02h 0Ch 02h Internal I2C 02h 0Ch 03h Internal CAN 02h 0Ch 04h Internal IEEE1588

Page 61

9.3 PCI Interrupt Routing

Table 37 PCI Interrupt Routing Map

PIRQ PCIe BUS INT Line APIC Mode IRQ IGD SDVO HDA PCIe Bridge 0 PCIe Bridge 1 PCIe Bridge 2 PCIe Bridge 3 PCIe Root

Port 0

PCIe Root

Port 1

PCIe Root

Port 2

PCIe Root

Port 3

A INTA 16 x x x x

x x x x

B INTB 17 x

C INTC 18 x

D INTD 19 x

E 20 F 21 G 22 H 23

Note

Interrupt used by single function PCI Express devices (INTA).

Interrupt used by multifunction PCI Express devices (INTB).

Interrupt used by multifunction PCI Express devices (INTC).

Interrupt used by multifunction PCI Express devices (INTD).

Page 62

10 BIOS Setup Description

The following section describes the BIOS setup program. The BIOS setup program can be used to view and change the BIOS settings for the module. Only experienced users should change the default BIOS settings.

10.1 Entering the BIOS Setup Program.

The BIOS setup program can be accessed by pressing the <DEL> key during POST.

10.1.1 Boot Selection Popup

The BIOS offers the possibility to access a Boot Selection Popup menu by pressing the <F11> key during POST. If this option is used a message will be displayed during POST stating that the “Boot Selection Popup menu has been selected” and the menu itself will be displayed immediately after POST thereby allowing the operator to choose the boot device to be used.

10.2 Setup Menu and Navigation

The congatec BIOS setup screen is composed of the menu bar and two main frames. The menu bar is shown below:

Main Advanced Boot Security Save & Exit

The left frame displays all the options that can be conﬁgured in the selected menu. Grayed-out options cannot be conﬁgured. Only the blue options can be conﬁgured. When an option is selected, it is highlighted in white.

Note

Entries in the option column that are displayed in bold print indicate BIOS default values.

The right frame displays the key legend. Above the key legend is an area reserved for text messages. These text messages explain the options and the possible impacts when changing the selected option in the left frame.

The setup program uses a key-based navigation system. Most of the keys can be used at any time while in setup. The table below explains the supported keys:

Page 63

Key Description

← → Left/Right Select a setup menu (e.g. Main, Boot, Exit). ↑ ↓ Up/Down Select a setup item or sub menu.

+ - Plus/Minus Change the ﬁeld value of a particular setup item. Tab Select setup ﬁelds (e.g. in date and time). F1 Display general help screen. F2 Load previous values. F9 Load optimal default settings. F10 Save changes and exit setup. ESC Discard changes and exit setup. ENTER Display options of a particular setup item or enter submenu.

10.3 Main Setup Screen

When you ﬁrst enter the BIOS setup, you will enter the Main setup screen. You can always return to the Main setup screen by selecting the Main tab. The Main screen reports BIOS, processor, memory and board information and is for conﬁguring the system date and time.

Feature Options Description

BIOS ID no option Displays the BIOS ID. OEM BIOS Version no option Displays the OEM BIOS ID. Build Date no option Displays the date when the BIOS was built. Product Revision no option Displays the hardware revision of the board. Serial Number no option Displays the serial number of the board. BC Firmware Rev. no option Displays the revision of the congatec board controller. Boot Counter no option Displays the number of boot-ups. (max. 16777215). MAC Address no option Displays the MAC address of the board. Running Time no option Displays the time the board is running [in hours max. 65535]. MRC Version no option Displays the MRC version number. System Memory no option Displays the total amount of system memory. Platform Information submenu Opens the platform information submenu. System Time Hour:Minute:Second Speciﬁes the current system time.

Note: The time is in 24-hour format.

System Date Day of week, month/day/year Speciﬁes the current system date.

Note: The date is in month-day-year format.

Page 64

10.4 Platform Information submenu

Feature Options Description

Processor Version no option Displays the silicon revision of the processor. IGD VBIOS no option Displays the video BIOS version ID. PUNIT Build Date no option Displays the PUNIT build date. PUNIT Build Time no option Displays the PUNIT build time

10.5 Advanced Setup

Select the Advanced tab from the setup menu to enter the Advanced BIOS Setup screen. The menu is used for setting advanced features:

Main Advanced Boot Security Power Exit

Graphic Conﬁguration

Watchdog Conﬁguration

PCI Subsystem Settings

ACPI Conﬁguration

CPU Conﬁguration

Chipset Conﬁguration

AHCI SATA Conﬁguration

SDIO Conﬁguration

USB Conﬁguration

Super IO Conﬁguration

Serial Port Console Redirection

Page 65

10.5.1 Graphics Conﬁguration Submenu

Feature Options Description

Primary Display

Auto

IGD PEG

This option allows you to select the primary video device among internal graphic driver, external card or auto conﬁguration.

Internal VGA Mode Select

Enabled, 4MB

Enabled, 8MB

Enabled, 16MB Enabled, 32MB Enabled, 64MB

This option allows you to disable the internal VGA controller or enable it with 1MB, 4MB, 8MB, 16MB, 32MB or 64MB initial frame buffer size.

MSAC Mode Select Enabled 128MB

Enabled 256MB

Enabled 512MB

Determines the size of the graphics memory aperture.

IGD – Boot Type

No option

VBIOS default conﬁguration

Boot Display Device Integrated SDVO

Integrated LVDS

Select the display device used for booting up.

Flat Panel Scaling Auto

Forced Disabled

Deﬁnes the ﬂat panel scaling mode.

Flat Panel Type Auto

VGA 640x480 1x18 (002h) VGA 640x480 1x18 (013h)

WVGA 800x480 1x24 (01Bh)

SVGA 800x600 1x18 (01Ah) XGA 1024x768 1x18 (006h) XGA 1024x768 1x18 (008h) Customized EDID 1 Customized EDID 2 Customized EDID 3

Select a predeﬁned LFP type or choose “auto” to let the BIOS automatically detect and conﬁgure the attached LVDS panel. Auto detection is performed by reading an EDID data set via the video I²C bus. The number in brackets speciﬁes the congatec internal number of the respective panel data set.

Note: Customized EDID™ utilizes an OEM deﬁned EDID™ data set stored in the BIOS ﬂash device.

DPST Control VBIOS-Default

DPST Disabled DPST Enabled L1 DPST Enabled L2 DPST Enabled L3 DPST Enabled L4 DPST Enabled L5

Determines whether the VBIOS default controls the Display Power Save Technology or the setup conﬁgures the desired level.

Backlight Inverter Type None

PWM I2C

Select the type of backlight inverter used. PWM = Use IGD PWM signal.

PWM Inverter Frequency 200 - 40000 Select PWM inverter frequency. Default 20300. Backlight Setting 0%, 10%, 25%, 40%, 50%, 60%, 75%, 90%,

100%

Actual backlight value in percent of the maximum setting.

Page 66

Feature Options Description

Inhibit Backlight No

Permanent Until End Of POST

Decide whether the backlight on signal should be activated when the panel is activated or whether it should remain inhibited until the end of BIOS POST or permanently. Hidden if “Backlight Inverter Type” is “None”.

Invert Backlight Setting No

Yes

Allow to invert backlight control values if required for the actual backlight hardware controller. Hidden if “Backlight Inverter Type” is “None”.

10.5.2 Watchdog Conﬁguration Submenu

Feature Options Description

POST Watchdog

Disabled

30sec 1min 2min 5min 10min 30min

Select the timeout value for the POST watchdog.

The watchdog is only active during the power-on-self-test of the system and provides a facility to prevent errors during boot up by performing a reset..

Stop Watchdog For User Interaction

Yes

Select whether the POST watchdog should be stopped during the popup boot selection menu or while waiting for setup password insertion.

Runtime Watchdog

Disabled

One time trigger Single Event Repeated Event

Selects the operating mode of the runtime watchdog. This watchdog will be initialized just before the operating system starts booting. If set to ‘One time trigger’ the watchdog will be disabled after the ﬁrst trigger. If set to ‘Single event’, every stage will be executed only once, then the watchdog will be disabled.

If set to ‘Repeated event’ the last stage will be executed repeatedly until a reset occurs. Delay see Post Watchdog Select the delay time before the runtime watchdog becomes active. This ensures that an operating system has enough time to load. Event 1 NMI

ACPI Event

Reset

Power Button

Selects the type of event that will be generated when timeout 1 is reached. For more information about ACPI Event see note below.

Event 2 Disabled

NMI ACPI Event Reset Power Button

Selects the type of event that will be generated when timeout 2 is reached.

Event 3

Disabled

NMI ACPI Event Reset Power Button

Selects the type of event that will be generated when timeout 3 is reached.

Page 67

Feature Options Description

Timeout 1 0.5sec

1sec 2sec 5sec 10sec

30sec

1min 2min

Selects the timeout value for the ﬁrst stage watchdog event.

Timeout 2 see above Selects the timeout value for the second stage watchdog event. Timeout 3 see above Selects the timeout value for the third stage watchdog event. Watchdog ACPI

Event

Shutdown

Restart

Select the operating system event that is initiated by the watchdog ACPI event. These options perform a critical but orderly

operating system shutdown or restart.

10.5.3 PCI Subsystem Settings Submenu

Feature Options Description

PCI BUS Driver Version

no option

Displays the PCI Bus driver version ID number

PCI ROM Priority

[EFI Compatible ROM]

Legacy ROM

In case of multiple Option ROMS, speciﬁes what Option ROM is to be launched.

Launch PXE OpROM

Disabled

Enabled

Allows the launching of PXE Option ROMS

Launch Storage OpROM Disabled

Enabled

Allows the launching of Storage Option ROMS

PCI Express Ports Conﬁguration

submenu

Opens the platform information submenu.

PCI Latency Timer 32, 64, 96, ... 248 Speciﬁes the PCI latency using bus clock units. VGA Palette Snoop Disabled

Enabled

Enables or Disables VGA palette registers snooping.

PERR# Generation Disabled

Enabled

Enables or Disables PCI device to generate PERR#.

SERR# Generation Disabled

Enabled

Enables or Disables PCI device to generate SERR#.

Relaxed Ordering Disabled

Enabled

Enables or Disables PCI Express device Relaxed Ordering.

Reserved Interrupt 1 None

IRQ3 IRQ4 IRQ6 IRQ7 IRQ10 IRQ11 IRQ14 IRQ15

Reserves additional IRQ for custom purposes.

Page 68

Feature Options Description

Reserved Interrupt 2

None

IRQ3 IRQ4 IRQ6 IRQ7 IRQ10 IRQ11 IRQ14 IRQ15

Reserves additional IRQ for custom purposes.

PIRQ Routing submenu Extended Tag Disabled

Enabled

Allows device to use 8-bit tag ﬁeld as a requester.

No Snoop Disabled

Enabled

Enables or Disables PCI Express Device no snoop option.

Maximum Payload Auto, 128, 256, 512,

1024, 2048, 4096

Sets the maximum payload value on bytes or allows the system BIOS to select the value.

Maximum Read Request Auto, 128, 256, 512,

1024, 2048, 4096

Sets the maximum read request value on bytes or allows the system BIOS to select the value.

Automatic ASPM Disabled

Enabled

Enables or disables ASPM on reported capabilities and known issues.

Extended Synch Disabled

Enabled

Enables or disables the generation of extended synchronization patterns.

10.5.4 PCI Express Ports 1-4 Conﬁguration Submenu

Feature Options Description

PCI Express Root Port 0..3 Disabled

Enabled

Controls the PCI Express Root port.

10.5.5 PIRQ Routing Submenu

Feature Options Description

PIRQA...H Auto

IRQ3 IRQ4 IRQ6 IRQ7 IRQ10 IRQ11 IRQ14 IRQ15

Sets Interrupt for selected PIRQ. Refer to the board’s Resource List for a detailed description of devices connected to the respective PIRQ.

This setup node is only effective while operating in PIC (non IOAPIC) interrupt mode.

Page 69

10.5.6 PCI to PCI Bridge Submenu

Feature Options Description

Extra Bus Reserved 0-7 Extra bus reserved for bridges behind the PCI root bridge. Range 0 to 7

10.5.7 ACPI Conﬁguration Submenu

Feature Options Description

Enable ACPI Auto Conﬁguration

Disabled

Enabled

Enables or disables BIOS ACPI auto conﬁguration

Enable Hibernation

Disabled

Enabled

Enables or disables system ability to hibernate (OS/S4 Sleep State).

ACPI Sleep State Suspend Disabled

S3 (Suspend to RAM)

Select the state used for ACPI system sleep/suspend.

Sleep Button Disabled

Enabled

Allows the sleep button to drive the system to (or wake from) sleep state. This sleep state is deﬁned by the OS.

Lid Function Disabled

Enabled

Allows the system's lid signal to drive the system to (or to wake from) sleep state. This sleep state is deﬁned by the OS.

Critical Trip Point 70, 80, 90, 95, 100, 105,

110, 115, 120, 125°C, Disabled

Speciﬁes the temperature threshold at which the ACPI aware OS performs a critical shutdown.

Active Trip Point Disabled, 30, 40, 50,

60, 70, 80, 90, 95, 100°C

Speciﬁes the temperature threshold at which the ACPI aware OS turns the fan on/off.

Passive Trip Point Disabled, 30, 40, 50,

60, 70, 80, 90, 95, 100°C

Speciﬁes the temperature threshold at which the ACPI aware OS starts/stops CPU clock throttling.

Note

In ACPI mode it is not possible for a “Watchdog ACPI Event” handler to directly restart or shutdown the OS. For this reason the congatec BIOS will do one of the following:

For Shutdown: An over temperature notiﬁcation is executed. This causes the OS to shut down in an orderly fashion.

For Restart: An ACPI fatal error is reported to the OS.

It depends on your particular OS as to how this reported fatal error will be handled when the Restart function is selected. If you are using Windows XP/2000 there is a setting that can be enabled to ensure that the OS will perform a restart when a fatal error is detected. After a very

Page 70

brief blue-screen the system will restart.

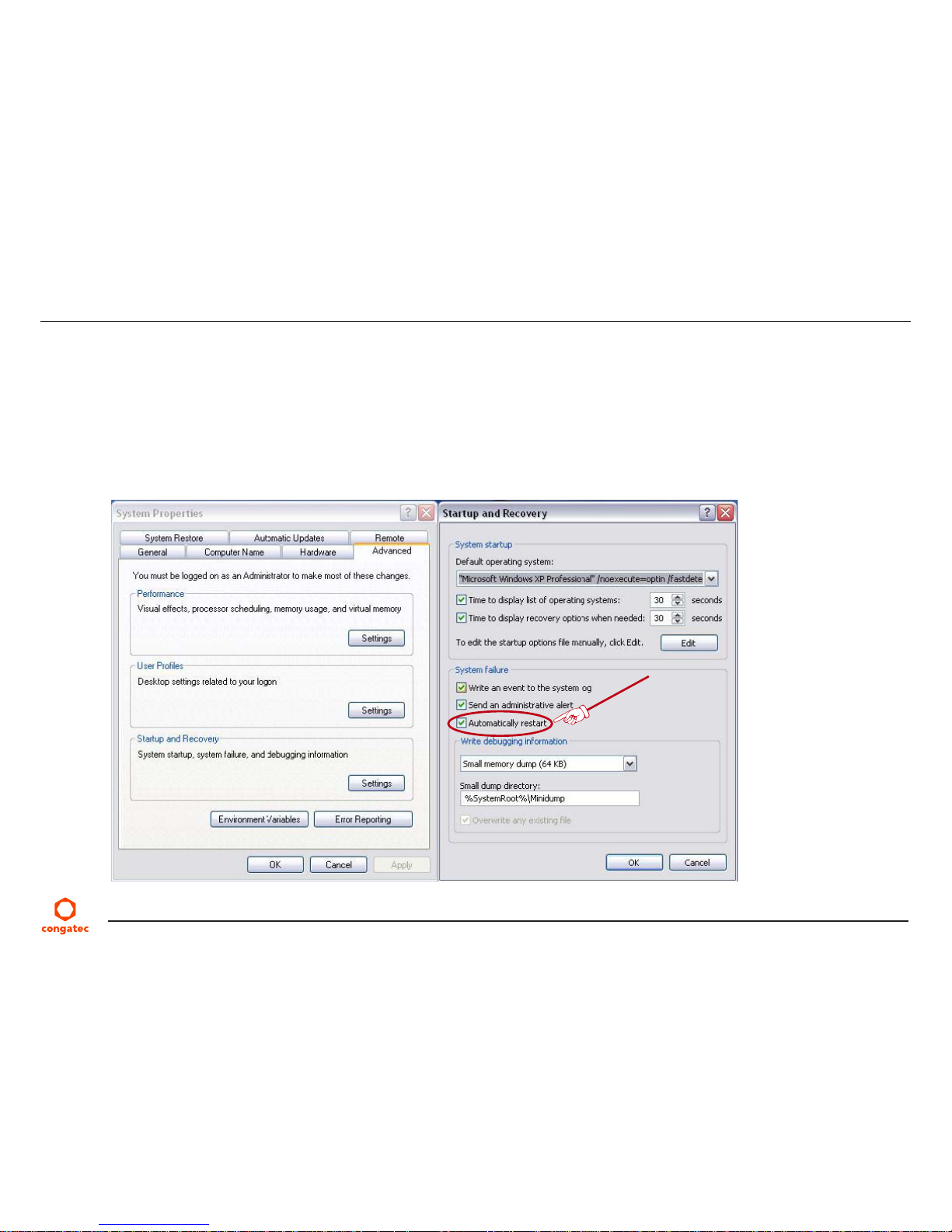

You can enable this setting buy going to the “System Properties” dialog box and choosing the “Advanced” tab. Once there choose the “Settings” button for the “Startup and Recovery” section. This will open the “Startup and Recovery” dialog box. In this dialog box under “System failure” there are three check boxes that deﬁne what Windows will do when a fatal error has been detected. In order to ensure that the system restarts after a ‘Watchdog ACPI Event” that is set to ‘Restart’, you must make sure that the check box for the selection “Automatically restart” has been checked. If this option is not selected then Windows will remain at a blue-screen after a ‘Watchdog ACPI Event” that has been conﬁgured for ‘Restart’ has been generated. Below is a Windows screen-shot showing the proper conﬁguration.

Win XP/2000 Watchdog ACPI Event restart conﬁguration

Page 71

10.5.8 CPU Conﬁguration Submenu

Feature Options Description

CPU Information no option Describes the CPU/Processor main parameters. Intel(R) SpeedStep(tm) Disabled

Enabled

Disabled: CPU speed is set to maximum and cannot be altered by the operating system. Enabled: CPU speed is controlled by the operating system.

Hyperthreading Disabled

Enabled

Enables or disables Intel Hyperthreading Technology for being used by the OS.

Execute Disable Bit Disabled

Enabled

Enable or disable the Execute Disable Bit (XD) of the processor. With the XD bit set to enabled, certain classes of malicious buffer overﬂow attacks can be prevented when combined with a supporting OS.

Limit CPUID Maximum

Disabled

Enabled

When enabled, the processor will limit the maximum CPUID input value to 03h when queried, even if the processor supports a higher CPUID input value. When disabled, the processor will return the actual maximum CPUID input value of the processor when queried. Limiting the CPUID input value may be required for older operating systems that cannot handle the extra CPUID information returned when using the full CPUID input value.

Intel Virtualization Technology

Disabled

Enabled

When enabled, a VMM can utilize the additional hardware capabilities provided by the Vanderpool Technology.

C-States

Disabled

Enabled

Enable support for supported standard CPU idle states.

C-State POPUP

Enabled

Disabled

Enables or disables C-State POPUP.

Enhanced C-1

Disabled

Enabled

Enables or disables the Enhanced C1 State.

Enhanced C-2

Disabled

Enabled

Enables or disables the Enhanced C2 State.

Enhanced C-3

Disabled

Enabled

Enables or disables the Enhanced C3 State.

Enhanced C-4

Disabled

Enabled

Enables or disables the Enhanced C4 State.

Page 72

10.5.9 Chipset Conﬁguration Submenu

Feature Options Description

Audio Controller Auto

Enabled

Disabled

Controls activation of the HDA controller device. Disabled = HDA controller will be unconditionally disabled Enabled = HDA controller will be unconditionally enabled Auto = HDA Controller will be enabled if HDA codec present, disabled otherwise.

Azalia PME Enable Disabled

Enabled

Enables or disables the Azalia PME (Power Management Events)

Azalia Vci Enable Disabled

Enabled

Enables or disables the Azalia Vci

SMBUS Controller Disabled

Enabled

Enables disables the SMBUS Controller

Network Settings submenu EG20T MAC Device conﬁguration. EG20T Ethernet PHY Enabled

Disabled during S5 Disabled during S3/S5 Disabled Always

Conﬁgures the Chip Power State of Ethernet PHY. Disable S5 and Disable S3/S5 set the PHY on Power off mode saving energy during the system ACPI Power States S3 or S5. Enable/Disabled always conﬁgures Power On/ Power off for all the ACPI states.

High Precision Timer Disabled

Enabled

Enable or disable the high precision event timer (HPET). This timer can be used for precise multimedia or real time application timing. Special software support is required.

Note

The BIOS does not initialize the HDA codec. The codecs remain in default mode and must be initialized by its respective device driver.

10.5.9.1 Network Settings Submenu

Feature Options Description

Network Stack

Disabled

Enabled

Enable/Disable the Network Stack for PXE and UEFI.

Wake on LAN Disabled

Enabled

Enables/Disables WOL.

WOL Mode

Wake Up Frame

Magic packet

Selects WOL Mode. Hidden if Wake on LAN is disabled.

WOL Speed 10 Mbps

100Mbps 1000Mbps

Selects WOL Speed. Hidden if Wake on LAN is disabled.

Page 73

10.5.10 AHCI SATA Conﬁguration

Feature Options Description

PORT 0 Disabled

Enabled

This node enables or disables the Set Transfer mode programming for SATA port 0

PORT 1 Disabled

Enabled

This node enables or disables the Set Transfer mode programming for SATA port 1

10.5.11 SDIO Conﬁguration Submenu

Feature Options Description

SDIO Access Mode

Auto

DMA PIO

Conﬁgures the access to the SD devices. With Auto, the controller determines the SD access method.

10.5.12 USB Conﬁguration Submenu

Feature Options Description

USB Device List no option List of the USB devices connected to the system updated dynamically. Legacy USB Support

Enabled

Disabled Auto

Enables legacy USB support. Auto option disables legacy support if no USB devices are connected. Disable option will keep USB devices available only for EFI applications and setup.

EHCI Hand-off Disabled

Enabled

This is a workaround for OSes without EHCI hand-off support. The EHCI ownership change should be claimed by the EHCI OS driver.

Device Reset Timeout 10 sec

20 sec

30 sec 40 sec

USB legacy mass storage device Start Unit command timeout.

Controller Timeout 1 sec

5 sec 10 sec

20 sec

Timeout value for legacy USB control, bulk and interrupt transfers.

USB Mass Storage Device Name

(Auto detected USB mass storage devices are listed here dynamically)

Auto

Floppy Forced FDD Hard Disk CD-ROM

Every USB mass storage device that is enumerated by the BIOS will have an emulation type setup option. This option speciﬁes the type of emulation the BIOS has to provide for the device.

Note: The device’s formatted type and the emulation type provided by the BIOS must match for the device to boot properly.

Select AUTO to let the BIOS auto detect the current formatted media.

If Floppy is selected then the device will be emulated as a ﬂoppy drive. Forced FDD allows a hard disk image to be connected as a ﬂoppy image. Works only for drives formatted with FAT12, FAT16 or FAT32. Hard Disk allows the device to be emulated as hard disk. CDROM assumes the CD-ROM is formatted as bootable media, speciﬁed by the ‘El Torito’ Format Speciﬁcation.

Page 74

10.5.13 Super I/O Conﬁguration Submenu

Feature Options Description

Super IO Chip

no option

Displays Winbond SIO ID. Serial Port 0 Conﬁguration submenu Opens the Serial Port 0 Conﬁguration submenu. Serial Port 1 Conﬁguration submenu Opens the Serial Port 1 Conﬁguration submenu. Wake on Ring Disabled

Enabled

Enables or disables SIO wake.

Note

This setup menu is only available if an external Winbond W83627 Super I/O has been implemented on the carrier board.

10.5.13.1 Serial Port 0/1 Conﬁguration Submenu

Feature Options Description

Serial Port 0 Disabled

Enabled

Enable or disable serial port 0.

Device Settings IO=3F8h; IRQ=4; Fixed conﬁguration of serial port 0 if enabled. Change Settings [Auto]

[IO=3F8; IRQ=4] [IO=3F8 IRQ=3,4,5,6,7, 8, 9,10,11,12] [IO=2F8 IRQ=3,4,5,6,7, 8, 9,10,11,12] [IO=3E8 IRQ=3,4,5,6,7, 8, 9,10,11,12] [IO=2E8 IRQ=3,4,5,6,7, 8, 9,10,11,12]

Selects the IO port address and Interrupt for the SIO Port

Device Mode

Normal

High Speed

Changes the serial port mode

Page 75

10.5.14 Serial Port Console Redirection

Feature Options Description

COM0/COM1 no option Console Redirection

Disabled

Enabled

Allows the Console Redirection Settings note selection

Console Redirection Settings

submenu Opens the Serial Port 1/Port2 Console Redirection submenu. Only

selectable when console redirection is enabled

Serial Port for Out-ofBand Management/ Windows EMS

no option Serial Port for Out-of-Band Management/ Windows Emergency

Management Services (EMS)

Console Redirection

Disabled

Enabled

Allows the Serial redirection for Windows EMS

Out-of-Band Mgmt Port

COM0

COM1 COM4

Deﬁnes the Serial Pot used for the Windows EMS

Terminal Type VT100

VT100+

VT-UTF8

ANSI

This note deﬁnes the Terminal Type used for the connection.

Page 76

10.5.14.1 Console Redirection Settings

Feature Options Description

Console Redirection Setting

no option

Terminal Type VT100

VT100+ VT-UTF8

ANSI

Emulation: ANSI: Extended ASCII char set. VT100: ASCII char set. VT100+: Extends VT100 to support color, function keys, etc. VT-UTF8: Uses UTF8 encoding to map Unicode chars onto 1 or more bytes.

Bits per second 9600

19200 57600

115200

Selects serial port transmission speed. The speed must be matched on the other side. Long or noisy lines may require lower speeds.

Data Bits 8

Data Bits

Parity

None

Even Odd Mark Space

A parity bit can be sent with the data bits to detect some transmission errors. Even: parity bit is 0 if the num of 1’s in the data bits is even. Odd: parity bit is 0 if num of 1’s in the data bits is odd. Mark: parity bit is always 1. Space: Parity bit is always 0. Mark and Space Parity do not allow for error detection. They can be used as an additional data bit.

Stop Bits

Stop bits indicate the end of a serial data packet. (A start bit indicates the beginning). The standard setting is 1 stop bit. Communication with slow devices may require more than 1 stop bit.

Flow Control None

Hardware RTS/CTS

Flow control can prevent data loss from buffer overﬂow. When sending data, if the receiving buffers are full, a ‘stop’ signal can be sent to stop the data ﬂow. Once the buffers are empty, a ‘start’ signal can be sent to re-start the ﬂow. Hardware ﬂow control uses two wires to send start/ stop signals. Software ﬂow control uses start/stop ASCII chars, which slows down the data ﬂow and can be problematic if binary data is being sent.

Recorder Mode

Disabled

Enabled

On this mode enabled only text will be send. This is to capture Terminal data.

Resolution 100x31

Disabled

Enabled

Enables or disables extended terminal resolution.

Legacy OS Redirection Resolution

80x24

80x25

Legacy OS Redirection Resolution.

10.6 etup

Select the Boot tab from the setup menu to enter the Boot setup screen.

Page 77

10.6.1 Boot Settings Conﬁguration Submenu

Feature Options Description

Quiet Boot

Disabled

Enabled

Disabled displays normal POST diagnostic messages. Enabled displays OEM logo instead of POST messages.

Note: The default OEM logo is a dark screen.

Fast Boot

Disabled

Enabled

Enables or disables UEFI fast boot with initialization of a minimal set of devices required to launch the active boot option.

Setup Prompt Timeout

0 - 65535

Number of seconds to wait for setup activation key. 0 means no wait for fastest boot, 65535 means inﬁnite wait.

Bootup NumLock State

Off

Select the keyboard numlock state.

Power Loss Control

Remain Off

Turn On Last State

Speciﬁes the mode of operation if an AC power loss occurs. Remain Off keeps the power off until the power button is pressed. Turn On restores power to the computer. Last State restores the previous power state before power loss occurred.

Note: Only works with an ATX type power supply.

AT Shutdown Mode

System Reboot

Hot S5

Determines the system’s behavior, when shutting down the system working on AT Mode. The system can reboot or stay on a Hot S5 power state. When the system is ATX powered this setup node has no effect.

Enable Popup Boot Menu

Yes

Select whether the popup boot menu can be started.

Boot Priority Selection Device Based

Type Based

Select between device and type based boot priority lists. The “Device Based” boot priority list allows you to select from a list of currently detected devices only. The “Type Based” boot priority list allows you to select device types, even if a respective device is not yet present. Moreover, the “Device Based” boot priority list might change dynamically in cases when devices are physically removed or added to the system. The “Type Based” boot menu is static and can only be changed by the user.

1st, 2nd, 3rd, ... Boot Device (Up to 10 boot devices can be prioritized if device based priority list control is selected. If “Type Based” priority list control is enabled only 8 boot devices can be prioritized.)

Disabled SATA 0 Drive SATA 1 Drive Primary Master Secondary Master USB Floppy USB Harddisk USB CDROM Onboard LAN External LAN Other BEV Device

This view is only available when in the default “Type Based” mode. When in “Device Based” mode you will only see the devices that are currently connected to the system.

System Off Mode

G3/Mech Off

S5/Soft Off

Deﬁne system state after shutdown when a battery system is present.

CSM16 Module Version

no option Displays the CSM16 Version ID

GateA20 Active

Upon Request

Always

Gate A20 control. Upon Request = Gate A20 can be disabled using BIOS services. Always = Do not allow disabling Gate A20.

Option ROM Messages

Force BIOS

Keep Current

Set display mode for option ROMs.

Page 78

Feature Options Description

Interrupt 19 Capture

Disabled

Enabled

Deﬁnes whether option ROMs may trap the INT19h legacy boot vector.

10.7 Security Setup

Select the Security tab from the setup menu to enter the Security setup screen.

10.7.1 Security Settings

Feature Options Description

Setup Administrator Password Enter password Speciﬁes the setup administrator password.

10.8 Save & Exit

Select the Save & Exit tab from the setup menu to enter the Save & Exit setup screen. You can display the Save & Exit screen option by highlighting it using the ← Arrow → Keys.

10.8.1 Save & Exit Menu

Feature Description

Save Changes and Exit Exit setup menu after saving the changes. The system is only reset if settings have been changed. Discard Changes and Exit Exit setup menu without saving any changes. Save Changes and Reset

Save changes and reset the system.

Discard Changes and Reset Reset the system without saving any changes. Save Changes Save changes made so far to any of the setup options. Stay in setup menu. Discard Changes Discard changes made so far to any of the setup options. Stay in setup menu. Restore Defaults Restore default values for all the setup options.

Page 79

11 Additional BIOS Features

The conga-QA6 uses a congatec/AMI AptioEFI that is stored in an onboard SPI Flash chip and can be updated using the congatec System Utility, which is available in a DOS based command line, Win32 command line, Win32 GUI, and Linux version.

The BIOS displays a message during POST and on the main setup screen identifying the BIOS project name and a revision code. The initial production BIOS is identiﬁed as QTOPR1xx, where QTOP is the congatec internal BIOS project name for conga-QA6, R is the identiﬁer for a BIOS ROM ﬁle, 1 is the so called feature number and xx is the major and minor revision number.

11.1 Updating the BIOS

BIOS updates are often used by OEMs to correct platform issues discovered after the board has been shipped or when new features are added to the BIOS.

For more information about “Updating the BIOS” refer to the user’s guide for the congatec System Utility, which is called CGUTLm1x.pdf and can be found on the congatec AG website at www.congatec.com.

11.2 BIOS Security Features

The BIOS provides a setup administrator password that limits access to the BIOS setup menu.

Page 80

12 Industry Speciﬁcations

The list below provides links to industry speciﬁcations that apply to congatec AG modules.

Table 38 Industry Speciﬁcations

Speciﬁcation Link

Qseven® Speciﬁcation http://www.qseven-standard.org/ Qseven

Design Guide http://www.qseven-standard.org/ Low Pin Count Interface Speciﬁcation, Revision 1.0 (LPC) http://developer.intel.com/design/chipsets/industry/lpc.htm Universal Serial Bus (USB) Speciﬁcation, Revision 2.0 http://www.usb.org/home Serial ATA Speciﬁcation, Revision 1.0a http://www.serialata.org PCI Express Base Speciﬁcation, Revision 2.0 http://www.pcisig.com/speciﬁcations
