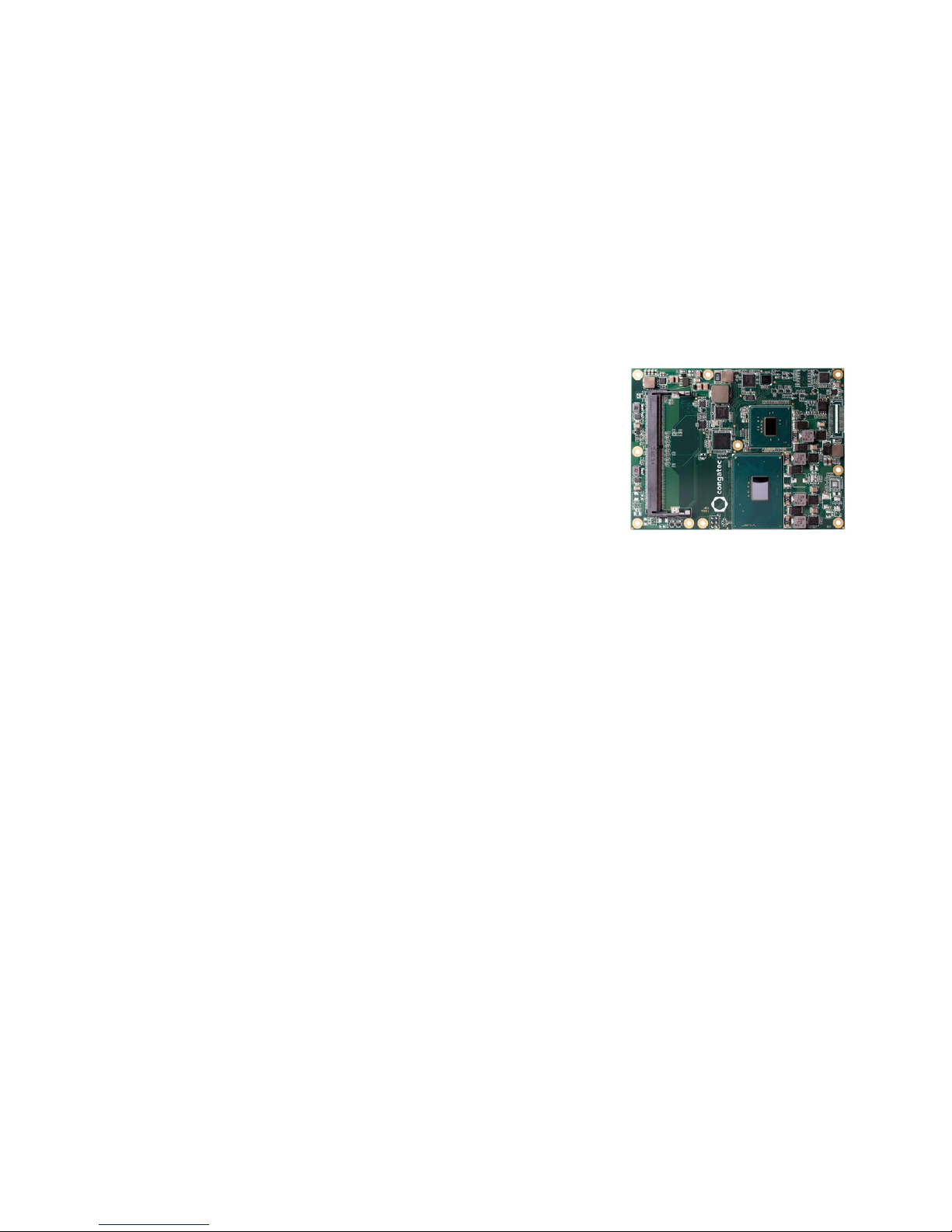

COM Express™ conga-TS170

6th Generation Intel® Core™ i7, i5, i3 Celeron/Xeon processor with either QM170, HM170, or CM236 Chipset

User’s Guide

Revision 1.1

Page 2

Revision History

Revision Date (yyyy.mm.dd) Author Changes

0.1 2016.03.22 AEM • Preliminary release

0.2 2016.07.14 BEU

• Updated available product variants in section 1 “Introduction” and section 2 “Speciﬁcations”

• Added section 10 “System Resources”

• Added section 11 “BIOS Setup Description”

• Added section 12 “Additional BIOS Features”

1.0 2017.01.10 AEM

• Updated section 2.1 “Feature List”

• Updated section 2.5 “Power Consumption”

• Updated the note in section 2.6.1 “CMOS Battery Power Consumption”

• Updated the caution note in section 4.3 “Heatspreader”

• Corrected the description of pins D63 and D64 in table 31 “Connector C-D Pinout”

• Corrected typographical error in section 6.1.7 “PCIe Express”

• Updated section 6.1.10 “LVDS/eDP”

• Deleted all references of SDIO/SD card because the chipset does not support SD card

1.1 2018.05.07 AEM

• Added VGA to table 2 “conga-TS170 Variants”

• Updated section 3 “Block Diagram”

• Updated table 5 “Power Consumption Values”

• Corrected the maximum HDMI resolution value in table 7 “Maximum Supported Resolutions”

• Indicated in table 15 “LPC Signal Description” and 26 “Connector A-B Pinout “ that the LPC_DRQ signal is not supported

• Deleted the note in section 11.4.15 “Serial Port Console Redirection Submenu”

• Corrected the pin numbers of USB ports 0 and 1 in table 16 “USB SignalDescriptions”

• Updated section 11 “BIOS Setup Description” and section 12 “Additional BIOS Features”

Page 3

Preface

This user’s guide provides information about the components, features, connectors and BIOS Setup menus available on the conga-TS170. It is one of three documents that should be referred to when designing a COM Express™ application. The other reference documents that should be used include the following:

COM Express

™

Design Guide

COM Express

™

Speciﬁcation

The links to these documents can be found on the congatec AG website at www.congatec.com

Disclaimer

The information contained within this user’s guide, including but not limited to any product speciﬁcation, is subject to change without notice.

congatec AG provides no warranty with regard to this user’s guide or any other information contained herein and hereby expressly disclaims any implied warranties of merchantability or ﬁtness for any particular purpose with regard to any of the foregoing. congatec AG assumes no liability for any damages incurred directly or indirectly from any technical or typographical errors or omissions contained herein or for discrepancies between the product and the user’s guide. In no event shall congatec AG be liable for any incidental, consequential, special, or exemplary damages, whether based on tort, contract or otherwise, arising out of or in connection with this user’s guide or any other information contained herein or the use thereof.

Intended Audience

This user’s guide is intended for technically qualiﬁed personnel. It is not intended for general audiences.

Lead-Free Designs (RoHS)

All congatec AG designs are created from lead-free components and are completely RoHS compliant.

Page 4

Electrostatic Sensitive Device

All congatec AG products are electrostatic sensitive devices. They are enclosed in static shielding bags, and shipped enclosed in secondary packaging (protective packaging). The secondary packaging does not provide electrostatic protection.

Do not remove the device from the static shielding bag or handle it, except at an electrostatic-free workstation. Also, do not ship or store electronic devices near strong electrostatic, electromagnetic, magnetic, or radioactive ﬁelds unless the device is contained within its original packaging. Be aware that failure to comply with these guidelines will void the congatec AG Limited Warranty.

Symbols

The following symbols are used in this user’s guide:

Warning

Warnings indicate conditions that, if not observed, can cause personal injury.

Caution

Cautions warn the user about how to prevent damage to hardware or loss of data.

Note

Notes call attention to important information that should be observed.

Trademarks

Product names, logos, brands, and other trademarks featured or referred to within this user’s guide, or the congatec website, are the property of their respective trademark holders. These trademark holders are not afﬁliated with congatec AG, our products, or our website.

Page 5

congatec AG has made every attempt to ensure that the information in this document is accurate yet the information contained within is supplied “as-is”.

Warranty

congatec AG makes no representation, warranty or guaranty, express or implied regarding the products except its standard form of limited warranty (“Limited Warranty”) per the terms and conditions of the congatec entity, which the product is delivered from. These terms and conditions can be downloaded from www.congatec.com. congatec AG may in its sole discretion modify its Limited Warranty at any time and from time to time.

The products may include software. Use of the software is subject to the terms and conditions set out in the respective owner’s license agreements, which are available at www.congatec.com and/or upon request.

Beginning on the date of shipment to its direct customer and continuing for the published warranty period, congatec AG represents that the products are new and warrants that each product failing to function properly under normal use, due to a defect in materials or workmanship or due to non conformance to the agreed upon speciﬁcations, will be repaired or exchanged, at congatec’s option and expense.

Customer will obtain a Return Material Authorization (“RMA”) number from congatec AG prior to returning the non conforming product freight prepaid. congatec AG will pay for transporting the repaired or exchanged product to the customer.

Repaired, replaced or exchanged product will be warranted for the repair warranty period in effect as of the date the repaired, exchanged or replaced product is shipped by congatec, or the remainder of the original warranty, whichever is longer. This Limited Warranty extends to congatec’s direct customer only and is not assignable or transferable.

Except as set forth in writing in the Limited Warranty, congatec makes no performance representations, warranties, or guarantees, either express or implied, oral or written, with respect to the products, including without limitation any implied warranty (a) of merchantability, (b) of ﬁtness for a particular purpose, or (c) arising from course of performance, course of dealing, or usage of trade.

congatec AG shall in no event be liable to the end user for collateral or consequential damages of any kind. congatec shall not otherwise be liable for loss, damage or expense directly or indirectly arising from the use of the product or from any other cause. The sole and exclusive remedy against congatec, whether a claim sound in contract, warranty, tort or any other legal theory, shall be repair or replacement of the product only.

Page 6

Certiﬁcation

congatec AG is certiﬁed to DIN EN ISO 9001 standard.

Technical Support

congatec AG technicians and engineers are committed to providing the best possible technical support for our customers so that our products can be easily used and implemented. We request that you ﬁrst visit our website at www.congatec.com for the latest documentation, utilities and drivers, which have been made available to assist you. If you still require assistance after visiting our website then contact our technical support department by email at [email protected]

Terminology

Term Description

GB Gigabyte GHz Gigahertz kB Kilobyte MB Megabyte Mbit Megabit kHz Kilohertz MHz Megahertz TDP Thermal Design Power PCIe PCI Express SATA Serial ATA PEG PCI Express Graphics PCH Platform Controller Hub eDP Embedded DisplayPort HDA High Deﬁnition Audio N.C. Not connected N.A. Not available TBD To be determined

Page 7

Contents

1 Introduction .............................................................................11

2 Speciﬁcations ........................................................................... 14

2.1 Feature List ..............................................................................14

2.2 Supported Operating Systems ................................................ 15

2.3 Mechanical Dimensions ........................................................... 15

2.4 Supply Voltage Standard Power ..............................................16

2.4.1 Electrical Characteristics ..........................................................16

2.4.2 Rise Time .................................................................................16

2.5 Power Consumption ................................................................ 17

2.6 Supply Voltage Battery Power .................................................18

2.7 Environmental Speciﬁcations ................................................... 19

3 Block Diagram .......................................................................... 20

4 Cooling Solutions ..................................................................... 21

4.1 CSA Dimensions ...................................................................... 21

4.2 CSP Dimensions ....................................................................... 22

4.3 Heatspreader ........................................................................... 23

4.4 Heatspreader Thermal Imagery ............................................... 25

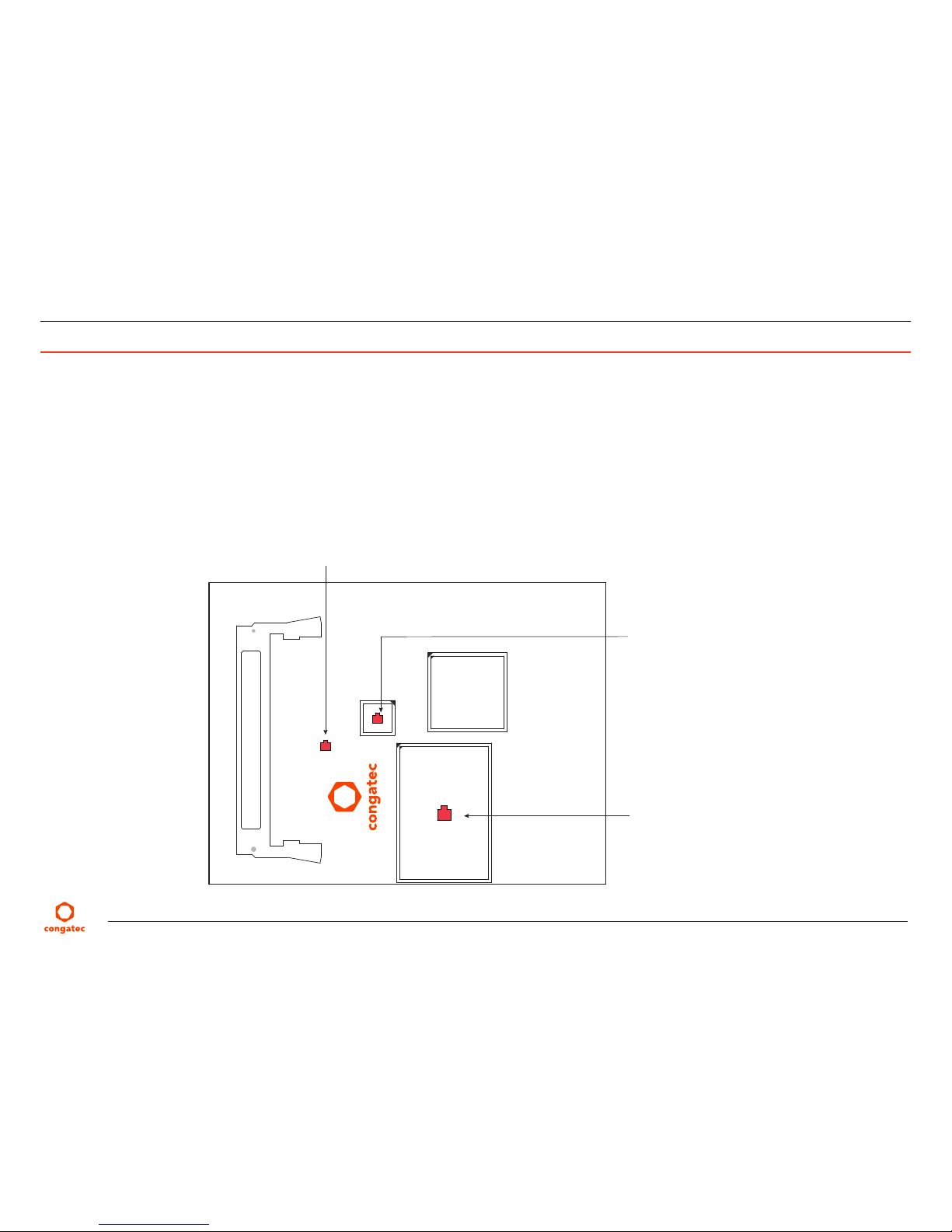

5 Onboard Temperature Sensors ................................................ 26

6 Connector Rows ....................................................................... 28

6.1 Primary Connector Rows A and B ............................................ 28

6.1.1 Serial ATA™ (SATA) ..................................................................28

6.1.2 USB 2.0 ....................................................................................28

6.1.3 High Deﬁnition Audio (HDA) Interface ....................................28

6.1.4 Gigabit Ethernet ..................................................................... 29

6.1.5 LPC Bus .................................................................................... 29

6.1.6 I²C Bus Fast Mode ...................................................................29

6.1.7 PCI Express™ ...........................................................................29

6.1.8 ExpressCard™ .........................................................................30

6.1.9 VGA.......................................................................................... 30

6.1.10 LVDS/eDP ................................................................................. 30

6.1.11 General Purpose Serial Interface ............................................. 31

6.1.12 GPIOs ....................................................................................... 31

6.1.13 Power Control .......................................................................... 31

6.1.14 Power Management ................................................................. 35

6.2 Secondary Connector Rows C and D ....................................... 36

6.2.1 PCI Express™ ...........................................................................36

6.2.2 PCI Express Graphics (PEG) .....................................................36

6.2.3 Digital Display Interface ........................................................... 37

6.2.3.1 HDMI ........................................................................................ 38

6.2.3.2 DVI ........................................................................................... 38

6.2.3.3 DisplayPort (DP) ....................................................................... 38

6.2.4 USB 3.0 ....................................................................................39

7 Additional Features ..................................................................40

7.1 congatec Board Controller (cBC) ............................................. 40

7.2 Board Information .................................................................... 40

7.3 Watchdog ................................................................................40

7.4 I2C Bus ...................................................................................... 40

7.5 Power Loss Control .................................................................. 40

7.6 OEM BIOS Customization ........................................................ 41

7.6.1 OEM Default Settings .............................................................. 41

7.6.2 OEM Boot Logo ....................................................................... 41

7.6.3 OEM POST Logo .....................................................................41

7.6.4 OEM BIOS Code/Data ............................................................. 41

7.6.5 OEM DXE Driver ...................................................................... 42

7.7 congatec Battery Management Interface ................................ 42

7.8 API Support (CGOS) ................................................................ 42

7.9 Security Features ......................................................................43

7.10 Suspend to Ram ....................................................................... 43

8 conga Tech Notes .................................................................... 44

8.1 Intel® PCH Features .................................................................44

8.1.1 Intel® Rapid Storage Technology ............................................ 44

8.1.1.1 AHCI ........................................................................................ 44

8.1.1.2 RAID ......................................................................................... 44

Page 8

8.1.1.3 Intel® Smart Response Technology ......................................... 44

8.2 Intel® Processor Features ......................................................... 45

8.2.1 Intel® Turbo Boost Technology ................................................45

8.2.2 Adaptive Thermal Monitor and Catastrophic Thermal Protection 45

8.2.3 Processor Performance Control ...............................................46

8.2.4 Intel® 64 Architecture ............................................................... 47

8.2.5 Intel® Virtualization Technology ............................................... 47

8.2.6 Thermal Management .............................................................48

8.3 ACPI Suspend Modes and Resume Events .............................. 49

8.4 DDR4 Memory ......................................................................... 49

9 Signal Descriptions and Pinout Tables ..................................... 50

9.1 A-B Connector Signal Descriptions ......................................... 51

9.2 A-B Connector Pinout .............................................................. 60

9.3 C-D Connector Signal Descriptions ......................................... 62

9.4 C-D Connector Pinout ............................................................. 71

9.5 Boot Strap Signals ................................................................... 73

10 System Resources ....................................................................74

10.1 I/O Address Assignment .......................................................... 74

10.1.1 LPC Bus .................................................................................... 74

10.2 PCI Conﬁguration Space Map ................................................. 75

10.3 I2C ............................................................................................ 76

10.4 SM Bus ..................................................................................... 76

11 BIOS Setup Description ........................................................... 77

11.1 Entering the BIOS Setup Program ........................................... 77

11.1.1 Boot Selection Popup .............................................................. 77

11.2 Setup Menu and Navigation .................................................... 77

11.3 Main Setup Screen ................................................................... 78

11.3.1 Platform Information Submenu ................................................ 79

11.4 Advanced Setup ...................................................................... 80

11.4.1 Graphics Submenu ................................................................... 81

11.4.1.1 Display Interface Signal Integrity Settings Submenu ............... 85

11.4.2 Watchdog Submenu ................................................................ 86

11.4.3 Module Serial Ports Submenu ................................................. 88

11.4.4 Hardware Health Monitoring Submenu ................................... 89

11.4.5 Intel® Ethernet Connection (H) I219-LM Submenu .................. 90

11.4.5.1 NIC Conﬁguration Submenu ................................................... 90

11.4.6 Driver Health Submenu ............................................................ 90

11.4.7 Trusted Computing Submenu .................................................. 91

11.4.8 RTC Wake Settings Submenu .................................................. 91

11.4.9 ACPI Submenu ......................................................................... 91

11.4.10 Intel® ICC Submenu ................................................................. 92

11.4.11 AMT Conﬁguration Submenu .................................................. 93

11.4.12 PCH-FW Conﬁguration Submenu ............................................ 94

11.4.13 SMART Settings Submenu ....................................................... 94

11.4.14 Super IO Submenu .................................................................. 95

11.4.15 Serial Port Console Redirection Submenu ............................... 95

11.4.15.1 Console Redirection Settings Submenu ..................................96

11.4.16 CPU Submenu .......................................................................... 97

11.4.17 Secure Erase Submenu .......................................................... 101

11.4.18 SATA Submenu ...................................................................... 101

11.4.18.1 Software Feature Mask Conﬁguration ...................................103

11.4.19 Acoustic Management Submenu ........................................... 104

11.4.20 PCI Express Conﬁguration Submenu ..................................... 104

11.4.20.1 BIOS Hot Plug Settings Submenu ......................................... 105

11.4.21 PCI Express Conﬁguration Submenu ..................................... 106

11.4.21.1 PCI Express Gen3 Eq Lanes Submenu ...................................107

11.4.21.2 PCI Express Settings Submenu .............................................. 107

11.4.21.3 PCI Express GEN2 Settings Submenu ................................... 108

11.4.21.4 PCI Express Port 0 - 7 Submenu ............................................ 109

11.4.21.5 PCI Express Graphics (PEG) Port Submenu ...........................111

11.4.22 UEFI Network Stack Submenu ............................................... 113

11.4.23 CSM & Option ROM Control Submenu ................................. 114

11.4.24 NVMe Conﬁguration Submenu ............................................. 115

11.4.25 SDIO Conﬁguration Submenu ............................................... 115

11.4.26 USB Submenu ........................................................................ 115

11.4.27 Diagnostics Settings Submenu .............................................. 116

11.4.28 PC Speaker Submenu ............................................................ 117

11.5 Chipset Setup ........................................................................ 118

11.5.1 Processor (Integrated Components) Submenu ...................... 118

11.5.1.1 DMI/OPI Conﬁguration Submenu.......................................... 119

11.5.1.2 Memory Conﬁguration Submenu .......................................... 120

11.5.2 Platform Controller Hub (PCH) Submenu .............................. 122

11.5.3 Platform Thermal Conﬁguration Submenu ............................ 123

11.6 Security Setup ........................................................................ 124

Page 9

11.6.1 Security Settings .................................................................... 124

11.6.1.1 BIOS Security Features ..........................................................124

11.6.1.2 Hard Disk Security Features ................................................... 127

11.7 Boot Setup ............................................................................. 128

11.7.1 Boot Settings Conﬁguration .................................................. 128

11.8 Save & Exit Menu ................................................................... 130

12 Additional BIOS Features ......................................................131

12.1 Supported Flash Devices ....................................................... 131

12.2 Updating the BIOS ................................................................. 131

13 Industry Speciﬁcations ........................................................... 132

Page 10

List of Tables

Table 1 COM Express™ 2.1 Pinout Types ............................................ 11

Table 2 conga-TS170 Variants ..............................................................12

Table 3 Feature Summary ..................................................................... 14

Table 4 Measurement Description ........................................................17

Table 5 Power Consumption Values ..................................................... 18

Table 6 CMOS Battery Power Consumption ........................................ 18

Table 7 Maximum Supported Resolutions ............................................ 37

Table 8 Wake Events .............................................................................49

Table 9 Signal Tables Terminology Descriptions .................................. 50

Table 10 Intel® High Deﬁnition Audio Link Signals Descriptions ............ 51

Table 11 Gigabit Ethernet Signal Descriptions.......................................51

Table 12 Serial ATA Signal Descriptions ................................................. 52

Table 13 PCI Express Signal Descriptions (general purpose) ................. 53

Table 14 ExpressCard Support Pins Signal Descriptions ........................ 53

Table 15 LPC Signal Descriptions ........................................................... 54

Table 16 USB Signal Descriptions ........................................................... 54

Table 17 CRT Signal Descriptions ...........................................................55

Table 18 LVDS Signal Descriptions ......................................................... 55

Table 19 Embedded DisplayPort Signal Descriptions ............................ 56

Table 20 SPI BIOS Flash Interface Signal Descriptions ........................... 56

Table 21 Miscellaneous Signal Descriptions ........................................... 57

Table 22 General Purpose I/O Signal Descriptions ................................ 57

Table 23 Power and System Management Signal Descriptions ............. 58

Table 24 General Purpose Serial Interface Signal Descriptions .............. 59

Table 25 Power and GND Signal Descriptions ....................................... 59

Table 26 Connector A-B Pinout .............................................................. 60

Table 27 PCI Express Signal Descriptions (general purpose) ................. 62

Table 28 USB 3.0 Signal Descriptions ..................................................... 62

Table 29 PCI Express Signal Descriptions (x16 Graphics) ....................... 63

Table 30 DDI Signal Description ............................................................. 65

Table 31 HDMI Signal Descriptions ........................................................ 67

Table 32 DisplayPort (DP) Signal Descriptions ....................................... 68

Table 33 Module Type Deﬁnition Signal Description ............................. 70

Table 34 Power and GND Signal Descriptions ....................................... 70

Table 35 Connector C-D Pinout ............................................................. 71

Table 36 Boot Strap Signal Descriptions ................................................ 73

Table 37 PCI Conﬁguration Space Map ................................................. 75

Page 11

1 Introduction

COM Express™ Concept

COM Express™ is an open industry standard deﬁned speciﬁcally for COMs (computer on modules). Its creation makes it possible to smoothly transition from legacy interfaces to the newest technologies available today. COM Express™ modules are available in following form factors:

• Mini 84mm x 55mm

• Compact 95mm x 95mm

• Basic 125mm x 95mm

• Extended 155mm x110mm

Table 1 COM Express™ 2.1 Pinout Types

Types Connector Rows PCIe Lanes PCI IDE SATA Ports LAN ports USB 2.0/ USB 3.0 Display Interfaces

Type 1 A-B Up to 6 - 4 1 8 / 0 VGA, LVDS

Type 2 A-B C-D Up to 22 32 bit 1 4 1 8 / 0 VGA, LVDS, PEG/SDVO Type 3 A-B C-D Up to 22 32 bit - 4 3 8 / 0 VGA,LVDS, PEG/SDVO Type 4 A-B C-D Up to 32 1 4 1 8 / 0 VGA,LVDS, PEG/SDVO Type 5 A-B C-D Up to 32 - 4 3 8 / 0 VGA,LVDS, PEG/SDVO Type 6 A-B C-D Up to 24 - 4 1 8 / 4

VGA,LVDS/eDP, PEG, 3x DDI

Type 10 A-B Up to 4 - 2 1 8 / 0 LVDS/eDP, 1xDDI

The SuperSpeed USB ports (USB 3.0) are not in addition to the USB 2.0 ports. Up to 4 of the USB 2.0 ports can support SuperSpeed USB.

The conga-TS170 modules use the Type 6 pinout deﬁnition and comply with COM Express 2.1 speciﬁcation. They are equipped with two high performance connectors that ensure stable data throughput.

The COM (computer on module) integrates all the core components and is mounted onto an application speciﬁc carrier board. COM modules are legacy-free design (no Super I/O, PS/2 keyboard and mouse) and provide most of the functional requirements for any application. These functions include, but are not limited to a rich complement of contemporary high bandwidth serial interfaces such as PCI Express, Serial ATA, USB 3.0, and Gigabit Ethernet. The Type 6 pinout provides the ability to offer PCI Express, Serial ATA, USB 3.0 and LPC options thereby expanding the range of potential peripherals. The robust thermal and mechanical concept, combined with extended power-management capabilities, is perfectly suited for all applications.

Carrier board designers can use as little or as many of the I/O interfaces as deemed necessary. The carrier board can therefore provide all the interface connectors required to attach the system to the application speciﬁc peripherals. This versatility allows the designer to create a dense and optimized package, which results in a more reliable product while simplifying system integration. Most importantly, COM Express™

Page 12

modules are scalable, which means once an application has been created there is the ability to diversify the product range through the use of different performance class or form factor size modules. Simply unplug one module and replace it with another; no redesign is necessary.

conga-TS170 Options Information

The conga-TS170 is currently available in thirteen variants. The table below shows the different conﬁgurations available. Check for the part number that applies to your product. This will tell you what options described in this user’s guide are available on your particular module.

Table 2 conga-TS170 Variants

Part-No. 045900 045901 045902 045903

Processor

Intel® Core™ i7-6820EQ

2.8 GHz Quad Core™

Intel® Core™ i7-6822EQ

2.0 GHz Quad Core™

Intel® Core™ i5-6440EQ

2.7 GHz Quad core

Intel® Core™ i5-6442EQ

1.9 GHz Quad Core™

Max. Turbo Frequency 3.5 GHz 2.8 GHz 3.4 GHz 2.7 GHz Chipset

Intel

QM170 Intel® QM170 Intel® QM170 Intel® QM170

Intel

Smart Cache 8 MB 8 MB 6 MB 6 MB

Processor Graphics Intel

HD Graphics 530 (GT2) Intel® HD Graphics 530 (GT2) Intel® HD Graphics 530 (GT2) Intel® HD Graphics 530 (GT2)

GFX Base/Max. Dynamic Freq. 350 MHz / 1 GHz 350 MHz / 1 GHz 350 MHz / 1 GHz 350 MHz / 1 GHz Memory (DDR4) 2133 MT/s dual channel 2133 MT/s dual channel 2133 MT/s dual channel 2133 MT/s dual channel LVDS Yes Yes Yes Yes DisplayPort (DP) Yes Yes Yes Yes

HDMI Yes Yes Yes Yes VGA Yes Yes Yes Yes Processor TDP (cTDP) 45 W (N.A) 25 W (N.A) 45 W (N.A) 25 W (N.A)

Part-No. 045904 045905 045906 (ECC) 045907 (ECC)

Processor Intel® Core™ i3-6100E

2.7 GHz Dual Core™

Intel® Core™ i3-6102E

1.9 GHz, Dual Core™

Intel® Xeon® E3-1505M v5

2.8 GHz Quad Core™

Intel® Xeon® E3-1505L v5

2.0 GHz Quad Core™

Max. Turbo Frequency N.A N.A 3.7 GHz 2.8 GHz Chipset

Intel

HM170 Intel® HM170 Intel® CM236 Intel® CM236

Intel

Smart Cache 3 MB 3 MB 8 MB 8 MB

Processor Graphics Intel

HD Graphics 530 (GT2) Intel® HD Graphics 530 (GT2) Intel® HD Graphics P530 (GT2) Intel® HD Graphics P530 (GT2)

GFX Base/Max. Dynamic Freq. 350 MHz / 950 MHz 350 MHz / 950 MHz 350 MHz / 1.05 GHz 350 MHz / 1 GHz Memory (DDR4) 2133 MT/s dual channel 2133 MT/s dual channel 2133 MT/s dual channel ECC 2133 MT/s dual channel ECC LVDS Yes Yes Yes Yes DisplayPort (DP) Yes Yes Yes Yes

HDMI Yes Yes Yes Yes VGA Yes Yes Yes Yes Processor TDP (cTDP) 35 W (N.A) 25 W (N.A) 45 W (35W) 25 W (N.A)

Page 13

Part-No. 045908 (ECC) 045909 (ECC) 045910 045911

Processor Intel® Core™ i3-6100E

2.7 GHz Dual Core™

Intel® Core™ i3-6102E

1.9 GHz Dual Core™

Intel® Celeron® G3900E

2.4 GHz Dual Core™

Intel® Celeron® G3902E

1.6 GHz Dual Core™

Max. Turbo Frequency N.A N.A N.A N.A Chipset

Intel

CM236 Intel

HM170 Intel

HM170

Intel

Smart Cache 3 MB 3 MB 2 MB 2 MB

Processor Graphics Intel

HD Graphics 530 (GT2) Intel

HD Graphics 510 (GT1) Intel® HD Graphics 510 (GT1)

GFX Base/Max. Dynamic Freq. 350 MHz / 950 MHz 350 MHz / 950 MHz 350 MHz / 950 MHz 350 MHz / 950 MHz Memory (DDR4) 2133 MT/s dual channel ECC 2133 MT/s dual channel ECC 2133 MT/s dual channel 2133 MT/s dual channel LVDS Yes Ye s Yes Ye s DisplayPort (DP) Yes Ye s Yes Ye s

HDMI Yes Ye s Yes Ye s VGA Yes Ye s Yes Ye s Processor TDP (cTDP) 35 W (N.A) 25 W (N.A) 35 W (N.A) 25 W (N.A)

Part-No. 045912 (ECC) 045913 (ECC) 045914 (ECC)

Processor Intel® Xeon® E3-1515M v5

2.8 GHz Quad Core™

Intel® Xeon® E3-1578L v5

2.0 GHz Quad Core

Intel® Xeon® E3-1558L v5

1.9 GHz Quad Core

Max. Turbo Frequency 3.7 GHz 3.4 GHz 3.3 GHz Chipset

Intel

CM236 Intel

CM236

Intel

Smart Cache 8 MB 8 MB 8 MB

Processor Graphics Intel

Iris™ Pro P580 (GT4) Intel® Iris™ Pro Graphics P580 (GT4) Intel® Iris Pro Graphics P555 (GT3)

GFX Base/Max. Dynamic Freq. 350 MHz / 1 GHz 700 MHz / 1 GHz 650 MHz / 1 GHz Memory (DDR4) 2133 MT/s dual channel ECC 2133 MT/s dual channel ECC 2133 MT/s dual channel ECC LVDS Yes Ye s Yes DisplayPort (DP) Yes Ye s Yes

HDMI Yes Ye s Yes VGA Yes Ye s Yes Processor TDP (cTDP) 45 W (35W) 45 W (N.A) 45 W (N.A)

Page 14

2 Speciﬁcations

2.1 Feature List

Table 3 Feature Summary

Form Factor

Based on COM Express™ standard pinout Type 6 Rev. 2.1 (Basic size 95 x 125 mm)

Processor Intel

6th Generation Core i7,i5,i3 Celeron and Xeon mobile processors.

Memory

Two memory sockets (located on the top and bottom side of the conga-TS170). Supports

- SO-DIMM DDR4 (voltage @ 1.2V) modules

- Data rates up to 2133 MT/s

- Maximum 32 GB capacity (2x16 GB)

NOTE: Variants that feature the Intel CM236 chipset support ECC memory

Chipset Mobile Intel

100 Series Chipset QM170, HM170 and CM236 PCH

Audio

High deﬁnition audio interface with support for multiple codecs

Ethernet

Gigabit Ethernet support via the onboard Intel® i219-LM GbE LAN controller (with AMT 11 support).

Graphics Options

Gen9 HD Graphics engine. Supports full hardware accelerated video decoding/encoding for AVC, MPEG2, HEVC (8 bit), VP8, JPEG, hardware accelerated video processing/transcoding, DirectX 12, Direct3D 12, OpenGL 4.4, OpenCL 2.1 APIs and up to 3 independent displays. NOTE: Variants equipped with Intel® Xeon® E3-1515MV5 feature the Intel

Iris Pro Graphics.

1x LVDS 1x Optional eDP 1.3 interface (assembly option). 3x DDIs (Digital Display Interfaces). Supports:

- 3x DisplayPort 1.2 with support for Multi-Stream Transport (MST)

- 3x HDMI 1.4 (requires external level shifter)

- 3x DVI port (requires external level shifter)

- Resolutions up to 4K and support for Hot Plug Detect

1x VGA support 1x PEG Gen 3 port (x16 lanes) NOTE:

- To support HDMI/DVI, an external level shifter should be

implemented on the user’s carrier board.

- To support HDMI 2.0 via the DDI, a Level Shifter Protocol

Converter (LSPCON) is required on the carrier board.

Peripheral Interfaces

USB Interfaces:

- Up to 8x USB 2.0

- Up to 4x USB 3.0

4x Serial ATA® 6Gb/s with RAID support 0/1/5/10 8x PCI Express® Gen. 3 lanes 2x UART

I²C bus (fast mode, 400 kHz, multi-master) LPC bus (no DMA) SM Bus SPI GPIOs

BIOS

AMI Aptio® UEFI 5.x ﬁrmware, 8/16 MByte serial SPI with congatec Embedded BIOS features

Power Management

ACPI 5.0 compliant with battery support. Also supports DeepSx and Suspend to RAM (S3).

congatec Board Controller

Multi-stage watchdog, non-volatile user data storage, manufacturing and board information, board statistics, hardware monitoring, fan control, I²C bus, power loss control.

Security

Optional discrete Trusted Platform Module “TPM 1.2/2.0”; AES Instructions.

Page 15

Note

Some of the features mentioned in the above feature summary are optional. Check the article number of your module and compare it to the option information list on page 11 of this user’s guide to determine what options are available on your particular module.

2.2 Supported Operating Systems

The conga-TS170 supports the following operating systems.

• Microsoft® Windows

8.1

• Microsoft® Windows

• Microsoft® Windows® Embedded Standard

• Linux

2.3 Mechanical Dimensions

• 95.0 mm x 125.0 mm

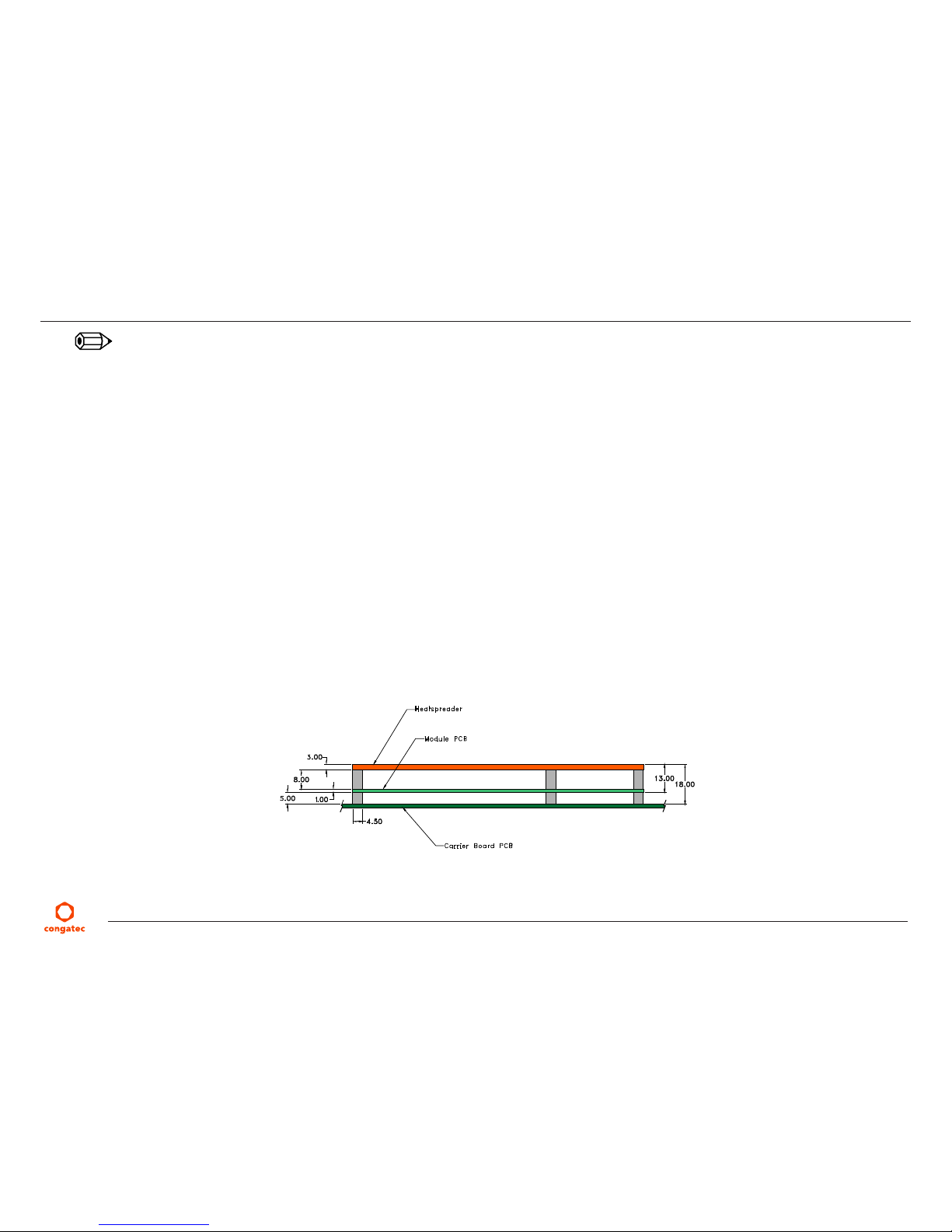

• Height approximately 18 or 21mm (including heatspreader) depending on the carrier board connector that is used. If the 5mm (height) carrier board connector is used, then approximate overall height is 18mm. If the 8mm (height) carrier board connector is used, then approximate overall height is 21mm.

Page 16

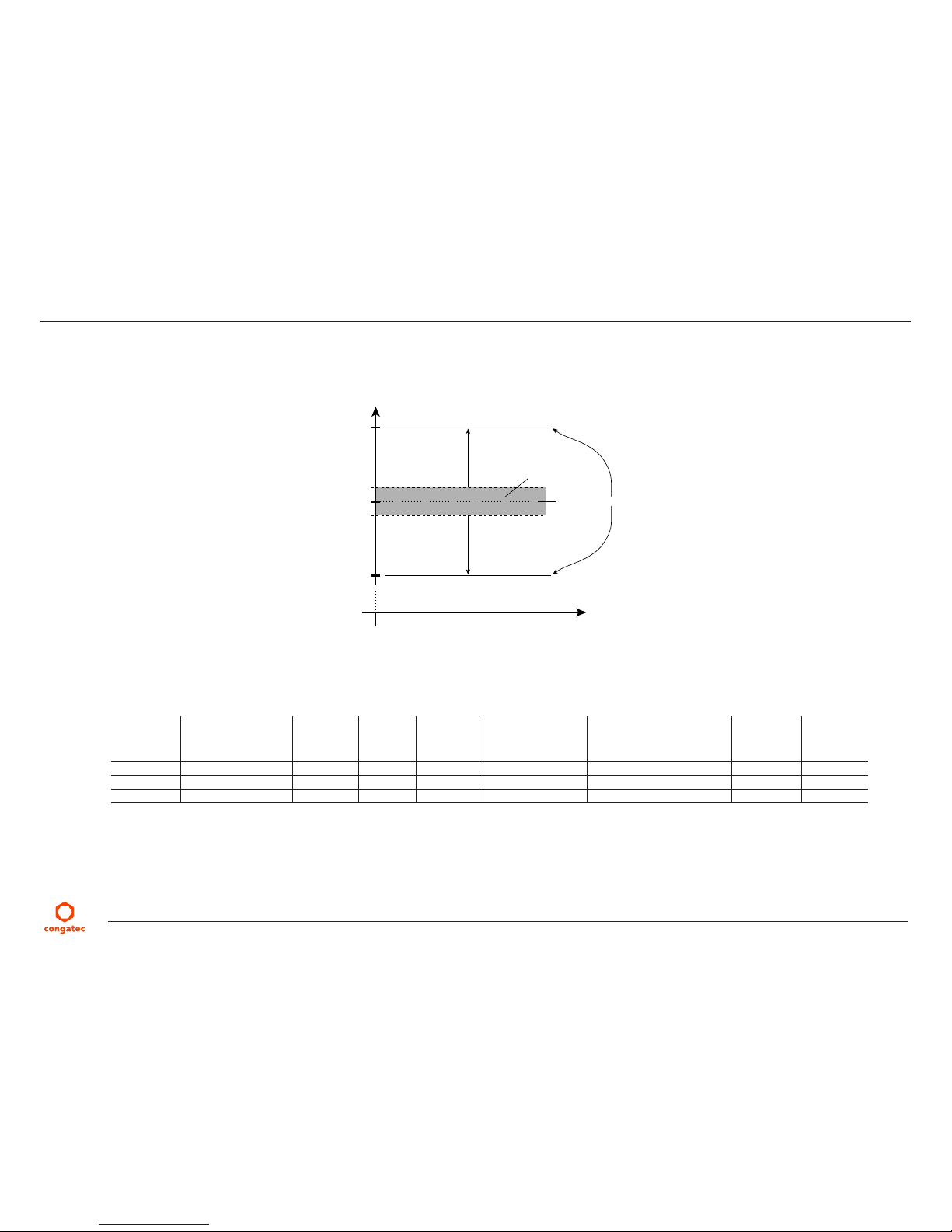

2.4 Supply Voltage Standard Power

• 12V DC ± 5%

The dynamic range shall not exceed the static range.

2.4.1 Electrical Characteristics

Power supply pins on the module’s connectors limit the amount of input power. The following table provides an overview of the limitations for pinout Type 6 (dual connector, 440 pins).

Power Rail Module Pin

Current Capability (Amps)

Nominal Input (Volts)

Input Range (Volts)

Derated Input (Volts)

Max. Input Ripple (10Hz to 20MHz) (mV)

Max. Module Input Power (w. derated input) (Watts)

Assumed Conversion Efﬁciency

Max. Load Power (Watts)

VCC_12V 12 12 11.4-12.6 11.4 +/- 100 137 85% 116 VCC_5V-SBY 2 5 4.75-5.25 4.75 +/- 50 9 VCC_RTC 0.5 3 2.0-3.3 +/- 20

2.4.2 Rise Time

The input voltages shall rise from 10% of nominal to 90% of nominal at a minimum slope of 250V/s. The smooth turn-on requires that, during the 10% to 90% portion of the rise time, the slope of the turn-on waveform must be positive.

Nominal Static Range

Dynamic Range

Absolute Minimum

Absolute Maximum12.60V

11.40V

12V

12.10V

11.90V

Page 17

2.5 Power Consumption

The power consumption values were measured with the following setup:

• conga-TS170 COM

• modiﬁed congatec carrier board

• conga-TS170 cooling solution

• Microsoft Windows 7 (64 bit)

Note

The CPU was stressed to its maximum workload with the Intel® Thermal Analysis Tool

Table 4 Measurement Description

The power consumption values were recorded during the following system states:

System State Description Comment

S0: Minimum value Lowest frequency mode (LFM) with minimum core voltage during

desktop idle.

The CPU was stressed to its maximum frequency.

S0: Maximum value Highest frequency mode (HFM/Turbo Boost). The CPU was stressed to its maximum frequency. S0: Peak value Highest current spike during the measurement of “S0: Maximum

value”. This state shows the peak value during runtime

Consider this value when designing the system’s power supply to ensure that sufﬁcient power is supplied during worst case scenarios.

S3 COM is powered by VCC_5V_SBY. S5 COM is powered by VCC_5V_SBY.

Note

1. The fan and SATA drives were powered externally.

2. All other peripherals except the LCD monitor were disconnected before measurement.

Page 18

Table 5 Power Consumption Values

The tables below provide additional information about the power consumption data for each of the conga-TS170 variants offered. The values are recorded at various operating mode.

Part No.

Memory Size

H.W Rev.

BIOS Rev.

OS (64 bit)

CPU Current (Amp.)

Variant Cores Freq/Turbo

(GHz)

S0: Min

S0: Max

S0: Peak

S3 S5

045900 4 GB A.0 BQSLR005 Windows 7 Intel® Core™ i7-6820EQ 4 2.8/3.5 0.65 5.23

(5.27)

5.45 0.10 0.06

045901 4 GB A.0 BQSLR005 Windows 7 Intel

Core™ i7-6822EQ 4 2.0/2.8 0.66 3.35 3.45 0.10 0.07

045902 4 GB X.0 BQSLR005 Windows 7 Intel

Core™ i5-6440EQ 4 2.7/3.4 0.66 5.32 5.69 0.09 0.06

045903 4 GB A.0 BQSLR005 Windows 7 Intel

Core™ i5-6442EQ 4 1.9/2.7 0.66 3.15 3.24 0.10 0.06

045904 4 GB X.0 BQSLR005 Windows 7 Intel

Core™ i3-6100E 2 2.7/N.A 0.66 3.09 3.54 0.09 0.06

045905 4 GB A.0 BQSLR005 Windows 7 Intel

Core™ i3-6102E 2 1.9/N.A 0.62 2.51 2.74 0.10 0.06

045906 (ECC) 4 GB A.0 BQSLR005 Windows 7 Intel

Xeon® E3-1505M v5 4 2.8/3.7 0.72 5.73 5.95 0.10 0.06

045907 (ECC) 4 GB

A.0 BQSLR005 Windows 7 Intel® Xeon® E3-1505L v5 4 2.0/2.8 0.65 3.06 3.16 0.10 0.07

045908 (ECC) 4 GB A.2 BQSLR112 Windows 7 Intel

Core™ i3-6100E 2 2.7/N.A 0.67 3.87 4.08 0.07 0.06

045909 (ECC) 4 GB A.2 BQSLR112 Windows 7 Intel

Core™ i3-6102E 2 1.9/N.A 0.62 2.73 2.86 0.07 0.06

045910 (ECC) 4 GB A.1 BQSLR112 Windows 7 Intel

Celeron® G3900E 2 2.4/N.A 0.62 2.29 2.33 0.07 0.07

045911 (ECC) 4 GB A.1 BQSLR112 Windows 7 Intel

Celeron® G3902E 2 1.6/N.A 0.58 1.66 1.73 0.08 0.06

045912 (ECC) 4 GB A.0 BQSLR005 Windows 7 Intel

Xeon® E3-1515M v5 4 2.8/3.7 TBD TBD TBD TBD TBD

045913 (ECC) 4 GB A.0 BQSLR005 Windows 7 Intel

Xeon® E3-1578L v5 4 2.0/3.4 TBD TBD TBD TBD TBD

045914 (ECC) 4 GB A.0 BQSLR005 Windows 7 Intel

Xeon® E3-1558L v5 4 1.9/3.3 TBD TBD TBD TBD TBD

Note

With fast input voltage rise time, the inrush current may exceed the measured peak current.

2.6 Supply Voltage Battery Power

Table 6 CMOS Battery Power Consumption

RTC @ Voltage Current

-10oC 3V DC 1.18 µA

C 3V DC 1.33 µA

C 3V DC 1.99 µA

Page 19

Note

1. Do not use the CMOS battery power consumption values listed above to calculate CMOS battery lifetime.

2. Measure the CMOS battery power consumption in your customer speciﬁc application in worst case conditions (for example, during high temperature and high battery voltage).

3. Consider also the self-discharge of the battery when calculating the lifetime of the CMOS battery. For more information, refer to application note AN9_RTC_Battery_Lifetime.pdf on congatec AG website at www.congatec.com/support/application-notes.

4. We recommend to always have a CMOS battery present when operating the conga-TS170.

2.7 Environmental Speciﬁcations

Temperature Operation: 0° to 60°C Storage: -20° to +80°C

Humidity Operation: 10% to 90% Storage: 5% to 95%

Caution

The above operating temperatures must be strictly adhered to at all times. When using a congatec heatspreader, the maximum operating temperature refers to any measurable spot on the heatspreader’s surface.

Humidity speciﬁcations are for non-condensing conditions.

Page 20

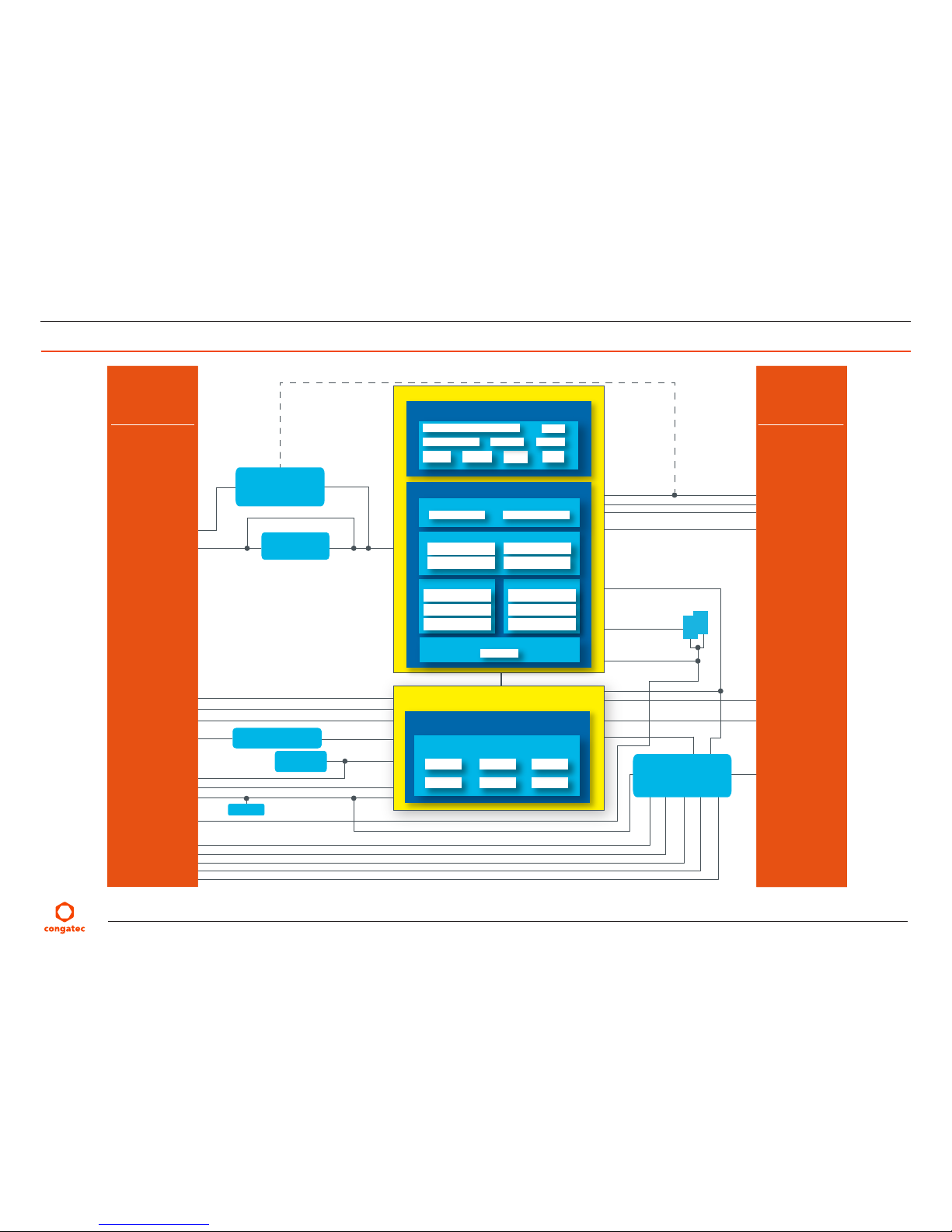

3 Block Diagram

6th Gen. Intel® Core™ processor

CPU Platform

HT Technology

AMT 11.0

Turbo Boost 2.0 Technology

TXT

AES-NI

AVX2 SSE 4.2 TSX

Hardware Graphics Accelerators

Video Codecs APIs

Vector Graphics

DXVA2

MPEG-2

H.265

WMV9

OpenCL 2.1

OpenGL 4.4

DirectX 12

Integrated Intel HD Graphics

SATA USB 2.0

LPC BusPCIe

USB 3.0

HDA

Multimedia Features

ASRC

I/O Interfaces

HDMI and DP

Display Interface

up to 4K resolution

Mobile Intel

® 100 Series PCH-H

MGMNT

PECI

PCIe Gen. 3

Aux Channel

DDI port D supports only HDMI if VGA is enabled.

PCIe Gen. 3

PECI

SM Bus

Dual Channel DDR4

eDP

PCIe Gen. 3

eDP to LVDS

Bridge

2x SO-DIMM (X1/X2)

SPI Flash 0

LVDS/eDP

TPM

XDP

LPC

SATA 6G

USB 2.0

HDA

DMI Gen3

UART0/1

DP to VGA

congatec System

Management

Controller

Ethernet 10/100/1000

Intel i219LM

Ethernet

VGA

LVDS/eDP

COM Express

Type 6

A-B Connector

LPC Bus

SM Bus

HDA I/F

I2C Bus

USB Port 0..7

SATA Port 0 - 3

SER0/1

GPIOs

SPI

LID#/SLEEP# FAN control

PCIe lane 0 - 5

USB 3.0 Port 0 - 3

PCIe lane 6 - 7

(TX BC) congatec custom

COM Express

Type 6

C-D Connector

DP/HDMI Port D DP/HDMI Port C DP/HDMI Port B

PEG x16

Page 21

4 Cooling Solutions

congatec AG offers three cooling solutions for the conga-TS170:

• Active cooling solution (CSA)

• Passive cooling solution (CSP)

• Heatspreader

The dimensions of the cooling solutions are shown below and all measurements are in millimeter. The maximum torque speciﬁcation for heatspreader screws is 0.3 Nm. Mechanical system assembly mounting shall follow the valid DIN/ISO speciﬁcations.

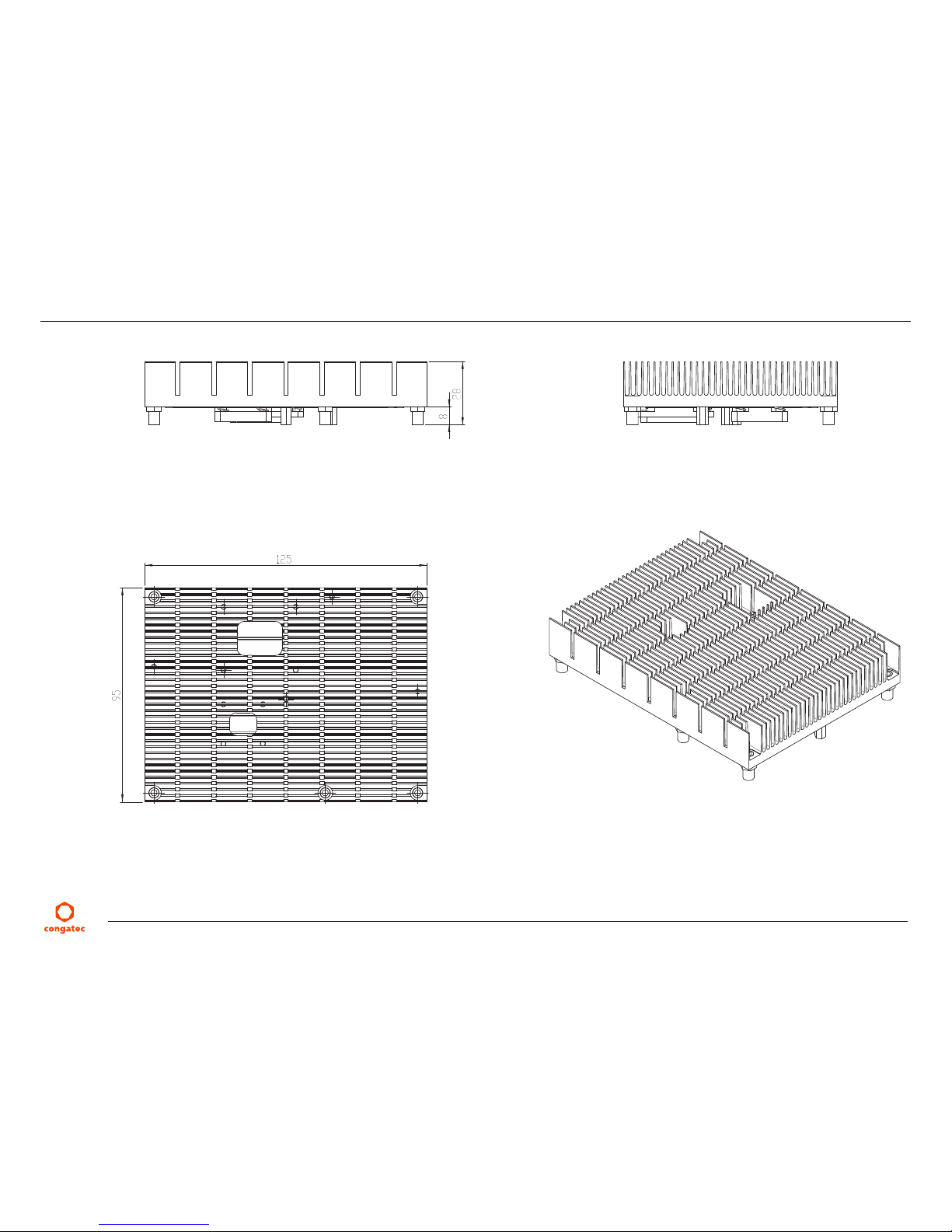

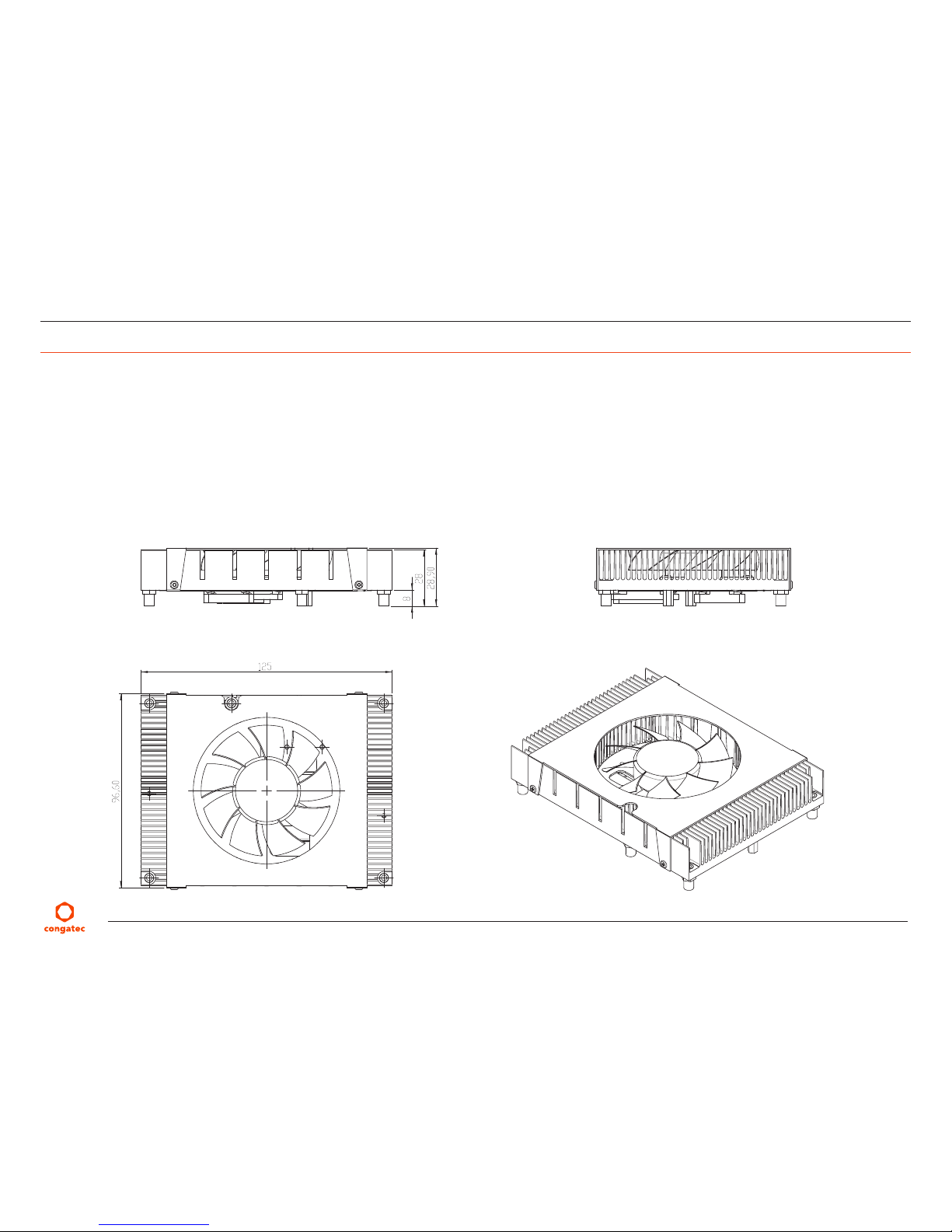

4.1 CSA Dimensions

Page 22

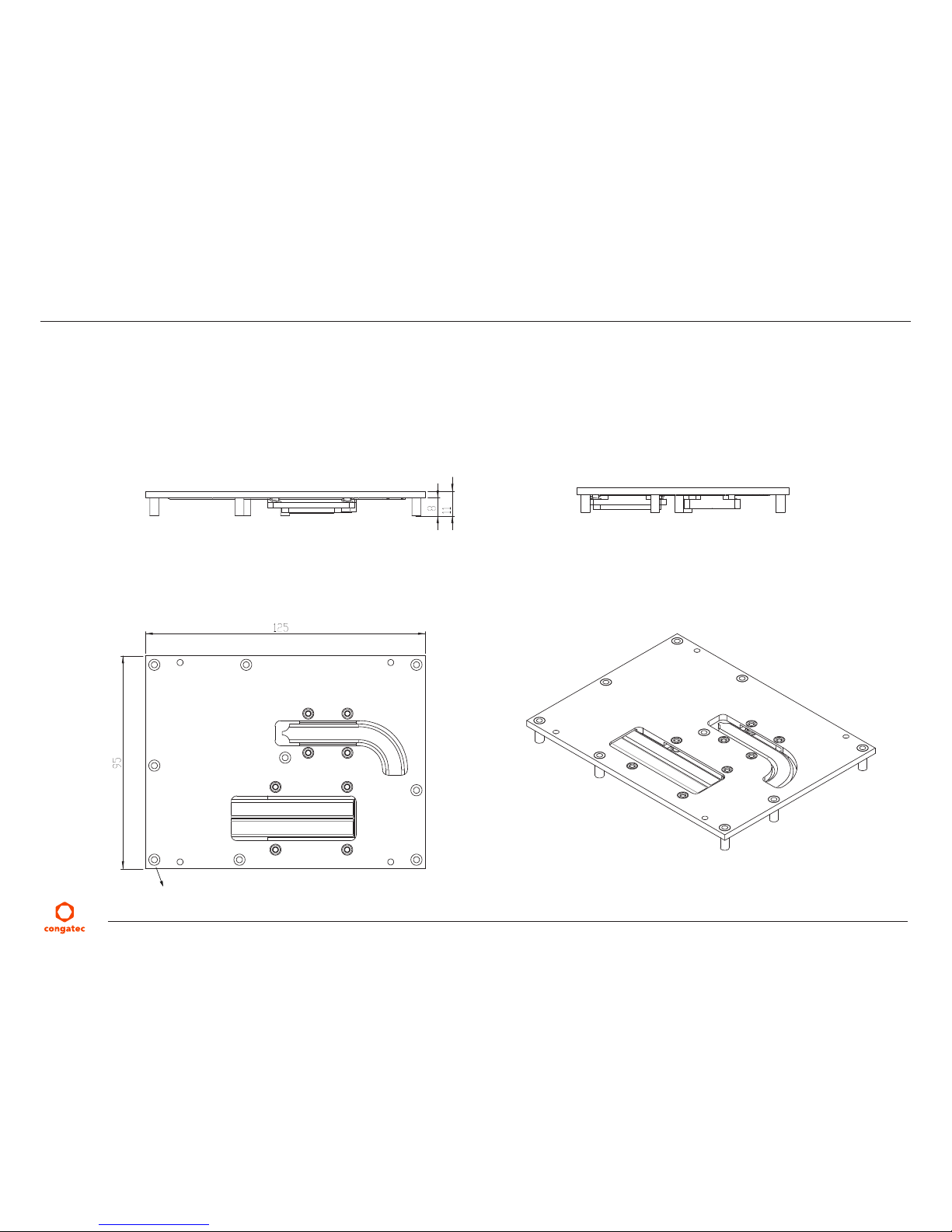

4.2 CSP Dimensions

Page 23

4.3 Heatspreader

The heatspreader acts as a thermal coupling device to the module and is thermally coupled to the CPU via a thermal gap ﬁller. On some modules, it may also be thermally coupled to other heat generating components with the use of additional thermal gap ﬁllers.

Although the heatspreader is the thermal interface where most of the heat generated by the module is dissipated, it is not to be considered as a heatsink. It has been designed as a thermal interface between the module and the application speciﬁc thermal solution. The application speciﬁc thermal solution may use heatsinks with fans, and/or heat pipes, which can be attached to the heatspreader. Some thermal solutions may also require that the heatspreader is attached directly to the systems chassis thereby using the whole chassis as a heat dissipater.

M2.5x11mm threaded standoff for threaded versions or Ø2.7x11mm non threaded standoff for bore hole versions

Page 24

Note

The gap pad material used on all heatspreaders contains silicon oil that can seep out over time depending on the environmental conditions it is subjected to. For more information about this subject, contact your local congatec sales representative and request the gap pad material manufacturer’s speciﬁcation.

Caution

The congatec heatspreaders/cooling solutions are tested only within the commercial temperature range of 0° to 60°C. Therefore, if your application that features a congatec heatspreader/cooling solution operates outside this temperature range, ensure the correct operating temperature of the module is maintained at all times. This may require additional cooling components for your ﬁnal application’s thermal solution.

For adequate heat dissipation, use the mounting holes on the cooling solution to attach it to the module. Apply thread-locking ﬂuid on the screws if the cooling solution is used in a high shock and/or vibration environment. To prevent the standoff from stripping or cross-threading, use non-threaded carrier board standoffs to mount threaded cooling solutions.

For applications that require vertically-mounted cooling solution, use only coolers that secure the thermal stacks with ﬁxing post. Without the ﬁxing post feature, the thermal stacks may move.

Also, do not exceed the maximum torque speciﬁed for the cooling solution screws. Doing so may damage the module or/and the carrier board.

Page 25

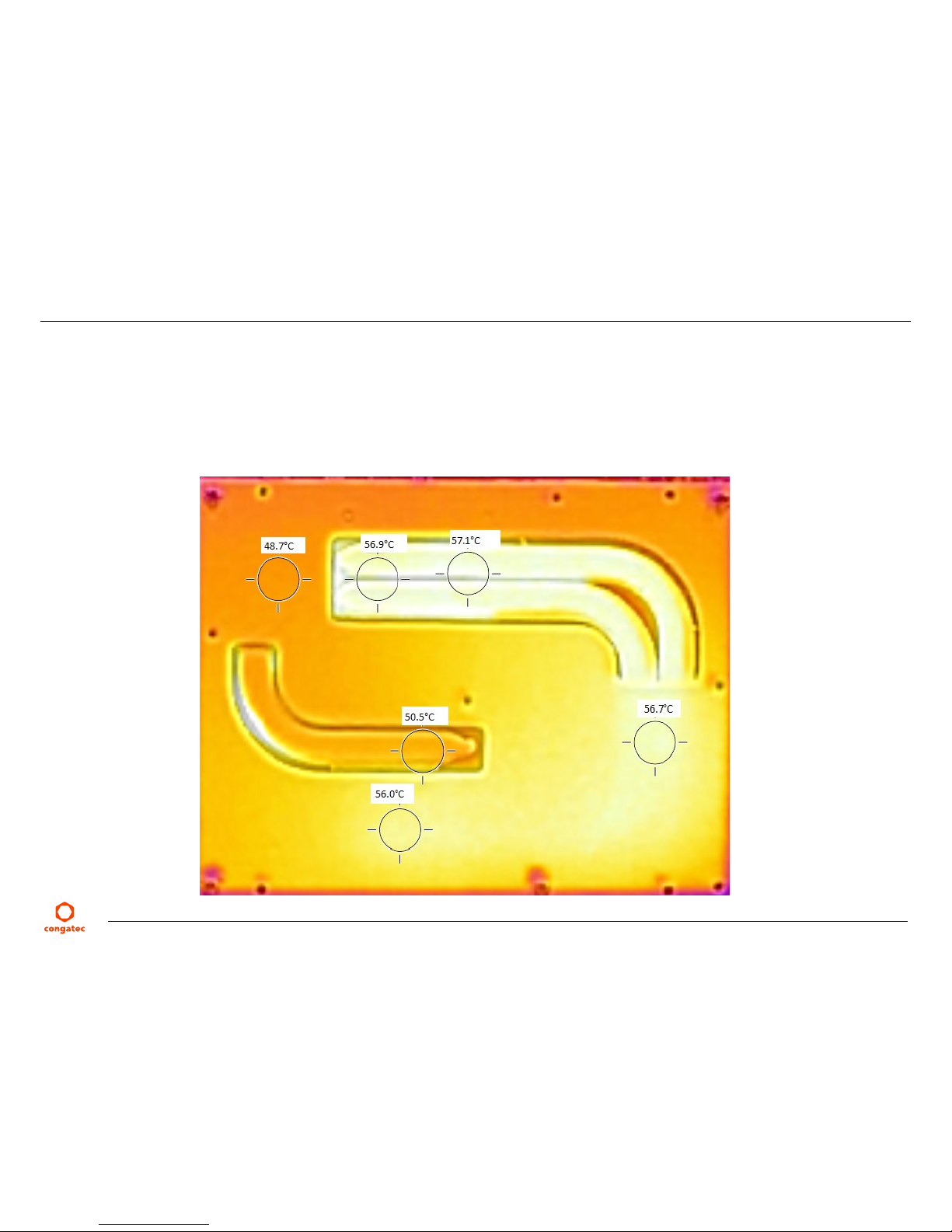

4.4 Heatspreader Thermal Imagery

The conga-TS170 heatspreader solution features heat pipes. A heat pipe is a simple device that can quickly transfer heat from one point to another. They are often referred to as the “superconductors” of heat as they possess an extra ordinary heat transfer capacity and rate with almost no heat loss.

The thermal image below provides a reference to where the heat is being transferred to on the heatspreader surface area. System designers must ensure that the system’s cooling solution is designed to dissipate the heat from the hottest surface spots of the heatspreader.

Page 26

5 Onboard Temperature Sensors

The conga-TS170 features two sensors on the top side of the module and two optional DRAM sensors (build-time) on the top and bottom side of the module.

Top-Side (CPU Temperature & Board Temperature Sensor) :

The CPU temperature sensor (T00) is located in the CPU (U1). This sensor measures the CPU temperature and is deﬁned in CGOS API as CGOS_TEMP_CPU.

The board temperature sensor (T01) is located in the congatec Board Controller (U22). This sensor measures the board temperature and is deﬁned in CGOS API as CGOS_TEMP_BOARD.

The sensor locations are shown below:

CPU Temperature Sensor

U22

T00

T01

Board Controller Temp. Sensor

Optional DRAM Sensor Location

(BOM option)

Page 27

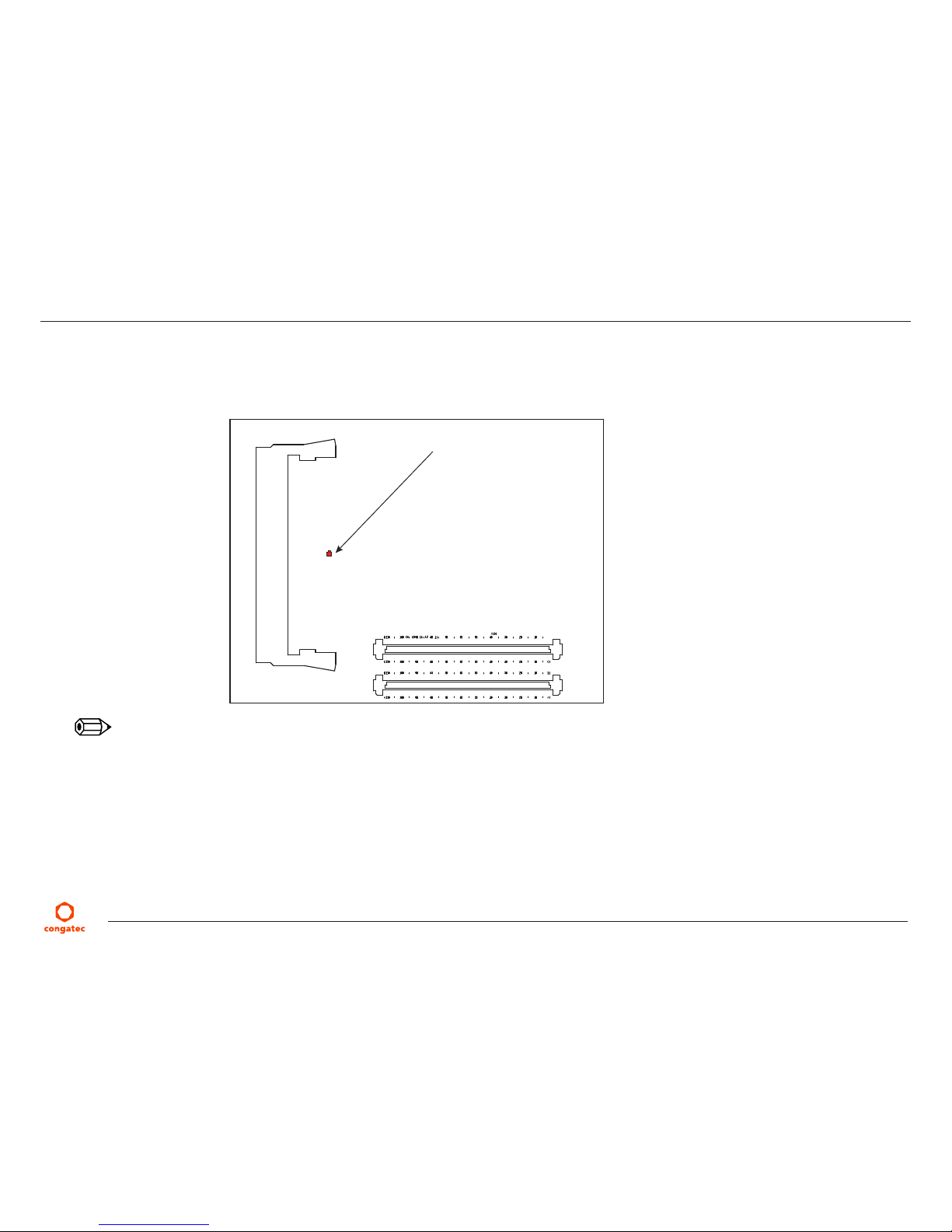

Bottom-Side (Optional DRAM Sensor):

The conga-TS170 offers an optional sensor on the bottom side of the module. This sensor measures the temperature of the DRAM module and is deﬁned in CGOS API as CGOS_TEMP_BOTDIMM_ENV.

The DRAM sensor location is shown below:

Note

The optional DRAM sensors are not populated on conga-TS170 standard variants. The sensors are available only as assembly option.

Optional DRAM Sensor Location

(BOM option)

Page 28

6 Connector Rows

The conga-TS170 is connected to the carrier board via two 220-pin connectors (COM Express Type 6 pinout) for a total of 440 pins connectivity. These connectors are broken down into four rows. The primary connector consists of rows A and B while the secondary connector consists of rows C and D.

6.1 Primary Connector Rows A and B

The following subsystems can be found on the primary connector rows A and B.

6.1.1 Serial ATA™ (SATA)

The conga-TS170 offers 4 SATA interfaces (SATA 0-3) externally via the Intel® 100 Series PCH. The SATA ports can perform DMA operation independently and are based on Serial ATA Speciﬁcation, revision 3.2 with up to 6.0 Gb/s data transfer rates.

The SATA controller supports two modes of operation - AHCI mode using memory space and RAID mode. Legacy mode using I/O space is not supported. For more information, refer to section 10 “BIOS Setup Description”.

6.1.2 USB 2.0

The conga-TS170 offers 8 USB 2.0 interfaces on the A-B connector. The XHCI host controller in the PCH supports these interfaces with HighSpeed, Full-Speed and Low-Speed USB signaling. The XHCI controller complies with USB standard 1.1 and 2.0.

6.1.3 High Deﬁnition Audio (HDA) Interface

The conga-TS170 provides an interface that supports the connection of HDA audio codecs.

Page 29

6.1.4 Gigabit Ethernet

The conga-TS170 is equipped with a Gigabit Ethernet Controller that is integrated within the Intel® 100 Series PCH This controller is routed to the onboard Intel® i219-LM Phy. The Ethernet interface consists of 4 pairs of low voltage differential pair signals designated from GBE0_MD0± to GBE0_MD3± plus control signals for link activity indicators. These signals can be used to connect to a 10/100/1000 BaseT RJ45 connector with integrated or external isolation magnetics on the carrier board.

Note

The GBE0_LINK# output is only active during a 100Mbit or 1Gbit connection. It is not active during a 10Mbit connection. This is a limitation of Ethernet Phy since it only has 3 LED outputs, ACT#, LINK100# and LINK1000#. The GBE0_LINK# signal is a logic AND of the GBE0_LINK100# and GBE0_LINK1000# signals on the conga-TS170 module.

6.1.5 LPC Bus

The conga-TS170 offers the LPC (Low Pin Count) bus through the Intel® 100 Series PCH. There are many devices available for this Intel® deﬁned bus. The LPC bus corresponds approximately to a serialized ISA bus yet with a signiﬁcantly reduced number of signals. Due to the software compatibility to the ISA bus, I/O extensions such as additional serial ports can be easily implemented on an application speciﬁc baseboard using this bus. See section 9.1.1 for more information about the LPC Bus.

6.1.6 I²C Bus Fast Mode

The I²C bus is implemented through the congatec board controller (Texas Instruments Tiva™ TM4E1231H6ZRB) and accessed through the congatec CGOS driver and API. The controller provides a Fast Mode multi-master I²C host controller that has maximum I²C bandwidth.

6.1.7 PCI Express™

The conga-TS170 offers six PCI Express™ lanes on the A-B connector and two lanes on the CD connector. The lanes are based on PCI Express Speciﬁcation 3.0 with up to 8 GT/s (Gen 3) speed.

Default conﬁguration for the PCIe lanes on the conga-TS170 is 8 x1 links. Other combinations are possible but would require a special/ customized BIOS ﬁrmware. Contact congatec technical support for more information about this subject.

For more information, see section 6.2.1.

Page 30

6.1.8 ExpressCard™

The conga-TS170 supports the implementation of ExpressCards, which requires the dedication of one USB 2.0 port or a x1 PCI Express link for each ExpressCard used.

6.1.9 VGA

The Intel® 6th Generation processor does not natively support VGA interface. The conga-TS170 however offers the VGA interface via an eDP to VGA converter, connected to the upper two data lanes on the embedded DisplayPort.

Note

To enable VGA interface, set the Digital Display Interface 3 to HDMI/DVI from the BIOS menu.

6.1.10 LVDS/eDP

The conga-TS170 offers an LVDS interface with optional eDP overlay on the AB connector. The LVDS/eDP interface is by default conﬁgured to provide LVDS signals. The interface can optionally support eDP signals via a hardware change (assembly option).

The LVDS interface supports:

• single or dual channel LVDS (color depths of 18 bpp or 24 bpp)

• integrated ﬂat panel interface with clock frequency up to 112 MHz

• VESA and OpenLDI LVDS color mappings

• automatic panel detection via Embedded Panel Interface based on VESA EDIDTM 1.3

• resolution up to 1920x1200 in dual LVDS bus mode

Note

The LVDS/eDP interface supports either LVDS or eDP signals. Both interfaces are not supported simultaneously.

Page 31

6.1.11 General Purpose Serial Interface

Two TTL compatible two wire ports are available on Type 6 COM Express modules. These pins are designated SER0_TX, SER0_RX, SER1_TX and SER1_RX. Data out of the module is on the _TX pins. Hardware handshaking and hardware ﬂow control are not supported. The module asynchronous serial ports are intended for general purpose use and for use with debugging software that make use of the “console redirect” features available in many operating systems.

The conga-TS170 offers two UART interfaces via two UART controllers integrated in the congatec Board Controller. These controllers support up to 1MBit/s and can operate in low-speed, full-speed and high-speed modes. The UART interfaces are routed to the AB connector and require congatec device to function.

Note

The UART interfaces do not support legacy COM port emulation.

6.1.12 GPIOs

The conga-TS170 offers General Purpose Input/Output signals on the AB connector. The GPIO signals are controlled by the congatec Board controller.

6.1.13 Power Control

PWR_OK

Power OK from main power supply or carrier board voltage regulator circuitry. A high value indicates that the power is good and the module can start its onboard power sequencing.

Carrier board hardware must drive this signal low until all power rails and clocks are stable. Releasing PWR_OK too early or not driving it low at all can cause numerous boot up problems. It is a good design practice to delay the PWR_OK signal a little (typically 100ms) after all carrier board power rails are up, to ensure a stable system.

A sample screenshot is shown below:

Page 32

Note

The module is kept in reset as long as the PWR_OK is driven by carrier board hardware.

Page 33

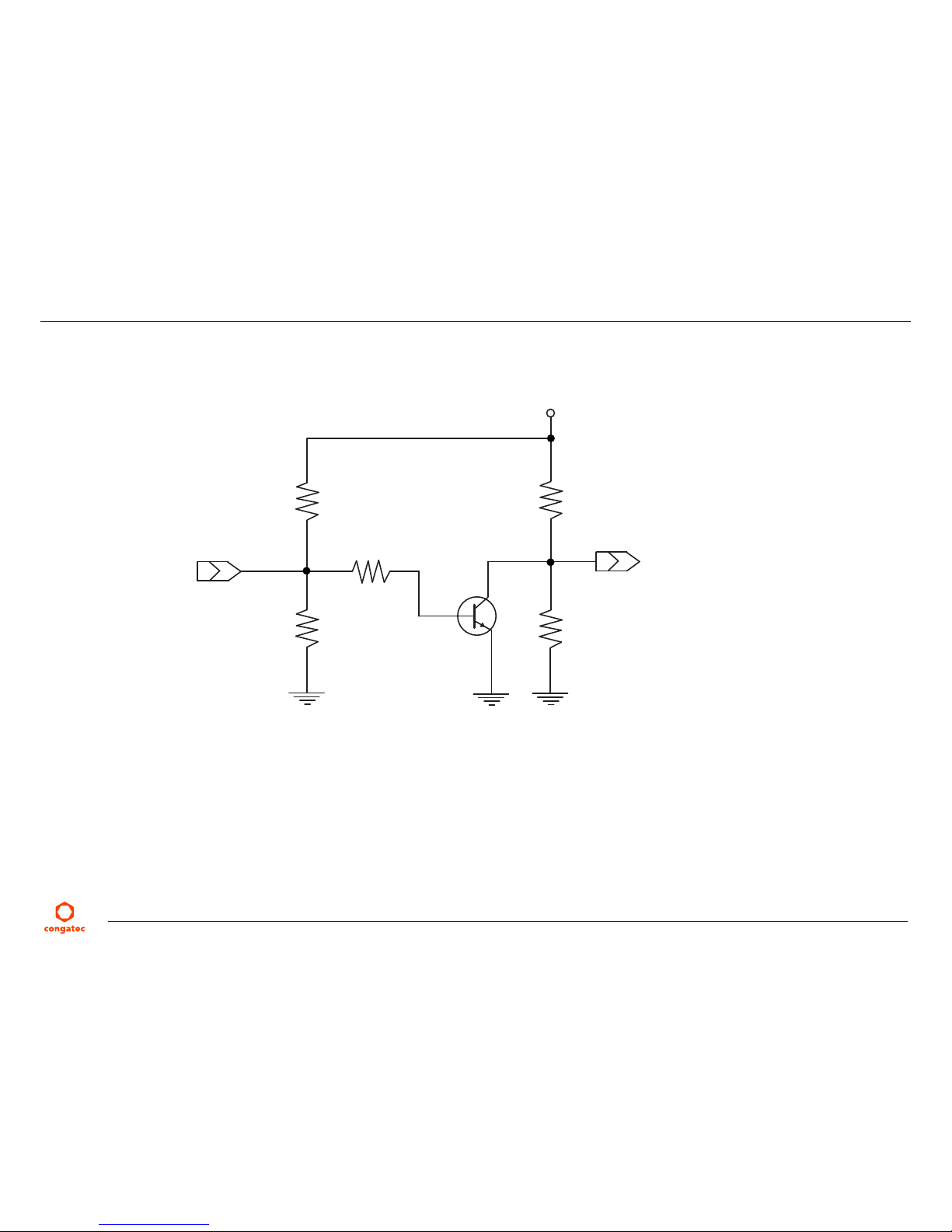

The conga-TS170 PWR_OK input circuitry is implemented as shown below:

The voltage divider ensures that the input complies with 3.3V CMOS characteristic and also allows for carrier board designs that are not driving PWR_OK. Although the PWR_OK input is not mandatory for the onboard power-up sequencing, it is strongly recommended that the carrier board hardware drives the signal low until it is safe to let the module boot-up.

When considering the above shown voltage divider circuitry and the transistor stage, the voltage measured at the PWR_OK input pin may be only around 0.8V when the 12V is applied to the module. Actively driving PWR_OK high is compliant to the COM Express speciﬁcation but this can cause back driving. Therefore, congatec recommends driving the PWR_OK low to keep the module in reset and tri-state PWR_OK when the carrier board hardware is ready to boot.

To Module Power Logic

PWR_OK

R1%47k5S02

TBC847

R1%10kS02

+V12.0_S0

R1%1k00S02

R1%47k5S02

R1%20k0S02

Page 34

The three typical usage scenarios for a carrier board design are:

• Connect PWR_OK to the “power good” signal of an ATX type power supply.

• Connect PWR_OK to the last voltage regulator in the chain on the carrier board.

• Simply pull PWR_OK with a 1k resistor to the carrier board 3.3V power rail.

With this solution, it must be ensured that by the time the 3.3V is up, all carrier board hardware is fully powered and all clocks are stable.

The conga-TS170 provides support for controlling ATX-style power supplies. When not using an ATX power supply then the conga-TS170’s pins SUS_S3/PS_ON, 5V_SB, and PWRBTN# should be left unconnected.

SUS_S3#/PS_ON#

The SUS_S3#/PS_ON# (pin A15 on the A-B connector) signal is an active-low output that can be used to turn on the main outputs of an ATXstyle power supply. In order to accomplish this the signal must be inverted with an inverter/transistor that is supplied by standby voltage and is located on the carrier board.

PWRBTN#

When using ATX-style power supplies PWRBTN# (pin B12 on the A-B connector) is used to connect to a momentary-contact, active-low debounced push-button input while the other terminal on the push-button must be connected to ground. This signal is internally pulled up to 3V_SB using a 10k resistor. When PWRBTN# is asserted it indicates that an operator wants to turn the power on or off. The response to this signal from the system may vary as a result of modiﬁcations made in BIOS settings or by system software.

Standard 12V Power Supply Implementation Guidelines

12 volt input power is the sole operational power source for the conga-TS170. The remaining necessary voltages are internally generated on the module using onboard voltage regulators. A carrier board designer should be aware of the following important information when designing a power supply for a conga-TS170 application:

• It has also been noticed that on some occasions, problems occur when using a 12V power supply that produces non monotonic voltage when powered up. The problem is that some internal circuits on the module (e.g. clock-generator chips) will generate their own reset signals when the supply voltage exceeds a certain voltage threshold. A voltage dip after passing this threshold may lead to these circuits becoming confused resulting in a malfunction. It must be mentioned that this problem is quite rare but has been observed in some mobile power supply applications. The best way to ensure that this problem is not encountered is to observe the power supply rise waveform through the use of an oscilloscope to determine if the rise is indeed monotonic and does not have any dips. This should be done during the power supply qualiﬁcation phase therefore ensuring that the above mentioned problem doesn’t arise in the application. For more information about this issue visit www.formfactors.org and view page 25 ﬁgure 7 of the document “ATX12V Power Supply Design Guide V2.2”.

Page 35

6.1.14 Power Management

ACPI

The conga-TS170 supports Advanced Conﬁguration and Power Interface (ACPI) speciﬁcation, revision 5.0. It also supports Suspend to RAM (S3). For more information, see section 7.3 “ACPI Suspend Modes and Resume Events”.

DEEP Sx

The Deep Sx is a lower power state employed to minimize the power consumption while in S3/S4/S5. In the Deep Sx state, the system entry condition determines if the system context is maintained or not. All power is shut off except for minimal logic which supports limited set of wake events for Deep Sx. The Deep Sx on resumption, puts system back into the state it is entered from. In other words, if Deep Sx state was entered from S3 state, then the resume path will place system back into S3.

Page 36

6.2 Secondary Connector Rows C and D

The following subsystems can be found on the secondary connector rows C and D.

6.2.1 PCI Express™

The conga-TS170 offers 6 lanes on the AB connector and 2 lanes on the CD connector. The PCI Express interface is based on the PCI Express Speciﬁcation 3.0 with Gen 1 (2.5 Gb/s), Gen 2 (5 Gb/s) and Gen 3 (8 Gb/s) speeds.

6.2.2 PCI Express Graphics (PEG)

The conga-TS170 supports PCI Express Graphics (PEG) on the CD connector. The PEG lanes are same as PCI Express lanes 16-31 and are designed to be compliant with the PCI Express Speciﬁcation 3.0, with support for 8.0 Gb/s speed.

The PEG interface is by default conﬁgured as a 1x16 link. You can optionally conﬁgure the PEG port to support graphics and/or non-graphic PCI Express devices. This conﬁguration increases the available PCI Express lanes in addition to those explained in section 6.1.7 and section

6.2.1. It also enables the use of the PEG lanes for supporting x1, x2, x4 or x8 PCI Express devices.

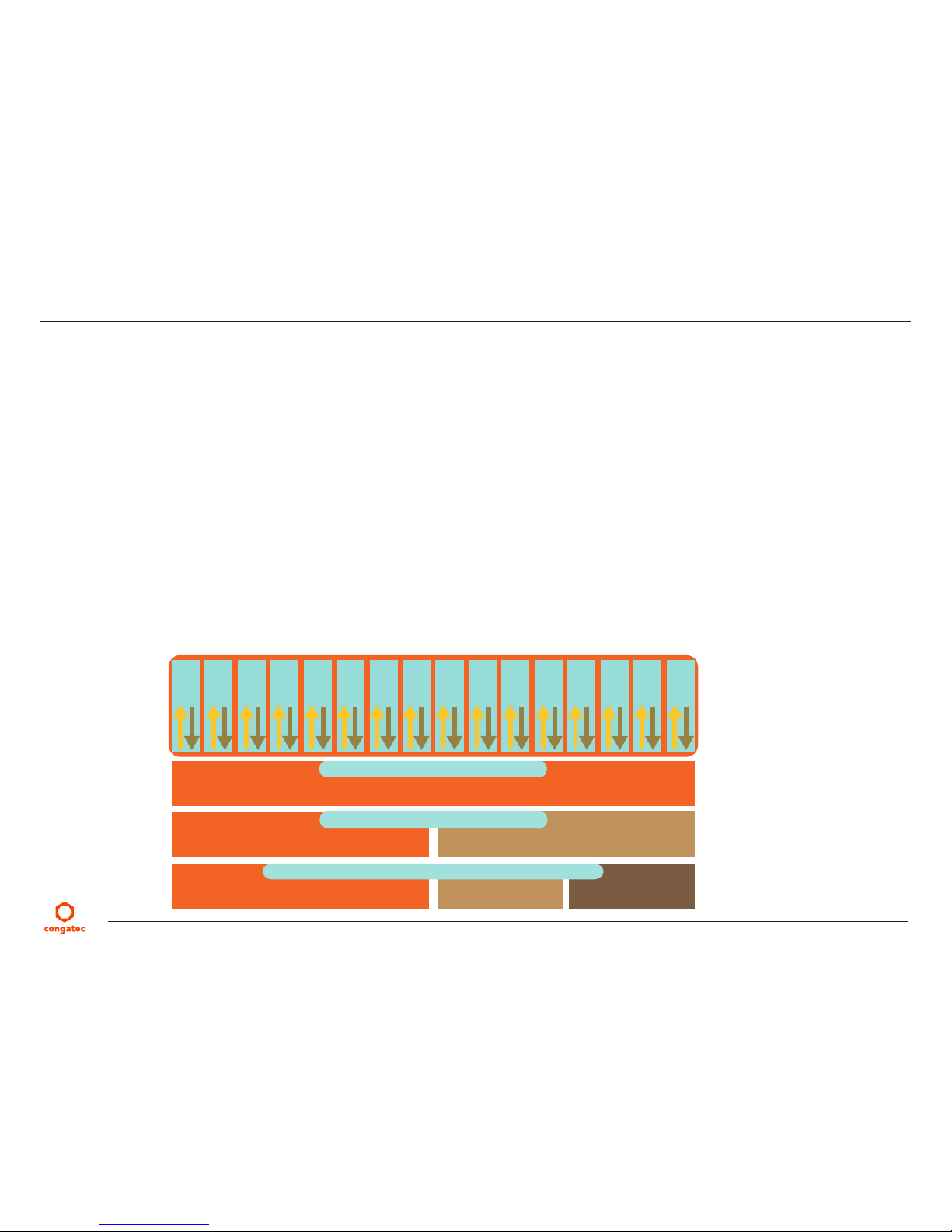

The possible conﬁgurations are 1x16 link (default), 2x8 links or 1x8 + 2x4 links as shown in the diagram below:

PEG

LANE

Single Link (1x16 Link)

Link 1

Link 1 Link 2 Link 3

Link 2

Double Links (2x8 Links)

Triple Links (1x8 + 2x4 Links)

PEG

LANE

PEG

LANE

PEG

LANE

PEG

LANE

PEG

LANE

PEG

LANE

PEG

LANE

PEG

LANE

PEG

LANE

PEG

LANE

PEG

LANE

PEG

LANE

PEG

LANE

PEG

LANE

PEG

LANE

Page 37

The 16 PEG lanes support lane reversal and can operate at 2.5 GT/s, 5 GT/s or 8 GT/s. The PCIe lanes of the PEG interface are controlled by three controllers. Each controller can automatically operate on a lower link width allowing up to three simultaneous operating devices on the PEG interface. The PEG root port conﬁguration can be selected in the BIOS setup menu.

Note

The PEG lanes can not be linked together with the PCI Express lanes discussed in sections 6.1.7 and 6.2.1.

6.2.3 Digital Display Interface

The conga-TS170 supports up to three Digital Display Interfaces (digital ports B,C & D). Each interface can be conﬁgured as DisplayPort, HDMI/ DVI and also supports dual mode (DP++). Any display combination is supported.

The table below shows the supported conga-TS170 display combinations and resolutions.

Table 7 Maximum Supported Resolutions

Display 1 Display 2 Display 3

External Max. Resolution External Max. Resolution Internal/External Max. Resolution

Option 1 DP/

HDMI

4096x2304 @ 60Hz, 24 bpp/ 4096x2160 @ 24Hz, 24 bpp

DP/ HDMI

4096x2304 @ 60Hz, 24 bpp/ 4096x2160 @ 24Hz, 24 bpp

DP/ HDMI

4096x2304 @ 60Hz, 24 bpp/ 4096x2160 @ 24Hz, 24 bpp

Option 2 DP/

HDMI

4096x2304 @ 60Hz, 24 bpp/ 4096x2160 @ 24Hz, 24 bpp

DP/ HDMI

4096x2304 @ 60Hz, 24 bpp/ 4096x2160 @ 24Hz, 24 bpp

LVDS eDP (BOM Option)

1920x1200 @ 60Hz (dual LVDS mode) 4096x2304 @ 60Hz, 24bpp

Option 3 DP/

HDMI

4096x2304 @ 60Hz, 24 bpp/ 4096x2160 @ 24Hz, 24 bpp

DP/ HDMI

4096x2304 @ 60Hz, 24 bpp/ 4096x2160 @ 24Hz, 24 bpp

VGA 1920x1200 @ 60Hz

Option 4 DP/

HDMI

4096x2304 @ 60Hz, 24 bpp/ 4096x2160 @ 24Hz, 24 bpp

VGA 1920x1200 @ 60Hz LVDS

eDP (BOM Option)

1920x1200 @ 60Hz (dual LVDS mode) 4096x2304 @ 60Hz, 24bpp

Note

1. The third DDI interface (DDI3) supports only HDMI/DVI if the VGA interface is enabled in the BIOS menu.

2. To enable VGA interface, go to the Advanced -> Graphics menu and set Digital Display Interface 3 to HDMI/DVI.

Page 38

6.2.3.1 HDMI

The conga-TS170 offers three HDMI ports on the CD connector via the Digital Display Interfaces. The HDMI interfaces are based on HDMI 1.4 speciﬁcation with support for 3D, 4Kx2K@24Hz, Deep Color.

Supported audio formats are AC-3 Dolby Digital, Dolby Digital Plus, DTS-HD, LPCM, 192 kHz/24 bit, 8 channel, Dolby TrueHD, DTS-HD Master Audio (Lossless Blu-Ray Disc Audio Format).

Note

The conga-TS170 supports up to 3 independent HDMI 1.2 displays. HDMI 2.0 support is possible via a Level Shifter Protocol Converter (LSPCON) on the carrier board.

6.2.3.2 DVI

The conga-TS170 offers three DVI ports on the CD connector. These interfaces support maximum display resolutions of 1920x1200 at 60 Hz.

Note

The conga-TS170 supports up to 3 independent DVI displays.

6.2.3.3 DisplayPort (DP)

The conga-TS170 offers three dual mode DP ports (DP++). These interfaces support all mandatory features of the VESA DisplayPort Standard versions 1.2 including Multi-Stream Transport (MST) for monitor daisy-chaining, stereoscopic 3D frame transport and maximun bit rate of 5.4 Gbps.

Supported audio formats are linear PCM, Dolby Digital (AC-3), Dolby TrueHD, DTS, DTS-HD Master Audio and up to 8 channels.

Note

The conga-TS170 supports up to 3 independent DisplayPort displays. A maximum of two independent DP displays are supported if the VGA interface is enabled.

Page 39

6.2.4 USB 3.0

The conga-TS170 offers four SuperSpeed USB 3.0 ports on the CD connector. These ports are controlled by the xHCI host controller provided by the Intel® 100 Series PCH . The host controller allows data transfers of up to 5 Gb/s and supports SuperSpeed, High-Speed, Full-Speed and Low-Speed trafﬁc.

Note

The xHCI controller supports USB debug port on all USB 3.0 capable ports.

Page 40

7 Additional Features

7.1 congatec Board Controller (cBC)

The conga-TS170 is equipped with Texas Instruments Tiva™ TM4E123GH6ZRBI7R microcontroller. This onboard microcontroller plays an important role for most of the congatec embedded/industrial PC features. It fully isolates some of the embedded features such as system monitoring or the I²C bus from the x86 core architecture, which results in higher embedded feature performance and more reliability, even when the x86 processor is in a low power mode. It also ensures that the congatec embedded feature set is fully compatible amongst all congatec modules.

7.2 Board Information

The cBC provides a rich data-set of manufacturing and board information such as serial number, EAN number, hardware and ﬁrmware revisions, and so on. It also keeps track of dynamically changing data like runtime meter and boot counter.

7.3 Watchdog

The conga-TS170 is equipped with a multi stage watchdog solution that is triggered by software. For more information about the Watchdog feature, see the BIOS setup description in section 10.4.2 of this document and application note AN3_Watchdog.pdf on the congatec AG website at www.congatec.com.

Note

The conga-TS170 module does not support the watchdog NMI mode.

7.4 I2C Bus

The conga-TS170 supports I2C bus. Thanks to the I2C host controller in the cBC, the I2C bus is multi-master capable and runs at fast mode.

7.5 Power Loss Control

The cBC has full control of the power-up of the module and therefore can be used to specify the behavior of the system after an AC power loss condition. Supported modes are “Always On”, “Remain Off” and “Last State”.

Page 41

7.6 OEM BIOS Customization

The conga-TS170 is equipped with congatec Embedded BIOS, which is based on American Megatrends Inc. Aptio UEFI ﬁrmware. The congatec Embedded BIOS allows system designers to modify the BIOS. For more information about customizing the congatec Embedded BIOS, refer to the congatec System Utility user’s guide CGUTLm1x.pdf on the congatec website at www.congatec.com or contact technical support.

The customization features supported are described below:

7.6.1 OEM Default Settings

This feature allows system designers to create and store their own BIOS default conﬁguration. Customized BIOS development by congatec for OEM default settings is no longer necessary because customers can easily perform this conﬁguration by themselves using the congatec system utility CGUTIL. See congatec application note AN8_Create_OEM_Default_Map.pdf on the congatec website for details on how to add OEM default settings to the congatec Embedded BIOS.

7.6.2 OEM Boot Logo

This feature allows system designers to replace the standard text output displayed during POST with their own BIOS boot logo. Customized BIOS development by congatec for OEM Boot Logo is no longer necessary because customers can easily perform this conﬁguration by themselves using the congatec system utility CGUTIL. See congatec application note AN8_Create_And_Add_Bootlogo.pdf on the congatec website for details on how to add OEM boot logo to the congatec Embedded BIOS.

7.6.3 OEM POST Logo

This feature allows system designers to replace the congatec POST logo displayed in the upper left corner of the screen during BIOS POST with their own BIOS POST logo. Use the congatec system utility CGUTIL 1.5.4 or later to replace/add the OEM POST logo.

7.6.4 OEM BIOS Code/Data

With the congatec embedded BIOS it is possible for system designers to add their own code to the BIOS POST process. The congatec Embedded BIOS ﬁrst calls the OEM code before handing over control to the OS loader.

Except for custom speciﬁc code, this feature can also be used to support, Windows 7, Windows 8 OEM activation (OA3.0), verb tables for HDA codecs, PCI/PCIe OpROMs, bootloaders, rare graphic modes and Super I/O controller initialization.

Page 42

Note

The OEM BIOS code of the new UEFI based ﬁrmware is only called when the CSM (Compatibility Support Module) is enabled in the BIOS setup menu. Contact congatec technical support for more information on how to add OEM code.

7.6.5 OEM DXE Driver

This feature allows designers to add their own UEFI DXE driver to the congatec embedded BIOS. Contact congatec technical support for more information on how to add an OEM DXE driver.

7.7 congatec Battery Management Interface

In order to facilitate the development of battery powered mobile systems based on embedded modules, congatec AG has deﬁned an interface for the exchange of data between a CPU module (using an ACPI operating system) and a Smart Battery system. A system developed according to the congatec Battery Management Interface Speciﬁcation can provide the battery management functions supported by an ACPI capable operating system (e.g. charge state of the battery, information about the battery, alarms/events for certain battery states, ...) without the need for any additional modiﬁcations to the system BIOS.

In addtion to the ACPI-Compliant Control Method Battery mentioned above, the latest versions of the conga-TS170 BIOS and board controller ﬁrmware also support LTC1760 battery manager from Linear Technology and a battery only solution (no charger). All three battery solutions are supported on the I2C bus and the SMBus. This gives the system designer more ﬂexibility when choosing the appropriate battery sub-system.

For more information about this subject visit the congatec website and view the following documents:

• congatec Battery Management Interface Speciﬁcation

• Battery System Design Guide

• conga-SBM3 User’s Guide

7.8 API Support (CGOS)

In order to beneﬁt from the above mentioned non-industry standard feature set, congatec provides an API that allows application software developers to easily integrate all these features into their code. The CGOS API (congatec Operating System Application Programming Interface) is the congatec proprietary API that is available for all commonly used Operating Systems such as Win32, Win64, Win CE, Linux. The architecture of the CGOS API driver provides the ability to write application software that runs unmodiﬁed on all congatec CPU modules. All the hardware related code is contained within the congatec embedded BIOS on the module. See section 1.1 of the CGOS API software developers guide, which is available on the congatec website .

Page 43

7.9 Security Features

The conga-TS170 can be equipped optionally with a “Trusted Platform Module“ (TPM 1.2/2.0). (not available with an internal TPM platform module), however there is software support for an external TPM by the BIOS. This TPM 1.2/2.0 includes coprocessors to calculate efﬁcient hash and RSA algorithms with key lengths up to 2,048 bits as well as a real random number generator. Security sensitive applications like gaming and e-commerce will beneﬁt also with improved authentication, integrity and conﬁdence levels.

7.10 Suspend to Ram

The Suspend to RAM feature is available on the conga-TS170.

Page 44

8 conga Tech Notes

The conga-TS170 has some technological features that require additional explanation. The following section will give the reader a better understanding of some of these features. This information will also help to gain a better understanding of the information found in the System Resources section of this user’s guide as well as some of the setup nodes found in the BIOS Setup Program description section.

8.1 Intel® PCH Features

8.1.1 Intel® Rapid Storage Technology

The Intel® 100 Series PCH provides support for Intel® Rapid Storage Technology, allowing AHCI functionality and RAID 0/1/5/10 support.

8.1.1.1 AHCI

The Intel® 100 Series PCH provides hardware support for Advanced Host Controller Interface (AHCI), a standardized programming interface for SATA host controllers. Platforms supporting AHCI may take advantage of performance features such as port independent DMA engines (each device is treated as a master) and hardware-assisted native command queuing. AHCI also provides usability enhancements such as Hot-Plug and advanced power management.

8.1.1.2 RAID

The integrated RAID capability provides RAID 0, 1, 5, and 10 functionality on the 4 SATA ports of Intel

100 Series PCH. Software components include an Option ROM for pre-boot conﬁguration and boot functionality, a Microsoft Windows compatible driver, and a user interface for conﬁguration and management of the RAID capability of the Intel

100 Series PCH.

8.1.1.3 Intel® Smart Response Technology

Intel® Smart Response Technology is a disk caching solution that can provide improved computer system performance with improved power savings. It allows conﬁguration of a computer systems with the advantage of having HDDs for maximum storage capacity with system performance at or near SSD performance levels.

Note

This feature requires an Intel® Core Processor and a solid state hybrid drive with minimum capacity of 16GB and support for SATA-IO Hybrid Information.

Page 45

8.2 Intel® Processor Features

8.2.1 Intel® Turbo Boost Technology

Intel® Turbo Boost Technology allows processor cores to run faster than the base operating frequency if it’s operating below power, current, and temperature speciﬁcation limits. Intel® Turbo Boost Technology is activated when the Operating System (OS) requests the highest processor performance state. The maximum frequency of Intel® Turbo Boost Technology is dependent on the number of active cores. The amount of time the processor spends in the Intel Turbo Boost 2 Technology state depends on the workload and operating environment. Any of the following can set the upper limit of Intel® Turbo Boost Technology on a given workload:

• Number of active cores

• Estimated current consumption

• Estimated power consumption

• Processor temperature

When the processor is operating below these limits and the user’s workload demands additional performance, the processor frequency will dynamically increase by 100 MHz on short and regular intervals until the upper limit is met or the maximum possible upside for the number of active cores is reached. For more information about Intel

Turbo Boost 2 Technology visit the Intel® website.

Note

Only conga-TS170 module variants that feature the Xeon, Core™ i7 and i5 processors support Intel® Turbo Boost 2 Technology. Refer to the power consumption tables in section 2.5 of this document for information about the maximum turbo frequency available for each variant of the conga-TS170.

8.2.2 Adaptive Thermal Monitor and Catastrophic Thermal Protection

Intel® Xeon, Core™ i7/i5/i3 and Celeron® processors have a thermal monitor feature that helps to control the processor temperature. The integrated TCC (Thermal Control Circuit) activates if the processor silicon reaches its maximum operating temperature. The activation temperature that the Intel® Thermal Monitor uses to activate the TCC can be slightly modiﬁed via TCC Activation Offset in BIOS setup submenu “CPU submenu”.

The Adaptive Thermal Monitor controls the processor temperature using two methods:

• Adjusting the processor’s operating frequency and core voltage (EIST transitions)

• Modulating (start/stop) the processor’s internal clocks at a duty cycle of 25% on and 75% off

Page 46

When activated, the TCC causes both processor core and graphics core to reduce frequency and voltage adaptively. The Adaptive Thermal Monitor will remain active as long as the package temperature remains at its speciﬁed limit. Therefore, the Adaptive Thermal Monitor will continue to reduce the package frequency and voltage until the TCC is de-activated. Clock modulation is activated if frequency and voltage adjustments are insufﬁcient. Additional hardware, software drivers, or operating system support is not required.

Intel

’s Core™ i7/i5/i3 and Celeron® processors use the THERMTRIP# signal to shut down the system if the processor’s silicon reaches a temperature of approximately 125°C. The THERMTRIP# signal activation is completely independent from processor activity and therefore does not produce any bus cycles.

Note

1. The maximum operating temperature for Intel® Xeon, Core™ i7/i5/i3 and Celeron® processors is 100°C. You need a properly designed

thermal solution to ensure that the TCC is active for only short periods of time, thus reducing the impact on processor performance to a minimum. For more information, see the Intel

Xeon, Core™ i7/i5/i3 and Celeron® processor’s respective datasheet

2. In order for THERMTRIP# to automatically switch off the system, use an ATX style power supply.

8.2.3 Processor Performance Control

Intel® processors found on the conga-TS170 run at different voltage/frequency states (performance states), which is referred to as Enhanced Intel® SpeedStep® technology (EIST). Operating systems that support performance control take advantage of microprocessors that use several different performance states in order to efﬁciently operate the processor when it’s not being fully used. The operating system will determine the necessary performance state that the processor should run at so that the optimal balance between performance and power consumption can be achieved during runtime.

The Windows family of operating systems links its processor performance control policy to the power scheme setting. You must ensure that the power scheme setting you choose has the ability to support Enhanced Intel

SpeedStep® technology.

Intel Speed Shift is a new and energy efﬁcient method for frequency control featured in the 6th Generation Intel

Core™ processor family. This

feature is also referred to as Hardware-controlled Performance States (HWP). It is a hardware implementation of the ACPI deﬁned Collaborative Processor Performance Control (CPPC2) and is supported by newer operating systems (Win 8.1 or newer).

With this feature enabled, the processor autonomously selects performance states based on workload demand and thermal limits while also considering information provided by the OS e.g., the performance limits and workload history.

Page 47

8.2.4 Intel® 64 Architecture

The formerly known Intel® Extended Memory 64 Technology is an enhancement to Intel®’s IA-32 architecture. Intel® 64 is only available on Intel® processors and is designed to run with newly written 64-bit code and access more than 4GB of memory. Processors with Intel® 64 architecture support 64-bit-capable operating systems from Microsoft, Red Hat and SuSE. Processors running in legacy mode remain fully compatible with today’s existing 32-bit applications and operating systems

Platforms with Intel

64 can be run in three basic ways :

1. Legacy Mode: 32-bit operating system and 32-bit applications. In this mode no software changes are required, however the beneﬁts of

Intel® 64 are not utilized.

2. Compatibility Mode: 64-bit operating system and 32-bit applications. This mode requires all device drivers to be 64-bit. The operating

system will see the 64-bit extensions but the 32-bit application will not. Existing 32-bit applications do not need to be recompiled and may or may not beneﬁt from the 64-bit extensions. The application will likely need to be re-certiﬁed by the vendor to run on the new 64bit extended operating system.

3. 64-bit Mode: 64-bit operating system and 64-bit applications. This usage requires 64-bit device drivers. It also requires applications to be

modiﬁed for 64-bit operation and then recompiled and validated.

Intel® 64 supports:

• 64-bit ﬂat virtual address space

• 64-bit pointers

• 64-bit wide general purpose registers

• 64-bit integer support

• Up to one Terabyte (TB) of platform address space

You can ﬁnd more information about Intel

64 Technology at: http://developer.intel.com/technology/intel64/index.htm

8.2.5 Intel® Virtualization Technology

Virtualization solutions enhanced by Intel® VT will allow a Xeon and Core™ i7/i5/i3 platform to run multiple operating systems and applications in independent partitions. When using virtualization capabilities, one computer system can function as multiple “virtual” systems. With processor and I/O enhancements to Intel

’s various platforms, Intel® Virtualization Technology can improve the performance and robustness of today’s

software-only virtual machine solutions.

Page 48

Intel® VT is a multi-generational series of extensions to Intel® processor and platform architecture that provides a new hardware foundation for virtualization, establishing a common infrastructure for all classes of Intel® based systems. The broad availability of Intel® VT makes it possible to create entirely new applications for virtualization in servers, clients as well as embedded systems thus providing new ways to improve system reliability, manageability, security, and real-time quality of service.

The success of any new hardware architecture is highly dependent on the system software that puts its new features to use. In the case of virtualization technology, that support comes from the virtual machine monitor (VMM), a layer of software that controls the underlying physical platform resources sharing them between multiple “guest” operating systems. Intel

VT is already incorporated into most commercial and

open-source VMMs including those from VMware, Microsoft, XenSource, Parallels, Virtual Iron, Jaluna and TenAsys.

You can ﬁnd more information about Intel

Virtualization Technology at: http://developer.intel.com/technology/virtualization/index.htm

Note

congatec does not offer virtual machine monitor (VMM) software. All VMM software support questions and queries should be directed to the VMM software vendor and not congatec technical support.

8.2.6 Thermal Management

ACPI is responsible for allowing the operating system to play an important part in the system’s thermal management. This results in the operating system having the ability to take control of the operating environment by implementing cooling decisions according to the demands put on the CPU by the application.

The conga-TS170 supports Critical Trip Point. This cooling policy ensures that the operating system shuts down properly if the temperature in the thermal zone reaches a critical point, in order to prevent damage to the system as a result of high temperatures. Use the “critical trip point” setup node in the BIOS setup program to determine the temperature threshold that the operating system will use to shut down the system The Automatic Critical Trip Point BIOS setting shuts down the system 5°C above the maximum speciﬁed temperature of the processor e.g., 105°C for the 6th Gen Intel

Core™ processors supported on conga-TS170.

For processor passive cooling, use the Thermal Control Circuit (TCC ) Activation Offset setting in the CPU conﬁguration setup sub menu. The TCC in the processor is activated at 100°C by default but can be lowered by the Activation Offset e.g., setting 10 activates TCC at 90°C. ACPI OS support is not required.

Note

The end user must determine the cooling preferences for the system by using the setup nodes in the BIOS setup program to establish the appropriate trip points.

Page 49

8.3 ACPI Suspend Modes and Resume Events

conga-TS170 supports S3 (Suspend to RAM). For more information about S3 wake events, see section 10.4.5 “ACPI Conﬁguration Submenu”.

S4 (Suspend to Disk) is not supported by the BIOS (S4_BIOS) but it is supported by the following operating systems (S4_OS= Hibernate):

• Windows 8, Windows 7, Windows 10, Linux.

Table 8 Wake Events

This table lists the “Wake Events” that resume the system from S3 unless otherwise stated in the “Conditions/Remarks” column:

Wake Event Conditions/Remarks

Power Button Wakes unconditionally from S3-S5. Onboard LAN Event Device driver must be conﬁgured for Wake On LAN support. PCI Express WAKE# Wakes unconditionally from S3-S5. WAKE# Wakes uncondionally from S3. PME# Activate the wake up capabilities of a PCI device using Windows Device Manager conﬁguration options for this device or enable ‘Resume

On PME#’ in the Power setup menu.

USB Mouse/Keyboard Event When Standby mode is set to S3, USB hardware must be powered by standby power source.

Set USB Device Wakeup from S3/S4 to Enabled in the ACPI setup menu (if setup node is available in BIOS setup program). In Device Manager look for the keyboard/mouse devices. Go to the Power Management tab and check ‘Allow this device to bring the

computer out of standby’. RTC Alarm Activate and conﬁgure Resume On RTC Alarm in the power setup menu. Wakes unconditionally from S3-S5. Watchdog Power Button Event Wakes unconditionally from S3-S5.

8.4 DDR4 Memory

The Intel 6th Generaation Processor featured on the conga-TS170 supports DDR4 memory modules up to 2133 MT/s. The DDR4 memory modules have lower voltage requirements with higher data rate transfer speeds. They operate at a voltage of 1.2V. With this low voltage system memory interface on the processor, the conga-TS170 offers a system optimized for lowest possible power consumption. The reduction in power consumption due to lower voltage subsequently reduces the heat generated.

Caution

Do not connect memory modules from different vendors or with different part numbers on both memory sockets. Doing so may cause serious signal integrity and functional issues.

Page 50

9 Signal Descriptions and Pinout Tables

The following section describes the signals found on COM Express™ Type VI connectors used for congatec AG modules. The pinout of the modules complies with COM Express Type 6 Rev. 2.1.

Table 3 describes the terminology used in this section for the Signal Description tables. The PU/PD column indicates if a COM Express™ module pull-up or pull-down resistor has been used. If the ﬁeld entry area in this column for the signal is empty, then no pull-up or pull-down resistor has been implemented by congatec.

The “#” symbol at the end of the signal name indicates that the active or asserted state occurs when the signal is at a low voltage level. When “#” is not present, the signal is asserted when at a high voltage level.

Note

The Signal Description tables do not list internal pull-ups or pull-downs implemented by the chip vendors, only pull-ups or pull-downs implemented by congatec are listed. For information about the internal pull-ups or pull-downs implemented by the chip vendors, refer to the respective chip’s datasheet.

Table 9 Signal Tables Terminology Descriptions

Term Description

PU congatec implemented pull-up resistor PD congatec implemented pull-down resistor I Input to the module O Output from the module I/O 3.3V Bi-directional signal 3.3V tolerant I/O 5V Bi-directional signal 5V tolerant I 3.3V Input 3.3V tolerant I 5V Input 5V tolerant I/O 3.3VSB Input 3.3V tolerant active in standby state O 3.3V Output 3.3V signal level O 5V Output 5V signal level OD Open drain output P Power Input/Output DDC Display Data Channel PCIE In compliance with PCI Express Base Speciﬁcation, Revision 2.0 PEG PCI Express Graphics SATA In compliance with Serial ATA speciﬁcation Revision 2.6 and 3.0. REF Reference voltage output. May be sourced from a module power plane. PDS Pull-down strap. A module output pin that is either tied to GND or is not connected. Used to signal

module capabilities (pinout type) to the Carrier Board.

Page 51

9.1 A-B Connector Signal Descriptions

Table 10 Intel® High Deﬁnition Audio Link Signals Descriptions

Signal Pin # Description I/O PU/PD Comment

AC/HDA_RST# A30 Intel® High Deﬁnition Audio Reset: This signal is the master hardware reset to

external codec(s).

O 3.3VSB AC’97 codecs are not supported.

AC/HDA_SYNC A29 Intel

High Deﬁnition Audio Sync: This signal is a 48 kHz ﬁxed rate sample sync

to the codec(s). It is also used to encode the stream number.

O 3.3VSB AC’97 codecs are not supported.

AC/HDA_BITCLK A32 Intel

High Deﬁnition Audio Bit Clock Output: This signal is a 24.000MHz serial

data clock generated by the Intel

High Deﬁnition Audio controller.

O 3.3VSB AC’97 codecs are not supported.

AC/HDA_SDOUT A33 Intel

High Deﬁnition Audio Serial Data Out: This signal is the serial TDM data output to the codec(s). This serial output is double-pumped for a bit rate of 48 Mb/s for Intel® High Deﬁnition Audio.

O 3.3VSB AC’97 codecs are not supported.

AC/HDA_SDOUT is a boot strap signal (see note below)

AC/HDA_SDIN[1:0] B29-B30 Intel

High Deﬁnition Audio Serial Data In [0]: These signals are serial TDM data inputs from the three codecs. The serial input is single-pumped for a bit rate of 24 Mb/s for Intel® High Deﬁnition Audio.

I 3.3VSB Pin B28 (HDA_SDIN2) is not connected.

Note

Some signals have special functionality during the reset process. They may bootstrap some basic important functions of the module. For more information refer to section 8.5 of this user’s guide.

Table 11 Gigabit Ethernet Signal Descriptions

Gigabit Ethernet

Pin # Description I/O PU/PD Comment

GBE0_MDI0+ GBE0_MDI0GBE0_MDI1+ GBE0_MDI1GBE0_MDI2+ GBE0_MDI2GBE0_MDI3+ GBE0_MDI3-

A13 A12 A10 A9 A7 A6 A3 A2

Gigabit Ethernet Controller 0: Media Dependent Interface Differential Pairs 0, 1, 2, 3. The MDI can operate in 1000, 100, and 10Mbit/sec modes. Some pairs are unused in some modes according to the following:

I/O Analog

Twisted pair signals for external transformer.

1000 100 10

MDI[0]+/- B1_DA+/- TX+/- TX+/MDI[1]+/- B1_DB+/- RX+/- RX+/MDI[2]+/- B1_DC+/-

MDI[3]+/- B1_DD+/GBE0_ACT# B2 Gigabit Ethernet Controller 0 activity indicator, active low. O 3.3VSB GBE0_LINK# A8 Gigabit Ethernet Controller 0 link indicator, active low. O 3.3VSB GBE0_LINK100# A4 Gigabit Ethernet Controller 0 100Mbit/sec link indicator, active low. O 3.3VSB GBE0_LINK1000# A5 Gigabit Ethernet Controller 0 1000Mbit/sec link indicator, active low. O 3.3VSB GBE0_CTREF A14 Reference voltage for Carrier Board Ethernet channel 0 magnetics center tap. The reference voltage is

determined by the requirements of the module PHY and may be as low as 0V and as high as 3.3V. The

reference voltage output shall be current limited on the module. In the case in which the reference is

shorted to ground, the current shall be limited to 250mA or less.

Not connected

Page 52

Note

The GBE0_LINK# output is only active during a 100Mbit or 1Gbit connection, it is not active during a 10Mbit connection. This is a limitation of Ethernet controller since it only has 3 LED outputs, ACT#, LINK100# and LINK1000#. The GBE0_LINK# signal is a logic AND of the GBE0_LINK100# and GBE0_LINK1000# signals on the conga-TS170 module.

Table 12 Serial ATA Signal Descriptions

Signal Pin # Description I/O PU/PD Comment

SATA0_RX+ SATA0_RX-

A19 A20

Serial ATA channel 0, Receive Input differential pair. I SATA Supports Serial ATA speciﬁcation, Revision 3.0

SATA0_TX+ SATA0_TX-

A16 A17

Serial ATA channel 0, Transmit Output differential pair. O S ATA Supports Serial ATA speciﬁcation, Revision 3.0

SATA1_RX+ SATA1_RX-

B19 B20

Serial ATA channel 1, Receive Input differential pair. I SATA Supports Serial ATA speciﬁcation, Revision 3.0

SATA1_TX+ SATA1_TX-

B16 B17

Serial ATA channel 1, Transmit Output differential pair. O S ATA Supports Serial ATA speciﬁcation, Revision 3.0

SATA2_RX+ SATA2_RX-

A25 A26

Serial ATA channel 2, Receive Input differential pair. I SATA Supports Serial ATA speciﬁcation, Revision 3.0

SATA2_TX+ SATA2_TX-

A22 A23

Serial ATA channel 2, Transmit Output differential pair. O S ATA Supports Serial ATA speciﬁcation, Revision 3.0

SATA3_RX+ SATA3_RX-

B25 B26

Serial ATA channel 3, Receive Input differential pair. I SATA Supports Serial ATA speciﬁcation, Revision 3.0

SATA3_TX+ SATA3_TX-

B22 B23

Serial ATA channel 3, Transmit Output differential pair. O S ATA Supports Serial ATA speciﬁcation, Revision 3.0

(S)ATA_ACT# A28 ATA (parallel and serial) or SAS activity indicator, active low. I/O 3.3v

Page 53

Table 13 PCI Express Signal Descriptions (general purpose)

Signal Pin # Description I/O PU/PD Comment

PCIE_RX0+ PCIE_RX0-

B68 B69

PCI Express channel 0, Receive Input differential pair. I PCIE Supports PCI Express Base Speciﬁcation, Revision 3.0

PCIE_TX0+ PCIE_TX0-

A68 A69

PCI Express channel 0, Transmit Output differential pair. O PCIE Supports PCI Express Base Speciﬁcation, Revision 3.0

PCIE_RX1+ PCIE_RX1-

B64 B65

PCI Express channel 1, Receive Input differential pair. I PCIE Supports PCI Express Base Speciﬁcation, Revision 3.0

PCIE_TX1+ PCIE_TX1-

A64 A65

PCI Express channel 1, Transmit Output differential pair. O PCIE Supports PCI Express Base Speciﬁcation, Revision 3.0

PCIE_RX2+ PCIE_RX2-

B61 B62

PCI Express channel 2, Receive Input differential pair. I PCIE Supports PCI Express Base Speciﬁcation, Revision 3.0

PCIE_TX2+ PCIE_TX2-

A61 A62

PCI Express channel 2, Transmit Output differential pair. O PCIE Supports PCI Express Base Speciﬁcation, Revision 3.0

PCIE_RX3+ PCIE_RX3-

B58 B59

PCI Express channel 3, Receive Input differential pair. I PCIE Supports PCI Express Base Speciﬁcation, Revision 3.0

PCIE_TX3+ PCIE_TX3-

A58 A59

PCI Express channel 3, Transmit Output differential pair. O PCIE Supports PCI Express Base Speciﬁcation, Revision 3.0

PCIE_RX4+ PCIE_RX4-

B55 B56

PCI Express channel 4, Receive Input differential pair. I PCIE Supports PCI Express Base Speciﬁcation, Revision 3.0

PCIE_TX4+ PCIE_TX4-

A55 A56

PCI Express channel 4, Transmit Output differential pair. O PCIE Supports PCI Express Base Speciﬁcation, Revision 3.0

PCIE_RX5+ PCIE_RX5-

B52 B53

PCI Express channel 5, Receive Input differential pair. I PCIE Supports PCI Express Base Speciﬁcation, Revision 3.0

PCIE_TX5+ PCIE_TX5-

A52 A53

PCI Express channel 5, Transmit Output differential pair. O PCIE Supports PCI Express Base Speciﬁcation, Revision 3.0

PCIE_CLK_REF+ PCIE_CLK_REF-

A88 A89

PCI Express Reference Clock output for all PCI Express

and PCI Express Graphics Lanes.

O PCIE A PCI Express Gen2/3 compliant clock buffer chip must be used

on the carrier board if the design involves more than one PCI Express device.

Table 14 ExpressCard Support Pins Signal Descriptions

Signal Pin # Description I/O PU/PD Comment

EXCD0_CPPE# EXCD1_CPPE#

A49 B48

ExpressCard capable card request. I 3.3V PU 10k 3.3VSB

EXCD0_PERST# EXCD1_PERST#

A48 B47

ExpressCard Reset O 3.3V PU 10k 3.3V

Page 54

Table 15 LPC Signal Descriptions

Signal Pin # Description I/O PU/PD Comment

LPC_AD[0:3] B4-B7 LPC multiplexed address, command and data bus I/O 3.3V LPC_FRAME# B3 LPC frame indicates the start of an LPC cycle O 3.3V LPC_DRQ[0:1]# B8-B9 LPC serial DMA request I 3.3V PU 10k 3.3V Not supported LPC_SERIRQ A50 LPC serial interrupt I/O OD 3.3V PU 10k 3.3V LPC_CLK B10 LPC clock output - 24 MHz nominal O 3.3V

Table 16 USB Signal Descriptions

Signal Pin # Description I/O PU/PD Comment

USB0+ A46 USB Port 0, data + or D+ I/O USB 2.0 compliant. Backwards compatible to USB 1.1 USB0- A45 USB Port 0, data - or D- I/O USB 2.0 compliant. Backwards compatible to USB 1.1 USB1+ B46 USB Port 1, data + or D+ I/O USB 2.0 compliant. Backwards compatible to USB 1.1 USB1- B45 USB Port 1, data - or D- I/O USB 2.0 compliant. Backwards compatible to USB 1.1 USB2+ A43 USB Port 2, data + or D+ I/O USB 2.0 compliant. Backwards compatible to USB 1.1 USB2- A42 USB Port 2, data - or D- I/O USB 2.0 compliant. Backwards compatible to USB 1.1 USB3+ B43 USB Port 3, data + or D+ I/O USB 2.0 compliant. Backwards compatible to USB 1.1 USB3- B42 USB Port 3, data - or D- I/O USB 2.0 compliant. Backwards compatible to USB 1.1 USB4+ A40 USB Port 4, data + or D+ I/O USB 2.0 compliant. Backwards compatible to USB 1.1 USB4- A39 USB Port 4, data - or D- I/O USB 2.0 compliant. Backwards compatible to USB 1.1 USB5+ B40 USB Port 5, data + or D+ I/O USB 2.0 compliant. Backwards compatible to USB 1.1 USB5- B39 USB Port 5, data - or D- I/O USB 2.0 compliant. Backwards compatible to USB 1.1 USB6+ A37 USB Port 6, data + or D+ I/O USB 2.0 compliant. Backwards compatible to USB 1.1 USB6- A36 USB Port 6, data - or D- I/O USB 2.0 compliant. Backwards compatible to USB 1.1 USB7+ B37 USB Port 7, data + or D+ I/O USB 2.0 compliant. Backwards compatible to USB 1.1 USB7- B36 USB Port 7, data - or D- I/O USB 2.0 compliant. Backwards compatible to USB 1.1 USB_0_1_OC# B44 USB over-current sense, USB ports 0 and 1. A pull-up for this line shall be

present on the module. An open drain driver from a USB current monitor on the carrier board may drive this line low.

I 3.3VSB PU 10k

3.3VSB

Do not pull this line high on the carrier board.

USB_2_3_OC# A44 USB over-current sense, USB ports 2 and 3. A pull-up for this line shall be

present on the module. An open drain driver from a USB current monitor on the carrier board may drive this line low. .

I 3.3VSB PU 10k

3.3VSB

Do not pull this line high on the carrier board.

USB_4_5_OC# B38 USB over-current sense, USB ports 4 and 5. A pull-up for this line shall be

present on the module. An open drain driver from a USB current monitor on the carrier board may drive this line low.

I 3.3VSB PU 10k

3.3VSB

Do not pull this line high on the carrier board.

USB_6_7_OC# A38 USB over-current sense, USB ports 6 and 7. A pull-up for this line shall be

present on the module. An open drain driver from a USB current monitor on the carrier board may drive this line low.

I 3.3VSB PU 10k

3.3VSB

Do not pull this line high on the carrier board.

Page 55

Table 17 CRT Signal Descriptions

Signal Pin # Description I/O PU/PD Comment

VGA_RED B89 Red for monitor. Analog DAC output, designed to drive a 37.5-Ohm equivalent load. O Analog PD 150R Optional VGA_GRN B91 Green for monitor. Analog DAC output, designed to drive a 37.5-Ohm equivalent

load.

O Analog PD 150R Optional

VGA_BLU B92 Blue for monitor. Analog DAC output, designed to drive a 37.5-Ohm equivalent load. O Analog PD 150R Optional VGA_HSYNC B93 Horizontal sync output to VGA monitor O 3.3V Optional VGA_VSYNC B94 Vertical sync output to VGA monitor O 3.3V Optional VGA_I2C_CK B95 DDC clock line (I²C port dedicated to identify VGA monitor capabilities) I/O OD 5V PU 1k2 3.3V Optional VGA_I2C_DAT B96 DDC data line. I/O OD 5V PU 1k2 3.3V Optional

Table 18 LVDS Signal Descriptions

Signal Pin # Description I/O PU/PD Comment

LVDS_A0+ LVDS_A0LVDS_A1+ LVDS_A1LVDS_A2+ LVDS_A2LVDS_A3+ LVDS_A3-

A71 A72 A73 A74 A75 A76 A78 A79

LVDS Channel A differential pairs O LVDS

LVDS_A_CK+ LVDS_A_CK-

A81 A82

LVDS Channel A differential clock O LVDS

LVDS_B0+ LVDS_B0LVDS_B1+ LVDS_B1LVDS_B2+ LVDS_B2LVDS_B3+ LVDS_B3-

B71 B72 B73 B74 B75 B76 B77 B78

LVDS Channel B differential pairs O LVDS

LVDS_B_CK+ LVDS_B_CK-

B81 B82

LVDS Channel B differential clock O LVDS

LVDS_VDD_EN A77 LVDS panel power enable O 3.3V PD 10k LVDS_BKLT_EN B79 LVDS panel backlight enable O 3.3V PD 10k LVDS_BKLT_CTRL B83 LVDS panel backlight brightness control O 3.3V LVDS_I2C_CK A83 DDC lines used for ﬂat panel detection and control. O 3.3V PU 2k2 3.3V for LVDS support (default) LVDS_I2C_DAT A84 DDC lines used for ﬂat panel detection and control. I/O 3.3V PU 2k2 3.3V for LVDS support (default)

Page 56

Table 19 Embedded DisplayPort Signal Descriptions

Signal Pin # Description I/O PU/PD Comment

eDP_TX3+ eDP_TX3eDP_TX2+ eDP_TX2eDP_TX1+ eDP_TX1eDP_TX0+ eDP_TX0-

A81 A82 A71 A72 A73 A74 A75 A76

eDP differential pairs. AC coupled off

module.

eDP_VDD_EN A77 eDP power enable. O 3.3V PD 10k eDP_BKLT_EN B79 eDP backlight enable. O 3.3V PD 10k eDP_BKLT_CTRL B83 eDP backlight brightness control. O 3.3V eDP_AUX+ A83 eDP AUX+. AC coupled off

module.

eDP_AUX- A84 eDP AUX-. AC coupled off

module.

eDP_HPD A87 Detection of Hot Plug / Unplug and notiﬁcation of the link layer. I 3.3V

Table 20 SPI BIOS Flash Interface Signal Descriptions

Signal Pin # Description I/O PU/PD Comment

SPI_CS# B97 Chip select for Carrier Board SPI BIOS Flash. O 3.3VSB Carrier shall pull to SPI_POWER when

external SPI is provided but not used. SPI_MISO A92 Data in to module from carrier board SPI BIOS ﬂash. I 3.3VSB SPI_MOSI A95 Data out from module to carrier board SPI BIOS ﬂash. O 3.3VSB SPI_CLK A94 Clock from module to carrier board SPI BIOS ﬂash. O 3.3VSB SPI_POWER A91 Power source for carrier board SPI BIOS ﬂash. SPI_POWER shall be used to power

SPI BIOS ﬂash on the carrier only.

+ 3.3VSB

BIOS_DIS0# A34 Selection strap to determine the BIOS boot device. I 3.3VSB PU 10K

3.3VSB

Carrier shall be left as no-connect.

BIOS_DIS1# B88 Selection strap to determine the BIOS boot device. I 3.3VSB PU 10K

3.3VSB

Carrier shall be left as no-connect

Page 57

Table 21 Miscellaneous Signal Descriptions

Signal Pin # Description I/O PU/PD Comment

I2C_CK B33 General purpose I²C port clock output/input I/O 3.3V PU 2K2 3.3VSB I2C_DAT B34 General purpose I²C port data I/O line I/O 3.3V PU 2K2 3.3VSB SPKR B32 Output for audio enunciator, the “speaker” in PC-AT systems O 3.3V SPEAKER is a boot strap signal (see

note below) WDT B27 Output indicating that a watchdog time-out event has occurred. O 3.3V PD 10K FAN_PWMOUT B101 Fan speed control. Uses the Pulse Width Modulation (PWM) technique to control

the fan’s RPM.

O OD

3.3V FAN_TACHIN B102 Fan tachometer input. I OD PU 10K 3.3V Requires a fan with a two pulse output. TPM_PP A96 Physical Presence pin of Trusted Platform Module (TPM). Active high. TPM chip has

an internal pull-down. This signal is used to indicate Physical Presence to the TPM.

I 3.3V Trusted Platform Module chip is

optional.

Note

Some signals have special functionality during the reset process. They may bootstrap some basic important functions of the module. For more information refer to section 8.5 of this user’s guide.

Table 22 General Purpose I/O Signal Descriptions

Signal Pin # Description I/O PU/PD Comment

GPO0 A93 General purpose output pins. O 3.3V GPO1 B54 General purpose output pins. O 3.3V GPO2 B57 General purpose output pins. O 3.3V GPO3 B63 General purpose output pins. O 3.3V GPI0 A54 General purpose input pins. Pulled high internally on the module. I 3.3V PU 10K 3.3V GPI1 A63 General purpose input pins. Pulled high internally on the module. I 3.3V PU 10K 3.3V GPI2 A67 General purpose input pins. Pulled high internally on the module. I 3.3V PU 10K 3.3V GPI3 A85 General purpose input pins. Pulled high internally on the module. I 3.3V PU 10K 3.3V

Note

The conga-TS170 does not support SD card on these pins.

Page 58

Table 23 Power and System Management Signal Descriptions

Signal Pin # Description I/O PU/PD Comment

PWRBTN# B12 Power button to bring system out of S5 (soft off), active on falling edge. I 3.3VSB PU 10k 3.3VSB SYS_RESET# B49 Reset button input. Active low input. Edge triggered.

System will not be held in hardware reset while this input is kept low.

I 3.3VSB PU 10k 3.3VSB

CB_RESET# B50 Reset output from module to Carrier Board. Active low. Issued by module chipset and may result

from a low SYS_RESET# input, a low PWR_OK input, a VCC_12V power input that falls below the minimum speciﬁcation, a watchdog timeout, or may be initiated by the module software.

O 3.3V PD 100k

PWR_OK B24 Power OK from main power supply. A high value indicates that the power is good. I 3.3V Set by resistor divider

to accept 3.3V. SUS_STAT# B18 Indicates imminent suspend operation; used to notify LPC devices. O 3.3VSB SUS_S3# A15 Indicates system is in Suspend to RAM state. Active-low output. An inverted copy of SUS_S3# on

the carrier board (also known as “PS_ON”) may be used to enable the non-standby power on a typical ATX power supply.

O 3.3VSB

SUS_S4# A18 Indicates system is in Suspend to Disk state. Active low output. O 3.3VSB Not supported SUS_S5# A24 Indicates system is in Soft Off state. O 3.3VSB WAKE0# B66 PCI Express wake up signal. I 3.3VSB PU 1k 3.3VSB WAKE1# B67 General purpose wake up signal. May be used to implement wake-up on PS/2 keyboard or

mouse activity.

I 3.3VSB PU 10k 3.3VSB

BATLOW# A27 Battery low input. This signal may be driven low by external circuitry to signal that the system

battery is low, or may be used to signal some other external power-management event.

I 3.3VSB PU 8k2 3.3VSB

THRM# B35 Input from off-module temp sensor indicating an over-temp situation. I 3.3V PU 10k 3.3V THERMTRIP# A35 Active low output indicating that the CPU has entered thermal shutdown. O 3.3V PU 10k 3.3V SMB_CK B13 System Management Bus bidirectional clock line. I/O 3.3VSB PU 2k2 3.3VSB SMB_DAT# B14 System Management Bus bidirectional data line. I/O OD

3.3VSB

PU 2k2 3.3VSB

SMB_ALERT# B15 System Management Bus Alert – active low input can be used to generate an SMI# (System

Management Interrupt) or to wake the system.

I 3.3VSB PU 2k2 3.3VSB

LID# A103 Lid button. Used by the ACPI operating system for a LID switch. I OD 3.3V PU 10k 3.3VSB SLEEP# B103 Sleep button. Used by the ACPI operating system to bring the system to sleep state or to wake

it up again.

I OD 3.3V PU 10k 3.3VSB

Page 59

Table 24 General Purpose Serial Interface Signal Descriptions

Signal Pin # Description I/O PU/PD Comment

SER0_TX A98 General purpose serial port transmitter O 3.3V SER1_TX A101 General purpose serial port transmitter O 3.3V SER0_RX A99 General purpose serial port receiver I 3.3V PU 47k 3.3V SER1_RX A102 General purpose serial port receiver I 3.3V PU 47k 3.3V

Table 25 Power and GND Signal Descriptions

Signal Pin # Description I/O PU/PD Comment

VCC_12V A104-A109

B104-B109

Primary power input: +12V nominal. All available VCC_12V pins on the connector(s) shall be used.

VCC_5V_SBY B84-B87 Standby power input: +5.0V nominal. If VCC5_SBY is used, all available VCC_5V_SBY

pins on the connector(s) shall be used. Only used for standby and suspend functions. May be left unconnected if these functions are not used in the system design.

VCC_RTC A47 Real-time clock circuit-power input. Nominally +3.0V. P GND A1, A11, A21, A31, A41,

A51, A57, A60, A66, A70, A80, A90, A100, A110, B1, B11, B21, B31, B41, B51, B60, B70, B80, B90, B100, B110

Ground - DC power and signal and AC signal return path. All available GND connector pins shall be used and tied to Carrier Board GND plane.

Page 60

9.2 A-B Connector Pinout

Table 26 Connector A-B Pinout

Pin Row A Pin Row B Pin Row A Pin Row B

A1 GND (FIXED) B1 GND (FIXED) A56 PCIE_TX4- B56 PCIE_RX4A2 GBE0_MDI3- B2 GBE0_ACT# A57 GND B57 GPO2 A3 GBE0_MDI3+ B3 LPC_FRAME# A58 PCIE_TX3+ B58 PCIE_RX3+ A4 GBE0_LINK100# B4 LPC_AD0 A59 PCIE_TX3- B59 PCIE_RX3A5 GBE0_LINK1000# B5 LPC_AD1 A60 GND (FIXED) B60 GND (FIXED) A6 GBE0_MDI2- B6 LPC_AD2 A61 PCIE_TX2+ B61 PCIE_RX2+ A7 GBE0_MDI2+ B7 LPC_AD3 A62 PCIE_TX2- B62 PCIE_RX2A8 GBE0_LINK# B8 LPC_DRQ0# (*) A63 GPI1 B63 GPO3 A9 GBE0_MDI1- B9 LPC_DRQ1# (*) A64 PCIE_TX1+ B64 PCIE_RX1+ A10 GBE0_MDI1+ B10 LPC_CLK A65 PCIE_TX1- B65 PCIE_RX1A11 GND (FIXED) B11 GND (FIXED) A66 GND B66 WAKE0# A12 GBE0_MDI0- B12 PWRBTN# A67 GPI2 B67 WAKE1# A13 GBE0_MDI0+ B13 SMB_CK A68 PCIE_TX0+ B68 PCIE_RX0+ A14 GBE0_CTREF (*) B14 SMB_DAT A69 PCIE_TX0- B69 PCIE_RX0A15 SUS_S3# B15 SMB_ALERT# A70 GND (FIXED) B70 GND (FIXED) A16 SATA0_TX+ B16 SATA1_TX+ A71 eDP_TX2+/LVDS_A0+

B71 LVDS_B0+ A17 SATA0_TX- B17 SATA1_TX- A72 eDP_TX2-/LVDS_A0- B72 LVDS_B0A18 SUS_S4# B18 SUS_STAT# A73 eDP_TX1+/LVDS_A1+ B73 LVDS_B1+ A19 SATA0_RX+ B19 SATA1_RX+ A74 eDP_TX1-/LVDS_A1- B74 LVDS_B1A20 SATA0_RX- B20 SATA1_RX- A75 eDP_TX0+/LVDS_A2+ B75 LVDS_B2+ A21 GND (FIXED) B21 GND (FIXED) A76 eDP_TX0-/LVDS_A2- B76 LVDS_B2A22 SATA2_TX+ B22 SATA3_TX+ A77 eDP/LVDS_VDD_EN B77 LVDS_B3+ A23 SATA2_TX- B23 SATA3_TX- A78 LVDS_A3+ B78 LVDS_B3A24 SUS_S5# B24 PWR_OK A79 LVDS_A3- B79 eDP/LVDS_BKLT_EN A25 SATA2_RX+ B25 SATA3_RX+ A80 GND (FIXED) B80 GND (FIXED) A26 SATA2_RX- B26 SATA3_RX- A81 eDP_TX3+/LVDS_A_CK+ B81 LVDS_B_CK+ A27 BATLOW# B27 WDT A82 eDP_TX3-/LVDS_A_CK- B82 LVDS_B_CKA28 (S)ATA_ACT# B28 AC/HDA_SDIN2 (*) A83 eDP_AUX+/LVDS_I2C_CK B83 eDP/LVDS_BKLT_CTRL A29 AC/HDA_SYNC B29 AC/HDA_SDIN1 A84 eDP_AUX-/LVDS_I2C_DAT B84 VCC_5V_SBY A30 AC/HDA_RST# B30 AC/HDA_SDIN0 A85 GPI3 B85 VCC_5V_SBY A31 GND (FIXED) B31 GND (FIXED) A86 RSVD B86 VCC_5V_SBY A32 AC/HDA_BITCLK B32 SPKR A87 eDP_HPD B87 VCC_5V_SBY A33 AC/HDA_SDOUT B33 I2C_CK

A88 PCIE0_CK_REF+ B88 BIOS_DIS1# A34 BIOS_DIS0# B34 I2C_DAT A89 PCIE0_CK_REF- B89 VGA_RED A35 THRMTRIP# B35 THRM# A90 GND (FIXED) B90 GND (FIXED) A36 USB6- B36 USB7- A91 SPI_POWER B91 VGA_GRN

Page 61

Pin Row A Pin Row B Pin Row A Pin Row B

A37 USB6+ B37 USB7+ A92 SPI_MISO B92 VGA_BLU A38 USB_6_7_OC# B38 USB_4_5_OC# A93 GPO0 B93 VGA_HSYNC A39 USB4- B39 USB5- A94 SPI_CLK B94 VGA_VSYNC A40 USB4+ B40 USB5+ A95 SPI_MOSI B95 VGA_I2C_CK A41 GND (FIXED) B41 GND (FIXED) A96 TPM_PP B96 VGA_I2C_DAT A42 USB2- B42 USB3- A97 TYPE10# (*) B97 SPI_CS# A43 USB2+ B43 USB3+ A98 SER0_TX B98 RSVD A44 USB_2_3_OC# B44 USB_0_1_OC# A99 SER0_RX B99 RSVD A45 USB0- B45 USB1- A100 GND (FIXED) B100 GND (FIXED) A46 USB0+ B46 USB1+ A101 SER1_TX B101 FAN_PWMOUT A47 VCC_RTC B47 EXCD1_PERST# A102 SER1_RX B102 FAN_TACHIN A48 EXCD0_PERST# B48 EXCD1_CPPE# A103 LID# B103 SLEEP# A49 EXCD0_CPPE# B49 SYS_RESET# A104 VCC_12V B104 VCC_12V A50 LPC_SERIRQ B50 CB_RESET# A105 VCC_12V B105 VCC_12V A51 GND (FIXED) B51 GND (FIXED) A106 VCC_12V B106 VCC_12V A52 PCIE_TX5+ B52 PCIE_RX5+ A107 VCC_12V

B107 VCC_12V A53 PCIE_TX5- B53 PCIE_RX5- A108 VCC_12V B108 VCC_12V A54 GPI0 B54 GPO1 A109 VCC_12V B109 VCC_12V A55 PCIE_TX4+ B55 PCIE_RX4+ A110 GND (FIXED) B110 GND (FIXED)

Note

The signals marked with asterisk symbol (*) are not connected on the conga-TS170.

Page 62

9.3 C-D Connector Signal Descriptions

Table 27 PCI Express Signal Descriptions (general purpose)

Signal Pin # Description I/O PU/PD Comment

PCIE_RX6+ PCIE_RX6-

C19 C20

PCI Express channel 6, Receive Input differential pair. I PCIE

PCIE_TX6+ PCIE_TX6-

D19 D20

PCI Express channel 6, Transmit Output differential pair. O PCIE

PCIE_RX7+ PCIE_RX7-

C22 C23

PCI Express channel 7, Receive Input differential pair. I PCIE

PCIE_TX7+ PCIE_TX7-

D22 D23

PCI Express channel 7, Transmit Output differential pair. O PCIE

Table 28 USB 3.0 Signal Descriptions

Signal Pin # Description I/O PU/PD Comment

USB_SSRX0+ C4 Additional receive signal differential pairs for the Superspeed USB data path I USB_SSRX0- C3 I USB_SSTX0+ D4 Additional transmit signal differential pairs for the Superspeed USB data path O USB_SSTX0- D3 O USB_SSRX1+ C7 Additional receive signal differential pairs for the Superspeed USB data path I USB_SSRX1- C6 I USB_SSTX1+ D7 Additional transmit signal differential pairs for the Superspeed USB data path O USB_SSTX1- D6 O USB_SSRX2+ C10 Additional receive signal differential pairs for the Superspeed USB data path I USB_SSRX2- C9 I USB_SSTX2+ D10 Additional transmit signal differential pairs for the Superspeed USB data path O USB_SSTX2- D9 O USB_SSRX3+ C13 Additional receive signal differential pairs for the Superspeed USB data path I USB_SSRX3- C12 I USB_SSTX3+ D13 Additional transmit signal differential pairs for the Superspeed USB data path O USB_SSTX3- D12 O

Page 63

Table 29 PCI Express Signal Descriptions (x16 Graphics)

Signal Pin # Description I/O PU/PD Comment

PEG_RX0+ PEG_RX0PEG_RX1+ PEG_RX1PEG_RX2+ PEG_RX2PEG_RX3+ PEG_RX3PEG_RX4+ PEG_RX4PEG_RX5+ PEG_RX5PEG_RX6+ PEG_RX6PEG_RX7+ PEG_RX7PEG_RX8+ PEG_RX8PEG_RX9+ PEG_RX9PEG_RX10+ PEG_RX10PEG_RX11+ PEG_RX11PEG_RX12+ PEG_RX12PEG_RX13+ PEG_RX13PEG_RX14+ PEG_RX14PEG_RX15+ PEG_RX15-

C52 C53 C55 C56 C58 C59 C61 C62 C65 C66 C68 C69 C71 C72 C74 C75 C78 C79 C81 C82 C85 C86 C88 C89 C91 C92 C94 C95 C98 C99 C101 C102

PCI Express Graphics Receive Input differential pairs.

Note: Can also be used as PCI Express Receive Input differential pairs 16 through 31 known as PCIE_RX[16-31] + and -.

I PCIE

Page 64

Signal Pin # Description I/O PU/PD Comment

PEG_TX0+ PEG_TX0PEG_TX1+ PEG_TX1PEG_TX2+ PEG_TX2PEG_TX3+ PEG_TX3PEG_TX4+ PEG_TX4PEG_TX5+ PEG_TX5PEG_TX6+ PEG_TX6PEG_TX7+ PEG_TX7PEG_TX8+ PEG_TX8PEG_TX9+ PEG_TX9PEG_TX10+ PEG_TX10PEG_TX11+ PEG_TX11PEG_TX12+ PEG_TX12PEG_TX13+ PEG_TX13PEG_TX14+ PEG_TX14PEG_TX15+ PEG_TX15-

D52 D53 D55 D56 D58 D59 D61 D62 D65 D66 D68 D69 D71 D72 D74 D75 D78 D79 D81 D82 D85 D86 D88 D89 D91 D92 D94 D95 D98 D99 D101 D102

PCI Express Graphics Transmit Output differential pairs.

Note: Can also be used as PCI Express Transmit Output differential pairs 16 through 31 known as PCIE_TX[16-31] + and -.

O PCIE

PEG_LANE_RV# D54 PCI Express Graphics lane reversal input strap. Pull low on the carrier board to reverse lane

order.

I PU 10k 3.3V PEG_LAN_RV# is a boot strap

signal (see note below)

Note

Some signals have special functionality during the reset process. They may bootstrap some basic important functions of the module. For more information refer to section 9.5 of this user’s guide.

Page 65

Table 30 DDI Signal Description

Signal Pin # Description I/O PU/PD Comment

DDI1_PAIR0+ DDI1_PAIR0-

D26 D27

Multiplexed with DP1_LANE0+ and TMDS1_DATA2+. Multiplexed with DP1_LANE0- and TMDS1_DATA2-.

O PCIE

DDI1_PAIR1+ DDI1_PAIR1-

D29 D30

Multiplexed with DP1_LANE1+ and TMDS1_DATA1+. Multiplexed with DP1_LANE1- and TMDS1_DATA1-.

O PCIE

DDI1_PAIR2+ DDI1_PAIR2-

D32 D33

Multiplexed with DP1_LANE2+ and TMDS1_DATA0+. Multiplexed with DP1_LANE2- and TMDS1_DATA0-.

O PCIE

DDI1_PAIR3+ DDI1_PAIR3-

D36 D37

Multiplexed with DP1_LANE3+ and TMDS1_CLK+. Multiplexed with DP1_LANE3- and TMDS1_CLK-.

O PCIE

DDI1_PAIR4+ DDI1_PAIR4-

C25 C26

Multiplexed with SDVO1_INT+. Multiplexed with SDVO1_INT-.

Not supported

DDI1_PAIR5+ DDI1_PAIR5-

C29 C30

Multiplexed with SDVO1_TVCLKIN+. Multiplexed with SDVO1_TVCLKIN-.

Not supported

DDI1_PAIR6+ DDI1_PAIR6-

C15 C16

Multiplexed with SDVO1_FLDSTALL+. Multiplexed with SDVO1_FLDSTALL-.

Not supported

DDI1_HPD C24 Multiplexed with DP1_HPD and HDMI1_HPD. I 3.3V PD 1M DDI1_CTRLCLK_AUX+ D15 Multiplexed with DP1_AUX+ and HMDI1_CTRLCLK.

DP AUX+ function if DDI1_DDC_AUX_SEL is no connect. HDMI/DVI I2C CTRLCLK if DDI1_DDC_AUX_SEL is pulled high

I/O PCIE I/O OD 3.3V

PD100k

DDI1_CTRLDATA_AUX- D16 Multiplexed with DP1_AUX- and HDMI1_CTRLDATA.

DP AUX- function if DDI1_DDC_AUX_SEL is no connect. HDMI/DVI I2C CTRLDATA if DDI1_DDC_AUX_SEL is pulled high

I/O PCIE I/O OD 3.3V

PU 100k 3.3V DDI1_CTRLDATA_AUX- is a boot

strap signal (see note below). DDI enable strap already populated.

DDI1_DDC_AUX_SEL D34 Selects the function of DDI1_CTRLCLK_AUX+ and DDI1_CTRLDATA_AUX-.

This pin shall have a IM pull-down to logic ground on the module. If this input is ﬂoating, the AUX pair is used for the DP AUX+/- signals. If pulledhigh, the AUX pair contains the CTRLCLK and CTRLDATA signals.

I 3.3V PD 1M

DDI2_PAIR0+ DDI2_PAIR0-

D39 D40

Multiplexed with DP2_LANE0+ and TMDS2_DATA2+. Multiplexed with DP2_LANE0- and TMDS2_DATA2-.

O PCIE

DDI2_PAIR1+ DDI2_PAIR1-

D42 D43

Multiplexed with DP2_LANE1+ and TMDS2_DATA1+. Multiplexed with DP2_LANE1- and TMDS2_DATA1-.

O PCIE

DDI2_PAIR2+ DDI2_PAIR2-

D46 D47

Multiplexed with DP2_LANE2+ and TMDS2_DATA0+. Multiplexed with DP2_LANE2- and TMDS2_DATA0-.

O PCIE

DDI2_PAIR3+ DDI2_PAIR3-

D49 D50

Multiplexed with DP2_LANE3+ and TMDS2_CLK+. Multiplexed with DP2_LANE3- and TMDS2_CLK-.

O PCIE

DDI2_HPD D44 Multiplexed with DP2_HPD and HDMI2_HPD. I 3.3V PD 1M DDI2_CTRLCLK_AUX+ C32 Multiplexed with DP2_AUX+ and HDMI2_CTRLCLK.

DP AUX+ function if DDI2_DDC_AUX_SEL is no connect. HDMI/DVI I2C CTRLCLK if DDI2_DDC_AUX_SEL is pulled high

I/O PCIE I/O OD 3.3V

PD 100k

Page 66

Signal Pin # Description I/O PU/PD Comment

DDI2_CTRLDATA_AUX- C33 Multiplexed with DP2_AUX- and HDMI2_CTRLDATA.

DP AUX- function if DDI2_DDC_AUX_SEL is no connect. HDMI/DVI I2C CTRLDATA if DDI2_DDC_AUX_SEL is pulled high.

I/O PCIE I/O OD 3.3V

PU 100k 3.3V DDI2_CTRLDATA_AUX- is a boot

strap signal (see note below). DDI enable strap already populated.

DDI2_DDC_AUX_SEL C34 Selects the function of DDI2_CTRLCLK_AUX+ and DDI2_CTRLDATA_AUX-.

I 3.3V

DDI3_PAIR0+ DDI3_PAIR0-

C39 C40

Multiplexed with DP3_LANE0+ and TMDS3_DATA2+. Multiplexed with DP3_LANE0- and TMDS3_DATA2-.

O PCIE

DDI3_PAIR1+ DDI3_PAIR1-

C42 C43

Multiplexed with DP3_LANE1+ and TMDS3_DATA1+. Multiplexed with DP3_LANE1- and TMDS3_DATA1-.

O PCIE

DDI3_PAIR2+ DDI3_PAIR2-

C46 C47

Multiplexed with DP3_LANE2+ and TMDS3_DATA0+. Multiplexed with DP3_LANE2- and TMDS3_DATA0-.

O PCIE

DDI3_PAIR3+ DDI3_PAIR3-

C49 C50

Multiplexed with DP3_LANE3+ and TMDS3_CLK+. Multiplexed with DP3_LANE3- and TMDS3_CLK-.

O PCIE

DDI3_HPD C44 Multiplexed with DP3_HPD and HDMI3_HPD. I 3.3V PD 1M DDI3_CTRLCLK_AUX+ C36 Multiplexed with DP3_AUX+ and HDMI3_CTRLCLK.

DP AUX+ function if DDI3_DDC_AUX_SEL is no connect. HDMI/DVI I2C CTRLCLK if DDI3_DDC_AUX_SEL is pulled high

I/O PCIE I/O OD 3.3V

PD 100k

DDI3_CTRLDATA_AUX- C37 Multiplexed with DP3_AUX- and HDMI3_CTRLDATA.

DP AUX- function if DDI3_DDC_AUX_SEL is no connect. HDMI/DVI I2C CTRLDATA if DDI3_DDC_AUX_SEL is pulled high.

I/O PCIE I/O OD 3.3V

PU 100k 3.3V

DDI3_DDC_AUX_SEL C38 Selects the function of DDI3_CTRLCLK_AUX+ and DDI3_CTRLDATA_AUX-.

I 3.3V

Note

1. Some signals have special functionality during the reset process. They may bootstrap some basic important functions of the module. For more information refer to section 8.5 of this user’s guide.

2. The Digital Display Interface (DDI) signals are multiplexed with HDMI and DisplayPort (DP). The signals for these interfaces are routed to the DDI interface of the COM Express connector. Refer to the HDMI and DisplayPort signal description tables in this section for information about the signals routed to the DDI interface of the COM Express connector.

Page 67

Table 31 HDMI Signal Descriptions

Signal Pin # Description I/O PU/PD Comment

TMDS1_CLK + TMDS1_CLK -

D36 D37

HDMI/DVI TMDS Clock output differential pair. Multiplexed with DDI1_PAIR3+ and DDI1_PAIR3-.

O PCIE

TMDS1_DATA0+ TMDS1_DATA0-

D32 D33

HDMI/DVI TMDS differential pair. Multiplexed with DDI1_PAIR2+ and DDI1_PAIR2-.

O PCIE

TMDS1_DATA1+ TMDS1_DATA1-

D29 D30

HDMI/DVI TMDS differential pair. Multiplexed with DDI1_PAIR1+ and DDI1_PAIR1-..

O PCIE

TMDS1_DATA2+ TMDS1_DATA2-

D26 D27

HDMI/DVI TMDS differential pair. Multiplexed with DDI1_PAIR0+ and DDI1_PAIR0-.

O PCIE

HDMI1_HPD C24 HDMI/DVI Hot-plug detect.

Multiplexed with DDI1_HPD.

I PCIE PD 1M

HDMI1_CTRLCLK D15 HDMI/DVI I

C Control Clock

Multiplexed with DDI1_CTRLCLK_AUX+

I/O OD 3.3V PD 100k

HDMI1_CTRLDATA D16 HDMI/DVI I

C Control Data

Multiplexed with DDI1_CTRLDATA_AUX-

I/O OD 3.3V PU 100k

3.3V

HDMI1_CTRLDATA is a boot strap signal (see note below). HDMI enable strap already populated

TMDS2_CLK + TMDS2_CLK -

D49 D50

HDMI/DVI TMDS Clock output differential pair.. Multiplexed with DDI2_PAIR3+ and DDI2_PAIR3-.

O PCIE

TMDS2_DATA0+ TMDS2_DATA0-

D46 D47

HDMI/DVI TMDS differential pair. Multiplexed with DDI2_PAIR2+ and DDI2_PAIR2-.

O PCIE

TMDS2_DATA1+ TMDS2_DATA1-

D42 D43

HDMI/DVI TMDS differential pair. Multiplexed with DDI2_PAIR1+ and DDI2_PAIR1-.

O PCIE

TMDS2_DATA2+ TMDS2_DATA2-

D39 D40

HDMI/DVI TMDS differential pair. Multiplexed with DDI2_PAIR0+ and DDI2_PAIR0-..

O PCIE

HDMI2_HPD D44 HDMI/DVI Hot-plug detect.

Multiplexed with DDI2_HPD

I PCIE PD 1M

HDMI2_CTRLCLK C32 HDMI/DVI I

C Control Clock

Multiplexed with DDI2_CTRLCLK_AUX+

I/O OD 3.3V PD 100k

HDM12_CTRLDATA C33 HDMI/DVI I

C Control Data

Multiplexed with DDI2_CTRLDATA_AUX-

I/O OD 3.3V PU 100k

3.3V

HDMI2_CTRLDATA is a boot strap signal (see note below). HDMI enable strap is already populated.

TMDS3_CLK + TMDS3_CLK -

C49 C50

HDMI/DVI TMDS Clock output differential pair.. Multiplexed with DDI3_PAIR3+ and DDI3_PAIR3-.

O PCIE

TMDS3_DATA0+ TMDS3_DATA0-

C46 C47

HDMI/DVI TMDS differential pair. Multiplexed with DDI3_PAIR2+ and DDI3_PAIR2-.

O PCIE

TMDS3_DATA1+ TMDS3_DATA1-

C42 C43

HDMI/DVI TMDS differential pair. Multiplexed with DDI3_PAIR1+ and DDI3_PAIR1-..

O PCIE

TMDS3_DATA2+ TMDS3_DATA2-

C39 C40

HDMI/DVI TMDS differential pair. Multiplexed with DDI3_PAIR0+ and DDI3_PAIR0-.

O PCIE

HDMI3_HPD C44 HDMI/DVI Hot-plug detect.

Multiplexed with DDI3_HPD.

I PCIE PD 1M

HDMI3_CTRLCLK C36 HDMI/DVI I

C Control Clock

Multiplexed with DDI3_CTRLCLK_AUX+

I/O OD 3.3V PD 100K

Page 68

Signal Pin # Description I/O PU/PD Comment

HDMI3_CTRLDATA C37 HDMI/DVI I2C Control Data

Multiplexed with DDI3_CTRLDATA_AUX-

I/O OD 3.3V PU 100k

3.3V

HDMI3_CTRLDATA is a boot strap signal (see note below). HDMI enable strap is already populated.

Note

Some signals have special functionality during the reset process. They may bootstrap some basic important functions of the module. For more information refer to section 8.5 of this user’s guide.

Table 32 DisplayPort (DP) Signal Descriptions

Signal Pin # Description I/O PU/PD Comment

DP1_LANE3+ DP1_LANE3-

D36 D37

Uni-directional main link for the transport of isochronous streams and secondary data. Multiplexed with DDI1_PAIR3+ and DDI1_PAIR3-.

O PCIE

DP1_LANE2+ DP1_LANE2-

D32 D33

Uni-directional main link for the transport of isochronous streams and secondary data. Multiplexed with DDI1_PAIR2+ and DDI1_PAIR2-.

O PCIE

DP1_LANE1+ DP1_LANE1-

D29 D30

Uni-directional main link for the transport of isochronous streams and secondary data. Multiplexed with DDI1_PAIR1+ and DDI1_PAIR1-.

O PCIE

DP1_LANE0+ DP1_LANE0-

D26 D27

Uni-directional main link for the transport of isochronous streams and secondary data. Multiplexed with DDI1_PAIR0+ and DDI1_PAIR0-.

O PCIE

DP1_HPD C24 Detection of Hot Plug / Unplug and notiﬁcation of the link layer.

Multiplexed with DDI1_HPD.

I 3.3V PD 1M

DP1_AUX+ D15 Half-duplex bi-directional AUX channel for services such as link

conﬁguration or maintenance and EDID access.

I/O PCIE PD 100k

DP1_AUX- D16 Half-duplex bi-directional AUX channel for services such as link

conﬁguration or maintenance and EDID access.

I/O PCIE PU 100k

3.3V

DP1_AUX- is a boot strap signal (see note below). DP enable strap is already populated.

DP2_LANE3+ DP2_LANE3-

D49 D50

Uni-directional main link for the transport of isochronous streams and secondary data. Multiplexed with DDI2_PAIR3+ and DDI2_PAIR3-

O PCIE

DP2_LANE2+ DP2_LANE2-

D46 D47

Uni-directional main link for the transport of isochronous streams and secondary data. Multiplexed with DDI2_PAIR2+ and DDI2_PAIR2-

O PCIE

DP2_LANE1+ DP2_LANE1-

D42 D43

Uni-directional main link for the transport of isochronous streams and secondary data. Multiplexed with DDI2_PAIR1+ and DDI2_PAIR1-

O PCIE

DP2_LANE0+ DP2_LANE0-

D39 D40

Uni-directional main link for the transport of isochronous streams and secondary data. Multiplexed with DDI2_PAIR0+ and DDI1_PAIR0-

O PCIE

DP2_HPD D44 Detection of Hot Plug / Unplug and notiﬁcation of the link layer.

Multiplexed with DDI2_HPD.

I 3.3V PD 1M

Page 69

Signal Pin # Description I/O PU/PD Comment

DP2_AUX+ C32 Half-duplex bi-directional AUX channel for services such as link

conﬁguration or maintenance and EDID access.

I/O PCIE PD 100k

DP2_AUX- C33 Half-duplex bi-directional AUX channel for services such as link

conﬁguration or maintenance and EDID access.

I/O PCIE PU 100k

3.3V

DP2_AUX- is a boot strap signal (see note below). DP enable strap already populated.

DP3_LANE3+ DP3_LANE3-

C49 C50

Uni-directional main link for the transport of isochronous streams and secondary data. Multiplexed with DDI3_PAIR3+ and DDI3_PAIR3-.

O PCIE

DP3_LANE2+ DP3_LANE2-

C46 C47

Uni-directional main link for the transport of isochronous streams and secondary data. Multiplexed with DDI3_PAIR2+ and DDI3_PAIR2-.

O PCIE

DP3_LANE1+ DP3_LANE1-

C42 C43

Uni-directional main link for the transport of isochronous streams and secondary data. Multiplexed with DDI3_PAIR1+ and DDI3_PAIR1-.

O PCIE

DP3_LANE0+ DP3_LANE0-

C39 C40

Uni-directional main link for the transport of isochronous streams and secondary data. Multiplexed with DDI3_PAIR0+ and DDI3_PAIR0-.

O PCIE

DP3_HPD C44 Detection of Hot Plug / Unplug and notiﬁcation of the link layer.

Multiplexed with DDI3_HPD.

I 3.3V PD 1M

DP3_AUX+ C36 Half-duplex bi-directional AUX channel for services such as link

conﬁguration or maintenance and EDID access.

I/O PCIE PD 100k

DP3_AUX- C37 Half-duplex bi-directional AUX channel for services such as link

conﬁguration or maintenance and EDID access.

I/O PCIE PU 100k

3.3V

DP3_AUX- is a boot strap signal (see note below). DP enable strap already populated

Note

Some signals have special functionality during the reset process. They may bootstrap some basic important functions of the module. For more information refer to section 8.5 of this user’s guide.

Page 70

Table 33 Module Type Deﬁnition Signal Description

Signal Pin # Description I/O Comment

TYPE0# TYPE1# TYPE2#

C54 C57 D57

The TYPE pins indicate to the Carrier Board the Pin-out Type that is implemented on the module. The pins are tied on the module to either ground (GND) or are no-connects (NC). For Pinout Type 1, these pins are don’t care (X).

PDS TYPE[0:2]# signals are

available on all modules following the Type 2-6 Pinout standard. The conga-TS170 is based on the COM Express Type 6 pinout therefore the pins 0 and 1 are not connected and pin 2 is connected to GND.

TYPE2# TYPE1# TYPE0#

X NC NC NC NC GND

X NC NC GND GND NC

X NC GND NC GND NC

Pinout Type 1 Pinout Type 2 Pinout Type 3 (no IDE) Pinout Type 4 (no PCI) Pinout Type 5 (no IDE, no PCI) Pinout Type 6 (no IDE, no PCI)

The Carrier Board should implement combinatorial logic that monitors the module TYPE pins and keeps power off (e.g deactivates the ATX_ON signal for an ATX power supply) if an incompatible module pin-out type is detected. The Carrier Board logic may also implement a fault indicator such as an LED.

TYPE10# A97 Dual use pin. Indicates to the carrier board that a Type 10 module is installed. Indicates to the carrier that a Rev. 1.0/2.0

module is installed.

PDS Not connected to indicate

“Pinout R2.0”.

TYPE10#

NC PD 12V

Pinout R2.0 Pinout Type 10 pull down to ground with 4.7k resistor Pinout R1.0

This pin is reclaimed from VCC_12V pool. In R1.0 modules this pin will connect to other VCC_12V pins. In R2.0 this pin is deﬁned as a no-connect for Types 1-6. A carrier can detect a R1.0 module by the presence of 12V on this pin. R2.0 module Types 1-6 will no-connect this pin. Type 10 modules shall pull this pin to ground through a 4.7k resistor.

Table 34 Power and GND Signal Descriptions

Signal Pin # Description I/O PU/PD Comment

VCC_12V C104-C109

D104-D109

Primary power input: +12V nominal. All available VCC_12V pins on the connector(s) shall be used.

GND C1, C2, C5, C8, C11, C14,

C21, C31, C41, C51, C60, C70,C73, C76, C80, C84, C87, C90, C93, C96, C100, C103, C110, D1, D2, D5, D8, D11, D14, D21, D31, D41, D51, D60, D67, D70, D73, D76, D80, D84, D87, D90, D93, D96, D100, D103, D110

Ground - DC power and signal and AC signal return path. All available GND connector pins shall be used and tied to carrier board GND plane.

Page 71

9.4 C-D Connector Pinout

Table 35 Connector C-D Pinout

Pin Row C Pin Row D Pin Row C Pin Row D

C1 GND (FIXED) D1 GND (FIXED) C56 PEG_RX1- D56 PEG_TX1C2 GND D2 GND C57 TYPE1# D57 TYPE2# C3 USB_SSRX0- D3 USB_SSTX0- C58 PEG_RX2+ D58 PEG_TX2+ C4 USB_SSRX0+ D4 USB_SSTX0+ C59 PEG_RX2- D59 PEG_TX2C5 GND D5 GND C60 GND (FIXED) D60 GND (FIXED) C6 USB_SSRX1- D6 USB_SSTX1- C61 PEG_RX3+ D61 PEG_TX3+ C7 USB_SSRX1+ D7 USB_SSTX1+ C62 PEG_RX3- D62 PEG_TX3C8 GND D8 GND C63 RSVD D63 RSVD C9 USB_SSRX2- D9 USB_SSTX2- C64 RSVD D64 RSVD C10 USB_SSRX2+ D10 USB_SSTX2+ C65 PEG_RX4+ D65 PEG_TX4+ C11 GND (FIXED) D11 GND (FIXED) C66 PEG_RX4- D66 PEG_TX4C12 USB_SSRX3- D12 USB_SSTX3- C67 RSVD D67 GND C13 USB_SSRX3+ D13 USB_SSTX3+ C68 PEG_RX5+ D68 PEG_TX5+ C14 GND D14 GND C69 PEG_RX5- D69 PEG_TX5C15 DDI1_PAIR6+ (*) D15 DDI1_CTRLCLK_AUX+ C70 GND (FIXED) D70 GND (FIXED) C16 DDI1_PAIR6- (*) D16 DDI1_CTRLDATA_AUX- C71 PEG_RX6+

D71 PEG_TX6+ C17 RSVD D17 RSVD C72 PEG_RX6- D72 PEG_TX6C18 RSVD D18 RSVD C73 GND D73 GND C19 PCIE_RX6+ D19 PCIE_TX6+ C74 PEG_RX7+ D74 PEG_TX7+ C20 PCIE_RX6- D20 PCIE_TX6- C75 PEG_RX7- D75 PEG_TX7C21 GND (FIXED) D21 GND (FIXED) C76 GND D76 GND C22 PCIE_RX7+ D22 PCIE_TX7+ C77 RSVD D77 RSVD C23 PCIE_RX7- D23 PCIE_TX7- C78 PEG_RX8+ D78 PEG_TX8+ C24 DDI1_HPD D24 RSVD C79 PEG_RX8- D79 PEG_TX8C25 DDI1_PAIR4+ (*) D25 RSVD C80 GND (FIXED) D80 GND (FIXED) C26 DDI1_PAIR4- (*) D26 DDI1_PAIR0+ C81 PEG_RX9+ D81 PEG_TX9+ C27 RSVD D27 DDI1_PAIR0- C82 PEG_RX9- D82 PEG_TX9C28 RSVD D28 RSVD C83 RSVD D83 RSVD C29 DDI1_PAIR5+ (*) D29 DDI1_PAIR1+ C84 GND D84 GND C30 DDI1_PAIR5- (*) D30 DDI1_PAIR1- C85 PEG_RX10+ D85 PEG_TX10+ C31 GND (FIXED) D31 GND (FIXED) C86 PEG_RX10- D86 PEG_TX10C32 DDI2_CTRLCLK_AUX+ D32 DDI1_PAIR2+ C87 GND D87 GND C33 DDI2_CTRLDATA_AUX- D33 DDI1_PAIR2-

C88 PEG_RX11+ D88 PEG_TX11+ C34 DDI2_DDC_AUX_SEL D34 DDI1_DDC_AUX_SEL C89 PEG_RX11- D89 PEG_TX11C35 RSVD D35 RSVD C90 GND (FIXED) D90 GND (FIXED) C36 DDI3_CTRLCLK_AUX+ D36 DDI1_PAIR3+ C91 PEG_RX12+ D91 PEG_TX12+

Page 72

Pin Row C Pin Row D Pin Row C Pin Row D

C37 DDI3_CTRLDATA_AUX- D37 DDI1_PAIR3- C92 PEG_RX12- D92 PEG_TX12-

C38 DDI3_DDC_AUX_SEL D38 RSVD C93 GND D93 GND C39 DDI3_PAIR0+ D39 DDI2_PAIR0+ C94 PEG_RX13+ D94 PEG_TX13+ C40 DDI3_PAIR0- D40 DDI2_PAIR0- C95 PEG_RX13- D95 PEG_TX13C41 GND (FIXED) D41 GND (FIXED) C96 GND D96 GND C42 DDI3_PAIR1+ D42 DDI2_PAIR1+ C97 RVSD D97 RSVD C43 DDI3_PAIR1- D43 DDI2_PAIR1- C98 PEG_RX14+ D98 PEG_TX14+ C44 DDI3_HPD D44 DDI2_HPD C99 PEG_RX14- D99 PEG_TX14C45 RSVD D45 RSVD C100 GND (FIXED) D100 GND (FIXED) C46 DDI3_PAIR2+ D46 DDI2_PAIR2+ C101 PEG_RX15+ D101 PEG_TX15+ C47 DDI3_PAIR2- D47 DDI2_PAIR2- C102 PEG_RX15- D102 PEG_TX15C48 RSVD D48 RSVD C103 GND D103 GND C49 DDI3_PAIR3+ D49 DDI2_PAIR3+ C104 VCC_12V D104 VCC_12V C50 DDI3_PAIR3- D50 DDI2_PAIR3- C105 VCC_12V D105 VCC_12V C51 GND (FIXED) D51 GND (FIXED) C106 VCC_12V D106 VCC_12V C52 PEG_RX0+ D52 PEG_TX0+ C107 VCC_12V

D107 VCC_12V C53 PEG_RX0- D53 PEG_TX0- C108 VCC_12V D108 VCC_12V C54 TYPE0# D54 PEG_LANE_RV# C109 VCC_12V D109 VCC_12V C55 PEG_RX1+ D55 PEG_TX1+ C110 GND (FIXED) D110 GND (FIXED)

Note

The signals marked with an asterisk symbol (*) are not supported on the conga-TS170.

Page 73

9.5 Boot Strap Signals

Table 36 Boot Strap Signal Descriptions

Signal Pin # Description of Boot Strap Signal I/O PU/PD Comment

AC/HDA_SDOUT A33 High Deﬁnition Audio Serial Data Out: This signal is the serial TDM data

output to the codec(s). This serial output is double-pumped for a bit rate of 48 Mb/s for High Deﬁnition Audio.

O 3.3VSB PU 1k

3.3VSB

AC/HDA_SDOUT is a boot strap signal (see caution statement below)

SPKR B32 Output for audio enunciator, the “speaker” in PC-AT systems O 3.3V SPKR is a boot strap signal (see caution

statement below)

PEG_LAN_RV# D54 PCI Express Graphics lane reversal input strap. Pull low on the carier board

to reverse lane order.

13.3V PU 10k

3.3V

PEG_LAN_RV# is a boot strap signal (see note below)

DDI1_CTRLDATA_AUXDP1_AUXHDMI_CTRLDATA

D16 Multiplexed with DP1_AUX- and HDMI1_CTRLDATA.

DP AUX- function if DDI1_DDC_AUX_SEL is no connect. HDMI/DVI I2C CTRLDATA if DDI1_DDC_AUX_SEL is pulled high.

I/O PCIE I/O OD 3.3V

PU100k

3.3V

DDI1_CTRLDATA_AUX- is a boot strap signal (see note below).

DDI2_CTRLDATA_AUXDP2_AUXHDM2_CTRLDATA

C33 Multiplexed with DP2_AUX- and HDMI2_CTRLDATA.

DP AUX- function if DDI2_DDC_AUX_SEL is no connect. HDMI/DVI I2C CTRLDATA if DDI2_DDC_AUX_SEL is pulled high.

I/O PCIE I/O OD 3.3V

PU100k

3.3V

DDI2_CTRLDATA_AUX- is a boot strap signal (see note below).

DDI3_CTRLDATA_AUXDP3_AUXHDM2_CTRLDATA

C37 Multiplexed with DP3_AUX- and HDMI3_CTRLDATA.

DP AUX- function if DDI3_DDC_AUX_SEL is no connect. HDMI/DVI I2C CTRLDATA if DDI3_DDC_AUX_SEL is pulled high.

I/O PCIE I/O OD 3.3V

PU 100k

3.3V

DDI3_CTRLDATA_AUX- is a boot strap signal (see note below)

Caution

1. The signals listed in the table above are used as chipset conﬁguration straps during system reset. In this condition (during reset), they are inputs that are pulled to the correct state by either COM Express™ internally implemented resistors or chipset internally implemented resistors located on the module.

2. No external DC loads or external pull-up or pull-down resistors should change the conﬁguration of the signals listed in the above table. External resistors may override the internal strap states and cause the COM Express™ module to malfunction and/or cause irreparable damage to the module.

Page 74

10 System Resources

10.1 I/O Address Assignment

The I/O address assignment of the conga-TS170 module is functionally identical with a standard PC/AT.

Note

The BIOS assigns PCI and PCI Express I/O resources from FFF0h downwards. Non PnP/PCI/PCI Express compliant devices must not consume I/O resources in that area.

10.1.1 LPC Bus

On the conga-TS170 the PCIExpress Bus acts as the subtractive decoding agent. All I/O cycles that are not positively decoded are forwarded to the PCI Bus not the LPC Bus. Only speciﬁed I/O ranges are forwarded to the LPC Bus. In the congatec Embedded BIOS the following I/O address ranges are sent to the LPC Bus:

2Eh – 2Fh 4Eh – 4Fh

60h, 64h

A00h – A1Fh

E00h - EFFh (always used internally)

Parts of these ranges are not available if a Super I/O is used on the carrier board. If a Super I/O is not implemented on the carrier board then these ranges are available for customer use. If you require additional LPC Bus resources other than those mentioned above, or more information about this subject, contact congatec technical support for assistance.

Page 75

10.2 PCI Conﬁguration Space Map

Table 37 PCI Conﬁguration Space Map

Bus Number (hex) Device Number (hex) Function Number (hex) Description

00h 00h 00h HOST and DRAM Controller

00h 01h 00h PCI Express Graphic Root Port 0

00h 01h 01h PCI Express Graphic Root Port 1

00h 01h 02h PCI Express Graphic Root Port 2

00h 02h 00h Integrated Graphics Device

00h 08h 00h Gaussian Mixture Model Device

00h 14h 00h USB 3.0 xHCI Controller

00h 14h 02h Thermal Subsystem

00h ( Note1) 16h 00h Management Engine (ME) Interface 1

00h ( Note1) 16h 01h Intel ME Interface 2

00h ( Note1) 16h 02h ME IDE Redirection (IDE-R) Interface

00h ( Note1) 16h 03h ME Keyboard and Text (KT) Redirection

00h ( Note1) 16h 04h Intel ME Interface 3

00h 17h 00h SATA Controller

00h 1Ch 00h Not connected (PCI Express Root Port)

00h (Note2) 1Ch 04h PCI Express Root Port 0

00h (Note2) 1Ch 05h PCI Express Root Port 1

00h (Note2) 1Ch 06h PCI Express Root Port 2

00h (Note2) 1Ch 07h PCI Express Root Port 3

00h (Note2) 1Dh 00h PCI Express Root Port 4

00h (Note2) 1Dh 01h PCI Express Root Port 5

00h (Note2) 1Dh 02h PCI Express Root Port 6

00h (Note2) 1Dh 03h PCI Express Root Port 7

00h 1Fh 00h PCI to LPC Bridge

00h 1Fh 02h Power Management Controller

00h 1Fh 03h Intel

High Deﬁnition Audio (Intel® HD Audio)

00h 1Fh 04h SMBus Controller

00h 1Fh 06h GbE Controller

01h (Note3) 00h 00h PEG Port 0

02h (Note3) 00h 00h PEG Port 1

Page 76

03h (Note3) 00h 00h PEG Port 2

04h (Note3) 00h 00h PCI Express Port 0

05h (Note3) 00h 00h PCI Express Port 1

06h (Note3) 00h 00h PCI Express Port 2

07h (Note3) 00h 00h PCI Express Port 3

08h (Note3) 00h 00h PCI Express Port 4

09h (Note3) 00h 00h PCI Express Port 5

0Ah (Note3) 00h 00h PCI Express Port 6

0Bh (Note3) 00h 00h PCI Express Port 7

Note

1. In the standard conﬁguration, the Intel Management Engine (ME) related devices are partly present or not present at all.

2. The PCI Express Ports are visible only if a device is attached to the PCI Express Slot on the carrier board.

3. The table represents a case when a single function PCI/PCIe device is connected to all possible slots on the carrier board. The given bus numbers will change based on actual hardware conﬁguration.

4. Internal PCI devices not connected to the conga-TS170 are not listed.

10.3 I2C

There are no onboard resources connected to the I²C bus. Address 16h is reserved for congatec Battery Management solutions.

10.4 SM Bus

System Management (SM) bus signals are connected to the Intel® QM170 or HM170 PCH. The SM bus is not intended to be used by off-board non-system management devices. For more information about this subject contact congatec technical support.

Page 77

11 BIOS Setup Description

The following section describes the BIOS setup program. The BIOS setup program can be used to view and change the BIOS settings for the module. Only experienced users should change the default BIOS settings.

11.1 Entering the BIOS Setup Program

The BIOS setup program can be accessed by pressing the <DEL> or <F2> key during POST.

11.1.1 Boot Selection Popup

The BIOS offers the possibility to access a Boot Selection Popup menu by pressing the <F11> key during POST. If this option is used, a selection will be displayed immediately after POST allowing the operator to select either the boot device that should be used or an option to enter the BIOS setup program.

11.2 Setup Menu and Navigation

The congatec BIOS setup screen is composed of the menu bar and two main frames. The menu bar is shown below:

Main Advanced Chipset Security Boot Save & Exit

The left frame displays all the options that can be conﬁgured in the selected menu. Grayed-out options cannot be conﬁgured. Only the blue options can be conﬁgured. When an option is selected, it is highlighted in white.

The right frame displays the key legend. Above the key legend is an area reserved for text messages. These text messages explain the options and the possible impacts when changing the selected option in the left frame.

Note

Entries in the option column that are displayed in bold print indicate BIOS default values.

Page 78

The setup program uses a key-based navigation system. Most of the keys can be used at any time while in setup. The table below explains the supported keys:

Key Description

← → Left/Right Select a setup menu (e.g. Main, Boot, Exit).

↑ ↓ Up/Down Select a setup item or sub menu.

+ - Plus/Minus Change the ﬁeld value of a particular setup item.

Tab Select setup ﬁelds (e.g. in date and time).

F1 Display General Help screen.

F2 Load previous settings.

F9 Load optimal default settings.

F10 Save changes and exit setup.

ESC Discard changes and exit setup.

ENTER Display options of a particular setup item or enter submenu.

11.3 Main Setup Screen

When you ﬁrst enter the BIOS setup, you will enter the Main setup screen. You can always return to the Main setup screen by selecting the Main tab. The ‘Main’ screen reports BIOS, processor, memory and board information and is used to conﬁgure the system date and time.

Feature Options Description

BIOS Information

Main BIOS Version No option Displays the main BIOS version.

OEM BIOS Version No option Displays the additional OEM BIOS version.

Build Date No option Displays the date the BIOS was built.

Board Information

Product Revision No option Displays the hardware revision of the board.

Serial Number No option Displays the serial number of the board.

BC Firmware Revision No option Displays the congatec board controller ﬁrmware revision.

MAC Address (1st Ethernet) No option Displays the MAC address of the onboard i218 Ethernet controller.

Boot Counter No option Displays the number of boot-ups (maximum 16777215).

Running Time No option Displays the time the board is running (in hours, maximum 65535).

►Platform Information Submenu Opens the ‘Platform Information’ submenu.

System Time Hour:Minute:Second Displays the current system time. Note: The time is in 24-hour format.

Page 79

Feature Options Description

System Date Day of week, month/day/year Displays the current system date. Note: The date is in month-day-year format.

System Time Hour:Minute:Second Displays the current system time. Note: The time is in 24-hour format.

11.3.1 Platform Information Submenu

The platform information submenu offers additional hardware and software information.

Feature Options Description

Processor Information

Processor Type No option Displays the processor ID string. The “Processor Type” text is not displayed.

Codename No option Displays the processor codename.

Processor Speed No option Displays the processor speed.

Processor Signature No option Displays the processor signature.

Stepping No option Displays the processor stepping.

Processor Cores No option Displays the number of processor cores.

Microcode Revision No option Displays the processor microcode revision.

IGD HW Version No option Displays the version of the graphics controller.

IGD VBIOS Version No option Displays the video BIOS version.

Total Memory No option Displays the total amount of installed memory.

PCH Information

Codename No option Displays the codename of the Platform Controller Hub (PCH).

PCH SKU No option Displays the SKU name of the PCH.

Stepping No option Displays the PCH stepping.

ME FW Version No option Displays the ME Firmware (FW) Version if available.

ME Firmware SKU No option Displays the ME FW SKU if available.

Page 80

11.4 Advanced Setup

Select the Advanced tab from the setup menu to enter the Advanced BIOS Setup screen. The menu is used for setting advanced features. Only enabled features are displayed.

Main Advanced Chipset Boot Security Save & Exit

Graphics

Watchdog

Module Serial Ports

Hardware Health Monitoring

Intel

Ethernet Connection (H) I219-LM

Driver Health

Trusted Computing

RTC Wake Settings

ACPI

Intel

ICC

AMT Conﬁguration

PCH-FW Conﬁguration

SMART Settings

Super IO

Serial Port Console Redirection

CPU

Secure Erase

SATA Conﬁguration

Thermal Conﬁguration

Acoustic Management

PCI Conﬁguration

PCI Express Conﬁguration

PEG Port Conﬁguration

UEFI Network Stack

CSM & Option ROM Control

NVMe Conﬁguration

SDIO Conﬁguration

USB

Diagnostic Settings

Page 81

Main Advanced Chipset Boot Security Save & Exit

PC Speaker

Note

1. The Intel Ethernet Connection (H) I219-LM and Driver Health submenus are not displayed if the UEFI Network Stack is set to “disabled”.

2. The PCH-FW submenu is not displayed if the feature is disabled.

11.4.1 Graphics Submenu

Feature Options Description

Primary Display Auto

IGD PEG PCI/PCIe

Select primary graphics adapter to be used during boot up: ‘Auto’ - The system selects the primary graphics adapter automatically. ‘IGD’ - Uses the Internal Graphics Device (IGD) located in the chipset. ‘PEG’ - Uses the external PCI Express Graphics (PEG) card attached to the PEG port. ‘PCI/PCIe’ - Uses a PCI/PCIe graphics card attached to a PCI/PCIe port.

Primary PEG Auto

PEG1 PEG2

Select which graphics device should be Primary PEG. ‘Auto’ selects PEG 0 as primary PEG

Primary PCIE Auto

PCIE1 PCIE2 PCIE3 PCIE4 PCIE5 PCIE6 PCIE7

Select which graphics device should be Primary PCIE. ‘Auto’ selects PCIE 0 as primary PCIE

Internal Graphics Device Auto

Disabled Enabled

Set IGD to ‘Auto’, ‘Disabled’, or ‘Enabled’.

Primary IGD Boot Display Device Auto

CRT LFP EFP EFP2 EFP3

Select the Primary IGD display device(s) to be used for boot up: ‘CRT’ - Uses the analog VGA display port. ‘LFP’ - Uses the LVDS panel connected to the integrated LVDS port. ‘EFPx’ - Uses the HDMI/DVI or DisplayPort device connected to DDI1, DDI2 and DDI3. Note: EFP selections are valid only when at least one DDI is enabled. The ﬁrst enabled DDI is assigned to EFP. Therefore, EFP and DDI numbering do not necessarily match.

Page 82

Feature Options Description

Secondary IGD Boot Display Device

Disabled

CRT LFP EFP EFP2 EFP3

Select the Secondary IGD display device(s) used for boot up. Note: VGA modes are only supported on the primary display. For further details, see ‘Primary IGD Boot Display Device’.

Active LFP Conﬁguration No Local Flat Panel

Integrated LVDS

eDP

Select active local ﬂat panel conﬁguration.

Always Try Auto Panel Detect No

Yes

If set to ‘Yes’, the BIOS will use the EDID™ data set in an external EEPROM to conﬁgure the LFP. In case it cannot be found, the data set selected under ‘Local Flat Panel Type’ will be used.

Local Flat Panel Type Auto

VGA 640x480 1x18 (002h) VGA 640x480 1x18 (013h) WVGA 800x480 1x18 (01Fh) WVGA 800x480 1x24 (01Bh) SVGA 800x600 1x18 (01Ah) XGA 1024x768 1x18 (006h) XGA 1024x768 2x18 (007h) XGA 1024x768 1x24 (008h) XGA 1024x768 2x24 (012h) WXGA 1280x800 1x18 (01Eh) WXGA 1280x768 1x24 (01Ch) SXGA 1280x1024 2x24 (00Ah) SXGA 1280x1024 2x24 (018h) UXGA 1600x1200 2x24 (00Ch) HD 1920x1080 2x24 (01Dh) WUXGA 1920x1200 2x18 (015h) WUXGA 1920x1200 2x24 (00Dh) Customized EDID™ 1 Customized EDID™ 2 Customized EDID™ 3

Select a predeﬁned LFP type or choose ‘Auto’ to let the BIOS automatically detect and conﬁgure the attached LVDS panel. Auto detection is performed by reading an EDID™ data set via the video I²C bus. The number in brackets speciﬁes the congatec internal number of the respective panel data set. Note: Customized EDID™ utilizes an OEM deﬁned EDID™ data set stored in the BIOS ﬂash device.

Backlight Inverter Type None

PWM

I2C

Select the type of backlight inverter: ‘PWM’ - IGD PWM signal. ‘I2C’ - I2C backlight inverter device connected to the video I²C bus.

PWM Inverter Polarity Normal

Inverted

Set PWM inverter polarity.

PWM Inverter Frequency (Hz) 200 - 40000 Set the PWM inverter frequency in Hertz.

Page 83

Feature Options Description

Backlight Setting 0%

10% 25% 40% 50% 60% 75% 90%

100%

Select the backlight value in percentage of the maximum setting.

Force Backlight Enable No

Yes

Set to ‘Yes’, if the operating system driver does not activate the backlight signal.

Inhibit Backlight No

Permanent Until End Of POST

Select whether the backlight enable signal should be activated when the panel is activated. Note: The signal should be permanently activated or remain inhibited until the end of BIOS POST.

Backlight Delay No delay

100ms Delay 250ms Delay 500ms Delay 1s Delay

Select delay to adjust LVDS panel timings. Note: The congatec board controller will add the delay to the backlight signal coming from the SoC according this setup node. This feature may help to avoid panel ﬂickering.

LVDS SSC Disabled

0.5%

1.0%

1.5%

2.0%

2.5%

Select LVDS spread spectrum clock modulation depth. Note: Performs center spreading and DDI1 ﬁxed modulation frequency of 32.9kHz.

Digital Display Interface 1 (DDI1) Auto Selection

Disabled DisplayPort HDMI/DVI

Select the output type of the DDI.

Digital Display Interface 2 (DDI2) Auto Selection

Disabled DisplayPort HDMI/DVI

Select the output type of the DDI.

Digital Display Interface 3 (DDI3) Auto Selection

Disabled DisplayPort HDMI/DVI

Select the output type of DDI3. Note: If ‘VGA Port’ is enabled, ‘Auto Selection’ and ‘DisplayPort’ are not supported.

VGA Port Disabled

Enabled

Enable or disable VGA port. Note: If enabled, the Auto Selection and DisplayPort is not supported on DDI3.

DisplayPort Spread Spectrum Clock

Disabled

Enabled

Enable or disable SSC for DisplayPort. Only valid if the attached DisplayPort panel supports SSC.

Page 84

Feature Options Description

►Display Interface Signal Integrity Settings

Submenu Opens the ‘Display Interface Signal Integrity Settings submenu

Graphics Turbo IMON Current 31 Enter the value for the graphics turbo IMON current. Supported values are between 14 - 31.

Max. GPU Frequency Default

800 MHz 700 MHz 600 MHz 500 MHz

Allows to limit the maximum frequency of the integrated graphics engine.

GTT Size 2MB

4MB

8MB

Select the GTT Size

Aperture Size 128MB

256MB

512MB 1024MB 2048MB 4096MB

Select the aperture size. Note: To use this feature, disable CSM support. Above 4GB MMIO, BIOS assignment is automatically enabled when selecting 2048MB aperture.

IGD Pre-Allocated Graphics Memory

32M

64M 96M 128M 160M 192M 224M 256M 288M 320M 352M 384M 416M 448M 480M 512M 1024M 1536M 2048M

Select amount of pre-allocated graphics memory to be used by the IGD.

IGD Total Graphics Memory 128M

256M

MAX

Select amount of total graphics memory that may be used by the IGD. Memory above the ﬁxed graphics memory is dynamically allocated by the graphics driver. Note: Refer to the DVMT 5.0 speciﬁcation for more detailed information.

Gfx Low Power Mode Disabled

Enabled

This option applies only to SFF.

Page 85

Feature Options Description

VDD Enable Disabled

Enabled

Enable or disable VDD in the BIOS.

RM Support Disabled

Enabled

Enable or disable PM support.

PAVP Enable Disabled

Enabled

Enable or disable PAVP.

Cdynmax Clamping Enable Disabled

Enabled

Enable or disable Cdynmax Clamping

Cd Clock Frequency 337.5 MHz

450 MHz 540 MHz

675 MHz

Select the highest Cd clock frequency the platform supports.

Invert Backlight Setting No

Yes

Set ‘Yes’ to invert backlight control values. Note: This feature may be required for the actual I2C type backlight hardware controller.

11.4.1.1 Display Interface Signal Integrity Settings Submenu

Feature Options Description

HDMI 1 Level Shifter Conﬁg 400mV/0.0dB

400mV/3.5dB 400mV/6.0dB 450mV/0.0dB 600mV/0.0dB 600mV/2.0dB 600mV/4.5dB 800mV/0.0dB

800mV/2.0dB

1000mV/2.0dB 1200mV/0.0dB

Speciﬁes HDMI level shifter conﬁguration

HDMI 2 Level Shifter Conﬁg 400mV/0.0dB

400mV/3.5dB 400mV/6.0dB 450mV/0.0dB 600mV/0.0dB 600mV/2.0dB 600mV/4.5dB 800mV/0.0dB

800mV/2.0dB

1000mV/2.0dB 1200mV/0.0dB

Speciﬁes HDMI level shifter conﬁguration

Page 86

Feature Options Description

HDMI 3 Level Shifter Conﬁg 400mV/0.0dB

400mV/3.5dB 400mV/6.0dB 450mV/0.0dB 600mV/0.0dB 600mV/2.0dB 600mV/4.5dB 800mV/0.0dB

800mV/2.0dB

1000mV/2.0dB 1200mV/0.0dB

Speciﬁes HDMI level shifter conﬁguration

DisplayPort 1 Trace Lenght Default Determines the DP trace lenght from the silicon to the DP outport port

DisplayPort 2 Trace Lenght Default Determines the DP trace lenght from the silicon to the DP outport port

DisplayPort 3 Trace Lenght Default Determines the DP trace lenght from the silicon to the DP outport port

DDI 1 IBoost Disabled

Enabled

Enables the IBoost for selected port on all the VSwing/Pre-Emphasis levels

DDI 2 IBoost Disabled

Enabled

Enables the IBoost for selected port on all the VSwing/Pre-Emphasis levels

DDI 3 IBoost Disabled

Enabled

Enables the IBoost for selected port on all the VSwing/Pre-Emphasis levels

11.4.2 Watchdog Submenu

Feature Options Description

POST Watchdog Disabled

30sec 1min 2min 5min 10min 30min

Select the timeout value for the POST watchdog. Note: The watchdog is only active during the system POST and provides a facility to prevent errors during boot up by performing a reset.

Stop Watchdog For User Interaction No

Yes

Select whether the POST watchdog should be stopped during the popup boot selection menu or while waiting for the setup password.

Runtime Watchdog Disabled

One-time Trigger Single Event Repeated Event

Select the operating mode of the runtime watchdog. ‘One-time Trigger’ - Disables watchdog after ﬁrst trigger. ‘Single Event’ - Executes every stage only once before the watchdog is disabled. ‘Repeated Event’ - Executes last stage repeatedly until reset. Note: This watchdog will be initialized just before the operating system starts booting.

Page 87

Feature Options Description

Delay Disabled

10sec 30sec 1min 2min 5min 10min 30min

Select the delay time before the runtime watchdog is activated. Note: This feature may be used to ensure that the operating system has enough time to load.

Event 1 ACPI Event

Reset

Power Button

Select the type of event that will be generated when timeout 1 is reached. For more information about ACPI Event read the note at the end of this table.

Event 2 Disabled

ACPI Event Reset Power Button

Select the type of event that will be generated when timeout 2 is reached.

Event 3 Disabled

ACPI Event Reset Power Button

Select the type of event that will be generated when timeout 3 is reached.

Timeout 1 1sec

2sec 5sec 10sec

30sec

1min 2min 5min 10min 30min

Select the timeout value for the ﬁrst stage watchdog event.

Timeout 2 see above Select the timeout value for the second stage watchdog event.

Timeout 3 see above Select the timeout value for the third stage watchdog event.

Watchdog ACPI Event Shutdown

Restart

Select the operating system event to be initiated by the watchdog ACPI event. This feature performs a critical but orderly operating system shutdown or restart.

Note

In ACPI mode, the “Watchdog ACPI Event” handler cannot directly restart or shutdown the OS. The congatec BIOS will perform one of the following actions instead:

• Shutdown: An over temperature notiﬁcation is executed. This causes the operating system to shut down in an orderly fashion.

• Restart: An ACPI fatal error is reported to the OS.

Page 88

11.4.3 Module Serial Ports Submenu

Feature Options Description

Serial Port 0 Disabled

Enabled

Enable or disable module serial port 0.

I/O Base Address 3F8h

2F8h 220h 228h 238h 2E8h 338h

3E8h

Set serial port base address.

Interrupt None

IRQ3 IRQ4

IRQ5

IRQ6 IRQ14 IRQ15

Set serial port interrupt.

PNP ID None

PNP0501

CGT0501

Set serial port ACPI ID.

Baudrate 2400

4800 9600 19200 38400 57600 115200

Set serial port initial baudrate.

Serial Port 1 Disabled

Enabled

Enable or disable module serial port 1.

I/O Base Address 3F8h

2F8h 220h 228h 238h

2E8h

338h 3E8h

Set serial port base address.

Page 89

Feature Options Description

Interrupt None

IRQ3 IRQ4 IRQ5

IRQ6

IRQ14 IRQ15

Set serial port interrupt.

PNP ID None

PNP0501 CGT0501

CGT0502

Set serial port ACPI ID.

Baudrate 2400

4800 9600 19200 38400 57600 115200

Set serial port initial baudrate.

11.4.4 Hardware Health Monitoring Submenu

Feature Options Description

CPU Temperature No option Displays the module CPU temperature in °C.

Board Temperature No option Displays the module board temperature in °C.

DC Input Voltage No option Displays the actual voltage of the standard DC power supply.

5V Standby No option Displays the actual voltage of the 5V standby power rail.

DC Input Current No option Displays the module input current from DC standard voltage.

CPU Fan Speed No option Displays the CPU Fan Speed in RPM.

Fan PWM Frequency Mode Low Frequency

High Frequency

Select the fan PWM base frequency mode: ‘Low Frequency’ - 11.0 to 88.2Hz. ‘High Frequency’ - 1k to 63kHz.

Fan PWM Frequency (kHz) 31

(more values)

Select the fan PWM base frequency.

Fan Speed Setting 0%, 10%, 25%,

40%, 50%, 60%, 75%, 90%, 100%

Select boot up fan speed in percent of the maximum supported speed.

Page 90

11.4.5 Intel® Ethernet Connection (H) I219-LM Submenu

Feature Options Description

► NIC Conﬁguration Submenu Opens the NIC Conﬁguration submenu.

Blink LEDs 0

(more values)

Set the duration in seconds for the Ethernet LEDs to blink.

UEFI Driver No option Displays the UEFI Driver version.

Adapter PBA No option Displays the Adapter PBA.

Chip Type No option Displays the type of the chip in which the Ethernet controller is integrated.

PCI Device ID No option Displays the PCI Device ID of the Ethernet controller.

PCI Address No option Displays the PCI Bus:Device:Function number of the Ethernet controller.

Link Status No option Displays the Link Status.

MAC Address No option Displays the MAC Address.

11.4.5.1 NIC Conﬁguration Submenu

Feature Options Description

Link Speed Auto Negotiated

10 Mbps Half 10 Mbps Full 100 Mbps Half 100 Mbps Full

Select the port speed used for the selected boot protocol.

Wake On LAN N/A

Disabled Enabled

Enable for the server to power on after receiving an in-band magic packet.

11.4.6 Driver Health Submenu

Feature Options Description

Intel® Gigabit 0.0.09 Healthy Provides Health Status for the drivers/controllers.

Page 91

11.4.7 Trusted Computing Submenu

Feature Options Description

Security Device Support Disable

Enable

Enable or disable BIOS support for security device. Operating system will not show the security device. TCG EFI protocol and INT1A interface will not be available.

Note

Additional lines are shown in this submenu if a TPM device is connected.

11.4.8 RTC Wake Settings Submenu

Feature Options Description

RTC Wake Mode Disabled

Wake from S4 and S5 Wake from S3, S4 and S5

Set system wake mode on alarm event. Enable this feature to wake from the speciﬁed Sx states on the hr::min::sec as speciﬁed.

Wake up hour 0 Specify wake up hour. For example: Enter 3 for 3am and 15 for 3pm.

Wake up minute 0 Specify wake up minute.

Wake up second 0 Specify wake up second.

11.4.9 ACPI Submenu

Feature Options Description

Enable ACPI Auto Conﬁguration Disabled

Enabled

Enable or disable BIOS ACPI auto conﬁguration.

Hibernation Support Disabled

Enabled

Enable or disable system’s ability to hibernate (operating system S4 sleep state). Note: Ensure that your operating system supports this feature if you want to use it.

ACPI Sleep State Suspend Disabled

S3 (Suspend to RAM)

Select the state used for ACPI system sleep/suspend.

Lock Legacy Resources Disabled

Enabled

Enable or disable locking of legacy resources.

S3 Video Repost Disabled

Enabled

Enable or disable video BIOS re-post on S3 resume. Note: Enable this feature if it is required by your operating system.

ACPI Low Power S0 Idle Disabled

Enabled

Enable or disable ACPI low power S0 idle support.

Page 92

Feature Options Description

Active Trip Point Disabled

15 C 23 C 31 C 39 C 47 C 55 C 63 C

71 C

79 C 87 C 95 C 103 C 111 C 119 C

Select the temperature threshold at which the ACPI aware operating system turns the fan on or off.

Automatic Critical Trip Point Disabled

Enabled

Enable this feature to set the critical trip point (temperature threshold) to the recommended value at which the ACPI aware operating system performs a critical shutdown automatically. Disable this feature to conﬁgure the critical trip point manually.

Critical Trip Point Value 71 C

79 C 87 C 95 C

100 C

103 C 111 C 119 C 127 C

Select the temperature threshold at which the ACPI aware operating system performs a critical shutdown.

Lid Button Support Disabled

Enabled

If this feature is enabled, the COM Express LID# signal acts as ACPI lid.

Sleep Button Support Disabled

Enabled

If this feature is enabled, the COM Express SLEEP# signal acts as ACPI sleep button.

11.4.10 Intel® ICC Submenu

Feature Options Description

ICC/OC Watchdog Timer Disabled

Enabled

Enable this feature to expose the ICC/OC watchdog timer to the operating system as an ACPI device. Note: WDT HW is always used by BIOS when clock settings are changed.

ICC Locks after EOP Default

ICC Proﬁle 0

Page 93

11.4.11 AMT Conﬁguration Submenu

Feature Options Description

Intel AMT Disabled

Enabled

Enable or disable Intel (R) Active Management Technology BIOS Extension. Note: iAMT H/W is always enabled. This option controls only the BIOS extension execution. If enabled, this option requires additional ﬁrmware in the SPI device.

BIOS Hotkey Pressed Disabled

Enabled

Enable or disable BIOS hotkey press

MEBx Selection Screen Disabled

Enabled

Enable or disable MEBx selection screen

Hide Un-Conﬁgure ME Conﬁrmation Disabled

Enabled

Hide Un-Conﬁgure ME without password conﬁrmation prompt

MEBx Debug Message Output Disabled

Enabled

Enable or disable MEBx debug message output

Un-Conﬁgure ME Disabled

Enabled

Un-Conﬁgure ME without password

Amt Wait Timer 0 Set timer to wait before sending ASF_GET_BOOT_OPTIONS

ASF Disabled

Enabled

Enable or disable Alert Speciﬁcation Format

Active Remote Assistance Process Disabled

Enabled

Trigger CIRA boot

USB Provisioning of AMT Disabled

Enabled

Enable or disable AMT USB provisioning

PET Progress Disabled

Enabled

Enable or disable PET Events progress

AMT CIRA Timeout 0

Watchdog Disabled

Enabled

Enable or disable Watchdog Timer

OS Timer 0 Set OS watchdog timer

BIOS Timer 0 Set BIOS watchdog timer

Page 94

11.4.12 PCH-FW Conﬁguration Submenu

Displayed only if this feature is enabled.

Feature Options Description

ME FW Version No option Displays ME FW Version.

ME Firmware Mode No option Displays ME Firmware Mode.

ME Firmware Type No option Displays ME Firmware Type.

ME Firmware SKU No option Displays ME Firmware SKU.

PTT Capability / State No option Displays PTT Capability / State.

NFC Support No option Displays NFC Support.

ME State Disabled

Enabled

Enable to set ME to Soft Temporary Disabled.

fTPM Switch Selection GPDMA Work-Around

MSFT QFE Solution

Selects the desired fTPM solution to be used.

TPM Device Selection dTPM 1.2

PTT

Select TPM device: ‘PTT’ - Enables PTT and disables dTPM in SkuMgr. ‘dTPM 1.2’ - Enables dTPM 1.2 and disables PTT in SkuMgr. Warning: If you enable PTT, dTPM will be disabled and all data saved on it will be lost. Likewise, if you enable dTPM, PTT will be disabled and all data saved on it will be lost.

►Firmware Update Conﬁguration Submenu Opens submenu to conﬁgure management engine technology parameters.

Me FW Image Re-Flash Disabled

Enabled

Enable or disable Me FW Image Re-Flash function.

11.4.13 SMART Settings Submenu

Feature Options Description

SMART Self Test Disabled

Enabled

Run SMART self test on all HDDs during POST.

Page 95

11.4.14 Super IO Submenu

Feature Options Description

Super IO Chip W83627

SIO Clock 24MHz

48MHz

Select Super IO base clock.

Serial Port Disabled

Enabled

Enable or disable serial port (COM).

Device Settings IO=3F8h

IRQ=4

Displays the currently used settings.

Serial Port Disabled

Enabled

Enable or disable serial port (COM).

Device Settings O=2F8h

IRQ=3

Displays the currently used settings.

Parallel Port Disabled

Enabled

Enable or disable parallel port (LPT/LPTE).

Device Settings IO=378h

IRQ=5

Displays the currently used settings.

Device Mode STD Printer Mode

SPP Mode EPP-1.9 and SPP Mode EPP-1.7 and SPP Mode ECP Mode ECP and EPP 1.9 Mode ECP and EPP 1.7 Mode

Select the parallel port mode.

Note

This setup menu is available only if an external Winbond W83627 Super I/O is implemented on the carrier board.

11.4.15 Serial Port Console Redirection Submenu

Feature Options Description

COM0 Console Redirection

Disabled

Enabled

Enable or disable serial port 0 console redirection.

► Console Redirection Settings Submenu Opens the console redirection conﬁguration sub menu.

► Legacy Console Redirection Settings Submenu Opens the Legacy Console Redirection Settings sub menu.

Page 96

Feature Options Description

Serial Port for Out-of-Band Management / Windows Emergency Management Services (EMS) Console Redirection

Disabled

Enabled

Enable or disable the Serial Port for Out-of-Band Management/ Windows Emergency Management Services (EMS) Console Redirection.

► Console Redirection Settings Submenu Opens the console redirection conﬁguration sub menu.

11.4.15.1 Console Redirection Settings Submenu

Feature Options Description

Terminal Type VT100

VT100+ VT-UTF8

ANSI

Select terminal type.

Baudrate 9600

19200 38400 57600

115200

Select baud rate.

Data Bits 7

Set the number of data bits.

Parity None

Even Odd Mark Space

Select the parity.

Stop Bits 1

Set the number of stop bits.

Flow Control None

Hardware RTS/CTS

Select the ﬂow control.

VT-UTF8 Combo Key Support Disabled

Enabled

Enable the VT-UTF8 combination key support for ANSI/VT100 terminals.

Recorder Mode Disabled

Enabled

Enable this feature to only send text output over the terminal. Note: This feature is helpful to capture and record terminal data.

Resolution 100x31 Disabled

Enabled

Enable or disable the extended terminal resolution.

Legacy OS Redirection Resolution 80x24

80x25

Select the number of rows and columns supported for legacy operating system redirection.

Page 97

Feature Options Description

Putty KeyPad VT100

LINUX XTERMR6 SCO ESCN VT400

Select function key and keypad on Putty.

Redirection After BIOS POST Enabled

Disabled

Enable to continue serial redirection after POST.

Note

The Console Redirection Settings submenu for Serial Port for Out-of-Band Management/ Windows Emergency Management Services (EMS) Console Redirection does not contain all above listed items and contains the additional Out-of-Band Management Port selection item.

11.4.16 CPU Submenu

Feature Options Description

Processor Type No option Displays the processor ID string. The “Processor Type” text is not displayed. CPU Signature No option Displays the CPU signature. Microcode Patch No option Displays the revision of the microcode patch. Max CPU Speed No option Displays the maximum CPU speed. Min CPU Speed No option Displays the min CPU speed. CPU Speed No option Displays the current CPU speed. Processor Cores No option Displays the number of the processor cores. Intel

HT Technology No option Displays whether Intel® HT technology is supported.

Intel

VT-x Technology No option Displays whether Intel® VT-x technology is supported.

Intel

SMX Technology No option Displays whether Intel® SMX technology is supported. 64-bit No option Displays whether 64-bit is supported. EIST Technology No option Displays whether enhanced Intel

SpeedStep Technology (EIST) is supported. CPU C3 State No option Displays whether CPU C3 state is supported. CPU C6 State No option Displays whether CPU C6 state is supported. CPU C7 State No option Displays whether CPU C7 state is supported. CPU C8 State No option Displays whether CPU C8 state is supported. CPU C9 State No option Displays whether CPU C9 state is supported. CPU C10 State No option Displays whether CPU C10 state is supported. L1 Data Cache No option Displays the size of the L1 data cache. L1 Code Cache No option Displays the size of the L1 code cache. L2 Cache No option Displays the size of the L2 cache.

Page 98

Feature Options Description

L3 Cache No option Displays the size of the L3 cache. L4 Cache No option Displays the size of the L4 cache. Hyper-Threading Disabled

Enabled

Enable or disable the Hyper-Threading technology.

Active Processor Cores All

1 2 3

Enable the desired number of cores.

Overclocking Lock Disabled

Enabled

FLEX_RATIO(194) MSR.

Intel

Virtualization Technology Disabled

Enabled

Enable this feature if you need a VMM to utilize the integrated hardware virtualization support.

Hardware Prefetcher Disabled

Enabled

Enable or disable the MLC streamer prefetcher.

Adjacent Cache Line Prefetch Disabled

Enabled

Enable or disable prefetching of adjacent cache lines.

CPU AES Disabled

Enabled

Enable or disable CPU Advanced Encryption Standard (AES) instructions.

Boot performance mode Max Battery

Max Non-Turbo Performance

Turbo Performance

Select the performance state the BIOS will set before operating system handoff.

Intel

Speed Shift Technology Disabled

Enabled

Enable this feature to expose the CPPC v2 interface, allowing hardware controlled P-states.

Intel

SpeedStep(tm) Disabled

Enabled

Enable this feature if you require support for more than two frequency ranges.

Turbo Mode Disabled

Enabled

Enable or disable ‘Turbo Mode’.

Package Power Limit Lock Disabled

Enabled

If this feature is enabled, PACKAGE_POWER_LIMIT MSR will be locked and a reset will be required to unlock the register.

Power Limit 1 Override Disabled

Enabled

If this feature is disabled, BIOS will program the default values for power limit 1 and power limit 1 time window.

CPU Power Limit 2 Disabled

Enabled

Enable or disable the CPU power limit 2 value.

Power Limit 2 0

(more values)

Select the power limit 2 value in 125mW steps. ‘0’ sets the value to 1.25*TDP. Note: The processor applies control policies to protect the package power from exceeding this limit.

1-Core Ratio Limit Override 0

(more values)

This limit is for 1 cores active. ‘0’ sets the factory-conﬁgured value.

2-Core Ratio Limit Override 0

(more values)

This limit is for 2 cores active. ‘0’ sets the factory-conﬁgured value.

3-Core Ratio Limit Override 0

(more values)

This limit is for 3 cores active. ‘0’ sets the factory-conﬁgured value.

Page 99

Feature Options Description

4-Core Ratio Limit Override 0

(more values)

This limit is for 4 cores active. ‘0’ sets the factory-conﬁgured value.

Platform PL1 Enable Disabled

Enabled

Enable or disable the platform Power Limit 1 (PL1) programming. If this option is enabled, the PL1 is used by the processor to limit the average power of a given time window.

Platform PL2 Disabled

Enabled

Enable or disable the platform Power Limit 2 (PL2) programming. If this option is disabled, the BIOS will program the default values for platform PL2.

CPU C States Disabled

Enabled

Enable or disable CPU C states.

Enhanced C1 State Disabled

Enabled

If this feature is enabled, the CPU will switch to minimum speed when all cores enter C-State.

C-State Auto Demotion Disabled

C1 C3

C1 and C3

Conﬁgure C-State Auto Demotion.

C-State Un-demotion Disabled

C1 C3

C1 and C3

Conﬁgure C-State Un-demotion.

Package C State Demotion Disabled

Enabled

Conﬁgure C-State demotion.

Package C State Undemotion Disabled

Enabled

Conﬁgure C-State Un-demotion.

CState Pre-Wake Disabled

Enabled

Disable this feature to set bit 30 of POWER_CTL MSR(0x1FC) to 1, disabling the Cstate Pre-Wake.

Package C State Limit C0/C1

C2 C3 C6 C7 C7s C8 C9 C10

AUTO

Package C state limit.

CFG Lock Disabled

Enabled

Conﬁgure MSR 0xE2[15], CFG lock bit.

►Power Limit 3 Settings Submenu Power Limit 3 Override Disabled

Enabled

Enable or disable power limit 3 override. If this feature is disabled, BIOS will keep the default values for ‘Power Limit 3’ and ‘Power ‘Limit 3 Time’.

CPU Power Limit 3 0

(more values)

Set CPU power limit 3 value.

CPU Power Limit 3 Time 0

(more values)

Set time window in which the PowerLimit 3 is maintained.

Page 100

Feature Options Description

CPU Power Limit 3 Duty Cycle 0

(more values)

Specify the duty cycle (in percentage) the CPU is required to maintain over the conﬁgured power limit 3 time windows.

Power Limit 3 Lock Disabled

Enabled

‘Enable’ - Locks PL3 conﬁguration in the operating system.

‘Disable’ - Allows PL3 conﬁgurations in the operating system. ►Power Limit 4 Settings Submenu Power Limit 4 Override Disabled

Enabled

If this feature is disabled, BIOS will keep the default values for Power Limit 4.

Power Limit 4 0

(more values)

Select power limit 4 in in 125mW steps. ‘0’ sets the default value.

Power Limit 4 Lock Disabled

Enabled

Enable or disable power limit 4 MSR 601h lock.

‘Enable’ - Locks PL4 conﬁguration in the operating system.

‘Disable’ - Allows PL4 conﬁgurations in the operating system. ►CPU Thermal Conﬁguration Submenu CPU DTS Disabled

Enabled

‘Disabled’ - ACPI thermal management uses EC reported temperature values.

‘Enabled’ - ACPI thermal management uses DTS SMM mechanism to obtain CPU temperature values.

‘Out of Spec’ - ACPI Thermal Management uses EC reported temperature values and DTS SMM is used to

handle Out of Spec. TCC Activation Offset 0

(more values)

Set the offset from the Intel

factory Thermal Control Circuit (TCC) activation temperature. For example: If the factory TCC activation temperature is 100C, enter 10 to activate TCC at 90C. Note: TCC activation will lower CPU core and graphics core frequency, voltage or both.

ACPI 3.0 T-States Disabled

Enabled

Enable or disable ACPI 3.0 T-states.

Intel

TXT(LT) Support Disabled

Enabled

Enable or disable Intel® TXT(LT) support.

Debug Interface Disabled

Enabled

Enableor disable CPU debug feature.

Debug Interface Lock Disabled

Enabled

Lock CPU debug feature setting.

SW Guard Extensions (SGX) Disabled

Enabled

Software Controlled

Enable or disable Software Guard Extensions (SGX).

Select Owner EPOCH input type No Change in Owner

EPOCHs

Change to New Random Owner EPOCHs Manual User Deﬁned Owner EPOCHs

Select owner EPOCH mode. Each EPOCH is 64-bit.

PRMRR Size AUTO
