COM Express™ conga-TCA

2nd Generation Dual Core Intel® Atom™ processor with an Intel® NM10 express chipset

User’s Guide

Revision 1.1

Page 2

Revision History

Revision Date (yyyy.mm.dd) Author Changes

0.1 2012.08.27 AEM • Preliminary release

0.2 2013.03.13 AEM

• Added Microsoft Windows 8 support in section 1.2 “Supported Operating System“

• Updated section 1.3 “Mechanical Dimension” and section 3 “Heatspreader” to reﬂect the actual heatspreader thickness of 4mm

• Corrected the statement that the Intel® CG82NM10 (NM10) PCH found on the conga-TCA offers a single channel LVDS interface in section 4.1.10 “LCD”

• Updated section 4.1.14 “Power Control”

• Deleted the wake event signal “PME#” from section 6.4 “ACPI Suspend Modes and Resume Events” because this signal is not supported in COM Express type 6 speciﬁcation

• Updated section 9 “BIOS Setup Description”

• Added BIOS binary size in section 10 “Additional BIOS Features”

• Added section 10.1 “Supported Flash Devices”

1.0 2013.08.09 AEM

• Updated section 9 “BIOS Setup Description”

• Updated section 10.1 “Supported Flash Devices”

• Ofﬁcial release

1.1 2016.10.10 AEM

• Added section 1 “Introduction”. Moved COM Express concept and conga-TCA Options Information to section 1 “Introduction”

• Added the maximum supported memory in sections 1 “conga-TCA Options Information” and 2.1 “Feature List”

• Added note in section 2.2 “Supported Operating Systems”

• Updated caution note in section 4 “Heatspreader”

• Corrected the description of pins D63 and D64 in table 27 “Connector C-D Pinout

• Corrected the decoded I/O addresses in section 9.2.1 “LPC Bus”

• Updated the whole document

Page 3

Preface

This user’s guide provides information about the components, features, connectors and BIOS Setup menus available on the conga-TCA. It is one of three documents that should be referred to when designing a COM Express™ application. The other reference documents that should be used include the following:

• COM Express™ Design Guide

• COM Express™ Speciﬁcation

The links to these documents can be found on the congatec AG website at www.congatec.com

Disclaimer

The information contained within this user’s guide, including but not limited to any product speciﬁcation, is subject to change without notice.

congatec AG provides no warranty with regard to this user’s guide or any other information contained herein and hereby expressly disclaims any implied warranties of merchantability or ﬁtness for any particular purpose with regard to any of the foregoing. congatec AG assumes no liability for any damages incurred directly or indirectly from any technical or typographical errors or omissions contained herein or for discrepancies between the product and the user’s guide. In no event shall congatec AG be liable for any incidental, consequential, special, or exemplary damages, whether based on tort, contract or otherwise, arising out of or in connection with this user’s guide or any other information contained herein or the use thereof.

Intended Audience

This user’s guide is intended for technically qualiﬁed personnel. It is not intended for general audiences.

Lead-Free Designs (RoHS)

All congatec AG designs are created from lead-free components and are completely RoHS compliant.

Electrostatic Sensitive Device

All congatec AG products are electrostatic sensitive devices and are packaged accordingly. Do not open or handle a congatec AG product except at an electrostatic-free workstation. Additionally, do not ship or store congatec AG products near strong electrostatic, electromagnetic, magnetic, or radioactive ﬁelds unless the device is contained within its original manufacturer’s packaging. Be aware that failure to comply with these guidelines will void the congatec AG Limited Warranty.

Page 4

Symbols

The following symbols are used in this user’s guide:

Warning

Warnings indicate conditions that, if not observed, can cause personal injury.

Caution

Cautions warn the user about how to prevent damage to hardware or loss of data.

Note

Notes call attention to important information that should be observed.

congatec AG has made every attempt to ensure that the information in this document is accurate yet the information contained within is supplied “as-is”.

Trademarks

Product names, logos, brands, and other trademarks featured or referred to within this user’s guide, or the congatec website, are the property of their respective trademark holders. These trademark holders are not afﬁliated with congatec AG, our products, or our website.

Page 5

Warranty

congatec AG makes no representation, warranty or guaranty, express or implied regarding the products except its standard form of limited warranty (“Limited Warranty”) per the terms and conditions of the congatec entity, which the product is delivered from. These terms and conditions can be downloaded from www.congatec.com. congatec AG may in its sole discretion modify its Limited Warranty at any time and from time to time.

The products may include software. Use of the software is subject to the terms and conditions set out in the respective owner’s license agreements, which are available at www.congatec.com and/or upon request.

Beginning on the date of shipment to its direct customer and continuing for the published warranty period, congatec AG represents that the products are new and warrants that each product failing to function properly under normal use, due to a defect in materials or workmanship or due to non conformance to the agreed upon speciﬁcations, will be repaired or exchanged, at congatec’s option and expense.

Customer will obtain a Return Material Authorization (“RMA”) number from congatec AG prior to returning the non conforming product freight prepaid. congatec AG will pay for transporting the repaired or exchanged product to the customer.

Repaired, replaced or exchanged product will be warranted for the repair warranty period in effect as of the date the repaired, exchanged or replaced product is shipped by congatec, or the remainder of the original warranty, whichever is longer. This Limited Warranty extends to congatec’s direct customer only and is not assignable or transferable.

Except as set forth in writing in the Limited Warranty, congatec makes no performance representations, warranties, or guarantees, either express or implied, oral or written, with respect to the products, including without limitation any implied warranty (a) of merchantability, (b) of ﬁtness for a particular purpose, or (c) arising from course of performance, course of dealing, or usage of trade.

congatec AG shall in no event be liable to the end user for collateral or consequential damages of any kind. congatec shall not otherwise be liable for loss, damage or expense directly or indirectly arising from the use of the product or from any other cause. The sole and exclusive remedy against congatec, whether a claim sound in contract, warranty, tort or any other legal theory, shall be repair or replacement of the product only.

Certiﬁcation

congatec AG is certiﬁed to DIN EN ISO 9001 standard.

Page 6

Technical Support

congatec AG technicians and engineers are committed to providing the best possible technical support for our customers so that our products can be easily used and implemented. We request that you ﬁrst visit our website at www.congatec.com for the latest documentation, utilities and drivers, which have been made available to assist you. If you still require assistance after visiting our website then contact our technical support department by email at [email protected].

Terminology

Term Description

GB Gigabyte (1,073,741,824 bytes)

GHz Gigahertz (one billion hertz)

kB Kilobyte (1024 bytes)

MB Megabyte (1,048,576 bytes)

Mbit Megabit (1,048,576 bits)

kHz Kilohertz (one thousand hertz)

MHz Megahertz (one million hertz)

TDP Thermal Design Power

PCIe PCI Express

SATA Serial ATA

PEG PCI Express Graphics

PCH Platform Controller Hub

PATA Parallel ATA

T.O.M. Top of memory = max. DRAM installed

HDA High Deﬁnition Audio

I/F Interface

N.C. Not connected

N.A. Not available

TBD To be determined

Page 7

Contents

1 Introduction .............................................................................10

2 Speciﬁcations ........................................................................... 12

2.1 Feature List ..............................................................................12

2.2 Supported Operating Systems ................................................ 13

2.3 Mechanical Dimensions ........................................................... 13

2.4 Supply Voltage Standard Power ..............................................14

2.4.1 Electrical Characteristics .......................................................... 14

2.4.2 Rise Time ................................................................................. 14

2.5 Power Consumption ................................................................ 15

2.5.1 conga-TCA Intel® Atom™ N2600 Dual Core 1.6 GHz 1MB Cache 16

2.5.2 conga-TCA Intel® Atom™ N2800 Dual Core 1.86 GHz 1MB

Cache ....................................................................................... 16

2.5.3 conga-TCA Intel® Atom™ D2550 Dual Core 1.86 GHz 1MB

Cache ....................................................................................... 17

2.5.4 conga-TCA Intel® Atom™ D2550 (USB 3.0) Dual Core 1.86 GHz

1MB Cache .............................................................................. 17

2.6 Supply Voltage Battery Power .................................................18

2.6.1 CMOS Battery Power Consumption ........................................ 18

2.7 Environmental Speciﬁcations ................................................... 18

3 Block Diagram .......................................................................... 19

4 Heatspreader ........................................................................... 20

4.1 Heatspreader Dimensions ........................................................21

5 Connector Subsystems Rows A, B, C, D .................................. 22

5.1 Primary Connector Rows A and B ............................................ 23

5.1.1 Serial ATA™ (SATA) ..................................................................23

5.1.2 USB 2.0 .................................................................................... 23

5.1.3 High Deﬁnition Audio (HDA) Interface .................................... 23

5.1.4 Gigabit Ethernet ..................................................................... 23

5.1.5 LPC Bus .................................................................................... 24

5.1.6 I²C Bus Fast mode ................................................................... 24

5.1.7 PCI Express™ ...........................................................................24

5.1.8 ExpressCard™ .........................................................................24

5.1.9 Graphics Output (VGA/CRT) .................................................... 24

5.1.10 LCD .......................................................................................... 25

5.1.11 SPI ............................................................................................ 25

5.1.12 General Purpose Serial Interface ............................................. 25

5.1.13 General Purpose Input/Output ................................................ 25

5.1.14 Power Control .......................................................................... 26

5.1.15 Power Management ................................................................. 28

5.2 Secondary Connector Rows C and D ....................................... 29

5.2.1 USB 3.0 .................................................................................... 29

5.2.2 HDMI ........................................................................................ 29

5.2.3 DisplayPort (DP) ....................................................................... 29

6 Additional Features ..................................................................30

6.1 congatec Board Controller (cBC) ............................................. 30

6.2 Board Information .................................................................... 30

6.3 Watchdog ................................................................................30

6.4 I2C Bus ...................................................................................... 30

6.5 Power Loss Control .................................................................. 31

6.6 Embedded BIOS ...................................................................... 31

6.6.1 CMOS Backup in Non Volatile Memory ................................... 31

6.6.2 OEM CMOS Default Settings and OEM BIOS Logo ............... 31

6.6.3 OEM BIOS Code ...................................................................... 31

6.6.4 congatec Battery Management Interface ................................ 32

6.6.5 API Support (CGOS/EAPI) ....................................................... 32

6.7 Security Features ......................................................................33

6.8 Suspend to Ram ....................................................................... 33

7 conga Tech Notes .................................................................... 34

7.1 Intel® Matrix Storage Technology ........................................... 34

7.1.1 AHCI ........................................................................................ 34

7.2 Intel® Processor Features ......................................................... 34

7.2.1 Thermal Monitor and Catastrophic Thermal Protection .......... 34

7.2.2 Processor Performance Control ............................................... 35

Page 8

7.3 Thermal Management ............................................................. 35

7.4 ACPI Suspend Modes and Resume Events .............................. 37

7.5 USB 2.0 EHCI Host Controller Support ....................................38

8 Signal Descriptions and Pinout Tables ..................................... 39

8.1 A-B Connector Signal Descriptions ......................................... 40

8.2 A-B Connector Pinout .............................................................. 51

8.3 C-D Connector Signal Descriptions ......................................... 53

8.4 C-D Connector Pinout ............................................................. 62

8.5 Boot Strap Signals ................................................................... 64

9 System Resources ....................................................................65

9.1 System Memory Map ............................................................... 65

9.2 I/O Address Assignment .......................................................... 65

9.2.1 LPC Bus .................................................................................... 66

9.3 Interrupt Request (IRQ) Lines ................................................... 67

9.4 PCI Conﬁguration Space Map ................................................. 69

9.5 PCI Interrupt Routing Map ....................................................... 70

9.6 I²C Bus ..................................................................................... 70

9.7 SM Bus ..................................................................................... 70

10 BIOS Setup Description ........................................................... 71

10.1 Entering the BIOS Setup Program. .......................................... 71

10.1.1 Boot Selection Popup .............................................................. 71

10.2 Setup Menu and Navigation .................................................... 71

10.3 Main Setup Screen ................................................................... 72

10.3.1 Intel RC Version Submenu ....................................................... 73

10.4 Advanced Setup ...................................................................... 73

10.4.1 Graphics Submenu ................................................................... 74

10.4.2 Watchdog Submenu ................................................................ 75

10.4.3 Hardware Monitoring Submenu ............................................... 77

10.4.4 PCI Submenu ........................................................................... 78

10.4.4.1 PIRQ Routing & IRQ Reservation Submenu ............................. 79

10.4.5 ACPI Submenu ......................................................................... 79

10.4.6 RTC Wake Settings Submenu .................................................. 80

10.4.7 CPU Submenu .......................................................................... 80

10.4.8 Memory Submenu ................................................................... 81

10.4.9 Chipset Submenu .................................................................... 82

10.4.9.1 IO Hub Devices Submenu ....................................................... 82

10.4.9.2 PCI Express Port Submenu ......................................................83

10.4.10 SATA Submenu ........................................................................ 84

10.4.11 iFFS Submenu .......................................................................... 85

10.4.12 USB Submenu .......................................................................... 85

10.4.13 Super I/O Submenu ................................................................. 86

10.4.14 Console Redirection Submenu ................................................87

10.4.14.1 Console Redirection Settings Submenu .................................. 87

10.4.14.2 Console Redirection Settings (EMS) Submenu ........................ 88

10.4.15 Network Stack Submenu .......................................................... 88

10.5 Boot Setup ............................................................................... 89

10.5.1 Boot Settings Conﬁguration .................................................... 89

10.5.1.1 CSM & Option ROM Parameters Submenu ............................. 91

10.6 Security Setup .......................................................................... 92

10.6.1 Security Settings ...................................................................... 92

10.6.1.1 Trusted Computing .................................................................. 92

10.6.2 Hard Disk Security .................................................................... 92

10.6.3 Save & Exit Menu ..................................................................... 93

11 Additional BIOS Features ........................................................94

11.1 Supported Flash Devices ......................................................... 94

11.2 Updating the BIOS ................................................................... 94

11.3 BIOS Security Features ............................................................94

11.4 Hard Disk Security Features ..................................................... 95

12 Industry Speciﬁcations ............................................................. 96

Page 9

List of Tables

Table 1 Feature Summary ..................................................................... 12

Table 2 Signal Tables Terminology Descriptions .................................. 39

Table 3 Intel® High Deﬁnition Audio Link Signals Descriptions ............ 40

Table 4 Gigabit Ethernet Signal Descriptions....................................... 41

Table 5 Serial ATA Signal Descriptions ................................................. 42

Table 6 PCI Express Signal Descriptions (general purpose) ................. 43

Table 7 ExpressCard Support Pins Descriptions ................................... 44

Table 8 LPC Signal Descriptions ........................................................... 44

Table 9 USB Signal Descriptions ........................................................... 45

Table 10 CRT Signal Descriptions ........................................................... 46

Table 11 LVDS Signal Descriptions ......................................................... 46

Table 12 SPI BIOS Flash Interface Signal Descriptions ........................... 47

Table 13 Miscellaneous Signal Descriptions ........................................... 48

Table 14 General Purpose I/O Signal Descriptions ................................ 48

Table 15 Power and System Management Signal Descriptions ............. 49

Table 16 General Purpose Serial Interface Signal Descriptions .............. 50

Table 17 Power and GND Signal Descriptions ....................................... 50

Table 18 Connector A-B Pinout .............................................................. 51

Table 19 PCI Express Signal Descriptions (general purpose) ................. 53

Table 20 USB Signal Descriptions ........................................................... 53

Table 21 PCI Express Signal Descriptions (x16 Graphics) ....................... 54

Table 22 DDI Signal Description ............................................................. 56

Table 23 HDMI Signal Descriptions ........................................................ 58

Table 24 DisplayPort (DP) Signal Descriptions ....................................... 59

Table 25 Module Type Deﬁnition Signal Description ............................. 61

Table 26 Power and GND Signal Descriptions ....................................... 61

Table 27 Connector C-D Pinout ............................................................. 62

Table 28 Boot Strap Signal Descriptions ................................................ 64

Table 29 Memory Map ........................................................................... 65

Table 30 IRQ Lines in PIC mode ............................................................. 67

Table 31 IRQ Lines in APIC mode .......................................................... 68

Table 32 PCI Conﬁguration Space Map ................................................. 69

Table 33 PCI Interrupt Routing Map ....................................................... 70

Page 10

1 Introduction

COM Express™ Concept

COM Express™ is an open industry standard deﬁned speciﬁcally for COMs (computer on modules). Its creation makes it possible to smoothly transition from legacy interfaces to the newest technologies available today. COM Express™ modules are available in following form factors:

• Mini 84mm x 55mm

• Compact 95mm x 95mm

• Basic 125mm x 95mm

• Extended 155mm x110mm

The COM Express™ speciﬁcation 2.1 deﬁnes seven different pinout types.

Types Connector Rows PCI Express Lanes PCI IDE Channels LAN ports USB 2.0/ USB 3.0 Display Interfaces

Type 1 A-B Up to 6 1 8 / 0 VGA, LVDS

Type 2 A-B C-D Up to 22 32 bit 1 1 8 / 0 VGA, LVDS,PEG/SDVO Type 3 A-B C-D Up to 22 32 bit 3 8 / 0 VGA,LVDS,PEG/SDVO Type 4 A-B C-D Up to 32 1 1 8 / 0 VGA,LVDS,PEG/SDVO Type 5 A-B C-D Up to 32 3 8 / 0 VGA,LVDS,PEG/SDVO Type 6 A-B C-D Up to 24 1 8 / 4 VGA,LVDS,PEG, 3x DDI Type 10 A-B Up to 4 1 8 / 0 1x DDI

The conga-TCA modules use the Type 6 pinout deﬁnition and comply with COM Express 2.1 speciﬁcation. They are equipped with two high performance connectors that ensure stable data throughput.

The COM integrates all the core components and is mounted onto an application speciﬁc carrier board. COM modules are legacy-free design (no Super I/O, PS/2 keyboard and mouse) and provide most of the functional requirements for any application. These functions include, but are not limited to, a rich complement of contemporary high bandwidth serial interfaces such as PCI Express, Serial ATA, USB 2.0, and Gigabit Ethernet. The Type 6 pinout provides the ability to offer PCI Express, Serial ATA, and LPC options thereby expanding the range of potential peripherals. The robust thermal and mechanical concept, combined with extended power-management capabilities, is perfectly suited for all applications.

Carrier board designers can use as little or as many of the I/O interfaces as deemed necessary. The carrier board can therefore provide all the interface connectors required to attach the system to the application speciﬁc peripherals. This versatility allows the designer to create a dense and optimized package, which results in a more reliable product while simplifying system integration. Most importantly, COM Express™ modules are scalable, which means once an application has been created there is the ability to diversify the product range through the use of different performance class or form factor size modules. Simply unplug one module and replace it with another; no redesign is necessary.

Page 11

conga-TCA Options Information

The conga-TCA has four variants. The table below shows the different conﬁgurations available. Check for the Part No. that applies to your product. This will tell you what options described in this user’s guide are available on your particular module.

conga-TCA Variants

Part-No. 047001 047002 047003 047004

Processor Intel® Atom™ N2600

Dual Core 1.60 GHz

Intel® Atom™ N2800 Dual Core 1.86 GHz

Intel® Atom™ D2550 Dual Core 1.86 GHz

Intel® Atom™ D2550 (USB 3.0) Dual Core 1.86 GHz

L2 Cache 1 MByte 1 MByte 1 MByte 1 MByte

Max. Memory (DDR3) 2GB, 800 MT/s 4GB, 1066 MT/s 4GB, 1066 MT/s 4GB, 1066 MT/s

PEG No No No No

SDVO No No No No

DisplayPort (DP) Yes Yes Ye s Yes

HDMI Yes Yes Ye s Yes

Processor TDP 3.5 W 6.5 W 10 W 10 W

Page 12

2 Speciﬁcations

2.1 Feature List

Table 1 Feature Summary

Form Factor

Based on COM Express™ standard pinout Type 6 Rev. 2.1 (Compact size 95 x 95mm)

Processor

Intel® Atom™ N2600 Dual Core 1.60 GHz 1-MByte L2 Cache Intel® Atom™ N2800 Dual Core 1.86 GHz 1-MByte L2 Cache Intel® Atom™ D2550 Dual Core 1.86 GHz 1-MByte L2 Cache Intel® Atom™ D2550 (USB 3.0) Dual Core 1.86 GHz 1-MByte L2 Cache

Memory

One memory socket. Supports

- SO-DIMM DDR3 modules

- Data rates up to 1066 MT/s (up to 800 MT/s for N2600 CPUs)

- Maximum 4 GB capacity (maximum 2 GB for N2600 CPUs)

Chipset

Intel® NM10 Express Chipset: Intel

CG82NM10 PCH

Audio

HDA (High Deﬁnition Audio)/digital audio interface with support for multiple codecs

Ethernet

Gigabit Ethernet: Realtek 8111E

Graphics Options

Integrated graphics with OpenGL 3.0 and DirectX9 support. Two independent pipelines for full dual view support.

1x VGA 1x LVDS

2x DDIs (Digital Display Interfaces) with support for:

- 2x DisplayPort 1.1

- 2x HDMI

- 2x DVI

Peripheral Interfaces

2x Serial ATA® II, with up to 3 Gb/s data transfer rate. 8x USB 2.0 (UHCI and EHCI) Up to 5 PCI Express® Lanes if the optional USB 3.0 is not implemented. Each root port supports full 2.5 Gb/s bandwidth in each direction per x1 link

2x USB 3.0 LPC Bus I²C Bus, Fast Mode, multimaster SM Bus

BIOS

AMI Aptio

UEFI 2.x ﬁrmware, 4MByte serial SPI with congatec Embedded BIOS features

Power Management

ACPI 3.0 compliant with battery support. Also supports Suspend to RAM (S3).

Note

Some of the features mentioned in the above Feature Summary are optional. Check the article number of your module and compare it to the option information list on page 11 of this user’s guide to determine what options are available on your particular module.

Page 13

2.2 Supported Operating Systems

The conga-TCA supports the following operating systems.

• Microsoft® Windows® 8 (32 bit)

• Microsoft® Windows® 7

• Microsoft® Windows® XP

• Microsoft® Windows® Embedded Standard

• Linux

Note

The graphics driver for Microsoft® Windows® 8 (32 bit) works with limited capability. Unfortunately, Intel® does not provide Windows® 8 (32 bit) graphics and network drivers.

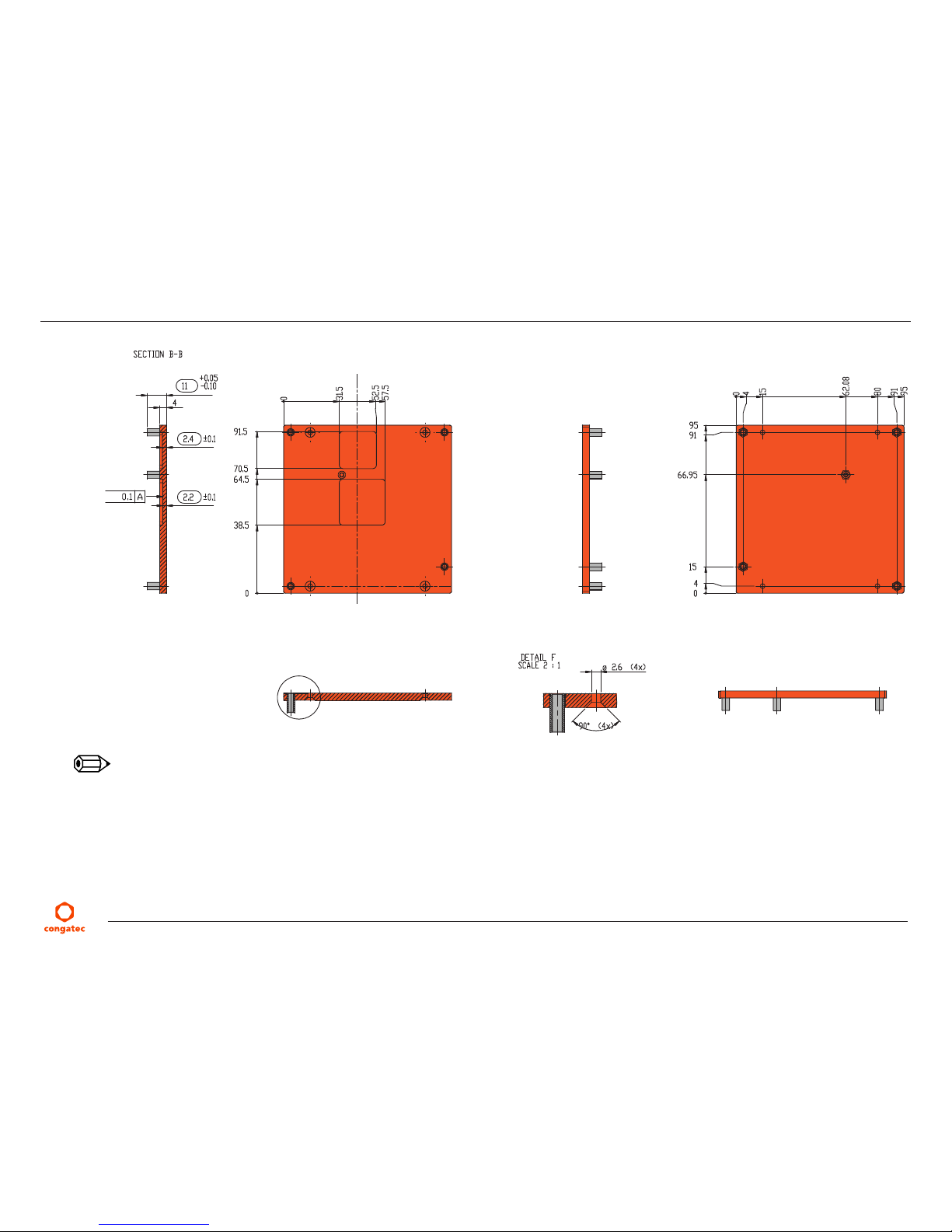

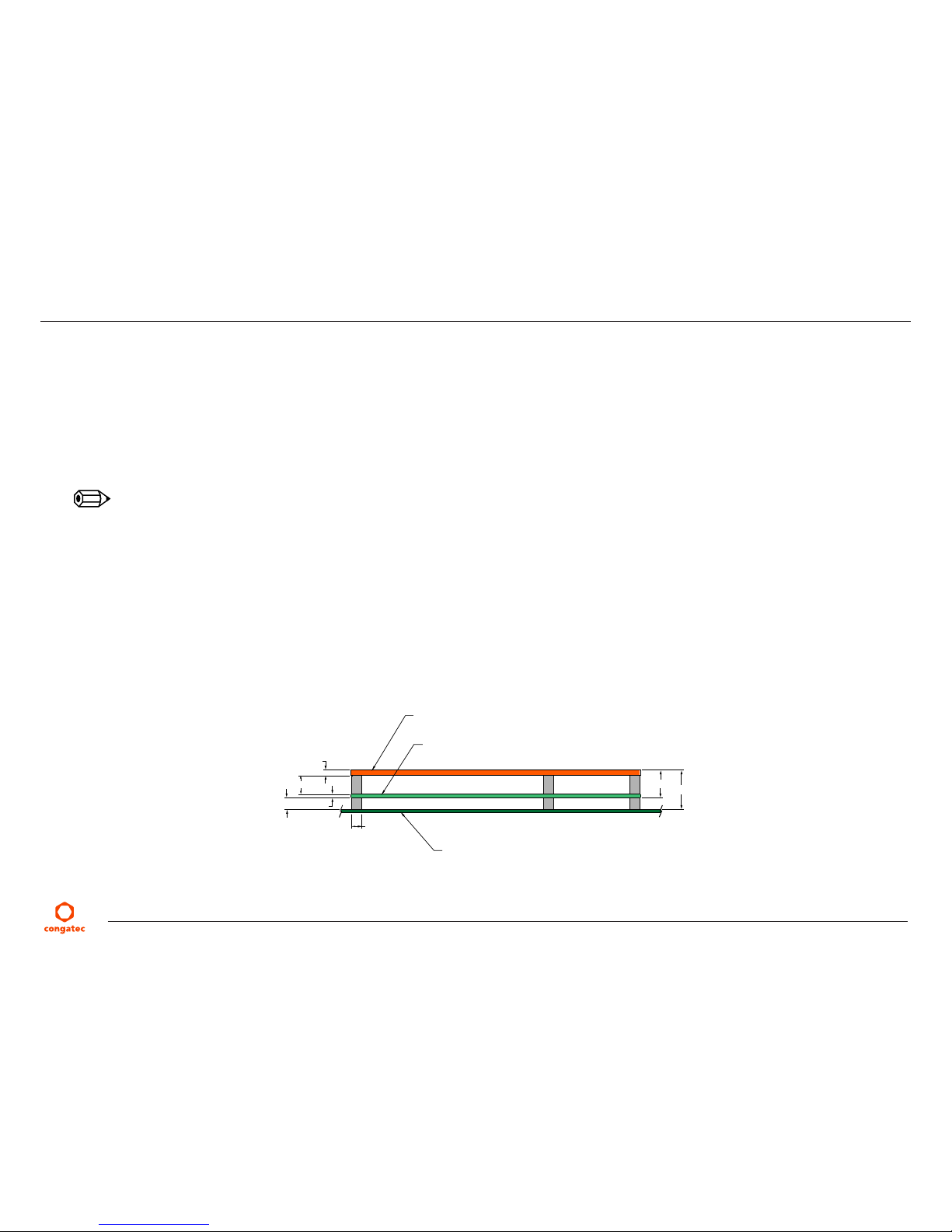

2.3 Mechanical Dimensions

• 95.0 mm x 95.0 mm (3.75” x 3.75”)

• Height approximately 18 or 21mm (including heatspreader) depending on the carrier board connector that is used. If the 5mm (height) carrier board connector is used then approximate overall height is 18mm. If the 8mm (height) carrier board connector is used then approximate overall height is 21mm.

4.00

Heatspreader

Module PCB

Carrier Board PCB

7.00

5.00

2.00

4.50

13.00

18.00

Page 14

2.4 Supply Voltage Standard Power

• 12V DC ± 5%

The dynamic range shall not exceed the static range.

2.4.1 Electrical Characteristics

Power supply pins on the module’s connectors limit the amount of input power. The following table provides an overview of the limitations for pinout Type 6 (dual connector, 440 pins).

Power Rail Module Pin

Current Capability (Amps)

Nominal Input (Volts)

Input Range (Volts)

Derated Input (Volts)

Max. Input Ripple (10Hz to 20MHz) (mV)

Max. Module Input Power (w. derated input) (Watts)

Assumed Conversion Efﬁciency

Max. Load Power (Watts)

VCC_12V 12 12 11.4-12.6 11.4 +/- 100 137 85% 116

VCC_5V-SBY 2 5 4.75-5.25 4.75 +/- 50 9

VCC_RTC 0.5 3 2.0-3.3 +/- 20

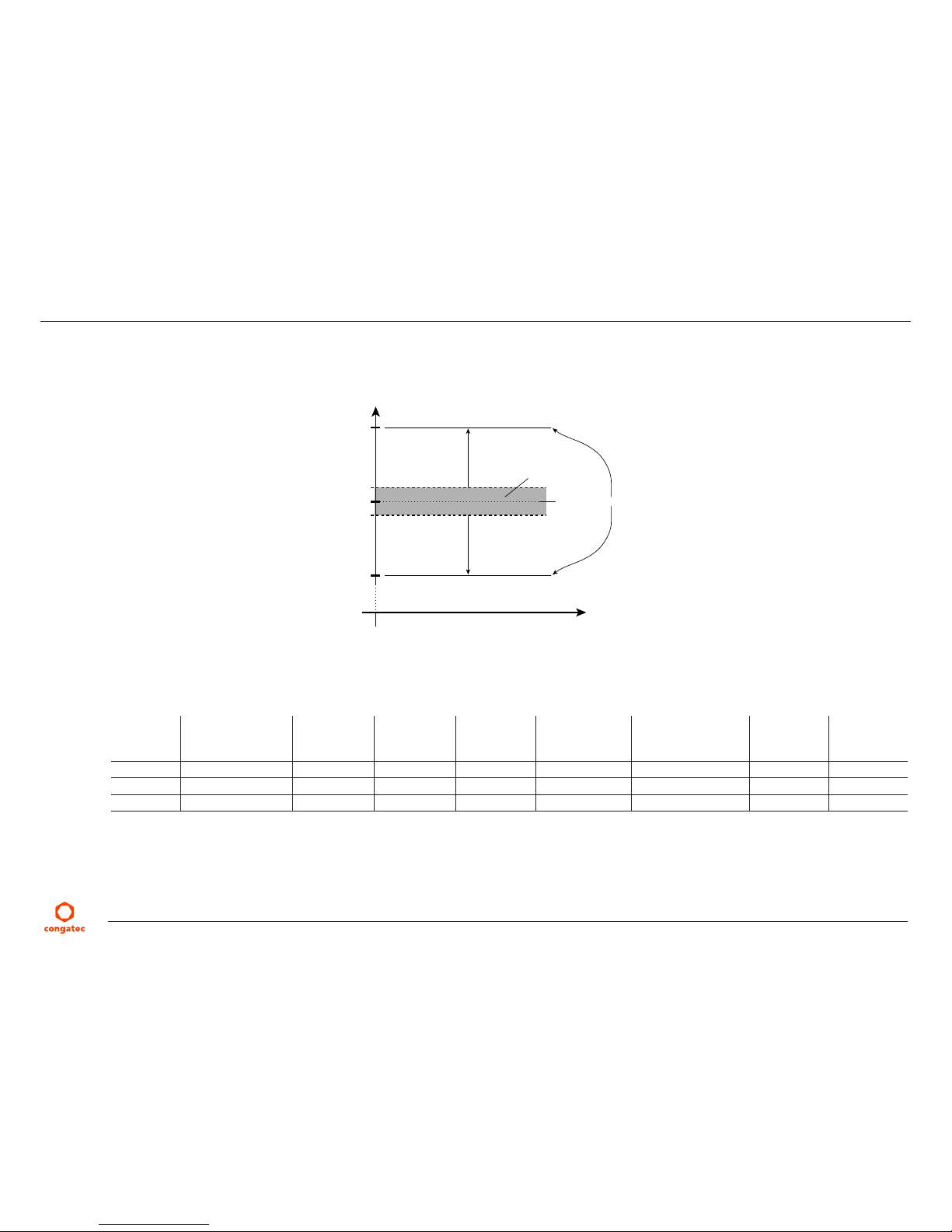

2.4.2 Rise Time

The input voltages shall rise from 10% of nominal to 90% of nominal at a minimum rise time of 250V/s. The smooth turn-on requires that, during the 10% to 90% portion of the rise time, the slope of the turn-on waveform must be positive.

Nominal Static Range

Dynamic Range

Absolute Minimum

Absolute Maximum12.60V

11.40V

12V

12.10V

11.90V

Page 15

2.5 Power Consumption

The power consumption values listed in this document were measured under a controlled environment. The hardware used for testing includes a conga-TCA module, conga-Cdebug carrier board, CRT monitor, SATA drive, and USB keyboard. The conga-Cdebug is modiﬁed so that the 12V input is only routed to the module and all other circuity on the carrier itself is powered by the 5V input. The SATA drive was powered externally by an ATX power supply so that it does not inﬂuence the power consumption value that is measured for the module. The USB keyboard was detached once the module was conﬁgured within the OS. All recorded values were averaged over a 30 second time period. Cooling of the module was done by the module speciﬁc heatspreader and a fan cooled heatsink to measure the power consumption under normal thermal conditions.

The conga-Cdebug originally does not provide 5V standby power. Therefore, an extra 5V_SB connection without any external loads was made. Using this setup, the power consumption of the module in S3 (Standby) mode was measured directly.

Each module was measured while running Windows 7 Professional 32Bit, Hyper Threading enabled, Speed Step enabled and Power Plan set to “Power Saver”. This setting ensures that Core™ processors run in LFM (lowest frequency mode) with minimal core voltage during desktop idle. Each module was tested while using a 1GB memory modules. Using different sizes of RAM will cause slight variances in the measured results.

To measure the worst case power consumption the cooling solution was removed and the CPU core temperature was allowed to run up to between 95° and 100°C while running 100% workload with the Power Plan set to “Balanced”. The peak current value was then recorded. This value should be taken into consideration when designing the system’s power supply to ensure that the power supply is sufﬁcient during worst case scenarios.

Power consumption values were recorded during the following stages:

Windows 7 (32 bit)

• Desktop Idle (power plan = Power Saver)

• 100% CPU workload (see note below, power plan = Power Saver)

• 100% CPU workload at approximately 100°C peak power consumption (power plan = Balanced)

• Suspend to RAM. Supply power for S3 mode is 5V.

Note

A software tool was used to stress the CPU to maximum frequency.

Page 16

Processor Information

The tables below provide additional information about the power consumption data for each of the conga-TCA variants offered. The values are recorded at various operating mode.

2.5.1 conga-TCA Intel® Atom™ N2600 Dual Core 1.6 GHz 1MB Cache

conga-TCA Art. No. 047001 Intel® Atom™ N2800 1.86 GHz 1MB L2 Cache 32nm

Layout Rev. TCEDLA0 /BIOS Rev. TCEDR00

Max Turbo Frequency

Not supported

Memory Size

1GB

Operating System

Windows 7 (32 bit)

Power State

Desktop Idle 100% workload 100% workload approx.

100°C CPU temp (peak)

Suspend to Ram (S3) 5V Input Power

Power consumption

0.46 A/5.5 W (12V) 0.66 A/7.9 W (12V) 0.68 A/8.2 W (12V) 0.1 A/0.5 W (5V)

2.5.2 conga-TCA Intel® Atom™ N2800 Dual Core 1.86 GHz 1MB Cache

conga-TCA Art. No. 047002

Intel

Atom™ N2800 1.86 GHz 1MB L2 Cache 32nm

Layout Rev. TCEDLA0 /BIOS Rev. TCEDR006

Max Turbo Frequency

Not supported

Memory Size

1GB

Operating System

Windows 7 (32 bit)

Power State

Desktop Idle 100% workload 100% workload approx.

100°C CPU temp (peak)

Suspend to Ram (S3) 5V Input Power

Power consumption

0.57 A/6.8 W (12V) 0.83 A/9.9 W (12V) 1.03 A/12.3 W (12V) 0.1 A/0.5 W (5V)

Page 17

2.5.3 conga-TCA Intel® Atom™ D2550 Dual Core 1.86 GHz 1MB Cache

conga-TCA Art. No. 047003 Intel® Atom™ D2550 1.86 GHz 1MB L2 Cache 32nm

Layout Rev. TCEDLA0 /BIOS Rev. TCEDR006

Max Turbo Frequency Not supported

Memory Size 1GB

Operating System Windows 7 (32 bit)

Power State Desktop Idle 100% workload 100% workload approx.

100°C CPU temp (peak)

Suspend to Ram (S3) 5V Input Power

Power consumption 0.67 A/8.0 W (12V) 0.97 A/11.6 W (12V) 1.07 A/12.8 W (12V) 0.1 A/0.5 W (5V)

2.5.4 conga-TCA Intel® Atom™ D2550 (USB 3.0) Dual Core 1.86 GHz 1MB Cache

conga-TS67 Art. No. 047004 Intel® Atom™ D2550 1.86 GHz 1MB L2 Cache 32nm

Layout Rev. TCEDLA0 /BIOS Rev. TCEDR006

Max Turbo Frequency Not supported

Memory Size 1GB

Operating System Windows 7 (32 bit)

Power State Desktop Idle 100% workload 100% workload approx.

100°C CPU temp (peak)

Suspend to Ram (S3) 5V Input Power

Power consumption 0.7 A/8.4 W (12V) 1.0 A/11.9 W (12V) 1.2 A/14.6 W (12V) 0.1 A/0.5 W (5V)

Note

All recorded power consumption values are approximate and only valid for the controlled environment described earlier. 100% workload refers to the CPU workload and not the maximum workload of the complete module. Supply power for S3 mode is 5V while all other measured modes are supplied with 12V power. Power consumption results will vary depending on the workload of other components such as graphics engine, memory, etc.

Page 18

2.6 Supply Voltage Battery Power

• 2.0V-3.5V DC

• Typical 3V DC

2.6.1 CMOS Battery Power Consumption

RTC @ 20ºC Voltage Current

Integrated in the Intel® CG82NM10 PCH 3V DC 3.51 µA

The CMOS battery power consumption value listed above should not be used to calculate CMOS battery lifetime. You should measure the CMOS battery power consumption in your customer speciﬁc application in worst case conditions, for example during high temperature and high battery voltage. The self-discharge of the battery must also be considered when determining CMOS battery lifetime. For more information about calculating CMOS battery lifetime refer to application note AN9_RTC_Battery_Lifetime.pdf, which can be found on the congatec AG website at www.congatec.com.

2.7 Environmental Speciﬁcations

Temperature Operation: 0° to 60°C Storage: -20° to +80°C

Humidity Operation: 10% to 90% Storage: 5% to 95%

Caution

The above operating temperatures must be strictly adhered to at all times. When using a congatec heatspreader, the maximum operating temperature refers to any measurable spot on the heatspreader’s surface.

Humidity speciﬁcations are for non-condensing conditions.

Page 19

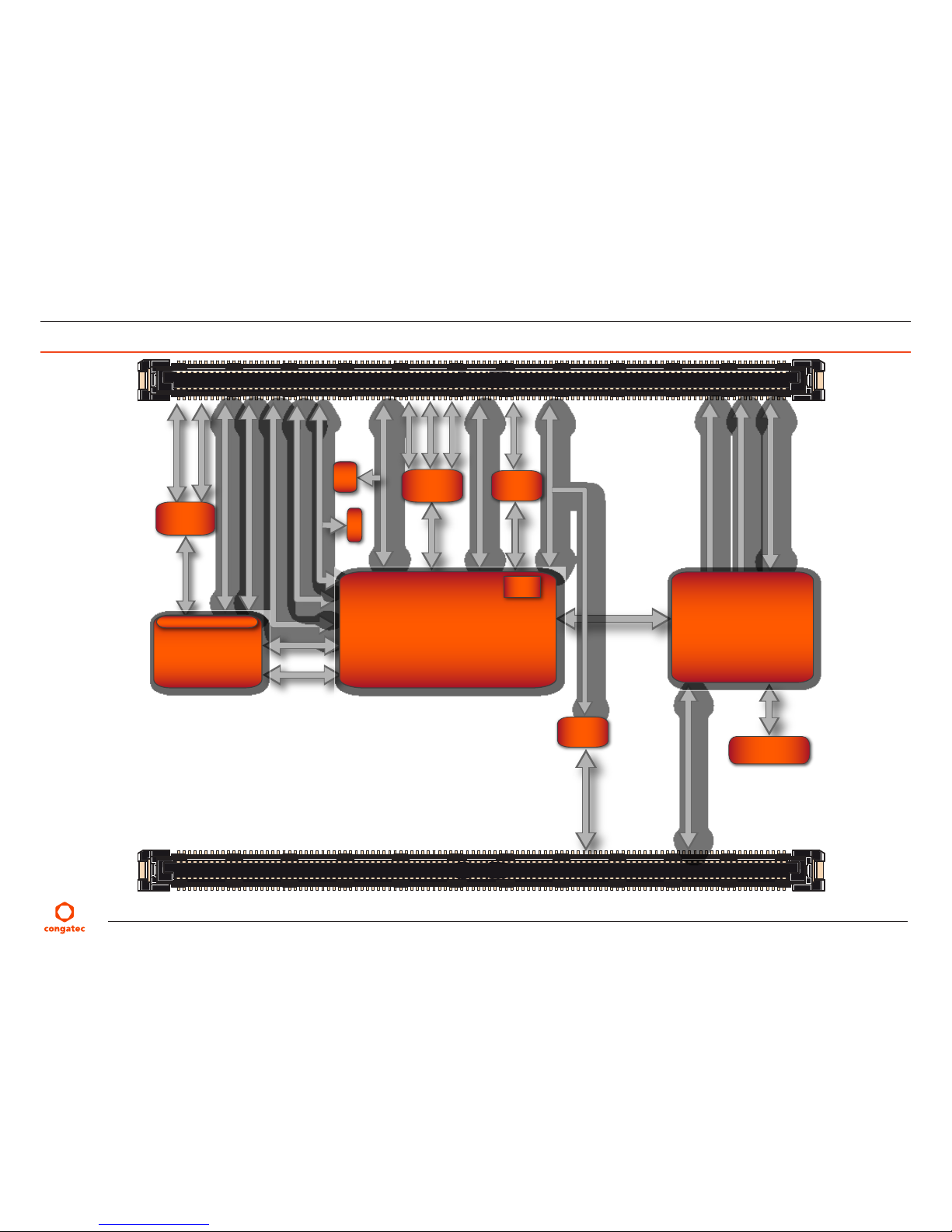

3 Block Diagram

C-D

A-B

PCIe GBE

RTL8111E

PCIe

Switch

Hardware

Monitoring

PCIe2USB3

Intel® NM10

Express Chipset

CG82NM10 PCH

congatec

Board Controller

STM32F100R8

Watchdog

TPM

Intel® Atom™

Processor

N2800 N2600 D2550

DDR3-SODIMM

max. 4 GByte

BIOS

(Flash)

RTC

2x SATA II

8x USB 2.0

HDA

PCIe x1

Gbit Ethernet

Fan Control

SM Bus

SPI

LPC

DMI

x2 (N2000) x4 (D2000)

SM Bus

Memory Types (up to 1066MTs)

GPIs/GPOs

2x DP or HDMI

LVDS

2x USB 3.0

optional

CRT

GPIs/GPOs

I²C

PCIe x1

If No USB 3.0

PCIe x1

Page 20

4 Heatspreader

The heatspreader is thermally coupled to the CPU via a thermal gap ﬁller and on some modules it may also be thermally coupled to other heat generating components with the use of additional thermal gap ﬁllers. Although the heatspreader is the thermal interface where most of the heat generated by the module is dissipated, it is not to be considered as a heatsink. It has been designed as a thermal interface between the module and the application speciﬁc thermal solution.

The application speciﬁc thermal solution may use heatsinks with fans, and/or heat pipes, which can be attached to the heatspreader. Some thermal solutions may also require that the heatspreader is attached directly to the systems chassis thereby using the whole chassis as a heat dissipater.

For additional information about the conga-TCA heatspreader, refer to section 4.1 of this document.

Caution

The congatec heatspreaders/cooling solutions are tested only within the commercial temperature range of 0° to 60°C. Therefore, if your application that features a congatec heatspreader/cooling solution operates outside this temperature range, ensure the correct operating temperature of the module is maintained at all times. This may require additional cooling components for your ﬁnal application’s thermal solution.

For adequate heat dissipation, use the mounting holes on the cooling solution to attach it to the module. Apply thread-locking ﬂuid on the screws if the cooling solution is used in a high shock and/or vibration environment. To prevent the standoff from stripping or cross-threading, use non-threaded carrier board standoffs to mount threaded cooling solutions.

For applications that require vertically-mounted cooling solution, use only coolers that secure the thermal stacks with ﬁxing post. Without the ﬁxing post feature, the thermal stacks may move.

Also, do not exceed the maximum torque speciﬁed for the cooling solution screws. Doing so may damage the module or/and the carrier board.

Caution

Provide active airﬂow for the cooling ﬁns of the conga-TCA/CSP-T(B) when you use the cooler on variants with PN: 047003 or PN: 047004. The cooler cannot dissipate the heat generated by these modules without an active airﬂow.

Page 21

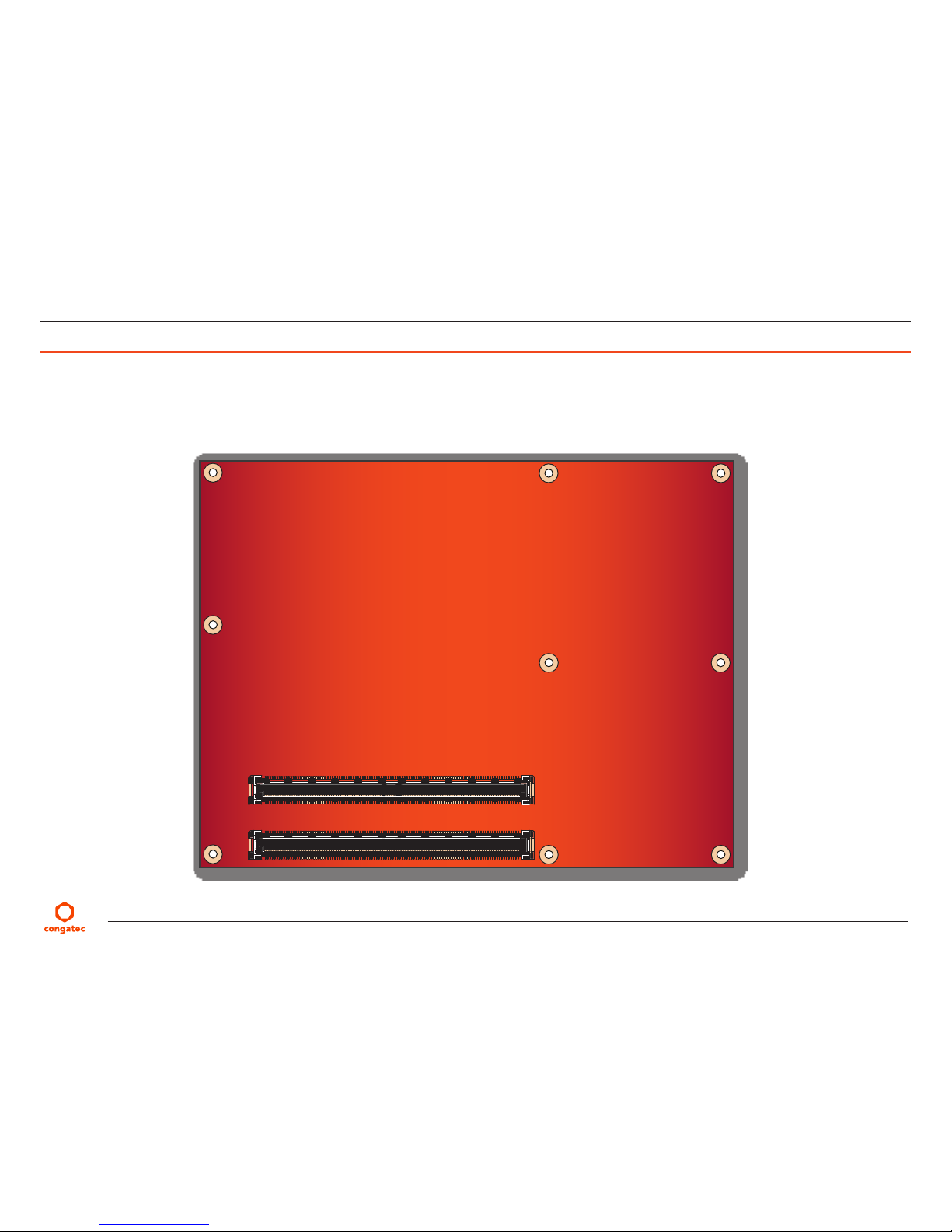

4.1 Heatspreader Dimensions

Note

All measurements are in millimeters. Torque speciﬁcation for heatspreader screws is 0.3 Nm. Mechanical system assembly mounting shall follow the valid DIN/IS0 speciﬁcations.

Page 22

5 Connector Subsystems Rows A, B, C, D

The conga-TCA is connected to the carrier board via two 220-pin connectors (COM Express Type 6 pinout) for a total of 440 pins connectivity. These connectors are broken down into four rows. The primary connector consists of rows A and B while the secondary connector consists of rows C and D.

In this view the connectors are seen “through” the module.

top view

A-B

5 PCI Express Lanes

(only 4 when USB 3.0 option present)

General Purpose I/Os

2x Serial ATA II

8x USB 2.0

High Definition Audio I/F

Gigabit Ethernet

(connected via a x1 PCI Express Link)

SM Bus

I²C Bus Fast Mode

VGA (CRT)

LVDS

LPC Bus

Power Control/Management

Fan Control

SPI

C-D

2x HDMI/DVI

(Routed to DDI interface at connector)

2x DisplayPort (DP)

(Routed to DDI interface at connector)

2x USB 3.0

(optional via a x1 PCI Express Link)

C-D

A-B

Page 23

5.1 Primary Connector Rows A and B

The following subsystems can be found on the primary connector rows A and B.

5.1.1 Serial ATA™ (SATA)

Two Serial ATA connections are provided via the Intel® CG82NM10 (NM10) PCH. These SATA ports are capable of up to 3.0 Gb/s transfer rate. The conga-TCA provides 2 SATA ports externally.

5.1.2 USB 2.0

The conga-TCA offers one EHCI USB host controller that supports USB high speed signalling and four UHCI host controllers that supports both low and full speed signalling through Intel® CG82NM10 (NM10) PCH. These controllers comply with USB standard 1.1 and 2.0 and offer a total of 8 USB ports via connector rows A and B. Each port is capable of supporting USB 1.1 and 2.0 compliant devices. For more information about how the USB host controllers are routed, see section 7.5.

5.1.3 High Deﬁnition Audio (HDA) Interface

The conga-TCA provides an interface that supports the connection of HDA audio codecs.

5.1.4 Gigabit Ethernet

The conga-TCA offers Gigabit Ethernet with the integration of Realtek RTL8111E Gigabit Ethernet Controller. This controller is implemented through the use of one PCI Express lane, and runs at a 1.25GHz signalling rate with x1 link width. The Ethernet interface consists of 4 pairs of low voltage differential pair signals designated from MDI0± to MDI3± plus three LED signals for link activity indicators. These signals can be used to connect to a 10/100/1000 BaseT RJ45 connector with integrated or external isolation magnetics on the carrier board.

Note

The GBE0_LINK# output is only active during a 100Mbit or 1Gbit connection, it is not active during a 10Mbit connection. This is a limitation of Ethernet controller since it only has 3 LED outputs, ACT#, LINK100# and LINK1000#. The GBE0_LINK# signal is a logic AND of the GBE0_LINK100# and GBE0_LINK1000# signals on the conga-TCA module.

Page 24

5.1.5 LPC Bus

conga-TCA offers the LPC (Low Pin Count) bus through the use of the Intel® CG82NM10 (NM10) PCH. There are many devices available for this Intel® deﬁned bus. The LPC bus corresponds approximately to a serialized ISA bus yet with a signiﬁcantly reduced number of signals. Due to the software compatibility to the ISA bus, I/O extensions such as additional serial ports can be easily implemented on an application speciﬁc baseboard using this bus. See section 9.2.1 for more information about the LPC Bus.

5.1.6 I²C Bus Fast mode

The I²C bus is implemented through the congatec board controller (STMicroelectronics STM32). It provides a Fast Mode multi-master I²C Bus that has maximum I²C bandwidth.

5.1.7 PCI Express™

The Intel® CG82NM10 (NM10) PCH chipset featured on the conga-TCA offers four PCI Express™ lanes. Through the use of a PCIe switch, the conga-TCA provides up to ﬁve external PCI Express™ lanes if the optional USB 3.0 is not implemented. The Gen1 PCI Express™ interface offers support for full 2.5 Gb/s bandwidth in each direction per x1 link. The conga-TCA also has a sixth PCI Express™ lane that is utilized by the onboard Gigabit Ethernet interface and therefore not available externally.

The ﬁve external PCI Express™ lanes are available on the A,B connector row. The PCI Express interface is based on the PCI Express Speciﬁcation

1.0a (Gen 1 supporting up to 2.5 Gb/s transfer rate).

5.1.8 ExpressCard™

The conga-TCA supports the implementation of ExpressCards, which requires the dedication of one USB port and a x1 PCI Express link for each ExpressCard used.

5.1.9 Graphics Output (VGA/CRT)

The conga-TCA offers a VGA interface on the A-B connector. The interface supports up to 1920x1200 resolution at 60 Hz.

Page 25

5.1.10 LCD

The conga-TCA offers an LVDS interface on the AB connector. The interface supports:

• single channel LVDS with color depths of 18 bpp (D2000/N2000 series) or 24 bpp (D2000 series only)

• integrated ﬂat panel interface with clock frequency up to 112 MHz

• VESA and OpenLDI LVDS color mappings

• automatic panel detection via Embedded Panel Interface based on VESA EDIDTM 1.3

• resolution up to 1366x768 for 18 bpp and up to 1440x900 for 24 bpp

5.1.11 SPI

A SPI interface that supports booting from an external SPI ﬂash is available on the conga-TCA via the Intel® CG82NM10 (NM10) PCH . The Intel® CG82NM10 (NM10) PCH implements a SPI interface as an alternative interface for the BIOS ﬂash device. A SPI ﬂash device can be used as a replacement for the Firmware Hub

5.1.12 General Purpose Serial Interface

Two TTL compatible two wire ports are available on Type 6 COM Express modules. These pins are designated SER0_TX, SER0_RX, SER1_TX and SER1_RX. Data out of the module is on the _TX pins. Hardware handshaking and hardware ﬂow control are not supported. The module asynchronous serial ports are intended for general purpose use and for use with debugging software that make use of the “console redirect” features available in many operating systems.

Note

The General Purpose Serial Interface is not supported on the conga-TCA module.

5.1.13 General Purpose Input/Output

The conga-TCA provides various general purpose inputs and outputs for custom system design. These GPIOs are provided via Intel® CG82NM10 (NM10) and routed to the A,B connector through the congatec Board Controller (STM32F100R8).

Page 26

5.1.14 Power Control

PWR_OK

Power OK from main power supply or carrier board voltage regulator circuitry. A high value indicates that the power is good and the module can start its onboard power sequencing. Carrier board hardware must drive this signal low until all power rails and clocks are stable. Releasing PWR_OK too early or not driving it low at all can cause numerous boot up problems. It is a good design practice to delay the PWR_OK signal a little (typically 100ms) after all carrier board power rails are up, to ensure a stable system. See screenshot below.

Note

The module is kept in reset as long as the PWR_OK is driven by carrier board hardware.

Page 27

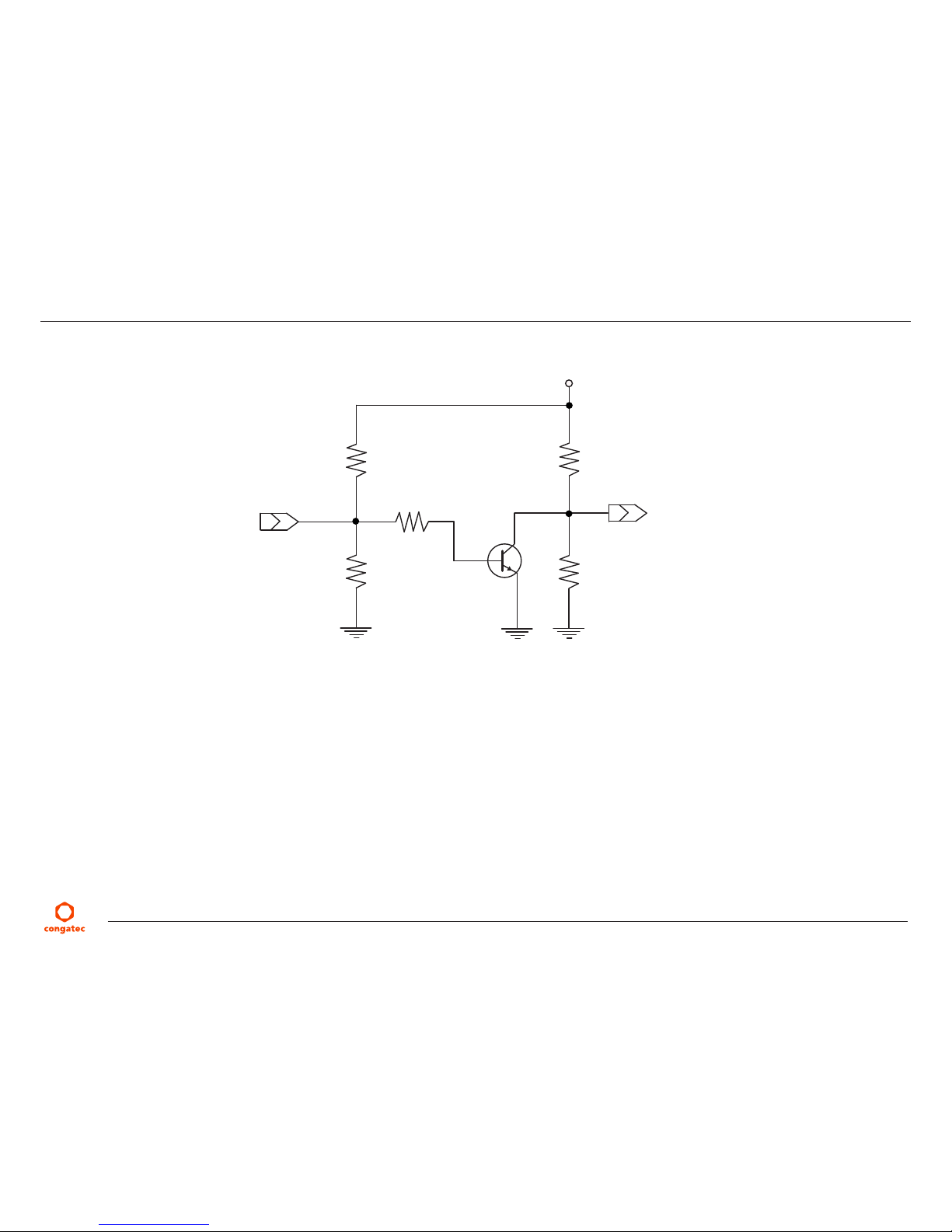

The conga-TCA PWR_OK input circuitry is implemented as shown below:

The voltage divider ensures that the input complies with 3.3V CMOS characteristic and also allows for carrier board designs that are not driving PWR_OK. Although the PWR_OK input is not mandatory for the onboard power-up sequencing, it is strongly recommended that the carrier board hardware drives the signal low until it is safe to let the module boot-up.

When considering the above shown voltage divider circuitry and the transistor stage, the voltage measured at the PWR_OK input pin may be only around 0.8V when the 12V is applied to the module. Actively driving PWR_OK high is compliant to the COM Express speciﬁcation but this can cause back driving. Therefore, congatec recommends driving the PWR_OK low to keep the module in reset and tri-state PWR_OK when the carrier board hardware is ready to boot.

The three typical usage scenarios for a carrier board design are:

• Connect PWR_OK to the “power good” signal of an ATX type power supply.

• Connect PWR_OK to the last voltage regulator in the chain on the carrier board.

• Simply pull PWR_OK with a 1k resistor to the carrier board 3.3V power rail.

With this solution, it must be ensured that by the time the 3.3V is up, all carrier board hardware is fully powered and all clocks are stable.

To Module Power Logic

PWR_OK

R5 R1%47k5S02

TB TBC847

R4 R1%100kS02

+V12.0_S0

R13 R1%1k00S02

R1%47k5S02

R1%20k0S02

Page 28

The conga-TCA provides support for controlling ATX-style power supplies. When not using an ATX power supply then the conga-TCA’s pins SUS_S3/PS_ON, 5V_SB, and PWRBTN# should be left unconnected.

SUS_S3#/PS_ON#

The SUS_S3#/PS_ON# (pin A15 on the A-B connector) signal is an active-low output that can be used to turn on the main outputs of an ATXstyle power supply. In order to accomplish this the signal must be inverted with an inverter/transistor that is supplied by standby voltage and is located on the carrier board.

PWRBTN#

When using ATX-style power supplies PWRBTN# (pin B12 on the A-B connector) is used to connect to a momentary-contact, active-low debounced push-button input while the other terminal on the push-button must be connected to ground. This signal is internally pulled up to 3V_SB using a 10k resistor. When PWRBTN# is asserted it indicates that an operator wants to turn the power on or off. The response to this signal from the system may vary as a result of modiﬁcations made in BIOS settings or by system software.

Power Supply Implementation Guidelines

12 volt input power is the sole operational power source for the conga-TCA. The remaining necessary voltages are internally generated on the module using onboard voltage regulators. A carrier board designer should be aware of the following important information when designing a power supply for a conga-TCA application:

• It has also been noticed that on some occasions, problems occur when using a 12V power supply that produces non monotonic voltage when powered up. The problem is that some internal circuits on the module (e.g. clock-generator chips) will generate their own reset signals when the supply voltage exceeds a certain voltage threshold. A voltage dip after passing this threshold may lead to these circuits becoming confused resulting in a malfunction. It must be mentioned that this problem is quite rare but has been observed in some mobile power supply applications. The best way to ensure that this problem is not encountered is to observe the power supply rise waveform through the use of an oscilloscope to determine if the rise is indeed monotonic and does not have any dips. This should be done during the power supply qualiﬁcation phase therefore ensuring that the above mentioned problem doesn’t arise in the application. For more information about this issue visit www.formfactors.org and view page 25 ﬁgure 7 of the document “ATX12V Power Supply Design Guide V2.2”.

5.1.15 Power Management

ACPI 3.0 compliant with battery support. Also supports Suspend to RAM (S3).

Page 29

5.2 Secondary Connector Rows C and D

The following subsystems can be found on the secondary connector rows C and D.

5.2.1 USB 3.0

The conga-TCA offers two USB 3.0 ports with the integration of a USB 3.0 xHCI compliant host controller (Texas Instrument TUSB7320). This controller is implemented through the use of one PCI Express™ lane and provides SuperSpeed, high-speed, full-speed and low-speed trafﬁc on the bus.

Note

The USB 3.0 is an optional feature.

5.2.2 HDMI

The Intel® Atom™ D2000/N2000 series processors on the conga-TCA supports integrated HDMI, which is multiplexed onto the Digital Display Interface (DDI) of the COM Express connector. The processor provides two ports capable of supporting HDMI. See section 8.5 of this document for more information about enabling HDMI peripherals.

5.2.3 DisplayPort (DP)

The conga-TCA offers two DP ports, each capable of supporting link-speeds of 1.62 Gbps and 2.7 Gbps on 1, 2 or 4 data lanes. The DP is multiplexed onto the Digital Display Interface (DDI) of the COM Express connector. The DisplayPort speciﬁcation is a VESA standard aimed at consolidating internal and external connection methods to reduce device complexity, supporting key cross industry applications, and providing performance scalability to enable the next generation of displays. The Intel® Atom™ D2000/N2000 series processors can support a maximum of 2 DP ports simultaneously. See section 8.5 of this document for more information about enabling DisplayPort peripherals.

Page 30

6 Additional Features

6.1 congatec Board Controller (cBC)

The conga-TCA is equipped with a STMicroelectronics STM32 microcontroller. This onboard microcontroller plays an important role for most of the congatec embedded/industrial PC features. It fully isolates some of the embedded features such as system monitoring or the I²C bus from the x86 core architecture, which results in higher embedded feature performance and more reliability, even when the x86 processor is in a low power mode. It also ensures that the congatec embedded feature set is fully compatible amongst all congatec modules.

6.2 Board Information

The cBC provides a rich data-set of manufacturing and board information such as serial number, EAN number, hardware and ﬁrmware revisions, and so on. It also keeps track of dynamically changing data like runtime meter and boot counter.

6.3 Watchdog

The conga-TCA is equipped with a multi stage watchdog solution that is triggered by software. The COM Express™ Speciﬁcation does not provide support for external hardware triggering of the Watchdog, which means the conga-TCA does not support external hardware triggering. For more information about the Watchdog feature see the BIOS setup description section 10.4.2 of this document and application note AN3_Watchdog.pdf on the congatec AG website at www.congatec.com.

Note

The conga-TCA module does not support the watchdog NMI mode. COM Express type 6 modules do not support the PCI bus and therefore the PCI_SERR# signal is not available. There is no way to drive a NMI to the processor without the presence of the PCI_SERR# PCI bus signal.

6.4 I2C Bus

The conga-TCA offers support for the frequently used I2C bus. Thanks to the I2C host controller in the cBC the I2C bus is multimaster capable and runs at fast mode.

Page 31

6.5 Power Loss Control

The cBC has full control of the power-up of the module and therefore can be used to specify the behaviour of the system after a AC power loss condition. Supported modes are “Always On”, “Remain Off” and “Last State”.

6.6 Embedded BIOS

The conga-TCA is equipped with congatec Embedded BIOS, which is based on American Megatrends Inc. Aptio UEFI ﬁrmware. These are the most important embedded PC features:

6.6.1 CMOS Backup in Non Volatile Memory

A copy of the CMOS memory (SRAM) is stored in the BIOS ﬂash device. This prevents the system from not booting up with the correct system conﬁguration if the backup battery (RTC battery) has failed. Additionally, it provides the ability to create systems that do not require a CMOS backup battery.

6.6.2 OEM CMOS Default Settings and OEM BIOS Logo

This feature allows system designers to create and store their own CMOS default conﬁguration and BIOS logo (splash screen) within the BIOS ﬂash device. Customized BIOS development by congatec for these changes is no longer necessary because customers can easily do these changes by themselves using the congatec system utility CGUITL.

6.6.3 OEM BIOS Code

With the congatec embedded BIOS it is even possible for system designers to add their own code to the BIOS POST process. Except for custom speciﬁc code, this feature can also be used to support Win XP SLP installation, Window 7 SLIC table, verb tables for HDA codecs, rare graphic modes and Super I/O controllers.

For more information about customizing the congatec embedded BIOS refer to the congatec System Utility user’s guide, which is called CGUTLm1x.pdf and can be found on the congatec AG website at www.congatec.com or contact congatec technical support.

Page 32

6.6.4 congatec Battery Management Interface

In order to facilitate the development of battery powered mobile systems based on embedded modules, congatec AG has deﬁned an interface for the exchange of data between a CPU module (using an ACPI operating system) and a Smart Battery system. A system developed according to the congatec Battery Management Interface Speciﬁcation can provide the battery management functions supported by an ACPI capable operating system (e.g. charge state of the battery, information about the battery, alarms/events for certain battery states, ...) without the need for any additional modiﬁcations to the system BIOS.

The conga-TCA BIOS fully supports this interface. For more information about this subject visit the congatec website and view the following documents:

• congatec Battery Management Interface Speciﬁcation

• Battery System Design Guide

• conga-SBM3 User’s Guide

6.6.5 API Support (CGOS/EAPI)

In order to beneﬁt from the above mentioned non-industry standard feature set, congatec provides an API that allows application software developers to easily integrate all these features into their code. The CGOS API (congatec Operating System Application Programming Interface) is the congatec proprietary API that is available for all commonly used Operating Systems such as Win32, Win64, Win CE, Linux. The architecture of the CGOS API driver provides the ability to write application software that runs unmodiﬁed on all congatec CPU modules. All the hardware related code is contained within the congatec embedded BIOS on the module. See section 1.1 of the CGOS API software developers guide, which is available on the congatec website .

Other COM (Computer on Modules) vendors offer similar driver solutions for these kind of embedded PC features, which are by nature proprietary. All the API solutions that can be found on the market are not compatible to each other. As a result, writing application software that can run on more than one vendor’s COM is not so easy. Customers have to change their application software when switching to another COM vendor. EAPI (Embedded Application Programming Interface) is a programming interface deﬁned by the PICMG that addresses this problem. With this uniﬁed API, it is now possible to run the same application on all vendor’s COMs that offer EAPI driver support. Contact congatec technical support for more information about EAPI.

Page 33

6.7 Security Features

The conga-TCA can be equipped optionally with a “Trusted Platform Module“ (TPM 1.2). This TPM 1.2 includes coprocessors to calculate efﬁcient hash and RSA algorithms with key lengths up to 2,048 bits as well as a real random number generator. Security sensitive applications like gaming and e-commerce will beneﬁt also with improved authentication, integrity and conﬁdence levels.

6.8 Suspend to Ram

The Suspend to RAM feature is available on the conga-TCA.

Page 34

7 conga Tech Notes

The conga-TCA has some technological features that require additional explanation. The following section will give the reader a better understanding of some of these features. This information will also help to gain a better understanding of the information found in the System Resources section of this user’s guide as well as some of the setup nodes found in the BIOS Setup Program description section.

7.1 Intel® Matrix Storage Technology

The Intel

CG82NM10 (NM10) PCH provides support for Intel® Matrix Storage Technology, allowing AHCI functionality.

7.1.1 AHCI

The Intel

CG82NM10 (NM10) PCH provides hardware support for Advanced Host Controller Interface (AHCI), a new programming interface for SATA host controllers. Platforms supporting AHCI may take advantage of performance features such as no master/slave designation for SATA devices (each device is treated as a master) and hardware-assisted native command queuing. AHCI also provides usability enhancements such as Hot-Plug.

7.2 Intel® Processor Features

7.2.1 Thermal Monitor and Catastrophic Thermal Protection

Intel® Atom™ D2000/N2000 series processors have a thermal monitor feature that helps to control the processor temperature. The integrated TCC (Thermal Control Circuit) activates if the processor silicon reaches its maximum operating temperature. The activation temperature, that the Intel® Thermal Monitor uses to activate the TCC, cannot be conﬁgured by the user nor is it software visible.

The Thermal Monitor can control the processor temperature through the use of two different methods deﬁned as TM1 and TM2. TM1 method consists of the modulation (starting and stopping) of the processor clocks at a 50% duty cycle. The TM2 method initiates an Enhanced Intel Speedstep transition to the lowest performance state once the processor silicon reaches the maximum operating temperature.

Note

The maximum operating temperature for Intel® Atom™ D2000/N2000 series processors is 100°C.

Two modes are supported by the Thermal Monitor to activate the TCC. They are called Automatic and On-Demand. No additional hardware, software, or handling routines are necessary when using Automatic Mode.

Page 35

Note

To ensure that the TCC is active for only short periods of time, thus reducing the impact on processor performance to a minimum, it is necessary to have a properly designed thermal solution. The Intel® Atom™ D2000/N2000 series processor’s respective datasheet can provide you with more information about this subject.

THERMTRIP# signal is used by Intel

’s Atom™ D2000/N2000 series processors for catastrophic thermal protection. If the processor’s silicon reaches a temperature of approximately 125°C then the processor signal THERMTRIP# will go active and the system will automatically shut down to prevent any damage to the processor as a result of overheating. The THERMTRIP# signal activation is completely independent from processor activity and therefore does not produce any bus cycles.

Note

In order for THERMTRIP# to be able to automatically switch off the system, it is necessary to use an ATX style power supply.

7.2.2 Processor Performance Control

Intel® Atom™ D2000/N2000 series processors found on the conga-TCA run at different voltage/frequency states (performance states), which is referred to as Enhanced Intel® SpeedStep® technology (EIST). Operating systems that support performance control take advantage of microprocessors that use several different performance states in order to efﬁciently operate the processor when it’s not being fully utilized. The operating system will determine the necessary performance state that the processor should run at so that the optimal balance between performance and power consumption can be achieved during runtime.

The Windows family of operating systems links its processor performance control policy to the power scheme setting. You must ensure that your power scheme setting you choose has the ability to support Enhanced Intel

SpeedStep® technology.

7.3 Thermal Management

ACPI is responsible for allowing the operating system to play an important part in the system’s thermal management. This results in the operating system having the ability to take control of the operating environment by implementing cooling decisions according to the demands put on the CPU by the application.

The conga-TCA ACPI thermal solution offers three different cooling policies.

• Passive Cooling

When the temperature in the thermal zone must be reduced, the operating system can decrease the power consumption of the processor by throttling the processor clock. One of the advantages of this cooling policy is that passive cooling devices (in this case the processor) do not

Page 36

produce any noise. Use the “passive cooling trip point” setup node in the BIOS setup program to determine the temperature threshold that the operating system will use to start or stop the passive cooling procedure.

• Active Cooling

During this cooling policy the operating system is turning the fan on/off. Although active cooling devices consume power and produce noise, they also have the ability to cool the thermal zone without having to reduce the overall system performance. Use the “active cooling trip point” setup node in the BIOS setup program to determine the temperature threshold that the operating system will use to start the active cooling device. It is stopped again when the temperature goes below the threshold (4°C hysteresis).

• Critical Trip Point

If the temperature in the thermal zone reaches a critical point then the operating system will perform a system shut down in an orderly fashion in order to ensure that there is no damage done to the system as result of high temperatures. Use the “critical trip point” setup node in the BIOS setup program to determine the temperature threshold that the operating system will use to shut down the system.

Note

The end user must determine the cooling preferences for the system by using the setup nodes in the BIOS setup program to establish the appropriate trip points.

If passive cooling is activated and the processor temperature is above the trip point the processor clock is throttled according to the formula below.

∆P[%] = TC1(T

n-Tn-1

) + TC2(Tn-Tt)

• ∆P is the performance delta

• Tt is the target temperature = critical trip point

• The two coefﬁcients TC1 and TC2 and the sampling period TSP are hardware dependent constants. These constants are set to ﬁxed values for the conga-TCA:

• TC1= 1

• TC2= 5

• TSP= 5 seconds

See section 12 of the ACPI Speciﬁcation 2.0 C for more information about passive cooling.

Page 37

7.4 ACPI Suspend Modes and Resume Events

conga-TCA supports S3 (STR= Suspend to RAM). For more information about S3 wake events see section 10.4.5 “ACPI Submenu”.

S4 (Suspend to Disk) is not supported by the BIOS (S4_BIOS) but it is supported by the following operating systems (S4_OS= Hibernate):

• Windows 7, Windows Vista, Linux

This table lists the “Wake Events” that resume the system from S3 unless otherwise stated in the “Conditions/Remarks” column:

Wake Event Conditions/Remarks

Power Button Wakes unconditionally from S3-S5. Onboard LAN Event Device driver must be conﬁgured for Wake On LAN support. SMBALERT# Wakes unconditionally from S3-S5. PCI Express WAKE# Wakes unconditionally from S3-S5. WAKE# Wakes uncondionally from S3. PME# Activate the wake up capabilities of a PCI device using Windows Device Manager conﬁguration options for this device OR set Resume On

PME# to Enabled in the Power setup menu.

USB Mouse/Keyboard Event When Standby mode is set to S3, USB hardware must be powered by standby power source.

Set USB Device Wakeup from S3/S4 to ENABLED in the ACPI setup menu (if setup node is available in BIOS setup program). In Device Manager look for the keyboard/mouse devices. Go to the Power Management tab and check ‘Allow this device to bring the

computer out of standby’. RTC Alarm Activate and conﬁgure Resume On RTC Alarm in the Power setup menu. Only available in S5. Watchdog Power Button Event Wakes unconditionally from S3-S5.

Page 38

7.5 USB 2.0 EHCI Host Controller Support

The Intel® CG82NM10 (NM10) PCH supports up to eight USB ports. The 8 available USB ports are shared between 1 EHCI host controller and the 4 UHCI host controllers.

The muxing between the UHCI and EHCI host controllers is performed by the port-routing logic integrated into the EHC functionality. If a device not capable of USB 2.0 high-speed signalling is connected or if the EHCI software drivers are not present,then the UHCI controller owns the port. Owning the port means that the differential output is driven by the owner and the input stream is only visible to the owner. The host controller that is not the owner of the port internally sees a disconnected port.

The Intel

CG82NM10 (NM10) PCH allows the USB Debug Port trafﬁc to be routed in and out of Port 0. When in this mode, the Enhanced Host

controller is the owner of Port 0.

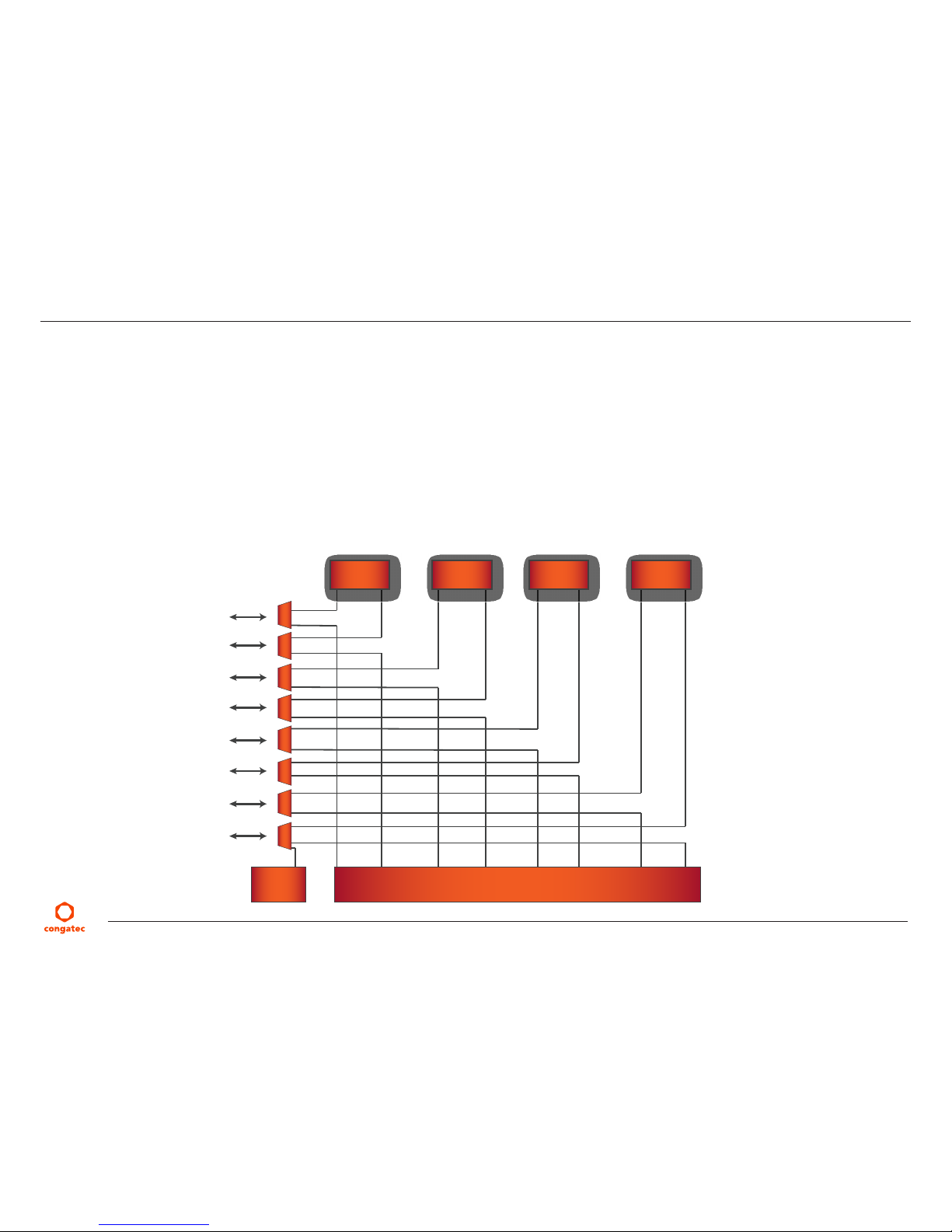

Routing Diagram

UHCI #3 (D29:F3)

Debug Port

Enhanced Host Controller Logic

UHCI #2 (D29:F2)

UHCI #1 (D29:F1)

UHCI #0 (D29:F0)

Port 7

Port 6

Port 5

Port 4

Port 3

Port 2

Port 1

Port 0

Page 39

8 Signal Descriptions and Pinout Tables

The following section describes the signals found on COM Express™ Type VI connectors used for congatec AG modules. The pinout of the modules complies with COM Express Type 6.0 Rev. 2.1.

Table 2 describes the terminology used in this section for the Signal Description tables. The PU/PD column indicates if a COM Express™ module pull-up or pull-down resistor has been used, if the ﬁeld entry area in this column for the signal is empty, then no pull-up or pull-down resistor has been implemented by congatec.

The “#” symbol at the end of the signal name indicates that the active or asserted state occurs when the signal is at a low voltage level. When “#” is not present, the signal is asserted when at a high voltage level.

Note

The Signal Description tables do not list internal pull-ups or pull-downs implemented by the chip vendors, only pull-ups or pull-downs implemented by congatec are listed. For information about the internal pull-ups or pull-downs implemented by the chip vendors, refer to the respective chip’s datasheet.

Table 2 Signal Tables Terminology Descriptions

Term Description

PU congatec implemented pull-up resistor

PD congatec implemented pull-down resistor

I/O 3.3V Bi-directional signal 3.3V tolerant

I/O 5V Bi-directional signal 5V tolerant

I 3.3V Input 3.3V tolerant

I 5V Input 5V tolerant

I/O 3.3VSB Input 3.3V tolerant active in standby state

O 3.3V Output 3.3V signal level

O 5V Output 5V signal level

OD Open drain output

P Power Input/Output

DDC Display Data Channel

PCIE In compliance with PCI Express Base Speciﬁcation, Revision 1.0a

PEG PCI Express Graphics

REF Reference voltage output. May be sourced from a module power plane.

PDS Pull-down strap. A module output pin that is either tied to GND or is not connected. Used to

signal module capabilities (pinout type) to the Carrier Board.

Page 40

8.1 A-B Connector Signal Descriptions

Table 3 Intel® High Deﬁnition Audio Link Signals Descriptions

Signal Pin # Description I/O PU/PD Comment

AC/HDA_RST# A30 Intel® High Deﬁnition Audio Reset: This signal is the master hardware reset

to external codec(s).

O 3.3VSB AC’97 codecs are not supported.

AC/HDA_SYNC A29 Intel

High Deﬁnition Audio Sync: This signal is a 48 kHz ﬁxed rate sample

sync to the codec(s). It is also used to encode the stream number.

O 3.3V AC’97 codecs are not supported.

AC/HDA_SYNC is a boot strap signal (see note below)

AC/HDA_BITCLK A32 Intel

High Deﬁnition Audio Bit Clock Output: This signal is a 24.000MHz

serial data clock generated by the Intel

High Deﬁnition Audio controller.

O 3.3V AC’97 codecs are not supported.

AC/HDA_SDOUT A33 Intel

High Deﬁnition Audio Serial Data Out: This signal is the serial TDM

data output to the codec(s). This serial output is double-pumped for a bit rate of 48 Mb/s for Intel® High Deﬁnition Audio.

O 3.3V AC’97 codecs are not supported.

AC/HDA_SDOUT is a boot strap signal (see note below)

AC/HDA_SDIN[1:0] B29-B30 Intel

High Deﬁnition Audio Serial Data In [1:0]: These signals are serial

TDM data inputs from the two codecs. The serial input is single-pumped for a bit rate of 24 Mb/s for Intel® High Deﬁnition Audio.

I 3.3V AC’97 codecs are not supported.

AC/HDA_SDIN2 is not supported

Note

Some signals have special functionality during the reset process. They may bootstrap some basic important functions of the module.

For more information refer to section 8.5 of this user’s guide.

Page 41

Table 4 Gigabit Ethernet Signal Descriptions

Gigabit Ethernet

Pin # Description I/O PU/PD Comment

GBE0_MDI0+ GBE0_MDI0GBE0_MDI1+ GBE0_MDI1GBE0_MDI2+ GBE0_MDI2GBE0_MDI3+ GBE0_MDI3-

A13 A12 A10 A9 A7 A6 A3 A2

Gigabit Ethernet Controller 0: Media Dependent Interface Differential Pairs 0, 1, 2, 3. The MDI can operate in 1000, 100, and 10Mbit/sec modes. Some pairs are unused in some modes according to the following:

I/O Analog

Twisted pair signals for external transformer.

1000 100 10

MDI[0]+/- B1_DA+/- TX+/- TX+/-

MDI[1]+/- B1_DB+/- RX+/- RX+/-

MDI[2]+/- B1_DC+/-

MDI[3]+/- B1_DD+/-

GBE0_ACT# B2 Gigabit Ethernet Controller 0 activity indicator, active low. O 3.3VSB

GBE0_LINK# A8 Gigabit Ethernet Controller 0 link indicator, active low. O 3.3VSB

GBE0_LINK100# A4 Gigabit Ethernet Controller 0 100Mbit/sec link indicator, active low. O 3.3VSB

GBE0_LINK1000# A5 Gigabit Ethernet Controller 0 1000Mbit/sec link indicator, active low. O 3.3VSB

GBE0_CTREF A14 Reference voltage for Carrier Board Ethernet channel 0 magnetics center tap. The reference voltage is

determined by the requirements of the module PHY and may be as low as 0V and as high as 3.3V. The reference voltage output shall be current limited on the module. In the case in which the reference is shorted to ground, the current shall be limited to 250mA or less.

Not connected

Note

Page 42

Table 5 Serial ATA Signal Descriptions

Signal Pin # Description I/O PU/PD Comment

SATA0_RX+ SATA0_RX-

A19 A20

Serial ATA channel 0, Receive Input differential pair. I SATA Supports Serial ATA II speciﬁcation, up to 3 Gb/s

SATA0_TX+ SATA0_TX-

A16 A17

Serial ATA channel 0, Transmit Output differential pair. O SATA Supports Serial ATA II speciﬁcation, up to 3 Gb/s

SATA1_RX+ SATA1_RX-

B19 B20

Serial ATA channel 1, Receive Input differential pair. I SATA Supports Serial ATA II speciﬁcation, up to 3 Gb/s

SATA1_TX+ SATA1_TX-

B16 B17

Serial ATA channel 1, Transmit Output differential pair. O SATA Supports Serial ATA II speciﬁcation, up to 3 Gb/s

SATA2_RX+ SATA2_RX-

A25 A26

Serial ATA channel 2, Receive Input differential pair. I SATA Not supported

SATA2_TX+ SATA2_TX-

A22 A23

Serial ATA channel 2, Transmit Output differential pair. O SATA Not supported

SATA3_RX+ SATA3_RX-

B25 B26

Serial ATA channel 3, Receive Input differential pair. I SATA Not supported

SATA3_TX+ SATA3_TX-

B22 B23

Serial ATA channel 3, Transmit Output differential pair. O SATA Not supported

(S)ATA_ACT# A28 ATA (parallel and serial) or SAS activity indicator, active low. I/O 3.3v

Page 43

Table 6 PCI Express Signal Descriptions (general purpose)

Signal Pin # Description I/O PU/PD Comment

PCIE_RX0+ PCIE_RX0-

B68 B69

PCI Express channel 0, Receive Input differential pair. I PCIE Supports PCI Express Base Speciﬁcation, Revision 1.0a

PCIE_TX0+ PCIE_TX0-

A68 A69

PCI Express channel 0, Transmit Output differential pair. O PCIE Supports PCI Express Base Speciﬁcation, Revision 1.0a

PCIE_RX1+ PCIE_RX1-

B64 B65

PCI Express channel 1, Receive Input differential pair. I PCIE Supports PCI Express Base Speciﬁcation, Revision 1.0a

PCIE_TX1+ PCIE_TX1-

A64 A65

PCI Express channel 1, Transmit Output differential pair. O PCIE Supports PCI Express Base Speciﬁcation, Revision 1.0a

PCIE_RX2+ PCIE_RX2-

B61 B62

PCI Express channel 2, Receive Input differential pair. I PCIE Supports PCI Express Base Speciﬁcation, Revision 1.0a

PCIE_TX2+ PCIE_TX2-

A61 A62

PCI Express channel 2, Transmit Output differential pair. O PCIE Supports PCI Express Base Speciﬁcation, Revision 1.0a

PCIE_RX3+ PCIE_RX3-

B58 B59

PCI Express channel 3, Receive Input differential pair. I PCIE Supports PCI Express Base Speciﬁcation, Revision 1.0a

PCIE_TX3+ PCIE_TX3-

A58 A59

PCI Express channel 3, Transmit Output differential pair. O PCIE Supports PCI Express Base Speciﬁcation, Revision 1.0a

PCIE_RX4+ PCIE_RX4-

B55 B56

PCI Express channel 4, Receive Input differential pair. I PCIE Supports PCI Express Base Speciﬁcation, Revision 1.0a

Only available on modules without USB 3.0 support

PCIE_TX4+ PCIE_TX4-

A55 A56

PCI Express channel 4, Transmit Output differential pair. O PCIE Supports PCI Express Base Speciﬁcation, Revision 1.0a.

Only available on modules without USB 3.0 support

PCIE_RX5+ PCIE_RX5-

B52 B53

PCI Express channel 5, Receive Input differential pair. I PCIE Not supported

PCIE_TX5+ PCIE_TX5-

A52 A53

PCI Express channel 5, Transmit Output differential pair. O PCIE Not supported

PCIE_CLK_REF+ PCIE_CLK_REF-

A88 A89

PCI Express Reference Clock output for all PCI Express and PCI Express Graphics Lanes.

O PCIE A PCI Express compliant clock buffer chip must be used on the

carrier board if more than one PCI Express device is designed in.

Page 44

Table 7 ExpressCard Support Pins Descriptions

Signal Pin # Description I/O PU/PD Comment

EXCD0_CPPE# A49 ExpressCard 0 capable card request. I 3.3V PU 10k 3.3V

EXCD0_PERST# A48 ExpressCard 0 Reset O 3.3V PD 2.2k EXCDO_PERST# is a bootstrap signal

EXCD1_CPPE# B48 ExpressCard 1 capable card request I 3.3V PU 10k 3.3V

EXCD1_PERST# B47 ExpressCard 1 Reset O 3.3V

Table 8 LPC Signal Descriptions

Signal Pin # Description I/O PU/PD Comment

LPC_AD[0:3] B4-B7 LPC multiplexed address, command and data bus I/O 3.3V

LPC_FRAME# B3 LPC frame indicates the start of an LPC cycle O 3.3V

LPC_DRQ[0:1]# B8-B9 LPC serial DMA request I 3.3V

LPC_SERIRQ A50 LPC serial interrupt I/O OD

3.3V

PU 4.99k 3.3V

LPC_CLK B10 LPC clock output - 33MHz nominal O 3.3V PD 10k LPC_CLK is a bootstrap signal

Note

Some signals have special functionality during the reset process. They may bootstrap some basic important functions of the module.

For more information refer to section 8.5 of this user’s guide.

Page 45

Table 9 USB Signal Descriptions

Signal Pin # Description I/O PU/PD Comment

USB0+ A46 USB Port 0, data + or D+ I/O USB 2.0 compliant. Backwards compatible to USB 1.1

USB0- A45 USB Port 0, data - or D- I/O USB 2.0 compliant. Backwards compatible to USB 1.1

USB1+ B46 USB Port 1, data + or D+ I/O USB 2.0 compliant. Backwards compatible to USB 1.1

USB1- B45 USB Port 1, data - or D- I/O USB 2.0 compliant. Backwards compatible to USB 1.1

USB2+ A43 USB Port 2, data + or D+ I/O USB 2.0 compliant. Backwards compatible to USB 1.1

USB2- A42 USB Port 2, data - or D- I/O USB 2.0 compliant. Backwards compatible to USB 1.1

USB3+ B43 USB Port 3, data + or D+ I/O USB 2.0 compliant. Backwards compatible to USB 1.1

USB3- B42 USB Port 3, data - or D- I/O USB 2.0 compliant. Backwards compatible to USB 1.1

USB4+ A40 USB Port 4, data + or D+ I/O USB 2.0 compliant. Backwards compatible to USB 1.1

USB4- A39 USB Port 4, data - or D- I/O USB 2.0 compliant. Backwards compatible to USB 1.1

USB5+ B40 USB Port 5, data + or D+ I/O USB 2.0 compliant. Backwards compatible to USB 1.1

USB5- B39 USB Port 5, data - or D- I/O USB 2.0 compliant. Backwards compatible to USB 1.1

USB6+ A37 USB Port 6, data + or D+ I/O USB 2.0 compliant. Backwards compatible to USB 1.1

USB6- A36 USB Port 6, data - or D- I/O USB 2.0 compliant. Backwards compatible to USB 1.1

USB7+ B37 USB Port 7, data + or D+ I/O USB 2.0 compliant. Backwards compatible to USB 1.1

USB7- B36 USB Port 7, data - or D- I/O USB 2.0 compliant. Backwards compatible to USB 1.1

USB_0_1_OC# B44 USB over-current sense, USB ports 0 and 1. A pull-up for this line shall

be present on the module. An open drain driver from a USB current monitor on the carrier board may drive this line low.

3.3VSB

PU 10k

3.3VSB

Do not pull this line high on the carrier board.

USB_2_3_OC# A44 USB over-current sense, USB ports 2 and 3. A pull-up for this line shall

be present on the module. An open drain driver from a USB current monitor on the carrier board may drive this line low. .

3.3VSB

PU 10k

3.3VSB

Do not pull this line high on the carrier board.

USB_4_5_OC# B38 USB over-current sense, USB ports 4 and 5. A pull-up for this line shall

be present on the module. An open drain driver from a USB current monitor on the carrier board may drive this line low.

3.3VSB

PU 10k

3.3VSB

Do not pull this line high on the carrier board.

USB_6_7_OC# A38 USB over-current sense, USB ports 6 and 7. A pull-up for this line shall

be present on the module. An open drain driver from a USB current monitor on the carrier board may drive this line low.

3.3VSB

PU 10k

3.3VSB

Do not pull this line high on the carrier board.

Page 46

Table 10 CRT Signal Descriptions

Signal Pin # Description I/O PU/PD Comment

VGA_RED B89 Red for monitor. Analog DAC output, designed to drive a 37.5-Ohm equivalent load. O Analog PD 150R Analog output

VGA_GRN B91 Green for monitor. Analog DAC output, designed to drive a 37.5-Ohm equivalent

load.

O Analog PD 150R Analog output

VGA_BLU B92 Blue for monitor. Analog DAC output, designed to drive a 37.5-Ohm equivalent load. O Analog PD 150R Analog output

VGA_HSYNC B93 Horizontal sync output to VGA monitor O 3.3V

VGA_VSYNC B94 Vertical sync output to VGA monitor O 3.3V

VGA_I2C_CK B95 DDC clock line (I²C port dedicated to identify VGA monitor capabilities) I/O OD 5V PU 2k2 3.3V

VGA_I2C_DAT B96 DDC data line. I/O OD 5V PU 2k2 3.3V

Table 11 LVDS Signal Descriptions

Signal Pin # Description I/O PU/PD Comment

LVDS_A0+ LVDS_A0LVDS_A1+ LVDS_A1LVDS_A2+ LVDS_A2LVDS_A3+ LVDS_A3-

A71 A72 A73 A74 A75 A76 A78 A79

LVDS Channel A differential pairs O LVDS

LVDS_A_CK+ LVDS_A_CK-

A81 A82

LVDS Channel A differential clock O LVDS

LVDS_B0+ LVDS_B0LVDS_B1+ LVDS_B1LVDS_B2+ LVDS_B2LVDS_B3+ LVDS_B3-

B71 B72 B73 B74 B75 B76 B77 B78

LVDS Channel B differential pairs O LVDS Not suppported

LVDS_B_CK+ LVDS_B_CK-

B81 B82

LVDS Channel B differential clock O LVDS Not supported

LVDS_VDD_EN A77 LVDS panel power enable O 3.3V PD 10k

LVDS_BKLT_EN B79 LVDS panel backlight enable O 3.3V PD 10k

LVDS_BKLT_CTRL B83 LVDS panel backlight brightness control O 3.3V

LVDS_I2C_CK A83 DDC lines used for ﬂat panel detection and control. O 3.3V PU 2k2 3.3V

LVDS_I2C_DAT A84 DDC lines used for ﬂat panel detection and control. I/O 3.3V PU 2k2 3.3V LVDS_I2C_DAT is a boot strap signal (see note below).

Page 47

Note

Some signals have special functionality during the reset process. They may bootstrap some basic important functions of the module.

For more information refer to section 8.5 of this user’s guide.

Table 12 SPI BIOS Flash Interface Signal Descriptions

Signal Pin # Description I/O PU/PD Comment

SPI_CS# B97 Chip select for Carrier Board SPI BIOS Flash. O 3.3VSB PU 10k

3.3VSB

Carrier may pull to SPI_POWER when external SPI provided but not used.

SPI_MISO A92 Data in to module from carrier board SPI BIOS ﬂash. I 3.3VSB PU 10k

3.3VSB

SPI_MOSI A95 Data out from module to carrier board SPI BIOS ﬂash. O 3.3VSB PU 10k

3.3VSB

SPI_CLK A94 Clock from module to carrier board SPI BIOS ﬂash. O 3.3VSB

SPI_POWER A91 Power source for carrier board SPI BIOS ﬂash. SPI_POWER shall be used to

power SPI BIOS ﬂash on the carrier only.

+ 3.3VSB

BIOS_DIS0# A34 Selection strap to determine the BIOS boot device. I 3.3VSB PU 10k

3.3VSB

Carrier shall pull to GND or leave no-connect.

BIOS_DIS1# B88 Selection strap to determine the BIOS boot device. I 3.3VSB PU 10k

3.3VSB

Carrier shall pull to GND or leave no-connect

Page 48

Table 13 Miscellaneous Signal Descriptions

Signal Pin # Description I/O PU/PD Comment

I2C_CK B33 General purpose I²C port clock output/input I/O 3.3V PU 2K2 3.3VSB

I2C_DAT B34 General purpose I²C port data I/O line I/O 3.3V PU 2K2 3.3VSB

SPKR B32 Output for audio enunciator, the “speaker” in PC-AT systems O 3.3V PU 1k 3.3V SPEAKER is a boot strap signal

(see note below)

WDT B27 Output indicating that a watchdog time-out event has occurred. O 3.3V PD 10k

FAN_PWMOUT B101 Fan speed control. Uses the Pulse Width Modulation (PWM) technique to control

the fan’s RPM.

O OD

3.3V

PU 10k 3.3V

FAN_TACHIN B102 Fan tachometer input. I OD PU 10k 3.3V Requires a fan with a two pulse

output.

TPM_PP A96 Physical Presence pin of Trusted Platform Module (TPM). Active high. TPM chip

has an internal pull-down. This signal is used to indicate Physical Presence to the TPM.

I 3.3V Trusted Platform Module chip is

optional.

Note

Some signals have special functionality during the reset process. They may bootstrap some basic important functions of the module. For more information refer to section 8.5 of this user’s guide.

Table 14 General Purpose I/O Signal Descriptions

Signal Pin # Description I/O PU/PD Comment

GPO0 A93 General purpose output pins.

Shared with SD_CLK. Output from COM Express, input to SD

O 3.3V SDIO interface is not supported on the conga-TCA

GPO1 B54 General purpose output pins.

Shared with SD_CMD. Output from COM Express, input to SD

O 3.3V SDIO interface is not supported on the conga-TCA

GPO2 B57 General purpose output pins.

Shared with SD_WP. Output from COM Express, input to SD

O 3.3V SDIO interface is not supported on the conga-TCA

GPO3 B63 General purpose output pins.

Shared with SD_CD. Output from COM Express, input to SD

O 3.3V SDIO interface is not supported on the conga-TCA

GPI0 A54 General purpose input pins. Pulled high internally on the module.

Shared with SD_DATA0. Bidirectional signal

I 3.3V PU 10K 3.3V SDIO interface is not supported on the conga-TCA

GPI1 A63 General purpose input pins. Pulled high internally on the module.

Shared with SD_DATA1. Bidirectional signal

I 3.3V PU 10K 3.3V SDIO interface is not supported on the conga-TCA

GPI2 A67 General purpose input pins. Pulled high internally on the module.

Shared with SD_DATA2. Bidirectional signal

I 3.3V PU 10K 3.3V SDIO interface is not supported on the conga-TCA

GPI3 A85 General purpose input pins. Pulled high internally on the module.

Shared with SD_DATA3. Bidirectional signal.

I 3.3V PU 10K 3.3V SDIO interface is not supported on the conga-TCA

Page 49

Table 15 Power and System Management Signal Descriptions

Signal Pin # Description I/O PU/PD Comment

PWRBTN# B12 Power button to bring system out of S5 (soft off), active on rising edge. I 3.3VSB PU 10k 3.3VSB

SYS_RESET# B49 Reset button input. Active low input. Edge triggered.

System will not be held in hardware reset while this input is kept low.

I 3.3VSB PU 10k 3.3VSB

CB_RESET# B50 Reset output from module to Carrier Board. Active low. Issued by module chipset and may

result from a low SYS_RESET# input, a low PWR_OK input, a VCC_12V power input that falls below the minimum speciﬁcation, a watchdog timeout, or may be initiated by the module software.

O 3.3V PD 100k

PWR_OK B24 Power OK from main power supply. A high value indicates that the power is good. I 3.3V Set by resistor

divider to accept

3.3V.

SUS_STAT# B18 Indicates imminent suspend operation; used to notify LPC devices. O 3.3VSB

SUS_S3# A15 Indicates system is in Suspend to RAM state. Active-low output. An inverted copy of SUS_S3#

on the carrier board (also known as “PS_ON#”) may be used to enable the non-standby power on a typical ATX power supply.

O 3.3VSB

SUS_S4# A18 Indicates system is in Suspend to Disk state. Active low output. O 3.3VSB Not supported

SUS_S5# A24 Indicates system is in Soft Off state. O 3.3VSB

WAKE0# B66 PCI Express wake up signal. I 3.3VSB PU 2.2k 3.3VSB

WAKE1# B67 General purpose wake up signal. May be used to implement wake-up on PS/2 keyboard or

mouse activity.

I 3.3VSB PU 2.2k 3.3VSB

BATLOW# A27 Battery low input. This signal may be driven low by external circuitry to signal that the system

battery is low, or may be used to signal some other external power-management event.

I 3.3VSB PU 10k 3.3VSB

THRM# B35 Input from off-module temp sensor indicating an over-temp situation. I 3.3V PU 10k 3.3V

THERMTRIP# A35 Active low output indicating that the CPU has entered thermal shutdown. O 3.3V PU 10k 3.3V

SMB_CK B13 System Management Bus bidirectional clock line. I/O 3.3VSB PU 10k 3.3VSB

SMB_DAT# B14 System Management Bus bidirectional data line. I/O OD

3.3VSB

PU 10k 3.3VSB

SMB_ALERT# B15 System Management Bus Alert – active low input can be used to generate an SMI# (System

Management Interrupt) or to wake the system.

I 3.3VSB PU 10k 3.3VSB

LID# A103 Lid button. Used by the ACPI operating system for a LID switch. I OD 3.3V PU 10k 3.3VSB

SLEEP# B103 Sleep button. Used by the ACPI operating system to bring the system to sleep state or to wake

it up again.

I OD 3.3V PU 10k 3.3VSB

Page 50

Table 16 General Purpose Serial Interface Signal Descriptions

Signal Pin # Description I/O PU/PD Comment

SER0_TX A98 General purpose serial port transmitter O 3.3V Not supported

SER1_TX A101 General purpose serial port transmitter O 3.3V Not supported

SER0_RX A99 General purpose serial port receiver I 3.3V Not supported

SER1_RX A102 General purpose serial port receiver I 3.3V Not supported

Table 17 Power and GND Signal Descriptions

Signal Pin # Description I/O PU/PD Comment

VCC_12V A104-A109

B104-B109

Primary power input: +12V nominal. All available VCC_12V pins on the connector(s) shall be used.

VCC_5V_SBY B84-B87 Standby power input: +5.0V nominal. If VCC5_SBY is used, all available VCC_5V_SBY

pins on the connector(s) shall be used. Only used for standby and suspend functions. May be left unconnected if these functions are not used in the system design.

VCC_RTC A47 Real-time clock circuit-power input. Nominally +3.0V. P

GND A1, A11, A21, A31,

A41, A51, A57, A60, A66, A70, A80, A90, A100, A110, B1, B11, B21, B31, B41, B51, B60, B70, B80, B90, B100, B110

Ground - DC power and signal and AC signal return path. All available GND connector pins shall be used and tied to Carrier Board GND plane.

Page 51

8.2 A-B Connector Pinout

Table 18 Connector A-B Pinout

Pin Row A Pin Row B Pin Row A Pin Row B

A1 GND (FIXED) B1 GND (FIXED) A56 PCIE_TX4- B56 PCIE_RX4-

A2 GBE0_MDI3- B2 GBE0_ACT# A57 GND B57 GPO2

A3 GBE0_MDI3+ B3 LPC_FRAME# A58 PCIE_TX3+ B58 PCIE_RX3+

A4 GBE0_LINK100# B4 LPC_AD0 A59 PCIE_TX3- B59 PCIE_RX3-

A5 GBE0_LINK1000# B5 LPC_AD1 A60 GND (FIXED) B60 GND (FIXED)

A6 GBE0_MDI2- B6 LPC_AD2 A61 PCIE_TX2+ B61 PCIE_RX2+

A7 GBE0_MDI2+ B7 LPC_AD3 A62 PCIE_TX2- B62 PCIE_RX2-

A8 GBE0_LINK# B8 LPC_DRQ0# A63 GPI1 B63 GPO3

A9 GBE0_MDI1- B9 LPC_DRQ1# A64 PCIE_TX1+ B64 PCIE_RX1+

A10 GBE0_MDI1+ B10 LPC_CLK A65 PCIE_TX1- B65 PCIE_RX1-

A11 GND (FIXED) B11 GND (FIXED) A66 GND B66 WAKE0#

A12 GBE0_MDI0- B12 PWRBTN# A67 GPI2 B67 WAKE1#

A13 GBE0_MDI0+ B13 SMB_CK A68 PCIE_TX0+ B68 PCIE_RX0+

A14 GBE0_CTREF (*) B14 SMB_DAT A69 PCIE_TX0- B69 PCIE_RX0-

A15 SUS_S3# B15 SMB_ALERT# A70 GND (FIXED) B70 GND (FIXED)

A16 SATA0_TX+ B16 SATA1_TX+ A71 LVDS_A0+

B71 LVDS_B0+ (*)

A17 SATA0_TX- B17 SATA1_TX- A72 LVDS_A0- B72 LVDS_B0- (*)

A18 SUS_S4# B18 SUS_STAT# A73 LVDS_A1+ B73 LVDS_B1+ (*)

A19 SATA0_RX+ B19 SATA1_RX+ A74 LVDS_A1- B74 LVDS_B1- (*)

A20 SATA0_RX- B20 SATA1_RX- A75 LVDS_A2+ B75 LVDS_B2+ (*)

A21 GND (FIXED) B21 GND (FIXED) A76 LVDS_A2- B76 LVDS_B2- (*)

A22 SATA2_TX+ (*) B22 SATA3_TX+ (*) A77 LVDS_VDD_EN B77 LVDS_B3+ (*)

A23 SATA2_TX- (*) B23 SATA3_TX- (*) A78 LVDS_A3+ B78 LVDS_B3- (*)

A24 SUS_S5# B24 PWR_OK A79 LVDS_A3- B79 LVDS_BKLT_EN

A25 SATA2_RX+ (*) B25 SATA3_RX+ (*) A80 GND (FIXED) B80 GND (FIXED)

A26 SATA2_RX- (*) B26 SATA3_RX- (*) A81 LVDS_A_CK+ B81 LVDS_B_CK+ (*)

A27 BATLOW# B27 WDT A82 LVDS_A_CK- B82 LVDS_B_CK- (*)

A28 (S)ATA_ACT# B28 AC/HDA_SDIN2 (*) A83 LVDS_I2C_CK B83 LVDS_BKLT_CTRL

A29 AC/HDA_SYNC B29 AC/HDA_SDIN1 A84 LVDS_I2C_DAT B84 VCC_5V_SBY

A30 AC/HDA_RST# B30 AC/HDA_SDIN0 A85 GPI3 B85 VCC_5V_SBY

Page 52

Pin Row A Pin Row B Pin Row A Pin Row B

A31 GND (FIXED) B31 GND (FIXED) A86 RSVD B86 VCC_5V_SBY

A32 AC/HDA_BITCLK B32 SPKR A87 RSVD B87 VCC_5V_SBY

A33 AC/HDA_SDOUT B33 I2C_CK A88 PCIE0_CK_REF+ B88 BIOS_DIS1#

A34 BIOS_DIS0# B34 I2C_DAT A89 PCIE0_CK_REF- B89 VGA_RED

A35 THRMTRIP# B35 THRM# A90 GND (FIXED) B90 GND (FIXED)

A36 USB6- B36 USB7- A91 SPI_POWER B91 VGA_GRN

A37 USB6+ B37 USB7+ A92 SPI_MISO B92 VGA_BLU

A38 USB_6_7_OC# B38 USB_4_5_OC# A93 GPO0 B93 VGA_HSYNC

A39 USB4- B39 USB5- A94 SPI_CLK B94 VGA_VSYNC

A40 USB4+ B40 USB5+ A95 SPI_MOSI B95 VGA_I2C_CK

A41 GND (FIXED) B41 GND (FIXED) A96 TPM_PP B96 VGA_I2C_DAT

A42 USB2- B42 USB3- A97 TYPE10# B97 SPI_CS#

A43 USB2+ B43 USB3+ A98 SER0_TX (*) B98 RSVD

A44 USB_2_3_OC# B44 USB_0_1_OC# A99 SER0_RX (*) B99 RSVD

A45 USB0- B45 USB1- A100 GND (FIXED) B100 GND (FIXED)

A46 USB0+ B46 USB1+ A101 SER1_TX (*)

B101 FAN_PWMOUT

A47 VCC_RTC B47 EXCD1_PERST# A102 SER1_RX (*) B102 FAN_TACHIN

A48 EXCD0_PERST# B48 EXCD1_CPPE# A103 LID# B103 SLEEP#

A49 EXCD0_CPPE# B49 SYS_RESET# A104 VCC_12V B104 VCC_12V

A50 LPC_SERIRQ B50 CB_RESET# A105 VCC_12V B105 VCC_12V

A51 GND (FIXED) B51 GND (FIXED) A106 VCC_12V B106 VCC_12V

A52 PCIE_TX5+ (*) B52 PCIE_RX5+ (*) A107 VCC_12V B107 VCC_12V

A53 PCIE_TX5- (*) B53 PCIE_RX5- (*) A108 VCC_12V B108 VCC_12V

A54 GPI0 B54 GPO1 A109 VCC_12V B109 VCC_12V

A55 PCIE_TX4+ B55 PCIE_RX4+ A110 GND (FIXED) B110 GND (FIXED)

Note

The signals marked with an asterisk symbol (*) are not supported on the conga TCA.

Page 53

8.3 C-D Connector Signal Descriptions

Table 19 PCI Express Signal Descriptions (general purpose)

Signal Pin # Description I/O PU/PD Comment

PCIE_RX6+ PCIE_RX6-

C19 C20

PCI Express channel 6, Receive Input differential pair. I PCIE Not supported

PCIE_TX6+ PCIE_TX6-

D19 D20

PCI Express channel 6, Transmit Output differential pair. O PCIE Not supported

PCIE_RX7+ PCIE_RX7-

C22 C23

PCI Express channel 7, Receive Input differential pair. I PCIE Not supported

PCIE_TX7+ PCIE_TX7-

D22 D23

PCI Express channel 7, Transmit Output differential pair. O PCIE Not supported

Table 20 USB Signal Descriptions

Signal Pin # Description I/O PU/PD Comment

USB_SSRX0+ C4 Additional receive signal differential pairs for the Superspeed USB data path I Available only on modules with USB 3.0 support

USB_SSRX0- C3 I Available only on modules with USB 3.0 support

USB_SSTX0+ D4 Additional transmit signal differential pairs for the Superspeed USB data

path

O Available only on modules with USB 3.0 support

USB_SSTX0- D3 O Available only on modules with USB 3.0 support

USB_SSRX1+ C7 Additional receive signal differential pairs for the Superspeed USB data path I Available only on modules with USB 3.0 support

USB_SSRX1- C6 I Available only on modules with USB 3.0 support

USB_SSTX1+ D7 Additional transmit signal differential pairs for the Superspeed USB data

path

O Available only on modules with USB 3.0 support

USB_SSTX1- D6 O Available only on modules with USB 3.0 support

USB_SSRX2+ C10 Additional receive signal differential pairs for the Superspeed USB data path I Not supported

USB_SSRX2- C9 I Not supported

USB_SSTX2+ D10 Additional transmit signal differential pairs for the Superspeed USB data

path

O Not supported

USB_SSTX2- D9 O Not supported

USB_SSRX3+ C13 Additional receive signal differential pairs for the Superspeed USB data path I Not supported

USB_SSRX3- C12 I Not supported

USB_SSTX3+ D13 Additional transmit signal differential pairs for the Superspeed USB data

path

O Not supported

USB_SSTX3- D12 O Not supported

Page 54

Note

USB 3.0 is only supported on PN: 047004 conga-TCA/D2550 xHCI modules.

Table 21 PCI Express Signal Descriptions (x16 Graphics)

Signal Pin # Description I/O PU/PD Comment

PEG_RX0+ PEG_RX0PEG_RX1+ PEG_RX1PEG_RX2+ PEG_RX2PEG_RX3+ PEG_RX3PEG_RX4+ PEG_RX4PEG_RX5+ PEG_RX5PEG_RX6+ PEG_RX6PEG_RX7+ PEG_RX7PEG_RX8+ PEG_RX8PEG_RX9+ PEG_RX9PEG_RX10+ PEG_RX10PEG_RX11+ PEG_RX11PEG_RX12+ PEG_RX12PEG_RX13+ PEG_RX13PEG_RX14+ PEG_RX14PEG_RX15+ PEG_RX15-

C52 C53 C55 C56 C58 C59 C61 C62 C65 C66 C68 C69 C71 C72 C74 C75 C78 C79 C81 C82 C85 C86 C88 C89 C91 C92 C94 C95 C98 C99 C101 C102

PCI Express Graphics Receive Input differential pairs.

Note: Can also be used as PCI Express Receive Input differential pairs 16 through 31 known as PCIE_RX[16-31] + and -.

I PCIE Not supported

Page 55

Signal Pin # Description I/O PU/PD Comment

PEG_TX0+ PEG_TX0PEG_TX1+ PEG_TX1PEG_TX2+ PEG_TX2PEG_TX3+ PEG_TX3PEG_TX4+ PEG_TX4PEG_TX5+ PEG_TX5PEG_TX6+ PEG_TX6PEG_TX7+ PEG_TX7PEG_TX8+ PEG_TX8PEG_TX9+ PEG_TX9PEG_TX10+ PEG_TX10PEG_TX11+ PEG_TX11PEG_TX12+ PEG_TX12PEG_TX13+ PEG_TX13PEG_TX14+ PEG_TX14PEG_TX15+ PEG_TX15-

D52 D53 D55 D56 D58 D59 D61 D62 D65 D66 D68 D69 D71 D72 D74 D75 D78 D79 D81 D82 D85 D86 D88 D89 D91 D92 D94 D95 D98 D99 D101 D102

PCI Express Graphics Transmit Output differential pairs.

Note: Can also be used as PCI Express Transmit Output differential pairs 16 through 31 known as PCIE_TX[16-31] + and -.

O PCIE

Not supported

PEG_LANE_RV# D54 PCI Express Graphics lane reversal input strap. Pull low on the carrier board to reverse lane

order.

I Not supported

Note

PCI Express Graphics is not supported on conga-TCA modules

Page 56

Table 22 DDI Signal Description

Signal Pin # Description I/O PU/PD Comment

DDI1_PAIR0+ DDI1_PAIR0-

D26 D27

Multiplexed with SDVO1_RED+, DP1_LANE0+ and TMDS1_DATA2+. Multiplexed with SDVO1_RED-, DP1_LANE0- and TMDS1_DATA2-.

O PCIE Only TMDS/DP option, no SDVO

DDI1_PAIR1+ DDI1_PAIR1-

D29 D30

Multiplexed with SDVO1_GRN+, DP1_LANE1+ and TMDS1_DATA1+. Multiplexed with SDVO1_GRN-, DP1_LANE1- and TMDS1_DATA1-.

O PCIE Only TMDS/DP option, no SDVO

DDI1_PAIR2+ DDI1_PAIR2-

D32 D33

Multiplexed with SDVO1_BLU+, DP1_LANE2+ and TMDS1_DATA0+. Multiplexed with SDVO1_BLU-, DP1_LANE2- and TMDS1_DATA0-.

O PCIE Only TMDS/DP option, no SDVO

DDI1_PAIR3+ DDI1_PAIR3-

D36 D37

Multiplexed with SDVO1_CK+, DP1_LANE3+ and TMDS1_CLK+. Multiplexed with SDVO1_CK-, DP1_LANE3- and TMDS1_CLK-.

O PCIE Only TMDS/DP option, no SDVO

DDI1_PAIR4+ DDI1_PAIR4-

C25 C26

Multiplexed with SDVO1_INT+. Multiplexed with SDVO1_INT-.

Not supported due to missing SDVO support

DDI1_PAIR5+ DDI1_PAIR5-

C29 C30

Multiplexed with SDVO1_TVCLKIN+. Multiplexed with SDVO1_TVCLKIN-.

Not supported due to missing SDVO support

DDI1_PAIR6+ DDI1_PAIR6-

C15 C16

Multiplexed with SDVO1_FLDSTALL+. Multiplexed with SDVO1_FLDSTALL-.

Not supported due to missing SDVO support

DDI1_HPD C24 Multiplexed with DP1_HPD and HDMI1_HPD. I 3.3V PD 1M

DDI1_CTRLCLK_AUX+ D15 Multiplexed with SDVO1_CTRLCLK, DP1_AUX+ and HMDI1_CTRLCLK.

DP AUX+ function if DDI1_DDC_AUX_SEL is no connect. HDMI/DVI I2C CTRLCLK if DDI1_DDC_AUX_SEL is pulled high

I/O PCIE I/O OD

3.3V

PD100k

DDI1_CTRLDATA_AUX- D16 Multiplexed with SDVO1_CTRLDATA, DP1_AUX- and HDMI1_CTRLDATA.

DP AUX- function if DDI1_DDC_AUX_SEL is no connect. HDMI/DVI I2C CTRLDATA if DDI1_DDC_AUX_SEL is pulled high

I/O PCIE I/O OD

3.3V

PU 100k

3.3V

DDI1_CTRLDATA_AUX- is a boot strap signal (see note below). DDI enable strap already populated.

DDI1_DDC_AUX_SEL D34 Selects the function of DDI1_CTRLCLK_AUX+ and DDI1_CTRLDATA_AUX-

. This pin shall have a IM pull-down to logic ground on the module. If this input is ﬂoating, the AUX pair is used for the DP AUX+/- signals. If pulledhigh, the AUX pair contains the CTRLCLK and CTRLDATA signals.

I 3.3V PD 1M

DDI2_PAIR0+ DDI2_PAIR0-

D39 D40

Multiplexed with DP2_LANE0+ and TMDS2_DATA2+. Multiplexed with DP2_LANE0- and TMDS2_DATA2-.

O PCIE

DDI2_PAIR1+ DDI2_PAIR1-

D42 D43

Multiplexed with DP2_LANE1+ and TMDS2_DATA1+. Multiplexed with DP2_LANE1- and TMDS2_DATA1-.

O PCIE

DDI2_PAIR2+ DDI2_PAIR2-

D46 D47

Multiplexed with DP2_LANE2+ and TMDS2_DATA0+. Multiplexed with DP2_LANE2- and TMDS2_DATA0-.

O PCIE

DDI2_PAIR3+ DDI2_PAIR3-

D49 D50

Multiplexed with DP2_LANE3+ and TMDS2_CLK+. Multiplexed with DP2_LANE3- and TMDS2_CLK-.

O PCIE

DDI2_HPD D44 Multiplexed with DP2_HPD and HDMI2_HPD. I 3.3V PD 1M

Page 57

Signal Pin # Description I/O PU/PD Comment

DDI2_CTRLCLK_AUX+ C32 Multiplexed with DP2_AUX+ and HDMI2_CTRLCLK.

DP AUX+ function if DDI2_DDC_AUX_SEL is no connect. HDMI/DVI I2C CTRLCLK if DDI2_DDC_AUX_SEL is pulled high

I/O PCIE I/O OD

3.3V

PD 100k

DDI2_CTRLDATA_AUX- C33 Multiplexed with DP2_AUX- and HDMI2_CTRLDATA.

DP AUX- function if DDI2_DDC_AUX_SEL is no connect. HDMI/DVI I2C CTRLDATA if DDI2_DDC_AUX_SEL is pulled high.

I/O PCIE I/O OD

3.3V

PU 100k

3.3V

DDI2_CTRLCLK_AUX- is a boot strap signal (see note below). DDI enable strap already populated.

DDI2_DDC_AUX_SEL C34 Selects the function of DDI2_CTRLCLK_AUX+ and DDI2_CTRLDATA_AUX-

I 3.3V PD 1M

DDI3_PAIR0+ DDI3_PAIR0-

C39 C40

Multiplexed with DP3_LANE0+ and TMDS3_DATA2+. Multiplexed with DP3_LANE0- and TMDS3_DATA2-.

O PCIE Not supported

DDI3_PAIR1+ DDI3_PAIR1-

C42 C43

Multiplexed with DP3_LANE1+ and TMDS3_DATA1+. Multiplexed with DP3_LANE1- and TMDS3_DATA1-.

O PCIE Not supported

DDI3_PAIR2+ DDI3_PAIR2-

C46 C47

Multiplexed with DP3_LANE2+ and TMDS3_DATA0+. Multiplexed with DP3_LANE2- and TMDS3_DATA0-.

O PCIE Not supported

DDI3_PAIR3+ DDI3_PAIR3-

C49 C50

Multiplexed with DP3_LANE3+ and TMDS3_CLK+. Multiplexed with DP3_LANE3- and TMDS3_CLK-.

O PCIE Not supported

DDI3_HPD C44 Multiplexed with DP3_HPD and HDMI3_HPD. I 3.3V Not supported

DDI3_CTRLCLK_AUX+ C36 Multiplexed with DP3_AUX+ and HDMI3_CTRLCLK.

DP AUX+ function if DDI3_DDC_AUX_SEL is no connect. HDMI/DVI I2C CTRLCLK if DDI3_DDC_AUX_SEL is pulled high

I/O PCIE I/O OD

3.3V

Not supported

DDI3_CTRLDATA_AUX- C37 Multiplexed with DP3_AUX- and HDMI3_CTRLDATA.

DP AUX- function if DDI3_DDC_AUX_SEL is no connect. HDMI/DVI I2C CTRLDATA if DDI3_DDC_AUX_SEL is pulled high.

I/O PCIE I/O OD

3.3V

Not supported

DDI3_DDC_AUX_SEL C38 Selects the function of DDI3_CTRLCLK_AUX+ and DDI3_CTRLDATA_AUX-

I 3.3V Not supported

Note

Some signals have special functionality during the reset process. They may bootstrap some basic important functions of the module. For more information refer to section 8.5 of this user’s guide.

The Digital Display Interface (DDI) signals are multiplexed with HDMI, DisplayPort (DP) and SDVO. The signals for these interfaces are routed to the DDI interface of the COM Express connector. The SDVO interface is however not supported on the conga-TCA.

Page 58

Refer to the HDMI and DisplayPort signal description tables in this section for information about the signals routed to the DDI interface of the COM Express connector.

Table 23 HDMI Signal Descriptions

Signal Pin # Description I/O PU/PD Comment

TMDS1_CLK + TMDS1_CLK -

D36 D37

HDMI/DVI TMDS Clock output differential pair. Multiplexed with DDI1_PAIR3+ and DDI1_PAIR3-.

O PCIE

TMDS1_DATA0+ TMDS1_DATA0-

D32 D33

HDMI/DVI TMDS differential pair. Multiplexed with DDI1_PAIR2+ and DDI1_PAIR2-.

O PCIE

TMDS1_DATA1+ TMDS1_DATA1-

D29 D30

HDMI/DVI TMDS differential pair. Multiplexed with DDI1_PAIR1+ and DDI1_PAIR1-..

O PCIE

TMDS1_DATA2+ TMDS1_DATA2-

D26 D27

HDMI/DVI TMDS differential pair. Multiplexed with DDI1_PAIR0+ and DDI1_PAIR0-.

O PCIE

HDMI1_HPD C24 HDMI/DVI Hot-plug detect.

Multiplexed with DDI1_HPD.

I PCIE PD 1M

HDMI1_CTRLCLK D15 HDMI/DVI I

C Control Clock

Multiplexed with DDI1_CTRLCLK_AUX+

I/O OD

3.3V

PD 100k

HDMI1_CTRLDATA D16 HDMI/DVI I

C Control Data

Multiplexed with DDI1_CTRLDATA_AUX-

I/O OD

3.3V

PU 100k

3.3V

HDMI1_CTRLDATA is a boot strap signal (see note below). HDMI enable strap already populated

TMDS2_CLK + TMDS2_CLK -

D49 D50

HDMI/DVI TMDS Clock output differential pair.. Multiplexed with DDI2_PAIR3+ and DDI2_PAIR3-.

O PCIE

TMDS2_DATA0+ TMDS2_DATA0-

D46 D47

HDMI/DVI TMDS differential pair. Multiplexed with DDI2_PAIR2+ and DDI2_PAIR2-.

O PCIE

TMDS2_DATA1+ TMDS2_DATA1-

D42 D43

HDMI/DVI TMDS differential pair. Multiplexed with DDI2_PAIR1+ and DDI2_PAIR1-.

O PCIE

TMDS2_DATA2+ TMDS2_DATA2-

D39 D40

HDMI/DVI TMDS differential pair. Multiplexed with DDI2_PAIR0+ and DDI2_PAIR0-..

O PCIE

HDMI2_HPD D44 HDMI/DVI Hot-plug detect.

Multiplexed with DDI2_HPD

I PCIE PD 1M

HDMI2_CTRLCLK C32 HDMI/DVI I

C Control Clock

Multiplexed with DDI2_CTRLCLK_AUX+

I/O OD

3.3V

PD 100k

HDM12_CTRLDATA C33 HDMI/DVI I

C Control Data

Multiplexed with DDI2_CTRLDATA_AUX-

I/O OD

3.3V

PU 100k

3.3V

HDMI2_CTRLDATA is a boot strap signal (see note below). HDMI enable strap is already populated.

TMDS3_CLK + TMDS3_CLK -

C49 C50

HDMI/DVI TMDS Clock output differential pair.. Multiplexed with DDI3_PAIR3+ and DDI3_PAIR3-.

O PCIE Not supported

TMDS3_DATA0+ TMDS3_DATA0-

C46 C47

HDMI/DVI TMDS differential pair. Multiplexed with DDI3_PAIR2+ and DDI3_PAIR2-.

O PCIE Not supported

Page 59

Signal Pin # Description I/O PU/PD Comment

TMDS3_DATA1+ TMDS3_DATA1-

C42 C43

HDMI/DVI TMDS differential pair. Multiplexed with DDI3_PAIR1+ and DDI3_PAIR1-..

O PCIE Not supported

TMDS3_DATA2+ TMDS3_DATA2-

C39 C40

HDMI/DVI TMDS differential pair. Multiplexed with DDI3_PAIR0+ and DDI3_PAIR0-.

O PCIE Not supported

HDMI3_HPD C44 HDMI/DVI Hot-plug detect.

Multiplexed with DDI3_HPD.

I PCIE Not supported

HDMI3_CTRLCLK C36 HDMI/DVI I

C Control Clock

Multiplexed with DDI3_CTRLCLK_AUX+

I/O OD

3.3V

Not supported

HDMI3_CTRLDATA C37 HDMI/DVI I

C Control Data

Multiplexed with DDI3_CTRLDATA_AUX-

I/O OD

3.3V

Not supported

Note

Some signals have special functionality during the reset process. They may bootstrap some basic important functions of the module. For more information refer to section 8.5 of this user’s guide.

Table 24 DisplayPort (DP) Signal Descriptions

Signal Pin # Description I/O PU/PD Comment

DP1_LANE3+ DP1_LANE3-

D36 D37

Uni-directional main link for the transport of isochronous streams and secondary data. Multiplexed with DDI1_PAIR3+ and DDI1_PAIR3-.

O PCIE

DP1_LANE2+ DP1_LANE2-

D32 D33

Uni-directional main link for the transport of isochronous streams and secondary data. Multiplexed with DDI1_PAIR2+ and DDI1_PAIR2-.

O PCIE

DP1_LANE1+ DP1_LANE1-

D29 D30

Uni-directional main link for the transport of isochronous streams and secondary data. Multiplexed with DDI1_PAIR1+ and DDI1_PAIR1-.

O PCIE

DP1_LANE0+ DP1_LANE0-

D26 D27

Uni-directional main link for the transport of isochronous streams and secondary data. Multiplexed with DDI1_PAIR0+ and DDI1_PAIR0-.

O PCIE

DP1_HPD C24 Detection of Hot Plug / Unplug and notiﬁcation of the link layer.

Multiplexed with DDI1_HPD.

I 3.3V PD 1M

DP1_AUX+ D15 Half-duplex bi-directional AUX channel for services such as link

conﬁguration or maintenance and EDID access.

I/O PCIE

PD 100k

DP1_AUX- D16 Half-duplex bi-directional AUX channel for services such as link

conﬁguration or maintenance and EDID access.

I/O PCIE

PU 100k

3.3V

DP1_AUX- is a boot strap signal (see note below). DP enable strap is already populated.

DP2_LANE3+ DP2_LANE3-

D49 D50

Uni-directional main link for the transport of isochronous streams and secondary data. Multiplexed with DDI2_PAIR3+ and DDI2_PAIR3-

O PCIE

Page 60

Signal Pin # Description I/O PU/PD Comment

DP2_LANE2+ DP2_LANE2-

D46 D47

Uni-directional main link for the transport of isochronous streams and secondary data. Multiplexed with DDI2_PAIR2+ and DDI2_PAIR2-

O PCIE

DP2_LANE1+ DP2_LANE1-

D42 D43

Uni-directional main link for the transport of isochronous streams and secondary data. Multiplexed with DDI2_PAIR1+ and DDI2_PAIR1-

O PCIE

DP2_LANE0+ DP2_LANE0-

D39 D40

Uni-directional main link for the transport of isochronous streams and secondary data. Multiplexed with DDI2_PAIR0+ and DDI1_PAIR0-

O PCIE

DP2_HPD D44 Detection of Hot Plug / Unplug and notiﬁcation of the link layer.

Multiplexed with DDI2_HPD.

I 3.3V PD 1M

DP2_AUX+ C32 Half-duplex bi-directional AUX channel for services such as link

conﬁguration or maintenance and EDID access.

I/O PCIE

PD 100k

DP2_AUX- C33 Half-duplex bi-directional AUX channel for services such as link

conﬁguration or maintenance and EDID access.

I/O PCIE

PU 100k

3.3V

DP2_AUX- is a boot strap signal (see note below). DP enable strap already populated.

DP3_LANE3+ DP3_LANE3-

C49 C50

Uni-directional main link for the transport of isochronous streams and secondary data. Multiplexed with DDI3_PAIR3+ and DDI3_PAIR3-.

O PCIE Not supported

DP3_LANE2+ DP3_LANE2-

C46 C47

Uni-directional main link for the transport of isochronous streams and secondary data. Multiplexed with DDI3_PAIR2+ and DDI3_PAIR2-.

O PCIE Not supported

DP3_LANE1+ DP3_LANE1-

C42 C43

Uni-directional main link for the transport of isochronous streams and secondary data. Multiplexed with DDI3_PAIR1+ and DDI3_PAIR1-.

O PCIE Not supported

DP3_LANE0+ DP3_LANE0-

C39 C40

Uni-directional main link for the transport of isochronous streams and secondary data. Multiplexed with DDI3_PAIR0+ and DDI3_PAIR0-.

O PCIE Not supported

DP3_HPD C44 Detection of Hot Plug / Unplug and notiﬁcation of the link layer.

Multiplexed with DDI3_HPD.

I 3.3V Not supported

DP3_AUX+ C36 Half-duplex bi-directional AUX channel for services such as link

conﬁguration or maintenance and EDID access.

I/O PCIE

Not supported

DP3_AUX- C37 Half-duplex bi-directional AUX channel for services such as link

conﬁguration or maintenance and EDID access.

I/O PCIE

Not supported

Note

Some signals have special functionality during the reset process. They may bootstrap some basic important functions of the module. For more information refer to section 8.5 of this user’s guide.

Page 61

Table 25 Module Type Deﬁnition Signal Description

Signal Pin # Description I/O Comment

TYPE0# TYPE1# TYPE2#

C54 C57 D57

The TYPE pins indicate to the Carrier Board the Pin-out Type that is implemented on the module. The pins are tied on the module to either ground (GND) or are no-connects (NC). For Pinout Type 1, these pins are don’t care (X).

PDS TYPE[0:2]# signals are

available on all modules following the Type 2-6 Pinout standard. The conga-TCA is based on the COM Express Type 6 pinout therefore the pins 0 and 1 are not connected and pin 2 is connected to GND.

TYPE2# TYPE1# TYPE0#

X NC NC NC NC GND

X NC NC GND GND NC

X NC GND NC GND NC

Pinout Type 1 Pinout Type 2 Pinout Type 3 (no IDE) Pinout Type 4 (no PCI) Pinout Type 5 (no IDE, no PCI) Pinout Type 6 (no IDE, no PCI)

The Carrier Board should implement combinatorial logic that monitors the module TYPE pins and keeps power off (e.g deactivates the ATX_ON signal for an ATX power supply) if an incompatible module pin-out type is detected. The Carrier Board logic may also implement a fault indicator such as an LED.

TYPE10# A97 Dual use pin. Indicates to the carrier board that a Type 10 module is installed. Indicates to the carrier that a Rev.

1.0/2.0 module is installed.

PDS Not connected to indicate

“Pinout R2.0”.

TYPE10#

NC PD 12V

Pinout R2.0 Pinout Type 10 pull down to ground with 4.7k resistor Pinout R1.0

This pin is reclaimed from VCC_12V pool. In R1.0 modules this pin will connect to other VCC_12V pins. In R2.0 this pin is deﬁned as a no-connect for Types 1-6. A carrier can detect a R1.0 module by the presence of 12V on this pin. R2.0 module Types 1-6 will no-connect this pin. Type 10 modules shall pull this pin to ground through a 4.7k resistor.

Table 26 Power and GND Signal Descriptions

Signal Pin # Description I/O PU/PD Comment

VCC_12V C104-C109

D104-D109

Primary power input: +12V nominal. All available VCC_12V pins on the connector(s) shall be used.

GND C1, C2, C5, C8, C11, C14,

C21, C31, C41, C51, C60, C70,C73, C76, C80, C84, C87, C90, C93, C96, C100, C103, C110, D1, D2, D5, D8, D11, D14, D21, D31, D41, D51, D60, D67, D70, D73, D76, D80, D84, D87, D90, D93, D96, D100, D103, D110

Ground - DC power and signal and AC signal return path. All available GND connector pins shall be used and tied to carrier board GND plane.

Page 62

8.4 C-D Connector Pinout

Table 27 Connector C-D Pinout

Pin Row C Pin Row D Pin Row C Pin Row D

C1 GND (FIXED) D1 GND (FIXED) C56 PEG_RX1- (*) D56 PEG_TX1- (*)

C2 GND D2 GND C57 TYPE1# D57 TYPE2#

C3 USB_SSRX0- D3 USB_SSTX0- C58 PEG_RX2+ (*) D58 PEG_TX2+ (*)

C4 USB_SSRX0+ D4 USB_SSTX0+ C59 PEG_RX2- (*) D59 PEG_TX2- (*)

C5 GND D5 GND C60 GND (FIXED) D60 GND (FIXED)

C6 USB_SSRX1- D6 USB_SSTX1- C61 PEG_RX3+ (*) D61 PEG_TX3+ (*)

C7 USB_SSRX1+ D7 USB_SSTX1+ C62 PEG_RX3- (*) D62 PEG_TX3- (*)

C8 GND D8 GND C63 RSVD D63 RSVD

C9 USB_SSRX2- (*) D9 USB_SSTX2- (*) C64 RSVD D64 RSVD

C10 USB_SSRX2+ (*) D10 USB_SSTX2+ (*) C65 PEG_RX4+ (*) D65 PEG_TX4+ (*)

C11 GND (FIXED) D11 GND (FIXED) C66 PEG_RX4- (*) D66 PEG_TX4- (*)

C12 USB_SSRX3- (*) D12 USB_SSTX3- (*) C67 RSVD D67 GND

C13 USB_SSRX3+ (*) D13 USB_SSTX3+ (*) C68 PEG_RX5+ (*) D68 PEG_TX5+ (*)

C14 GND D14 GND C69 PEG_RX5- (*) D69 PEG_TX5- (*)

C15 DDI1_PAIR6+ (*) D15 DDI1_CTRLCLK_AUX+ C70 GND (FIXED) D70 GND (FIXED)

C16 DDI1_PAIR6- (*) D16 DDI1_CTRLDATA_AUX- C71 PEG_RX6+ (*)

D71 PEG_TX6+ (*)

C17 RSVD D17 RSVD C72 PEG_RX6- (*) D72 PEG_TX6- (*)

C18 RSVD D18 RSVD C73 GND D73 GND

C19 PCIE_RX6+ (*) D19 PCIE_TX6+ (*) C74 PEG_RX7+ (*) D74 PEG_TX7+ (*)

C20 PCIE_RX6- (*) D20 PCIE_TX6- (*) C75 PEG_RX7- (*) D75 PEG_TX7- (*)

C21 GND (FIXED) D21 GND (FIXED) C76 GND D76 GND

C22 PCIE_RX7+ (*) D22 PCIE_TX7+ (*) C77 RSVD D77 RSVD

C23 PCIE_RX7- (*) D23 PCIE_TX7- (*) C78 PEG_RX8+ (*) D78 PEG_TX8+ (*)

C24 DDI1_HPD D24 RSVD C79 PEG_RX8- (*) D79 PEG_TX8- (*)

C25 DDI1_PAIR4+ (*) D25 RSVD C80 GND (FIXED) D80 GND (FIXED)

C26 DDI1_PAIR4- (*) D26 DDI1_PAIR0+ C81 PEG_RX9+ (*) D81 PEG_TX9+ (*)

C27 RSVD D27 DDI1_PAIR0- C82 PEG_RX9- (*) D82 PEG_TX9- (*)

C28 RSVD D28 RSVD C83 RSVD D83 RSVD

C29 DDI1_PAIR5+ (*) D29 DDI1_PAIR1+ C84 GND D84 GND

C30 DDI1_PAIR5- (*) D30 DDI1_PAIR1- C85 PEG_RX10+ (*) D85 PEG_TX10+ (*)

Page 63

Pin Row C Pin Row D Pin Row C Pin Row D

C31 GND (FIXED) D31 GND (FIXED) C86 PEG_RX10- (*) D86 PEG_TX10- (*)

C32 DDI2_CTRLCLK_AUX+ D32 DDI1_PAIR2+ C87 GND D87 GND

C33 DDI2_CTRLDATA_AUX- D33 DDI1_PAIR2- C88 PEG_RX11+ (*) D88 PEG_TX11+ (*)

C34 DDI2_DDC_AUX_SEL D34 DDI1_DDC_AUX_SEL C89 PEG_RX11- (*) D89 PEG_TX11- (*)

C35 RSVD D35 RSVD C90 GND (FIXED) D90 GND (FIXED)

C36 DDI3_CTRLCLK_AUX+ (*) D36 DDI1_PAIR3+ C91 PEG_RX12+ (*) D91 PEG_TX12+ (*)

C37 DDI3_CTRLDATA_AUX- (*) D37 DDI1_PAIR3- C92 PEG_RX12- (*) D92 PEG_TX12- (*)

C38 DDI3_DDC_AUX_SEL (*) D38 RSVD C93 GND D93 GND

C39 DDI3_PAIR0+ (*) D39 DDI2_PAIR0+ C94 PEG_RX13+ (*) D94 PEG_TX13+ (*)

C40 DDI3_PAIR0- (*) D40 DDI2_PAIR0- C95 PEG_RX13- (*) D95 PEG_TX13- (*)

C41 GND (FIXED) D41 GND (FIXED) C96 GND D96 GND

C42 DDI3_PAIR1+ (*) D42 DDI2_PAIR1+ C97 RVSD D97 RSVD

C43 DDI3_PAIR1- (*) D43 DDI2_PAIR1- C98 PEG_RX14+ (*) D98 PEG_TX14+ (*)

C44 DDI3_HPD (*) D44 DDI2_HPD C99 PEG_RX14- (*) D99 PEG_TX14- (*)

C45 RSVD D45 RSVD C100 GND (FIXED) D100 GND (FIXED)

C46 DDI3_PAIR2+ (*) D46 DDI2_PAIR2+ C101 PEG_RX15+ (*)

D101 PEG_TX15+ (*)

C47 DDI3_PAIR2- (*) D47 DDI2_PAIR2- C102 PEG_RX15- (*) D102 PEG_TX15- (*)

C48 RSVD D48 RSVD C103 GND D103 GND

C49 DDI3_PAIR3+ (*) D49 DDI2_PAIR3+ C104 VCC_12V D104 VCC_12V

C50 DDI3_PAIR3- (*) D50 DDI2_PAIR3- C105 VCC_12V D105 VCC_12V

C51 GND (FIXED) D51 GND (FIXED) C106 VCC_12V D106 VCC_12V

C52 PEG_RX0+ (*) D52 PEG_TX0+ (*) C107 VCC_12V D107 VCC_12V

C53 PEG_RX0- (*) D53 PEG_TX0- (*) C108 VCC_12V D108 VCC_12V

C54 TYPE0# D54 PEG_LANE_RV# C109 VCC_12V D109 VCC_12V

C55 PEG_RX1+ (*) D55 PEG_TX1+ (*) C110 GND (FIXED) D110 GND (FIXED)

Note

The signals marked with an asterisk symbol (*) are not supported on the conga-TCA.

Page 64

8.5 Boot Strap Signals

Table 28 Boot Strap Signal Descriptions

Signal Pin # Description of Boot Strap Signal I/O PU/PD Comment

AC/HDA_SYNC A29 High Deﬁnition Audio Sync: This signal is a 48 kHz ﬁxed rate sample

sync to the codec(s). It is also used to encode the stream number.

O 3.3VSB AC/HDA_SYNC is a boot strap signal

(see caution statement below)

AC/HDA_SDOUT A33 High Deﬁnition Audio Serial Data Out: This signal is the serial TDM data

output to the codec(s). This serial output is double-pumped for a bit rate of 48 Mb/s for High Deﬁnition Audio.

O 3.3VSB AC/HDA_SDOUT is a boot strap signal

(see caution statement below)

LVDS_I2C_DAT A84 DDC lines used for ﬂat panel detection and control. I/O 3.3V PU 2k2

3.3V

LVDS_I2C_DAT is a boot strap signal (see caution statement below).

SPKR B32 Output for audio enunciator, the “speaker” in PC-AT systems O 3.3V PD 1k SPKR is a boot strap signal (see caution

statement below)

EXCD0_PERST# A48 ExpressCard 0 Reset O 3.3V PD 2.2k EXCD0_PERST# is a boot strap signal

DDI1_CTRLDATA_AUXDP1_AUXHDMI_CTRLDATA

D16 Multiplexed with DP1_AUX- and HDMI1_CTRLDATA.

DP AUX- function if DDI1_DDC_AUX_SEL is no connect. HDMI/DVI I2C CTRLDATA if DDI1_DDC_AUX_SEL is pulled high.

I/O PCIE I/O OD

3.3V

PU100k

3.3V

DDI1_CTRLDATA_AUX- is a boot strap signal (see caution statement below).

DDI2_CTRLDATA_AUXDP2_AUXHDM2_CTRLDATA

C33 Multiplexed with DP2_AUX- and HDMI2_CTRLDATA.

DP AUX- function if DDI2_DDC_AUX_SEL is no connect. HDMI/DVI I2C CTRLDATA if DDI2_DDC_AUX_SEL is pulled high.

I/O PCIE I/O OD

3.3V

PU100k

3.3V

DDI2_CTRLDATA_AUX- is a boot strap signal (see caution statement below).

LPC_CLK B10 LPC clock output - 33MHz nominal O 3.3V PD 10k LPC_CLK is a bootstrap signal (see

caution statement below)

Caution

The signals listed in the table above are used as chipset conﬁguration straps during system reset. In this condition (during reset), they are inputs that are pulled to the correct state by either COM Express™ internally implemented resistors or chipset internally implemented resistors that are located on the module. No external DC loads or external pull-up or pull-down resistors should change the conﬁguration of the signals listed in the above table. External resistors may override the internal strap states and cause the COM Express™ module to malfunction and/ or cause irreparable damage to the module.

Page 65

9 System Resources

9.1 System Memory Map

Table 29 Memory Map

Address Range (decimal) Address Range (hex) Size Description

(TOM-xxxx) – TOM N.A. N.A. ACPI reclaim, PCI memory range, Video, ….

1024kB – (TOM-xxxx) 100000 – N.A N.A. Extended memory

869kB – 1024kB E0000 - FFFFF 128kB Runtime BIOS

768kB – 896kB C0000 - DFFFF Expansion Area

640kB – 768kB A0000 - BFFFF 128kB Video memory and BIOS

639kB – 640kB 9FC00 - 9FFFF 1kB Extended BIOS data

0 – 639kB 00000 - 9FC00 512kB Conventional memory

Note

T.O.M. = Top of memory = max. DRAM installed

9.2 I/O Address Assignment

The I/O address assignment of the conga-TCA module is functionally identical with a standard PC/AT. The BIOS assigns PCI and PCI Express I/O resources from FFF0h downwards. Non PnP/PCI/PCI Express compliant devices must not consume I/O resources in that area.

Page 66

9.2.1 LPC Bus

On the conga-TCA, the internal PCI Bus acts as the subtractive decoding agent. All I/O cycles that are not positively decoded are forwarded to the internal PCI Bus. Only speciﬁed I/O ranges are forwarded to the LPC Bus by default.

In the congatec Embedded BIOS, the following I/O address ranges are sent to the LPC Bus:

2Eh – 2Fh 4Eh – 4Fh

60h 62h 64h 66h

200h – 20Fh

3F0h - 3F5h

3F7h

2F8h – 2FFh

378h – 37Fh

778h – 77Fh

F8h – 3FFh3

Parts of these ranges are not available if a Super I/O is used on the carrier board. If a Super I/O is not implemented on the carrier board, then these ranges are available for customer use. If you require additional LPC Bus resources other than those mentioned above, or more information about this subject, contact congatec technical support for assistance.

Note

If COM B of external Super I/O is enabled in the BIOS setup menu

If LPT of external Super I/O is enabled in the BIOS setup menu

If COM A of external Super I/O is enabled in the BIOS setup menu

Page 67

9.3 Interrupt Request (IRQ) Lines

Table 30 IRQ Lines in PIC mode

IRQ# Available Typical Interrupt Source Connected to Pin

0 No Counter 0 Not applicable

1 No Keyboard Not applicable

2 No Cascade Interrupt from Slave PIC Not applicable

3 Yes IRQ3 via SERIRQ or PCI BUS INTx

4 Yes IRQ4 via SERIRQ or PCI BUS INTx

5 Yes IRQ5 via SERIRQ or PCI BUS INTx

6 Yes IRQ6 via SERIRQ or PCI BUS INTx

7 No Reserved for BIOS purposes

8 No Real-time Clock Not applicable

9 No SCI Not applicable

10 Ye s IRQ10 via SERIRQ or PCI BUS INTx

11 Ye s IRQ11 via SERIRQ or PCI BUS INTx

12 Ye s IRQ12 via SERIRQ or PCI BUS INTx

13 No Math processor Not applicable

14 Ye s PCI BUS INTx

15 Ye s PCI BUS INTx

Note

In PIC mode, the PCI bus interrupt lines can be routed to any free IRQ.

Page 68

Table 31 IRQ Lines in APIC mode

IRQ# Available Typical Interrupt Source Connected to Pin / Function

0 No Counter 0 Not applicable

1 No Keyboard Not applicable

2 No Cascade Interrupt from Slave PIC Not applicable

3 Ye s IRQ3 via SERIRQ

4 Ye s IRQ4 via SERIRQ

5 Ye s IRQ5 via SERIRQ

6 Ye s IRQ6 via SERIRQ

7 No Reserved for BIOS purposes

8 No Real-time Clock Not applicable

9 No SCI SCI

10 Yes IRQ10 via SERIRQ

11 Yes IRQ11 via SERIRQ

12 Yes IRQ12 via SERIRQ

13 No Math processor Not applicable

14 Yes

15 Yes

16 No PIRQA, Integrated VGA Controller, UHCI Controller #3, PCI Express Root Port 0, PCI Express Port 0, PCI Express

Port 1, PCI Express Port 3

17 No PIRQB, PCI Express Root Port 0, PCI Express Port 0, PCI Express Port 1, PCI Express Port 3

18 No PIRQC, UHCI Controller #2, PCI Express Root Port 0, PCI Express Port 0, PCI Express Port 1, PCI Express Port 3,

Jmicron PATA Controller

19 No PIRQD, PCI Express Root Port 0, PCI Express Port 0, PCI Express Port 1, PCI Express Port 3, SMBUS Controller,

UHCI Controller #1

20 Yes PIRQE, onboard Gigabit LAN Controller, COMx Slot #0, COMx Slot #1, COMx Slot #2, COMx Slot #3

21 Yes PIRQF, COMx Slot #0, COMx Slot #1, COMx Slot #2, COMx Slot #3

22 Yes PIRQG, Intel High Deﬁnition Audio Controller, COMx Slot #0, COMx Slot #1, COMx Slot #2, COMx Slot #3

23 Yes PIRQH, EHCI Host Controller #1, UHCI Controller #0, COMx Slot #0, COMx Slot #1, COMx Slot #2, COMx Slot #3

Note

In APIC mode, the PCI bus interrupt lines are connected with IRQ 16, 17, 18 and 19.

Page 69

9.4 PCI Conﬁguration Space Map

Table 32 PCI Conﬁguration Space Map

Bus Number (hex)

Device Number (hex)

Function Number (hex)

PCI Interrupt Routing

Description

00h 00h 00h N.A. Host Bridge

00h 02h 00h Internal VGA Graphics

00h 1Bh 00h Internal Intel High Deﬁnition Audio

Controller

00h (Note1) 1Ch 00h Internal PCI Express Root Port 1

00h (Note1) 1Ch 01h Internal PCI Express Root Port 2

00h (Note1) 1Ch 02h Internal PCI Express Root Port 3

00h (Note1) 1Ch 03h Internal PCI Express Root Port 4

00h 1Dh 00h Internal USB UHCI Controller #1

00h 1Dh 01h Internal USB UHCI Controller #2

00h 1Dh 02h Internal USB UHCI Controller #3

00h 1Dh 03h Internal USB UHCI Controller #4

00h 1Dh 07h Internal USB 2.0 EHCI Controller #1

00h 1Eh 00h N.A. PCI to PCI Bridge

00h 1Fh 00h N.A. LPC Controller

00h 1Fh 02h Internal Serial ATA Controller

00h 1Fh 03h Internal SMBus Controller

02h 00h 00h N.A Texas Instruments PCI Express Hub

03h 00h 00h Internal PCI Express Hub Port 0

03h 01h 00h Internal PCI Express Hub Port 1

03h 02h 00h Internal PCI Express Hub Port 2

07h (Note2) 00h 00h Internal Texas Instrument 3.0 USB Hub

08h 00h 00h Internal Realtek Ethernet Controller

Note

1. The PCI Express Ports are visible only if a device is attached behind them to the PCI Express Slot on the base board.

2. This device is only present on some conga-TCA variants.

Page 70

9.5 PCI Interrupt Routing Map

Table 33 PCI Interrupt Routing Map

PIRQ PCI

BUS INT Line ¹

APIC Mode IRQ

VGA HDA EHCI SM

Bus

LAN UHCI #0UHCI #1UHCI #2PCI-EX

Root Port 0

PCIEX Port 0

PCIEX Port 1

PCIEX Port 2

COMx Slot #0

COMx Slot #1

COMx Slot #2

COMx Slot #3

A INTA 16 x x x x x

B INTB 17 x x x x

C INTC 18 x x x x x

D INTD 19 x x x x x x

E 20 x x x x x

F 21 x x x x

G 22 x x x x x

H 23 x x x x x x

Note

These interrupt lines are virtual (message based)

9.6 I²C Bus

There are no onboard resources connected to the I²C bus. Address 16h is reserved for congatec Battery Management solutions.

9.7 SM Bus

System Management (SM) bus signals are connected to the Intel® CG82NM10 (NM10) PCH and the SM bus is not intended to be used by off-board non-system management devices. For more information about this subject contact congatec technical support.

Page 71

10 BIOS Setup Description

The following section describes the BIOS setup program. The BIOS setup program can be used to view and change the BIOS settings for the module. Only experienced users should change the default BIOS settings.

10.1 Entering the BIOS Setup Program.

The BIOS setup program can be accessed by pressing the <DEL> or <F2> key during POST.

10.1.1 Boot Selection Popup

The BIOS offers the possibility to access a Boot Selection Popup menu by pressing the <F11> key during POST. If this option is used, a selection will be displayed immediately after POST allowing the operator to select either the boot device that should be used or an option to enter the BIOS setup program.

10.2 Setup Menu and Navigation

The congatec BIOS setup screen is composed of the menu bar and two main frames. The menu bar is shown below:

Main Advanced Boot Security Save & Exit

The left frame displays all the options that can be conﬁgured in the selected menu. Grayed-out options cannot be conﬁgured. Only the blue options can be conﬁgured. When an option is selected, it is highlighted in white.

Note

Entries in the option column that are displayed in bold print indicate BIOS default values.

The right frame displays the key legend. Above the key legend is an area reserved for text messages. These text messages explain the options and the possible impacts when changing the selected option in the left frame.

The setup program uses a key-based navigation system. Most of the keys can be used at any time while in setup. The table below explains the supported keys:

Page 72

Key Description

← → Left/Right Select a setup menu (e.g. Main, Boot, Exit).

↑ ↓ Up/Down Select a setup item or sub menu.

+ - Plus/Minus Change the ﬁeld value of a particular setup item.

Tab Select setup ﬁelds (e.g. in date and time).

F1 Display General Help screen.

F2 Load previous settings.

F9 Load optimal default settings.

F10 Save changes and exit setup.

ESC Discard changes and exit setup.

ENTER Display options of a particular setup item or enter submenu.

10.3 Main Setup Screen

When you ﬁrst enter the BIOS setup, you will enter the Main setup screen. You can always return to the Main setup screen by selecting the Main tab. The Main screen reports BIOS, processor, memory and board information and is for conﬁguring the system date and time.

Feature Options Description

Main BIOS Version no option Displays the main BIOS version.

OEM BIOS Version no option Displays the additional OEM BIOS version.

Build Date no option Displays the date the BIOS was built.

Product Revision no option Displays the hardware revision of the board.

Serial Number no option Displays the serial number of the board.

BC Firmware Rev. no option Displays the revision of the congatec board controller.

MAC Address no option Displays the MAC address of the onboard Ethernet controller.

Boot Counter no option Displays the number of boot-ups. (max. 16777215).

Running Time no option Displays the time the board is running [in hours max. 65535].

►Intel RC Version submenu Opens the Intel Platform Reference Code Information submenu.

System Date Day of the week,

month/day/year

Speciﬁes the current system date.

Note: The date is in month-day-year format.

System Time Hour:Minute:Second Speciﬁes the current system time.

Note: The time is in 24 hour format.

Page 73

10.3.1 Intel RC Version Submenu

The Intel RC version submenu offers additional hardware and software information.

Feature Options Description

Processor no option Displays the processor reference Code ID string.

Processor MRC no option Displays the processor MRC Reference code version.

Chipset no option Displays the NM10 Reference code version.

Processor P-UNIT no option Displays the number P-UNI version.

IGD VBIOS Version no option Displays the video BIOS version.

ACPI Version no option Displays the version of the ACPI Reference Code.

INTEL IFFS no option Displays the Intel Fast Flash Standby Reference Code Version.

10.4 Advanced Setup

Select the Advanced tab from the setup menu to enter the Advanced BIOS Setup screen. The menu is used for setting advanced features and only features described within this user’s guide are listed.

Main Advanced Boot Security Save & Exit

Graphics

Watchdog

Hardware Monitoring

PCI

ACPI

RTC Wake

CPU

Memory

Chipset

SATA

iFFS

USB

Super IO

Console Redirection

Network Stack

Page 74

10.4.1 Graphics Submenu

Feature Options Description

Boot Display Device VBIOS Default

CRT LFP DDI CRT + LFP CRT + DDI LFP + DDI

Select the Primary IGD display device(s) to be used during boot up. CRT: selects Analog VGA display port. LFP (Local Flat Panel): selects a LVDS panel connected to the integrated LVDS port. DDI (Digital Display Interface): selects a digital interface HDMI or DP connected to the system.

Active LFP No LVDS

LVDS

Select the active local ﬂat panel conﬁguration.

Always Try Auto Panel Detect

Yes

If set to ‘Yes’ the BIOS will ﬁrst look for an EDID data set in an external EEPROM to conﬁgure the Local Flat Panel . Only if no external EDID data set can be found, the data set selected under ‘Local Flat Panel Type’ will be used as fallback data set.

Local Flat Panel Type Auto

VGA 640x480 1x18 (002h) VGA 640x480 1x18 (013h) WVGA 800x480 1x24 (01Bh) SVGA 800x600 1x18 (01Ah) XGA 1024x768 1x18 (006h) XGA 1024x768 1x24 (008h) WXGA 1280x768 1x24 (01Ch) Customized EDID™ 1 Customized EDID™ 2 Customized EDID™ 3

Select a predeﬁned LFP type or choose Auto to let the BIOS automatically detect and conﬁgure the attached LVDS panel. Auto detection is performed by reading an EDID data set via the video I²C bus. The number in brackets speciﬁes the congatec internal number of the respective panel data set.

Note: Customized EDID™ utilizes an OEM deﬁned EDID™ data set stored in the BIOS ﬂash device.

Flat Panel Scaling Auto

Forced Scaling Off Maintain Aspect Ratio

Select the Flat Panel Scaling mode.

Backlight Inverter Type None

PWM I2C

Select the type of backlight Inverter used.

IGD Clock Source External clock

Internal Clock

IGD clock selection

IGD Total Graphics Memory 128MB

256MB

Select the amount of total graphics memory that maybe used by the Internal Graphics Device. Memory above the ﬁxed graphics memory will be dynamically allocated by the graphics driver according to DVMT

5.0 speciﬁcation.

ALS Support Disabled

Enabled

Valid only for ACPI Enable ALS support on the Operating System.

Digital Display Interface 1 Disabled

Display Port HDMI/DVI

Select the Digital Display Interface offered by the DDI 1

Page 75

Feature Options Description

Digital Display Interface 2 Disabled

Display Port HDMI/DVI

Select the Digital Display Interface offered by the DDI 2

PWM Inverter Frequency 200 - 40000 Select PWM inverter frequency. Default 200. Hidden if “Backlight Inverter Type” selected is “None”.

PWM Inverter Polarity No

Yes

Allow to invert backlight control values if required for the actual backlight hardware controller. Hidden if “Backlight Inverter Type” selected is “None”.

Backlight Setting 0%, 10%, 25%, 40%, 50%, 60%,

75%, 90%, 100%

Actual backlight value in percent of the maximum setting. Hidden if Backlight inverter Type is None or I2C.

Inhibit Backlight No

Permanent Until End Of POST

Decide whether the backlight on signal should be activated when the panel is activated or whether it should remain inhibited until the end of BIOS POST or permanently. Hidden if “Backlight Inverter Type” selected is “None”.

10.4.2 Watchdog Submenu

Feature Options Description

POST Watchdog Disabled

30sec 1min 2min 5min 10min 30min

Select the timeout value for the POST watchdog.

The watchdog is only active during the power-on-self-test of the system and provides a facility to prevent errors during boot up by performing a reset..

Stop Watchdog for User Interaction

Yes

Select whether the POST watchdog should be stopped during the pop-up boot selection menu or while waiting for setup password insertion.

Runtime Watchdog Disabled

One time trigger Single Event Repeated Event

Selects the operating mode of the runtime watchdog. This watchdog will be initialized just before the operating system starts booting. If set to ‘One time trigger’ the watchdog will be disabled after the ﬁrst trigger. If set to ‘Single event’, every stage will be executed only once, then the watchdog will be disabled. If set to ‘Repeated event’ the last stage will be executed repeatedly until a reset occurs.

Delay Disabled

10sec 30sec 1min 2min 5min 10min 30min

Select the delay time before the runtime watchdog becomes active. This ensures that an operating system has enough time to load.

Event 1 ACPI Event

Reset

Power Button

Selects the type of event that will be generated when timeout 1 is reached. For more information about ACPI Event, see note below.

Page 76

Feature Options Description

Event 2 Disabled

ACPI Event Reset Power Button

Selects the type of event that will be generated when timeout 2 is reached.

Event 3 Disabled

ACPI Event Reset Power Button

Selects the type of event that will be generated when timeout 3 is reached.

Timeout 1 1sec

2sec 5sec 10sec

30sec

1min 2min 5min 10min 30min

Selects the timeout value for the ﬁrst stage watchdog event.

Timeout 2 see above Selects the timeout value for the second stage watchdog event.

Timeout 3 see above Selects the timeout value for the third stage watchdog event.

Watchdog ACPI Event

Shutdown

Restart

Select the operating system event that is initiated by the watchdog ACPI event. These options perform a critical but orderly operating system shutdown or restart.

Note

In ACPI mode it is not possible for a “Watchdog ACPI Event” handler to directly restart or shutdown the OS. For this reason, the congatec BIOS will do one of the following:

For Shutdown: An over temperature notiﬁcation is executed. This causes the OS to shut down in an orderly fashion.

For Restart: An ACPI fatal error is reported to the OS.

Additionally, the conga-TCA module does not support the watchdog NMI mode. COM Express type 6 modules do not support the PCI bus and therefore the PCI_SERR# signal is not available. There is no way to drive a NMI to the processor without the presence of the PCI_SERR# PCI bus signal.

Page 77

10.4.3 Hardware Monitoring Submenu

Feature Options Description

CPU Temperature no option Displays the actual CPU Temperature in °C.

Board Temperature 1 no option Displays the actual Board Temperature 1 in °C.

Board Temperature 2 no option Displays the actual Board Temperature 2 in °C.

Board Temperature 3 no option Displays the actual Board Temperature 3 in °C.

12V Standard no option Displays the actual voltage of the 12V Standard power supply.

5V Standby no option Displays the actual voltage of the 5V Standby power supply.

CPU Fan Speed no option Displays the actual CPU Fan Speed in RPM.

Fan PWM Frequency Mode Low Frequency

High Frequency

Select fan PWM base frequency mode. Low frequency: 35.3Hz High frequency: 22.5kHz

Continuous Tacho Reading Disabled

Enabled

If enabled, the fan tacho pulses are measured continuously instead of once per second. Helps to avoid audible ‘pulsing’ of the fan as the speed would be set to 100% for a very short time during measurement.

Pulses Per Revolution 1, 2, 3, 4 Select number of pulses per revolution generated by the attached fan.

Automatic Fan Speed Control

Disabled

Enabled

Enable hardware fan speed control. Independent from any operating system the fan will be turned on once a certain start temperature is reached and linearly ramped up to the deﬁned maximum speed within the given temperature range.

Fan Control Temperature CPU Temperature

Board Temperature 1 Board Temperature 2 Board Temperature 3

Select which temperature input is used for the automatic fan speed control. Only visible if Automatic Fan Speed Control is enabled.

Start Temperature 30, 40, 50, 60, 70, 80,

90, 100°C

At this temperature the fan will be turned on at the deﬁned minimum fan speed. Only visible if Automatic Fan Speed Control is enabled.

Temperature Range 5, 10, 15, 20, 25, 30,

40, 55, 80°C

Within this temperature range the fan will ramp up to the deﬁned maximum fan speed. Only visible if Automatic Fan Speed Control is enabled.

Minimum Fan Speed Fan Off, 10%, 15%,

20%, 25%, 30%, 35%, 40%, 45%, 50%, 55%, 60%, 65%, 70%, 75%, 80%, 85%, 90%, 95% 100%

Select minimum/start fan speed to be set when the start temperature of the control slope is reached. Only visible if Automatic Fan Speed Control is enabled.

Maximum Fan Speed Fan Off, 10%, 15%,

20%, 25%, 30%, 35%, 40%, 45%, 50%, 55%, 60%, 65%, 70%, 75%, 80%, 85%, 90%, 95%

100%

Select maximum/end fan speed to be ramped up to until the end temperature of the control slope is reached. Only visible if Automatic Fan Speed Control is enabled.

Page 78

Feature Options Description

Fan Always On At Minimum Speed

Disabled

Enabled

If enabled, the fan will always run at least at the selected minimum speed, even if the control temperature is below the fan control start temperature. This is to ensure a minimum air ﬂow all the time. Only visible if Automatic Fan Speed Control is enabled.

10.4.4 PCI Submenu

Feature Options Description

PCI BUS Driver Version No option Shows the PCI Bus Driver Version ID Number

PCI Common Settings

PCI Latency Timer 32, 128, 160, 192,

224, 248 PCI Bus Clocks

Select value to be programmed into PCI latency timer register.

Generate EXCD0/1_PERST# Disabled

1ms 5ms

10ms

50ms 100ms 150ms 200ms 250ms

Select whether the COM Express EXCD0_PERST# and EXCD1_PERST# pins should be driven low during POST or how long it will be, if enabled.

VGA Palette Snoop Disabled

Enabled

Enable or disable VGA palette registers snooping.

PERR# Generation Disabled

Enabled

Enable or disable PCI Device to generate PERR#

SERR# Generation Disabled

Enabled

Enable or disable PCI Device to generate SERR#

Reserve Legacy Interrupt 1 None, IRQ3,

IRQ4, IRQ5, IRQ6, IRQ10, IRQ11

The interrupt reserved here will not be assigned to any PCI or PCI Express device and thus maybe available for some legacy bus device.

Reserve Legacy Interrupt 2 Same as Reserve

Legacy Interrupt 1

Same as Reserve Legacy Interrupt 1

►PIRQ Routing & IRQ Reservation

submenu Manual PIRQ routing and interrupt reservation for legacy devices.

Page 79

10.4.4.1 PIRQ Routing & IRQ Reservation Submenu

Feature Options Description

PIRQA Auto, IRQ3, IRQ4,

IRQ5, IRQ6, IRQ10, IRQ11, IRQ14, IRQ15

Set interrupt for selected PIRQ. Please refer to the board’s resource list for a detailed list of devices connected to the respective PIRQ. NOTE: These settings will only be effective while operating in PIC (non-IOAPIC) interrupt mode.

PIRQB same as PIRQA same as PIRQA

PIRQC same as PIRQA same as PIRQA

PIRQD same as PIRQA same as PIRQA

PIRQE same as PIRQA same as PIRQA

PIRQF same as PIRQA same as PIRQA

PIRQG same as PIRQA same as PIRQA

PIRQH same as PIRQA same as PIRQA

10.4.5 ACPI Submenu

Feature Options Description

ACPI no option Describes the ACPI features.

Hibernation Support Disabled

Enabled

Enable or disable system ability to hibernate (operating system S4 sleep state). This option may not be effective with some operating systems.

ACPI Sleep State Suspend Disabled

S3 (Suspend to RAM)

Select the state used for ACPI system sleep/suspend.

Lid Button Support Disabled

Enabled

Conﬁgure COM Express LID# signal to act as ACPI lid button.

Sleep Button Support Disabled

Enabled

Conﬁgure COM Express SLEEP# signal to act as ACPI sleep button.

S3 Video Repost Disabled

Enabled

Enable or disable video BIOS re-post on S3 resume. Required by some operating systems.

S3 USB Wake Disabled

Enabled

Enable or disable ACPI Wake events generated by USB devices.

CPU Thermal Monitoring Enable for ACPI and CGOS

Enabled for CGOS Disabled

ACPI Monitor will use System Management Interrupts (SMI) for accessing the Digital Thermal Sensor located on a Machine Speciﬁc Register (MSR). CGOS access the Digital Thermal Sensor MSR.

Note: Both operations would be problematic for some Operating systems.

Critical Trip Point POR, 70, 75, 80, 85, 90, 95,

100, 105, 110, 115, 120, 125 °C, Disabled

Speciﬁes the temperature threshold at which the ACPI aware OS performs a critical shutdown. The option “POR” is for Cedar Trail Processor at 100° C trip point.

Page 80

Feature Options Description

Active Trip Point 55, 60, 65, 70, 75, 80, 85,

90, 95, 100, 105, 110, 115, 120, 125 °C, Disabled

Speciﬁes the temperature threshold at which the ACPI aware OS turns the fan on/off.

Passive Trip Point 55, 60, 65, 70, 75, 80, 85,

90, 95, 100, 105, 110, 115, 120, 125 °C, Disabled

Speciﬁes the temperature threshold at which the ACPI aware OS starts or stops CPU clock throttling. This method of Passive cooling is not recommended. The preferred method of passive cooling is the setting of the TCC active offset in CPU Conﬁguration menu.

10.4.6 RTC Wake Settings Submenu

Feature Options Description

Wake System At Fixed Time Disabled

Enabled

Enable system to wake from S5 using RTC alarm.

Wake Up Hour Specify wake up hour.

Wake Up Minute Specify wake up minute.

Wake UP Second Specify wake up second.

10.4.7 CPU Submenu

Feature Options Description

CPU Information no option Describes the CPU/Processor main parameters

Hyper-Threading Disabled

Enabled

Enable or disable Hyper-Threading support.

Execute Disable Bit Disabled

Enabled

Enable or disable the Execute Disable Bit (XD) of the processor. With the XD bit set to enabled certain classes of malicious buffer overﬂow attacks can be prevented when combined with a supporting OS.

Limit CPUID Maximum Disabled

Enabled

When enabled, the processor will limit the maximum CPUID input value to 03h when queried, even if the processor supports a higher CPUID input value. When disabled, the processor will return the actual maximum CPUID input value of the processor when queried. Limiting the CPUID input value may be required for older operating systems that cannot handle the extra CPUID information returned when using the full CPUID input value.

EIST Disabled

Enabled

Enable or disable EIST support.

CPU C State Report Disabled

Enabled

Enable or disable CPU C state report to OS.

Enhanced C State Disabled

Enabled

Enable or disable CPU C state.

Page 81

Feature Options Description

CPU Hard C4E Disabled

Enabled

Enable or disable CPU Hard C4E state.

CPU C6 State Disabled

Enabled

Enable or disable CPU C state.

C4 Exit Timing Default

Fast

Slow

Controls a programmable time for the CPU to stabilize the CPU voltage to stabilize when exiting from a C4 State

C-State POPDOWN Disabled

Enabled

Allows an automatic return to a previous C3/C4 State

C-State POPUP Disabled

Enabled

Allows to take the system from C3/C4 state to C2 state according to bus master request.

10.4.8 Memory Submenu

Feature Options Description

Memory Information No option Show the Memory Information detected by the system

MRC Fast Boot Disabled

Enabled

MAX TOLUD Dynamic

1 GB

1.25 GB

1.5 GB

1.75 GB 2 GB

2.25 GB

2.5 GB

2.75 GB 3 GB

3.25 GB

3.5 GB

Maximum Value of TOLUD. Dynamic assignment would adjust TOLUD automatically based on largest MMIO length of installed graphic controller

Page 82

10.4.9 Chipset Submenu

Feature Options Description

►IO Hub Devices submenu

►PCI Express Port 0 submenu Opens the PCI Express Port submenu

►PCI Express Port 1 submenu Opens the PCI Express Port submenu

►PCI Express Port 2 submenu Opens the PCI Express Port submenu

►PCI Express Port 3 submenu Opens the PCI Express Port submenu

DMI Link ASPM Control Disabled

Enabled

Controls the Active State Power Management.

PCI-Exp. High Priority Disabled

Enabled

Selects a PCI Express High Priority Port.

High Precision Timer Disabled

Enabled

Enable or disable High Precision Event Timer

SLP_S4 Assertion Width 1-2 Second

2-3 Second 3-4 Second 4-5 Second

Selects the minimum assertion width of the SLP_S4 Signal.

10.4.9.1 IO Hub Devices Submenu

Feature Options Description

Azalia Controller Disabled

HD Audio

Controls activation of the HDA controller device. Disabled = HDA controller will be unconditionally disabled HD Audio = HDA controller will be unconditionally enabled

Azalia PME Enable Disabled

Enabled

Enable or disable the Azalia Power Management Events.

Azalia Vci Enable Disabled

Enabled

Enable or disable the Azalia Vci.

Select USB Mode By Ports

By Controllers

Select USM Mode to Control the USB ports

UHCI #1 (Ports 0 and 1) Disabled

Enabled

Enables the USB UHCI (USB 1.1) Controller #1 Only visible if “Select USB Mode” equal “By Controller”

UHCI #2 (Ports 2 and 3) Disabled

Enabled

Enables the USB UHCI (USB 1.1) Controller #2 Only visible if “Select USB Mode” equal “By Controller”

UHCI #3 (Ports 4 and 5) Disabled

Enabled

Enables the USB UHCI (USB 1.1) Controller #3 Only visible if “Select USB Mode” equal “By Controller”

UHCI #4 (Ports 6 and 7) Disabled

Enabled

Enables the USB UHCI (USB 1.1) Controller #4 Only visible if “Select USB Mode” equal “By Controller”

Page 83

Feature Options Description

USB Function Disabled

1 USB Port 2 USB Ports 3 USB Ports 4 USB Ports 5 USB Ports 6 USB Ports 7 USB Ports 8 USB Ports

Enables a concrete number of USB Ports

USB 2.0 (EHCI) Support Disabled

Enabled

Enable or disable USB 2.0 (EHCI) Support.

SMBus Controller Disabled

Enabled

Enable or disable the SMBus Controller.

SIRQ Logic Disabled

Enabled

Enables Serial IRQ Logic.

SIRQ Mode Quiet

Continous

Controls Serial IRQ Mode.

10.4.9.2 PCI Express Port Submenu

Feature Options Description

PCI Express Port x Disabled

Enabled

Enable or disable the respective PCI Express port x.

Port x IoxAPIC Disabled

Enabled

Enable or disable PCI Express Root Port x I/O APIC.

Automatic ASPM Manual

Auto

Automatically enable ASPM based on reported capabilities and known issues.

ASPM L0s Disabled

Root Port Only Endpoint Port Only Both Root And Endpoint Ports

Enable PCIe ASPM L0s

ASPM L1 Disabled

Enabled

Enable PCIe ASPM L1.

URR Disabled

Enabled

PCI Express Unsupported Request Reporting Enable/Disable.

FER Disabled

Enabled

PCI Express Device Fatal Error Reporting Enable/Disable.

Page 84

Feature Options Description

NFER Disabled

Enabled

PCI Express Device Non-Fatal Error Reporting Enable/Disable.

CER Disabled

Enabled

PCI Express Device Correctable Error Reporting Enable/Disable.

CTO Disabled

Enabled

PCI Express Completion Timer TO Enable/Disable.

SEFE Disabled

Enabled

Root PCI Express System Error on Fatal Error Enable/Disable.

SENFE Disabled

Enabled

Root PCI Express System Error on Non-Fatal Error Enable/Disable.

SECE Disabled

Enabled

Root PCI Express System Error on Correctable Error Enable/Disable.

PME SCI Disabled

Enabled

PCI Express PME SCI Enable/Disable.

Hot Plug Disabled

Enabled

PCI Express Hot Plug Enable/Disable.

Extra Bus Reserved 0-7 Extra Bus Reserved (0-7) for bridges behind this Root Bridge. Default value is 0

Reserved Memory [1-20] Reserved Memory and Prefetchable Memory (1-20MB) Range for this Root Bridge.

Default Value is 1MB.

Reserved I/O 4K,8K,2K,16K,20K Reserved I/O (4K/8K/12K/16K/20K) Range for this Root Bridge.

10.4.10 SATA Submenu

Feature Options Description

SATA Port Information no option Displays the name of the connected Hard Disk or DVDROM when the port is enabled.

Empty is displayed when the port is enabled but nothing is connected to it.

SATA Controller(s) Enabled

Disabled

Enable or disable the onboard SATA controllers.

Conﬁgure SATA as IDE

AHCI

Select SATA controller mode.

Port 0 Speed Limit No Limit

GEN1 Rate GEN2 Rate

Controls the Port 0 Speed Limit.

Port 1 Speed Limit No Limit

GEN1 Rate GEN2 Rate

Controls the Port 1 Speed Limit.

SATA Port 0 Enabled

Disabled

Enables Port 0.

Page 85

Feature Options Description

SATA Port 0 Hotplug Enabled

Disabled

Conﬁgures this Port as Hot Pluggable.

SATA Port 1 Enabled

Disabled

Enables Port 1.

SATA Port 1 Hotplug Enabled

Disabled

Conﬁgures this Port as Hot Pluggable.

SMART Self Test Disabled

Enabled

Run SMART self Test on all Hard Disk during POST.

10.4.11 iFFS Submenu

Feature Options Description

IFFS Support Disabled

Enabled

Indicates support for Intel Fast Flash Standby.

10.4.12 USB Submenu

Feature Options Description

USB Devices no option Displays the detected USB devices.

Legacy USB Support Enabled

Disabled Auto

Enables legacy USB support. Auto option disables legacy support if no USB devices are connected. Disable option will keep USB devices available only for EFI applications and setup.

EHCI Hand-off Disabled

Enabled

This is a workaround for OSes without EHCI hand-off support. The EHCI ownership change should be claimed by the EHCI OS driver.

Device Reset Timeout 10 sec

20 sec

30 sec 40 sec

USB legacy mass storage device Start Unit command timeout.

USB Transfer Timeout 1 sec

5 sec 10 sec

20 sec

The timeout value for control, bulk, and interrupt transfers.

Device Power-Up Delay Selection

Auto

Manual

Deﬁne maximum time a USB device might need before it properly reports itself to the host controller. Auto selects a default value which is 100ms for a root port or derived from the hub descriptor for a hub port.

Device Power-Up Delay Value 0-40

Default : 5

Actual power-up delay value in seconds.

Page 86

Feature Options Description

USB Mass Storage Device Name (Auto detected USB mass storage devices are listed here dynamically)

Auto

Floppy Forced FDD Hard Disk CD-ROM

Every USB mass storage device that is enumerated by the BIOS will have an emulation type setup option. This option speciﬁes the type of emulation the BIOS has to provide for the device.

Note: The device’s formatted type and the emulation type provided by the BIOS must match for the device to boot properly.

Select AUTO to let the BIOS auto detect the current formatted media. If Floppy is selected then the device will be emulated as a ﬂoppy drive. Forced FDD allows a hard disk image to be connected as a ﬂoppy image. Works only for drives formatted with FAT12, FAT16 or FAT32.

Hard disk allows the device to be emulated as hard disk. CDROM assumes the CD-ROM is formatted as bootable media, speciﬁed by the ‘El Torito’

Format Speciﬁcation.

10.4.13 Super I/O Submenu

Feature Options Description

Serial Port 0 Disabled

Enabled

Enable or disable serial port 0.

Device Settings IO=3F8h; IRQ=4; Fixed conﬁguration of serial port 0 if enabled.

Serial Port 1 Disabled

Enabled

Enable or disable serial port 1.

Device Settings IO=2F8h; IRQ=3; Fixed conﬁguration of serial port 1 if enabled.

Parallel Port Disabled

Enabled

Enable or disable parallel port.

Device Settings IO=378h; IRQ=7; Fixed conﬁguration of the parallel port if

enabled.

Device Mode Standard Parallel Mode

EPP Mode ECP Mode EPP Mode & ECP Mode

Set the parallel port mode.

Note

This setup menu is only available if an external Winbond W83627 Super I/O has been implemented on the carrier board.

Page 87

10.4.14 Console Redirection Submenu

Feature Options Description

COM0 Console Redirection

Disabled

Enabled

Enable or disable serial port 0 console redirection.

►Console Redirection Settings submenu Opens console redirection conﬁguration sub menu.

COM1 Console Redirection

Disabled

Enabled

Enable or disable serial port 1 console redirection.

►Console Redirection Settings submenu Opens console redirection conﬁguration sub menu.

Serial Port for Out-of-Band management/Windows Emergency management Services (EMS)

Console Redirection Disabled

Enabled

Enable Console Redirection Settings setup Node for EMS.

►Console Redirection Settings submenu

10.4.14.1 Console Redirection Settings Submenu

Feature Options Description

Terminal Type VT100

VT100+ VT-UTF8

ANSI

Select terminal type.

Baud rate 9600, 19200, 38400,

57600, 115200

Select baud rate.

Data Bits 7,

Set number of data bits.

Parity None

Even Odd Mark Space

Select parity.

Stop Bits 1

Set number of stop bits.

Flow Control None

Hardware RTS/CTS

Select ﬂow control.

Recorder Mode Disabled

Enabled

With recorder mode enabled, only text output will be sent over the terminal. This is helpful to capture and record terminal data.

Resolution 100x31 Disabled

Enabled

Enables or disables extended terminal resolution in UEFI environment.

Page 88

Feature Options Description

Legacy OS Redirection Resolution

80x24

80x25

Number of rows and columns supported for legacy OS redirection.

10.4.14.2 Console Redirection Settings (EMS) Submenu

Feature Options Description

Out-of-Band Mgmt Port COM0

COM1

Select serial port for Windows emergency Management Services (EMS) .

Terminal Type VT100

VT100+

VT-UTF8

ANSI

Select terminal type.

Baud rate 9600, 19200, 38400,

57600, 115200

Select baud rate.

Flow Control None

Hardware RTS/CTS

Select ﬂow control.

Data Bits 8 no option

Parity None no option

Stop Bits 1 no option

10.4.15 Network Stack Submenu

Feature Options Description

Network Stack Disabled

Enabled

Enable/Disable the Network Stack for UEFI.

Ipv4 PXE Support Disabled

Enabled

Enable Ipv4 PXE Boot Support. If disabled Ipv4 PXE Boot option will not be created

Ipv6 PXE Support Disabled

Enabled

Enable Ipv6 PXE Boot Support. If disabled Ipv6 PXE Boot option will not be created

Page 89

10.5 Boot Setup

Select the Boot tab from the setup menu to enter the Boot setup screen.

10.5.1 Boot Settings Conﬁguration

Feature Options Description

Setup Prompt Timeout 1

0 - 65535

Number of seconds to wait for setup activation key. 0 means no wait for fastest boot, 65535 means inﬁnite wait.

Bootup NumLock State On

Off

Select the keyboard numlock state.

System Off Mode G3/Mech Off

S5/Soft Off

Deﬁne system state after shutdown when a battery system is present.

Quiet Boot Disabled

Enabled

Disabled displays normal POST diagnostic messages. Enabled displays OEM logo instead of POST messages. NOTE: The default OEM logo is a dark screen.

Power Loss Control Remain Off

Turn On Last State

Speciﬁes the mode of operation if an AC power loss occurs. Remain Off keeps the power off until the power button is pressed. Turn On restores power to the computer. Last State restores the previous power state before power loss occurred.

Note: Only works with an ATX type power supply.

AT Shutdown Mode System Reboot

Hot S5

Determines the system’s behavior, when shutting down the system working on AT Mode. The system can reboot or stay on a Hot S5 power state. When the system is ATX powered, this setup node has no effect.

CPU Reset Mode Warm Reset

Cold Reset

Select the type of reset to be initiated by the Reset Control Register (0xCF9). Warm reset performs a CPU soft reset. Cold reset performs a full hard rest (power off/on reset).

Boot Logo Disabled

Enabled

Auto

If Disabled, no congatec OEM boot logo shows during POST. The system shows only POST strings and congatec boot logo. If Enabled, a congatec OEM logo or a black screen shows during POST. The black screen shows only if the OEM logo is not found. If Auto, a congatec OEM boot logo loads if present. If no OEM boot logo is found, the system shows POST strings and congatec boot logo.

Enter Setup If No Boot Device

Yes

Select whether the setup menu should start if no boot device is connected.

Enable Popup Boot Menu

Yes

Select whether the popup boot menu starts.

Page 90

Feature Options Description

Boot Priority Selection Device Based

Type Based

Select between device and type based boot priority lists. The “Device Based” boot priority list allows you to select from a list of currently detected devices only. The “Type Based” boot priority list allows you to select device types, even if a respective device is not yet present. Moreover, the “Device Based” boot priority list might change dynamically in cases when devices are physically removed or added to the system. The “Type Based” boot menu is static and can only be changed by the user.

1st, 2nd, 3rd, ... Boot Device

(Up to 12 boot devices can be prioritized if device based priority list control is selected. If “Type Based” priority list control is enabled only 8 boot devices can be prioritized).

Disabled SATA 0 Drive SATA 1 Drive Primary Master Primary Slave Secondary Master Third Master Fourth Master USB Floppy USB Harddisk USB CDROM Onboard LAN External LAN Other BEV Device

This view is only available when in the default “Type Based” mode.

When in “Device Based” mode you will only see the devices that are currently connected to the system.

►CSM & Option ROM Parameters

submenu

Note

1. The term ‘AC power loss’ stands for the state when the module looses the standby voltage on the 5V_SB pins. On congatec modules, the standby voltage is continuously monitored after the system is turned off. If within 30 seconds the standby voltage is no longer detected, then this is considered an AC power loss condition. If the standby voltage remains stable for 30 seconds, then it is assumed that the system was switched off properly.

2. Inexpensive ATX power supplies often have problems with short AC power sags. When using these ATX power supplies it is possible that the system turns off but does not switch back on, even when the PS_ON# signal is asserted correctly by the module. In this case, the internal circuitry of the ATX power supply has become confused. Usually another AC power off/on cycle is necessary to recover from this situation

Page 91

10.5.1.1 CSM & Option ROM Parameters Submenu

Feature Options Description

Launch CSM Always

Never

Controls if CSM will be launched.

Boot Option ﬁlter UEFI and Legacy

Legacy Only

UEFI only

This option controls what devices system can boot to.

PXE OpROM Launch Policy Do not launch

UEFI Only

Legacy Only

Controls the execution of UEFI and Legacy PXE OpROM.

Storage OpROM Launch Policy Do not launch

UEFI Only

Legacy Only

Legacy ROM First UEFI ROM First

Controls the execution of UEFI and Legacy Storage OpROM.

Video OpROM Launch Policy Do not launch

UEFI Only

Legacy Only

Legacy ROM First UEFI ROM First

Controls the execution of UEFI and Legacy Video OpROM.

Other OpROM Launch Policy UEFI OpROM

Legacy OpROM

For PCI devices other than Network, Mass storage or Video deﬁnes which OpROM to launch.

GateA20 Active Upon Request

Always

Gate A20 control. Upon Request = Gate A20 can be disabled using BIOS services. Always = Do not allow disabling Gate A20

Option ROM Messages Force BIOS

Keep Current

Set display mode for option ROMs.

INT19 Trap Response Immediate

Postponed

BIOS reaction on INT19 trapping by Option ROM: IMMEDIATE - execute the trap right away; POSTPONED - execute the trap during legacy boot.

Page 92

10.6 Security Setup

Select the Security tab from the setup menu to enter the Security setup screen.

10.6.1 Security Settings

Feature Options Description

Administrator Password enter password Speciﬁes the setup administrator password.

►Trusted Computing submenu Trusted computing Settings

HDD Security Conﬁguration

List of all detected hard disks supporting the security feature set

Select device to open device security conﬁguration submenu

10.6.1.1 Trusted Computing

Feature Options Description

Security Device Support Enable

Disable

Enable or disable security device. NOTE: Your computer will reboot during restart in order to change the state of the device.

10.6.2 Hard Disk Security

This feature enables the users to set, reset or disable passwords for each hard drive in Setup without rebooting. If the user enables password support, a power cycle must occur for the hard drive to lock using the new password. Both user and master password can be set independently however the drive will only lock if a user password is installed.

Page 93

10.6.3 Save & Exit Menu

Select the Save & Exit tab from the setup menu to enter the Save & Exit setup screen. Use the <Arrow> keys to highlight the Save & Exit screen.

Feature Description

Save Changes and Exit Exit setup menu after saving the changes. The system is only reset if settings have

been changed.

Discard Changes and Exit Exit setup menu without saving any changes.

Save Changes and Reset Save changes and reset the system.

Discard Changes and Reset Reset the system without saving any changes.

Save Options

Save Changes Save changes made so far to any of the setup options. Stay in setup menu.

Discard Changes Discard changes made so far to any of the setup options. Stay in setup menu.

Restore Defaults Restore default values for all the setup options.

Page 94

11 Additional BIOS Features

The conga-TCA uses a congatec/AMI AptioEFI that is stored in an onboard Flash Rom chip and can be updated using the congatec System Utility, which is available in a DOS based command line, Win32 command line, Win32 GUI, and Linux version.

The BIOS displays a message during POST and on the main setup screen identifying the BIOS project name and a revision code. The initial production BIOS is identiﬁed as TCEDR1xx where TCED is the congatec internal project name, R is the identiﬁer for a BIOS ROM ﬁle, 1 is the so called feature number and xx is the major and minor revision number.

The size of the conga-TCA BIOS binary is approximately 4MB.

11.1 Supported Flash Devices

The conga-TCA supports the following ﬂash devices:

• Atmel AT25DF321-SU

• Greenliant Systems SST25VF032B-66-4I-S2AF

• Macronix MX25L3206EM2I-12G

The ﬂash devices listed above can be used on the carrier board for external BIOS support. For more information about external BIOS support, refer to the Application Note AN7_External_BIOS_Update.pdf on the congatec website at http://www.congatec.com.

11.2 Updating the BIOS

BIOS updates are often used by OEMs to correct platform issues discovered after the board has been shipped or when new features are added to the BIOS.

For more information about “Updating the BIOS” refer to the user’s guide for the congatec System Utility, which is called CGUTLm1x.pdf and can be found on the congatec AG website at www.congatec.com.

11.3 BIOS Security Features

The BIOS provides a setup administrator password that limits access to the BIOS setup menu.

Page 95

11.4 Hard Disk Security Features

Hard Disk Security uses the Security Mode feature commands deﬁned in the ATA speciﬁcation. This functionality allows users to protect data using drive-level passwords. The passwords are kept within the drive, so data is protected even if the drive is moved to another computer system.

The BIOS provides the ability to ‘lock’ and ‘unlock’ drives using the security password. A ‘locked’ drive will be detected by the system, but no data can be accessed. Accessing data on a ‘locked’ drive requires the proper password to ‘unlock’ the disk.

The BIOS enables users to enable/disable hard disk security for each hard drive in setup. A master password is available if the user can not remember the user password. Both passwords can be set independently however the drive will only lock if a user password is installed. The max length of the passwords is 32 bytes.

During POST each hard drive is checked for security mode feature support. In case the drive supports the feature and it is locked, the BIOS prompts the user for the user password. If the user does not enter the correct user password within four attempts, the user is notiﬁed that the drive is locked and POST continues as normal. If the user enters the correct password, the drive is unlocked until the next reboot.

In order to ensure that the ATA security features are not compromised by viruses or malicious programs when the drive is typically unlocked, the BIOS disables the ATA security features at the end of POST to prevent their misuse. Without this protection it would be possible for viruses or malicious programs to set a password on a drive thereby blocking the user from accessing the data.

Page 96

12 Industry Speciﬁcations

The list below provides links to industry speciﬁcations that apply to congatec AG modules.

Speciﬁcation Link

Low Pin Count Interface Speciﬁcation, Revision 1.0 (LPC) http://developer.intel.com/design/chipsets/industry/lpc.htm

Universal Serial Bus (USB) Speciﬁcation, Revision 2.0 http://www.usb.org/home

PCI Speciﬁcation, Revision 2.3 http://www.pcisig.com/speciﬁcations

Serial ATA Speciﬁcation, Revision 3.0 http://www.serialata.org

PICMG

COM Express Module™ Base Speciﬁcation http://www.picmg.org/

PCI Express Base Speciﬁcation, Revision 1.0a http://www.pcisig.com/speciﬁcations
