Congatec conga-PA5 User Manual

Page 1

The information contained in this document has been carefully researched and is, to the best of our knowledge, accurate. However, we assume no liability for any product failures or damages, immediate or consequential, resulting from the use of the information provided herein. Our products are not intended for use in systems in which failures of product could result in personal injury. All trademarks mentioned herein are property of their respective owners. All specifications are subject to change without notice.

Manual

congatec

conga-PA5

Page 2

conga-PA5 Pico-ITX SBC

Detailed Description Of The congatec Pico-ITX Based On 5th Generation Intel® Atom™, Celeron® and Pentium®

User's Guide

Revision 0.1 (Preliminary)

Page 3

Revision History

Revision Date (yyyy.mm.dd) Author Changes

0.1 2017.03.17 BEU • Preliminary release

Page 4

Preface

This user's guide provides information about the components, features and connectors available on the conga-PA5 Pico-ITX Single Board Computer.

Disclaimer

The information contained within this user’s guide, including but not limited to any product speciﬁcation, is subject to change without notice.

congatec AG provides no warranty with regard to this user’s guide or any other information contained herein and hereby expressly disclaims any implied warranties of merchantability or ﬁtness for any particular purpose with regard to any of the foregoing. congatec AG assumes no liability for any damages incurred directly or indirectly from any technical or typographical errors or omissions contained herein or for discrepancies between the product and the user’s guide. In no event shall congatec AG be liable for any incidental, consequential, special, or exemplary damages, whether based on tort, contract or otherwise, arising out of or in connection with this user’s guide or any other information contained herein or the use thereof.

Intended Audience

This user's guide is intended for technically qualiﬁed personnel. It is not intended for general audiences.

Lead-Free Designs (RoHS)

All congatec AG products are created from lead-free components and are completely RoHS compliant.

Electrostatic Sensitive Device

All electronic parts described in this user’s guide are electrostatic sensitive devices and are packaged accordingly. Do not open or handle a carrier board, module or an SBC except at an electrostatic-free workstation. Additionally, do not ship or store electronic devices near strong electrostatic, electromagnetic, magnetic, or radioactive ﬁelds unless the device is contained within its original manufacturer’s packaging.

Page 5

Symbols

The following symbols are used in this user's guide:

Warning

Warnings indicate conditions that, if not observed, can cause personal injury.

Caution

Cautions warn the user about how to prevent damage to hardware or loss of data.

Note

Notes call attention to important information that should be observed.

Connector Type

Describes the connector used on the Single Board Computer.

congatec AG has made every attempt to ensure that the information in this document is accurate yet the information contained within is supplied “as-is”.

Page 6

Trademarks

Product names, logos, brands, and other trademarks featured or referred to within this user’s guide, or the congatec website, are the property of their respective trademark holders. These trademark holders are not afﬁliated with congatec AG, our products, or our website.

Warranty

congatec AG makes no representation, warranty or guaranty, express or implied regarding the products except its standard form of limited warranty (“Limited Warranty”) per the terms and conditions of the congatec entity, which the product is delivered from. These terms and conditions can be downloaded from www.congatec.com. congatec AG may in its sole discretion modify its Limited Warranty at any time and from time to time.

The products may include software. Use of the software is subject to the terms and conditions set out in the respective owner’s license agreements, which are available at www.congatec.com and/or upon request.

Beginning on the date of shipment to its direct customer and continuing for the published warranty period, congatec AG represents that the products are new and warrants that each product failing to function properly under normal use, due to a defect in materials or workmanship or due to non conformance to the agreed upon speciﬁcations, will be repaired or exchanged, at congatec’s option and expense.

Customer will obtain a Return Material Authorization (“RMA”) number from congatec AG prior to returning the non conforming product freight prepaid. congatec AG will pay for transporting the repaired or exchanged product to the customer.

Repaired, replaced or exchanged product will be warranted for the repair warranty period in effect as of the date the repaired, exchanged or replaced product is shipped by congatec, or the remainder of the original warranty, whichever is longer. This Limited Warranty extends to congatec’s direct customer only and is not assignable or transferable.

Except as set forth in writing in the Limited Warranty, congatec makes no performance representations, warranties, or guarantees, either express or implied, oral or written, with respect to the products, including without limitation any implied warranty (a) of merchantability, (b) of ﬁtness for a particular purpose, or (c) arising from course of performance, course of dealing, or usage of trade.

congatec AG shall in no event be liable to the end user for collateral or consequential damages of any kind. congatec shall not otherwise be liable for loss, damage or expense directly or indirectly arising from the use of the product or from any other cause. The sole and exclusive remedy against congatec, whether a claim sound in contract, warranty, tort or any other legal theory, shall be repair or replacement of the product only.

Page 7

Certiﬁcation

congatec AG is certiﬁed to DIN EN ISO 9001 standard.

Technical Support

congatec AG technicians and engineers are committed to providing the best possible technical support for our customers so that our products can be easily used and implemented. We request that you ﬁrst visit our website at www.congatec.com for the latest documentation, utilities and drivers, which have been made available to assist you. If you still require assistance after visiting our website then contact our technical support department by email at [email protected]

Terminology

Term Description

PCIe Peripheral Component Interface Express cBC congatec Board Controller SDIO Secure Digital Input Output USB Universal Serial Bus SATA Serial AT Attachment: serial-interface standard for hard disks HDA High Deﬁnition Audio S/PDIF Sony/Philips Digital Interconnect Format HDMI High Deﬁnition Multimedia Interface TMDS Transition Minimized Differential Signaling DVI Digital Visual Interface LPC Low Pin-Count I²C Bus Inter-Integrated Circuit Bus SM Bus System Management Bus CAN Controller Area Network SPI Serial Peripheral Interface GbE Gigabit Ethernet LVDS Low-Voltage Differential Signaling DDC Display Data Channel is an I²C bus interface between a display and a graphics adapter. PN Part Number - the part number for placing orders. N.C Not connected N.A Not available TBD To be determined

Page 8

Contents

1 Introduction .............................................................................10

1.1 Pico-ITX Concept ..................................................................... 10

1.2 conga-PA5 ................................................................................10

1.2.1 Options Information ................................................................. 11

1.2.2 Optional Accessories ............................................................... 12

1.2.3 Optional Cables ....................................................................... 12

2 Speciﬁcation ............................................................................ 13

2.1 Feature List ..............................................................................13

2.2 Supported Operating Systems ................................................ 14

2.3 Mechanical Dimensions ........................................................... 14

2.4 Supply Voltage Power .............................................................. 14

2.5 Power Consumption ................................................................ 14

2.6 Supply Voltage Battery Power .................................................16

2.7 Environmental Speciﬁcations ................................................... 16

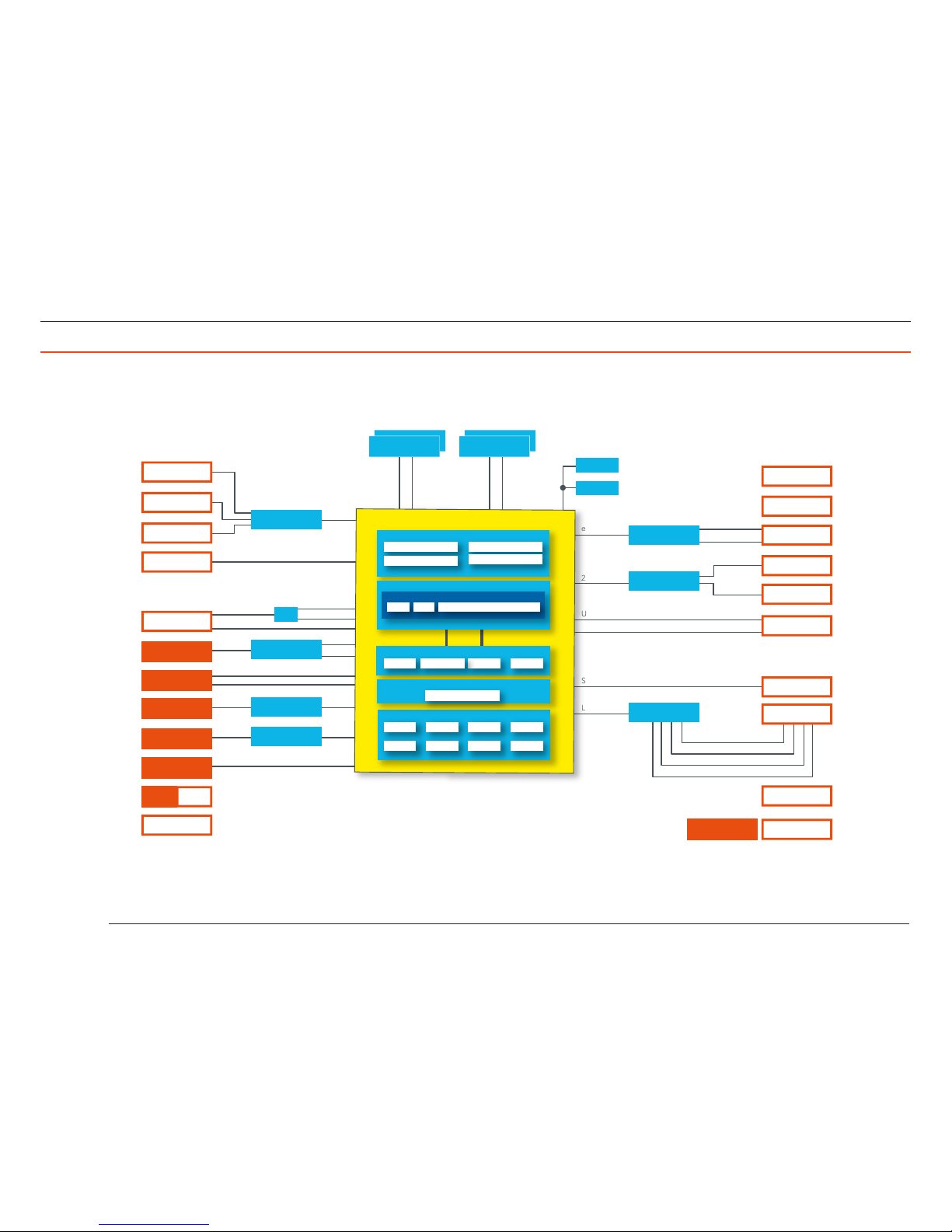

3 Block Diagram .......................................................................... 17

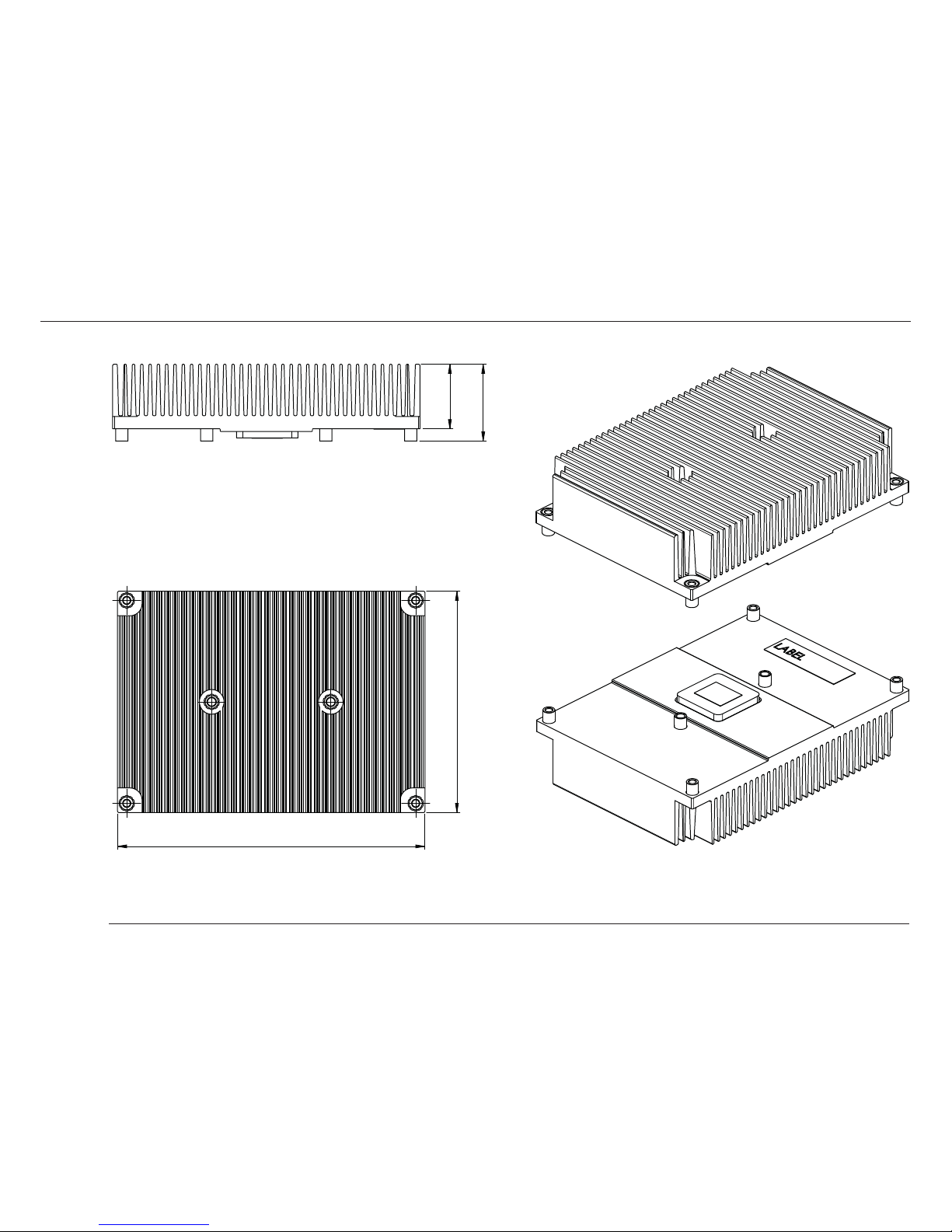

4 Cooling Solution ...................................................................... 18

4.1 CSP Dimensions for Industrial Module Variants ....................... 19

4.2 CSP Dimensions for Commercial Module Variants ..................20

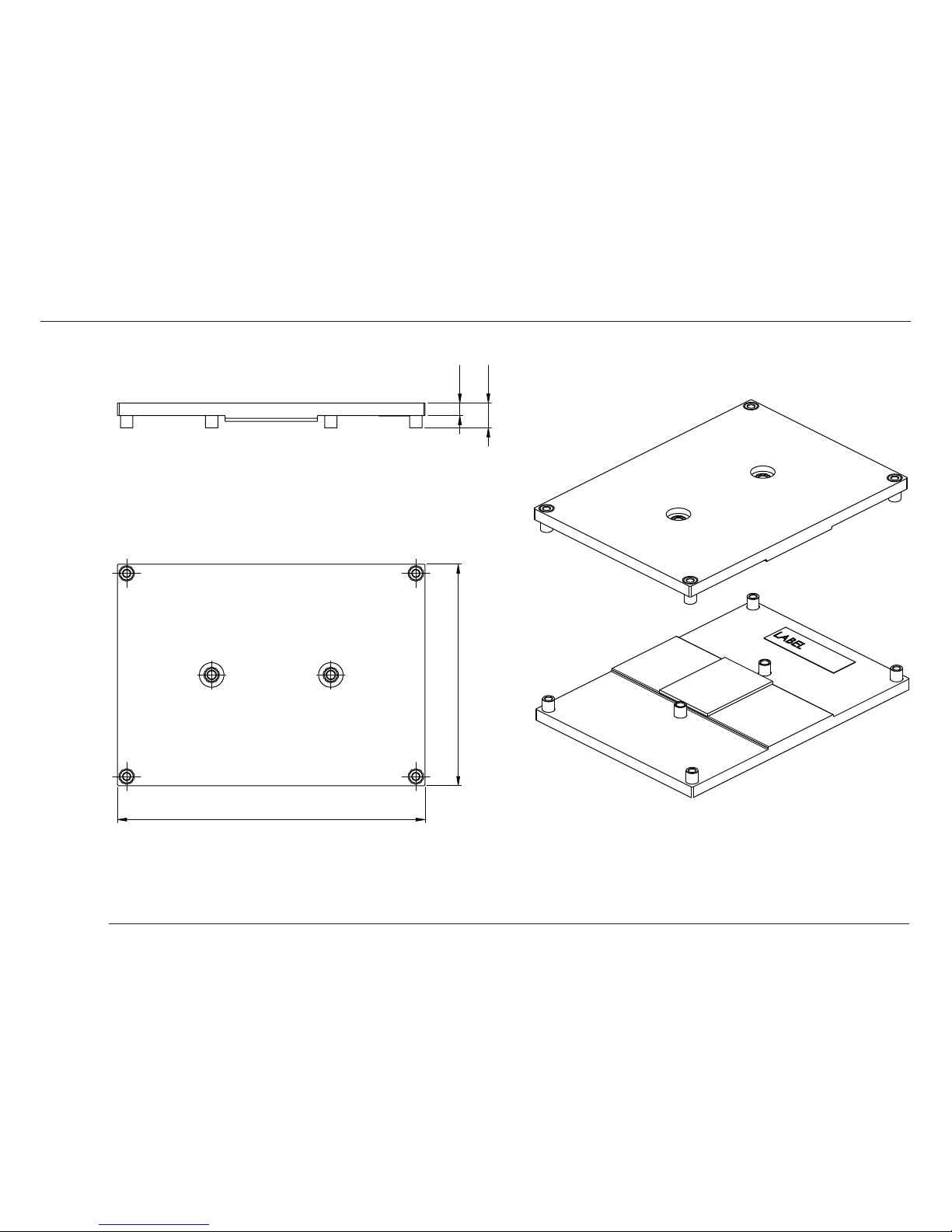

4.3 HSP Dimensions for Industrial Module Variants ....................... 21

4.4 HSP Dimensions for Commercial Module Variants ..................22

5 Connector Description ............................................................. 23

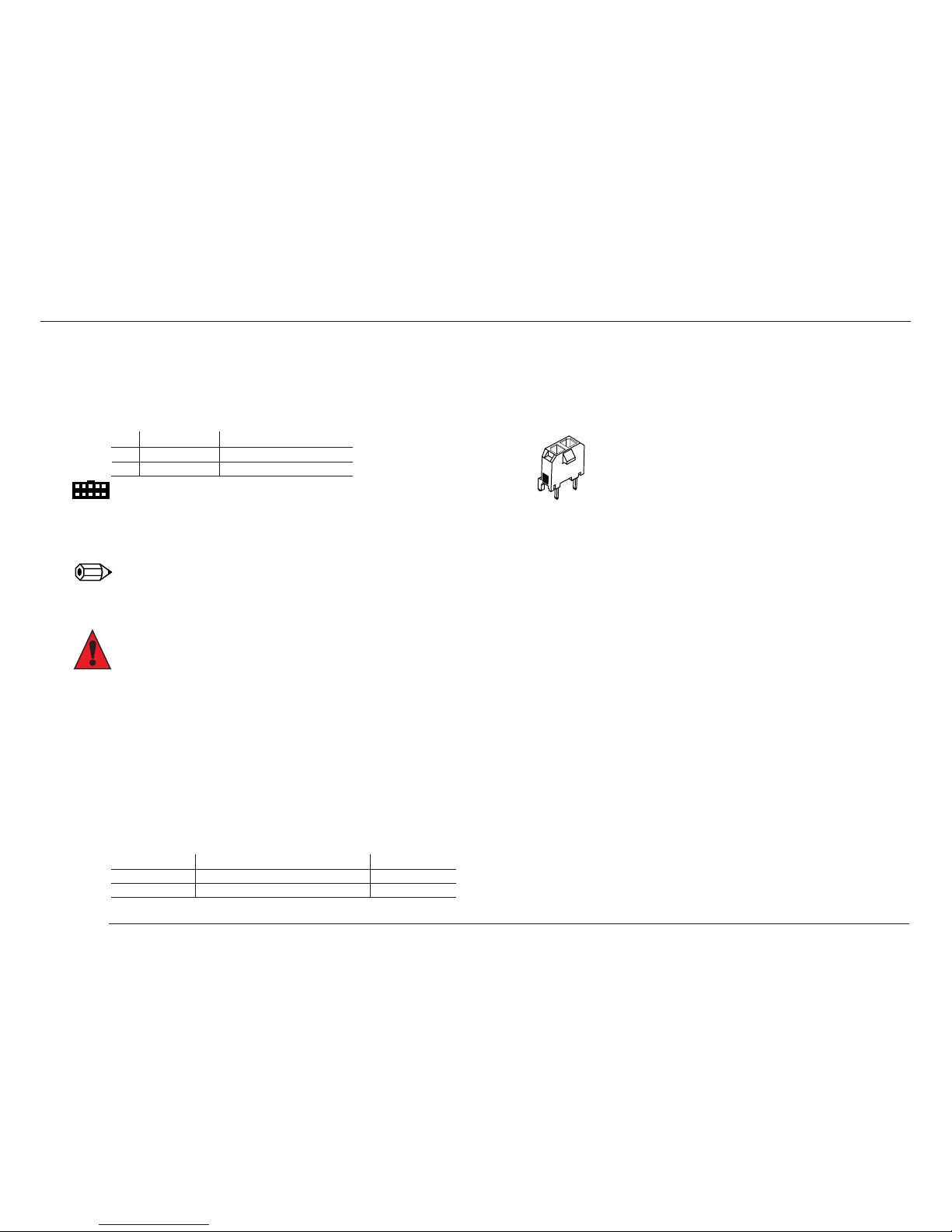

5.1 Power Supply ........................................................................... 23

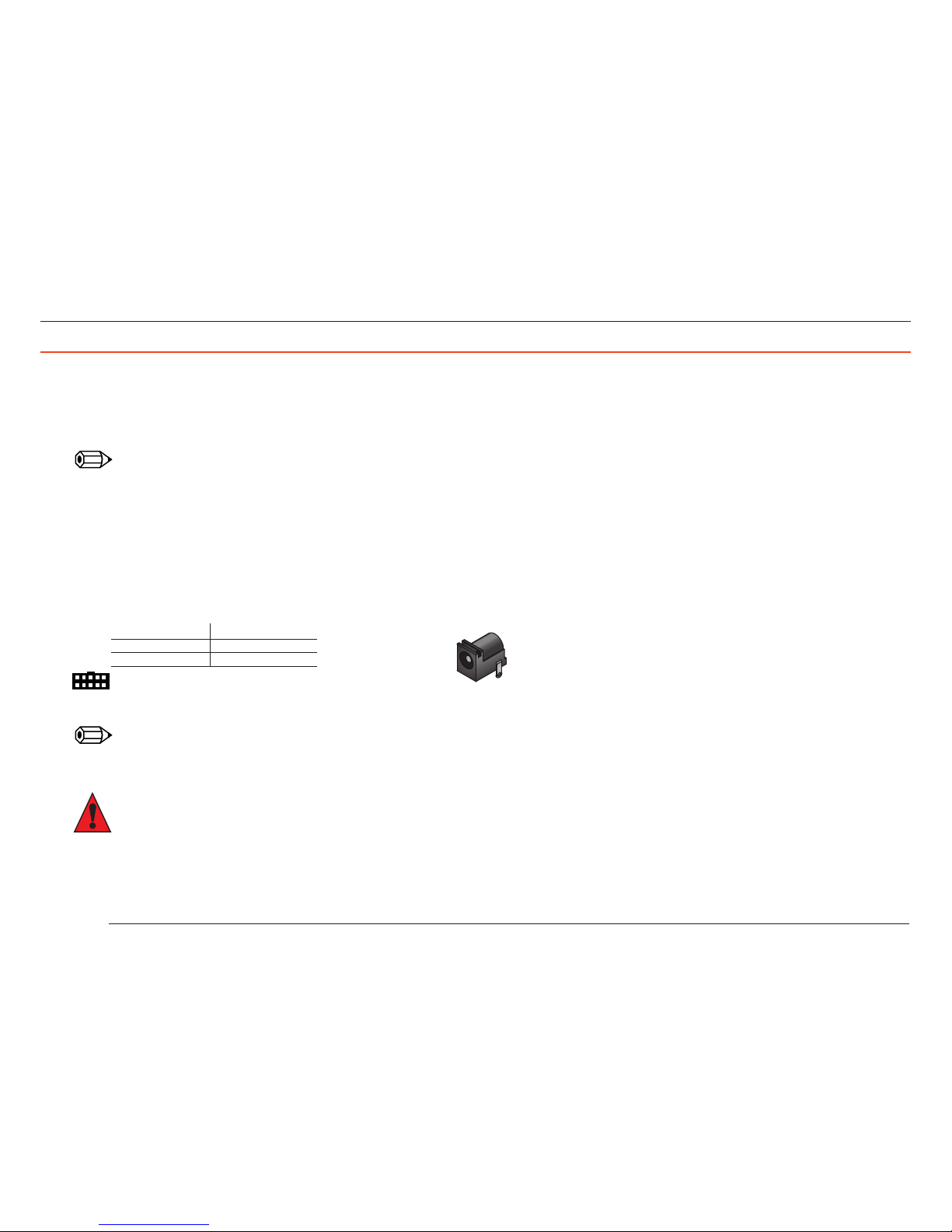

5.1.1 DC Power Jack (Rear I/O) ........................................................ 23

5.1.2 Power Supply (Internal Connector) .......................................... 24

5.1.3 Power Status LED ..................................................................... 24

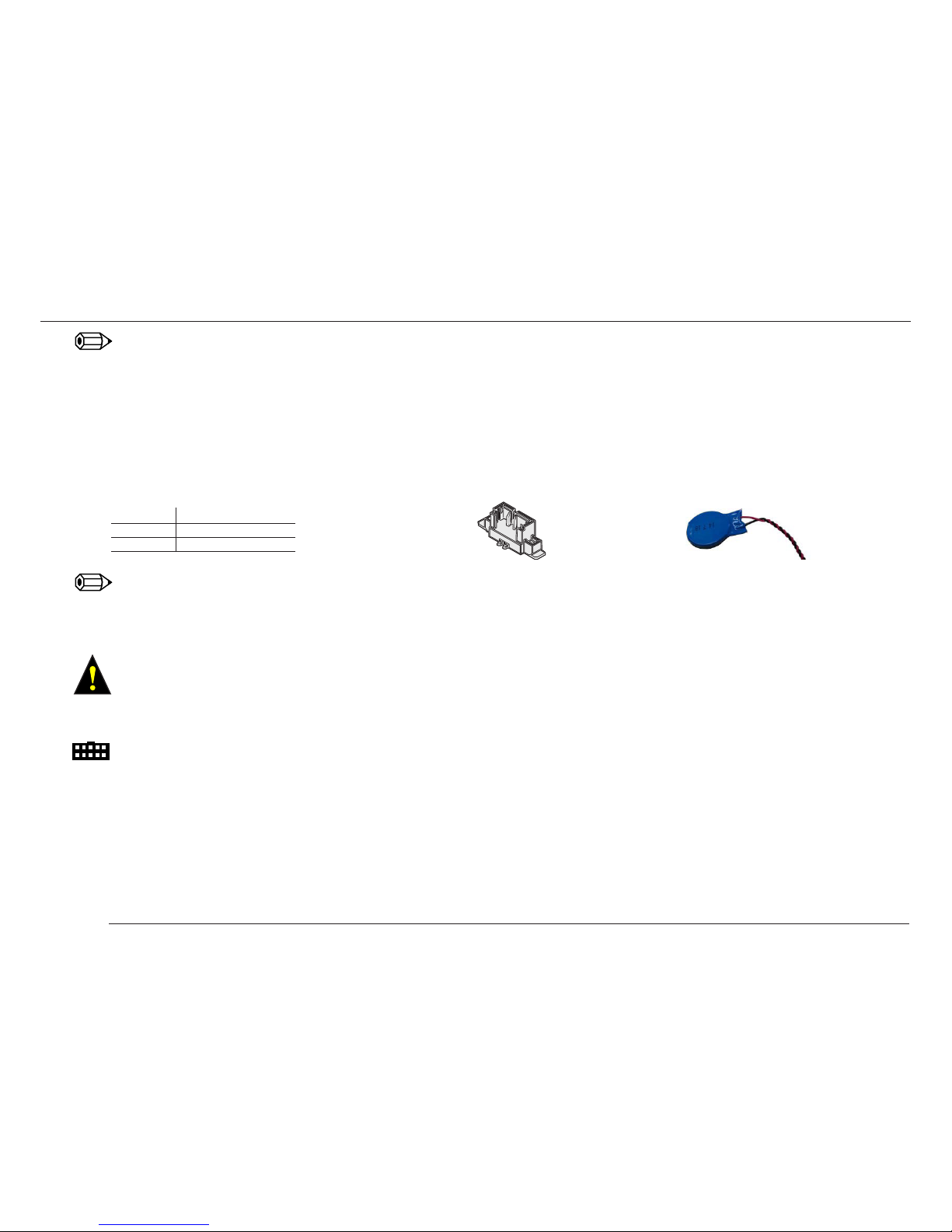

5.2 RTC Battery .............................................................................. 25

5.3 Audio Interface ........................................................................ 26

5.4 Universal Serial Bus (USB) ........................................................ 26

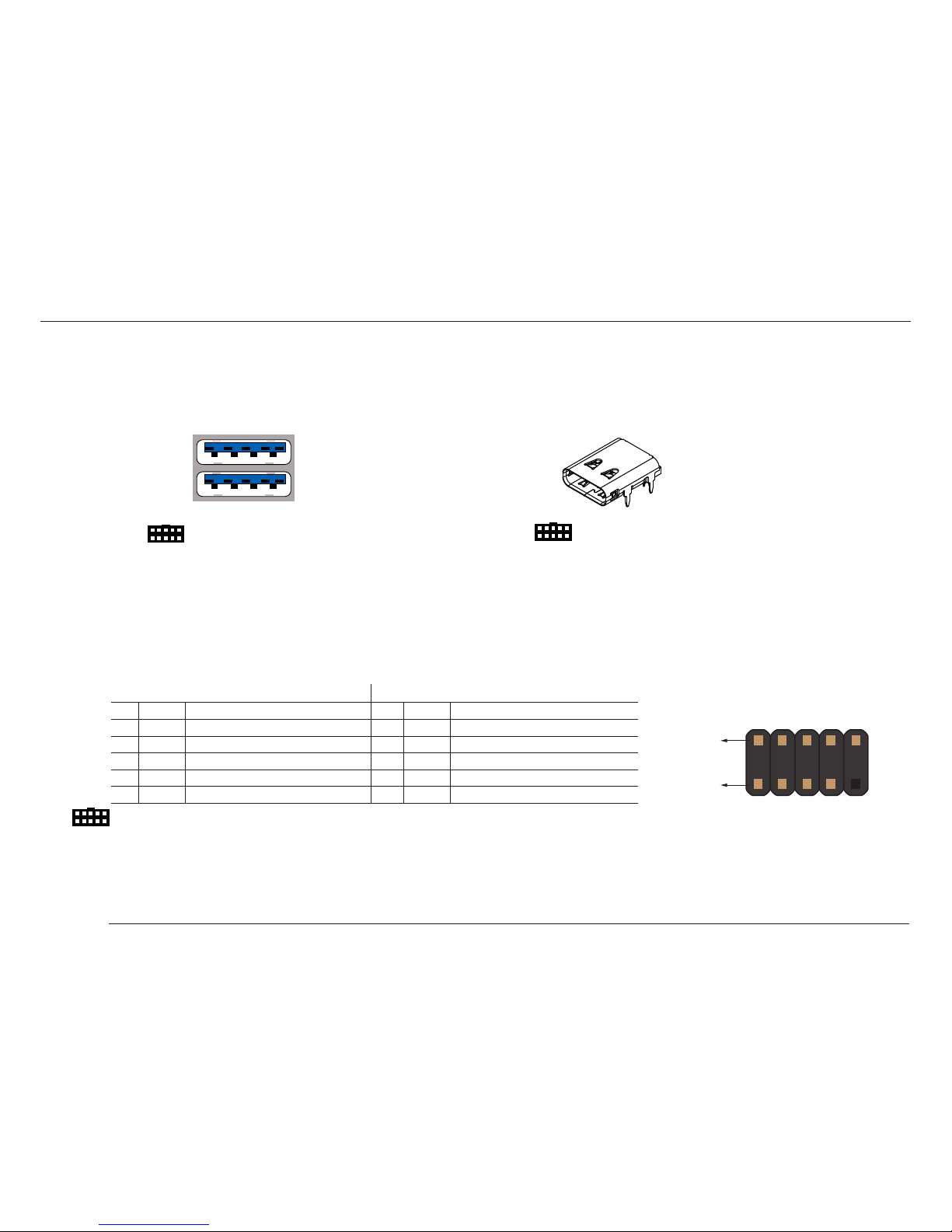

5.4.1 Rear USB Connectors ............................................................... 27

5.4.2 Internal USB Connectors .......................................................... 27

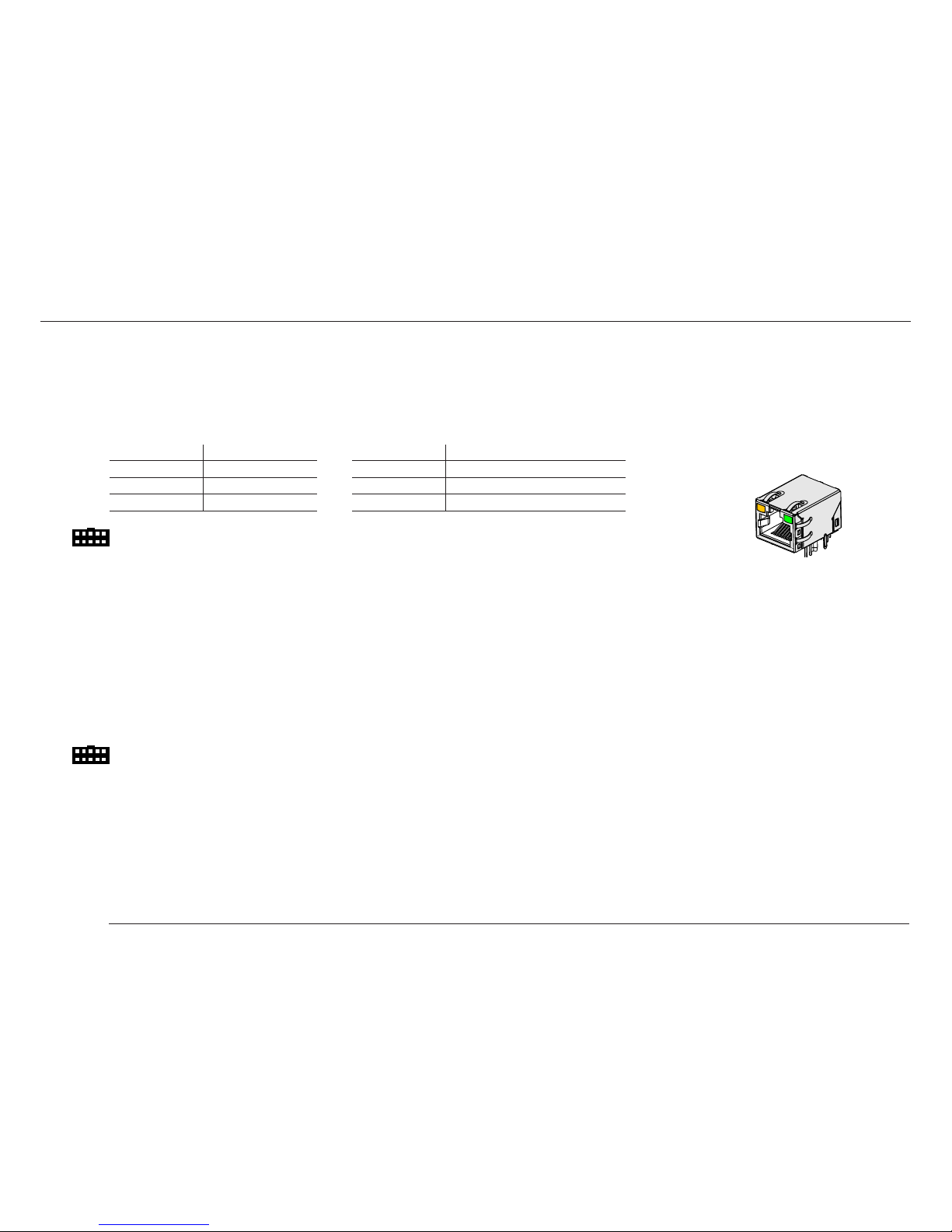

5.5 Ethernet 10/100/1000 .............................................................. 28

5.6 SATA Interfaces ........................................................................ 28

5.6.1 Standard SATA Port .................................................................28

5.6.2 Mini SATA (shared with mini PCIe) ........................................... 29

5.6.3 SATA Power ............................................................................. 29

5.7 Display Interfaces ..................................................................... 29

5.7.1 Display Port Interface DP++ .................................................... 30

5.7.2 LVDS ......................................................................................... 30

5.7.2.1 Backlight Power Connector ..................................................... 31

5.7.2.2 Panel Power Selection ............................................................. 32

5.8 Serial Ports (COM) ................................................................... 32

5.9 Mini PCIe (shared with mini SATA) ...........................................33

6 Additional Features .................................................................. 35

6.1 Feature Connectors .................................................................35

6.1.1 Buttons & LEDs ........................................................................ 35

6.1.2 I2C and Watchdog ................................................................... 36

6.1.3 GPIOs ....................................................................................... 37

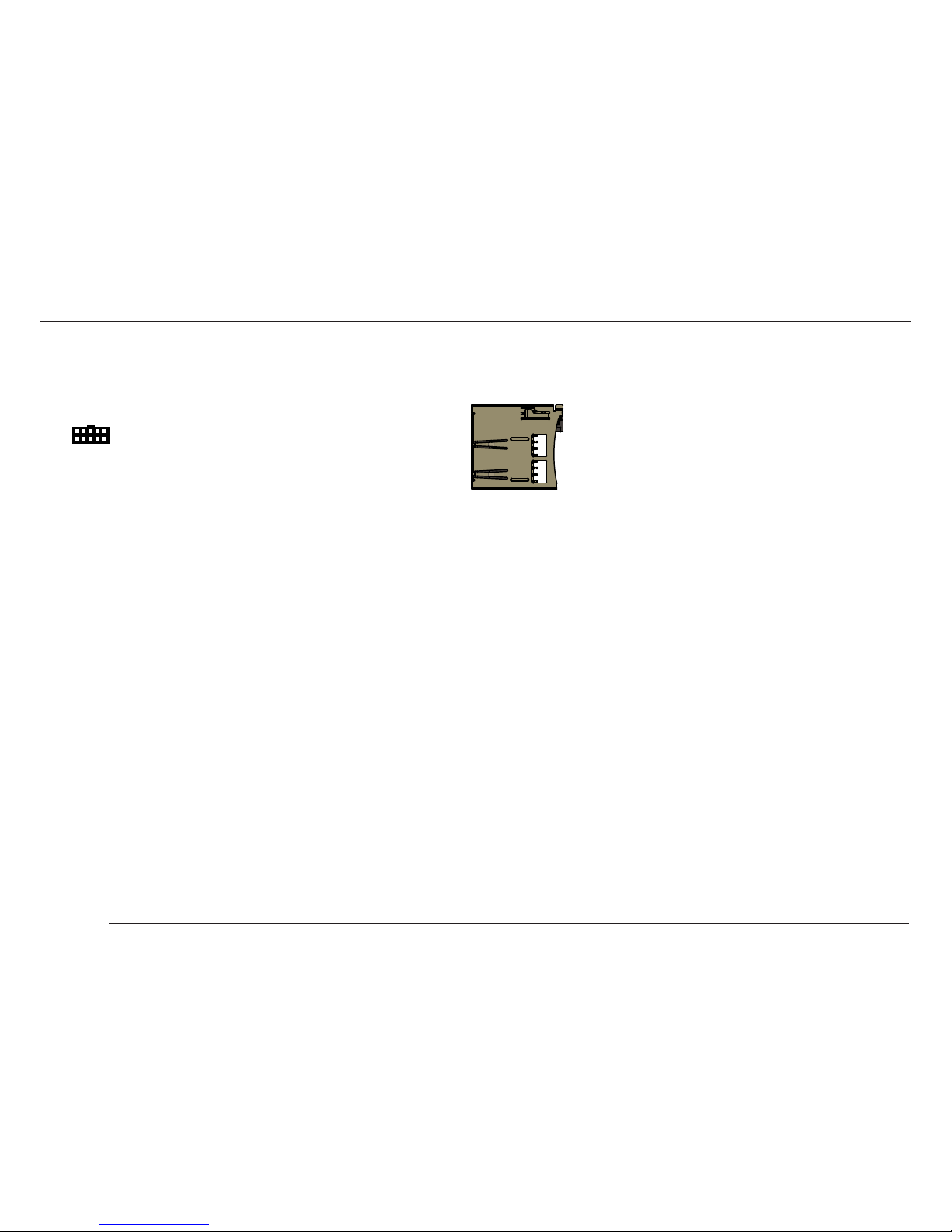

6.1.4 Micro-SD Card .........................................................................38

6.2 congatec Board Controller (cBC) ............................................. 38

6.2.1 Fan Control .............................................................................. 38

6.2.2 Power Loss Control .................................................................. 38

6.2.3 Board Information .................................................................... 38

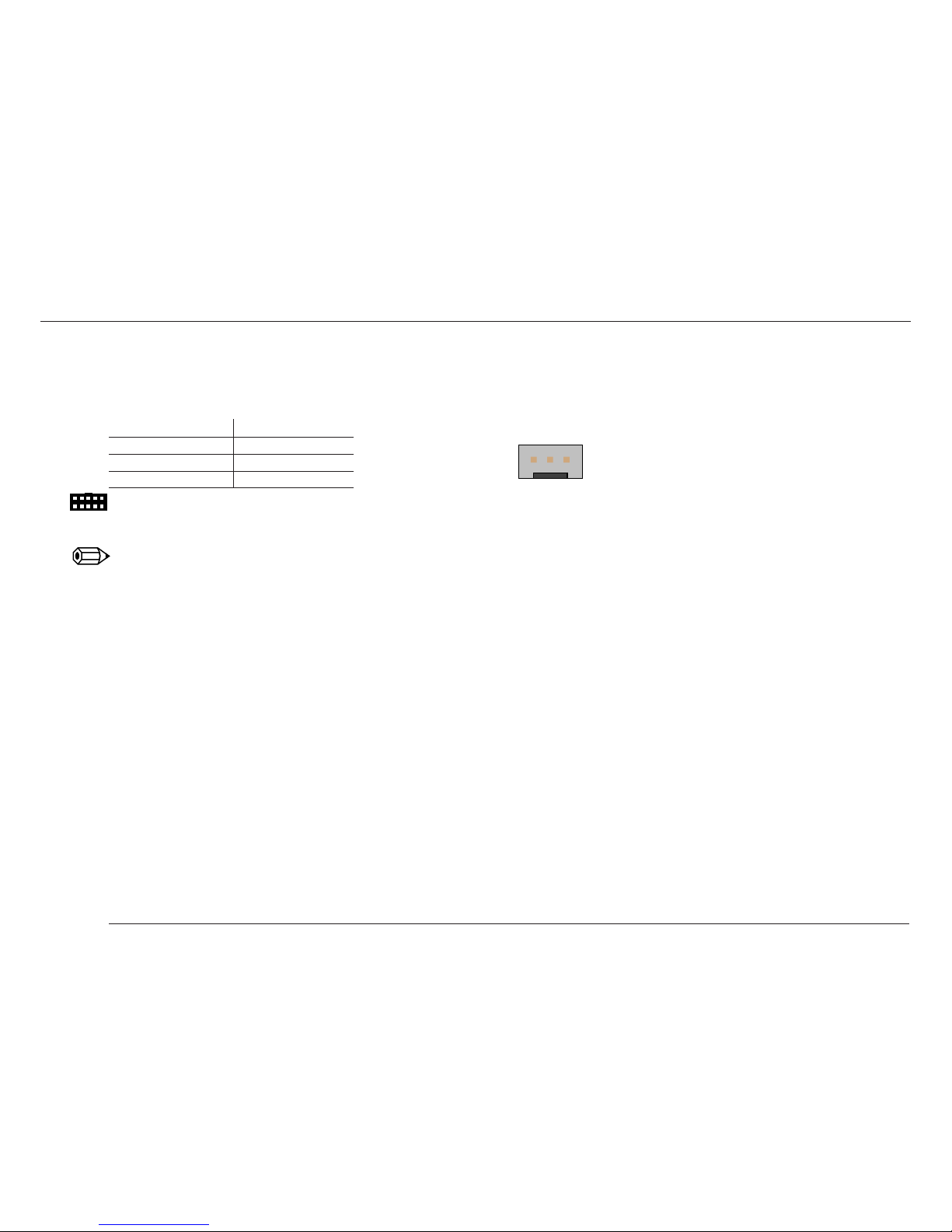

6.2.4 CPU Fan Connector ................................................................. 39

6.3 OEM BIOS Customization ........................................................ 39

6.3.1 OEM Default Settings .............................................................. 39

6.3.2 OEM Boot Logo ....................................................................... 40

6.3.3 OEM POST Logo ..................................................................... 40

6.3.4 OEM BIOS Code/Data ............................................................. 40

6.3.5 OEM DXE Driver ...................................................................... 40

6.4 congatec Battery Management Interface ................................ 40

6.5 API Support (CGOS) ................................................................ 41

6.6 GPIOs ....................................................................................... 41

6.7 Thermal/Voltage Monitoring....................................................41

6.8 External System Wake Event ...................................................41

6.9 Security Features ......................................................................42

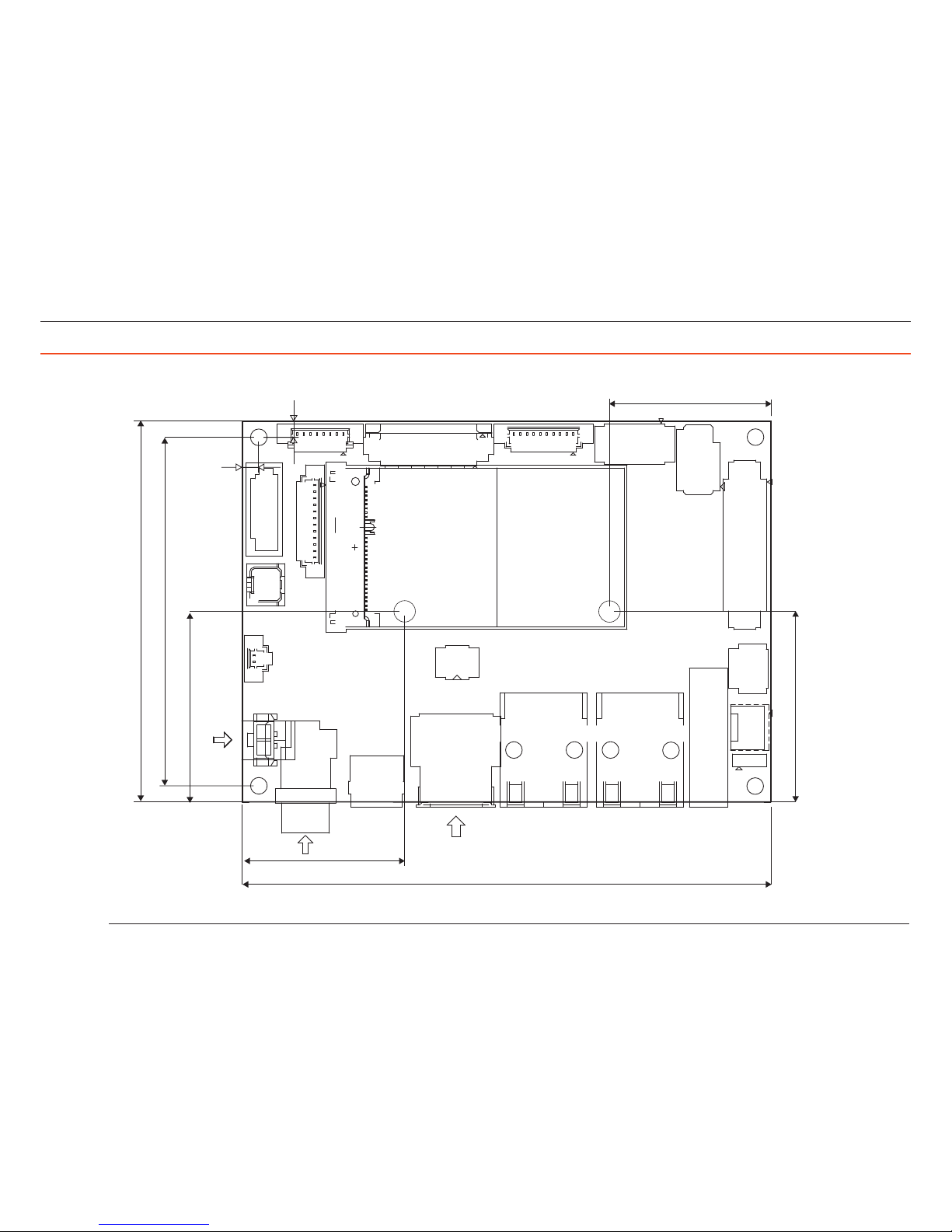

7 Mechanical Drawing ................................................................ 43

Page 9

8 BIOS Setup Description ........................................................... 44

9 Additional BIOS Features ........................................................ 45

10 Industry Speciﬁcations ............................................................. 46

Page 10

List of Tables

Table 1 conga-PA5 Commercial Variants .............................................. 11

Table 2 conga-PA5 Industrial Variants .................................................. 11

Table 3 Accessories .............................................................................. 12

Table 4 Cables ...................................................................................... 12

Table 5 Cable Kit .................................................................................. 12

Table 6 Feature Summary ..................................................................... 13

Table 7 Measurement Description ........................................................15

Table 8 Power Consumption Values ..................................................... 15

Table 9 CMOS Battery Power Consumption ........................................ 16

Table 10 Connector X21 Pinout Description ..........................................23

Table 11 Connector X22 Pinout Description ..........................................24

Table 12 Single-Color Power LED ..........................................................24

Table 13 Battery Connector X23 ............................................................25

Table 14 Audio Interface (Connector X6) Pinout Description ................. 26

Table 15 USB 2.0 Header (Connector X8) Pinout Description ................ 27

Table 16 Connector X11 Pinout Description. .........................................29

Table 17 Connector X4 Pinout Description ............................................31

Table 18 Connector X24 Pinout Description ..........................................32

Table 19 Serial Port - (Connector X15 / X16) Pinout Description ........... 32

Table 20 mPCIe (Connector X10) Pinout Description ............................. 33

Table 21 Feature Connector X18 Pinout Description .............................35

Table 22 Feature Connector X19 Pinout Description .............................36

Table 23 Feature Connector X20 Pinout Description .............................37

Table 24 CPU Fan Connector (X17) Pinout Description ........................39

Page 11

1 Introduction

1.1 Pico-ITX Concept

The Pico-ITX form factor provides system designers and manufacturers with a standardized ultra compact platform for development. With a footprint of 100mm x 72mm, this scalable platform promotes the design of highly integrated, energy efﬁcient systems. Due to its small size, the Pico-ITX form factor enables PC appliance designers not only to design attractive low cost devices but also allows them to explore a huge variety of product development options - from compact space-saving designs to fully functional Information Station and Value PC systems. This helps to reduce product design cycle and encourages rapid innovation in system design, to meet the ever-changing needs of the market.

Additionally, the boards can be passively cooled, presenting opportunities for fanless designs. The Pico-ITX boards are equipped with various interfaces such as PCI Express, SATA, USB 2.0/3.0, Ethernet, Displays and Audio.

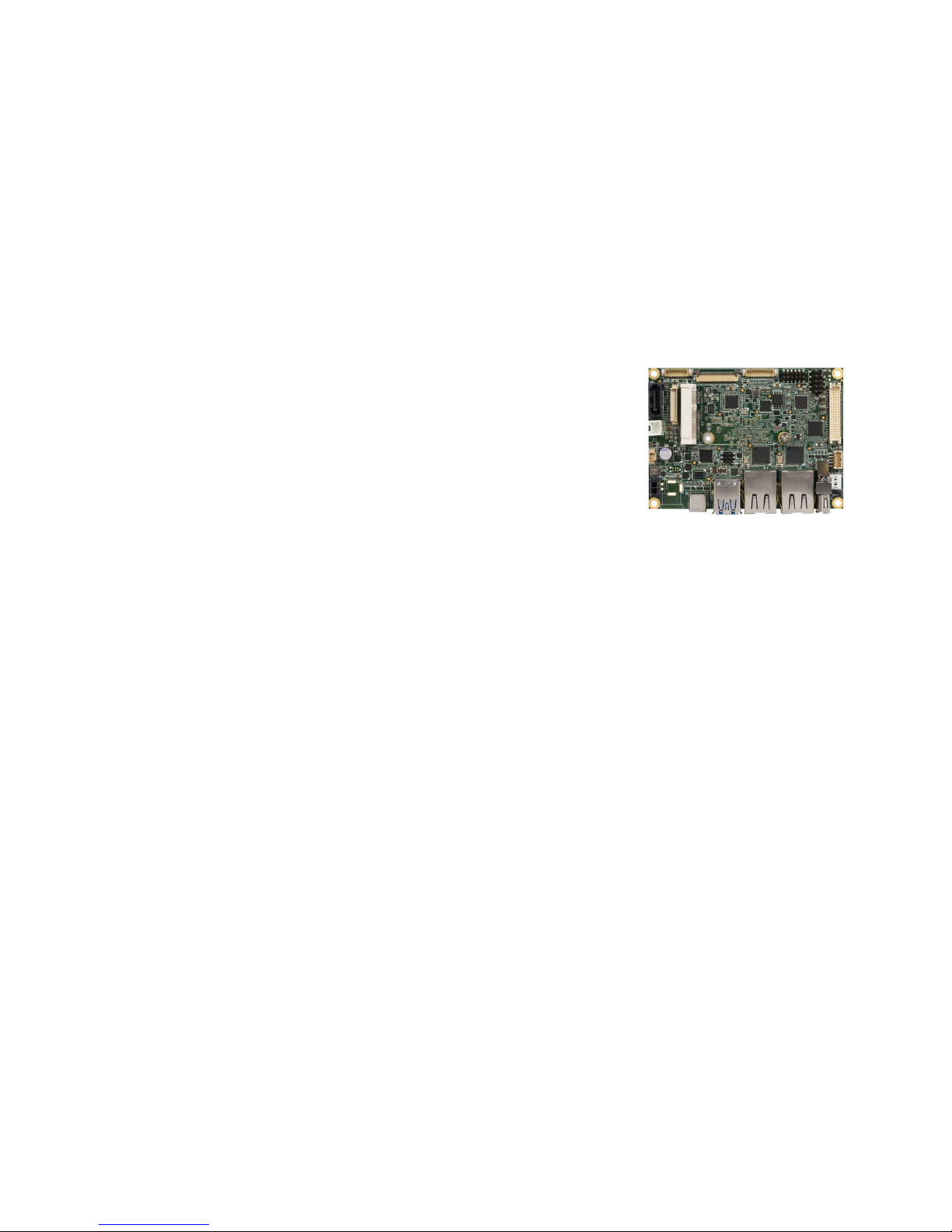

1.2 conga-PA5

The conga-PA5 is a Single Board Computer design based on the Pico-ITX speciﬁcation. The conga-PA5 SBC features the Intel 5th generation Atom, Celeron and Pentium processors. With maximum 12 W TDP processors, the SBC offers Ultra Low Power boards with high computing performance and outstanding graphics. Additionally, the SBC supports onboard LPDDR4 memory up to 2400 MT/s, maximum system memory capacity of 8 GB, multiple I/O interfaces, up to three independent displays and various congatec embedded features.

With smaller board size and lower height keep-out zones, the conga-PA5 SBC provides manufacturers and system designers with the opportunity to design compact systems for space restricted areas.

The various features and capabilities offered by the conga-PA5 makes it ideal for the design of compact, energy efﬁcient, performanceoriented embedded systems.

Page 12

1.2.1 Options Information

The conga-PA5 is currently available in 9 variants. This user’s guide describes all of these variants. The tables below show the different

conﬁgurations available. Check for the Part No. that applies to your product. This will tell you what options described in this user’s guide are available on your particular module.

Table 1 conga-PA5 Commercial Variants

Part-No. 048100 048101 048102 048120 048121 048123

Intel Processor Atom™ x7-E3950

Quad Core 1.6 GHz

Atom™ x5-E3940 Quad Core 1.60 GHz

Atom™ x5-E3930 Dual Core 1.30 GHz

Pentium® N4200 Quad Core 1.10 GHz

Celeron® N3350 Dual Core 1.10 GHz

Pentium® N4200 Quad Core 1.10 GHz

L2 Cache 2 MB 2 MB 2 MB 2 MB 1 MB 2 MB

Burst Frequency 2.00 GHz 1.80 GHz 1.80 GHz 2.50 GHz 2.40 GHz 2.50 GHz

Onboard Memory 8 GB 2400 MT/s 4 GB 2133 MT/s 4 GB 2133 MT/s 8 GB 2400 MT/s 4 GB 2400 MT/s 4 GB 2400 MT/s

Processor Graphics Intel

HD Graphics 505 Intel® HD Graphics 500 Intel® HD Graphics 500 Intel® HD Graphics 505 Intel® HD Graphics 500 Intel® HD Graphics 505

Graphics Base / Burst 500 MHz / 650 MHz 400 MHz / 600 MHz 400 MHz / 550 MHz 200 MHz / 750 MHz 200 MHz / 650 MHz 200 MHz / 750 MHz

LVDS Single / Dual 18 / 24bit Single / Dual 18 / 24bit Single / Dual 18 / 24bit Single / Dual 18 / 24bit Single / Dual 18 / 24bit Single / Dual 18 / 24bit

DDI DisplayPort++ DisplayPort++ DisplayPort++ DisplayPort++ DisplayPort++ DisplayPort++

Processor TDP (Max) 12 W 9.5 W 6.5 W 6 W 6 W 6 W

Table 2 conga-PA5 Industrial Variants

Part-No. 048110 048111 04812

Intel Processor Atom™ x7-E3950

Quad Core 1.60 GHz

Atom™ x5-E3940 Quad Core 1.60 GHz

Atom™ x5-E3930 Dual Core 1.30 GHz

L2 Cache 2 MB 2 MB 2 MB

Burst Frequency 2.00 GHz 1.80 GHz 1.80 GHz

Onboard Memory 8 GB 2400 MT/s 4 GB 2133 MT/s 4 GB 2133 MT/s

Processor Graphics Intel

HD Graphics 505 Intel® HD Graphics 500 Intel® HD Graphics 500

Graphics Base / Burst 500 MHz / 650 MHz 400 MHz / 600 MHz 400 MHz / 550 MHz

LVDS Single / Dual 18 / 24bit Single / Dual 18 / 24bit Single / Dual 18 / 24bit

DDI DisplayPort++ DisplayPort++ DisplayPort++

Processor TDP (Max) 12 W 9.5 W 6.5 W

Page 13

1.2.2 Optional Accessories

Table 3 Accessories

Article Part No. Description

conga-PA5/HSP-T 048150 Heatspreader for Pico ITX board conga-PA5 (for boards with standard -non lidded- CPUs) conga-PA5/i-HSP-T 048151 Heatspreader for Pico ITX board conga-PA5 (for boards with lidded CPUs -with integrated heat spreader) conga-PA5/CSP-T 048152 Passive Cooling for Pico ITX board conga-PA5 (for boards with standard (non lidded) CPUs) conga-PA5/i-CSP-T 048153 Passive Cooling for Pico ITX board conga-PA5 (for boards with lidded CPUs -with integrated heat spreader)

1.2.3 Optional Cables

Table 4 Cables

Article Part No. Description

cab-DP to HDMI Passive 14000128 22.5cm Displayport 20 pin male > HDMI-A 19 pin female up to 1920 x 1200 @ 60 Hz (1.1 and High Speed HDMI standard) cab-Pico-ITX-LVDS TBD TBD

cab-Pico-ITX-Backlight TBD TBD

SATA III cable 30 cm 48000030 30 cm SATA III cable with data transfer rate of up to 6 Gbps suitable for conga-IGX; Connector: down / straight conga-PA5 Cable Kit 14000203 For the contents of the cable kit, see table 5 "Cable Kit" below.

Table 5 Cable Kit

Article Part No. Description

cab-Pico-ITX-USB20-Twin 14000123 20cm from internal 2x5pin, 2.54mm Female Header to 2x USB A (Female W/Molding) cab-Pico-ITX-Audio Cable Adapter 14000146 15cm audio Cable Adapter. cab-Pico-ITX-Buttons-LED 14000147 30cm buttons and LED cable. cab-Pico-ITX-GPIO 14000151 15cm GPIO cable with open end. cab-Pico-ITX-RS232 14000152 15cm RS232 cable adapter, DSUB9 Male. cab-Pico-ITX-RS422 14000153 15cm RS422 cable adapter, DSUB9 Male. cab-Pico-ITX-RS485 14000154 15cm RS485 cable adapter, DSUB9 Male. cab-Pico-ITX-External-Power 14000157 100cm external power cable with 4mm banana plugs (optimized to supply Pico-ITX from laboratory power source). cab-Pico-ITX-Feature 14000161 15cm feature cable with open end. cab-Pico-ITX-Power 14000172 15cm internal power cable for industrial versions. cab-Pico-ITX-SATA-Power 14000205 15cm SATA power cable to supply HDD from Backlight power connector for 2.5" HDD only (+5V only) SATA III cable 30 cm 48000029 30 cm SATA III cable with data transfer rate of up to 6 Gbps; Connector: straight / straight miniPCIe metal bafﬂe 56000071 miniPCIe metal bafﬂe (extender) 1x Metal bafﬂe + 4x Screws

Page 14

2 Speciﬁcation

2.1 Feature List

Table 6 Feature Summary

Form Factor

Based on Pico-ITX form factor (100 x 72 mm)

Processor

Intel® 5th Generation Intel® Atom™, Pentium® and Celeron® SoC.

Memory

Up to 4 Channels onboard LPDDR4 with up to 2400 MT/s, maximum system capacity 8 GB

cBC

Multi-stage watchdog, manufacturing and board information, board statistics, I2C bus, Power loss control

Chipset

Integrated in the SoC

Audio

High Deﬁnition Audio Interface, Cirrus Logic CS4207

Ethernet

2x LAN Gbit / 100 Mbit / 10 Mbit, Intel Gigabit Ethernet i211 controller (i210 for industrial variants)

Graphics

Intel® Gen 9 HD Graphics with support for DirectX12, OpenGL 4.3, OpenCL 1.2, OpenGLES 3.0, MPEG2 full HW acceleration with H.264 with L5.2 decode and encode, HEVC (H.265), VP8, VP9, PAVP 2.0, HDCP 1.4 / 2.0, MVC and supports up to 3x independent displays

Graphic Interfaces

1x DP++, 1x DP via USB Type-C and either 1x LVDS (default) or 1x eDP 1.3

Back Panel I/O Connectors

1x DisplayPort DP++ supports

- DP

- DVI / HDMI 1.4 (requires external passive cable adapter)

2x LAN RJ45

1x USB 3.0 Type-C (Alternate mode) 2x USB 3.0 1x DC-In (only for commercial variants)

Onboard I/O Connectors

1x LVDS 1x Backlight 2x Serial port connectors (RS232/RS485/RS422) (bottom side) 1x MicroSD slot (bottom side) 1x Standard SATA III interface (6 GB/s) 1x Power connector for 2.5" HDD (+5V) 1x miniPCIe or mSATA full size 1x HP OUT/SPDIF OUT/MIC connector (analog and digital audio) 1x Internal Power-IN (+12V)

1x RTC battery connector 1x Fan connector 1x Dual USB 2.0 (internal) 3x Feature connectors

- 1x GPIO connector (offers 4 GPIs and 4 GPOs via cBC)

- 1x I2C/Watchdog connector (via cBC)

- 1x Connector for power, reset, sleep and LID buttons, as well as power and SATA LEDs.

Other Features

Thermal and voltage monitoring, RTC Battery, congatec standard BIOS

BIOS

AMI Aptio

UEFI 5.x ﬁrmware, 16 MB SPI ﬂash with congatec embedded BIOS features.

Power Management

ACPI 4.0 compliant with battery support. Also supports Suspend to RAM (S3). Ultra low standby power consumption.

Security

Optional discrete Trusted Platform Module “TPM 1.2/2.0”; new AES Instructions for faster and better encryption.

Note

Some of the features mentioned in the above feature summary are optional. Check the article number of your module and compare it to the options information list on page 11 of this user’s guide to determine what options are available on your particular module.

Page 15

2.2 Supported Operating Systems

The conga-PA5 supports the following operating systems.

• Calypso Island

• Microsoft® Windows

10 IoT

• Microsoft® Windows

Embedded Standard 7, 8

• Linux (Wind River, Yocto)

• Android

• Wind River VxWorks

2.3 Mechanical Dimensions

• 100mm x 72mm

• 19mm height

2.4 Supply Voltage Power

• 12V DC ± 10%

2.5 Power Consumption

The power consumption values were measured with the following setup:

• conga-PA5

• conga-PA5 cooling solution

• Microsoft® Windows® 10 (64-bit)

Note

The CPU was stressed to its maximum workload with the Intel® Thermal Analysis Tool

Page 16

Table 7 Measurement Description

The power consumption values were recorded during the following system states:

System State Description Comment

S0: Minimum value Lowest frequency mode (LFM) with minimum core voltage during

desktop idle.

The CPU was stressed to its maximum frequency.

S0: Maximum value Highest frequency mode (HFM/Turbo Boost). The CPU was stressed to its maximum frequency. S0: Peak value Highest current spike during the measurement of “S0: Maximum

value”. This state shows the peak value during runtime

Consider this value when designing the system’s power supply to ensure that sufﬁcient power is supplied during worst case scenarios.

Note

1. The fan and SATA drives were powered externally.

2. All other peripherals except the LCD monitor were disconnected before measurement.

Table 8 Power Consumption Values

The tables below provide additional information about the power consumption data for each of the conga-PA5 variants offered. The values are recorded at various operating mode.

Part No.

Memory Size

H.W Rev.

BIOS Rev.

OS (64-bit)

CPU Current (Amp.)

Variant Cores Base / Burst

Freq. (GHz)

S0: Min

S0: Max

S0: Peak

048100 8 GB TBD TBD Windows® 10 Atom™ x7-E3950 4 1.6/2.0 TBD TBD TBD 048101 4 GB TBD TBD Windows

10 Atom™ x5-E3940 4 1.6/1.8 TBD TBD TBD

048102 4 GB TBD TBD Windows

10 Atom™ x5-E3930 2 1.3/1.8 TBD TBD TBD

048120 8 GB TBD TBD Windows

10 Pentium® N4200 4 1.1/2.5 TBD TBD TBD

048121 4 GB TBD TBD Windows

10 Celeron® N3350 2 1.1/2.4 TBD TBD TBD

048123 4 GB TBD TBD Windows

10 Pentium® N4200 4 1.1/2.5 TBD TBD TBD

048110 8 GB TBD TBD Windows

10 Atom™ x7-E3950 4 1.6/2.0 TBD TBD TBD

048111 4 GB TBD TBD Windows

10 Atom™ x5-E3940 4 1.6/1.8 TBD TBD TBD

048112 4 GB

TBD TBD Windows® 10 Atom™ x5-E3930 2 1.3/1.8 TBD TBD TBD

Note

With fast input voltage rise time, the inrush current may exceed the measured peak current.

Page 17

2.6 Supply Voltage Battery Power

Table 9 CMOS Battery Power Consumption

RTC @ Voltage Current

-10oC 3V DC TBD µA

C 3V DC TBD µA

Note

1. Do not use the CMOS battery power consumption values listed above to calculate CMOS battery lifetime.

2. Measure the CMOS battery power consumption in your customer speciﬁc application in worst case conditions (for example, during high temperature and high battery voltage).

3. Consider also the self-discharge of the battery when calculating the lifetime of the CMOS battery. For more information, refer to application note AN9_RTC_Battery_Lifetime.pdf on congatec AG website at www.congatec.com/support/application-notes.

4. We recommend to always have a CMOS battery present when operating the conga-PA5.

2.7 Environmental Speciﬁcations

Temperature (commercial variants) Operation: 0° to 60°C Storage: -20° to +70°C

Temperature (industrial variants) Operation: -40° to 85°C Storage: -40° to +85°C

Humidity Operation: 10% to 90% Storage: 5% to 95%

Caution

The above operating temperatures must be strictly adhered to at all times. Humidity speciﬁcations are for non-condensing conditions.

Page 18

3 Block Diagram

External I/O

Internal I/O

3x Feature

SATA

SATA Power

LVDS

DDR1

DDR0

Buttons

Watchdog

GPIO

I²C

LPC

eDP

USB 2.0

2X UART

LVDS B

LVDS A

RS232/ 422/ 485

SATA

MUX

Cirrus Locig

CS4207

SPI

TPM

Flash

congatec

Boardcontroller

LVDS

converter

Intel I211*

Ethernet

2x USB 3.0

DP++

mPCIe / mSATA

+12V

+3V Battery

3pin FAN

Backlight

S/PDIF

Mic IN

2x USB 2.0

COM 1

PCIe

*I210IT for industrial temperature

+12V

DP++

PCIe

USB 2.0

SATA

HDA

SDIO

LPDDR4

DDR3

DDR2

LPDDR4

CPU Platform

Hardware Graphics Accelerators

Intel

EIST

AES-NI

Display Interface

HDMI

PCIe

SATA

SPI LPC SD Card

eMMCUSB 2.0 USB 3.0

VGAeDPDisplayPort

I/O Interfaces

Gfx with Burst Technology

HDA

Audio Interface

HP Out

microSD

USB 3.0

Intel I211*

Ethernet

PCIe

*I210IT for industrial temperature

USB C subsystem

USB C

USB 3.0

DP1

COM 2

Intel Apollo Lake

USB 3.0

Multiprotocol

Transceivers

USB 2.0

Page 19

4 Cooling Solution

congatec AG offers cooling solutions for the lidded (industrial) and open silicon (commercial) conga-PA5 variants:

• Passive cooling solutions (CSP)

• Heatspreader (HSP)

The dimensions of the cooling solutions are shown below. All measurements are in millimeters. The recommended torque for heatspreader screws is 0.3 Nm. Mechanical system assembly mounting shall follow the valid DIN/ISO speciﬁcations.

The heatspreader acts as a thermal coupling device to the module and is thermally coupled to the CPU via a thermal gap ﬁller. On some modules, it may also be thermally coupled to other heat generating components with the use of additional thermal gap ﬁllers.

Although the heatspreader is the thermal interface where most of the heat generated by the module is dissipated, it is not to be considered as a heatsink. It has been designed as a thermal interface between the module and the application speciﬁc thermal solution. The application speciﬁc thermal solution may use heatsinks with fans, and/or heat pipes, which can be attached to the heatspreader. Some thermal solutions may also require that the heatspreader is attached directly to the systems chassis thereby using the whole chassis as a heat dissipater.

Note

The gap pad material used on all heatspreaders contains silicon oil that can seep out over time depending on the environmental conditions it is subjected to. For more information about this subject, contact your local congatec sales representative and request the gap pad material manufacturer’s speciﬁcation.

Caution

The congatec heatspreaders/cooling solutions are tested only within the commercial temperature range of 0° to 60°C. Therefore, if your application that features a congatec heatspreader/cooling solution operates outside this temperature range, ensure the correct operating temperature of the board is maintained at all times. This may require additional cooling components for your ﬁnal application’s thermal solution.

For adequate heat dissipation, use the mounting holes on the cooling solution to attach it to the board. Apply thread-locking ﬂuid on the screws if the cooling solution is used in a high shock and/or vibration environment. To prevent the standoff from stripping or cross-threading, use non-threaded carrier board standoffs to mount threaded cooling solutions.

For applications that require vertically-mounted cooling solution, use only coolers that secure the thermal stacks with ﬁxing post. Without the ﬁxing post feature, the thermal stacks may move. Also, do not exceed the maximum torque speciﬁed for the screws. Doing so may damage the board.

Page 20

4.1 CSP Dimensions for Industrial Module Variants

100

Page 21

4.2 CSP Dimensions for Commercial Module Variants

100

Page 22

4.3 HSP Dimensions for Industrial Module Variants

100

Page 23

4.4 HSP Dimensions for Commercial Module Variants

100

Page 24

5 Connector Description

5.1 Power Supply

You can power the conga-PA5 SBC with a 12V, 5.5x2.5mm laptop type DC power supply (on connector X21) or with a 2 pin power supply (on connector X22).

Note

The supplied voltages must be within a tolerance of ± 10%. The conga-PA5 may not function if you exceed this tolerance limit.

5.1.1 DC Power Jack (Rear I/O)

The conga-PA5 SBC can be powered from a laptop type power supply connected to the DC power jack on the rear I/O. The power input is protected to a short transient over-voltage and ESD.

Table 10 Connector X21 Pinout Description

Pin Function

Center Pin +12V Sleeve/Barrel GND

Connector Type

X21 : DC power jack, 5.5 x 2.5mm diameter

Note

The conga-PA5 industrial variants do not have DC power jack (X21) by default. They are equipped with internal power connector (X22) only. conga-PA5 design offers several options for DC power connector (e.g. DC jack with locking or industrial grade DC jack).

Caution

The absolute maximum rating of the input voltage is 13.2 volts. Do not exceed this rating or expose the conga-PA5 to the absolute maximum voltage for a prolonged time. The system may not function, may be damaged or may have reliability issues if you do not observe this warning information.

DC Power Jack - Connector X21

Page 25

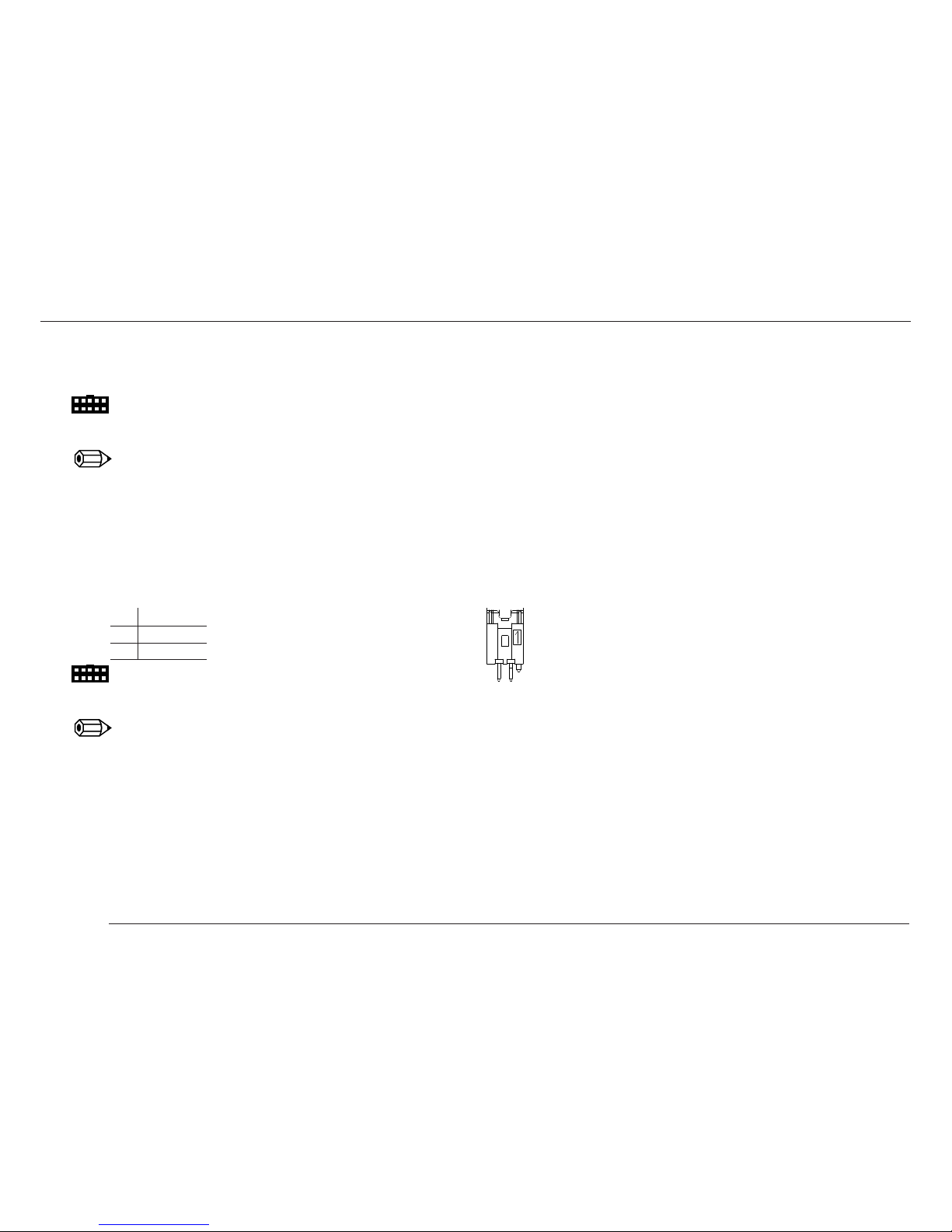

5.1.2 Power Supply (Internal Connector)

The conga-PA5 offers an internal 2-pin power connector. This connector makes it possible to use customized power supply cables/connector and also offers short transient over-voltage protection to the input voltage.

Table 11 Connector X22 Pinout Description

Pin Signal Description

1 +12V Power Supply +12V 2 GND Ground

Connector Type

X22: 2 pin, 3mm pitch micro-ﬁt internal power connector

Possible Mating Connector: Molex 43645-0200

Note

For conga-PA5 commercial variants, you can use connector X22 as a +12V power output if the system is powered via the DC jack. The industrial variants have only connector X22 for power input.

Caution

5.1.3 Power Status LED

The conga-PA5 provides an LED signal (PWR_LED) on pin 9 of the feature connector X18. The signal indicates the different power states of the conga-PA5. Possible states of the LEDs are shown below:

Table 12 Single-Color Power LED

LED State Description ACPI State

Off Sleeping or power-off (not running) S3, S5 LED on Running S0

Internal Power Connector X22

Page 26

Note

For the feature connector pinout description, see section 6.1 “Feature Connectors”.

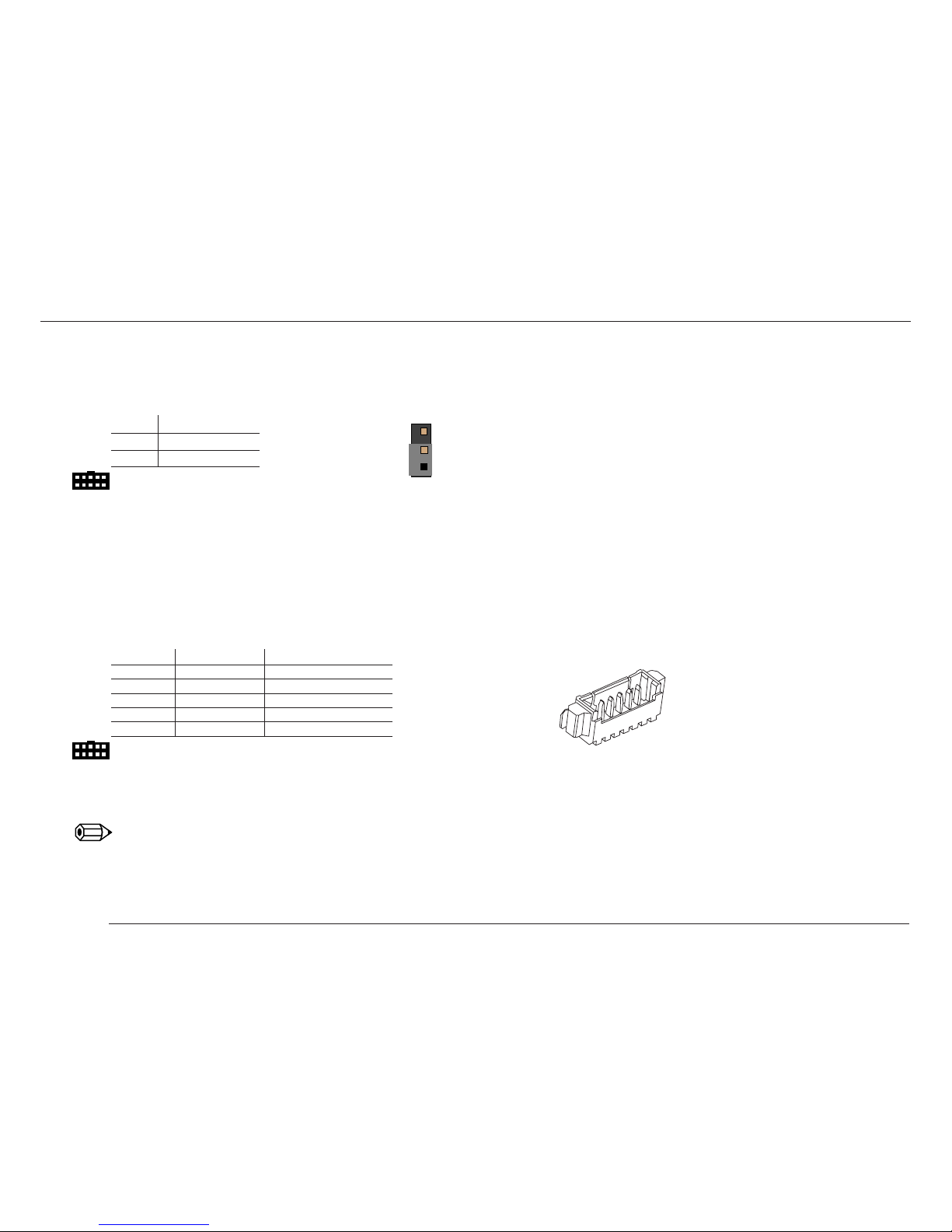

5.2 RTC Battery

The conga-PA5 provides an RTC battery on connector X23. The battery monitors and maintains the system clock. The conga-PA5 package contains wired +3V lithium battery (CR2032 for commercial variants; BR2330A for industrial variants).

Table 13 Battery Connector X23

Pin Description

1 +3V 2 GND

Note

The battery has an adhesive tape on its shrinking tube. This tape enables the system integrator to adequately position the battery in the system case. The functionality of adhesive tape is time limited if exposed to higher temperatures and harsh or vibrant environment. The system integrator must ensure a stable position in this case.

Warning

Danger of explosion if battery is incorrectly replaced. Replace only with same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.

Connector Type

X23: 2x1, 1.25mm PicoBlade header

Possible Mating Connector: Molex 51021-0200

RTC Battery Connector X23

Battery with cable and connector

Page 27

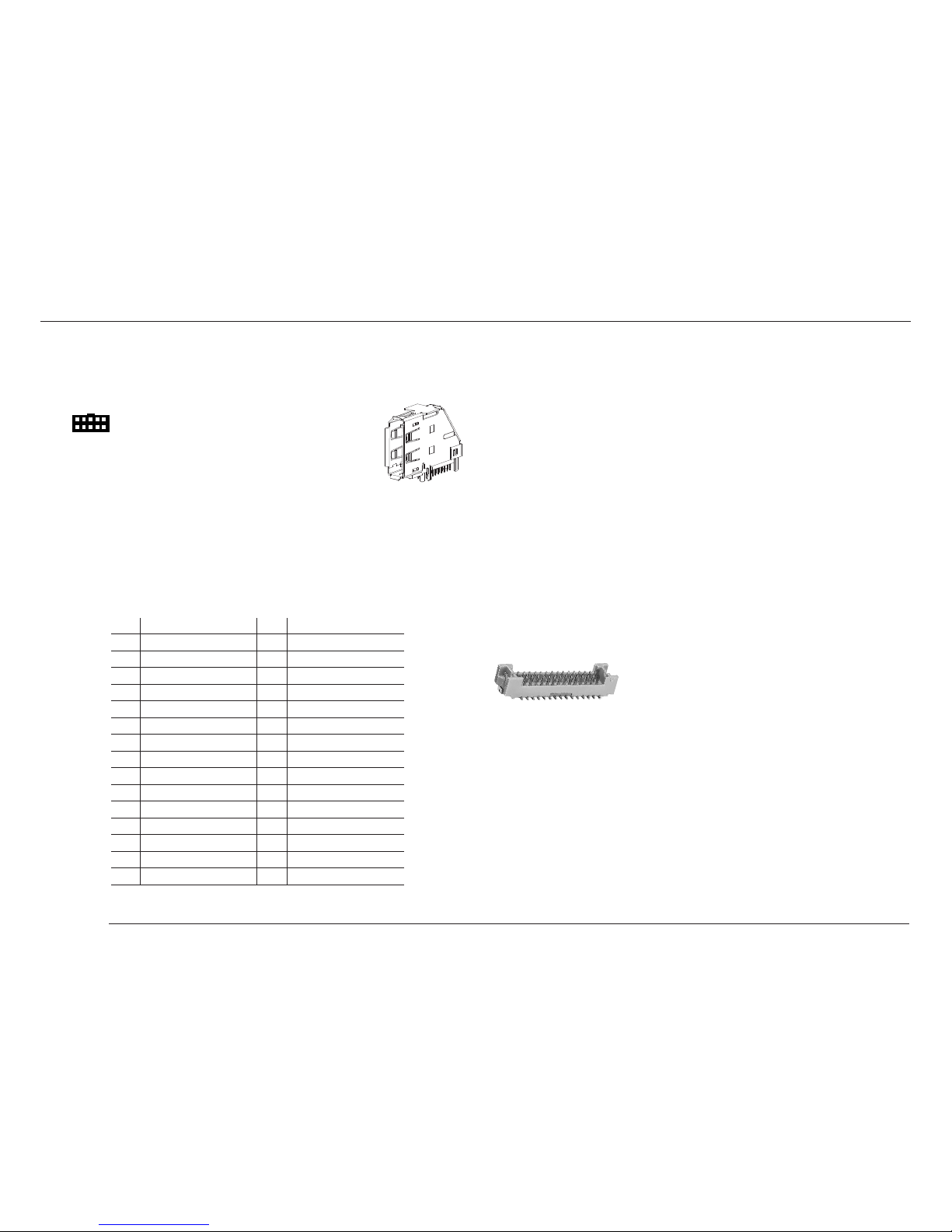

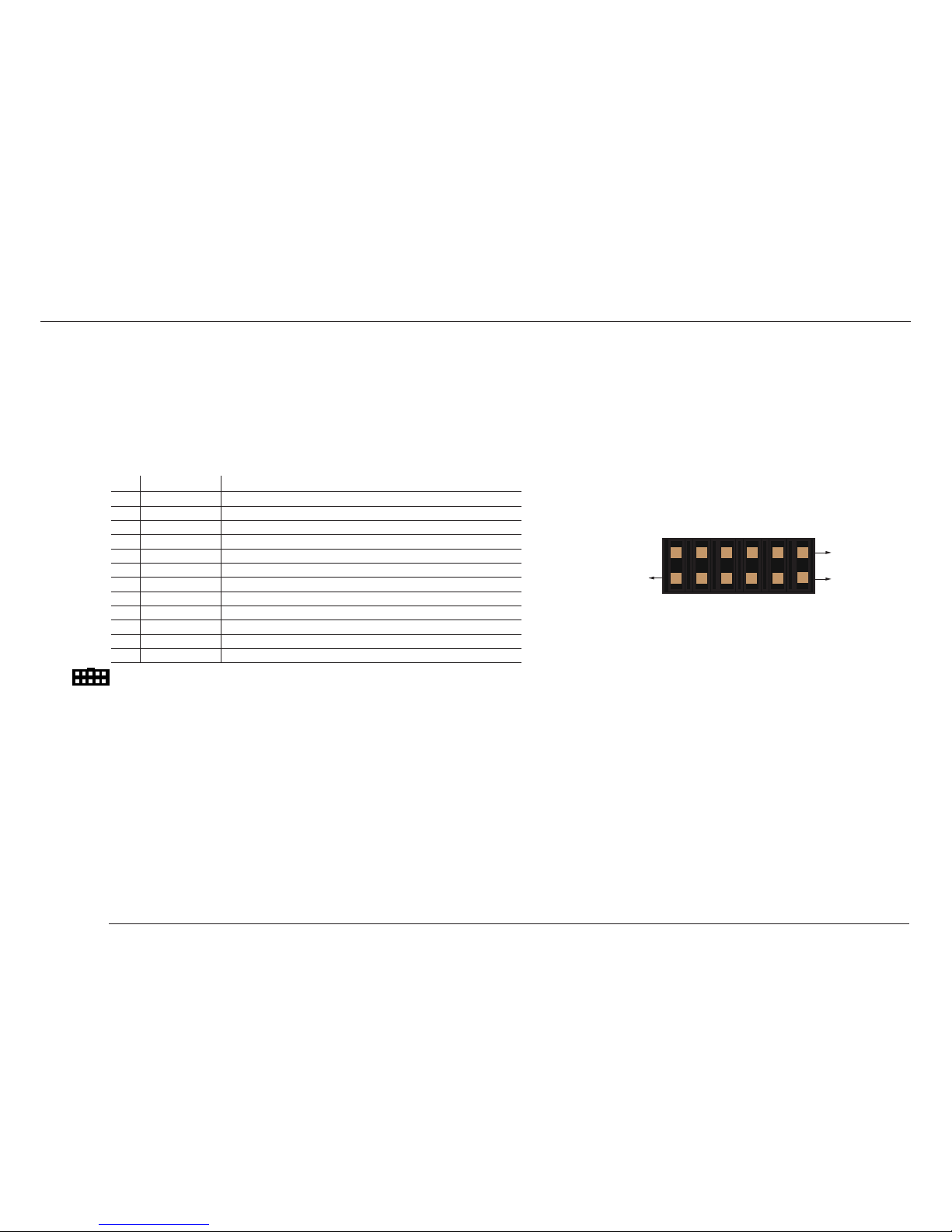

5.3 Audio Interface

The conga-PA5 has a high deﬁnition audio codec (Cirrus Logic CS4207) mounted on it. The audio codec's S/PDIF output, analog line (left and right) and microphone input channels (left and right) are routed to connector X6. This connector offers +5V power supply pins for external speaker ampliﬁer and optical S/PDIF transmitter. Analog line output can be used with headphones.

The audio fuse limits the power budget of this pin by 500mA hold current (maximum speaker power should not exceed 3W).

Table 14 Audio Interface (Connector X6) Pinout Description

Pin Signal Description

1 MIC_L Analog Microphone Input - Left Channel 2 GND_HDA Audio Ground 3 MIC_R Analog Microphone Input - Right Channel 4 +5V AMP +5V Power Supply (for external speaker ampliﬁer) 5 MIC_JD Microphone Jack Detection 6 LINE_R Analog Line Out - Right Channel 7 GND_HDA Audio Ground 8 LINE_L Analog Line Out - Left Channel 9 LINE_JD Line Out Jack Detection 10 +5V +5V Power Supply (for S/PDIF optical transmitter) 11 GND Digital Ground for S/PDIF 12 S/PDIF S/PDIF Output (3.3V)

Connector Type

X5: 2x6 pin, 2.0mm header

Possible Mating Connector: Molex 51110-1250

5.4 Universal Serial Bus (USB)

The conga-PA5 provides 6 USB ports both on the rear side and internally. The rear side has two USB 3.0 ports on connector X7 and one USB

3.0 port on USB type C (X9). Internally, the conga-PA5 provides two USB 2.0 ports on connector X8 and one USB 2.0 port is connected to the

miniPCIe slot.

Line, Mic and SPDIF - Connector X6

Pin 12

Pin 1

Pin 2

Page 28

5.4.1 Rear USB Connectors

The conga-PA5 offers three USB ports on the rear side by default - two USB 3.0 ports (X7) and one USB Type-C (X9). USB Type-C supports Alternate mode (DisplayPort and USB 3.0) and it can provide +5V / 3A power.

Connector Type

X7: Dual-stacked USB 3.0 Type A connector

Connector Type

X9: USB Type-C Receptacle

5.4.2 Internal USB Connectors

The conga-PA5 offers two USB 2.0 ports internally on connector X8 routed directly from the SoC.

Table 15 USB 2.0 Header (Connector X8) Pinout Description

Port 1 Port 2

Pin Signal Description Pin Signal Description

1 +5V +5V supply 2 +5V +5V supply

3 Data1- Hi-speed differential signal (negative) 4 Data2- Hi-speed differential signal (negative)

5 Data1+ Hi-speed differential signal (positive) 6 Data2+ Hi-speed differential signal (positive)

7 GND Ground 8 GND Ground

9 No Pin Key 10 NC Not Connected

Connector Type

X8: 2x5 pin, 2.0mm header

Upper

Lower

Connector X7

5789

1 2 3 4

5789

1 2 3 4

Connector X9

Internal USB 2.0 - Connector X8

Pin 1

Pin 2

Page 29

5.5 Ethernet 10/100/1000

The conga-PA5 provides two Gigabit Ethernet ports (connector X12 and X13) on the rear side. The Gigabit Ethernet interface is supported via the Intel® Gigabit Ethernet controller i211 (commercial variants) or i210 (industrial variants). The controller does not support the Intel® AMT feature.

LED Descriptions

Connector Type

X12 & X13: 8 pin RJ45 connector with Gigabit magnetic and LEDs

5.6 SATA Interfaces

The conga-PA5 provides two SATA ports - a standard SATA port and a mini SATA port (shared with mini PCIe slot).

5.6.1 Standard SATA Port

The conga-PA5 provides one standard SATA port on connector CN1. This interface is routed directly from the SoC and supports data rates up to 6GB/s. The SATA LED signal on the feature connector X18 indicates activity on the SATA interface.

Connector Type

CN1: Standard SATA connector

Gigabit Ethernet Connector X12 / X13

LED Left Side Description

Off 10 Mbps link speed

Green 100 Mbps link speed

Orange 1000 Mbps link speed

LED Right Side Description

Off No link

Steady On Link established, no activity detected

Blinking Link established, activity detected

Page 30

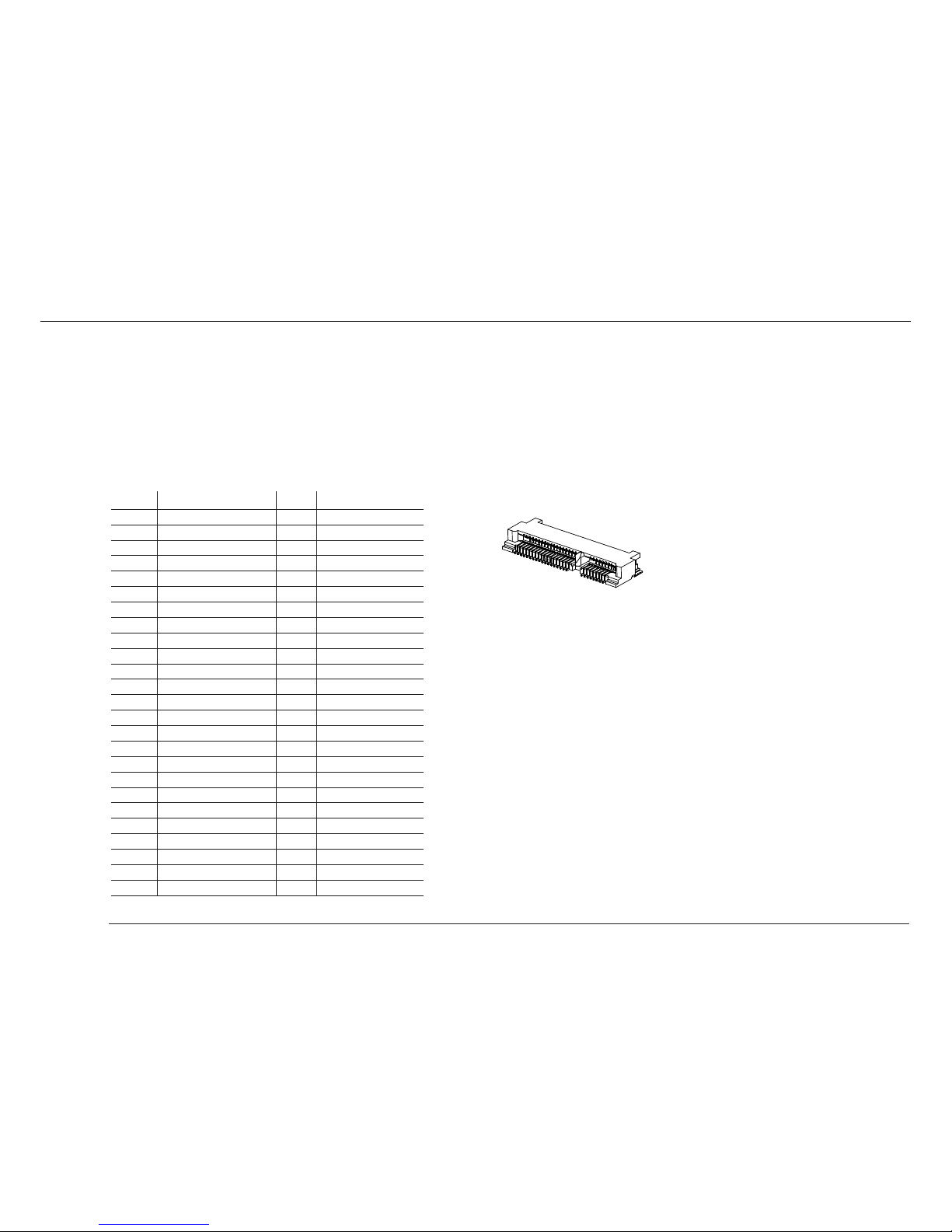

5.6.2 Mini SATA (shared with mini PCIe)

The mini SATA connector X10 on the conga-PA5 is used to connect mSATA devices. This connector also supports mini PCIe devices. When an mSATA or mPCIe device is connected to X10, the conga-PA5 automatically detects the type of device that is attached.

Connector Type

X10: 0.8mm pitch, 52 pin mini PCI socket

Note

For card type recognition, pin 43 of the mSATA card must not be connected.

5.6.3 SATA Power

The conga-PA5 provides an internal SATA power for hard drives on connector X11. This connector supplies 5V.

Table 16 Connector X11 Pinout Description.

Pin Signal

1 +5V

2 +GND

Connector Type

X11: 2.50mm, 2 pins, Molex Mini-Lock, TH, Vertical

Note

Maximum current of 1 amp.

5.7 Display Interfaces

The conga-PA5 supports up to three displays - one DP++, one DP via USB Type-C and one LVDS interface.

SATA Power - Connector X11

Page 31

5.7.1 Display Port Interface DP++

The conga-PA5 SBC has one DP++ connector (X5) located at the rear I/O panel. The display port supports DP displays and HDMI / DVI adapters.

Connector Type

X5: 20 pin DisplayPort connector

5.7.2 LVDS

The conga-PA5 offers LVDS interface on connector X3 - a 40 pin LVDS connector. The LVDS signals are sourced from the SoC's eDP stream via an eDP to LVDS bridge IC. The eDP to LVDS bridge processes incoming DisplayPort stream and converts the DP protocol to LVDS, before transmitting the processed stream in LVDS format.

The LVDS interface is found on the top side of the SBC and supports 18 or 24 bit single/dual channel, selectable backlight voltage, VESA color mappings, automatic panel detection and resolution up to 1920x1200 at 60 Hz in dual LVDS mode.Connector X3 Pinout Description.

Pin Signal Pin Signal

1 GND 2 GND

3 LVDS_ODD_TX3P 4 LVDS_EVEN_TX3P

5 LVDS_ODD_TX3N 6 LVDS_EVEN_TX3N

7 GND 8 GND

9 LVDS_ODD_TX2P 10 LVDS_EVEN_TX2P

11 LVDS_ODD_TX2N 12 LVDS_EVEN_TX2N

13 GND 14 GND

15 LVDS_ODD_TX1P 16 LVDS_EVEN_TX1P

17 LVDS_ODD_TX1N 18 LVDS_EVEN_TX1N

19 GND 20 GND

21 LVDS_ODD_TX0P 22 LVDS_EVEN_TX0P

23 LVDS_ODD_TX0N 24 LVDS_EVEN_TX0N

25 GND 26 GND

27 LVDS_ODD_CLKP 28 LVDS_EVEN_CLKP

29 LVDS_ODD_CLKN 30 LVDS_EVEN_CLKN

DP++ - Connector X5

LVDS Connector X3

Page 32

31 GND 32 GND

33 DDC_CLK (3.3V) 34 DDC_DAT (3.3V)

35 +VCC_LVDS 36 +VCC_LVDS

37 +VCC_LVDS 38 GND

39 GND 40 LVDS_VDD_EN (3.3V)

Connector Type

X3: 1.25mm, 40 pin Hirose connector DF13EA Series

Possible Mating Connector: Hirose DF13-40DS-1.25C

Note

congatec offers LVDS cable for 17" AUO Optronics G170EG01 V.1 panel only (see section 1.2.3 “Optional Cables”). For more information, contact congatec technical solution department.

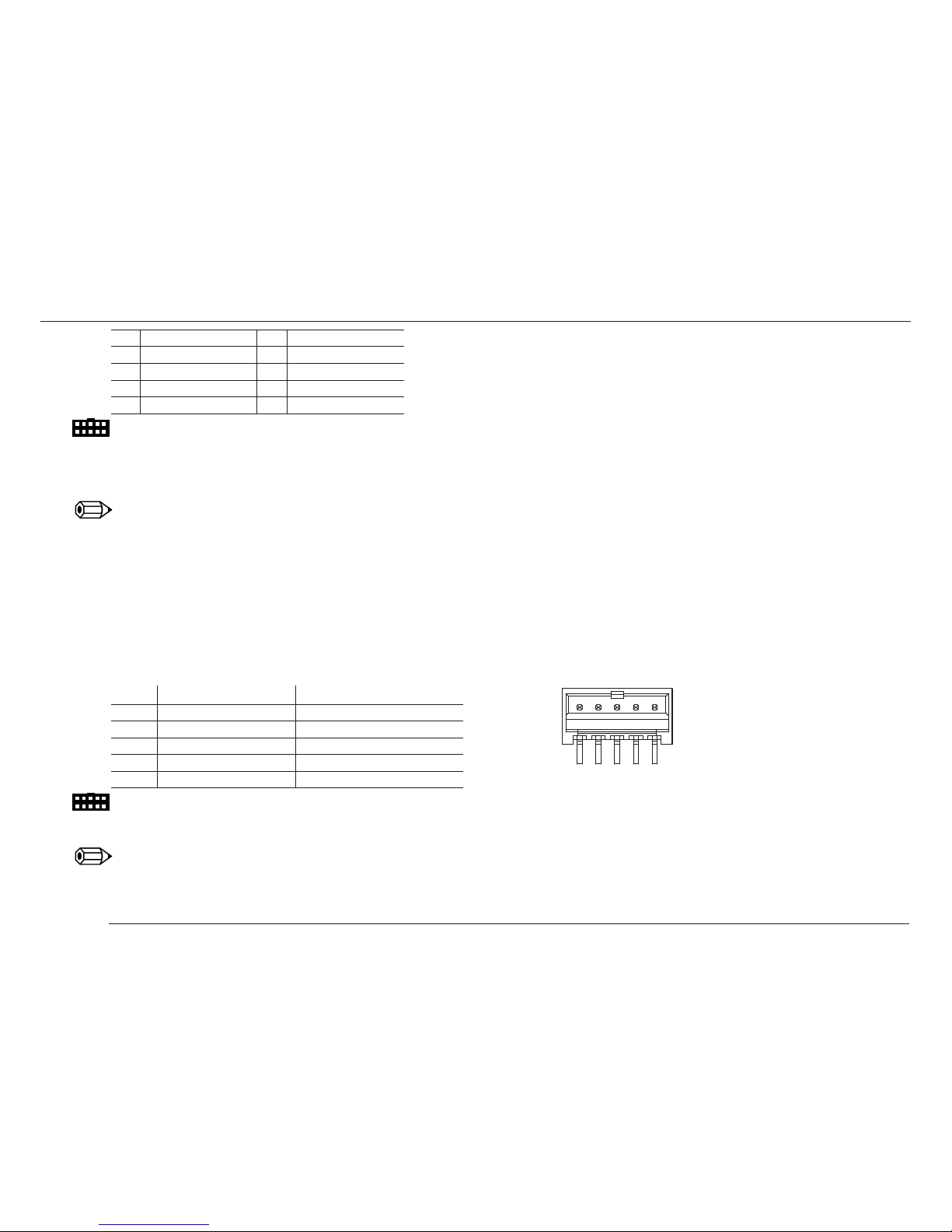

5.7.2.1 Backlight Power Connector

The conga-PA5 provides backlight power on connector X4. The connector supports 5V or 12V backlight power. The backlight fuse limits the power budget of pins 1 and 5 by 1.5A hold current.

Table 17 Connector X4 Pinout Description

Pin Signal Name Description

1 +12V BKLT_PWR 12V Backlight inverter power

2 GND Ground

3 BKLT_EN (3.3V) Backlight enable

4 BKLT_CTRL (3.3V) Backlight control

5 +5V BKLT_PWR 5V Backlight inverter power

Connector Type

X4: Molex Pico-SPOX, 5 pins, SMT, Vertical, 1.5mm pitch, Tin plating

Note

Connector X4 is intended for LCD backlight power. If you use connector X4 for a different device, and the device requires both +5V and +12V, then the total output current should not exceed 2A.

Backlight Power - Connector X4

Page 33

5.7.2.2 Panel Power Selection

The conga-PA5 supports 3.3V or 5V LVDS panels. With jumper X24, you can set the panel voltage (pins 35 and 37) to 3.3V or 5V.

Table 18 Connector X24 Pinout Description

Pin Signal Name

1 - 2 3.3V

2 - 3 5V

Connector Type

X24: 2mm, 3 pin header

5.8 Serial Ports (COM)

The conga-PA5 provides two UART interfaces - connector X15 & X16. The COM ports are located at the bottom side of the SBC and can drive up to 250 kbit/s each and support multi-protocol serial ports (RS232 / RS422 / RS485). The serial ports are conﬁgurable in BIOS menu.

Table 19 Serial Port - (Connector X15 / X16) Pinout Description

Pin RS232 Signal RS422 / RS485 Signal

1 GND GND 2 TXD TX3 RTS# TX+ 4 CTS# RX+ 5 RXD RX-

Connector Type

X15 / X16: 1.25mm pitch, 5 pin Molex PicoBlade header

Possible Mating Connector: Molex 51021-0500

Note

congatec offers an adapter cable for the COM port (see section 1.2.3 “Optional Cables). For more information, contact congatec technical solution department.

X24

UART - Connector X15 / X16

Page 34

5.9 Mini PCIe (shared with mini SATA)

The conga-PA5 offers a mini PCIe slot on connector X10. This connector supports both mPCIe and mSATA devices. The PCIe and SATA signals are routed from the SoC to connector X10 (mPCIe/mSATA slot) via a multiplexer. The multiplexer switches the incoming signals based on the type of card inserted.

When an mPCIe or mSATA device is attached to the mPCIe/mSATA slot (connector X10), the multiplexer detects the connected device via the signal detect pin (pin 43) and sends the corresponding signals to connector X10.

Table 20 mPCIe (Connector X10) Pinout Description

Pin Signal Pin Signal

1 WAKE# 2 +3.3Vaux 3 N.C. 4 GND 5 N.C. 6 +1.5V 7 CLKREQ# 8 N.C. 9 GND 10 N.C. 11 REFCLK- 12 N.C. 13 REFCLK+ 14 N.C. 15 GND 16 N.C. 17 N.C. 18 GND 19 N.C. 20 W_DISABLE# 21 GND 22 PERST# 23 PERn0/SATA_RX1+ 24 +3.3Vaux 25 PERp0/SATA_RX1- 26 GND 27 GND 28 +1.5V 29 GND 30 SMB_CLK 31 PETn0/SATA_TX1- 32 SMB_DATA 33 PETp0/SATA_TX1+ 34 GND 35 GND 36 USB_D37 GND 38 USB_D+ 39 +3.3Vaux 40 GND 41 +3.3Vaux 42 N.C 43 mSATA_mPCIe_detect 44 LED_WLAN# 45 N.C 46 N.C 47 N.C 48 +1.5V 49 N.C 50 GND

mSATA/mPCIe Socket

(Connector X10)

Page 35

Pin Signal Pin Signal

51 N.C. 52 +3.3Vaux 53 GND 54 GND

Connector Type

X10: PCIe mini card socket

Note

For the conga-PA5 to detect the type of card inserted as described in the mPCIe/mSATA speciﬁcation, pin 43 of the mPCIe card must be connected to ground. On mSATA card, this pin must not be connected. The miniPCIe extender can be used for miniPCIe half size cards.

Page 36

6 Additional Features

6.1 Feature Connectors

The conga-PA5 has three feature connectors (X18, X19 and X20) onboard. The SBC supports front panel features such as power button, status LEDs, I2C, watchdog, GPIOs via these connectors.

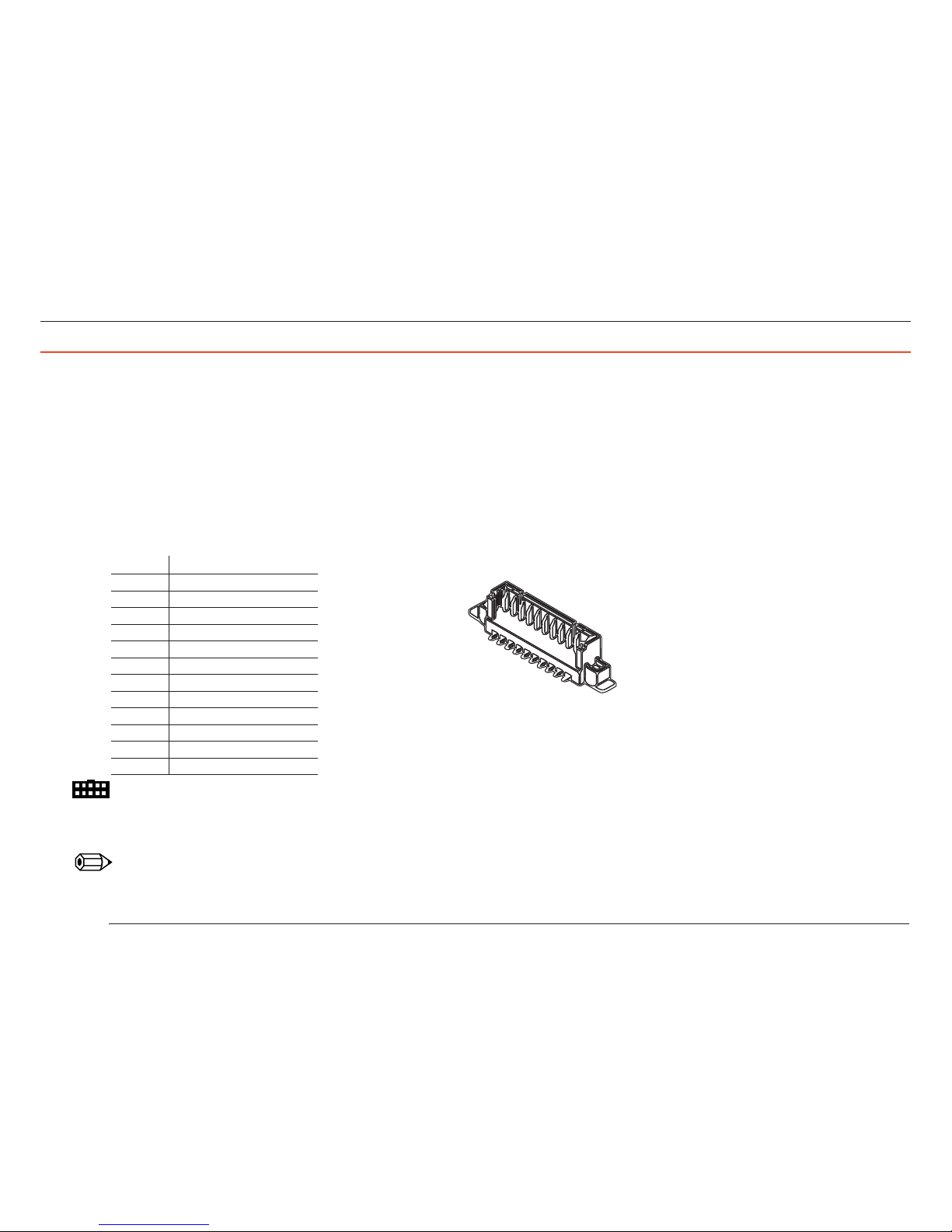

6.1.1 Buttons & LEDs

The conga-PA5 offers Lid, sleep, reset, power buttons as well as LED signals via the feature connector X18. The pinout is described below:

Table 21 Feature Connector X18 Pinout Description

Pin Signal Name

1 LID_BTN#

2 GND

3 SLP_BTN#

4 GND

5 RST_BTN#

6 GND

7 PWR_BTN#

8 GND

9 PWR_LED (anode)

10 GND (cathode)

11 SATA_LED (anode)

12 SATA_ACT# (cathode)

Connector Type

X18: 1.25mm pitch, 12x1 pin PicoBlade header

Possible Mating Connector: Molex 51021-1200

Note

The LEDs on the conga-PA5 have series resistors. Therefore, you can connect X18 pins directly to the LED terminals.

Feature Connector X18

Page 37

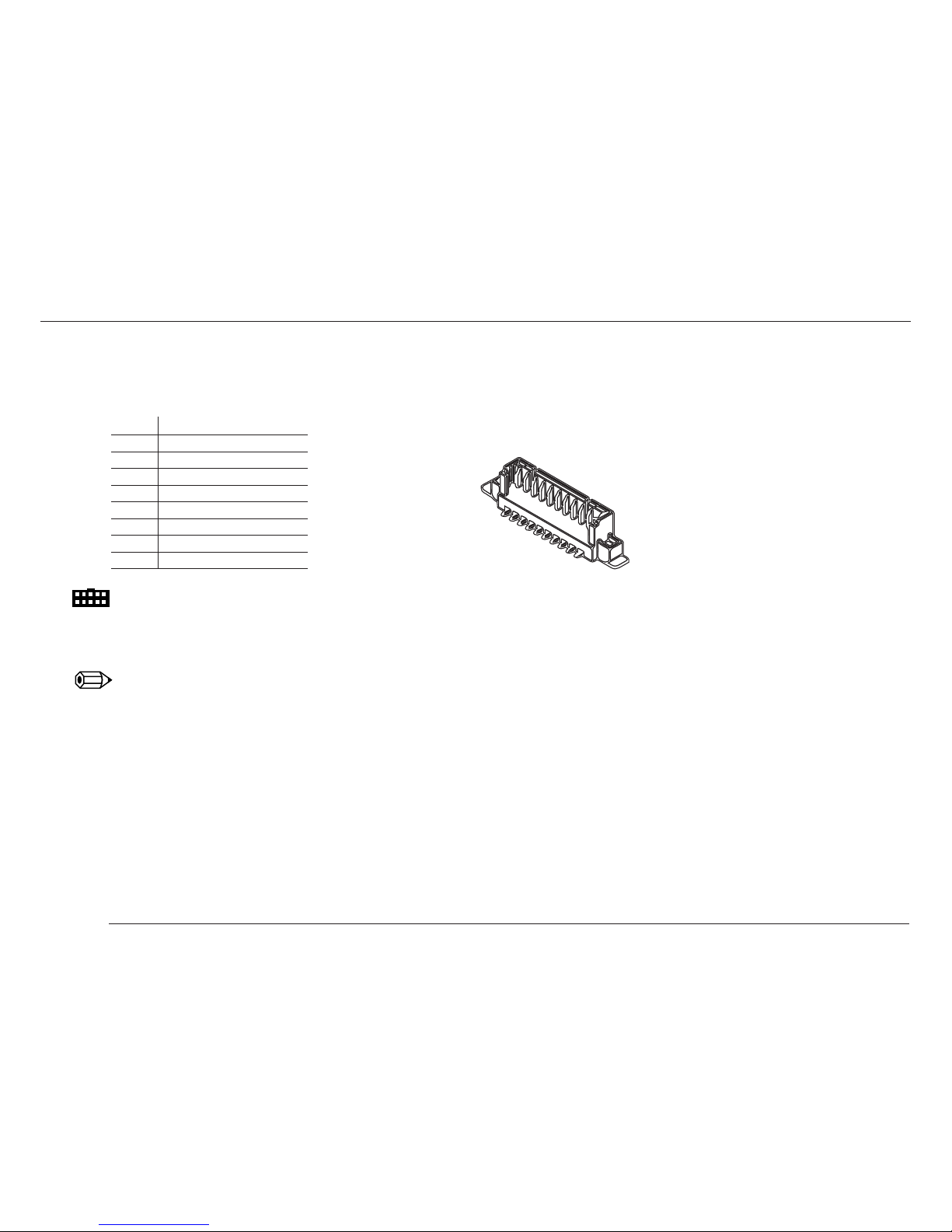

6.1.2 I2C and Watchdog

The conga-PA5 offers I2C and watchdog signals via the feature connector X19. The pinout is described below:

Table 22 Feature Connector X19 Pinout Description

Pin Signal Name

1 BATLOW#

2 +3.3V

3 LED_WLAN# (mPCIe)

4 I2C_CLK

5 I2C_DAT

6 GN D

7 WDTRIG#

8 WDOUT

Connector Type

X19: 1.25mm Pitch, 8x1 pin PicoBlade header

Possible Mating Connector: Molex 51021-0800

Note

The signals are 3.3V compatible. The fuse limits the power budget of connector X19 and X20 by 350mA hold current. LED_WLAN# shall be connected to LED's cathode. A series resistor is present on conga-PA5.

Feature Connector X19

Page 38

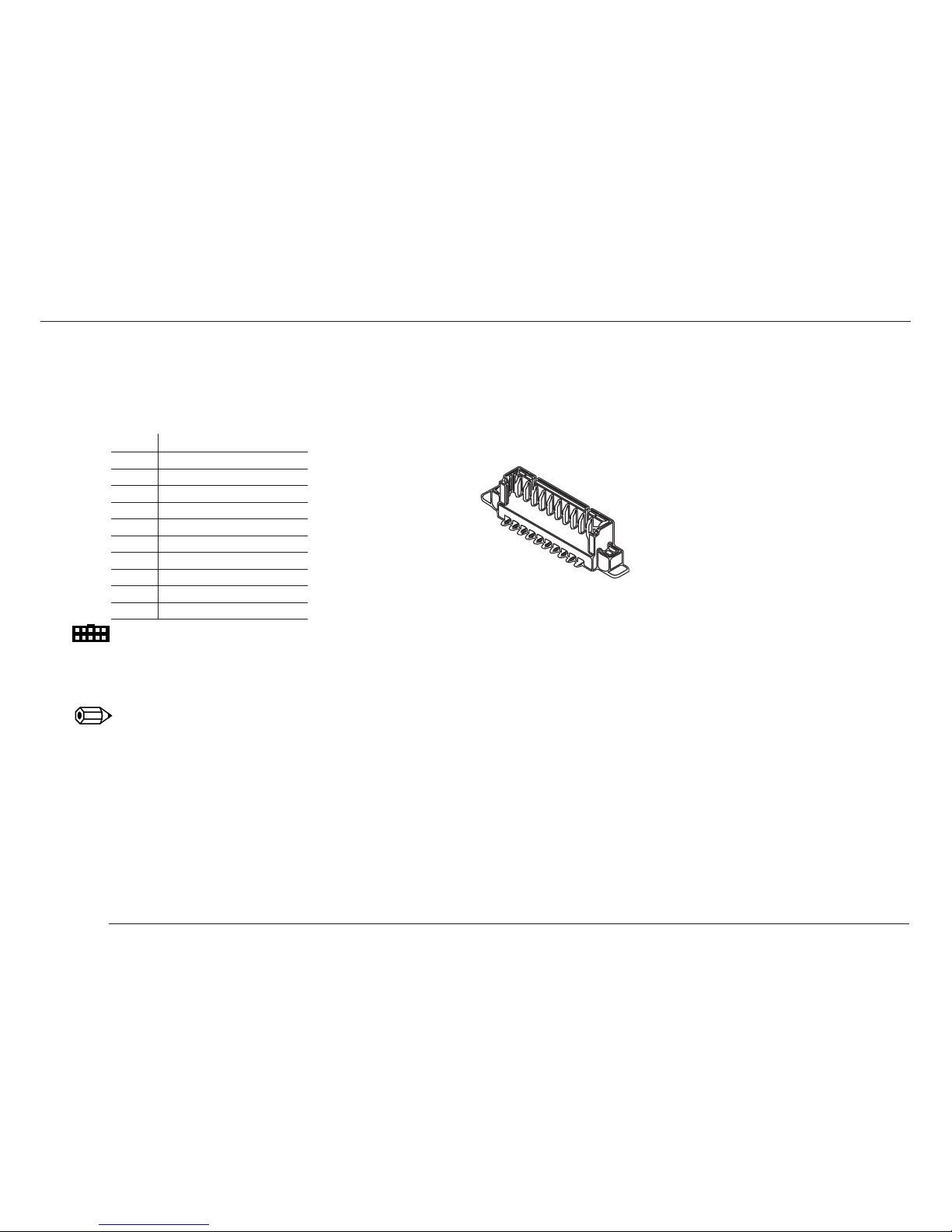

6.1.3 GPIOs

The conga-PA5 offers GPIOs via the feature connector X20. It offers an optional connection to the integrated sensor hub (ISH), which is a feature of Intel® processor. A sensors can be connected via I2C and GPIO (voltage level is 1.8V for ISH). The pinout is described below:

Table 23 Feature Connector X20 Pinout Description

Pin Signal Name

1 GPI0

2 GPI1

3 GPI2

4 GPI3

5 GND

6 GPO0

7 GPO1

8 GPO2

9 GPO3

10 +3.3V

Connector Type

X20: 1.25mm pitch, 10x1 pin PicoBlade header

Possible Mating Connector: Molex 51021-1000

Note

Signals are 3.3V compatible. The fuse limits the power budget of connectors X19 and X20 by 350mA hold current.

Feature Connector X20

Page 39

6.1.4 Micro-SD Card

The conga-PA5 offers a micro-SD slot on connector X14. The SD card slot complies with SDXC card speciﬁcation 3.0 with support for up to 104 MBps data rate.

Connector Type

X14: Micro-SD card socket

6.2 congatec Board Controller (cBC)

The conga-PA5 is equipped with a Texas Instruments Tiva™ TM4E1231H6ZRBI microcontroller. This onboard microcontroller plays an important role for most of the congatec BIOS features. The cBC fully isolates some of the embedded features such as system monitoring, I²C bus from the x86 core architecture. This improves performance and reliability, even during low power mode.

6.2.1 Fan Control

The congatec Board Controller on the conga-PA5 controls the power supplied to the fan with the PWM signal. Additionally, there is an input signal called FAN_TACHOIN that provides the ability to monitor the system’s fan RPMs (revolutions per minute). This signal must receive two pulses per revolution in order to produce an accurate reading. For this reason, a two pulse per revolution fan is recommended.

6.2.2 Power Loss Control

The cBC has full control of the power-up of the SBC. Therefore, it can be used to specify the behavior of the system after an AC power loss condition. Supported modes are “Turn On”, “Remain Off” and “Last State”.

6.2.3 Board Information

The cBC provides a rich data-set of manufacturing and board information such as serial number, EAN number, hardware and ﬁrmware revisions, and so on. It also keeps track of dynamically changing data like runtime meter and boot counter.

Micro-SD Slot (Connector X14)

Page 40

6.2.4 CPU Fan Connector

The conga-PA5 supports 12V cooling fans. The signals of the CPU fan are routed to connector X17. The pinout is described below:

Table 24 CPU Fan Connector (X17) Pinout Description

Pin Signal

1 GND

2 +12VDC

3 FAN_TACHOIN

Connector Type

X17: 2.54mm, 3 pin fan connector

Note

The recommended maximum power of the system fan is approximately 3W.

6.3 OEM BIOS Customization

The conga-PA5 is equipped with congatec Embedded BIOS, which is based on American Megatrends Inc. Aptio UEFI ﬁrmware. The congatec Embedded BIOS allows system designers to modify the BIOS. For more information about customizing the congatec Embedded BIOS, refer to the congatec System Utility user’s guide CGUTLm1x.pdf and can be found on the congatec website or contact technical support.

The customization features supported are described below:

6.3.1 OEM Default Settings

This feature allows system designers to create and store their own BIOS default conﬁguration. Customized BIOS development by congatec for OEM default settings is no longer necessary because customers can easily perform this conﬁguration by themselves using the congatec system utility CGUTIL. See congatec application note AN8_Create_OEM_Default_Map.pdf on the congatec website for details on how to add OEM default settings to the congatec Embedded BIOS.

CPU Fan

(X17)

1 2 3

Page 41

6.3.2 OEM Boot Logo

This feature allows system designers to replace the standard text output displayed during POST with their own BIOS boot logo. Customized BIOS development by congatec for OEM Boot Logo is no longer necessary because customers can easily perform this conﬁguration by themselves using the congatec system utility CGUTIL. See congatec application note AN8_Create_And_Add_Bootlogo.pdf on the congatec website for details on how to add OEM boot logo to the congatec Embedded BIOS.

6.3.3 OEM POST Logo

This feature allows system designers to replace the congatec POST logo displayed in the upper left corner of the screen during BIOS POST with their own BIOS POST logo. Use the congatec system utility CGUTIL 1.5.4 or later to replace/add the OEM POST logo.

6.3.4 OEM BIOS Code/Data

With the congatec embedded BIOS, it is possible for system designers to add their own code to the BIOS POST process. The congatec Embedded BIOS ﬁrst calls the OEM code before handing over control to the OS loader.

Except for custom speciﬁc code, this feature can also be used to support Win XP SLP installation, Window 7 SLIC table (OA2.0), Windows 8 OEM activation (OA3.0), verb tables for HDA codecs, PCI/PCIe opROMs, bootloaders, rare graphic modes and Super I/O controller initialization.

Note

The OEM BIOS code of the new UEFI based ﬁrmware is only called when the CSM (Compatibility Support Module) is enabled in the BIOS setup menu. Contact congatec technical support for more information on how to add OEM code.

6.3.5 OEM DXE Driver

This feature allows designers to add their own UEFI DXE driver to the congatec embedded BIOS. Contact congatec technical support for more information on how to add an OEM DXE driver.

6.4 congatec Battery Management Interface

In order to facilitate the development of battery powered mobile systems based on embedded modules, congatec AG has deﬁned an interface for the exchange of data between a CPU module (using an ACPI operating system) and a Smart Battery system. A system developed according to the congatec Battery Management Interface Speciﬁcation can provide the battery management functions supported by an ACPI capable

Page 42

operating system (e.g. charge state of the battery, information about the battery, alarms/events for certain battery states, ...) without the need for any additional modiﬁcations to the system BIOS.

In addtion to the ACPI-Compliant Control Method Battery mentioned above, the latest versions of the conga-PA5 BIOS and board controller ﬁrmware also support LTC1760 battery manager from Linear Technology and a battery only solution (no charger). All three battery solutions are supported on the I2C bus and the SMBus. This gives the system designer more ﬂexibility when choosing the appropriate battery sub-system.

For more information about this subject visit the congatec website and view the following documents:

• congatec Battery Management Interface Speciﬁcation

• Battery System Design Guide

• conga-SBM3 User’s Guide

6.5 API Support (CGOS)

In order to beneﬁt from the above mentioned non-industry standard feature set, congatec provides an API that allows application software developers to easily integrate all these features into their code. The CGOS API (congatec Operating System Application Programming Interface) is the congatec proprietary API that is available for all commonly used Operating Systems such as Win32, Win64, Win CE, Linux. The architecture of the CGOS API driver provides the ability to write application software that runs unmodiﬁed on all congatec CPU modules. All the hardware related code is contained within the congatec embedded BIOS on the module. See section 1.1 of the CGOS API software developers guide, which is available on the congatec website.

6.6 GPIOs

The conga-PA5 SBC provides four GPIs and four GPOs via the congatec board controller. The GPI/GPO signals are routed to the feature connector X20.

6.7 Thermal/Voltage Monitoring

The CPU onboard the conga-PA5 monitors the system temperature while the congatec Board Controller monitors the +12V input voltage and input current.

6.8 External System Wake Event

The conga-PA5 supports LAN, power/sleep/LID buttons and PCIe driven wake up events.

Page 43

6.9 Security Features

The conga-PA5 can be equipped optionally with a “Trusted Platform Module“ (TPM 1.2/2.0). This TPM 1.2/2.0 includes coprocessors to calculate efﬁcient hash and RSA algorithms with key lengths up to 2.048 bits as well as a real random number generator. Security sensitive applications like gaming and e-commerce will beneﬁt also with improved authentication, integrity and conﬁdence levels.

Page 44

7 Mechanical Drawing

30.6

100

X19

CN1

X11

X23

X22

X37

X31

X21

X13 X12

X24

X17

X20

X10

X18

X35

Page 45

8 BIOS Setup Description

TBD

Page 46

9 Additional BIOS Features

TBD

Page 47

10 Industry Speciﬁcations

The list below provides links to industry speciﬁcations that apply to congatec AG products.

Speciﬁcation Link

Low Pin Count Interface Speciﬁcation, Revision 1.0 (LPC) http://developer.intel.com/design/chipsets/industry/lpc.htm Universal Serial Bus (USB) Speciﬁcation, Revision 2.0 http://www.usb.org/home Serial ATA Speciﬁcation, Revision 3.0 http://www.serialata.org PCI Express Base Speciﬁcation, Revision 2.0 http://www.pcisig.com/speciﬁcations

Page 48

Our company network supports you worldwide with offices in Germany, Austria, Switzerland, Great Britain and the USA. For more information please contact:

Headquarters

Germany

FORTEC Elektronik AG

Lechwiesenstr. 9 86899 Landsberg am Lech

Phone: +49 8191 91172-0 E-Mail: [email protected] Internet: www.fortecag.de

Fortec Group Members

Austria

FORTEC Elektronik AG Office Vienna

Nuschinggasse 12 1230 Wien

Phone: +43 1 8673492-0 E-Mail: [email protected] Internet: www.fortec.at

Germany

Distec GmbH

Augsburger Str. 2b 82110 Germering

Phone: +49 89 894363-0 E-Mail: [email protected] Internet: www.distec.de

Switzerland

ALTRAC AG

Bahnhofstraße 3 5436 Würenlos

Phone: +41 44 7446111 E-Mail: [email protected] Internet: www.altrac.ch

United Kingdom

Display Technology Ltd.

5 The Oaks Business Village Revenge Road, Lordswood Chatham, Kent, ME5 8LF

Phone: +44 1634 672755 E-Mail: [email protected] Internet: www. displaytechnology.co.uk

USA

Apollo Display Technologies, Corp.

87 Raynor Avenue, Unit 1Ronkonkoma, NY 11779

Phone: +1 631 5804360 E-Mail: [email protected] Internet: www.apollodisplays.com
