Page 1

conga-IA4 Thin Mini-ITX SBC

Detailed Description Of The congatec Thin Mini-ITX Based On 4th Generation Intel Celeron/Pentium SoCs

User's Guide

Revision 1.2

Page 2

Revision History

Revision Date (yyyy.mm.dd) Author Changes

0.1 2016.06.24 AEM • Preliminary release

1.0 2016.07.18 AEM

• Updated section 1.22 "Optional Accessories"

• Added sections 2.4 "Supply Voltage Power", 2.5 "Power Consumption" and 2.6 "Supply Voltage Battery Power"

• Corrected the torque speciﬁcation in section 4.2 "CSP Dimensions"

• Added section 8 "BIOS description" and section 9 "Additional BIOS features"

• Ofﬁcial release

1.1 2016.10.11 AEM

• Deleted references to MIPI and eDP because these interfaces are no longer supported.

1.2 2018.12.21 AEM

• Updated the information about handling electrostatic sensitive devices in preface section

• Added power consumption values for PN:052609 in table 4 "Power Consumption Values"

• Updated sections 2.5 "Power Consumption" and 2.6 "Supply Voltage Battery Power"

• Updated the block diagram

• Updated section 8 "BIOS Setup Description"

• Added sub-sections to section 9 "Additional BIOS Features" and updated section 9.4 "Supported Flash Devices"

Page 3

Preface

This user's guide provides information about the components, features and connectors available on the conga-IA4 Thin Mini-ITX Single Board Computer.

Disclaimer

The information contained within this user’s guide, including but not limited to any product speciﬁcation, is subject to change without notice.

congatec AG provides no warranty with regard to this user’s guide or any other information contained herein and hereby expressly disclaims any implied warranties of merchantability or ﬁtness for any particular purpose with regard to any of the foregoing. congatec AG assumes no liability for any damages incurred directly or indirectly from any technical or typographical errors or omissions contained herein or for discrepancies between the product and the user’s guide. In no event shall congatec AG be liable for any incidental, consequential, special, or exemplary damages, whether based on tort, contract or otherwise, arising out of or in connection with this user’s guide or any other information contained herein or the use thereof.

Intended Audience

This user's guide is intended for technically qualiﬁed personnel. It is not intended for general audiences.

Lead-Free Designs (RoHS)

All congatec AG products are created from lead-free components and are completely RoHS compliant.

Electrostatic Sensitive Device

All congatec AG products are electrostatic sensitive devices. They are enclosed in static shielding bags, and shipped enclosed in secondary packaging (protective packaging). The secondary packaging does not provide electrostatic protection.

Do not remove the device from the static shielding bag or handle it, except at an electrostatic-free workstation. Also, do not ship or store electronic devices near strong electrostatic, electromagnetic, magnetic, or radioactive ﬁelds unless the device is contained within its original packaging. Be aware that failure to comply with these guidelines will void the congatec AG Limited Warranty.

Page 4

Symbols

The following symbols are used in this user's guide:

Warning

Warnings indicate conditions that, if not observed, can cause personal injury.

Caution

Cautions warn the user about how to prevent damage to hardware or loss of data.

Note

Notes call attention to important information that should be observed.

Connector Type

Describes the connector used on the Single Board Computer.

congatec AG has made every attempt to ensure that the information in this document is accurate, yet the information contained within is supplied “as-is”.

Page 5

Trademarks

Product names, logos, brands, and other trademarks featured or referred to within this user’s guide, or the congatec website, are the property of their respective trademark holders. These trademark holders are not afﬁliated with congatec AG, our products, or our website.

Warranty

congatec AG makes no representation, warranty or guaranty, express or implied regarding the products except its standard form of limited warranty (“Limited Warranty”) per the terms and conditions of the congatec entity, which the product is delivered from. These terms and conditions can be downloaded from www.congatec.com. congatec AG may in its sole discretion modify its Limited Warranty at any time and from time to time.

The products may include software. Use of the software is subject to the terms and conditions set out in the respective owner’s license agreements, which are available at www.congatec.com and/or upon request.

Beginning on the date of shipment to its direct customer and continuing for the published warranty period, congatec AG represents that the products are new and warrants that each product failing to function properly under normal use, due to a defect in materials or workmanship or due to non conformance to the agreed upon speciﬁcations, will be repaired or exchanged, at congatec’s option and expense.

Customer will obtain a Return Material Authorization (“RMA”) number from congatec AG prior to returning the non conforming product freight prepaid. congatec AG will pay for transporting the repaired or exchanged product to the customer.

Repaired, replaced or exchanged product will be warranted for the repair warranty period in effect as of the date the repaired, exchanged or replaced product is shipped by congatec, or the remainder of the original warranty, whichever is longer. This Limited Warranty extends to congatec’s direct customer only and is not assignable or transferable.

Except as set forth in writing in the Limited Warranty, congatec makes no performance representations, warranties, or guarantees, either express or implied, oral or written, with respect to the products, including without limitation any implied warranty (a) of merchantability, (b) of ﬁtness for a particular purpose, or (c) arising from course of performance, course of dealing, or usage of trade.

congatec AG shall in no event be liable to the end user for collateral or consequential damages of any kind. congatec shall not otherwise be liable for loss, damage or expense directly or indirectly arising from the use of the product or from any other cause. The sole and exclusive remedy against congatec, whether a claim sound in contract, warranty, tort or any other legal theory, shall be repair or replacement of the product only.

Page 6

Certiﬁcation

congatec AG is certiﬁed to DIN EN ISO 9001 standard.

Technical Support

congatec AG technicians and engineers are committed to providing the best possible technical support for our customers so that our products can be easily used and implemented. We request that you ﬁrst visit our website at www.congatec.com for the latest documentation, utilities and drivers, which have been made available to assist you. If you still require assistance after visiting our website then contact our technical support department by email at [email protected]

Terminology

Term Description

PCIe Peripheral Component Interface Express cBC congatec Board Controller SDIO Secure Digital Input Output USB Universal Serial Bus SATA Serial AT Attachment: serial-interface standard for hard disks HDA High Deﬁnition Audio S/PDIF Sony/Philips Digital Interconnect Format HDMI High Deﬁnition Multimedia Interface TMDS Transition Minimized Differential Signaling DVI Digital Visual Interface LPC Low Pin-Count I²C Bus Inter-Integrated Circuit Bus SM Bus System Management Bus CAN Controller Area Network SPI Serial Peripheral Interface GbE Gigabit Ethernet LVDS Low-Voltage Differential Signaling DDC Display Data Channel PN Part Number - the part number for placing orders. N.C Not connected N.A Not available T.B.D To be determined

Page 7

Contents

1 Introduction .............................................................................11

1.1 Mini-ITX Concept ..................................................................... 11

1.2 conga-IA4 ................................................................................ 11

1.2.1 Options Information ................................................................. 12

1.2.2 Optional Accessories ............................................................... 12

2 Speciﬁcation ............................................................................ 14

2.1 Feature List ..............................................................................14

2.2 Supported Operating Systems ................................................ 15

2.3 Mechanical Dimensions ........................................................... 15

2.4 Supply Voltage Power .............................................................. 16

2.5 Power Consumption ................................................................ 16

2.6 Supply Voltage Battery Power .................................................17

2.7 Environmental Speciﬁcations ................................................... 18

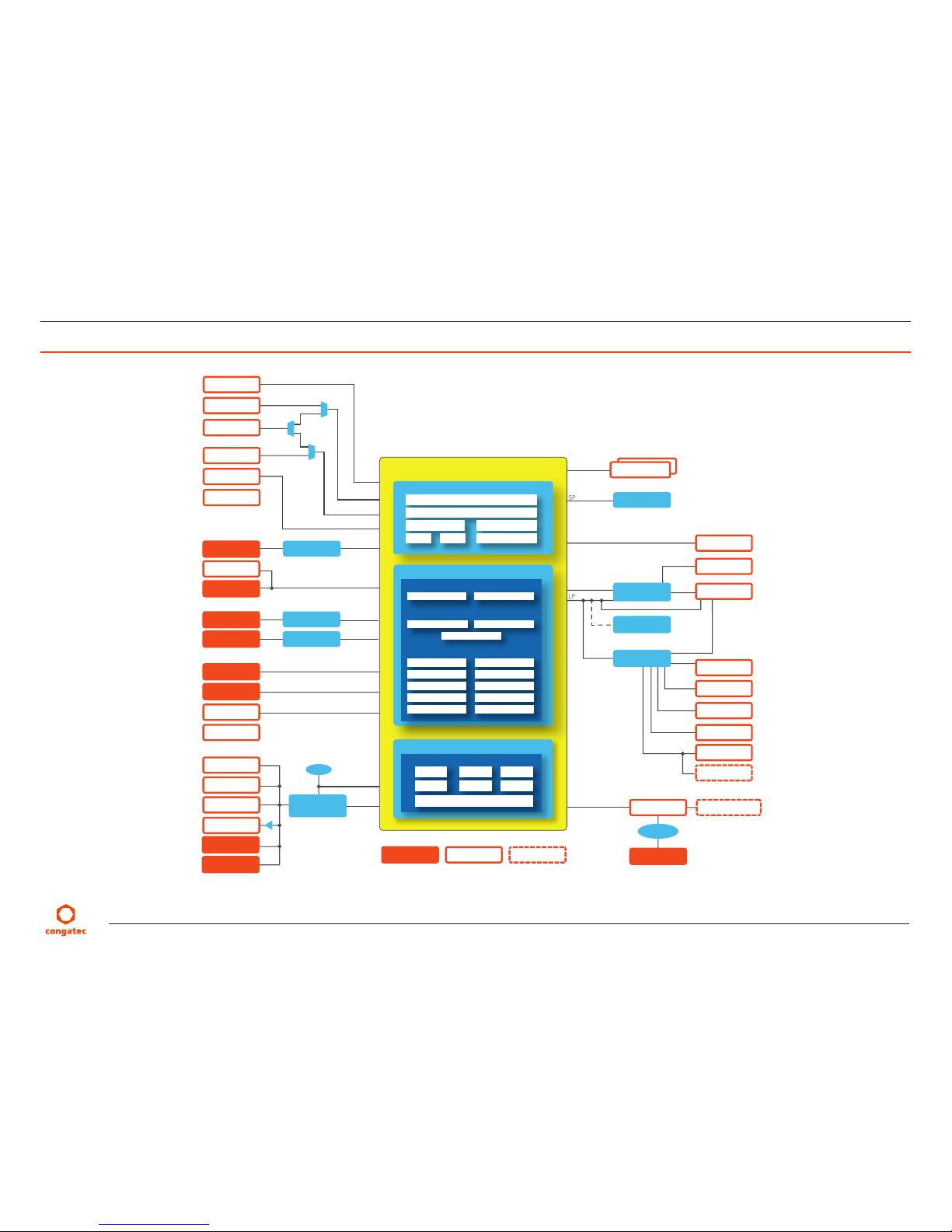

3 Block Diagram .......................................................................... 19

4 Cooling Solution ...................................................................... 20

4.1 Cooling Installation .................................................................. 21

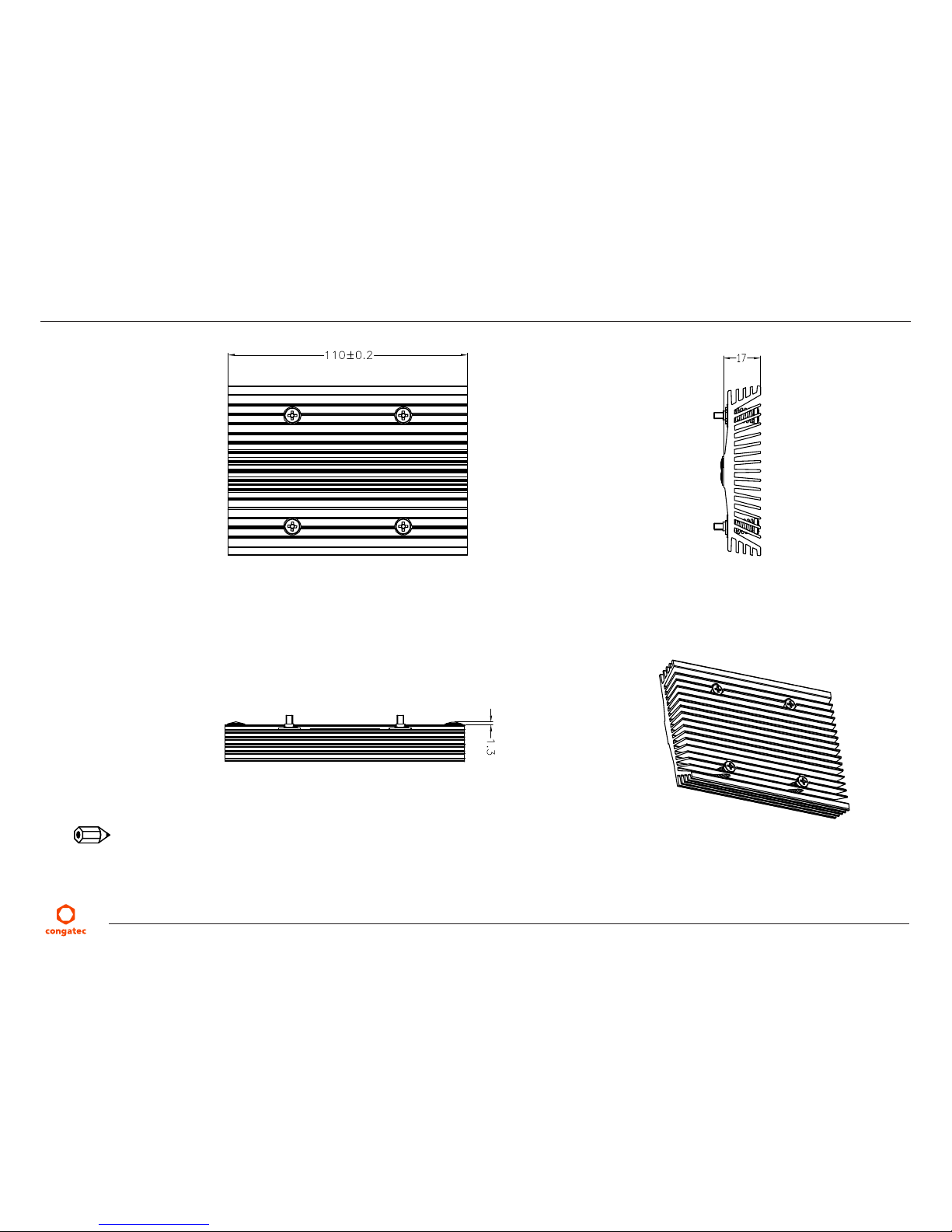

4.2 CSP Dimensions ....................................................................... 22

5 Connector Description ............................................................. 23

5.1 Power Supply ........................................................................... 23

5.1.1 DC Power Jack (Rear I/O) ........................................................ 23

5.1.2 Power Supply (Internal Connector) .......................................... 24

5.1.3 Optional SBM3 Power Connector (Internal Connector) ........... 24

5.1.3.1 Optional SBM3 Signal Connector ............................................ 25

5.1.4 PWR_OK Signal ........................................................................ 26

5.1.5 Power Status LEDs ................................................................... 26

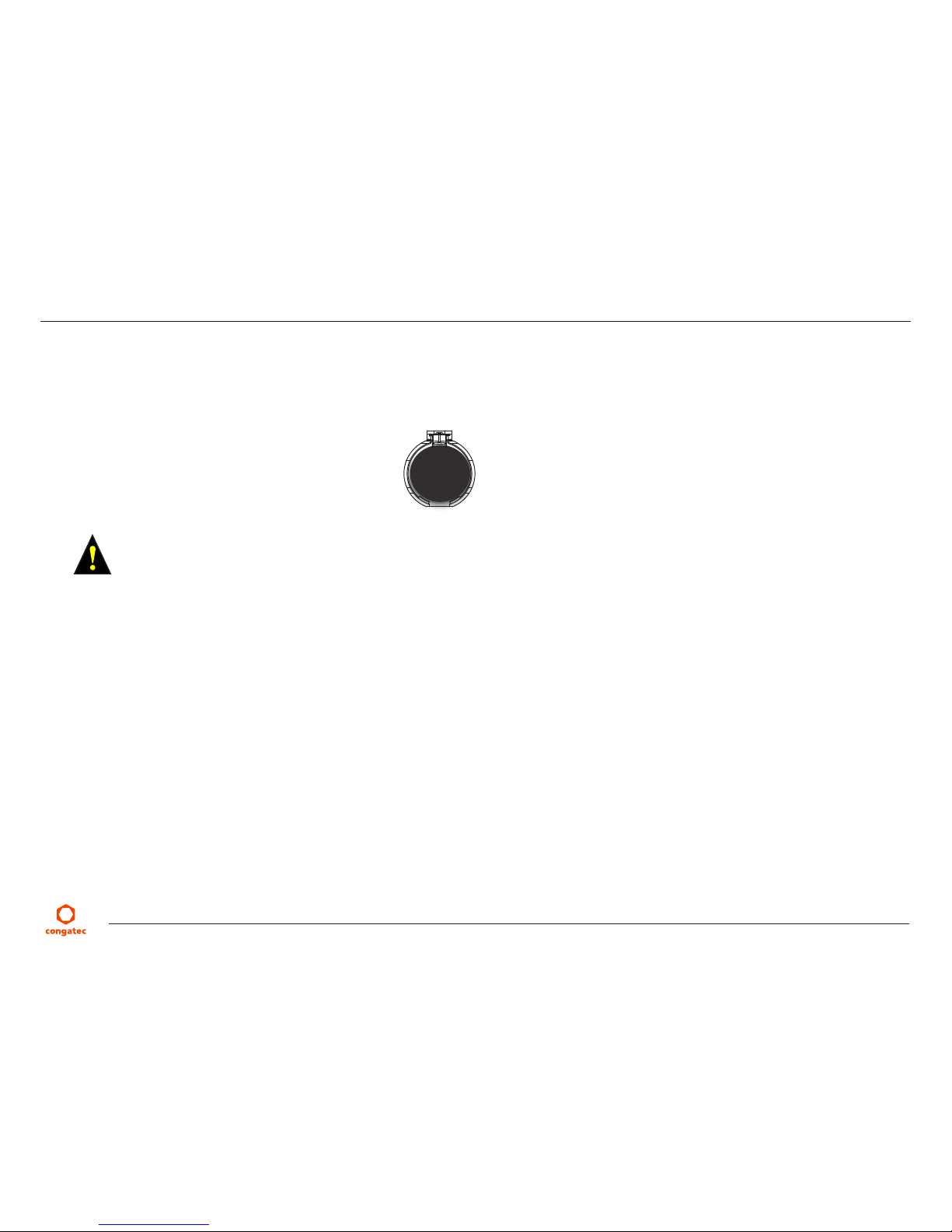

5.2 CMOS Battery/RTC .................................................................. 27

5.3 Audio Interfaces ....................................................................... 27

5.3.1 Rear Audio Connectors ............................................................ 27

5.3.2 Internal Audio Connectors ....................................................... 28

5.3.2.1 Stereo Speaker Header ............................................................ 28

5.3.2.2 Digital Microphone/SPDIF ....................................................... 29

5.3.2.3 Front Panel HD Audio .............................................................. 30

5.4 Communication Bus ................................................................. 30

5.4.1 SMBus ...................................................................................... 30

5.4.2 I²C Bus .................................................................................... 30

5.4.3 SPI Bus ..................................................................................... 31

5.5 LPC Super I/O Device .............................................................. 31

5.5.1 Serial Ports (COM) ................................................................... 31

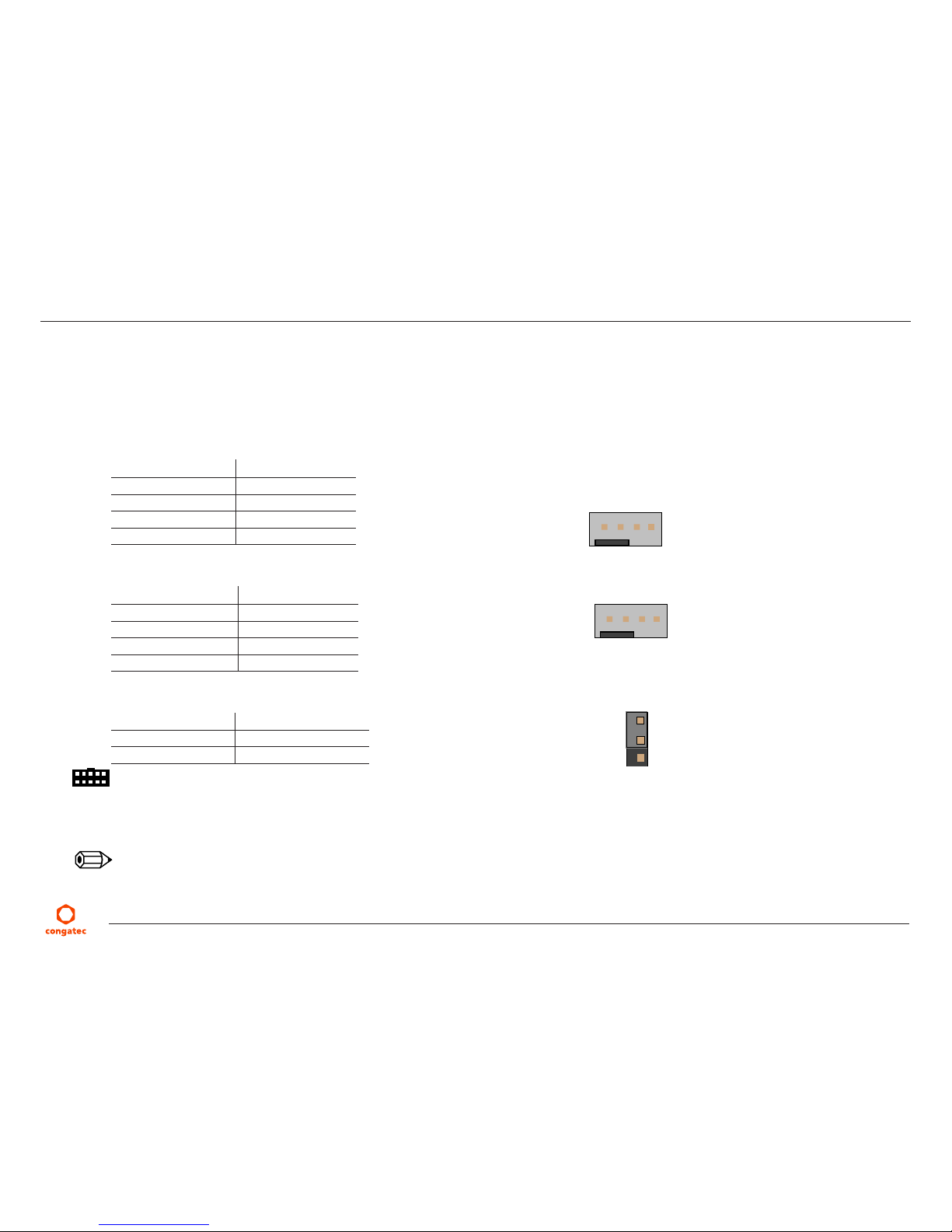

5.5.2 CPU/System Fan Connector & Power Conﬁguration ............... 32

5.6 Universal Serial Bus (USB) ........................................................ 33

5.6.1 Rear USB Connectors ............................................................... 34

5.6.2 Internal USB Connector ........................................................... 35

5.7 Ethernet 10/100/1000 .............................................................. 36

5.8 SATA Interfaces ........................................................................ 37

5.8.1 Standard SATA Ports ................................................................ 37

5.8.2 SATA Power .............................................................................37

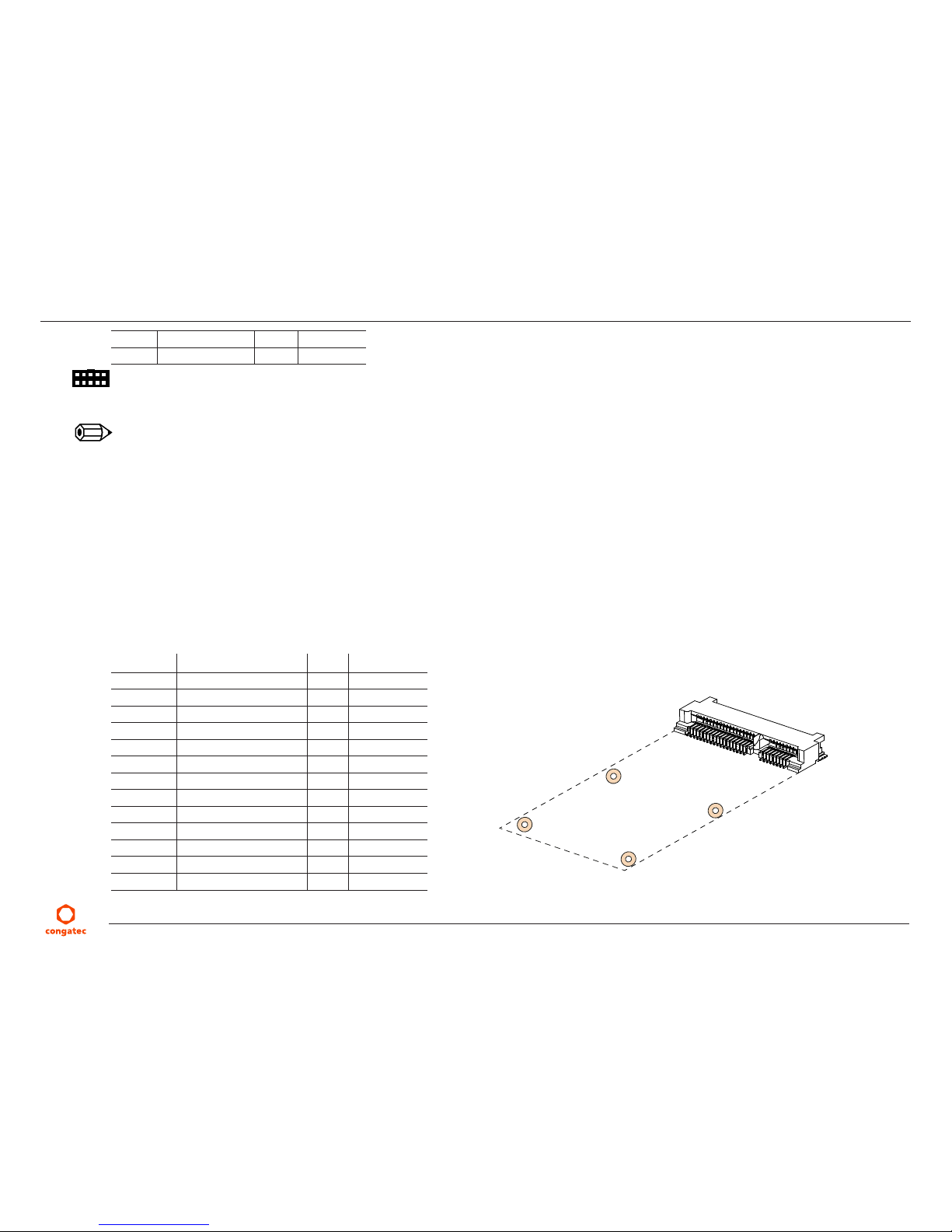

5.8.3 Mini SATA .................................................................................38

5.9 Display Interfaces ..................................................................... 40

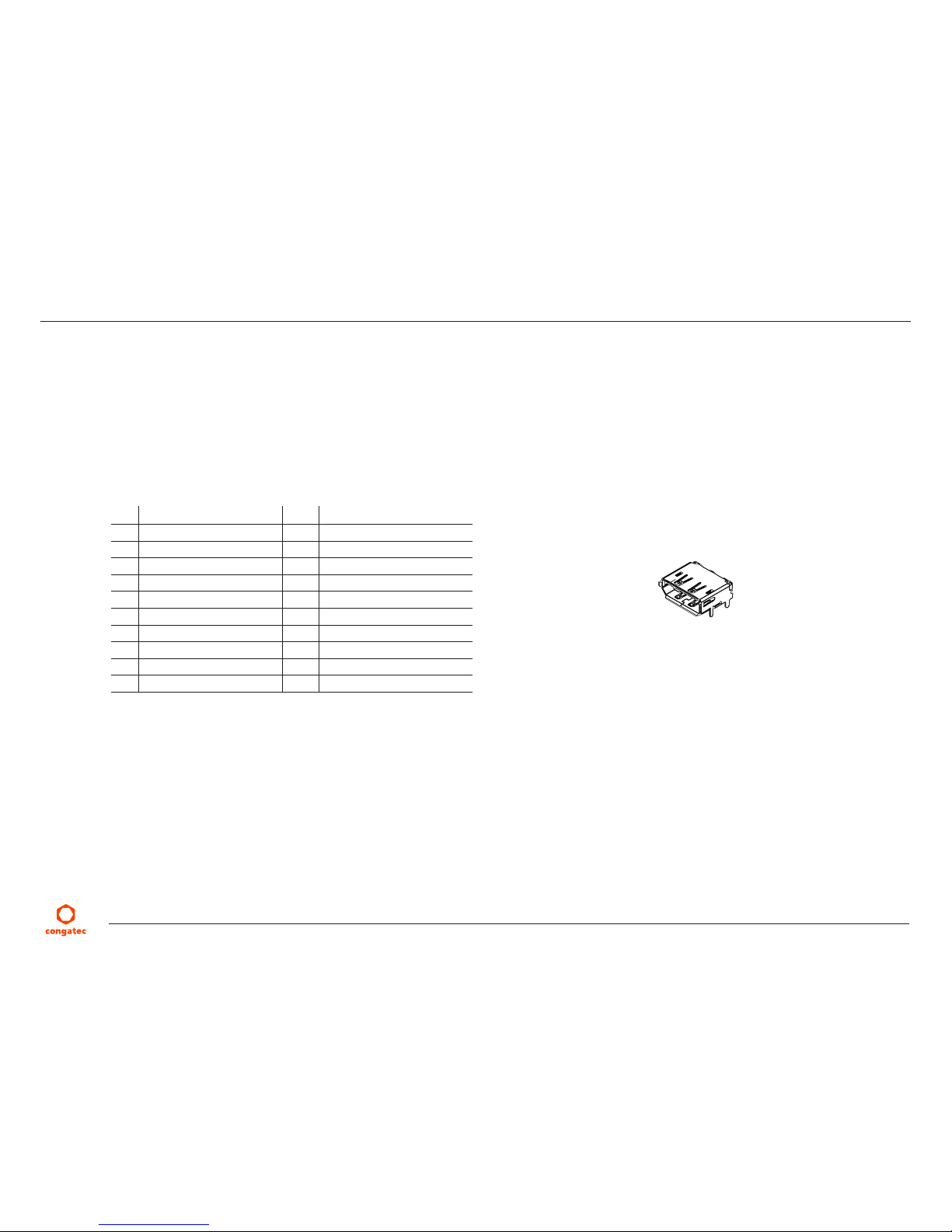

5.9.1 Display Port Interface DP++ .................................................... 40

5.9.2 LVDS ......................................................................................... 40

5.9.2.1 Backlight Power Connector ..................................................... 42

5.9.2.2 Backlight/Panel Power Selection ............................................. 43

5.9.2.3 Monitor OFF connector ........................................................... 44

5.10 PCI Express ............................................................................. 44

5.10.1 x1 PCIe Slot.............................................................................. 44

5.10.2 Mini PCIe (Half Size) ................................................................ 45

5.10.3 Mini PCIe (Full Size).................................................................. 47

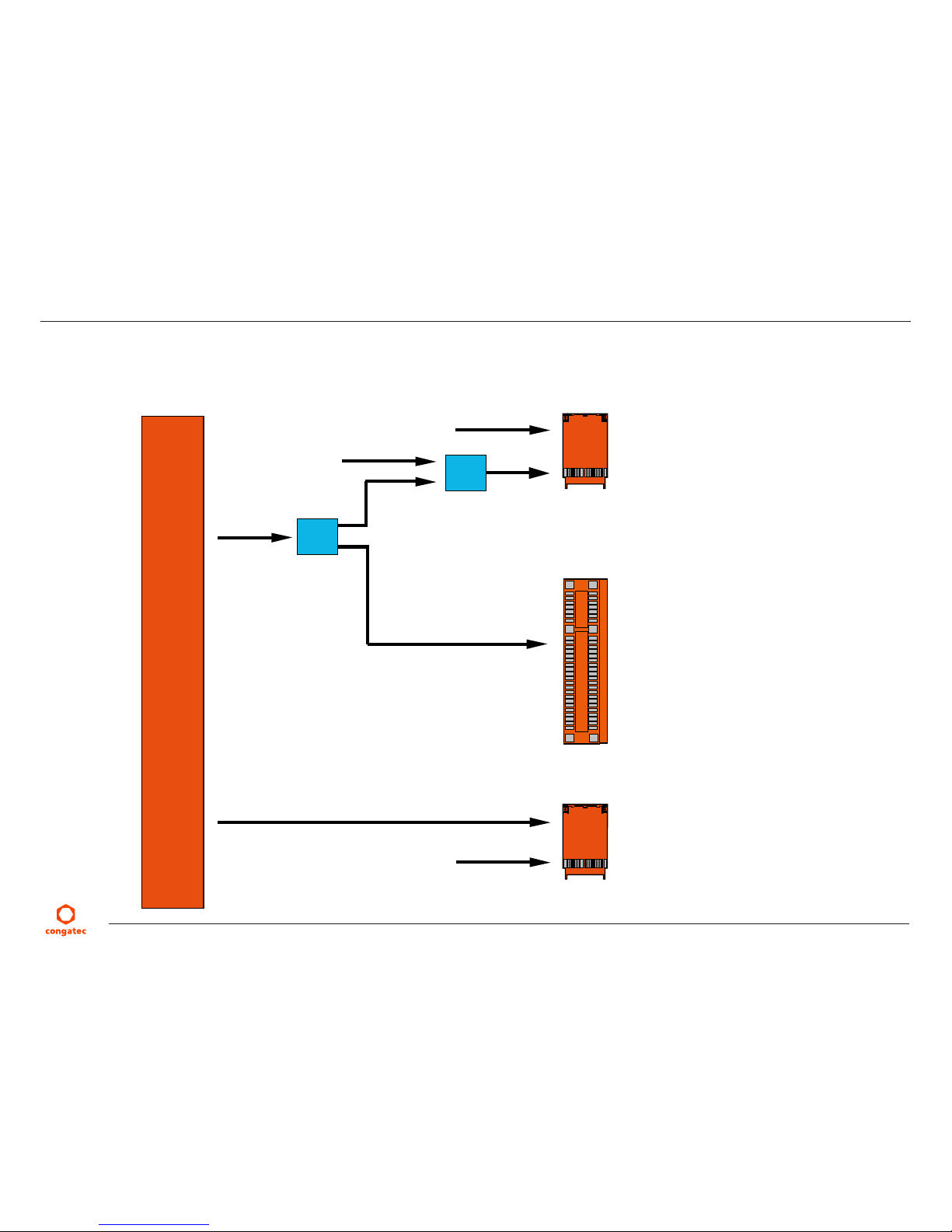

5.10.4 PCI Express Routing ................................................................. 48

6 Additional Features .................................................................. 49

6.1 Front Panel Connector ............................................................. 49

6.2 Case Open Intrusion Connector .............................................. 50

6.3 Trusted Platform Module – TPM (Optional) ............................. 50

6.4 congatec Board Controller (cBC) ............................................. 50

6.4.1 Fan Control .............................................................................. 50

6.4.2 Power Loss Control .................................................................. 51

6.4.3 Board Information .................................................................... 51

6.4.4 GPIOs ....................................................................................... 51

Page 8

6.5 OEM BIOS Customization ........................................................ 51

6.5.1 OEM Default Settings .............................................................. 51

6.5.2 OEM Boot Logo ....................................................................... 52

6.5.3 OEM POST Logo ..................................................................... 52

6.5.4 OEM BIOS Code/Data ............................................................. 52

6.5.5 OEM DXE Driver ...................................................................... 52

6.6 congatec Battery Management Interface ................................ 52

6.7 API Support (CGOS) ................................................................ 53

6.8 Thermal/Voltage Monitoring....................................................53

6.9 Beeper ..................................................................................... 54

6.10 External System Wake Event ...................................................54

6.11 Feature Connector ................................................................... 54

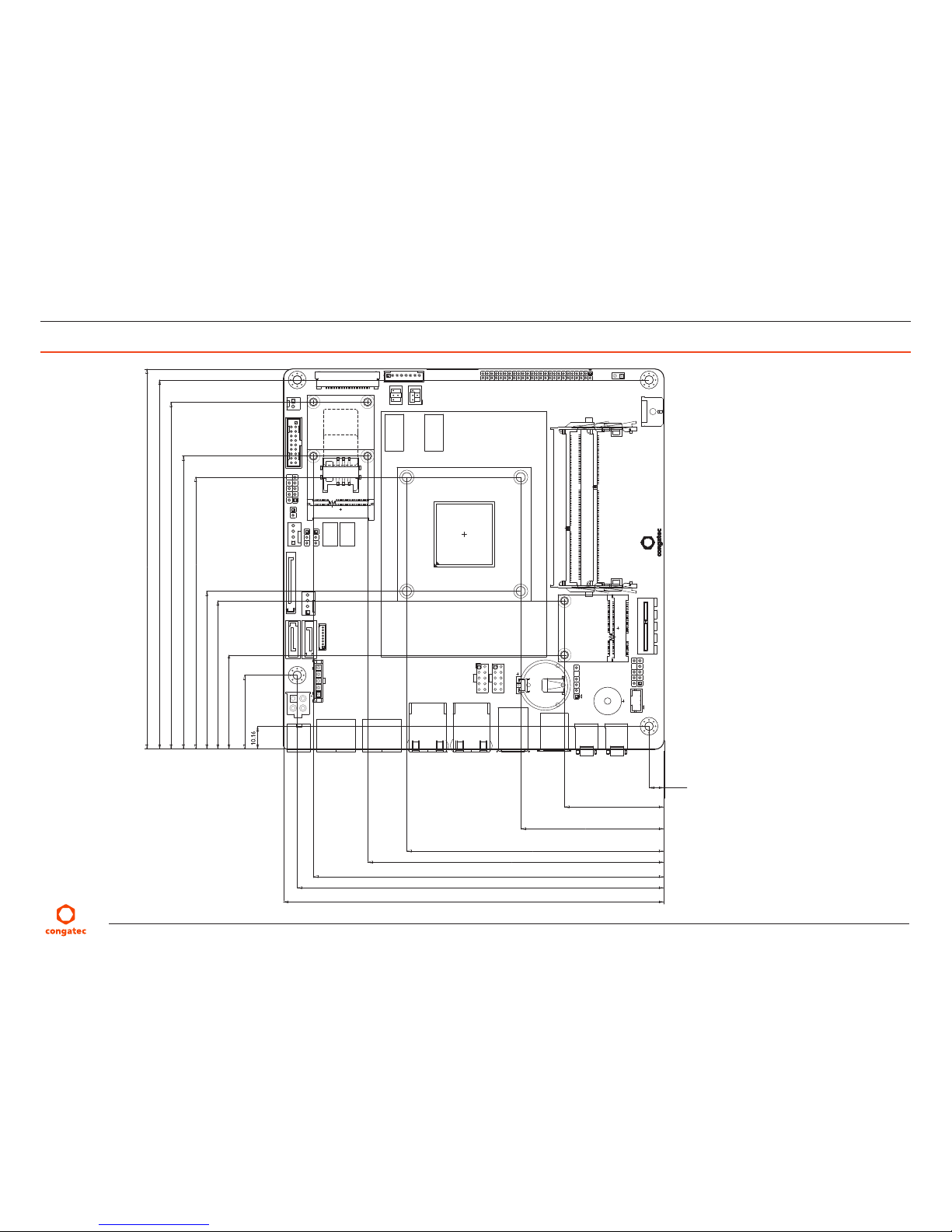

7 conga-IA4 Mechanical Drawing ............................................... 56

8 BIOS Setup Description ........................................................... 57

8.1 Entering the BIOS Setup Program. .......................................... 57

8.1.1 Boot Selection Popup .............................................................. 57

8.2 Setup Menu and Navigation .................................................... 57

8.3 Main Setup Screen ................................................................... 58

8.4 Advanced Setup ...................................................................... 59

8.4.1 Watchdog Submenu ................................................................ 60

8.4.2 Hardware Health Monitoring Submenu ................................... 62

8.4.3 Graphics Submenu ................................................................... 63

8.4.4 Intel® I211 Gigabit Network Connection (Ethernet 1) Submenu 65

8.4.5 Intel® I211 Gigabit Network Connection (Ethernet 2) Submenu 65

8.4.5.1 NIC Conﬁguration Submenu ................................................... 65

8.4.6 Driver Health Submenu ............................................................ 66

8.4.7 Trusted Computing Submenu .................................................. 66

8.4.8 RTC Wake Submenu ................................................................ 66

8.4.9 Reserve Legacy Interrupt Submenu ......................................... 67

8.4.10 ACPI Submenu ......................................................................... 67

8.4.11 Super IO Submenu .................................................................. 67

8.4.11.1 Serial Port 1 Conﬁguration Submenu ...................................... 68

8.4.11.2 Serial Port 2 Conﬁguration Submenu ...................................... 68

8.4.12 Serial Port Console Redirection Submenu ............................... 68

8.4.12.1 Console Redirection Settings Submenu .................................. 69

8.4.13 Legacy Console Redirection Settings ...................................... 70

8.4.13.1 Console Redirection Settings Out-of-Band Management Submenu 70

8.4.14 CPU Conﬁguration Submenu ................................................... 71

8.4.14.1 Socket 0 CPU Information Submenu .......................................71

8.4.15 PPM Conﬁguration Submenu .................................................. 72

8.4.16 Thermal Conﬁguration ............................................................. 72

8.4.17 SATA Submenu ........................................................................73

8.4.17.1 Software Feature Mask Conﬁguration Submenu ..................... 73

8.4.18 LPSS & SCC Conﬁguration Submenu ...................................... 74

8.4.19 PCI & PCI Express .................................................................... 74

8.4.20 UEFI Network Stack ................................................................. 75

8.4.21 CSM & Option ROM Control Submenu ................................... 76

8.4.22 Info Report Conﬁguration ........................................................ 76

8.4.23 NVMe Submenu ....................................................................... 77

8.4.24 SDIO Submenu ....................................................................... 77

8.4.25 USB Submenu .......................................................................... 77

8.4.26 Security Conﬁguration ............................................................. 78

8.4.27 Platform Trust Technology .......................................................79

8.4.28 Security Conﬁguration ............................................................. 79

8.4.29 Intel® RMT Conﬁguration Submenu ......................................... 80

8.4.30 PC Speaker Submenu .............................................................. 80

8.5 Chipset Setup .......................................................................... 80

8.5.1 Processor (Integrated Components) Submenu ........................ 80

8.5.1.1 Intel® IGD Conﬁguration Submenu .......................................... 81

8.5.1.2 Graphics Power Management Control Submenu .................... 82

8.5.1.3 Memory Conﬁguration Options Submenu .............................. 83

8.5.2 Platform Controller Hub (PCH) Submenu ................................ 84

8.5.2.1 Security Conﬁguration Submenu ............................................. 85

8.5.2.2 Azalia Conﬁguration Submenu ................................................ 85

8.5.2.3 USB Conﬁguration Submenu ................................................... 86

8.5.2.4 PCI Express Conﬁguration Submenu ....................................... 86

8.6 Security Setup .......................................................................... 88

8.6.1 Security Settings ...................................................................... 88

8.6.1.1 Secure Boot Menu ................................................................... 89

8.7 Boot Setup ............................................................................... 89

8.7.1 Boot Settings Conﬁguration .................................................... 90

8.8 Save & Exit Menu ..................................................................... 94

9 Additional BIOS Features ........................................................ 95

Page 9

9.1 Navigating the BIOS Setup Menu ........................................... 95

9.2 BIOS Versions...........................................................................95

9.3 Updating the BIOS ................................................................... 95

9.4 Supported Flash Devices ......................................................... 96

10 Industry Speciﬁcations ............................................................. 97

Page 10

List of Tables

Table 1 conga-IA4 Variants ................................................................... 12

Table 2 Cooling/IO Shield .................................................................... 12

Table 3 Memory Modules ..................................................................... 12

Table 4 Cables ...................................................................................... 13

Table 5 Adapters .................................................................................. 13

Table 6 Feature Summary ..................................................................... 14

Table 7 Measurement Description ........................................................16

Table 8 Power Consumption Values ..................................................... 17

Table 9 CMOS Battery Power Consumption ........................................ 17

Table 10 Connector X43 Pinout Description .......................................... 23

Table 11 Connector X44 Pinout Description .......................................... 24

Table 12 Connector X50 Pinout Description .......................................... 25

Table 13 Connector X45 Pinout Description .......................................... 25

Table 14 Double-Color Power LED ........................................................ 26

Table 15 Single-Color Power LED .......................................................... 26

Table 16 MIC-IN (X61) Pinout Description .............................................. 28

Table 17 Line-OUT (X62) Pinout Description .......................................... 28

Table 18 Stereo Speaker (X19) Pinout Description ................................. 29

Table 19 Internal Digital Microphone/SPDIF (X17) Pinout Description .. 29

Table 20 Front Panel HD Audio (Connector X16) Pinout Description .... 30

Table 21 Serial Ports (Connectors X21/X23) Pinout Description ............ 31

Table 22 CPU Fan (X35) ......................................................................... 32

Table 23 System Fan (X37) ..................................................................... 32

Table 24 Jumper X33, X36 ..................................................................... 32

Table 25 USB 2.0 (Connector X14) Pinout Descriptions ......................... 34

Table 26 USB 3.0 (Connectors X15) Pinout Descriptions........................34

Table 27 USB 3.0 Header (Connectors 60) Pinout Description .............. 35

Table 28 Connectors X57/X58 Pinout Description ................................. 36

Table 29 LED Descriptions ..................................................................... 36

Table 30 Connectors CN1/CN2 Pinout Description. .............................. 37

Table 31 Connectors X8 Pinout Description. .......................................... 37

Table 32 mSATA (Connector X6) Pin Description. .................................. 38

Table 33 Connectors X26 Pinout Description. ........................................ 40

Table 34 Connector X32 Pinout Description ......................................... 41

Table 35 Connector X31 Pinout Description .......................................... 42

Table 36 Connector X29 Pinout Description .......................................... 43

Table 37 Connector X30 Pinout Description .......................................... 43

Table 38 Connector X51 Pinout Description .......................................... 44

Table 39 x1 PCIe Slot (Connector X9) Pinout Description ...................... 44

Table 40 mPCIe (Connector X10) Pinout Description ............................. 45

Table 41 Front Panel (Connector X38) Pinout Description ..................... 49

Table 42 Case Open Intrusion (X56) Pinout Description ........................ 50

Table 43 Feature Connector X34 Pinout Description ............................. 54

Page 11

1 Introduction

1.1 Mini-ITX Concept

The Mini-ITX form factor provides engineers and manufacturers with a standardized ultra compact platform for development. With a footprint of 170mm x170mm, this scalable platform promotes the design of highly integrated, energy efﬁcient systems. Due to its small size, the Mini-ITX form factor enables PC appliance designers not only to design attractive low cost devices but also allows them to explore a huge variety of product development options - from compact space-saving designs to fully functional Information Station and Value PC systems. This helps to reduce product design cycle and encourages rapid innovation in system design, to meet the ever-changing needs of the market.

Additionally, the boards can also be passively cooled, presenting opportunities for fanless designs. The Mini-ITX boards are equipped with various interfaces such as PCI Express, SATA, USB 2.0/3.0, Ethernet, Displays and Audio.

1.2 conga-IA4

The conga-IA4 is a Single Board Computer designed based on the Thin Mini-ITX speciﬁcation. The conga-IA4 SBC features the Intel 4th generation Celeron/Pentium processors. With maximum 6W TDP processors, the SBC offers Ultra-Low-Power boards with high computing performance and outstanding graphics. Additionally, the SBC supports dual channel DDR3L up to 1600 MT/s for a maximum system memory capacity of 16 GB, multiple I/O interfaces, up to three independent displays and various congatec embedded features.

With smaller board size and lower height keep-out zones, the conga-IA4 SBC provides manufacturers and enthusiasts with the opportunity to design compact systems for space restricted areas. With appropriate I/O shield, the same conga-IA4 SBC can be used in either a Thin Mini-ITX or a Mini-ITX design.

The various features and capabilities offered by the conga-IA4 makes it ideal for the design of compact, energy efﬁcient, performance-oriented embedded systems.

Page 12

1.2.1 Options Information

The conga-IA4 is currently available in ﬁve variants. This user’s guide describes all of these variants. The tables below show the different

conﬁgurations available. Check for the Part No. that applies to your product. This will tell you what options described in this user’s guide are available on your particular module

Table 1 conga-IA4 Variants

Part-No. 052605 052606 052607 052608 052608

Processor Intel® Celeron® N3010

1.04 GHz Dual Core™

Intel® Celeron® N3060

1.60 GHz Dual Core™

Intel® Celeron® N3160

1.60 GHz Quad Core™

Intel® Pentium® N3710

1.60 GHz Quad Core™

Intel® Atom® x5-E8000

1.04 GHz Quad Core™

Burst Frequency 2.24 GHz 2.48 GHz 2.24 GHz 2.56 GHz 2.00 GHz L2 Cache 2 MB 2 MB 2 MB 2 MB 2 MB Memory (DDR3L) 1600 MT/s

dual channel

1600 MT/s dual channel

Processor Graphics Intel

HD Graphics 400 Intel® HD Graphics 400 Intel® HD Graphics 400 Intel® HD Graphics 405 Intel® HD Graphic

Graphics Base/Burst Freq. 320 / 600 MHz 320 / 600 MHz 320 / 600 MHz 400 / 700 MHz 320 MHz VGA No No No No No LVDS Single/dual 18/24 bit Single/dual 18/24 bit Single/dual 18/24 bit Single/dual 18/24 bit Single/dual 18/24 bit DDI DP / HDMI / DVI DP / HDMI / DVI DP / HDMI / DVI DP / HDMI / DVI DP / HDMI / DVI Processor TDP (SDP) 4 W (3 W) 6 W (4 W) 6 W (4 W) 6 W (4 W) 5 W

1.2.2 Optional Accessories

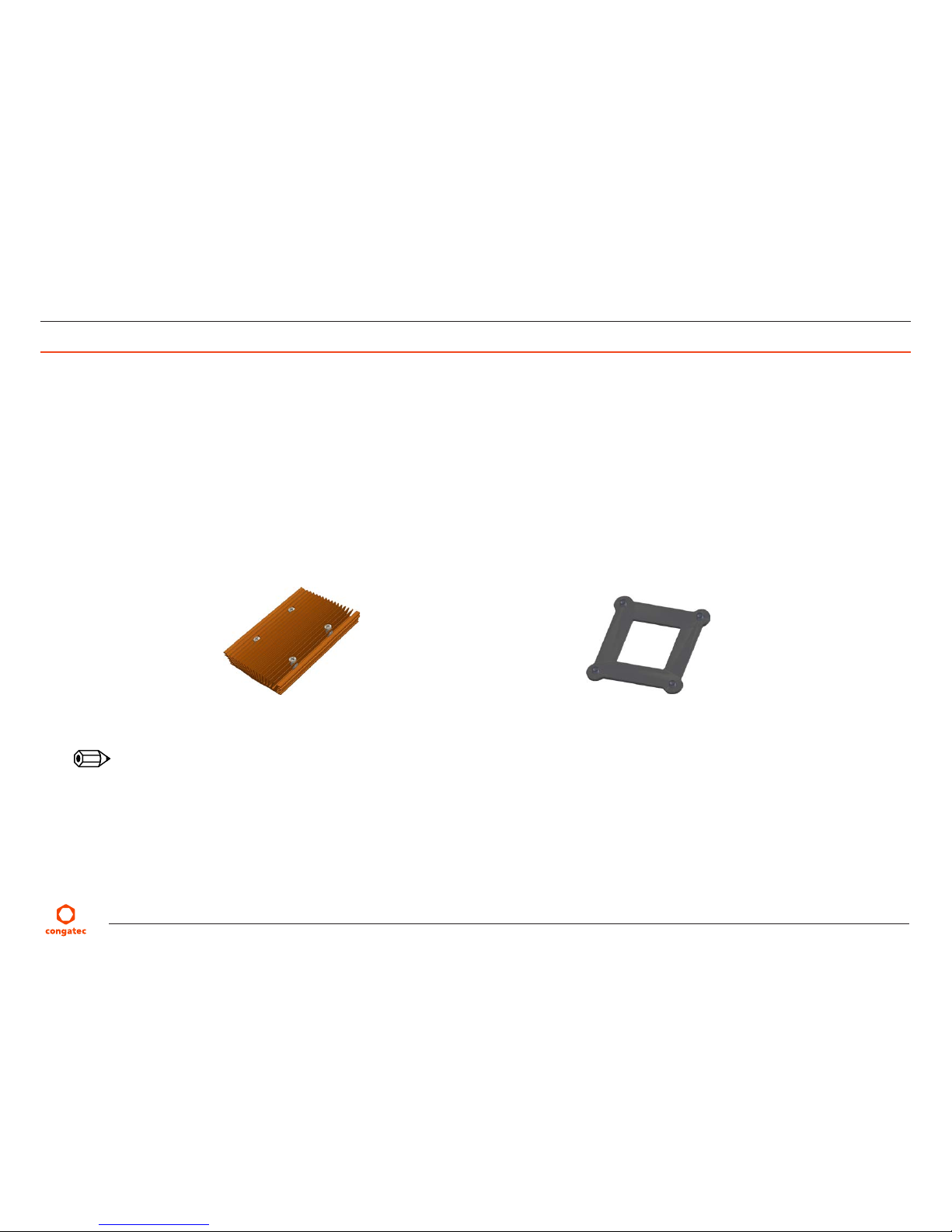

Table 2 Cooling/IO Shield

Article Part No. Description

conga-IA40/CSP 052351 Passive cooling solution with Thin Mini-ITX height conga-IA40/Retention Frame 052355 Retention frame for conga-IA4 standard cooling conga-IA4 IO Shield Standard Size 052651 IO shield for conga-IA4 with standard Mini-ITX chassis (40 mm height) conga-IA4 IO Shield Thin Size 052651 IO shield for conga-IA4 with Thin Mini-ITX chassis (25 mm height)

Table 3 Memory Modules

Article Part No. Description

DDR3L-SODIMM-1600 (2 GB) 068755 Certiﬁed 2 GB DDR3L SODIMM memory module with 1600 MT/s (PC3L-12800S) DDR3L-SODIMM-1600 (4 GB) 068756 Certiﬁed 4 GB DDR3L SODIMM memory module with 1600 MT/s (PC3L-12800S) DDR3L-SODIMM-1600 (8 GB) 068757 Certiﬁed 8 GB DDR3L SODIMM memory module with 1600 MT/s (PC3L-12800S)

Page 13

Table 4 Cables

Article Part No. Description

cab-ThinMini-ITX-SATA-Power 14000120 Power cable for SATA and micro-SATA devices. cab-ThinMini-ITX-UART 14000121 UART cable with 2x5 pin female housing and D-Sub male connector. cab-ThinMini-ITX-USB2.0-Single 14000122 USB 2.0 cable with 1x5 pin female housing and USB 2.0 Type A female connector. cab-ThinMini-ITX-USB2.0-Twin 14000123 USB 2.0 cable with twin USB 2.0 Type A female connector and 2x5 pin housing. cab-ThinMini-ITX-USB3.0-Twin 14000124 USB 3.0 cable with twin USB 3.0 Type A female connector and 2x10 pin housing. cab-ThinMini-ITX-LVDS-Open End 14000125 ACES 40 pin LVDS cable with open end. cab-ThinMini-ITX-BKLT 14000127 CHYAO SHIUNN 8 pin backlight cable with open end. cab-ThinMini-ITX-LVDS 14000129 ACES 50204-40 LVDS cable for Thin Mini-ITX. cab-DP to HDMI 14000128 20 pin male DP to 19 pin female HDMI cab-ThinMini-ITX-SATA-Power (50cm lenght) 14000135 50 cm SATA power cable with 2x15 pin female connectors. cab-ThinMini-ITX-SATA-Power (30cm length) 14000136 30 cm SATA power cable with 2x15 pin female connectors. SATA III cable (straight/straight) 48000029 30 cm SATA III data cable with straight/straight connectors SATA III cable (straight/right-angled) 48000030 30 cm SATA III data cable with straight/right-angled connectors

Table 5 Adapters

Article Part No. Description

conga-Thin MITX/LVDS Adapter 052233 LVDS pin header evaluation adapter for congatec Thin Mini-ITX boards conga-Thin MITX/Debug Card 047858 Evaluation debug card with post code display, buttons, status LED's; also for external BIOS

update and other useful IO's

Page 14

2 Speciﬁcation

2.1 Feature List

Table 6 Feature Summary

Form Factor

Based on Thin Mini-ITX form factor (170 x 170 mm)

Processor

Intel® Pentium® N3710 Intel® Celeron® N3160, N3060, N3010

Memory

Two memory sockets (located on the top side of the conga-IA4). Supports:

- SO-DIMM non-ECC DDR3L modules

- Data rates up to 1600 MT/s

- Maximum 8 GB capacity

cBC

Multi-stage watchdog, manufacturing and board information, board statistics, I2C bus, Power loss control

Chipset

Integrated in the SoC

Audio

Realthek ALC888s 7.1 channel High Deﬁnition Audio codec

Ethernet

2x Gigabit Ethernet support via the onboard Intel® I211 Phy

Graphics

Intel® HD Graphics Gen. 8 LP with support for DirectX11.1, OpenGL 4.2, OpenCL 1.2, OpenGLES 3.0, full HW acceleration with H.265/HEVC decoding and H.264 encoding, MPEG2, MVC, VC-1, WMV9, JPEG and three independent displays

Graphic Interfaces

2x DisplayPort++ (DP, HDMI/DVI) and 1x LVDS

Back Panel I/O Connectors

1x DC-IN 2x DisplayPort ++ (DP++). Supports DP/DVI/HDMI 2x Gigabit Ethernet

2x USB 2.0 2x USB 3.0/2.0 1x Line OUT 1x Mic IN

Onboard I/O Connectors

1x LVDS (top side) 1x Backlight 1x Monitor OFF SATA Interfaces

- 2x Standard SATA III (6.0 Gb/s).

- 1x mini SATA (shared with mini PCIe slot )

- 1x SATA power header connector (3.3V, 5V or 12V)

PCI Express Interfaces

- 1x PCIe slot (x1 Gen 2 link).

- 1x Half size mini PCIe slot

- 1x Full size mini PCIe slot (shared with mSATA)

- optional SIM card slot via connector X6

2x USB 3.0/2.0 Header 1x MicroSD slot (located at the bottom side)

1x Front panel HD audio 1x SPDIF/Digital microphone 1x Internal stereo speaker Connectors supported via Super IO

- 2x COM ports (COM 1 can be used optionally as ccTALK)

- 1x CPU fan with selectable voltage

- 1x System fan with selectable voltage

- 1x Case Open Intrusion Detection header

- GPOs on feature connector

Feature connector (GPIOs, SPI, SMB, LPC, LID/SLEEP etc.) 1x Front panel header (Power button, reset, LEDs etc.) 1x Internal power header (12-24V) Optional Interfaces (not populated by default):

- SBM

signal support

- SBM

power support

- ccTALK

BIOS

AMI Aptio

UEFI 5.x ﬁrmware, 8/16 MByte serial SPI with congatec Embedded BIOS features

Page 15

Power Management

ACPI 4.0 compliant with battery support. Also supports Suspend to RAM (S3) Conﬁgurable TDP Ultra low standby power consumption, Deep Sx

Other Features

Thermal and voltage monitoring CMOS Battery Beeper congatec Standard BIOS (also possible to boot from an external BIOS by triggering the BIOS_DISABLE# signal on the feature connector)

Security

Optional discrete Trusted Platform Module “TPM 1.2/2.0”, new AES Instructions for faster and better encryption

Note

The conga-IA4 supports only DDR3L memory modules. The memory modules in the sockets must be symmetrical - that is, same raw cards and same memory sizes. Therefore, do not use different memory modules in the memory sockets. Doing so may cause system instability or memory errors. Also make sure the memory modules support the data transfer rate of the particular variant.

In addition, when using one memory socket, insert the memory module only in the ﬁrst memory slot on the conga-IA4 (top side). If the ﬁrst memory slot is empty, the SoC on the conga-IA4 ignores the second memory socket (bottom side). When this happens, the conga-IA4 does not start. See the Intel's Braswell datasheet for more information.

2.2 Supported Operating Systems

The conga-IA4 supports the following operating systems.

• Microsoft® Windows

8.1

• Microsoft® Windows® 7

• Microsoft® Windows® 7/8 Embedded Standard

• Linux

Note

To install Windows 7/8 and WES7/8, we recommend a minimum storage capacity of 16 GB. congatec will not offer support for systems with less than 16 GB storage space.

2.3 Mechanical Dimensions

• 170 mm x 170 mm

• Maximum Height: 20 mm

Page 16

2.4 Supply Voltage Power

• 12V - 24V DC ± 10%

2.5 Power Consumption

The power consumption values were measured with the following setup:

• conga-IA4 COM

• modiﬁed congatec carrier board

• conga-IA4 cooling solution

• 12 V input voltage for S0 states and 5 V for S3 and S5 states

• Microsoft Windows 7 (64-bit)

Note

The CPU was stressed to its maximum workload with the Intel® Thermal Analysis Tool

Table 7 Measurement Description

The power consumption values were recorded during the following system states:

System State Description Comment

S0: Minimum value Lowest frequency mode (LFM) with minimum core voltage during

desktop idle

The CPU was stressed to its maximum frequency

S0: Maximum value Highest frequency mode (HFM/Turbo Boost) The CPU was stressed to its maximum frequency S0: Peak value Highest current spike during the measurement of “S0: Maximum

value”. This state shows the peak value during runtime

Consider this value when designing the system’s power supply to ensure that sufﬁcient power is supplied during worst case scenarios

S3 COM is powered by VCC_5V_SBY S5 COM is powered by VCC_5V_SBY

Note

1. The fan and SATA drives were powered externally.

2. All other peripherals except the LCD monitor were disconnected before measurement.

Page 17

Table 8 Power Consumption Values

The tables below provide additional information about the power consumption data for each of the conga-IA4 variants offered. The values are recorded at various operating mode.

Part No.

Memory Size

H.W Rev.

BIOS Rev.

OS (64-bit)

CPU Current (A)

Variant Cores Freq/Turbo

(GHz)

S0: Min

S0: Max

S0: Peak

S3 S5

052605 2 x 2 GB A.2 IA40R110 Windows 7 Intel® Celeron® N3010 2 1.04 / 2.24 0.48 1.18 1.37 0.19 0.14 052606 2 x 2 GB A.2 IA40R110 Windows 7 Intel

Celeron® N3060 2 1.60 / 2.48 0.50 1.34 1.39 0.20 0.15

052607 2 x 2 GB A.2 IA40R110 Windows 7 Intel

Celeron® N3160 4 1.60 / 2.24 0.51 1.43 1.83 0.20 0.14

052608 2 x 2 GB A.2 IA40R110 Windows 7 Intel

Pentium® N3710 4 1.60 / 2.56 0.43 1.58 2.32 0.20 0.14

052609 2 x 2 GB A.2 IA40R110 Windows 7 Intel

Atom™ x5-E8000 4 1.04 / 2.00 0.55 1.16 1.22 0.22 0.15

Note

With fast input voltage rise time, the inrush current may exceed the measured peak current.

2.6 Supply Voltage Battery Power

Table 9 CMOS Battery Power Consumption

RTC @ Voltage Current

-10oC 3V DC 3.35 µA

C 3V DC 4.10 µA

C 3V DC 18.74 µA

Note

1. Do not use the CMOS battery power consumption value listed above to calculate CMOS battery lifetime.

2. Measure the CMOS battery power consumption of your application in worst case conditions (for example, during high temperature and high battery voltage).

3. Consider the self-discharge of the battery when calculating the lifetime of the CMOS battery. For more information, refer to application note AN9_RTC_Battery_Lifetime.pdf on congatec AG website at www.congatec.com/support/application-notes.

4. We recommend to always have a CMOS battery present when operating the conga-IA4.

Page 18

2.7 Environmental Speciﬁcations

Temperature Operation: 0° to 60°C Storage: -20° to +80°C

Humidity Operation: 10% to 90% Storage: 5% to 95%

Note

The above operating temperatures must be strictly adhered to at all times. Humidity speciﬁcations are for non-condensing conditions.

Page 19

3 Block Diagram

*1 The mSATA/mPCIe connector supports both mPCIe

and mSATA devices. The devices are detected automatically.

Optional feature.

2x SO-DIMM DDR3L

LPC

HDA

Speaker

HD Audio ALC888S

congatec

Board Controller

4-wire

System FAN

2x USB 3.0

Front Panel

HD Audio

4-wire

CPU FAN

Intrusion

Header

SBM

Batt. Mgmt *

Feature

Connector

UART 0

UART 1

ccTALK *

Super I/O

Reverse Polarity

Protection

TPM *

External I/O

Power IN

Internal I/O optional

SPI Flash

SATA1

mSATA/mPCIe *

PCIe x1 Slot

mPCIe (half-size)

SATA0

PCIe

i211

USB Hub

i211

Ethernet

DP++

Audio HeadPh

Audio MIC

Buzzer

Internal speaker

Digital Mic

USB3.0

SPI

LVDS

DDI1

DDI0

DP++

DDI2

2x24 bit

LVDS

2x USB3.0

USB2.0

SATA0

SATA1

PCIe0

PCIe1

2x USB 2.0

Front Panel

Micro SD Card

SATA Power

Power IN

Backlight

SPDIF Out

Intel Braswell SoC

Memory Controller

Tri-gate 3D 14nm Single/Dual/Quad Core

1MB L2 Cache Shared By 2 Cores

64 Architecture

SSE4.2 AES-NI Thermal Mgmt.

Virtualization (VT-x)

DisplayPort 1.2

Dual Channel

Low Power

HDMI 1.4 (3D, 4k)

VGA

Display Interfaces

COMPUTE UNIT

SoC TRANSACTION ROUTER

OCL 1.2

MPEG-2

OpenCL 1.2

H.264

OpenGL 3.0

WMV9

OpenGLES 2.0

MJPEG

DirectX 11

INTEGRATED I/O

SATA

High Deﬁnition Audio

USB 2.0

LPC BusPCIe

I/O Interfaces

GPIOs

USB 3.0

Multimedia Features

Page 20

4 Cooling Solution

The conga-IA4 SBC offers Ultra Low Power boards with high computing performance and outstanding graphics. Due to its low power consumption, the SBC generates less heat and therefore requires less active cooling, allowing the use of quieter, lower proﬁle coolers that are better suited to small form factor systems.

Nonetheless, all electronics contain semiconductor devices which have operating temperature ranges that should be adhered to. This means that for reliable operation, the thermal design of the conga-IA4 must be carefully considered. For this reason, it is imperative to provide sufﬁcient air ﬂow to each of the components, to ensure the speciﬁed operating temperature of the conga-IA4 is maintained.

congatec AG offers two cooling possibilities for the conga-IA4:

• A congatec passive cooling solution (CSP) in combination with the conga-IA4 retention frame. The CSP complies with the Thin Mini-ITX height speciﬁcation and features a Hi-Flow 225UT pressure sensitive, phase change thermal interface. Refer to section 4.2 “Heatspreader Dimensions” for the dimensions of the congatec heatspreader.

• The use of a custom cooling solution in combination with the conga-IA4 retention frame.

Note

When a passive cooling is used, the end user must ensure that adequate air ﬂow is maintained.

See section 1.2.2 “Optional Accessories” for the part numbers of the cooling accessories.

Passive Cooling Solution

Retention Frame

Page 21

4.1 Cooling Installation

Assembly Instruction:

• Flip over the SBC and locate the position of the CPU

• Place retention frame on the bottom side of the board with insulating foil facing the PCB and standoffs inserted to PCB's mounting holes.

• Remove the CSP's protection pull tab foil from the phase changer and carefully place the CSP to the CPU.

• Insert assembling screws.

• Hold the CSP with one hand so that it does not tilt while tightening the screws.

• Slightly tighten each of the 4 screws so that they hold the CSP in place. To do so, start with one screw and then slightly tighten the other screws in a crossover pattern. All the while keep holding the cooling adapter straight with one hand.

• Now you can fully tighten the screws. Once again start with one and then continue to tighten the other screws in a crossover pattern. All the while keep holding the cooling adapter straight with one hand

Caution

The congatec cooling solutions are designed for commercial temperature range only (0° to 60°C). Therefore, do not use the congatec CSP in temperatures above 60°C or below 0°C. If an end user’s system operates above 60°C or below 0°C, or is assembled with a non-congatec cooling solution, then the end user must use or design an optimized thermal solution that meets the needs of their application.

For adequate heat dissipation, follow the assembly instruction above. Apply thread-locking ﬂuid on the screws if the CSP is used in a high shock and/or vibration environment.

For applications that require vertically-mounted CSP, use only cooling solution that secure the thermal stacks with ﬁxing post. Without the ﬁxing post feature, the thermal stacks may move.

Also, do not exceed the maximum torque speciﬁcation for the cooling solution screws. Doing so may damage the SBC.

Page 22

4.2 CSP Dimensions

Note

All measurements are in millimeters. Torque speciﬁcation for cooling solution screws is 0.3 Nm. Mechanical system assembly mounting shall follow the valid DIN/IS0 speciﬁcations.

Page 23

5 Connector Description

5.1 Power Supply

You can power the conga-IA4 SBC with a 12V-24V laptop type DC power supply (on connector X43) or a 4 pin internal power supply (on connector X44).

Additionally, the SBC offers an optional SBM

power connector (only BOM option). When this connector (X50) is populated, you can power the

SBC with it.

Note

The supplied voltages must be within a tolerance of ± 10%

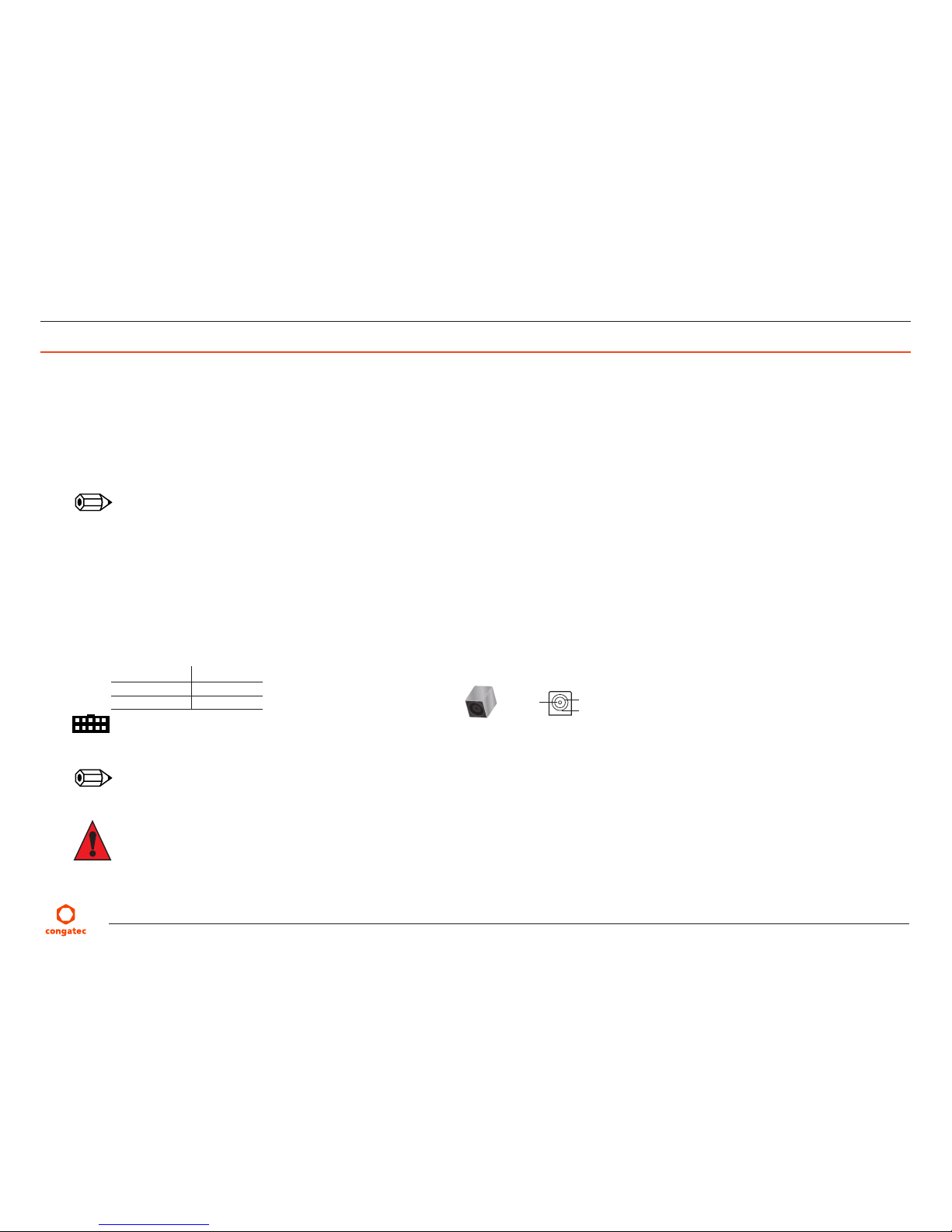

5.1.1 DC Power Jack (Rear I/O)

The conga-IA4 SBC can be powered from a laptop type external power supply connected to the DC power jack on the rear I/O. This power input protects against polarity reversal and over/under voltage.

Table 10 Connector X43 Pinout Description

Pin Function

Inner Shell +12 - 24V Outer Shell GND

Connector Type

X43 : DC power jack, 7.4x5.1mm diameter

Note

The conga-IA4 starts immediately power is supplied.

Caution

The absolute maximum rating of the input voltage is 36 volts. Do not exceed this rating or expose the conga-IA4 to the absolute maximum voltage for a prolonged time. Doing so may damage the system or affect system reliability.

DC Plug

1 = + DC (12-24V) 2 = GND

12-24 V max. 120 Watt

Plug: 7.4 x 5.0 mm

inner

outer

center

DC Power Jack - Connector X43

Page 24

5.1.2 Power Supply (Internal Connector)

The conga-IA4 offers an internal 4-pin power connector. This connector makes it possible to use customized power supply cables/connector and also offers under/over voltage protection to the input voltage.

Table 11 Connector X44 Pinout Description

Pin Signal Description

1 GND Ground 2 GND Ground 3 +12V - 24V Power supply +12V-24V 4 +12V - 24V Power supply +12V-24V

Connector Type

X44 : Internal power connector with 4 pin, 4.2mm pitch (PN: 41500079)

Possible Mating Connector: Molex 39-01-2045

Note

The conga-IA4 starts immediately power is supplied.

Caution

5.1.3 Optional SBM3 Power Connector (Internal Connector)

The conga-IA4 offers an optional SBM3 power connector (only BOM option). When this connector (X50) is populated, you can power the congaIA4 SBC optionally with an SBM battery kit. The battery kit requires two connections - the SBM battery power on connector X50 and the SBM battery signals on connector X45.

Note

To use the SBM3 feature, you must update the conga-IA4 ﬁrmware.

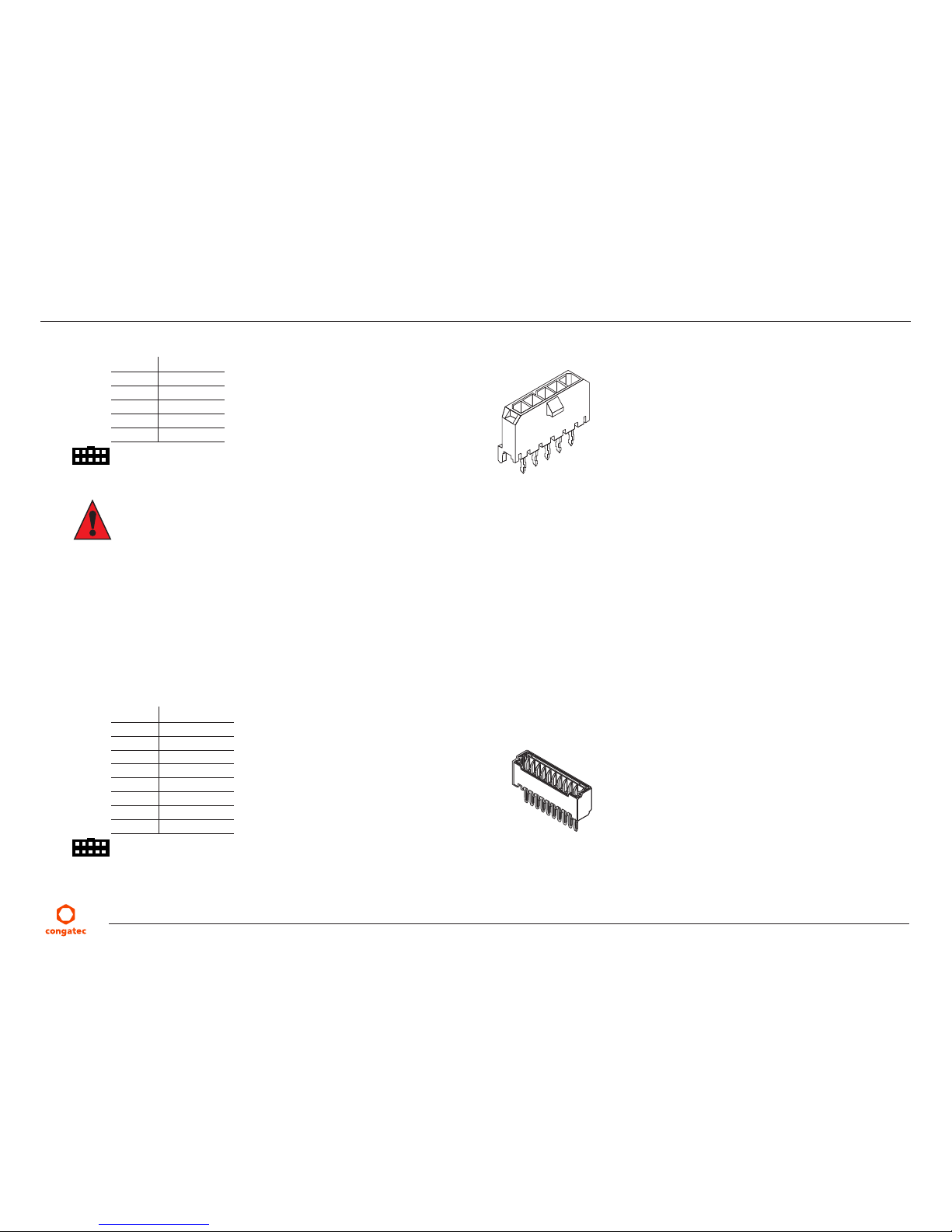

Internal Power Connector X44

Page 25

Table 12 Connector X50 Pinout Description

Pin Function

1 +12 - 24V 2 +12 - 24V 3 GND 4 GND 5 NC

Connector Type

X50 : Micro-Fit connector with 1x5 pin, 3mm pitch

Caution

5.1.3.1 Optional SBM3 Signal Connector

As mentioned above, if you need the optional SBM battery power connector (X50), then you need in addition the optional SBM battery signals connector (X45) for adequate communication between the conga-IA4 and the battery kit.

Table 13 Connector X45 Pinout Description

Pin Function

1 GND 2 I2C_DAT 3 I2C_CLK 4 BATLOW# 5 SUS_STAT# 6 PM_SLP_S3# 7 PM_SLP_S5# 8 PWRBTN#

Connector Type

X45 : 1x8 pin, 1.25mm pitch PicoBlade

SBM3 Power - Connector X50

SBM3 Signal - Connector X45

Page 26

5.1.4 PWR_OK Signal

With the PWR_OK signal on the feature connector (X34), the user can control the SBC's start-up process. When this signal is set to low, the SBC is kept in reset until the PWR_OK signal is asserted.

When the signal is asserted (set to high), it indicates to the SBC that the supplied power is stable. The SBC then begins its onboard power-up sequence.

5.1.5 Power Status LEDs

The conga-IA4 provides two LED signals (FP_LED+ and P_LED-) on pins 2 and 4 of the front panel connector X38. The signals indicate the different power states of the conga-IA4. Possible states and corresponding activity of the LEDs are shown below:

Table 14 Double-Color Power LED

LED State Description ACPI State

Off

Power-off S5 Steady Green Running S0 Steady Yellow Sleeping S3

Table 15 Single-Color Power LED

LED State Description ACPI State

Off Sleeping or power-off (not running) S3, S5 Steady Green Running S0

Note

For the front panel pinout description, see section 6.1 “Front Panel Connector”.

Page 27

5.2 CMOS Battery/RTC

The conga-IA4 provides a board-mounted battery holder (M29) for CMOS battery. The CMOS battery supplies the necessary power required to maintain the CMOS settings and conﬁguration data in the UEFI ﬂash chip. The speciﬁed battery type is CR2032.

Warning

Danger of explosion if battery is incorrectly replaced. Replace only with same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.

5.3 Audio Interfaces

The conga-IA4 provides audio connectors both internally and on the rear side. The internal audio connectors are stereo speaker, digital microphone/SPDIF and front Panel HD audio. The rear audio connectors are Line-OUT and Mic-IN.

5.3.1 Rear Audio Connectors

The conga-IA4 has a high deﬁnition audio codec (Realtek ALC888S) mounted on it.

The line output signals and the microphone signals are respectively routed to connectors X62 (line-OUT) and X61 (Mic-IN) on the rear side. The drivers for this codec can be found on the congatec website at http://www.congatec.com/en/products/mini-itx/conga-ia4.html, under the software section.

M29 (Battery Holder)

Page 28

Table 16 MIC-IN (X61) Pinout Description

Pin Signal Description

1 MIC1_L 1st Stereo microphone analog input left channel 2 A_GND Analog ground 3 MIC1_R 1st Stereo microphone analog input right channel 4 A_GND Analog ground 5 SENSE_A Jack detect pin 1 6 A_GND Analog ground

Table 17 Line-OUT (X62) Pinout Description

Pin Signal Description

1 FRONT_L Front analog output left channel 2 A_GND Analog ground 3 FRONT_R Front analog output right channel 4 A_GND Analog ground 5 SENSE_A Jack detect pin 1 6 A_GND Analog ground

Connector Type

X61: 6 pin, single audio jack - lime color

X62: 6 pin, single audio jack - pink color

5.3.2 Internal Audio Connectors

The conga-IA4 provides the stereo speaker, digital microphone/SPDIF and front panel HD audio connectors internally.

5.3.2.1 Stereo Speaker Header

The ﬁrst analog line input channels (left and right) of the Realtek ALC888S HDA audio codec are routed via a TPA2012D2 ampliﬁer to internal stereo speaker - connector X19. The ampliﬁer offers a maximum wattage of 2.1W per channel into 4 ohms at 5V.

MIC IN - Connector X61

Line OUT - Connector X62

Page 29

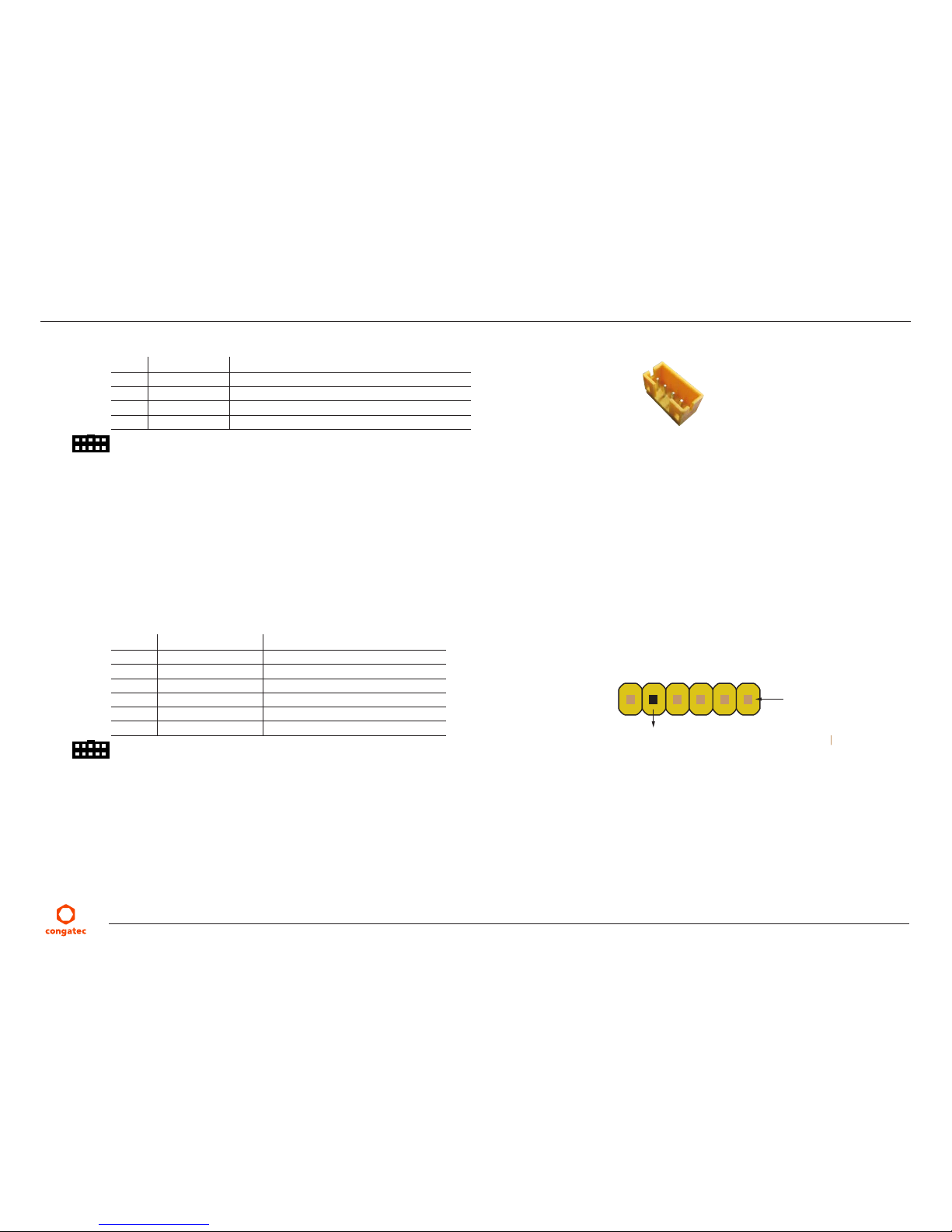

Table 18 Stereo Speaker (X19) Pinout Description

Pin Signal Description

1 OUTL- Left channel negative differential output 2 OUTL+ Left channel positive differential output 3 OUTR+ Right channel positive differential output 4 OUTR- Right channel negative differential output

Connector Type

X19: 2mm crimp style connector with 4 pins.

Possible Mating Connector: Chyao Shiunn JS-1124-04.

5.3.2.2 Digital Microphone/SPDIF

The digital microphone/SPDIF signals of the Realtek ALC888S HDA audio codec are routed to connector X17 (internal digital microphone/ SPDIF). This connector offers two power supply pins - 3,3V and 5V. Power Budget of these pins is limited to 500mA.

Table 19 Internal Digital Microphone/SPDIF (X17) Pinout Description

Pin Signal Description

1 +3.3V 3.3V supply 2 DMIC_DATA Serial data from digital MIC 3 GND Ground 4 SPDIFO2 Secondary S/PDIF output 5 KEY No pin 6 +5V 5V supply

Connector Type

X17: 2.54mm, 1x6 pin header

Stereo Speaker - Connector X19

Digital MIC/SPDIF - Connector X17

Pin 1

No Pin

Page 30

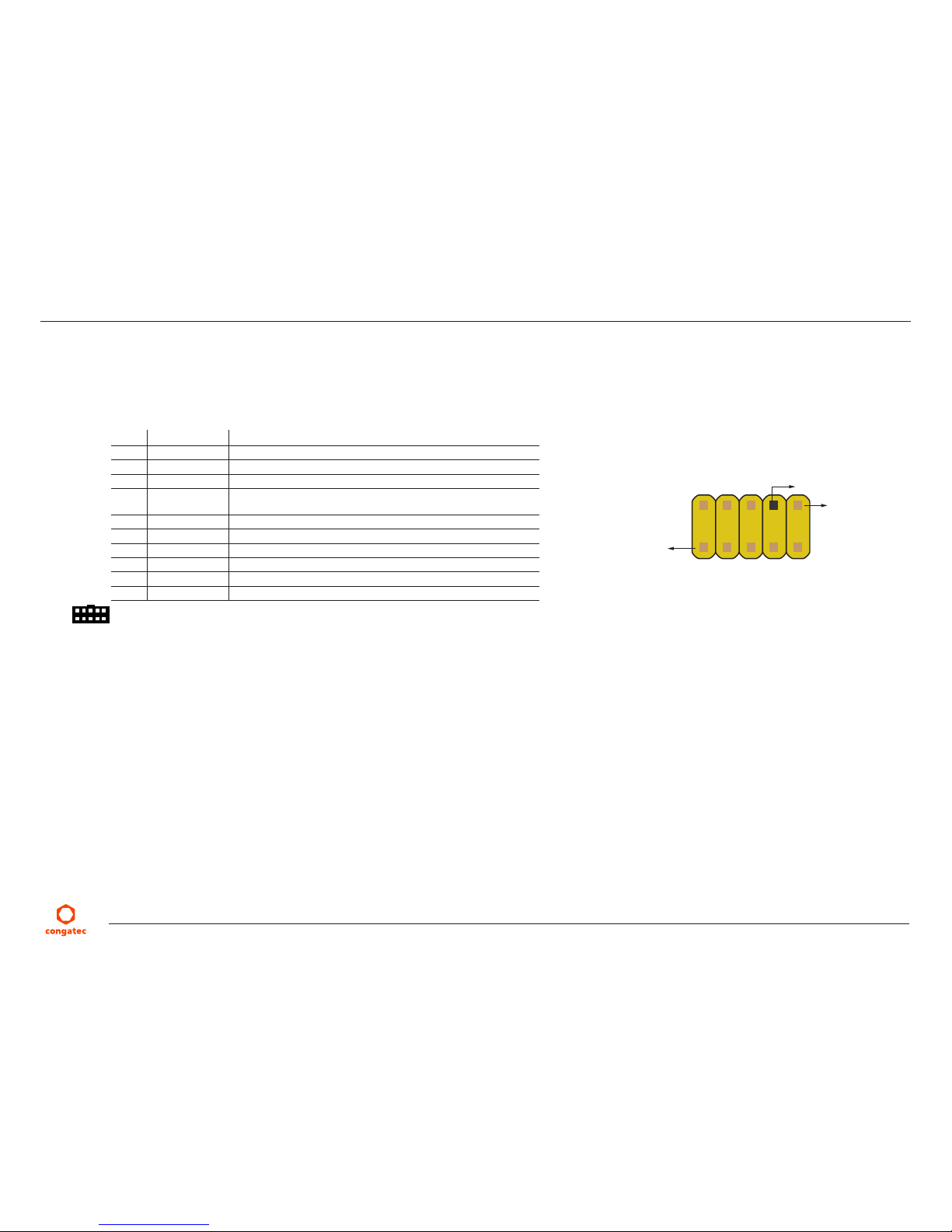

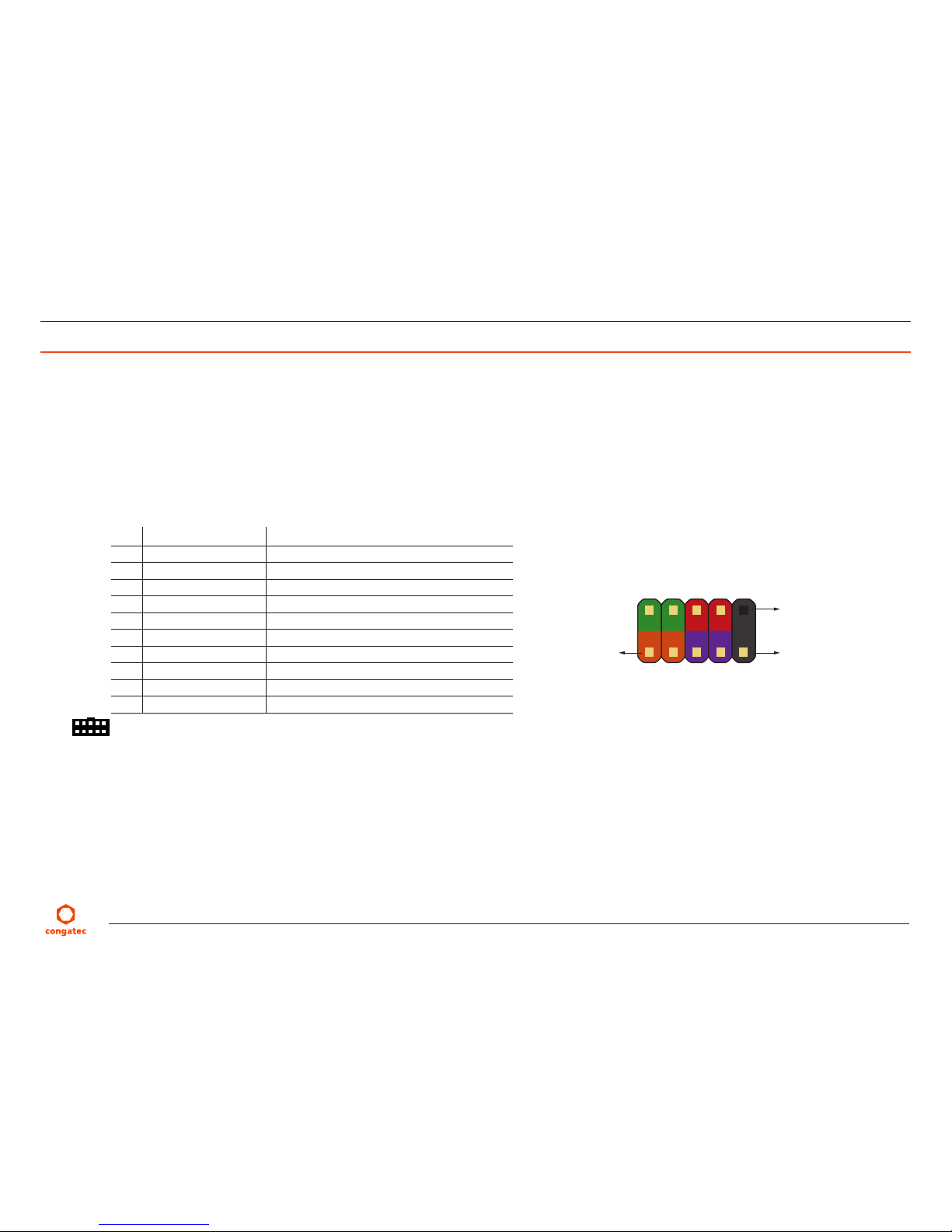

5.3.2.3 Front Panel HD Audio

The front panel HD audio (LINE2 and MIC2) signals of the Realtek ALC888S HDA audio codec are routed to connector X16. The pinout description of the connector is shown below:

Table 20 Front Panel HD Audio (Connector X16) Pinout Description

Pin Signal Description

1 MIC2_L 2nd Analog stereo microphone input - left channel 2 GND Ground 3 MIC2_R 2nd Analog stereo microphone input - right channel 4 PRESENCE# Active low signal that indicates that an Intel HD Audio dongle is

connected to the analog header. 5 LINE2_R 2nd Analog line input - right channel (headphone) 6 MIC2_JD Microphone input jack detect 7 SENSE_B Jack detection pin 2 8 KEY No pin 9 LINE2_L 2nd Analog line input - left channel (headphone) 10 LINE2_JD Line input jack detect

Connector Type

X16: 2.54mm, 2x5 pin header

5.4 Communication Bus

The conga-IA4 supports both SMBus and I2C compliant devices.

5.4.1 SMBus

The SMBus signals are available in different locations on the conga-IA4, including the feature connector (X34) described in section 6.13 of this document.

5.4.2 I²C Bus

The congatec Board controller provides I²C signals. These signals are available in different locations on the conga-IA4, including the feature connector (X34) described in section 6.13 of this document.

Front Panel Audio - Connector X16

No Pin

Pin 1

Pin 10

Page 31

5.4.3 SPI Bus

The SPI signals are connected to the onboard SPI ﬂash and also to the feature connector (X34). The SPI signals on the feature connector provides the ability to boot the conga-IA4 from external ﬂash. This however requires a customized adapter for triggering the BIOS_DISABLE# signal (pin 46) of the feature connector.

Note

The congatec customized adapter for the feature connector is for internal use only.

5.5 LPC Super I/O Device

The conga-IA4 has an onboard Super I/O controller that provides additional interfaces such as two serial interfaces, optional ccTALK, GPOs, 4-wire CPU and system fans. The Super I/O controller is connected to the SoC's LPC Bus.

5.5.1 Serial Ports (COM)

The Super I/O controller on the conga-IA4 provides two fully featured RS-232 compliant UART interfaces (COM 0 and 1). The COM 1 interface can be optionally used as ccTALK compliant interface. The COM ports can drive up to 115 kbit/s at a maximum cable length of 15 m.

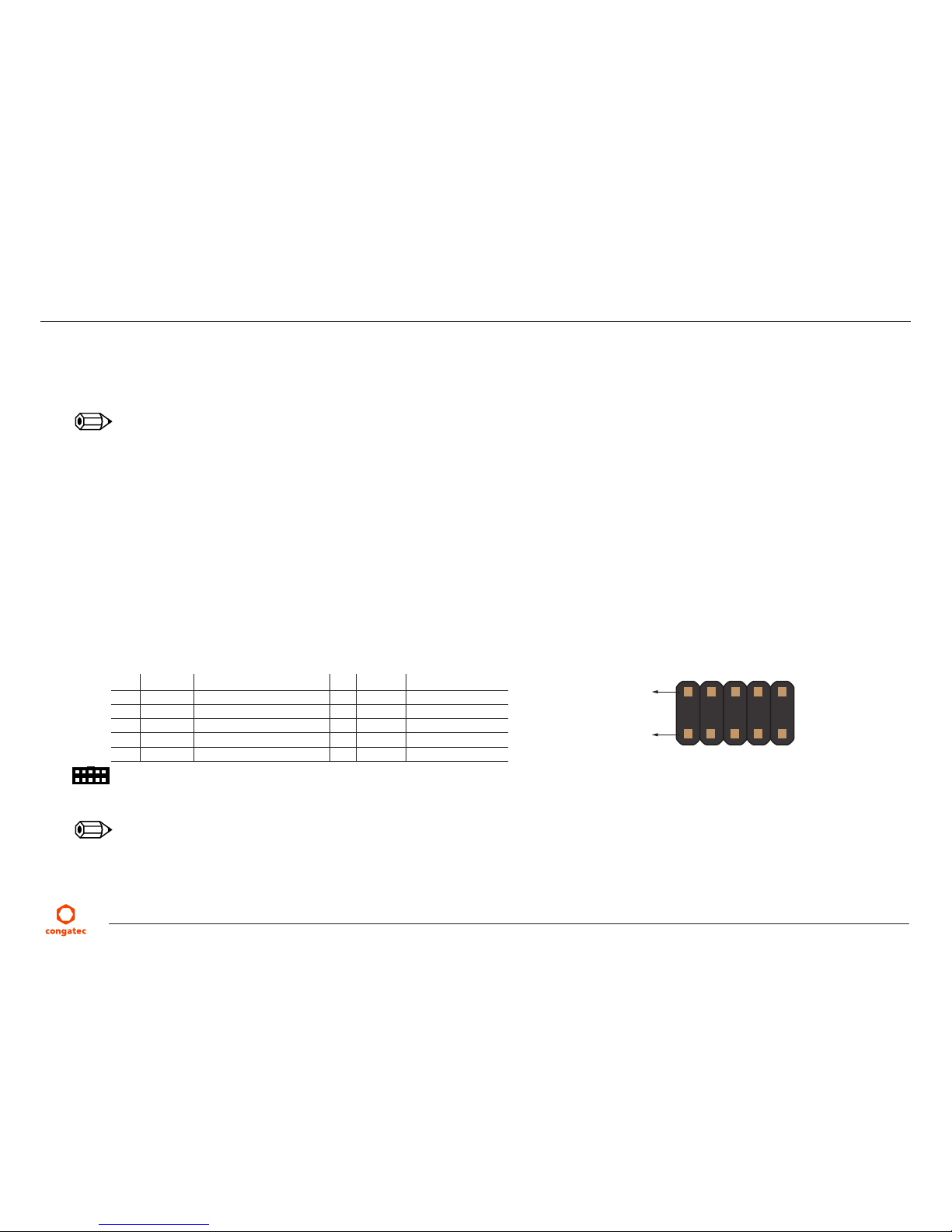

Table 21 Serial Ports (Connectors X21/X23) Pinout Description

Pin Signal Description Pin Signal Description

1 DCD Data Carrier Detect 6 DSR Data Set Ready 2 RXD Received Data 7 RTS Request to Send 3 TXD Transmit Data 8 CTS Clear to Send 4 DTR Data Terminal Ready 9 RI Ring Indicator 5 GND Ground 10 N.C Not connected

Connector Type

X21,X23: 2.54mm pitch, 2x5 pin headers

Note

congatec offers cables for the COM ports (see section 1.2.2 “Optional Accessories"). For more information, contact congatec technical solution department.

COM 0 & 1 - Connectors X21/X23

Pin 1

Pin 2

Page 32

5.5.2 CPU/System Fan Connector & Power Conﬁguration

The conga-IA4 supports the connection of 5V or 12V cooling fans. The signals of the CPU and system fans are routed to 4-pin connectors X35 and X37 respectively. Use jumper X33 to select the CPU fan voltage and jumper X36 to select the system fan voltage.

The following tables describe the pinouts and jumper conﬁguration

Table 22 CPU Fan (X35)

Pin Signal

1 GND

2 VCC +5VDC/+12VDC

3 FAN_TACHOIN

4 FAN_CTRL

Table 23 System Fan (X37)

Pin Signal

1 GND

2 VCC +5VDC/+12VDC

3 FAN_TACHOIN

4 FAN_CTRL

Table 24 Jumper X33, X36

Pin Conﬁguration

1 - 2 FAN +12VDC (default)

2 - 3 FAN +5VDC

Connector Type

X35, X37: 4 pin 2.54mm grid female fan connector.

X33, X36: 2.54mm grid jumper.

Note

The maximum power of the CPU fan is approximately 3W while the system fan has a maximum power of approx. 4.5W.

CPU Fan

(X35)

1: GND 2: VCC +5VDC/+12VDC 3: FAN_TAC HOIN

4. FAN_CTRL

1 2 3 4

SYS Fan

(X37)

1: GND 2: VCC +5VDC/+12VDC 3: FAN_TAC HOIN

4. FAN_CTRL

X33 X36

Page 33

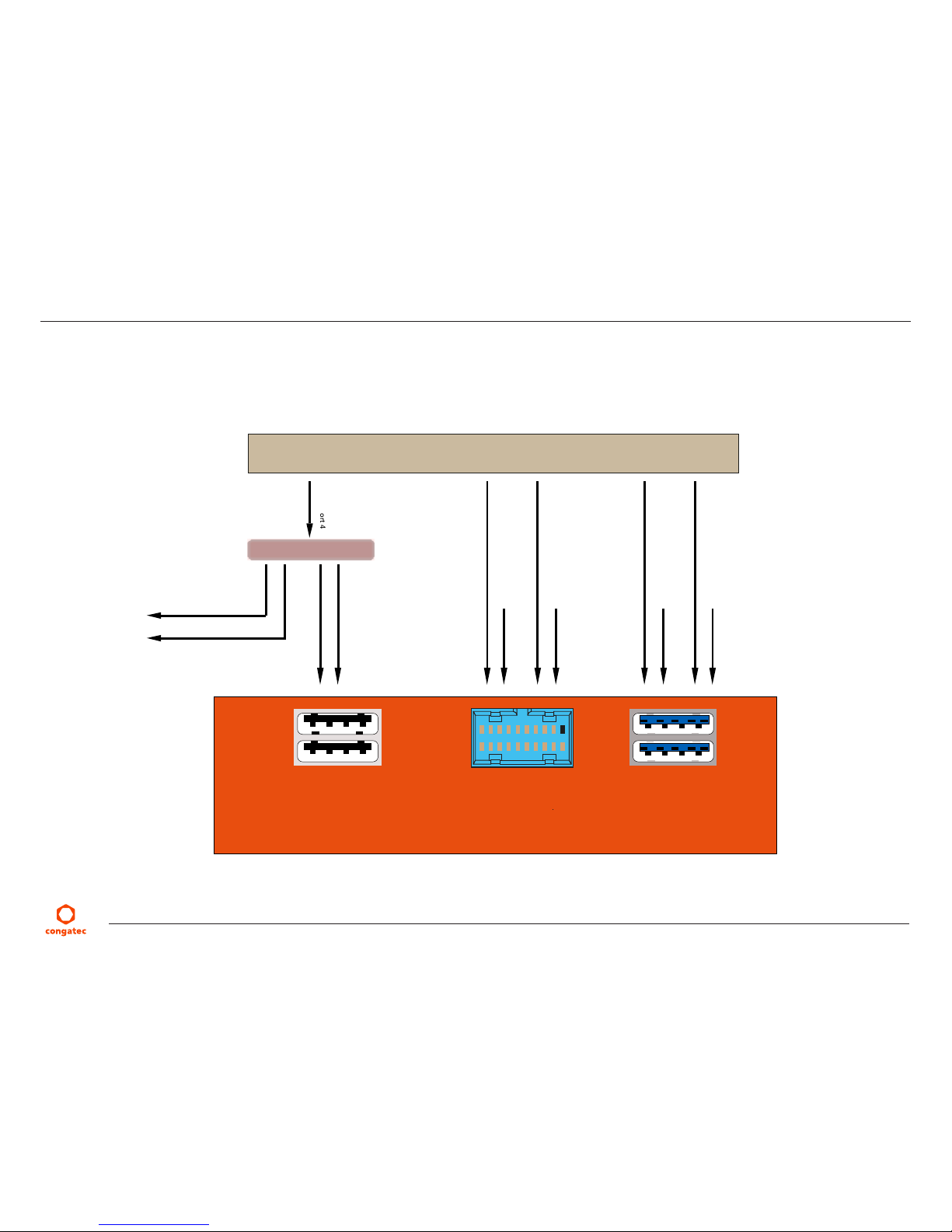

5.6 Universal Serial Bus (USB)

The conga-IA4 provides 6 USB ports - 4 USB ports on the rear side and 2 USB ports internally. The USB routing diagram is shown below:

USB 2.0 Port 0

Intel Braswell SoC

2x USB 2.0 Rear Ports

(Connector X14)

2x USB 3.0/2.0 Rear Ports

(Connector X15)

2x USB 3.0/2.0 Internal Ports

(Connector X60)

To mPCIe Connector

To mPCIe/mSATA Connector

USB 2.0 Port 2

USB 2.0 Port 3

USB 2.0 Port 4

SuperSpeed Signals

USB 2.0 Signals

SuperSpeed Signals

USB 2.0 Port 1

1 2 3 4

USB HUB

5789

1 2 3 4

5789

1 2 3 4

conga-IA40 USB Connectors

Page 34

5.6.1 Rear USB Connectors

The conga-IA4 offers four USB ports on the rear side - two USB 2.0 ports on connector X14 and two USB 3.0 ports on connector X15. The pinouts are described below:

Table 25 USB 2.0 (Connector X14) Pinout Descriptions

Lower Port Upper Port

Pin Signal Description Pin Signal Description

A1 +5V +5V supply B1 +5V +5V supply

A2 Data- Hi-speed differential transceiver (negative) B2 Data- Hi-speed differential transceiver (negative)

A3 Data+ Hi-speed differential transceiver (positive) B3 Data+ Hi-speed differential transceiver (positive)

A4 GND Ground B4 GND Ground

Table 26 USB 3.0 (Connectors X15) Pinout Descriptions

Lower Port Upper Port

Pin Signal Description Pin Signal Description

1 +5V +5V supply 10 +5V +5V supply

2 Data0- Hi-speed differential transceiver (negative) 11 Data1- Hi-speed differential transceiver (negative)

3 Data0+ Hi-speed differential transceiver (positive) 12 Data1+ Hi-speed differential transceiver (positive)

4 GND Ground 13 GND Ground

5 SS0_RX- SuperSpeed receiver differential pair (negative) 14 SS1_RX- SuperSpeed receiver differential pair (negative)

6 SS0_RX+ SuperSpeed receiver differential pair (positive) 15 SS1_RX+ SuperSpeed receiver differential pair (positive)

7 GND Ground 16 GND Ground

8 SS0_TX- SuperSpeed transmitter differential pair negative) 17 SS1_TX- SuperSpeed transmitter differential pair (negative)

9 SS0_TX+ SuperSpeed transmitter differential pair (positive) 18 SS1_TX+ SuperSpeed transmitter differential pair (positive)

Connector Type

X14,X15: Two type A, dual port USB connectors

Note

Connectors X14 and X15 have maximum current of 0.5A and 1.2A respectively.

1 2 3 4

Upper

Lower

Connector X14

Upper

Lower

Connector X15

14161718

10 11 12 13

5789

1 2 3 4

Page 35

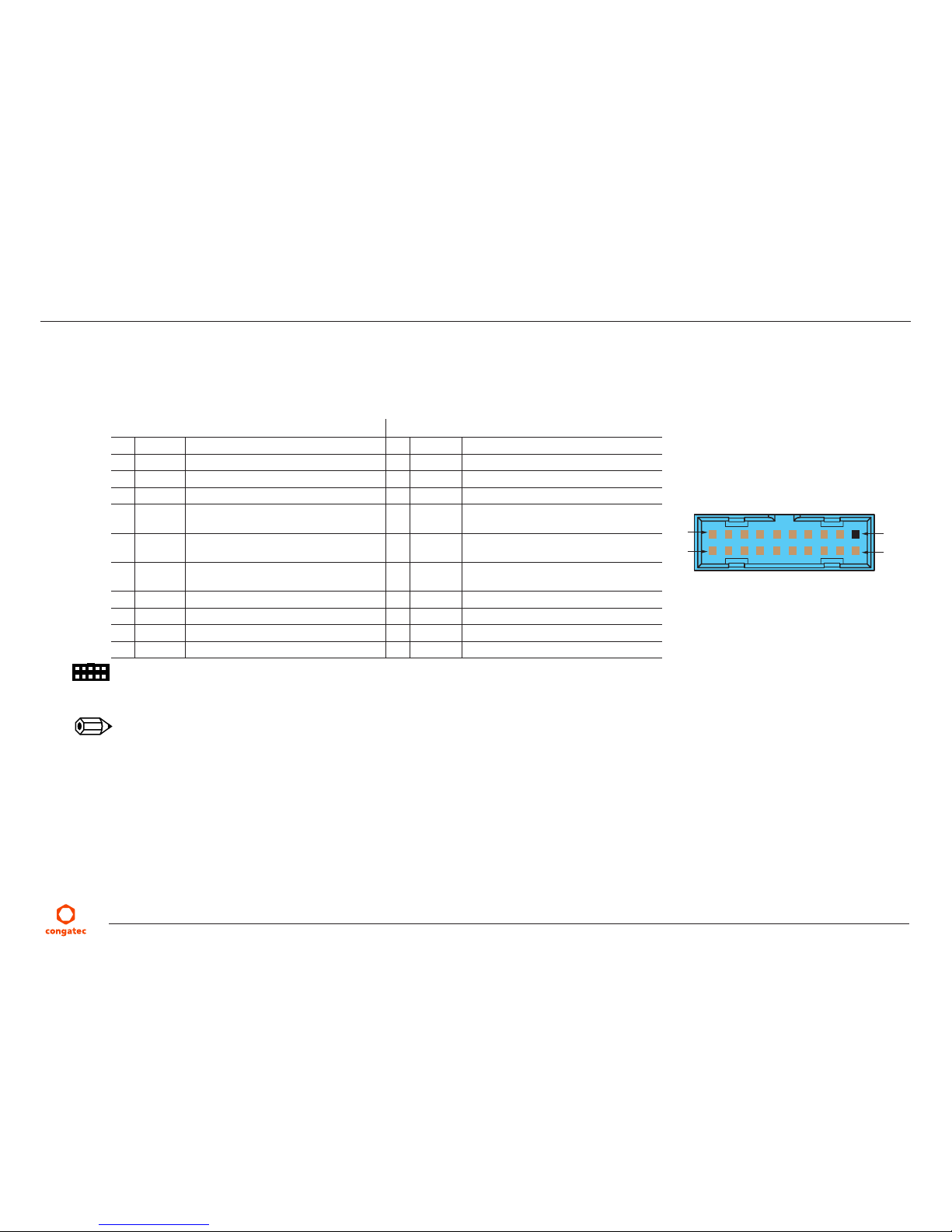

5.6.2 Internal USB Connector

The conga-IA4 offers two USB 3.0 ports on connector X60 (internal header). The ports are backward compatible to USB 2.0 devices.

Table 27 USB 3.0 Header (Connectors 60) Pinout Description

Port 3 Port 2

Pin Signal Description Pin Signal Description

1 +5V +5V supply 11 Data2+ High-speed differential transceiver (+ve)

2 SS3_RX- SuperSpeed receiver differential pair (-ve) 12 Data2- High-speed differential transceiver (-ve)

3 SS3_RX+ SuperSpeed receiver differential pair (+ve) 13 GND Ground

4 GND Ground 14 SS2_TX+ SuperSpeed transmitter differential pair

(+ve)

5 SS3_TX- SuperSpeed transmitter differential pair

(-ve)

15 SS2_TX- SuperSpeed transmitter differential pair

(-ve)

6 SS3_TX+ SuperSpeed transmitter differential pair

(+ve)

16 GND Ground

7 GND Ground 17 SS2_RX+ SuperSpeed receiver differential pair (+ve)

8 Data3- High-speed differential transceiver (-ve) 18 SS2_RX- SuperSpeed receiver differential pair (-ve)

9 Data3+ High-speed differential transceiver (+ve) 19 +5V +5V supply

10 NC Not Connected 20 No Pin Empty

Connector Type

X60: 2.54mm, 2x10 pin header

Note

Connector X60 has a maximum current of 1.2A.

congatec offers a cable for connector X60 (see section 1.2.2 “Optional Accessories"). For more information, contact congatec technical solution department.

Internal USB 3.0 - Connector X60

No Pin

Pin 1

Pin 11

Pin 10

Page 36

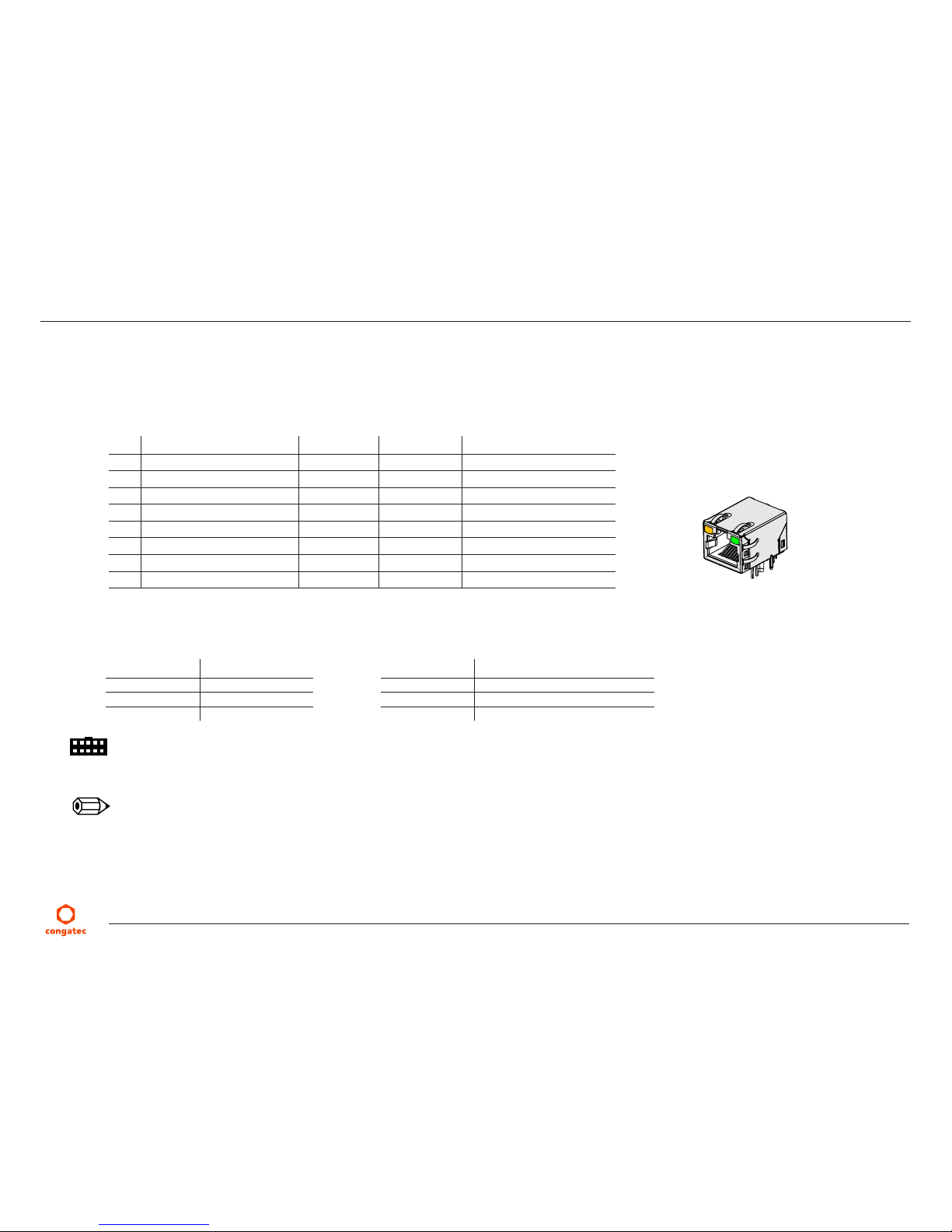

5.7 Ethernet 10/100/1000

The conga-IA4 provides two Gigabit Ethernet ports (connectors X57 and X58) on the rear side. The two Gigabit Ethernet interfaces are supported via the Intel Gigabit Ethernet controller i211.

Table 28 Connectors X57/X58 Pinout Description

Pin Description 10base-T 100Base-T 1000Base-T

1 Transmit Data+ or Bidirectional TX+ TX+ BI_DA+

2 Transmit Data- or Bidirectional TX- TX- BI_DA-

3 Receive Data+ or Bidirectional RX+ RX+ BI_DB+

4 Not connected or Bidirectional nc nc BI_DC+

5 Not connected or Bidirectional nc nc BI_DC-

6 Receive Data- or Bidirectional RX- RX- BI_DB+

7 Not connected or Bidirectional nc nc BI_DD+

8 Not connected or Bidirectional nc nc BI_DD-

Table 29 LED Descriptions

Connector Type

X57/X58: 8 pin RJ45 connector with gigabit magnetic and LEDs.

Note

Connectors X57 and X58 do not support the Intel AMT feature.

Gigabit Ethernet - Connectors X57/X58

LED Left Side Description

Off 10 Mbps link speed Green 100 Mbps link speed Orange 1000 Mbps link speed

LED Right Side Description

Off No link Steady On Link established, no activity detected Blinking Link established, activity detected

Page 37

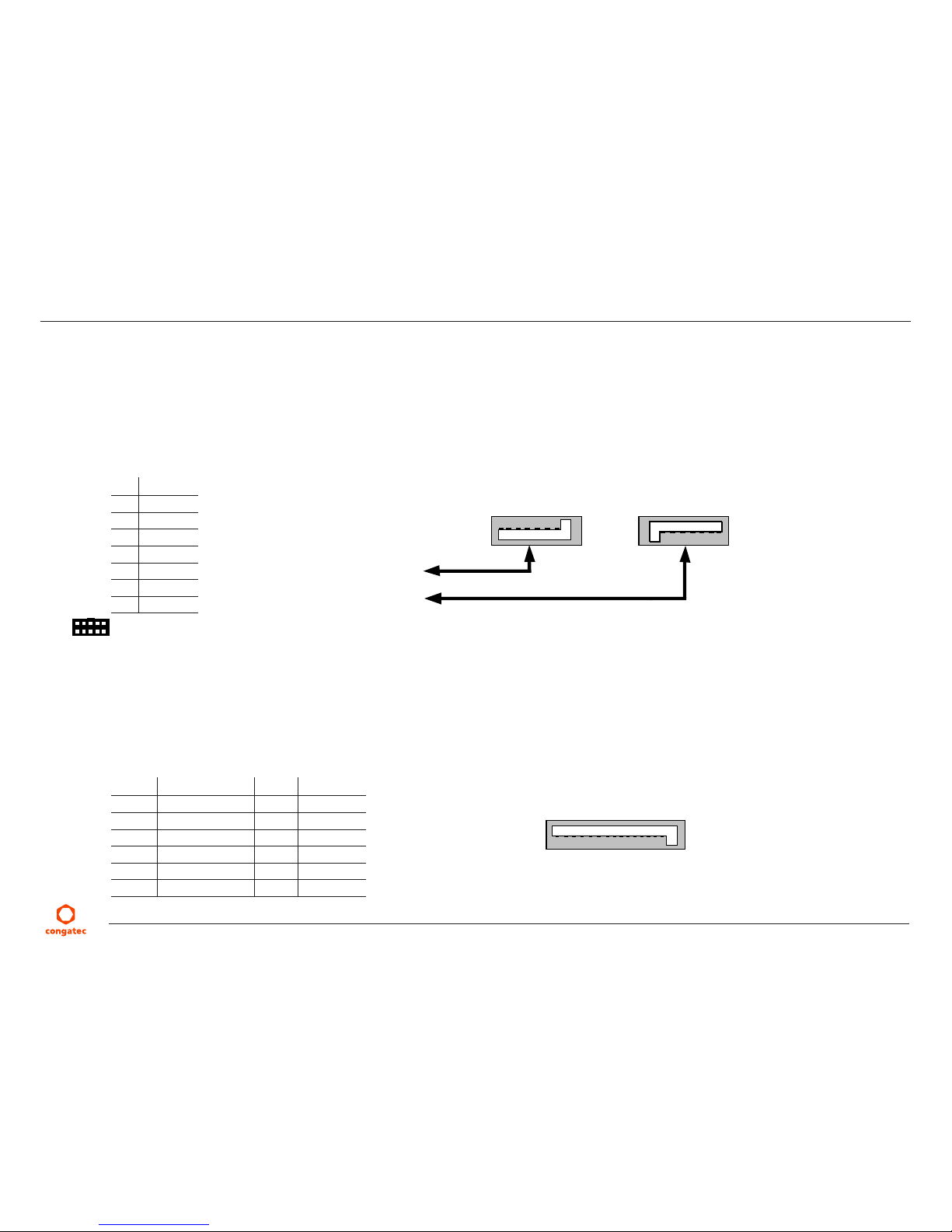

5.8 SATA Interfaces

5.8.1 Standard SATA Ports

The conga-IA4 provides two SATA ports. The SATA ports are routed to connectors CN1/CN2 and support data rates up to 6 Gb/s. The SATA LED on the front panel connector (X38) is lit when there is activity on any of the SATA interfaces.

Table 30 Connectors CN1/CN2 Pinout Description.

Pin Signal

1 GND

2 TX+

3 TX-

4 GND

5 RX-

6 RX+

7 GND

Connector Type

CN1, CN2: Standard SATA connector.

5.8.2 SATA Power

The conga-IA4 provides an internal SATA power for hard drives, on connector X8. This connector supplies 3.3V, 5V and 12V.

Table 31 Connectors X8 Pinout Description.

Pin Signal Pin Signal

1 +3.3V 9 +5V

2 +3.3V 10 GND

3 +3.3V 11 GND

4 GND 12 GND

5 GND 13 12V

6 GND 14 12V

7654321

SATA0 (CN1)

Serial ATA Channel 0

Serial ATA Channel 1

SATA1 (CN2)

12 3 4 5 67

789101112131415 6 5 4 3 2 1

SATA Power (X8)

Page 38

7 +5V 15 12V

8 +5V

Connector Type

X8: 15 pin SATA connector.

Note

The voltage rails +3.3V, +5V and +12V have maximum current of 2 amps each.

5.8.3 Mini SATA

The mini SATA connector X6 on the conga-IA4 is used to connect mSATA devices. This connector shares the SoC's SATA1 signals with SATA connector CN2. Connector CN2 will not function whenever an mSATA card is inserted into the mSATA connector. Therefore, if you plan to use connector CN2, do not insert an mSATA device into connector X6.

The mSATA connector also supports mini PCIe devices. When an mSATA or mPCIe device is connected to X6, the conga-IA4 automatically detects the type of device that is attached.

Table 32 mSATA (Connector X6) Pin Description.

Pin Signal Pin Signal

1 Reserved 2 +3.3V

3 N.C. 4 GND

5 N.C. 6 +1.5V

7 Reserved 8 N.C.

9 GND 10 N.C.

11 Reserved 12 N.C.

13 Reserved 14 N.C.

15 GND 16 N.C.

17 Reserved 18 GND

19 N.C. 20 Reserved

21 Card_Present * 22 Reserved

23 +B 24 +3.3V

25 -B 26 GND

M43

M46

M44

M45

mSATA/mPCIe Socket

(Connector X6)

Page 39

Pin Signal Pin Signal

27 GND 28 +1.5V

29 GND 30 SMB_CLK

31 -A 32 SMB_DATA

33 +A 34 GND

35 GND 36 Reserved

37 GND 38 Reserved

39 +3.3V 40 GND

41 +3.3V 42 N.C

43 Card_Type_Recognition * 44 N.C

45 N.C 46 N.C

47 N.C 48 +1.5V

49 N.C 50 GND

51 N.C. 52 +3.3Vaux

53 GND 54 GND

Connector Type

X6: 0.8mm pitch, 52 pin mini PCI socket

Note

* For card presence detection, pin 21 of the mSATA card must be terminated to ground. For card type recognition, pin 43 of the mSATA card must be unconnected.

Page 40

5.9 Display Interfaces

The conga-IA4 supports three simultaneous displays - two DP++ and an LVDS interface.

5.9.1 Display Port Interface DP++

The conga-IA4 SBC has two DP++ connectors (X26 and X27) located at the rear I/O panel. The DP++ connectors support DP, HDMI and DVI displays.

Table 33 Connectors X26 Pinout Description.

Pin Signal Pin Signal

1 DDI_TX0+ 11 GND

2 GND 12 DDI_TX3-

3 DDI_TX0- 13 CONFIG1

4 DDI_TX1+ 14 CONFIG2

5 GND 15 DDI_AUX+

6 DDI_TX1- 16 GND

7 DDI_TX2+ 17 DDI_AUX-

8 GND 18 DDI_HPD

9 DDI_TX2- 19 GND

10 DDI_TX3+ 20 3.3V

5.9.2 LVDS

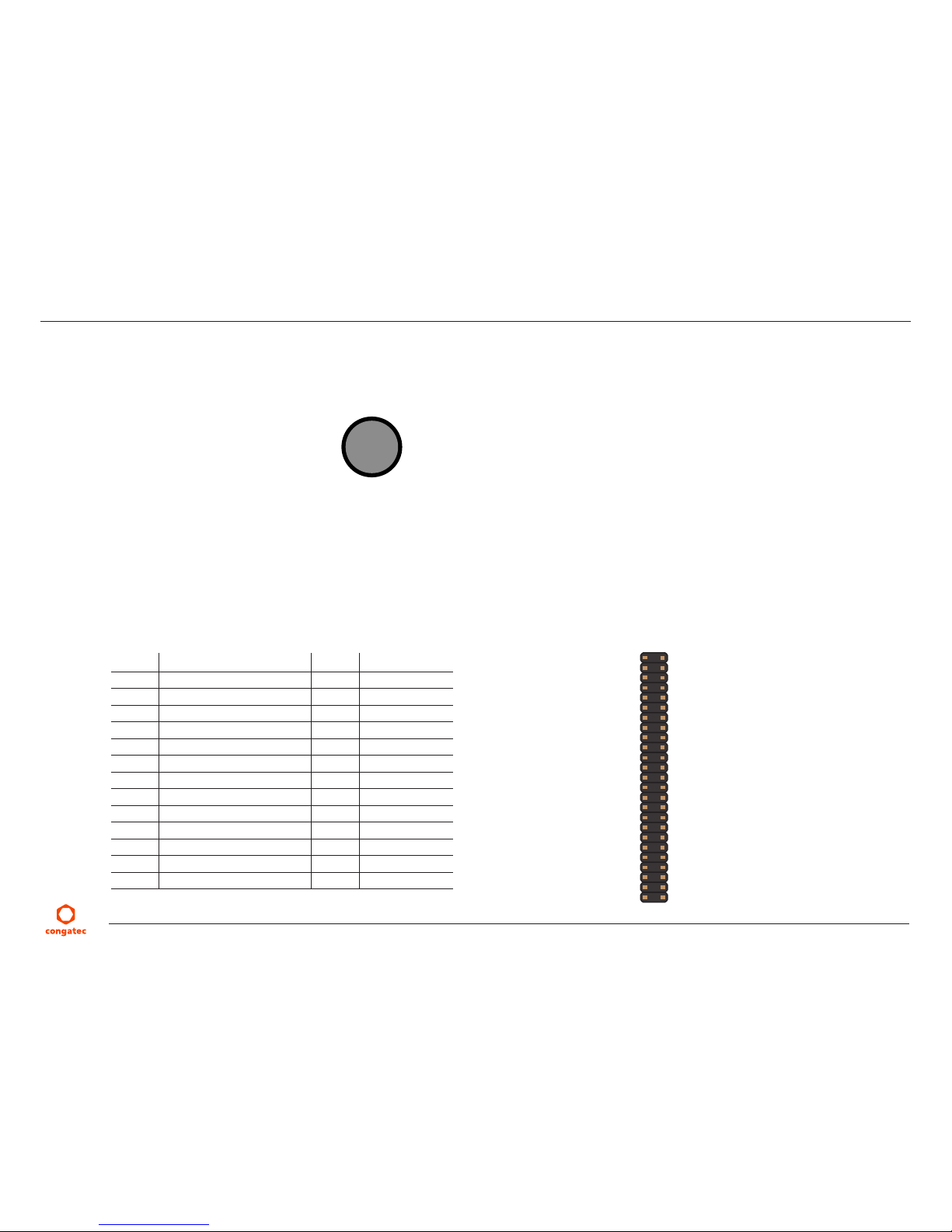

The conga-IA4 offers LVDS interface on connector X32 - a standard 40 pin LVDS connector. The LVDS signals are sourced from the SoC's DDI stream via a multiplexer.

The interface is located on the top side of the SBC and supports 24 bit dual channel, selectable backlight voltage, VESA color mappings, automatic panel detection and up to 1920x1200 resolution.

DP++ - Connectors X26/X27

Page 41

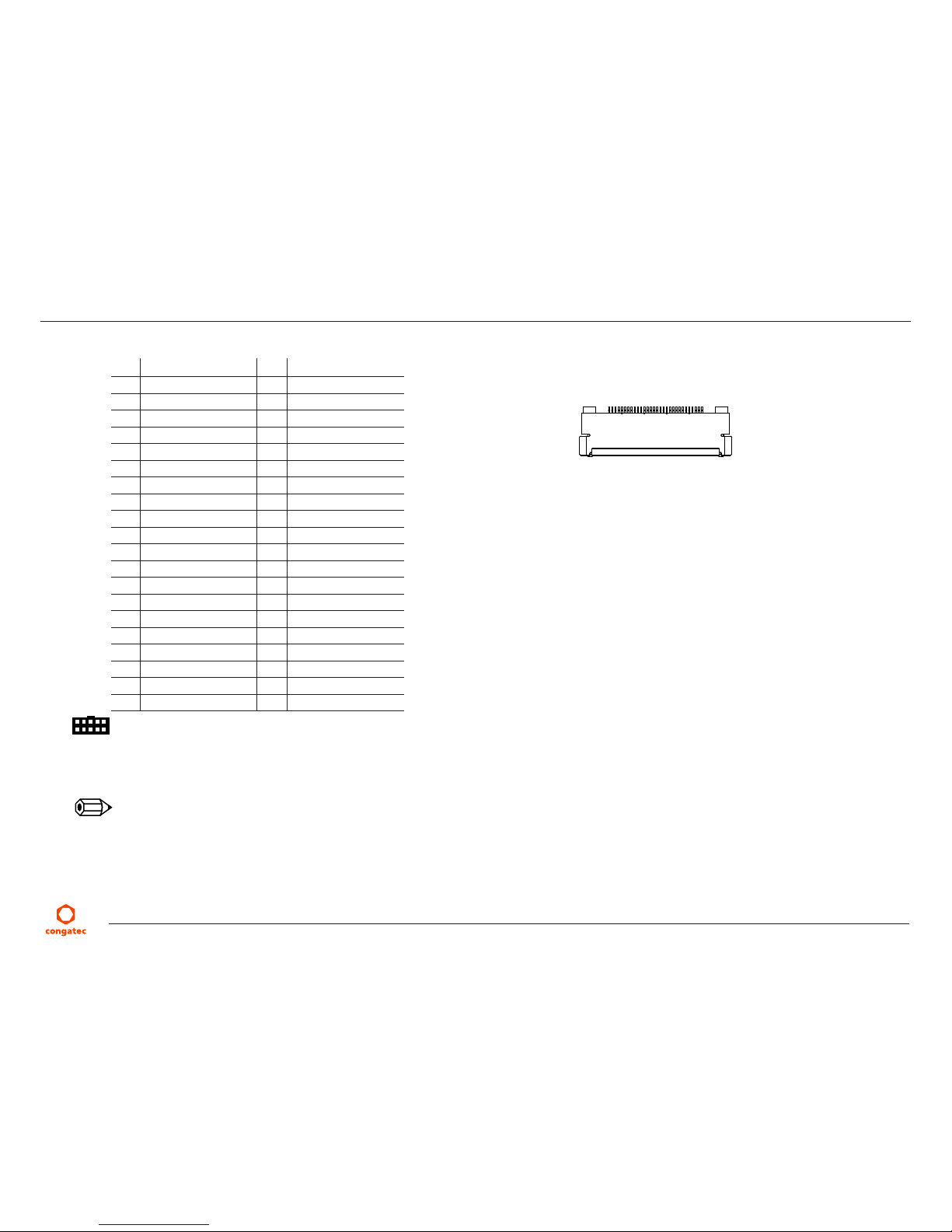

Table 34 Connector X32 Pinout Description

Pin Signal Pin Signal

1 LVDS_A3+ 21 N.C.

2 LVDS_A3- 22 EDID_3.3V

3 LVDS_A2+ 23 LCD_GND

4 LVDS_A2- 24 LCD_GND

5 LVDS_A1+ 25 LCD_GND

6 LVDS_A1- 26 LVDS_A_CLK+

7 LVDS_A0+ 27 LVDS_A_CLK-

8 LVDS_A0- 28 BKLT_GND

9 LVDS_B3+ 29 BKLT_GND

10 LVDS_B3- 30 BKLT_GND

11 LVDS_B2+ 31 EDID_CLK

12 LVDS_B2- 32 LVDS_BKLT_EN

13 LVDS_B1+ 33 LVDS_BKLT_CTRL

14 LVDS_B1- 34 LVDS_B_CLK+

15 LVDS_B0+ 35 LVDS_B_CLK-

16 LVDS_B0- 36 BKLT_PWR

17 EDID_GND 37 BKLT_PWR

18 LCD_VCC 38 BKLT_PWR

19 LCD_VCC 39 N.C

20 LCD_VCC 40 EDID_DATA

Connector Type

X32: 0.5mm, 40 pin ACES connector.

Possible Mating Connector: ACES 88441-40 and ACES 50204-40.

Note

congatec offers cables and adapter for the LVDS interface (see section 1.2.2 “Optional Accessories”). For more information, contact congatec technical solution department.

LVDS Connector X32

Page 42

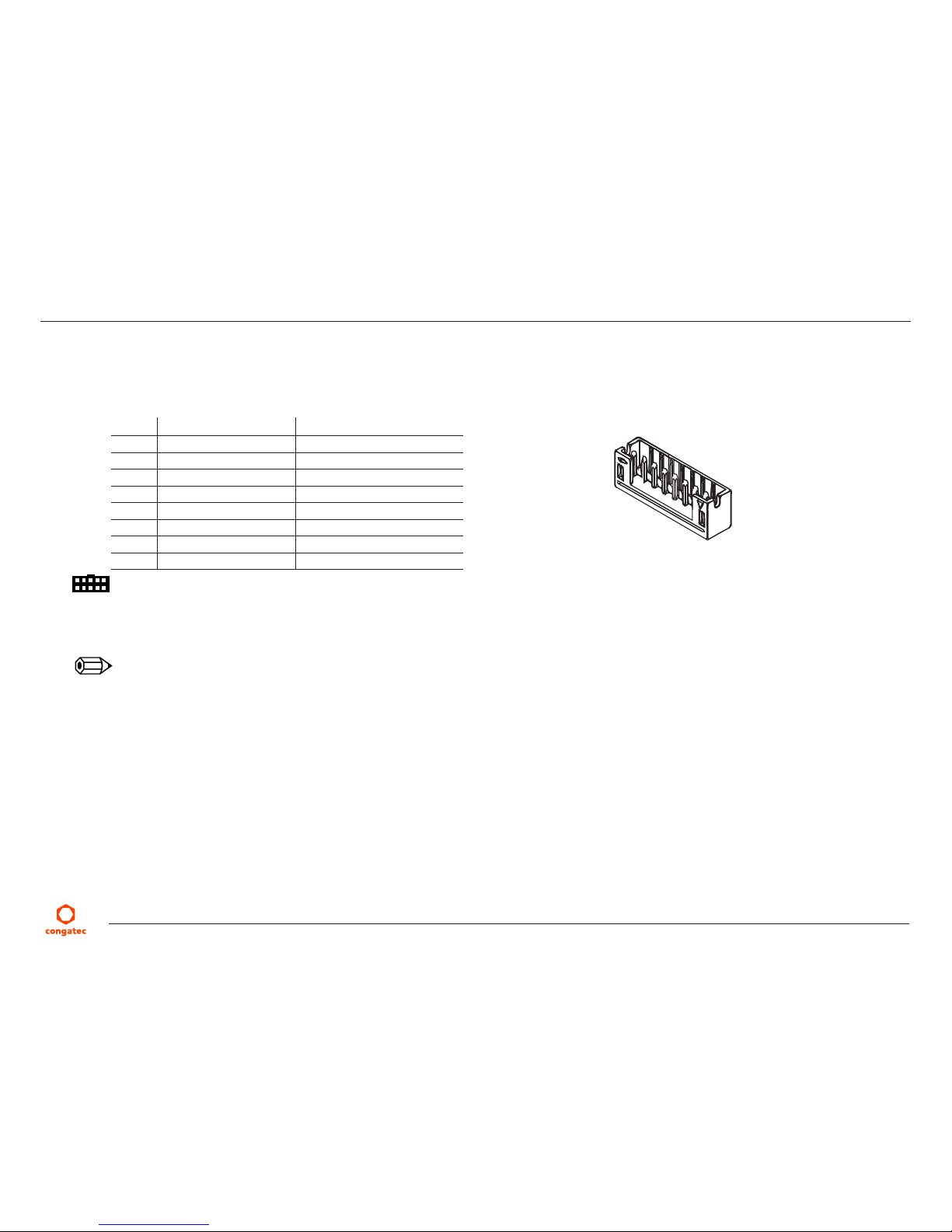

5.9.2.1 Backlight Power Connector

The conga-IA4 provides backlight power on connector X31. The power budget of BKLT_PWR (pins 3 and 4) is limited to 1.5 amps.

Table 35 Connector X31 Pinout Description

Pin Signal Name Description

1 LVDS_BKLT_EN Backlight enable

2 LVDS_BKLT_CTRL Backlight control

3 BKLT_PWR Backlight inverter power

4 BKLT_PWR Backlight inverter power

5 GND Backlight/brightness ground

6 GND Backlight/brightness Ground

7 Brightness_Up Flat panel brightness increase

8 Brightness_Down Flat panel brightness decrease

Connector Type

X31: 2mm, 8 pin crimp style connectors.

Possible Mating Connector: Chyao Shiunn JS-1124-08.

Note

congatec offers an open-end cable for this interface (see section 1.2.2 “Optional Accessories”). For more information, contact the congatec technical solution department.

Backlight Power - Connector X31

Page 43

5.9.2.2 Backlight/Panel Power Selection

The conga-IA4 supports different voltages for the panel and backlight connectors. With jumper X29, you can set the panel voltage to 3,3V, 5V or 12V. With jumper X30, you can set the backlight voltage to 5V or 12V.

Table 36 Connector X29 Pinout Description

Pin Signal Name

1 No Pin

2 3.3V

3 12V

4 Selected LCD power

5 No Pin

6 5V

Table 37 Connector X30 Pinout Description

Pin Signal Name

1 No Pin

2 N.C

3 12V

4 Selected backlight power

5 No Pin

6 5V

Connector Type

X29, X30: 2.54mm, 2x3 pin connector (without pins 1 and 5)

Panel Voltage Selector - Jumper X29

Pin 2

Pin 6

No Pin

Default Settings: Pins 2 and 4

No Pin

Backlight Voltage Selector - Jumper X30

Pin 2

Pin 6

No Pin

Default Settings: Pins 3 and 4

No Pin

Page 44

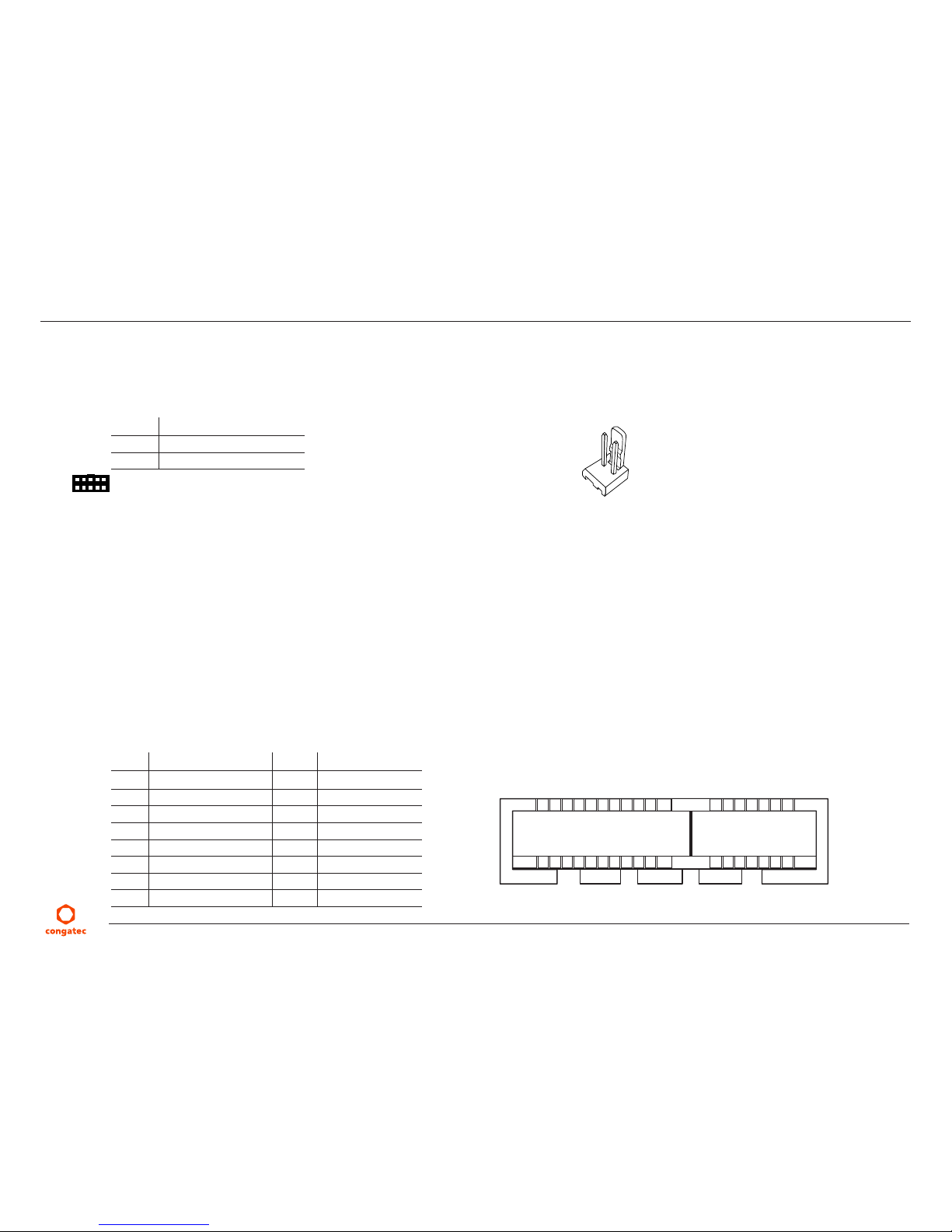

5.9.2.3 Monitor OFF connector

The monitor OFF connector (X51) offers the possibility to turn off the displays attached to the conga-IA4.

Table 38 Connector X51 Pinout Description

Pin Function

1 MONITOR_OFF#

2 GND

Connector Type

X51: 2.54mm, 2 pin Molex connector.

5.10 PCI Express

The conga-IA4 provides 3 PCIe interfaces - a x1 PCIe slot on connector X9, a half-size mini PCIe (mPCIe) slot on connector X10 and a full size mini PCIe/mini SATA slot on connector X6.

5.10.1 x1 PCIe Slot

The conga-IA4 offers one PCIe x1 slot on connector X9. This connector shares the SoC's PCIe 0 signals with connector X6 (mPCIe/mSATA slot), via a multiplexer. Immediately an mPCIe device is inserted into connector X6, the multiplexer automatically switches the PCIe signals to mPCIe slot (X6).

Table 39 x1 PCIe Slot (Connector X9) Pinout Description

Pin Signal Pin Signal

B1 +12V A1 GND

B2 +12V A2 +12V

B3 +12V A3 +12V

B4 GND A4 GND

B5 SMB_CLK A5 N.C.

B6 SMB_DAT A6 N.C.

B7 GND A7 N.C.

B8 +3.3V A8 N.C.

Monitor OFF - Connector X51

x1 PCIe

PCIe Slot

(Connector X9 )

Page 45

B9 N.C. A9 +3.3V

B10 +3.3V Aux A10 +3.3V

B11 WAKE# A11 PCIE_RST#

Key

B12 N.C. A12 GND

B13 GND A13 PCIE_CLK+

B14 PCIE_TX0+ A14 PCIE_CLK-

B15 PCIE_TX0- A15 GND

B16 GND A16 PCIE_RX0+

B17 PRSNT2# A17 PCIE_RX0-

B18 GND A18 GND

Connector Type

X9: PCIe x1 connector

Note

The PCIe x1 slot on connector X9 will not function if you insert a mini PCIe card into the mPCIe slot (connector X6). To use the PCIe x1 slot, do not insert any device into the mPCIe slot.

5.10.2 Mini PCIe (Half Size)

The conga-IA4 is equipped with a PCIe Mini Card socket (connector X10). PCI Express Mini Card is a unique small size form factor optimized for mobile computing platforms. The small footprint connector makes it possible to mount upgradable, standardized PCI Express Mini Card device to the SBC without additional expenditure of a redesign.

The table below lists the default pinout of the PCI Express Mini Card.

Table 40 mPCIe (Connector X10) Pinout Description

Pin Signal Pin Signal

1 WAKE# 2 +3.3Vaux

3 N.C. 4 GND

5 N.C. 6 +1.5V

7 CLKREQ# 8 N.C.

9 GND 10 N.C.

Page 46

Pin Signal Pin Signal

11 REFCLK- 12 N.C.

13 REFCLK+ 14 N.C.

15 GND 16 N.C.

17 Pull down resistor (1M) 18 GND

19 N.C. 20 W_DISABLE#

21 GND 22 PERST#

23 PERn0 24 +3.3Vaux

25 PERp0 26 GND

27 GND 28 +1.5V

29 GND 30 SMB_CLK

31 PETn0 32 SMB_DATA

33 PETp0 34 GND

35 GND 36 USB_D-

37 GND 38 USB_D+

39 +3.3Vaux 40 GND

41 +3.3Vaux 42 N.C

43 mSATA_mPCIe_detect 44 N.C

45 CL_CLK 46 N.C

47 CL_DATA 48 +1.5V

49 CL_RST# 50 GND

51 N.C. 52 +3.3Vaux

53 GND 54 GND

Connector Type

X10: PCIe mini card socket

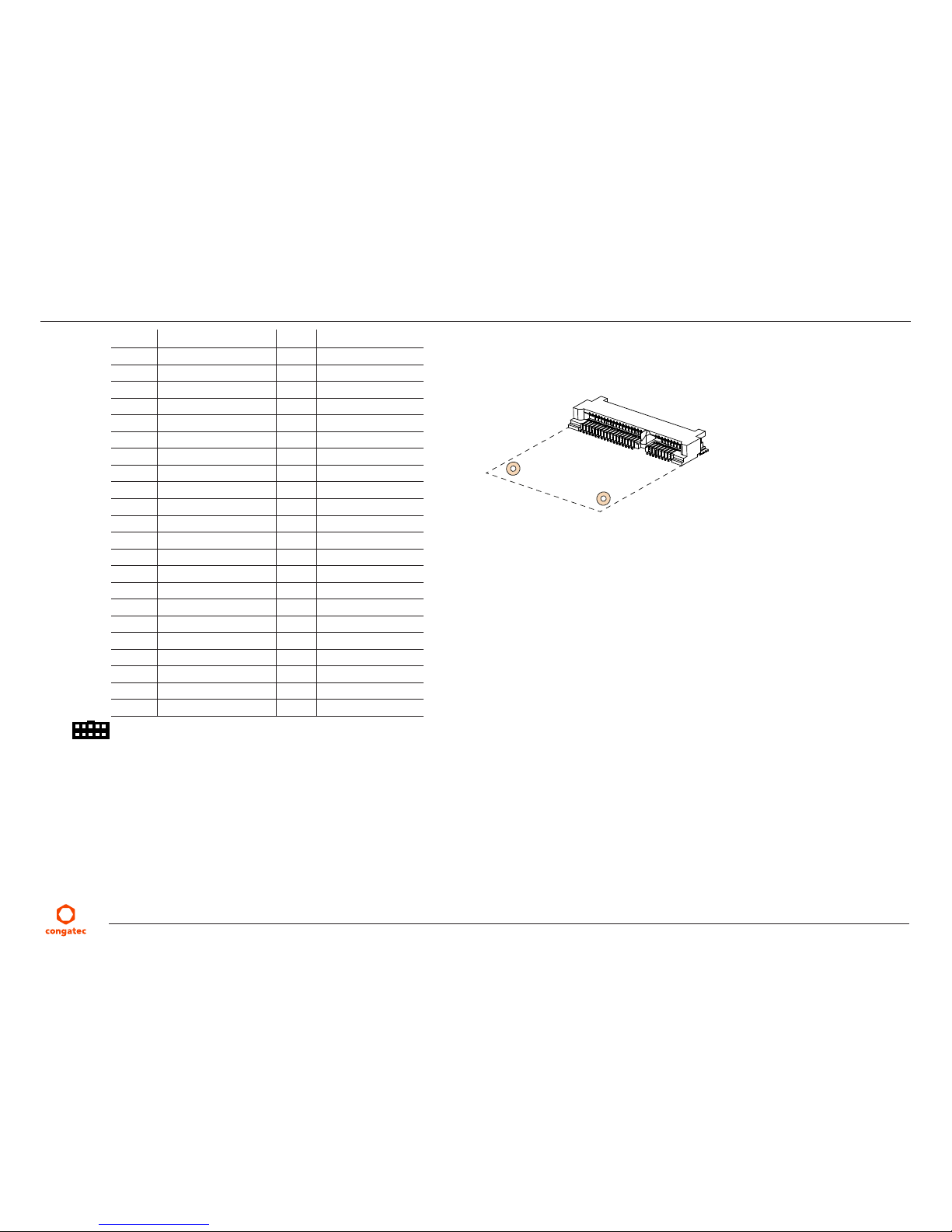

X10

mPCIe Socket

(Connector X10 )

M48

M47

Page 47

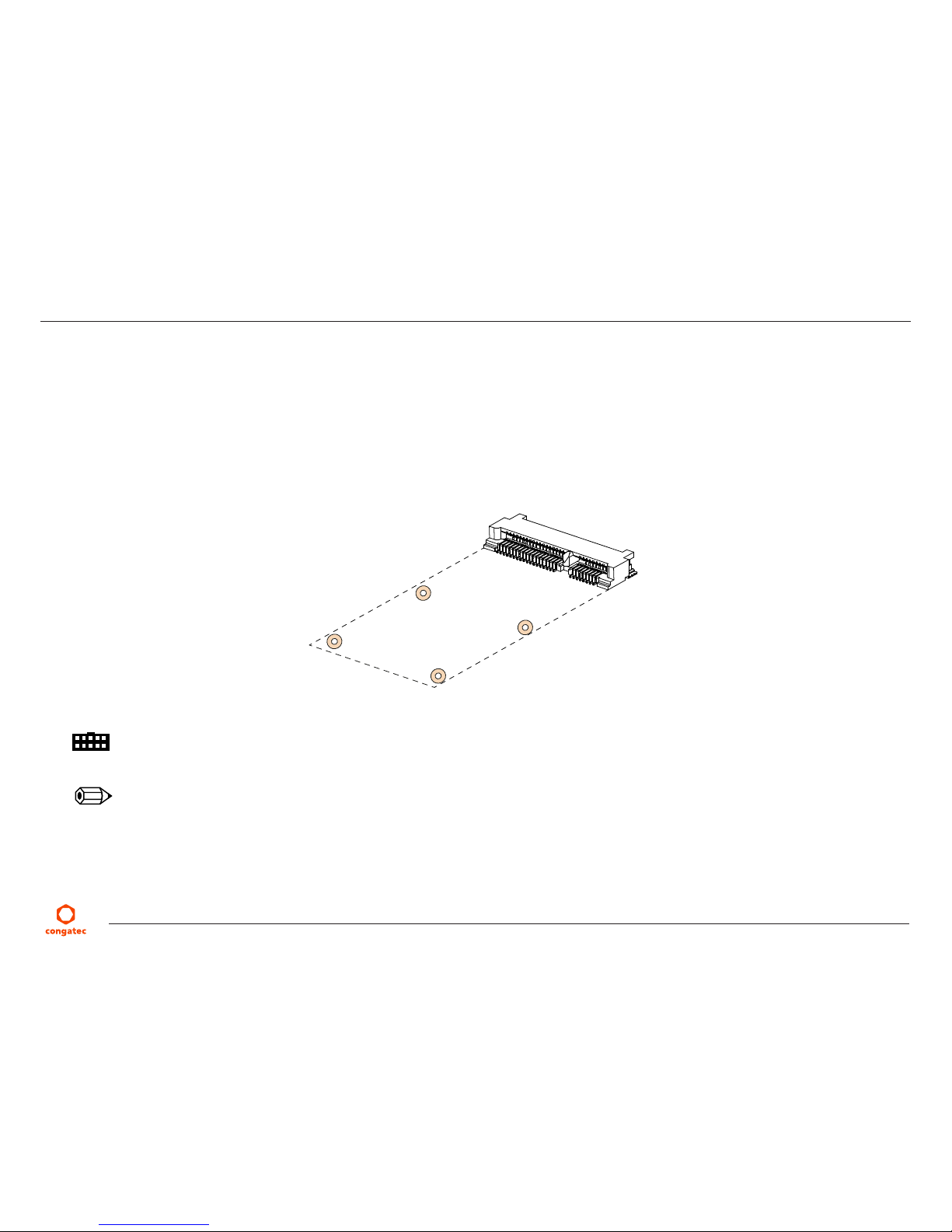

5.10.3 Mini PCIe (Full Size)

The conga-IA4 offers an mPCIe slot on connector X6. This connector shares the SoC's PCIe 0 signals with connector X9 (x1 PCIe slot), via a multiplexer.

The mPCIe slot supports both mPCIe and mSATA devices. When an mPCIe or mSATA device is attached to the mPCIe/mSATA slot (connector X6), the SoC automatically detects the type of device that is attached (via pin 43 - the signal detect pin)

See section 5.10.2 "Mini PCIe (Half Size)" for the mini PCIe Pinout Description.

Connector Type

X6: PCIe mini card socket

Note

Pins 21 and 43 of the mPCIe card must be terminated to ground for card present detection and card type recognition respectively.

The PCIe x1 slot on connector X9 will not function if you insert a mini PCIe card into the mPCIe slot (connector X6). To make use of the PCIe x1 slot, do not insert any mini PCIe device into the mPCIe slot (connector X6).

M43

M46

M44

M45

mSATA/mPCIe Socket

(Connector X6)

Page 48

5.10.4 PCI Express Routing

The diagram below shows how the PCIe lanes are routed to the PCIe connectors.

PCIe x1 Slot

Mini PCIe/Mini SATA Slot

Mini PCIe Slot

PCIe Lane0

USB Signals

PCIe Lane 1

MUX

USB Signals

SATA Signals

NOTE: The PCIe x1 Slot (X9) will not function if you insert an mPCIe card into connector X6 (mPCIe/mSATA).

If you intend to use connector X9 , do not insert any mini PCIe device into connector X6.

PCIe Lane Mapping

X10

Page 49

6 Additional Features

6.1 Front Panel Connector

The conga-IA4 SBC supports front panel features such as power button, status LEDs and reset button via connector X38 - a 10-pin internal header. This connector offers one power supply pin (3.3V). The signals FP_LED+ and FP_LED- communicates the system states to two LEDs connected to this header.

See section 5.1.5 “Power Status LED” for the possible states and corresponding activity of the LEDs.

Table 41 Front Panel (Connector X38) Pinout Description

Pin Function Description

1 HDD_POWER_LED+ Hard disk power LED with pull-up resistor to 3.3V.

2 FP_LED+ Power LED (main color)

3 SATA_ACT# Hard disk activity LED

4 FP_LED- Power LED (alternate color)

5 GND Ground

6 PWRBTN# Power button

7 SYS_RST# Reset button

8 GND Ground

9 3.3V +3.3V power supply (500mA power budget)

10 KEY No pin

Connector Type

X38: 10 pin header

Front Panel - Connector X38

Pin 9Pin 1

No Pin

Page 50

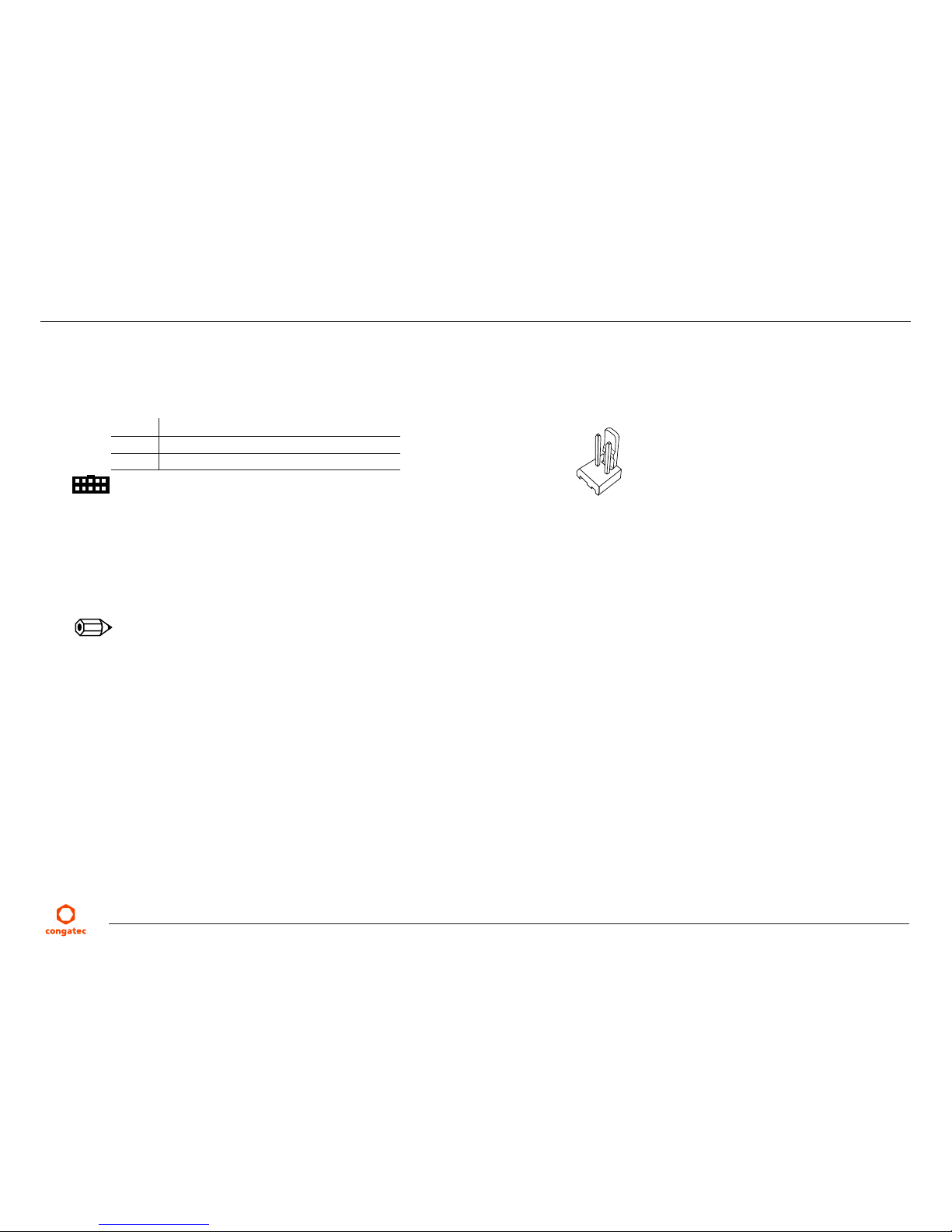

6.2 Case Open Intrusion Connector

The conga-IA4 provides connector X56 for case-open intrusion detection.

Table 42 Case Open Intrusion (X56) Pinout Description

Pin Function

1 GND

2 CASEOPEN#

Connector Type

X56: 2.54mm, 2 pin Molex connector.

6.3 Trusted Platform Module – TPM (Optional)

The conga-IA4 SBC can optionally be equipped with a TPM 1.2 compliant security chip. The TPM security chip is connected to the LPC bus provided by the integrated Intel Chipset. The basic TPM chip initialization is performed by the SBC’s UEFI Boot ﬁrmware.

Note

The TPM feature is not available by default. You need a customized variant for TPM support.

6.4 congatec Board Controller (cBC)

The conga-IA4 is equipped with a Texas Instruments Tiva™ TM4E1231H6ZRBI microcontroller. This onboard microcontroller plays an important role for most of the congatec BIOS features. It fully isolates some of the embedded features such as system monitoring or the I²C bus from the x86 core architecture, which results in higher embedded feature performance and more reliability, even when the x86 processor is in a low power mode.

6.4.1 Fan Control

The conga-IA4 has additional signals and functions to further improve system management. One of these signals is an output signal called FAN_PWMOUT that allows system fan control using a PWM (Pulse Width Modulation) output. Additionally, there is an input signal called FAN_TACHOIN that provides the ability to monitor the system’s fan RPMs (revolutions per minute). This signal must receive two pulses per

Case Open Intrusion - Connector X56

Page 51

revolution in order to produce an accurate reading. For this reason, a two pulse per revolution fan or similar hardware solution is recommended.

6.4.2 Power Loss Control

The cBC has full control of the power-up of the SBC, therefore can be used to specify the behavior of the system after an AC power loss condition. Supported modes are “Always On”, “Remain Off” and “Last State”.

6.4.3 Board Information

The cBC provides a rich data-set of manufacturing and board information such as serial number, EAN number, hardware and ﬁrmware revisions, and so on. It also keeps track of dynamically changing data like runtime meter and boot counter.

6.4.4 GPIOs

The conga-IA4 SBC provides eight General Purpose Inputs via the congatec board controller and eight General Purpose Outputs via the onboard Super I/O. The GPIO signals are routed to the feature connector X34.

6.5 OEM BIOS Customization

The conga-IA4 is equipped with congatec Embedded BIOS, which is based on American Megatrends Inc. Aptio UEFI ﬁrmware. The congatec Embedded BIOS allows system designers to modify the BIOS. For more information about customizing the congatec Embedded BIOS, refer to the congatec System Utility user’s guide, which is called CGUTLm1x.pdf and can be found on the congatec website at www.congatec.com or contact technical support.

The customization features supported are described below:

6.5.1 OEM Default Settings

This feature allows system designers to create and store their own BIOS default conﬁguration. Customized BIOS development by congatec for OEM default settings is no longer necessary because customers can easily perform this conﬁguration by themselves using the congatec system utility CGUTIL. See congatec application note AN8_Create_OEM_Default_Map.pdf on the congatec website for details on how to add OEM default settings to the congatec Embedded BIOS.

Page 52

6.5.2 OEM Boot Logo

This feature allows system designers to replace the standard text output displayed during POST with their own BIOS boot logo. Customized BIOS development by congatec for OEM Boot Logo is no longer necessary because customers can easily perform this conﬁguration by themselves using the congatec system utility CGUTIL. See congatec application note AN8_Create_And_Add_Bootlogo.pdf on the congatec website for details on how to add OEM boot logo to the congatec Embedded BIOS.

6.5.3 OEM POST Logo

This feature allows system designers to replace the congatec POST logo displayed in the upper left corner of the screen during BIOS POST with their own BIOS POST logo. Use the congatec system utility CGUTIL 1.5.4 or later to replace/add the OEM POST logo.

6.5.4 OEM BIOS Code/Data

With the congatec embedded BIOS, it is possible for system designers to add their own code to the BIOS POST process. The congatec Embedded BIOS ﬁrst calls the OEM code before handing over control to the OS loader.

Except for custom speciﬁc code, this feature can also be used to support Win XP SLP installation, Window 7 SLIC table (OA2.0), Windows 8 OEM activation (OA3.0), verb tables for HDA codecs, PCI/PCIe opROMs, bootloaders, rare graphic modes and Super I/O controller initialization.

Note

The OEM BIOS code of the new UEFI based ﬁrmware is only called when the CSM (Compatibility Support Module) is enabled in the BIOS setup menu. Contact congatec technical support for more information on how to add OEM code.

6.5.5 OEM DXE Driver

This feature allows designers to add their own UEFI DXE driver to the congatec embedded BIOS. Contact congatec technical support for more information on how to add an OEM DXE driver.

6.6 congatec Battery Management Interface

In order to facilitate the development of battery powered mobile systems based on embedded modules, congatec AG has deﬁned an interface for the exchange of data between a CPU module (using an ACPI operating system) and a Smart Battery system. A system developed according to the congatec Battery Management Interface Speciﬁcation can provide the battery management functions supported by an ACPI capable

Page 53

operating system (e.g. charge state of the battery, information about the battery, alarms/events for certain battery states, ...) without the need for any additional modiﬁcations to the system BIOS.

In addition to the ACPI-Compliant Control Method Battery mentioned above, the latest versions of the conga-IA4 BIOS and board controller ﬁrmware also support LTC1760 battery manager from Linear Technology and a battery only solution (no charger). All three battery solutions are supported on the I2C bus and the SMBus. This gives the system designer more ﬂexibility when choosing the appropriate battery sub-system.

For more information about this subject visit the congatec website and view the following documents:

• congatec Battery Management Interface Speciﬁcation

• Battery System Design Guide

• conga-SBM3 User’s Guide

6.7 API Support (CGOS)

congatec provides an API that allows application software developers to easily integrate the BIOS customization features mentioned above into their code. The CGOS API (congatec Operating System Application Programming Interface) is the congatec proprietary API that is available for all commonly used Operating Systems such as Win32, Win64, Win CE, Linux.

The architecture of the CGOS API driver provides the ability to write application software that runs unmodiﬁed on all congatec CPU modules. All the hardware related code is contained within the congatec embedded BIOS on the module. See section 1.1 of the CGOS API software developers guide, which is available on the congatec website .

6.8 Thermal/Voltage Monitoring

The conga-IA4 SBC features three temperature sensors - the CPU, memory and board controller sensors.

The board controller can monitor six different voltages which are main power, 5V (runtime), 5V (standby), 1.05V (runtime), VCORE, 3,3V (runtime) and 3,3V (standby).

Page 54

6.9 Beeper

The board-mounted speaker (M10) provides audible error code (beep code) information during POST.

6.10 External System Wake Event

The conga-IA4 supports LAN, USB, PCIe and PWRBTN driven wake up events.

6.11 Feature Connector

The conga-IA4 provides an internal 50 pol. 2mm pin header as feature connector. The pinout is described below:

Table 43 Feature Connector X34 Pinout Description

Pin Signal Pin Signal

1 +V5S 2 GND

3 LAD0 4 LAD1

5 LAD2 6 LAD3

7 LFRAME# 8 SERIRQ#

9 LPC_CLK (25MHz) 10 BUF_PLT_RST#

11 SMB_DATA 12 SMB_CLK

13 SMB_ALERT# 14 GND

15 TX_CGBC 16 RX_CGBC

17 GPO0 18 GPO1

19 GPO2 20 GPO3

21 GPO4 22 GPO5

23 GPO6 24 GPO7

25 GPI0 26 GPI1

PC Beeper

(M10)

Feature Connector X34

Page 55

Pin Signal Pin Signal

27 GPI2 28 GPI3

29 GPI4 30 GPI5

31 GPI6 32 GPI7

33 PM_SLP_S3# 34 PM_SLP_S5#

35 PM_SLP_S4# 36 LID_BTN#

37 SLP_BTN# 38 PM_THRM#

39 WDOUT 40 WDTRIG

41 I2C_DAT 42 PWR_OK

43 SPI_CS# 44 I2C_CLK

45 SPI_SO 46 BIOS_DISABLE#

47 SPI_CLK 48 SPI_SI

49 +V5A 50 GND

Connector Type

X34: 2mm, 2 x 25 pin header.

Page 56

7 conga-IA4 Mechanical Drawing

X33: Fan CPU

1-2 -> 12V

2-3 -> 5V

X36: Fan SYS

1-2 -> 12V

2-3 -> 5V

X29: Panel PWR

2 - 4 -> 3.3V (Default)

4 - 6 -> 5V

3 - 4 -> 12V

X30: Backlight

2 - 4 -> 3.3V

4 - 6 -> 5V

3 - 4 -> 12V (Default)

33.02

66.35

70.59

121.59

155.19

131.04

170

165.1

163.83

170

156.55

114.76

132.35

63.76

44.47

6.35

42.15

FRONT PANEL

HD AUDIO

INTERNAL

SPEAKER

SPDIF/DMIC

BUZZER

HALF-MINI CARD

PCIe (x1 or x4)

SATA1

SATA0

SATA_PWR

SYS_FAN

SBM3_PWR SBM3

PANEL_PWR

CPU_FAN

CASE_OPEN

FRONT_PANEL

USB3.0

BKLT POWER

PNL POWER

HALF-MINI CARD

Mini PCIe / mSATA

COM2

COM1

CPU + PCH

X33

X36

DDR3L MODULE

MONITOR_OFF

FULL-MINI CARD

LVDS

X30

FEATURE CONNECTIOR

X29

BACKLIGHT

OPTIONAL

ccTALK

TPM PP

LAN 1

LAN 2

2x USB 3.0

DISPLAY PORT ++

DISPLAY

PORT ++

HEADSET

MIC

2x USB 2.0

PLUG

Page 57

8 BIOS Setup Description

The following section describes the BIOS setup program. The BIOS setup program can be used to view and change the BIOS settings for the module. Only experienced users should change the default BIOS settings.

8.1 Entering the BIOS Setup Program.

The BIOS setup program can be accessed by pressing the <DEL> or <ESC> key during POST.

8.1.1 Boot Selection Popup

Press the <F11> key during POST to access the Boot Selection Popup menu. A selection menu displays immediately after POST, allowing the operator to select either the boot device that should be used or an option to enter the BIOS setup program.

8.2 Setup Menu and Navigation

The congatec BIOS setup screen is composed of the menu bar, left frame and right frame. The menu bar is shown below:

Main Advanced Chipset Boot Security Save & Exit

The left frame displays all the options that can be conﬁgured in the selected menu. Grayed-out options cannot be conﬁgured. Only the blue options can be conﬁgured. When an option is selected, it is highlighted in white.

The right frame displays the key legend. Above the key legend is an area reserved for text messages. These text messages explain the options and the possible impacts when changing the selected option in the left frame.

Note

Entries in the option column that are displayed in bold indicate BIOS default values.

Page 58

The setup program uses a key-based navigation system. Most of the keys can be used at any time while in setup. The table below explains the supported keys:

Key Description

j i Left/Right Select a setup menu (e.g. Main, Boot, Exit).

k l Up/Down Select a setup item or sub menu.

+ - Plus/Minus Change the ﬁeld value of a particular setup item.

Tab Select setup ﬁelds (e.g. in date and time).

F1 Display General Help screen.

F2 Load previous settings.

F9 Load optimal default settings.

F10 Save changes and exit setup.

ESC Discard changes and exit setup.

ENTER Display options of a particular setup item or enter submenu.

8.3 Main Setup Screen

When you ﬁrst enter the BIOS setup, you will see the main setup screen. The main setup screen reports BIOS, processor, memory and board information and is for conﬁguring the system date and time. You can always return to the main setup screen by selecting the ‘Main’ tab.

Feature Options Description

Main BIOS Version No option Displays the main BIOS version.

OEM BIOS Version No option Displays the additional OEM BIOS version.

Build Date No option Displays the date the BIOS was built.

Product Revision No option Displays the hardware revision of the board.

Serial Number No option Displays the serial number of the board.

BC Firmware Revision No option Displays the ﬁrmware revision of the congatec board controller.

MAC Address (1

Ethernet) No option Displays the MAC address of the onboard Ethernet controller.

MAC Address (2

Ethernet) No option Displays the MAC address of the onboard Ethernet controller.

Boot Counter No option Displays the number of boot ups.

Note: The value is limited to 16777215.

Running Time No option Displays the board-runtime in hours.

Note: The value is limited to 65535.

Microcode Patch No option Displays the processor's microcode revision.

Page 59

Feature Options Description

Total Memory No option Displays total amount of low voltage DDR3 on the system.

Intel

GOP Driver No option Displays the GOP driver version.

Sec RC Version No option Displays the SEC revision.

TXE FW Version No option Displays the Trusted Execution Environment (TXE) ﬁrmware revision.

System Language English Displays the default system language.

System Date Day of week, month/day/year Speciﬁes the current system date Note: The date is in month/day/year format.

System Time Hour:Minute:Second Speciﬁes the current system time. Note: The time is in 24-hour format.

8.4 Advanced Setup

Select the advanced tab from the setup menu to enter the advanced BIOS setup screen. The menu is used for setting advanced features and only features described within this user’s guide are listed.

Main Advanced Chipset Boot Security Save & Exit

Watchdog

Hardware Health Monitoring

Graphics

Intel

I211 Gigabit Network (Ethernet 1)

Intel

I211 Gigabit Network (Ethernet 2)

Driver Health

Trusted Computing

RTC Wake

Reserve Legacy Interrupt

ACPI

Super IO

Serial Port Console Redirection

CPU

PPM Conﬁguration

Thermal Conﬁguration

SATA

LPSS & SCC Conﬁguration

PCI & PCI Express

Page 60

Main Advanced Chipset Boot Security Save & Exit

UEFI Network Stack

CSM & Option ROM Control

Info Report Conﬁguration

NVMe Conﬁguration

SDIO Conﬁguration

USB

Diagnostic Settings

Platform Trust Technology

Security Conﬁguration

IntelMRT Conﬁguration

PC Speaker

8.4.1 Watchdog Submenu

Feature Options Description

POST Watchdog Disabled

30sec 1min 2min 5min 10min 30min

Set the timeout value for the POST watchdog. The watchdog is only active during the POST of the system and provides a facility to prevent errors during boot up by performing a reset.

Stop Watchdog for User Interaction

Yes

Select whether the POST watchdog should be stopped during the popup of the boot selection menu or while waiting for the setup password.

Runtime Watchdog Disabled

One-time Trigger Single Event Repeated Event

Select the operating mode of the runtime watchdog: ‘One-time Trigger’ - Disables watchdog after ﬁrst trigger. ‘Single Event’ - Executes every stage only once before the watchdog is disabled. ‘Repeated Event’ - Executes last stage repeatedly until reset. Note: This watchdog will be initialized just before the operating system starts booting.

Delay Disabled

10sec 30sec 1min 2min 5min 10min 30min

The runtime watchdog is delayed for the selected time. Note: Use this feature to ensure that the operating system has enough time to load.

Page 61

Feature Options Description

Event 1 ACPI Event

Reset

Power Button

Select the type of event that will be generated when timeout 1 is reached.

Event 2 Disabled

ACPI Event Reset Power Button

Select the type of event that will be generated when timeout 2 is reached.

Event 3 Disabled

ACPI Event Reset Power Button

Select the type of event that will be generated when timeout 3 is reached.

Timeout 1 1sec

2sec 5sec 10sec

30sec

1min 2min 5min 10min 30min

Set the timeout value for the ﬁrst stage watchdog event.

Timeout 2 Same as ‘Timeout 1’ Same as ‘Timeout 1’.

Timeout 3 Same as ‘Timeout 1’ Same as ‘Timeout 1’.

Watchdog ACPI Event

Shutdown

Restart

Select the operating system event that is initiated by the watchdog ACPI event. This feature performs a critical but orderly operating system shutdown or restart.

Note

In ACPI mode, the "Watchdog ACPI Event" handler cannot restart or shutdown the OS directly. For this reason, the congatec BIOS will

• For shutdown: execute an over-temperature notiﬁcation. This causes the operating system to shut down in an orderly fashion

• For restart: report an ACPI fatal error to the operating system.

Page 62

8.4.2 Hardware Health Monitoring Submenu

Feature Options Description

CPU Temperature No option Displays the CPU temperature in °C.

Board Temperature No option Displays the board temperature in °C.

TS AMBIENT DXP No option Displays the module environment temperature in °C.

DIMM DXP No option Displays the module DIMM DXP Temperature in °C.

3.3V Standard No option Displays the actual voltage of the 3.3V standard power supply.

5V Standard No option Displays the actual voltage of the 5V standard power supply.

12V Standard No option Displays the actual voltage of the 12V standard power supply.

VCORE No option Displays the actual voltage of the VCORE power supply.

System Fan Speed No option Displays the System Fan Speed in RPM.

CPU Fan Speed No option Displays the CPU fan speed in RPM.

System Fan Mode Smart Mode

PWM Mode

Conﬁgures the System Fan Mode

System Fan PWM Speed Setting

0% 10% 20% 30% 40% 50% 60% 70%, 80% 90%

100%

Select minimum/start fan speed to be set when the start temperature of the control slope is reached.

CPU Fan Speed Mode Smart Mode

PWM Mode

Conﬁgures the CPU Fan Mode

Page 63

Feature Options Description

CPU Fan PWM Speed Setting

0% 10% 20% 30% 40% 50% 60% 70%, 80% 90%

100%

Select minimum/start fan speed to be set when the start temperature of the control slope is reached.

8.4.3 Graphics Submenu

Feature Options Description

Active LFP Conﬁguration No Local Flat Panel

Integrated LVDS

Select the active local ﬂat panel (LFP) conﬁguration.

Always Try Auto Panel Detect No

Yes

If set to ‘Yes’, the BIOS will use the EDID™ data set in an external EEPROM to conﬁgure the LFP. In case it cannot be found, the data set selected under ‘Local Flat Panel Type’ will be used.

Local Flat Panel Type Auto

VGA 640x480 1x18 (002h) VGA 640x480 1x18 (013h) WVGA 800x480 1x18 (01Fh) WVGA 800x480 1x24 (01Bh) SVGA 800x600 1x18 (01Ah) XGA 1024x768 1x18 (006h) XGA 1024x768 2x18 (007h) XGA 1024x768 1x24 (008h) XGA 1024x768 2x24 (012h) WXGA 1280x800 1x18 (01Eh) WXGA 1280x768 1x24 (01Ch) SXGA 1280x1024 2x24 (00Ah) SXGA 1280x1024 2x24 (018h) UXGA 1600x1200 2x24 (00Ch) HD 1920x1080 2x24 (01Dh) WUXGA 1920x1200 2x18 (015h) WUXGA 1920x1200 2x24 (00Dh) Customized EDID™ 1 Customized EDID™ 2 Customized EDID™ 3

Select a predeﬁned LFP type or choose ‘Auto’ to let the BIOS automatically detect and conﬁgure the attached LVDS panel. Auto detection is performed by reading an EDID™ data set via the video I²C bus. The number in brackets speciﬁes the congatec internal number of the respective panel data set.

Note: Customized EDID™ utilizes an OEM deﬁned EDID™ data set stored in the BIOS ﬂash device.

Page 64

Feature Options Description

Backlight Inverter Type None

PWM

I2C

Select the type of backlight inverter: ‘PWM’ - IGD PWM signal. ‘I2C’ - I2C backlight inverter device connected to the video I²C bus.

PWM Inverter Polarity Normal

Inverted

Select PWM inverter polarity. Note: This feature is only visible if the ‘Backlight Inverter Type’ is set to ‘PWM’.

PWM Inverter Frequency (Hz) 200 - 40000 Set the PWM inverter frequency in Hz.

Note: This feature is only visible if the ‘Backlight Inverter Type’ is set to ‘PWM’.

Backlight Setting 0%

10% 25% 40% 50% 60% 75% 90%

100%

Set backlight value in percentage of the maximum setting.

Inhibit Backlight No

Permanent Until End Of POST

Select whether the backlight enable signal should be activated when the panel is activated, remain inhibited until the end of BIOS POST, or remain inhibited permanently.

Force LVDS Backlight No

Yes

If set to 'Yes', this feature forces LVDS enable and LVDS VDD signals unconditionally

LVDS SSC Disabled

0.5%

1.0%

1.5%

2.0%

2.5%

Select LVDS spread-spectrum clock modulation depth. Note: This feature performs center spreading with a ﬁxed modulation frequency of 32.9kHz.

Digital Display Interface 1 Auto Selection

Disabled DisplayPort HDMI/DVI

Select the output type of the DDI 1.

Digital Display Interface 2 Auto Selection

Disabled DisplayPort HDMI/DVI

Select the output type of the DDI 2.

Page 65

8.4.4 Intel® I211 Gigabit Network Connection (Ethernet 1) Submenu

Feature Options Description

► NIC Conﬁguration Submenu Conﬁgure Boot Protocol, Wake on LAN, Link Speed and VLAN.

Blink LEDs 0 Identify the physical network port by blinking the associated LED.

UEFI Driver No option Displays the UEFI Driver version.

Adapter PBA No option Displays the Adapter PBA.

Chip Type No option Displays the type of the Chip.

PCI Device ID No option Displays the PCI Device ID.

Bus:Device:Function No option

Link Status Disconnected Displays the Link Status.

MAC Address No option Displays the MAC Address.

8.4.5 Intel® I211 Gigabit Network Connection (Ethernet 2) Submenu

Feature Options Description

► NIC Conﬁguration Submenu Conﬁgure Boot Protocol, Wake on LAN, Link Speed and VLAN.

Blink LEDs 0 Identify the physical network port by blinking the associated LED.

UEFI Driver No option Displays the UEFI Driver version.

Adapter PBA No option Displays the Adapter PBA.

Chip Type No option Displays the type of the Chip.

PCI Device ID No option Displays the PCI Device ID.

Bus:Device:Function No option

Link Status Disconnected Displays the Link Status.

MAC Address No option Displays the MAC Address.

8.4.5.1 NIC Conﬁguration Submenu

Feature Options Description

Link Speed Auto Negotiated

10 Mbps Half 10 Mbps Full 100 Mbps Half 100 Mbps Full

Set the port speed for the selected boot protocol.

Page 66

Feature Options Description

Wake on LAN Enabled

Disabled

Enable or disable the Wake on LAN (WOL) feature

8.4.6 Driver Health Submenu

Feature Options Description

►Intel® PRO/1000 Submenu Displays health status for the drivers/controllers connected to the system.

8.4.7 Trusted Computing Submenu

Feature Options Description

Security Device Support Disabled

Enabled

Enable or disable TPM support. Note: Please restart your system for the change to take effect.

User Conﬁrmation Disabled

Enabled

Enable or disable user conﬁrmation requests for certain transactions.

TPM State Disabled

Enabled

Enable or disable TPM chip. Note: The system may restart several times during POST to acquire the target state.

Pending operation None

Enable Take Ownership Disable Take Ownership TPM Clear

Perform selected TPM chip operation. Note: The system may restart several times during POST to perform the selected operation.

8.4.8 RTC Wake Submenu

Feature Options Description

Wake System At Fixed Time Disabled

Wake from S5 only Wake from S4 and S5 Wake from S3, S4 and S5

Set system wake mode on alarm event. When enabled, system will wake from the speciﬁed Sx states on the hr:min:sec speciﬁed.

Wake up hour 0 - 23 Specify the wake up hour. For example: Enter “3” for 3am and “15” for 3pm.

Wake up minute 0 - 59 Specify the wake up minute.

Wake up second 0 - 59 Specify the wake up second.

Page 67

8.4.9 Reserve Legacy Interrupt Submenu

Feature Options Description

Reserve Legacy Interrupt 1, 2, 3

None

IRQ3 IRQ4 IRQ5 IRQ6 IRQ10 IRQ11 IRQ14 IRQ15

Use this feature to reserve the interrupt for a legacy bus device. Note: The selected interrupt will not be assigned to a PCI/PCIe device.

8.4.10 ACPI Submenu

Feature Options Description

Enable ACPI Auto Conﬁguration

Disabled

Enabled

Enable or disable BIOS ACPI auto conﬁguration

Hibernation Support Disabled

Enabled

Enable or disable the system’s ability to hibernate (OS S4 sleep state). Note: If you want to use this feature, please ensure that the operating system supports it.

ACPI Sleep State Suspend Disabled

S3 (Suspend to RAM)

Select the state used for ACPI system sleep/suspend.

Lock Legacy Resources Disabled

Enabled

Enable this feature to lock legacy resources.

LID Button Support Disabled

Enabled

If this feature is enabled, COM Express LID# signal acts as ACPI lid.

Sleep Button Support Disabled

Enabled

If this feature is enabled, COM Express SLEEP# signal acts as ACPI sleep button.

8.4.11 Super IO Submenu

Feature Options Description

Super IO Chip No option Displays super IO chip.

►Serial Port 1 Conﬁguration Submenu Serial port 1 submenu.

►Serial Port 2 Conﬁguration Submenu Serial port 2 submenu.

Page 68

8.4.11.1 Serial Port 1 Conﬁguration Submenu

Feature Options Description

Serial Port Disabled

Enabled

Enable or disable serial port (COM).

Device Settings No option Displays current device settings.

Change Settings Auto

IO=3F8; IRQ=4; IO=3F8; IRQ=3,4,5,6,7,9,10,11, 12; IO=2F8; IRQ=3,4,5,6,7,9,10,11, 12; IO=3E8; IRQ=3,4,5,6,7,9,10,11, 12; IO=2E8; IRQ=3,4,5,6,7,9,10,11, 12;

Serial Port 1 conﬁguration options.

8.4.11.2 Serial Port 2 Conﬁguration Submenu

Feature Options Description

Serial Port Enabled

Disabled

Enable or disable serial port (COM).

Change Settings Use Automatic Settings

IO=2F8; IRQ=3; IO=3F8; IRQ=3,4,5,6,7,9,10,11, 12; IO=2F8; IRQ=3,4,5,6,7,9,10,11, 12; IO=3E8; IRQ=3,4,5,6,7,9,10,11, 12; IO=2E8; IRQ=3,4,5,6,7,9,10,11, 12;

Serial Port 2 conﬁguration options.

Device Mode Standard Serial Port Mode

IrDA Active pulse 1.6 uS IrDA Active pulse 3/16 bit time ASKIR Mode

Select the serial port mode.

8.4.12 Serial Port Console Redirection Submenu

Feature Options Description

COM0 Console Redirection Disabled

Enabled

Enable or disable serial port 0 console redirection.

►Console Redirection Settings Submenu Opens 'Console Redirection Settings' submenu.

COM1 Console Redirection Disabled

Enabled

Enable or disable serial port 0 console redirection.

Page 69

Feature Options Description

►Legacy Console Redirection Settings

Submenu Opens ‘Legacy Console Redirection Settings’ submenu.

Serial Port for Out-of-Band Management / EMS Console Redirection

Disabled

Enabled

Enable or disable ‘Serial Port for Out-of-Band Management / Windows Emergency Management Services’.

►Console Redirection Settings Submenu Opens ‘Console Redirection Settings’ submenu.

8.4.12.1 Console Redirection Settings Submenu

Feature Options Description

Terminal Type VT100

VT100+ VT-UTF8

ANSI

Set the terminal type.

Baudrate 9600

19200 38400 57600

115200

Set baud rate.

Data Bits 7

Set number of data bits.

Parity None

Even Odd Mark Space

Set parity.

Stop Bits 1

Set number of stop bits.

Flow Control None

Hardware RTS/CTS

Set ﬂow control.

VT-UTF8 Combo Key Support Disabled

Enabled

Enable or disable the VT-UTF8 combination key support for ANSI/VT100 terminals.

Recorder Mode Disabled

Enabled

Enable this feature to only send text output over the terminal. Note: This feature is helpful to capture and record terminal data.

Resolution 100x31 Disabled

Enabled

Enable or disable extended terminal resolution.

Legacy OS Redirection Resolution

80x24

80x25

Select the number of rows and columns for the legacy operating system redirection.

Page 70

Feature Options Description

Putty KeyPad VT100

LINUX XTERMR6 SCO ESCN VT400

Select the function key and keypad for Putty.

Redirection After BIOS POST Enabled

Disabled

If BootLoader is selected, Legacy console redirection is disabled before booting to Legacy OS. Default value is ‘Always Enable’ which means Legacy console redirection is enabled for Legacy OS.

8.4.13 Legacy Console Redirection Settings

Feature Options Description

Legacy Console Redirection Port COM0

COM1

Select a COM port to display redirection of Legacy OS and Legacy OPROM Messages.

8.4.13.1 Console Redirection Settings Out-of-Band Management Submenu

Feature Options Description

Out-of-Band Mgmt Port COM0

COM1

Microsoft Windows Emergency Management Services (EMS) allows remote management of a Windows Server operating system through a serial port.

Terminal Type VT100

VT100+

VT-UTF8

ANSI

Set the terminal type.

Baudrate 9600

19200 38400 57600

115200

Set the baud rate.

Flow Control None

Hardware RTS/CTS Sotware Xon/Xoff

Data Bits 8 Set the number of data bits.

Parity None Set the parity.

Stop Bits 1 Set the number of stop bits.

Page 71

8.4.14 CPU Conﬁguration Submenu

Feature Options Description

►Socket 0 CPU Information Submenu Socket speciﬁc CPU information.

CPU Speed No option Displays the CPU clock frequency.

64-bit No option Displays 64-bit support information.

Limit CPUID Maximum Disabled

Enabled

If enabled, the processor limits the maximum CPUID input value to 03h when queried, even if the processor supports a higher CPUID input value. If disabled, the processor returns the actual maximum CPUID input value of the processor when queried. Note: Limiting the CPUID input value may be required for older operating systems that cannot handle the extra CPUID information returned when using the full CPUID input value.

Bi-directional PROCHOT Disabled

Enabled

If enabled, external agents can drive PROCHOT# to throttle the processor. If disabled, a processor thermal sensor trips (either core), the PROCHOT# will be driven.

Intel

Virtualization Technology Disabled

Enabled

Enable or disable support for the Intel virtualization technology.

Power Technology Disable

Energy Efﬁcient

Custom

Select the power technology schema for the CPU.

EIST Disabled

Enabled

Enable or disable Enhanced Intel SpeedStep Technology (EIST).

Turbo Mode Disabled

Enabled

Enable or disable turbo mode.

P-State Coordination HW_ALL

SW_ALL SW_ANY

Set P-state coordination type.

Package C State Limit C1

C3 C6 C7

Set package C-state limit.

8.4.14.1 Socket 0 CPU Information Submenu

Feature Options Description

CPU Name No option Displays the socket speciﬁc CPU name.

CPU Signature No option Displays the CPU signature number.

Microcode Patch No option Displays the CPU microcode patch number.

Max CPU Speed No option Displays the maximal CPU clock frequency.

Min CPU Speed No option Displays the minimal CPU clock frequency.

Page 72

Feature Options Description

Processor Cores No option Displays the number of CPU core on Socket CPU.

Intel

HT Technology No option Displays the Intel® HT Technology support information.

Intel

VT-x Technology No option Displays the Intel VT-x technology support information.

L1 Data Cache No option Displays the Socket L1 data cache information.

L1 Code Cache No option Displays the Socket L1 code cache information.

L2 Cache No option Displays the Socket L2 cache information.

L3 Cache No option Displays the Socket L3 cache information.

8.4.15 PPM Conﬁguration Submenu

Feature Options Description

EIST Disabled

Enabled

Enable or disable Enhanced Intel SpeedStep Technology (EIST).

CPU C state Report Disabled

Enabled

Enable or disable CPU state report to OS.

Max CPU C state C7

Select maximum CPU C-state supported by the CPU.

SOix Disabled

Enabled

Enable or disable CPU SOix state support.

8.4.16 Thermal Conﬁguration

Feature Options Description

DTS Enabled

Disabled

Enable or disable Digital Thermal Sensor (DTS).

Critical Trip Point Default: 95

0 - 100

Set the temperature of the ACPI critical trip point at which the operating system will shut the system off.

OS Hibernate Temperature Default: 85

0 - 110

Set the temperature that causes the operating system to trigger the system to hibernate.

Passive Trip Point Default: 85

0 - 90

Set the temperature of the ACPI passive trip point at which the operating system will begin throttling the processor.

Full Speed Fan Trip Point Default: 80

0 - 90

Set the temperature at which the fan is activated at full speed.

Half Speed Fan Trip Point Default: 60

0 - 90

Set the temperature at which the fan is activated at half speed.

Page 73

Feature Options Description

Fan Hysteresis 0 - 7 Set number of degrees for the temperature to decrease before the fan is switched off again.

8.4.17 SATA Submenu

Feature Options Description

SATA Controller Enabled

Disabled

Enable or disable SATA onboard SATA controller(s).

SATA Mode Selection AHCI Select SATA controller mode.

SATA Interface Speed Gen1

Gen2

Gen3

Select SATA Interface Speed. Note: CHV A1 always with Gen1 Speed.

SATA Test Mode Enabled

Disabled

Enable only during veriﬁcation measurements.

Aggressive LPM Support Enabled

Disabled

Enable PCH to aggressively enter link power state.

►Software Feature Mask Conﬁguration

Submenu

SATA Port 0 Enabled

Disabled

Enable or disable SATA port 0.

Spin Up Device Enabled

Disabled

If enabled for any ports, staggered spin up will be performed and only the drives which have this option enabled will spin up at boot. Otherwise all drives spin up at boot.

Device Sleep Support Enabled

Disabled

Enable or disable device sleep support on that port.

SATA Port 1 Enabled

Disabled

Enable or disable SATA port 1.

Spin Up Device Enabled

Disabled

If enabled for any ports, staggered spin up will be performed and only the drives which have this option enabled will spin up at boot. Otherwise, all drives spin up at boot.

Device Sleep Support Enabled

Disabled

Enable or disable device sleep support on that port.

8.4.17.1 Software Feature Mask Conﬁguration Submenu

Feature Options Description

HDD Unlock Enabled

Disabled

If enabled, indicates that the HDD password unlock in the operating system is enabled.

LED Locate Enabled

Disabled

If enabled, indicates that the LED/SGPIO hardware is attached and ping to locate feature is enabled on the OS.

Page 74

8.4.18 LPSS & SCC Conﬁguration Submenu

Feature Options Description

SCC eMMC Support ACPI Mode

PCI Mode Disabled

Enable or disable SCC eMMC support.

eMMC Secure Erase Enabled

Disabled

Enable or disable eMMC secure erase support.

SCC SD Card Support (D18:F0) ACPI Mode

PCI Mode Disabled

Enable or disable SCC SD card support.

SD Card 1.8v Switching Delay 0 - 999ms Set SD card 1.8v switching delay.

SD Card 3.3v Discharge Delay Default: 250

0 - 999ms

Set SD card 3.3v discharge delay.

LPSS with GPIO Devices Support Disabled

Enabled

If this feature is disabled, all LPSS devices are disabled.

LPSS DMA #1 ACPI Mode

PCI Mode Disabled

Enable or disable LPSS DMA #1 support.

LPSS DMA #2 ACPI Mode

PCI Mode Disabled

Enable or disable LPSS DMA #2 support.

LPSS I2C #3 ACPI Mode

PCI Mode Disabled

Enable or disable LPSS I2C #3 support.

Runtime D3 Support Enabled

Disabled

Enable or disable Runtime D3 support.

LPSS I2C #4 ACPI Mode

PCI Mode

Disabled

Enable or disable LPSS I2C #4 support.

8.4.19 PCI & PCI Express

Feature Options Description

PCI Bus Driver Version No option Displays PCI bus driver version.

Page 75

Feature Options Description

PCI Latency Timer 32 PCI Bus Clocks

64 PCI Bus Clocks 96 PCI Bus Clocks 128 PCI Bus Clocks 160 PCI Bus Clocks 192 PCI Bus Clocks 224 PCI Bus Clocks 248 PCI Bus Clocks

Select the value to be programmed into PCI latency timer register.

PCI-X Latency Timer 32 PCI Bus Clocks

64 PCI Bus Clocks

96 PCI Bus Clocks 128 PCI Bus Clocks 160 PCI Bus Clocks 192 PCI Bus Clocks 224 PCI Bus Clocks 248 PCI Bus Clocks

Select the value to be programmed into PCI latency timer register.

VGA Palette Snoop Disabled

Enabled

Enable or disable VGA palette registers snooping.

PERR# Generation Disabled

Enabled

Enable or disable PCI device to generate PERR#.

SERR# Generation Disabled

Enabled

Enable or disable PCI device to generate SERR#.

Above 4G Decoding Disabled

Enabled

Enable this feature to decode 64-bit capable devices in Above 4G address space. Note: Please ensure that the system supports 64-bit PCI decoding if you want to use this feature.

Don’t Reset VC-TC Mapping Disabled

Enabled

If the system has virtual channels, software can reset the trafﬁc class mapping through virtual channels to its default state. Note: Enabling this feature will not modify VC resources.

8.4.20 UEFI Network Stack

Feature Options Description

Network Stack Enabled

Disabled

Enable or disable the UEFI network stack.

IPv4 PXE Support Enabled

Disabled

If this feature is disabled, IPV4 PXE boot option will not be created.

IPv6 PXE Support Enabled

Disabled

If this feature is disabled, IPV6 PXE boot option will not be created.

PXE boot wait time 0 - 5 Set wait time to press ESC key to abort the PXE boot.

Page 76

Feature Options Description

Media detect count 1 - 50 Set the number of times to check for the presence of media.

8.4.21 CSM & Option ROM Control Submenu

Feature Options Description

CSM Support Enabled

Disabled

Enable or disable the compatibility support module.

CSM16 Module Version No option Displays CSM module version number.

Gate A20 Active Upon Request

Always

Conﬁgure legacy gate A behavior.

Option ROM Messages Force BIOS

Keep Current

Enable or disable option ROM message.

INT19 Trap Response Immediate

Postponed

Set BIOS reaction on INT19 trapping: ‘Immediate’ - Executes the trap right away. ‘Postpone’ - Executes the trap during legacy boot.

Boot Option Filter UEFI and Legacy

Legacy Only UEFI Only

Select which devices / boot loaders the system should boot to.

Network Do not launch

UEFI only

Legacy only

Select the execution of UEFI and legacy Network option ROMs.

Storage Do not launch

UEFI only

Legacy only

Select the execution of UEFI and legacy Storage option ROMs.

Video Do not launch

UEFI only

Legacy only

Select the execution of UEFI and legacy Video option ROMs

Other PCI Devices UEFI only

Legacy only Do not launch

Select the execution of UEFI and legacy option ROMs for any PCI device other than network, video and storage.

8.4.22 Info Report Conﬁguration

Feature Options Description

POST Report Disabled

Enabled

Enable or disable POST report support.

Page 77

Feature Options Description

Delay Time 0 - 10

Until Press ESC

Set POST report time in seconds or to wait until ESC key is pressed.

Error Message Report Disabled

Enabled

Enable or disable error message support.

Summary Screen Disabled

Enabled

Enable or disable summary screen.

Delay Time 0 - 10

Until Press ESC

Set summary screen from 0 to 10 seconds or select to wait till ESC key is pressed.

8.4.23 NVMe Submenu

Feature Options Description

NVMe controller and Drive Information No option

8.4.24 SDIO Submenu

Feature Options Description

SDIO Access Mode Auto

ADMA SDMA PIO

'Auto Option' - Access SD device in DMA mode if controller supports it, otherwise in PIO mode. 'MDA Option' - AccessSD device in DMA mode. 'PIO Option' - Access SD device in PIO mode.

8.4.25 USB Submenu

Feature Options Description

USB Module Version No option Displays the version of the USB module.

USB Controllers No option Displays the available USB controllers.

USB Devices No option Displays the detected USB devices.

Legacy USB Support Enabled

Disabled Auto

‘Enable’ - Enables legacy USB support. ‘Disable’ - Keeps USB devices available only for EFI applications and BIOS setup. ‘Auto’ - Disables legacy support if no USB devices are connected.

xHCI Hand-off Enabled

Disabled

This is a workaround for operating systems without xHCI hand-off support. Note: If this feature is enabled, the xHCI ownership change should be claimed by xHCI operating system driver.

Page 78

Feature Options Description

USB Mass Storage Driver Support Disabled

Enabled

Enable or disable mass storage driver support.

Port 60/64 Emulation Disabled

Enabled

Enable or disable I/O port 60h/64h emulation support. Note: Enable this feature for the complete USB keyboard legacy support for non-USB aware operating systems.

USB Transfer Timeout 1 sec

5 sec 10 sec

20 sec

Set the timeout value for control, bulk, and interrupt transfers.

Device Reset Timeout 10 sec

20 sec

30 sec 40 sec

Set USB legacy mass storage device start unit command timeout.

Device Power-Up Delay Selection Auto

Manual

Select whether the delay time for a USB device to report itself properly to the host controller should be set automatically or manually. If set to ‘Auto’, the delay is 100ms for a root port or the value is derived from the hub descriptor for a hub port.

Device Power-Up Delay Value Default: 5

0 - 40

Set power-up delay value in seconds.

SanDisk Cruzer Micro 8.01 Auto

Floppy Forced FDD Hard Disk CD-ROM

Select mass storage device emulation type: ‘Auto’ - Enumerates devices according to their media format. Note: Drives without media will be emulated according to the drive type.

8.4.26 Security Conﬁguration

Feature Options Description

Relay Interface Disabled

I2C SMBus BC Diagnostic Console

Select the relay interface to which the POST code will be redirected.

Primary port Addr. Lowbyte (Dec)

0-128 Set the Address for the primary debug port. The usual address value is 0x80. However, any multiple

of 8 is valid for a primary debug port address, i.e. the lower three bits must be zero.

Primary port Addr. Highbyte (Dec)

0-128 Set the Address for the primary debug port. The usual address value is 0x80. However, any multiple

of 8 is valid for a primary debug port address, i.e. the lower three bits must be zero.

Relay Device Address (Dec) 0-256 Specify the I2C/SMBus device Address of e.g. a 7-Segment LCD. The factory setting for the

SparkFun device is 0xE2. However, any even device address (bit 0 = 0) can be speciﬁed.

BC Diagnostic Console Interface

Disable

BC AUX Port

Select the interface to be used for the BC Diagnostic Console output or disable the BC Diagnostic Console output.

Page 79

Feature Options Description

Parity Bit No Parity

Even Parity Odd Parity

Choose the parity bits for the BC Diagnostic Console Interface.

Stop Bits 1 Stop Bit

2 Stop Bits

Choose the stop bits for the BC Diagnostic Console Interface.

Data Bits 5 Data Bits

6 Data Bits 7 Data Bits

8 Data Bits

Choose the data bits for the BC Diagnostic Console Interface.

Baudrate 1200 Baud

2400 Baud 4800 Baud

9600 Baud

19200 Baud 38400 Baud

Choose the baudrate for the BC Diagnostic Console Interface.

8.4.27 Platform Trust Technology

Feature Options Description

fTPM Disable

Enable

Enable or disable Trusted Platform Module (TPM) support.

8.4.28 Security Conﬁguration

Feature Options Description

TXE HMRFPO Enable

Disable

Enable or disable Host ME Region Flash Protection Overwrite (HMRFPO).

TXE Firmware Update Enabled

Disabled

Enable or disable ﬁrmware update.

TXE EOP Message Enabled

Disabled

Enable or disable TXE End of Post (EOP) Message.

Page 80

8.4.29 Intel® RMT Conﬁguration Submenu

Feature Options Description

Intel® RMT Support Disabled

Enabled

If this feature is enabled, the Intel

Ready Mode Technology (RMT) SSDT table will be loaded.

HW Notiﬁcation Disabled

Enabled

Hardware notiﬁcation enableing status.

8.4.30 PC Speaker Submenu

Feature Options Description

Debug Beeps Disabled

Enabled

Enable or disable general debug/status beep generation.

Input Device Debug Beeps Disabled

Enabled

Enable or disable input device debug beep generation.

Output Device Debug Beeps

Disabled

Enabled

Enable or disable output device debug beep generation.

USB Driver Beeps Disabled

Enabled

Enable or disable USB driver beeps.

8.5 Chipset Setup

Select the ‘Chipset’ tab from the setup menu to enter the chipset setup screen.

Main Advanced Chipset Boot Security Save & Exit

Processor (Integrated Components)

Platform Controller Hub (PCH)

8.5.1 Processor (Integrated Components) Submenu

Feature Options Description

►Intel IGD Conﬁguration Submenu

►Graphics Power Management Control Submenu

►Memory Conﬁguration Options Submenu

Total Memory No option Displays the total amount of memory detected by the system

Page 81

Memory Slot 0 No option Displays the memory detected by the system on slot 0

Memory Slot 1 No option Displays the memory detected by the system on Slot 1

Max TOLUD 2 GB

3 GB

Select maximum value of TOLUD.

8.5.1.1 Intel® IGD Conﬁguration Submenu

Feature Options Description

Internal Graphics Device Enabled

Disabled

Enable or disable Internal Graphics Device (IGD).

IGD Turbo Auto

Enabled Disabled

Select the IGD turbo feature: ‘Auto’ - Enables IGD turbo only when SOC steeping is B0 or above.

GFX Boost Enabled

Disabled

Enable or disable GFX boost.

PAVC Disabled

Enabled

Enable or disable Protected Audio Video Control (PAVC).

PR3 Disabled

Enabled

Enable or disable PR3. This is a feature for Win 10 only.

DVMT Pre-Allocated 32M

64M 96M 128M 160M 192M 224M 256M 288M 320M 352M 384M 416M 448M 480M 512M

Select DVMT 5.0 pre-allocated (ﬁxed) graphics memory size used by the IGD.

DVMT Total Gfx Mem 128MB

256MB

Max

Select DVMT 5.0 total graphic memory size used by the IGD.

Aperture Size 128MB

256MB

512MB

Select the aperture size.

Page 82

Feature Options Description

GTT Size 2MB

4MB

8MB

Select the GTT size.

IGD Thermal Enabled

Disabled

Enable or disable IGD thermal.

Spread Spectrum clock Enabled

Disabled

Enable or disable spread spectrum clock.

WOPCMSZ 1MB

2MB 4MB 8MB

Set the size for WOPCMSZ.

ISP Enable/Disable Enabled

Disabled

Enable/Disable ISP PCI Device Selection.

ISP PCI Device Selection Disabled

ISP PCI Device as B0D2F0 ISP PCI Device as B0D3F0 ISP PCI Device as B0D3F0 with Virtual ISP B0D2F0

Default ISP is PCI B0D2F0 for window boot. Linux boot to select B0D3F0.

PUNIT Power Conﬁguration Disabled

Enabled

Enable or disable PUNIT power conﬁguration.

Svid Conﬁguration Platform Defaults

Svid Conﬁg 0 Svid Conﬁg 1 Svid Conﬁg 3 Svid Conﬁg 4 BSW I2C PMIC Conﬁg

Select the right SVID conﬁguration.

8.5.1.2 Graphics Power Management Control Submenu

Feature Options Description

RC6 (Render Standby) Enabled

Disabled

Enable or disable render standby support.

Power Meter Lock Enabled

Disabled

Enable or disable power meter lock.

Page 83

8.5.1.3 Memory Conﬁguration Options Submenu

Feature Options Description

Rank Margin Tool EV Mode Disabled

Enabled

Enable or disable rank margin tool print out message support.

DDR DVFS Disabled

Enabled

Enable or disable DDR dynamic voltage and frequency scaling in MRC.

Memory Frequency Override Disabled

Enabled

Enable to allow override of memory frequency parameters that are automatically obtained from DDR3 DIMM SPD. Note: May cause memory instability if the selected frequency is not supported by the memory device. This option has no effect on systems conﬁgured without ‘UseDimmSpd’ option.

Frequency A selection Auto

800 1067

1600

800(SKU333) 1000(SKU333) 1333(SKU333) 900(SKU360) 1800(SKU360) 933(SKU373) 1866(SKU373)

Select frequency A.

Frequency B selection Auto

1067

800(SKU333) 1000(SKU333) 900(SKU360) 933(SKU373)

Select frequency B (minimum DDR DVFS frequency).

Auto Detect LPDDR3 DRAM Disabled

Enabled

Enable or disable automatic detection of LPDDR3 DRAM parameters.

LPDDR3 Chip Select 1 Rank

2 Ranks

Select LPDDR3 chip rank Note: ‘Auto Detect LPDD3 DRAM’ must be disabled to use this option.

Channel selection Auto

Single

Dual

Select number of channels.

Channel Selection Bit 3:0 Default: 2

0 - F

Set channel selection bit 3:0 (hexadecimal).

Channel Selection 4 Default: 1

0 - F

BMISC Channel select 4 for channel hashing (hexadecimal).

Bank Address Hashing Disabled

Enabled

Enable or disable bank address hashing.

Page 84

Feature Options Description

Rank Select Interleaving Disabled

Enabled

Enable or disable rank select interleaving.

Dynamic Self Refresh Disabled

Enabled

Enable or disable PUNIT driven DUNIT DDR dynamic self refresh.

DRAM PM5 Disabled

Enabled

Enable or disable DRAM PM5 PUNIT conﬁguration.

DDR3 2N Mode Disabled

Enabled

Enable to set the DDR3 mode to 2N. 1N mode is used by default.

RX Power Training Enabled

Disabled

Enable or disable RX Power Training.

TX Power Training Enabled

Disabled

Enable or disable TX Power Training.

MRC Fast Boot Enabled

Disabled

Enable or disable MRC fast boot. If disabled, forces MRC training.

Scrambler Enabled

Disabled

Enable or disable scrambler.

DRP Lock Disabled

Enabled

Enable or disable DRP lock.

REUT Lock Disabled

Enabled

Enable or disable REUT lock.

RH Prevention Disabled

Enabled

This feature prevents speciﬁc row hammer attacks. Note: If enabled, this function increases the average time between sending REF commands to DRAM.

8.5.2 Platform Controller Hub (PCH) Submenu

Feature Options Description

► Security Conﬁguration Submenu Security Conﬁguration Submenu.

► Azalia Conﬁguration Submenu Azalia HD Audio Submenu.

► USB Conﬁguration Submenu USB Submenu.

► PCI Express Conﬁguration Submenu PCI Express Conﬁguration Submenu.

Serial IRQ Mode Quiet

Continuous

Select IRQ Serial Mode.

Isolate SMBus Segments Never

During POST Always

Isolate the off-module/external SMBus segment from the on-module SMBus segment. This feature is a workaround for non spec conform external SMBus devices.

Page 85

8.5.2.1 Security Conﬁguration Submenu

Feature Options Description

RTC Lock Disabled

Enabled

Enable or disable bytes 38h-3Fh in the upper and lower 128-byte bank of RTC RAM lockdown.

BIOS Lock Enabled

Disabled

Enable or disable the BIOS Lock feature.

Global SMI Lock Enabled

Disabled

Enable or disable SMI lock.

8.5.2.2 Azalia Conﬁguration Submenu

Feature Options Description

LPE Audio Support Disabled

PCI Mode ACPI Mode

Select LPE audio support.

Audio Controller Enabled

Disabled

Enable or disable audio controller.

Azalia Vci Enable Enabled

Disabled

Enable or disable Azalia Vci.

Azalia Docking Support Enable Enabled

Disabled

Enable or disable Azalia Docking support.

Azalia PME Enable Enabled

Disabled

Enable or disable Azalia PME support.

Azalia HDMI Codec Enabled

Disabled

Enable or disable Azalia HDMI codec.

HDMI Port B Enabled

Disabled

Enable or disable HDMI port B audio.

HDMI Port C Enabled

Disabled

Enable or disable HDMI port C audio.

HDMI Port D Enabled

Disabled

Enable or disable HDMI port D audio.

Page 86

8.5.2.3 USB Conﬁguration Submenu

Feature Options Description

xHCI Mode Enabled

Disabled

Mode of xHCI controller operation.

SSIC Support Enable Disabled

Enabled

Enable or disable SSIC support.

SSIC Init Sequence SSIC Initialization Sequence 1

SSIC Initialization Sequence 2

Select sequence 1 for Windows. Select sequence 2 for Android.

SSIC Port 1 Enabled

Disabled

Enable or disable SSIC port 1.

SSIC Port 2 Enabled

Disabled

Enable or disable SSIC port 2.

HSIC Port 1 Enabled

Disabled

Enable or disable HSIC port 1.

HSIC Port 2 Enabled

Disabled

Enable or disable HSIC port 2.

USB2 PHY Power Gating Auto

Disabled Enabled

Select USB2 PHY power gating.

USB3 PHY Power Gating Auto

Disabled Enabled

Select USB3 PHY power gating.

USB OTG Support PCI Mode

Disabled

Enable or disable USB OTG support.

8.5.2.4 PCI Express Conﬁguration Submenu

Feature Options Description

► PCIE Express Root Port 1 Submenu

► PCIE Express Root Port 2 Submenu

► PCIE Express Root Port 3 Submenu

► PCIE Express Root Port 4 Submenu

► PCIE Express S0ix Settings Submenu

Native PCI Express Support Disabled

Enabled

Enable or disable native operating system PCIe support

Page 87

8.5.2.4.1 PCIE Express Root Port 1,2,3 & 4

Feature Options Description

PCI Express Root Port 1 Enabled

Disabled

Enable or disable the PCIe root port.

ASPM Auto

Disabled L0s L1 L0sL1

Select PCIe Active State Power Management (ASPM) setting.

URR Disabled

Enabled

Enable or disable PCIe Unsupported Request Reporting (URR).

FER Disabled

Enabled

Enable or disable PCIe device Fatal Error Reporting (FER).

NFER Disabled

Enabled

Enable or disable PCIe device Non-Fatal Error Reporting (NFER).

CER Disabled

Enabled

Enable or disable PCIe device Correctable Error Reporting (CER).

SEFE Disabled

Enabled

Enable or disable root PCIe System Error on Fatal Error (SEFE).

SENFE Disabled

Enabled

Enable or disable root PCIe System Error on Non-Fatal Error (SENFE).

SECE Disabled

Enabled

Enable or disable root PCIe System Error on Correctable Error (SECE).

PME SCI Disabled

Enabled

Enable or disable PCIe Power Management Event (PME) SCI.

Ext Sync Disabled

Enabled

Enable or disable express ext sync.

PCIe Speed Auto

Gen2 Gen1

Set PCIe speed. Note: Always use CHV A1 with Gen 1 speed.

Detect Non-compliant Device Disabled

Enabled

Enable this feature to detect some non-compliant PCIe devices. Note: POST takes more time if this feature is enabled.

L1 Substates Disabled

L1.1 L1.2

L1.1 & L1.2

Select PCIe L1 substates setting.

Non-Common Clock With SSC Enabled Mode

Enabled

Disabled

Enable this feature if the root port is operating at non-common clock.

Page 88

Feature Options Description

Transmitter Half Swing Enabled

Disabled

Enable or disable transmitter half swing.

Tx Eq Deemphasis Selection 3.5dB

6dB

Select the level of de-emphasis for an upstream component.

8.5.2.4.2 PCIE Express S0ix Settings Submenu

Feature Options Description

D0 S0ix Policy PCIe RC shall be in D3

S0i1 is the deepest S0ix state PCIe RC in in D0 when entering S0ix Reserved

Select PCIe D0 S0ix policy.

Evaluate CLKREQ State Enabled

Disabled

Enable or disable evaluation of CLKREQ state.

CLKREQ# Enable CLKREQ# [0]

CLKREQ# [1] CLKREQ# [2] CLKREQ# [3]

Evaluate CLKREQ# [x] during PCIe in D0 S0ix entry and exit criteria checking.

S0ix LTR Threshold (Latency Scale) 1ns

32ns

1024ns

32,768ns 1,048,576ns 33,554,321ns

Set PCIe S0ix LTR threshold for latency scale..

PCIe LTR Threshold (Latency Value) 150 Set the PCIe S0ix LTR threshold latency value. This value is multiplied by the latency scale.

8.6 Security Setup

Select the Security tab from the setup menu to enter the Security setup screen.

8.6.1 Security Settings

Feature Options Description

BIOS Password No options Set BIOS password.

BIOS Lock Enabled

Disabled

Enable or disable the BIOS lock feature

Page 89

Feature Options Description

BIOS Update and Write Protection

Disabled

Enabled

Enable or disable BIOS update

►Secure Boot Menu Submenu Customizable secure boot settings.

8.6.1.1 Secure Boot Menu

Feature Options Description

System Mode No options Shows system mode.

Secure Boot No options Shows secure boot status.

Vendor Keys No options Shows vendor keys status.

Secure Boot Disabled

Enabled

Secure boot can be enabled if the system is running in user mode with enrolled Platform Key (PK) and when CSM function is disabled.

Secure Boot Mode Standard

Custom

Select secure boot mode.

►Key Management Submenu

8.6.1.1.1 Key Management Submenu

Feature Options Description

Provision Factory Default Keys Disabled

Enabled

Enable this feature to install factory default secure boot keys when system is in setup mode.

►Enroll all Factory Default Keys Force system to user mode and install all factory default keys.

►Platform Key(PK)

►Key Exchange Keys

►Authorized Signatures

►Forbidden Signatures

►Authorized TimeStamps

8.7 Boot Setup

Select the Boot tab from the setup menu to enter the Boot setup screen.

Page 90

8.7.1 Boot Settings Conﬁguration

Feature Options Description

Setup Prompt Timeout Default: 1

0 - 65535

Set number of seconds to wait for setup activation key. ‘65535’ - Waits indeﬁnetly (0xFFFF). ‘0’ - Does not wait (not recommended).

Bootup NumLock State On

Off

Set the keyboard numlock state.

Quiet Boot Disabled

Enabled

‘Disabled’ - Displays normal POST diagnostic messages. ‘Enabled’ - Displays OEM logo instead of POST messages. Note: The default OEM logo is a dark screen.

Enter Setup If No Boot Device

Yes

Select whether the setup menu should be started if no boot device is connected.

Enable Popup Boot Menu

Yes

Select whether the popup boot menu can be started.

Boot Priority Selection Device Based

Type Based

Set boot priority: ‘Device Based’ - Set boot priority from a list of currently detected devices. ‘Type Based’ - Set boot priority from a list of device types even if they are not connected yet.

Boot Option Sorting Method

Legacy First

UEFI First

Set boot option sorting method: ‘Legacy First’ - Tries all legacy boot option ﬁrst before ﬁrst UEFI boot option. ‘UEFI First’ - Tries all UEFI boot options before ﬁrst legacy boot option.

Power Loss Control Remain Off

Turn On Last State

Select the mode of operation if an AC power loss occurs:

‘Remain Off’ - Keeps the power off until the power button is pressed. ‘Turn On’ - Restores power to the computer. ‘Last State’ - Restores the previous power state before power loss occurred. Note: Please chose an ATX type power supply if you want to use this feature.

AT Shutdown Mode System Reboot

Hot S5

Select the behavior of an AT-powered system after a shutdown.

System Off Mode G3/Mech Off

S5/Soft Off

Select the system state after a shutdown if a battery system is connected.

Fast Boot Disabled

Enabled

Enable this feature to boot with a minimum set of devices. Note: This feature has no effect on BBS / legacy boot options.

Page 91

Feature Options Description

1st Boot Device Disabled

SATA 0 Drive SATA 1 Drive NVMe Storage USB Harddisk

USB CDROM

Other USB Device Onboard eMMC Storage Onboard LAN External LAN Firmware-based Bootloader Other Device

2nd Boot Device Disabled

SATA 0 Drive SATA 1 Drive NVMe Storage

USB Harddisk

USB CDROM Other USB Device Onboard eMMC Storage Onboard LAN External LAN Firmware-based Bootloader Other Device

3rd Boot Device Disabled

SATA 0 Drive

SATA 1 Drive NVMe Storage USB Harddisk USB CDROM Other USB Device Onboard eMMC Storage Onboard LAN External LAN Firmware-based Bootloader Other Device

Page 92

Feature Options Description

4th Boot Device Disabled

SATA 0 Drive

SATA 1 Drive

NVMe Storage USB Harddisk USB CDROM Other USB Device Onboard eMMC Storage Onboard LAN External LAN Firmware-based Bootloader Other Device

5th Boot Device Disabled

SATA 0 Drive SATA 1 Drive NVMe Storage USB Harddisk USB CDROM

Other USB Device

Onboard eMMC Storage Onboard LAN External LAN Firmware-based Bootloader Other Device

6th Boot Device Disabled

SATA 0 Drive SATA 1 Drive

NVMe Storage

USB Harddisk USB CDROM Other USB Device Onboard eMMC Storage Onboard LAN External LAN Firmware-based Bootloader Other Device

Page 93

Feature Options Description

7th Boot Device Disabled

SATA 0 Drive SATA 1 Drive NVMe Storage USB Harddisk USB CDROM Other USB Device Onboard eMMC Storage

Onboard LAN

External LAN Firmware-based Bootloader Other Device

8th Boot Device Disabled

SATA 0 Drive SATA 1 Drive NVMe Storage USB Harddisk USB CDROM Other USB Device Onboard eMMC Storage Onboard LAN External LAN Firmware-based Bootloader

Other Device

Battery Support Auto (Battery Manager)

Battery-Only On I2C Bus Battery-Only On SMBus

Battery system support selection. Select 'Battery-Only On I2C Bus' for battery-only systems using I2C bus and 'Battery-Only On SMBus' for battery-only systems using SMBus. Select 'Auto' for systems equipped with a real battery system manager (connected via I2C or SMBus). Auto (Battery Manager).

UEFI Screenshot Capability

Disabled

Enabled

If Enabled, you can press LCrtl+LAlt+F12 to take screenshot from current screen. It will be saved as PNG image on the ﬁrst writable FAT32 partition found.

New Boot Option Policy Default

Place First Place Last

Controls the placement of newly detected UEFI boot options.

Note

The term ‘AC power loss’ stands for the state when the module looses the standby voltage on the 5V_SB pins. On congatec modules, the standby voltage is continuously monitored after the system is turned off. If within 30 seconds the standby voltage is no longer detected, then this is considered an AC power loss condition. If the standby voltage remains stable for 30 seconds, then it is assumed that the system was switched off properly.

Page 94

Inexpensive ATX power supplies often have problems with short AC power sags. When using these ATX power supplies it is possible that the system turns off but does not switch back on, even when the PS_ON# signal is asserted correctly by the module. In this case, the internal circuitry of the ATX power supply has become confused. Usually another AC power off/on cycle is necessary to recover from this situation.

8.8 Save & Exit Menu

Select the Save & Exit tab from the setup menu to enter the Save & Exit setup screen. You can display a Save & Exit screen option by highlighting it using the <Arrow> keys.

Feature Description

Save Options

Save Changes and Exit Exit setup menu after saving the changes. The system is only reset if settings have been changed.

Discard Changes and Exit Exit setup menu without saving any changes.

Save Changes and Reset Save changes and reset the system.

Discard Changes and Reset Reset the system without saving any changes.

Save Options

Save Changes Save changes made so far to any of the setup options. Stay in setup menu.

Discard Changes Discard changes made so far to any of the setup options. Stay in setup menu.

Default Option

Restore Defaults Restore default values for all the setup options.

Save as User Default Save the changes done so far as User Defaults.

Restore as User Default Restore the User Defaults to all the setup options.

Boot Override

List of all boot devices currently detected

Select device to leave setup menu and boot from the selected device. Only visible and active if Boot Priority Selection setup node is set to “Device Based”.

Generate Menu Layout File Menu layout ﬁle will be generated and stored on the ﬁrst writable ﬁle system found.

Page 95

9 Additional BIOS Features

9.1 Navigating the BIOS Setup Menu

The BIOS setup menu shows the features and options supported in the congatec BIOS. To access and navigate the BIOS setup menu, press the <DEL> or <F2> key during POST.

9.2 BIOS Versions

The BIOS displays the BIOS project name and the revision code during POST, and on the main setup screen. The initial production BIOS for conga-IA4 is identiﬁed as IA40R1xx where:

• R is the identiﬁer for a BIOS ROM ﬁle

• 1 is the feature number

• xx is the major and minor revision number.

The IA40 BIOS binary size is 8 MB.

9.3 Updating the BIOS

OEMs often use BIOS updates to correct platform issues discovered after the board has been shipped or when new features are added to the BIOS. The conga-IA4 uses a congatec/AMI AptioEFI ﬁrmware, which is stored in an onboard ﬂash ROM chip and can be updated using the congatec System Utility. The utility has ﬁve versions—UEFI shell, DOS based command line, Win32 command line, Win32 GUI, and Linux version.

For more information about “Updating the BIOS” refer to the user’s guide for the congatec System Utility “CGUTLm1x.pdf” on the congatec website at www.congatec.com.

Page 96

9.4 Supported Flash Devices

The conga-IA4 supports the following ﬂash devices:

• Winbond W25Q64JVSSIG (8MB)

Note

The ﬂash device listed above has been tested and can be used on the congatec debug adapter (PN:047858) listed in table 5 "Adapters". For more information about external BIOS support, refer to the Application Note AN7_External_BIOS_Update.pdf on the congatec website at http://www.congatec.com.

Page 97

10 Industry Speciﬁcations

The list below provides links to industry speciﬁcations that apply to congatec AG modules.

Speciﬁcation Link

Low Pin Count Interface Speciﬁcation, Revision 1.0 (LPC) http://developer.intel.com/design/chipsets/industry/lpc.htm Universal Serial Bus (USB) Speciﬁcation, Revision 2.0 http://www.usb.org/home PCI Speciﬁcation, Revision 2.3 http://www.pcisig.com/speciﬁcations Serial ATA Speciﬁcation, Revision 3.0 http://www.serialata.org Intel

Thin Mini-ITX Design Guide (thin-mini-itx-based-pc-system-

design-guide-rev-1-2.pdf)

http://www.intel.com

PCI Express Base Speciﬁcation, Revision 2.0 http://www.pcisig.com/speciﬁcations
