Congatec conga-IA3 User Manual

Download

Page 1

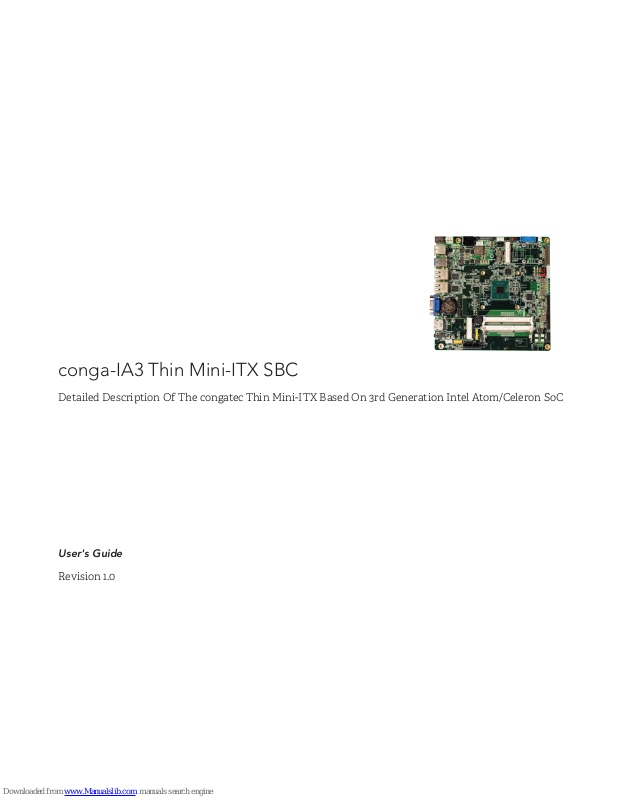

conga-IA3 Thin Mini-ITX SBC

Detailed Description Of The congatec Thin Mini-ITX Based On 3rd Generation Intel Atom/Celeron SoC

User's Guide

Revision 1.0

Page 2

Revision History

Revision Date (yyyy.mm.dd) Author Changes

0.1 2015.04.29 AEM • Preliminary release

1.0 2016.01.19 AEM

• Corrected the AMI Aptio BIOS version in section 2.1 "Feature List".

• Added note about using symmetrical memory modules because of Bay Trail memory limitation.

• Ofﬁcial release

Page 3

Preface

This user's guide provides information about the components, features and connectors available on the conga-IA3 Thin Mini-ITX Single Board Computer.

Disclaimer

The information contained within this user’s guide, including but not limited to any product speciﬁcation, is subject to change without notice.

congatec AG provides no warranty with regard to this user’s guide or any other information contained herein and hereby expressly disclaims any implied warranties of merchantability or ﬁtness for any particular purpose with regard to any of the foregoing. congatec AG assumes no liability for any damages incurred directly or indirectly from any technical or typographical errors or omissions contained herein or for discrepancies between the product and the user’s guide. In no event shall congatec AG be liable for any incidental, consequential, special, or exemplary damages, whether based on tort, contract or otherwise, arising out of or in connection with this user’s guide or any other information contained herein or the use thereof.

Intended Audience

This user's guide is intended for technically qualiﬁed personnel. It is not intended for general audiences.

Lead-Free Designs (RoHS)

All congatec AG products are created from lead-free components and are completely RoHS compliant.

Electrostatic Sensitive Device

All electronic parts described in this user’s guide are electrostatic sensitive devices and are packaged accordingly. Do not open or handle a carrier board or module except at an electrostatic-free workstation. Additionally, do not ship or store electronic devices near strong electrostatic, electromagnetic, magnetic, or radioactive ﬁelds unless the device is contained within its original manufacturer’s packaging.

Page 4

Symbols

The following symbols are used in this user's guide:

Warning

Warnings indicate conditions that, if not observed, can cause personal injury.

Caution

Cautions warn the user about how to prevent damage to hardware or loss of data.

Note

Notes call attention to important information that should be observed.

Connector Type

Describes the connector used on the Single Board Computer.

congatec AG has made every attempt to ensure that the information in this document is accurate yet the information contained within is supplied “as-is”.

Page 5

Trademarks

Product names, logos, brands, and other trademarks featured or referred to within this user’s guide, or the congatec website, are the property of their respective trademark holders. These trademark holders are not afﬁliated with congatec AG, our products, or our website.

Warranty

congatec AG makes no representation, warranty or guaranty, express or implied regarding the products except its standard form of limited warranty (“Limited Warranty”) per the terms and conditions of the congatec entity, which the product is delivered from. These terms and conditions can be downloaded from www.congatec.com. congatec AG may in its sole discretion modify its Limited Warranty at any time and from time to time.

The products may include software. Use of the software is subject to the terms and conditions set out in the respective owner’s license agreements, which are available at www.congatec.com and/or upon request.

Beginning on the date of shipment to its direct customer and continuing for the published warranty period, congatec AG represents that the products are new and warrants that each product failing to function properly under normal use, due to a defect in materials or workmanship or due to non conformance to the agreed upon speciﬁcations, will be repaired or exchanged, at congatec’s option and expense.

Customer will obtain a Return Material Authorization (“RMA”) number from congatec AG prior to returning the non conforming product freight prepaid. congatec AG will pay for transporting the repaired or exchanged product to the customer.

Repaired, replaced or exchanged product will be warranted for the repair warranty period in effect as of the date the repaired, exchanged or replaced product is shipped by congatec, or the remainder of the original warranty, whichever is longer. This Limited Warranty extends to congatec’s direct customer only and is not assignable or transferable.

Except as set forth in writing in the Limited Warranty, congatec makes no performance representations, warranties, or guarantees, either express or implied, oral or written, with respect to the products, including without limitation any implied warranty (a) of merchantability, (b) of ﬁtness for a particular purpose, or (c) arising from course of performance, course of dealing, or usage of trade.

congatec AG shall in no event be liable to the end user for collateral or consequential damages of any kind. congatec shall not otherwise be liable for loss, damage or expense directly or indirectly arising from the use of the product or from any other cause. The sole and exclusive remedy against congatec, whether a claim sound in contract, warranty, tort or any other legal theory, shall be repair or replacement of the product only.

Certiﬁcation

congatec AG is certiﬁed to DIN EN ISO 9001 standard.

Page 6

Technical Support

congatec AG technicians and engineers are committed to providing the best possible technical support for our customers so that our products can be easily used and implemented. We request that you ﬁrst visit our website at www.congatec.com for the latest documentation, utilities and drivers, which have been made available to assist you. If you still require assistance after visiting our website then contact our technical support department by email at [email protected]

Terminology

Term Description

PCI Express (PCIe) Peripheral Component Interface Express – next-generation high speed Serialized I/O bus PCI Express Lane One PCI Express Lane is a set of 4 signals that contains two differential lines for

Transmitter and two differential lines for Receiver. Clocking information is embedded into the data stream.

x1, x2, x4, x16 x1 refers to one PCI Express Lane of basic bandwidth; x2 to a collection of two PCI Express Lanes; etc.. Also referred to as x1, x2, x4 or x16 link. PCI Express Mini Card PCI Express Mini Card add-in card is a small size unique form factor optimized for mobile computing platforms. MMCplus MMCplus was deﬁned for ﬁrst time in MMC System Speciﬁcation v4.0. MMCplus is backward compatible with MMC. MMCplus has 13 pins. SDIO card SDIO (Secure Digital Input Output) is a non-volatile memory card format developed for use in portable devices. USB Universal Serial Bus SATA Serial AT Attachment: serial-interface standard for hard disks HDA High Deﬁnition Audio S/PDIF S/PDIF (Sony/Philips Digital Interconnect Format) speciﬁes a Data Link Layer protocol and choice of Physical Layer speciﬁcations for carrying

digital audio signals between devices and stereo components.

HDMI High Deﬁnition Multimedia Interface. Supports standard, enhanced, or high-deﬁnition video, plus multi-channel digital audio on a single cable. TMDS Transition Minimized Differential Signaling. TMDS is a signaling interface deﬁned by Silicon Image that is used for DVI and HDMI. DVI Digital Visual Interface is a video interface standard developed by the Digital Display Working Group (DDWG). LPC Low Pin-Count: a low speed interface used for peripheral circuits such as Super I/O controllers, which typically combine legacy device support into

a single IC.

I²C Bus Inter-Integrated Circuit Bus: is a simple two-wire bus with a software-deﬁned protocol that was developed to provide the communications link

between integrated circuits in a system.

SM Bus System Management Bus: is a popular derivative of the I²C-bus. CAN Controller Area Network SPI Serial Peripheral Interface GBE Gigabit Ethernet LVDS Low-Voltage Differential Signaling DDC Display Data Channel is an I²C bus interface between a display and a graphics adapter. PN Part Number - the part number for placing orders. N.C Not connected N.A Not available T.B.D To be determined

Page 7

Contents

1 Introduction ...............................................................................9

1.1 Mini-ITX Concept ....................................................................... 9

1.2 conga-IA3 .................................................................................. 9

1.2.1 Options Information ................................................................. 10

1.2.2 Optional Accessories/Cables ................................................... 10

2 Speciﬁcation ............................................................................ 12

2.1 Feature List ..............................................................................12

2.2 Supported Operating Systems ................................................ 13

2.3 Mechanical Dimensions ........................................................... 14

2.4 Environmental Speciﬁcations ................................................... 14

3 Block Diagram .......................................................................... 15

4 Cooling Solution ...................................................................... 16

4.1 Cooling Installation .................................................................. 17

4.2 Heatspreader ........................................................................... 18

5 Connector Description ............................................................. 19

5.1 Power Supply ........................................................................... 19

5.1.1 DC Power Jack (Rear I/O) ........................................................ 19

5.1.2 Power Supply (Internal Connector) .......................................... 20

5.1.3 Optional SBM3 Power Connector (Internal Connector) ........... 20

5.1.3.1 Optional SBM3 Signal Connector ............................................ 21

5.1.4 PWR_OK Signal ........................................................................ 22

5.1.5 Power Status LEDs ................................................................... 22

5.2 CMOS Battery/RTC .................................................................. 23

5.3 Audio Interfaces ....................................................................... 23

5.3.1 Rear Audio Connectors ............................................................ 23

5.3.2 Internal Audio Connectors ....................................................... 24

5.3.2.1 Stereo Speaker Header ............................................................ 24

5.3.2.2 Digital Microphone/SPDIF ....................................................... 25

5.3.2.3 Front Panel HD Audio .............................................................. 25

5.4 Communication Bus ................................................................. 26

5.4.1 SMBus ...................................................................................... 26

5.4.2 I²C Bus .................................................................................... 26

5.4.3 SPI Bus ..................................................................................... 26

5.5 Universal Serial Bus (USB) ........................................................ 27

5.5.1 Rear USB Connectors ............................................................... 27

5.5.2 Internal USB Connectors .......................................................... 28

5.6 Ethernet 10/100/1000 .............................................................. 29

5.7 SATA Interfaces ........................................................................ 30

5.7.1 Standard SATA Ports ................................................................ 30

5.7.2 SATA Power .............................................................................31

5.7.3 Mini SATA .................................................................................31

5.8 Display Interfaces ..................................................................... 33

5.8.1 Display Port Interface DP++ .................................................... 33

5.8.2 LVDS ......................................................................................... 33

5.8.3 Embedded Display Port (eDP) ................................................. 35

5.8.3.1 Backlight Power Connector ..................................................... 36

5.8.3.2 Backlight/Panel Power Selection ............................................. 37

5.8.3.3 Monitor OFF connector ........................................................... 38

5.9 PCI Express ............................................................................. 38

5.9.1 x1 PCIe Slot.............................................................................. 38

5.9.2 Mini PCIe (Half Size) ................................................................ 39

5.9.3 Mini PCIe (Full Size).................................................................. 41

5.9.4 PCI Express Routing .................................................................42

6 Additional Features ..................................................................43

6.1 Front Panel Connector ............................................................. 43

6.2 Case Open Intrusion Connector .............................................. 44

6.3 Trusted Platform Module – TPM (Optional) ............................. 44

6.4 congatec Board Controller (cBC) ............................................. 44

6.4.1 Fan Control .............................................................................. 44

6.4.2 GPIs .......................................................................................... 45

6.4.3 Power Loss Control .................................................................. 45

6.4.4 Board Information .................................................................... 45

6.5 LPC Super I/O Device .............................................................. 45

6.5.1 Serial Ports (COM) ................................................................... 45

6.5.2 GPOs ........................................................................................ 46

6.5.3 CPU/System Fan Connector & Power Conﬁguration ............... 46

6.6 OEM BIOS Customization ........................................................ 47

Page 8

6.6.1 OEM Default Settings .............................................................. 47

6.6.2 OEM Boot Logo ....................................................................... 47

6.6.3 OEM POST Logo ..................................................................... 47

6.6.4 OEM BIOS Code/Data ............................................................. 48

6.6.5 OEM DXE Driver ...................................................................... 48

6.7 congatec Battery Management Interface ................................ 48

6.8 API Support (CGOS) ................................................................ 49

6.9 GPIOs ....................................................................................... 49

6.10 Thermal/Voltage Monitoring.................................................... 49

6.11 Beeper ..................................................................................... 49

6.12 External System Wake Event ...................................................49

6.13 Feature Connector ................................................................... 50

7 conga-IA3 Mechanical Drawing ............................................... 51

8 BIOS Setup Description ........................................................... 52

8.1 Entering the BIOS Setup Program. .......................................... 52

8.1.1 Boot Selection Popup .............................................................. 52

8.2 Setup Menu and Navigation .................................................... 52

8.3 Main Setup Screen ................................................................... 53

8.4 Advanced Setup ...................................................................... 54

8.4.1 Watchdog Submenu ................................................................ 55

8.4.2 Graphics Submenu ................................................................... 57

8.4.3 Hardware Health Monitoring Submenu ................................... 58

8.4.4 Trusted Computing Submenu .................................................. 59

8.4.5 RTC Wake Submenu ................................................................ 59

8.4.6 Reserve Legacy Interrupt Submenu ......................................... 59

8.4.7 ACPI Submenu ......................................................................... 60

8.4.8 SIO Submenu ........................................................................... 60

8.4.8.1 Serial Port 1 Submenu ............................................................. 60

8.4.8.2 Serial Port 2 Submenu ............................................................. 61

8.4.9 Intel(R) Smart Connect Technology Submenu .........................61

8.4.10 Serial Port Console Redirection Submenu ............................... 62

8.4.10.1 Console Redirection Settings COM0 Submenu ....................... 62

8.4.10.2 Console Redirection Settings Out-of-Band Management Submenu 63

8.4.11 CPU Conﬁguration Submenu ................................................... 63

8.4.11.1 Socket 0 CPU Information Submenu .......................................64

8.4.11.2 CPU Thermal Conﬁguration Submenu.....................................64

8.4.12 PPM Conﬁguration Submenu .................................................. 64

8.4.13 Thermal Conﬁguration Submenu ............................................. 65

8.4.14 IDE Conﬁguration Submenu .................................................... 66

8.4.15 Miscellaneous Conﬁguration Submenu ................................... 66

8.4.16 SCC Conﬁguration Submenu ................................................... 67

8.4.17 PCI Subsystem Setting Submenu ............................................ 67

8.4.17.1 PCI Express Setting Submenu ................................................. 68

8.4.18 PCI Express GEN 2 Settings Submenu .................................... 69

8.4.19 Network Stack .......................................................................... 70

8.4.20 CSM Submenu ......................................................................... 70

8.4.21 SDIO Submenu ........................................................................ 71

8.4.22 USB Submenu .......................................................................... 71

8.4.23 Platform Trust Technology .......................................................71

8.4.24 Security Conﬁguration ............................................................. 72

8.4.25 Intel(R) Ethernet Connection I210 Submenu ........................... 72

8.4.25.1 NIC Conﬁguration Submenu ................................................... 73

8.4.26 Driver Health Submenu ............................................................ 73

8.4.26.1 Intel(R) PRO/1000 Submenu .................................................... 73

8.5 Chipset Setup .......................................................................... 73

8.5.1 North Bridge Submenu ............................................................ 73

8.5.2 South Bridge Submenu ............................................................ 74

8.5.2.1 Azalia HD Audio ....................................................................... 74

8.5.2.2 USB Submenu .......................................................................... 75

8.5.2.3 PCI Express Conﬁguration Submenu ....................................... 76

8.6 Boot Setup ............................................................................... 76

8.6.1 Boot Settings Conﬁguration .................................................... 76

8.7 Security Setup .......................................................................... 78

8.7.1 Security Settings ...................................................................... 78

8.7.2 Hard Disk Security .................................................................... 78

8.8 Save & Exit Menu ..................................................................... 78

9 Additional BIOS Features ........................................................79

9.1 Supported Flash Devices ......................................................... 79

9.2 Updating the BIOS ................................................................... 79

10 Industry Speciﬁcations ............................................................. 80

Page 9

1 Introduction

1.1 Mini-ITX Concept

The Mini-ITX form factor provides enthusiasts and manufacturers with a standardized ultra compact platform for development. With a footprint of 170mm x170mm, this scalable platform promotes the design of highly integrated, energy efﬁcient systems. Due to its small size, the Mini-ITX form factor enables PC appliance designers not only to design attractive low cost devices but also allows them to explore a huge variety of product development options - from compact space-saving designs to fully functional Information Station and Value PC systems. This helps to reduce product design cycle and encourages rapid innovation in system design, to meet the ever-changing needs of the market.

Additionally, the boards can also be passively cooled, presenting opportunities for fanless designs. The Mini-ITX boards are equipped with various interfaces such as PCI Express, SATA, USB 2.0/3.0, Ethernet, Displays and Audio.

1.2 conga-IA3

The conga-IA3 is a Single Board Computer designed based on the Thin Mini-ITX speciﬁcation. The conga-IA3 SBC features the Intel 3rd generation Atom/Celeron processors. With maximum 10W TDP processors, the SBC offers Ultra Low Power boards with high computing performance and outstanding graphics. Additionally, the SBC supports dual channel DDR3L up to 1333 MT/s for a maximum system memory capacity of 16 GB, multiple I/O interfaces, up to two independent displays and various congatec embedded features.

With smaller board size and lower height keep-out zones, the conga-IA3 SBC provides manufacturers and enthusiasts with the opportunity to design compact systems for space restricted areas. With appropriate I/O shield, the same conga-IA3 SBC can be used in either a Thin Mini-ITX or a Mini-ITX design.

The various features and capabilities offered by the conga-IA3 makes it ideal for the design of compact, energy efﬁcient, performance-oriented embedded systems.

Page 10

1.2.1 Options Information

The conga-IA3 is currently available in four variants. This user’s guide describes all of these variants. The tables below show the different

conﬁgurations available. Check for the Part No. that applies to your product. This will tell you what options described in this user’s guide are available on your particular module

conga-IA3

Part-No. 052300 052301 052310 052311

Processor Intel® Atom™ E3845 1.91 GHz

Quad Core™

Intel® Atom™ E3826 1.46 GHz

Dual Core™

Intel® Celeron™ J1900 2.0 GHz

Quad Core™

Intel® Celeron™ N2930 1.83 GHz

Quad Core™

L2 Cache 2 MByte 1 MByte 2 MByte 2 MByte Burst Frequency N/A N/A 2.41 GHz 2.16 GHz Memory (DDR3L) 1333 MT/s dual channel 1066 MT/s dual channel 1333 MT/s dual channel 1333 MT/s dual channel Processor Graphics Intel

HD Graphics (GT1) Intel® HD Graphics (GT1) Intel® HD Graphics (GT1) Intel® HD Graphics (GT1)

Graphics Base/Burst Freq. 542 / 792 MHz 533 / 667 MHz 688 / 854 MHz 313 / 854 MHz VGA No No No No LVDS Single/Dual 18/24bit Single/Dual 18/24bit Single/Dual 18/24bit Single/Dual 18/24bit DDI DP / HDMI / DVI DP / HDMI / DVI DP / HDMI / DVI DP / HDMI / DVI Processor TDP (Max) 10 W 7 W 10 W 7.5 W *

* Scenario Design Power (SDP) of 4.5W

1.2.2 Optional Accessories/Cables

Accessories Part No. Description

conga-IA30/CSP 052351 Passive cooling solution with Thin Mini-ITX height (for conga-IA3) conga-IA30/Retention Frame 052355 Retention frame for conga-IA3 standard cooling conga-IA30/IO Bracket Standard Size 052356 IO shield for conga-IA3 with Mini-ITX height conga-IA30/IO Bracket Thin Size 052357 IO shield for conga-IA3 with Thin Mini-ITX height DDR3L-SODIMM-1600 (2 GB) 068755 Certiﬁed 2 GB DDR3L SODIMM memory module with 1600 MT/s (PC3L-12800S) DDR3L-SODIMM-1600 (4 GB) 068756 Certiﬁed 4 GB DDR3L SODIMM memory module with 1600 MT/s (PC3L-12800S) DDR3L-SODIMM-1600 (8 GB) 068757 Certiﬁed 8 GB DDR3L SODIMM memory module with 1600 MT/s (PC3L-12800S)

Page 11

Cables Part No. Description

cab-ThinMini-ITX-SATA-Power 14000120 Power cable for SATA and micro-SATA devices. cab-ThinMini-ITX-UART 14000121 UART cable with 2x5 pin female housing and D-Sub Male connector. cab-ThinMini-ITX-USB2.0-Single 14000122 USB 2.0 cable with 1x5 pin female housing and USB 2.0 Type A female connector. cab-ThinMini-ITX-USB2.0-Twin 14000123 USB 2.0 cable with Twin USB 2.0 Type A female connector and 2x5 pin Housing. cab-ThinMini-ITX-USB3.0-Twin 14000124 USB 3.0 cable with Twin USB 3.0 Type A female connector and 2x10 pin Housing. cab-ThinMini-ITX-LVDS-Open End 14000125 ACES 40 pin LVDS cable with open end. cab-ThinMini-ITX-BKLT 14000127 CHYAO SHIUNN 8 pin Backlight cable with open end. cab-ThinMini-ITX-LVDS 14000129 ACES 50204-40 LVDS cable for Thin Mini-ITX. cab-DP to HDMI 14000128 20 pin male DisplayPort to 19 pin female HDMI cab-ThinMini-ITX-SATA-Power (50cm lenght) 14000135 50cm SATA power cable with 2x15 pin female connectors. cab-ThinMini-ITX-SATA-Power (30cm length) 14000136 30cm SATA power cable with 2x15 pin female connectors. SATA III cable (straight/straight) 48000029 30cm SATA III data cable with straight/straight connectors SATA III cable (straight/right-angled) 48000030 30cm SATA III data cable with straight/right-angled connectors

Page 12

2 Speciﬁcation

2.1 Feature List

Table 1 Feature Summary

Form Factor

Based on Thin Mini-ITX form factor (170 x 170 mm).

Processor

Intel® 3rd Generation Atom/Celeron SoC

Memory

2x SO-DIMM dual channel non-ECC DDR3L memory, up to 1333 MT/s with 16GB maximum capacity. Sockets located top side of module.

cBC

Multi-stage watchdog, non-volatile user data storage, manufacturing and board information, board statistics, I2C bus, Power loss control.

Chipset

Integrated in the SoC

Audio

Realthek ALC888s 7.1 channel High Deﬁnition Audio codec

Ethernet

2x Gigabit Ethernet support via the onboard Intel® I210/I211 Phy.

Graphics

Intel® HD Graphics with support for DirectX11, OpenGL 3.0, OpenCL 1.2, OpenGLES 2.0, full HW acceleration for decode/encode of MPEG2, H.264, MVC and dual simultaneous display support and support for dual simultaneous displays.

Graphic Interfaces

1x DD1 (DP, HDMI/DVI) and 1x eDP/LVDS

Back Panel I/O Connectors

1x DisplayPort ++ (DP++). Supports DP/DVI/HDMI

- 1x HDMI 1.4: Multiplexed with DisplayPort (DP)/DVI. Hot-plug

detect support.

- 1x DVI: Multiplexed with HDMI/DP ports. Hot-Plug detect

support.

1x VGA

1x Audio OUT/MIC 2x Gigabit Ethernet (without AMT) 2x USB 2.0 2x USB 3.0 1x DC-IN

Onboard I/O Connectors

1x LVDS (top side) 1x eDP interface (bottom side) 1x Backlight 1x Monitor OFF SATA Interfaces

- 2x Standard SATA II (3.0 Gb/s).

- 1x mini SATA II (shared with mini PCIe Slot )

- 1x SATA power header connector (3.3V, 5V or 12V)

PCI Express Interfaces

- 1x PCI Express® Slot (x1 Gen 2 link).

- 1x Hall size mini PCIe Slot

- 1x Full size mini PCIe Slot (shared with mSATA)

- optional SIM card slot via connector X6 (Full size mPCIe/mSATA)

2x USB 2.0 2x USB 3.0

1x MicroSD slot (located at the bottom side) 1x Front panel HD audio 1x SPDIF/Digital microphone 1x Stereo speaker Connectors supported via Super IO

- 2x COM ports (COM 1 can be used optionally as ccTALK)

- 1x CPU fan with selectable voltage

- 1x System fan with selectable voltage

- 1x Case Open Intrusion Detection header

- GPOs on feature connector

Feature connector (GPIOs, SPI, SMB, LPC, LID/SLEEP etc) 1x Front panel header (Power button, reset, LEDs etc) 1x optional SBM3 support header 1x Internal power header (12-24V) 1x optional SBM3 power

Other Features

Thermal and voltage monitoring CMOS Battery Beeper congatec Standard BIOS (also possible to boot from an external BIOS by triggering the BIOS_DISABLE# signal on the feature connector)

Page 13

BIOS

AMI Aptio

UEFI 5.x ﬁrmware, 8/16 MByte serial SPI with congatec Embedded BIOS features.

Power Management

ACPI 4.0 compliant with battery support. Also supports Suspend to RAM (S3). Conﬁgurable TDP Ultra low standby power consumption, Deep Sx.

Security

Optional discrete Trusted Platform Module “TPM 1.2/2.0”, new AES Instructions for faster and better encryption.

Note

Some of the features mentioned in the above feature summary are optional. Check the article number of your module and compare it to the option information list on page 11 of this user’s guide to determine what options are available on your particular module.

The conga-IA3 supports only DDR3L memory modules and the memory modules in the sockets must be symmetrical - that is, same raw cards and same memory sizes. This is because the Bay Trail SoC on the conga-IA3 does not support mixed raw cards or same raw cards with mixed memory sizes. Although the conga-IA3 might boot up with asymmetrical memory modules, this may however cause memory errors or instabilities. Therefore use only symmetrical DDR3L memory modules on the conga-IA3 and also make sure the memory module supports the data transfer rate of the particular variant.

In addition, if you use only one memory module then you must insert this memory module only in the ﬁrst memory slot of the conga-IA3 (top side). Due to the Bay Trail architecture, the conga-IA3 will ignore the second memory socket (bottom side) if the ﬁrst memory slot is not populated. This means that you cannot boot up the conga-IA3 if the ﬁrst memory slot is empty. See the Bay Trail datasheet for more information.

2.2 Supported Operating Systems

The conga-IA3 supports the following operating systems.

• Microsoft® Windows

• Microsoft® Windows® 7

• Microsoft® Windows® 7/8 Embedded Standard

• Linux

Note

Intel does not currently provide validated eMMC and SD drivers for Win 7/WES7.

For the installation of Windows 7/8 and WES7/8, congatec AG requires a minimum storage capacity of 16 GB. congatec will not offer support for systems with less than 16 GB storage space.

Page 14

2.3 Mechanical Dimensions

• 170mm x 170mm

• Height approximately 20mm

2.4 Environmental Speciﬁcations

Temperature Operation: 0° to 60°C Storage: -20° to +80°C

Humidity Operation: 10% to 90% Storage: 5% to 95%

Note

The above operating temperatures must be strictly adhered to at all times. Humidity speciﬁcations are for non-condensing conditions.

Page 15

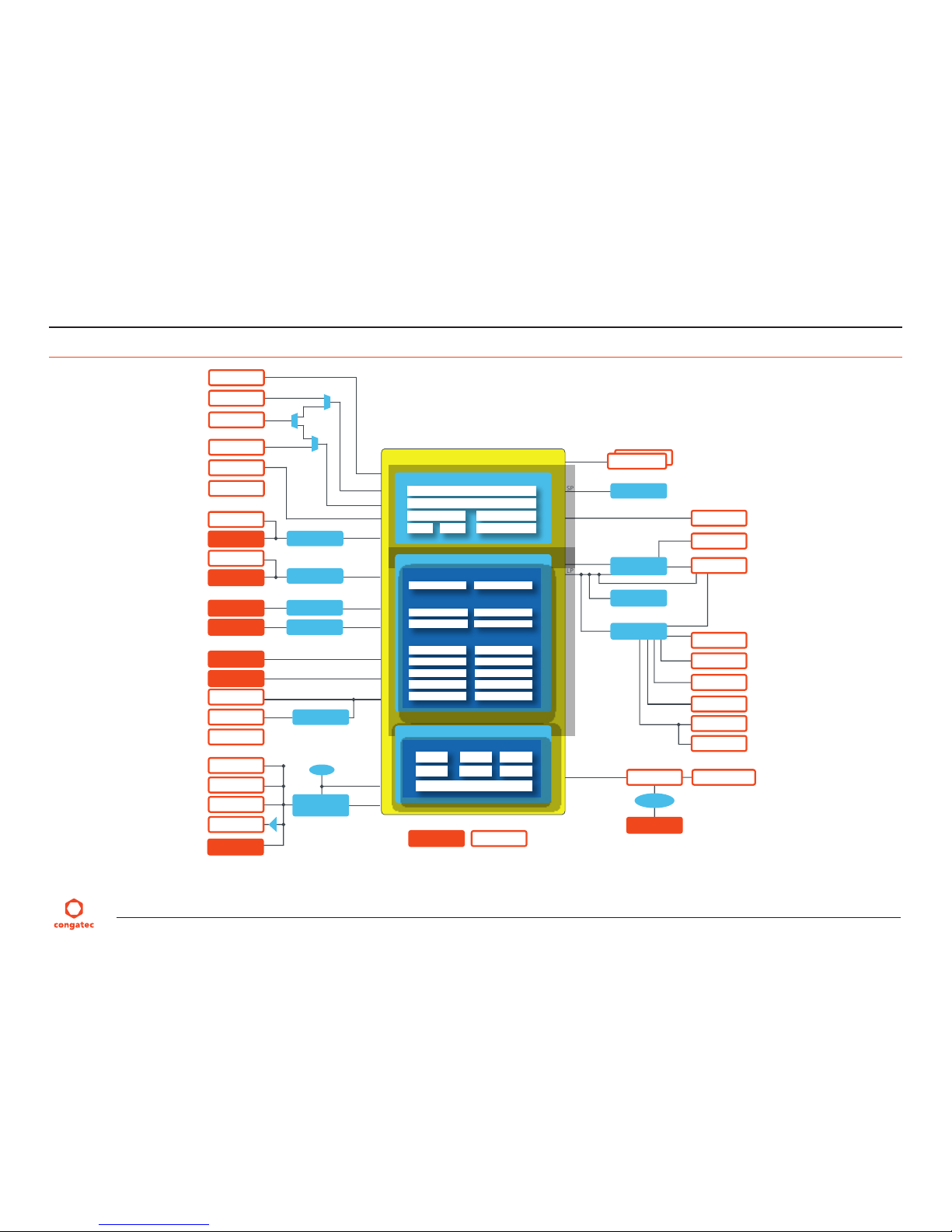

3 Block Diagram

*1 The mSATA/mPCIe connector supports both mPCIe

and mSATA devices. The devices are detected automatically.

Located at the bottom side.

Optional feature.

2x SO-DIMM DDR3L

LPC

HDA

Speaker

HD Audio ALC888S

congatec

Board Controller

4-wire

System FAN

2x USB 3.0

Front Panel

HD Audio

4-wire

CPU FAN

Intrusion

Header

SBM

Batt. Mgmt *

Feature

Connector

UART 0

UART 1

ccTALK *

Super I/O

Reverse Polarity

Protection

TPM

External I/O

Power IN

Internal I/O

SPI Flash

SATA1

mSATA/mPCIe *

PCIe x1 Slot

mPCIe (half-size)

SATA0

PCIe

i211

USB Hub

i211

eDP to LVDS

Ethernet

DP++

VGA

Audio OUT/MIC

Buzzer

Internal speaker

Digital Mic

USB2.0

SPI

eDP *

LVDS

DDI1

DDI0

VGA

2x24 bit

LVDS

2x USB3.0

2x USB2.0

USB3.0

SATA0

SATA1

PCIe0

PCIe1

2x USB3.0

Front Panel

Micro SD Card *

SATA Power

Power IN

Backlight

SPDIF Out

Intel Bay Trail SoC

Memory Controller

Tri-gate 3D 22nm Single/Dual/Quad Core

1MB L2 Cache Shared By 2 Cores

64 Architecture

SSE4.2 AES-NI Thermal Mgmt.

Virtualization (VT-x)

Multimedia Features

DisplayPort 1.2

Dual Channel

Low Power

HDMI 1.4 (3D, 4k)

embedded DP

VGA

Display Interfaces

COMPUTE UNIT

SoC TRANSACTION ROUTER

OCL 1.2

MPEG-2

OpenCL 1.2

H.264

OpenGL 3.0

WMV9

OpenGLES 2.0

MJPEG

DirectX 11

INTEGRATED I/O

SATA

High Deﬁnition Audio

USB 2.0

LPC BusPCIe

I/O Interfaces

GPIOs

USB 3.0

Page 16

4 Cooling Solution

The conga-IA3 SBC offers Ultra Low Power boards with high computing performance and outstanding graphics. Due to its low power consumption, the SBC generates less heat and therefore requires less active cooling, allowing the use of quieter, lower proﬁle coolers that are better suited to small form factor systems.

Nonetheless, all electronics contain semiconductor devices which have operating temperature ranges that should be adhered to. This means that for reliable operation, the thermal design of the conga-IA3 must be carefully considered. For this reason, it is imperative to provide sufﬁcient air ﬂow to each of the components, to ensure the speciﬁed operating temperature of the conga-IA3 is maintained.

congatec AG offers two cooling possibilities for the conga-IA3:

• A congatec heatspreader in combination with the conga-IA3 retention frame. This cooling solution is adapted to the Thin Mini-ITX height speciﬁcation and features a Hi-Flow 225UT pressure sensitive, phase change thermal interface. Refer to section 4.2 “Heatspreader Dimensions” for the dimensions of the congatec heatspreader.

• The use of a custom cooling solution in combination with the conga-IA3 retention frame.

Note

When a passive cooling is used, the end user must ensure that adequate air ﬂow is maintained.

See section 1.2.2 “Optional Accessories/Cables” for the part numbers of the cooling accessories.

Heatspreader

Retention Frame

Page 17

4.1 Cooling Installation

Assembly Instruction:

• Flip over the SBC and locate the position of the CPU

• Place retention frame on the bottom side of the board with insulating foil facing the PCB and standoffs inserted to PCB mounting holes.

• Remove the heatspreader's protection pull tab foil from the phase changer and carefully place the heatspreader to the CPU.

• Insert assembling screws.

• Hold the heatspreader with one hand so that it does not tilt while tightening the screws.

• Slightly tighten each of the 4 screws so that they hold the heatspreader in place. To do so, start with one screw and then slightly tighten the other screws in a crossover pattern. All the while keep holding the cooling adapter straight with one hand.

• Now you can fully tighten the screws. Once again start with one and then continue to tighten the other screws in a crossover pattern. All the while keep holding the cooling adapter straight with one hand

Caution

congatec cooling solutions have been speciﬁcally designed for use within commercial temperature ranges (0° to 60°C) only. It is the responsibility of the end user to design an optimized thermal solution that meets the needs of their application within the industrial environmental conditions it is required to operate in. Attention must be given to the mounting solution used to mount the cooling solution and SBC into the system chassis.

Page 18

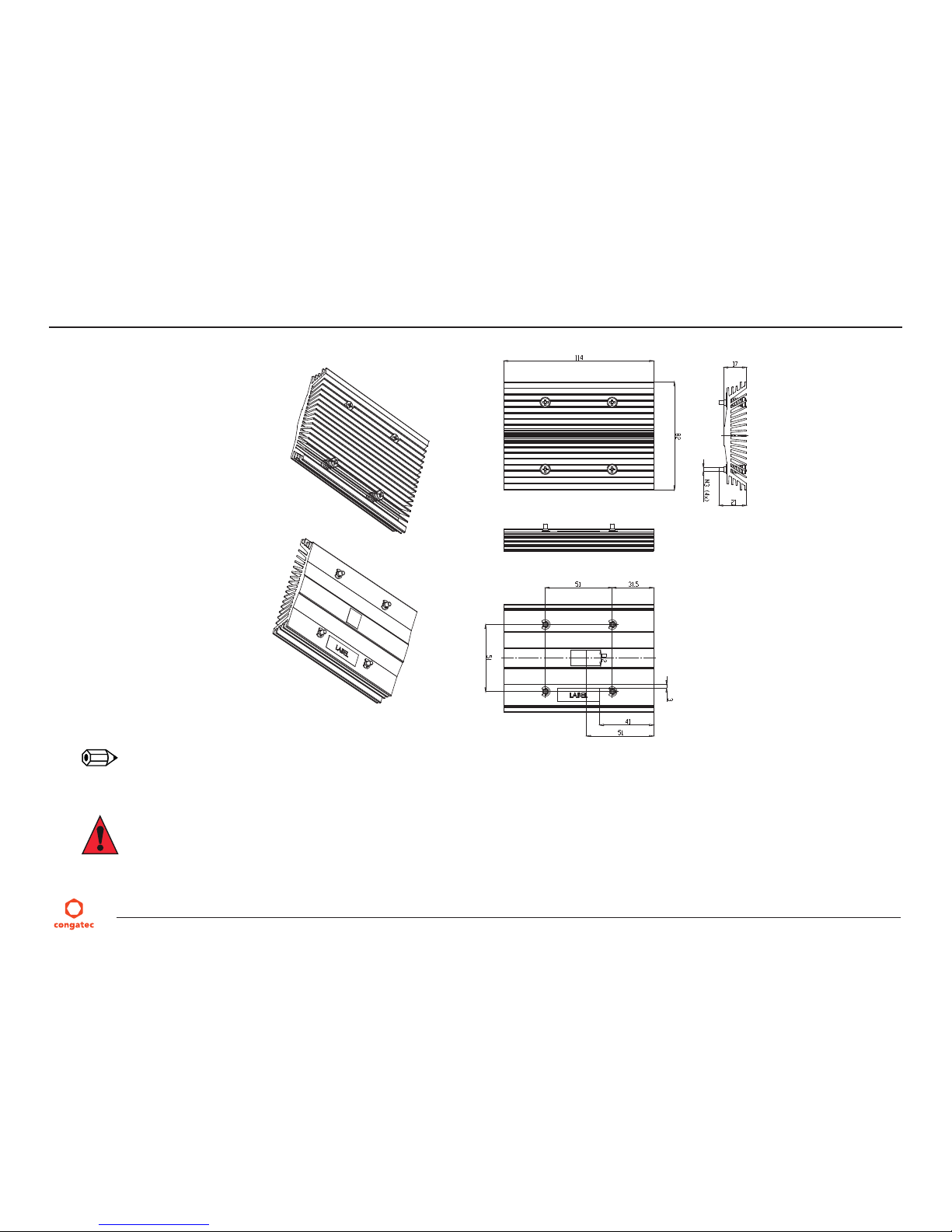

4.2 Heatspreader

Note

All measurements are in millimeters. Torque speciﬁcation for cooling solution screws is 0.6 Nm. Mechanical system assembly mounting shall follow the valid DIN/IS0 speciﬁcations.

Caution

When using the heatspreader in a high shock and/or vibration environment, congatec recommends the use of a thread-locking ﬂuid on the cooling solution screws to ensure the above mentioned torque speciﬁcation is maintained.

Page 19

5 Connector Description

5.1 Power Supply

You can power the conga-IA3 SBC with a 12V-24V laptop type DC power supply (on connector X43) or a 4 pin internal power supply (on connector X44).

Additionally, the SBC offers an optional SBM

power connector (only BOM option). When this connector (X45) is populated, you can power the

SBC with it.

Note

The supplied voltages must be within a tolerance of ± 10%

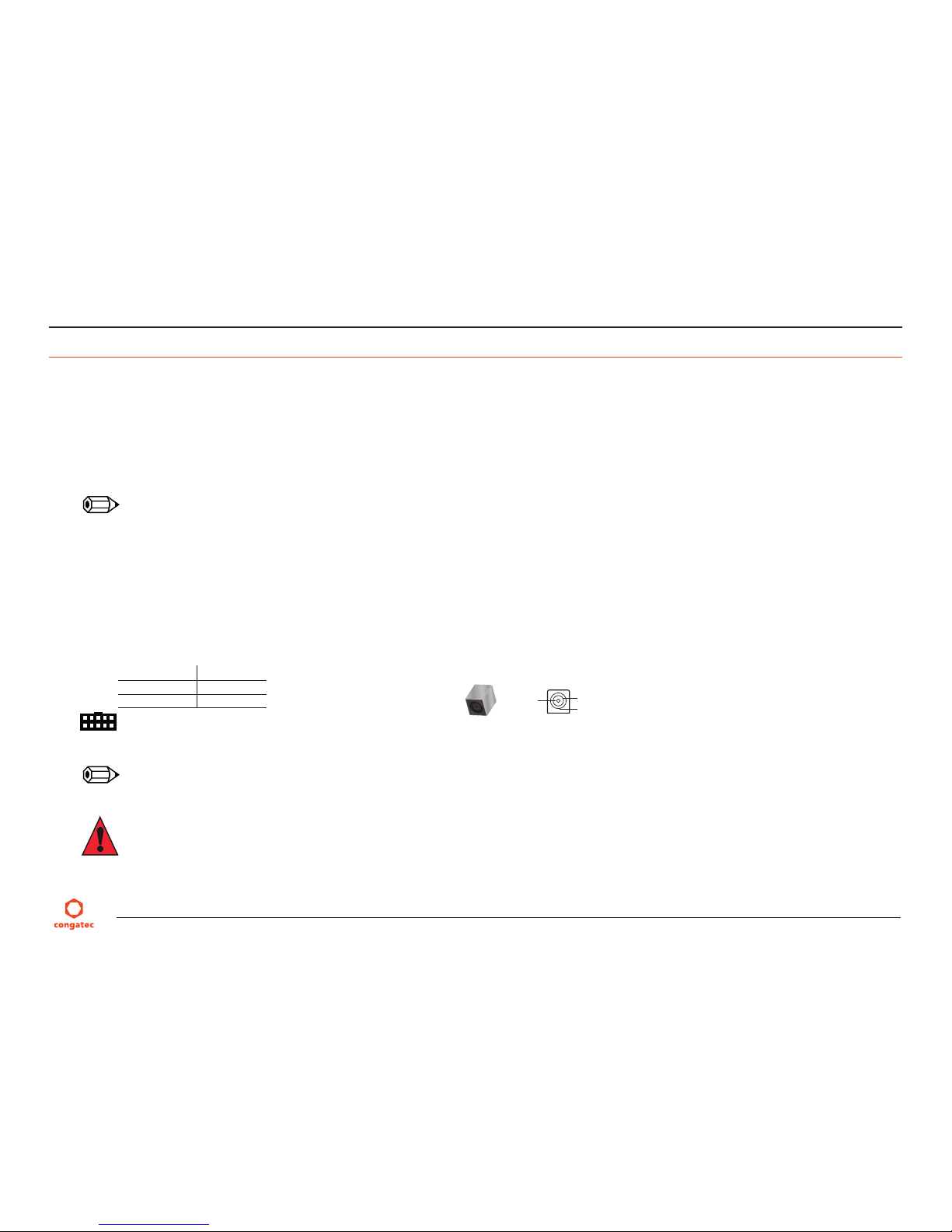

5.1.1 DC Power Jack (Rear I/O)

The conga-IA3 SBC can be powered from a laptop type external power supply connected to the DC power jack on the rear I/O. This power input protects against polarity reversal and over/under voltage.

Connector X43 Pinout Description

Pin Function

Inner Shell +12 - 24V Outer Shell GND

Connector Type

X43 : DC Power Jack, 7.4x5.1mm Diameter

Note

The default conga-IA3 BIOS conﬁguration enables the system to boot-up immediately an external is supplied.

Caution

The absolute maximum rating of the input voltage is 36 volts. Do not exceed this rating or expose the conga-IA3 to the absolute maximum voltage for a prolonged time. Doing so may damage the system or affect system reliability.

DC Plug

1 = + DC (12-24V) 2 = GND

12-24 V max. 120 Watt Plug: 7.4 x 5.0 mm

inner

outer

center

DC Power Jack - Connector X43

Page 20

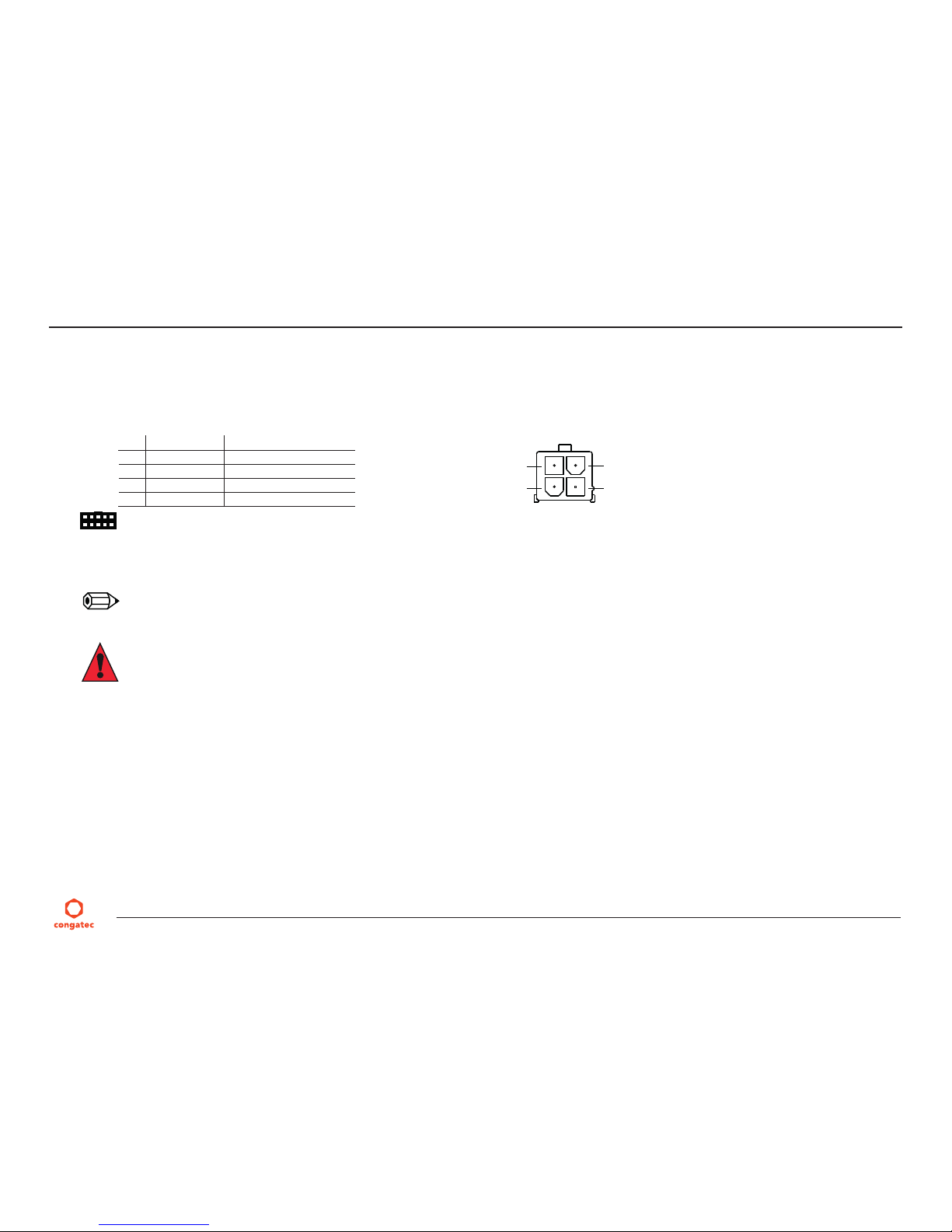

5.1.2 Power Supply (Internal Connector)

The conga-IA3 offers an internal 4-pin power connector. This connector makes it possible to use customized power supply cables/connector and also offers under/over voltage protection to the input voltage.

Connector X44 Pinout Description

Pin Signal Description

1 GND Ground 2 GND Ground 3 +12V - 24V Power Supply +12V-24V 4 +12V - 24V Power Supply +12V-24V

Connector Type

X44 : 4 Pos, Pitch 4.2mm Internal Power Connector (PN: 41500079).

Mating Connector: A possible mating connector for X44 is the Molex 39-01-2045.

Note

The default conga-IA3 BIOS conﬁguration enables the system to boot-up immediately an external is supplied.

Caution

5.1.3 Optional SBM3 Power Connector (Internal Connector)

You can also power the conga-IA3 SBC optionally with an SBM battery kit. The battery kit requires two connections - the SBM battery power on connector X50 and the SBM battery signals on connector X45. The SBM3 feature requires a ﬁrmware update.

Internal Power Connector X44

Page 21

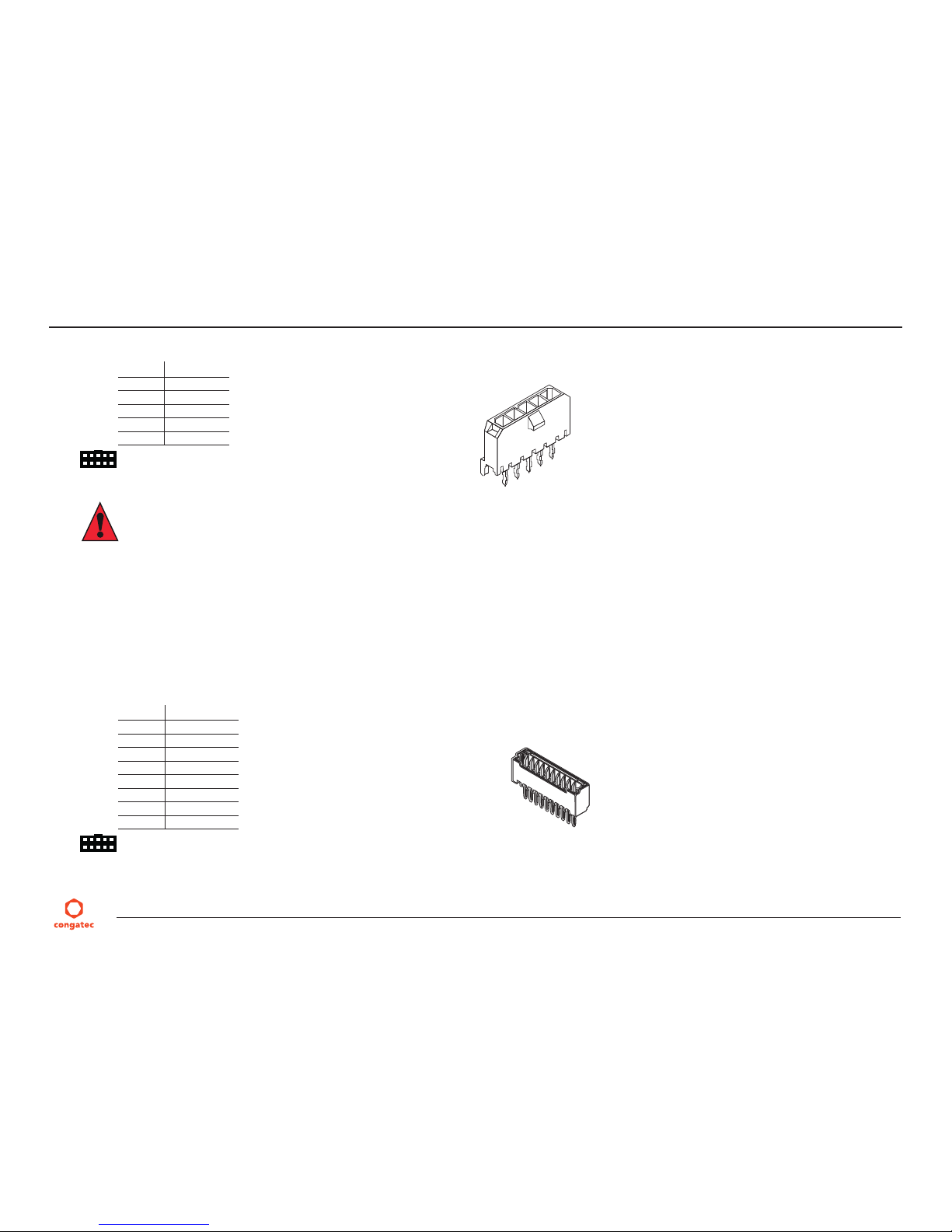

Connector X50 Pinout Description

Pin Function

1 +12 - 24V 2 +12 - 24V 3 GND 4 GND 5 NC

Connector Type

X50 : 1x5 Pos, 3mm Pitch Micro-FIT

Caution

5.1.3.1 Optional SBM3 Signal Connector

As mentioned above, if you need the optional SBM battery power connector (X50), then you need in addition the optional SBM battery signals connector (X45) for adequate communication between the conga-IA3 and the battery kit.

Connector X45 Pinout Description

Pin Function

1 GND 2 I2C_DAT 3 I2C_CLK 4 BATLOW# 5 SUS_STAT# 6 PM_SLP_S3# 7 PM_SLP_S5# 8 PWRBTN#

Connector Type

X45 : 1x8 Pos, 1.25mm Pitch PicoBlade

SBM3 Power - Connector X50

SBM3 Signal - Connector X45

Page 22

5.1.4 PWR_OK Signal

With the PWR_OK signal on the feature connector (X34), the user can control the SBC's start-up process. When this signal is set to low, the SBC is kept in reset until the PWR_OK signal is asserted.

When the signal is asserted (set to high), it indicates to the SBC that the supplied power is stable. The SBC then begins its onboard power-up sequence.

5.1.5 Power Status LEDs

The conga-IA3 provides two LED signals (FP_LED1 and P_LED2) on pins 2 and 4 of the front panel connector X38. The signals indicate the different power states of the conga-IA3. Possible states and corresponding activity of the LEDs are shown below:

Double-Color Power LED

LED State Description ACPI State

Off

Power-off S5 Steady Green Running S0 Steady Yellow Sleeping S3

Single-Color Power LED

LED State Description ACPI State

Off Sleeping or power-off (not running) S3, S5 Steady Green Running S0

Note

For the front panel pinout description, see section 6.1 “Front Panel Connector”.

Page 23

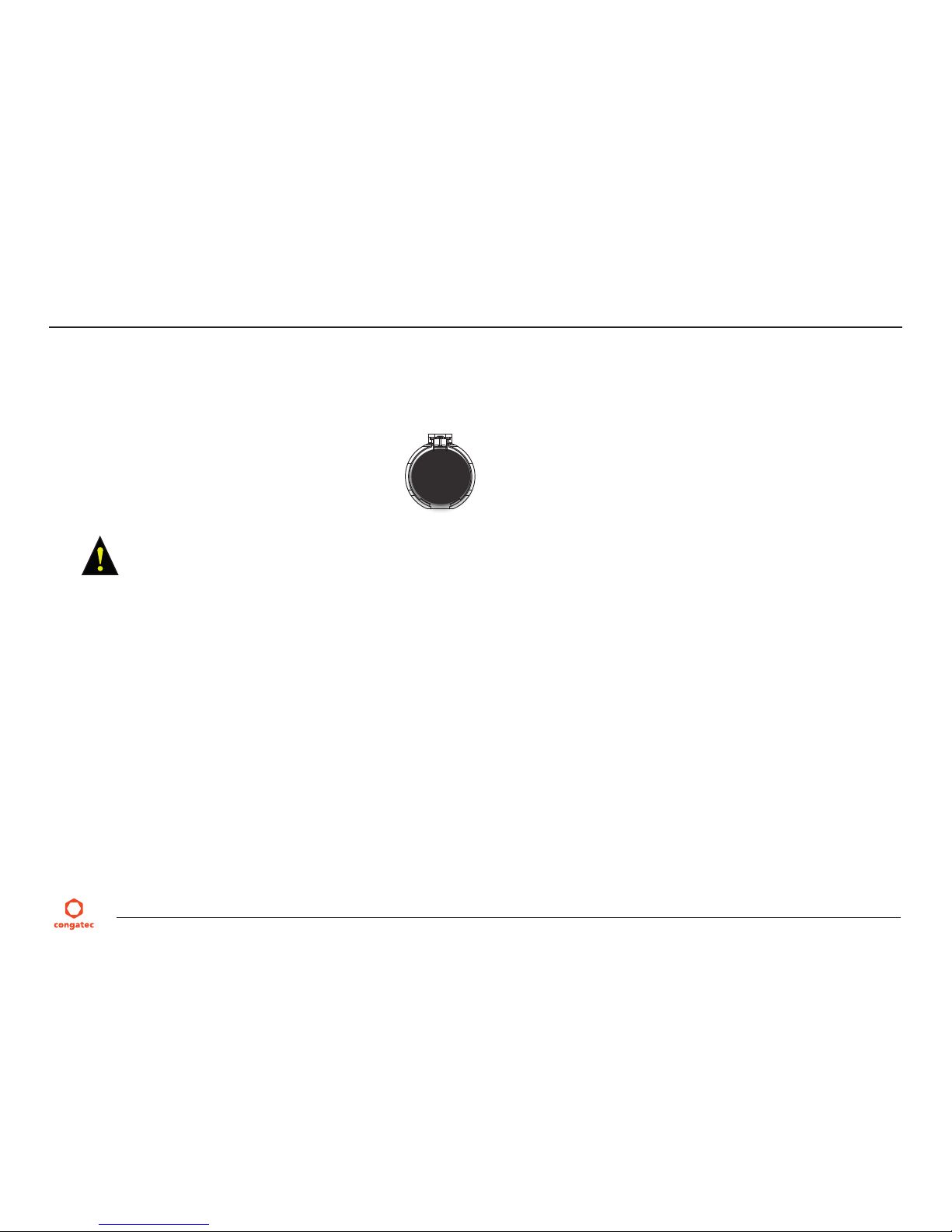

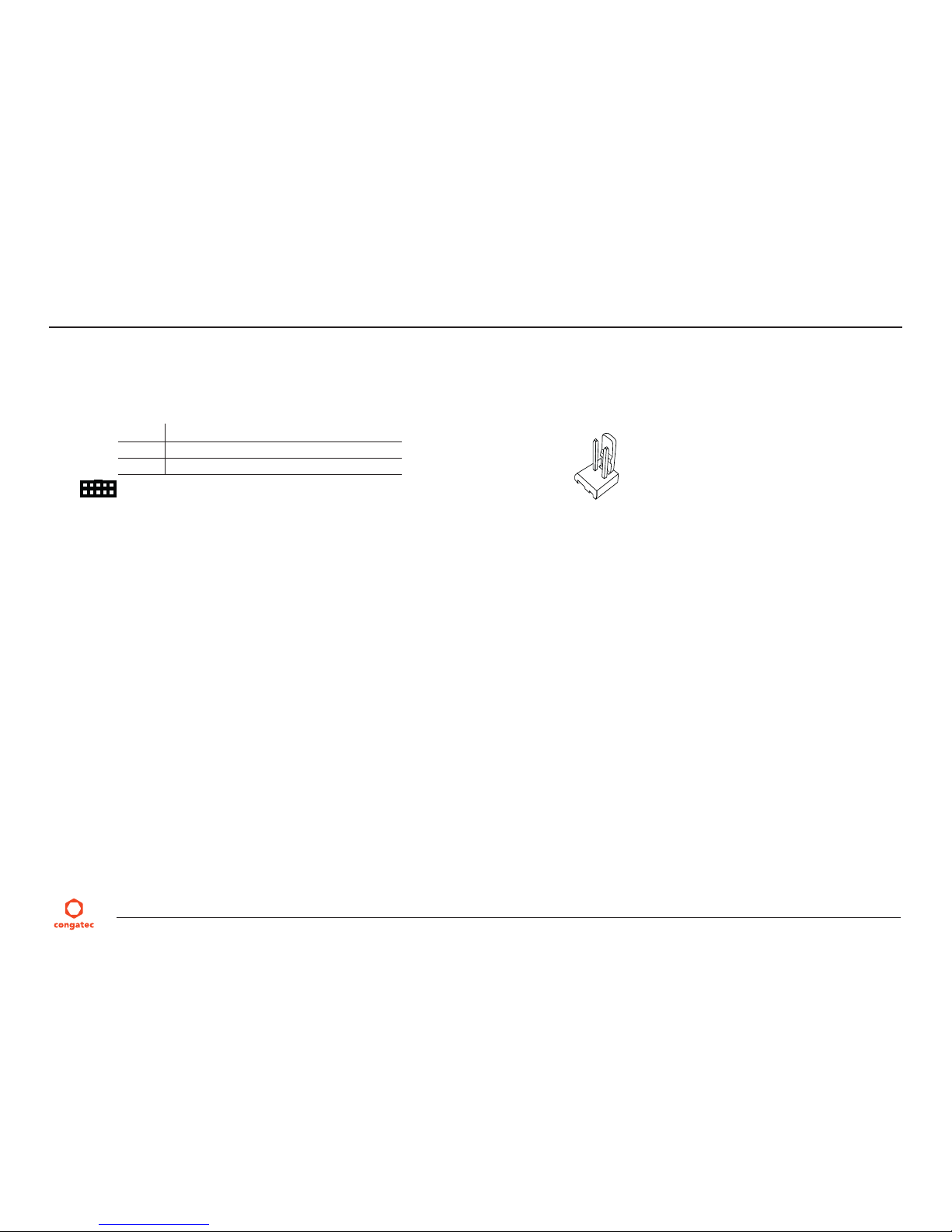

5.2 CMOS Battery/RTC

The conga-IA3 provides a board mounted battery holder (M29) for CMOS battery. The CMOS battery supplies the necessary power required to maintain the CMOS settings and conﬁguration data in the UEFI ﬂash chip. The speciﬁed battery type is CR2032.

Warning

Danger of explosion if battery is incorrectly replaced. Replace only with same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.

5.3 Audio Interfaces

The conga-IA3 provides audio connectors both internally and on the rear side. The internal audio connectors are stereo speaker, digital microphone/SPDIF and front Panel HD audio. The audio OUT/MIC connector is provided on the rear side.

5.3.1 Rear Audio Connectors

The conga-IA3 has a high deﬁnition audio codec (Realtek ALC888S) mounted on it. The front channel line output signals and the MIC input signals are routed to connector X48 (audio OUT/MIC) on the rear side. The drivers for this codec can be found in the software section under conga-IA3 on the congatec website at www.congatec.com

M29 (Battery Holder)

Page 24

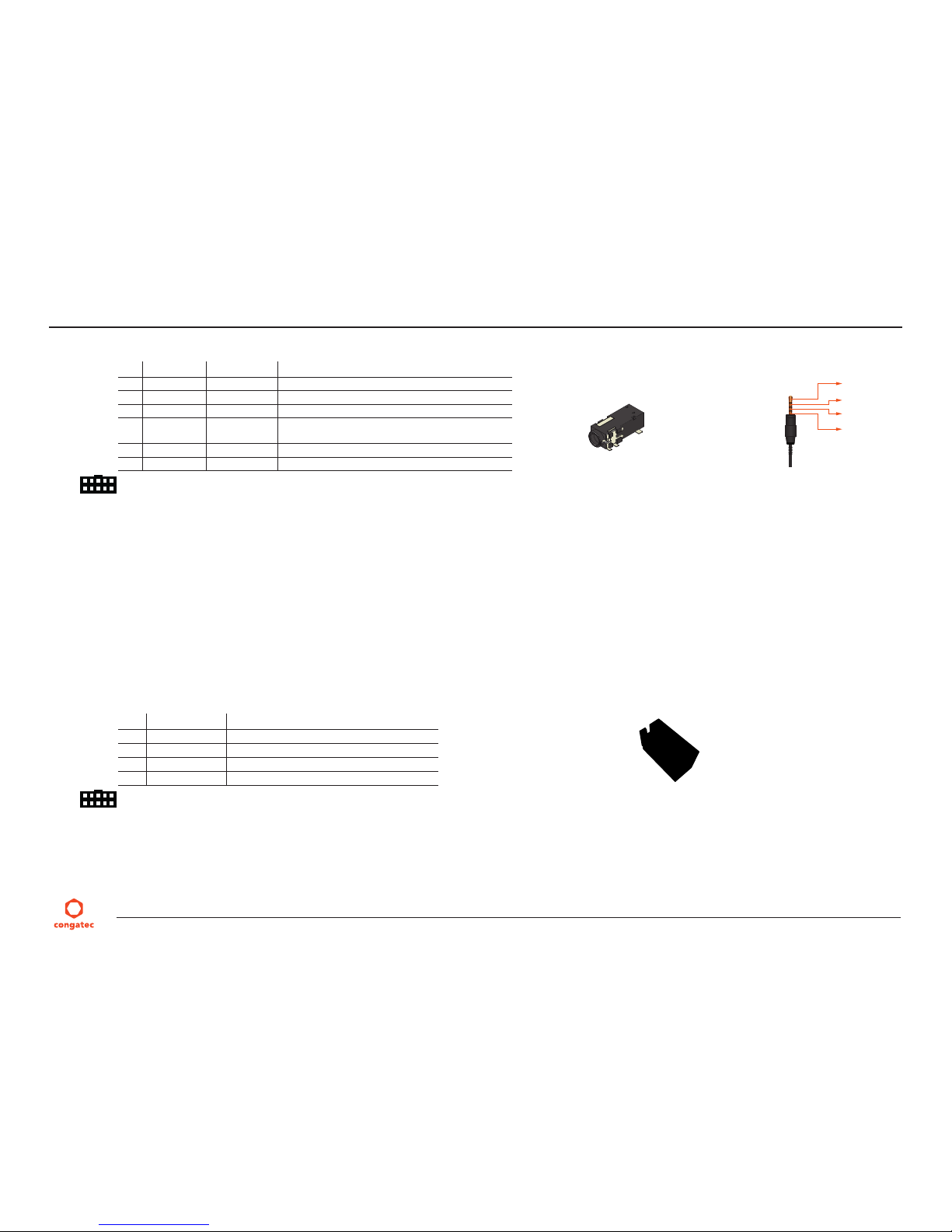

Audio OUT/MIC (Connector X48) Pinout Description

Pin Plug Signal Description

1 Sleeve A_GND Analog Ground 2 Tip FRONT_L Front Analog Output Left Channel 3 Ring1 FRONT_R Front Analog Output Right Channel 4 Ring2 MIC1_R/

MIC1_L

1st Microphone Analog Input Right Channel

1st Microphone Analog Input Left Channel 5 NA SENSE_A Jack Detect Pin 1 6 NA SENSE_A Jack Detect Pin 1

Connector Type

X48: 6 Pin, Single Audio Jack - black color

5.3.2 Internal Audio Connectors

The conga-IA3 provides the stereo speaker, digital microphone/SPDIF and front panel HD audio connectors internally.

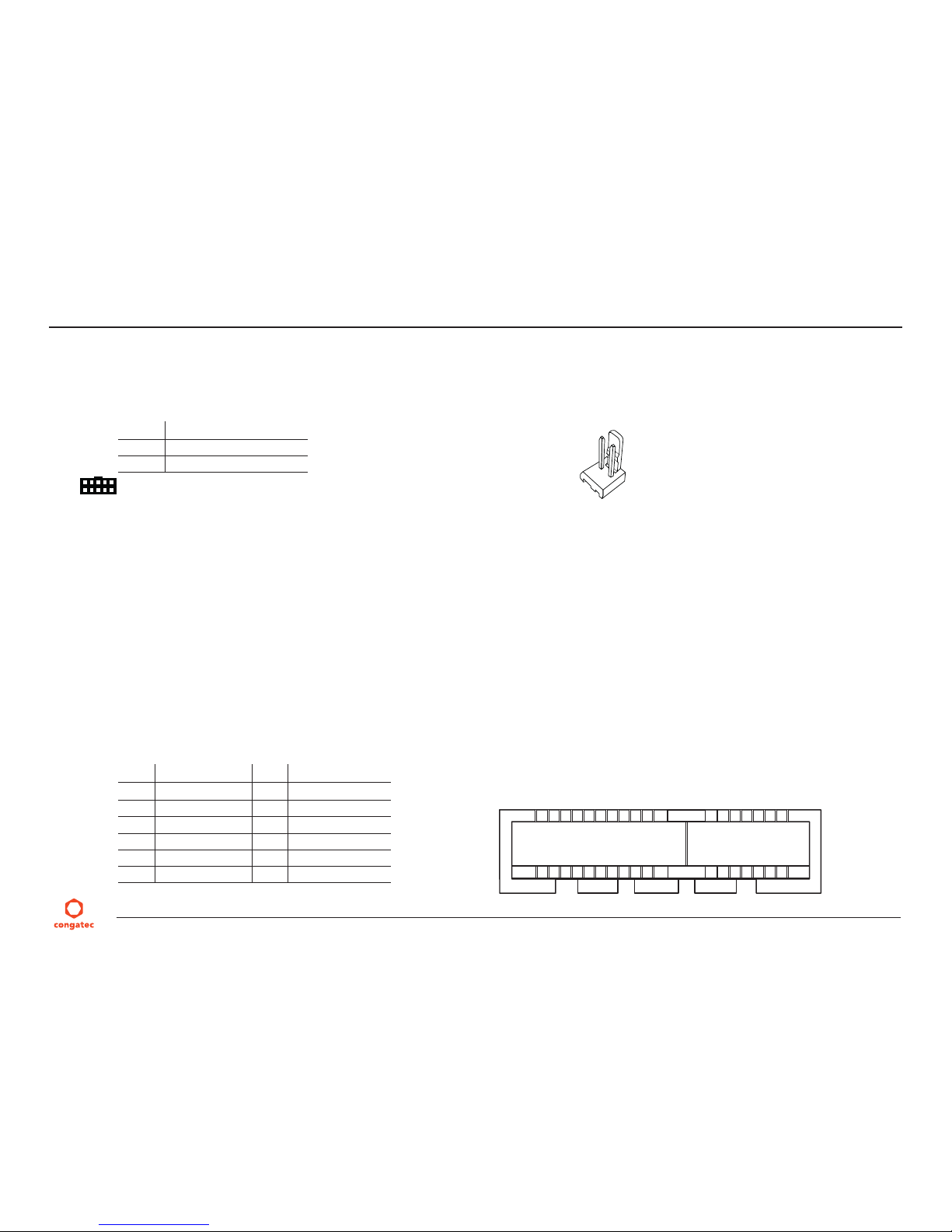

5.3.2.1 Stereo Speaker Header

The ﬁrst analog line input channels (left and right) of the Realtek ALC888S HDA audio codec are routed via a TPA2012D2 ampliﬁer to internal stereo speaker - connector X19. The ampliﬁer offers a maximum wattage of 2.1W per channel into 4 ohms.

Stereo Speaker (Connector X19) Pinout Description

Pin Signal Description

1 OUTL- Left Channel Negative Differential Output 2 OUTL+ Left Channel Positive Differential Output 3 OUTR- Right Channel Negative Differential Output 4 OUTR+ Right Channel Positive Differential Output

Connector Type

X19: 2mm Crimp Style Connector with 4 Pos.

Mating Connector: A possible mating connector for X19 is Chyao Shiunn JS-1124-04.

Audio OUT/MIC - Connector X48

Audio Jack

Left Channel

Right Channel

Ground

Microphone

Stereo Speaker - Connector X19

Page 25

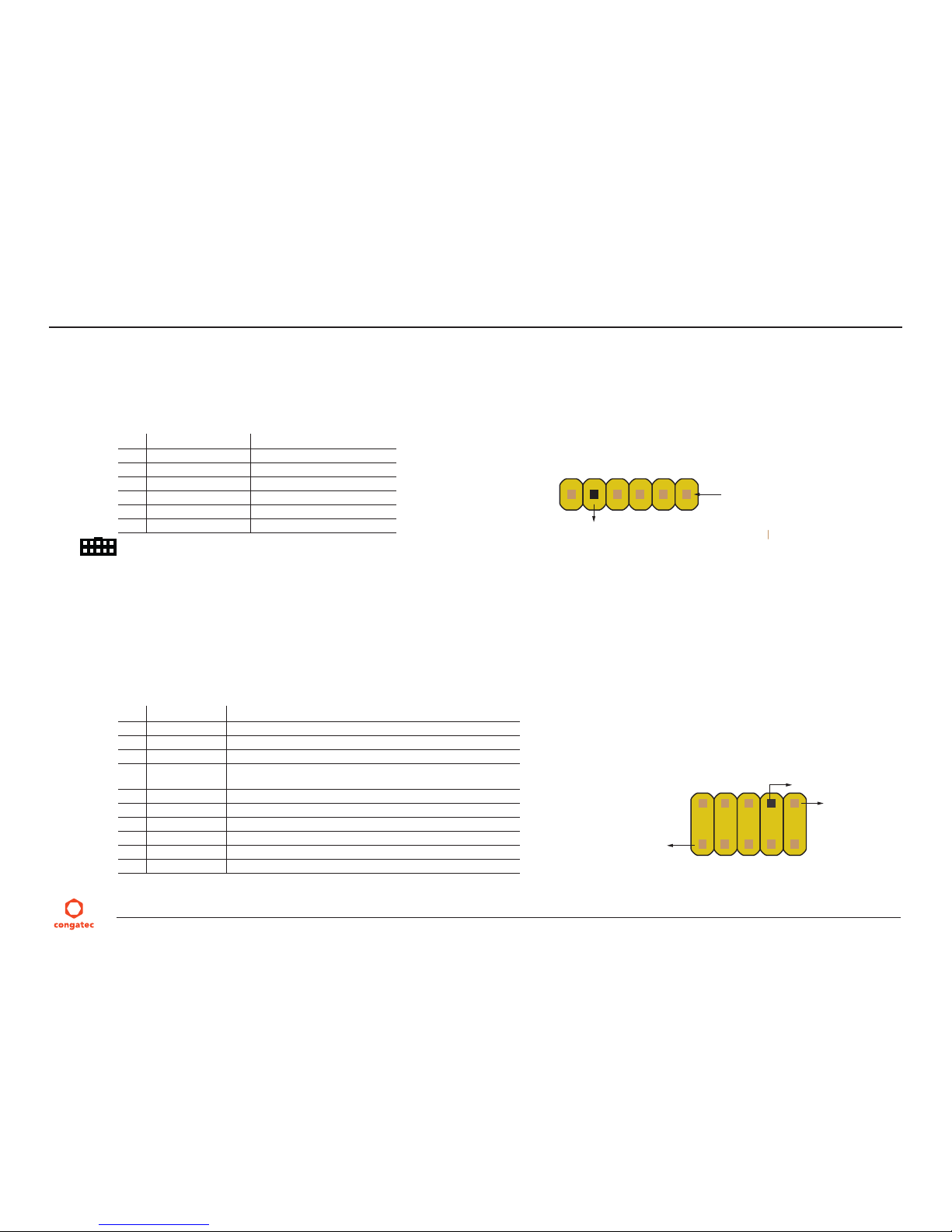

5.3.2.2 Digital Microphone/SPDIF

The digital microphone/SPDIF signals of the Realtek ALC888S HDA audio codec are routed to the internal digital microphone/SPDIF connector X17. This connector offers two power supply pins - 3,3V and 5V. Power Budget of these pins is limited to 500mA.

Internal Digital Microphone/SPDIF (Connector X17) Pinout Description

Pin Signal Description

1 +3.3V 3.3V supply 2 DMIC_DATA Serial data from digital MIC 3 GND Ground 4 SPDIFO2 Secondary S/PDIF output 5 KEY No pin 6 +5V 5V supply

Connector Type

X17: 2.54mm, 1x6 Pos. Header

5.3.2.3 Front Panel HD Audio

The front panel HD audio (LINE2 and MIC2) signals of the Realtek ALC888S HDA audio codec are routed to connector X16. The pinout description of the connector is shown below:

Front Panel HD Audio (Connector X27) Pinout Description

Pin Signal Description

1 MIC2_L 2nd Analog Stereo Microphone Input - Left Channel 2 GND Ground 3 MIC2_R 2nd Analog Stereo Microphone Input - Right Channel 4 PRESENCE# Active low signal that indicates that an Intel HD Audio dongle is

connected to the analog header. 5 LINE2_R 2nd Analog Line Input - Right Channel (Headphone) 6 GND_HDA Audio Ground 7 SENSE_B Jack Detection Pin 2 8 KEY No pin 9 LINE2_L 2nd Analog Line Input - Left Channel (Headphone) 10 GND_HDA Audio Ground

Digital MIC/SPDIF - Connector X17

Pin 1

No Pin

Front Panel Audio - Connector X16

No Pin

Pin 1

Pin 10

Page 26

Connector Type

X16: 2.54mm, 2x5 Pin Header

5.4 Communication Bus

The conga-IA3 supports both SMBus and I2C compliant devices.

5.4.1 SMBus

The SMBus signals are available in different locations on the conga-IA3, including the feature connector (X34) described in section 6.13 of this document.

5.4.2 I²C Bus

The congatec Board controller provides I²C signals. These signals are available in different locations on the conga-IA3, including the feature connector (X34) described in section 6.13 of this document.

5.4.3 SPI Bus

The SPI signals are connected to the onboard SPI ﬂash and additionally to the feature connector (X34). The SPI signals on the feature connector provides the ability to boot the conga-IA3 from external ﬂash. This however requires a customized adapter for triggering the BIOS_DISABLE# signal (pin 46) of the feature connector.

Note

The congatec customized adapter for the feature connector is currently for internal use only.

Page 27

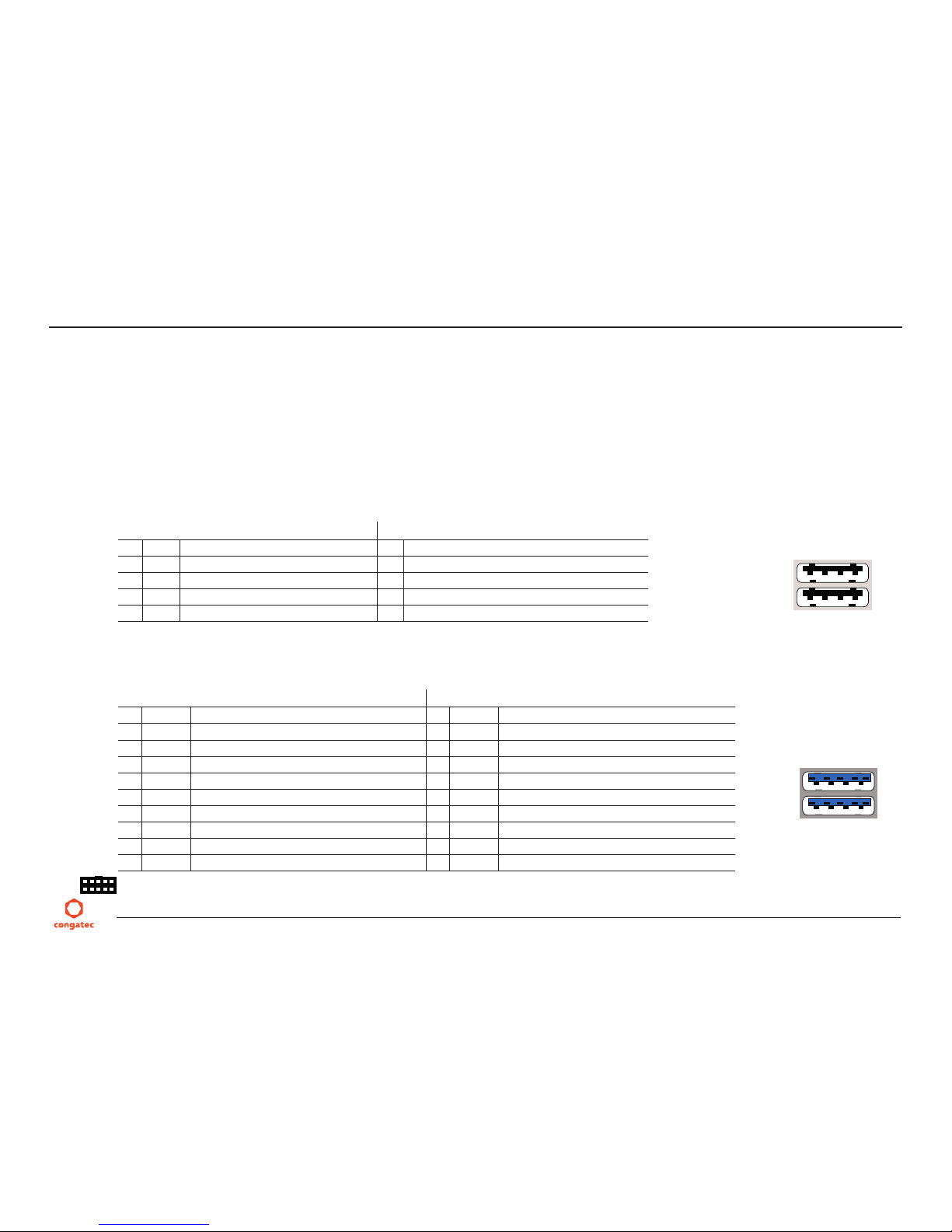

5.5 Universal Serial Bus (USB)

The conga-IA3 provides 8 USB connectors both on the rear side and internally. The rear and internal connectors have 4 USB ports each.

5.5.1 Rear USB Connectors

The conga-IA3 offers a total of four USB ports on the rear side - two USB 2.0 ports on connector X14 and two USB 3.0 ports on connector X15. The USB 2.0 signals on connector X14 are routed directly from the SoC's USB ports 2 and 3. The USB 3.0 signals on connector X15 are routed from the SoC's USB Superspeed and USB port 0 signals via a USB 3.0 hub.

USB 2.0 (Connector X14) Pinout Descriptions

Lower Port Upper Port

Pin Signal Description Pin Signal Description

A1 +5V +5V supply B1 +5V +5V supply

A2 Data- Hi-speed differential transceiver (negative) B2 Data- Hi-speed differential transceiver (negative)

A3 Data+ Hi-speed differential transceiver (positive) B3 Data+ Hi-speed differential transceiver (positive)

A4 GND Ground B4 GND Ground

USB 3.0 (Connectors X15) Pinout Descriptions

Lower Port Upper Port

Pin Signal Description Pin Signal Description

1 +5V +5V supply 10 +5V +5V supply

2 Data1- Hi-speed differential transceiver (negative) 11 Data2- Hi-speed differential transceiver (negative)

3 Data1+ Hi-speed differential transceiver (positive) 12 Data2+ Hi-speed differential transceiver (positive)

4 GND Ground 13 GND Ground

5 SS1_RX- SuperSpeed receiver differential pair (negative) 14 SS2_RX- SuperSpeed receiver differential pair (negative)

6 SS1_RX+ SuperSpeed receiver differential pair (positive) 15 SS2_RX+ SuperSpeed receiver differential pair (positive)

7 GND Ground 16 GND Ground

8 SS1_TX- SuperSpeed transmitter differential pair negative) 17 SS2_TX- SuperSpeed transmitter differential pair (negative)

9 SS1_TX+ SuperSpeed transmitter differential pair (positive) 18 SS2_TX+ SuperSpeed transmitter differential pair (positive)

Connector Type

1 2 3 4

Upper

Lower

Connector X14

Upper

Lower

Connector X15

5789

1 2 3 4

5789

1 2 3 4

Page 28

X14,X15: Two Type A, Dual Port USB Connectors

Note

The +5V signals of connector X14 and X15 have a maximum current of 1.2A each.

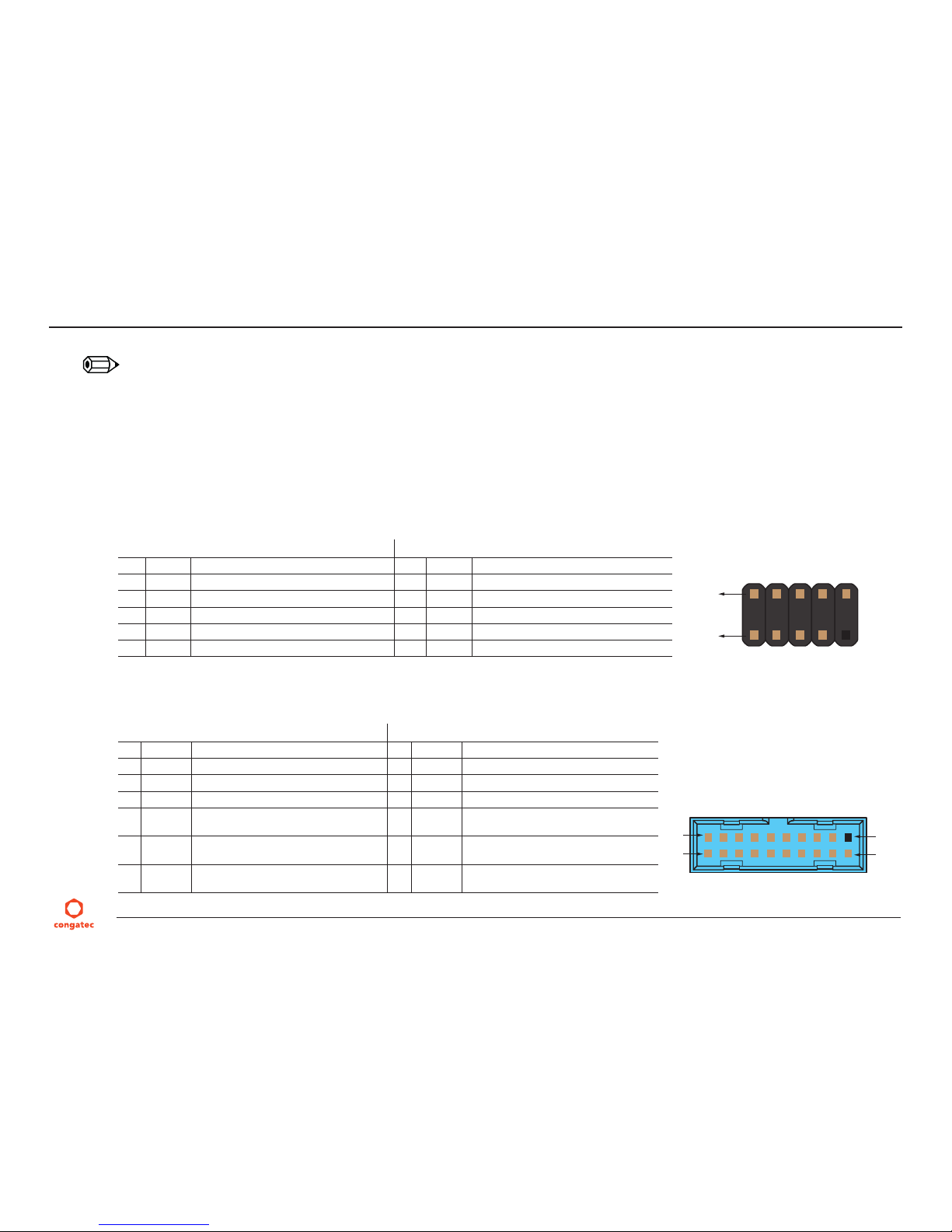

5.5.2 Internal USB Connectors

The conga-IA3 offers 4 USB ports internally - two USB 2.0 ports on connector X12 and two USB 3.0 ports on connector X60. The USB 2.0 signals on connector X12 are routed from the SoC's USB port 1 via a USB 2.0 hub. The USB 3.0 signals on connector X60 are routed from the SoC's USB Superspeed and USB port 0 signals via a USB 3.0 hub.

USB 2.0 Header (Connector X12) Pinout Description

Port 1 Port 2

Pin Signal Description Pin Signal Description

1 +5V +5V supply 2 +5V +5V supply

3 Data2- Hi-speed differential transceiver (negative) 4 Data3- Hi-speed differential transceiver (negative)

5 Data2+ Hi-speed differential transceiver (positive) 6 Data3+ Hi-speed differential transceiver (positive)

7 GND Ground 8 GND Ground

9 No Pin Empty 10 NC Not Connected

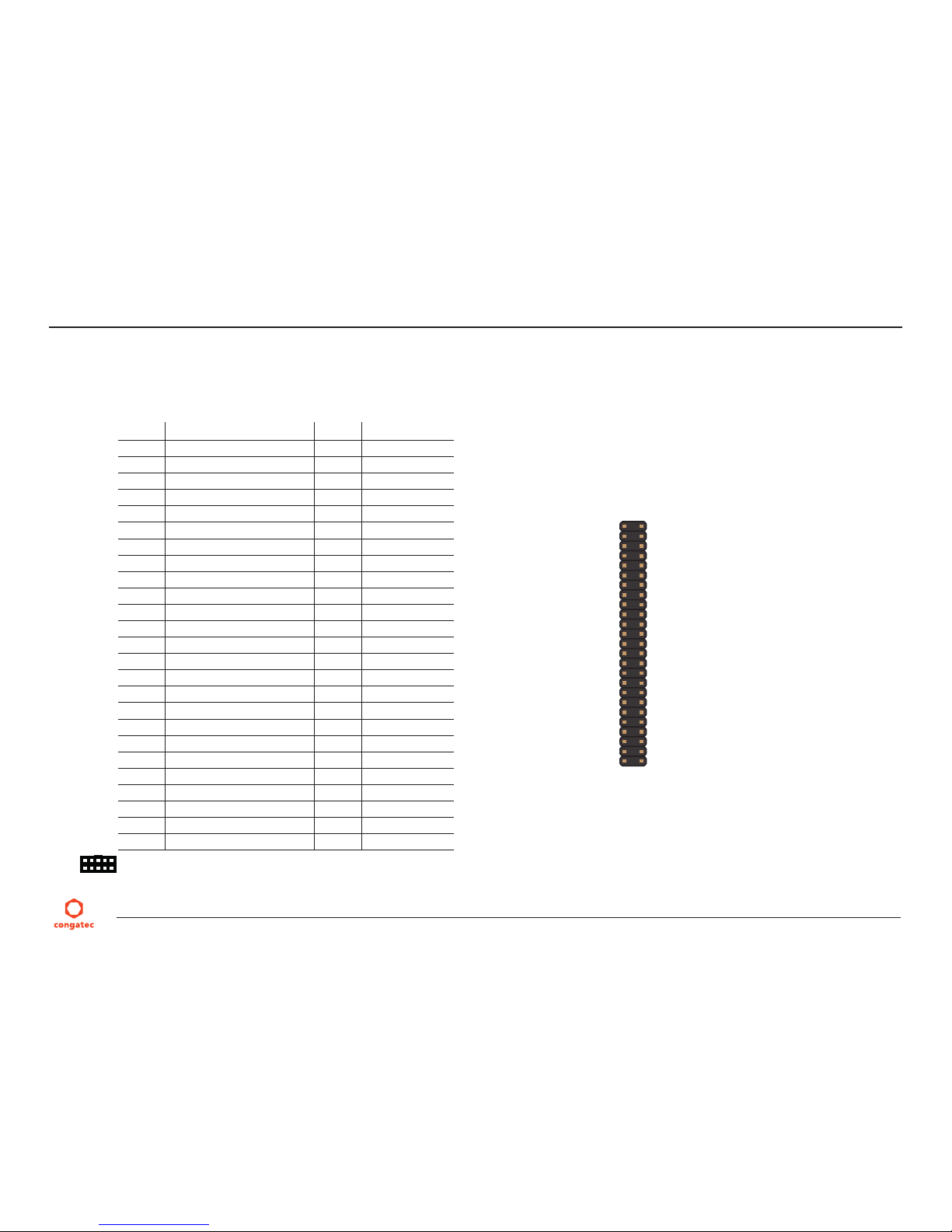

USB 3.0 Header (Connectors 60) Pinout Description

Port 1 Port 2

Pin Signal Description Pin Signal Description

1 +5V +5V supply 11 Data4- High-speed differential transceiver (-ve)

2 SS3_RX- SuperSpeed receiver differential pair (-ve) 12 Data4+ High-speed differential transceiver (+ve)

3 SS3_RX+ SuperSpeed receiver differential pair (+ve) 13 GND Ground

4 GND Ground 14 SS4_TX+ SuperSpeed transmitter differential pair

(+ve)

5 SS3_TX- SuperSpeed transmitter differential pair

(-ve)

15 SS4_TX- SuperSpeed transmitter differential pair

(-ve)

6 SS3_TX+ SuperSpeed transmitter differential pair

(+ve)

16 GND Ground

Internal USB 2.0 - Connector X12

Pin 1

Pin 2

Internal USB 3.0 - Connector X60

No Pin

Pin 1

Pin 11

Pin 10

Page 29

7 GND Ground 17 SS4_RX+ SuperSpeed receiver differential pair (+ve)

8 Data3+ High-speed differential transceiver (+ve) 18 SS4_RX- SuperSpeed receiver differential pair (-ve)

9 Data3- High-speed differential transceiver (-ve) 19 +5V +5V supply

10 NC Not Connected 20 No Pin Empty

Connector Type

X12: 2x5 Pin Header

X60: 2.54mm, 2x10 Pin Header

Note

The +5V signals of connector X12 and X60 have maximum current of 0.5A each.

congatec offers adapter cables for the Internal USB connectors (see section 1.2.2 “Optional Accessories/Cables). For more information, contact congatec technical solution department.

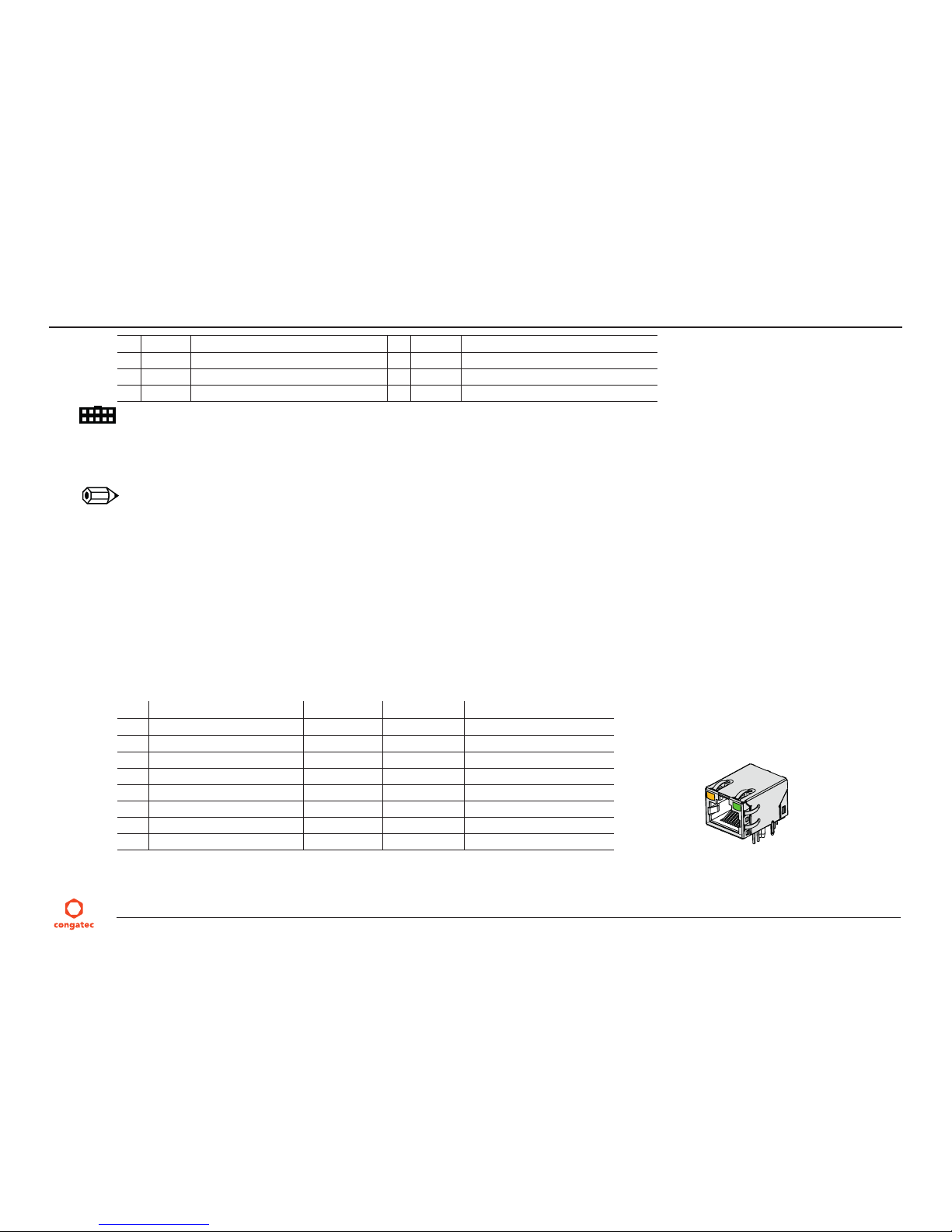

5.6 Ethernet 10/100/1000

The conga-IA3 provides two Gigabit Ethernet ports (connectors X57 and X58) on the rear side. The two Gigabit Ethernet interfaces are supported via the Intel Gigabit Ethernet controller i211. These interfaces do not support the Intel AMT.

Connectors X57/X58 Pinout Description

Pin Description 10base-T 100Base-T 1000Base-T

1 Transmit Data+ or Bidirectional TX+ TX+ BI_DA+

2 Transmit Data- or Bidirectional TX- TX- BI_DA-

3 Receive Data+ or Bidirectional RX+ RX+ BI_DB+

4 Not connected or Bidirectional nc nc BI_DC+

5 Not connected or Bidirectional nc nc BI_DC-

6 Receive Data- or Bidirectional RX- RX- BI_DB+

7 Not connected or Bidirectional nc nc BI_DD+

8 Not connected or Bidirectional nc nc BI_DD-

Gigabit Ethernet - Connector X57/X58

Page 30

LED Descriptions

Connector Type

X57/X58: 8 Pin RJ45 Connector with Gigabit Magnetic and LEDs.

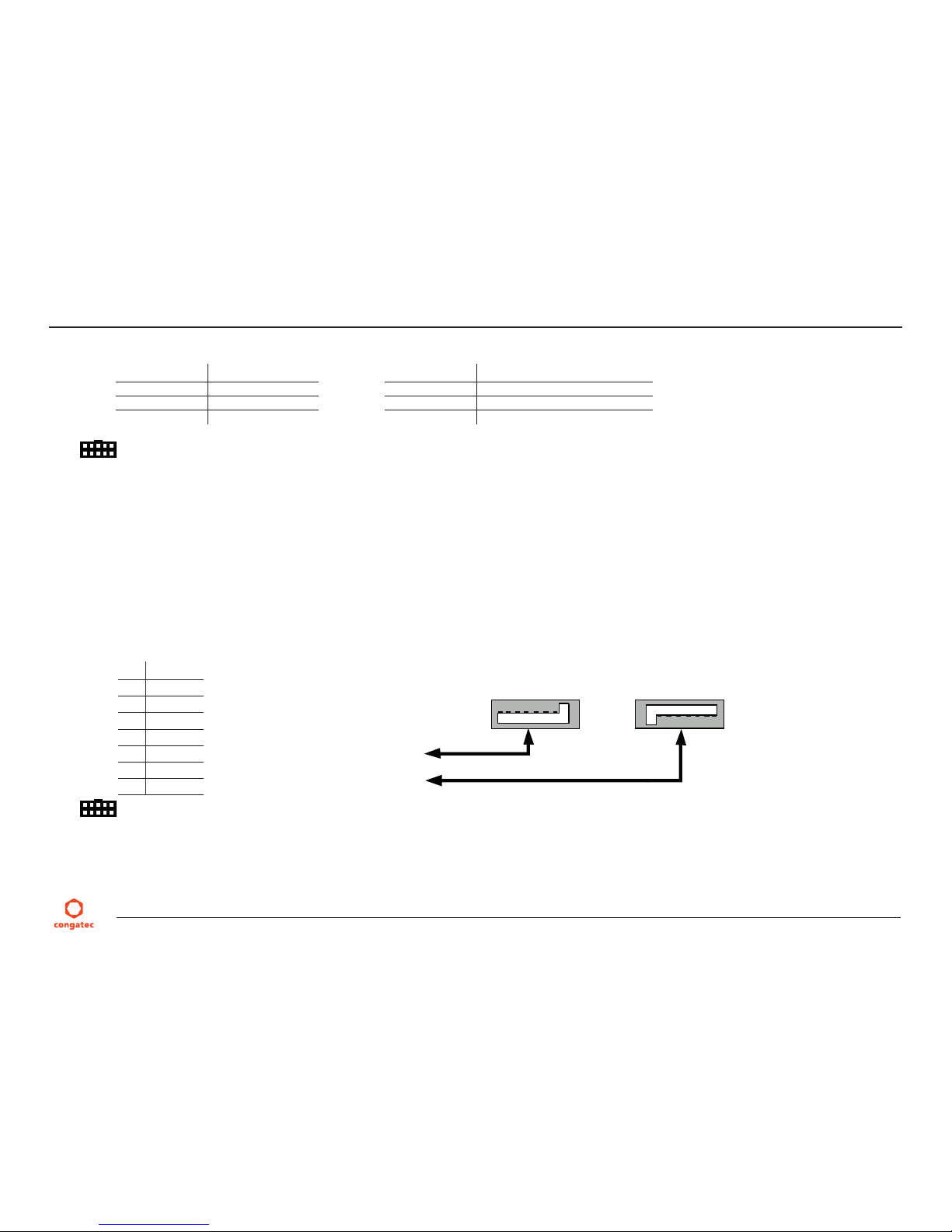

5.7 SATA Interfaces

5.7.1 Standard SATA Ports

The conga-IA3 provides two SATA ports. The SATA ports are routed to connectors CN1/CN2 and support data rates up to 3GB/s. The SATA LED on the front panel connector (X38) is lit when there is activity on any of the SATA interfaces.

Connectors CN1/CN2 Pinout Description.

Pin Signal

1 GND

2 TX+

3 TX-

4 GND

5 RX-

6 RX+

7 GND

Connector Type

CN1, CN2: Standard SATA Connector

LED Left Side Description

Off 10 Mbps link speed Green 100 Mbps link speed Orange 1000 Mbps link speed

LED Right Side Description

Off No link Steady On Link established, no activity detected Blinking Link established, activity detected

7654321

SATA0 (CN1)

Serial ATA Channel 0

Serial ATA Channel 1

SATA1 (CN2)

12 3 4 5 67

Page 31

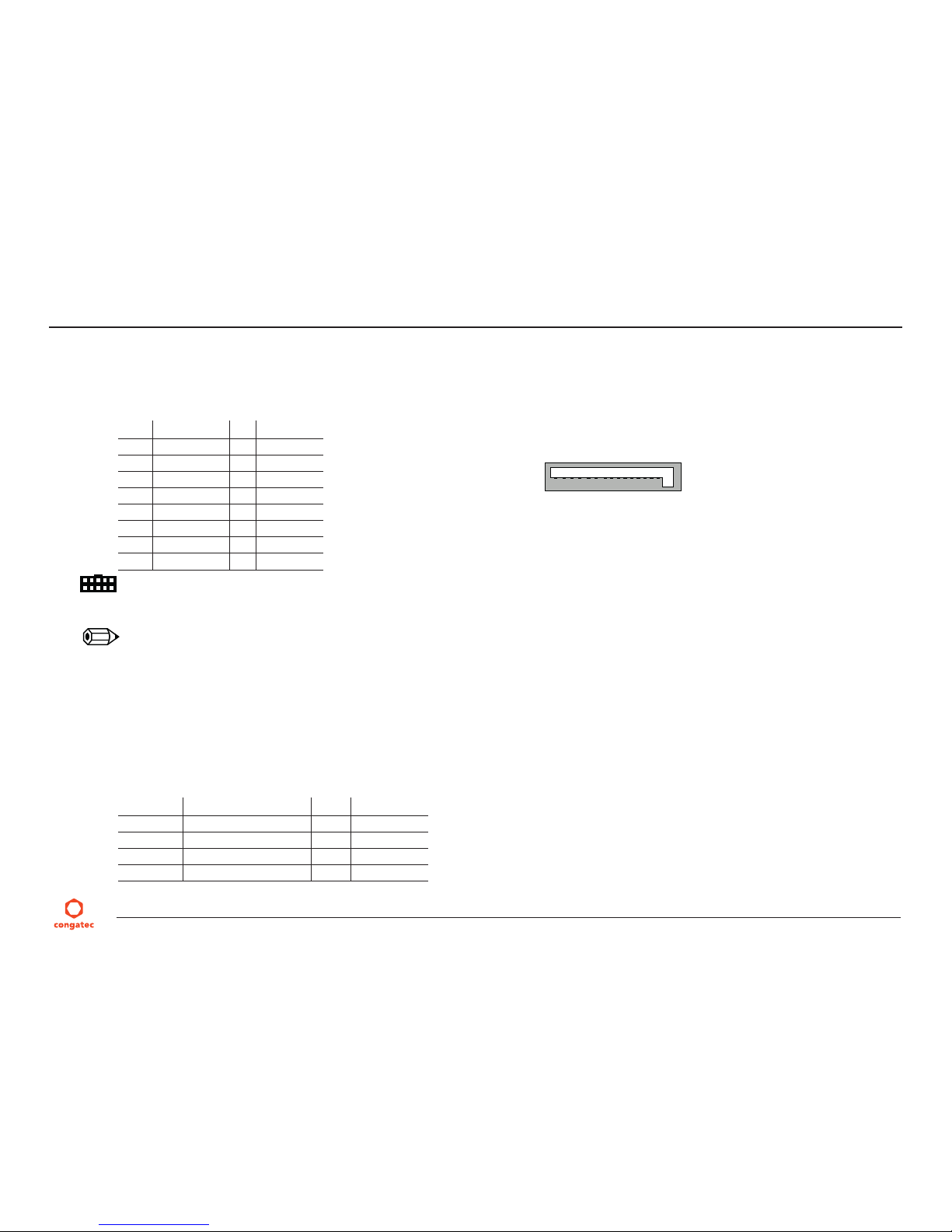

5.7.2 SATA Power

The conga-IA3 provides an internal SATA power for hard drives on connector X8. This connector supplies 3.3V, 5V and 12V.

Connectors X8 Pinout Description.

Pin Signal Pin Signal

1 +3.3V 9 +5V

2 +3.3V 10 GND

3 +3.3V 11 GND

4 GND 12 GND

5 GND 13 12V

6 GND 14 12V

7 +5V 15 12V

8 +5V

Connector Type

X8: 15 Pos. SATA Connector.

Note

The voltage rails +3.3V, +5V and +12V have maximum current of 2 amps each.

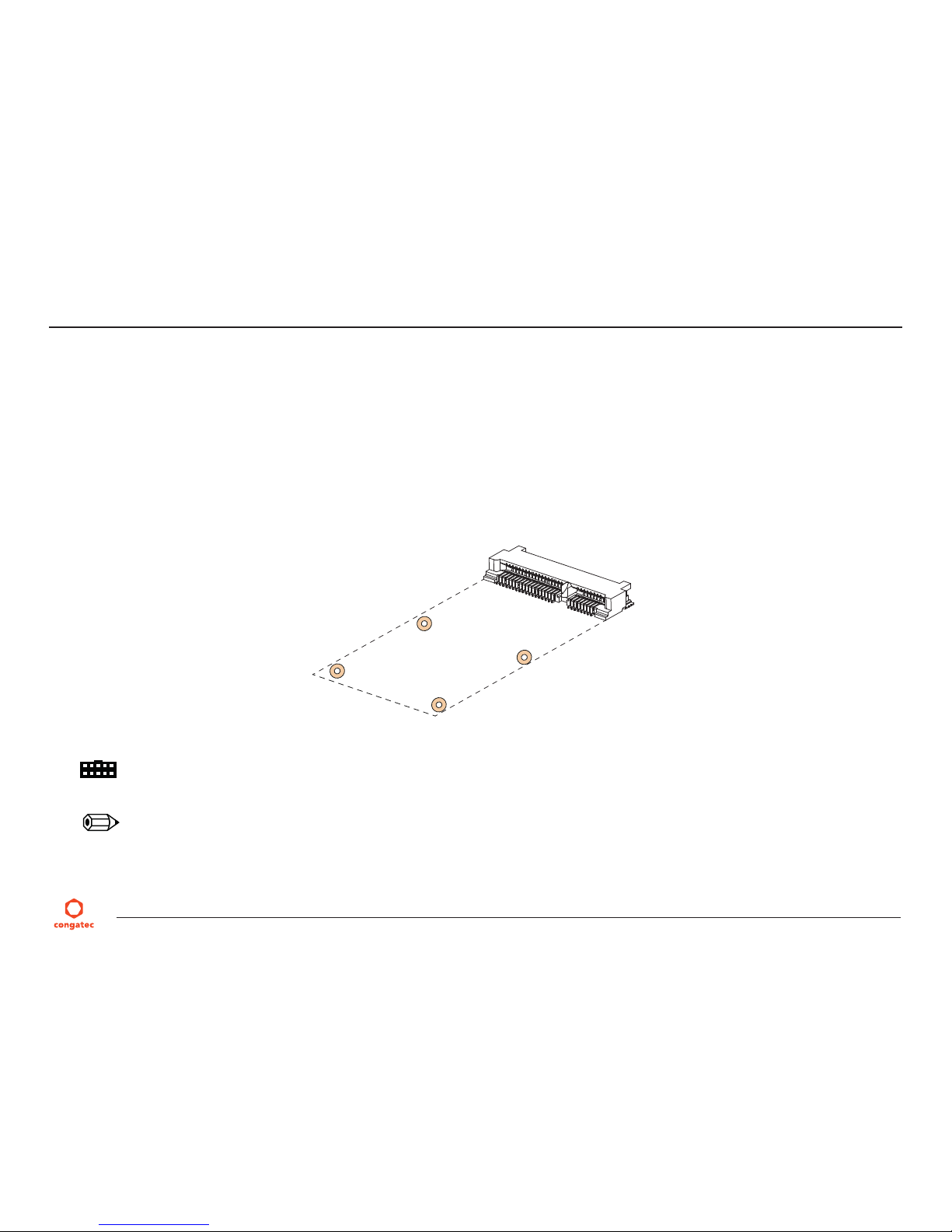

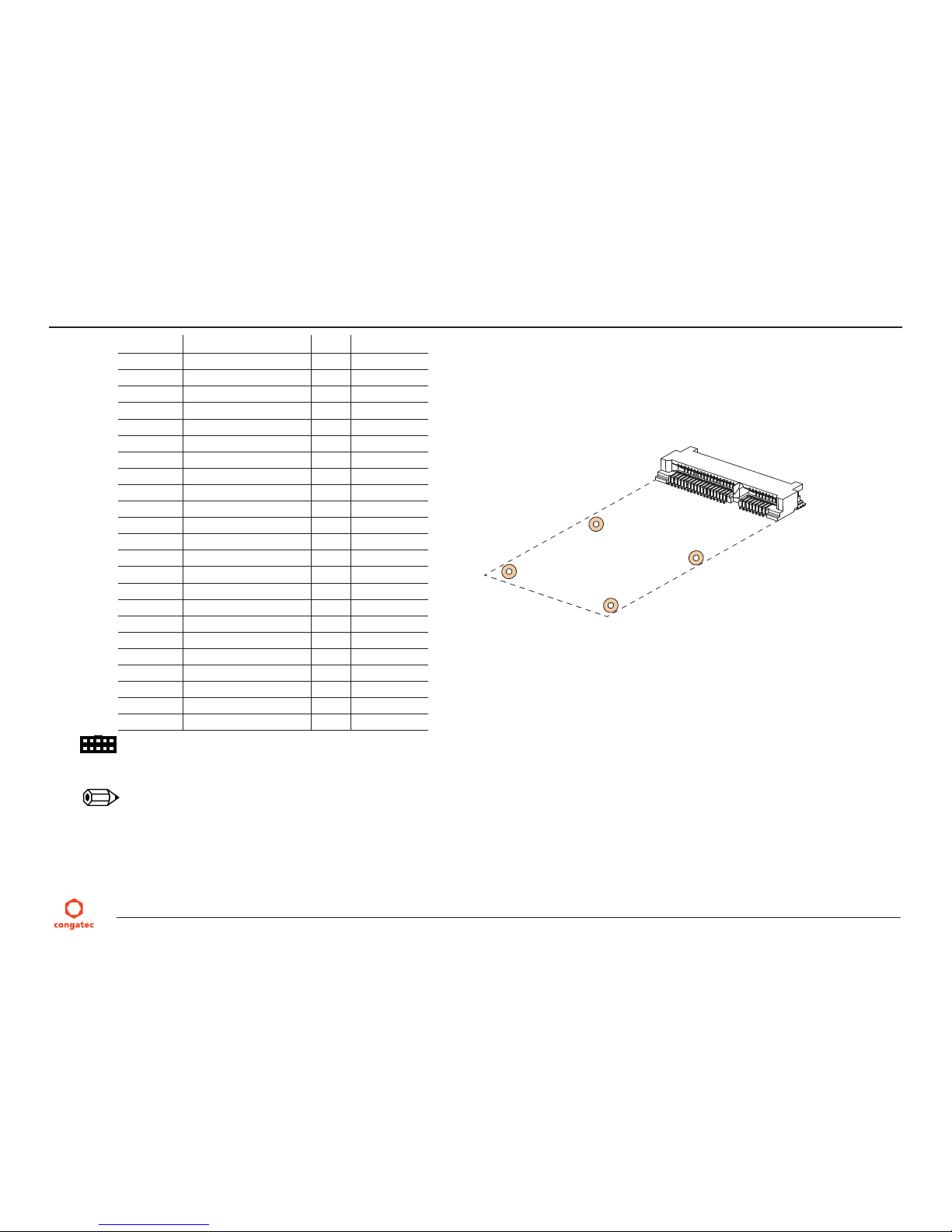

5.7.3 Mini SATA

The mini SATA connector X6 on the conga-IA3 is used to connect mSATA devices. This connector also supports mini PCIe devices. When an mSATA or mPCIe device is connected to X6, the conga-IA3 automatically detects the type of device that is attached.

mSATA (Connector X6) Pin Description.

Pin Signal Pin Signal

1 Reserved 2 +3.3V

3 N.C. 4 GND

5 N.C. 6 +1.5V

7 Reserved 8 N.C.

789101112131415 6 5 4 3 2 1

SATA Power (X8)

Page 32

Pin Signal Pin Signal

9 GND 10 N.C.

11 Reserved 12 N.C.

13 Reserved 14 N.C.

15 GND 16 N.C.

17 Reserved 18 GND

19 N.C. 20 Reserved

21 Card_Present * 22 Reserved

23 +B 24 +3.3V

25 -B 26 GND

27 GND 28 +1.5V

29 GND 30 SMB_CLK

31 -A 32 SMB_DATA

33 +A 34 GND

35 GND 36 Reserved

37 GND 38 Reserved

39 +3.3V 40 GND

41 +3.3V 42 N.C

43 Card_Type_Recognition * 44 N.C

45 N.C 46 N.C

47 N.C 48 +1.5V

49 N.C 50 GND

51 N.C. 52 +3.3Vaux

53 GND 54 GND

Connector Type

X6: 0.8mm Pitch, 52 Pos. Mini PCI Socket

Note

* For card presence detection, pin 21 of the mSATA card must be terminated to ground. For card type recognition, pin 43 of the mSATA card must be unconnected.

M43

M46

M44

M45

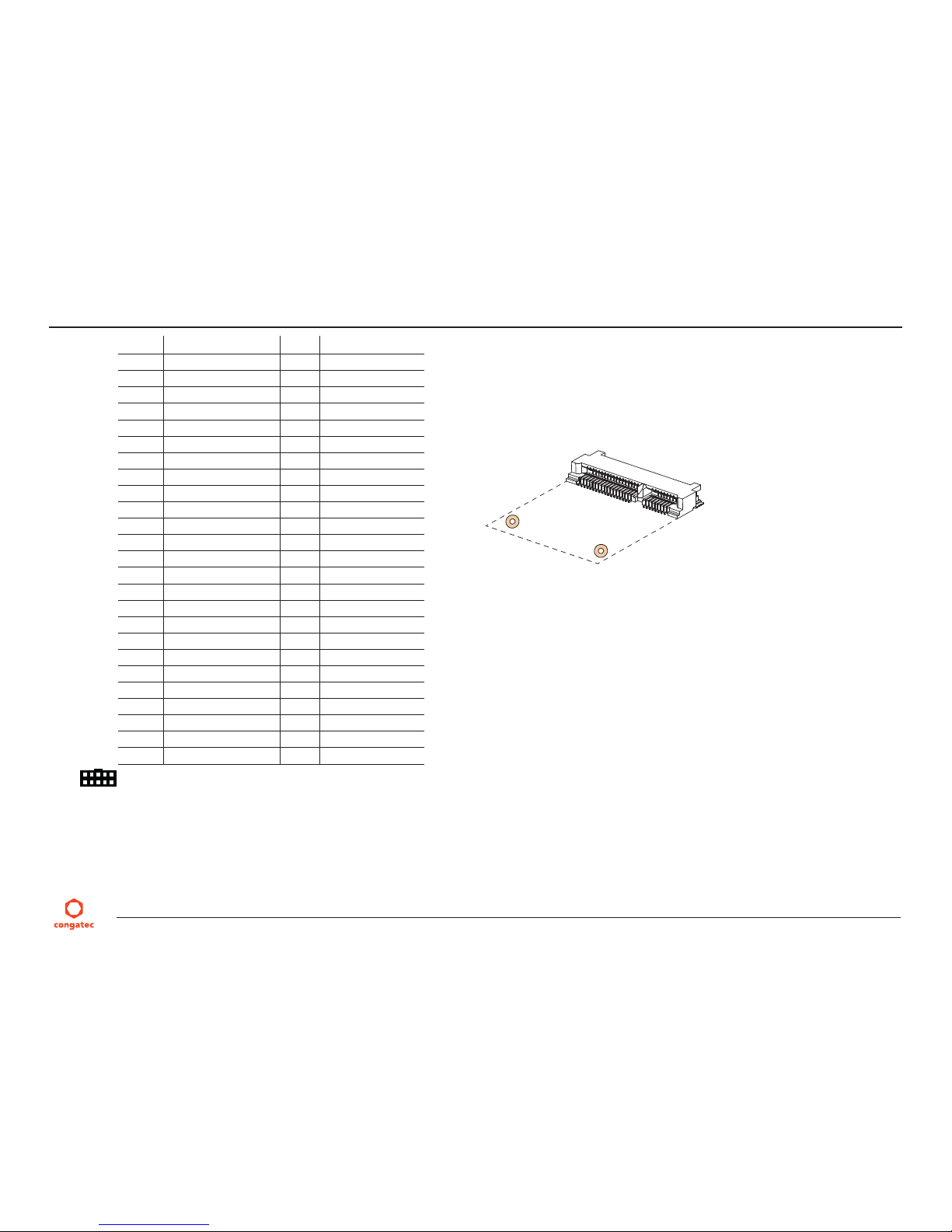

mSATA/mPCIe Socket

(Connector X6)

Page 33

5.8 Display Interfaces

The conga-IA3 supports dual simultaneous displays - one Digital Display Interface and one embedded Display or LVDS interface.

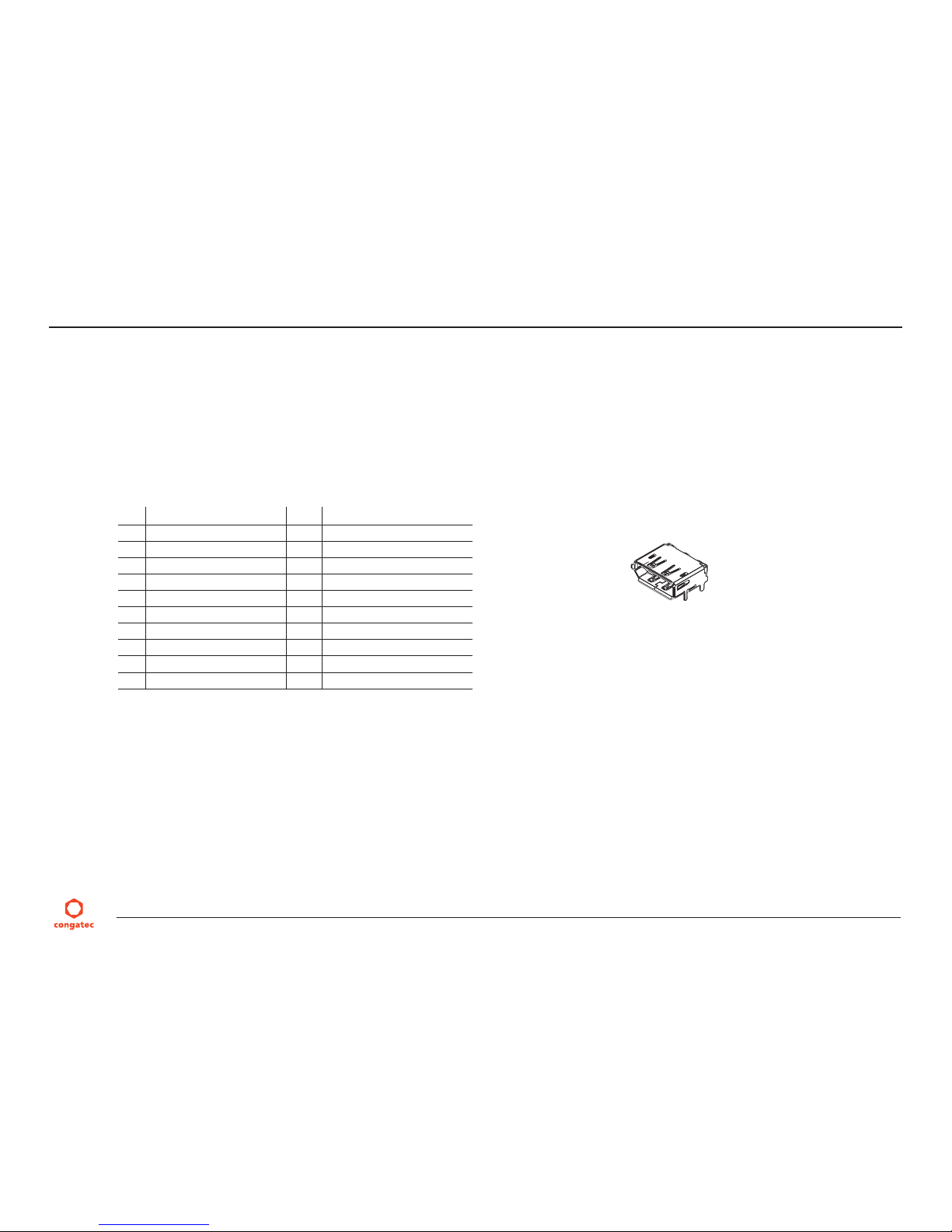

5.8.1 Display Port Interface DP++

The conga-IA3 SBC has one DP++ connector (X26) located at the rear I/O panel. The display port supports the connection of DP, HDMI and DVI displays.

Connectors X26 Pinout Description.

Pin Signal Pin Signal

1 DDI_TX0+ 11 GND

2 GND 12 DDI_TX3-

3 DDI_TX0- 13 CONFIG1

4 DDI_TX1+ 14 CONFIG2

5 GND 15 DDI_AUX+

6 DDI_TX1- 16 GND

7 DDI_TX2+ 17 DDI_AUX-

8 GND 18 DDI_HPD

9 DDI_TX2- 19 GND

10 DDI_TX3+ 20 3.3V

5.8.2 LVDS

The conga-IA3 offers LVDS interface on connector X32 - a standard 40 pin LVDS connector. The LVDS signals are sourced from the SoC's eDP stream via a multiplexer. Depending on the BIOS setup, the multiplexer routes the eDP stream either directly to the eDP connector X28 or to the LVDS connector X32 via an eDP to LVDS bridge. The multiplexer is conﬁgured in the BIOS setup by default to route the eDP signals to the eDP to LVDS bridge. The eDP to LVDS bridge processes and converts the eDP stream to LVDS format.

The LVDS interface is found on the top side of the SBC and supports 24 bit single channel, selectable backlight voltage, VESA color mappings, automatic panel detection and resolution up to 1920x1200 in dual LVDS mode.

DP++ Connector X26

Page 34

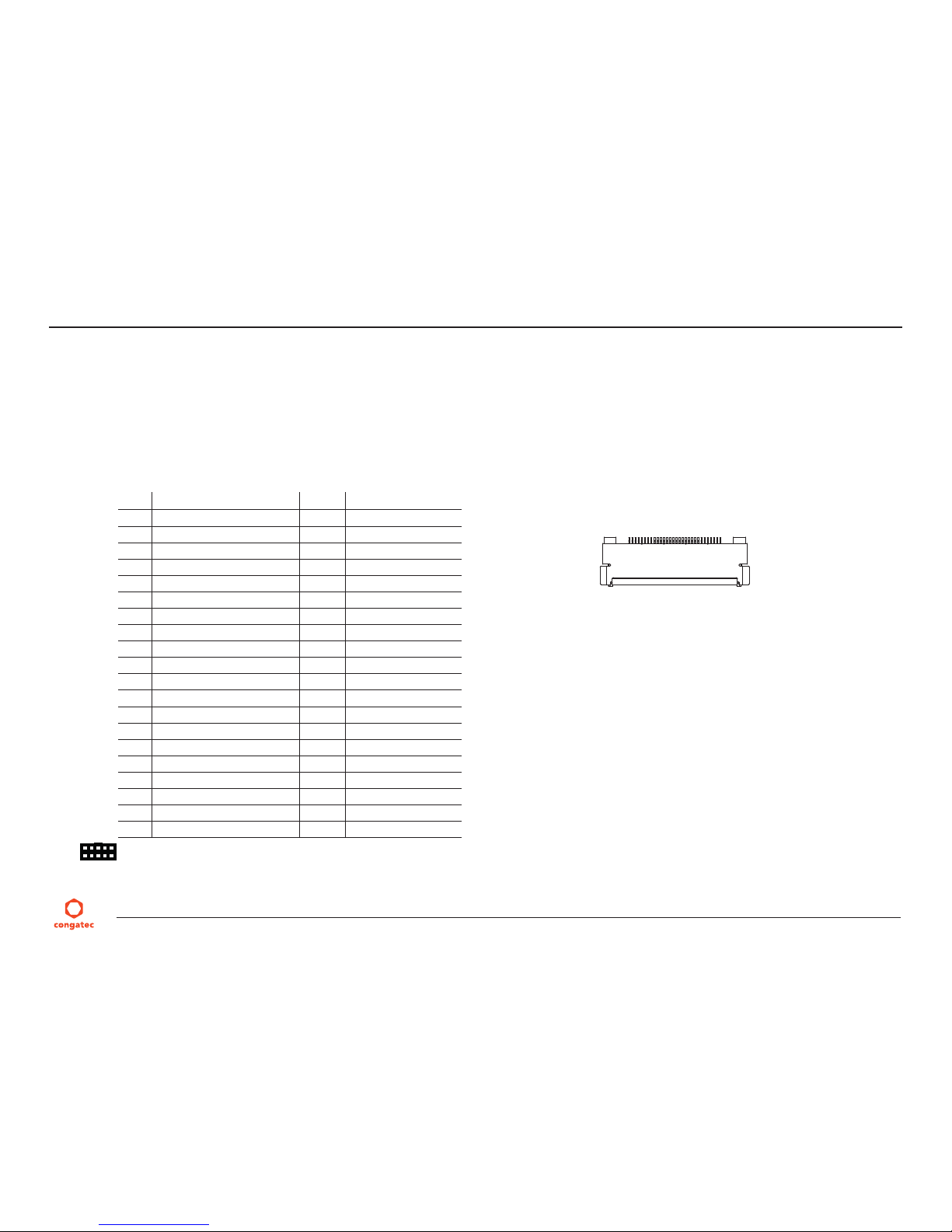

Connector X32 Pinout Description

Pin Signal Pin Signal

1 LVDS_A3+ 21 N.C.

2 LVDS_A3- 22 EDID_3.3V

3 LVDS_A2+ 23 LCD_GND

4 LVDS_A2- 24 LCD_GND

5 LVDS_A1+ 25 LCD_GND

6 LVDS_A1- 26 LVDS_A_CLK+

7 LVDS_A0+ 27 LVDS_A_CLK-

8 LVDS_A0- 28 BKLT_GND

9 LVDS_B3+ 29 BKLT_GND

10 LVDS_B3- 30 BKLT_GND

11 LVDS_B2+ 31 EDID_CLK

12 LVDS_B2- 32 eDP_LVDS_BKLT_EN

13 LVDS_B1+ 33 eDP_LVDS_BKLT_CTRL

14 LVDS_B1- 34 LVDS_B_CLK+

15 LVDS_B0+ 35 LVDS_B_CLK-

16 LVDS_B0- 36 BKLT_PWR

17 EDID_GND 37 BKLT_PWR

18 LCD_VCC 38 BKLT_PWR

19 LCD_VCC 39 N.C

20 LCD_VCC 40 EDID_DATA

Connector Type

X32: 0.5mm, 40 Pos. ACES Connector.

Mating Connector: Possible mating connectors for X32 are ACES 88441-40 and ACES 50204-40.

Note

congatec offers cables and adapter for the LVDS interface (see section 1.2.2 “Optional Accessories/Cables”). For more information, contact congatec technical solution department.

LVDS Connector X32

Page 35

5.8.3 Embedded Display Port (eDP)

The conga-IA3 provides eDP interface on connector X28 - a standard 40 pin DisplayPort connector. The eDP signals are sourced from the SoC's eDP stream via a multiplexer. Depending on the BIOS setup, the multiplexer routes the eDP stream either directly to the eDP connector X28 on the bottom side of the SBC or to the LVDS connector X32 (top side) via an eDP to LVDS bridge. The multiplexer is by default conﬁgured in the BIOS setup to route the eDP signals to the eDP to LVDS bridge.

To route eDP signals to connector X28, change the default BIOS setup.

Connector X28 Pinout Description

Pin Signal Pin Signal

1 N.C. 21 VCC_EDP_FILT

2 GND 22 N.C.

3 eDP_TX3- 23 GND

4 eDP_TX3+ 24 GND

5 GND 25 GND

6 eDP_TX2- 26 GND

7 eDP_TX2+ 27 eDP_DETECT

8 GND 28 GND

9 eDP_TX1- 29 GND

10 eDP_TX1+ 30 GND

11 GND 31 GND

12 eDP_TX0- 32 eDP_LVDS_BKLT_EN

13 eDP_TX0+ 33 eDP_LVDS_BKLT_CTRL

14 GND 34 N.C.

15 eDP_AUX+ 35 N.C.

16 eDP_AUX- 36 N.C

17 GND 37 BKLT_PWR

18 VCC_EDP_FILT 38 BKLT_PWR

19 VCC_EDP_FILT 39 BKLT_PWR

20 VCC_EDP_FILT 40 N.C.

Connector Type

X28: 0.5mm , 40 Pos. ACES Connector.

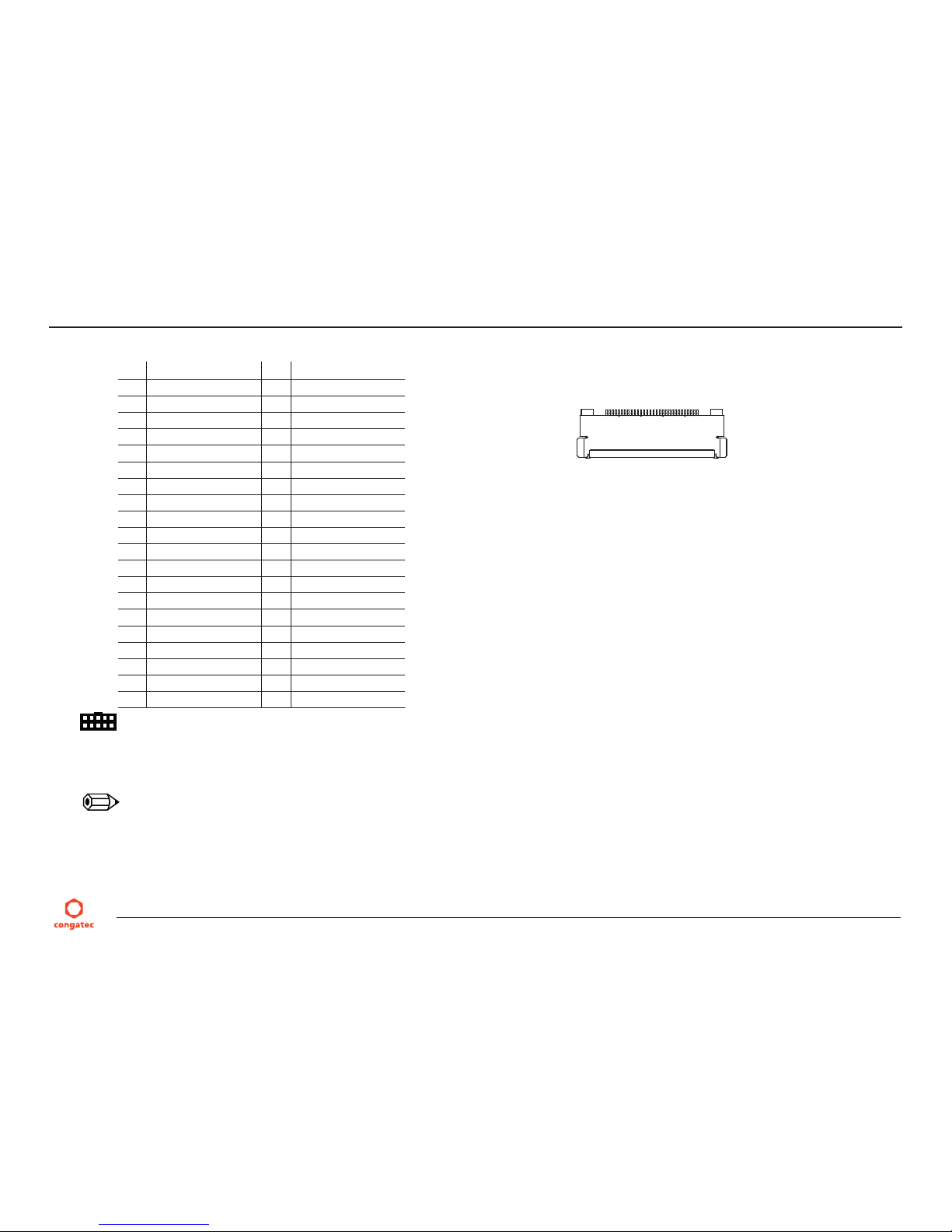

eDP Connector X28

Page 36

Mating Connector: Possible mating connectors for X28 are ACES 88441-40 and ACES 50204-40.

Note

congatec offers cables and adapter for the eDP interface (see section 1.2.2 “Optional Accessories/Cables”). For more information, contact the congatec technical solution department.

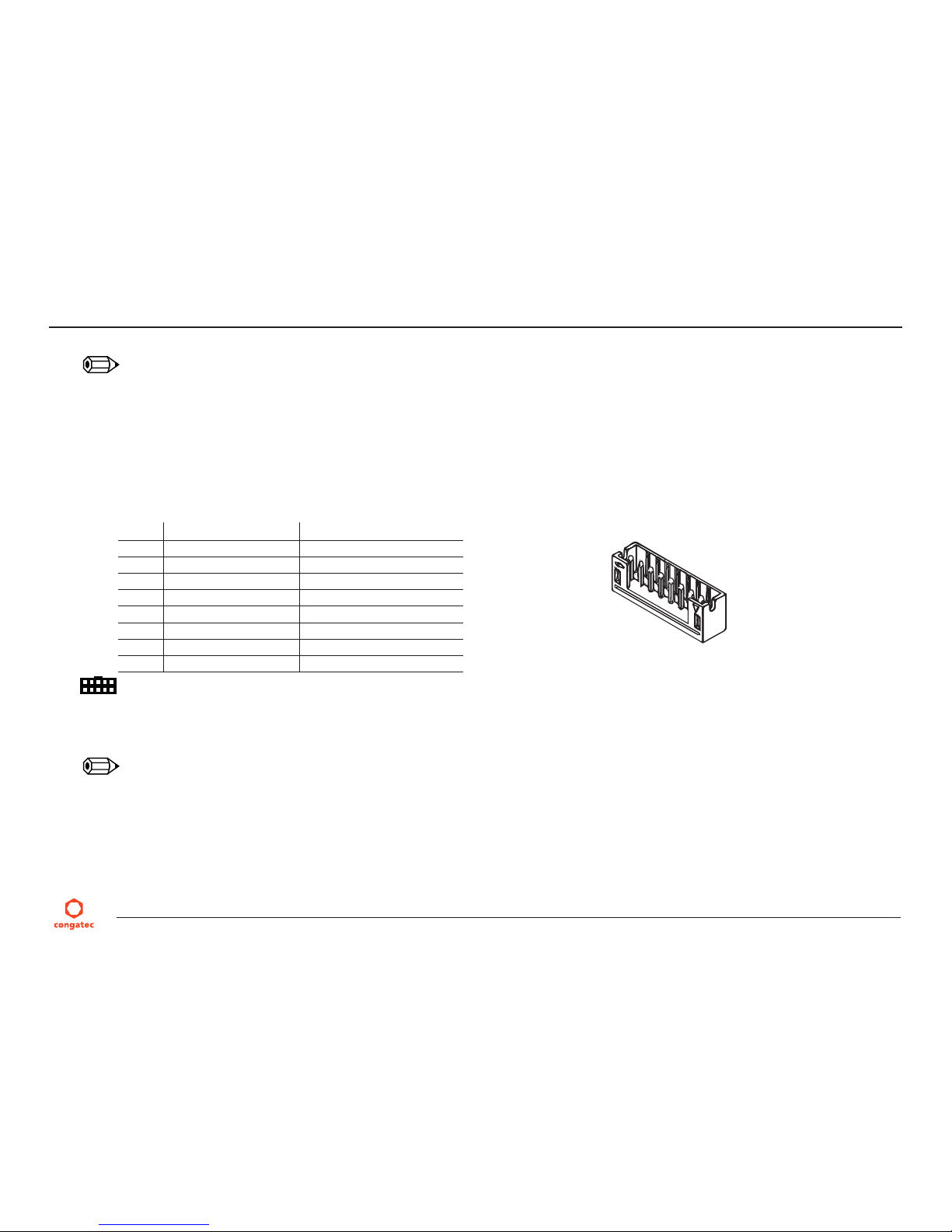

5.8.3.1 Backlight Power Connector

The conga-IA3 provides backlight power on connector X31. The power budget of BKLT_PWR (pins 3 and 4) is limited to 1.5 amps.

Connector X31 Pinout Description

Pin Signal Name Description

1 eDP_LVDS_BKLT_EN Backlight enable

2 eDP_LVDS_BKLT_CTRL Backlight control

3 BKLT_PWR Backlight inverter power

4 BKLT_PWR Backlight inverter power

5 GND Backlight/Brightness Ground

6 GND Backlight/Brightness Ground

7 Brightness_Up Flat panel brightness increase

8 Brightness_Down Flat panel brightness decrease

Connector Type

X31: 2mm, 8 Pos. Crimp Style Connectors.

Mating Connector: Possible mating connector for X31 is Chyao Shiunn JS-1124-08.

Note

congatec offers an open-end cable for this interface (see section 1.2.2 “Optional Accessories/Cables”). For more information, contact the congatec technical solution department.

Backlight Power - Connector X31

Page 37

5.8.3.2 Backlight/Panel Power Selection

The conga-IA3 supports different voltages for the panel and backlight. With jumper X29, you can set the panel voltage to 3,3V, 5V or 12V. With jumper X30, you can set the backlight voltage to 5V or 12V.

Connector X29 Pinout Description

Pin Signal Name

1 No Pin

2 3,3V

3 12V

4 Selected LCD Power

5 No Pin

6 5V

Connector X30 Pinout Description

Pin Signal Name

1 No Pin

2 NC

3 12V

4 Selected Backlight Power

5 No Pin

6 5V

Connector Type

X29, X30: 2.54mm, 2x3 Pos. Connector (without pins 1 and 5)

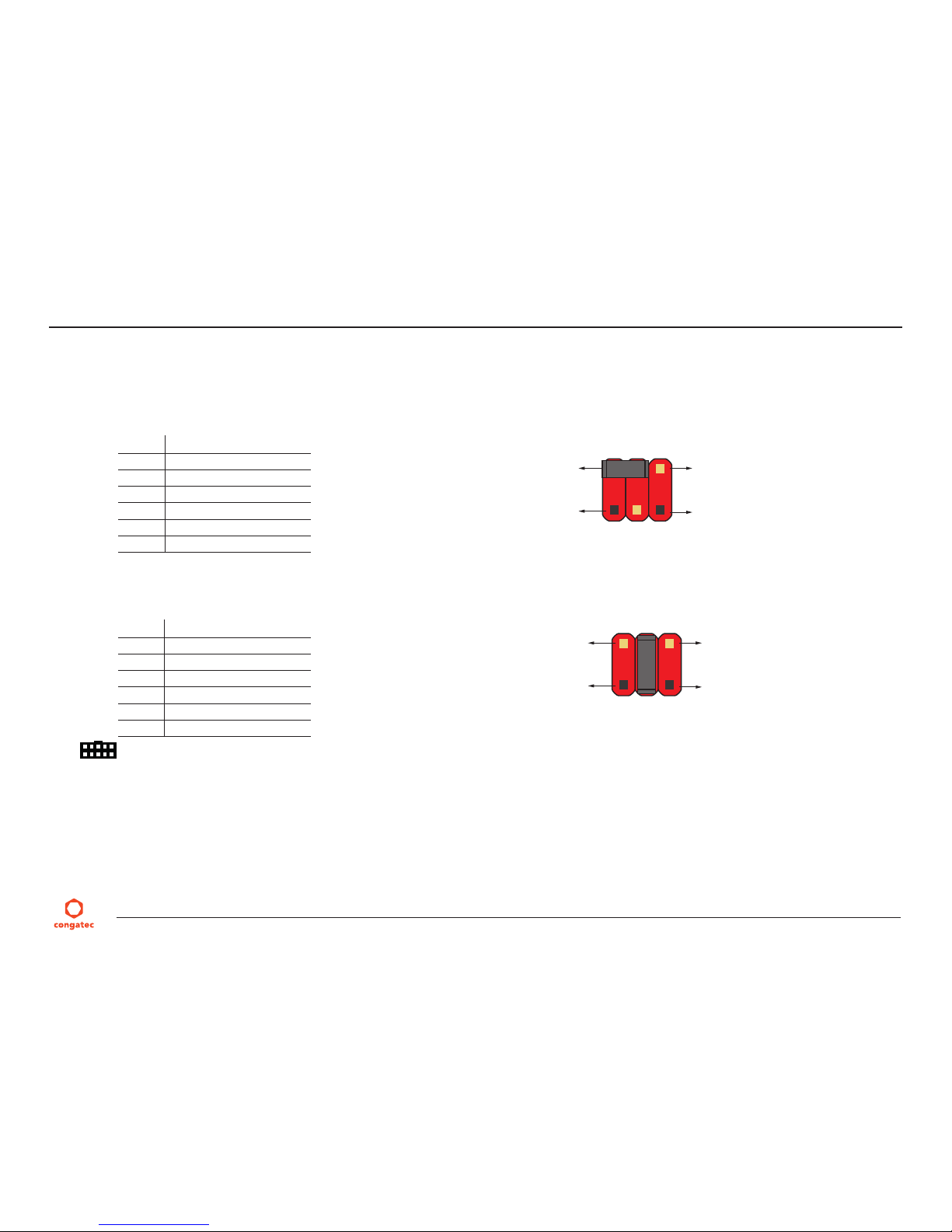

Panel Voltage Selector - Jumper X29

Pin 2

Pin 6

No Pin

Default Settings: Pins 2 and 4

No Pin

Backlight Voltage Selector - Jumper X30

Pin 2

Pin 6

No Pin

Default Settings: Pins 3 and 4

No Pin

Page 38

5.8.3.3 Monitor OFF connector

The monitor OFF connector X51 offers the possibility to switch off the displays attached to LVDS or eDP port.

Connector X51 Pinout Description

Pin Function

1 MONITOR_OFF#

2 GND

Connector Type

X51: 2.54mm, 2 Pos. Molex Connector.

5.9 PCI Express

The conga-IA3 provides 3 PCIe interfaces - a x1 PCIe slot on connector X9, a half-size mini PCIe (mPCIe) slot on connector X10 and a full size mini PCIe/mini SATA slot on connector X6. Th

5.9.1 x1 PCIe Slot

The conga-IA3 offers one PCIe x1 slot on connector X9. The SoC's PCIe lane 0 signals are routed to connector X9 (x1 PCIe slot) via a multiplexer and to connector X6 (mini PCIe/mini SATA) via two multiplexers. Connector X9 shares the SoC's PCIe lane 0 with connector X6. The PCIe signals are controlled via the multiplexer. Immediately an mPCIe device is inserted, the multiplexer automatically switches the PCIe lane 0 signals to connector X6.

x1 PCIe Slot (Connector X9) Pinout Description

Pin Signal Pin Signal

B1 +12V A1 GND

B2 +12V A2 +12V

B3 +12V A3 +12V

B4 GND A4 GND

B5 SMB_CLK A5 N.C.

B6 SMB_DAT A6 N.C.

Monitor OFF - Connector X51

x1 PCIe

PCIe Slot

(Connector X9 )

Page 39

B7 GND A7 N.C.

B8 +3.3V A8 N.C.

B9 N.C. A9 +3.3V

B10 +3.3V Aux A10 +3.3V

B11 WAKE# A11 PCIE_RST#

Key

B12 N.C. A12 GND

B13 GND A13 PCIE_CLK+

B14 PCIE_TX0+ A14 PCIE_CLK-

B15 PCIE_TX0- A15 GND

B16 GND A16 PCIE_RX0+

B17 PRSNT2# A17 PCIE_RX0-

B18 GND A18 GND

Connector Type

X9: PCIe x1 Connector

Note

The PCIe x1 slot on connector X9 will not function if you insert a mini PCIe card into the mPCIe slot (connector X6). To use the PCIe x1 slot, do not insert any device into the mPCIe slot.

5.9.2 Mini PCIe (Half Size)

The conga-IA3 is equipped with a PCI Express Mini Card socket. PCI Express Mini Card is a unique small size form factor optimized for mobile computing platforms equipped with communication applications. The small footprint connector can be implemented on SBCs, providing the ability to insert different removable PCI Express Mini Cards. Using this approach gives the ﬂexibility to mount an upgradable, standardized PCI Express Mini Card device to the SBC without additional expenditure of a redesign. The table below lists the default pinout of the PCI Express Mini Card.

mPCIe (Connector X10) Pinout Description

Pin Signal Pin Signal

1 WAKE# 2 +3.3Vaux

3 N.C. 4 GND

Page 40

Pin Signal Pin Signal

5 N.C. 6 +1.5V

7 CLKREQ# 8 N.C.

9 GND 10 N.C.

11 REFCLK- 12 N.C.

13 REFCLK+ 14 N.C.

15 GND 16 N.C.

17 Pull down resistor (1M) 18 GND

19 N.C. 20 W_DISABLE#

21 GND 22 PERST#

23 PERn0 24 +3.3Vaux

25 PERp0 26 GND

27 GND 28 +1.5V

29 GND 30 SMB_CLK

31 PETn0 32 SMB_DATA

33 PETp0 34 GND

35 GND 36 USB_D-

37 GND 38 USB_D+

39 +3.3Vaux 40 GND

41 +3.3Vaux 42 N.C

43 mSATA_mPCIe_detect 44 N.C

45 CL_CLK 46 N.C

47 CL_DATA 48 +1.5V

49 CL_RST# 50 GND

51 N.C. 52 +3.3Vaux

53 GND 54 GND

Connector Type

X10: PCIe Mini Card Socket

X10

mPCIe Socket

(Connector X10 )

M48

M47

Page 41

5.9.3 Mini PCIe (Full Size)

The conga-IA3 offers an mPCIe slot on connector X6. This connector supports both mPCIe and mSATA devices. The PCIe signals are routed from the SoC's PCIe lane 0 to connector X6 (mPCIe/mSATA slot) via two multiplexers. The ﬁrst multiplexer switches the PCIe signals between the x1 PCIe slot (connector X9) and the mPCIe/mSATA slot (connector X6). The second multiplexer switches the SATA signals between SATA port 1 (connector CN2) and mSATA/mPCIe slot.

When an mPCIe or mSATA device is attached to the mPCIe/mSATA slot (connector X6), the SoC detects the connected device via the signal detect pin (pin 43), sets the communication mode to PCIe or SATA and automatically switches the PCIe/SATA signals to mPCIe/mSATA slot.

See section 5.9.2 "Mini PCIe (Half Size)" for the mini PCIe Pinout Description.

Connector Type

X6: PCIe Mini Card Socket

Note

Pins 21 and 43 of the mPCIe card must be terminated to ground for card present detection and card type recognition respectively.

The PCIe x1 slot on connector X9 will not function if you insert a mini PCIe card into the mPCIe slot (connector X6). To make use of the PCIe x1 slot, do not insert any mini PCIe device into the mPCIe slot (connector X6).

M43

M46

M44

M45

mSATA/mPCIe Socket

(Connector X6)

Page 42

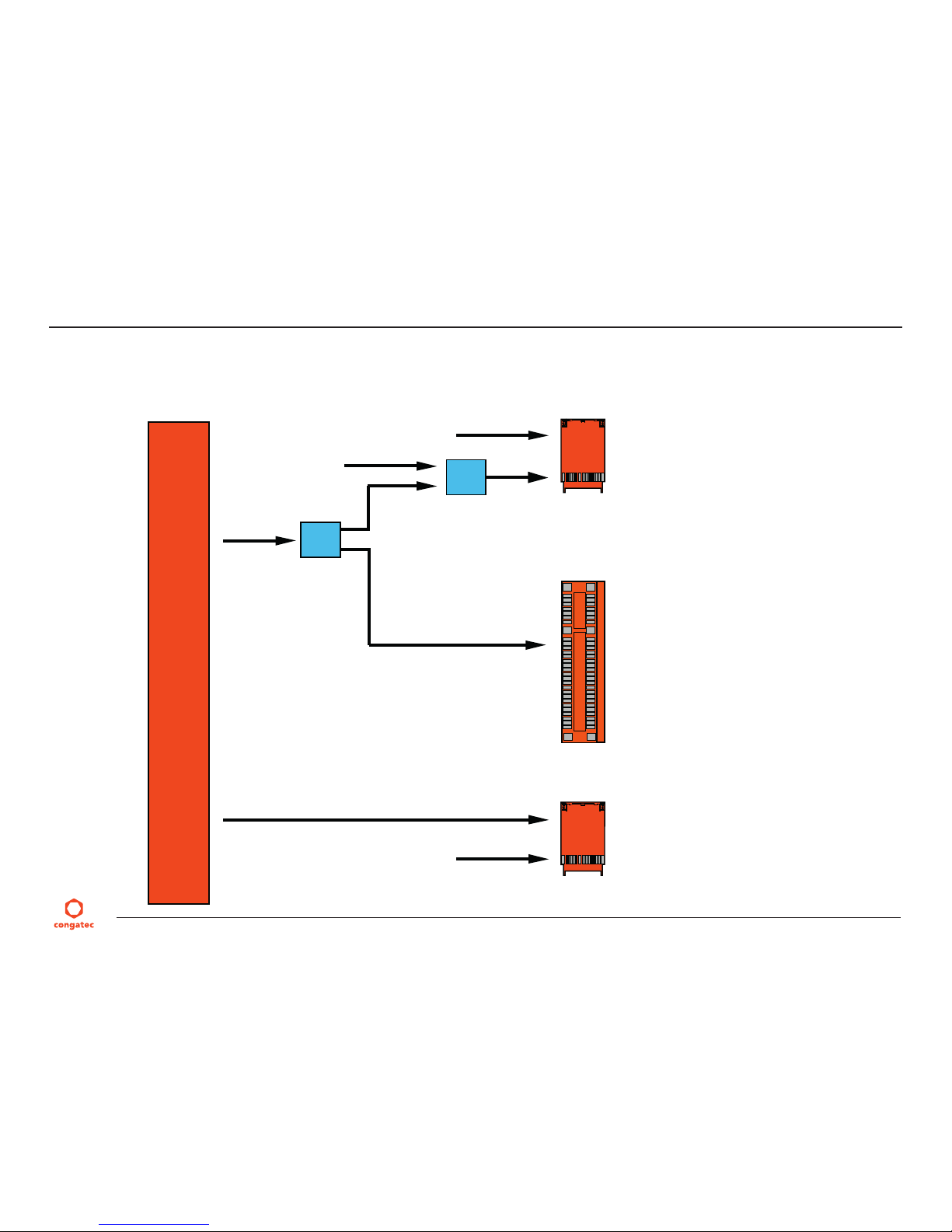

5.9.4 PCI Express Routing

The diagram below shows how the PCIe lanes are routed to the PCIe connectors.

PCIe x1 Slot

MIni PCIe/Mini SATA Slot

Mini PCIe Slot

PCIe Lane0

USB Signals

PCIe Lane 1

MUX

USB Signals

SATA Signals

NOTE: The PCIe x1 Slot (X9) will not function if you insert an mPCIe card into connector X6 (mPCIe/mSATA).

If you intend to use connector X9 , do not insert any mini PCIe device into connector X6.

PCIe Lane Mapping

X10

Page 43

6 Additional Features

6.1 Front Panel Connector

The conga-IA3 SBC supports front panel features such as power button, status LEDs and reset button via connector X38 - a 10-pin internal header. This connector offers one power supply pin (3.3V). The signals FP_LED+ and FP_LED- communicates the system states to two LEDs connected to this header.

See section 5.1.5 “Power Status LED” for the possible states and corresponding activity of the LEDs.

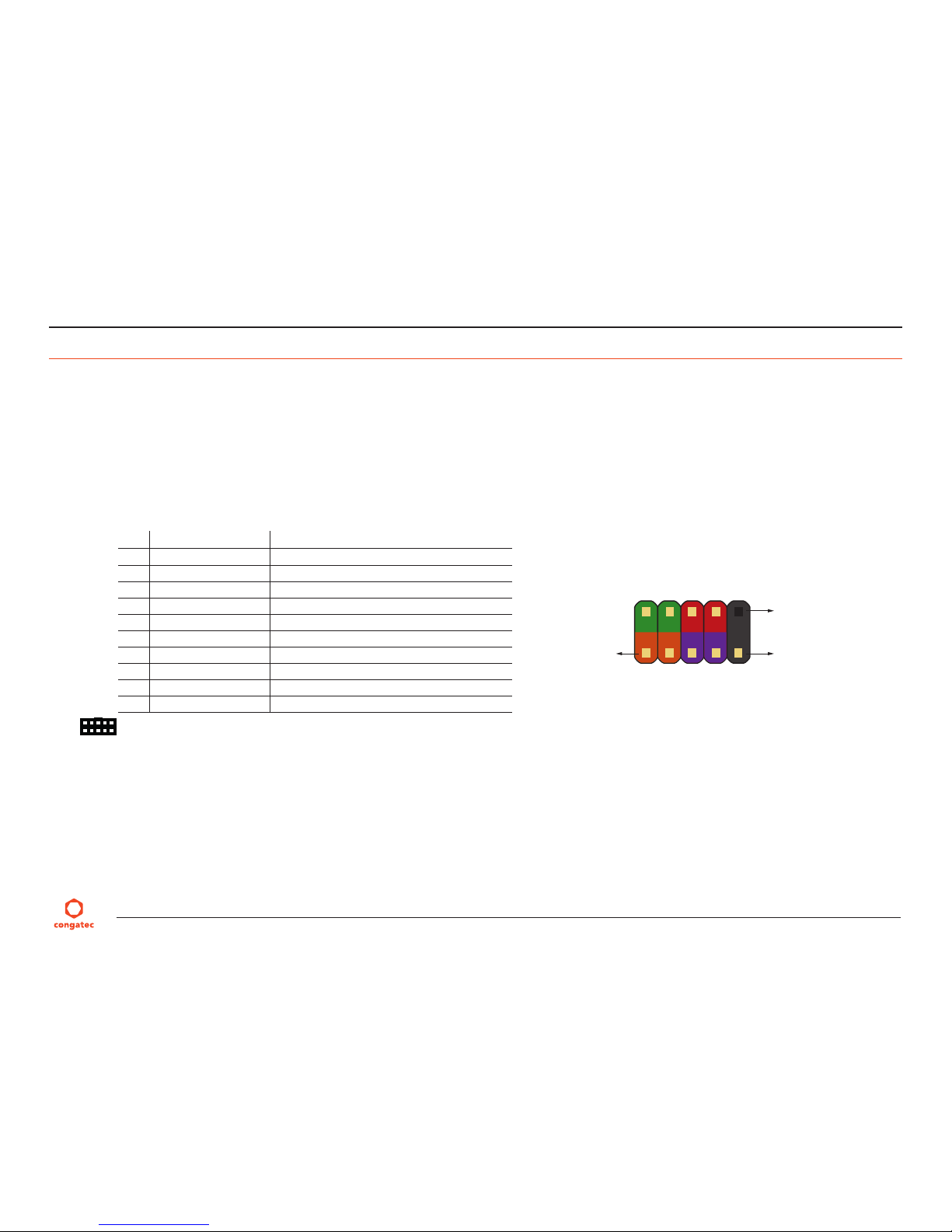

Front Panel (Connector X38) Pinout Description

Pin Function Description

1 HDD_POWER_LED+ Hard disk power LED with pull-up resistor to 3.3V.

2 FP_LED+ Power LED (main color)

3 HDD_LED Hard disk activity LED

4 FP_LED- Power LED (alternate color)

5 GND Ground

6 PWRBTN# Power Button

7 SYS_RST# Reset Button

8 GND Ground

9 3.3V +3.3V power supply (500mA power budget)

10 KEY No pin

Connector Type

X38: 10 Pin Header

Front Panel - Connector X38

Pin 9Pin 1

No Pin

Page 44

6.2 Case Open Intrusion Connector

The conga-IA3 provides connector X56 for case-open intrusion detection.

Case Open Intrusion (Connector X56) Pinout Description

Pin Function

1 GND

2 CASEOPEN#

Connector Type

X56: 2.54mm, 2 Pos Molex Connector.

6.3 Trusted Platform Module – TPM (Optional)

The conga-IA3 SBC can optionally be equipped with a TPM 1.2 compliant security chip. The TPM security chip is connected to the LPC bus provided by the integrated Intel Chipset. The basic TPM chip initialization is performed by the SBC’s UEFI Boot ﬁrmware.

6.4 congatec Board Controller (cBC)

The conga-IA3 is equipped with a Texas Instruments Tiva™ TM4E1231H6ZRBI microcontroller. This onboard microcontroller plays an important role for most of the congatec BIOS features. It fully isolates some of the embedded features such as system monitoring or the I²C bus from the x86 core architecture, which results in higher embedded feature performance and more reliability, even when the x86 processor is in a low power mode.

6.4.1 Fan Control

The conga-IA3 has additional signals and functions to further improve system management. One of these signals is an output signal called FAN_PWMOUT that allows system fan control using a PWM (Pulse Width Modulation) output. Additionally, there is an input signal called FAN_TACHOIN that provides the ability to monitor the system’s fan RPMs (revolutions per minute). This signal must receive two pulses per revolution in order to produce an accurate reading. For this reason, a two pulse per revolution fan or similar hardware solution is recommended.

Case Open Intrusion - Connector X56

Page 45

6.4.2 GPIs

The GPI signals are routed to the feature connector (X38) described in section 6.13.

6.4.3 Power Loss Control

The cBC has full control of the power-up of the SBC, therefore can be used to specify the behavior of the system after an AC power loss condition. Supported modes are “Always On”, “Remain Off” and “Last State”.

6.4.4 Board Information

The cBC provides a rich data-set of manufacturing and board information such as serial number, EAN number, hardware and ﬁrmware revisions, and so on. It also keeps track of dynamically changing data like runtime meter and boot counter.

6.5 LPC Super I/O Device

The conga-IA3 has an onboard Super I/O controller that provides additional interfaces such as two serial interfaces, optional ccTALK, GPOs, 4-wire CPU and system fans. The Winbond W83627DHG Super I/O controller is connected to the LPC Bus of the Intel® SoC.

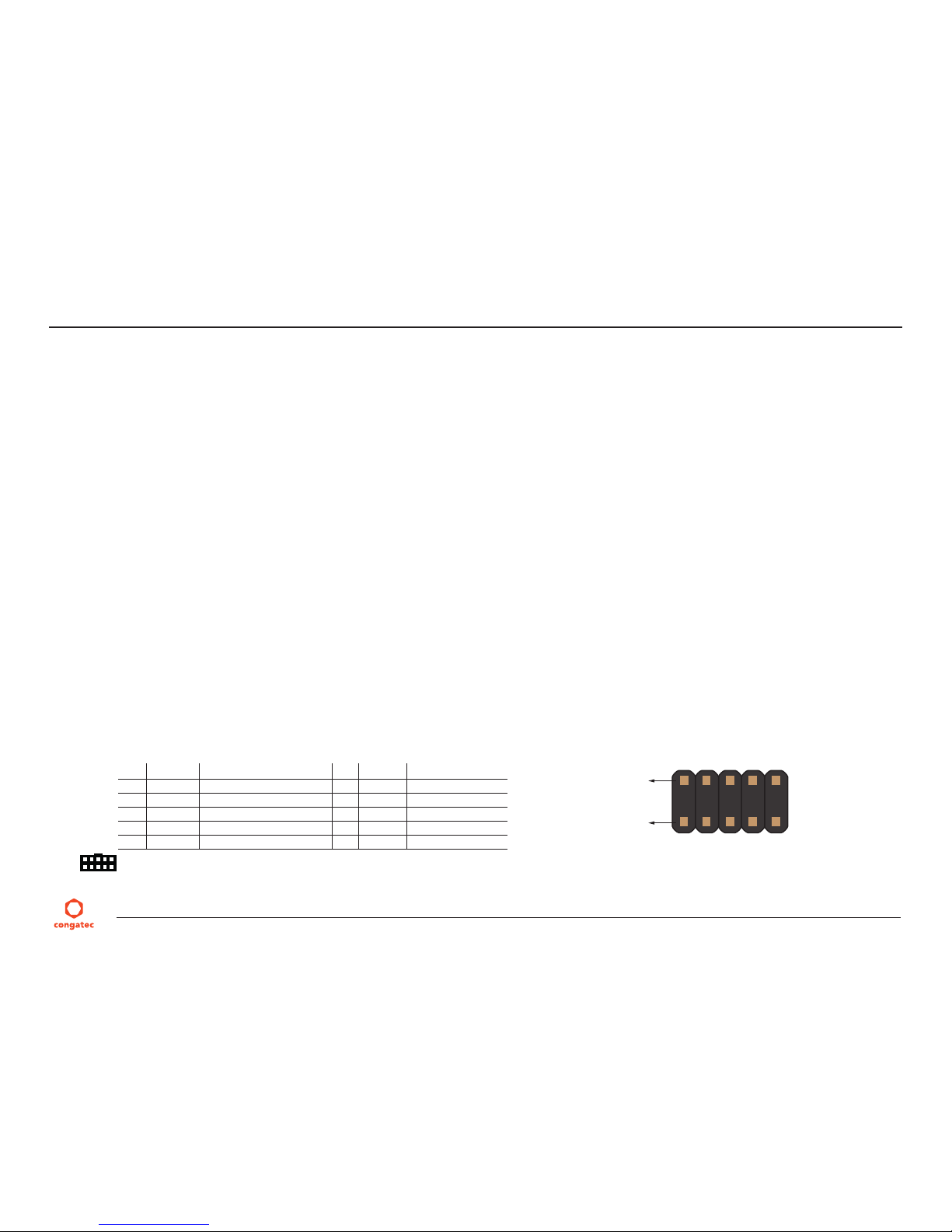

6.5.1 Serial Ports (COM)

The Super IO controller on the conga-IA3 provides two fully featured RS-232 compliant UART interfaces (COM 0 and 1). The COM 1 interface can be optionally used as ccTALK compliant interface. The COM ports can drive up to 115 kbit/s at a maximum cable length of 15 m.

Serial Ports (Connectors X21/X23) Pinout Description

Pin Signal Description Pin Signal Description

1 DCD Data Carrier Detect 6 DSR Data Set Ready 2 RXD Received Data 7 RTS Request to Send 3 TXD Transmit Data 8 CTS Clear to Send 4 DTR Data Terminal Ready 9 RI Ring Indicator 5 GND Ground 10 N.C Not connected

Connector Type

X21,X23: 2.54mm Pitch, 2x5 Pin Headers

COM 0 & 1 - Connectors X21/X23

Pin 1

Pin 2

Page 46

Note

congatec offers the adapter cable for the COM ports (see section 1.2.2 “Optional Accessories/Cables). For more information, contact congatec technical solution department.

6.5.2 GPOs

The GPO signals are routed to the feature connector (X38) described in section 6.13.

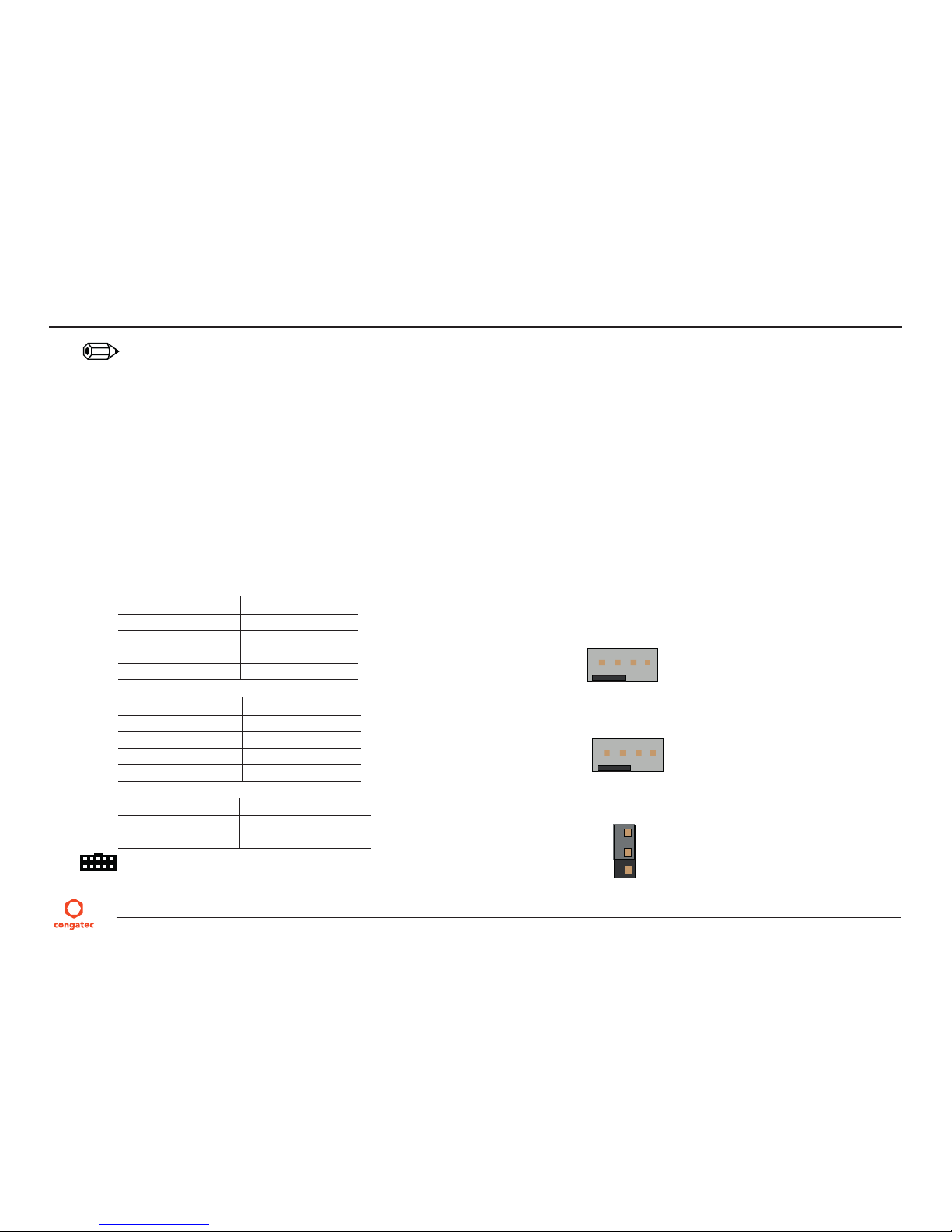

6.5.3 CPU/System Fan Connector & Power Conﬁguration

The conga-IA3 supports the connection of 5V or 12V cooling fans. The signals of the CPU and system fans are routed to 4-pin connectors X35 and X37 respectively. Use jumper X33 to select the CPU fan voltage and jumper X36 to select the system fan voltage.

The following tables describe the pinouts and jumper conﬁguration.

X33 CPU FAN Pin Signal

1 GND

2 VCC +5VDC/+12VDC

3 FAN_TACHOIN

4 FAN_CTRL

X36 System FAN Pin Signal

1 GND

2 VCC +5VDC/+12VDC

3 FAN_TACHOIN

4 FAN_CTRL

Jumper X32, X36 Conﬁguration

1 - 2 FAN +12VDC (default)

2 - 3 FAN +5VDC

Connector Type

X35, X37: 4 pin 2.54mm Grid Female Fan Connector.

CPU Fan

(X35)

1: GND 2: VCC +5VDC/+12VDC 3: FAN_TAC HOIN

4. FAN_CTRL

1 2 3 4

SYS Fan

(X37)

1: GND 2: VCC +5VDC/+12VDC 3: FAN_TAC HOIN

4. FAN_CTRL

X33 X36

Page 47

X33, X36: 2.54mm Grid Jumper.

Note

The maximum power of the CPU fan is approximately 3W while the system fan has a maximum power of approx. 4.5W.

6.6 OEM BIOS Customization

The conga-IA3 is equipped with congatec Embedded BIOS, which is based on American Megatrends Inc. Aptio UEFI ﬁrmware. The congatec Embedded BIOS allows system designers to modify the BIOS. For more information about customizing the congatec Embedded BIOS, refer to the congatec System Utility user’s guide, which is called CGUTLm1x.pdf and can be found on the congatec website at www.congatec.com or contact technical support.

The customization features supported are described below:

6.6.1 OEM Default Settings

This feature allows system designers to create and store their own BIOS default conﬁguration. Customized BIOS development by congatec for OEM default settings is no longer necessary because customers can easily perform this conﬁguration by themselves using the congatec system utility CGUTIL. See congatec application note AN8_Create_OEM_Default_Map.pdf on the congatec website for details on how to add OEM default settings to the congatec Embedded BIOS.

6.6.2 OEM Boot Logo

This feature allows system designers to replace the standard text output displayed during POST with their own BIOS boot logo. Customized BIOS development by congatec for OEM Boot Logo is no longer necessary because customers can easily perform this conﬁguration by themselves using the congatec system utility CGUTIL. See congatec application note AN8_Create_And_Add_Bootlogo.pdf on the congatec website for details on how to add OEM boot logo to the congatec Embedded BIOS.

6.6.3 OEM POST Logo

This feature allows system designers to replace the congatec POST logo displayed in the upper left corner of the screen during BIOS POST with their own BIOS POST logo. Use the congatec system utility CGUTIL 1.5.4 or later to replace/add the OEM POST logo.

Page 48

6.6.4 OEM BIOS Code/Data

With the congatec embedded BIOS, it is possible for system designers to add their own code to the BIOS POST process. The congatec Embedded BIOS ﬁrst calls the OEM code before handing over control to the OS loader.

Except for custom speciﬁc code, this feature can also be used to support Win XP SLP installation, Window 7 SLIC table (OA2.0), Windows 8 OEM activation (OA3.0), verb tables for HDA codecs, PCI/PCIe opROMs, bootloaders, rare graphic modes and Super I/O controller initialization.

Note

The OEM BIOS code of the new UEFI based ﬁrmware is only called when the CSM (Compatibility Support Module) is enabled in the BIOS setup menu. Contact congatec technical support for more information on how to add OEM code.

6.6.5 OEM DXE Driver

This feature allows designers to add their own UEFI DXE driver to the congatec embedded BIOS. Contact congatec technical support for more information on how to add an OEM DXE driver.

6.7 congatec Battery Management Interface

In order to facilitate the development of battery powered mobile systems based on embedded modules, congatec AG has deﬁned an interface for the exchange of data between a CPU module (using an ACPI operating system) and a Smart Battery system. A system developed according to the congatec Battery Management Interface Speciﬁcation can provide the battery management functions supported by an ACPI capable operating system (e.g. charge state of the battery, information about the battery, alarms/events for certain battery states, ...) without the need for any additional modiﬁcations to the system BIOS.

In addtion to the ACPI-Compliant Control Method Battery mentioned above, the latest versions of the conga-IA3 BIOS and board controller ﬁrmware also support LTC1760 battery manager from Linear Technology and a battery only solution (no charger). All three battery solutions are supported on the I2C bus and the SMBus. This gives the system designer more ﬂexibility when choosing the appropriate battery sub-system.

For more information about this subject visit the congatec website and view the following documents:

• congatec Battery Management Interface Speciﬁcation

• Battery System Design Guide

• conga-SBM3 User’s Guide

Page 49

6.8 API Support (CGOS)

In order to beneﬁt from the above mentioned non-industry standard feature set, congatec provides an API that allows application software developers to easily integrate all these features into their code. The CGOS API (congatec Operating System Application Programming Interface) is the congatec proprietary API that is available for all commonly used Operating Systems such as Win32, Win64, Win CE, Linux. The architecture of the CGOS API driver provides the ability to write application software that runs unmodiﬁed on all congatec CPU modules. All the hardware related code is contained within the congatec embedded BIOS on the module. See section 1.1 of the CGOS API software developers guide, which is available on the congatec website .

6.9 GPIOs

The conga-IA3 SBC provides eight General Purpose Inputs via the congatec board controller and eight General Purpose Outputs via the onboard Super I/O. The GPIO signals are routed to the feature connector X34.

6.10 Thermal/Voltage Monitoring

The conga-IA3 SBC features three temperature sensors - the CPU, memory and board controller sensors.

The board controller can monitor six different voltages which are main power, 5V (runtime), 5V (standby), 1.05V (runtime), VCORE, 3,3V (runtime) and 3,3V (standby).

6.11 Beeper

The board-mounted speaker (M10) provides audible error code (beep code) information during POST.

6.12 External System Wake Event

The conga-IA3 supports LAN, USB, PCIe and PWRBTN driven wake up events.

PC Beeper

(M10)

Page 50

6.13 Feature Connector

The conga-IA3 provides an internal 50 pol. 2mm pin header as feature connector. The pinout is described below:

Feature Connector X34 Pinout Description

Pin Signal Pin Signal

1 +V5S 2 GND

3 LAD0 4 LAD1

5 LAD2 6 LAD3

7 LFRAME# 8 SERIRQ#

9 LPC_CLK (25MHz) 10 BUF_PLT_RST#

11 SMB_DATA 12 SMB_CLK

13 SMB_ALERT# 14 GND

15 TX_CGBC 16 RX_CGBC

17 GPO0 18 GPO1

19 GPO2 20 GPO3

21 GPO4 22 GPO5

23 GPO6 24 GPO7

25 GPI0 26 GPI1

27 GPI2 28 GPI3

29 GPI4 30 GPI5

31 GPI6 32 GPI7

33 PM_SLP_S3# 34 PM_SLP_S5#

35 PM_SLP_S4# 36 LID_BTN#

37 SLP_BTN# 38 PM_THRM#

39 WDOUT 40 WDTRIG

41 I2C_DAT 42 PWR_OK

43 SPI_CS# 44 I2C_CLK

45 SPI_SO 46 BIOS_DISABLE#

47 SPI_CLK 48 SPI_SI

49 +V5A 50 GND

Connector Type

X34: 2mm, 2 x 25 Pos Header.

Feature Connector X34

Page 51

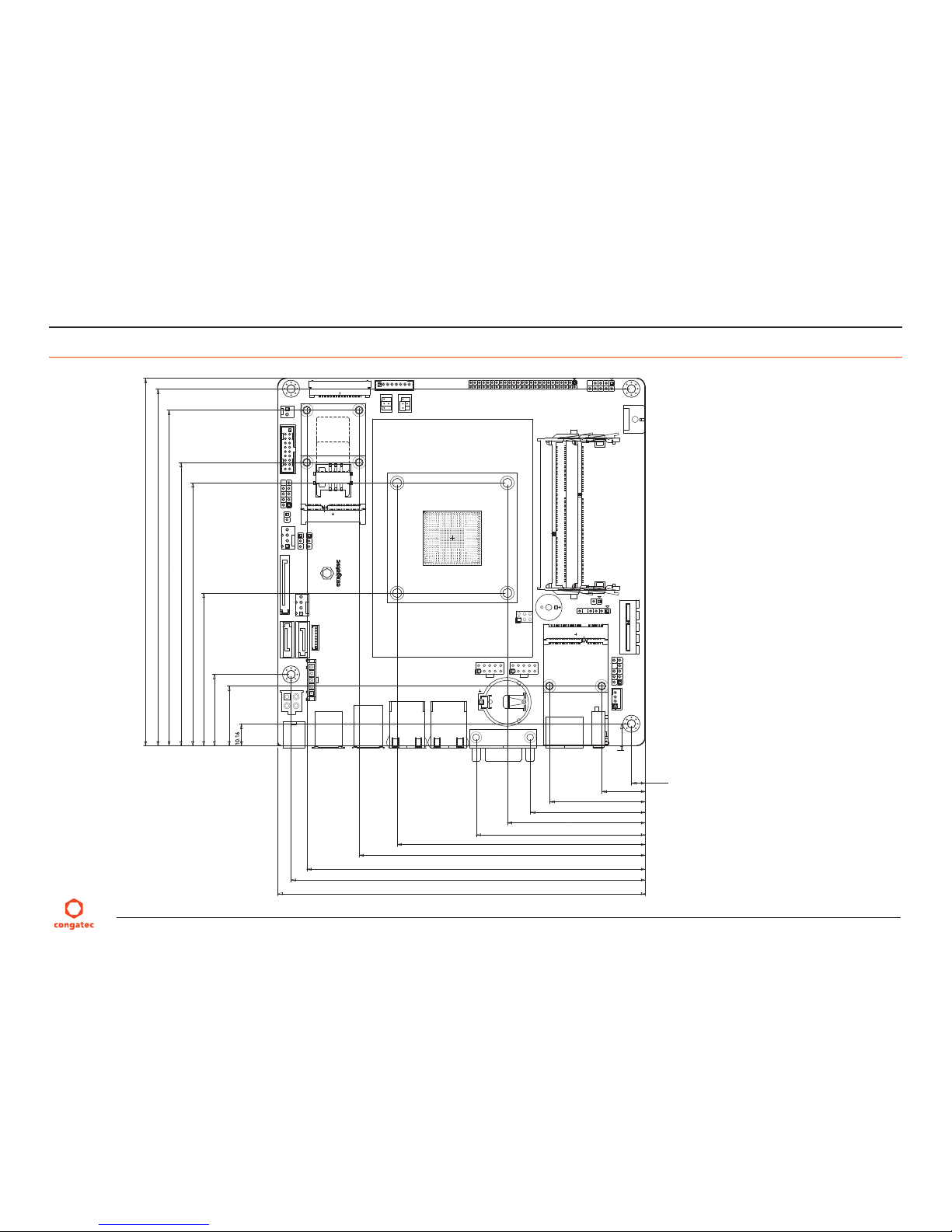

7 conga-IA3 Mechanical Drawing

SATA0SATA1

SATA_PWR

SYS_FAN

CASE_OPEN

FRONT_PANEL

USB3.0

MONITOR_OFF

width = 335mil

width = 787mil

width =1319mil

width = 465mil

width = 630mil

width = 453mil

FULL-MINI CARD (30.00x50.95)

(30.00x26.80)

HALF-MINI CARD

DDR MODULE 67.8x30mm

HALF-MINI CARD

(30.00x26.80)

FULL-MINI CARD

163.83

170

156.55

78.2

114.76

132.35

53.21

63.76

20.06

44.26

6.35

12.27

33.02

27.61

70.59

121.59

155.19

131.04

170

165.1

Plug

2x USB 3.0

2x USB 2.0

LAN 1

LAN 2

VGA

Display

Port ++

Line OUT/ MIC

PCIe (x1 or x4)

Optional

ccTALK

CPU + PCH

Feature Connector

2x USB 2.0 Header

Pnl Power

Bklt Power

TPM

SPDIF/DMIC

COM1

COM0

Backlight

LVDS

Front Panel

HD Audio

Internal

Speaker

Mini PCIe / mSATA

Page 52

8 BIOS Setup Description

The following section describes the BIOS setup program. The BIOS setup program can be used to view and change the BIOS settings for the module. Only experienced users should change the default BIOS settings.

8.1 Entering the BIOS Setup Program.

The BIOS setup program can be accessed by pressing the <DEL> or <F2> key during POST.

8.1.1 Boot Selection Popup

Press the <F11> key during POST to access the Boot Selection Popup menu. A selection menu displays immediately after POST, allowing the operator to select either the boot device that should be used or an option to enter the BIOS setup program.

8.2 Setup Menu and Navigation

The congatec BIOS setup screen is composed of the menu bar, left frame and right frame. The menu bar is shown below:

Main Advanced Chipset Boot Security Save & Exit

The left frame displays all the options that can be conﬁgured in the selected menu. Grayed-out options cannot be conﬁgured. Only the blue options can be conﬁgured. When an option is selected, it is highlighted in white.

The right frame displays the key legend. Above the key legend is an area reserved for text messages. These text messages explain the options and the possible impacts when changing the selected option in the left frame.

Note

Entries in the option column that are displayed in bold indicate BIOS default values.

Page 53

The setup program uses a key-based navigation system. Most of the keys can be used at any time while in setup. The table below explains the supported keys:

Key Description

← → Left/Right Select a setup menu (e.g. Main, Boot, Exit). ↑ ↓ Up/Down Select a setup item or sub menu.

+ - Plus/Minus Change the ﬁeld value of a particular setup item. Tab Select setup ﬁelds (e.g. in date and time). F1 Display General Help screen. F2 Load previous settings. F9 Load optimal default settings. F10 Save changes and exit setup. ESC Discard changes and exit setup. ENTER Display options of a particular setup item or enter submenu.

8.3 Main Setup Screen

When you ﬁrst enter the BIOS setup, you will see the main setup screen. The main setup screen reports BIOS, processor, memory and board information and is for conﬁguring the system date and time. You can always return to the main setup screen by selecting the ‘Main’ tab.

Feature Options Description

Main BIOS Version No option Displays the main BIOS version. OEM BIOS Version No option Displays the additional OEM BIOS version. Build Date No option Displays the date the BIOS was built. Product Revision No option Displays the hardware revision of the board. Serial Number No option Displays the serial number of the board. BC Firmware Revision No option Displays the ﬁrmware revision of the congatec board controller. MAC Address No option Displays the MAC address of the onboard Ethernet controller. MAC Address #2 No option Displays the MAC address of the second onboard Ethernet controller. Boot Counter No option Displays the number of boot-ups. (max. 16777215). Running Time No option Displays how long the system has been running. Microcode Patch No option Displays the microcode version Baytrail SoC No option D.0 Stepping for Atom CPUs and C.0 for Celeron CPUs. Total Memory No option Total amount of low voltage DDR3 present on the system System Date Day of week, month/

day/year

Speciﬁes the current system date Note: The date is in month/day/year format.

System Time Hour:Minute:Second Speciﬁes the current system time.

Note: The time is in 24 hour format.

Page 54

8.4 Advanced Setup

Select the advanced tab from the setup menu to enter the advanced BIOS setup screen. The menu is used for setting advanced features and only features described within this user’s guide are listed.

Main Advanced Chipset Boot Security Save & Exit

Watchdog Graphics Hardware Health Monitoring Trusted Computing RTC Wake Reserve Legacy Interrupt ACPI Super IO Intel(R) Smart Connect Technology Serial Port Console Redirection CPU Conﬁguration PPM Conﬁguration Thermal Conﬁguration IDE Conﬁguration Miscellaneous Conﬁguration SCC Conﬁguration PCI Subsystem Settings Network Stack CSM Conﬁguration Trusted Computing USB Platform Trust Technology Security Conﬁguration

Intel(R) I211 Gigabit Network #1 Intel(R) I211 Gigabit Network #2 Driver Health

Page 55

8.4.1 Watchdog Submenu

Feature Options Description

POST Watchdog Disabled

30sec 1min 2min 5min 10min 30min

Select the timeout value for the POST watchdog.

The watchdog is only active during the power-on-self-test of the system and provides a facility to prevent errors during boot up by performing a reset.

Stop Watchdog for User Interaction

Yes

Select whether the POST watchdog should be stopped during the popup of the boot selection menu or while waiting for setup password insertion.

Runtime Watchdog Disabled

One-time Trigger Single Event Repeated Event

Select the operating mode of the runtime watchdog. This watchdog will be initialized just before the operating system starts booting. If set to ‘One-time Trigger’ the watchdog will be disabled after the ﬁrst trigger. If set to ‘Single Event’, every stage will be executed only once, then the watchdog will be disabled. If set to ‘Repeated Event’ the last stage will be executed repeatedly until a reset occurs.

Delay Disabled

10sec 30sec 1min 2min 5min 10min 30min

Select the delay time before the runtime watchdog becomes active. This ensures that an operating system has enough time to load.

Event 1 ACPI Event

Reset

Power Button

Select the type of event that will be generated when timeout 1 is reached. For more information about ACPI Event, see note below.

Event 2 Disabled

ACPI Event Reset Power Button

Select the type of event that will be generated when timeout 2 is reached.

Event 3 Disabled

ACPI Event Reset Power Button

Select the type of event that will be generated when timeout 3 is reached.

Page 56

Feature Options Description

Timeout 1 1sec

2sec 5sec 10sec

30sec

1min 2min 5min 10min 30min

Select the timeout value for the ﬁrst stage watchdog event.

Timeout 2 See above Select the timeout value for the second stage watchdog event. Timeout 3 See above Select the timeout value for the third stage watchdog event. Watchdog ACPI

Event

Shutdown

Restart

Select the operating system event that is initiated by the watchdog ACPI event. These options perform a critical but orderly operating system shutdown or restart.

Note

In ACPI mode, it is not possible for a “Watchdog ACPI Event” handler to directly restart or shutdown the OS. For this reason the congatec BIOS will do one of the following:

For Shutdown: An over temperature notiﬁcation is executed. This causes the OS to shut down in an orderly fashion.

For Restart: An ACPI fatal error is reported to the OS.

Page 57

8.4.2 Graphics Submenu

Feature Options Description

Boot Display Device VBIOS Default CRT Enable

Disable

Enable or disable CRT interface

Active LFP No LVDS

LVDS

Select the active local ﬂat panel conﬁguration.

Always Try Auto Panel Detect No

Yes

If set to ‘Yes’ the BIOS will ﬁrst look for an EDID data set in an external EEPROM to conﬁgure the Local Flat Panel. If no external EDID data set is found, the data set selected under ‘Local Flat Panel Type’ will then be used as a fallback data set.

Local Flat Panel Type Auto

VGA 640x480 1x18 (002h) VGA 640x480 1x18 (013h) WVGA 800x480 1x24 (01Bh) SVGA 800x600 1x18 (01Ah) XGA 1024x768 1x18 (006h) XGA 1024x768 2x18 (007h) XGA 1024x768 1x24 (008h) XGA 1024x768 2x24 (012h) WXGA 1280x768 1x24 (01Ch) SXGA 1280x1024 2x24 (00Ah) SXGA 1280x1024 2x24 (018h) UXGA 1600x1200 2x24 (00Ch) HD 1920x1080 2x24 (01Dh) WUXGA 1920x1200 2x18 (015h) WUXGA 1920x1200 2x24 (00Dh) Customized EDID™ 1 Customized EDID™ 2 Customized EDID™ 3

Select a predeﬁned LFP type or choose Auto to let the BIOS automatically detect and conﬁgure the attached LVDS panel. Auto detection is performed by reading an EDID data set via the video I²C bus. The number in brackets speciﬁes the congatec internal number of the respective panel data set. Note: Customized EDID™ utilizes an OEM deﬁned EDID™ data set stored in the BIOS ﬂash device.

Backlight Inverter Type None

PWM

I2C

Select the type of backlight inverter used. PWM = Use IGD PWM signal. I2C = Use I2C backlight inverter device connected to the video I²C bus.

Digital Display Interface 1 (DDI1)

Disabled

DisplayPort

HDMI/DVI Auto

Select the output type of the digital display interface.

PWM Inverter Frequency (Hz) 200 - 40000 Set the PWM inverter frequency in Hz.

Only visible if ‘Backlight Inverter Type’ is set to ‘PWM’.

PWM Inverter Polarity Normal

Inverted

Select PWM inverter polarity. Only visible if ‘Backlight Inverter Type’ is set to ‘PWM’ .

Backlight Setting 0%, 10%, 25%, 40%, 50%, 60%,

75%, 90%, 100%

Actual backlight value in percent of the maximum setting.

Page 58

Feature Options Description

Force LVDS Backlight No

Yes

Force LVDS Enable and LVDS VDD Signals unconditionally

Inhibit Backlight No

Permanent Until End Of POST

Decide whether the backlight on signal should be activated when the panel is activated or whether it should remain inhibited until the end of BIOS POST or permanently.

LVDS SSC Disabled

Enabled

Conﬁgures LVDS Spread Spectrum Clock Modulation (SSC) depth. It uses center spreading and a ﬁxed modulation frequency of 32.9khz.

8.4.3 Hardware Health Monitoring Submenu

Feature Options Description

CPU Temperature No option Displays the actual CPU Temperature in °C. Board Temperature No option Displays the actual module board temperature in °C. TS AMBIENT DXP No option Displays the actual module environment temperature in °C. DIMM DXP No option Displays the actual module DIMM DXP Temperature in °C.

3.3V Standard No option Displays the actual voltage of the 3.3V standard power supply. 5V Standby No option Displays the actual voltage of the 5V standby power supply. 12V Standard No option Displays the actual voltage of the 12V standard power supply. VCORE No option Displays the actual voltage of the VCORE power supply. System Fan Speed No option Displays the actual System Fan Speed in RPM. CPU Fan Speed No option Displays the actual CPU Fan Speed in RPM. System Fan Mode Smart Mode

PWM Mode

Conﬁgures the System Fan Mode

System Fan PWM Speed Setting

0%, 10%, 20%, 30%, 40%, 50%, 60%, 70%, 80%, 90%,

100%

Select minimum/start fan speed to be set when the start temperature of the control slope is reached.

CPU Fan Speed Mode Smart Mode

PWM Mode

Conﬁgures the CPU Fan Speed Mode

Minimum Fan Speed 0%, 10%, 20%, 30%, 40%,

50%, 60%, 70%, 80%, 90%,

100%

Select minimum/start fan speed to be set when the start temperature of the control slope is reached.

Page 59

8.4.4 Trusted Computing Submenu

Feature Options Description

Security Device Support Disabled

Enabled

Enable or disable TPM support. System reset is required after change.

User Conﬁrmation Disabled

Enabled

Enable or disable user conﬁrmation requests for certain transactions.

TPM State Disabled

Enabled

Enable or disable TPM chip. Note: System might restart several times during POST to acquire target state.

Pending operation None,

Enable Take Ownership, Disable Take Ownership, TPM Clear

Perform selected TPM chip operation. Note: System might restart several times during POST to perform selected operation.

8.4.5 RTC Wake Submenu

Feature Options Description

Wake System At Fixed Time Disabled

Enabled

Enable system to wake from S5 using RTC alarm.

Wake up hour Specify wake up hour. For example, enter “3” for 3am and “15” for 3pm. Wake up minute Specify wake up minute. Wake up second Specify wake up second.

8.4.6 Reserve Legacy Interrupt Submenu

Feature Options Description

Reserve Legacy Interrupt 1 None, IRQ3, IRQ4, IRQ5,

IRQ6, IRQ10, IRQ11, IRQ14, IRQ15

The interrupt reserved here will not be assigned to any PCI or PCI Express device and thus maybe available for some legacy bus device.

Reserve Legacy Interrupt 2 Same as Reserve Legacy

Interrupt 1

Same as Reserve Legacy Interrupt 1

Reserve Legacy Interrupt 3 Same as Reserve Legacy

Interrupt 1

Same as Reserve Legacy Interrupt 1

Page 60

8.4.7 ACPI Submenu

Feature Options Description

Enable ACPI Auto Conﬁguration

Disabled Enabled

Enable or disable BIOS ACPI Auto Conﬁguration

Enable Hibernation Disabled

Enabled

Enable or disable system’s ability to hibernate (operating system S4 sleep state). This option may not be effective with some operating systems.

ACPI Sleep State Suspend Disabled

S3 (Suspend to RAM)

Select the state used for ACPI system sleep/suspend.

Lock Legacy Resources Disabled

Enabled

Enable or disable locking of legacy resources.

LID Support Disabled

Enabled

Conﬁgure COM Express LID# Signal to act as a ACPI lid.

Sleep Button Support Disabled

Enabled

Conﬁgure COM Express SLEEP# Signal to act as a ACPI sleep button.

8.4.8 SIO Submenu

Feature Options Description

Super IO Chip NCT6791D

►Serial Port 1 No option Serial Port 1 submenu ►Serial Port 2 No option Serial Port 2 submenu

8.4.8.1 Serial Port 1 Submenu

Feature Options Description

Use this Device Enable

Disable

Enable logical device

Logical Device Settings No option Show current logical device settings Possible Use Automatic Settings

IO=3F8; IRQ=3,4,5,7,9,10,11, 12; DMA; IO=2F8; IRQ=3,4,5,7,9,10,11, 12; DMA; IO=3F8; IRQ=3,4,5,7,9,10,11, 12; DMA; IO=3E8; IRQ=3,4,5,7,9,10,11, 12; DMA;

Serial Port 1 conﬁgurations options

Page 61

8.4.8.2 Serial Port 2 Submenu

Feature Options Description

Use this Device Enable

Disable

Enable logical device

Logical Device Settings No option Show current logical device settings Possible Use Automatic Settings

IO=3F8; IRQ=3,4,5,7,9,10,11, 12; DMA; IO=2F8; IRQ=3,4,5,7,9,10,11, 12; DMA; IO=3F8; IRQ=3,4,5,7,9,10,11, 12; DMA; IO=3E8; IRQ=3,4,5,7,9,10,11, 12; DMA;

Serial Port 2 conﬁgurations options

8.4.9 Intel(R) Smart Connect Technology Submenu

Feature Options Description

ISCT Support Disabled

Enabled

Enable or disable Intel(R) Smart Connection Support. When this setup node is set to Disabled, all the other nodes will not be visible.

ISCT Notiﬁcation Control Disabled

Enabled

Enable or Disable ISCT Notiﬁcation Control.

ISCT WLAN Power Control Disabled

Enabled

Enable or Disable ISCT WLAN Power Control.

ISCT WWAN Power Control Disabled

Enabled

Enable or Disable ISCT WWAN Power Control

ISCT Sleep Duration Value Format

Duration in Seconds ISCT Sleep Duration in seconds.

ISCT RF Kill Switch Type Software

Hardware

Select ISCT RF Kill Switch Type

ISCT RTC Timer Support Disabled

Enabled

Enable ISCT RTC Timer

Page 62

8.4.10 Serial Port Console Redirection Submenu

Feature Options Description

COM0 Console Redirection

Disabled

Enabled

Enable or disable serial port 0 console redirection.

►Console Redirection Settings submenu Opens console redirection conﬁguration sub menu. Serial Port for Out-of-Band

Management / EMS Console Redirection

Disabled

Enabled

Enable or disable Serial Port for Out-of-Band Management / Windows Emergency Management Services.

►Console Redirection Settings Submenu Opens console redirection conﬁguration sub menu.

8.4.10.1 Console Redirection Settings COM0 Submenu

Feature Options Description

Terminal Type VT100

VT100+ VT-UTF8

ANSI

Select terminal type.

Baudrate 9600, 19200, 38400, 57600,

115200

Select baud rate.

Data Bits 7,

Set number of data bits.

Parity None

Even Odd Mark Space

Select parity.

Stop Bits 1

Set number of stop bits.

Flow Control None

Hardware RTS/CTS

Select ﬂow control.

VT-UTF8 Combo Key Support Disabled

Enabled

Enable VT-UTF8 combination key support for ANSI/VT100 terminals

Recorder Mode Disabled

Enabled

With recorder mode enabled, only text output will be sent over the terminal. This is helpful to capture and record terminal data.

Resolution 100x31 Disabled

Enabled

Enable or disable extended terminal resolution.

Legacy OS Redirection Resolution

80x24

80x25

Number of rows and columns supported for legacy OS redirection.

Page 63

Feature Options Description

Putty KeyPad VT100

LINUX XTERMR6 SCO ESCN VT400

Select Function Key and KeyPad on Putty.

8.4.10.2 Console Redirection Settings Out-of-Band Management Submenu

Feature Options Description

Terminal Type VT100

VT100+

VT-UTF8

ANSI

Select terminal type.

Bits Per Second 9600, 19200, 38400, 57600,

115200

Select baud rate.

Data Bits 8 Set number of data bits. Parity None Select parity. Stop Bits 1 Set number of stop bits.

8.4.11 CPU Conﬁguration Submenu

Feature Options Description

►Socket 0 CPU Information Submenu Socket speciﬁc CPU information. ►CPU Thermal Conﬁguration Submenu CPU thermal conﬁguration options.

CPU Speed No option Displays the CPU clock frequency. 64-bit No option Displays 64-bit support information. Limit CPUID Maximum Disabled

Enabled

When enabled, the processor limits the maximum CPUID input value to 03h when queried, even if the processor supports a higher CPUID input value.

When disabled, the processor returns the actual maximum CPUID input value of the processor when queried. Limiting the CPUID input value may be required for older operating systems that cannot handle the extra CPUID information returned when using the full CPUID input value.

Execute Disable Bit Disabled

Enabled

Enable or disable the Execute Disable Bit (XD) of the processor. With the XD bit set to enabled, certain classes of malicious buffer overﬂow attacks can be prevented when combined with a supporting OS.

Intel Virtualization Technology Disabled

Enabled

Enable or disable support for the Intel virtualization technology.

Power Technology Disable

Energy Efﬁcient

Custom

Conﬁgure the power technology schema for the CPU

Page 64

8.4.11.1 Socket 0 CPU Information Submenu

Feature Options Description

CPU Name No option Displays socket speciﬁc CPU name CPU Signature No option Displays CPU signature number Microcode Patch No option Displays the CPU microcode patch number Max. CPU Speed No option Displays the maximal CPU clock frequency Min. CPU Speed No option Displays the minimal CPU clock frequency Processor Cores No option Displays the number of CPU core on Socket CPU Intel HT Technology No option Displays the Intel HT Technology support information. Intel VT-x Technology No option Displays the Intel VT-x Technology support information L1 Data Cache No option Displays the Socket L1 data cache information L1 Code Cache No option Displays the Socket L1 code cache information L2 Cache No option Displays the Socket L2 data cache information L3 Cache No option Displays the Socket L3 data cache information

8.4.11.2 CPU Thermal Conﬁguration Submenu

Feature Options Description

DTS Enabled

Disabled

Enable or Disable CPU Digital Thermal Sensor (DTS). DTS is used on ACPI functions to read the CPU temperature. This value is read from MSR.

8.4.12 PPM Conﬁguration Submenu

Feature Options Description

CPU C state Report Disabled

Enabled

Enable or disable CPU state Report to Operating System.

Max CPU C state C7

Maximal CPU C state supported by the CPU

SOix Disabled

Enabled

Enable or disable CPU SOix state support

Page 65

8.4.13 Thermal Conﬁguration Submenu

Feature Options Description

Critical Trip Point 110 C

105 C

100 C 90 C 87 C 85 C 79 C 71 C 63 C 55 C 47 C 39 C 31 C 23 C 15 C

Temperature of the ACPI critical Trip Point in which the OS will shut the system off.

Passive Trip Point 110 C

105 C 100 C 95 C

90 C

87 C 85 C 79 C 71 C 63 C 55 C 47 C 39 C 31 C 23 C 15 C

Temperature of the ACPI passive Trip Point in which the OS will begin throttling the processor.

Note

The conga-IA3 does not support active trip point.

Page 66

8.4.14 IDE Conﬁguration Submenu

Feature Options Description

Serial-ATA (SATA) Enabled

Disabled

Enable or disable the onboard SATA controller.

SATA Test Mode Enabled

Disabled

Should be set to Disabled. Test Mode is used just for veriﬁcation measurements.

SATA Speed Support Gen1

Gen2

Indicates the maximum speed the SATA controller can support.

SATA ODD Port Port 0 ODD

Port 1 ODD

No ODD

Conﬁgure which SATA Port is ODD.

SATA Mode IDE Mode

AHCI Mode

Conﬁgure SATA Port Mode

Serial-ATA Port 0 Enabled

Disabled

Enable or disable the SATA Port 0.

SATA Port 0 Hot Plug Disabled

Enabled

Select hot plug support for SATA Port 0. Not possible in Native IDE mode.

Serial-ATA Port 1 Enabled

Disabled

Enable or disable the SATA Port 1.

SATA Port 1 Hot Plug Disabled

Enabled

Select hot plug support for SATA Port 1.

Not possible in Native IDE mode. SATA Port 0 Information No Option Displays Information of device detected on SATA Port 0. SATA Port 1 Information No Option Displays Information of device detected on SATA Port 1.

8.4.15 Miscellaneous Conﬁguration Submenu

Feature Options Description

High Precision Timer Enabled

Disabled

Enable or disable the high precision event timer.

Boot Timer with HPET Timer Enabled

Disabled

Allow boot timer calculation with the high precision event timer.

PCI Express Dynamic Clock Gating

Enabled

Disabled

Enable dynamic clock gating.

Page 67

8.4.16 SCC Conﬁguration Submenu

Feature Options Description

SCC Device Mode ACPI Mode

PCI Mode

Conﬁgure the storage control cluster working mode.

SCC eMMC Support Enable eMMC 4.5 Support

Enable eMMC 4.41 Support

eMMC AUTO MODE

Disable

Enable SCC eMMC support and conﬁgure eMMC mode.

SCC 4.5 DDR50 eMMC Support Enabled

Disabled

Enable DDR50 eMMC support.

SCC 4.5 HS200 eMMC Support Enabled

Disabled

Enable DDR50 eMMC support.

eMMC Secure Erase Enabled

Disabled

Enable eMMC secure erase support.

SCC SD Card Support Enabled

Disabled

Enable storage control cluster SD Card support

SDR25 Support for SD Card Enabled

Disabled

Enable SDR25 Support for SD Card

DDR50 Support for SD Card Enabled

Disabled

Enable DDR50 Support for SD Card

8.4.17 PCI Subsystem Setting Submenu

Feature Options Description

PCI Bus Driver Version PCI Latency Timer 32, 64, 96, 128,

160, 192, 224, 248 PCI Bus Clocks

Select value to be programmed into PCI latency timer register.

PCI-X Latency Timer 32, 64, 96, 128,

160, 192, 224, 248 PCI Bus Clocks

Select value to be programmed into PCI-X latency timer register.

VGA Palette Snoop Disabled

Enabled

Enable or disable VGA palette registers snooping.

PERR# Generation Disabled

Enabled

Enable or disable PCI device to generate PERR#.

SERR# Generation Disabled

Enabled

Enable or disable PCI device to generate SERR#.

Above 4G Decoding Disabled

Enabled

Enable or Disable 64bits capable Devices to be Decoded in Above 4G Address Space (Only if system supports 64 bits

PCI Decoding) SR-IOV Support Disabled

Enabled

If system has SR-IOV capable PCIe Devices, this option enables or disables Single Root IO Virtualization support

Page 68

Feature Options Description

►PCI Express Settings Submenu PCI Express Settings Submenu ►PCI Express GEN 2

Settings

Submenu PCI Express Settings Submenu

8.4.17.1 PCI Express Setting Submenu

Feature Options Description

Relaxed Ordering Disabled

Enabled

Enable or disable PCI Express device relaxed ordering.

Extended Tag Disabled

Enabled

If enabled a device may use an 8-bit tag ﬁled as a requester.

No Snoop Disabled

Enabled

Enable or disable PCI Express device 'No Snoop' option.

Maximum Payload Auto

128 Bytes 256 Bytes 512 Bytes 1024 Bytes 2048 Bytes 4096 Bytes

Set maximum payload of PCI Express devices or allow system BIOS to select the value.

Maximum Read Request Auto

128 Bytes 256 Bytes 512 Bytes 1024 Bytes 2048 Bytes 4096 Bytes

Set maximum read request size of PCI Express devices or allow system BIOS to select the value.

ASPM Disabled

Auto Forced L0s

PCI Express Active State Power Management settings.

Extended Synch Disabled

Enabled

If enabled, the generation of extended PCI Express synchronization patterns is allowed.

Link Training Retry Disabled, 2, 3, 5 Deﬁnes number of retry attempts software will take to retrain the link if previous training attempt was unsuccessful. Link Training Timeout (us) 10-10000

Default : 100

Deﬁnes number of microseconds software will wait before polling link training bit in the link status register. Value ranges

from 10 to 10000 us. Unpopulated Links Keep Link On

Disabled

In order to save power, software will disable unpopulated PCI Express links, if this option is set to disabled.

Restore PCIe Registers Enabled

Disabled

On non-PCI Express aware operating systems some devices may not be re-initialized correctly after S3. Setting this node

to Enabled restores PCI Express conﬁguration on S3 resume.

Warning: Enabling this may cause issues with other hardware after S3 resume.

Page 69

8.4.18 PCI Express GEN 2 Settings Submenu

Feature Options Description

PCI Express GEN2 Device Register Settings Completion Timeout Default

Shorter Longer Disable

In device Functions that support Completion Timeout programmability, allows system software to modify the Completion

Timeout value. 'Default' 50us to 50ms. If 'Shorter' is selected, software will use shorter timeout ranges supported by

hardware. If 'Longer' is selected, software will use longer timeout ranges.

ARI Forwarding Disabled

Enabled

If supported by hardware and set to 'Enabled', the Downstream Port disables its traditional Device Number ﬁeld being

0 enforcement when turning a Type1 Conﬁguration Request into a Type0 Conﬁguration Request, permitting access to

Extended Functions in an ARI Device immediately below the Port. Default value: Disabled AtomicOp Requester

Enable

Disabled

Enabled

If supported by hardware and set to 'Enabled', this function initiates AtomicOp Requests only if Bus Master Enable bit is

in the Command Register Set. AtomicOp Egress Blocking Disabled

Enabled

If supported by hardware and set to 'Enabled', outbound AtomicOp Requests via Egress Ports will be blocked.

IDO Request Enable Disabled

Enabled

If supported by hardware and set to 'Enabled', this permits setting the number of ID-Based Ordering (IDO) bit

(Attribute[2]) requests to be initiated. IDO Completion Enable Disabled

Enabled

If supported by hardware and set to 'Enabled', this permits setting the number of ID-Based Ordering (IDO) bit

(Attribute[2]) requests to be initiated. LTR Mechanism Enable Disabled

Enabled

If supported by hardware and set to 'Enabled', this enables the Latency Tolerance Reporting (LTR) Mechanism.

End-End TLP Preﬁx Blocking

Disabled

Enabled

If supported by hardware and set to 'Force to 2.5 GT/s' for Downstream Ports, this sets an upper limit on Link operational

speed by restricting the values advertised by the Upstream component in its training sequences. When 'Auto' is selected

HW initialized data will be used. PCI Express GEN2 Link Register Settings Target Link Speed Auto

Force to 2.5 GT/s Force to 5.0 GT/s

If supported by hardware and set to 'Force to 2.5 GT/s' for Downstream Ports, this sets an upper limit on Link operational

speed by restricting the values advertised by the Upstream component in its training sequences. When 'Auto' is selected

HW initialized data will be used. Clock Power Management Disabled

Enabled

If supported by hardware and set to 'Enabled', the device is permitted to use CLKREQ# signal for power management of

Link clock in accordance to protocol deﬁned in appropriate form factor speciﬁcation. Compliance SOS Disabled

Enabled

If supported by hardware and set to 'Enabled', this will force LTSSM to send SKP Ordered Sets between sequences when

sending Compliance Pattern or Modiﬁed Compliance Pattern. Hardware Autonomous

Width

Disabled

Enabled

If supported by hardware and set to 'Disabled', this will disable the hardware's ability to change link width except width

size reduction for the purpose of correcting unstable link operation. Hardware Autonomous

Speed

Disabled

Enabled

If supported by hardware and set to 'Disabled', this will disable the hardware's ability to change link speed except speed

rate reduction for the purpose of correcting unstable link operation.

Page 70

8.4.19 Network Stack

Feature Options Description

Network Stack Enabled

Disabled

Enable or disable the UEFI network stack.

Ipv4 PXE Support Enabled

Disabled

Enable Ipv4 PXE boot support. If disabled IPV4 PXE boot option will not be created.

Ipv6 PXE Support Enabled

Disabled

Enable Ipv6 PXE boot support. If disabled IPV6 PXE boot option will not be created.

PXE boot wait time 0-5 Wait time to press ESC to abort PXE Boot

8.4.20 CSM Submenu

Feature Options Description

Launch CSM Enabled

Disabled

Enable the Compatibility Support Module.

CSM16 Module Version No option Display CSM Module Version number. Gate A20 Active Upon Request

Always

Conﬁgure legacy Gate A behavior.

Option ROM Messages Force BIOS

Keep Current

Enable Option ROM message

INT19 Trap Response Immediate

Postponed

Deﬁne BIOS reaction on INT19 trapping by Option ROM:

Immediate executes the trap right away.

Postpone executes the trap during legacy boot. Boot Option Filter UEFI and Legacy

Legacy Only

UEFI Only

Controls which devices / boot loaders the system should boot to.

Network Do not launch

UEFI only

Legacy only

Controls the execution of UEFI and legacy Network option ROMs.

Storage Do not launch

UEFI only

Legacy only

Controls the execution of UEFI and legacy Storage option ROMs.

Video Do not launch

UEFI only

Legacy only

Controls the execution of UEFI and legacy Video option ROMs

Other PCI Devices UEFI only

Legacy only

Controls the execution of UEFI and legacy option ROMs for any other PCI device different to Network, Video and Storage.

Page 71

8.4.21 SDIO Submenu

Feature Options Description

SDIO Access Mode Auto

DMA PIO

Controls the SDIO Access mode to the device.

8.4.22 USB Submenu

Feature Options Description

USB Module Version No option Displays the version of the USB module. USB Devices No option Displays the detected USB devices. xHCI Hand-off Enabled

Disabled

This is a workaround for OSes without xHCI hand-off support. The xHCI ownership change should be claimed by xHCI OS driver.

EHCI Hand-off Disabled

Enabled

This is a workaround for OSes without EHCI hand-off support. The EHCI ownership change should be claimed by EHCI OS driver.

USB Mass Storage Driver Support

Disabled

Enabled

Enable Mass Storage Driver Support.

Device Reset Timeout 10 sec

20 sec

30 sec 40 sec

USB legacy mass storage device start unit command timeout.

USB Transfer Timeout 1 sec

5 sec 10 sec

20 sec

The timeout value for control, bulk, and interrupt transfers.

Device Power -Up Delay Selection

Auto

Manual

Deﬁne maximum time a USB device might need before it properly reports itself to the host controller. Auto selects a default value which is 100ms for a root port or derived from the hub descriptor for a hub port.

Device Power -Up Delay Value

0-40 Default : 5

Actual power-up delay value in seconds.

8.4.23 Platform Trust Technology

Feature Options Description

fTPM Disabled

Enabled

Enable Trusted Platform Module support.

Page 72

8.4.24 Security Conﬁguration

Feature Options Description

TXE Enabled

Disabled

Enable Trusted Execution Engine.

TXE HMRFPO Enable

Disable

Enable Host ME Region Flash Protection Overwrite.

TXE Firmware Update Enabled

Disabled

Enable Firmware update.

TXE EOP Message Enabled

Disabled

Enable TXE End of Post Message.

TXE Unconﬁguration Perform No option Execute a TXE unconﬁguration command Intel(R) Anti-Theft Technology

Conﬁguration

No option

Intel(R) AT Enabled

Disabled

Enable Anti-Theft technology.

Intel(R) AT Platform PBA Enabled

Disabled

Enable Anti-Theft Platform Pre-boot Authentication.

Intel(R) AT Suspend Mode Enabled

Disabled

Enable Anti-Theft Suspend Mode.

8.4.25 Intel(R) Ethernet Connection I210 Submenu

At this submenu additionally to its title the MAC address is displayed at the end of the title.

Feature Options Description

► NIC Conﬁguration submenu Opens the NIC Conﬁguration submenu. Blink LEDs 0-15

Default : 0

The Ethernet LEDs will blink so many seconds long as entered.

UEFI Driver No option Displays the UEFI Driver version. Adapter PBA No option Displays the Adapter PBA. Chip Type No option Displays the type of the Chip in which the Ethernet controller is integrated. PCI Device ID No option Displays the PCI Device ID of the Ethernet controller. Bus:Device:Function No option Displays the PCI Bus:Device:Function number of the Ethernet controller. Link Status No option Displays the Link Status. MAC Address No option Displays the MAC Address.

Page 73

8.4.25.1 NIC Conﬁguration Submenu

Feature Options Description

Link Speed Auto Negotiated

10 Mbps Half 10 Mbps Full 100 Mbps Half 100 Mbps Full

Speciﬁes the port speed used for the selected boot protocol.

Wake on LAN Disabled

Enabled

Enables Wake on LAN (WOL) feature

8.4.26 Driver Health Submenu

Feature Options Description

► Intel(R) PRO/1000 No option Provides Health Status for the drivers/Controllers connected to the System

8.4.26.1 Intel(R) PRO/1000 Submenu

Feature Options Description

Controller Information No option Provides Health Status of the controller

8.5 Chipset Setup

Select the Boot tab from the setup menu to enter the Boot setup screen.

8.5.1 North Bridge Submenu

Feature Options Description

Memory Information Total Memory No option Total amount of memory detected by the system Memory Slot 0 No option Memory detected by the system on Slot 0 Memory Slot 1 No option Memory detected by the system on Slot 1 Max TOLUD Dynamic, 2 GB, 2.25 GB,

2.5 GB, 2.75 GB, 3 GB,

Maximum value of TOLUD Dynamic assignment would adjust TOLUD automatically based on largest MMIO length of installed graphic controller.

Aperture Size 128MB

256MB

512MB

Select Aperture Size

Page 74

Feature Options Description

PAVC Enable

Disable

Enable/Disable Protected Audio Video Control

8.5.2 South Bridge Submenu

Feature Options Description

►Azalia HD Audio Submenu Azalia HD Audio Submenu. ► USB Submenu USB Submenu. ► PCI Express Conﬁguration Submenu PCI Express Conﬁguration Submenu.

High Precision Timer Enabled

Disabled

Enable High Precision Event Timer.

Serial IRQ Quiet

Continuous

Conﬁgure IRQ Serial Mode

Global SMI Lock Enabled

Disabled

Enable or Disable SMI Lock

BIOS Read/Write Protection Enabled

Disabled

Enable BIOS SPI Region read/write protection.

Isolate SMBus Segments Never

During POST Always

Allows isolating the off-module/external SMBus segment from the on-module SMBus segment. This can be a workaround for non spec conform external SMBus devices.

8.5.2.1 Azalia HD Audio

Feature Options Description

LPE Audio Support Disable

LPE Audio PCI Mode LPE Audio ACPI Mode

Enable LPE Audio Support.

Audio Controller Enabled

Disabled

Enable Audio Controller.

Azalia Vci Enable Enabled

Disabled

Enable Azalia Vci.

Azalia Docking Support Enable Enable

Disable

Enable Azalia Docking support.

Azalia PME Enable Enabled

Disabled

Enable Azalia PME support.

Azalia HDMI Codec Enabled

Disabled

Enable Azalia HDMI Codec

HDMI Port B Enabled

Disabled

Enable HDMI Port B Audio.

Page 75

Feature Options Description

HDMI Port C Enabled

Disabled

Enable HDMI Port C Audio.

8.5.2.2 USB Submenu

Feature Options Description

USB OTG Support Disabled

Enabled

Enable USB OTG support.

USB VBUS On

Off

VBUS should be On in Host Mode and it should be Off in OTG device Mode.

XHCI Mode Enabled

Disabled Auto

Smart Auto

USB3.0 mode support on USB0, USB1, USB2 and USB3 ports

Disabled – USB ports will function in USB2.0 mode only. No USB3.0 OS driver required. The USB ports will be routed to EHCI1 controller.

Enabled – USB ports will function correctly in BIOS but the ports on which the USB3.0 mode is enabled (see USB0 port USB3.0 item) will not function at all under OS if the USB3.0 OS driver is not installed. USB ports will not function in pre-OS time if USB3.0 Support in BIOS is disabled (see the USB3.0 Support in BIOS item).

Auto – USB ports are initially set to operate in USB2.0 Mode and the USB3.0 OS driver (if available) will switch them USB3.0 mode. If USB3.0 OS driver is not available than the ports will function correctly but they will operate in USB2.0 mode.

Smart Auto – The BIOS will store the USB mode set by the OS and at next boot the BIOS will set this previously used mode. At G3 boot (ﬁrst boot after mechanical disconnection of the power supply) the USB ports will function identically as in Auto mode. This mode is not available when Disabled is selected at USB3.0 Support in BIOS item.

USB2 Link Power Management

Disabled

Enabled

Enable USB2 Link Power Management

USB 2.0(EHCI) Support Disabled

Enabled

Control USB EHCI (USB 2.0) functions.

USB Per Port Control Disabled

Enabled

Control each of the USB ports (0-3).

USB Port 0 Disabled

Enabled

Enable Port 0

USB Port 1 Disabled

Enabled

Enable Port 1

USB Port 2 Disabled

Enabled

Enable Port 2

USB Port 3 Disabled

Enabled

Enable Port 3

Page 76

8.5.2.3 PCI Express Conﬁguration Submenu

Feature Options Description

PCIe noncompliance Card Not Supported

Supported

Enable PCIe 1.0 Device Support

PCI Express Port 0/1/2/3 Disabled

Enabled

Enable PCIe Port 0/1/2/3.

ASPM Disabled

L0s L1 L0sL1 Auto

PCI Express Active State Power Management settings.

Hot Plug Disabled

Enabled

Select hot plug support for PCIe Port

Speed Auto

Gen 2 Gen 1

Conﬁgure PCIe Port 0/1/2/3 Speed. This feature is visible only if PCIe noncompliance card option is set to “Not Supported”. If the option is set to “supported”, then the speed defaults to Gen 1.

Extra Bus Reserved 0-7

Default : 0

Extra bus reserved (0-7) for bridges behind this root bridge.

Reserved Memory 1-20

Default : 10

Reserved memory range for this root bridge.

Prefetchable Memory 1-20

Default : 10

Prefetchable memory range for this root bridge.

Reserved I/O 0-20

Default : 4

Reserved I/O range for this root bridge.

8.6 Boot Setup

Select the Boot tab from the setup menu to enter the Boot setup screen.

8.6.1 Boot Settings Conﬁguration

Feature Options Description

Setup Prompt Timeout 1

0 - 65535

Number of seconds to wait for setup activation key. 0 means no wait for fastest boot (not recommended), 65535 means inﬁnite wait.

Bootup NumLock State On

Off

Select the keyboard numlock state.

Quiet Boot Disabled

Enabled

Disabled displays normal POST diagnostic messages. Enabled displays OEM logo instead of POST messages. Note: The default OEM logo is a dark screen.

Page 77

Feature Options Description

Enter Setup If No Boot Device

Yes

Select whether the setup menu should be started if no boot device is connected.

Enable Popup Boot Menu

Yes

Select whether the popup boot menu can be started.

Boot Priority Selection Device Based

Type Based

Select between device and type based boot priority lists. The “Device Based” boot priority list allows you to select from a list of currently detected devices only. The “Type Based” boot priority list allows you to select device types, even if a respective device is not yet present. Moreover, the “Device Based” boot priority list might change dynamically in cases when devices are physically removed or added to the system. The “Type Based” boot menu is static and can only be changed by the user.

Power Loss Control Remain Off

Turn On Last State

Speciﬁes the mode of operation if an AC power loss occurs. Remain Off keeps the power off until the power button is pressed. Turn On restores power to the computer. Last State restores the previous power state before power loss occurred. Note: Only works with an ATX type power supply.

AT Shutdown Mode System Reboot

Hot S5

Determines the behavior of an AT-powered system after a shutdown.

System Off Mode G3/Mech Off

S5/Soft Off

Deﬁne system state after shutdown when a battery system is present.

Fast Boot Disabled

Enabled

Enable or disable boot with initialization of a minimal set of devices required to launch active boot option. Has no effect for BBS / legacy boot options.

Note

1. The term ‘AC power loss’ stands for the state when the module looses the standby voltage on the 5V_SB pins. On congatec modules, the standby voltage is continuously monitored after the system is turned off. If within 30 seconds the standby voltage is no longer detected, then this is considered an AC power loss condition. If the standby voltage remains stable for 30 seconds, then it is assumed that the system was switched off properly.

2. Inexpensive ATX power supplies often have problems with short AC power sags. When using these ATX power supplies it is possible that the system turns off but does not switch back on, even when the PS_ON# signal is asserted correctly by the module. In this case, the internal circuitry of the ATX power supply has become confused. Usually another AC power off/on cycle is necessary to recover from this situation.

Page 78

8.7 Security Setup

Select the Security tab from the setup menu to enter the Security setup screen.

8.7.1 Security Settings

Feature Options Description

Administrator Password Enter password Speciﬁes the setup administrator password.

HDD Security Conﬁguration

List of all detected hard disks supporting the security feature set

Select device to open device security conﬁguration submenu

8.7.2 Hard Disk Security

This feature enables the users to set, reset or disable passwords for each hard drive in Setup without rebooting. If the user enables password support, a power cycle must occur for the hard drive to lock using the new password. Both user and master password can be set independently however the drive will only lock if a user password is installed.

8.8 Save & Exit Menu

Select the Save & Exit tab from the setup menu to enter the Save & Exit setup screen. You can display a Save & Exit screen option by highlighting it using the <Arrow> keys.

Feature Description

Save Changes and Exit Exit setup menu after saving the changes. The system is only reset if settings have been changed. Discard Changes and Exit Exit setup menu without saving any changes. Save Changes and Reset Save changes and reset the system. Discard Changes and Reset Reset the system without saving any changes.

Save Options

Save Changes Save changes made so far to any of the setup options. Stay in setup menu. Discard Changes Discard changes made so far to any of the setup options. Stay in setup menu. Restore Defaults Restore default values for all the setup options.

Boot Override List of all boot devices

currently detected

Select device to leave setup menu and boot from the selected device. Only visible and active if Boot Priority Selection setup node is set to “Device Based”.

Page 79

9 Additional BIOS Features

The conga-IA3 uses a congatec/AMI AptioEFI that is stored in an onboard Flash Rom chip and can be updated using the congatec System Utility (version 1.5.0 and later), which is available in a DOS based command line, Win32 command line, Win32 GUI, and Linux version.

The BIOS displays a message during POST and on the main setup screen identifying the BIOS project name and a revision code. The initial production BIOS is identiﬁed as IA32R1xx and IC32R1xx where :

• IA32 is the BIOS for modules with Intel Atom Dual Channel Memory SoC

• IC32 is the BIOS for modules with Intel Celeron Dual Channel Memory SoC

• R is the identiﬁer for a BIOS ROM ﬁle, 1 is the so called feature number and xx is the major and minor revision number.

The binary size of IA32 and IC32 BIOS is 8MB.

9.1 Supported Flash Devices

The conga-IA3 supports the following ﬂash devices:

• Winbond W25Q64CVSSIG (8MB)

The ﬂash device listed above is tested and can be used on the carrier board for external BIOS support. For more information about external BIOS support, refer to the Application Note AN7_External_BIOS_Update.pdf on the congatec website at http://www.congatec.com.

9.2 Updating the BIOS

BIOS updates are often used by OEMs to correct platform issues discovered after the board has been shipped or when new features are added to the BIOS.

For more information about “Updating the BIOS” refer to the user’s guide for the congatec System Utility, which is called CGUTLm1x.pdf and can be found on the congatec AG website at www.congatec.com.

Page 80

10 Industry Speciﬁcations

The list below provides links to industry speciﬁcations that apply to congatec AG modules.

Speciﬁcation Link

Low Pin Count Interface Speciﬁcation, Revision 1.0 (LPC) http://developer.intel.com/design/chipsets/industry/lpc.htm Universal Serial Bus (USB) Speciﬁcation, Revision 2.0 http://www.usb.org/home PCI Speciﬁcation, Revision 2.3 http://www.pcisig.com/speciﬁcations Serial ATA Speciﬁcation, Revision 3.0 http://www.serialata.org Intel

Thin Mini-ITX Design Guide (thin-mini-itx-based-pc-system-

design-guide-rev-1-2.pdf)

http://www.intel.com

PCI Express Base Speciﬁcation, Revision 2.0 http://www.pcisig.com/speciﬁcations

Page 81
