Page 1
Technical specification :
Rated voltage:
IEC 61076-2-104
A
10,1
n
Width across
flats 9
4
3
5
,
1
Current rating:
IEC 61076-2-104
Insulation resistance:
IEC 60512
Pollution degree:
IEC 60664-1
Degree of protection:
IEC 60529
Temperature range:
IEC 60664-1
Mating cycles:
IEC 60512-9a
60 V
3 A at 40°C
>=100 M
3/2
IP 67, in mated
condition
-30°C ... +80°C
>=100
Ω
L
n
8
D
Materials:
Contact:
Contact plating:
Contact carrier:
Sealing:
Coupling nut:
Moulding body:
CuZn
Nickel, gold plated
TPU GF, UL 94
FPM
GD-Zn, nickel plated
TPU, UL 94, grey
D see data sheet cable
t
D
n
N
a
i
A
l
H
p
Y
m
B
o
c
G
S
N
I
H
o
W
R
A
R
C
D
E
/
D
5
A
9
C
/
2
R
0
E
0
T
2
L
A
e
v
T
i
t
O
c
N
e
r
i
O
D
D
Index: b 15.03.2011 VF Ä3945
Coupling nut modified, spanner flats added,
data sheet modified
tolerance of cable:
THIS DRAWING MAY NOT BE COPIED OR
REPRODUCED IN ANY WAY, AND MAY NOT
BE PASSED ON TO A THIRD PARTY WITHOUT
WRITTEN PERMISSION.
OWNERSHIP AND COPYRIGHT OF CONEC GmbH
A
4
3
L <= 4m: L + 40mm
L > 4m: L + 1%
drawn
appd.
1
date
02.10.07
02.10.07
Part no:
42-10004
42-10005
42-10006
42-10007
42-xxxxx SAL - 8 - RK3 - ... / K1
dim. in mm
name
Franz
Mankopf
Description:
SAL - 8 - RK3 - 2 / K1
SAL - 8 - RK3 - 3 / K1
SAL - 8 - RK3 - 5 / K1
SAL - 8 - RK3 - 10 / K1
title:

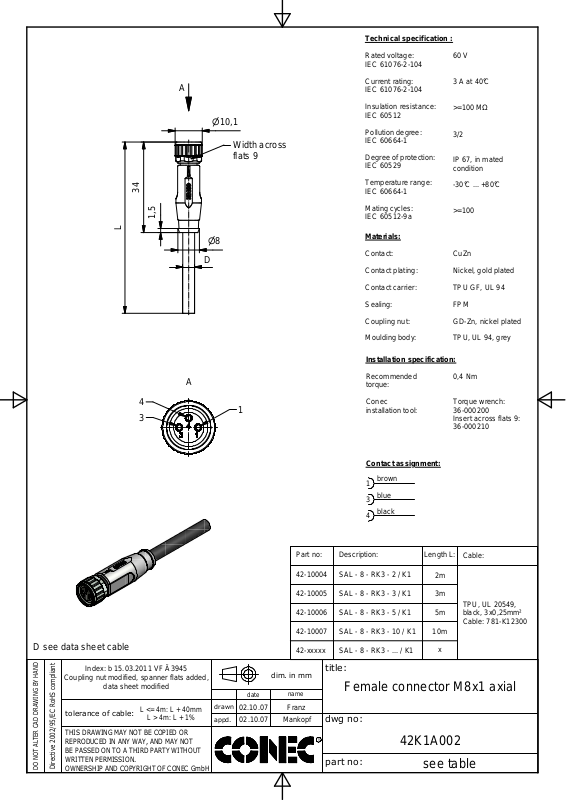

Female connector M8x1 axial
dwg no:
RRRR
part no:
Installation specification:
Recommended
torque:
Conec
installation tool:
Contact assignment:
brown
1
blue
3
black
4
Length L:
2m
3m
5m
10m
x
42K1A002
see table
0,4 Nm
Torque wrench:
36-000200
Insert across flats 9:
36-000210
Cable:
TPU, UL 20549,
black, 3x0,25mm²
Cable: 781-K12300
