Page 1
4pos
Technical specification:
Rated voltage:
IEC 61076-2-101
n
20
12M x1
Width across flats 18
7
5
~
Width across flats 19
max. external cable
diameter see table
20Ø
5pos
Current rating:
IEC 61076-2-101
Insulation resistance:
IEC 60512
Pollution degree:
IEC 60664-1
Degree of protection:
IEC 60529
Temperature range:
IEC 60664-1
Mating cycles:
IEC 60512-9a
Wire cross section:
Materials:
Contact:
Contact plating:
Contact carrier:
Screw connection
Cable seal:
O-Ring:
Coupling screw:
Housing:
4pos 5pos
250 V 60 V
4 A at 40°C
>=100 M
3/2
IP 67, in mated
condition
-30°C ... +85°C
>=100
AWG18 / max. 0,75 mm²
CuZn
Nickel, gold plated
PA6, UL 94
CuZn / nickel, tin plated
Elastomere
NBR
GD-Zn, nickel plated
GD-Zn, nickel plated
Ω
2
3
t
D
n
N
a
i
A
l
H
p
Y
m
B
o
c
G
S
N
I
H
o
W
R
A
R
C
D
E
/
D
5
A
9
C
/
2
R
0
E
0
T
2
L
A
e
v
T
i
t
O
c
N
e
r
i
O
D
D
Index: a 07.02.11 dbu Ä3902
Data sheet modified
THIS DRAWING MAY NOT BE COPIED OR
REPRODUCED IN ANY WAY, AND MAY NOT
BE PASSED ON TO A THIRD PARTY WITHOUT
WRITTEN PERMISSION.
OWNERSHIP AND COPYRIGHT OF CONEC GmbH
Installation specification:
1
2
1
5
name
Schmidt
4
Part no:
43-00115
43-00116
title:
dwg no:
RRRR
4
3
drawn
appd.
date
20.09.10
20.09.10
dim. in mm
Burschik
Recommended
torque:
Conec
installation tooling:
Description:
SAL - 12S - RSC4 - S / 075
SAL - 12S - RSC5 - S / 075

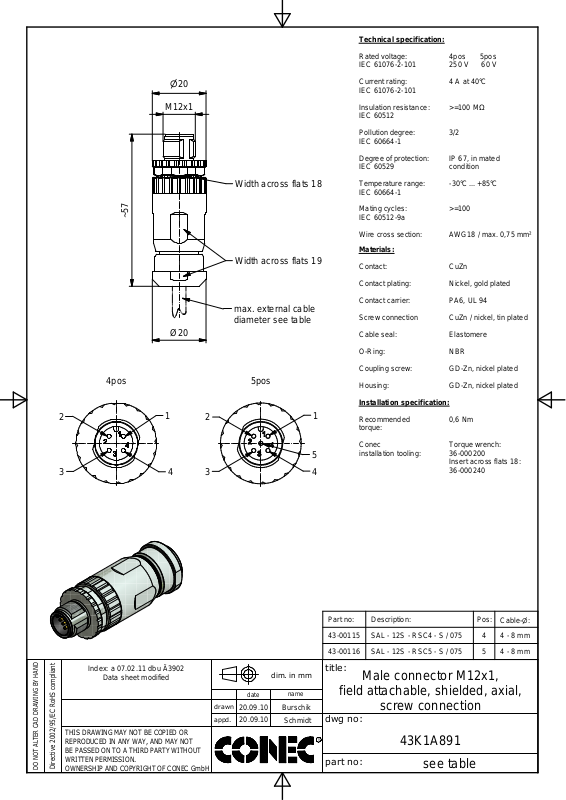

Male connector M12x1,
field attachable, shielded, axial,
screw connection
43K1A891
part no:
0,6 Nm
Torque wrench:
36-000200
Insert across flats 18:
36-000240
see table
Pos:
4
5
Cable-n:
4 - 8 mm
4 - 8 mm
