Condux Deluxe Y-Block User Manual

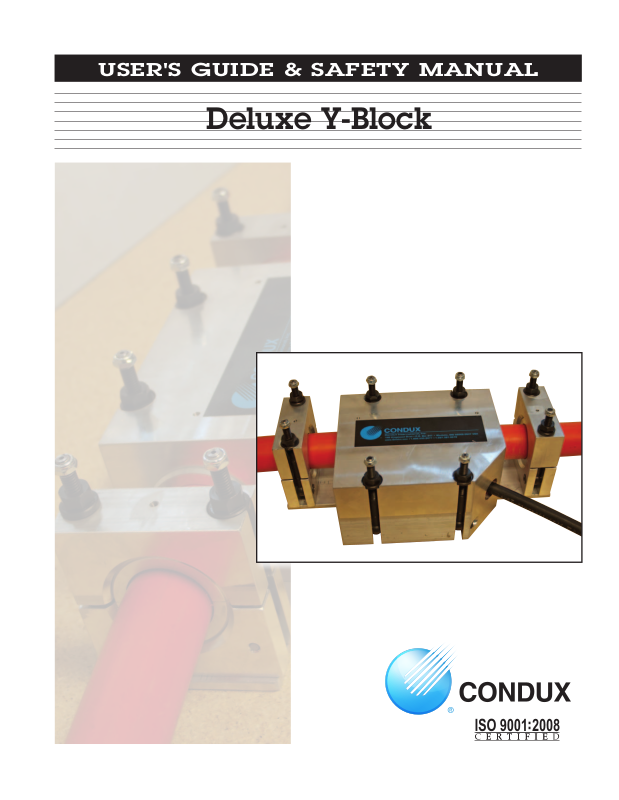

USER'S GUIDE & SAFETY MANUAL

Deluxe Y-Block

Important Safety Notice

Read and understand all procedures and safety instructions before using a Condux Deluxe Y-Block.
Observe all safety information on this page and note specific safety requirements as explained by
procedures in this manual. Failure to follow these instructions could result in serious personal injury
or death.

ADVERTENCIA:

Favor de leer y comprender todas las instucciones de operación y seguridad antes de usar la máquina.
Si Ud. No comprende las instrucciones favor de consultarle a su jefe.

READ MANUAL

FIRST

Save this user’s guide for future reference.

COMMUNICATIONS WITH THE MANUFACTURER

For any information related to the machine (use, maintenance, spare parts) always state Model, Serial
Number, Manufacturing Year and Order. This data can be found in the machine identification label.

Manufacturer:
Condux International Inc.
145 Kingswood Drive
Mankato, MN 56002-0247
1-507-387-6576
Fax: [phone]
Internet: http://www.condux.com
E-mail: [e-mail]

If you have questions on:

2

SAFETY - OPERATIONS - APPLICATIONS

CALL 1-800-533-2077

CONDUX

Table of Contents

1

General Information ......................................Page 4

Y-Block Set Up. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 5-7

2

3

Y-Block Orientation ......................................Page 7

Y-Block Parts Breakdown ............................... Page 8-9

4

Replacement Parts & Accessories ...................... Page 10-11

5

6

Warranty .............................................Page 12

3

1.

General Information

GENERAL PRODUCT USE

a. Only qualified operators should use this product. The operator should only
be the person who received qualified training from the product owning
company or trained by the manufacturer.
b. Product must only be used for the work it was designed for.
c. Product is not to be used with unauthorized personnel on the job site.
d. Should there be any doubt concerning use, functioning, maintenance or
anything else, please contact the factory or factory representative.

OPERATOR QUALIFICATIONS

a. Operator must know the required safety directives to run the product that
are pertinent to the country where it is being used.
b. Operator in charge of the product and installation project must be
appropriately dressed, avoiding large clothes, hanging jewelry or whatever
might become entangled in the moving parts.
c. Operator must also wear the necessary protective equipment such as
gloves, boots, helmet, etc.
d. Operator must carefully follow all advisements contained in the instruction
manual or on the machine.
e. Operator must have work area kept clean of obstacles that might inhibit a
safe working area.

MAINTENANCE QUALIFICATION

a. Periodically inspect product for wear and tear.
b. Authorized and trained personnel must do all maintenance operations.
Trained personnel are defined as people who have received qualified
training from the using company or from the manufacturer.

4
