Condux 821 User Manual

USER GUIDE USER GUIDE USER GUIDE
808 & 821 Champion Swivels
Condux International, Inc. • P.O. Box 247 • 145 Kingswood Drive • Mankato, MN 56002-0247 507-387-6576 • 800-533-2077 • FAX 507-387-1442 Internet: http://www.condux.com
© Copyright 2012, Condux International, Inc.
Printed in USA
Literature Part Number: 08210099
Revision Number 1.7
Important Safety Notice
Limited Warranty
Read and understand all procedure and safety instructions
before using a Condux 808 or 821 Champion Swivel. Observe
all safety information on this page and note specific safety requirements as explained by procedures called out in this user
guide. Failure to follow these instructions could result in serious
personal injury or death.
ADVERTENCIA:
Favor de leer y comprender todas las instrucciones de operación y seguridad antes de usar la máquina. Si Ud. no comprende las instrucciones favor de consultarle a su jefe.
Operator’s User Guide
READ USER
GUIDE FIRST
WEAR
HARD HAT
WEAR SAFETY
GLASSES
WEAR SAFETY
SHOES
Save this user’s guide for future reference.
WEAR SAFETY
GLOVES
Condux International, Incorporated extends the following warranty to
the original purchaser of these goods for use, subject to the
qualications indicated:
Condux International, Incorporated warrants to the original purchaser
for use that the goods or any component thereof manufactured by
Condux International will be free from defects in workmanship for a
period of 1 year form the date of purchase, provided such goods are
installed, maintained, and used in accordance with Condux’s written instructions.
Components not manufactured by Condux International but used
within the assembly provided by Condux International are subject to the warranty period as specied by the individual manufacturer of said
component, provided such goods are installed, maintained, and used in
accordance with Condux’s and the original manufacturer’s written instructions.
Condux’s sole liability and the purchaser’s sole remedy for a failure of goods under this limited warranty, and for any and all claims arising
out of the purchase and use of goods, shall be limited to the repair or
replacement of the goods that do not conform to this warranty.
To obtain repair or replacement service under the limited warranty, the purchaser must contact the factory for a Return Material Authorization (RMA). Once obtained, send the RMA along with the defective part or
goods, transportation prepaid, to: Condux International, Inc.
145 Kingswood Drive Mankato, MN 56002-0247 USA
THERE ARE NO EXPRESS WARRANTIES COVERING THESE GOODS OTHER THAN AS SET FORTH ABOVE. THE IMPLIED WARRANTIES OR MERCHANTABILITY AND FITNESS FOR
If you have questions on:
PARTICULAR PURPOSE ARE LIMITED IN DURATION TO ONE YEAR FROM DATE OF PURCHASE.
SAFETY - OPERATIONS -
APPLICATIONS
CALL 1-800-533-2077
2 7
CONDUX ASSUMES NO LIABILITY IN CONNECTION WITH THE INSTALLATION OR USE OF THIS PRODUCT, EXCEPT AS STATED IN THIS LIMITED WARRANTY, CONDUX WILL IN NO EVENT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Notes
Safe Operating Practices
Read and understand all procedure and safety instructions before using the Condux 808 or 821 Champion Swivels. Observe all safety information on this page and note specific safety requirements as explained by procedures called out in this
manual. Failure to follow these instructions could result in serious
personal injury, property damage or death.
!DANGER
Immediate hazards which, if not
avoided, WILL result in severe injury or death.
This symbol is used to call your attention to hazards or unsafe practices which could result in an injury or property damage.
!WARNING: Do not modify or dismantle the 808 or 821 Champion swivel. The swivel was assembled,inspected and shipped in it’s “covered warranty” form. Any attempt to dismantle or modify the swivel will void the warranty and could
result in property damage, severe injury or death.
!WARNING: Do not use the 808 or 821 Champion Swivel for overhead lifting. They are designed for cable and innerduct pulling only. Severe personal injury or property damage could result.
!WARNING: The 808 & 821 Champion Swivels are not designed to be pulled around capstans or bullwheels. The 808 & 821 Champion Swivels are not designed to be pulled over sheaves. If this situation cannot be avoided, select a swivel with a safe working load 20% greater than anticipated straight
tension load.
!WARNING
Hazards which, if not avoided, COULD
result in severe injury or death.
!CAUTION
Hazards or unsafe practices, which, if not avoided, MAY result
in injury or property damage.
!WARNING: Do not exceed the working-load capacity of the 808 or 821 Champion Swivel or any element in the pull string.
Severe personal injury or property damage could result.
!WARNING: Do not stand directly behind the pull string. If any component breaks, severe personal injury or property damage
could result.
6 3
Installation Procedure
Specifications
!CAUTION: Do not use these swivels for directional drilling applications.
1. Ensure the swivel is the correct size for the job (see Tables 1 or 2).
2. Unscrew the clevis pins with a straight-slot screwdriver or allen wrench
depending on the type of clevis pin.
3. Attach the swivel between the cable being pulled and the pulling rope
or cable.
4. Tighten the clevis pins securely.
Maintenance
1. After each use, assess the condition of the swivel, checking for wear and external damage. Check for axial and radial play in the bearings.
THIS PRODUCT IS NOT SERVICEABLE. If the swivel ceases to operate correctly, replace with new one.
The only replacement/repair part for these swivels are the clevis (attachment) pins. Use only OEM parts, DO NOT SUBSTITUTE. See Table for correct Replacement Pin.

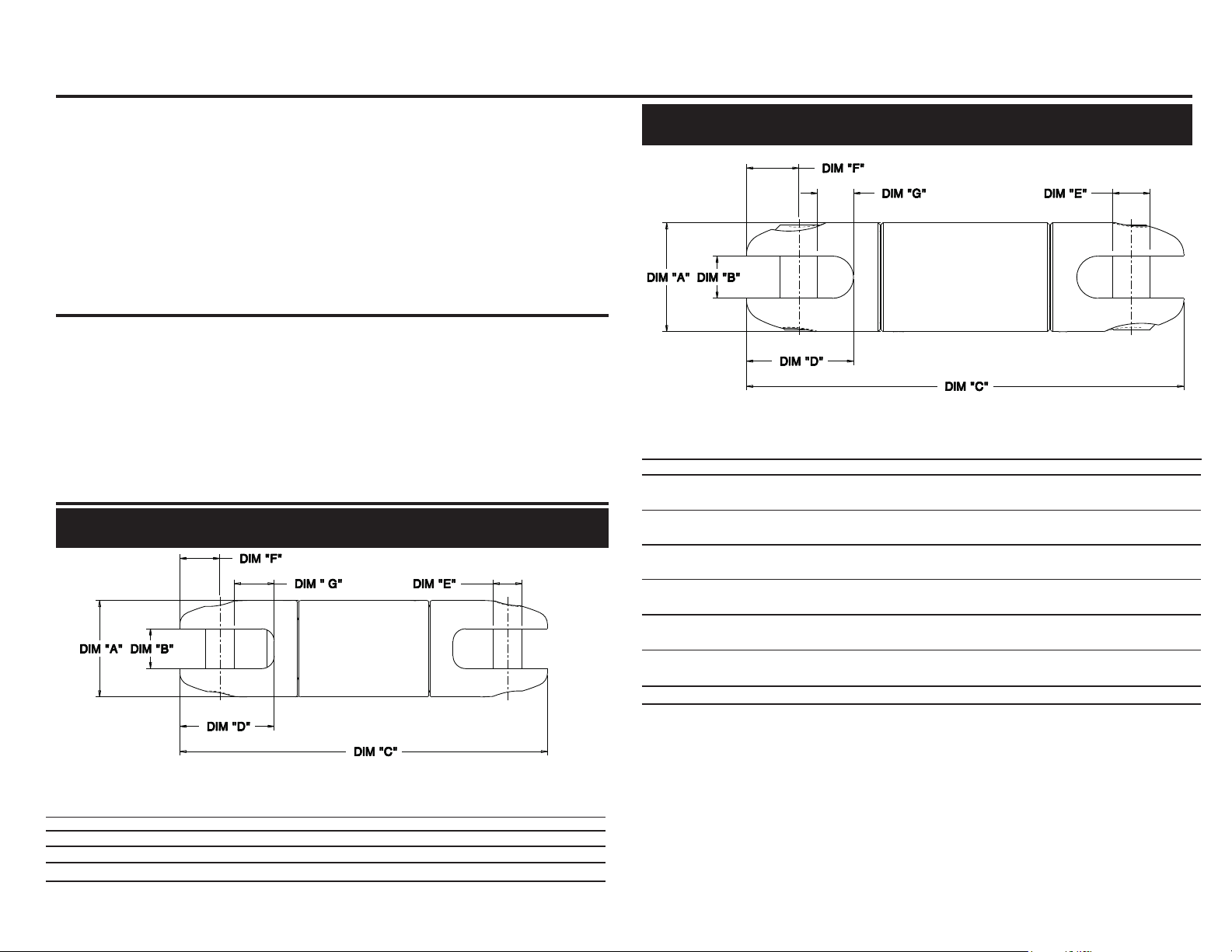

Specifications
Table 1 - 821 Champion Swivels
Table 2 - 808 Champion Swivels
Working Load Part *Underground **Aerial A B C D E F G Replacement Number (lbs) (Ibs) (in) (in) (in) (in) (in) (in) (in) Pin
08017000 600 360 08016000 2,500 1,500 08016000H 2,500 1,500 08080912 5,000 3,000 1 08080912H 5,000 3,000 1 08080913 7,000 4,200 1 08080913H 7,000 4,200 1 08080916 10,000 6,000 1 08080916H 10,000 6,000 1 08080920 15,000 9,000 2 .75 6.99 1.78 .59 .72 0.75 08081016 08080920H 15,000 9,000 2 .75 6.99 1.78 .59 .72 0.75 21000391 08080925 25,000 15,000 2 08080925H 25,000 15,000 2 08080930 30,000 18,000 3 1.31 12.05 3.56 1.09 1.37 1.64 08081053 * 3:1 SAFETY FACTOR
** 5:1 SAFETY FACTOR
5
8 .28 3.56 .80 .16 .38 0.34 08017016
7
8 .38 4.41 1.03 .31 .53 0.35 08955408
7
8 .38 4.41 1.03 .31 .53 0.35 08081065
1
4 .56 5.44 1.34 .37 .59 0.57 08081046
1
4 .56 5.44 1.34 .37 .59 0.57 08081042
3
8 .56 5.25 1.31 .44 .56 0.54 08081036
3
8 .56 5.25 1.31 .44 .56 0.54 21000371
5
8 .63 6.51 1.59 .56 .78 0.54 08081026
5
8 .63 6.51 1.59 .56 .78 0.54 21000381
1
2 1.00 10.20 2.80 .84 1.23 1.15 08081006
1
2 1.00 10.20 2.80 .84 1.23 1.15 21000401
Working Load Part *Underground **Aerial A B C D E F G Replacement Number (lbs) (Ibs) (in) (in) (in) (in) (in) (in) (in) Pin
08210007 1,800 1,080
08210012 4,000 2,400 1 08210014 7,500 4,500 1
08210018 10,000 6,000 1 * 3:1 SAFETY FACTOR
4 5
** 5:1 SAFETY FACTOR
7
8 .31 3.09 .84 .31 .38 0.31 08210105
1
4 .59 4.52 1.22 .38 .44 0.60 08210115
7
16 .59 5.47 1.41 .44 .59 0.60 08210125
7
8 .75 7.06 1.86 .59 .80 0.76 08210135
