Page 1

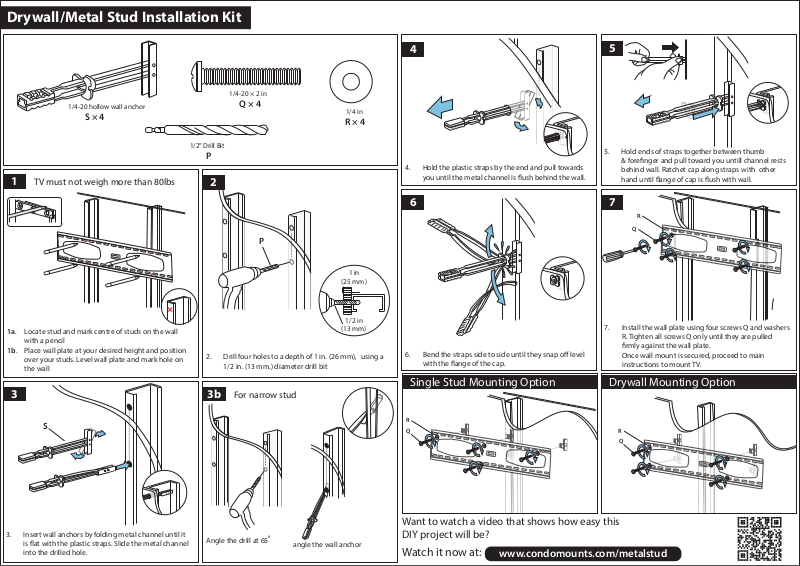

Drywall/Metal Stud Installation Kit
1
1/4-20 hollow wall anchor
S × 4
TV must not weigh more than 80lbs
1/2” Drill Bit
P
2
1/4-20 × 2 in
Q × 4
1/4 in
R × 4
4
4. Hold the plastic straps by the end and pull towards
you until the metal channel is ush behind the wall.
5
5. Hold ends of straps together between thumb
& forenger and pull toward you untill channel rests
behind wall. Ratchet cap along straps with other
hand until ange of cap is ush with wall.
1a. Locate stud and mark centre of studs on the wall
with a pencil
1b. Place wall plate at your desired height and position
over your studs. Level wall plate and mark hole on
the wall
P
1 in
(25 mm)
1/2 in
(13 mm)
2. Drill four holes to a depth of 1 in. (26 mm), using a
1/2 in. (13 mm.) diameter drill bit
6 7
6. Bend the straps side to side until they snap o level
with the ange of the cap.
R
Q
7. Install the wall plate using four screws Q and washers
R. Tighten all screws Q only until they are pulled
rmly against the wall plate.
Once wall mount is secured, proceed to main
instructions to mount TV.
3 3b
S
For narrow stud
Single Stud Mounting Option Drywall Mounting Option
R
Q
R
Q
3. Insert wall anchors by folding metal channel until it
is at with the plastic straps. Slide the metal channel
into the drilled hole.
Angle the drill at 65
Want to watch a video that shows how easy this
0
angle the wall anchor
DIY project will be?
Watch it now at:
www.condomounts.com/metalstud
Page 2
CAUTION :
CAUTION: Avoid potential personal injuries and property damage!
The wall must be capable of supporting ve times the weight of the TV
and mount combined.
Manufacturer is not responsible for damage or injury caused by incorrect
assembly or use.
If you do not understand these instructions, or have doubts about the
safety of the installation, assembly or use of this product, contact manufacturer
Customer Service or call a quali ed contractor.
If back side of wall is unnished, drywall must be installed to a minimum of
one stud left and right of the stud(s) being used to install the mount.
Drywall must be a minimum of 13 mm (1/2 in.) thick on each side of the studs,
and a minimum clearance of 48 mm (1 7/8 in.) behind the wall is required.
Pilot holes MUST be drilled to a depth of 25 mm (1 in.), using a 13 mm
(1/2 in.) diameter drill bit.
