Condair ME Series, ME Direct Feed Series Operation Manual

2579080-B EN 1901

OPERATION MANUAL

Adiabatic air humidification/air cooling system
Condair ME Direct Feed

Humidication and Evaporative Cooling

Thank you for choosing Condair

Installation date (MM/DD/YYYY):

Commissioning date (MM/DD/YYYY):

Site:

Model:

Serial number:

Contact

Condair Ltd.
2740 Fenton Road, Ottawa, Ontario K1T3T7
TEL: [phone], FAX: [phone]
EMAIL: [e-mail], WEBSITE: www.condair.com

Proprietary Notice

This document and the information disclosed herein are proprietary data of Condair Ltd. Neither this document, nor
the information contained herein shall be reproduced, used, or disclosed to others without the written authorization
of Condair Ltd., except to the extent required for installation or maintenance of recipient's equipment.

Liability Notice

Condair Ltd. does not accept any liability due to incorrect installation or operation of the equipment or due to the
use of parts/components/equipment that are not authorized by Condair Ltd.

Copyright Notice

© Condair Ltd., All rights reserved.

Technical modications reserved

Contents

1 Introduction 5

1.1 General 5

1.2 Notes on the operation manual 5

2 For your safety 7

3 Product Overview 10

3.1 Model overview 10

3.2 Product designation / Which model do you have 11

3.3 Construction of the system components 12

3.3.1 Construction of the evaporative module 12

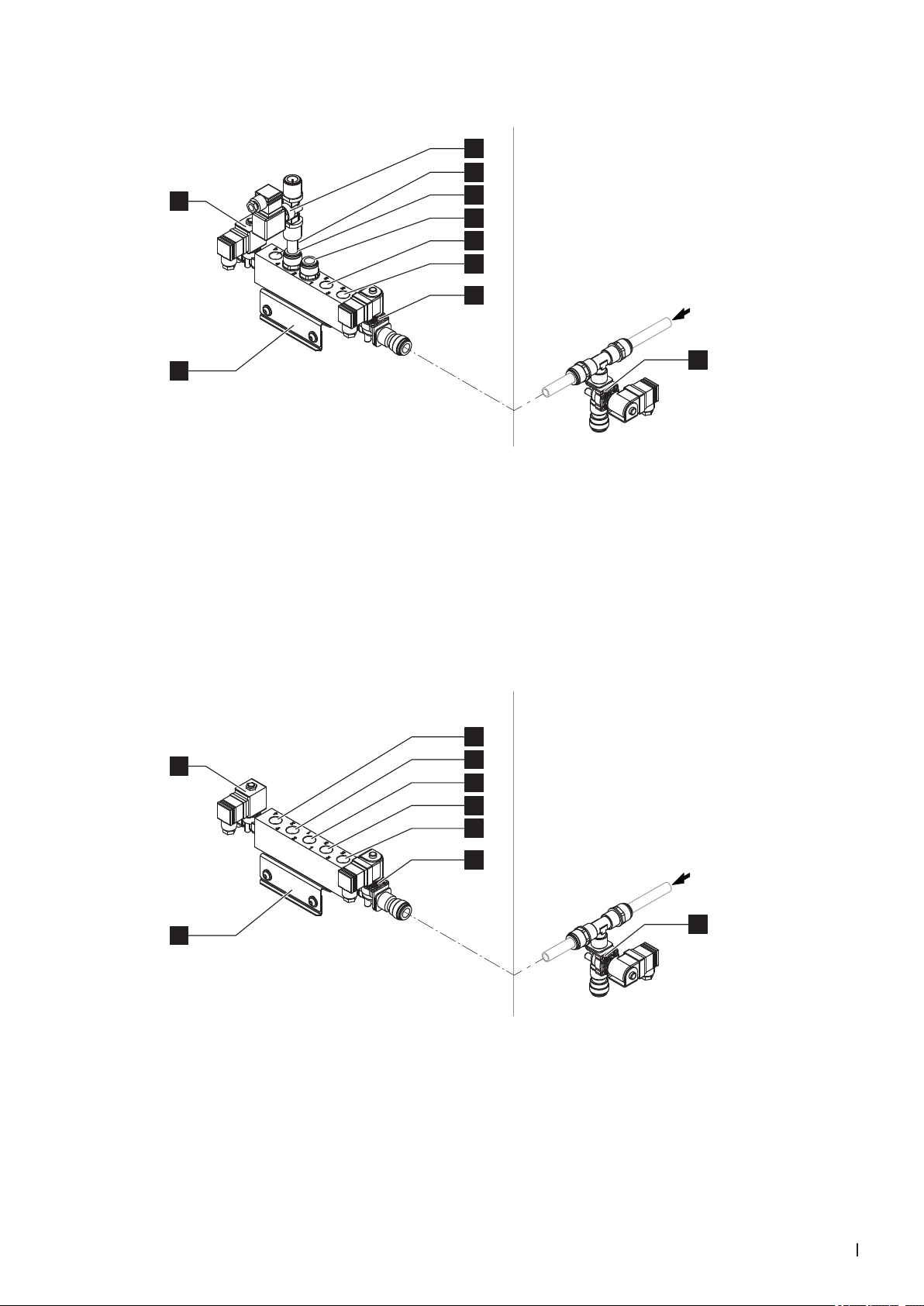

3.3.2 Construction of the hydraulic manifold 13

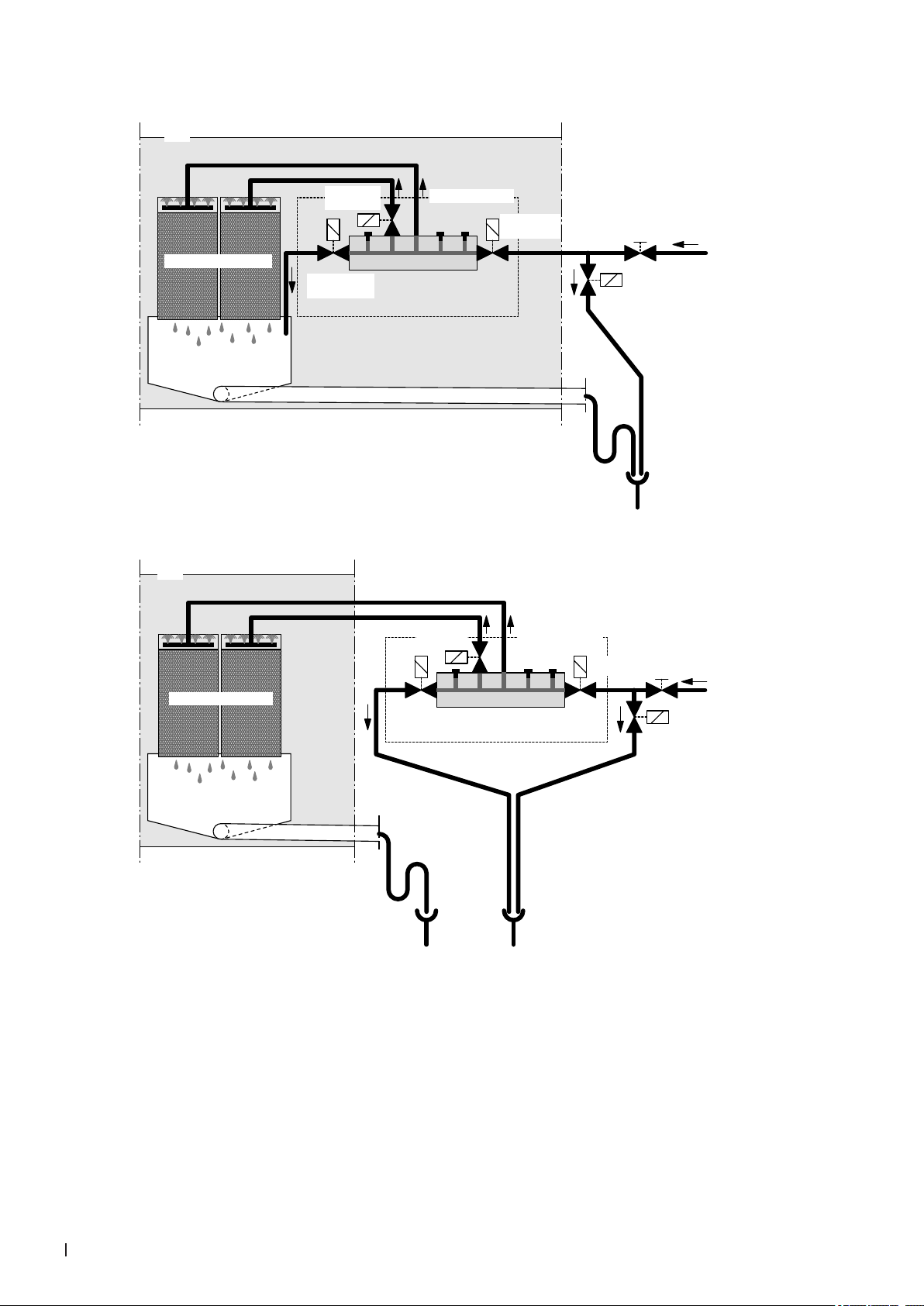

3.4 System overviews 14

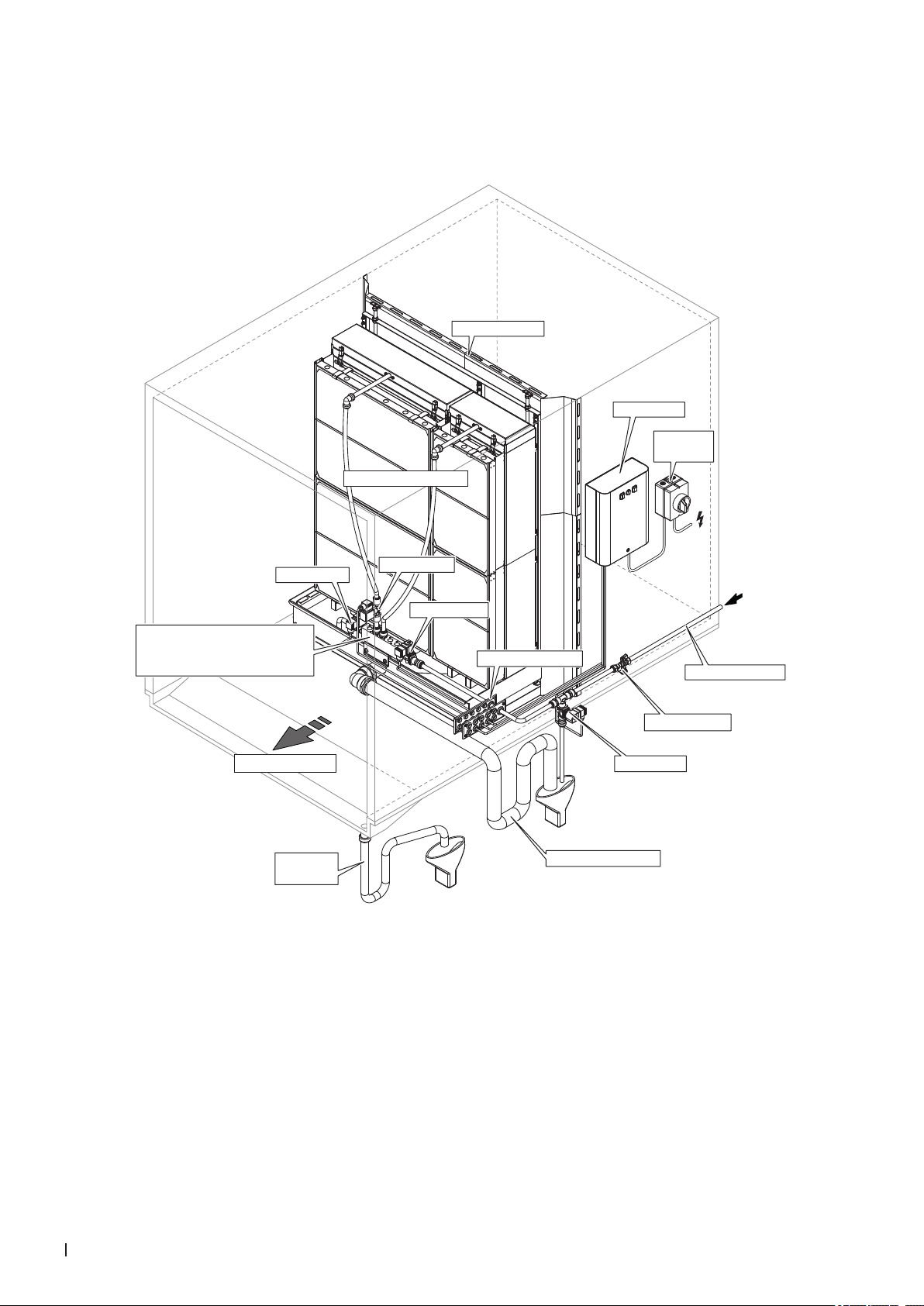

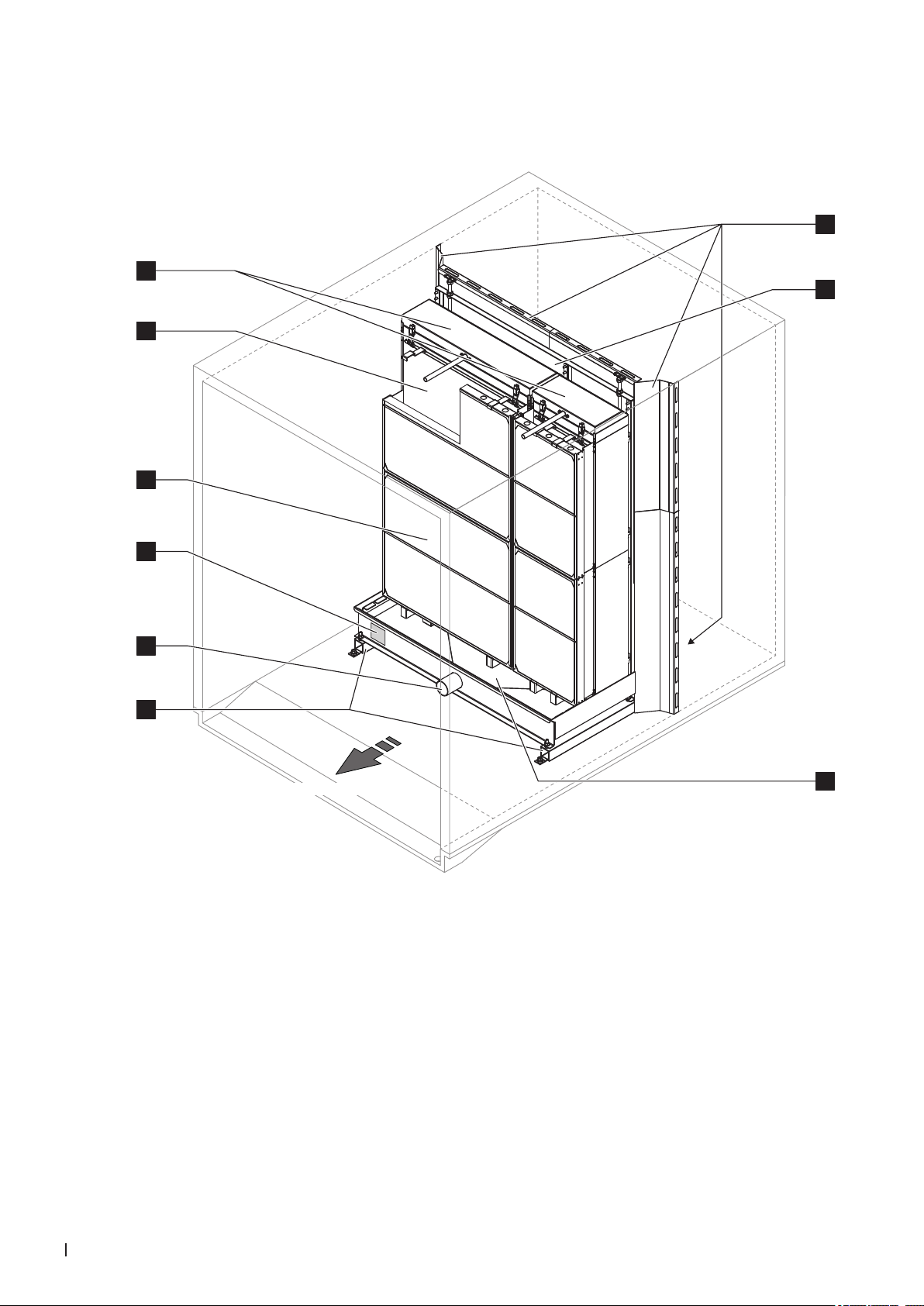

3.4.1 Typical system Condair ME Direct Feed (internally mounted) 14

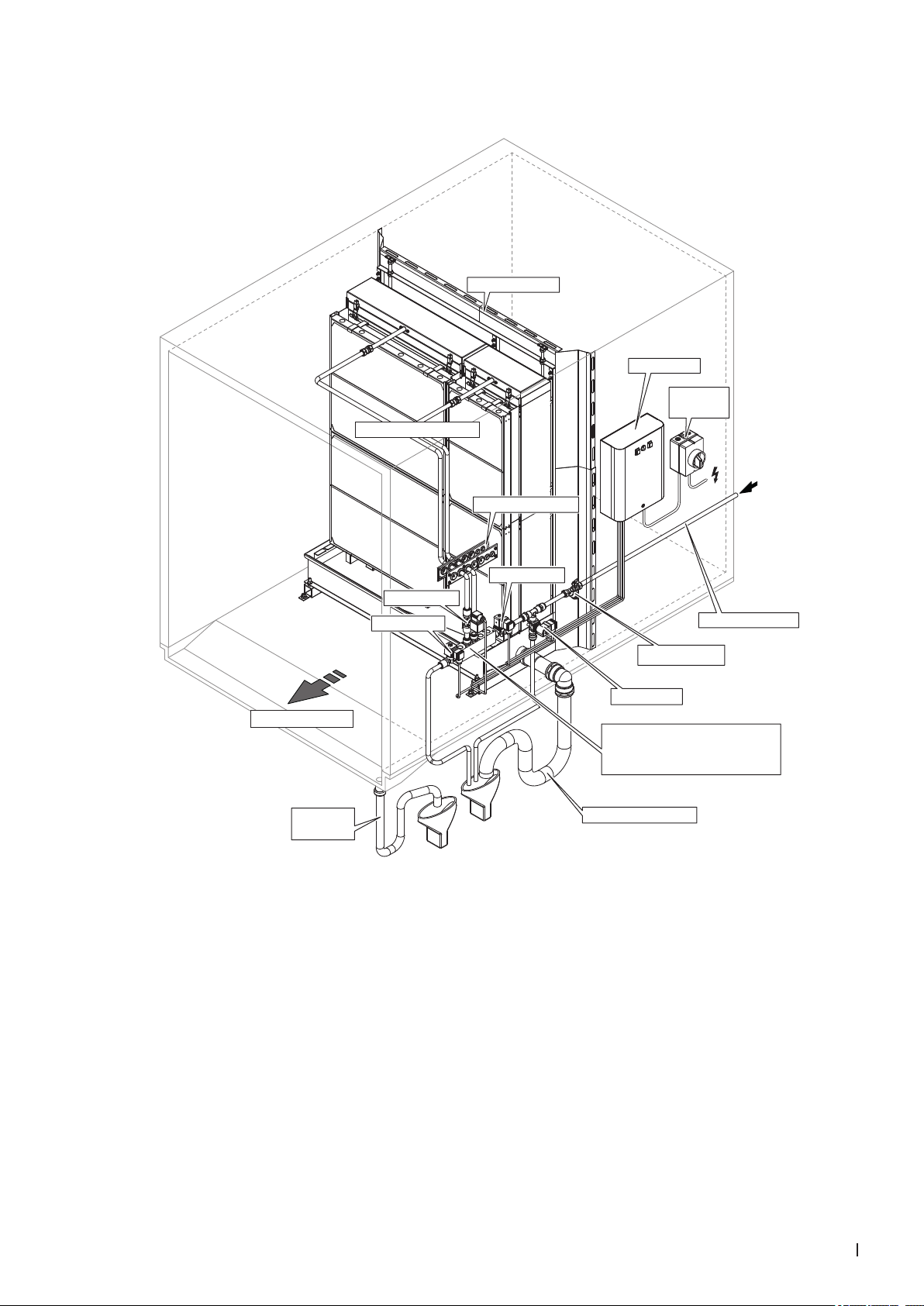

3.4.2 Typical system Condair ME Direct Feed (externally mounted) 15

4 Operation 18

4.1 Important notes on operation 18

4.2 Initial commissioning 19

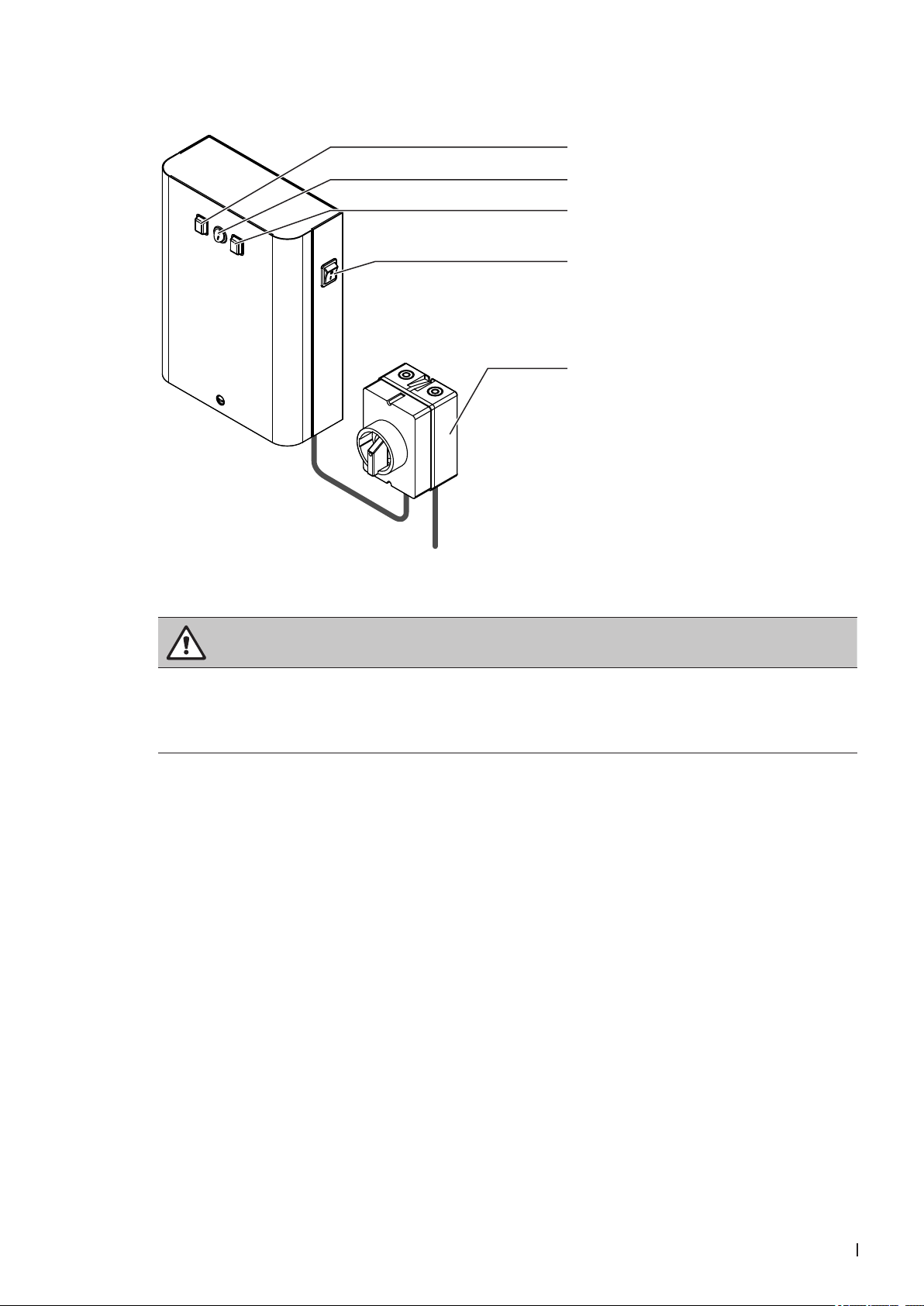

4.3 Display and operating elements of Condair control units 21

4.4 Start up for normal operation 22

4.5 Notes on operation 23

4.5.1 Important notes on operation 23

4.5.2 Recommended regular checks during operation 23

4.6 Decommissioning the system 24

5 Maintenance 25

5.1 Important notes on maintenance 25

5.2 Maintenance Intervals 26

5.3 Maintenance guide 26

5.4 Dismantling and installation of components for maintenance 28

5.4.1 Dismantling and installation of the evaporative module 29

5.5 Consumables Guide 29

5.6 Health and Safety Requirements 30

5.7 Routine Water Sampling and Testing 31

5.8 Cleaning and Disinfection 32

5.9 Cleaning and Disinfection Method Statement 33

6 Fault elimination 35

6.1 Malfunction list 35

6.2 Notes on fault elimination 36

7 Taking out of service/Disposal 37

7.1 Taking out of service 37

7.2 Disposal/Recycling 37

3Contents

8 Productspecications 38

8.1 Technical data 38

9 Appendix 39

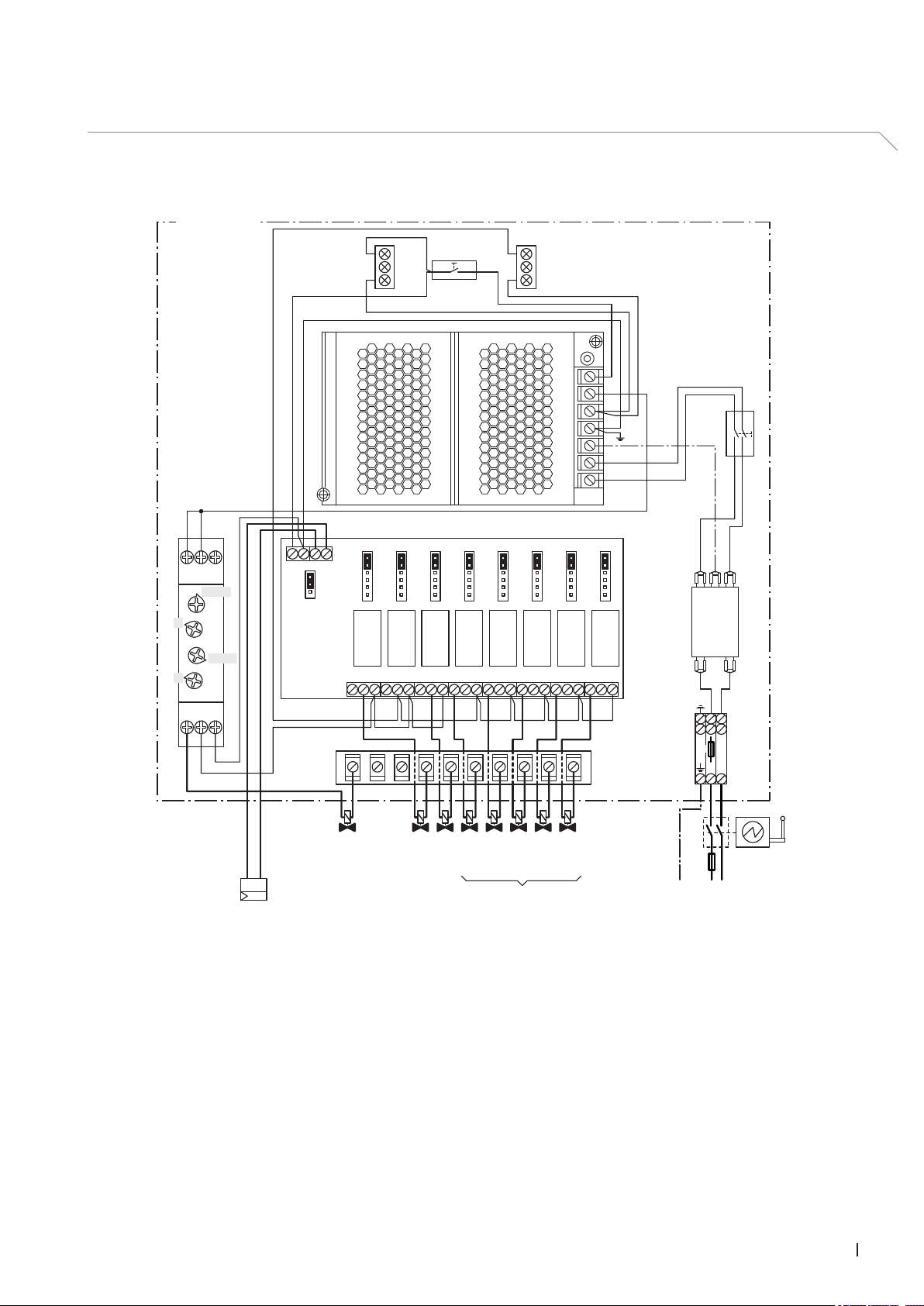

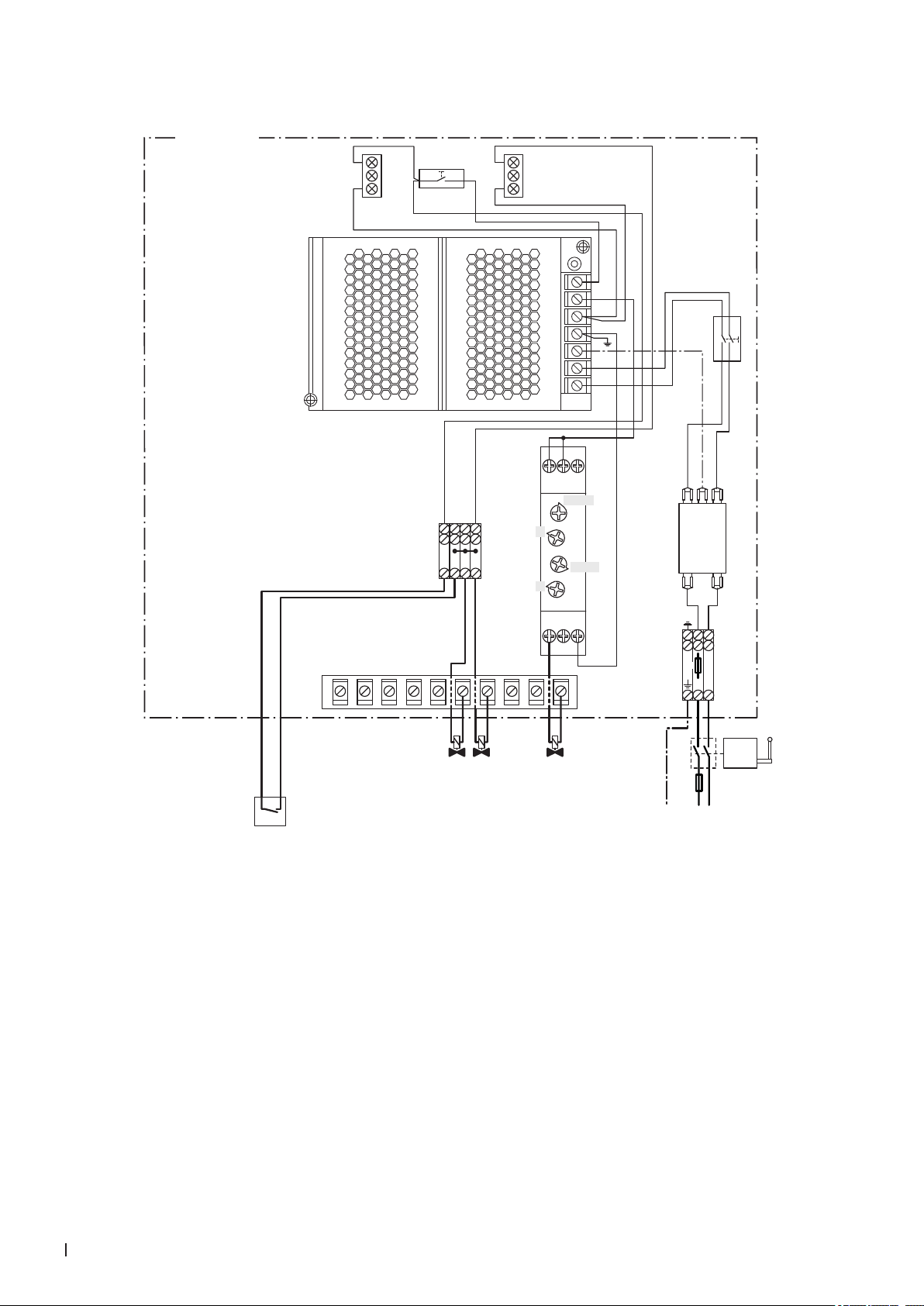

9.1 Wiring diagram Condair ME Direct Feed with stage control 39

9.2 Wiring diagram Condair ME Direct Feed with optional On/Off control unit 40

4 Contents

1 Introduction

1.1 General

We thank you for having purchased the CondairMEDirectFeedEvaporativeHumidierandCooler
(Condair ME Direct Feed for short).

To ensure a safe, proper, and economical operation of the Condair ME Direct Feed, please observe
and comply with all information and safety instructions contained in the present documentation as well
as in the separate documentations of the components installed in the humidication system. Improper
use of the Condair ME Direct Feed may result in danger to the user or third parties and/or impairment
of material assets.

If you have questions after reading this documentation, please contact your Condair representative.
They will be glad to assist you.

1.2 Notes on the operation manual

Limitation

The subject of this operation manual is the Condair
Cooler. The various options and accessories are only described insofar as is necessary for proper

operation of the equipment. Further information on options and accessories can be obtained in the
respective instructions.

This operation manual is restricted to the commissioning, the operation, the maintenance and trou-

bleshooting of the Condair ME Direct Feed and is meant for welltrainedpersonnelbeingsufciently
qualiedfortheirrespectivework.

Please note, some illustrations in this manual may show options and accessories which may not be
supplied as standard or available in your country. Please check availability and specication details with
your Condair representative.

The operation manual is supplemented by various separate items of documentation (such as the installa­tion manual), which are included in the delivery as well. Where necessary, appropriate cross-references
are made to these publications in the operation manual.

MEDirectFeedEvaporativeHumidierand

5Introduction

Symbols used in this manual

CAUTION!

The catchword “CAUTION” used in conjunction with the caution symbol in the circle designates notes
in this operation manual that, if neglected, may cause damage and/or malfunction of the unit or

other material assets.

WARNING!

The catchword “WARNING” used in conjunction with the general caution symbol designates safety
and danger notes in this operation manual that, if neglected, may cause injury to persons.

DANGER!

The catchword “DANGER” used in conjunction with the general caution symbol designates safety and
danger notes in this operation manual that, if neglected, may lead to severe injury or even death

of persons.

Safekeeping

Please safeguard this operation manual in a safe place, where it can be immediately accessed. If the
equipment changes hands, the operation manual must be passed on to the new operator.

If the operation manual gets mislaid, please contact your Condair representative.

Language versions

This operation manual is available in various languages. Please contact your Condair representative
for information.

6 Introduction

2 For your safety

General

Every person working with the Condair ME Direct Feed must have read and understood the operation
manual of the Condair ME Direct Feed before carrying out any work.
Knowing and understanding the contents of the operation manual is a basic requirement for protecting
the personnel against any kind of danger, to prevent faulty operation, and to operate the unit safely and
correctly.

All ideograms, signs and markings applied to the components of the Condair ME Direct Feed must be
observed and kept in readable state.

Qualicationofpersonnel

All work described in this operation manual may only be carried out by specialists who are well
trainedandadequatelyqualiedandareauthorizedbythecustomer.
For safety and warranty reasons any action beyond the scope of this manual must only be carried out
by personnel with appropriate industry recognised qualications or training.

It is assumed that all persons working with the Condair ME Direct Feed are familiar and comply with the
appropriate local regulations on work safety and the prevention of accidents.

The Condair ME Direct Feed may not be used by persons (including children) with reduced physical,
sensory or mental abilities or persons with lacking experience and/or knowledge, unless they are super­vised by a person responsible for their safety or they received instructions on how to operate the system.
Children must be supervised to make sure that they do not play with the Condair ME Direct Feed.

Intended use

The Condair ME Direct Feed is intended exclusively for
or air ducts within the specied operating conditions. Any other type of application, without the written
consent of the manufacturer, is considered as not conforming with the intended purpose and may lead
to the Condair ME Direct Feed becoming dangerous.
Operation of the equipment in the intended manner requires that all the information contained in this
operation manual are observed (in particular the safety instructions).

airhumidicationandaircoolinginAHU's

7For your safety

Danger that may arise from the Condair ME Direct Feed

DANGER!
Risk of electric shock!

The optional Condair ME Direct Feed control units contain live mains voltage. Live parts may
be exposed when the control unit is open. Touching live parts may cause severe injury or
danger to life.

Prevention: Before carrying out any work on the Condair ME Direct Feed switch off the control unit,

disconnect it from the mains via the electrical isolator and secure the electrical isolator in “Off” position
against inadvertent power-up.

DANGER!
Health risk because of inadequate hygiene!

Inadequatelyoperatedand/orpoorlymaintainedevaporativehumidication/coolingsystems

may endanger health. When inadequately operated and/or poorly maintained micro-organisms
(including the bacterium which causes Legionnaire’s disease) may grow in the evaporative
module, the water tank and the water system of the Condair ME Direct Feed and may affect the
air in the AHU/air duct.

Prevention: the Condair ME Direct Feed must strictly be operated and maintained in accordance

with this manual

WARNING!

Some types of evaporative material are manufactured from glass bre. Though this material is not clas­sied as hazardous, it is recommended that Personal Protection Equipment such as gloves, protective
clothing and eye protection are used during handling to protect the user from bres or dust. If dust is
generated during handling it is recommended that respiratory protection is worn.

Correct lifting and handling

Lifting or handling of components always carries an element of risk, and therefore must only be carried
out by trained and qualied personnel. Ensure that any lifting operations have been fully planned and risk
assessed. All equipment should be checked by a skilled and competent health & safety representative.

It is the customer's responsibility to ensure that operators are trained in handling heavy goods and to
enforce the relevant lifting regulations.

8 For your safety

Preventing unsafe operation

If it is suspected that safe and hygienic operation is no longer possible, then the Condair ME Direct
Feed should immediately be shut down and secured against accidental power-up according to

chapter 4.6. This can be the case under the following circumstances:

– if the Condair ME Direct Feed is damaged
– if the Condair ME Direct Feed is contaminated
– if the electrical installations are damaged
– if the Condair ME Direct Feed is no longer operating correctly
– if connections and/or piping are leaking

All persons working with the Condair ME Direct Feed must report any alterations to the system that may
affect safety to the owner without delay.

Prohibitedmodicationstotheunit

Nomodicationsmust be undertaken on the Condair ME Direct Feed without the express written

consent of the manufacturer.

For the replacement of defective components use exclusively original accessories and spare parts
available from your Condair representative.

9For your safety

3 Product Overview

3.1 Model overview

The standard version includes the evaporative module (75%, 85 % or 95 % efciency depending
on the cassette type) and a hydraulic manifold without valves (for internal or external installation).

To run the standard version with a On/Off control, the system must be equipped with an On/Off control
unit, the hydraulic manifold must be equipped with a drain valve and a supply valve, and a purge valve
must be installed in the supply line to hydraulic manifold as minimum. All components for extending
the standard version to an On/Off control system are available as options (see table below) or must be
supplied by the customer.

To run the standard version with a stage control, the system must be equipped with a stage control
unit, the hydraulic manifold must be equipped with a drain valve, a supply valve and the appropriate
number of stage valves, and a purge valve must be installed in the supply line to hydraulic manifold as
minimum. All components for extending the standard version to a stage control system are available as
options (see table below) or must be supplied by the customer.

Options On/Off control Stage control
Glass Fibre Media

Composite non particle-releasing glass bre media with anti-microbial im­pregnation and A2, S2, d0 (UL Class 1) re rating.
Available in 75%, 85% and 95% efciencies.

Polyester Media

Robust patented synthetic media with hygroscopic impregnation and DIN
EN53483 Class F1 re rating.
Available in 85% and 95% efciencies.

Droplet Separator

Droplet catching matrix increasing maximum face velocity limit without drop­let carry-over to 4.5 m/s (886 fpm).

Evaporative module Blanking

Kit to secure Condair ME and prevent air-bypass within the duct / AHU.

Stage valves

Valve kit which facilitates stage control of direct feed systems using customer
controls or the ME Direct Feed Stage Control Unit.
Available in 2, 3, 4 and 5 stage versions.

Inlet, drain and purge valve
Valve kit for customers who wish to create their own basic on/off direct feed
control system.

On/Off control unit

On/Off control unit for simple control of direct feed systems which includes
timed purge function to enhance system hygiene.

Stage control unit

Stage control unit for simple analogue control of direct feed systems which
includes timed purge function to enhance system hygiene.

● ●

● ●

● ●

● ●

––– ●

● ●

● –––

––– ●

10 Product Overview

3.2 Product designation / Which model do you have

The product designation and the most important unit data (e.g. serial number, evaporative module product
key, etc.) are found on the rating plates xed on the left side of the evaporative module and on the right
side of the control unit (if applicable).

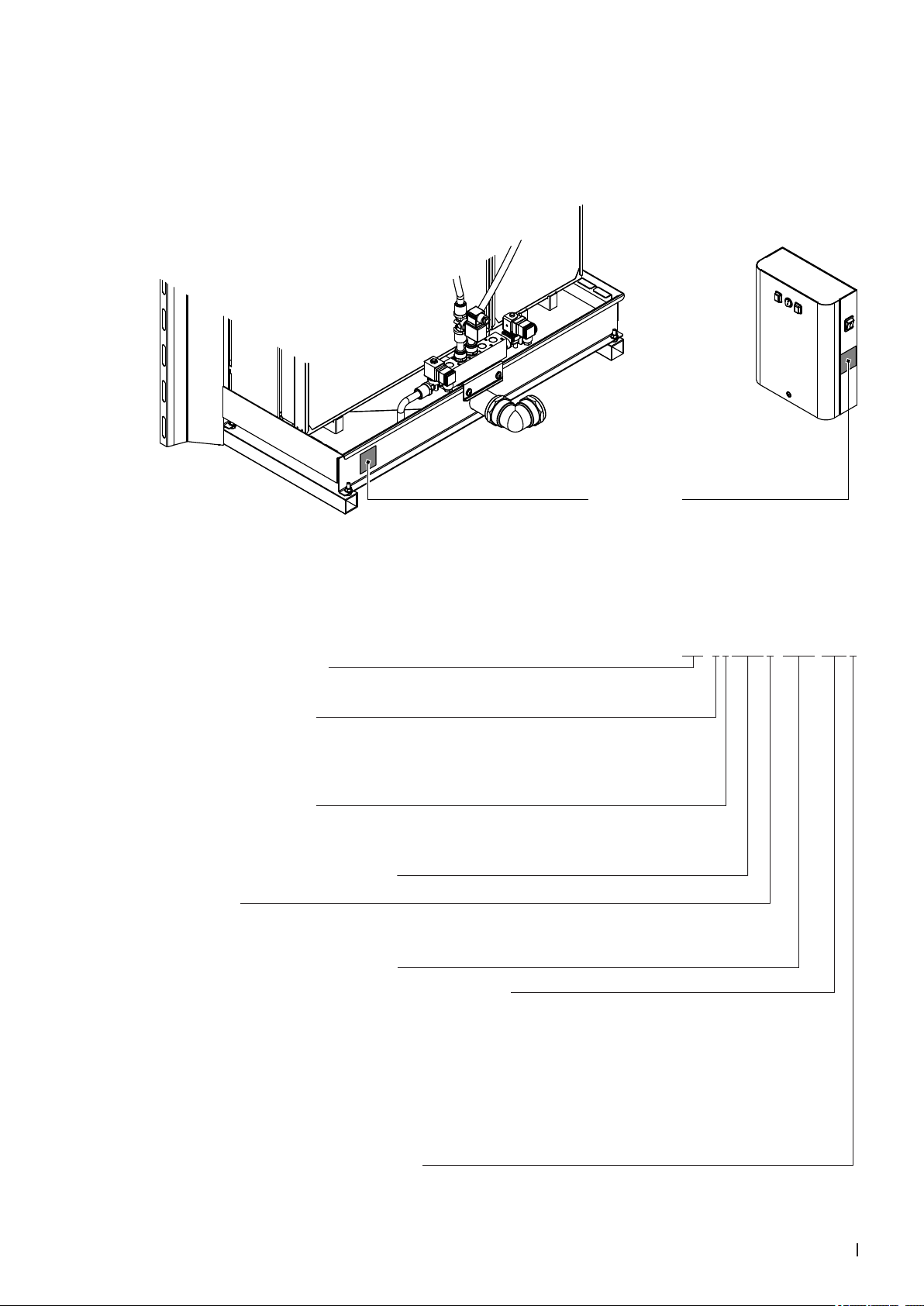

Rating Plate

Fig. 1: Position of rating plate

Evaporative module product key

Product identication
ME (media evaporator)

Tank spigot position:

C= Center
L= Left
R= Right

Tank spigot diameter:

S = Small = ø50 mm
L = Large = ø54 mm (ø2.125")

Width evaporative module in mm

Tank type:

S = Single spigot tank
D = Double spigot tank (systems >3000 mm wide only)

Height evaporative module in mm

Material type and efciency evaporative cassettes:

F75= F-Type Glass bre 75 %
F85= F-Type Glass bre 85 %
F95= F-Type Glass bre 95 %
P85= Polyester 85 %
P95= Polyester 95 %
C85= C-Type Glass bre 85 %
C95= C-Type Glass bre 95 %

Example:

ME-CL0900S-1125-F95X

Indicates a country specic variation:

11Product Overview

3.3 Construction of the system components

3.3.1 Construction of the evaporative module

6

5

4

7

8

3

2

1

Air ow direction

1 Upstands
2 Tank connector ø50 mm, or ø54 mm (2.125"),

as applicable
3 Rating plate
4 Droplet separator, mandatory for high face velocities

(allows velocities up to 4.5 m/s (886 fpm))

9

5 Evaporative cassettes (F75, F85, F95, P85, P95,

C85 or C95)
6 Distribution heads
7 Blanking plates (option)
8 Mounting frame for evaporative cassettes
9 Water tank

Fig. 2: Construction of the evaporative module

12 Product Overview

3.3.2 Construction of the hydraulic manifold

9

8

2

7

6

5

4

3

1

1 Fixing bracket
2 Drain valve (option or supplied by others)
3 Supply valve (option or supplied by others)
4 Connector stage 5
5 Connector stage 3

6 Connector stage 1
7 Connector stage 2
8 Connector stage 4
9 Stage valve 2 (option or supplied by others)

10 Purge valve (option or supplied by others)

10

Fig. 3: Construction of the hydraulic manifold (gure shows layout for 2-stage control)

8

2

7

6

5

4

3

1

1 Fixing bracket
2 Drain valve (option or supplied by others)
3 Supply valve (option or supplied by others)
4 Connector stage 5
5 Connector stage 3

6 Connector stage 1
7 Connector stage 2
8 Connector stage 4

9 Purge valve (option or supplied by others)

9

Fig. 4: Construction of the hydraulic manifold (gure shows layout for On/Off control)

13Product Overview

3.4 System overviews

3.4.1 Typical system Condair ME Direct Feed (internally mounted)

Blanking plates

Control unit

Electrical

Evaporative module

isolator

Drain valve

Hydraulic manifold (with op-

tional supply valve, drain valve

and stage valves)

Air ow direction

AHU drain

with trap

Stage valve

Supply valve

Wall feed through

Water supply line

Shut-off valve

Purge valve

Tank drain with trap

Fig. 5: Typical system Condair ME Direct Feed (internal installation with optional valves)

14 Product Overview

3.4.2 Typical system Condair ME Direct Feed (externally mounted)

Blanking plates

Control unit

Electrical

isolator

Evaporative module

Wall feed through

Supply valve

Stage valve

Water supply line

Air ow direction

AHU drain

with trap

Drain valve

Shut-off valve

Purge valve

Hydraulic manifold (with op­tional supply valve, drain valve
and stage valves)

Tank drain with trap

Fig. 6: Typical installation Condair ME Direct Feed (external installation with optional valves)

15Product Overview

Schematicowdiagram

AHU

Evaporative cassettes

Water tank

Stage valve

(optional)

Drain solenoid

valve (NO)

2 1 3 54

Hydraulic manifold

Inlet solenoid

valve (NC)

Drain trap

(building side)

Tundish

(building side)

Shut-off

valve with

strainer

Purge solenoid
valve (NC)

Fig. 7: Schematic ow diagram Condair ME Direct Feed System (internally mounted)

AHU

Stage valve

(optional)

Hydraulic manifold

Inlet solenoid
valve (NC)

Shut-off

valve with

strainer

Evaporative cassettes

Water tank

Drain trap

(building side)

(building side)

Drain solenoid

valve (NO)

Tundish

2 1 3 54

Tundish
(building side)

Purge solenoid
valve (NC)

Fig. 8: Schematic ow diagram Condair ME Direct Feed System (externally mounted)

16 Product Overview

Functional description

As standard the Condair ME Direct Feed is operated with On/Off control (requires a drain and a supply
valve fitted to the hydraulic manifold (both valves available as options) and a customer supplied On/Off
control or the optional direct feed On/Off control unit).

Equipped with the optional stage valves and the optional direct feed stage control unit, stage control
can be established.

In case of a humidication/cooling request with standard On/Off control the drain solenoid valve (NO)
closes and the inlet solenoid valve (NC) opens and the water ows to the distribution header above the
evaporative cassettes.

In case of a humidication/cooling request with optional stage control unit the drain solenoid valve
(NO) closes and the inlet solenoid valve (NC) opens (stage 1 is active). Depending on the demand signal
and the evaporative module size, up to 4 additional stage valves open to supply water to the distribution
header of the corresponding evaporative cassette bank.

The distribution pipes inside the distribution header evenly supply the water to the entire surface of the
evaporative cassettes where it ows down and humidies the air owing through the evaporative cassette
matrix. The excess water not used for humidication ows to the water tank and then directly to the drain.

Both optional direct feed control units (On/Off control unit and stage control unit) support time based
ushing of the water supply line once once the purge valve is tted in the supply line. Every 20 hours
the water supply line is ushed via the purge valve to prevent water stagnation in the water supply line
which can lead to the growth of micro-organisms in the water supply line. Addtionally the optional stage
control unit will drain the stage pipework every 20 hours to prevent water stagnation in the stage pipes
if the stages are not in use.

17Product Overview

4 Operation

4.1 Important notes on operation

Qualicationofpersonnel

The Condair ME Direct Feed must be commissioned and op erated only by personnel familiar with the
system and adequately qualied for the respective tasks. It is the owner’s responsibility to verify proper
qualication of the operating personnel.

General notes

The instructions and details regarding commissioning and operation must be followed and upheld.

The initial commissioning of the Condair ME Direct Feed requires appropriately trained technical per­sonnel. It is strongly recommended that your Condair representative commissions your system. Part
of this initial commissioning process may include a disinfection of the water tank and the evaporative
cassettes. Please read this document in full before commencing any work.

Please pay attention to local regulations regarding working at heights and electrical work.

Safety and hygiene

DANGER!

The Condair ME Direct Feed must be operated in accordance with this manual. Failure to do
so could result in contamination that might cause Legionnaires’ disease, which can be fatal

WARNING!

The Condair ME Direct Feed system equipped with an optional Condair ME Direct Feed control
unit should not be electrically isolated for periods exceeding 24 hours as automatic drain and
purge cycles will be disabled.

18 Operation

4.2 Initial commissioning

The initial commissioning of the Condair ME Direct Feed requires appropriately trained technical person­nel. We strongly recommend that your Condair representative commissions your system.

Inspections

Prior to initial commissioning the complete system must be inspected for correct execution of the instal­lations. Proceed as follows:

1. Switch off AHU, and lock off to prevent AHU from starting.

2. Evaporative module installation: Check correct selection of evaporative module on rating plate if
multiple units on site. Check that the evaporative module has been installed level in all planes with
secure blanking plates to prevent air bypass. Check that there is sufcient access for cassette re­moval during maintenance. Ensure assembly is securely xed, and that there is no visible damage.
Check that the evaporative module is installed in a waterproof section. Check evaporative module
(including tank) is free of dirt/ debris and clean as necessary.

3. Control unit installation: Check that the control unit is mounted in a convenient dry location

4. Supply water Installation: Ensure the water system in the building has been subject to a Risk As­sessment. The Condair ME Direct Feed must be connected to a clean, wholesome mains water
supply. It is the responsibility of the user to ensure that the water system complies with local regula­tions and bylaws, particularly those for the control of Legionella microbes. The use of mains water
fed tanks and reservoirs is only permitted as part of a managed water treatment system. Check that
the evaporative module has a feed water supply between 2 bar (29 psi) and 5 bar (73 psi). Ensure
that any hygiene options have been correctly installed. Check all joints and ttings for leaks.

5. Drain installation: Check that the drain line is made according to the corresponding instructions
given in the installation manual. Ensure the drain line is connected to the main building drain and
that drain pipework is trapped to a suitable level for the applicable working duct pressure. Check all
joints and ttings. Ensure that the drain connection includes an air gap.

6. Distribution pipework: Check all water distribution pipework between the hydraulic manifold and
the distribution headers are securely tted.

7. Electrical wiring: Check all electrical connections with reference to the corresponding wiring diagram
in this manual. Check that a 100...240V / 10A single phase supply is connected to the control unit.
Ensure that this power supply is isolated with an electrical isolator within 1 m (39") of the control unit.
Note: For systems equipped with a custom control unit please refer to the corresponding manual.

8. Optional controls: Check that appropriate controls connections have been made to the control unit.
Refer to the controls wiring section of the installation manual.

9. Flush water supply and test supply water quality: Disconnect water supply pipe from connector
on the hydraulic manifold. Fix hose to free end of supply pipe and lead hose to a drain. Carefully
ush supply pipe a suitable amount of time without creating splashing or aerosols.

Take a water quality sample to ensure that supply water meets the requirements specied in the
water quality guide. The sample should be tested using a dip slide to indicate the total number of
colony forming units per ml (cfu/ml). Generally, levels of 1x10

3

cfu/ml may be considered acceptable
for this type of humidier provided the species of microbes and/or fungi involved are themselves not
considered to be harmful. If you are unsure of the quality of your water please consult your Condair
distributor for advice.

Then reconnect the water supply pipe to the supply connector on the hydraulic manifold.

10. Perform pressure test: Turn on water supply and check for leaks. Ensure shut off valve is installed
correctly.

19Operation

After the system has been inspected and found correct proceed with the initial commissioning:

1. Ensure AHU is switched off, and locked off to prevent starting.

2. Ensure the water supply pipe is ushed and reconnected to the hydraulic manifold.

WARNING!

If the water supply pipe was ushed more than 24 hours ago, repeat ushing procedure as de­scribed in step 9 in the previous section) before proceeding with the commissioning.

3. If the evaporative cassettes have become dirty or damp prior to commissioning, follow the disinfec­tion procedure described in chapter 5.8 and chapter 5.9 of this manual.

4. Validate the system controls and enable a full demand to unit. If the Condair control unit is used,
check for correct connections and operation when switched on.

5. If using a Condair control unit the system should purge the water supply line when rst switched on.
Normal operation will commence after three minutes.

6. Flush water through all cassettes (ensure all stages are operating if stage control option).

7. Check water is owing to drain with no leakage.

8. If the system is equipped with bre media evaporative cassettes (F75, F85, F95, C85, C95) allow
system to ush with full demand until the water runs clean.

9. Check all components are operating correctly (including any option kits i.e. inlet valve, drain valve,
purge valve, stage valves).

10. Measure the ow of water to the distribution headers, and compare with the design conditions.

11. Switch on fan of AHU and test operation with fans running and validate air conditions against the
design data.

12. Test controls set up and ensure correct set points. If automatic ush or drain options are installed,
check suitable ush timings are programmed to ensure that the water supply line and all stage pipes
are ushed at least once every 24 hours.

13. Switch off AHU.

14. Wipe tank clean (including section under cassettes).

15. If commissioning has not been completed by an approved Condair representative, it is recommended
that records are kept of commissioning date and what was done.

16. Demonstrate system to customer and highlight hygiene and maintenance requirements.

17. Raise any installation concerns.

18. Issue commissioning documentation.

The system is now ready for normal operation.

20 Operation

4.3 Display and operating elements of Condair control units

Status LED white: Unit switched On

<Humdication/CoolingOn/Off> switch

Status LED green: Condair ME Direct Feed is hu­midifying/cooling

<Control unit On/Off> switch (located on the right
side of the control unit)
Note: with this switch you can switch on and off
the control unit. If the control unit is switched off all
functions (including hygiene functions) of the Condair
ME Direct Feed are deactivated.

Electrical isolator
Note: the electrical isolator (supplied by the customer)
must be installed in the mains supply line!

Fig. 9: Display and operating elements Condair control units (option)

DANGER!
Risk of electric shock!

Mains supply to the control unit is not interrupted by switching off the

<Humdication/CoolingOn/

Off> switch or by switching off the <Control unit On/Off> switch. Mains voltage provides a risk of
electric shock, therefore the electrical isolator must be switched off before opening the control

unit. Only qualied personnel should carry out work within the ME control unit.

21Operation

4.4 Start up for normal operation

It is assumed that initial commissioning has been carried out properly by appropriately trained technical
personnel.

The following description outlines the start up procedure for systems equipped with an optional Condair
ME Direct Feed control unit, that have been powered down. For systems equipped with a control unit of
another brand please refer to the operating instructions of the corresponding control unit.

Proceed as follows to prepare the Condair ME Direct Feed for operation:

1. Switch off AHU.

2. Examine the Condair ME Direct Feed for possible damage. Ensure tank is empty.

DANGER!

Damaged systems or systems with damaged components or faulty installation may present danger
to life or cause severe damage to material assets.

Damaged systems and/or systems with damaged or faulty installation must not be operated.

3. If Condair ME Direct Feed has been disconnected from the mains for more than 48 hours:

• Close shut-off valve in the water supply line.

• Disconnect water supply line from the connector on the hydraulic manifold. Caution should be

taken to ensure no splashing is created.

• Connect hose to the water supply line and lead the open end into open tundish outside the AHU.

• Open shut-off valve in the water supply line and ush water supply line an appropriate length of

time. Then, close shut-off valve again, remove hose and reconnect supply line to the connector
on the hydraulic manifold.

4. Make sure the front panel of the control unit is mounted and xed with the retaining screw.

5. Close doors of AHU if open, then switch on AHU if switched off.

6. Open shut-off valve in the water supply line.

7. Switch on the electrical isolator in the mains supply to the control unit.

8. Switch <Control unit On/Off> and <Humdication/CoolingOn/Off>switch on the control unit to
“On” (systems equipped with a Condair control unit only).

The Condair ME Direct Feed is now ready for operation.

22 Operation

4.5 Notes on operation

4.5.1 Important notes on operation

If your system is equipped with the optional Condair control unit and the optional purge valve, the water
supply line is purged every 20 hours for approximately 3 minutes in order to ush water supply line.
The Condair stage control unit will also drain the hoses that supply water to the distribution header dur­ing these 3 minutes.

4.5.2 Recommended regular checks during operation

During operation the Condair ME Direct Feed has to be checked periodically in accordance with the
table below.

Operations Checks Daily Weekly Monthly Quarterly

Monitor humidity/temperature control

Check for any low humidity/temperature concerns

Check any alarms on BMS

Visible check for:

No water leakage (air on and air off side)

–
– system components for correct xing and any da-

mage

– electric installation for any damage.

Matrix media is saturated (relative to demand signal)

Condition of tanks and air on matrix is clean

Inspect and determine replacement frequency of se­diment lter

Condition of tanks are clean (clean as required)

If the checks reveal any irregularities (e.g. leakage, error indication) or any damaged components take
the Condair ME Direct Feed out of operation as described in chapter 4.6. Then, have the malfunction
eliminated or the damaged component replaced by a well trained specialist or a service technician from
your Condair representative.

   

   

   

   

 

 

 



23Operation

4.6 Decommissioning the system

In order to decommission the Condair ME Direct Feed (e.g. to perform maintenance works, to eliminate
a malfunction, etc.) perform the following steps:

1. Close the shut-off valve in the water supply line.

2. Switch off control unit: switch off <Humdication/Cooling On/Off> and <Control unit On/Off>
switch on the control unit (only with Condair control units).
Note: if your system is equipped with a control unit other than Condair, please refer to the corre­sponding manual for switching off the control unit.

3. Disconnect control unit from the mains: switch off the electrical isolator in the mains supply to
the control unit and secure switch in “Off” position against accidentally being switched on.

4. Let the fan of the ventilation system run until the evaporative module is dry.

5. If work has to be carried out on the evaporative module or the hydraulic manifold mounted inside
the duct, switch off the AHU and secure the system against accidentally being switched on.

Important Notes!

– This applies only for systems equipped with the optional Condair control unit and the optional purge

valve: for reasons of hygiene, we recommend that the control unit should be left powered on even
if the Condair ME Direct Feed is not being used for a prolonged period of time. Only the <Hum-
dication/CoolingOn/Off> switch should be switched off. This keeps the hygiene functions (e.g.
periodical ushing of water supply pipe) active and hence the build-up of germs is opposed.

DANGER!

If the Condair ME system is isolated from the mains power for a prolonged period, water stagna­tion might occur in the supply pipework, and microbial contamination of the supply pipework and
Condair ME system could result.

– If the Condair ME Direct Feed is isolated from the mains for a prolonged period, then the ME

system, including any storage tanks or vessels should be drained and left dry. Before putting the
system back into operation, a full risk assessment should be undertaken to ensure safe operation,
with particular attention paid to water supply quality. Additionally a complete system service has

to be performed prior to putting the system back in operation.

24 Operation

5 Maintenance

5.1 Important notes on maintenance

Qualicationofpersonnel

All maintenance work must be carried out only by wellqualiedandtrainedpersonnelauthorisedby

the owner. It is the owner’s responsibility to verify proper qualication of the personnel.

General notes

The instructions and details for maintenance work must be followed and upheld. Only carry out the
maintenance work described in this documentation.

The Condair ME Direct Feed must be maintained in the prescribed intervals, the cleaning work must
be carried out correctly.

For safety and warranty reasons, only use original spare parts from your Condair representative to
replace defective parts or parts which have elapsed their lifetime.

Safety and hygiene

Some maintenance work requires removal of the unit cover. Please note the following:

DANGER!

Dangerofelectrichazard!

Before carrying out any maintenance work take the Condair ME Direct Feed out of operation
as described in chapter 4.6 and secure the system against inadvertent power-up. In addition

take AHU out of operation as described in the operations instructions of the AHU and secure the AHU
against inadvertent power-up.

CAUTION!

The electronic components inside the optional Condair control unit are very sensitive to electrostatic
discharge.

Prevention: Before carrying out any maintenance work to the electrical or electronic equipment of
the control unit, appropriate measures must be taken to protect the respective components against
damage caused by electrostatic discharge (ESD protection).

DANGER!
Health risk by inadequate maintenance!

Inadequatelyoperatedand/orpoorlymaintainedadiabatichumidication/coolingsystemsmay

endanger health. When inadequately operated and/or poorly maintained, micro-organisms
(including the bacterium which causes Legionnaire’s disease) may grow in the water system

andintheareaofthehumidicationunitandmayaffecttheairintheAHU/airduct.

Prevention: the adiabatic air humidication /air cooling system Condair ME must be correctly operated
as described in chapter 4, and must be correctly maintained and cleaned in the prescribed intervals
as described in chapter 5.

25Maintenance

DANGER!

Damaged systems / components may present a danger to life, or cause damage to material assets.
We advise that the customer routinely checks the system and components for damage. It is particularly
important that the tank, structural components, and xings (such as studs) are inspected as damage
to these items could affect the structural integrity of the system. Please contact your local Condair
representative immediately in the event of discovering damaged components.

5.2 Maintenance Intervals

In order to maintain operational safety and hygienic demands the Condair ME Direct Feed must be
serviced at regular intervals. The time interval for the complete system service is to be adapted to the
operating conditions. The hygiene status depends mainly on the quality of the humidier water but also
on the adherence to the exchange intervals of the upstream air lter, the air velocity and the micro­biological and chemical composition of the supply air. Therefore the service intervals must be determined
for each system separately.

The interval time for a complete system service is to be determined at commissioning. A typical interval
time is 2000 hours of operation.
Depending on the encountered hygiene status when performing a complete system service the interval
time must be decreased or increased.

In any case the Condair ME Direct Feed should receive a complete service at least once annually.

Note: We recommend to perform a minor service between two complete system service.

5.3 Maintenance guide

The Condair ME unit will form part or your cold water system and as such require you to undertake
certain duties with regards to local regulations and bylaws concerning the control of Legionella microbes
in water systems. Your water sampling / testing and disinfection regime must be based on results of a
site specic risk assessment.

If any further assistance is required or you are interested in a planned maintenance quote, please contact
your Condair distributor.
Note: routine water sampling and testing is not included as part of a Condair service contract.

Please note that the information given in the table below is only to act as a guide which shows the work
to be carried out on “Minor Service” and “Complete System Service”.
Correct maintenance is vital to ensure optimum output, reliability and safety.

Operations Minor

Replace inlet water lter if applicable Yes Yes

Check all solenoid valves Yes Yes

Clean all solenoid valves ––– Yes

Replace purge valve ow restrictor (if applicable) ––– Yes

Check all hoses and connectors Yes Yes

Check ow restrictors in hydraulic manifold ––– Yes

Clean inlet valve strainer ––– Ye s

Replace all feed hose ––– Yes

Service

Complete

System Service

26 Maintenance

Operations Minor

Service

Check distribution headers Yes Yes

Clean distribution headers ––– Yes

Clean front section of tank Yes Yes

Check droplet separator (if applicable) and evaporator cassettes in suit­able condition

Lightly brush evaporator cassettes if necessary, replace if heavily soiled ––– Yes

Remove evaporator cassettes and clean all sections of tank and frame
structure

Check and secure frame structure and seal ––– Yes

Check all media for full saturation Yes Yes

Measure ow rates to distribution headers ––– Yes

Check and secure all electrical connections Yes Ye s

Check overall installation for leaks and damage Yes Yes

Check any options as per relevant documentation Yes Yes

Complete disinfection as described in this manual Yes Yes

Check safety interlock and humidity/temperature control devices (if ap­plicable)

Check air velocity at face of evaporative cassettes matrix ––– Yes

Update service log book Yes Yes

Yes Yes

––– Yes

––– Yes

Complete

System Service

27Maintenance

5.4 Dismantling and installation of components for maintenance

WARNING!

A full risk assessment must be completed by suitably trained personnel prior to carrying out mainte­nance of the ME unit. There may be increased risk when carrying out maintnenance on systems that
necessitate working at height.
The following risks should be considered (this list is not exhaustive, and there may be additional site
specic risks that will need to be considered):

– Manual handling
– Musculoskeletal disorders
– Electrical work
– Working at height
– Falling objects & objects dropped from higher levels
– Risks arising from the use of Mobile Elevated Work Platforms
– Risk of contact with ceilings, overhead items or asbestos roong while using access equipment
– Adverse weather conditions
– Unsuitable surface and ground
– Other equipment, machinary or supply pipework in the vicinity of the work area

Maintenance of the ME unit must only be carried out by trained personnel, and all tools & equipment
must be checked by a skilled and competent health & safety representative.

WARNING!

In the event of water carry-over from the evaporative cassettes or a water leak, surfaces near the
ME system may have become wet. This could result in a slipping hazard or an increased risk when
handling components. If this occurs, risk assess the situation and take suitable precautions before
working on the ME system. If carry-over was the cause of any standing water in the AHU/duct, follow
the advice in chapter 6.1 to remedy the problem.

28 Maintenance

5.4.1 Dismantling and installation of the evaporative module

1. Take the Condair ME Direct Feed out of operation as described in chapter 4.6 and allow to drain
and dry.

2. Switch the AHU off, and isolate the power and water supply to the AHU.

3. Disconnect distribution hoses from the connectors on the distribution heads, the wall feed-throughs
(if applicable) and the hydraulic manifold.

4. Remove droplet separator boxes (column by column):

• Remove upper separator brackets.

• Remove bank of separator boxes.

• Remove lower separator brackets.

5. Remove distribution headers assemblies from topmost evaporative cassettes:

• Undo the clamps securing the distribution header assembly to the evaporative cassette.

• Carefully lift off the distribution header assembly.

6. Remove evaporative cassettes (column by column):

• Push box upwards and remove.

7. Remove the tank cross bar and the tank cross bar supports (if applicable). Make a note of the cross
bar position and facing.

Clean dismantled components, water tank, frame structure, blanking plates and air duct as described
in chapter 5.3. If all components have been cleaned and dried, assemble the evaporative module in the
reverse dismantling order. Replace any defective components with new ones.

5.5 Consumables Guide

Common consumables

Description Standard Frequency (month)

Disinfection chemical (sourced locally) 1

Descaling chemical (sourced locally) as required

Inlet ow restrictor 24

Distribution header feed hose 24

Evaporative matrix cassette

Wholesome mains water

–
– RO water

Option consumables

Description Standard Frequency (month)

PureFlo Ag+ sediment lter 6

PureFlo Ag+ antimicrobial lter 6

36 - 60

60 - 84 +

Contact your Condair distributor for consumables list/order codes.
To help us ensure that the correct spares parts are sent, please conrm your unit serial and model
number with your order.

29Maintenance

5.6 Health and Safety Requirements

In accordance with local regulations, users must take water samples for Legionella analysis. Samples
should be taken from the same places as described in chapter 5.7, and the analysis carried out by an
accredited laboratory which is part of an appropriately certied Legionella testing scheme. In the event
that the Legionella content exceeds 102 cfu/l, the humidier should be switched off and specialist advice
sought regarding its disinfection.

1. If biolm (a slimy or gel-like deposit when wet, which might be dry and crisp in a dry system) is found
during any inspection of the humidier or water system, the humidier MUST be switched off and
not put back into operation until the system has been taken apart, scrubbed and thoroughly cleaned
with a suitable biocide with biolm penetrating qualities such as 50 ppm chlorine dioxide solution.
This work should only be carried out by fully trained specialist organisations or individuals.

2. The optional Condair ME Direct Feed control unit must be left powered on to allow auto-
maticushingandcleaningcyclestooccur. If the optional Condair ME Direct Feed control unit
is powered off for prolonged periods, water stagnation might occur and contamination result, so
the system, including any storage tanks or vessels should be drained and left dry. Before putting
the system back into service, the water pipework supplying the Condair ME Direct Feed should be
purged carefully, avoiding the creation of aerosols by splashing, and a water sample should be taken
to ensure cleanliness. In the event that the humidier pipework contains any residual water or has
remained damp, and the temperature exceeded 20 °C (68°F), the Condair ME Direct Feed should
be disinfected using an appropriate solution.

Contact your Condair representative for advice on water sampling and analysis, disinfection of systems,
service and maintenance.

30 Maintenance

5.7 Routine Water Sampling and Testing

Hygiene

Your attention is drawn to local regulations and bylaws regarding the control of Legionellosis in water
systems. If inadequately maintained, water systems, of which any humidier is a part, can support the
growth of micro-organisms, including the bacterium that causes Legionnaires’ disease. Condair Condair
has considered all aspects of this equipment to reduce as far as possible the risk of Legionnaires’ disease
and other similar conditions, but it is important that users are aware of their responsibilities under local
regulations in reducing the risk of Legionellosis.

To prevent the growth of Legionella, users are required to:

1. Carry out a risk assessment of the water system using a competent person, and implement an ap­propriate monitoring and control regime.

2. Avoid water temperatures which favour the growth of Legionella.

3. Avoid water stagnation.

4. Clean and disinfect the system in accordance with local regulations and bylaws, and the instructions
in this manual.

5. The Condair ME Direct Feed system MUST be connected to a clean, wholesome mains water sup­ply and it is recommended that the supply water is chlorinated. It is the responsibility of the user to
ensure that the water system complies with local regulations and bylaws, particularly those for the
control of Legionella microbes. The use of mains water fed tanks and reservoirs is only permitted
as part of a managed water treatment system.

On commissioning and at regular intervals thereafter, test for possible water contamination using Dipslides.
Take samples from the water supply, the evaporative cassettes and from the tank. Check for biolm.

The Dipslides should be incubated for 2 days at 30°C (86°F).

3

1. If the microbial count from the tank exceeds 10

cfu/ml, the system should be turned off, any biolm
scrubbed clean and then disinfected using a 50 ppm chlorine solution for one hour before being put
back into use.

3

2. If the microbial count in the water supply to the evaporative module exceeds 10

cfu/ml, this sug­gests contamination of the water system within the building. The system should be turned off and
you should seek specialist advice on cleaning your water supply.

3. If the water temperature anywhere in the system regularly exceeds 20°C, (68°F) increase the fre­quency of water sampling. The frequency may be reduced if successive tests show a consistent

3

level below 10

cfu/ml.

31Maintenance

5.8 Cleaning and Disinfection

Before commencing cleaning and disinfection:

For systems in operation or where the water quality or air quality is poor, it is recommended to disman­tle and scrub the system clean, and carry out a disinfection of all the evaporative module parts with a
minimum of 50ppm chlorine or an appropriate disinfection solution. Please refer to the cleaning and
disinfection and method statement section to ensure that the relevant chemicals, equipment and Personal
Protective Equipment are available to carry out disinfection.

1. Aqualiedpersonappointedbythecustomermustriskassessthecleaninganddisinfection
operation. This assessment should include but is not limited to observance of local regulations and
the use of PPE, working at heights and ensuring a full understanding of the Condair ME Direct Feed.

2. Coordinate with relevant responsible persons.

3. Check records (i.e sample results of microbiological control) for system history.

4. If possible, disinfection should be carried out when the building is unoccupied, with air ow off.

Evaporative humidiers must be regularly cleaned and maintained, to prevent contamination especially
in industrial environments.

All surfaces requiring disinfection or cleaning must be in contact with the appropriate concentration of
disinfection solution for the correct contact period. The method statement for disinfection may need to
be adapted depending on the layout of the humidier pipework. Additional procedures will be required
for supply water system pipework or water treatment systems prior to the humidier.

Condair recommends that routine disinfection should take place in the following situations:

• At initial commissioning (for brand new systems use a mild disinfection chemical).

• At six monthly intervals as part of the maintenance regime.

• If the system or part of it has been shutdown and/or substantially altered creating a risk of contami­nation.

• During or following any increase of bacterial activity (as per recommendations in chapter 5.7) or
outbreak or suspected outbreak of Legionellosis.

Recommended Disinfection Equipment

– Disinfection solution in accordance with manufacturers guidelines.
– Disinfection neutraliser (only if necessary).
– Disinfection solution test kit (to measure strength).
– Bucket of fresh water.
– Cleaning equipment.
– Mixing vessel / Measuring container.
– Risk assessment / test record sheets. Appropriate report/record
– Standard tools
– Appropriate PPE
– COSHH risk assessment / MSDS

32 Maintenance

5.9 Cleaning and Disinfection Method Statement

WARNING!

Disinfectants can be corrosive, toxic or irritant. Use of disinfectants may present a risk to health and
could harm the environment.

Step 1 - Refer to the cleaning and disinfection risk assessment

• If the unit is already in operation, check for correct operation.

• Ensure the Condair ME system is OFF and isolated.

• If the system has been without power for more than 48 hours, ush the water supply.

• Ensure the area is well ventilated.

• Refer to the manufacturers instructions and safety advice for chosen disinfectant.

• If there are concerns over the level of biolm or bacteria in the system, disinfect the tank before
starting cleaning work.

• Scrub tank fully. For more thorough disinfection remove droplet separator banks (if applicable)
and the evaporative cassettes to allow better access to the tank (refer to maintenance section)

• Consider appropriate maintenance requirements at this time including parts replacement i.e.
replacing distribution hoses to ensure that these are also disinfected.

• Re-assemble the Condair ME system (refer to installation manual).

Step 2 - Mix Disinfection Solution

• Prepare a vessel into which the evaporative cassettes and droplet separator banks can be placed
for disinfection

• Mix disinfection solution following the manufacturers instructions and in the required amount.

• Note: Solution loses strength over time and the solution may need to be increased throughout
the process or the disinfection process may need to be repeated.

Step 3 - Disinfection

• Place evaporative cassettes and droplet separator banks into the vessel with the disinfection
solution and leave them in the solution for the correct amount of time.

• Note the strengths of the disinfection solution at 15 minute intervals and adjust solution strength
as required.

• Wash tank, tank frame and AHU section with a cloth soaked with disinfection solution.

• After disinfection rinse all parts thoroughly with wholesome water to remove any disinfection
chemicals. Then, dry or let dry all components.

33Maintenance

Step 4 - Neutralise the disinfection solution – if required based on chemical used

WARNING!

If a neutralising solution is required, always ensure that the neutralising solution is used in accord­ance with the manufacturer’s guidance. Failure to follow the manufacturer’s guidance with regard
to neutralising the disinfection chemical may present a risk to health.

• Mix neutralising agent as per manufacturers instructions.

• Measure the strength as per MSDS until the disinfection solution is down to desired strength.

Step 5 - Drain neutralised disinfection solution

• Drain neutralised disinfection solution into appropriate drain (depending on Risk Assessment) .

• Always leave work area clean, dry and tidy.

Step 6 - Re-assemble evaporative module and Re-start the Condair ME system

• Re-assemble evaporative module and restart ME system. Refer to the corresponding section.

If in doubt always contact your Condair distributor.

34 Maintenance

6 Fault elimination

Important! Most operational malfunctions are not caused by faulty equipment but rather by improper

installation or disregarding of planning guidelines. Therefore, a complete fault diagnosis always involves
a thorough examination of the entire system. Often, the installations have not been properly executed,
or the fault lies with the humidity control system.

6.1 Malfunction list

Malfunction Cause Remedy

Residual water in the section
of the duct downstream of the
evaporative module.

Humidity/cooling demand pre­sent however the Condair ME
Direct Feed does not humidify.

Maximum humidication/cooling

capacity is not reached.

Face velocity is too high. Install droplet separator or reduce air

velocity in the duct.

Water tank, water piping or hydraulic
manifold is leaking.

Water ow to media too high. Check/replace ow restrictors in the

Evaporative cassettes have become
blocked with minerals.

Uneven or non laminar air ow. Check design conditions of AHU.

Air on temperature is too low. Check design conditions of AHU. and

Shut-off valve in the water supply
line closed.

Site control are not correct. Prove controls and control module.

Insufcient water supply capacity. Check water supply, increase water

Evaporative cassettes have become
blocked with minerals.

Check/seal water tank, water piping
and hydraulic manifold.

hydraulic manifold.

Check set up, replace evaporative
cassettes, perform system service.

Install perforated plate on the air
supply side.

increase temperature.

Open shut-off valve.

pressure.

Check set up, replace evaporative
cassettes, perform system service.

35Fault elimination

6.2 Notes on fault elimination

– For the elimination of faults set the Condair ME Direct Feed out of operation as described in chapter

4.6, disconnect control unit from the mains and close shut-off valve in the water supply line.

DANGER!

Make sure the control unit is separated from the mains (check with voltage detector) and the shut­off valve in the water supply line is closed.

– The elimination of faults must be carried out by qualied and well trained professionals only.

Malfunctions relating to the electrical installation must be repaired by authorized personnel (e.g.
licensed electrician) or by your Condair representative’s service technician only.

CAUTION!

Electronic components are very sensitive to electrostatic discharge. When carrying out repairs
to the control unit, appropriate measures (ESD-protection) must be taken to prevent damage to
electronic components.

– Repair work and the replacement of faulty components must be carried out by your Condair repre-

sentative’s service technician only!

36 Fault elimination

7 Taking out of service/Disposal

7.1 Taking out of service

If the Condair ME Direct Feed must be replaced or if the humidication system is not needed any more,
proceed as follows:

1. Take the Condair ME Direct Feed out of operation as described in chapter 4.6.

2. Have the system components unmounted by a qualied service technician.

7.2 Disposal/Recycling

Components not used any more must not be disposed of in the domestic waste. Please dispose of the
individual components in accordance with local regulations at the authorised collecting point.

If you have any questions, please contact the responsible authority or your local Condair representative.

Thank you for your contribution to environmental protection.

37Taking out of service/Disposal

8 Productspecications

8.1 Technical data

With optional

Supply voltage optional On/Off and stage control unit 100...240 VAC/50...60 Hz

Power consumption

Control signals On/Off 0..10 VDC

Control accuracy Control accuracy depends on air conditions, control

Max. admissible matrix face velocity

Water supply ø15mm or ø16mm (ø 0.625") connector as applicable

Water drain (outside diameter) ø 50 mm or ø 54 mm (ø 2.125") as applicable

Admissible water supply pressure 2...5 bar (29...72.5 psi)

Admissible water temperature 5...20 °C (41...68 °F)

Water quality Tap water, softened or fully demineralised water with a

Admissible operating air temperature 10...60 °C (50...140 °F)

Admissible ambient temperature (optional control unit) 1...40 °C (33.8...104 °F)

Admissible ambient humidity (optional control unit) max. 75 %rh

Degree of protection of optional control unit IP21

Degree of protection of optional valves IP54

Conformity CE marking

Fire classication of evaporative media glass bre media: A2-S2,-D0 (UL Class 1)

1)

Power consumption depending on the number of vertical evaporative cassettes banks and the options tted

1)

Condair ME Direct Feed

With optional

On/Off control unit

40 W 100 W

distance, water quality and on the number of On/Off

cycles

4.5 m/s (886 fpm) with droplet separator

max. of 100 cfu/ml

polyester media: DIN EN 53438 Class F1

Stage control unit

2...10 VDC

38 Product specications

9 Appendix

9.1 Wiring diagram Condair ME Direct Feed with stage control

Control unit

A1 15 Y1

3

2

18 16 A2

R1

1-10min

Ton

10-100h
Toff

24V 0V 0V IP

0-10
2-10

JP1

A1

S1

T1

LED 2LED 1

PMC-24V100W1AA

RELAY1 RELAY2 RELAY3 RELAY4 RELAY5 RELAY6 RELAY7 RELAY8

STG

STG

STG

STG

STG

STG

SEQ

SEQ

SEQ

SEQ

OFF

OFF
OFF

OFF
OFF

ON

ON

OFF

ON

NCNOCNCNOCNCNOCNCNOCNCNOCNCNOCNCNOCNCNO

XR

OFF
OFF

SEQ

OFF
OFF

ON

ON

SEQ
OFF
OFF

STG
SEQ
OFF
OFF

ON

ON

STG
SEQ

OFF
OFF

S2

ON

C

PE NL

NF

NL

XS

(50 %)

(61 %)

(72 %)

(83 %)

–

+

B1

P/PI

Purge valve

Inlet valve (39 %)

Outlet valve (17 %)

A1 I/O board
B1 Demand signal 0...10V or 2...10V
F1 External fuse mains supply (10 A, slow acting)
F2 Internal fuse mains supply (6.3 A, fast acting)
JP1 Jumper control signal (Jumper tted on 0..10V)
LED 1 LED white (control unit switched ON)
LED 2 LED green (humidication ON)
NF Mains lter

Stage valves

(as applicable)

(94 %)

PE

100...240 V/1~/50..60 Hz

Q External electrical isolator
R1 Timer purge valve
S1 Humidication On/Off switch
S2 On/Off switch control unit
T1 24V power supply
XE1 Terminal mains supply voltage
XR Terminals 24V valves
XS Ground terminals valves

Fig. 10: Wiring diagram Condair ME Direct Feed with optional stage control unit

F2

F1

L N

L N

XE1

Q

39Appendix

9.2 Wiring diagram Condair ME Direct Feed with optional On/Off control unit

Control unit

S1

T1

PMC-24V100W1AA

LED 2LED 1

R1

A1 15 Y1

3

1-10min

Ton

S2

PE NL

NF

XS

B1

ON/Off

A1 I/O board
B1 On/Off controller
F1 External fuse mains supply (10 A, slow acting)
F2 Internal fuse mains supply (6.3 A, fast acting)
LED 1 LED white (control unit switched ON)
LED 2 LED green (humidication ON)
NF Mains lter
Q External electrical isolator

321 4

XE2

Inlet valve

Outlet valve

10-100h
Toff

2

18 16 A2

Purge valve

PE

100...240 V/1~/50..60 Hz

NL

F2

L N

XE1

F1

Q

L N

R1 Timer purge valve
S1 Humidication On/Off switch
S2 On/Off switch control unit
T1 24V power supply
XE1 Terminal mains supply voltage
XE2 Terminal valves and On/Off controller
XR Terminals 24V valves
XS Ground terminals valves

40 Appendix

Fig. 11: Wiring diagram Condair ME Direct Feed with optional On/off control unit

Notes

Notes

Warranty

Condair Inc. and/or Condair Ltd. (hereinafter collectively referred to as THE COMPANY), warrant for a
period of two years after installation or 30 months from manufacturer’s ship date, whichever date is earlier,
that THE COMPANY’s manufactured and assembled products, not otherwise expressly warranted, are
free from defects in material and workmanship. No warranty is made against corrosion, deterioration, or
suitability of substituted materials used as a result of compliance with government regulations.

THE COMPANY’s obligations and liabilities under this warranty are limited to furnishing replacement
parts to the customer, F.O.B. THE COMPANY’s factory, providing the defective part(s) is returned freight
prepaid by the customer. Parts used for repairs are warranted for the balance of the term of the warranty
on the original humidier or 90 days, whichever is longer.

The warranties set forth herein are in lieu of all other warranties expressed or implied by law. No liability
whatsoever shall be attached to THE COMPANY until said products have been paid for in full and then
said liability shall be limited to the original purchase price for the product. Any further warranty must be
in writing, signed by an ofcer of THE COMPANY.

THE COMPANY’s limited warranty on accessories, not of the companies manufacture, such as controls,
humidistats, pumps, etc. is limited to the warranty of the original equipment manufacturer from date of
original shipment of humidier.

THE COMPANY makes no warranty and assumes no liability unless the equipment is installed in strict
accordance with a copy of the catalog and installation manual in effect at the date of purchase and by
a contractor approved by THE COMPANY to install such equipment.

THE COMPANY makes no warranty and assumes no liability whatsoever for consequential damage
or damage resulting directly from misapplication, incorrect sizing or lack of proper maintenance of the
equipment.

THE COMPANY makes no warranty and assumes no liability whatsoever for damage resulting from
freezing of the humidier, supply lines, drain lines, or steam distribution systems.

THE COMPANY retains the right to change the design, specication and performance criteria of its
products without notice or obligation.

U.S.A.
835 Commerce Park Drive
Ogdensburg, New York 13669

CANADA
2740 Fenton Road
Ottawa, Ontario K1T 3T7

TEL: [phone]
FAX: [phone]

EMAIL: [e-mail]
WEBSITE: www.condair.com
