Condair CP3 D

Steam generator for steam baths

TECHNICAL DOCUMENTATION

2538965 EN 0806

Contents

1 Introduction 4

1.1 To the very beginning

1.2 Notes on the technical documentation

2 For your safety

3 Product Overview

3.1 Models overview

3.2 Identification of the unit

3.3 Steam generator construction 1

3.4 Functional description 1

3.5 System overview 1

3.6 Options 13

3.6.1 Options overview 1

3.6.2 Option details 14

3.7 Accessories 15

3.8 Standard delivery 1

3.9 Storing/Transportation/Packaging 16

4 Notes for the planning engineer 1

4.1 Selecting the unit version 1

4.1.1 Determination of the required steam capacity 1

4.1.2 Selecting the unit 18

4.2 Selecting the options an accessories 1

5 Mounting and installation work 1

5.1 Important notes for mounting and installation work 1

5.2 Installation overview 2

5.3 Mounting the unit 2

5.3.1 Notes on locating the unit 21

5.3.2 Mounting the unit 2

5.3.3 Inspecting the installed unit 2

5.4 Steam installation 2

5.4.1 Overview steam installation 2

5.4.2 Positioning/mounting the steam distributor 2

5.4.3 Installing the steam hose 2

5.4.4 Inspecting the steam installation 27

5.5 Water installation 2

5.5.1 Overview water installation 2

5.5.2 Notes on water installation 2

5.5.3 Inspecting the water installation 30

5.6 Electric installation 3

5.6.1 Wiring diagram Condair CP3 D 3

5.6.2 Notes on electric installation 32

5.6.3 Inserting the CP3 Card 3

5.6.4 Inspecting the electrical installation 3

6 Operation 35

6.1 Commissioning 35

6.2 Notes on operation 3

6.2.1 Function of the display and operating elements 36

6.2.2 Remote operating and fault indication 3

6.2.3 Inspections during operation 37

6.2.4 Carrying out manual draining 3

6.3 Taking the unit out of operation 3

6.4 Overview and operating of the menu 3

6.5 Interrogation functions 3
4
4

6

8

8
9
0
1
2

3

6

7

7
7

8

9

9
0
1

3
4
5
5
5
6

8
8
9

1
1

4
4

6

6

7
7
8

6.5.1 Information in the operating display 39

6.5.2 Interrogation of unit information 39

6.5.3 Interrogation of the malfunction list 4

6.6 Unit settings 4

6.6.1 Setting the setpoint temperature 40

6.6.2 Setting the control mode 4

6.6.3 Setting the fragrance pump settings 4

6.6.4 Unit settings in the settings menu 42

6.6.4.1 Launching the settings menu 4

6.6.4.2 Selecting the dialogue language 42

6.6.4.3 Steam bath control settings 42

6.6.4.4 Setting the date 45

6.6.4.5 Setting the time 45

6.6.4.6 Cylinder settings 45

6.6.4.7 Setting the capacity limitation 4

6.6.4.8 Activating/Deactivating fault current relay operation 4

6.6.4.9 Water management settings 4

6.6.4.10 Performing remote relay tests 47

6.6.4.11 Performing steam bath tests 48

6.6.4.12 Setting the display contrast 48

6.7 Modbus settings 4

7 Maintenance 49

7.1 Important notes on maintenance 4

7.2 Maintenance list 5

7.3 Removing and installing parts for maintenance 5

7.3.1 Removal and installation of the steam cylinder 51

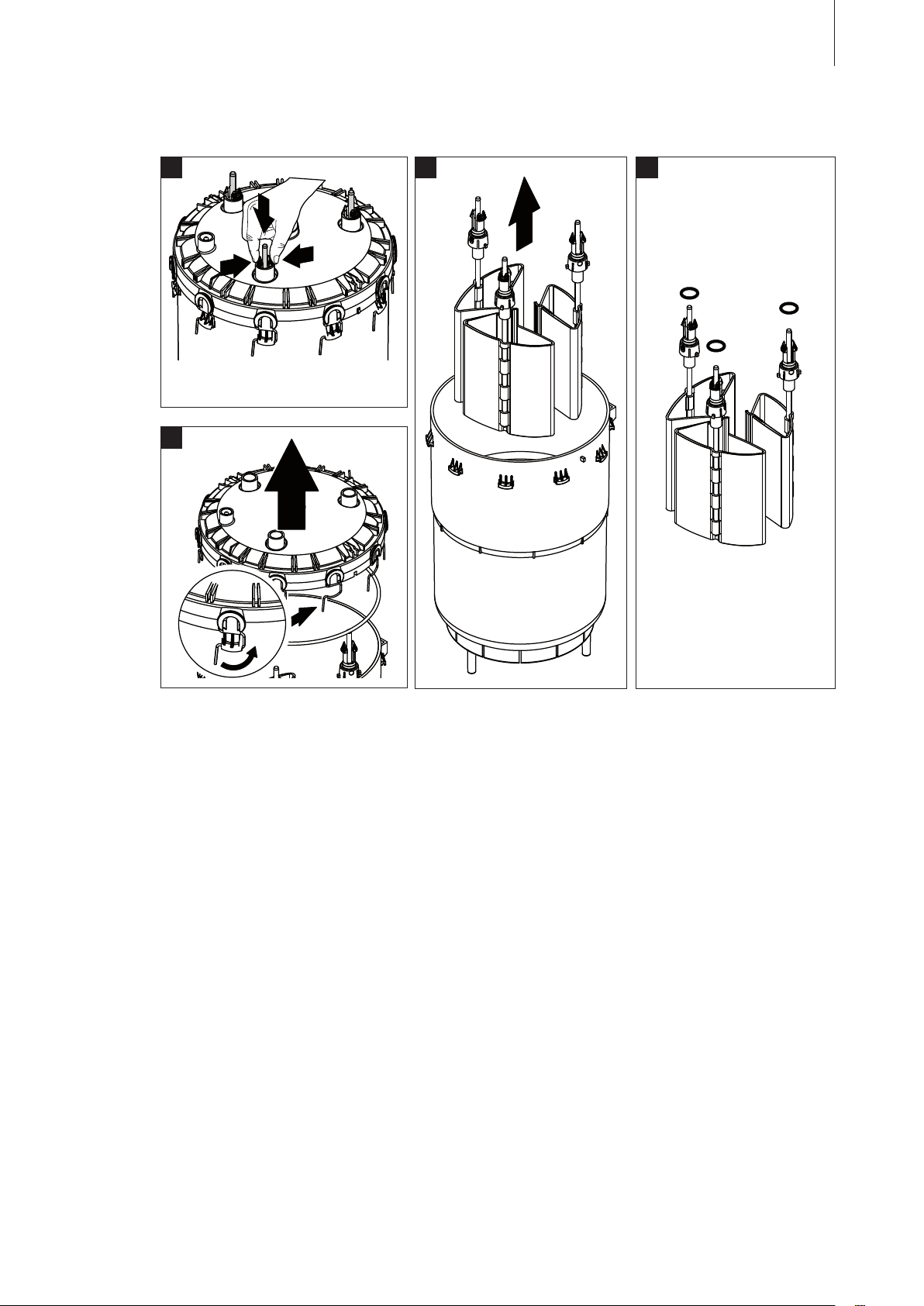

7.3.2 Disassembly and assembly of

the cleanable steam cylinder type D... 53

7.3.3 Removal and installation of the water cup

and the water hoses 54

7.3.4 Removal and installation of the drain pump 55

7.3.5 Removal and installation of the inlet valve 5

7.4 Notes on cleaning the unit components 5

7.5 Notes on cleaning agents 5

7.6 Resetting the maintenance indication 5

8 Malfunctions 59

8.1 Malfunction list 5

8.1.1 System faults 5

8.1.2 Unit faults 6

8.2 Notes on fault elimination 6

8.3 Resetting the error indication (red LED lights) 6

9 Taking out of service/Disposal 6

9.1 Taking out of service 6

9.2 Disposal/Recycling 63

10 Product specifications 6

10.1 Technical data 6

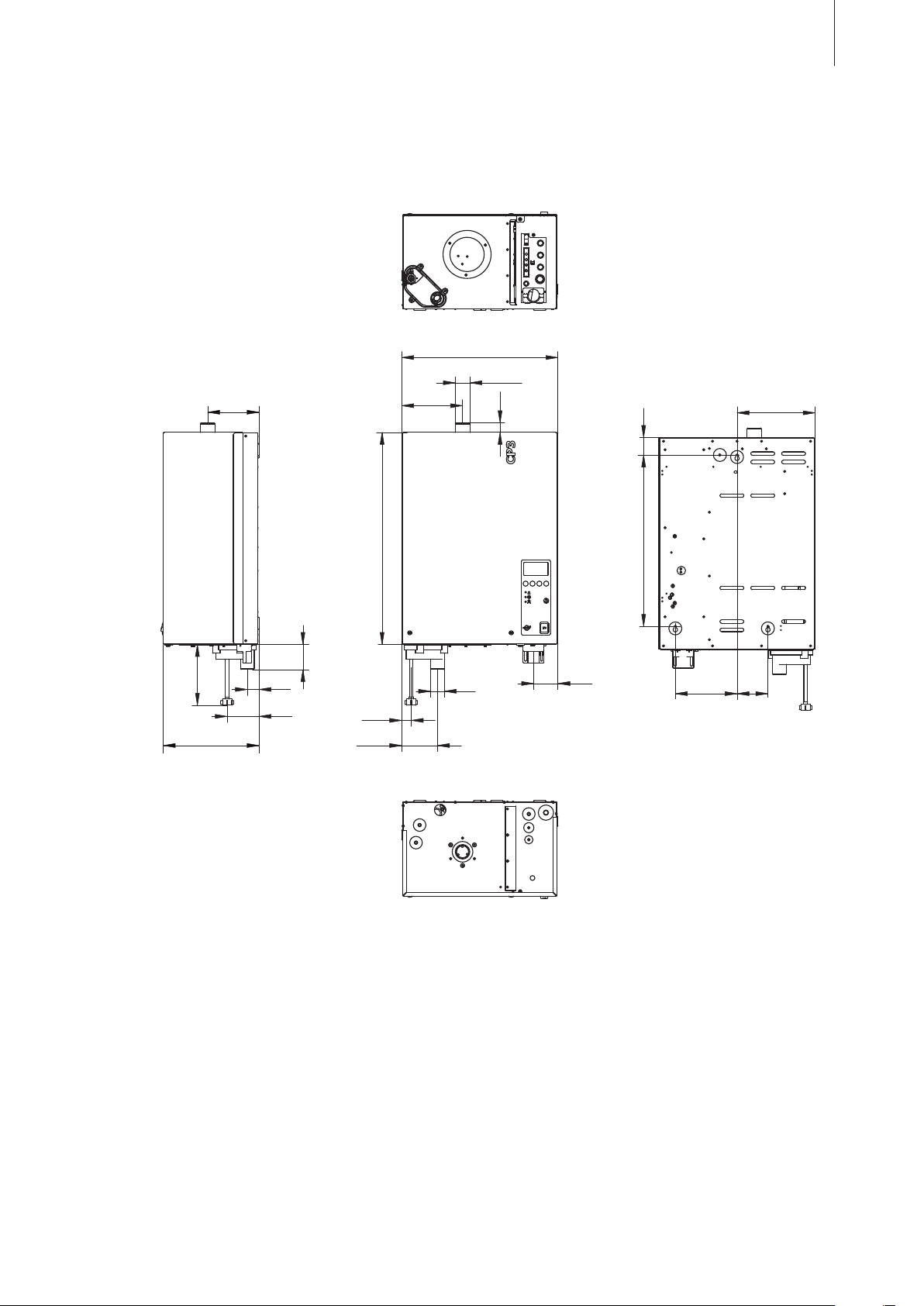

10.2 Unit dimensions 6

9

0
0

0
1

2

6
6
6

8

9
0
1

5
6
7
8

9
9
0
2
2

3

3

4

4
5

4

1 Introduction

1.1 To the very beginning

We thank you for having purchased the steam generator Condair CP3 D.

The steam generator Condair CP3 D incorporates the latest technical advances and meets all rec­ognized safety standards. Nevertheless, improper use of the Condair CP3 D may result in danger to
the user or third parties and/or impairment of material assets.

To ensure a safe, proper, and economical operation of the steam generator Condair CP3 D, please
observe and comply with all information and safety instructions contained in the present technical
documentation as well as the instructions given in the manuals for the components used in the
humidification system.

If you have questions, which are not or insufficiently answered in this documentation, please contact
your Condair supplier. They will be glad to assist you.

1.2 Notes on the technical documentation

Limitation

The subject of this technical documentation is the steam generator Condair CP3 D. The various

accessories are only described insofar as this is necessary for proper operation of the equipment.
Further information on accessories can be obtained in the respective instructions.

This technical documentation is restricted to the installation, commissioning, operation, servic-

ing and trouble shooting of the steam generator Condair CP3 D and is meant for well trained
personnel being sufficiently qualified for their respective work.

The technical documentation is supplemented by various separate items of documentation (spare
parts list, manuals for accessories, etc.). Where necessary, appropriate cross-references are made
to these publications in the technical documentation.

Symbols used in this manual

The catchword “CAUTION” designates notes in this technical documentation that, if

CAUTION!

neglected, may cause damage and/or malfunction of the unit or other material
assets and/or may lead to injury to persons.

The catchword “WARNING” used in conjunction with the general caution symbol
designates safety and danger notes in this technical documentation that, if neglected,

WARNING!

may lead to severe injury or even lethal violation of persons.

Safekeeping

Please safeguard this technical documentation in a safe place, where it can be immediately accessed.
If the equipment changes hands, the documentation should be passed on to the new operator.

If the documentation gets mislaid, please contact your Condair supplier.

Language versions

5

This technical documentation is available in various languages. Please contact your Condair supplier
for information.

Copyright protection

The present technical documentation is protected under the Copyright Act. Passing-on and reproduc­tion of the manual (or part thereof) as well as exploitation and communication of the contents are
prohibited without written permission by the manufacturer. Violation of copyright terms is subject
to legal prosecution and arises liability for indemnification.

The manufacturer reserves the right to fully exploit commercial patent rights.

6

2 For your safety

General

Every person working with the Condair CP3 D must have read and understood the Technical Docu­mentation before carrying out any work.
Knowing and understanding the contents of the Technical Documentation is a basic requirement for
protecting the personnel against any kind of danger, to prevent faulty operation, and to operate the
unit safely and correctly.

All ideograms, signs and markings applied to the unit must be observed and kept in readable
state.

Qualification of personnel

All actions described in the present Technical Documentation (installation, operation, maintenance,
etc.) must be carried out only by well trained and sufficiently qualified personnel authorised by
the owner.
For safety and warranty reasons any action beyond the scope of this manuals must be carried out
only by qualified personnel authorised by the manufacturer.

It is assumed that all persons working with the Condair CP3 D are familiar and comply with the ap­propriate regulations on work safety and the prevention of accidents.

Intended use

The steam generator Condair CP3 D is intended exclusively for generation of steam for a steam
bath within the specified operating conditions (see chapter 10 “Product specifications”). Any

other type of application without the express written consent of the manufacturer is considered as not
conforming with the intended purpose and may lead to the Condair CP3 D becoming dangerous.
Operation of the equipment in the intended manner requires that all the information in these

instructions is observed (in particular the safety instructions).

Danger that may arise from the unit

–

The Condair CP3 D is mains powered.

One may get in touch with live parts when the unit is open. Touching live

WARNING!

parts may cause severe injury or danger to life.

7

Prevention: Before carrying out any work set the Condair CP3 D out of operation as de

scribed in chapter 6.3 (switch off the unit, disconnect it from the mains and
stop the water supply) and secure the unit against inadvertent power-up.

– The Condair CP3 D produces steam. When producing steam, the steam cylinder inside the

steam generator gets very hot (up to 100 °C).

If the unit is opened immediately after having produced steam there is danger

WARNING!

of burning when touching the steam cylinder.

Prevention: Before carrying out any work set the Condair CP3 D out of operation as de

scribed in chapter 6.3, then wait until the evaporation unit has cooled down
sufficiently thus preventing danger of burning.

Behaviour in case of danger

If it is suspected that safe operation is no longer possible, then the Condair CP3 D should imme-
diately be shut down and secured against accidental power-up according to chapter 6.3. This
can be the case under the following circumstances:
– if the Condair CP3 D or its mains cable is damaged
– if the Condair CP3 D is no longer operating correctly
– if connections and/or piping are not sealed

All persons working with the Condair CP3 D must report any alterations to the unit that may affect
safety to the owner without delay.

-

-

Prohibited modifications to the unit

No modifications must be undertaken on the Condair CP3 D without the express written consent

of the manufacturer.

For the replacement of defective components use exclusively original accessories and spare parts
available from your Condair supplier.

8

3 Product Overview

3.1 Models overview

The steam generators Condair CP3 D are available with different heating voltages and steam
capacities ranging from 5 kg/h up to a max. of 45 kg/h.

Heating voltage * Max. steam capacity

in kg/h

400V3

(400V/3~/50...60Hz)

230V3

(230V/3~/50...60Hz)

230V1

(230V/1~/50...60Hz)

* Other heating voltages on request

The steam generators Condair CP3 D are equipped, as standard, with an exchangeable steam cylinder,
a control with an integrated continuous controller, as well as a complete steam bath control (connec­tion and control of: fan, lighting, fragrance pump and remote maintenance and fault indicator).

All models are controlled steplessly via the KTY temperature sensor supplied and the built-in trans­mitter and the continuous controller.

Note: a special version of the Condair CP3 D without steam bath control is available on demand.

5...15 1 5...15 1

16...45 1 16...45 1

5...15 1 5...15 1

16...30 1 16...30 1

5...8 1 5...8 1

Graduation

in kg/h

Model

Condair CP3 D

Unit size

small large

Key model designation

Unit version

Maximum steam capacity in kg/h:

Heating voltage:
400V/3~/50...60Hz: 400V3
230V/3~/50...60Hz: 230V3
230V/1~/50...60Hz: 230V1

Example:

Condair CP3 D 45 400V3

Walter Meier (Climate International) Ltd. 8808 Pfäffikon

Made in Switzerland

Condair CP3 D 45

Dampf/Steam/Vapeur = 45.0 kg/h
Wasser/Water/Eau = 1...10 bar

Wechselstrom AC
Main Unit / Modul A

400V 3~ / 50...60Hz 33.8 kW

XXXXXXX

11.06

3.2 Identification of the unit

The identification of the unit is found on the type plate (for the location of the type plate see unit
overview):

Unit voltage (heating voltage)

Maximum steam capacity per unit

Admissible water supply pressure

Operation note

Unit designation

9

Total steam capacity in kg/h

Type designation Serial number (7 digits) Month/Year

10

1

12

13

15

14

17

16

19

18

20

23

25

26

24

2

3

7

4

5

6

8

11

10

9

21

22

3.3 Steam generator construction

The illustration above shows the large unit

1 Housing (small, large)
2 Cable openings, top side
3 Main contactor
4 Power board
5 Control board with CP3 Card
6 Display and control unit
7 Remote operating and fault indication board
8 Operation status indicators
9 Cable openings, bottom side
10 Drain key
11 Unit switch
12 Steam hose connector (option)
13 Water cup

14 Filling hose
15 Water supply hose
16 Inlet valve
17 Overflow hose
18 Drain connection (not visible)
19 Water supply pipe
20 Drain pump
21 Type plate
22 Data plate CP3 Card
23 Steam cylinder
24 Level sensor
25 Auxiliary drain hose
26 Electrode plug

3.4 Functional description

The Condair CP3 D is a pressureless steam generator that utilizes an electrode heating. The Condair
CP3 D is designed for steam generation in a steam bath.

Steam generation

Any time steam is requested, the electrodes are supplied with voltage via main contactor. Simulta­neously, the inlet valve opens and water enters the steam cylinder from the bottom via water cup
and supply line. As soon as the electrodes come in contact with the water, current begins to flow
between the electrodes, eventually heating and evaporating the water. The more the electrode surface
is exposed to water, the higher is the current consumption and thus the steam capacity.
Upon reaching the requested steam capacity, the inlet valve closes. If the steam generation de­creases below a certain percentage of the required capacity, due to lowering of the water level (e.g.
because of the evaporation process or drainage), the inlet valve opens until the required capacity is
available again.
If the required steam capacity is lower than the actual output, the inlet valve is closed until the de­sired capacity is achieved by lowering of the water level (evaporation process).

11

Level monitoring

A sensor provided in the steam cylinder cover detects when the water level gets too high. The mo­ment the sensor comes in contact with water, the inlet valve closes.

Drainage

As a result of the evaporation process, the conductivity of the water increases due to an escalating
mineral concentration. Eventually, an inadmissibly high current consumption would take place if this
concentration process were permitted to continue. To prevent this concentration from reaching a
value, unsuitably high for the operation, a certain amount of water is periodically drained from the
cylinder and replaced by fresh water.

Control

The steam production is controlled steplessly (continuous control) by the KTY temperature sensor
supplied (or an 0-10V temperature sensor) and the integrated continuous controller.

Below a minimum controllable steam output a two-point control (On/Off) is used.

12

DS80

8

7

9

10

125...1250 µS/cm

1...10 bar

1...40 °C

1

2

3

4

5

6

Z261

11

DS60

DS22

DS80

W30

W22

W45

12

13

3.5 System overview

1 Steam generator
2 Steam connection
3 Water drain connection
4 Water supply connection
5 Filter valve (accessory “Z261”)
6 Manometer (installation recommended)
7 Funnel with siphon (building side)

8 Water drain hose (accessory “DS80”)
9 Control voltage supply
10 Heating voltage supply
11 Cable openings
12 Steam hose (accessory “DS..”)
13 Steam distributor (accessory “W..”)

3.6 Options

3.6.1 Options overview

D... Cleanable steam cylinder

Cleanable steam cylinder as an alternative to the
disposable steam cylinder built in as standard (see
also chapter 3.6.2).

RFI Remote operating and fault indication

PCB with relay contacts for the connection of remote
displays for “Operation”, “Steam”, “Fault” and
“Service” as well as an analogue output for remote

temperature indication and an analogue output for
the temperature-dependent control of an optional
flap control system.

THV Terminals heating voltage

Separate terminals for systems where direct connection
of heating voltage to main contactor (standard version)
is not permitted by local regulations.

PG Cable gland 1x PG 1x PG 1x PG

SC.. Steam hose connector 1x SC22 1x SC60 1x SC80

MP Mounting profile 1x MP 1x MP 1x MP

CVI Internal control voltage 1x M-CVI 1x M-CVI 1x L-CVI

TRAFO Transformer (400V/230V) 1x M-Trafo 1x M-Trafo 1x L-Trafo

13

Condair CP3 D

230V1 5...8

400V3 5...8 9...15 16...45

230V3 5...8 9...15 16...30

1x D3.. 1x D4.. 1x D6..

1x RFI 1x RFI 1x RFI

1x M-THV 1x M-THV 1x L-THV

14

3.6.2 Option details

Steam cylinder

The steam generator is available with two different types of steam cylinders:

–

Exchangeable steam cylinder type A... (standard version)

–

Cleanable steam cylinder type D... (option)

The following tables present an overview of the steam cylinders used in the different models.

Condair CP3 D...400V3 5...8 9...15 16...25 26...45

For water conductivity from 125 to 1250 µS/cm

Exchangeable steam cylinder

Cleanable steam cylinder

For low water conductivity

Exchangeable steam cylinder

Cleanable steam cylinder

Condair CP3 D...230V3 5...8 9...15 16...21 22...30

For water conductivity from 125 to 1250 µS/cm

Exchangeable steam cylinder

Cleanable steam cylinder

Condair CP3 D...230V1 5...8

For water conductivity from 125 to 1250 µS/cm

Exchangeable steam cylinder

Cleanable steam cylinder

If you have questions regarding the steam cylinders please contact your Condair representative.

1xA363 1xA464 1xA674 1xA664

1xD363 1xD464 1xD674 1xD664

1xA343 1xA444 1xA654 1xA654

1xD343 1xD444 1xD654 1xD654

1xA343 1xA444 1xA654 1xA644

1xD343 1xD444 1xD654 1xD674

1xA342

1xD342

3.7 Accessories

Accessories for water installation

Filter valve 1x Z261

Accessories for steam installation

Steam distributor

(Details see chapter 5.4)

Steam hose / meter 1x DS22 1x DS60 1x DS80

Condensate hose / meter 1x KS10

Fragrance pump 1x SR25 230 VAC

15

Condair CP3 D

230V1 5...8

400V3 5...8 9...15 16...45

230V3 5...8 9...15 16...30

Condair CP3 D

230V1 5...8

400V3 5...8 9...15 16...45

230V3 5...8 9...15 16...30

1x W22 1x W30 1x W45

Accessories for operation control

Condair CP3 D

230V1 5...8

400V3 5...8 9...15 16...45

230V3 5...8 9...15 16...30

Temperature sensor 1x KTY

16

3.8 Standard delivery

The standard delivery includes:

– Steam generator Condair CP3 D cpl. equipped with the options ordered according to chapter 3.6

with KTY temperature sensor, water connection pipe G3/4" - 1/2", fixing set, Technical Documen
tation (this document) and spare parts list, packaged in cardboard box:
– Unit small (WxHxD): 450 mm x 620 mm x 280 mm, shipping weight: 26 kg
– Unit large (WxHxD): 559 mm x 667 mm x 350 mm, shipping weight: 31 kg

– Ordered accessories with operating instructions according chapter 3.7, packed separately

– Spare parts list

3.9 Storing/Transportation/Packaging

Storing

Store the unit in a protected area meeting the following requirements:

-

– Room temperature: 1 ... 40 °C
– Room humidity: 10 ... 75 %rh

Transportation

For optimum protection always transport the unit in the original packaging.

The weight of the small and the large unit is more than 20 kg (weight without packaging: small unit
23 kg, large unit 28 kg). Therefore, always transport the unit with the help of another person or use
a forklift or a crane. Always place the unit on its back side.

Packaging

Keep the original packaging of the Condair CP3 D for later use.

In case you wish to dispose of the packaging, observe the local regulations on waste disposal. Never
dispose of the packaging to the environment.

4 Notes for the planning engineer

4.1 Selecting the unit version

To select the unit version the following planning steps are required:

1. Calculating the required maximum steam capacity according chapter 4.1.1

2. Selecting the unit version from the table in chapter 4.1.2

4.1.1 Determination of the required steam capacity

The steam capacity required for a particular steam bath can be determined with the following table:

Cabin size Required steam capacity

3

in m

4 5 kg/h 8 kg/h

8 8 kg/h 12 kg/h

12 10 kg/h 15 kg/h

16

20 13 kg/h 21 kg/h

24 15 kg/h 24 kg/h

28 17 kg/h 26 kg/h

32 18 kg/h 29 kg/h

36

40

44 23 kg/h 36 kg/h

48 24 kg/h 38 kg/h

52 26 kg/h 41 kg/h

56 27 kg/h 43 kg/h

60 29 kg/h 45 kg/h

Plastic cabin brick lined cabin

12 kg/h 18 kg/h

20 kg/h 31 kg/h

21 kg/h 34 kg/h

17

18

4.1.2 Selecting the unit

Condair CP3 D 45 400V3

Heating voltage * Max. steam capacity

in kg/h

400V3

(400V/3~/50...60Hz)

230V3

(230V/3~/50...60Hz)

230V1

(230V/1~/50...60Hz)

* Other heating voltages on request

5...15 1 5...15 1

16...45 1 16...45 1

5...15 1 5...15 1

16...30 1 16...30 1

5...8 1 5...8 1

Graduation

in kg/h

4.2 Selecting the options an accessories

For selecting the options and accessories see chapters 3.6 and 3.7.

Model

Condair CP3 D

Unit size

small large

5 Mounting and installation work

5.1 Important notes for mounting and installation work

Qualification of personnel

All mounting and installation work must be carried out only by well qualified personnel authorised
by the owner. It is the owner’s responsibility to verify proper qualification of the personnel.

General note

Strictly observe and comply with all information given in the present Technical Documentation regard­ing the location of the unit and the installation of water, steam and electricity.

Observe and comply with all local regulations dealing with water, steam and electrical installa­tions.

Safety

Some installation work requires removal of the unit cover. Please note the following:

19

WARNING!

CAUTION!

Danger of electrical shock! You may get in touch with live parts when the unit
is open. The steam generator must be connected to the mains only after all
mounting and installation work has been completed and the cover has been
relocated properly.

The electronic components inside the steam generator are very sensitive to
electrostatic discharge. When the unit is open for installation work, appropriate

measures must be taken to protect these components against damage caused by
electrostatic discharge (ESD protection).

20

125...1250 µS/cm

1...10 bar

1...40 °C

≥ 40 mm

min. 10 %

–

60...70 °C

ø40 mm

ø10/8 mm

230V/1~/50...60Hz

400V/3~/50...60Hz
230V/3~/50...60Hz
230V/1~/50...60Hz

G 1/2"

G 1/2"

1 ... 40 °C
max. 75 %rh
IP20

min. 300 mm

DS80

Z261

DS60

DS22

DS80

W30

W22

W45

Rmin. 300 mm

min. 5 %

–

min. 20 %
+

Rmin. 300 mm

max. 4 m

5.2 Installation overview

Steam installation,

see chapter 5.4

Mounting the unit,

see chapter 5.3

Electric installation,

see chapter 5.6

Water installation,

see chapter 5.5

5.3 Mounting the unit

min. 400 mm

B

min. 600 mm

H

min. 250 mm

min. 400 mm

min. 600 mm

60...70 °C

1 ... 40 °C
max. 75 %rh
IP20

T

5.3.1 Notes on locating the unit

21

Condair CP3 D ... 230V1 5...8

Condair CP3 D ... 230V3

Condair CP3 D ... 400V3

5...8 9...15 16...21 22...30

5...8 9...15 16...25 26...45

Dimensions

Housing (BxHxT) in mm 456x620x280 1 1

559x667x350

Weights

1 1

Netweight in kg 21 21 21 28

Operating weight in kg 26 32 32 65

22

The installation site of the steam generator depends largely on the location of the steam distributor
(see chapter 5.4). To ensure proper functioning of the steam generator and to obtain an optimal
efficiency, the following points must be considered and observed when choosing the location for
the steam generator:

– Install the steam generator so that the

length of the steam hose is kept as short as possible
(max. 4 m) and that the minimum bend radius (R= 300 mm) and up-slope (20 %) or down-
slope (5 %) of the steam hose is observed (see chapter 5.4.5).

– The steam generators Condair CP3 D are designed for wall-mounting. Make sure that the construc

tion (wall, pillar, floor-mounted console, etc.) to which the steam generators are to be mounted,
offers a sufficiently high load-bearing capacity (take notice of the weight information found in
the dimension sand weights table above), and is suitable for the installation.

– The back panel of the Condair CP3 D is retaining heat during operation (max. surface temperature

of the metal housing approx. 60 - 70 °C). Make sure, therefore, that the construction (wall, pillar,
etc.) to which the units are to be mounted, does not consist of heat-sensitive material.

– Install the steam generator in such a manner that it is

freely accessible with sufficient space

available for maintenance purposes (refer to the above illustration for minimum distances).

– The Condair CP3 D is protected according to

IP20. Make sure the units are installed in a drip-proof

location and the admissible ambient conditions are complied with.

– The steam generator Condair CP3 D may only be installed in rooms with a floor drain.

If for some reason the Condair CP3 D must be installed in a location without floor

CAUTION!

drain, it is mandatory to provide a leakage monitoring device to safely interrupt
the water supply in case of leakage.

– When fixing the Condair CP3 D use

only the fixing materials supplied with the unit. If fixing

with the materials supplied is not possible in your particular case, select a method of fixing that
is of similar stability.

-

d

e

b

c

a

A

B

B

5.3.2 Mounting the unit

23

Dimension Housing size

small large
a 228 mm 284 mm
b 51 mm 51 mm
c 500 mm 545 mm
d 90 mm 144 mm
e 180 mm 216 mm

Procedure

1. Mark the attachment point “A” on the wall.

2. Drill hole for attachment point “A” (diameter: 8 mm, depth: 40 mm).

3. Insert the supplied plastic plug, and tighten the screw until the distance between the wall and
the screw head is 4 mm.

4. Unlock the two screws fixing the front panel to the unit, then remove the front panel.

5. Hang up the unit onto the screw and adjust it horizontally and vertically using a spirit level. Then,
mark the fixing points “B”.

6. Drill the holes for the fixing points “B” (diameter: 8 mm, depth: 40 mm).

7. Insert the supplied plastic plugs, and tighten the screws until the distance between the wall and
the screw head is 4 mm.

8. Hang the unit up onto the screws. Before tightening the screws, readjust the unit with the spirit
level.

9. Reattach the front panel and secure it with the two screws.

24

5.3.3 Inspecting the installed unit

Check the following points:

Is the unit installed in the correct place (see chapter 5.3.1)?

Is the supporting surface stable enough?

Is the unit correctly aligned, vertically and horizontally?

Is the unit properly secured (see chapter 5.3.2)?

Has the front panel of the unit been relocated and correctly fixed with the two screws?

5.4 Steam installation

DS60

DS22

DS80

W30

W22

W45

Rmin. 300 mm

min. 5 %

–

min. 20 %
+

Rmin. 300 mm

max. 4 m

SC22

SC60

SC80

min. 300 mm

5.4.1 Overview steam installation

25

5.4.2 Positioning/mounting the steam distributor

It’s the responsibility of the customer to correctly position the steam distributor (e.g. W..) in the
steam bath cabin.

The steam distributor must be installed horizontally into the steam bath cabin.

Shield the steam outlet of the steam distributor with corresponding measures to

WARNING!

make sure steam bath users can not be burned by the steamflow.

W22/W30: ø43 mm
W45: ø61 mm

W22: ø22.5 mm
W30: ø30 mm
W45: ø45 mm

26

5.4.3 Installing the steam hose

Important! Use original Condair steam hose exclusively. Other types of steam hoses can cause

undesired operational malfunctions.

Instructions for the hose layout

– Initially, the steam hose is led with an

upslope of at least 20 % over a minimum height of
300 mm above the top edge of the steam generator and then down to the steam distribution
pipe with a minimum slope of 5 %.

min. 20 %

300 mm

min. 5 %

max. 4 m

– The steam hose should be kept as short as possible (

Rmin.

min. 300 mm

max. 4 m) while observing the minimum
bend radius of 300 mm. Important! Allowance must be made for a pressure loss of 10 mm
water column (approx. 100 Pa) per meter steam hose.
Note: If your particular installation exceeds the maximum steam hose length of 4 m contact

your Condair representative. In any case, steam hoses longer than 4 m must be insulated in
their entire length.

– Reductions in the cross section such as kinks should be avoided throughout the entire length of

the hose. The installation of a stop cock in the steam hose is not permissible.

– Steam hoses must be prevented from sagging (condensate pockets); if necessary, support with

pipe clamps, trough, or wall brackets, or install a condensate drain in the steam hose.

–

Important! When deciding on the length and layout of the hose, it should be noted that the
steam hose may become somewhat shorter with progressive ageing.

Securing the hose

The steam hose must be secured to the steam distribution pipe and the steam outlet of the steam
generator by means of hose clamps.

Caution! Do not overtighten the hose clamp on the steam connector of the steam generator.

Steam line with fixed piping

For steam lines with fixed piping, the same instructions apply to the laying of the piping as already
described. The following additional notes should be observed:

27

– The

– Use exclusively Cu pipe or stainless steel (min. DIN 1.4301).

– To minimize the condensate formation (=loss), the steam pipes must be insulated.

– The minimum bend radius for solid pipes is 4-5 x internal diameter.

– Connection of the steam pipes to the steam distribution pipe and steam generator is effected by

– Important! Allowance must be made for a pressure loss of 10 mm water column (approx.

minimum internal diameter of 22 mm, 30 mm or 45 mm respectively should be applied

over the whole length of the piping.

means of short lengths of steam hose secured with hose clamps.

100 Pa) per meter length or per 90° bend.

5.4.4 Inspecting the steam installation

Use the following check list to ascertain that the steam installation was performed correctly:

– Steam distribution pipe

Steam distributor correctly positioned and secured (screws tightened)?

Steam outlet of the steam distributor with corresponding measures shielded to make sure

steam bath users can not be burned by the steamflow.

– Steam hose

Maximum length of 4 m?

Minimum bend radius of 300 mm (4-5 x internal diameter with fixed piping)?

Have the instructions for hose positioning been followed?

Steam hose: no sagging (condensate pocket) or condensate drain with siphon (hose bend

with a minimum diameter of 200 mm) installed at the lowest point?

Rigid steam lines: properly insulated? Correct installation material used? Minimum internal

diameter maintained?

Steam hose(s) securely attached with clamps?

Heat expansion during operation and shortening of the hose with ageing taken into considera-

tion?

28

DS80

125...1250 µS/cm

1...10 bar

1...40 °C

ø40 mm

ø10/8 mm

G 1/2"

Z261

≥ 40 mm

G 1/2"

min. 50 cm

min. 10 %

–

min. 10 %

–

5.5 Water installation

5.5.1 Overview water installation

5.5.2 Notes on water installation

Water supply

The water supply is to be carried out according to the figure found in chapter 5.5.1 and the applicable
local regulations for water installations. The indicated connection specifications must be observed.

29

– The installation of the

water filter can be used) should be made as close as possible to the steam generator.

– Admissible mains pressure

For mains pressures >10 bar, the connection must be made via a pressure reducing valve (adjusted
to 1.0 bar). For mains pressures <1.0 bar please contact your Condair supplier.

–

Notes on water quality:

– For the water supply of the Condair CP3 D, use exclusively

– The use of

these additives may endanger health and affect proper operation.

– If the Condair CP3 D shall be operated with softened or partly softened water, please contact

your Condair supplier.

– The connection material must be

–

Important! Before connecting the water line, the line should be well flushed out.

CAUTION!

Water drain

The water drain is to be carried out according to the figure found in chapter 5.5.1 and the applicable
local regulations for water installations. The indicated connection specifications must be observed.

additives such as corrosion inhibitors, disinfectants, etc. is not allowed, since

The thread at the unit connection is made of plastic. To avoid overtightening, the
union nut of the water pipe must be tightened by hand only.

filter valve (accessory “Z261”, alternatively a shut-off valve and a 5 µm

1.0 to 10.0 bar (hammer-free system)

untreated drinking water.

pressure-proof and certified for use in drinking water systems.

– Make sure that the drain pipe is correctly fixed and easily accessible for inspections and cleaning

purposes.

– The draining temperature is:

Use temperature-resistant installation materials only!

80…90 °C (approx. 70...80 °C with activated drain water cooling).

30

5.5.3 Inspecting the water installation

Check the following topics:

– Water supply

Has filter valve (accessory “Z261”) or shut-off valve and 5 µm water filter respectively been

installed in supply line?

Have admissible water pressure (1 – 10 bar) and admissible temperature (1 – 40 °C) been

observed?

Does the supply capacity match the steam generator and is the minimum inside diameter of

the supply pipe maintained throughout the entire length?

Are all components and pipes properly secured and are all threaded connections securely

tightened?

Is the water system properly sealed?

Does the water supply installation meet the requirements of the local regulations for water

installations?

– Water drain

Is the minimum inside diameter of the drain pipe of 40 mm maintained throughout the entire

length?

Has drain pipe been installed with a downslope of at least 10 %?

Has the heat resistance of the material used been verified to be at least 100 °C?

Is the drain hose properly secured (hose clamps at unit connection tightened)?

Does the water drain installation meet the requirements of the local regulations for water

installations?

5.6 Electric installation

CPU BOARD

J3

DRIVER B

J2

FAULT REMOTE

J1 DRIVER A

J4

CP3 Card

Main unit

4321

21

Analog Out

F1

100mA

Sensor Supply

Max. 60mA

Unit ONSteamServiceError

Fault Remote Board

1 2 3 4 5 6 7 8 9 10

H

Q4

J

F4

L1 N

230 V/1N~/50..60 Hz

+ –

A1

L1

Q3

K1

X0

F3

L1 L2 L3

L1 L2 L3 PE

L1 L2 L3

Heating

400 V/3~/50..60 Hz

230 V/3~/50..60 Hz

Q3

F3

L1 N PE

230 V/1~/50..60 Hz

F2

200mAF

X2 X7 X4 X3

INLET V.DRAIN V.CONTACTOR

X5

P N P1

Modul B

V+ IN GND

CONT.SIGN

DRIVER BOARD

J1

CPU BOARD

J4

EXTERNAL CON.

J2

LINK UP

INGND

LIM. SIGN

V+ IN

BLOWER

X6

PE L1 N SC1

MAIN SUPPLY

X1

SC2

LEV. SENSOR

F1 6.3 AT

VTX SUPPLYSWITCH

OUT 24V

OUT 5V

JP3

LinkUp

Termination

JP1

PE

0V

15V

18V

24V

L1

N

rt bl rs gu

F1 4AT

FAN

F2 4AT

LAMP

123

24V

18V

15V

0V

5 4 3 2 1 4 3 2 134 2 1

X2 X3 X4

H1

H2

SW2

SW1

M2

STEAM BATH

BOARD

SW3

AC

24V

LAMP FAN LIGHTGND TEMP

SWITCH

TEMP

SENSOR

ON 24V

S2

S1

M1

1 2 3 4 5 6 7

L1

X1 X5

N L1N PESC1 SC2

J3

J1

24V

GND

REL2 REL1 LAMP

PUMP

TEMP

SWITCH

J2

1234

U1

U2

40 °C

AIN

H3

M3

24V 0V

AIN

1 2 3

NPE PUMP

5.6.1 Wiring diagram Condair CP3 D

31

S1 Temperature sensor (KTY)

S2 Max. temperature switch 72 °C

SW1 On/Off switch steam bath

SW2 On/Off switch lightning steam bath

SW3 Door switch steam bath (option)

U1 Analogue output temperature 0-10V (=0-100°C)

U2 Analogue output temperature signal for the control of the flap actuator M3

X0 Connection terminal heating voltage

X1 Connection terminal control voltage

H2 Control lamp lightning steam bath On/Off

H3 Lightning steam bath (24VAC, max. 2x 25W)

J Short circuited, if no door switch is connected

K1 Main contactor (for connecting the heating voltage supply to the unit)

M1 Fragrance pump (1x230VAC)

M2 Fan steam bath cabin (24VAC, max. 50W)

M3 Flap actuator (alternatively to the fan)

Q3 External service switch heating voltage supply

Q4 External service switch control voltage supply

A1 Temperature sensor (0-10V)

F1 Internal fuse “Driver board” (6.3 A, slow acting)

F2 Internal fuse “Driver board” control signal (200 mA, fast acting)

F1 Fuse fan “Steam bath board” (4 A, slow acting)

F2 Fuse lightning “Steam bath board” (4 A, slow acting)

F3 External fuse heating voltage supply

F4 External fuse control voltage supply

H Remote operating and fault indication

H1 Control lamp steam bath On/Off

32

5.6.2 Notes on electric installation

– The electric installation must be carried out according to the wiring diagram in chapter 5.6.1 and

the applicable local regulations. All information given in the wiring diagram must be followed and
observed.

– All cables must be lead into the unit via the cable openings equipped with cable glands (e.g. option

“PG-cable gland”). The cable for the heating voltage supply must be lead into the unit from the
bottom via the cable opening equipped with the clamp strap. Fix the cable with the clamp strap.

– Make sure the cables do not scrub on any components.

– Maximum cable length and required cross section per wire must be observed.

– The supply voltages for heating and control must match the respective voltages stated in the

wiring diagram.

Heating voltage supply “Up”

Caution! Before connecting, ensure that the mains voltage corresponds with the heating
voltage for the unit (see mains code on the type label).

The heating voltage supply is connected to the corresponding terminals of the main contactor ac­cording to the wiring diagram. In the supply line a service switch “Q1” (an all-pole disconnecting
device with a minimum contact opening of 3 mm is an essential requirement) and a fuse group
“F1” (essential requirement: fuses are to be as detailed in the following table) must be installed
(by the client).

Heating voltage Max. steam

capacity

[kg/h]

5...8 5...8 6.0 8.7 3x 10

9...12 9...12 9.0 13.0 3x 16

13...15 13...15 11.3 16.3 3x 20

400V3

(400V/3~/50...60Hz)

230V3

(230V/3~/50...60Hz)

230V1

(230V/1~/50...60Hz)

16...20 16...20 15.0 21.7 3x 25

21...25 21...25 18.8 27.1 3x 35

26...30 26...30 22.5 32.5 3x 40

31...42 31...42 31.5 45.5 3x 50

43...45 43...45 33.8 48.8 3x 63

5...8 5...8 6.0 15.8 3x 20

9...15 9...15 11.3 29.6 3x 40

16...21 16...21 15.8 41.4 3x 50

22...30 22...30 22.5 59.1 3x 63
5 5 3.8 16.3 20

6...8 6...8 6.0 26.1 35

Model

Condair CP3 D

Nominal

power

[kW]

Nominal

current

[A]

Main

fuses F3

[A]

Note: The minimum cross section of the supply cable must comply with the local regulations.

Control voltage supply “Uc”

Caution! Before connecting, make sure that the mains voltage corresponds with the control
voltage of the unit (220…240 V, 50…60 Hz).

The control voltage supply is connected to the terminals L1 and N according to the wiring dia­gram. In the supply line a service switch “Q2” (an all-pole disconnecting device with a minimum
contact opening of 3 mm is an essential requirement) and a fuse “F2” (max. 10 A, slow acting,
essential requirement) must be installed (by the client).

Note: The minimum cross section of the supply cable must comply with the local regulations.

Remote indicator board H

The remote operating and fault indicators must be connected to the respective potential-free relay
contacts of the remote indicator board according to the wiring diagram:

– “Error”: This relay is activated if a fatal error occurs.

– “Maintenance”: This relay is activated after the maintenance interval time has ex-

pired.

– “Steam”: This relay is activated as soon as the CP3 D produces steam.

– “Unit on”: This relay is activated as soon as the CP3 D is switched on.

Caution! The maximum contact load is: 250V/1A.

Caution! Appropriate suppressor modules are to be used for the switching of relays and

miniature contactors.

Remote temp. indication U1: Temperature signal 0...10V (0...100%) for remote temp. indication

Temperature signal U2: Temperature signal for the control of the flap actuator

Fragrance pump M1 (230VAC)

33

The fragrance pump is connected to terminals X5-1, X5-2 and X5-3 on the steam bath board ac­cording to the wiring diagram.

Note: The cross-section of the cable must comply with the applicable local regulations.

Steam bath lighting H3 (24VAC, max. 2x 25 W)

The steam bath lighting is connected to terminals X2-3 and X2-4 on the steam bath board accord-
ing to the wiring diagram

Note: The cross-section of the cable must comply with the applicable local regulations.

Steam bath fan M2 (24VAC, max. 50 W)

The steam bath fan is connected to terminals X2-1 and X2-2 on the steam bath board according
to the wiring diagram.

Note: The cross-section of the cable must comply with the applicable local regulations.

Flap actuator M3 (24 VAC, max. 50 W), alternatively to the steam bath fan M2

The flap actuator is connected to terminals X2-1 and X2-5 on the steam bath board according to
the wiring diagram. The control signal to control the flap motor is always active.

Note: The cross-section of the cable must comply with the applicable local regulations.

Temperature sensor KTY S1

The supplied temperature sensor KTY is connected to terminals X4-1 and X4-2 according to the
wiring diagram. The steam bath board is ready for the connection of the supplied temperature sen­sor, hence not further adjustments are required.

The temperature sensor must be installed in a appropriate location inside the steam bath (away
from the steam exit).
Please refer the separate installation instructions for proper location and connection of the tempera­ture sensor.

34

5.6.3 Inserting the CP3 Card

All important operating parameters such as the maximum steam capacity, the heating voltage, the
number of base units as well as the differentiation between main and extension unit are permanently
stored on the CP3 Card.
Before you start the electrical installation, check whether the CP3 Card is installed. If it is not, check

whether the type designation on the CP3 Card supplied corresponds with the type designa­tion on the data plate of the unit (the data plate is located inside the unit). If the designations

match, place the CP3 Card in the card holder on control print . Then cover the data plate inside the
unit beside the type plate with the data plate supplied (self-adhesive).
If the type designation on the CP3 Card and the data plate do not match, the CP3 Card must not be
installed. If this is the case, contact your Condair supplier.

5.6.4 Inspecting the electrical installation

Check the following points:

Do the supply voltages for heating and control comply with the relevant voltages given in the

wiring diagram?

Is the correct CP3 Card inserted?

Are the voltage supplies (heating and control voltage) correctly fused?

Is the service switch “Q..” installed in the supply line for to the heating and control voltage?

Are all components correctly connected according to the wiring diagram?

Are all connecting cables fastened?

Are the connecting cables free of tension (passed through cable glands?)

Does the electric installation meet the applicable local regulations for electric installations?

Is the front panel mounted and correctly fixed with the two screws?

6 Operation

6.1 Commissioning

Proceed as follows when putting the unit into operation:

1.

Examine the steam generator and installation for possible damage.

Damaged devices or devices with damaged installation may present danger to
human life or cause severe damage to material assets.

WARNING!

2. Check whether the front panel is mounted and fixed with the two screws.

Damaged units and/or units with damaged or faulty installation must not
be operated.

35

3. Open the

4.

Switch on the service switches for mains supplies (heating and control voltage).

5.

Actuate the unit switch of the steam generator. Switch lights up.

CP3 STEAMBATH

STARTUP:
IN IT MODULE

XXXXXXX XXXXXXXXXXXXX

Menu Set

CP3 D45 400V3

Steam B ath :Standby
Tempera ture :34°C
Setpoin t :48°C

05.05.2 008 12.00.00

Start MenuLight

CP3 D45 400V3

Steam B ath :Heating
Tempera ture :34°C
Setpoin t :48°C

05.05.2 008 12.00.00

Stop MenuLight

filter valve (or the shut-off valve, respectively) in the water supply line.

The steam generator carries out a system test, during which all the
LEDs light up and the opposite display is shown.

If a failure occurs on the system test, a corresponding error message
is shown in the display.

After the system test the operating display is shown.
Note: The contents of the operating display and the setting of the keys
depend on the actual operating status and on the configuration of the
Condair CP3 D and can differ from the opposite display.

Depending on the selected operating mode of the Condair CP3 D,
the steam generator must manually be started via the Start/Stop
button of the display and control unit or via an external Start/Stop
button or the operation runs time-controlled via the day timer or the
week timer. As soon as the steam generator is started, the heating
current is switched on. The inlet valve opens (slight delay) and the

steam cylinder fills with water. As soon as the submerged electrodes
heat the water up the green LED lights up and after a few minutes
(approx. 5–10 minutes, depending on the conductivity of the water)
steam is produced and the steam bath cabin is heated up. As soon

as the set temperature in the steam bath cabin is achieved, the light
is switched on and the bath phase starts. During the bath phase the
fragrance pump (if available) is controlled in accordance with the se­lected operating mode and the fan (or the flap actuator) is controlled
in accordance with the set temperature and the actual temperature
in the steam bath cabin.

Note: If the Condair CP3 D is operated with water of low conductivity it may happen that the
maximum steam capacity is not reached in the first few hours of operation. This is normal. As
soon as the conductivity has reached a sufficient level (due to the vaporisation process) the steam
generator will reach the maximum steam capacity.

36

6.2 Notes on operation

6.2.1 Function of the display and operating elements

Display and control unit

Function: Configuration of the Condair CP3 D.
Indication of operating parameters.
Reset of maintenance counter and error indication.

red LED “Error”

Function: The LED lights in case of a malfunction of the unit. The

type of malfunction is shown in the display, see chap­ter 8).

The LED flashes alternately with the green LED if the

maximum temperature switch has triggered.

yellow LED “Warning”

Function: The LED lights if the cylinder maintenance is due.

green LED “Steam”

Function: The LED lights if the unit produces steam.
The LED flashes alternately with the red LED if the

maximum temperature switch has triggered.

Drain key

Function: Manual draining of the steam cylinder. After having

pressed the drain key, the draining is controlled via
the display and control unit.

Unit switch

Function: Switches the unit on and off. The switch is illuminated

when the unit is running.

6.2.2 Remote operating and fault indication

Via the operating and fault indication the following operating status are shown remotely:

Activated remote
indication relay

When? Display on unit

H1 “Error” A malfunction is present, further

operation is not possible, the heating
voltage is interrupted

H2 “Service” Steam cylinder maintenance is due.

The unit remains operational for a
certain time

H3 “Steam demand” Steam demand/

Steam production

H4 “Unit on” Unit ready for operation Unit switch lights

Red LED lights
An error message is shown in the
display

Yellow LED lights
The service warning message is
shown in the display

Green LED lights
The standard operating display is
shown.

The standard operating display is
shown.

6.2.3 Inspections during operation

During operation the Condair CP3 D and the humidification system have to be inspected weekly. On
this occasion check the following:

• the water and steam installation for any leakage.

• the steam generator and the other system components for correct fixing and any damage.

• the electric installation for any damage.

If the inspection reveals any irregularities (e.g. leakage, error indication) or any damaged components
take the Condair CP3 D out of operation as described in chapter 6.3. Then, contact your Condair
representative.

6.2.4 Carrying out manual draining

Proceed as follows to drain the unit manually:

1.

Briefly press the drain key. The drain dialogue appears in the
display.

37

Man ual Drain
Press START or STOP

Modul A

Start

Esc Set

2. Press the

drain pump starts. The yellow LED flashes.
To stop the drain cycle press the <Stop> key.

Note: By pressing the <Esc> key the unit returns to the indication
level. A drain cycle in progress will be stopped automatically.

6.3 Taking the unit out of operation

In order to take the steam generator out of operation, perform the following steps:

1. If the unit has to be switched off because of a malfunction, please note the error code of the
actual error message shown in the display.

2. Close the shut-off valve in the water supply line

3. Start manual draining (see chapter 6.2.4) and wait until the steam cylinder is empty.

4.

Actuate the unit switch

5.

Disconnect steam generator from the mains: Switch off all service switches to mains supplies
(heating and control voltage) and secure switches in “off” position against accidentally being
switched on, or clearly mark the switches.

<Start> key. The heating voltage is interrupted and the

WARNING!

If steam was produced just before the unit is taken out of operation, wait be­fore opening the unit and let the steam cylinder cool down to prevent danger
of burning.

38

Main Menu

Mode :Manual
Aroma :Set
Info :Set

Setpoint :48°C

User :Set

Esc Set

Steam Bat h :Standby

CP3 D45 400V3

Temperatu re :34°C
Setpoint :48°C

05.05.200 8 12.00.00

Start Light Menu

Main Menu

Mode :Manual
Aroma :Set

Info :Set

Setpoint :48°C

User :Set

Esc Set

Main Menu

Mode :Manual
Aroma :Set
Info :Set

Setpoint :48°C

User :Set

Esc Set

Main Menu

Mode :Manual

Aroma :Set
Info :Set

Setpoint :48°C

User :Set

Esc Set

Info

ErrorHist ory:Set

Unit Stat us :Set

Esc Set

User CodeUser Code

88088808

Ente r Number Ente r Number
Confir m with Set Confir m with Set

Esc Set

UserUser

Settings :SetSettings :Set
Modbus :SetModbus :Set

Maintenan ce :SetMaintenan ce :Set

EscEsc Set

Main Menu

Mode :Manual

Aroma :Set

Info :Set

Setpoint :48°C

User :Set

Esc Set

6.4 Overview and operating of the menu

Operating

CP3 D45 400V3

Steam B ath :Standby
Tempera ture :34°C
Setpoin t :48°C

05.05.2 008 12.00.00

Start MenuLight

Menu overview

The operating and display unit is operated via the four keys located
just below the display. The 4 status fields at the bottom of the display
show the active keys the functions assigned to them.

actual key setting

keys

Operating display

Menu level

Setting the setpoint temperature

Setting the control mode

Fragrance pump settings

Menu Info
– Interrogation of unit information
– Interrogation of the malfunction list

Menu User
– Resetting the maintenance counter
– Unit settings
– Modbus settings

6.5 Interrogation functions

6.5.1 Information in the operating display

The following information are shown in the operating display:

39

CP3 D45 400V3

Steam B ath :Standby
Tempera ture :34°C
Setpoin t :48°C

05.05.2 008 12.00.00

Start MenuLight

Operating status of the steam generator (Standby, Heating or Drying)

Actual temperature in the steam bath cabin

Set nominal steam bath temperature

Date (dd.mm.yyyy) and time (hh.mm.ss)

6.5.2 Interrogation of unit information

Unit St atus

Cylinde r type
A664
Cylinde r Operat.Hourd
A 0h

11.11.2 006 12.00.00

Esc Set

Softwar e Version

1.01LA0 0 12.00.00
Operati on
Intern

∑ Steam

0kg/h12 .00.00
Actual Request
A 0%
Actual Temperature
42°C
Average Drain Time
A 0.0 s
Max. Le vel Sensor

A O

Max. Le vel Counter
A 0
Max. Te mp.Fuse

O

Door Sw itch
Open
System Operation Hour
0h

Select the list with the unit information:

1

Path: Main menu > Info > Unit Status

2

Press < > and < > keys, in order to select the unit information available
in the list:

1 Type designation of the steam cylinder type

3

2 Total operating hours of the steam cylinder

4

3 Software version (1.00)/language version (LA00)

5

4 Operating mode of the steam generator

6

5 Actual steam capacity of the unit in kg/h

7

8

6 Actual request in %

9

7 Actual temperature in the steam bath in °C

10

8 Calculated mean drain time of the unit in seconds

11

9 Actual status of the maximum level sensor in the steam cylinder

12

10 Counter showing the number of times the maximum level in the

13

steam cylinder has been exceeded

11 Actual status of the maximum temperature switch

12 Actual status of the door switch of the steam bath cabin

13 Total operating hours since the initial commissioning

Press the <Esc> key several times to quit the unit information list and to
return to the standard operating display.

40

6.5.3 Interrogation of the malfunction list

The error messages generated by the last 20 malfunctions that occurred are saved in the malfunc­tion list of the Condair CP3 D and can be interrogated.

ErrorHi story
01/05 1 1.11.06 12.34
E32A Te mp.Sensor void
No sens or signal
Temp.Se nsor damaged

11.11.2 006 12.00.00

Esc Set

Select the error history list:
Path: Main menu > Info > ErrorHistory

The last error that occurred is shown with:
– running number of the error
– date and time of occurrence (version Pro only)
– error code (Warning: W..., Error: E...
– error message
– additional info text regarding the error

Press < > and < > keys, in order to select further error messages in
the list.

Press the <Esc> key several times to quit the error history list and to
return to the standard operating display.

6.6 Unit settings

6.6.1 Setting the setpoint temperature

Main Me nu

Setpoin t :48°C

Mode :Manual
Aroma :Set
Info :Set
User :Set

Esc Set

Select “Setpoint” in the main menu, then press the <Set> key.
In the upcoming modification dialogue set the desired nominal tempera­ture for the steam bath.

Factory setting:
Setting range: 25 °C ... 55 °C

6.6.2 Setting the control mode

Note: This setting is available only if the setting “Operation” in the steam bath settings (see chapter

6.6.4.3) is set to “Intern”.

Main Me nu

Setpoin t :48°C

Mode :Manual

Aroma :Set
Info :Set
User :Set

Esc Set

Select “Mode” in the main menu, then press the <Set> key.
In the upcoming modification dialogue set the desired control mode.

Factory setting:
Options: Manual, Timer

48 °C

Manual

Description of the control mode settings

Manual: The steam generator must be switched on and off via the Start/Stop key

–

in the operating display.

41

CP3 D45 400V3

Steam B ath :Standby
Tempera ture :34°C
Setpoin t :48°C

05.05.2 008 12.00.00

Start MenuLight

–

Timer: The steam generator is switched on and off time controlled via the day

CP3 D45 400V3

Steam B ath :Heating
Tempera ture :37°C
Setpoin t :48°C

05.05.2 008 12.05.00

Stop MenuLight

timer. The timer settings can be accessed by pressing the <Timer> key in
the operating display.

CP3 D45 400V3

Steam B ath :Standby
Tempera ture :34°C
Setpoin t :48°C

05.05.2 008 12.00.00

Timer MenuLight

Timer

Status :O

Start t ime :18:00
Duratio n :15min

Esc Set

–

Status: activate (On) or deactivate (Off) timer function

Start time: set starting time (format: hh:mm)

–

Duration: Set heating time in minutes

–

6.6.3 Setting the fragrance pump settings

Aroma

Pump :On

Interva l :5min
Impulse :3s

Esc Set

Description of the fragrance pump settings

Pump: Activating and deactivating the fragrance pump.

–

Interval: Setting the interval time in minutes for the pump impulses.

–

Impulse: Setting the duration for a pump impulse in seconds.

–

Select “Aroma” in the main menu, then press the <Set> key. The
fragrance pump settings appear. Press the < > and < > keys in order

to select the individual settings and press the <Set> key to call up the
modification dialogue for the selected setting.

Factory setting:
Options: On (Pump activated)
Off (Pump deactivated)

Factory setting:
Setting range: 2 ... 20 min

Factory setting:
Setting range: 2 ... 10 s

On

5 min

3 s

42

6.6.4 Unit settings in the settings menu

6.6.4.1 Launching the settings menu

Setting s

Languag e :English

BathSet ting :Set
Date :05.05.08
Time :12:00
Cylinde r :Set

Esc Set

Power L imit :Set
GFCI-Mo de :Aus
Water M anag.:Set
Remote Test :Set
Bath Te st :Set
Contras t :15

Select the settings menu:
Path: Main menu > User > Password entry: 8808 > Settings

Press the < > and < > keys in order to select the individual settings in
the settings menu.
Detailed information on the different settings are found in the following
chapters.

6.6.4.2 Selecting the dialogue language

Setting s

Languag e :English

BathSet ting :Set
Date :05.05.08
Time :12:00
Cylinde r :Set

Esc Set

Select “Language” in the settings menu, then press the <Set> key.
In the upcoming modification dialogue select the desired dialogue lan­guage. After confirmation, the unit automatically switches to the selected
dialogue language.

Factory setting:
Options: divers languages

country specific

6.6.4.3 Steam bath control settings

Setting s

Languag e :English

BathSet ting :Set

Date :05.05.08
Time :12:00
Cylinde r :Set

Esc Set

BathSet ting

Operati on :WeekTime

Week Ti mer :Set
Fan :Set
Temp.Se nsor :Set
Temp.Co ntrol:Int(PI)

Esc Set

P-Band :4°C
Integr. -Time:2min
Max.Hea ting :2h
Max.Doo rOpen:2min

Description of the steam bath control settings

Operation: Setting the operating mode.

–

Select “BathSetting” in the settings menu, then press the <Set> key.

The steam bath control settings appear. Press the < > and < > keys in

order to select the individual settings and press the <Set> key to call up
the modification dialogue for the selected setting.

Note: The settings available depend on the current settings of the indi-

vidual parameters. The opposite display shows the maximum number
of settings available.

Factory setting:
Options: Intern (switching the unit on and off the Start/

Extern (switching the unit on and off via an exter-

WeekTime (the operation of the unit is time con-

Intern

Stop key of the display and control unit or via the
day timer, see chapter 6.6.2 “ Setting the control
mode”)

nal On/Off switch)

trolled via the week timer, see following settings
“WeekTimer”)

– Wochen Timer: With the settings in the submenu “Week Timer” you can configure the

week timer for the time controlled operation of the steam generator.

Note: This menu item is available only if the operating mode (see previous

menu item “Operation”) is set to “WeekTime”.

–

Week timer deactivated:

Week Ti mer

Timer :O

Event 1 :18:00
Event 2 :19:00
Event 3 :--:-­Event 4 :--:--

Esc Set

Week timer activated:

–

43

Week Ti mer

Timer :On

Event 1 :18:00
Event 2 :19:00
Event 3 :--:-­Event 4 :--:--

Esc Set

Event 1

Weekday :Mo-Fr

Time :18:00
Steam B ath :On

Esc Set

If the timer is activated, up to eight switching
points (events 1 - 8) can be defined to switch
the steam generator On or Off.

Each switching point is defined by a weekday
or weekday range, the switching point and
the desired operating status of the steam
generator.

Configuration notes:
– the settings of an event remain active up to the next event.
– the software does not check the plausibility of the timer settings.

Therefore, make sure your settings make sense.

– Fan: With the settings in the submenu “Fan” you can determine the operating

mode of the fan as well as the post-operational time of the fan for drying
the steam bath cabin.

Fan

Mode :3 Stages

Drying Time :20min

Esc Set

Mode: Setting the operating mode of the fan.

–

Factory setting:

3 Stages

Options: 3 Stages (Operation of the fan with three

performance levels 15/18/24VAC, which are
controlled in dependency of the temperature
in the steam bath cabin)

1 Stage (Operation of the fan with only one

performance level 24VAC)

Off (Fan off)

Drying time: Setting the post-operational time of the fan for

–

drying the steam bath cabin.

Factory setting:

20 min

Setting range: 1 ... 60 min

44

– Temp.Sensor: With the settings in the submenu “Temp.Sensor” you can determine the

signal source as well as the type and the signal sizes of the used sen­sor.

Temp.Se nsor

SignalS ource:Modbus

Esc Set

SignalSource: Setting the signal source.

–

Factory setting:

Temp.Se nsor

Signals ource:Analog

Type :KTY
Nom. Va lue :2020

Esc Set

Analog

Temp.Se nsor

SignalS ource:Analog

Type :0-10V
0V-Temp . :0°C
10V-Tem p. :100°C

Esc Set

Options: Analog, Modbus

Type: Setting the type of the sensor in use (this menu

–

item is available only if signal source is set to
“Analog”).

Factory setting:

KTY

Options: KTY (included in the delivery), 0...10V

Nom. Value: Set the nominal value of the KTY sensor in Ohm.

–

Note: this setting is available only if sensor type “KTY” is selected.

Factory setting:

2020

Setting range: 1900...2100

0V-Temp.: Setting the temperature value in °C which equals

–

to 0 V for a 0-10V temperature sensor.

Note: this setting is available only if sensor type “0-10V” is selected.

Factory setting:

0°C

Setting range: -50 ... +20°C

100V-Temp.: Setting the temperature value in °C which equals

–

to 10 V for a 0-10V temperature sensor.

Note: this setting is available only if sensor type “0-10V” is selected

Factory setting:

100°C

Setting range: +80 ... +200 °C

Temp.Control: Setting the type of temperature control.

–

Factory setting:

Int.(P)

Options: Int. (P) (Internal P controller)
Int. (PI) (Internal PI controller)

– P-Band: Setting the proportional range in °C for the internal P/PI controller.

Note: This setting is available only if the internal P or PI controller is acti­vated.

Factory setting:

4°C

Setting range: 1...60°C

Integr.-Time: Setting the integral time in minutes for the internal PI controller.

–

Note: This setting is available only if the internal PI controller is activated.

Factory setting:

2 minutes

Setting range: 1...60 minutes

– Max.Heating: Setting the maximum heating time for the steam generator. As soon as

Max.Door Open: Setting the maximum time the door of the steam bath cabin can be open,

–

6.6.4.4 Setting the date

the maximum heating time is reached, the steam production is interrupted
and the drying phase begins (if the fan is activated). After the drying phase
the light is switched off automatically.

Factory setting:

2 h

Setting range: 1 ... 24 h

before the steam production is interrupted.

Factory setting:

2 min

Setting range: 1 ... 30 min

45

Setting s

Languag e :English
BathSet ting :Set

Date :05.05.08

Time :12:00
Cylinde r :Set

Esc Set

6.6.4.5 Setting the time

Setting s

BathSet ting :Set
Date :05.05.08

Time :12:00

Cylinde r :Set
Power L imit :100%

Esc Set

6.6.4.6 Cylinder settings

Setting s

Date :05.05.08
Time :12:00

Cylinde r :Set

Power L imit :100%
GFCI-Mo de :Aus

Esc Set

Select “Date” in the settings menu, then press the <Set> key. In the upcom-
ing modification dialogue set the actual date (format: “dd.mm.yy”).

Select “Time” in the settings menu, then press the <Set> key. In the
upcoming modification dialogue set the actual time (format: “hh.mm”).

Select “Cylinder” in the settings menu, then press the <Set> key.

Cylinde r

Cyl. Li ne :Dispos

Cyl. Nu mber :644

The cylinder settings appear. Press the < > and < > keys in order to
select the individual settings and press the <Set> key to call up the
modification dialogue for the selected setting.

Esc Set

Description of the cylinder settings

Cyl. Line: Selecting the cylinder type.

–

Factory setting:
Options: Dispos (Disposable cylinder A..)
Clean (Cleanable cylinder D..)

Cyl. Number: Selecting the cylinder number

–

Factory setting:
Options: 342, 343, 363, 444, 464, 654, 644, 664, 674

Dispos

according the installed cylinder

46

6.6.4.7 Setting the capacity limitation

Setting s

Teit :12:00
Cylinde r :Set

Power L imit :100%

GFCI-Mo de :Aus
Water M anag.:Set

Esc Set

Select “Power Limit” in the settings menu, then press the <Set> key.
In the upcoming modification dialogue set the desired power limit in %
of the maximum capacity.

6.6.4.8 Activating/Deactivating fault current relay operation

Setting s

Cylinde r :Set
Power L imit :100%

GFCI-Mo de :Aus

Water M anag.:Set
Remote Test :Set

Esc Set

Select “GFCI-Mode” in the settings menu, then press the <Set> key.
In the upcoming modification dialogue select whether or not the Condair
CP3 D is connected to a fault current relay protected mains supply.

Factory setting:

Off

Options: On (mains supply with fault current relay protec-

tion)

Off (mains supply without fault current relay

protection)

6.6.4.9 Water management settings

Setting s

Power L imit :100%
GFCI-Mo de :Aus

Water M anag.:Set

Remote Test :Set
Bath Te st :Set

Esc Set

Water M anag.

Conduct ivity:>125µS

Drain F actor:1.0
Standby Drain:Full
Standby Delay:72h
Force D rain :On

Esc Set

Force D elay :72h

Select “Water Manag.” in the settings menu, then press the <Set>
key.

The water management settings menu appears.
Press the < > and < > keys in order to select the individual settings and
press the <Set> key to call up the modification dialogue for the selected
setting.

Description of the water management settings

Conductivity: Selecting the conductivity range of the supply water.

–

Factory setting:

>125 μS/cm

Options: >125 μS/cm, <125 μS/cm

Drain Factor: Setting the drain factor

–

Factory setting:

1.0

Setting range: 0.5...2.0

StandbyDrain: Selecting the type of draining which takes place after a certain time (see

–

following setting) of standby operation.

Factory setting:

Full

Options: Full (complete draining)
Partial (partial draining) **
Off (draining deactivated)

** The cylinder is drained so far that the water does not touch the elec

trodes any longer.

-

–

StandbyDelay: Setting the period of time in standby operation after which an automatic

cylinder draining takes place.

Factory setting:
Setting range: 1...720 hours

Force Drain: Activating/Deactivating the forced draining which takes place after a cer-

–

tain time of operation. The forced draining takes place also during steam
production.

Factory setting:
Options: On (Forced draining activated)
Off (Forced draining deactivated)

Force Delay: Setting the time of operation after which a forced draining takes place.

–

Factory setting:
Setting range: 1...720 hours

6.6.4.10 Performing remote relay tests

47

72 hours

Off

72 hours

Setting s

GFCI-Mo de :Aus
Water M anag.:Set

Remote Test :Set

Bath Te st :Set
Contras t :15

Esc Set

Re mote Test

Remote Steam:

O

Esc Set

Remote Service:

O 12.0 0.00

Remote Error:

O

Remote Unit On:
On.11.2 006 12.00.00

Select “Remote Test” in the settings menu, then press the <Set> key.

The list with the remote relay tests appears, the first relay test is
shown.
Press the < > and < > keys in order to select the further relay tests
available and press the <Set> key to activate/deactivate the correspond-
ing relay for testing.

48

6.6.4.11 Performing steam bath tests

Setting s

GFCI-Mo de :Aus
Water M anag.:Set
Remote Test :Set

Bath Te st :Set

Contras t :15

Esc Set

B ad Test

Select “Bath Test” in the settings menu, then press the <Set> key.

The list with the bath tests appears, the first bath test is shown.
Press the < > and < > keys in order to select the further bath tests

Licht:
Aus

Esc Set

Ventila tor Leistung:
Aus 12. 00.00

Duftsto pumpe:

Aus
Klappe Analogausgang:

0.0V.11 .2006 12.00.00
Temp. A nalogausgang:

0.0V.11 .2006 12.00.00

available and press the <Set> key to activate/deactivate the function or
to increase the corresponding parameter value for testing.

6.6.4.12 Setting the display contrast

Setting s

Water M anag.:Set
Remote Test :Set
Date :19.10.07
Time :12:00

Contras t :15

Esc Set

Select “Contrast” in the settings menu, then press the <Set> key.
In the upcoming modification dialogue set the desired value for the
display contrast.

Factory setting:
Setting range: 0 (no display) ...100 (display turns black)

15

6.7 Modbus settings

Modbus

Modbus Addr.:1

Parity :none
Timeout :5s

XXXXXXX XXXXXXXXXXXXX

11.11.2 006 12.00.00

Esc Set

Description of the Modbus settings

Modbus Addr.: Setting the modbus address of the Condair CP3 D.

–

Parity: Selecting the parity bit for the data transmission

–

Timeout: Setting the time out time for the data transmission.

–

Select the Modbus menu:
Path: Main menu > User > Password entry: 8808 > Modbus

The settings for the Modbus appear.

Factory setting:

Setting range:

Factory setting:

Options:

Factory setting:

Setting range:

1

1...247

None

None, Odd, Even

5 Seconds

1...600 Seconds

7 Maintenance

7.1 Important notes on maintenance

Qualification of personnel

All maintenance work must be carried out only by well qualified and trained personnel authorised
by the owner. It is the owner’s responsibility to verify proper qualification of the personnel.

General note

The instructions and details for maintenance work must be followed and upheld.

Only the maintenance work described in this documentation may be carried out.

Only use original Condair spare parts to replace faulty parts.

Safety

Some maintenance work requires removal of the unit cover. Please note the following:

49

Danger of electrical shock! You may get in touch with live parts when the
unit is open. Touching live parts may cause severe injury or even lethal viola-

WARNING!

Prevention: Before carrying out any maintenance work set the Condair CP3 D out of opera

CAUTION!

Prevention:

tion.

tion as described in chapter 6.3 (switch off the unit, disconnect it from the mains
and stop the water supply) and secure the unit against inadvertent power-up.

The electronic components inside the unit are very sensitive to electrostatic
discharge.

Before carrying out any maintenance work to the electrical or electronic equipment of
the steam generator, appropriate measures must be taken to protect the respective

components against damage caused by electrostatic discharge (ESD protec­tion).

-

50

7.2 Maintenance list

To maintain operational safety the Condair CP3 D steam generator must be maintained at regular in­tervals. This is differentiated between the first maintenance after approx. 500 operating hours (I),
steam cylinder maintenance after the yellow LED lights (II) and annual maintenance (III).

Below you will find a summary of the work to be carried out for each of the three maintenance
stages.

Components Interval Work to be done

Cleanable steam cylinder Type D.. X X X Clean steam cylinder and electrodes and check for

Electrode plug X X X Check to see firmly positioned (remove cover and

I II III

damage, replace if necessary. Note: The steam cyl­inder must be replaced after a maximum operating
time of 5,000 h.

tighten fixing screw with hexagonal head socket
wrench).
Warning! This work should only be carried out by
an electrician.

Replacement steam cyl. type A.. X Remove and replace.

Drain pump X Remove, disassemble and clean, replace if neces-

sary.

Steam cylinder receptacle X Inspect, clean if necessary.

Inlet valve X Remove and clean filter insert, replace if neces-

sary.

Drain pipe and siphon X Inspect, clean if necessary (decalcify and rinse

out).

Steam installation X X Inspect steam and condensate hoses for cracks

and to see that they are correctly attached, replace
faulty hoses.

Water installation X X Inspect water hoses in the unit for cracks and to

see that they are correctly attached, replace faulty
hoses
Check supply pipe is tight, make tight if necessary.
Clean water filter, if available.

Electrical installation X X Check all cables in the unit are firmly positioned and

examine status of insulation.

7.3 Removing and installing parts for maintenance

7.3.1 Removal and installation of the steam cylinder

1 2

51

1. Use a screwdriver to undo the two screws fixing the front panel to the unit, then remove the
front panel.

2.

Units with steam hose connector in housing top: release the two hose clamps on the rubber
sleeve using a screwdriver, then detach the rubber sleeve from the connection in the unit cover
and from the steam outlet connection of the steam cylinder.

Units without steam hose connector in housing top (not shown): release the hose clamp
on the steam hose using a screwdriver, then detach the steam hose from the steam outlet con­nection of the steam cylinder.

3 4

3. Remove all plugs from the electrodes and from the level sensor.

4. Loosen the two screws of the steam cylinder fixing device by a few turns, then push the fixing
device upwards until it comes loose and remove it.

52

5

5. Carefully lift steam cylinder away from the cylinder receptacle, then remove it to the front.

CAUTION!

Put steam cylinder down carefully to avoid damage to the lower connection
piece!

Installation of the steam cylinder follows the reverse sequence. Observe the following:

– Before installing the steam cylinder in the unit, check the O-ring of the cylinder receptacle for

damage and replace if necessary.

– Moisten the O-ring of the cylinder receptacle with water (do not use grease or oil), then insert

steam cylinder into the receptacle and push it down to the stop.

– Attach the electrode plugs and the level sensor plug to the respective electrode and sensor con

nections according to the following table.

Steam cylinder type

Cable configuration

A363 / D363
A464 / D464

red

black

brown

Sensor
white

brown

red

black

A664 / D664
A674 / D674

black

red

brown

Sensor
white

-

– Fasten steam hose on the connector in the unit cover and on steam connector of the cylinder

with hose clamps.

CAUTION! A leaky steam hose can cause damage due to moisture inside the unit.

CAUTION!

The outlet connector of the steam cylinder is made of plastic. Do not overtighten
the hose clamp on the steam connector of the steam cylinder.

7.3.2 Disassembly and assembly of the cleanable steam cylinder type D...

53

1 3

2

4

1. Fasten electrode snap fastenings and push electrodes approx. 2 cm downwards into the steam
cylinder.

2. Release clamp clips of the cylinder cover and raise cover.

3. Remove carefully electrodes by lifting upwards.

4. Remove O-rings from the electrodes.
Note: Intact O-rings can be reused.

The assembly of the cleanable steam cylinder follows the reverse sequence. Observe the following:

– Before assembling the steam cylinder, check the O-ring in the steam cylinder cover and the

O-rings on the electrodes for damage, and replace if necessary. Make sure to relocate O-rings
correctly.

– Insert electrodes into steam cylinder cover and push them upwards until the snap fasteners engage.

– Place the cylinder cover (with mounted O-ring) in the correct position (align the two cams on the

steam cylinder body with the corresponding grooves in the cylinder cover) on the cylinder body
and secure cover with the fastening clips.

54

7.3.3 Removal and installation of the water cup and the water hoses

To improve accessibility for removing the water cup and the water hoses we recommend to remove
the steam cylinder first (see chapter 7.3.1).

1. Release hose clamps using pliers, then disconnect all hoses from the corresponding connectors
and remove the hoses.
Note: The hoses connected to the water cup may also be removed together with the water cup
(see illustration) and then disconnected from the connectors of the water cup outside the unit.

2.

Carefully pull fixing clip of the water cup to the front, then push water cup down from the hold­ing device and remove it to the front.

The installation of the water cup and the water hoses follows the reverse sequence. Before fixing
the water hoses to the connector using the hose clamps, align the hoses in a way that they are not
twisted.

7.3.4 Removal and installation of the drain pump

1

2

2

3

4

2

3

3

1

The steam cylinder does not need to be removed when removing the drain pump.

1. Detach electric cables (polarity of the cables must not be observed).

2. Release hose clamps and remove the hoses from the connectors.

55

3. Pull the drain pump off the holding device.

4. Separate the electric motor from the pump body: release the lock on the bayonet catch, then
counter-rotate the electric motor and the pump body.

The assembly and the installation of the drain pump follows the reverse sequence. Before as­sembling the pump, check O-ring for damage and replace if necessary. Then, place the O-ring on
the centering collar and moisten the O-ring with water.

7.3.5 Removal and installation of the inlet valve

The steam cylinder does not need to be removed when removing the inlet valve.

1. Detach electric cables (polarity of the cables must not be observed).

2. Release hose clamp and remove the hose from the connector.

3. Unlock union nut of the water pipe and remove water pipe.

4. Pull the inlet valve off the holding device.

The installation of the inlet valve follows the reverse sequence. The union nut of the water pipe
must be tightened by hand only.

56

7.4 Notes on cleaning the unit components

Unit component What to clean and how to clean

Steam cylinder cover
Steam cylinder body
Cylinder strainer

Heating electrodes • Immerse the heating electrodes (up to 2 cm below the

• Knock off or brush away any limescale as much as pos­sible (do not use a wire brush).
If the parts are heavily calcified, place them in an 8%
formic acid solution (observe safety notes in chap-
ter 7.5), until the limescale comes off.

• Finally wash parts in a lukewarm soap solution and rinse
well with tap water.

snap fastening) in a container with 8-percent formic acid
(observe safety notes in chapter 7.5). Allow the acid
to take effect until the limescale has dissolved.
Note: The heating elements do not have to be entirely
free from scale.

• Finally rinse the heating electrodes well with tap water
and let them dry.

On no account remove limescale from

CAUTION!

the heating electrodes using tools (screw­driver, scraper, etc.) or by striking. This
could damage the heating elements.

Water hoses • Remove any limescale by slightly knocking on the tubes

using a rubber hammer. Then, rinse the tubes well with
hot tap water.

Inlet valve

Strainer insert

• Remove strainer insert with pointed pliers. Use a brush
(do not use a wire brush) to remove any limescale.

• Wash strainer insert with a lukewarm soap solution,
then rinse well with tap water.

Let the inlet valve dry before reinstallation!

Unit component What to clean and how to clean

57

Drain pump

O-ring

pump wheel

Cylinder receptacle in the unit • Remove any limscale from the cylinder receptacle and its

Water cup • Remove any limscale from the water cup and its con-

• Use a brush to remove any limscale from the pump hous­ing and the pump wheel (do not use a wire brush).

• Then, wipe pump wheel with a damp cloth. Wash the
pump housing with a lukewarm soap solution and rinse
well with tap water.

connectors using a brush (do not use a wire brush).

• Wash the cylinder receptacle with a lukewarm soap
solution and rinse well with tap water.

nectors using a brush (do not use a wire brush).

• Wash the water cup with a lukewarm soap solution and
rinse well with tap water.

Interior of the unit
(water side only)

7.5 Notes on cleaning agents

Only use cleaning agents stated in the table above. The use of disinfectants is only permitted

if they do not leave any toxic residues. In any case the parts must be thoroughly rinsed with water
after cleaning.

Formic acid is indeed harmless to the skin, but it attacks the mucous membranes.
Therefore prevent your eyes and respiratory tracts from getting in touch with the acid

WARNING!

CAUTION!

It is mandatory to observe and comply with the information and instructions regarding cleaning
agents. Observe in particular: all information relating to the protection of personnel, environmental
protection and restrictions regarding usage.

and its vapours (wear goggles and work in a well ventilated room or outside).

Do not use any solvents, aromatized or halogenized hydrocarbons or other ag­gressive substances as they may cause damage to the components of the unit.

Wipe the interior of the unit with a damp cloth without
using any cleaning agent.

CAUTION!

Take care that the electrical connections and
the electronic components remain dry.

58

7.6 Resetting the maintenance indication

After completing maintenance work, the maintenance indication (yellow LED lights) must be reset
as follows:

Mainten ance

History Reset:Set

Cyl. A Reset:Set

XXXXXXX XXXXXXXXXXXXX

11.11.2 006 12.00.00

Esc Set

Cy l. A Reset

Ar e you sure?

Attenti on ! Reset
without cyl. Mainten.
is very dangerous!

Esc SetNo Yes

Select the maintenance menu:
Path: Main menu > User > Password entry: 8808 >

Select “Cyl. A Reset” in the maintenance menu, then press the <Set>
key.

The reset dialogue shows up in the display. Press the <Yes> key to reset
the maintenance counter.
Note: Press the <No> key if you wish to abort the reset procedure.

To return to the standard operating display press the <Esc> key several
times.

8 Malfunctions

Important! Most operational malfunctions are not caused by faulty equipment but rather by improper

installation or disregarding of planning guidelines. Therefore, a complete fault diagnosis always
involves a thorough examination of the entire system. Often, the steam hose connection has not
been properly executed, or the fault lies with the humidity control system.

8.1 Malfunction list

8.1.1 System faults

Warning Error Cause Remedy

LED Display LED Display

CP3 Card missing

(Test run possible)

–––

Warning
W1: CP3 D-Card Missing

CP3 Card missing

red

lights

Error
E1: CP-Card Missing

No CP3 Card installed on the control
board.

59

Install CP3 Card or start test run.

––– ––– red

lights

––– ––– red

lights

––– ––– red

lights

––– ––– red

lights

––– ––– red

lights

––– –––

Maximum heating time reached

––– ––– red

lights

Door of steam bath cabin open

––– ––– red

lights

CP3 Card is empty

Error
E2: CP-Card Empty

CP3 Card is defective

Error
E3: CP-Card Invalid

CP3 Card is incompatible

Error
E4: CP-Card incompat

Wrong hardware settings

Error
E9: Illegal Settings

Hardware fault

Error
E10: Flash R/W Fault

Error
E11: Clock R/W Fault

Error
E13: Max.Heating

Error
E14: Door Open

No data stored on the CP3 Card. Install new CP3 Card.

Invalid data stored on the CP3 Card. Install new CP3 Card.

The installed CP3 Card is not compatible with
the hardware of the unit or with the basic
settings of the control electronics.

False test run parameters. Let your Condair service technician adjust

Control board defective. Replace control board.

Backup battery on control board
discharged.

Maximum heating time is reached. Steam
generator was not switched off (manually
or by the timer).

Door of steam bath cabin has been open
too long, door switch has triggered.

No cable bridge installed (in case that no
door switch is connected).

Install correct CP3 Card. Let your Condair
service technician adjust the basic
settings.

the test run parameters (heating voltage,
Cylinder-No.).

Let have the backup battery be replaced.

Switch off steam generator when leaving
the steam bath cabin (with manual opera­tion only).
Check timer settings (set heating time must
be shorter than the set maximum heating
time).
Increase maximum heating time.

Close door of steam bath cabin. Check door
switch, replace if necessary.

Install cable bridge (see wiring diagram).

60

8.1.2 Unit faults

Warning Error Cause Remedy

LED Display LED Display

Maximum temperature

switch has triggered

red and

Warning

green

W20A: Temp.Fuse

flash

Max. filling level of

steam cylinder reached

–––

Warning
W21A: Cyl.Max.Level

Permissible filling time ex

ceeded (20 minutes)

–––

Warning
W22A: Max. Filltime

No electrode current for more

than 20 minutes

–––

Warning
W23A: No Current

Electrode current in relation to

the steam demand too high

–––

Warning
W24A: Over Current

-

Maximum temperature

switch has triggered

red

lights

Max. filling level of

steam cylinder reached but

red

lights

Permissible filling time ex­ceeded (more than 4 hours)

red

lights

No electrode current for more

red

lights

Electrode current in relation to

the steam demand too high

red

lights

Error
E20A: Temp.Fuse

no heating current

Error
E21A: Cyl.Max.&NoCurr

Error
E22A: Max. Filltime

than 4 hours

Error
E23A: No Current

Error
E24A: Over Current

Maximum temperature switch has trig­gered

Maximum temperature switch defective or
not connected.

Water conductivity too low (after initial
operation).

Water conductivity too low for type of
steam cylinder.

Phase failure heating voltage. Check service switch in the mains supply

Water supply obstructed/shut-off valve
closed/water pressure too low.

Inlet valve blocked or defective. Inspect strainer insert in the inlet valve, if

Excessive back pressure in the steam line
(steam line too long or kinked), causing
water loss via filling cup.

Leakage in the water system. Inspect water system and seal if necessary.

Phase failure heating voltage. Inspect/turn on service switch of the mains

Water supply obstructed/shut-off valve
closed/water pressure too low.

Inlet valve blocked or defective. Inspect strainer insert of the inlet valve, if

Excessive back pressure in the steam line
(steam line too long or kinked), causing
water loss via filling cup.

Leakage in the water system. Inspect water system and seal if necessary.

Humidity demand has decreased too fast. Automatic adaptation of the operating

Drain pump defective. Inspect drain pump, replace if necessary.

Drain in steam cylinder blocked. Clean/replace steam cylinder.

Water conductivity too high for this type of
steam cylinder.

Check temperature in the steam bath
cabin.

Check maximum temperature switch, re­place if necessary or correctly connect
maximum temperature switch.

Wait until the mineral content of the cylinder
has increased

Select correct steam cylinder type.

line and switch on if applicable. Check mains
fuse(s) and replace if applicable.

Inspect water supply (filter, water piping,
etc.), check/open shut-off valve, check water
pressure.

applicable clean strainer insert or replace
inlet valve.

Inspect steam installation.

supply line. Inspect the fuses of the mains
supply, replace if necessary.

Inspect water supply (filter, water piping,
etc.), check/open shut-off valve, check water
pressure.

applicable clean strainer insert or replace
inlet valve.

Inspect steam installation.

point.

Select correct steam cylinder type.

Warning Error Cause Remedy

LED Display LED Display

Max. admissible electrode

current exceeded

–––

Warning
W25A: Excess Current

––– ––– red

Max. admissible electrode

current exceeded

red

Error

lights

E25A: Excess Current

Main contactor jammed

Error

lights

E26A: Req.Off Current

Drain pump defective. Inspect drain pump, replace if necessary.

Drain in steam cylinder blocked. Clean/replace steam cylinder.

Water conductivity too high for this type of
steam cylinder.

Main contactor jammed in activated posi­tion.

Select correct steam cylinder type.

Inspect main contactor, replace if necessary.

61

Foam detection Foam detection (4 automatic

–––

Warning
W27A: Foam

Steam cylinder needs service Service interval for

yellow

yellow

Warning

lights

W28A: Cyl. Maintenance

Steam cylinder needs service Max. operating hours of the

Warning

lights

W29A: Cyl. Maintenance

Temperature sensor signal

–––

–––

missing

Warning
W32A: Temp.Sensor def.

Unit locked via Modbus

Warning
W34A: Modbus disable

drainings within 24 hours)

red

Error

lights

E27A: Foam

steam cylinder exceeded

red and

red and

Error

yellow

E28A: Cyl. Maintenance

flash

steam cylinder reached

Error

yellow

E29A: Cyl. Maintenance

flash

Temperature sensor signal

missing for more than 1 minute

red

Fehler

lights

E32A: Temp.Sensor def.

––– Module A (B) locked because the corre-

Foaming in steam cylinder. Drain steam cylinder via drain key (sev-

Mineral deposits and/or electrodes spent. Steam cylinder Type A: replace

Maximum operating hours of the steam
cylinder reached.

No temperature signal present at signal
input.

sponding Modbus register is deactivated.

eral times, if necessary). Check quality of
the supply water.

Steam cylinder Type D: clean

Important: After replacement or cleaning of
the steam cylinder, reset the maintenance
counter (see chapter 7.6).

Steam cylinder Type A: replace
Steam cylinder Type D: clean

Important: After replacement or cleaning of
the steam cylinder, reset the maintenance
counter (see chapter 7.6).

Check temperature sensor, replace if neces­sary. Inspect wiring.

Activate the corresponding Modbus
register.

––– ––– red

Standby draining of

steam cylinder active

–––

Warning
W36A: Standby Drain

Forced draining of

steam cylinder active

–––

Warning
E37A: Forced Drain

lights

––– ––– Automatic standby draining of steam

––– ––– Forced draining of steam cylinder active. No measures must be taken.

Modbus Timeout (5 s)

Error
E35A: Modbus Timeout

No actual demand or humidity signal
received via Modbus.

cylinder active.

Send actual demand or humidity signal.

No measures must be taken.

62

8.2 Notes on fault elimination

For the elimination of faults set the steam generator out of operation as described
in chapter 6.3, separate the unit from the mains and secure it against inadvert-

WARNING!

The elimination of faults must be carried out by qualified and well trained professionals only.
Malfunctions relating to the electrical installation (e.g. replacement of fuses) must be repaired by
authorized personnel or by your Condair representative’s service technician only.

Repair work and the replacement of faulty components must be carried out by your Condair repre­sentative’s service technician only!

ent power-up.

8.3 Resetting the error indication (red LED lights)

To reset the error indication:

Disconnect the steam generator from the mains. Wait approx. 5 seconds, then reconnect the
unit to the mains.

Note: If the fault has not been eliminated, the error indication reappears after a short while.

9 Taking out of service/Disposal

9.1 Taking out of service

If the Condair CP3 D must be replaced or if the humidification system is not needed any more,
proceed as follows:

1. Take the unit out of operation as described in chapter 6.3.

2. Have the unit (and all other system components, if necessary) unmounted by a qualified service
technician.

9.2 Disposal/Recycling

Dismantled components must be disposed of and/or recycled according to the local regulations. In
case of doubt please contact your Condair supplier.

63

64

10 Product specifications

10.1 Technical data

Heating voltage 230V/1~/50..60Hz

Unit model: CP3 D...230V1
Steam capacity in kg/h:
Max. power consumption in kW

Heating voltage 230V/3~/50..60Hz

Unit model: CP3 D...230V3
Steam capacity in kg/h:
Max. power consumption in kW

Heating voltage 400V/3~/50..60Hz

Unit model: CP3 D...400V3
Steam capacity in kg/h:
Max. power consumption in kW

Control voltage 1 x 230V / 50-60 Hz
Operating conditions

Admissible water pressure 1...10 bar
Water quality Untreated drinking water with a conductivity of 125...1250 uS/cm
Admissible water temperature 1...40 °C
Admissible ambient temperature 1...40 °C
Admissible ambient humidity max. 75% rh
Type of protection IP 20
Conformity CE, VDE, GOST

Dimensions/Weights

Housing (WxHxD) in mm

Net weight in kg
Operating weight in kg

Equipment/options

Steam cylinder type
(Type A.. standard equipment)

Steam hose connector
SC60 1
SC80 1 1
Cable gland
Remote operating and fault indication
Terminals heating voltage

Mounting profile
Internal control voltage with terminals

Transformer 400V/230V

Accessories

Steam distribution pipe

Steam hose / meter

Condensate hose / meter

456x620x280 1 1
559x667x350 1 1

5...8

5...8

3.8...6.0

5...8 9...15 16...21 22...30

5...8 9...15 16...21 22...30

3.8...6.0 6.8...11.3 12.0...15.8 16.5...22.5

5...8 9...15 16...25 26...45

5...8 9...15 16...25 26...45

3.8...6.0 6.8...11.3 12.0...18.8 19.5...33.8

21 21 28 28
26 32 32 65

A3.../D3... 1
A4.../D4... 1
A6.../D6... 1 1

SC22 1

PG 1 1 1 1
RFI 1 1 1 1

M-THV 1 1

L-THV 1 1

MP 1 1 1 1

M-CVI 1 1

L-CVI 1 1

M-Trafo 1 1

L-Trafo 1 1

W22 1
W30 1

W45 1 1
DS22 1
DS60 1
DS80 1 1
KS10 1 1 1 1

10.2 Unit dimensions

456

ø42.5

178

177

73

28

105

71

28

93

34

40

280

150

228

51

180 90

500

620

Condair CP3 D 5...15 (dimensions in mm)

65

66

559

228

ø42.5

667

40

28

105

71

175

34

93

350

73

177

284

51

216 144

545

32

Condair CP3 D 16...45 (Dimensions in mm)
