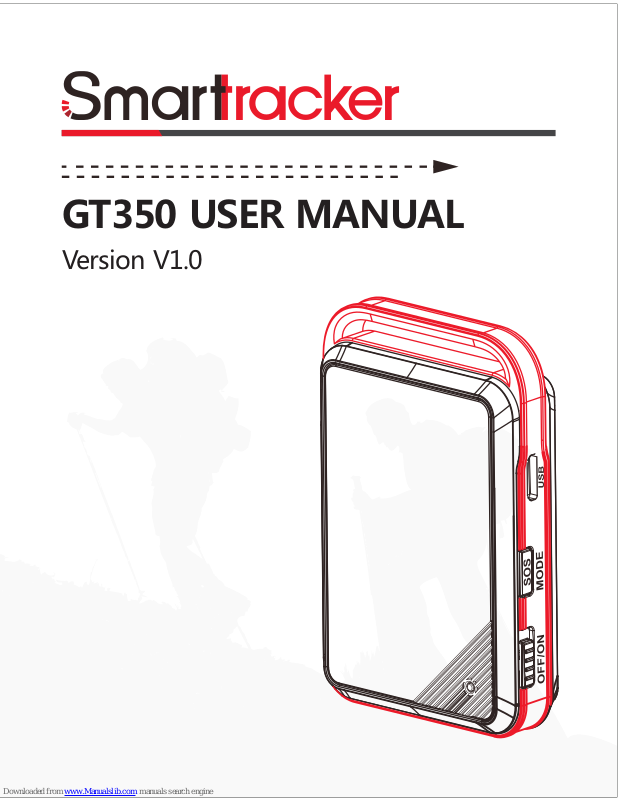

GT350 USER MANUAL
Version V1.0
Battery
Slide switch
Mode
USB slot
Charging cable User manual
User ma
n
ua
l
Key Description
Product Accessories
Above pictures are for reference purposes only.
Note: You can use smart phone charger (Micro USB
5pin) to charge the device (5V, current >800mA).
Slide switch
Solid
Slow flashing
Quick flashing
Quck flash
2 times
Charging
Fully charged
Arm
Disarm
/
Slow flashing (every 3s),
off after 10s.
Quick flashing (every 0.5s),
off after 10s.
Quck flash 2 times (every 0.5s),
return normal.
MODE key
Tracking mode: Long slide to turn ON/OFF
device, short slide to arm/disarm (activate
after 20s)
Power saving mode: Long slide to turn ON
device, short slide null.
Tracking mode: Long press 3 seconds for
SOS, short press to activate LED current
status.
Power saving mode: Long press 3 seconds
for SOS, short press to upload ONE GPS
position to the server.
LED Display Definition
Status
Display Status Display details
Definition
4.1 Open back cover, insert SIM card and turn on
device.
Step 1: Open back cover:
Step 2: Open SIM card lock and lock the SIM card in:
Quick Features Guide
4.2 Set SOS number
4.3 Working mode description:
Use your APP, GPS tracking platform or SMS to set
SOS number (SMS only valid at tracking mode), SMS
command:
Working mode can be set by APP, Tracking platform
or SMS command.
1, Power saving mode is Default, Send one GPS
location every 60 minute and then go back to sleep.
SMS command format:
Description: 2 means Power saving mode, T means
time interval; (interval range: 10-7200 )
Example: WORKMODE,2,30# means upload one
GPS position every 30 minutes.
WORKMODE,2,T#
MINUTES
1, Add SOS number:
2, Delete subjected sequence of SOS number:
Example:
3, Query SOS number: SOS#
Respond example:
SOS,A, number 1, number 2,
number 3#
SOS,D,number sequence 1, number sequence 2,
number sequence 3#
SOS,D,1,2,3#
SOS1: 12352***, SOS2: 132532***,
SOS3:135323***
2, Tracking mode: GSM will stay active at all time,
GPS will sleep when the device is static, when
vibration is detected upload GPS data in preset time
interval.
SMS command format:
Description: 1 means Tracking mode, T means time
interval; (interval range: 10-1800 )
Example: WORKMODE,1,30# means upload one
GPS position every 30 seconds.
WORKMODE,1,T#
SECONDS
In tracking mode, there are several alerts as below,
they can be set through APP or tracking platform:
Note: in power saving mode, SMS command will
only become effective when device wakes up.
Vibration alert
Over-speed alert
SOS emergency
alert
Battery low alert
In arm mode, when vibration is detected,
an alert will be pushed to server.
When speed exceeds the preset value
sends an alert.
Long press SOS button for 3 seconds to
send SOS alert.
When battery is running low, reminder for
recharge.
Type
Description
TF card is supported to save more GPS data.
Note: Alert message will be pushed to APP as
default, other type of notification can be set in
the APP.
4.4 Remote Voice Monitor: Use the SOS number to
call the device, device will pick up automatically
to listen in the surroundings of the device.
5.1 Please contact your supplier for login details of
tracking platform.
4.5 TF Card (Optional)
GPS blind-zone
alert
Geo-zone alert
When device enters into GPS blind-zone
for more than 1 minute sends an alert.
When device enters or exit the preset
geo-zone sends an alert.
Terminal Application
5.2 Please contact your supplier to download APP
for both iOS and Android.
Important Notice
SIM should be compatible with GSM network (2G),
and active data for GPRS.
Remote voice monitor function should active Caller
Identification service.
In order to receive alert message, please activate the
alert function of the device and set SOS number.
When device is indoor or sheltered from upper
objects, please move to open sky area for receiving
GPS signal.
LBS (location based service) accuracy depends largely
on the numbers of cell service towers in the vicinity,
the more cell towers near by, the more accurate the
location.
6.1 SIM card
Please use ONLY battery that is from the original
manufacturer, otherwise warranty service will become
invalid. The dealer and manufacturer will not be liable
to any damages that is caused to/by the device by
using accessories purchased from third parties.
6.2 Battery
1. The warranty is valid only when the warranty card is
properly completed, and upon presentation of the proof
of purchase consisting of original invoice indicating the
date of purchase, model and serial No.of the product. We
reserve the right to refuse warranty if this information
has been removed or changed after the original purchase
of the product from the dealer.
2. Our obligations are limited to repair of the defect or
replacement the defective part or at its discretion
replacement of the product itself.
Warranty instructions and service
Date Serviced by
Product Model
IMEI Number
Fault
Descriptions
Comments
3. Warranty repairs must be carried out by our
Authorized Service Centre. Warranty cover will be void,
even if a repair has been attempted by any unauthorized
service centre.
4. Repair or replacement under the terms of this warranty
does not provide right to extension or renewal of the
warranty period.
5. The warranty is not applicable to cases other than
defects in material, design and workmanship.
Maintenance Record
