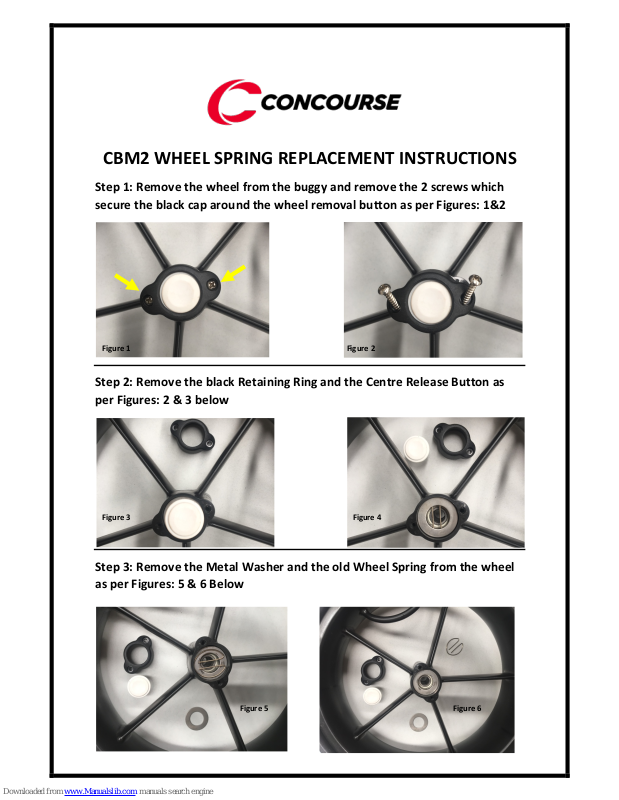

CBM2 WHEEL SPRING REPLACEMENT INSTRUCTIONS

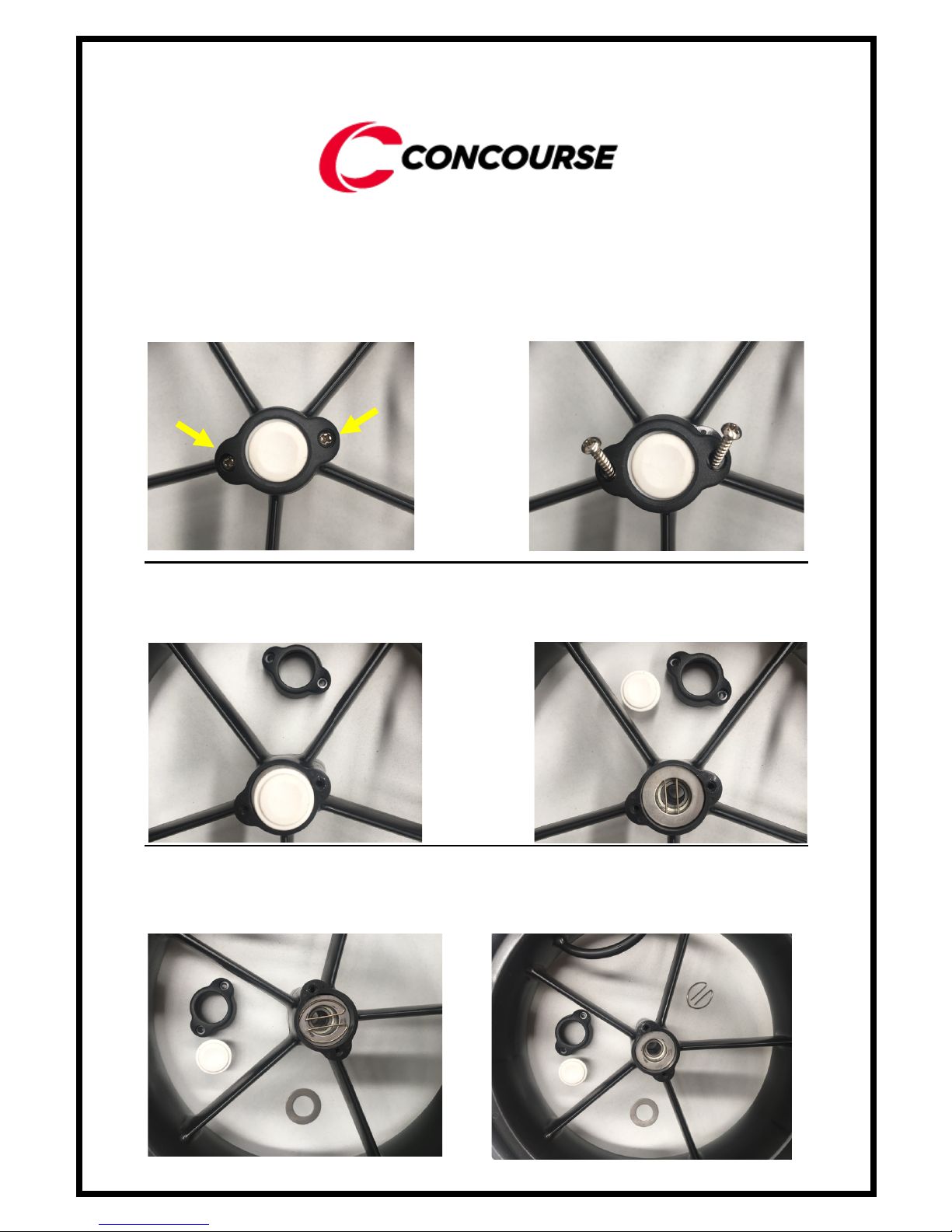

Step 1: Remove the wheel from the buggy and remove the 2 screws which
secure the black cap around the wheel removal button as per Figures: 1&2
Step 2: Remove the black Retaining Ring and the Centre Release Button as
per Figures: 2 & 3 below
Step 3: Remove the Metal Washer and the old Wheel Spring from the wheel
as per Figures: 5 & 6 Below
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Page 2

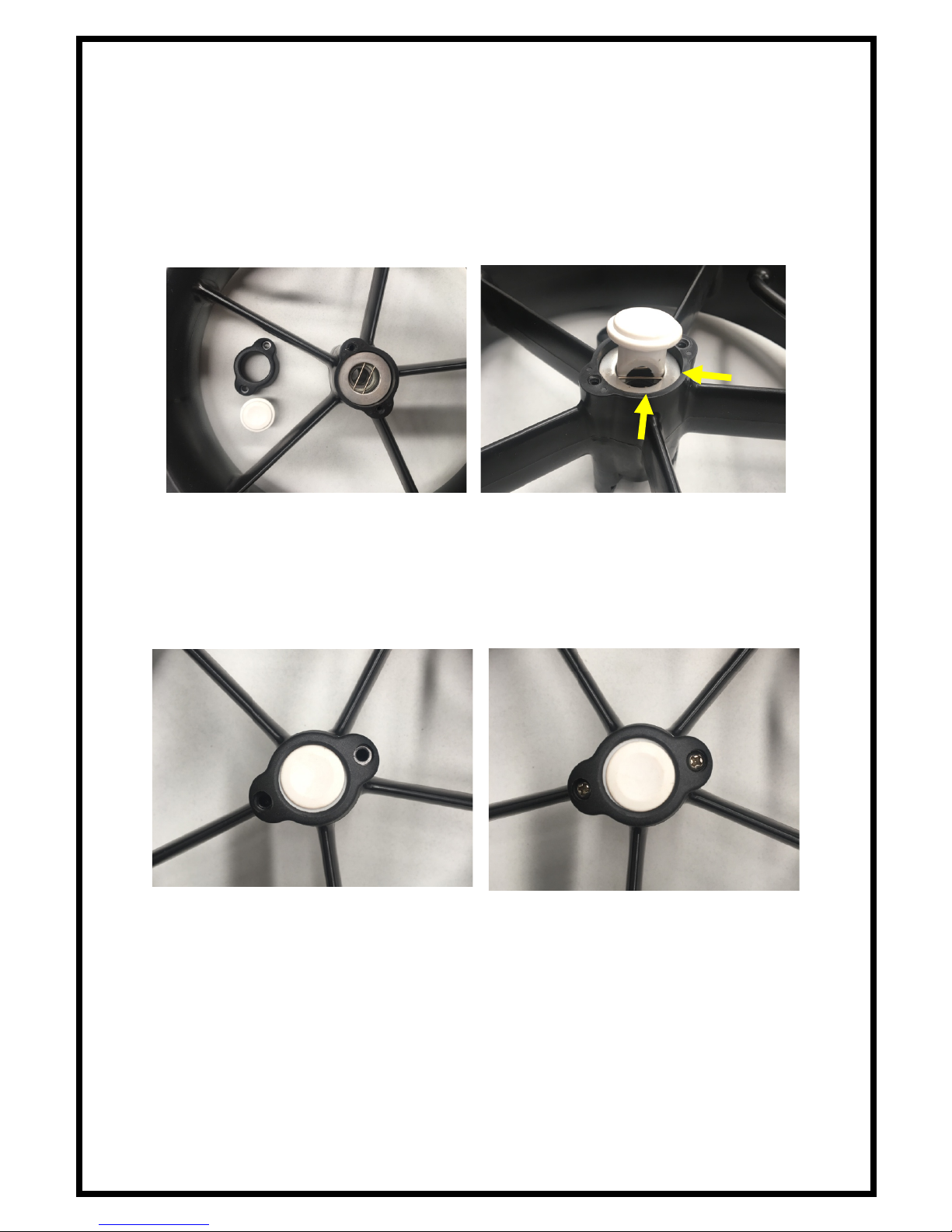

Step 4 : Fit the new Wheel Spring recieved, Metal Washer and new Centre
Release Button as per Figures: 7 & 8 below.
Note: Please take care that the pointy end of the Centre Release Button fits
in between the two sections of the Wheel Spring as indicated by arrows on
Figure No 8 below.
________________________________________________________________
Step 5: Refit black retaining ring and then refit and tighten screws as per
figures: 9 & 10 below
Note: Please don’t overtighten securing screws.
Figure 7
Figure 8
Figure 9
Figure 10
