Concept Pro VXH264D-16 User Manual

Download

Page 1

HOLD

. ZOOM OUT

FF .

ZOOM

NEAR FAR CLOSE OPEN

FOCUS

IRIS

DISPLAY

SEQ

PANIC

ZOOM LOCK ARCHIVE

PTZ

SETUP

RETURN ENTER

1 2 3 4 5 6 7

8 9 10

PWR REC NET

H.264

16 Channel Digital Recording System

User Manual

V X H 2 6 4 D - 1 6

Page 2

CONTENTS

Before installing 1 Key features 2 Front panel description 3 Rear panel description 4 Getting started 5

Connect and switch on 6 Configuring the live display 7 Multi-screen mode 7 Choosing channels 7 Digital zoom 8 Log 8 Playback 9 Search 9 Event Search 11 Search by POS Event 12

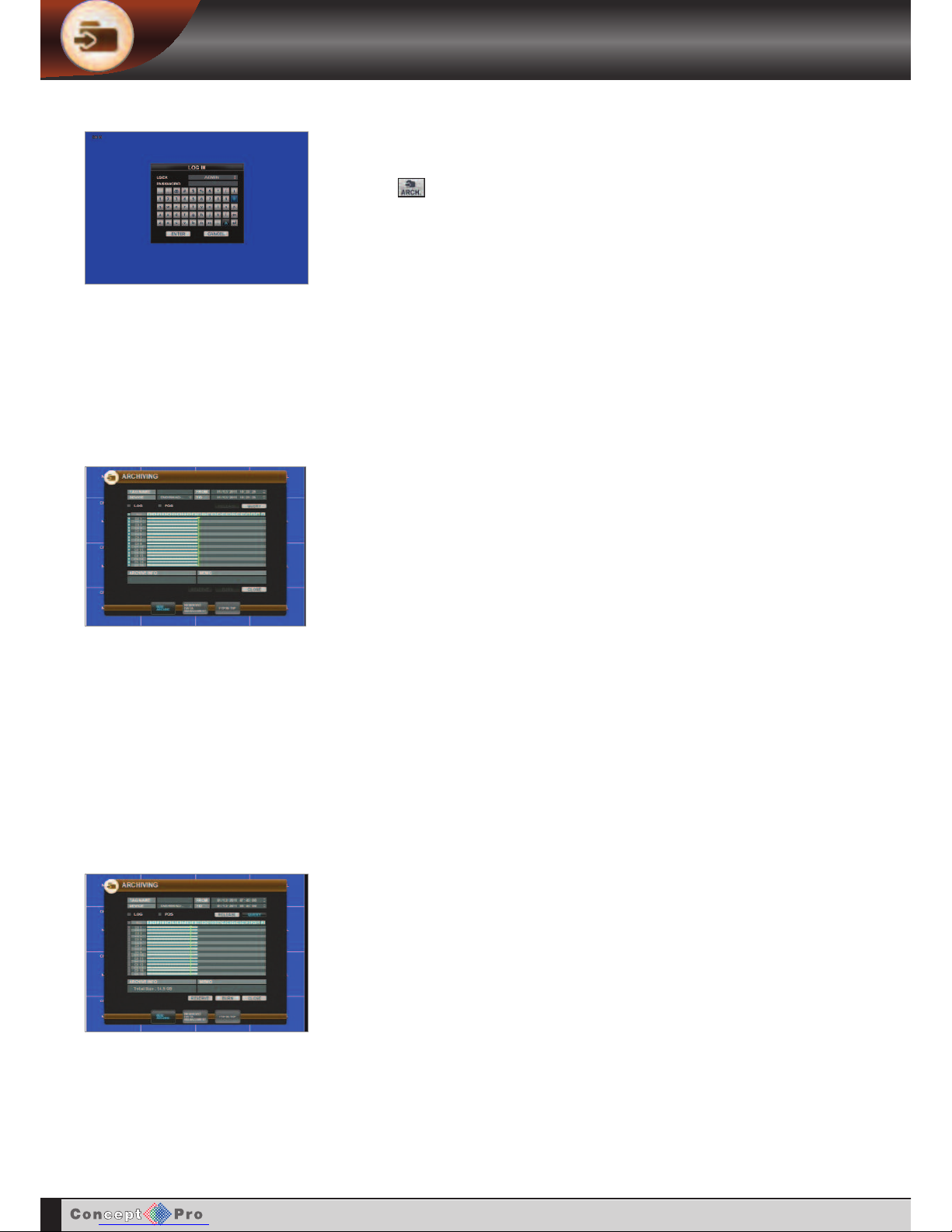

Archiving 13

Telemetry Control 15 Key lock function 15 Panic recording 15 Sequence mode 15 Shutdown 15 Quick Menu 16 Configuring the VXH264D – System Setup 17

Camera 17

Audio 18

Colour Setup 18 PTZ Setup 18 Motion Sensor 19 Area Setup 19

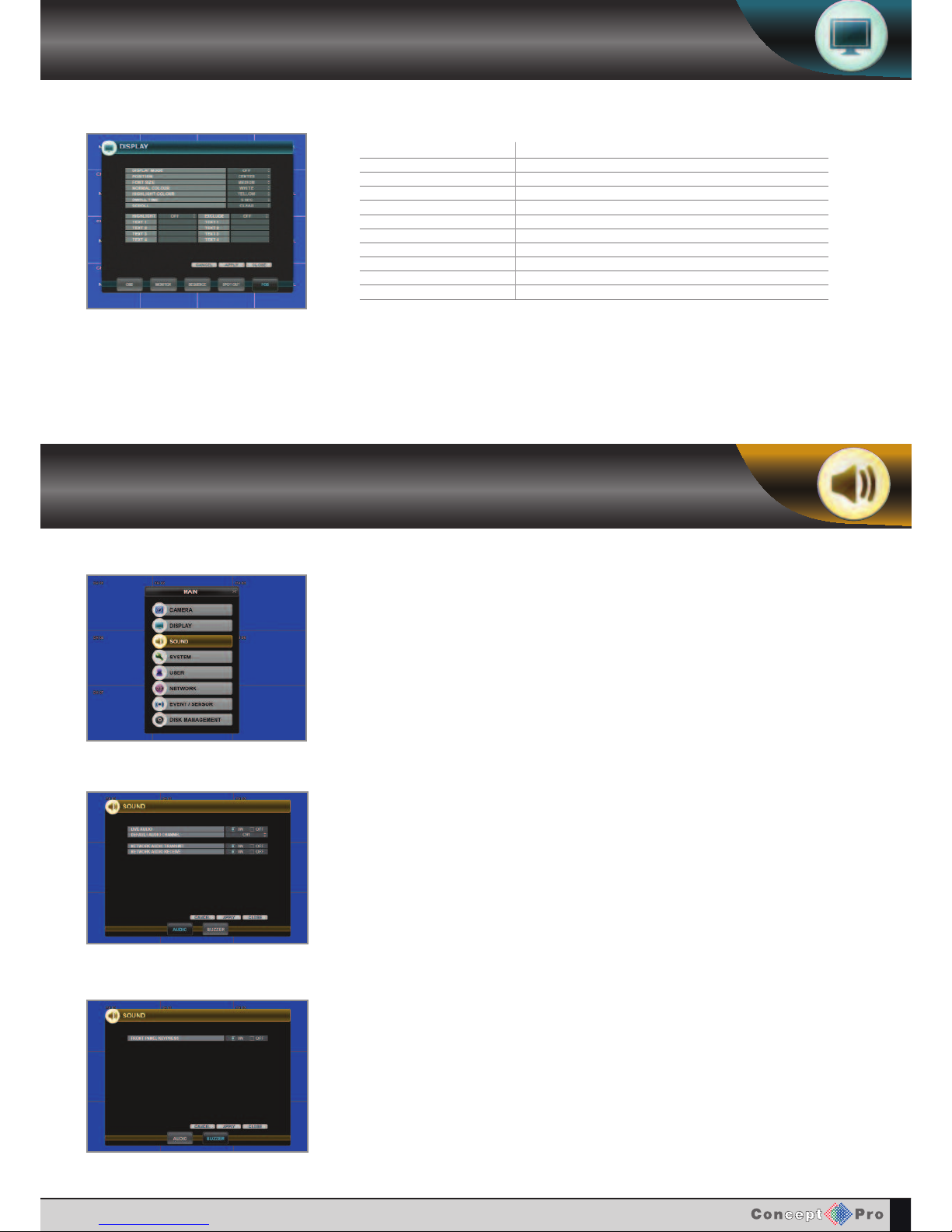

Display

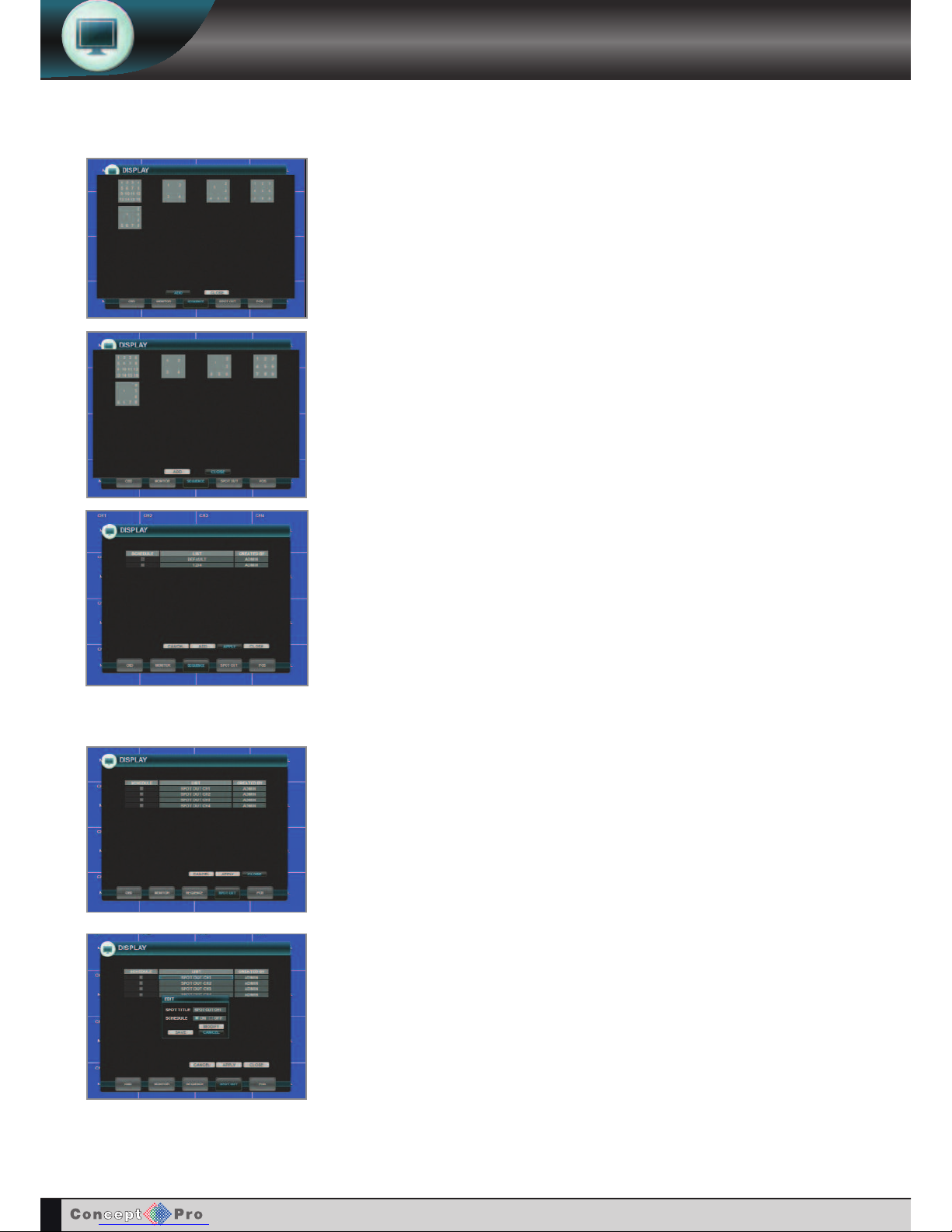

OSD 21 Monitor 21 Sequence 22 Spot Out 23 POS 24

Sound 24

Audio 24

Buzzer 24

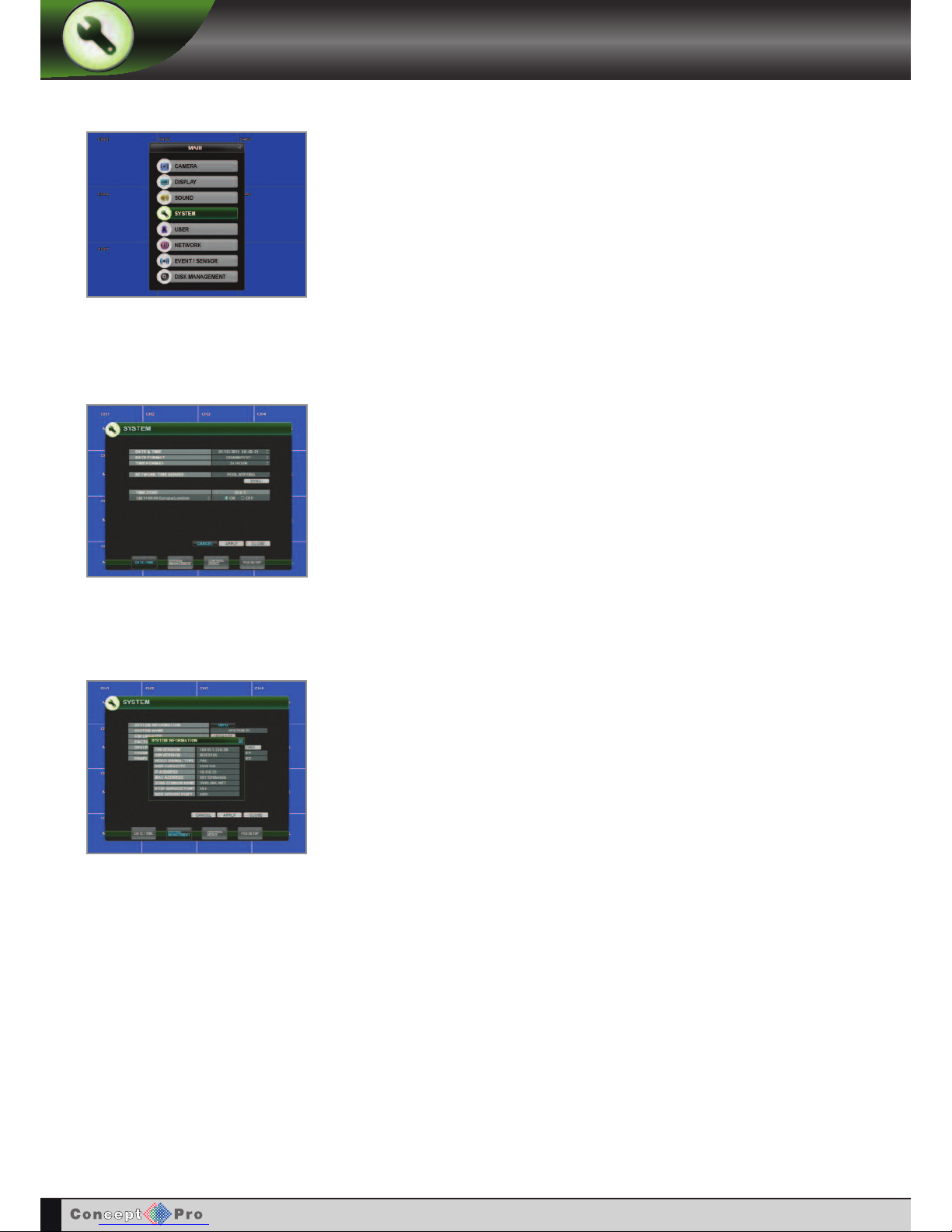

System 25

Date / Time 25

System Management 25 Control Device 26 POS Setup 26

User 27

Management 27

Authority 28 Log-out 28

Network 29

IP Setup 29

DDNS 29 E-mail 29

Page 3

CONTENTS

Event / Sensor 30

HDD Event 30

Alarm Input 30 Alarm Out 30 Buzzer Out 31 Email Noti 31 PTZ Preset 31

Disk Manage 32

Recording 32

Continuous / Motion Setup 33

Size / FPS / Quality 33

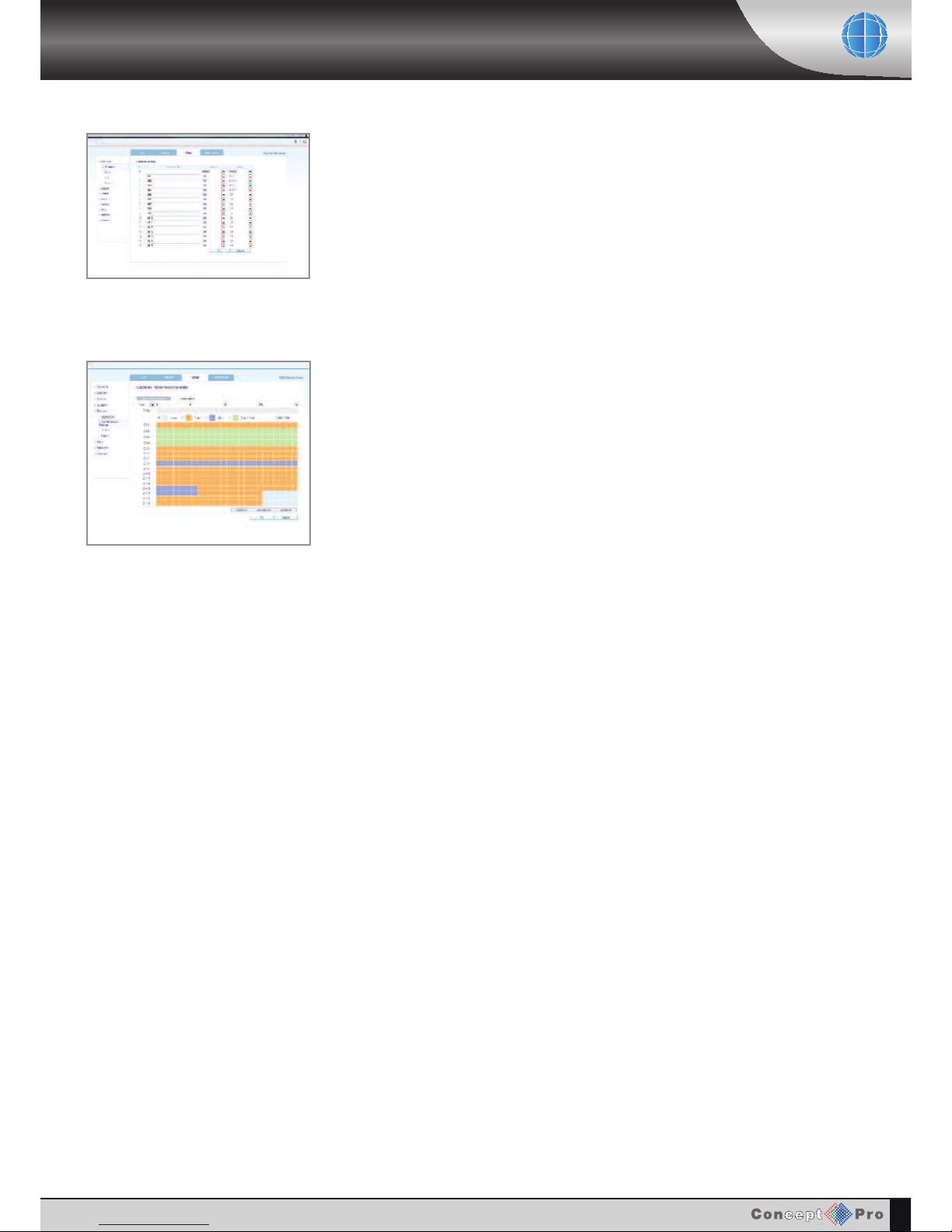

Schedule 34

Alarm setup 36

Panic setup 36

Network Streaming 36

Connecting to the VXH264D remotely 37

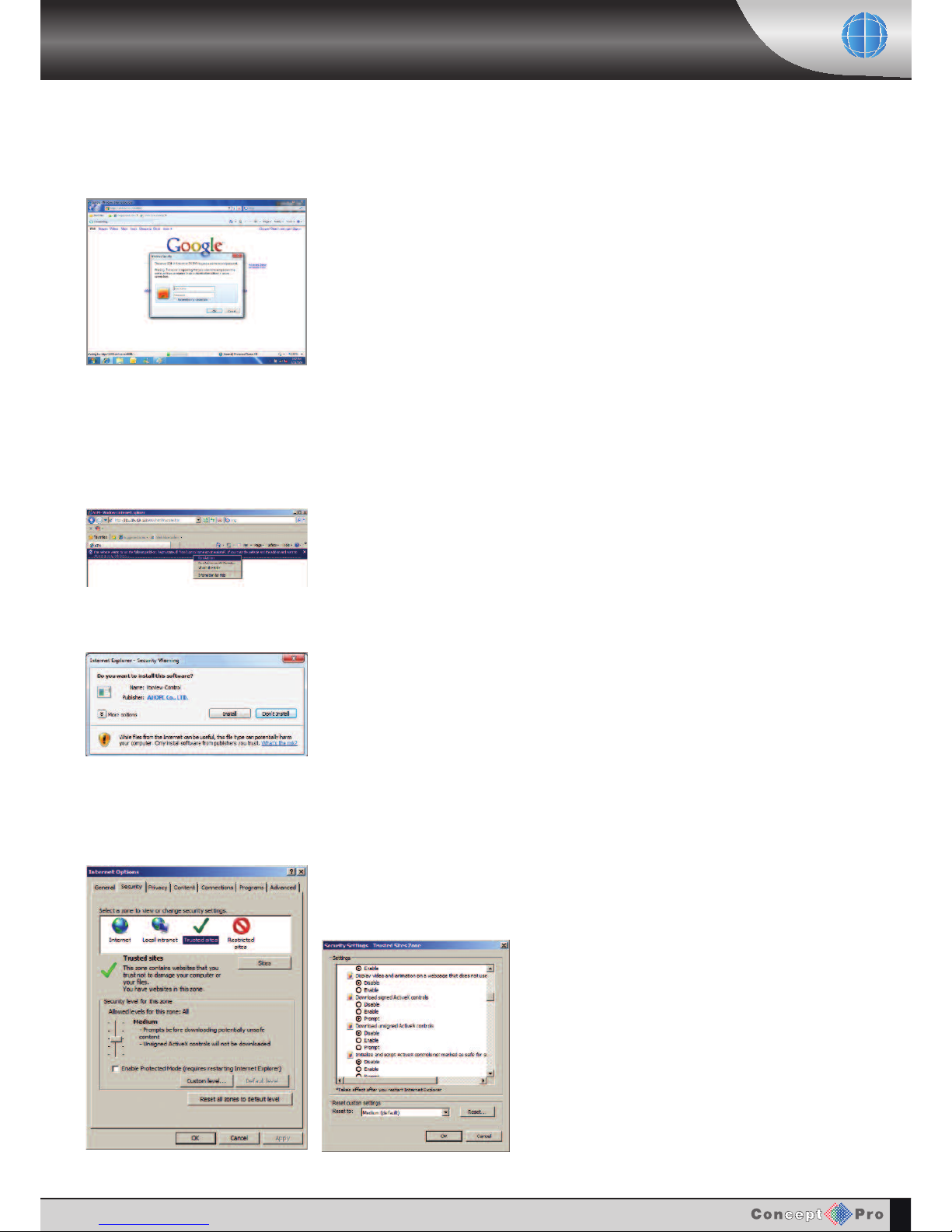

Connect using Internet Explorer 37

How to connect 37

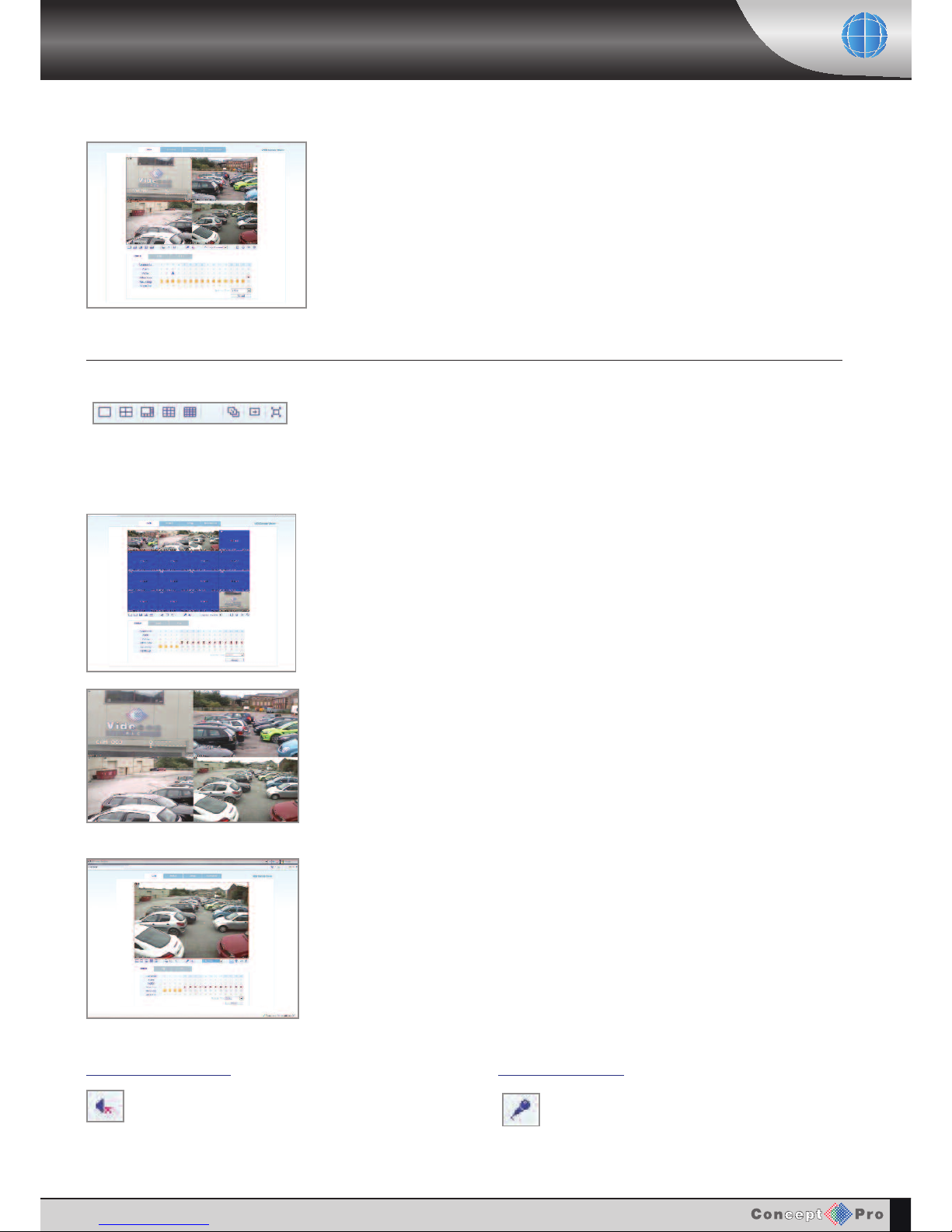

Remote client controls 39 Using the remote client 40

Live display modes 40 Audio monitoring 40 Audio talkback 40 Saving to AVI file 41 Status 41 Log 41 PTZ 42 Remote client playback controls 43 Controlling playback 44 Audio monitoring 44 Backup 45 Search by event 45 Print an image 45 Remote VXH264D setup 46 Entering setup 46 Loading and saving 46

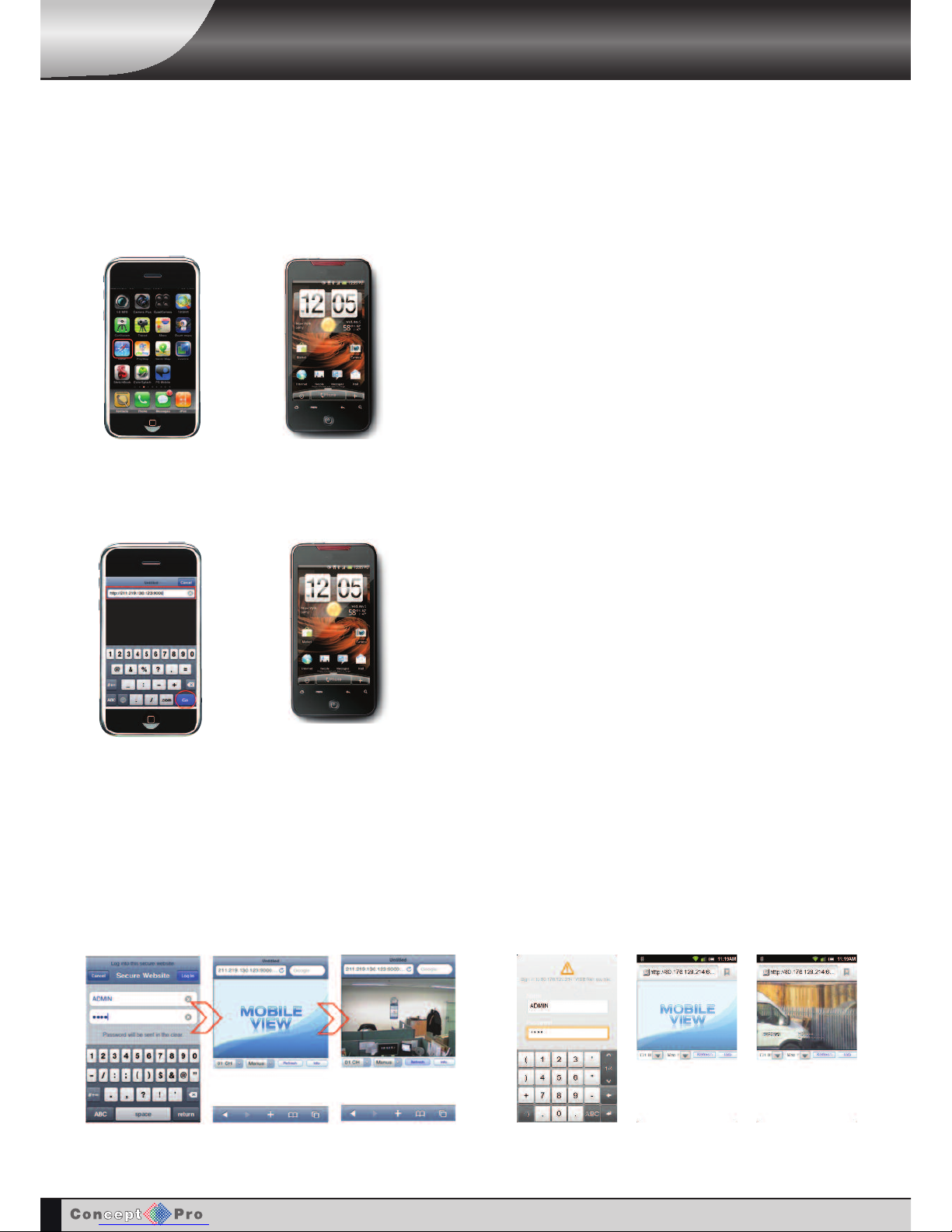

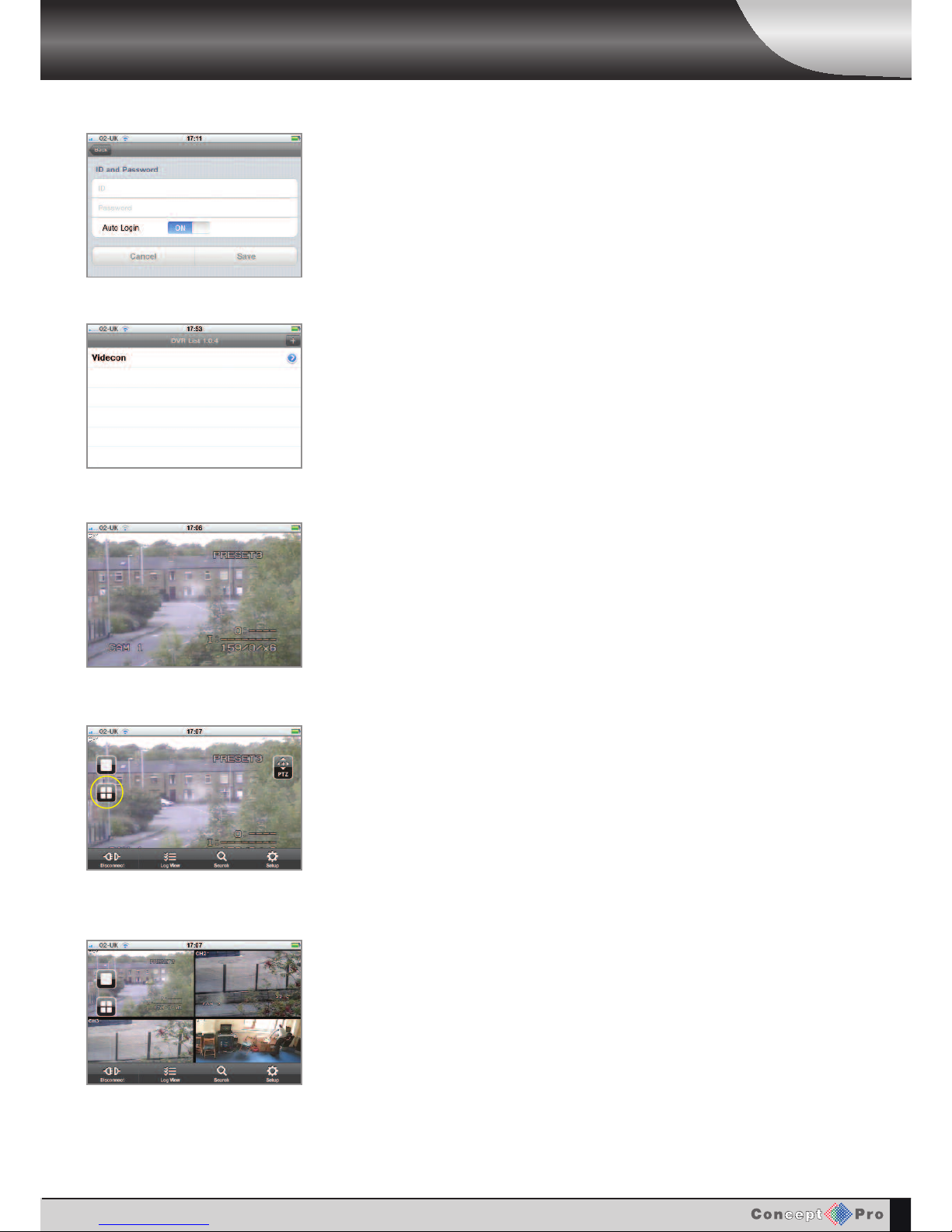

VXH264D Mobile APP 47 VXH264D Smart Phone Remote Viewing 49 Appendix A: The Archive Set 50 Backup player 50

Controls 51

Appendix B: Configuring a Netgear DG834 router for use with the VXH264D 52 Appendix C: Connecting external devices 55 Appendix D: Specifications 56

Page 4

BEFORE INSTALLING

BE FO RE I NS TA LL IN G

• Installation should be carried out only by qualified personnel and in accordance with electrical

regulations in force.

• The DVR must be placed on a stable surface or mounted in an approved cabinet. Adequate

ventilation must be provided, taking particular care not to block any of the air vents on the DVR.

• Adequate protection against lightning strikes and power surges must be installed to prevent

damage to the DVR.

• Any safety warnings on the DVR and in these instructions must be adhered to.

• If cleaning is necessary, shutdown the DVR and disconnect the power source first. Use a soft dry

cloth only – never use an abrasive cleaner.

• Do not attempt to service or repair the DVR as opening or removing covers may expose

dangerous voltages or other hazards. Refer all servicing to qualified service personnel.

Page 5

KEY FEATURES

ENHANCED GRAPHICAL USER INTERFACE (GUI)

The VXH264D menu structure and on-screen display is presented in a simple to use and logical GUI format.

ENHANCED RECORDING

Any operation performed on the VXH264D will not affect the recording including local playback, local set-up, multi-user remote viewing and playback, remote setup and archiving.

TWO-WAY AUDIO

4 audio inputs are supported which can be assigned

to any video channel. Live and re

corded audio can be monitored remotely over the internet and remote audio transmission for PA broadcast on-site is supported. The viewer can hear the audio from the camera they are viewing on full-screen.

REMOTE CONNECTION

Web connection is provided using a standard browser e.g. connection for up to 4 VXH264D units in one session. Depending on the user level, full cont

l of the VXH264D is available over the internet as well as the ability to remotely configure the

VXH264D.

The VXH264D allows remote log-on users to see the current status of the recorder by showing:

“C” continuous, “M” Motion, “A” Alarm, “R” Relay out, “P” Panic.

ARCHIVE

Displays the archive menu (page 13)

PTZ

Selects PTZ mode in live display (page 15)

SETUP

Displays the setup menus (page 17)

Displays the search menu (page 9)

SYSTEM CONTROL KEYS

Page 7

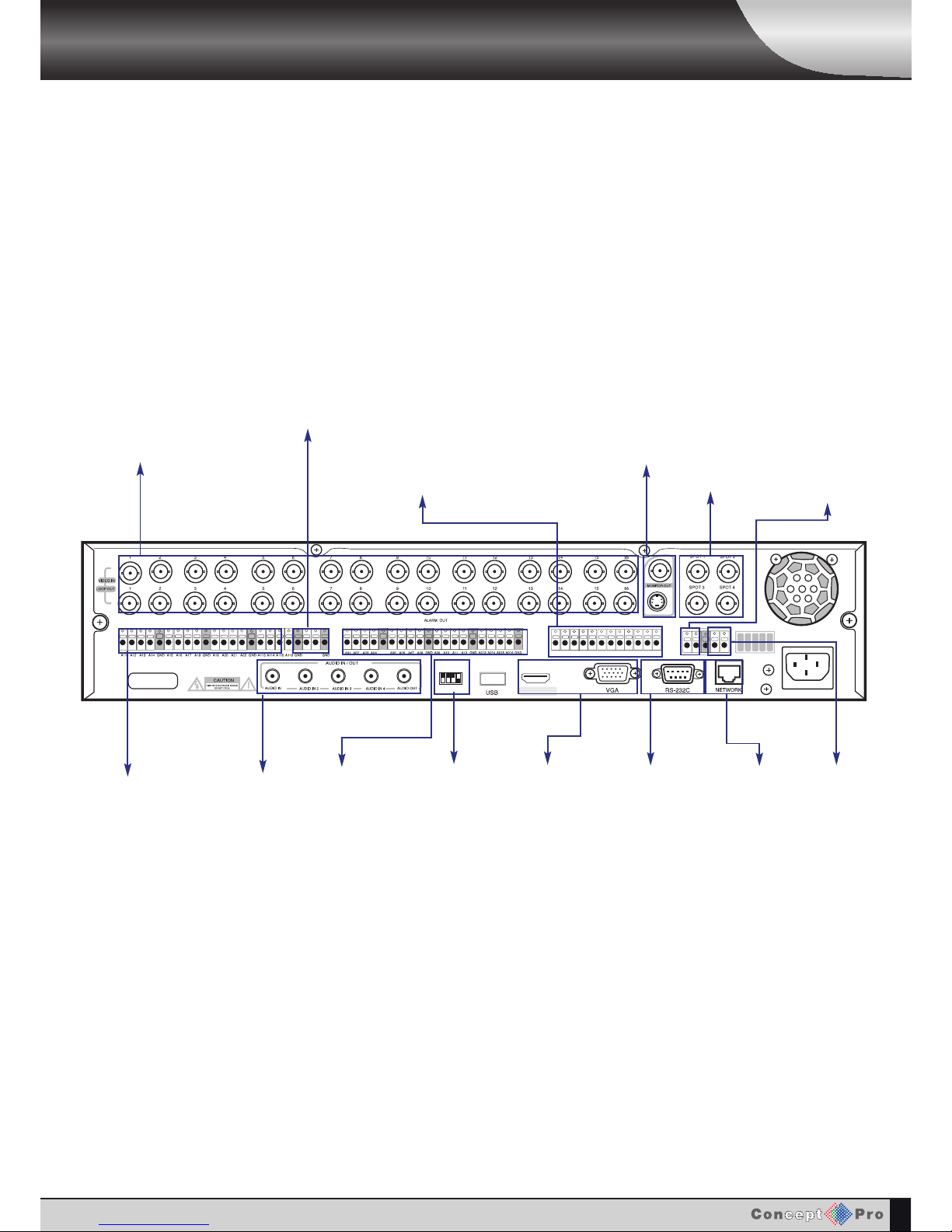

REAR PANEL DESCRIPTION

HD MONITOR

PAL

NTSC

VGA

ALARM IN + ARI / PANIC

e-SATA

ARI PANIC

NO COM NC NO COM NC NO COM NC NO COM NC

485 +

485 -

GND

485 +

485 -

100-240V AC, 50/60HZ

CAMERA INPUTS and LOOP OUTPUTS

Connect up to 16 camera inputs

Loop outputs can be used for connection to other equipment

COMPOSITE AND S-VIDEO

MAIN MONITOR CONNECTIONS

Monitor Outputs to connect o a

monitor. Both the COMPOSITE

and S-VIDEO outputs can be

used simultaneously

SPOT MONITOR OUTPUTS

Up to 4 spot monitors can be c

onnected as

necessary

AUDIO INPUTS & OUTPUTS

Up to 4 audio inputs and one audio output can be connected as necessary

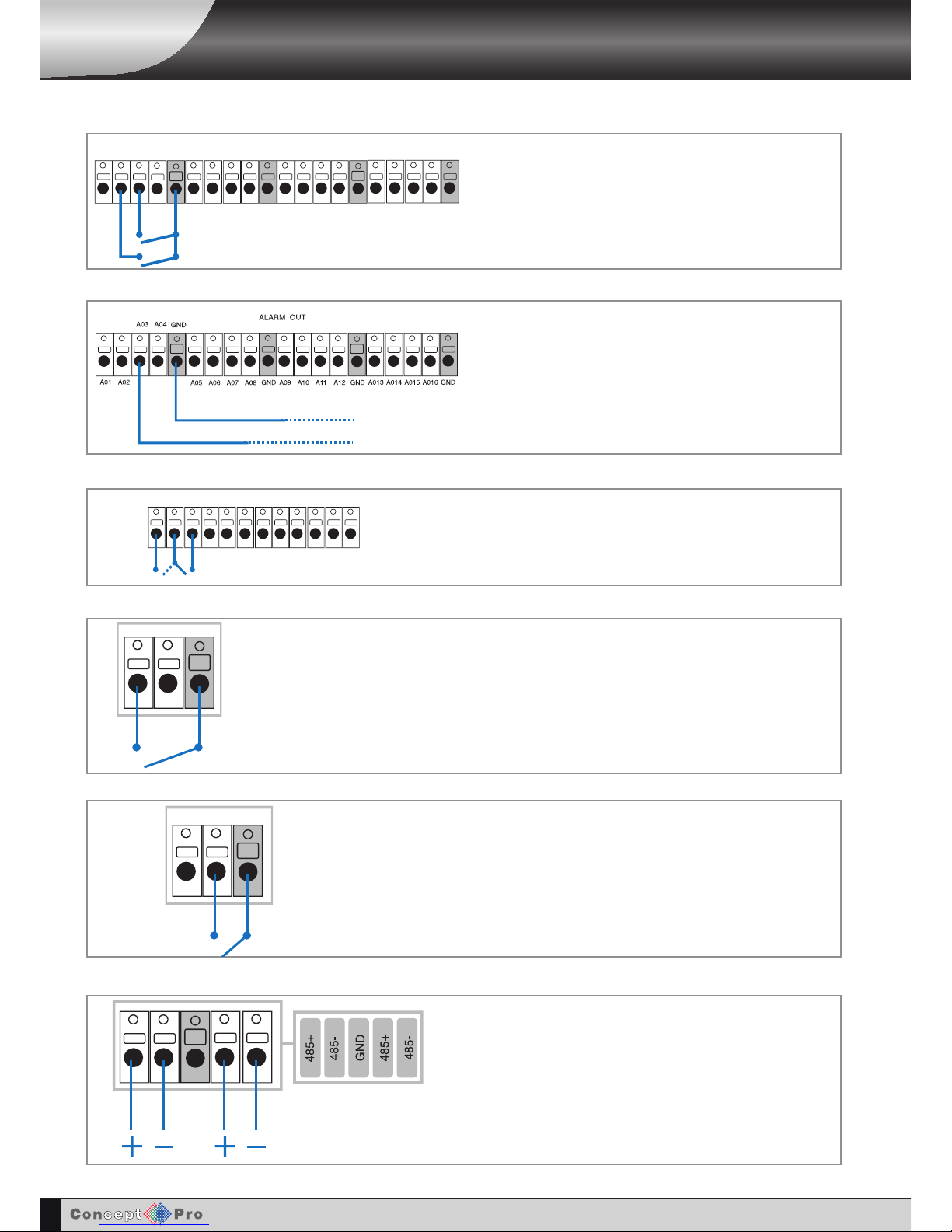

ALARM INPUTS

Up to 16 alarm inputs can be connected and configured as high or low inputs with common ground

ALARM OUTPUTS

Up to 16 alarm outputs can be connected and configured as high or low outputs with common ground

DIP SWITCH

Select the monitor output by changing the DIP SWITCHES. Please note: This w

ill only take effect when the DVR is rebooted.

HDMI / VGA

HDMI/VGA main monitor connection to a PC monitor or HDMI screen.

SERIAL PORT

RS232 Serial Port is not used. It is for factory use only

RELAY OUT

Up to 4 NO - NC zero voltage connecions can be made

RS485

Connection to external telemetry devices

LAN

LAN connection to a router or internal network

POS

Connection to external Till System

PANIC / RESET

Panic Button & Alarm Reset

Page 8

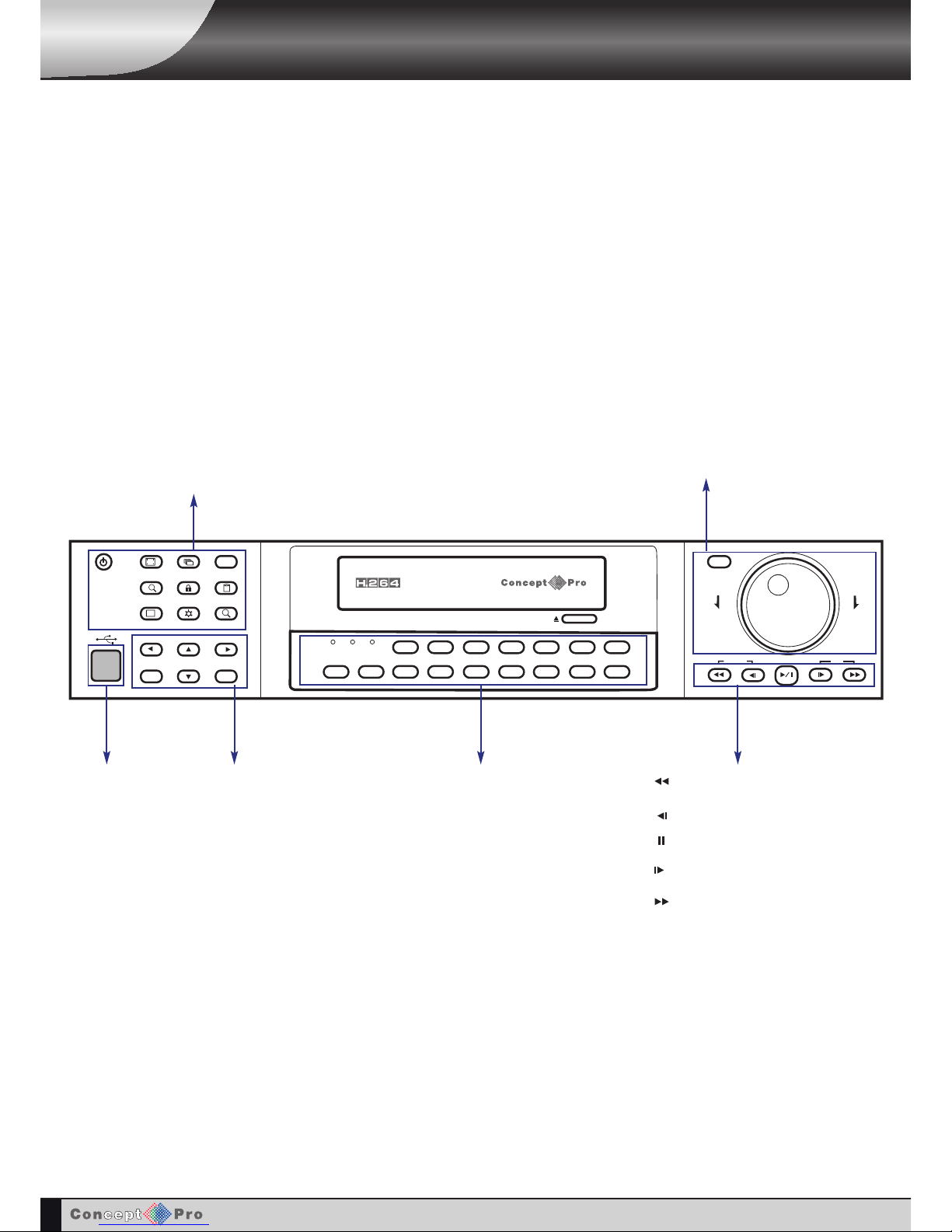

GETTING STARTED

PLEASE NOTE: ALL NECESSARY CONNECTIONS MUST BE MADE BEFORE APPLYING POWER TO THE VXH264D!

THE VXH264D IS PRE-CONFIGURED WITH THE FOLLOWING SETTINGS:

25FPS continuous recording rate per channel at D1 (704 x 576) resolution and standard image quality.

• Time and date set to correct local time

• Audio inputs 1-4 assigned to video channels 1-4 respectively

• Telemetry devices set to PELCO-D, 2400 Baud

• Based on average image recording, the above settings will provide around 11 days recording on a 2Tb drive

before the footage starts to be overwritten.

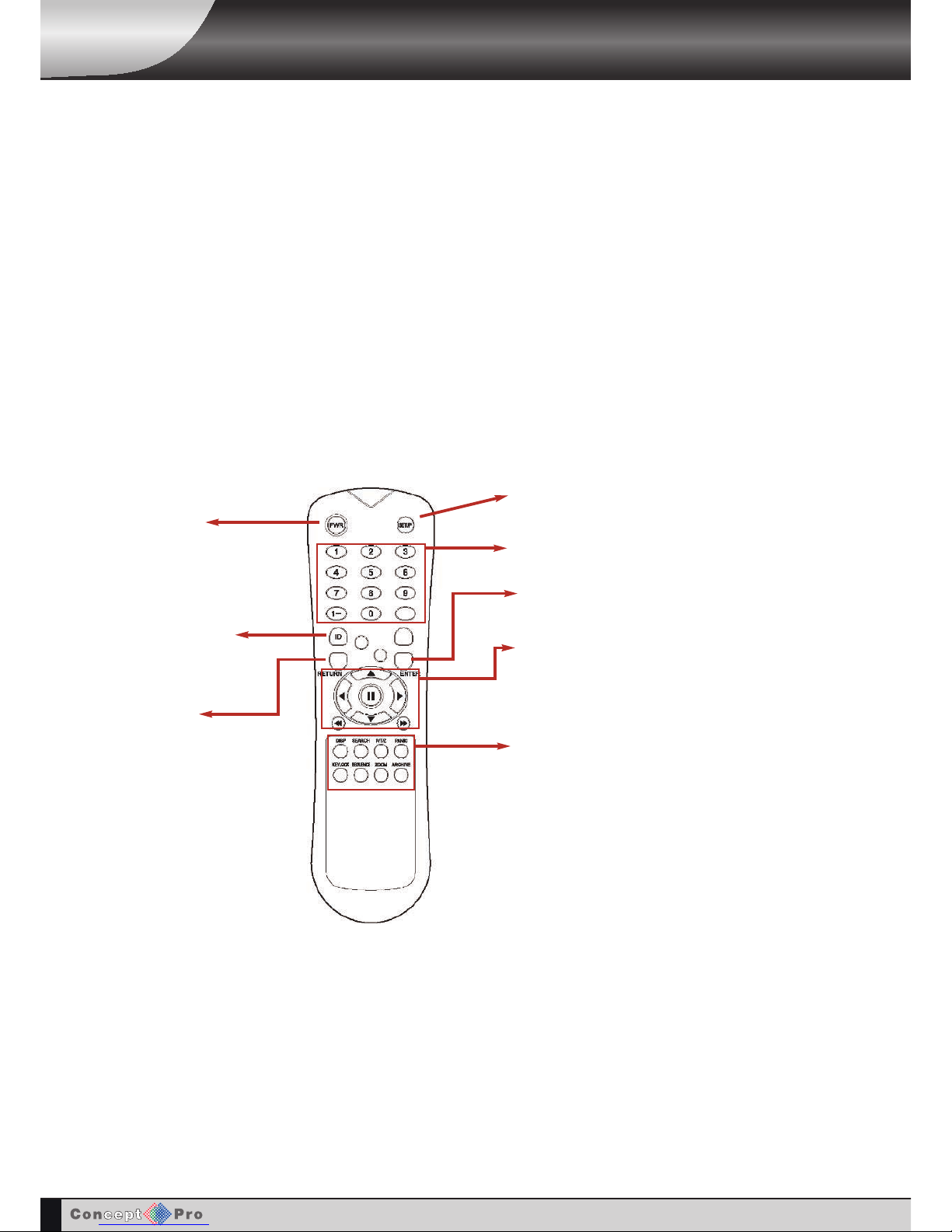

POWER

System ON/OFF

ID BUTTON

Select DVR ID

RETURN

Cancel / Deselect

Previous Screen

SETUP: Open system setup menu

Channel Selection buttons

ENTER: Apply / Select / Go to next screen

DISP: Change display screen

SEARCH: Go to search mode

PTZ: Go to PTZ menu

PANIC: Record by panic setting

KEYLOCK: Lock the keys (Remote / Front)

SEQUENCE: Change to sequence screen

ZOOM: Go to zoom mode

ARCHIVE: Go to back-up menu

* If

there are multiple DVRs used in a system, each DVR can be set with a diff

erent ID. The remote controller sets each ID per DVR. This allows

all the DVRs to be controlled with one remote controller by selecting the appropriate ID.

HOW TO SET THE ID ON THE REMOTE CONTROLLER

Program each DVR accordingly to system ID (see page 26 ) Press the ID button, this will display “INPUT ID” on screen. Using the channel selection buttons, input the system ID, press “E

NTER” then the “RETURN” button

To reset the ID to factory default, press the ID button and input ID 255 and press the “ENTER” button followed by pressing the “RETURN” button.

Please note your VXH264D can be controlled via the front panel buttons, IR remote control or a USB mouse.

When a USB mouse is installed an on-screen pointer will appear. This can be used to navigate the system.

NAVIGATION BUTTONS: Used for Playback

Control, Menu Naviagtion, and PTZ/Focus

Control

Page 9

GETTING STARTED

The VXH264D startup screen detects and checks the status of hard drives and the CDRW / DVR-RW drive

After startup diagnostics are complete, the operator must log-on to the system. The default user name is ‘ADMIN’. Using the CHANNEL SELECTION buttons, key in the default password of ‘1234’ and press the ENTER button

The VXH264D begins normal operation and shows the default display of all 16 channels. The status bar at the bottom of the screen shows current time and date. T

he status

bar includes Menu, Archive, Search, Display, PTZ & Zoom control along with the

‘Log’.

A title for each channel is shown

The red square and letter ‘C’ in the top right of each channel display shows that the channel is recording in Timer / Schedule mode.

If audio recording is enabled, an audio icon showing 1,2,3 or 4 is displayed.

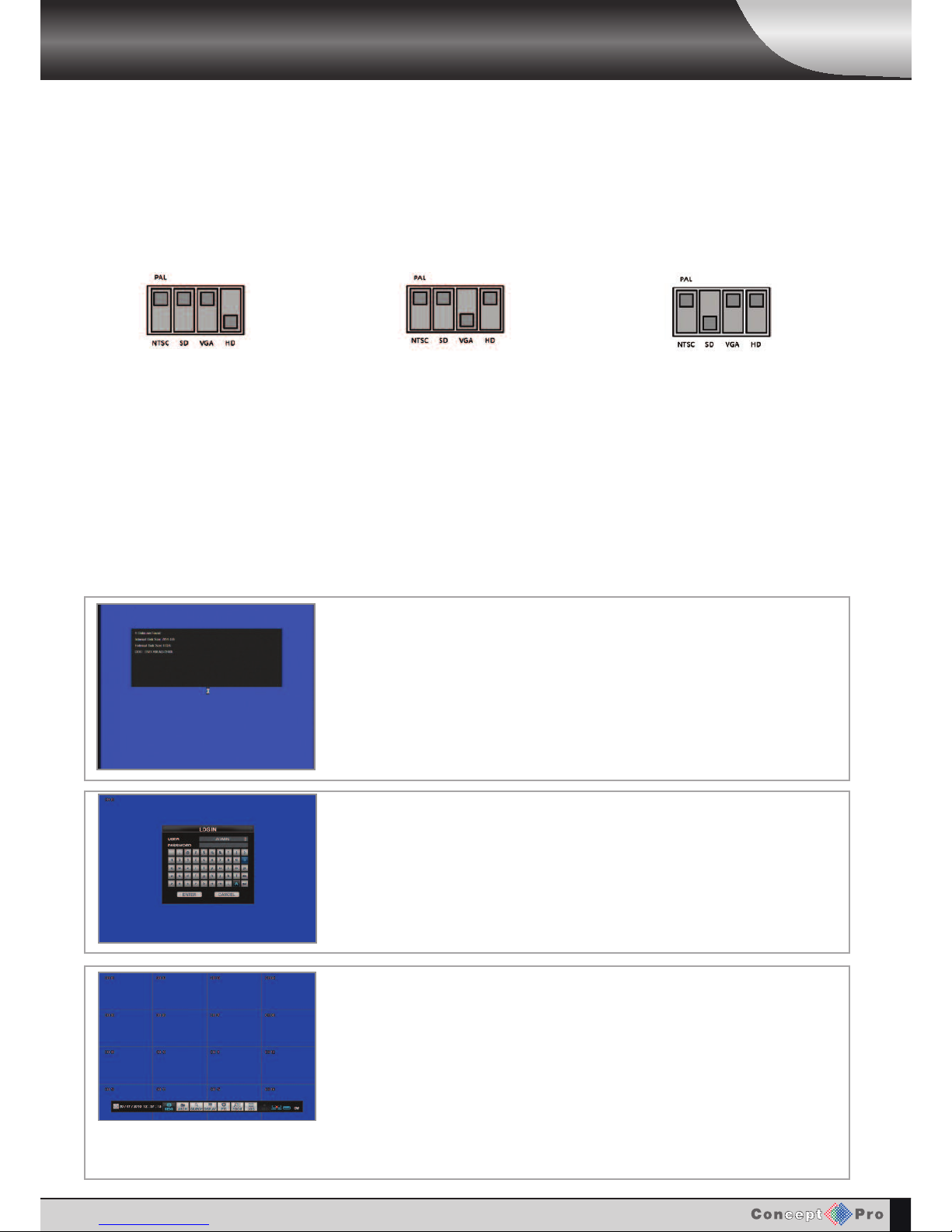

CONNECT AND SWITCH ON

• Connect up to 16 CAMERA INPUTS. The VXH264D also has LOOP OUTPUTS so that any signals

can be fed to other equipment if required. Termination is automatically set by the VXH264D depending on

connection type

• Using the Dip Switches on the back of the VXH264D, select the monitor out you are connneting

To select the HDMI monitor output To select the VGA monitor output To select the Standard definition output

lease note when HDMI or VGA outputs are selected only the selected monitor type can be viewed, if standard

definition output is selected both Composite and S-Video can be viewed simultaneously.Only once the DVR has been

rebooted will the dip switch settings have affect.

• Connect one or more monitors to the VXH264D using the COMPOSITE, VGA, S-VIDEO OR HDMI connections

• Connect power to the VXH264D. T

he VXH264D checks for proper power connection and emits a beep. Press the

POWER BUTTON on the front panel of the VXH264D to begin operation.

Page 10

CONFIGURING THE LIVE DISPLAY

MULTI SCREEN MODE

6 different display modes are supported by the 16 channel VXH264D. By repeatedly pressing the DISPLAY button, the operator can choose between single, 4, 6, 8, 9, and 16 screen as well as basic sequence modes.

All the display modes are static with the exception of the sequence mode. In this mode, the sequence symbol ( ) is displayed and each channel is shown in full screen for a set period of time (default 5 seconds) before switching to the next channel. The sequence runs i

ndefinitely until a different display mode is chosen.

To view a particular channel in full screen, press the corresponding CHANNEL

SELECTION button.

Pressing the same CHANNEL SELECTION button again will switch the display back to the last selected multi screen mode.

If audio recording is enabled for a selected channel,

the chosen audio source is

utomatically played when that channel is viewed in full screen.

CHOOSING CHANNELS

Page 11

CONFIGURING THE LIVE DISPLAY

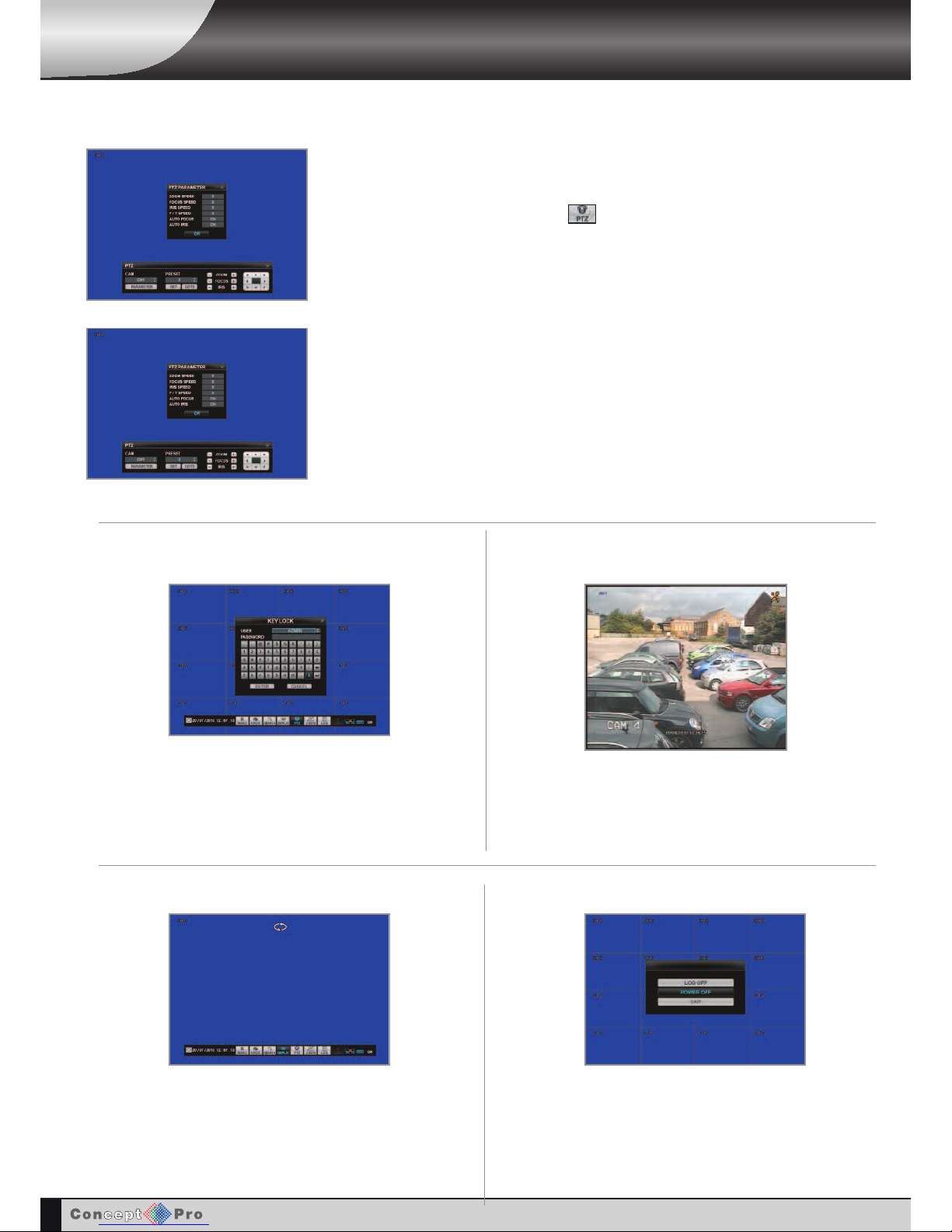

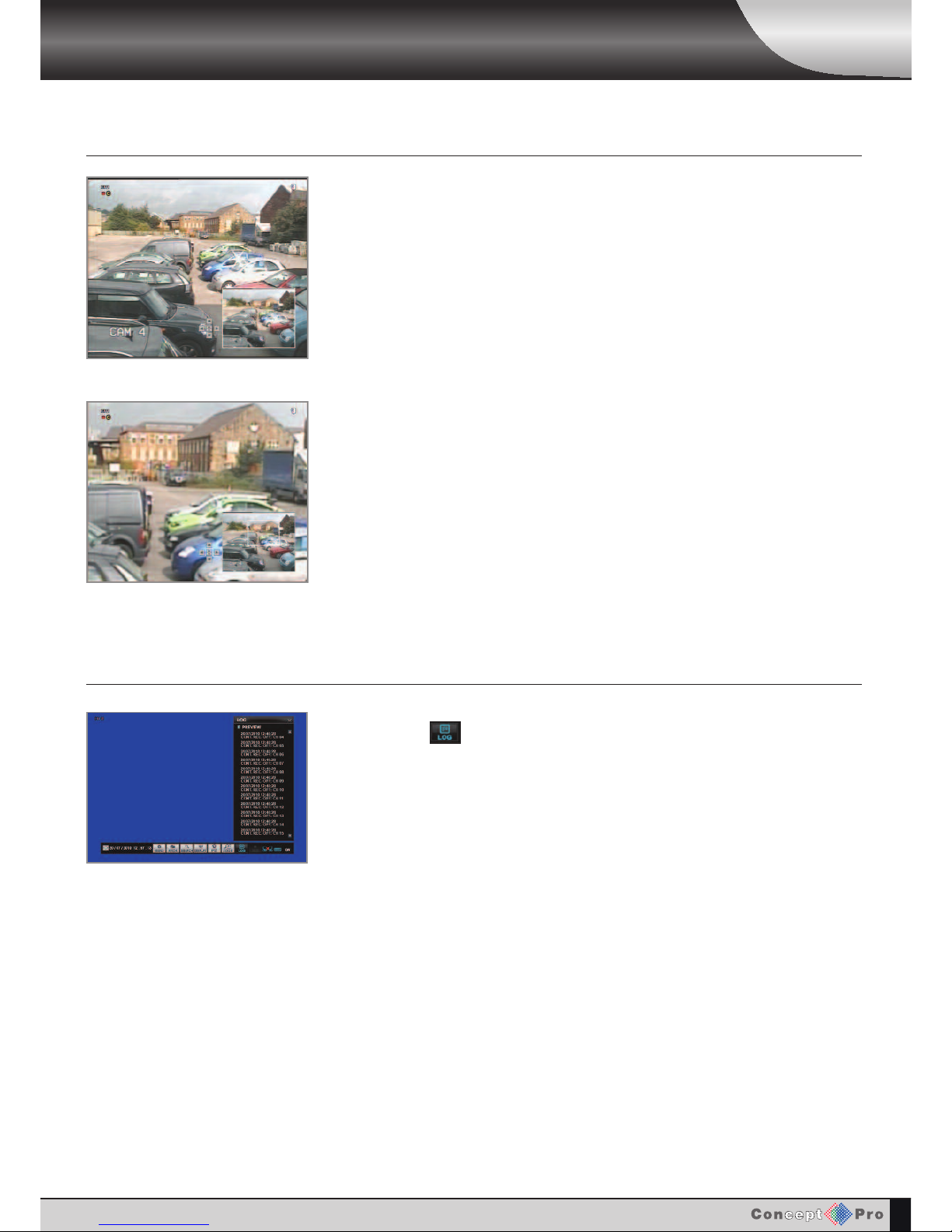

DIGITAL ZOOM

When viewing a channel in full screen, the operator can zoom in to a particular area by up to 14 times. To use digital zoom, select the required channel and press the ZOOM button. The small window at the bottom right of the screen shows the full image whilst the main display area shows the zoomed portion.

To adjust the zoom level, turn the SHUTTLE WHEEL clockwise to increase zoom or anticlockwise to decrease zoom. To

move the zoom area around the image, use the CURSOR KEYS to adjust the position of the

zoom square.

Press the RETURN button to return to normal live display mode.

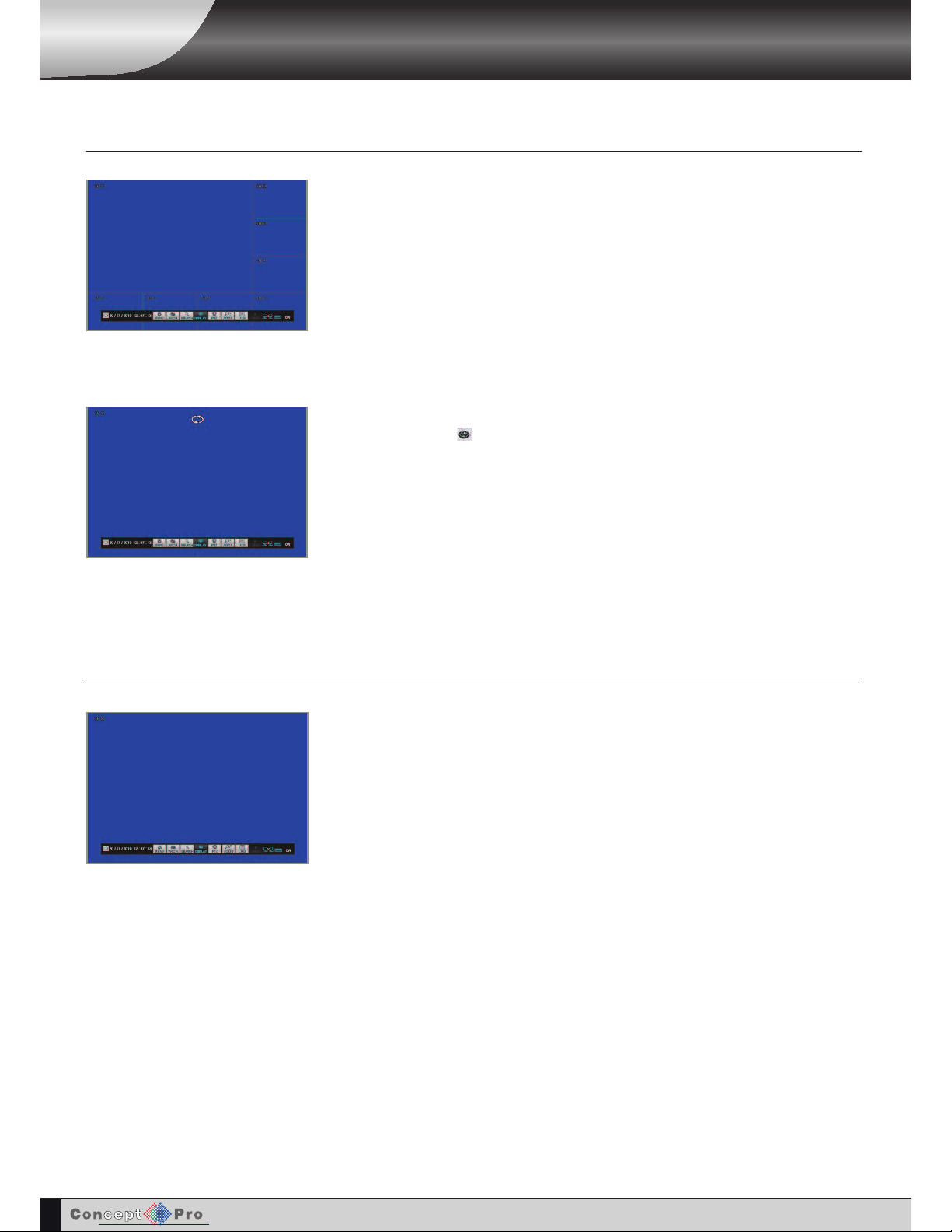

After selecting the symbol the event log is shown on the display.

LOG

Page 12

PLAYBACK

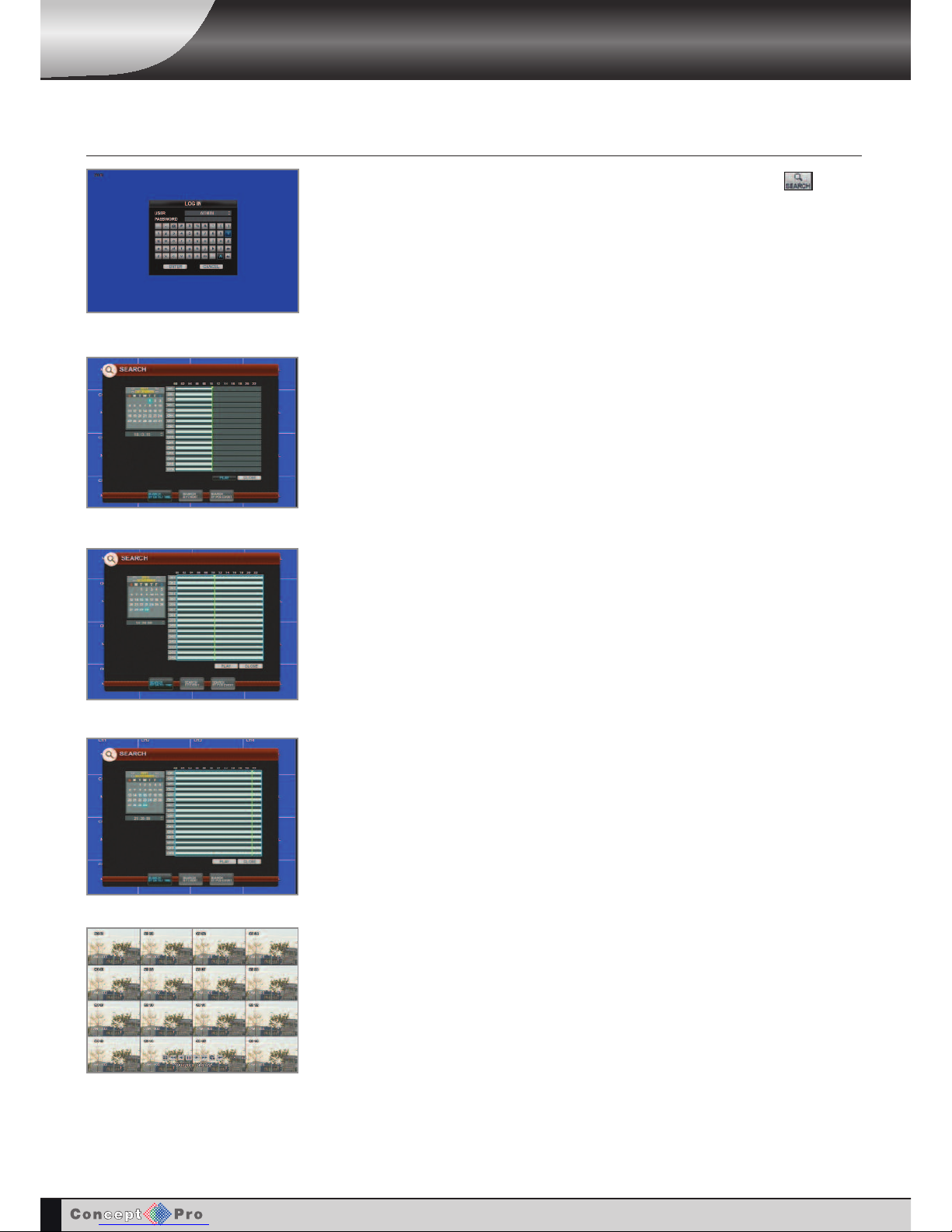

To search for a particular section of recorded footage, press the SEARCH button.

To protect unauthorised viewing of footage, only authorised users can playback footage.

To log-in as ADMIN, enter the default password of 1234 and press ENTER

The VXH264D uses a calendar and timeline search method for quick access to recorded footage. The calendar displayed on the left shows the current month. The days highlighted in blue c

ontain recorded footage.

The timeline on the right shows a 24 hour status of all channels for the selected day.

The recorded timeline will be displayed with different colours.

Timer = Sky blue Motion = Green Alarm = Red Panic = White

Press ENTER to select the calendar and use the CURSOR KEYS to move to the required day. As different days are selected, the timeline display also changes to show r

ecorded footage on

that day.

Press ENTER to choose the day and to move to the timeline.

Use the CURSOR KEYS to move the timeline cursor left or right to select the time segment required. Each movement of the timeline cursor increases or decreases the time by 10 minutes. The currently selected time is displayed underneath the calendar.

Press PLAY to begin playback from the selected time.

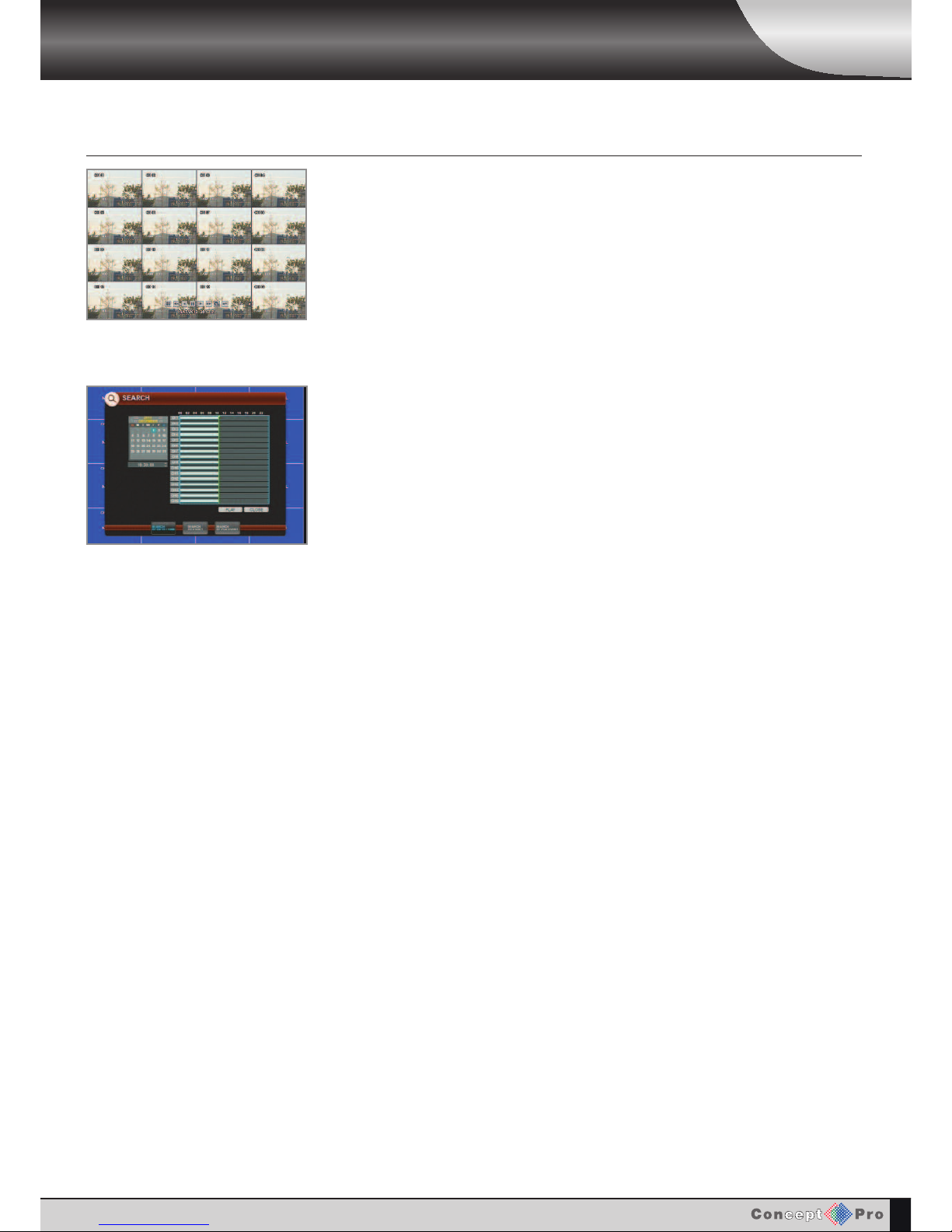

The default playback mode is 16 screen display. By pressing DISPLAY or using the CHANNEL

SELECTION buttons, i

t is possible to display single screen or other multi screen formats in a similar way to the live display mode. When viewing playback in single screen mode, any associated audio recorded with that channel can be heard.

Page 13

PLAYBACK

SEARCH continued

To exit the playback mode and return to the search screen to choose another time and date, press

RETURN.

To exit the search screen and go back to the last selected live view, repeatedly press RETURN.

During playback, turning the SHUTTLE WHEEL steadily clockwise increases the playback speed by up to 64 times. Turning steadily anticlockwise will reverse play by up to 64 times. When the

SHUTTLE WHEEL is released, playback is paused.

f the HOLD button is pressed and released during SHUTTLE WHEEL operation, the last shuttle

function is held, even if the wheel is released When playback is paused, the JOG RING can be used to accurately move the footage forward or backwards, frame by frame.

The playback speed and direction can also be controlled using the five playback buttons located under the jog wheel.

Page 14

PLAYBACK

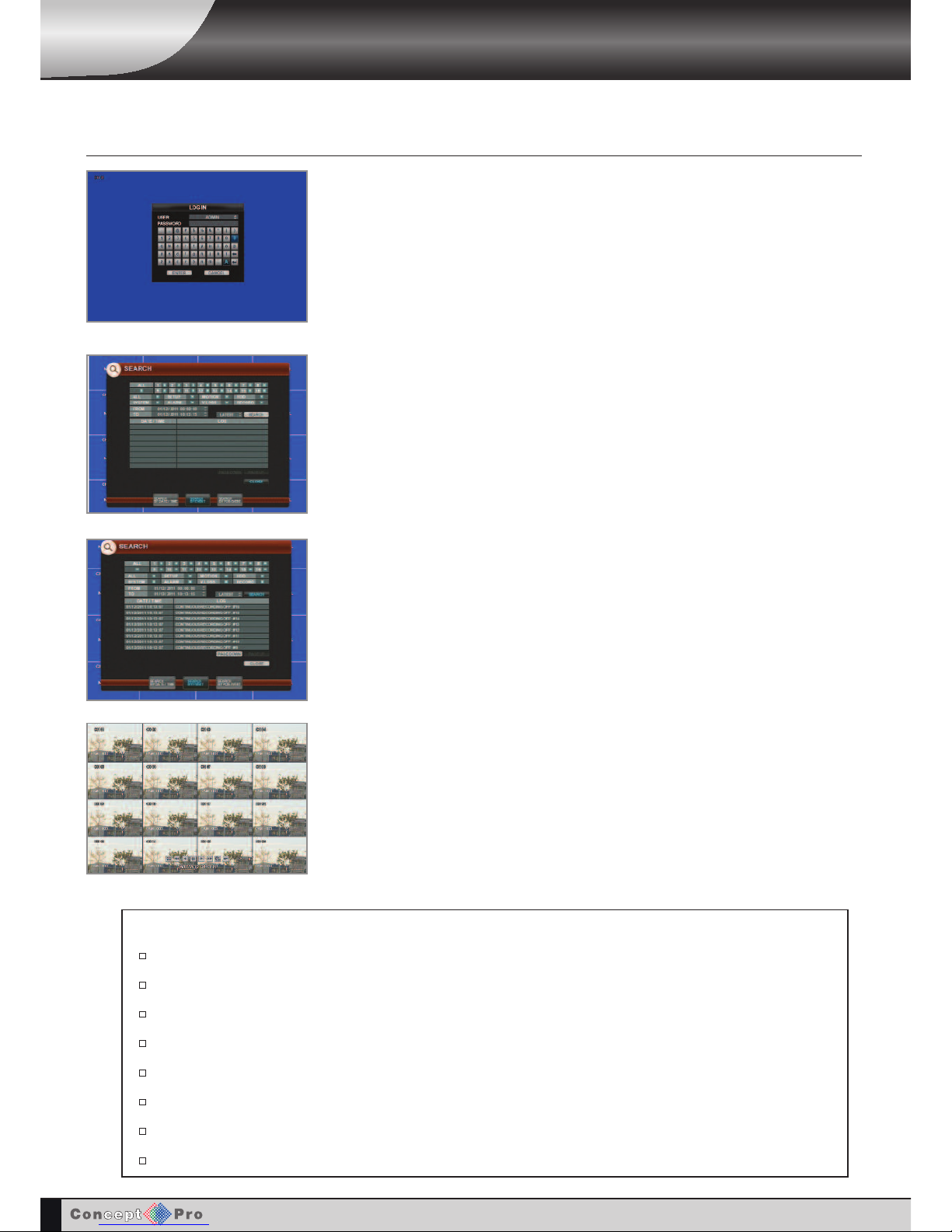

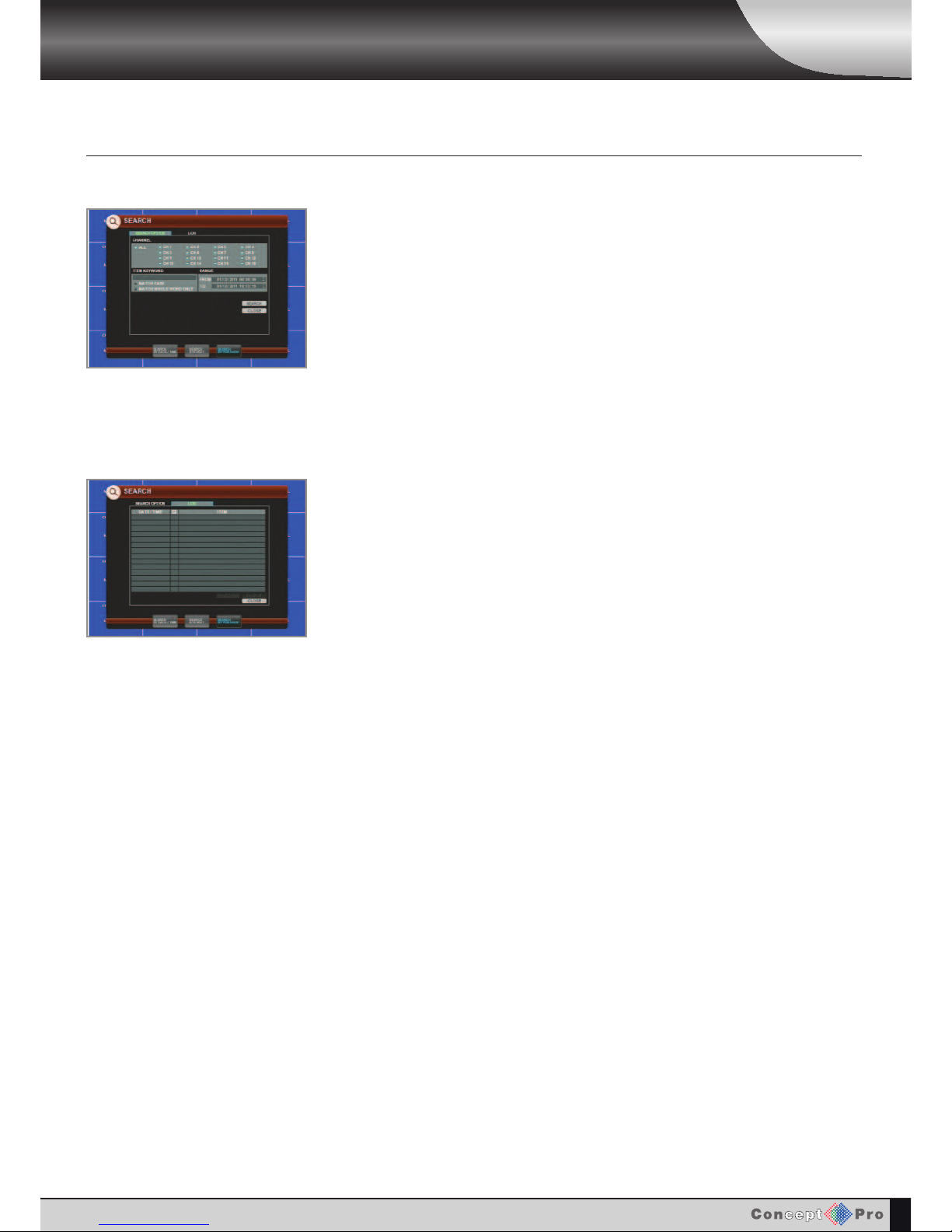

EVENT SEARCH

The VXH264D event log stores events such as motion and alarm activated recording and video loss.

To search for an event and playback the recorded footage, press the SEARCH button and log in as ADMIN with the default password of 1234 / or authorised user.

To display the event log screen, press the right CURSOR KEY to select SEARCH BY EVENT and press ENTER. Various filters can be used to limit the number of events displayed. Using the CURSOR KEYS and ENTER button, select the FROM and TO date / time and the events and channels required.

Highlight SEARCH and press ENTER to display the event log for the criteria selected.

To playback footage for a particular event, select the event from the list using the CURSOR

KEYS and press ENTER.

Playback resumes from the moment the selected event occurred and continues until stopped by the operator.

During event search playback, the SHUTTLE WHEEL, JOG RING and playback buttons can be used as normal.

To stop playback and return to the live view mode, repeatedly press RETURN.

Note: The event log search contains the following selectable entries:

ALL: Select all of the above

SET-UP: All set-up changes are shown

MOTION: All motion detection events are displayed for the chosen date range

HDD: Displays HDD errors

SYSTEM: All system events are displayed (Such as Log-on/off, Remote Connects, Boot/System Start

ALARM: All alarm input events are displayed for the chosen date range

VIDEO LOSS: Displays any video loss & channel number

RECORD: All recording operations are displayed for the chosen date range

Page 15

PLAYBACK

SEARCH BY POS EVENT

On the Search by POS Event, you can search for event information such as price, quantity, item keyword, date etc.

To search for information select SEARCH BY POS EVENT from the search menu.

Enter the desired information such as the channel you are searching, the condition i.e. price / quantity etc, using the arrow keys to navigate around the menu, or using a mouse then click

SEARCH.

The event log will then show a list of events for the search you have just entered. To playback footage for a particular event, select the event from the list using the CURSOR

EYS and press ENTER.

Playback resumes from the moment when the selected event occurred and continues until stopped by the operator.

During event search playback, the playback buttons can be used as normal.

To stop playback and return to live view mode, repeatedly press RETURN.

Page 16

ARCHIVING

The Archiving screen allows the operator to choose exactly what to back-up and to which storage device. Use the CURSOR KEYS to navigate around the Archiving screen. To change any value or setting: Press ENTER to change the blue cursor to yellow.

Use the up and down CURSOR KEYS to change the value

Press ENTER to accept the value or RETURN to cancel

To change a tick box setting, press ENTER to toggle on or off

SELECT

DEVICE: Choose between DVD-RW or USB / FTP back-up device FROM / TO: Start and end time to back-up TAG NAME: The name of the archive set LOG: When selected, the event log for the particular archive time period is included

To archive recorded footage to USB memory stick, CD or FTP Site, press the ARCHIVE button.

To protect unauthorised viewing and distribution of footage, only the authorised user or ADMIN user can archive footage.

To login as ADMIN, enter the default password of 1234 and press ENTER.

Once all the desired archive options have been selected, highlight the QUERY button and press

ENTER. The VXH264D displays the total archive size.

If the ORIGINAL SIZE is larger than the available space on the backup media, the unit will prompt the user to insert another DVD / USB to finish the archive process.

Press BURN to continue the archive process Press RESERVE to reserve the data for future archiving

Page 17

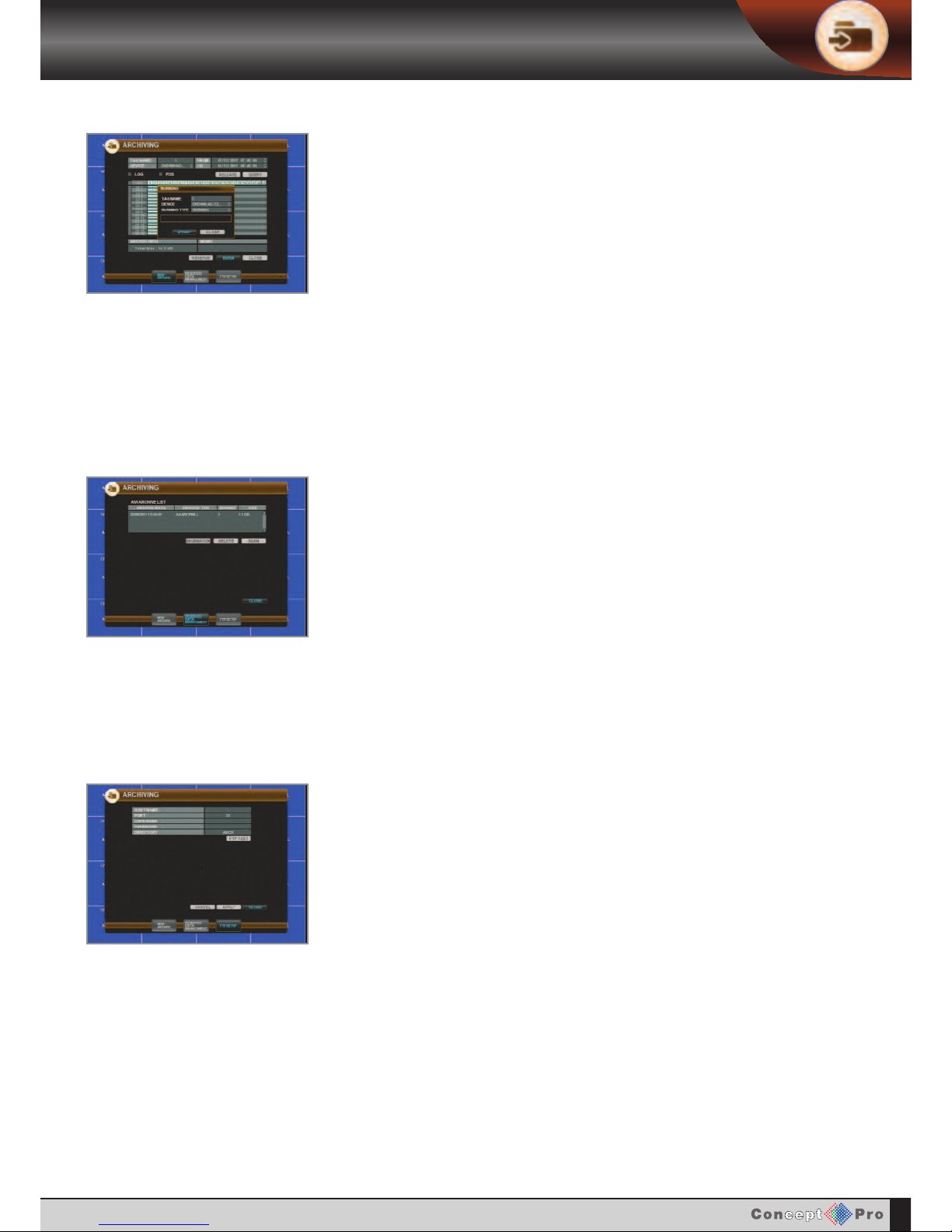

ARCHIVING

A small window opens showing: TAG NAME: The name of the Archive DEVICE: Choose between DVD, USB or FTP.

BURNING TYPE: Choose between BURNING or ERASE & BURN. Press START to begin the archive process.

The footage is extracted to a temporary area on the hard drive.

Once extracted, the footage is copied to DVD, USB or FTP. Note that depending on the amount of footage selected for archive, the extracting and b

urning process may take some time, during which the VXH264D cannot be used. Normal recording is unaffected by the archive process.

RESERVED DATA MANAGEMENT: This will display only recorded footage that has been reserved.

Selected footage can be deleted, burn or information viewed.

For further details on archiving, see Appendix A on page 50.

To Archive footage directly to an FTP Site from the DVR fill in the following information:

HOST NAME

PORT

USERNAME

PASSWORD

And the DIRECTORY folder – this is the folder on the FTP site where the archived footage will be sent.

FTP Archiving is possible on a new archive or an archive been reserved in the Reserved Data

Management.

Page 18

TELEMETRY CONTROL

Speed domes and other telemetry devices connected to the VXH264D, can be fully controlled from the front panel or Remote Control.

In live display mode, press the PTZ button. To select a camera to control, use the CHANNEL

SELECTION buttons.

When PASSWORD is set to ON only authorised users or ADMIN users can control the PTZ.

Pan and tilt movement is controlled by the CURSOR KEYS. Zoom is controlled by turning the SHUTTLE

HEEL.

tt & t controls focus, u & uu controls the iris.

Press PANIC or ARCHIVE buttons to decrease or increase the preset number.

Press PAUSE to program the preset, or ENTER to call an existing preset.

Press RETURN to exit PTZ mode and return to live view.

KEY LOCK FUNCTION

An operator with ADMIN rights can choose to lock the VXH264D front panel to prevent any unauthorised control. Press the LOCK button, enter the default password ‘1234’ and press

ENTER. All buttons are now disabled. To unlock, press any button

and enter the default password ‘1234’.

SHUT DOWNSEQUENCE

PANIC RECORDING

Panic recording will override all standard recording settings, PANIC record settings are configured in the recording set-up. (Page 36) Press the PANIC button. The top right of the display shows a red P to indicate that the VXH264D is in panic recording mode. Press the

PANIC button again to return to normal recording mode.

Press the SEQ button. Each channel is shown in full screen for a set period o

f time (default 5 seconds) before switching to the next

channel. To stop the sequence on a particular channel, press the

SEQ button again.

More complex sequences can be programmed through the setup menu. (Page 22)

Only an operator with ADMIN rights can shut down the VXH264D. Press the POWER button, use the cursor key to select POWEROFF then ENTER key. You can then enter the default password ‘1234’ and press ENTER.

The VXH264D shuts down and emits two beeps to indicate that

ower can be safely removed.

Page 19

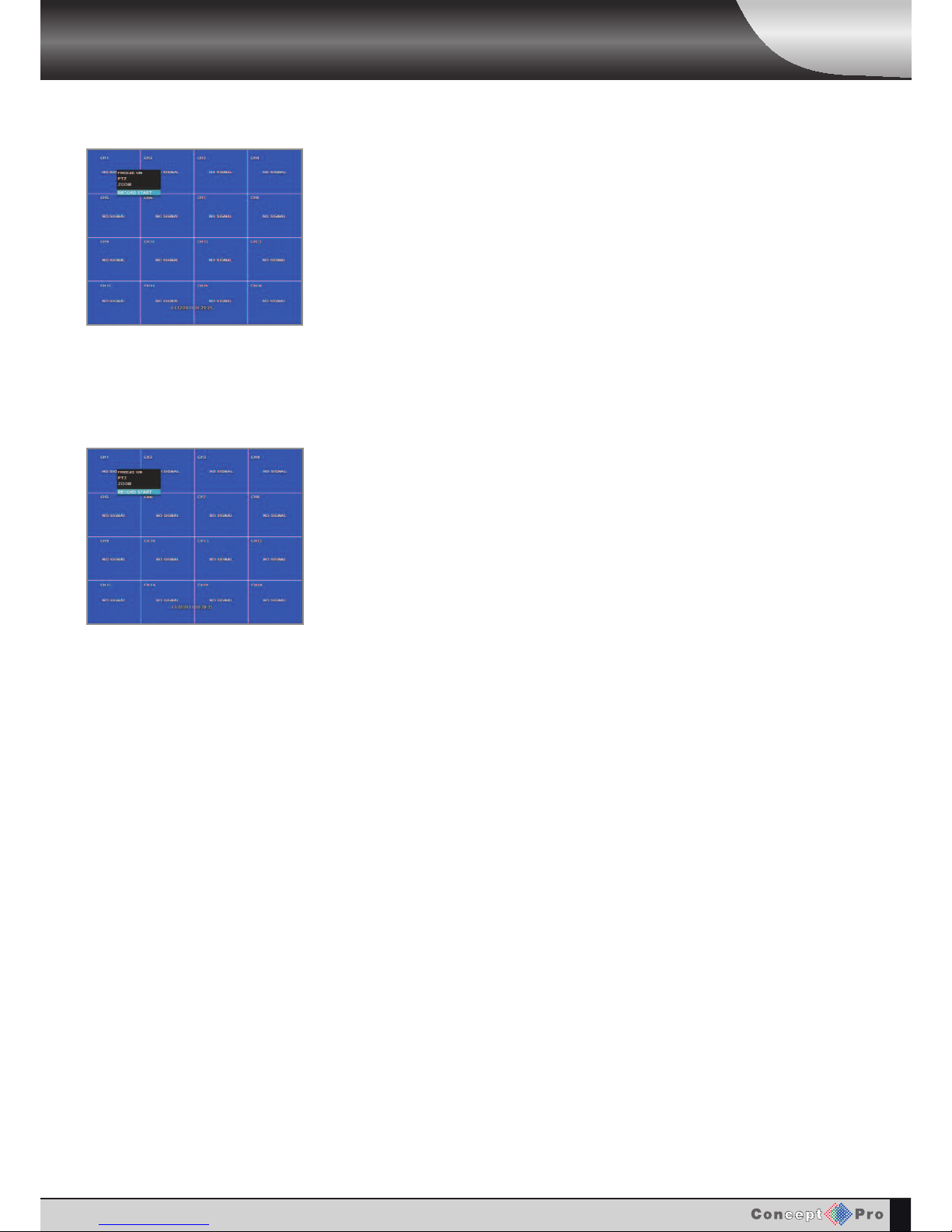

QUICK MENU

If you are using the USB mouse to control the VXH264D pressing the right hand mouse will bring up the Quick Menu.

FREEZE: Selecting FREEZE ON will freeze the live view picture for the selected channel. To go back to live view select FREEZE OFF.

PTZ: Selecting PTZ will bring up the PTZ control screen. PTZ can only be controlled by an authorised user.

ZOOM: Selecting ZOOM will bring up the digital zoom control.

ECORD START: Starts the panic record mode. Use the right mouse click to select.

RECORD STOP to stop the panic record mode.

Page 20

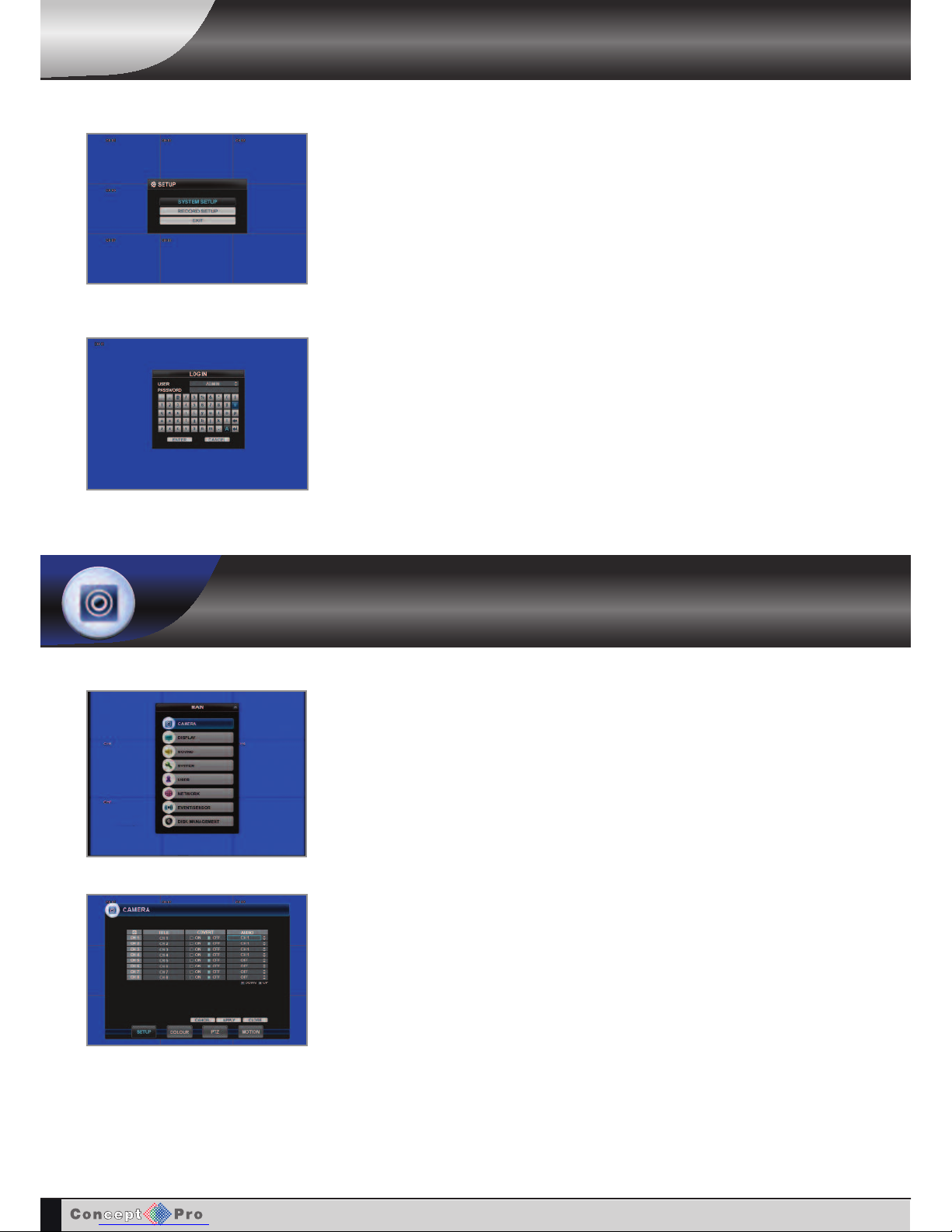

CONFIGURING THE VXH264D

Press the SETUP button to bring up the SYSTEM / RECORD setup option on screen. (If the status bar is not visible you will need to press the setup button twice). Use the CURSOR

KEYS to select SYSTEM SETUP and press ENTER.

Only authorised users or ADMIN users can configure the VXH264D. Enter the default password of ‘1234’.

To navigate around any items in the setup menu, use the CURSOR KEYS and the ENTER and RETURN buttons. In general, the ENTER button is used to select and change a particular item and the RETURN button is used to cancel a change or exit from a particular setup screen.

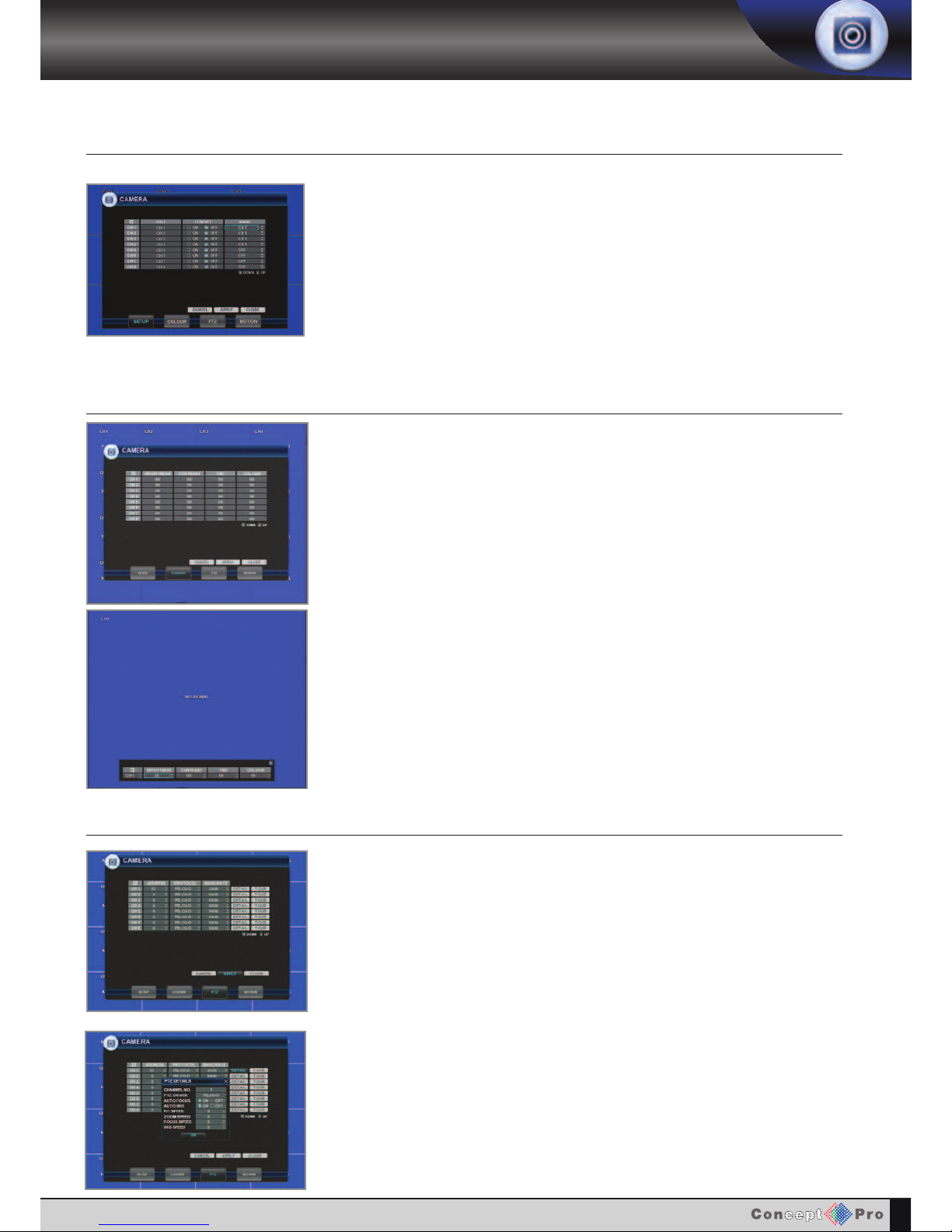

To set-up the various camera options, highlight CAMERA and press ENTER.

TITLE: For each camera, a title of up to 8 characters can be set using the virtual keyboard.

COVERT: When set to ON, the camera image is not displayed in live display but continues to be recorded.

The covert cameras can be viewed in playback providing the user has correct authority

CAMERA: CAMERA TITLE

CONFIGURING THE VXH264D

CAMERA

Page 21

CONFIGURING THE VXH264D

CAMERA

CAMERA: COLOUR SETUP

Brightness, contrast, tint and colour can be adjusted for each individual channel. Highlight which channel to modify and press ENTER.

The selected channel is displayed in full screen.

BRIGHTNESS, CONTRAST, TINT and COLOUR can be changed as necessary.

To modify a different channel, highlight CAMERA and choose the desired channel.

Press RETURN when all changes are complete.

CAMERA: PTZ SETUP

ADDRESS: The unique ID of the PTZ device.

PROTOCOL: The protocol of the PTZ device.

BAUD RATE: The baud rate of the PTZ device.

PTZ properties can also be adjusted for each channel by selecting the DETAIL and pressing

ENTER.

Note that some settings, such as AUTO FOCUS. May not be compatible with particular PTZ equipment. If this is the case, changing this value will have no effect on PTZ control.

CAMERA: CAMERA AUDIO

If audio devices are connected to the VXH264D, any audio channel can be assigned to any video channels.

Page 22

CONFIGURING THE VXH264D

CAMERA

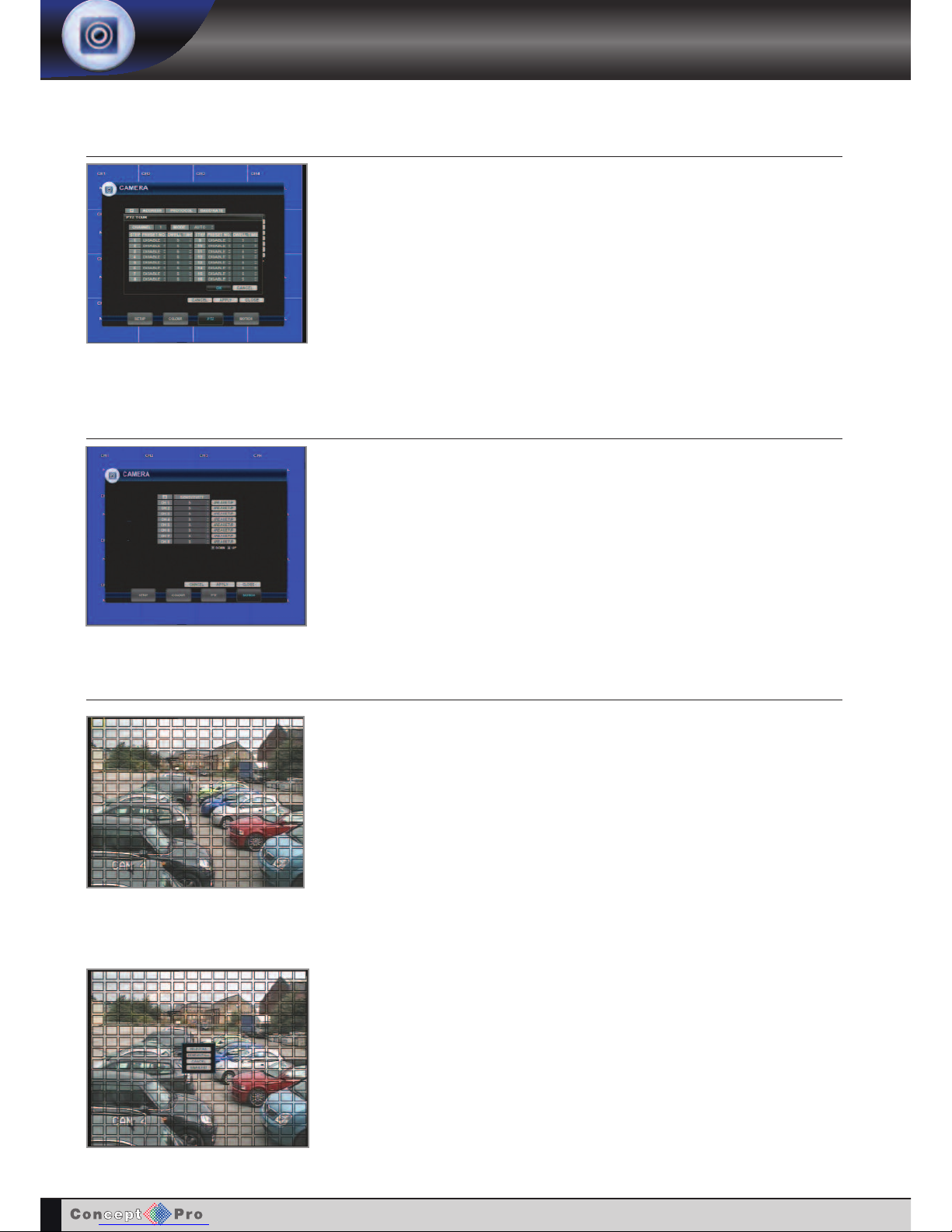

CAMERA: MOTION SENSOR

SENSITIVITY: Between 1 (Lowest) and 10 (Highest) determines the degree of motion required before recording is activated.

AREA SETUP: Choosing this option allows the operator to define which areas of the image are monitored for motion detection.

Black grid squares represent detection areas, blank areas are ignored. The default is that motion will be detected across the entire image.

To quickly select or deselect the entire grid, press RETURN to bring up the motion menu.

Highlight SELECT ALL or DESELECT ALL as appropriate and press E

NTER.

AREASETUP

CAMERA: PTZ SETUP CONTINUED

To set up a Tour, using the cursor keys select TOUR and press ENTER. A setup screen will then appear allowing the operator to configure which presets the PTZ camera will go to after a set dwell time. To enable the tour, set the MODE to AUTO, and then configure the PRESET NO. to the presets you have defined. When you have finished the configuration, press OK to come out of the setup, a

nd then APPLY.

The Tour will start immediately.

Page 23

CONFIGURING THE VXH264D

CAMERA

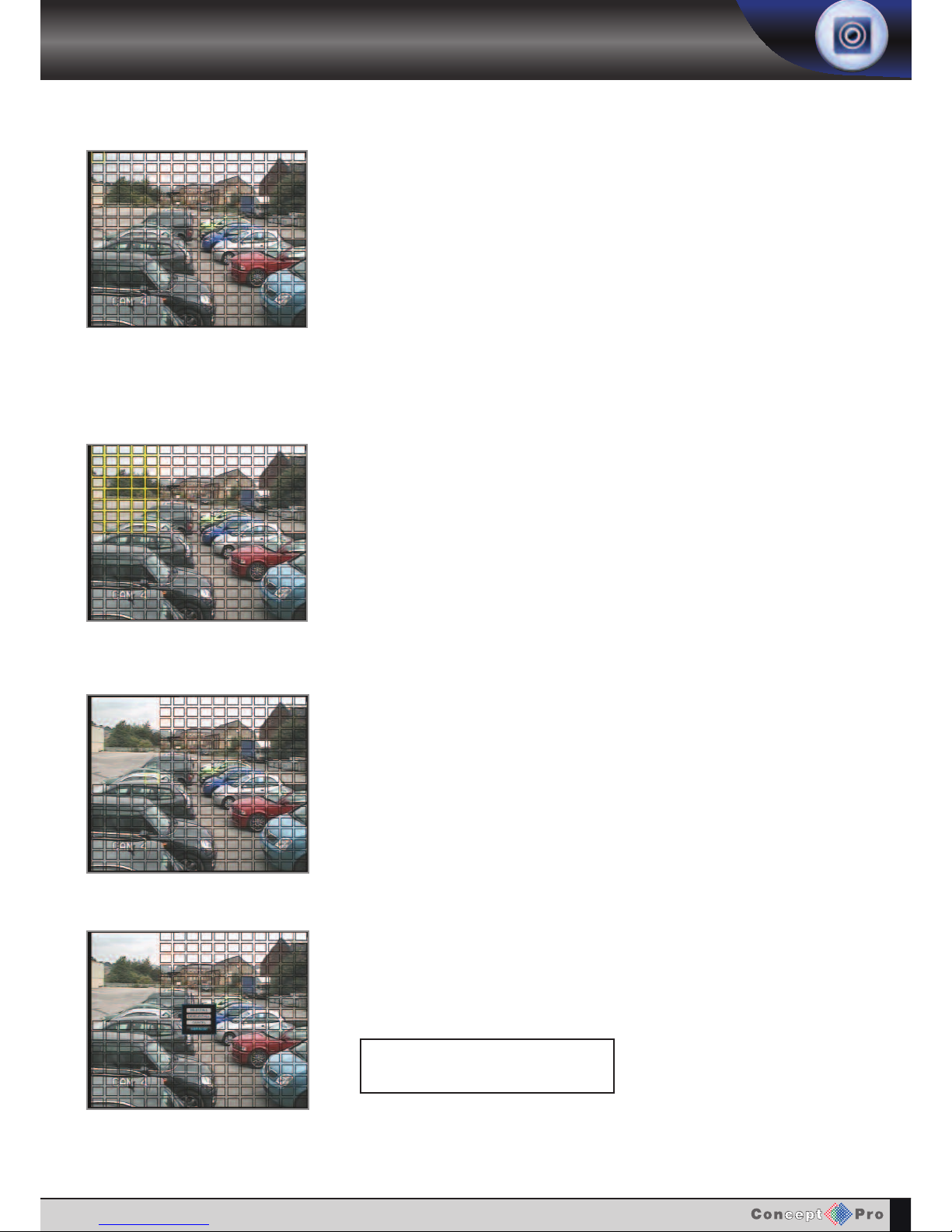

To select or deselect specific areas, press ENTER to bring up the yellow cursor square in the top left of the display.

Move the cursor using the CURSOR KEYS to the first corner of the area to be set and press

ENTER – The grid square retains the yellow cursor square.

Press ENTER to change from selected to deselected (or vice versa). Repeat the above sequence as necessary to mask-off or include other areas of the image.

nce the detection area has been defined, press RETURN and choose SAVE &

EXIT to save the area and return to the motion setup menu.

Please note: a motion detection recording schedule must be defined in the RECORD MENU described on page 34 & 35.

Use the CURSOR KEYS to increase the size of the motion cursor as required.

Page 24

CONFIGURING THE VXH264D

DISPLAY

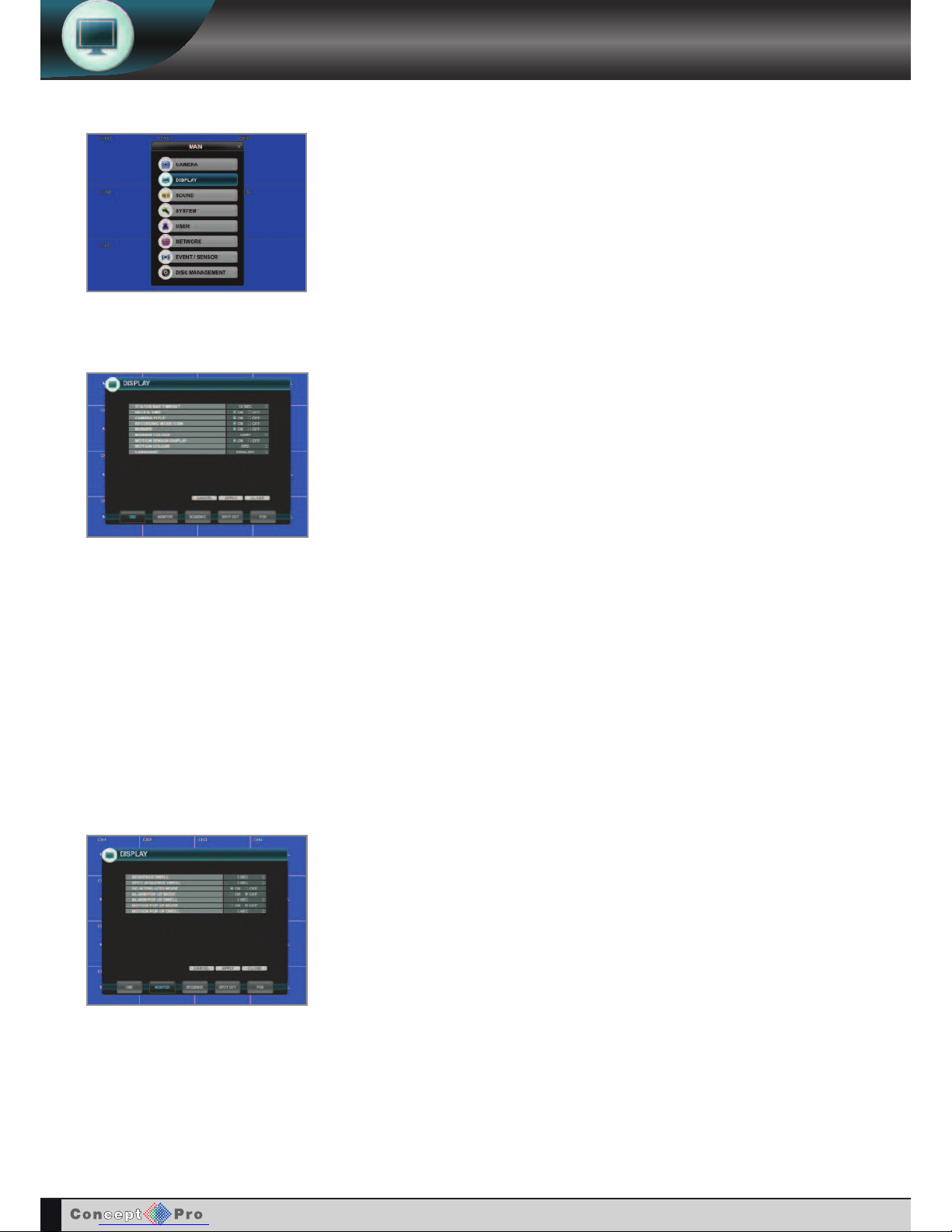

To set-up the various display options, highlight DISPLAY and press ENTER.

STATUS BAR: Turns the status bar at the bottom of the live display ALWAYS ON or auto off delay time.

DATE & TIME: Determines whether the Date and Time is shown when the staus bar is removed / timed out.

CAMERA TITLE: Determines whether the camera title is displayed.

RECORDINGMODE ICON: Determines whether the VXH264D recording status i

s shown at the

top right of each channel display window.

BORDER: Determines whether there is a border around each channel in multi screen display mode.

BORDER COLOUR: If the border is ON, the operator can choose the colour.

MOTION SENSOR DISPLAY: If false motion recording is occurring, the operator can use this feature to determine and rectify the cause in realtime.

OFF – Normal display mode. ON – Areas where motion is detected are highlighted with coloured blocks.

OTION COLOUR: The colour of the blocks displayed when MOTION SENSOR DISPLAY is set

to ON.

LANGUAGE: Select the language of display.

To change any of these settings, highlight OSD and press ENTER to select. Use the CURSOR

KEYS to navigate to the option required. Press ENTER to select the option (the cursor changes

to yellow) and use the CURSOR K

EYS to change the setting. Press ENTER to save the setting

or RETURN to cancel.

DISPLAY: OSD

DISPLAY: MONITOR

SEQUENCE DWELL: The time that each screen is displayed in a sequence operation.

SPOT SEQUENCE DWELL: The time that each screen is displayed on the spot monitor outputs.

DE-INTERLACE MODE: When recording any channels in D1 resolution (704 x 576) this should be set to ON to prevent judder during playback.

ALARM POP-UP MODE: When set to ON, an alarm input will cause the associated channel to display full screen.

ALARM POP-UP DWELL: Determines how long the full screen pop-up is displayed after an alarm input. If the alarm condition continues, the popup screen is displayed constantl .

MOTION POP-UP MODE: When set to ON, motion detection will cause the associated channel to display full screen.

MOTION POP-UP DWELL: Determines how long the full screen pop-up is displayed after motion detection. If motion continues, the popup screen is displayed constantly.

To change any of these settings, highlight MONITOR and press ENTER to select. Use the

CURSOR KEYS to navigate to the option required. Press ENTER to select the option (the cursor

changes to yellow) and use the CURSOR KEYS to change the setting. Press ENTER to save the setting or RETURN to cancel.

Page 25

CONFIGURING THE VXH264D

DISPLAY

DISPLAY: SEQUENCE

When the SEQ button is pressed, the default sequence will cycle through all 16 channels, one by one.

Sequence setup allows the operator to define a custom sequence using mixed multi screen views and any desired channels.

To add a new sequence, highlight ADD and press ENTER.

Sequence title is highlighted – press ENTER to bring up the virtual keyboard and key in a name or reference number for the new sequence.

Move around the virtual keyboard using the CURSOR KEYS and ENTER to select a c

haracter.

To delete a character, use

Á.

To change keyboard case and use the A/a located on the bottom right of the virtual keyboard.

To exit, press RETURN.

Press ADD to show the SEQUENCE SET-UP SYSTEM screen. This represents the first sequence screen that will be displayed. Select the VIEW TYPE (Single or various multiview) and press ENTER.

Set SCHEDULE to ON, highlight SAVE and press ENTER to display the sequence programming screen.

When the correct screen type is displayed use the CURSORKEYS to configure the channels required for each portion of the multi-screen.

Note: Only one instance of each channel can be displayed.

Page 26

CONFIGURING THE VXH264D

DISPLAY

When all the channels have been completed, press CONFIRM to save the sequence screen and begin creating the next one.

Up to 16 different sequence screens can be created.

To finish editing the sequence, press CLOSE and then APPLY to save & exit.

The new sequence is now saved and can be started by pressing the SEQ button when in live view.

DISPLAY: SEQUENCE continued

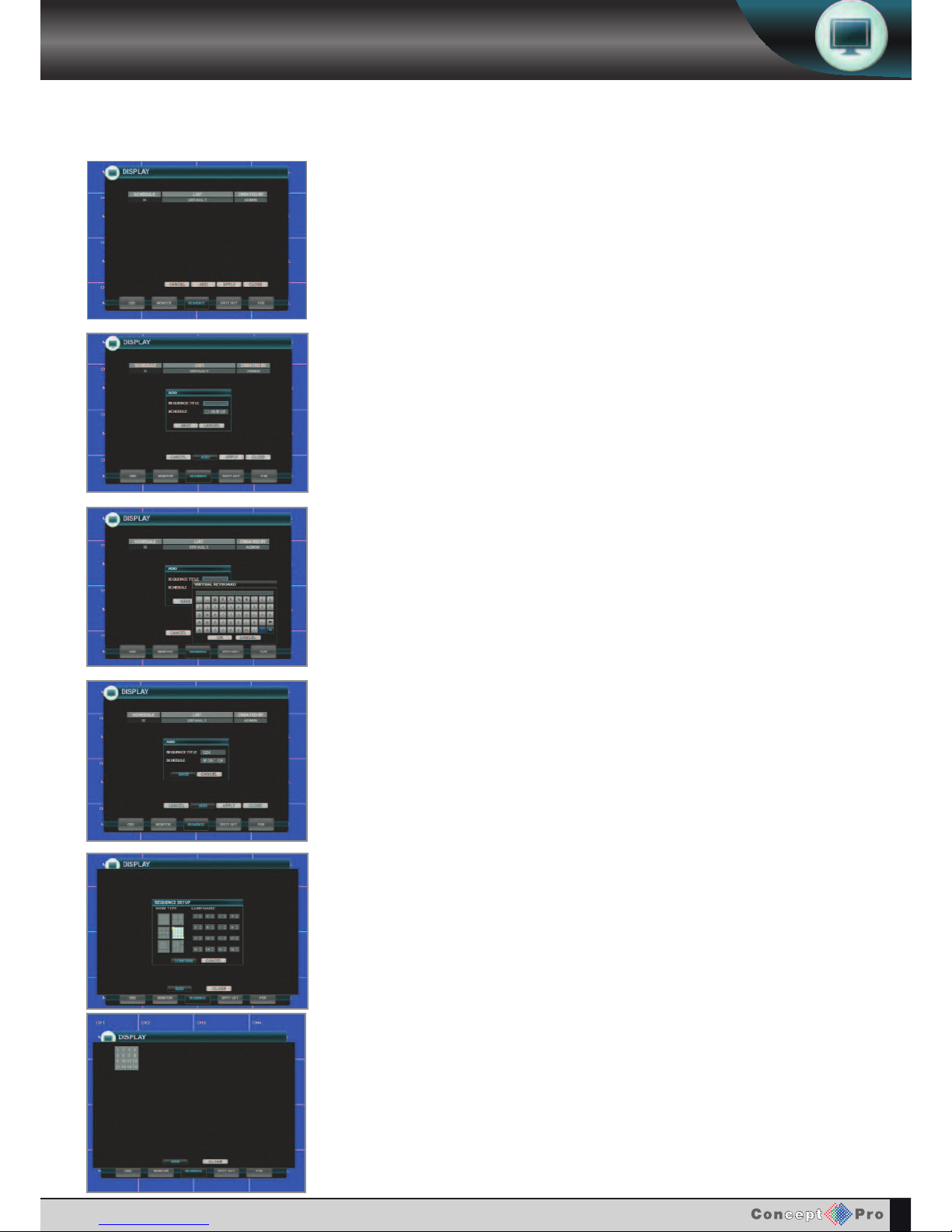

DISPLAY: SPOT-OUT

The VXH264D has 4 SPOT MONITOR OUTPUTS. Each one displays a full screen sequence of particular channels, depending on the settings configured in this menu. For each spot monitor, the operator can decide which channels are displayed. For example, spot 1 could display channels 1-4, spot 2 could display channels 5-8 and so on.

change the behaviour of the spot monitor outputs, first choose the spot CHANNEL to modify, and

then use the CURSOR KEYS and ENTER. To bring up the EDIT menu use the CURSOR KEYS to modify the TITLE, SCHEDULE, ON/OFF.

Press ENTER when selecting SPOT TITLE the virtual keyboard is displayed.

Use the CURSOR KEYS to select MODIFY and then ENTER. A new configuration screen appears.

se the CURSOR KEYS to select ADD then ENTER to display SPOT SEQUENCE SET-UP.

Use the UP CURSOR KEYS to select the single view.

Use the RIGHT HAND CURSOR KEY to highlight the channel option (blue border). Press ENTER (yellow border).

Use the UP/DOWN CURSOR KEYS to select the channel number to be viewed and press ENTER (blue border). Use the CURSOR KEYS to select CONFIRM or CANCEL. Press ENTER.

Press RETURN then press APPLY to save settings.

Page 27

CONFIGURING THE VXH264D

DISPLAY

CONFIGURING THE VXH264D

SOUND

To set-up the various sound options, highlight SOUND and press ENTER.

Under this section you configure how the text is shown for the POS.

DISPLAY MODE POSTION FONT SIZE NORMAL COLOUR HIGHLIGHT COLOUR DWELL TIME SCROLL HIGHLIGHT TEXT 1 ~ 4 EXCLUDE TEXT 1 ~ 4

OFF / LIVE / PLAYBACK / BOTH CENTRE / LEFT / RIGHT SMALL / MEDIUM / LARGE WHITE / GREY / YELLOW / BLUE / GREEN / RED WHITE / GREY / YELLOW / BLUE / GREEN / RED 1 ~ 60 SEC / UNTIL KEY CLEAR / ROLL UP ON / OFF [ENTER TEXT] ON / OFF [ENTER T

EXT]

SOUND: AUDIO

LIVE AUDIO: When set to ON, the selected audio channel can be monitored on the AUDIO OUTPUT when the VXH264D is in any multi screen mode.

DEFAULT AUDIO CHANNEL: Specify which one of the 4 AUDIO INPUTS is routed to the AUDIO OUTPUT when the VXH264D is in any multi screen mode.

NETWORK AUDIO TRANSMIT: When set to ON, live and playback audio is transmitted to a remote PC connection.

NETWORK AUDIO RECEIVE: When s

et to ON, allows a remote PC connection to send audio back to

the VXH264D.

SOUND: BUZZER

FRONT PANEL KEYPRESS: When set to ON, each front panel button press is confirmed by a beep

This setting will also turn the IR Remote confirmation beep on or off .

Page 28

CONFIGURING THE VXH264D

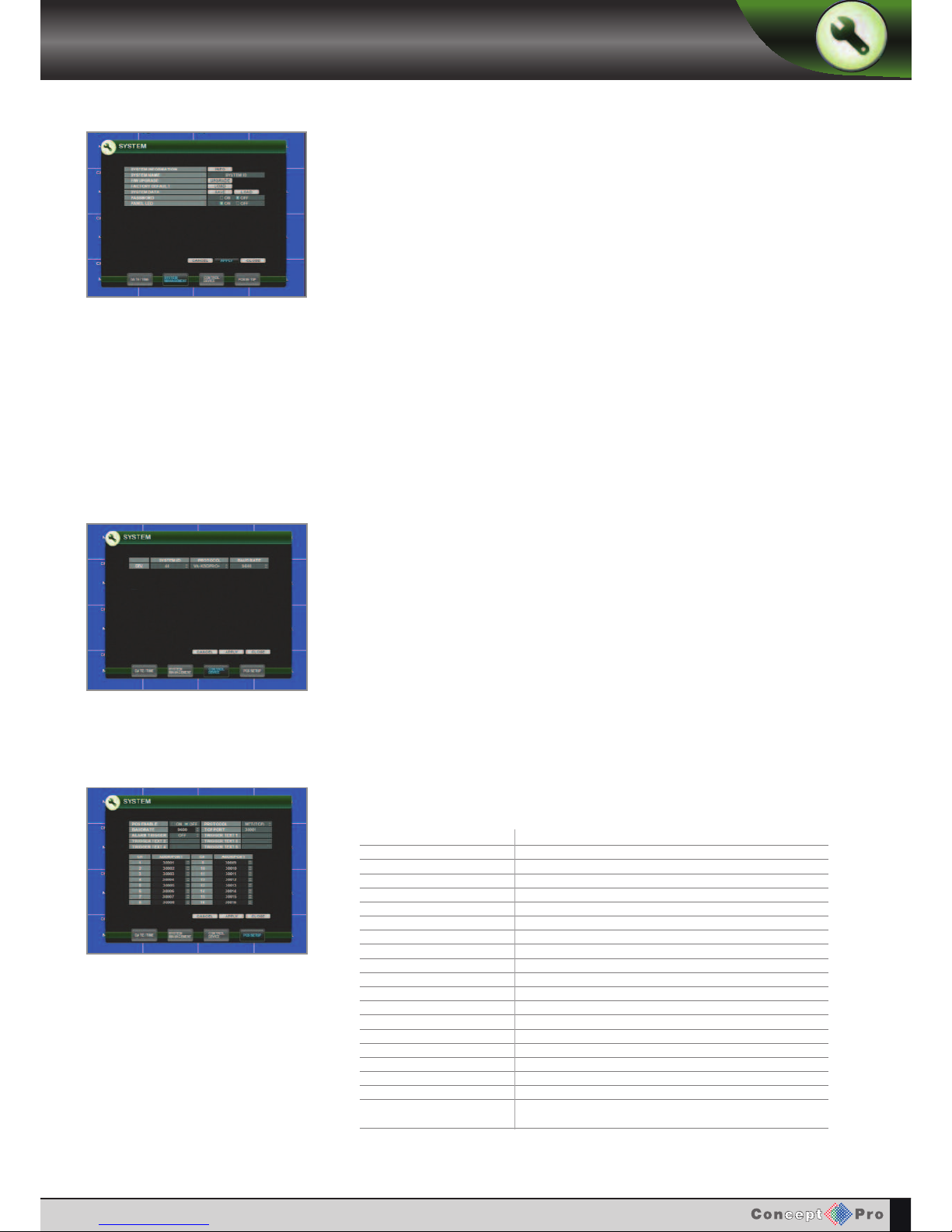

SYSTEM

To set-up the various system options, highlight SYSTEM and press ENTER

DATE TIME: Allows the operator to set or modify the current date & time.

DATE FORMAT: Determines how the date is displayed.

TIME FORMAT: Determines how the time is displayed.

NETWORK TIME SERVER SETUP: If the VXH264D is connected to the Internet, the time and date can be accurately set by selecting SYNC and pressing ENTER.

TIME ZONE SETUP: Should be set according to the region that the VXH264D is used in.

D.S.T.: When set to ON, the VXH264D will automatically adjust the time by one hour on the r

elevant date in spring and autumn.

SYSTEM: DATE/TIME

SYSTEM: SYSTEM MANAGEMENT

Select INFO to display

F/W VERSION: Shows the firmware version of the VXH264D.

H/W VERSION: Shows the hardware version of the VXH264D.

VIDEO SIGNAL TYPE: The VXH264D can be selected between PAL and NTSC via a selector switch on the rear panel (Default PAL).

DISK CAPACITY: Shows the total hard drive capacity installed.

IP ADDRESS: Shows either the manual IP address entered in NETWORK setup or the IP address assigned by a DHCP server if enabled.

MAC ADDRESS: Shows the MAC (Media Access Control) address of the VXH264D. It is unique

– no other network device has this MAC address.

DDNS DOMAIN NAME: If DDNS is enabled, the host DDNS server is specified here.

RTSPSERVICEPORT: The port number the DVR uses for internal networks.

WEBSERVER PORT: The port number that the DVRuses to support remote I.E conections.

Note this is for information only not for the setup.

Page 29

CONFIGURING THE VXH264D

SYSTEM

The VXH264D can be remotely controlled using a Concept Pro VA-KBDPRO+ keyboard. Up to 254 VXH264Ds can be controlled using a single VA-KBDPRO+ PTZ controller.

SYSTEM ID: If more than one VXH264D is connected on the same RS485 bus, each one must have a unique ID.

PROTOCOL: Must be set to VA-KBDPRO+.

BAUD RATE: Must be set to match the baud rate of the VA-KBDPRO+ PTZ controller.

SYSTEM: CONTROL DEVICE

The VXH264D can be linked in to a till system to allow this, set up the configuration on this menu – POS SETUP

SYSTEM: POS SETUP

SYSTEM NAME: A system name of up to 15 characters can be defined. It is used so that notification emails can be identified.

F/W UPGRADE: Firmware updates may be released periodically to enhance system performance and add extra features. The operator can upgrade the firmware using a USB memory stick.

FACTORY DEFAULT: If settings have been changed which causes erratic behaviour, the factory default settings can be loaded.

SYSTEM DATA: System settings can be saved to a USB memory stick. The settings can be reloaded in case of accidental factory reset or can be transferred to another VXH264D if multiple units need to be installed with the same settings. All information is saved including network settings and system name.

PASSWORD: Selects if a password is required ‘ON / OFF’. Please note: Password must be selected to ‘ON’ if USER MANGEMENT options are required.

PANEL LED: Select to turn ‘ON/OFF’ the LEDs on the front panel.

POS ENABLE PROTOCOL BAUDRATE TCP PORT ALARM TRIGGER TRIGGER TEXT 1 TRIGGER TEXT 2 TRIGGER TEXT 3 TRIGGER TEXT 4 TRIGGER TEXT 5

PROTOCOL RS485 (1CH) CHANNEL

PROTOCOL RS485 (AVE) CHANNEL ADDR / PORT

PROTOCOL NET (TCP) CHANNEL ADDR / PORT

ON / OFF RS485 (1CH) / RS485 (AVE) / NET (TCP 9600 [PORT NUMBER] OFF / ALWAYS / TEXT [ENTER TEXT] [ENTER TEXT] [ENTER TEXT] [ENTER TEXT] [ENTER TEXT]

1 ~ 16

1 ~ 16 [ENTER PORT]

1 ~ 16 [PORT DISPLAYED DEPENDING ON T

CP PORT SET

PREVIOUSLY]

Page 30

CONFIGURING THE VXH264D

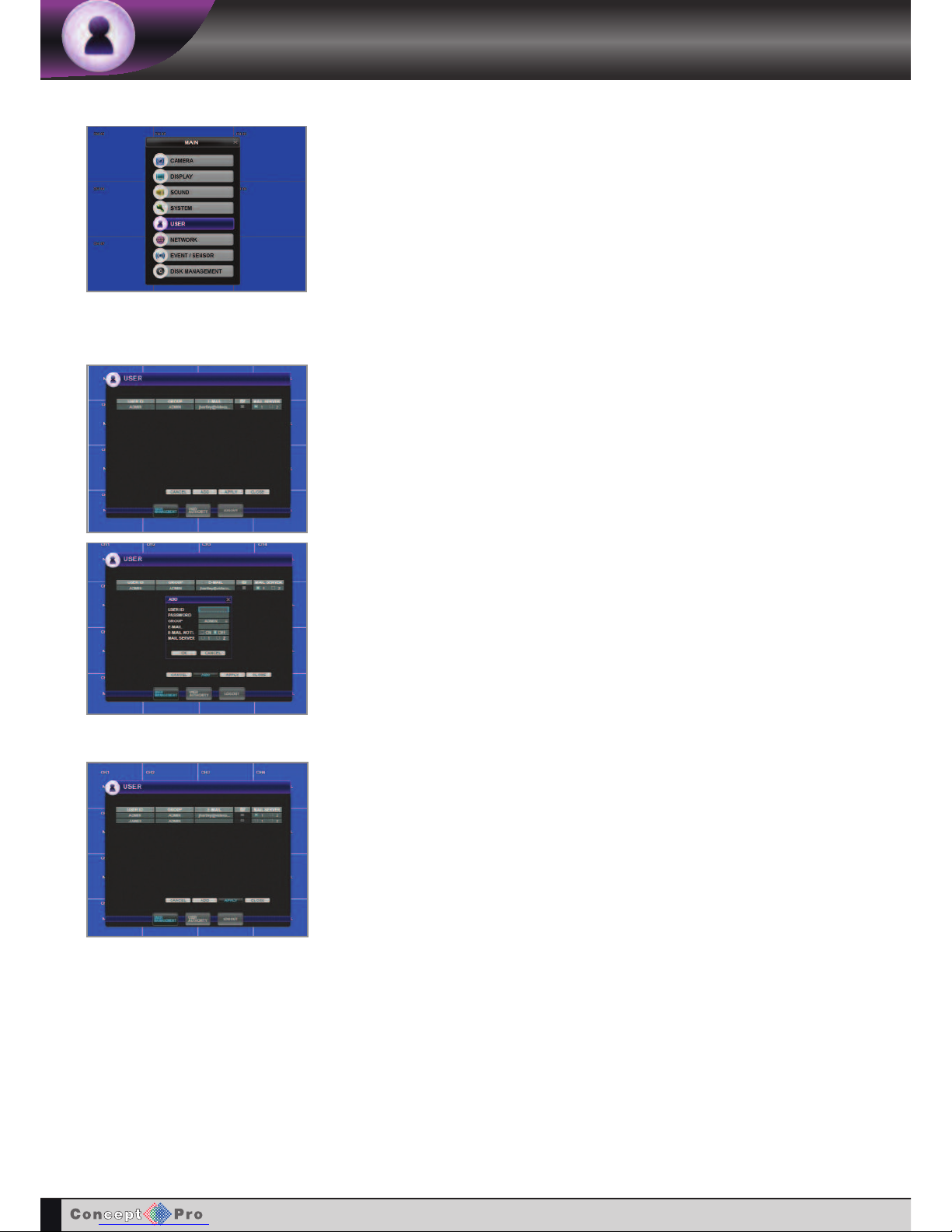

USER

To set-up User Management options, highlight USER and press ENTER.

By default the VXH264D is configured with a USER ID of ADMIN belonging to the ADMIN group and with a password of 1234.

As well as the ability to add new users, existing users defaults can be modified.

The maximum number of users that can be created is 8.

To modify user details, highlight the user with the blue cursor or press ENTER. The EDIT s

creen appears.

USER ID: Edit the user ID using the virtual keyboard. (Max 10 characters).

PASSWORD: Change the password using the virtual keyboard. (Max 8 characters) Please note: To delete the existing password use the

Á on the virtual keyboard.

GROUP: Users can be assigned by one of three groups. ADMIN, MANAGER, USER.

E-MAIL: Enter the user’s email address if email notifications are req

uired.

-MAIL NOTI: Enable or disable email notification for the particular user.

MAIN SERVER: Select which SMTP Mail Sever you are assigning to this user.

PLEASE NOTE: For security reason, it is recommended that the ADMIN user password is changed as soon as possible.

To add users: Highlight ADDor press ENTER. The new user can be added using the steps outlined above.

USER: USERMANAGEMENT

Page 31

CONFIGURING THE VXH264D

USER

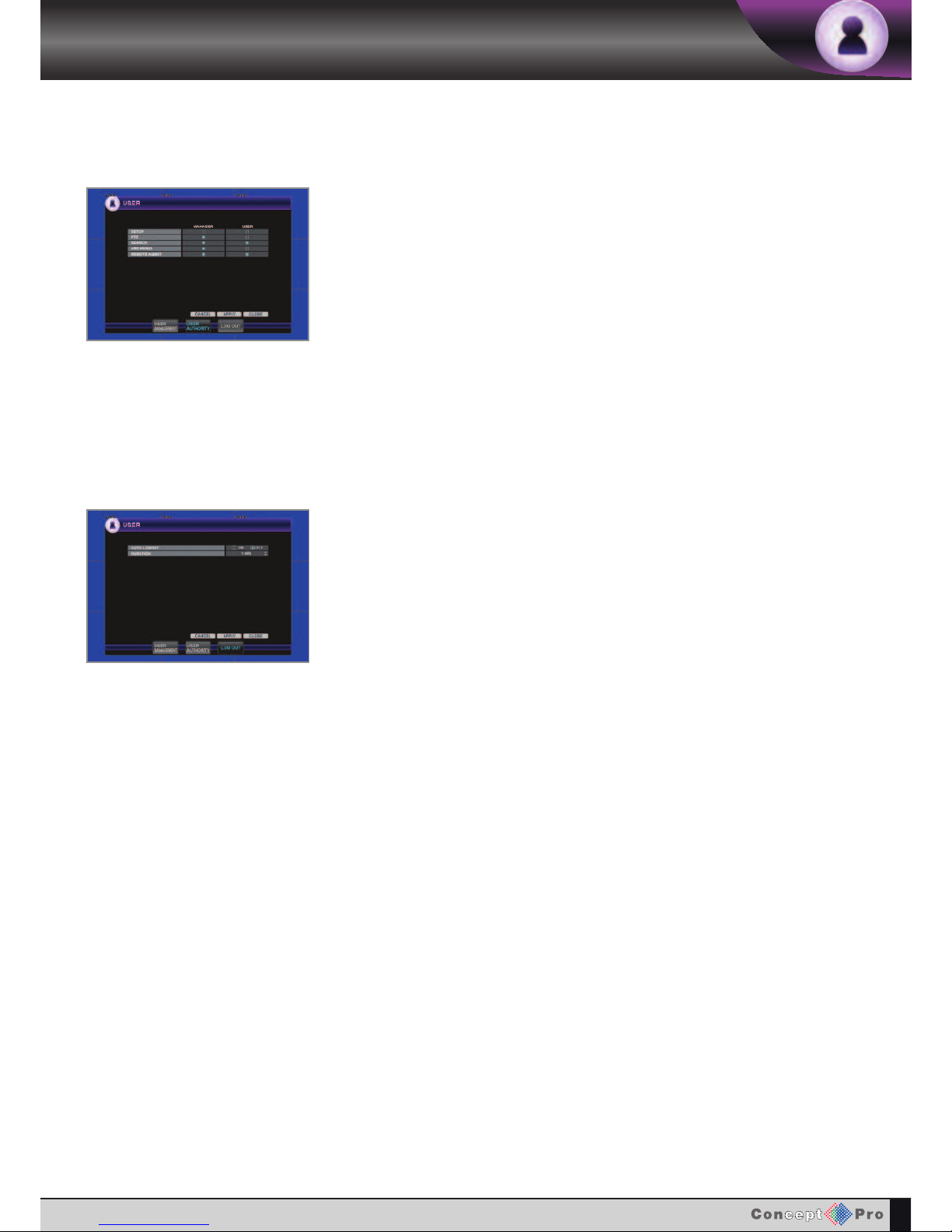

USER: USERAUTHORITY

User authority (except ADMIN) can be selected.

Using the CURSOR KEYS select the functions you want and the MANAGER and USER groups to have. (Blue square = On)

Press APPLY to save settings.

PLEASE NOTE: Any user can be deleted except the default ADMIN user.

AUTO LOGOUT: Selects if auto log-out is ON or OFF.

DURATION: If auto log is set to ON this determines the time. (in 1 - 10 Min)

Press APPLY to save settings.

USER: LOG OUT

Page 32

CONFIGURING THE VXH264D

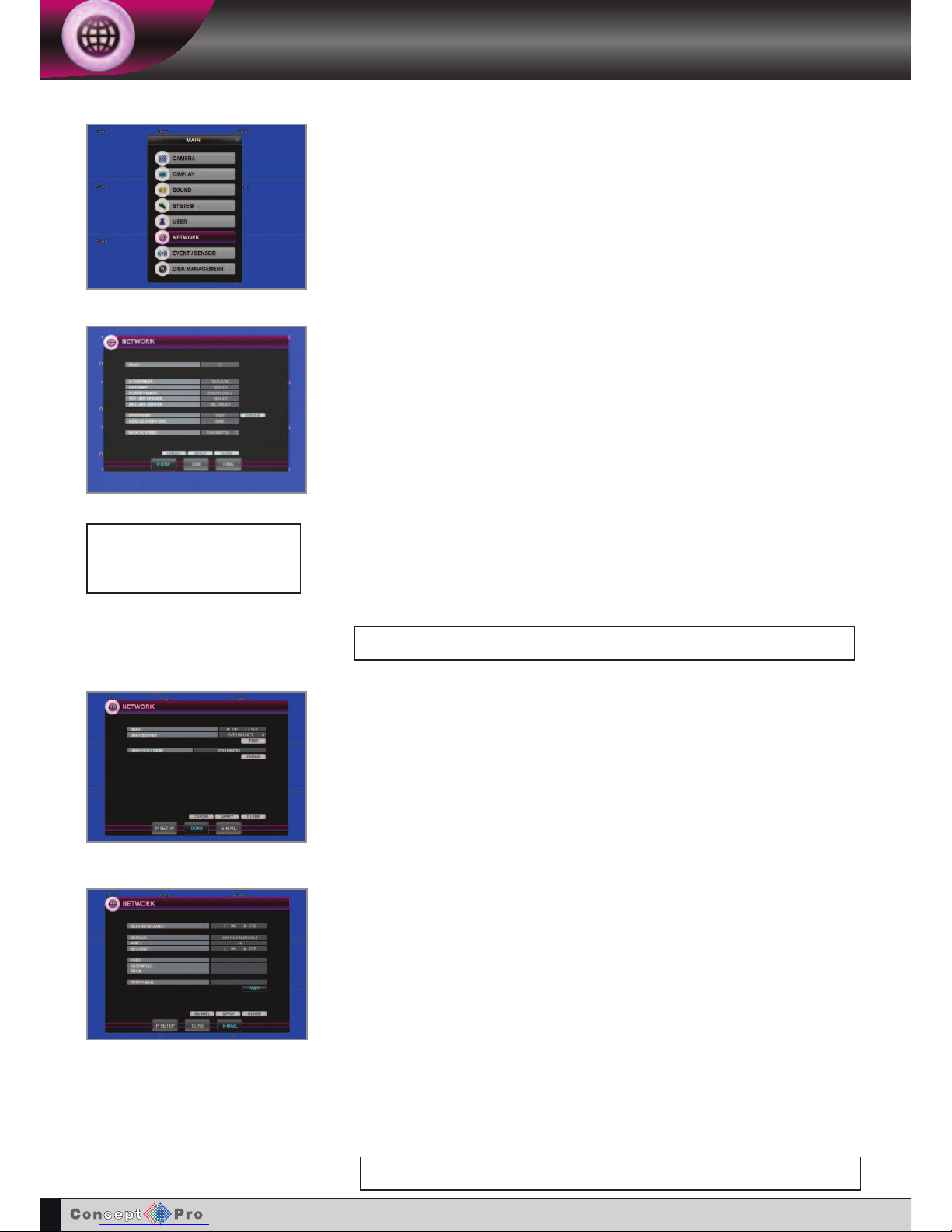

NETWORK

DHCP: When selected the DVR will obtain an IP address automatically if connected to a DHCP server or router.

IP ADDRESS: If DHCP is not being used the IP address can be manually set.

GATEWAY: If DHCP is not being used the Gateway IP address can be manually se t.

SUBNET MASK: If DHCP is not being used the subnet mask can be set manually.

1ST DNS SERVER: If DHCP is not being used the 1st DNS server can be manually set.

ND DNS SERVER: If DHCP is not being used the 2nd DNS server can be manually set.

RTSP PORT: The port number that the VXH264D uses to support video streaming to the remote browser.

WEB SERVER PORT: The port number that the VXH264D uses to support remote connection from Internet Explorer.

MAX TX SPEED: Specifies the maximum bandwidth that the VXH264D can use during a remote c

onnection.

Please Note: Both RTSP & WEBSERVER PORT will need a firewall rule creating for remote connection.

NETWORK: IP SETUP

Please note: for further information on network settings and remote connections please refer to pages 52

- 54.

NETWORK: E-MAIL

The VXH264D can be setup with two SMTP servers. This can be used as a back-up server, in case your primary server goes down. Or, send multiple emails to multiple accounts. e.g: Primary SMTPserver sends emails from one account, and the Secondary SMTP Server sends email from a second account.

DEFAULT SERVER: Selects On or OFF. Default server is used if you do not have an outgoing e-mail server.

SERVER: The SMTP outbound email server that should be used to send email notifications.

PORT: The outbound email port number.

SECURITY: Set to OFF if the SERVER does not require a username and password to connect.

USER: Enter a username to identify the VXH264D in email messages.

PASSWORD: If SECURITY is set to ON, enter the password here.

FROM: Input an email address or text.

Please note: A USER must be entered for the mail function to operate correctly. The username must not contain spaces.

NETWORK: DDNS

DDNS: When enabled the VXH264D can be accessed through a dynamic DNS server. Commonly used if a broadband connection does not have a static IP address.

Press APPLY to save settings.

The Default DDNS host name is selected as the MAC address of the DVR. If the user wishes to select their own host name (eg myhome) enter the name in the field “DDNS HOST NAME” and press “CHECK” to see if available.

hen Press ENTER.

To set-up Network options hightlight NETWORK and press ENTER.

Page 33

CONFIGURING THE VXH264D

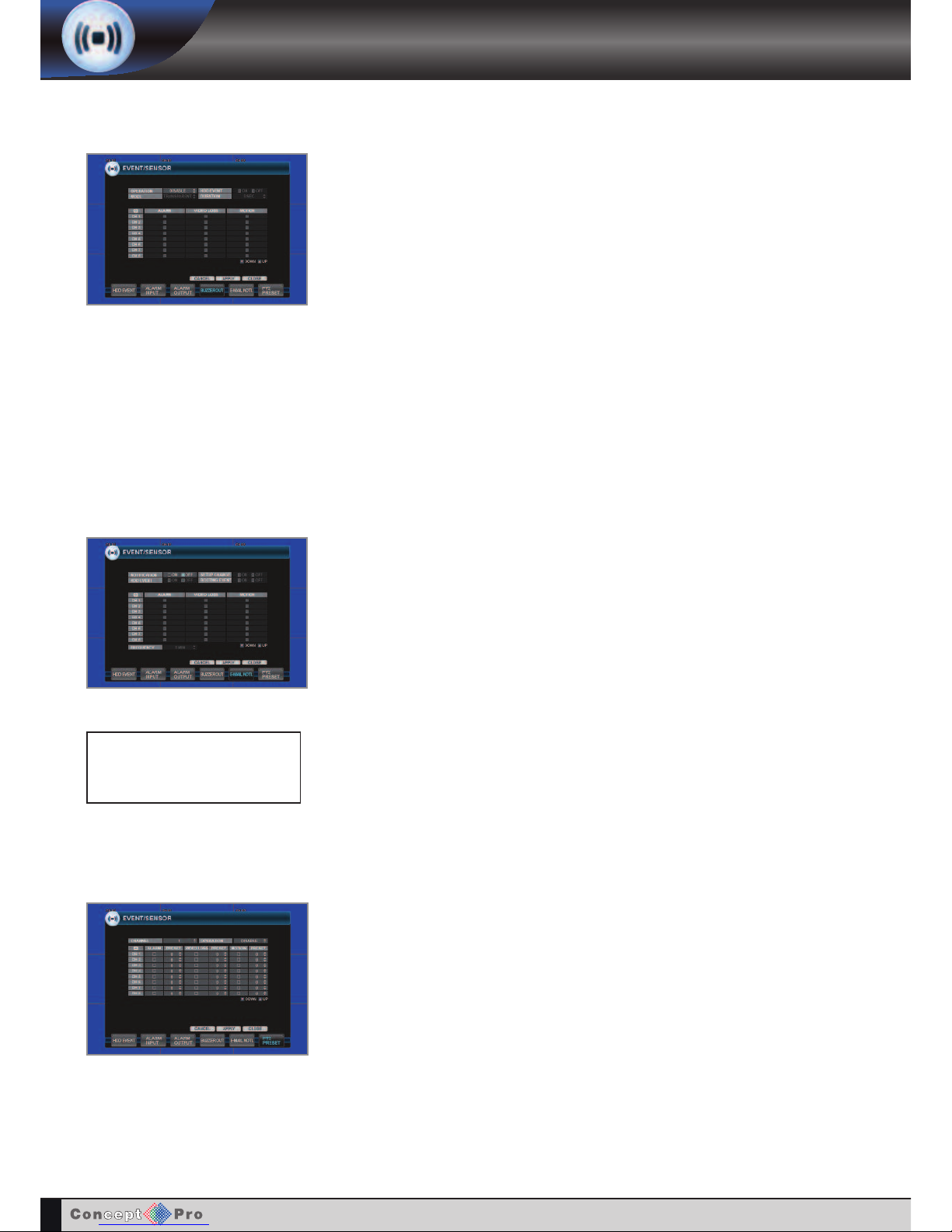

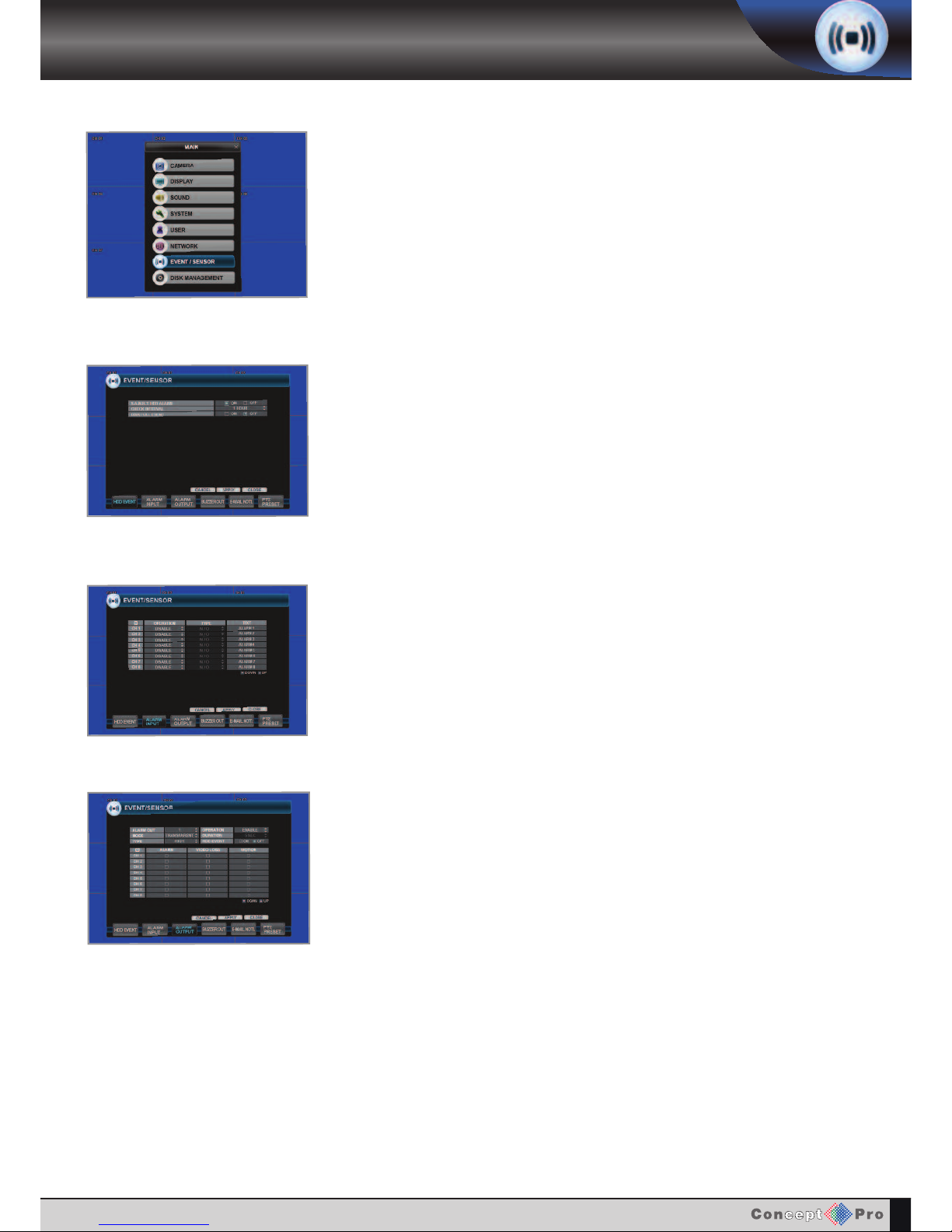

EVENT / SENSOR

To set-up the event handling options, highlight EVENT/SENSOR and press ENTER.

EVENT / SENSOR: HDD EVENT

The VXH264D can monitor the hard drives and detect problems that may be developing.

S.M.A.R.T. ALARM: Enables SMART disk monitoring.

CHECK INTERVAL: Can be adjusted as desired.

DISKFULLEVENT: Can be set as ON or OFF.

EVENT / SENSOR: ALARM INPUT

Determines the behaviour of each of the 16 alarm inputs.

OPERATION: Alarm inputs can be enabled or disabled.

TYPE: Alarm inputs can be set as normally open or normally closed.

TEXT: Allows the indivdual alarm to be named. This name will appear in the log.

EVENT / SENSOR: ALARM OUT

Determines the behaviour and actions that will trigger each of the 16 alarm outputs or 4 relay outputs.

Behaviour settings

CHANNEL: Choose which alarm output to configure including relay outputs R1 to R4.

OPERATION: The selected alarm output can be enabled or disabled.

MODE: Can be either TRANSPARENT (the output is active only when the trigger criteria is present) or LATCHED. (the output is active for a set period of time after a trigger)

URATION: In LATCHED mode, the time that the alarm output remains active after it has been

triggered.

TYPE: Can be set to low (0V to +5V when activated) or high. (+5V to 0V when activated)

HDD EVENT: Determines whether a hard drive event triggers the alarm output.

Action settings

ALARM: Determines whether alarm inputs will trigger the alarm output.

VIDEO LOSS: Determines whether video loss on any of the selected channels will trigger the alarm output.

MOTION: Determines whether motion detection on any of the selected channels will trigger the alarm output.

Press APPLY to save settings.

Page 34

CONFIGURING THE VXH264D

EVENT / SENSOR

EVENT / SENSOR: BUZZER OUT

Determines the behaviour and actions that will trigger the internal buzzer.

Behaviour settings

OPERATION: The internal buzzer can be enabled or disabled.

HDD EVENT: Determines whether a hard drive event sounds the buzzer.

MODE: Can be either TRANSPARENT (the buzzer sounds only when the trigger criteria is present) or LATCHED. (the buzzer sounds for a set period of time after the trigger)

DURATION: In LATCHED mode, the time that the buzzer sounds after it has been triggered.

ction settings

ALARM: Determines whether alarm inputs will sound the buzzer.

VIDEO LOSS: Determines whether video loss on any of the selected channels will sound the buzzer.

MOTION: Determines whether motion detection on any of the selected channels will sound the buzzer.

Press APPLY to save settings.

EVENT / SENSOR: EMAIL NOTI

Determines the behaviour and actions that will send an email to a remote user.

Behaviour settings

NOTIFICATION: Email notification can be turned ON or OFF. (When ON panic event will send emails)

SETUP CHANGE: Determines whether a setup change event sends an email.

HDD EVENT: Determines whether a hard drive event sends an email.

BOOTINGEVENT: Determines whether system power-up event sends an email.

Action settings

LARM: Determines whether alarm inputs will send an email.

VIDEO LOSS: Determines whether video loss on any of the selected channels will send an email.

MOTION: Determines whether motion detection on any of the selected channels will send an email.

Please note: Alarm Record must be scheduled under record settings in order to send alarm event emails.

Email settings must also be configured in MAIL and USER MANAGEMENT settings described on page 27.

EVENT / SENSOR: PTZ PRESET

Determines what event actions will send specified PTZ devices to specified presets.

CHANNEL: Select the camera channel that the desired PTZ device is connected to.

OPERATION: Set to ENABLE to make the PTZ device respond to the specified actions.

ALARM / PTZ PRESET: Tick the appropriate box and choose the desired preset number required. For example, to send the PTZ device to preset 57 when alarm input 5 is detected, tick the CH 5 box and enter PTZ PRESET 57.

VIDEO LOSS / PTZ PRESET: Tick the appropriate box and choose the desired preset number required. For example, to send the PTZ device to preset 32 when video loss is detected on channel 2, tick the CH 2 box and enter PTZ PRESET 32.

MOTION / PTZ PRESET: Tick the appropriate box and choose the desired preset number required. For example, to send the PTZ device to preset 9 when motion detection is detected on channel 4, tick the CH 4 box and select PTZ PRESET 9.

Notes: For an alarm input to call a preset, alarm recording must be enabled in the VXH264D record menu. For motion detection to call a preset, motion recording must be enabled in the VXH264D record menu.

Page 35

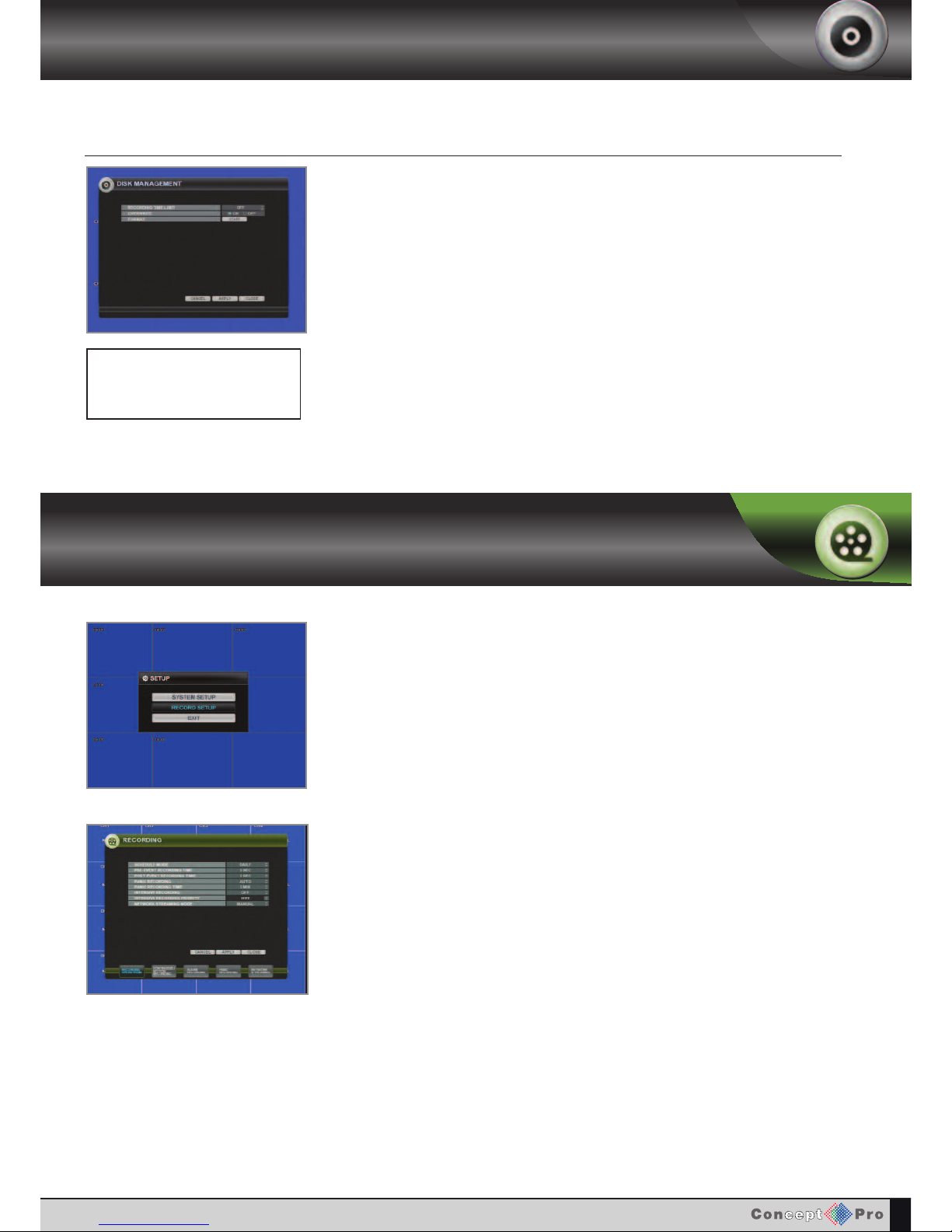

DISK MANAGEMENT

To manage the internal hard drives, highlight DISK MANAGE and press ENTER.

RECORD TIME LIMIT: In certain circumstances, it may be necessary to limit the amount of footage stored on the VXH264D (to comply with data protection laws for example).

Recording can be limited to 12 hours, 1 day, 2 days, 3 days, 4 days, 5 days, 6 days, 1 week, 2 weeks, 3 weeks 1 month or 2 month. Once the VXH264D has this amount o

f footage stored, it will start to overwrite

the earliest recorded footage.

OVERWRITE: When set to ON, the VXH264D will start overwriting the earliest recorded footage once the hard drive becomes full or record limit time is reached. When set to OFF, the VXH264D will stop recording when the disk becomes full. The status bar will show the percentage of the HDD that is full.

FORMAT: If necessary, all footage can be erased from the VXH264D using this option.

Please note: When OVERWRITE option is set to OFF the recording time limit can not be set

To set-up the recording behaviour of the VXH264D, highlight RECORD MENU and press ENTER.

SCHEDULE MODE: Either DAILY (one schedule will apply to every day of the week) or WEEKLY (each day of the week has its own schedule).

PRE EVENT RECORDING TIME: When the VXH264D is not in continuous recording mode, this setting determines the amount of footage that is always recorded before an event occurs (motion detection, alarm input etc.)

POST EVENT RECORDING TIME: When the VXH264D is not in continuous r

ecording mode, this setting determines the amount of footage that is always recorded after an event occurs (motion detection, alarm input etc.)

PANIC RECORDING: Can be set to MANUAL (panic recording continues indefinitely after it has been triggered until the PANIC button is pressed again), AUTO (when the PANIC button is pressed, the unit only records in panic mode for the time specified in PANIC R

ECORDING T

IME) or DISABLE (panic recording

is disabled).

PANIC RECORDING TIME: When PANIC RECORDING is set to AUTO itdetermines the amount of time the VXH264D records in panic mode before reverting back to standard recording mode.

INTENSIVE RECORDING MODE: When set to OFF, the VXH264D records as normal according to the CONTINUOUS / MOTION SETUP schedule. When set to ON, the VXH264D records according to the CONTINUOUS / MOTION SETUP schedule, but will automatically increase the recording frame rate or r

esolution to the highest amount possible on any channel that has motion detection.

RECORDING PRIORITY: When INTENSIVE RECORDING MODE is set to ON it determines whether the frame rate (FPS) or resolution (SIZE) is increased to the highest amount possible during motion detection.

NETWORK STREAMING MODE: C

an be set to OFF so dual streaming is disabled. Set to MANUAL so the settings applied in NETWORK STREAMING take effect or set to AUTO, which will vary the FPS depending on your network.

RECORD MENU

RECORDING OPERATIONS

RECORDING

DISK MANAGEMENT

Page 36

RECORDING

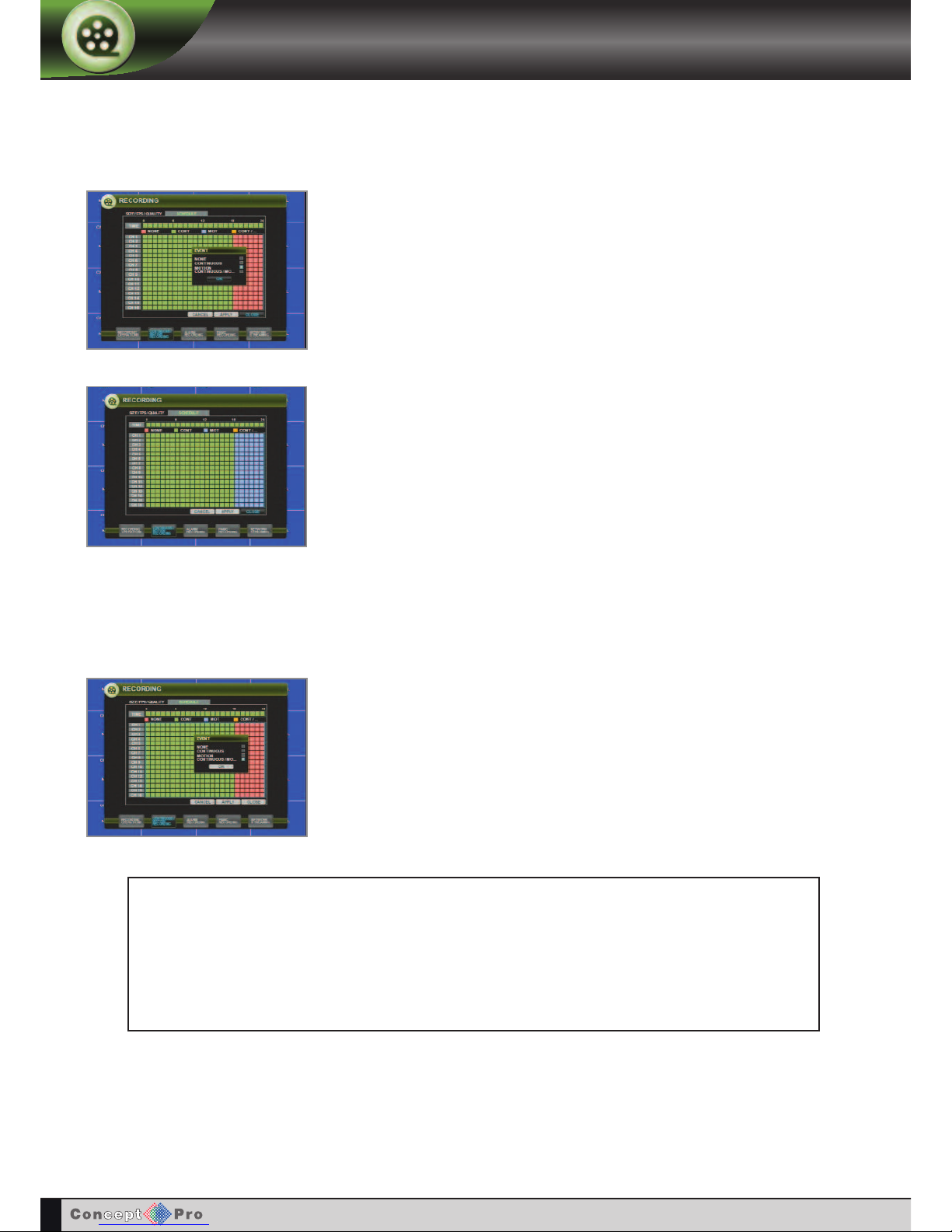

SIZE / FPS / QUALITY

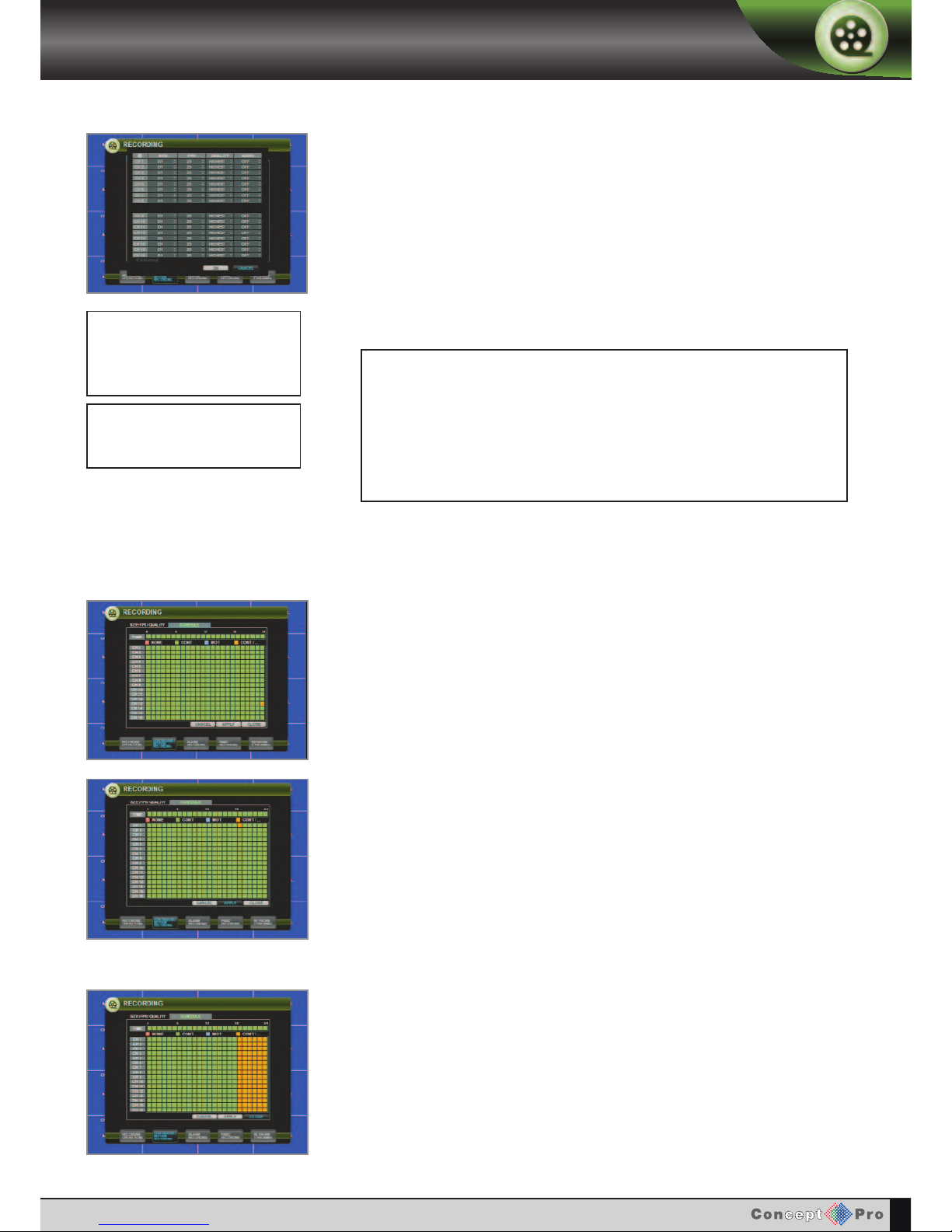

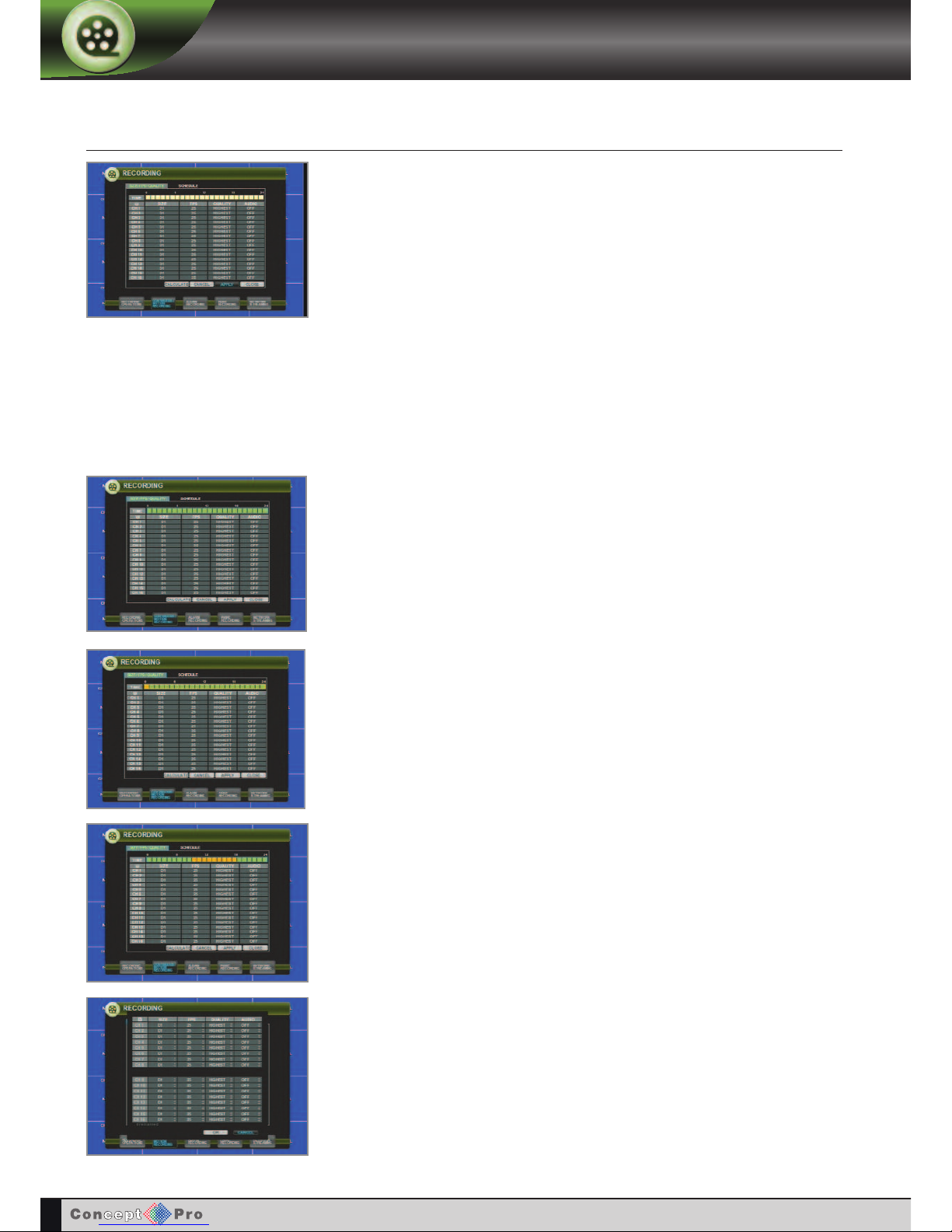

To change SIZE / FPS / QUALITY settings, highlight CONTINUOUS / MOTION RECORDING and press ENTER. Ensure SIZE / FPS / QUALITY is highlighted in blue and press ENTER again.

The 24 hour time bar is highlighted in yellow.

Press ENTER to display the orange cursor.

The orange cursor shown represents one hour (in this case between 00:00 and 01:00). The table below the time bar shows the recording settings for this time period.

Example: To change the recording settings between 09:00 and 18:00:

Use the CURSOR KEYS to move the orange cursor to the 09:00 position and press ENTER.

Then use the CURSOR KEYS to stretch the orange cursor across to the 18:00 position.

ress ENTER. Recording settings for the selected time period are displayed.

This setup screen allows the operator to configure scheduled and motion detection recording. There are 2 sections:

SIZE / FPS / QUALITY: Recording settings for each channel can be defined across a 24 hour period, in blocks (for example between 09:00 and 18:00) or for each individual hour. Note that when SCHEDULE MODE is set to WEEKLY, each day of the week can also be selected.

When any settings are changed, in the SIZE / FPS / QUALITY table the estimated recording time in days is displayed by pressing CALCULATE.

SCHEDULE: This section determines at what times the VXH264D will record and whether it is continuous recording or motion detection.

CONTINUOUS / MOTION SETUP

Page 37

RECORDING

RESOLUTION: Recording resolutions of CIF (352x288), 2 CIF(704x288) or D1 (704x576) can be selected for each channel.

FPS: Frame rates between 1 and 25 can be set for each channel.

QUALITY: Five different picture recording qualities can be set for each channel.

AUDIO: If audio devices are connected to the VXH264D then you can select them to be ON or OFF.

During playback, when a particular channel is selected in full screen, the assigned audio c

hannel will be played back at the same time.

Adjust values as desired and select OK to finish and return to the parameter menu. Other time periods can be configured in the same manner.

Remember that if SCHEDULE MODE is set to WEEKLY, recording settings need to be changed for each day as well as for each particular time.

The default settings for all channels is D1 (704 x 576), 25FPS, HIGHEST quality.

Note: The VXH264D supports a maximum recording rate across all channels of 400 frames per second at D1 resolution. As settings are adjusted, the ‘frames available’ at bottom left displays the number of available frames still remaining and must always be zero or higher.

If, whilst changing recording settings, this figure becomes negative, recording resolutions and / or frame rates must be lowered to increase t

he ‘frames available’

value to zero or above.

SCHEDULE

To change SCHEDULE settings, highlight CONTINUOUS/MOTION RECORDING and press

ENTER. Use the CURSOR KEYS to highlight SCHEDULE and press ENTER.

The schedule box is highlighted in blue.

Press ENTER to display the yellow cursor.

Example: To set all channels to motion detection recording only between 18:00 and 00:00.

Use the CURSOR KEYS to move the orange cursor to the 18:00 position and press ENTER. This becomes the starting position.

Use the CURSOR KEYS to stretch the orange cursor across and down to select all channels between 18:00 and 00:00.

Page 38

RECORDING

The schedule screen has 4 coloured blocks to show the different recording modes.

Pink blocks: No scheduled or motion recording

Green blocks: The VXH264D will record continuously

Blue block: The VXH264D will only record when motion is detected

Orange block: The VXH264D is in intensive recording mode (Continuous and motion)

CONTINUOUS / MOTION SETUP

If intensive recording is defined, CONTINUOUS / MOTION must be enabled in the SCHEDULE setup to for it to work. Mixed continuous and motion recording is displayed on the SCHEDULE screen as an orange block.

Press ENTER.

Using the CURSOR KEYS, highlight MOTION and press ENTER again.

The small box next to motion will turn blue.

Then press OK.

The selected area now displays a blue block for motion recording.

Repeat the above procedure to set different recording schedules for individual channels and time periods.

SCHEDULE continued

Page 39

RECORDING

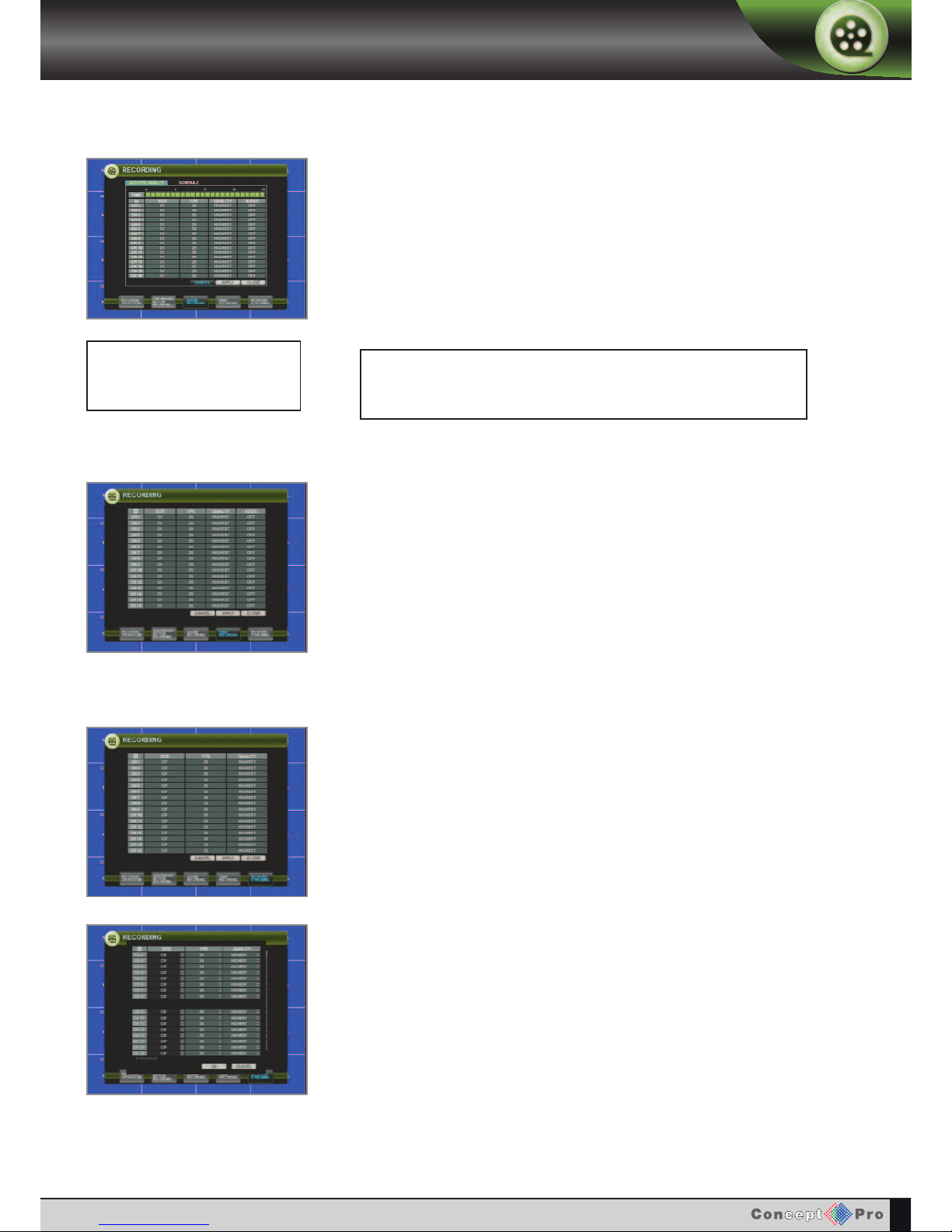

ALARM SETUP

This setup screen allows the operator to configure alarm input activated recording.

SCHEDULE: This section determines at what times the VXH264D w

ill monitor the alarm inputs and activate recording. This also determines when the VXH264D will send alarm event email notifications.

Please refer to Timer / motion setup on page 33 for details on setting up SIZE / FPS / QUALITY and SCHEDULE.

Alarm activated recording can be used in conjunction with continuous / motion recording. For example, the VXH264D could be configured to record continuously at a low frame rate (set in continuous / motion setup) and then increase to a higher frame rate during an alarm input (set in alarm setup).

PANIC SETUP

NETWORK STREAMING

During panic recording mode, the VXH264D will override all other recording settings and record continuously on all channels at the settings configured here.

Network streaming setup allows the user to lower the resolution, FPS and quality on the video stream being sent across the network. This lowers bandwidth usage.

To change settings under NETWORK STREAMING, make sure the NETWORK

STREAMING MODE is set to MANUAL. (Can be found under RECORDING O

PERATIONS)

To change the parameters select any field on the NETWORK STREAMING table, this will then bring up a new menu, in which settings can be change.

Please note when Dual Streaming is set to MANUAL, the live feed from the DVR will be at CIF resolution only. The user then can change the FPS and Quality to their desired settings.

Page 40

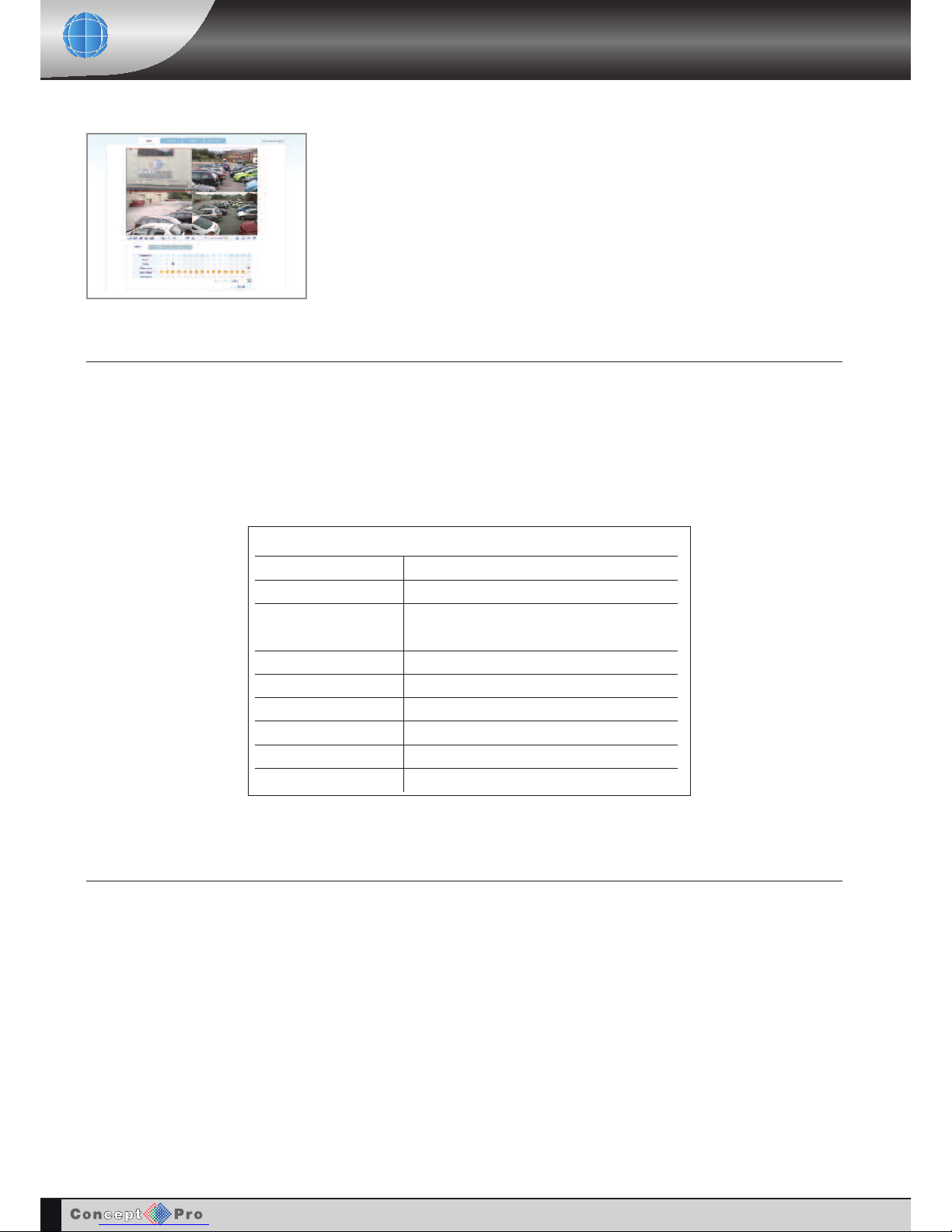

CONNECTING TO THE VXH264D REMOTELY

HOW TO CONNECT

Input the IP Address and Web Server port of the DVR in the Internet Explorer Address Bar. e.g. http://192.168.2.19:8080 (Web Port :8080)

If you do not have a fixed IP address and are using the DDNS service, input the URL as below.

e.g. http://1234.dvrlink.net:8080 (Web Port :8080)

Please replace “1234” with the default MAC address of the DVR (located under System Information), or your chosen DDNS host name.

CONNECT USING INTERNET EXPLORER

The VXH264D can be viewed on a remote connection either on a direct LAN connection or over the Internet, simply by using Internet Explorer.

The remote browser allows full live viewing of the VXH264D including telemetry control of PTZ cameras. In addition, playback, remote setup, audio talkback, local and backup.

BEFORE CONNECTING When using web browsers remotely, the Web Service Port and Net Client Port s

hould be set-up correctly via the router by Port Forwarding. For more information regarding Port Forwarding please see APPENDIX B - Configuring a NETGEAR DG834 Router.

Refer to the manual of your Router for port forwarding settings.

WEB RA MINIMUM PC REQUIREMENT

CPU P4 3.0 or Higher

RAM 512MB or Higher

VGA Geforce MS 400, Radeon 7500 or higher

Gefore 8 series or higher

VGA MEMORY 64MB

MONITOR 1280X1024

OS Windows XPSP2

E VERSION IE7.0 or higher

NETWORK 100Mbps

DIRECT X V7.0 or higher

Page 41

CONNECTING TO THE VXH264D REMOTELY

A security window will then appear asking for Log In credentials.

Default ID and password are ‘ADMIN’ &’1234’.

You will need to install Active-X, click Run Add-on as shown in the image.

Please note, you will not have to repeat this step each time you connect remotely, unless a different computer is used.

In case you are unable to install active-X, you will need to check the security options regarding activeX, on Internet Explorer security menu. To check security options, open Internet Explorer, Click Tools located on the menu bar at the top, then click Internet options. A new window will then appear Click Security tab then Custom level…

Select Enable for all ActiveX related options.

(Including, Download signed ActiveX control, Download unsigned ActiveX control….)

Page 42

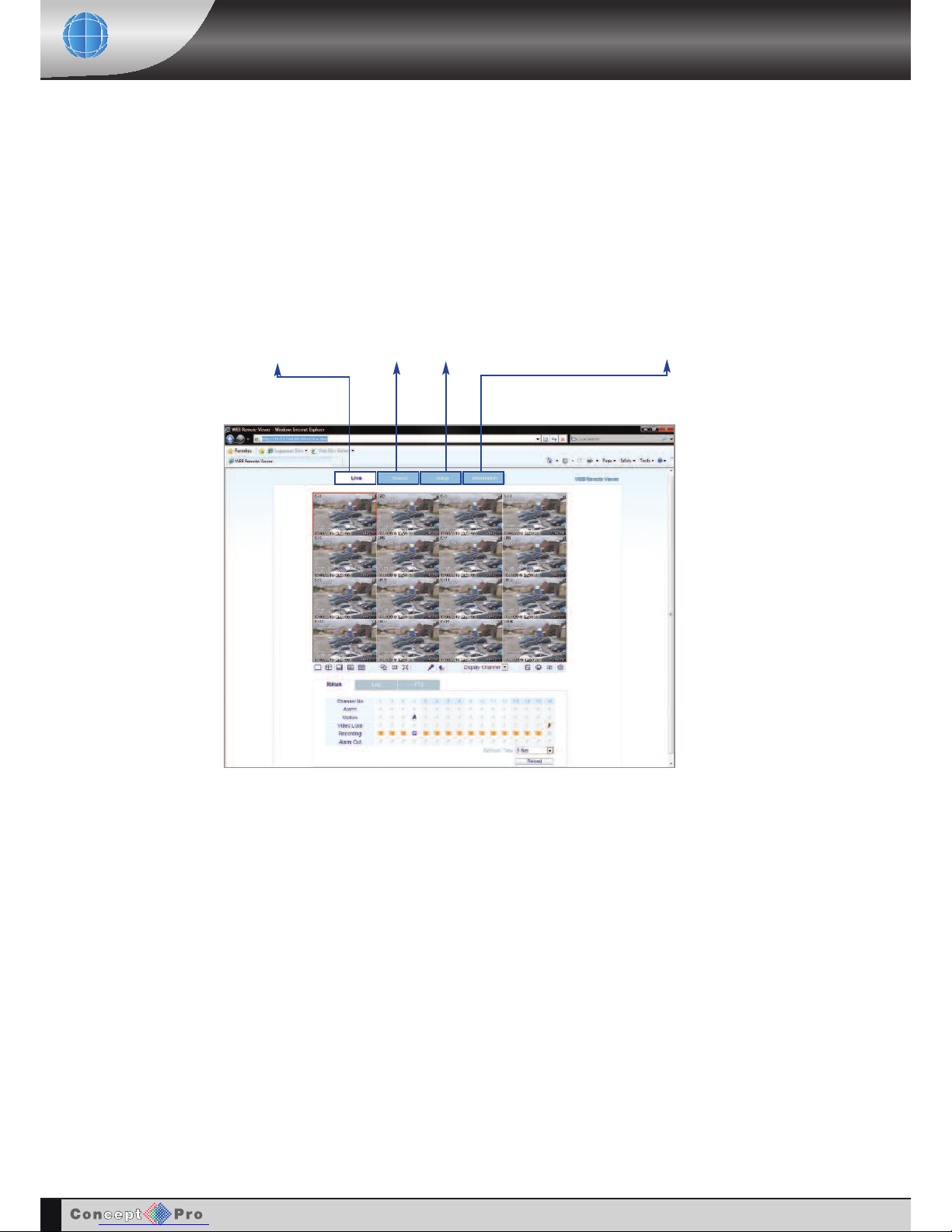

REMOTE CLIENT CONTROLS

LIVEVIEW TAB

SEARCH TAB

REMOTE SETUP TAB

INFORMATION TAB

Page 43

USING THE REMOTE CLIENT

After successful connection, the remote client displays the current live view from the VXH264D.

For each channel, the title, time / date and resolution are displayed.

LIVE DISPLAY MODES

Use the DISPLAY buttons to switch from a single, quad, 8, 9 or 16 split display.

To sequence, select the screen you require (single or multi mode) and click the SEQUENCE button. Click SEQUENCE again to to move to the next camera.

The MANUAL SWITCH button shifts the positions of all channels by one place. For example, the following displays shows a 4 channel VXH264D in 16 screen mode.

Clicking MANUAL SWITCH has moved all channels back by one position.

By clicking the FULL SCREEN button, the live display is shown in full screen without any of the remote client controls.

To return to normal viewing, press the ESC key or double click the right mouse click on any part of the screen.

To quickly select a particular channel, use the DISPLAYCHANNEL drop down box and click the channel you want to view.

AUDIO MONITORING AUDIO TALKBACK

During a remote client session, the operator can monitor audio connected to the VXH264D.

Click the AUDIO button to toggle live audio on or off.

During a remote client session, the operator can ‘talkback’ to the VXH264D. During talkback, audio is routed through the AUDIO OUT connector on the rear of the VXH264D.

To talkback, click and hold the TALKBACK button and speak normally in to the microphone.

Suitable speakers must be connected to the PC for audio monitoring to function.

Page 44

The operator can choose to record all channels currently being displayed on the live view directly to the local PC hard drive.

Click the button to immediately start recording.

Click the button to end recording.

USING THE REMOTE CLIENT

SAVING TO AVI FILE

By pressing the printer symbol you can print the current view.

By pressing the snapshot symbol you can create a JPEG still image of the selected camera image.

By pressing the setup symbol you can set-up the archive setting, such as the location. The archive footage/snapshots will be stored to a local PC.

STATUS

LOG

Internet explorer allows the user to quickly see the current status of all the cameras on the recorder.

Under each channel number is a display that indicates:

ALARM: If there is currently an alarm activation.

MOTION: If the camera is detecting motion.

VIDEO / LOSS: If there is a video loss.

RECORDING: Displays the current recording mode. (C : Continuous, M: Motion, A: Alarm, P: Panic Record)

ALARM OUT: Show any alarm out functions being used.

The status refresh time can be selected between 3 & 10 seconds.

nternet explorer allows the remote user to view the log from the DVR

Page 45

USING THE REMOTE CLIENT

PTZ

Internet explorer allows all telemetry control of devices connected to the VXH264D, provided that the correct user authority has been set-up.

Click the appropriate channel and use the on screen directional buttons to control pan & tilt movements. Use the - / + keys next to the Focus, Zoom and Iris buttons to control these functions if available on the camera.

PRESETS

Presets can be programmed and called remotely using the SET

and RUN buttons.

Example: To start pattern tour 1 running on a VHSD-770EXT speed dome, select preset 131 from the drop down list and click RUN.

Example: To program preset position 85, position the speed dome using the TELEMETRY controls, select preset 85 and click SET.

Telemetry control also allows remote setup of many telemetry devices. For example, to access the setup menu of the VHSD-770EXT speed dome, RUN preset 95 and then use the telemetry direction and focus + (to enter) and – (to exit) controls to navigate the speed dome menu.

Page 46

USING THE REMOTE CLIENT

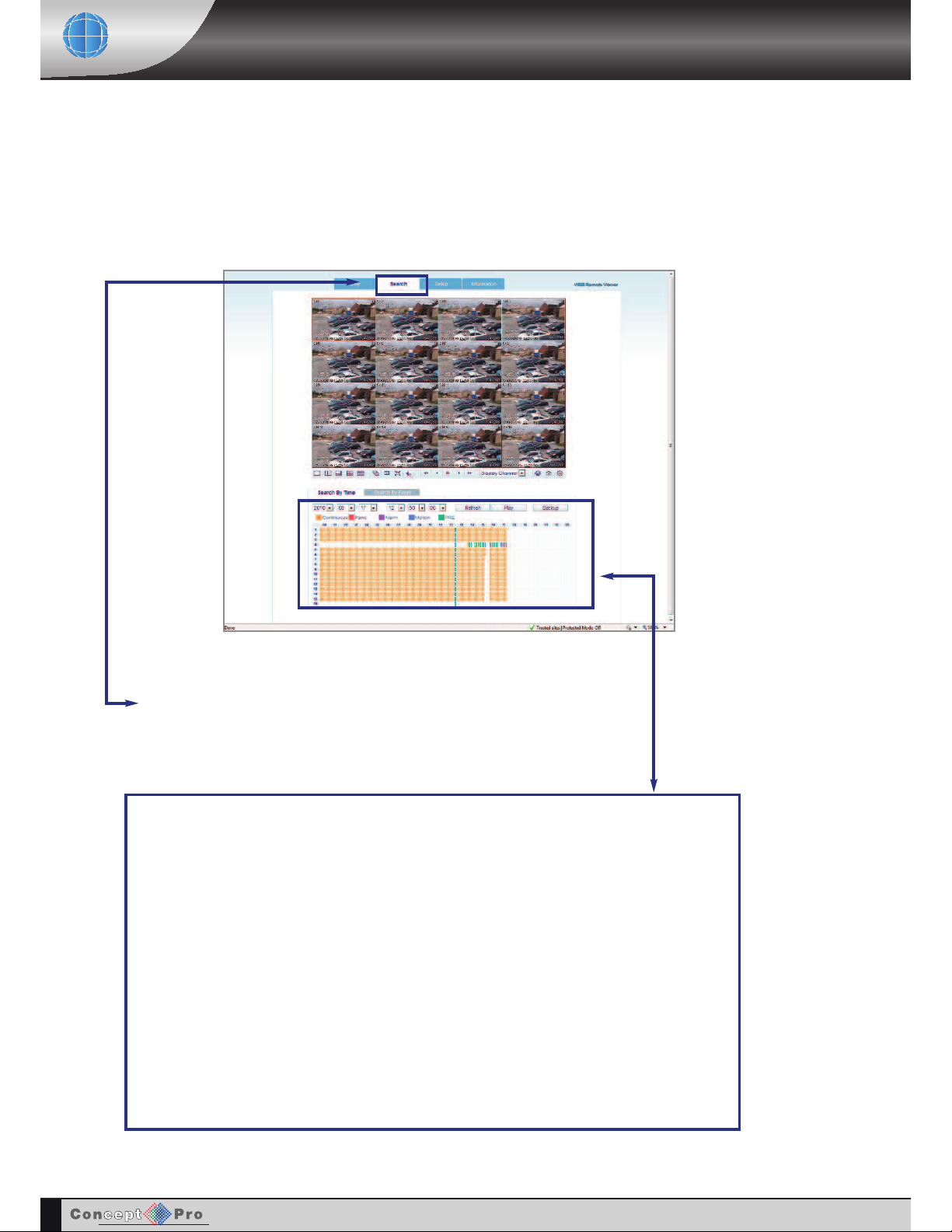

The timeline at the bottom of the display shows a graphical overview of recorded footage for a particular day.

Different colour blocks represent different types of recording.

ORANGE: Continuous

PINK: Panic

PURPLE: Alarm

BLUE: Motion

CYAN: PRE

DATE: Choose the required date by selection drop down box and select the date required.

TIME: Either use the same method again to select the time or drag the blue time b

ar along the timeline.

When sliding this time bar you will notice the time changes in the boxes above.

Click PLAY to begin playback from the selected date and time.

Click the search tab to switch to search mode.

REMOTE CLIENT PLAYBACK

Page 47

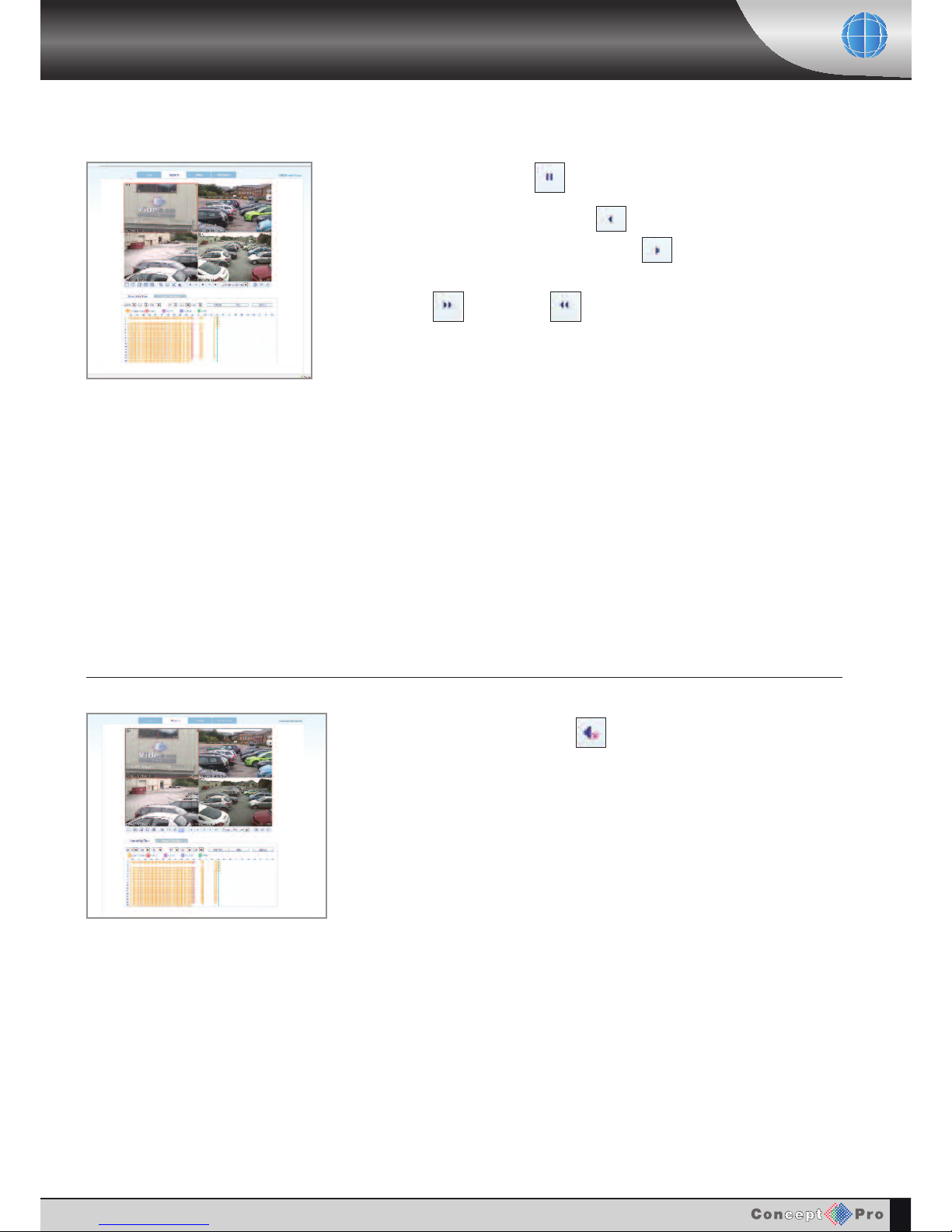

REMOTE CLIENT PLAYBACK CONTROLS

During playback at anytime click to pause the footage. Click again to resume playback.

Footage can be played in reverse by clicking

Then to return playing back the footage normally click

Fast Forward and Rewind can be clicked to speed up playback.

CONTROLLING PLAYBACK

AUDIO MONITORING

During playback click the AUDIO button to toggle audio on or off.

Please note: Audio can only be heard when a single channel view is displayed.

Page 48

REMOTE CLIENT PLAYBACK CONTROLS

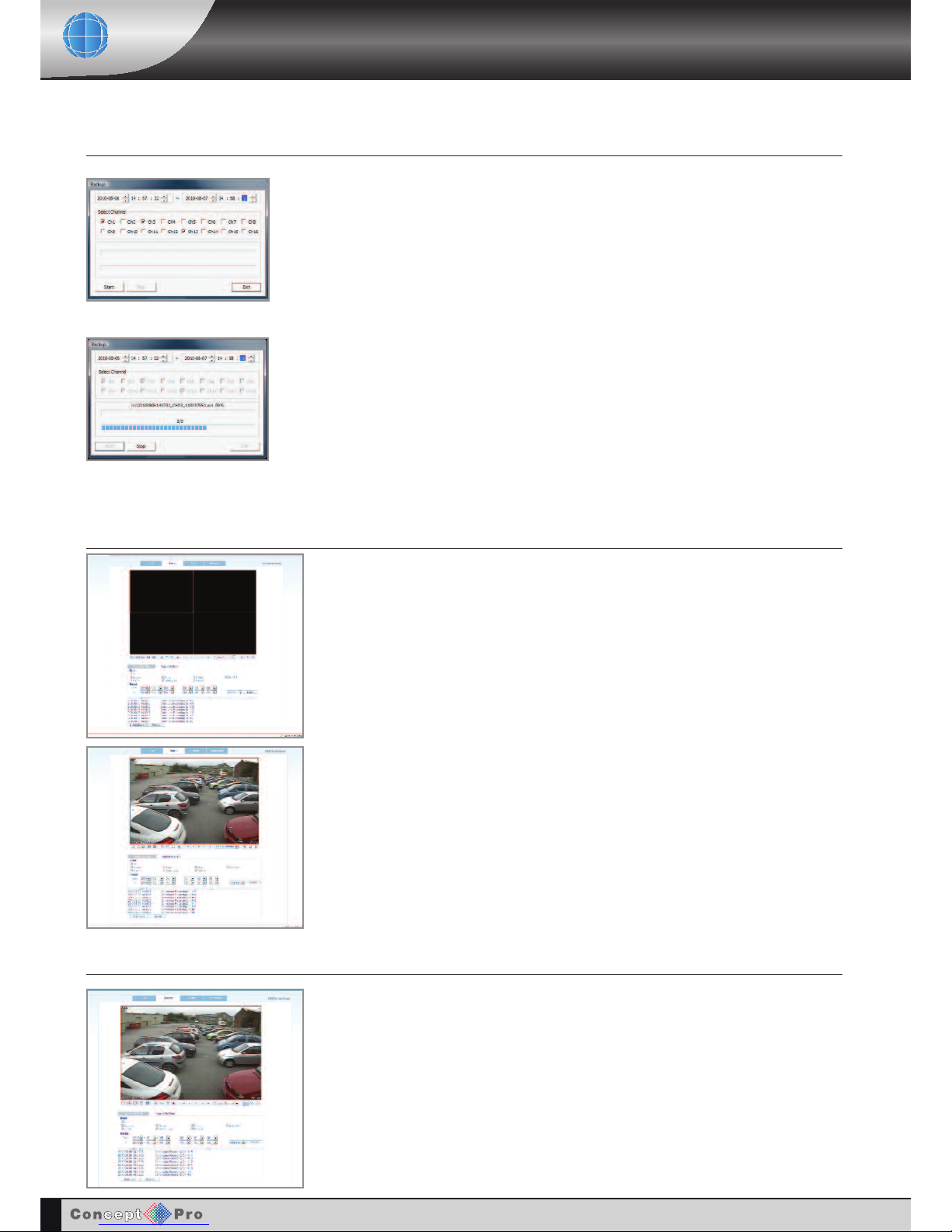

SEARCH BY EVENT

To search for an event and to playback the recorded footage, click SEARCH BY EVENT.

Choose the ‘Start time’ and ‘End time’. Select which events to include in the search and click ‘Search’.

The event log for the selected time period is displayed below, the ordered can be changed from nearest to farthest.

By clicking any of the events, the recorded footage will begin playing automatically.

PRINT AN IMAGE

During playback, a still image can be printed on the local PC printer by clicking the PRINT button.

The printed image is in the same style as the currently selected screen display, for example, quad screen.

BACKUP

Pre-recorded footage on a VXH264D can be archived to the local PC hard disk or removable media depending on where the save destination is set.

Click the BACKUP button to show the archiving screen.

Choose start time, end time and which channels to archive.

Click START to begin archiving data to the PC hard drive or removable media.

The Archive screen shows the current status of the archiving process by showing a blue progress bar.

The archived file format is AVI, this can be played on windows media player or via the VXH backup player.

The default folder location is C:\SaveFolder.

Page 49

REMOTE VXH264D SET-UP

Only authorised users or ADMIN users can configure a VXH264D remotely. With the exception of network settings and certain display options, any of the VXH264D settings can be changed.

ENTERINGSETUP

Click the SETUP tab to switch to the setup menu.

The remote setup screen is displayed and the VXH264D settings can be changed as necessary using the main menu selection on the left hand side.

Click OK to save all changes made to each main menu page.

completed message appears to confirm the changes have been made.

Any changes made will take effect immediately.

Page 50

VXH264Lite VXH264Pro

CONNECTING YOUR VXH264D TO YOUR iPHONE/ANDROID

To connect your DVR to an iPhone/Android, you will need to download the iPhone/Andriod app, and also have the following information handy.

• IP address of the DVR

• HTTP Port number (by default this is 8080)

• RTSP Port number (by default this is 6400)

• Username

• Password

All of the above information can be found on the DVR, and will have been used when setting up the DVR on the network.

You can download the a

pp via the App Store, by searching for "VXH", or by using the QR codes

below if you have a QR Code Reader on your device.

There are two versions of the app - "VXH264Pro" and "VXH264Lite" If you are on an iPad, you will need to use VXH264Lite. If you are on an iPhone, VXH264Pro is recommended.

To download the APP for an Android device search the Android Market for ‘VXH264’, or use the QR codes below

iPhone

Once you have installed the app, open it and you will see this screen. To add your first DVR c

onnection, press the '+' button in the top

right hand corner.

Andriod

On an Android device press the MENUbutton. The ‘Add Connection’.

* Please Note: Screen shots used are from and iPhone

DOWNLOADING THE APP

VXH264Lite VXH264Pro

iPhone

Next enter a name in the box headed "Server name" - you can give this connection any name you like - and then hit 'Save' in the top right corner.

Andriod

Enter the ‘Server Name’ - you can give this connection any name you like.

iPhone

Next enter your IP address, HTTP Port number and RTSP Port number. Then, hit 'Save' in the top right corner.

Andriod

Next enter your URL (IP) address, HTTP Port and RTSP Port Number.

iPhone Andriod

Page 51

CONNECTING YOUR VXH264D TO YOUR

iPHONE/ANDROID

iPhone

Next you will be asked for your username and password. These details all need to be the same as the ones you used to connect the DVR to the broadband router.

Enter your username and password and hit 'Save' at the bottom of the screen. If you select 'Yes' for Auto login, you will be able to connect to your DVR when you open the app, without entering your username and password each time.

You will now return to the DVR Connections screen and the name of the connection you have just saved will appear.

Touch the name of the connection you wish to view - you will now be taken to a single screen live view. (If you have not enabled Auto Login you will be asked for your username and password first). The screenshot on the left is a sample of what you will see.

Tap the screen to bring up the menus. You'll then see a view like this. Touch the quad screen option (circled) to switch to quad screen view.

You will then see footage in quad screen view. When in quad screen view, touching and holding any one of the camera views will take you to a single view screen for that camera.

Using the icons at the bottom of the screen, you can also change the DVR settings, view the s

ystem log and more (applies to the Pro version only).

* Please Note: Screen shots used are from and iPhone

Page 52

VXH264D SMART PHONE REMOTE VIEWING

The VXH264D can be viewed remotely via smart phones such as the iPhone or Andriod.

iPhone

Select the Safari browser.

Select the web browser on the Smart Phone menu.

Andriod

Select the Web browser.

Enter the IP address or URL into the web browser address bar

Example http:// 192.168.2.19:8080 Or http:// 1234.dvrlink.net:8080

Please replace 1234 with the default MAC address of the DVR and press ENTER / GO (depending on type of phone used).

iPhone

Enter the IP address or URL to connect. And Click the [GO] button.

Andriod

Enter the IP address or URL to connect. And press the Enter button.

The Smart Phone remote log-in page will appear. Enter the Username & Password to view the image from the DVR.

iPhone Android

Page 53

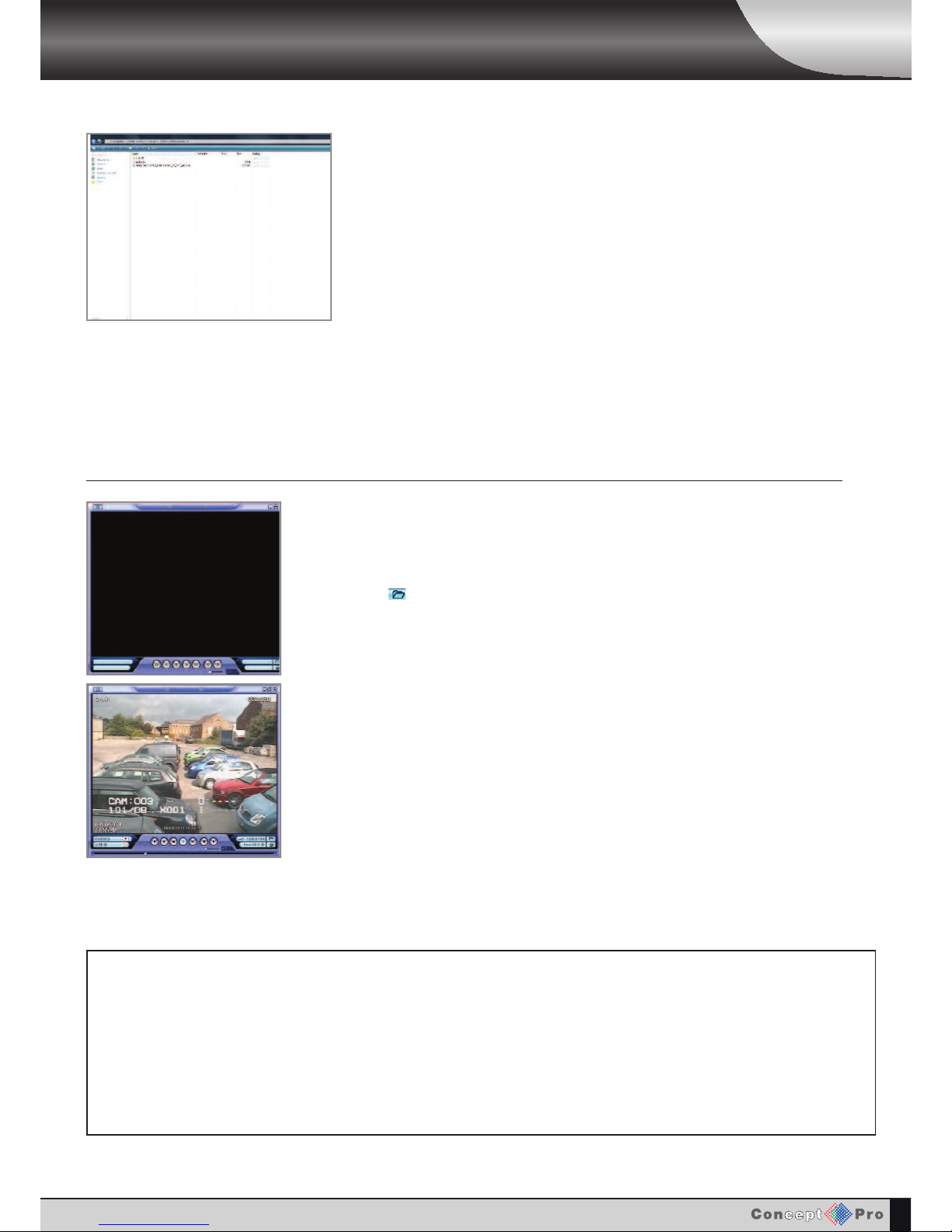

APPENDIX A: THE ARCHIVE SET

After footage has been archived from a VXH264D, it can be reviewed on a PC system.

Insert the backup CD/DVD or USB stick in the PC and view the contents using Windows Explorer.

The following files are included in the backup:

Arch_info: This file contains detailed information about the archive set. Double click to view it.

Ch##: An AVI video file containing the archive footage for a single channel. Depending o

n the archive, there will be upto 16 AVI files listed.

BackupPlayer.exe. This is the playback software necessary to view the archive files correctly.

Setup.exe: Installs the IMM4 codec. This is required if the user chooses to play back archive files using Windows Media Player.

Other files in the player folder, i.e bplayer, bplayer_logo, comfig, ijl15.aII, LANG_ENG are not used.

BACKUP PLAYER

To view archives backed up from a VXH264D, double click the Backupplayer application located in the PLAYER folder.

Click to choose which archive file to playback.

Playback of the archive file begins.

The controls under the display can be used to adjust playback direction and speed.

Note: VXH264D archive files can also be viewed using Windows Media player but no on screen information (such as time and date) is displayed.

For this reason, it is always recommended that Backupplayer is used to view archive files.

Archive set file names

When a backup is created on the VXH264D, a folder is first created on the backup device so that the operator can easily identify the archive set at a later stage.

For example the folder, F:\ARCHIVE_100803_115810 is an archive set that was created on 3rd August 2010 at 11:58:10.

Each individual archive file is also named for easy identification.

For example, US_ch01_10803115532_10803115632_00_8MB_admin is a backup of channel 1 from 11:55 on 3rd August 2010 to 11:56 on 3rd August 2010 with a file size of 8MB created by an ADMINuser.

Page 54

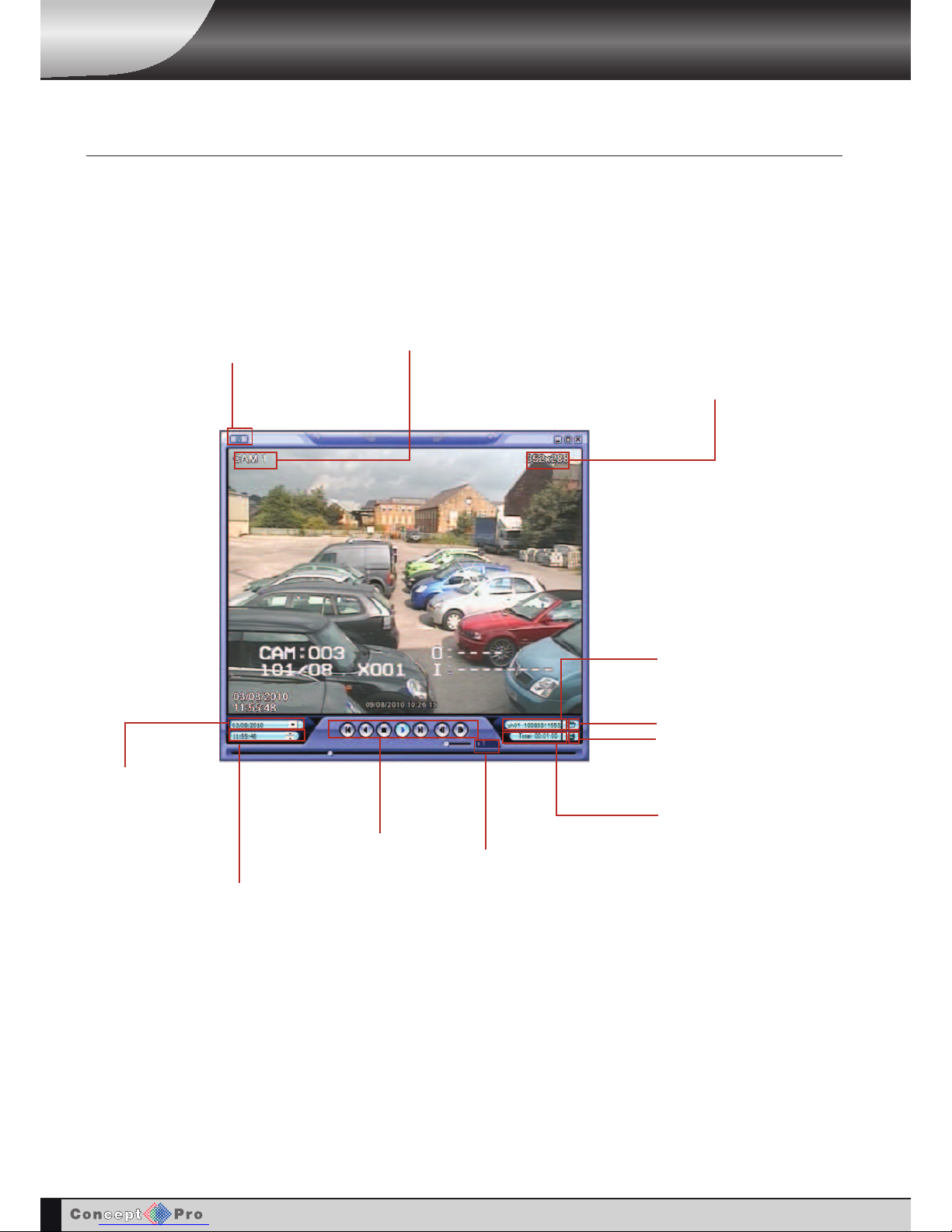

REMOTE CLIENT PLAYBACK CONTROLS

TAKE SCREEN SHOT OF CURRENT SCREEN

CAMERA CHANNEL / NAME

RECORDED RESOLUTION

PLAYBACK CONTROLS

DATE OF ARCHIVE FOOTAGE

TIME OF ARCHIVE FOOTAGE

PLAYBACK SPEED

TOTAL DURATION

FILE NAME

OPEN FILE

PRINT CURRENT SCREEN

BACKUP PLAYER

During playback, a still image can be save to the local PC hard disk by clicking the SNAPSHOT button located in the top left corner.

Specify the file location, file name and choose BMP or JPG format. Click ‘Save’.

Page 55

APPENDIX B: CONFIGURING A NETGEAR DG384

ROUTER FOR USE WITH VXH264D

REQUIREMENTS

1. Netgear DG834 router

2. A Laptop or PC to configure the DG834

3. An Internet connection and all required login details (username and password provided by your ISP)

SETUP STEPS FOR INTERNET CONNECTION

1. The DG834 has a default IP address of 192.168.0.1, so configure your laptop or PC with an IP address of 192.168.0.2 and gateway of

192.168.0.1 and connect to the DG834 using the standard CAT-

5 patch lead supplied with the router.

2. Open Internet Explorer and enter http://192.168.0.1 to connect to the router. When prompted, enter user name of ‘admin’ and password ‘password’.

3. If the DG834 has never been set-up before, it will prompt whether you wish to use the setup wizard – do not do this.

4. Choose ‘Basic Settings’ from the menu on the left. Select yes for ‘Does your internet connection require a login’

and enter your username and password as provided by your ISP. Other information required on this screen can be left at defaults. Apply these settings and then verify that you now have internet access from the PC / Laptop.

SETUP STEPS FOR CONNECTING A VXH264D LOCALLY

1. Configure the VXH264D (refer to page 29 for details) so that it has a unique IP address, which is in the same range as the router and PC/Laptop. For example, in this case choose 192.168.0.3. Set the gateway IP on the DVR to the router’s IP address of 192.168.0.1. Note that the default port number is 6200.

2. Connect the VXH264D to the router using a standard CAT-5 patch lead and verify that it can be ‘pinged’ from the PC as follows: a) To open a command prompt using Windows XP use the following sequence: START-RUN - Type in CMD - OK For Windows Vista / 7 users: START - Type in CMD -Press Enter b) At the command prompt, type ‘PING 192.168.0.3’. If you see 4 lines saying ‘reply from 192.168.0.3: ………..’ then the VXH264D is recognised on the local network. If not, work through the above steps again, but also check that the CAT-5 patch lead is OK.

3. At this point, the connection to the VXH264D can be tested locally.

SETUP STEPS TO ALLOW REMOTE VIEWING OVER BROADBAND

BASIC PRINCIPLES

Imagine the Netgear DG834 is split in to two halves - one half is the private side which serves the local network. This ‘half’ of the router has its own IP address (typically 192.168.0.1) and other devices (PCs, Laptops, VXH264D etc.) that are connected to it will all have a unique IP address of the form

192.168.0.XXX.

ecause this is a private network, it cannot be accessed directly from the outside world.

The other imaginary half of the DG834G is the public side - it also has its own IP address which is allocated to you by your ISP and can either be static (it never changes) or dynamic (your ISP could change it at any time). Because this is a public network, in theory, anyone from the outside world who k

nows your public IP address can access the router and your private network. But, because the router has a security firewall built in, incoming traffic

is severely limited to prevent this.

For this reason, you need to configure the DG834 so that incoming traffic intended for the VXH264D is correctly routed instead of being blocked - this is known as port forwarding.

You will notice on the VXH264D that in the network setup section, there is also two port numbers. These could technically be any value over 1030 but the default value on the VXH264D is acceptable.

In this case, the VXH264D default port values are 8080 and 554 so two rules need creating on the DG834 that channels all traffic coming in on port 8080 and 554 to the VXH264D.

Page 56

APPENDIX B: CONFIGURING A NETGEAR DG384 ROUTER FOR USE WITH VXH264D

SETTING-UP PORT FORWARDING

This section assumes that you have already established a successful connection locally. Log-on to the DG834 and select ‘Services’ from the menu.

Click ‘Add Custom Service’ and enter the following values:

Name: VXH264D (or any other name of your choice) Type: TCP Start Port: 8080 Finish port: 8080

And click ‘Apply’

Then, create a firewall rule as follows: Select ‘Firewall Rules’ from the menu. Under the inbound services, click ‘Add’ and enter the following:

Service: VXH264D (TCP:8080) – This is the service you created earlier.

Action: Leave at ‘ALLOW always’.

Send to LAN server: 192.168.0.3 - This is the IP address of the VXH264D.

Wan Users and Log settings can be left unchanged.

And click ‘apply’ to add the new rule.

Repeat this process for the RTSP Port. (554)

Once the firewall rules are set-up, anybody should be able to access the VXH264D from the outside world, as long as they are using the correct software and correct log in details.

To configure the software, the IP address is the public static IP address of your router and the port number in this case will be 8080. The username and password must match those set-up on the VXH264D.

SETTING UP MULTIPLE VXH264Ds ON ONE ROUTER

The setup steps in this case are identical but you will need to create a separate service and firewall rule for each VXH264D connected. Note also that each VXH264D must have a unique port setting as well as a unique IP address.

Example – 2 VXH264Ds connected to a router

1st VXH264D settings IP address: 192.168.0.3 Port: 8080 RTSP: 554 Gateway: 192.168.0.1

On the DG834, configure a service on port 8080 and a firewall rule to direct this service to 192.168.0.3

2nd VXH264D settings: IP address: 192.168.0.4 Port: 8081 RTSP: 6401 Gateway: 192.168.0.1

On the DG834, configure a service on port 8081 and a firewall rule to direct this service to 192.168.0.4

The remote client software can then be configured with one connection group containing two VXH264D connections to match the above and then both VXH264Ds can be accessed remotely at the same time.

Note: If connecting locally over a LAN, the unique 192.168.0.XXX IP address for each VXH264D has to be entered. If connecting over broadband, the same public IP address is entered for both VXH264Ds – port forwarding on the router takes care of the rest.

Page 57

APPENDIX B: CONFIGURING A NETGEAR DG384

ROUTER FOR USE WITH VXH264D

USING DDNS TO CONNECT

DDNS (Dynamic Domain Name Server) is generally used when your ISP provides you with a dynamic public IP address. The problem with a dynamic IP address is that because it can change regularly, any remote users that need to connect to the VXH264D do not know what IP address to enter in the remote client!

Using DDNS solves this problem. When a VXH264D is correctly configured to use DDNS, it regularly interrogates the router and sends the current public IP address to a 3rd party database. The VXH264D also sends its MAC address, which is unique.

Before using DDNS, the VXH264D must be set up correctly by following the steps on page 37 and verifying that a local connection can be made.

In addition, the following must be configured in the VXH264D NETWORK setup menu (page 29)

DDNS - enabled

1st DNS server - must be the local IP address of the router 2nd DNS server - must be the IP address of the ISP's 2nd DNS server DDNS server - leave set as DDNS.DVRLINK.NET

Note: if the ISP's DNS servers are not known, they can be identified as follows:

A) To open a command prompt using Windows XP use the following sequence:

START-RUN - Type in CMD - OK For Windows Vista / 7 users: START - Type in CMD -Press Enter

) At the command prompt, type 'IPCONFIG /ALL' and press ENTER. The ISP's DNS servers are listed at the bottom of the information screen. If only

one server is listed, enter this in the VXH264D 1st DNS server, and leave the 2nd DNS server as default

Finally, make a note of the VXH264D's unique MAC address - this can be found in the SYSTEM MANAGEMENT part of the VXH264D setup (page

25).

For example, if the MAC address is 00-11-5F-00-9A-33, the following should be entered instead of an IP address when configuring a VXH264D

connection group:

00115f009a33.dvrlink.net

Note: the entry should be MAC address.dvrlink.net, not MAC address.ddns.dvrlink.net

When the remote client initiates a connection, it interrogates dvrlink.net for the actual public IP address that corresponds to the MAC address. It then

uses the resulting IP address to connect to the VXH264D.

Page 58

APPENDIX C: CONNECTING EXTERNAL DEVICES

ARI PANIC GND

PANIC

Connect an external push button switch to the ‘Panic’ and ‘GND’ terminals. Pushing the switch will activate the panic recording function.

TELEMETRY, VA-KBDPRO+ AND POS

Connect RS485+ to the ‘+’ or ‘A’ terminal of any attached telemetry devices or VA-KBDPRO+ keyboard. Connect RS485- to the ‘-’ or ‘B’ terminals, on the lefthand side RS485 connection on.

POS: Connect your till system to the righthand side RS485 connection

ARI PANIC GND

ALARM RESET

Connect an external push button switch to the ‘ARI’ and ‘GND’ terminals. Pushing the switch will reset all system alarms.

A11

A14 GND

A15 A16 A17 A18 GND A19 A20 A21 A22 GND A113 A114 A115 A116 GND

ALARM IN

A12 A13

ALARM INPUTS

Connect voltage free contacts from PIRs and beam break detectors etc. to the ‘GND’ terminal and ‘AIXX’ terminals of choice.

ALARM OUTPUTS

Connect the ‘GND’ terminal and ‘AOXX’ terminal of choice to standard alarm inputs on other equipment, E.g. phone diallers and alarm panels etc.

RELAY OUTPUT

Connect the ‘COM’ and ‘NO’ or ‘NC’ terminal of choice to activate low voltage sounders, strobes etc.

NO COM NC NO COM NC NO COM NC

NO COM NC

Page 59

APPENDIX D: SPECIFICATIONS

MODEL

Operation

Video in

Audio in

Main displays

Spot displays

Audio out

External alarm

User interface

Recording

Playback

Archiving

Time

PTZ

POS

System

Network

Remote Access

Storage

Event handling

Security

Physical

Genuine Pentaplex

Channels Connection Loop through Channels Connection BNC VGA S-Video HDMI Screen display modes Sequence Digital zoom Channels Connection Display mode Channels Connection Inputs Outputs On-screen display Control Video CODEC Resolution options for each channel Maximum total frame rate Image quality Pre-event recording Recording modes Frame rate options for each channel Schedule Configurable recording time limits

Audio Motion detection Covert recording Camera title Speed Control Search method Split screen display modes Audio synchronization Storage Format Archive data Time zone DST Time synchronisation RS-485

Watchdog Abnormal shutdown detection HDD Error detection System data backup / restore Connection Simultaneous connections DHCP DDNS Two way network audio Bandwidth management I.E Browser Smart Phone Remote configuration Remote PTZ control Email event notification Maximum Capacity Storage Recording options Source Action

User levels Key Lock Dimensions Weight

VXH264D-16

Simultaneous recording, playback, network live view, network playback, network remote set-up. Frame rate unaffected 16 BNC, 1.0Vpp composite 75ohm unbalanced BNC, 1.0Vpp composite 75ohm unbalanced, auto-termination 4 RCA, line level unbalanced

1.0Vpp composite 75ohm unbalanced 15 pin D-SUB 1280 x 1024 @ 60Hz 4 pin mini din Y/C Single HDMI Socket. Max. 1920 x 1080p @ 50Hz 1, 4, 6 (1+5), 8 (1+7), 9, 16 Adjustable dwell time, user-defined sequences Between 2x

14x 4, fully programmable BNC, 1.0Vpp composite 75ohm unbalanced Full screen sequence, adjustable dwell-time 1 RCA, line level unbalanced 16, NO or NC common ground 16, high (+5V) or low (0V) selectable,common ground + 4 Relay Out GUI Mouse, Front panel, IR Remote and / or VA-KBDPRO+ PTZ Keyboard H.264 CIF (352 x 288), 2 CIF (704 x 288), D1 (704 x 576) 400 FPS (D1) Super, Highest, High, Standard, Low 5 seconds max Schedule / motion detection / alarm / panic 25 - 13 - 7 - 3 - 2 - 1 Per channel, per hour, per day / week 12 hours, 1 day, 2 days, 3 days, 4 days, 5 days, 6 days, 1 week, 2 weeks, 3 weeks, 1 month, 2 month Audio inputs independently assigned to each channel 16 x 16 selectable grid with 10 levels of sensitivity Yes, selectable by channel 8 characters (max) Forward / reverse. 1x, 2x, 4x, 8x, 16x, 32x, 64x Front panel buttons and Jog / Shuttle ring, mouse, IR Remote Calendar / timeline, event log, instant playback, POS event 1, 4, 9, 16 Yes, any frame rate CD-R (DVD±R option), USB Memory stick, Network, FTP Watermarked AVI Independent channel selection, back-up log, event log Worldwide, selectable Yes Internet time server Multi-protocol, baud rate and speed control for each channel

Yes Yes, with system auto recovery Yes, SMART monitoring Yes, USB memory stick RJ45 4 (max) Yes Yes Yes Yes Yes Yes Yes Yes Yes Currently 8TB 4 x HDD maximum Stop when full / overwrite Alarm in, motion detection, video loss, HDD error, Panic Record, alarm out, email notification, log, remote client pop-up, buzzer, full screen pop-up ADMIN, MANAGER*, USER* (*Configurable) Yes, password protected 428mm(w) x 421mm(d) x 93mm(h)

4.8kg (without HDD)

Page 60

HOLD

. ZOOM OUT

ZOOM

NEAR FAR CLOSE OPEN

FOCUS

IRIS

DISPLAY

SEQ

PANIC

ZOOM LOCK ARCHIVE

PTZ

SETUP

RETURN ENTER

1 2 3 4 5 6 7

8 9 10

PWR REC NET

HD MONITOR

PAL

NTSC

VGA

ALARM IN + ARI / PANIC

e-SATA

ARI PANIC

NO COM NC NO COM NC NO COM NC NO COM NC

485 +

485 -

GND

485 +

485 -

100-240V AC, 50/60HZ
