AIR30 Range
Weatherproof Colour/Mono IR Camera
USER MANUAL
TECHNOLOGY
ADV ANCE D INF R A RE D
P o w e r e d b y
Page 2
1. This installation should be made by a qualified service person and should abide to all local
codes.
2. In order to prevent electronic shock and/or destroy waterproof seals, do not loosen any
screws on the camera body.
3. Adjust the sunshield cover to avoid exposure of direct sunlight on the lens.
4. Do not touch the front glass directly. If necessary, use a soft cloth moistened with alcohol to
wipe off dust or debris.
5. Avoid installation on a surface subjected to frequent vibration or shocks.
6. Do not operate the camera beyond its temperature range or power source ratings.
7. Should any damage or suspected damage occur, shutdown the power source, unplug and
contact your service provider.
8. Do not install the camera under unstable lighting conditions. Severe lighting change or
flicker can cause the camera to work improperly.
9. Never use the camera close to a gas or oil leak.
10. Do not disassemble the camera.
11. Do not drop the camera or subject the unit to physical shocks.Never keep the camera face
to strong light directly, this can damage the CCD.
12. Ensure all removable covers are replaced to protect the inner components.
13. Do not install near devices which emit a strong electro-magnetic field.
14. Use a dry or damp cloth only for cleaning.
PLEASE FOLLOW THE ABOVE CAUTIONS – FAILURE TO DO SO MAY
INVALIDATE THE WARRANTY OR CAUSE SERIOUS INJURY.
Remark: Changes or modifications not expressly approved by the manufacturer can
cause the camera to be damaged and become inoperable. This may invalidate the
user warranty.
CAUTION
Page 3
PACKING CONTENTS
ALLEN KEY
PLASTIC-WALL PLUG
X3
SCREW
X3
X2
LENS ADJUSTMENT
COVER SCREW
X1
The Concept Pro AIR30 is a weatherproof IR camera, suitable for
monitoring areas in hostile conditions and in low light.
USER
MANUAL
X1
X1
X1
MOUNTING
DRAWING PAPER
X1
DC CONNECTOR
X1
+
_
1 2
3
4 5
6
7
8

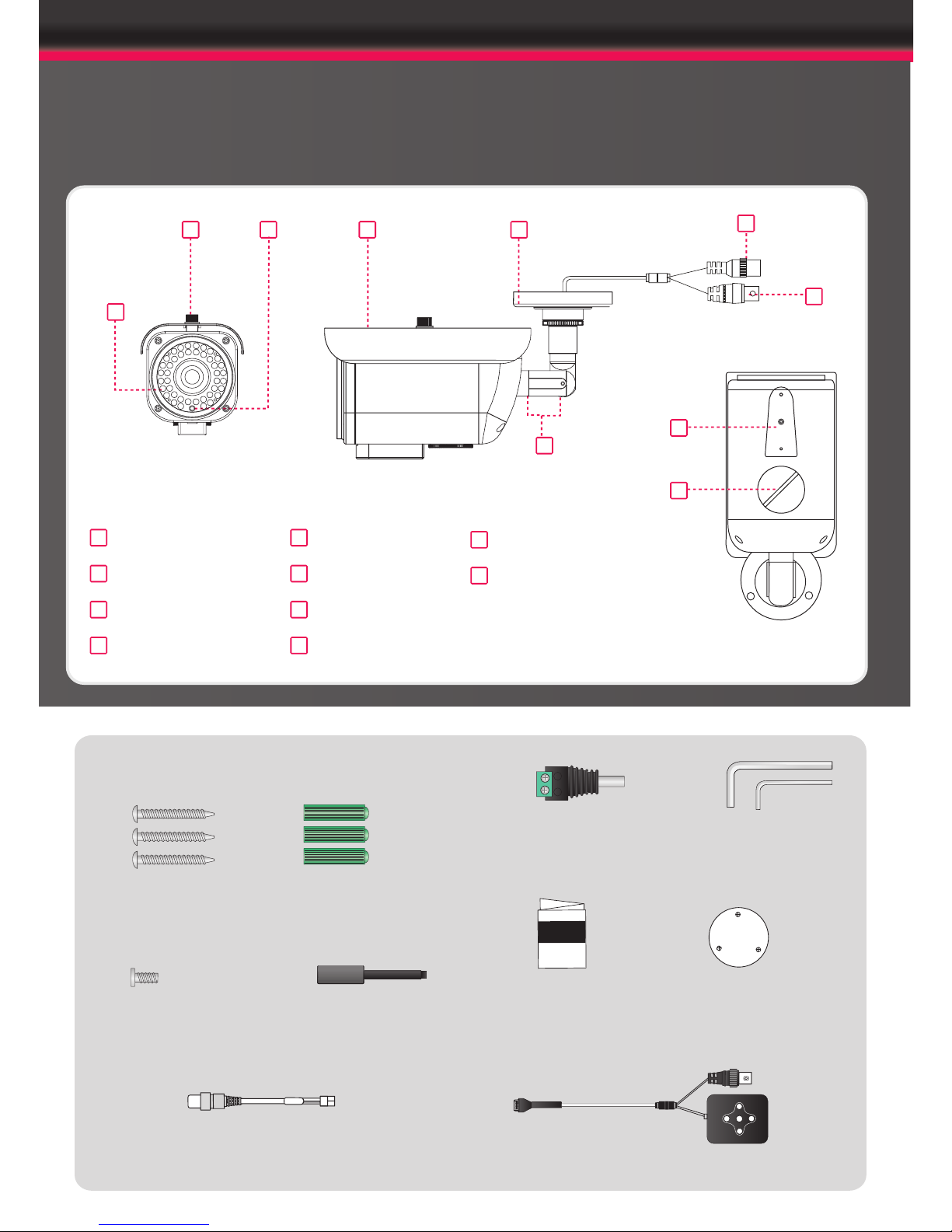

1 Fixing Bolt for Sunvisor
2. Photo Sensor
3. IR LED
4. Sunvisor
5 Mounting Bracket
6 Tri- Axis Points
7 12V DC Connector
8 Video Out Connector
9 External Lens Adjustment
10 Service Video Output
SERVICE VIDEO OUT
CABLE
(AIR3016 / AIR3026 ONLY)
X1
OSD CABLE
(AIR3026HG ONLY)
LENS ADJUSTMENT
TOOL
9
10
L
U
D
R
ENT
USER MANUAL
Page 4
Important: Ensure all cautionary procedures are observed during installation.
It is recommended the camera is tested during the most demanding environmental conditions
such as low light or bright sunlight to ensure continuity of effective CCTV monitoring. You may
find the use of an ND filter helpful.
Use the supplied drill mounting
template to mark the spacing
for drilling.
Following drilling, securely
attach the bracket and
camera to the wall.
Remove the camera unit carefully from the box, reserving the accessory contents in a
safe place.

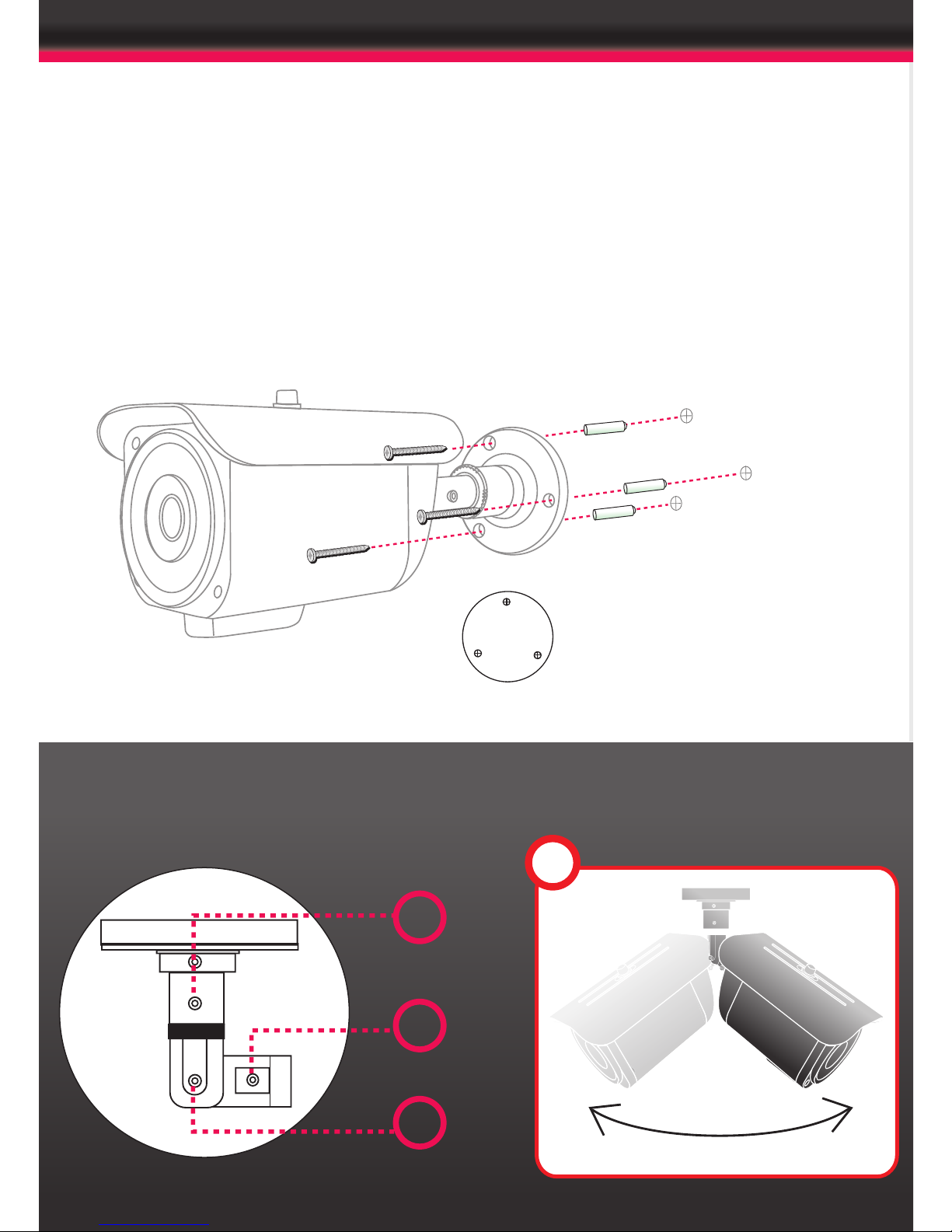

FIXING TO A WALL
DR AWI NG TE MPL ATE
POSITIONING Point the Camera towards the intended area to be monitored.
1
1
2
3
INSTALLATION
Page 5

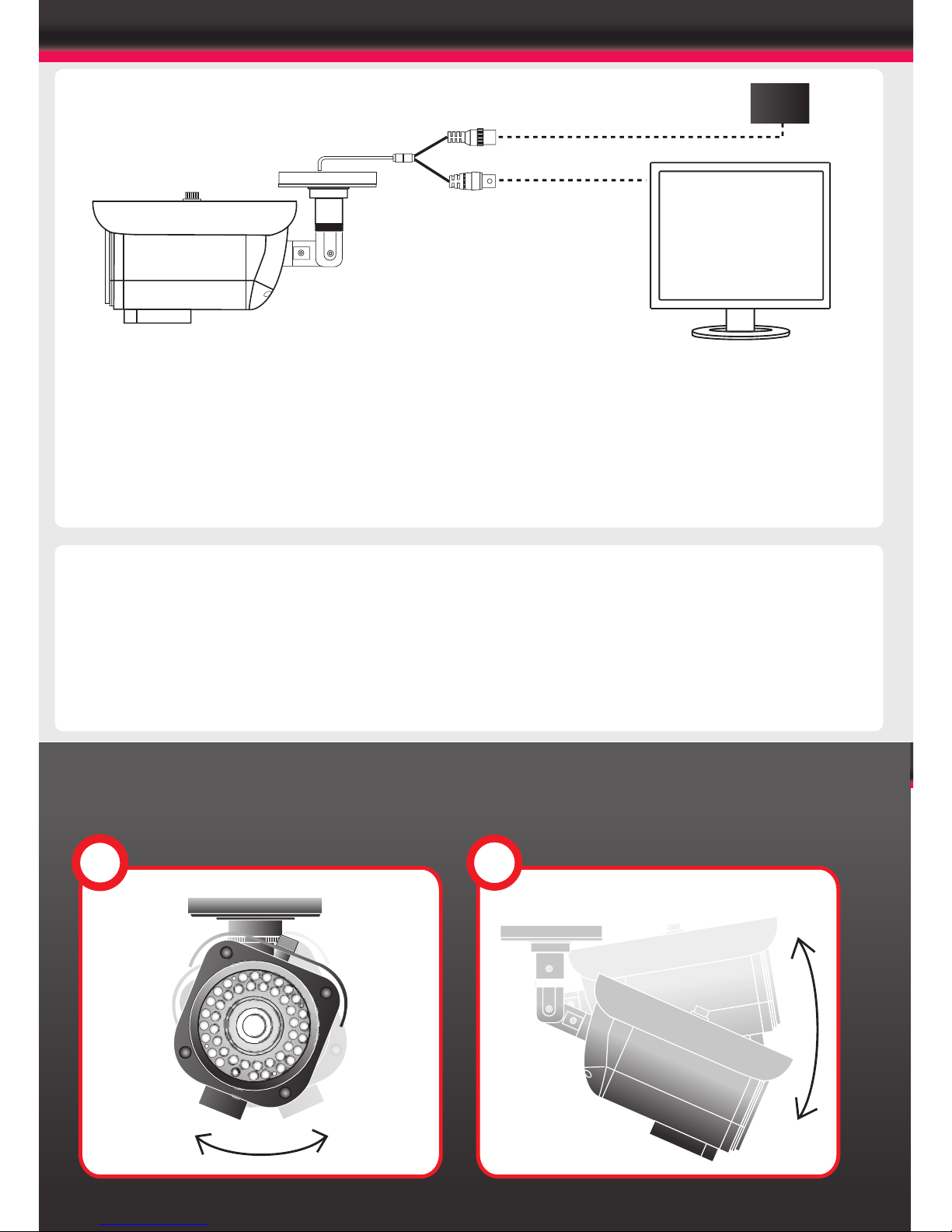

CONNECTION
Connect the video out port to your video cable
running to the monitoring recorder.
Check the power supply is of the correct level
and connect your power supply into the power
port on the Camera.
View the picture on a monitoring device to
check the power and video connection is
working properly.
PSU
Troubleshooting
Ensure all power and cable connections are correct with the Camera, DVR and Test monitor
or Telemetry devices if used.
Power Voltage Check - Remove the OSD cover to see if the green correct power LED is lit. If
the red LED is lit the power voltage is too high. If the yellow LED is lit the power voltage is
not high enough. If there are no LEDs lit there is no power getting to the camera
If all power and cable connections are correct and the camera picture can not be produced or
configured then contact your supplier for technical support.
2 3
Page 6

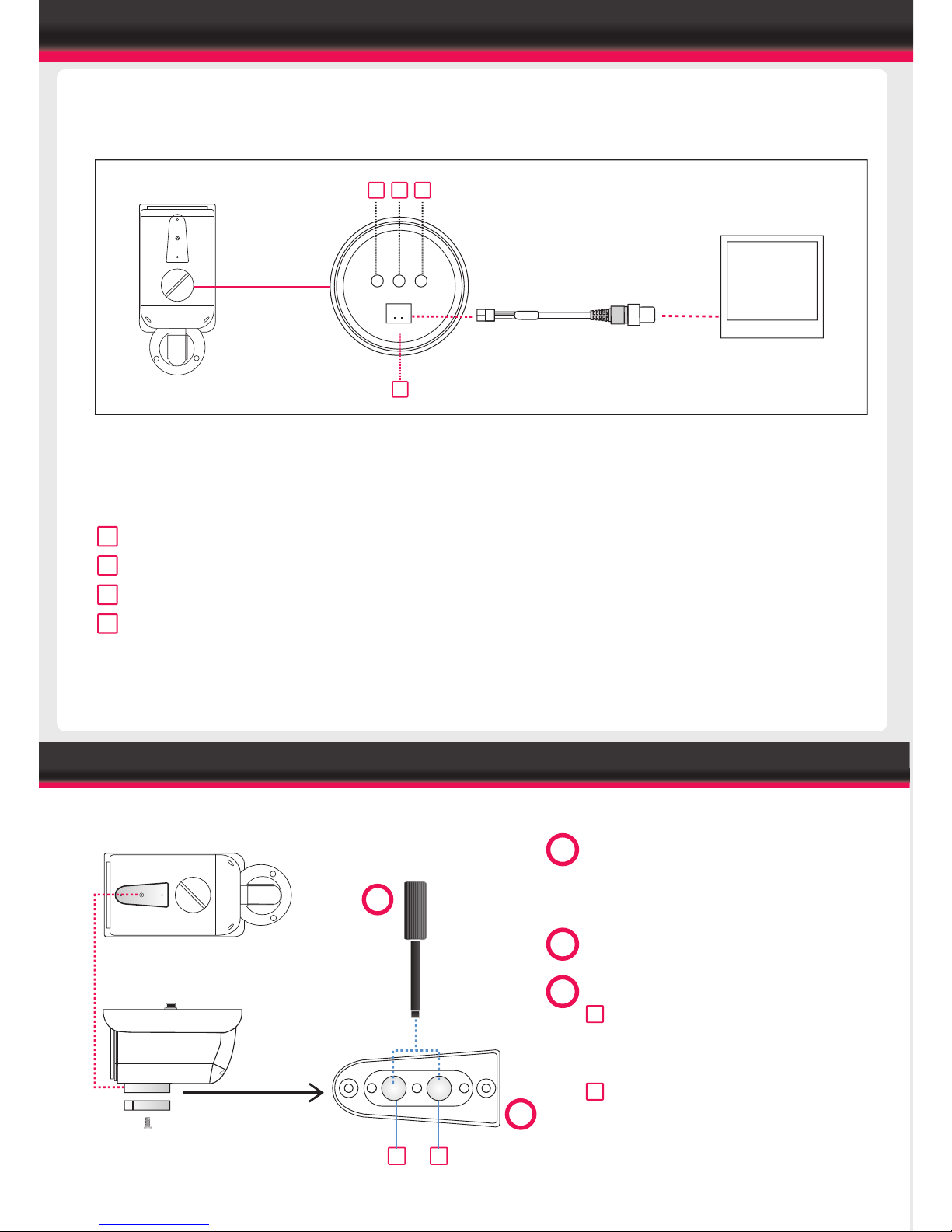

EXTERNAL LENS ADJUSTMENT

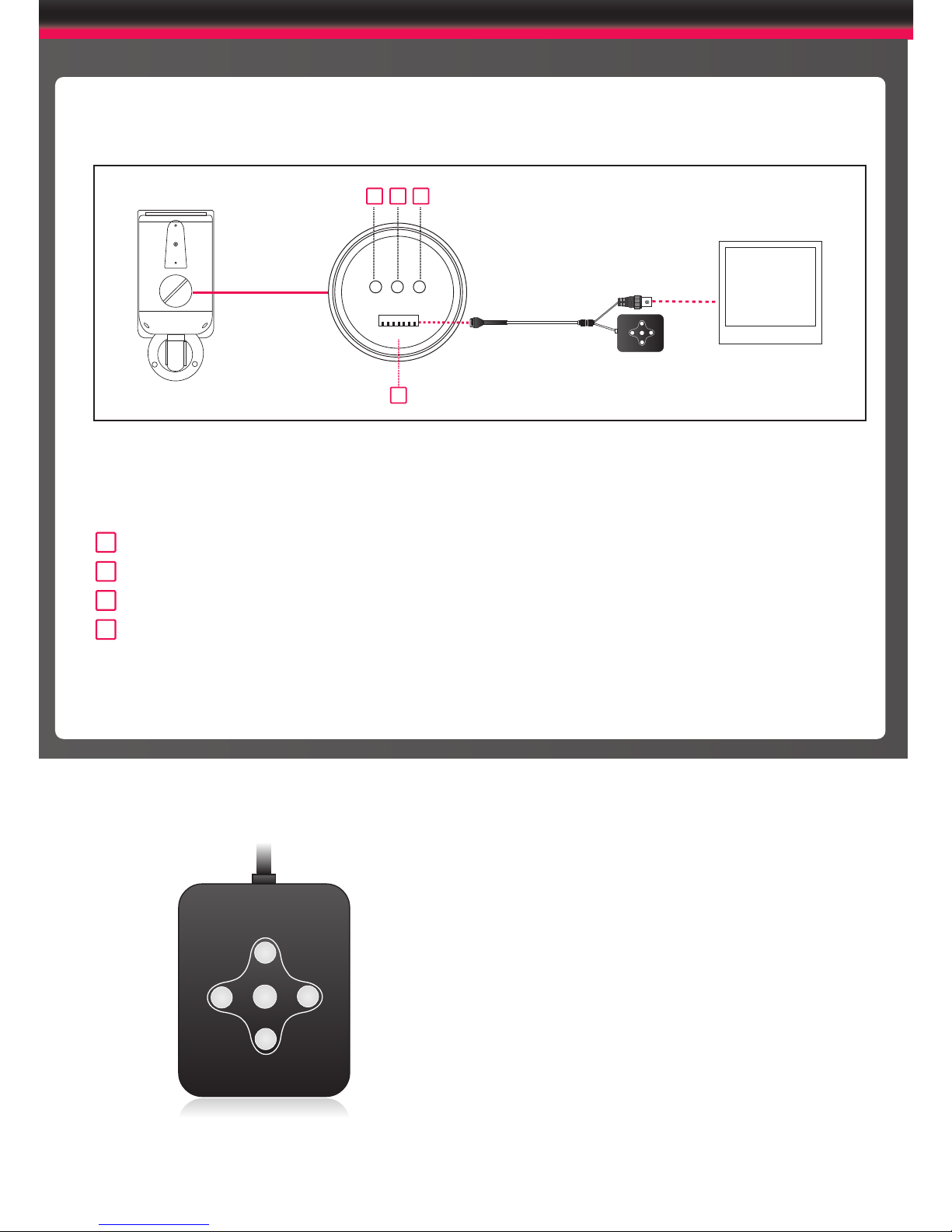

The power indicator LEDs display the power supply being fed into the camera and whether it
is too high, low or correct.
1. "PO": Red LED - Voltage is too high
2. "PN": Green LED - Voltage is correct
3. "PL": Yellow LED - Voltage is too low
4. Extra video out for testing monitor - Attach your Video test monitor with the service video
cable enclosed in your camera box. The camera footage will appear on your test monitor
and zoom/focus adjustments can be carried out as the installation requires.
The Service Video Out panel contains a power indicator and test monitor connection for
ease of adjusting the camera settings during installation.
PO PN
VIDEO
PL
1 2 3
4
SER VICE VIDE O OU TPUT CAB LE
AIR3016 / AIR3026
SEE OVERLEAF FOR AIR3026HG ON SCREEN DISPLAY
TEST MONITOR
2
3
A B
1 Open the lens adjuster cover and
adjust focus and zoom. Loose the
screw on the lens adjuster cover.
2. Lens Adjustment Tool
3 Focus and Zoom Adjustments
Zoom
Turn clockwise to zoom wide
anti-clockwise to zoom narrow
Focus
Turn clockwise to focus far
Anti-clockwise to focus near
A
B
SERVICE VIDEO OUTPUT (AIR3016 / 3026 MODELS ONLY)
Page 7

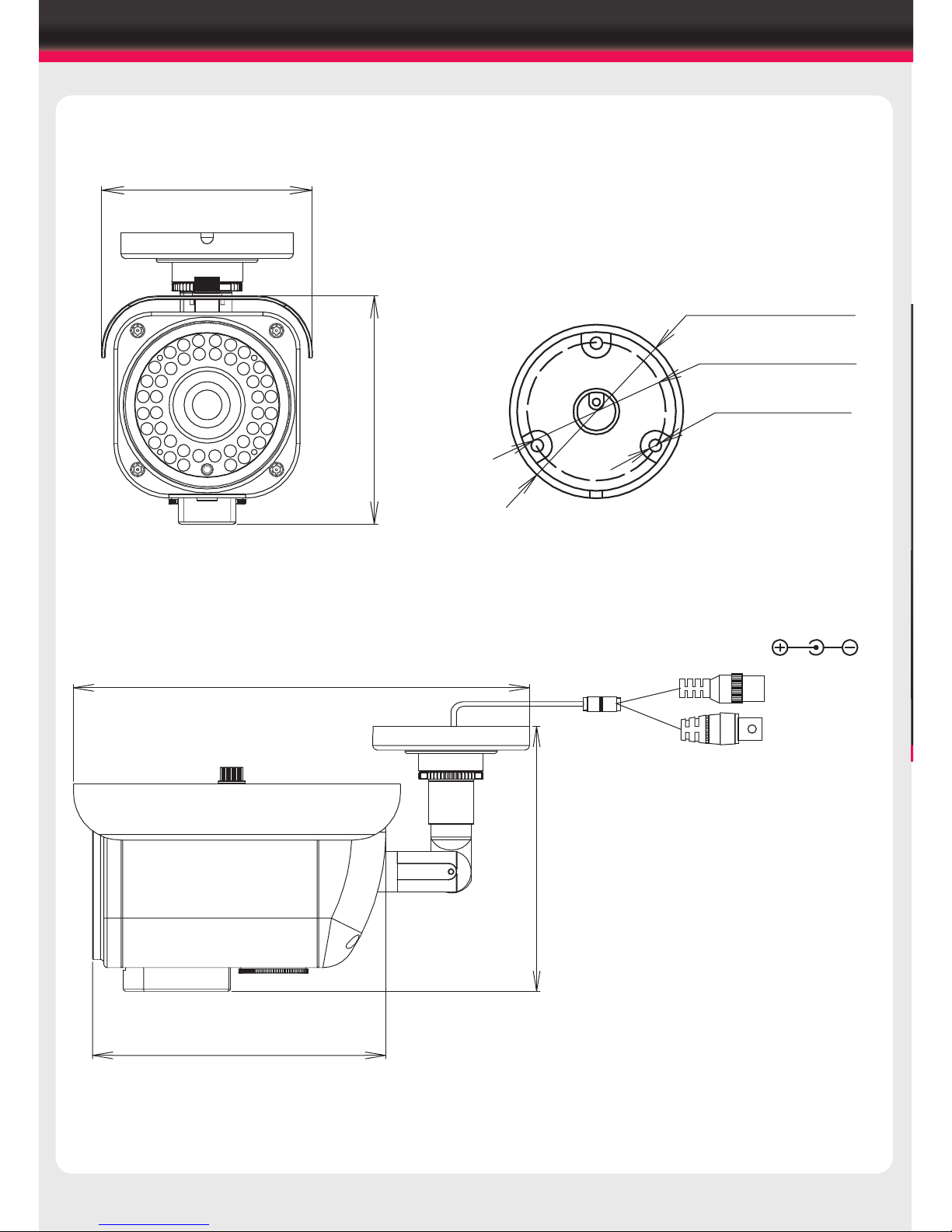

85mm (3.35”)
92mm (3.62”)
202mm (7.95”)
130mm (5.12”)
118mm (4.65”)
DC12V IN
VIDEO OUT
70mm (2.76”)
56mm (2.20”)
3 - 5mm (0.20”)
DIMENSIONS
Page 8
ON SCREEN DISPLAY (OSD) (AIR3026HG MODEL ONLY)
The power indicator LEDs display the power supply being fed into the camera and whether it
is too high, low or correct.
1. "PO": Red LED - Voltage is too high
2. "PN": Green LED - Voltage is correct
3. "PL": Yellow LED - Voltage is too low
4. Extra video out and OSD control connector - Attach your Video test monitor with the
service video cable enclosed in your camera box. The camera footage will appear on your
test monitor and zoom/focus adjustments can be carried out as the installation requires.
1) Press “U” to navigate upwards
2) Press “D” to navigate downwards
3) Press “L” to navigate left
4) Press “R” to navigate right
5) Press “ENT” to open menu/sub-menu
The Service Video Out panel contains a power indicator and test monitor connection for
ease of adjusting the camera settings during installation.
PO PN
VIDEO
PL
1 2 3
4
TEST MONITOR
OSD OUT PUT CABL E
L
U
D
R
ENT
OSD Controller
L
U
D
R
ENT
AIR3026HG
Page 9

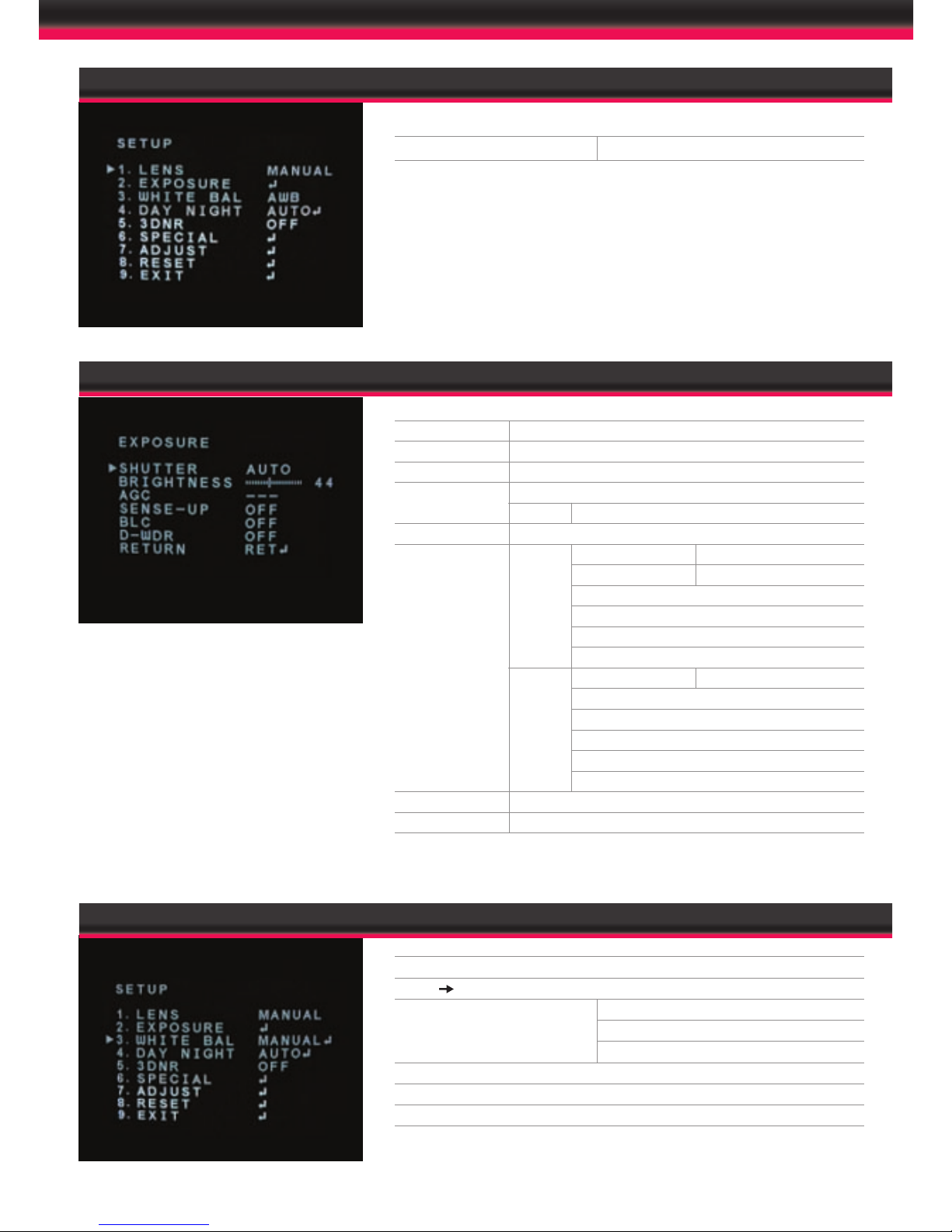

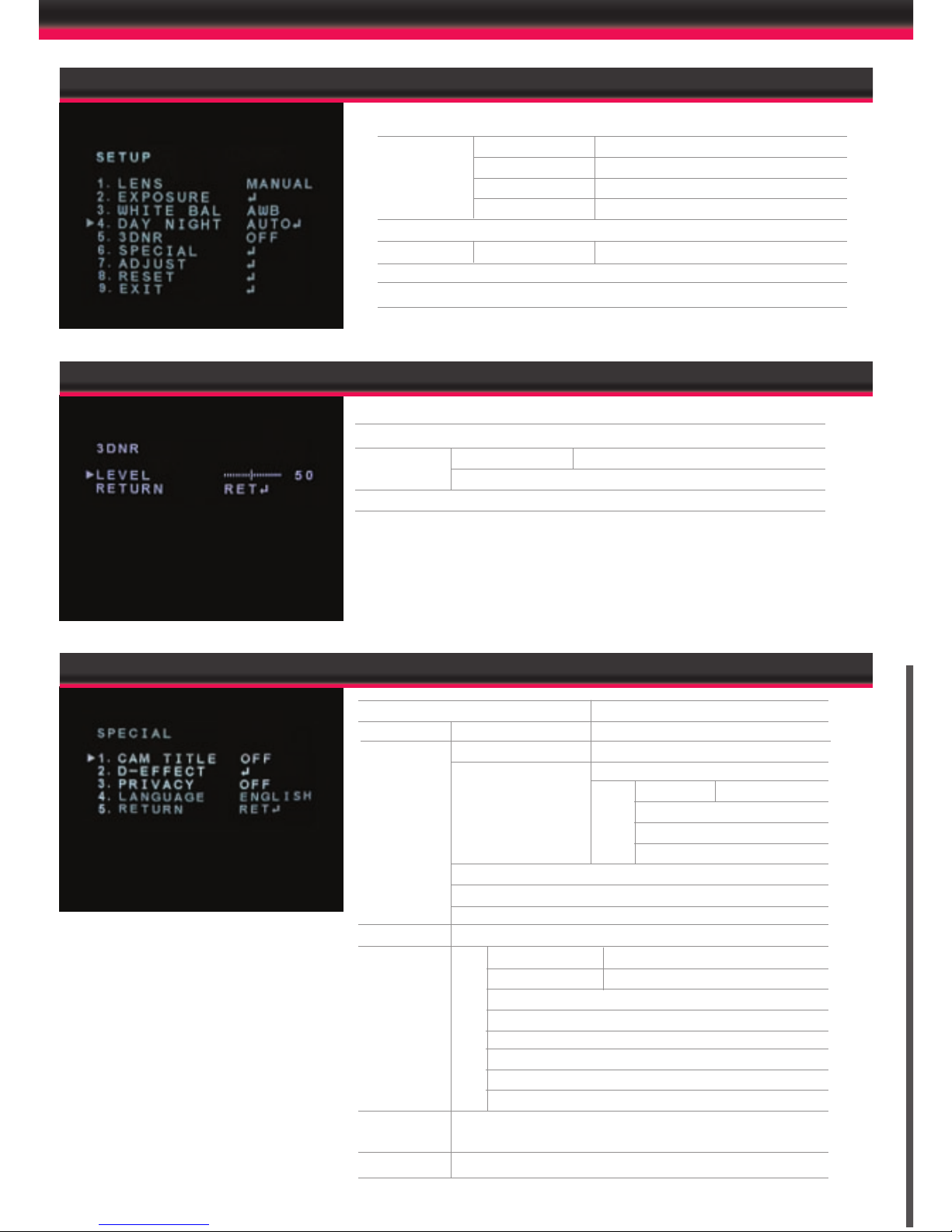

LENS MANUAL
LENS
SHUTTER
BRIGHTNESS
AGC
SENSE UP
BLC
D-WDR
RETURN
AUTO, FLK, 1/100000 ~ X256
0 - 100
OFF / LOW / MIDDLE / HIGH
OFF
AUTO X2 ~ X256
OFF
BLC GAIN LOW / MIDDLE / HIGH
LEFT / RIGHT 0~7
WIDTH
TOP / BOTTOM
HEIGHT
RETURN
HSBLC LEVEL 0~8
LEFT / RIGHT
WIDTH
TOP / BOTTOM
HEIGHT
RETURN
OFF / INDOOR / OUTDOOR
EXPOSURE
WHITE BALANCE
AWB
AWC SET
MANUAL
INDOOR
OUTDOOR
ATW
BLUE
RED
RETURN
Page 10
DAY NIGHT
AUTO DELAY
S-LEVEL
E-LEVEL
RETURN
EXT
B/W BURST
COLOUR
RETURN
0 - 63
0- 100
0 - 100
OFF / ON
OFF
ON LEVEL 0-100
RETURN
RETURN
3DNR
CAM TITLE OFF / ON
D-EFFECT FREEZE OFF / ON
MIRROR OFF / MIRROR / V-FLIP / ROTATE
D-ZOOM OFF
ON D-ZOOM X1.0 ~ 32.0
PAN
TILT
RETURN
GAMMA
NEG.IMAGE
RETURN
PRIVACY OFF
ON AREA SELECT AREA 1 - AREA 8
AREA DISPLAY ON / OFF
LEFT/RIGHT
WIDTH
TOP/BOTTOM
HEIGHT
COLOR
RETURN
LANGUAGE ENGLISH/JAPANESE/SIMPLIFIED CHINESE/
TRADITIONAL CHINESE
RETURN
SPECIAL
Page 11

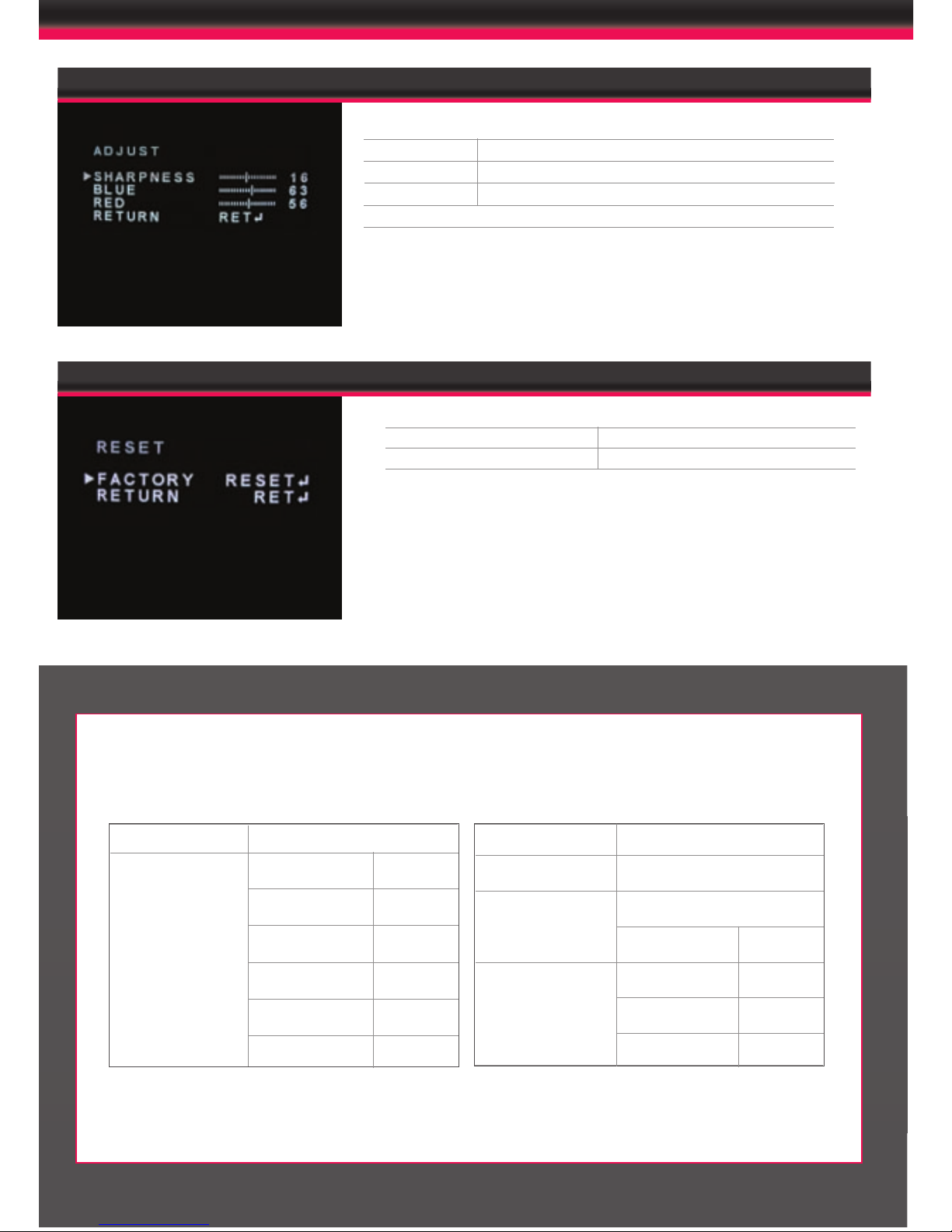

OSD FACTORY DEFAULT SETTINGS
ADJUST
SHARPNESS 0 - 31
BLUE 0 - 100
RED 0 - 100
RETURN
FACTORY
RETURN
RESET
FUNCTION STATUS
EXPOSURE SHUTTER AUTO
BRIGHTNESS 44
AGC MIDDLE
SENS-UP OFF
BLC OFF
D-WDR OFF
WHITE BALANCE AWB
DAY/NIGHT AUTO
3DNR ON
LEVEL 50
ADJUST SHARPNESS 16
BLUE 56
RED 56
Page 12

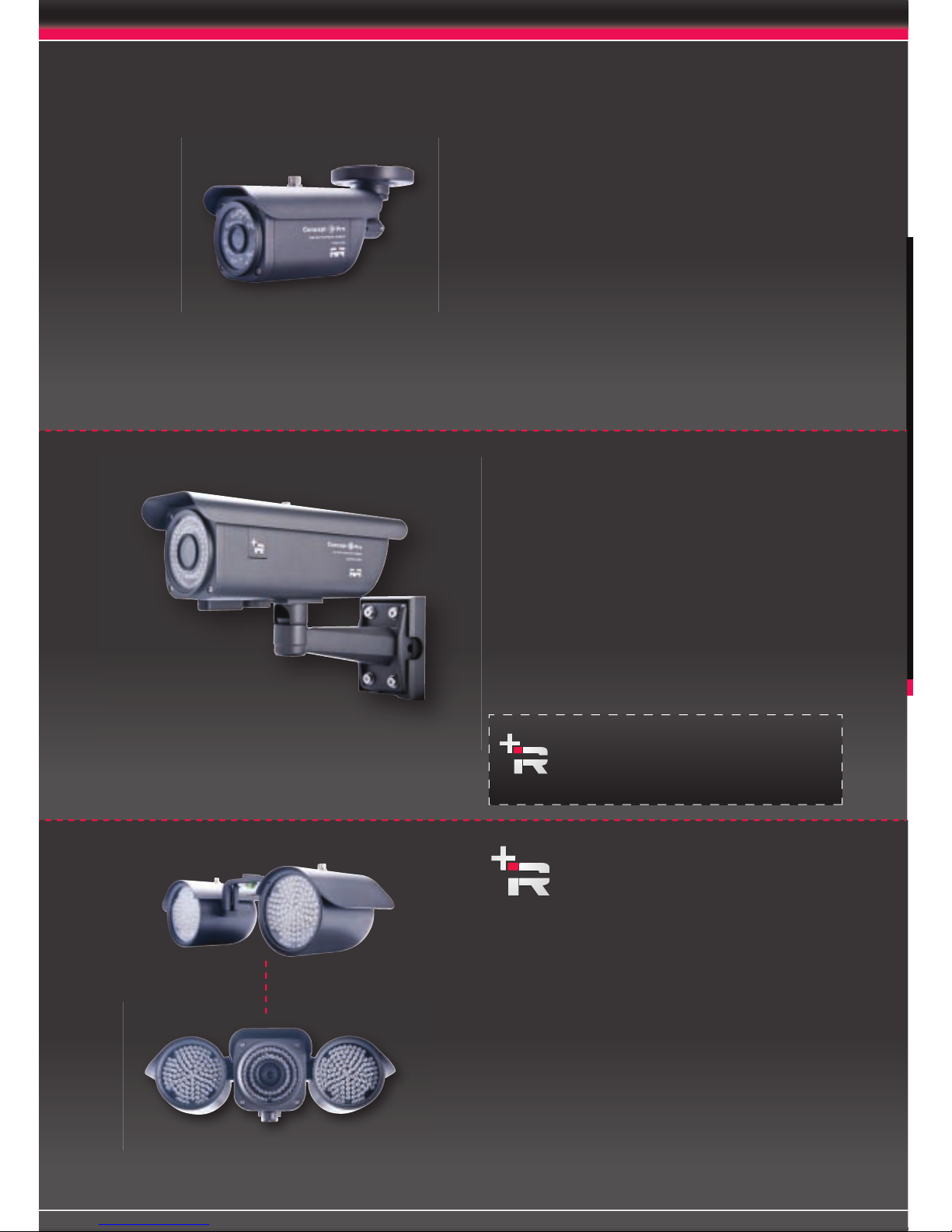

AIR15 Range
18 IR LEDs
420 TVL / 520 TVL Options
3.6mm / 6mm Fixed Lens Options
182 x 70 x 81mm (WxHxD)
AIR45 / 50 Range
60 IR LEDs
Varifocal Lens Options
Service Video Output Option
On Screen Display Option
External Lens / Zoom Adjustments
340 x 219 x 100mm (WxHxD)
AIR-IR
It is possible to extend the IR
range of the AIR 45/50 range
with an easy to attach bolt-on
twin IR lamp. The AIR-IR twin
lamp allows the camera unit to
view up to 80m.
Extend the IR range up to
80m with AIR-IR.
AIR CAMERA RANGE
Page 13
AIR3016
1/3" Sony Colour CCD
537 (H) × 597 (V)
420 TVL
0 Lux (IR LED ON)
≥48dB
AUTO Tracking
ON
ON
-
-
350mA (Max)
20~25M
(65.6~82ft) (Outdoor)
AIR3026
1/3" Sony Colour
High Resolution CCD
795H×596V
520TVL
0Lux
(42Pieces IR LED ON)
50dB
AUTO Tracking
ON
ON
-
-
-
380mA (Max)
25~30m
(82~98.3ft) (Outdoor)
AIR3026HG
1/3" Sony Colour
High Resolution CCD
795H×596V
600TVL Colour, 650TVL Mono
0Lux
≥52dB
Selectable
Selectable
Selectable
Selectable. Up to X256
Selectable
Selectable
380mA (Max)
25~30m
(82~98.3ft) (Outdoor)
Colour/Monochrome (Removable IR Cut Filter)
PAL
50Hz
15.625KHz
28.375MHz
2:1 Interlace
1/50-1/100,000s
3.5-8mm Varifocal IR Lens
0.45
1V p-p,75Ω
DC12V ±10%
202×85×118mm (7.95"×3.35"×4.65")
1300g (45.86oz)
-30°+60° (-22°+140°)
-30°+40° (-22°+104°)
Design and specification are subject to change without notice.
ITEM
Type
Signal System
Pick Up Device
Picture Elements
Resolution
Minimum Illumination
Vertical Frequency
Horizontal Frequency
Clock Frequency
Scanning System
S/N Ratio
Electronic Shutter
Lens
White Balance
Back Light
Auto Gain Control
Gamma
Sens-Up/ DSS
D-WDR
3 DNR
Video Out-put
Power Supply
Current Consumption
IR Effect Distance
Dimension
Weight
Storage Temperature
Operating Temperature
