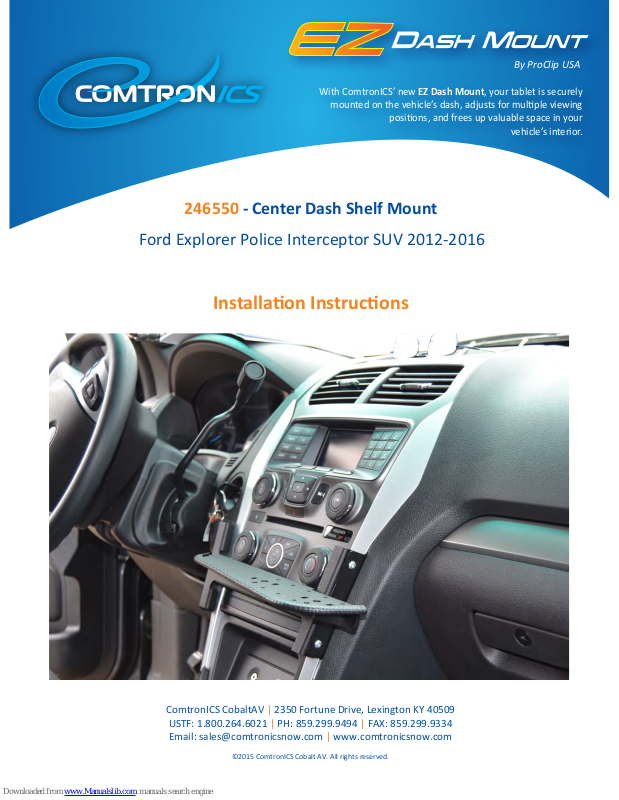

246550 - Center Dash Shelf Mount
Ford Explorer Police Interceptor SUV 2012-2016
Installaon Instrucons
ComtronICS CobaltAV | 2350 Fortune Drive, Lexington KY 40509
USTF: 1.800.264.6021 | PH: 859.299.9494 | FAX: 859.299.9334
Email: [email protected] | www.comtronicsnow.com
©2015 ComtronICS Cobalt AV. All rights reserved.
With ComtronICS’ new EZ Dash Mount, your tablet is securely
mounted on the vehicle’s dash, adjusts for mulple viewing
posions, and frees up valuable space in your
vehicle’s interior.
By ProClip USA
Page 2
1. Carefully remove both trim panels on each side of the center console as shown. Both panels are
very ght. Using a trim panel removal tool will help to avoid damage.
2. Remove all four retaining bolts securing the console control panel as shown.
Ford Explorer
Police Interceptor 2012-2016
By ProClip USA
Page 3
3. Remove the console control panel by firmly pulling at the top and boom.
4. Disconnect the wiring harness.
Ford Explorer
Police Interceptor 2012-2016
By ProClip USA
Page 4
5. Remove the two right hand bolts retaining the radio module
6. Align the right hand side plate as shown and refit the two bolts removed in step 5. Do not ghten
the bolts all the way.
Ford Explorer
Police Interceptor 2012-2016
By ProClip USA
Page 5
7. Fit and secure all three self tapping screws as shown in photo.
8. Repeat steps 5, 6 and 7 on the le side of the center console.
Ford Explorer
Police Interceptor 2012-2016
By ProClip USA
Page 6
9. Fully ghten all four radio module retaining bolts as shown.
10. Refit the wiring harness to the console control panel as shown.
Ford Explorer
Police Interceptor 2012-2016
By ProClip USA
Page 7
11. Refit the console control panel as shown.
12. Refit all four retaining bolts removed in step 2 securing the console control panel as shown.
Ford Explorer
Police Interceptor 2012-2016
By ProClip USA
Page 8
13. Refit the le and right trim molding as shown.
14. Fit the Front Plate as shown using the socket buoned head screws and locking washers.
Securely aach both the right and le side of the plate with the screws.
Ford Explorer
Police Interceptor 2012-2016
By ProClip USA
