MAGNEWAVE GEOAMP XT MANUAL
Manufactured by Comtel Systems Ltd., Edmonton, AB. 780-455-1945 www.bestpigtracker.com
The Magnewave Geoamp XT is a small but highly
effective acoustic amplifier that is purposely
designed to give optimal reception of oncoming
pigs in pipelines through the noises produced
by their passage.
PICTURE OF SHIRT POCKET SIZED GEOAMP
The Geoamp is built around a specially designed electronics circuit that features
very high signal sensitivity to the frequencies that are most required to detect
acoustic signals from geoprobes in position to detect travelling pigs in pipelines.
It is important that it also reject interfering signals and noises from a number of
objectionable sources, such as power lines, telephone lines, two way radio traffic,
wind noise, traffic noise and industrial plant noise. Our Geoamp is very good at
doing that, although it should be noted that no geoamp can exclude all noise if it
happens to fall right in the special frequencies needed to detect pigs in pipelines.

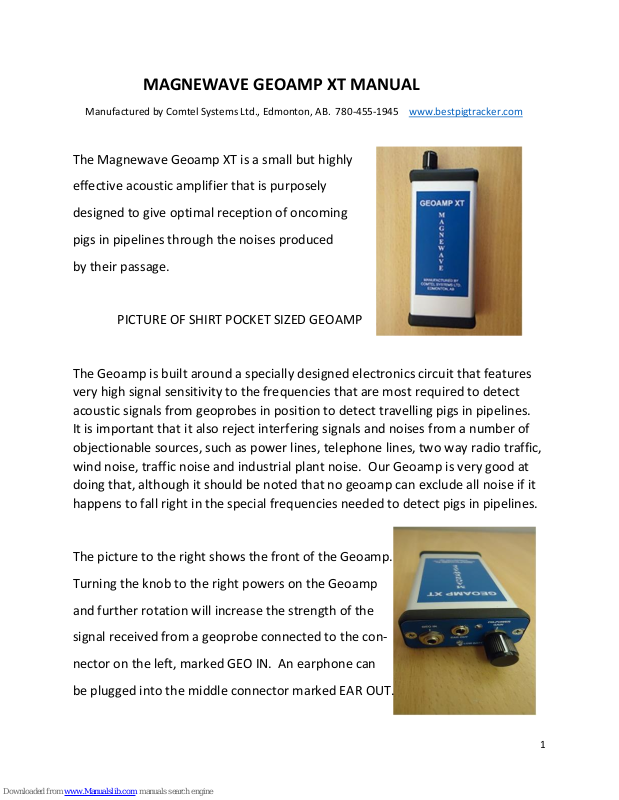

The picture to the right shows the front of the Geoamp.
Turning the knob to the right powers on the Geoamp
and further rotation will increase the strength of the
signal received from a geoprobe connected to the con-
nector on the left, marked GEO IN. An earphone can
be plugged into the middle connector marked EAR OUT.
Page 2
2
There are two LEDs on the front; one to indicate that
power is on and the other to indicate when the battery
needs to be replaced. It will blink when that condition
occurs. The picture at the right shows the quick change
out of the batteries made possible by simply tugging at
the black bezel. The 4 AAA Alkaline batteries are re-
placed when the compartment is pulled back.
Page 3
3
GEOPHONE SPECIFICATIONS
Super sensitive Geophone allows adjustable gain and excellent noise
reduction and filtering . Can be used with headphones or plugged into
vehicle radio/amplifier input for full speaker output.
Portable long life capability with 4 AAA-cell operation allows over 6
months of continuous operation. The geophone back plate can be simply
pulled to allow quick change-out of batteries.
High impact protected equipment case to carry complete Geoamp set
with geo probe and 50’ cable, headphones and 6 ‘ vehicle cable.
Extensive field testing to ensure optimization of incorporated technology
and exceptional operational performance.
CONDENSED RECEIVER SPECIFICATIONS
OPERATIONAL HOURS
> 6 months continuous operation
OPERATIONAL
TEMPERATURE
-15 deg. C to +30 deg. C (-5 deg. F to +86
deg. F)
Page 4
4
OPERATIONAL VOLTAGE
6.0 Volts: 4 AAA cell Alkaline.
GEO AMP DIMENSION
5.90 W x 2.2 L x 1.0 H inches
Front panel knob extension = 0.7 inches
WEIGHT
7 oz. (Batteries Included)
ACCESSORIES
• Geo amp
• Hi-Q headphones
• 50’ cable with geophone spike probe
• 6’ Stereo audio cable for vehicle audio
hook-up
• Solid shock resistant Carrying Case
All accessories listed come with the receiver
package and are available individually if
required. Other extension cables of
different lengths are available upon request.
WARRANTY
Magnewave equipment comes with a one
year manufacturer’s warranty. Freight on
Board (FOB) Edmonton, AB
