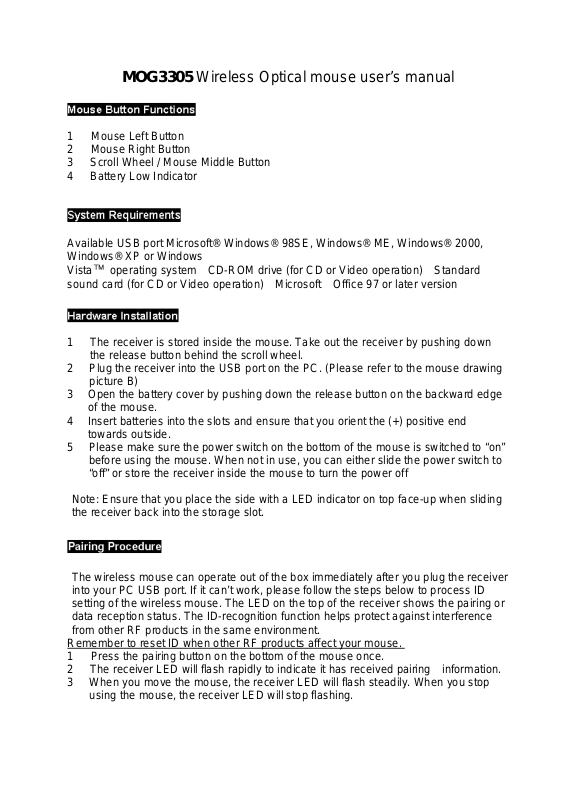

MOG3305 Wireless Optical mouse user’s manual
1 Mouse Left Button
2 Mouse Right Button
3 Scroll Wheel / Mouse Middle Button
4 Battery Low Indicator
Available USB port Microsoft® Windows® 98SE, Windows® ME, Windows® 2000,
Windows® XP or Windows
Vista™ operating system CD-ROM drive (for CD or Video operation) Standard
sound card (for CD or Video operation) Microsoft Office 97 or later version
1 The receiver is stored inside the mouse. Take out the receiver by pushing down
the release button behind the scroll wheel.
2 Plug the receiver into the USB port on the PC. (Please refer to the mouse drawing
picture B)
3 Open the battery cover by pushing down the release button on the backward edge
of the mouse.
4 Insert batteries into the slots and ensure that you orient the (+) positive end
towards outside.
5 Please make sure the power switch on the bottom of the mouse is switched to “on”
before using the mouse. When not in use, you can either slide the power switch to
“off” or store the receiver inside the mouse to turn the power off
Note: Ensure that you place the side with a LED indicator on top face-up when sliding
the receiver back into the storage slot.
The wireless mouse can operate out of the box immediately after you plug the receiver
into your PC USB port. If it can’t work, please follow the steps below to process ID
setting of the wireless mouse. The LED on the top of the receiver shows the pairing or
data reception status. The ID-recognition function helps protect against interference
from other RF products in the same environment.
Remember to reset ID when other RF products affect your mouse.
1 Press the pairing button on the bottom of the mouse once.
2 The receiver LED will flash rapidly to indicate it has received pairing information.
3 When you move the mouse, the receiver LED will flash steadily. When you stop
using the mouse, the receiver LED will stop flashing.
Page 2
1 The mouse can work only on a clean, flat, and non-slippery surface in order to
ensure smooth and accurate cursor action.
2 This optical mouse senses light to detect mouse’s movement. When it works on the
glass, translucent, reflective, or dark-colored surface, the mouse movement may be
affected sometimes.
1 We recommend using alkaline batteries for a longer battery life.
2 Don't mix different types of batteries or new and old batteries together. Always
replace old batteries with new and same type batteries.
3 Remove batteries after long periods of non-use. Battery leakage or corrosion may
damage the device quality and cause danger.
4 Battery low Alarm:
- When the mouse battery is low, the RED LED indicator behind mouse scroll
wheel will blink when the mouse is moved. Please change batteries
immediately when the RED LED indicator lights up to ensure the good use
of this mouse. After you change the batteries, the RED LED indicator will
disappear.
FCC Guidelines
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions may cause harmful interference
toradio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can bedetermined by turning the equipment off
and on, the user is encouraged to try to correct the interference byone or more of the
following measures:
Reorient or relocate the receiving antenna. Increase the separation between the
equipment and receiver. Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected. Consult the dealer or an experienced
radio/TV technician for help. Use only shielded cables to connect I/O devices to this
equipment.
FCC Warning: This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause harmful
interference, (2) this device must accept any interference received, including
interference that may cause undesired operation.
Information to user: The users manual or instruction manual for an intentional or
unintentional radiator shall caution the user that changes or modifications not
expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
Shielded interface cable, if any, must be used in order to comply with emission limits.
